1. Cloud Native Business Automation
With Activiti Cloud
jdk.io

2. Activiti Cloud
activiti.org
Gitter: Activiti/Activiti7
Twitter:
• @activiti
• @salaboy
• @ryandawsongb
Github:
• Activiti
• ryandawsonuk
• erdemedeiros
Ryan Dawson Elias De Medeiros

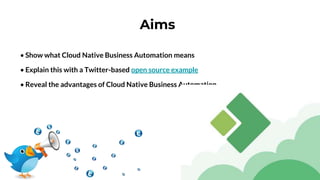

3. Aims
• Show what Cloud Native Business Automation means
• Explain this with a Twitter-based open source example
• Reveal the advantages of Cloud Native Business Automation

4. Agenda
● Business process Automation - BPM & BPMN
● Trending topics example
● Monolith vs Microservices
● Activiti Cloud Architecture
● Activiti Connectors
● Query and Audit modules
● The future

5. BPM & BPMN

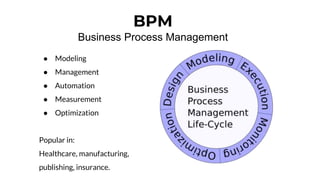

6. BPM
Business Process Management
● Modeling
● Management
● Automation
● Measurement
● Optimization
Popular in:
Healthcare, manufacturing,
publishing, insurance.

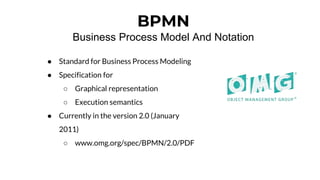

7. BPMN
Business Process Model And Notation
● Standard for Business Process Modeling
● Specification for
○ Graphical representation
○ Execution semantics
● Currently in the version 2.0 (January
2011)
○ www.omg.org/spec/BPMN/2.0/PDF

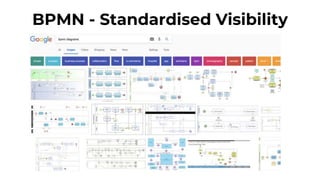

8. BPMN - Standardised Visibility

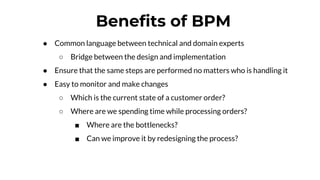

9. Benefits of BPM
● Common language between technical and domain experts
○ Bridge between the design and implementation
● Ensure that the same steps are performed no matters who is handling it
● Easy to monitor and make changes
○ Which is the current state of a customer order?
○ Where are we spending time while processing orders?
■ Where are the bottlenecks?
■ Can we improve it by redesigning the process?

10. Trending topics
example

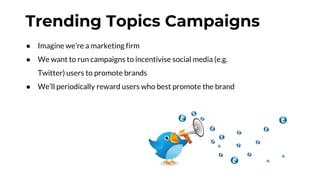

11. Trending Topics Campaigns
● Imagine we’re a marketing firm
● We want to run campaigns to incentivise social media (e.g.
Twitter) users to promote brands
● We’ll periodically reward users who best promote the brand

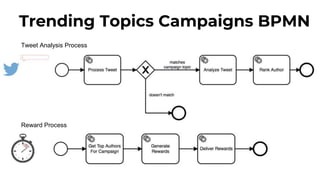

12. Trending Topics Campaigns BPMN
Reward Process
Tweet Analysis Process

13. Design ->
Implementation

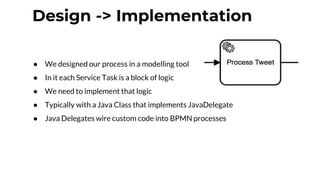

14. Design -> Implementation
● We designed our process in a modelling tool
● In it each Service Task is a block of logic
● We need to implement that logic
● Typically with a Java Class that implements JavaDelegate
● Java Delegates wire custom code into BPMN processes

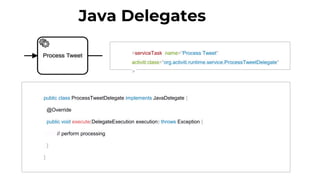

15. Java Delegates
<serviceTask name="Process Tweet"
activiti:class="org.activiti.runtime.service.ProcessTweetDelegate"
>
public class ProcessTweetDelegate implements JavaDelegate {
@Override
public void execute(DelegateExecution execution) throws Exception {
// perform processing
}
}

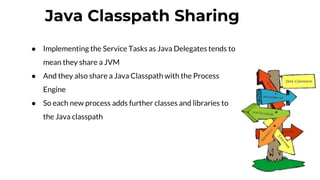

16. Java Classpath Sharing
● Implementing the Service Tasks as Java Delegates tends to
mean they share a JVM
● And they also share a Java Classpath with the Process
Engine
● So each new process adds further classes and libraries to
the Java classpath

17. Monolith vs Microservices
● Single JVM = monolith
● This constrains us if we want to:
○ scale parts independently
○ exploit fault-tolerance using replicas
○ release components independently ...

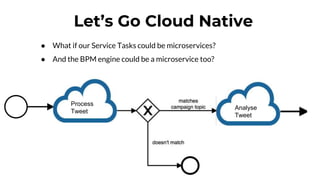

18. Let’s Go Cloud Native
● What if our Service Tasks could be microservices?
● And the BPM engine could be a microservice too?
Process
Tweet
Process
Tweet
Analyse
Tweet

19. Activiti 7
Principles/Approaches
● 12 factors App
● Domain Driven Design
Tools/frameworks
● Spring Boot 2.0
● Spring Cloud
● Docker
● Kubernetes
● Helm

20. Getting the most from Kubernetes

21. Activiti Cloud
Architecture

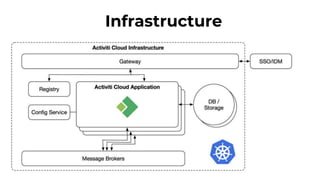

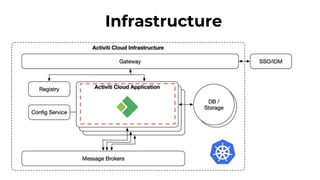

22. Infrastructure

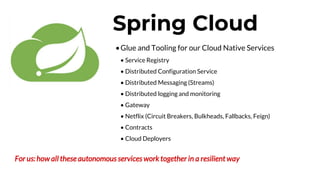

23. For us: how all these autonomous services work together in a resilient way
•Glue and Tooling for our Cloud Native Services
• Service Registry
• Distributed Configuration Service
• Distributed Messaging (Streams)
• Distributed logging and monitoring
• Gateway
• Netflix (Circuit Breakers, Bulkheads, Fallbacks, Feign)
• Contracts
• Cloud Deployers
Spring Cloud

24. Infrastructure

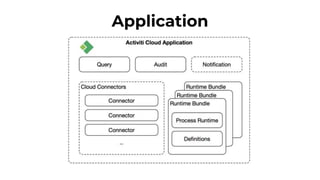

25. Application

26. Application

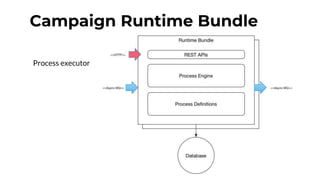

27. Campaign Runtime Bundle
Process executor

28. Runtime Bundle Implementation
● Spring boot app
● Maven dep to add starter
● Processes in src/main/resources
● Maven dep for DB
● Spring Cloud Stream config
● Message to stream starts process

29. Activiti Connectors

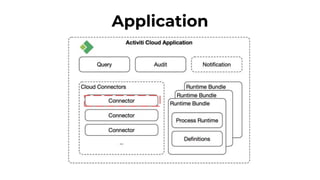

30. Application

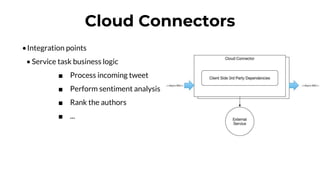

31. Cloud Connectors
•Integration points
• Service task business logic
■ Process incoming tweet
■ Perform sentiment analysis
■ Rank the authors
■ ...

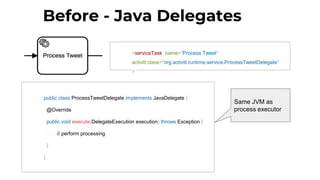

32. Before - Java Delegates
<serviceTask name="Process Tweet"
activiti:class="org.activiti.runtime.service.ProcessTweetDelegate"
>
public class ProcessTweetDelegate implements JavaDelegate {
@Override
public void execute(DelegateExecution execution) throws Exception {
// perform processing
}
}
Same JVM as
process executor

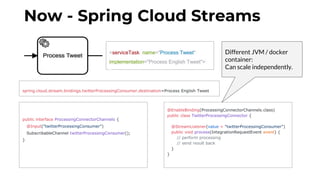

33. Now - Spring Cloud Streams
<serviceTask name="Process Tweet"
implementation="Process English Tweet">
@EnableBinding(ProcessingConnectorChannels.class)
public class TwitterProcessingConnector {
@StreamListener(value = "twitterProcessingConsumer")
public void process(IntegrationRequestEvent event) {
// perform processing
// send result back
}
}
spring.cloud.stream.bindings.twitterProcessingConsumer.destination=Process English Tweet
public interface ProcessingConnectorChannels {
@Input("twitterProcessingConsumer")
SubscribableChannel twitterProcessingConsumer();
}
Different JVM / docker
container:
Can scale independently.

34. So What Does Our Architecture
Look Like Now?

35. Campaign Processes Recap
Reward Process
Tweet Analysis Process

36. Process Architecture
● Messages to Runtime Bundle
start processes
● Runtime bundle executes
process according to the BPMN
● Calls out to connectors
● Ranking connector used by both
processes
● Further components (not shown)
add supplementing services
(query, gateway etc.)

37. Query and Audit
modules

38. Application

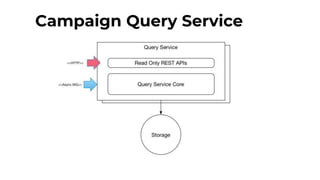

39. Campaign Query Service

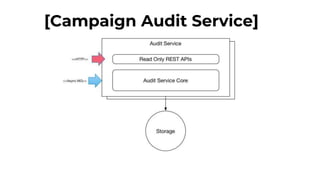

40. [Campaign Audit Service]

41. Demo

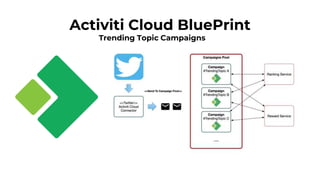

42. Activiti Cloud BluePrint
Trending Topic Campaigns

43. Services Build Through Jenkins-X

44. Services Promoted Through Helm
● Jenkins X uses a git repo to represent the environment.
● This maps to a namespace (in this case staging)
● Kubectl get pods in that namespace shows us what’s
running:

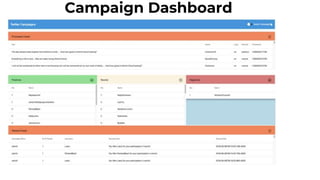

45. Campaign Dashboard

46. The future

47. Look into the
Future•Jenkins X (in progress)
•Spring Cloud Kubernetes (in progress)
•Istio Service Mesh (about to start)
•JHipster (in progress)
•JHipster
The Future

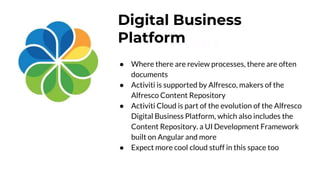

48. Look into the
Future
Digital Business
Platform
● Where there are review processes, there are often
documents
● Activiti is supported by Alfresco, makers of the
Alfresco Content Repository
● Activiti Cloud is part of the evolution of the Alfresco
Digital Business Platform, which also includes the
Content Repository. a UI Development Framework
built on Angular and more
● Expect more cool cloud stuff in this space too

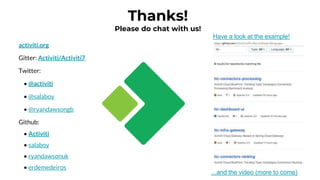

49. Thanks!
Please do chat with us!
activiti.org
Gitter: Activiti/Activiti7
Twitter:
• @activiti
• @salaboy
• @ryandawsongb
Github:
• Activiti
• salaboy
• ryandawsonuk
• erdemedeiros
Have a look at the example!
...and the video (more to come)
