The document discusses the importance of measuring performance metrics throughout the software development lifecycle from testing to production. It argues that performance should be a quality gate for software releases. Key points made include that unit and integration tests could measure performance metrics; acceptance and load tests are important for performance but are later in the cycle; and performance should be incorporated into continuous delivery processes with automated collection and analysis of metrics across builds.

1. 1 #Dynatrace
gottesheim
wolfgang.gottesheim@dynatrace.com
Wolfgang Gottesheim
Performance Metrics for
your Delivery Pipeline
JAX London, October 14

2. 2
#Dynatrace
HOW
WEBSITE
Is 10PM a good time
to find out about performance problems?

3. 3
#Dynatrace
When do YOUfind performance problems?

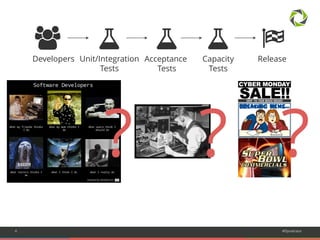

4. 44 #Dynatrace
? ? ?
Unit/Integration
Tests
Acceptance
Tests
Capacity
Tests
Developers Release

5. 5 #Dynatrace

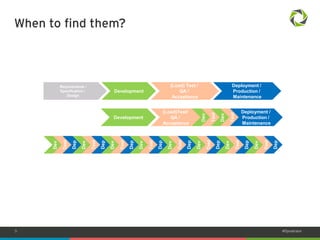

When to find them?
Requirements /
Specification /
Design
(Load) Test /
QA /
Acceptance
Deployment /
Production /
Maintenance
Development
(Load)Test/
QA /
Acceptance
Dev
Test
Development
Dev
Test
Deployment /
Production /
Maintenance
Dev
Test
Dep
Dev
Test
Dep
Dev
Test
Dep
Dev
Test
Dep
Dev
Test
Dep
Dev
Test
Dep
Dev
Test
Dep
Dev
Test
Dep

6. 6 #Dynatrace

7. 7 #Dynatrace
The Challenge
» Performance is not a band aid!
» Architecture has enormous influence!
 You have to continuously ensure your
performance requirements are met!
"I couldn't help but notice your pain."
"My pain?"
"It runs deep. Share it with me!"
(Star Trek V)

8. 8
#Dynatrace
“But we have tests”

9. 9 #Dynatrace

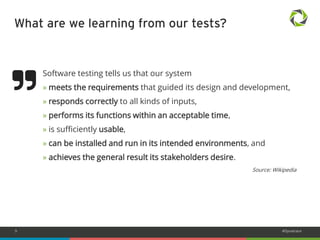

Software testing tells us that our system
» meets the requirements that guided its design and development,
» responds correctly to all kinds of inputs,
» performs its functions within an acceptable time,
» is sufficiently usable,
» can be installed and run in its intended environments, and
» achieves the general result its stakeholders desire.
Source: Wikipedia
What are we learning from our tests?

10. 10 #Dynatrace

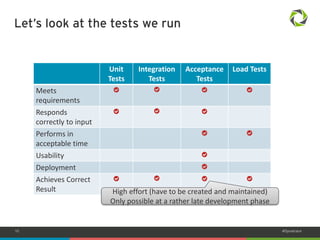

Let’s look at the tests we run
Unit
Tests
Integration
Tests
Acceptance
Tests
Load Tests
Meets
requirements
Responds
correctly to input
Performs in
acceptable time
Usability
Deployment
Achieves Correct
Result High effort (have to be created and maintained)
Only possible at a rather late development phase

11. 11 #Dynatrace

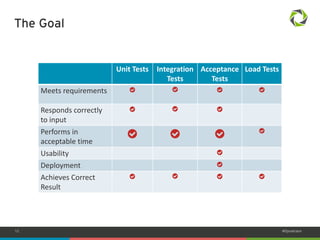

12. 12 #Dynatrace
The Goal
Unit Tests Integration
Tests
Acceptance
Tests
Load Tests
Meets requirements
Responds correctly
to input
Performs in
acceptable time
Usability
Deployment
Achieves Correct
Result

13. 13 #Dynatrace
What you usually get
Measuring Performance of
Unit and Integration Tests
[junit] Running com.dynatrace.sample.tests.FastUnitTest
[junit] Tests run: 15, Failures: 0, Errors: 0, Time elapsed: 34 sec
[junit] Running com.dynatrace.sample.tests.SlowUnitTest
[junit] Tests run: 17, Failures: 0, Errors: 1, Time elapsed: 2,457 sec

14. 1144 #Dynatrace

15. 15 #Dynatrace

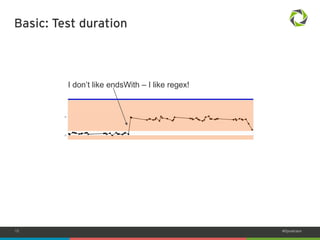

Basic: Test duration
I don’t like endsWith – I like regex!

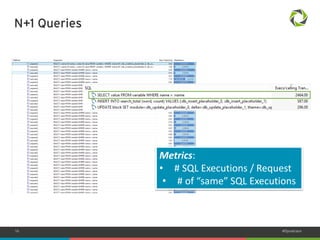

16. 16 #Dynatrace
N+1 Queries
Metrics:
• # SQL Executions / Request
• # of “same” SQL Executions

17. 17 #Dynatrace

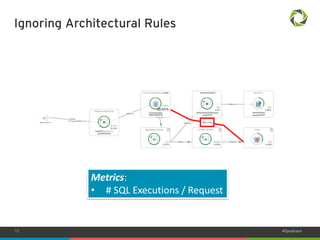

Ignoring Architectural Rules
Metrics:
• # SQL Executions / Request

18. 18 #Dynatrace
High Number of Requests to Backend System
Metrics:
• # Calls to 3rd party system

19. 19 #Dynatrace

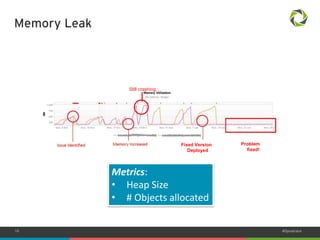

Memory Leak
Still crashing…
Problem
fixed!
Fixed Version
Deployed
Metrics:
• Heap Size
• # Objects allocated

20. 20 #Dynatrace

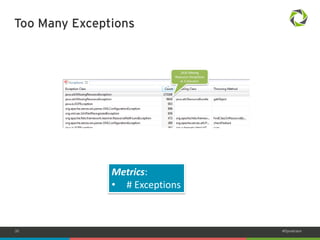

Too Many Exceptions
Metrics:
• # Exceptions

21. 21 #Dynatrace
Unnecessary work
Caching framework updates
content that is never used

22. 22
#Dynatrace

23. 23 #Dynatrace

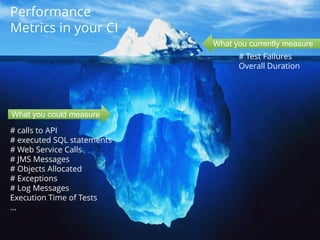

What you currently measure
What you could measure
Performance
Metrics in your CI
# Test Failures
Overall Duration
# calls to API
# executed SQL statements
# Web Service Calls
# JMS Messages
# Objects Allocated
# Exceptions
# Log Messages
Execution Time of Tests
…

24. 24
#Dynatrace
We should not forget about ACCEPTANCE tests

25. 25 #Dynatrace

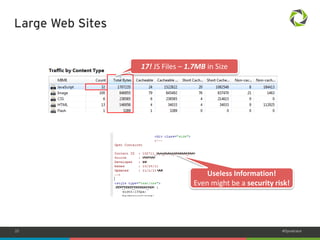

Large Web Sites
17! JS Files – 1.7MB in Size
Useless Information!
Even might be a security risk!

26. 26 #Dynatrace
Missing Resources Cause Delays
46! HTTP 403 Requests for
images on the landing page
Lots of time “wasted” due to
roundtrips that just result in a 403
Metrics: HTTP 4xx & 5xx
Total Number of Resources

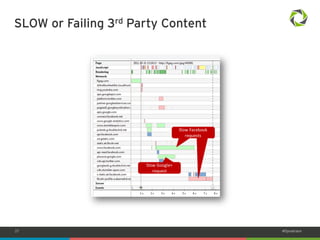

27. 27 #Dynatrace
SLOW or Failing 3rd Party Content

28. 28 #Dynatrace

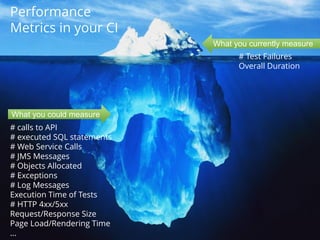

What you currently measure
What you could measure
Performance
Metrics in your CI
# Test Failures
Overall Duration
# calls to API
# executed SQL statements
# Web Service Calls
# JMS Messages
# Objects Allocated
# Exceptions
# Log Messages
Execution Time of Tests
# HTTP 4xx/5xx
Request/Response Size
Page Load/Rendering Time
…

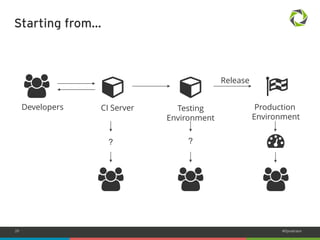

29. 29 #Dynatrace
Starting from…
Production
Environment
Developers CI Server Testing
Environment
Release
? ?

30. 30 #Dynatrace

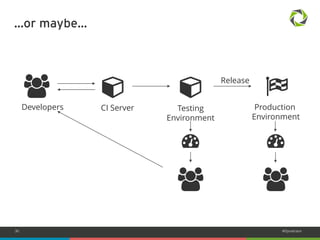

…or maybe…
Production
Environment
Developers CI Server Testing
Environment
Release

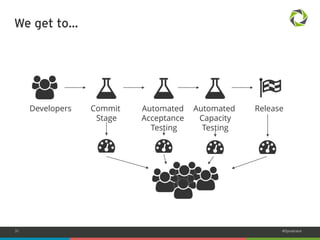

31. 31 #Dynatrace
We get to…
Commit
Stage
Automated
Acceptance
Testing
Automated
Capacity
Testing
Developers Release

32. 32 #Dynatrace

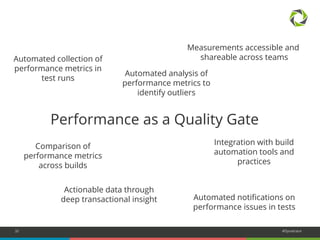

Performance as a Quality Gate
Automated collection of
performance metrics in
test runs
Comparison of
performance metrics
across builds
Automated analysis of
performance metrics to
identify outliers
Automated notifications on
performance issues in tests
Measurements accessible and
shareable across teams
Actionable data through
deep transactional insight
Integration with build
automation tools and
practices

33. 33 #Dynatrace

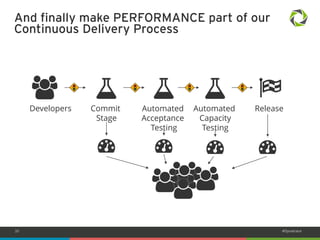

And finally make PERFORMANCE part of our
Continuous Delivery Process
Commit
Stage
Automated
Acceptance
Testing
Automated
Capacity
Testing
Developers Release

34. 34
#Dynatrace
Performance
Scalability

35. 35
#Dynatrace
Collaborate
Verify
Measure

36. 3366 #Dynatrace
When CAN we find
performance problems?

37. 3377 #Dynatrace

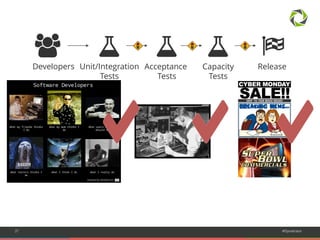

Unit/Integration
Tests
Acceptance
Tests
Capacity
Tests
Developers Release

38. 38 #Dynatrace

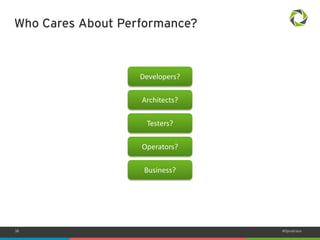

Who Cares About Performance?
Developers?
Architects?
Testers?
Operators?
Business?

39. 39 #Dynatrace

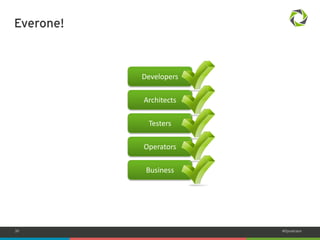

Everone!
Developers
Architects
Testers
Operators
Business

40. 40
#Dynatrace
But remember:

41. 41
#Dynatrace
Check out our trial
http://bit.ly/jaxtrial
Stop by the Dynatracebooth!
