JavaFX is a next-generation UI toolkit developed as an open-source project for high-performance, data-centric rich Internet applications. It offers a wide range of features including hardware-accelerated graphics, CSS styling, and support for 3D and web content, aiming to overcome the limitations of previous Java UI technologies like Swing. With a focus on cross-platform development, JavaFX is suitable for desktop and mobile applications, leveraging community support for broader device compatibility.

1. DevelopersInsight
JavaFX, with its rich set of APIs and Oracle’s committed support, is a natural choice for
high performance, data-centric rich Internet applications. A vibrant JavaFX community
continues to develop and support JavaFX porting on mobile platforms.
W
rite once, run everywhere (WORA) was the Java
punch line for decades, and it helped companies
save millions of dollars which otherwise would
have been spent on porting the same application on different
platforms. This capability was part of the reason behind Java’s
unprecedented success. Java toolkits for user interface (UI)
development also follow the same pattern. The AWT library
introduced in 1995 for UI development was based on the
same philosophy. This library was dependent on native calls
for drawing objects. Native dependency in a multi-threading
environment caused lock contentions, leading to deadlocks
and heavy utilisation of system resources. The look and feel
of such applications depended on the native platform and was
not uniform across platforms.
Swing was the next UI toolkit to address these issues.
Swing became very popular and was a platform of choice
for desktop application development. This continued till the
popularity of Web applications caught on, changing the way
a UI was used and designed. A large number of desktop
applications in manufacturing, automotive, banking, software
development IDEs and the healthcare domain continue to
largely use Swing based applications. However, Swing
uses the event dispatch thread for both event dispatch and
rendering, thus limiting the hardware acceleration benefits
on modern multi-core systems and also lacks efficient 3D
libraries, animation, charts and media.
As we progressed in time, use of browser-based Web
applications increased tremendously and other computing
devices such as tablets, smartphones, set-top boxes, etc,
became more powerful in terms of processing power and
memory. The changed scenario demanded a common
development platform which could integrate rich Internet
features into the desktop environment and support a cross-
platform, cross-device programming environment. JavaFX
was the answer to this requirement.
JavaFX 1.0 was launched by Sun Microsystems (acquired
by Oracle in 2010) in 2008 as the next generation UI toolkit
and aimed to become the successor of Swing. It was designed
to leverage new age GPUs with hardware acceleration
capabilities and added support for 3D, animation, media,
WebView and CSS style. JavaFX1.0 was a script based
language for the Java platform that could interoperate with it.
JavaFX 2.0 was completely based on the Java API allowing
any Java developer to use it with the IDE. JavaFX by Oracle
is available for desktop application development and on
mobile devices by community support.
JavaFX: A Rich Internet Application
(RIA) Development Platform
www.OpenSourceForU.com | OPEN SOURCE For You | july 2016 | 67

2. Developers Insight
The development model and the
open source community
JavaFX is a next-generation client UI toolkit primarily
for desktop and embedded devices. It is developed as an
open source project, OpenJFX, through contributions from
individuals and other companies along the lines of OpenJDK.
OpenJFX is free software licensed under the GPL with the
class path exception, just like OpenJDK. It is one of the
projects beneath the charter of OpenJDK and creates JavaFX
libraries as jar files. It is packaged with standard JDK and
Java Runtime Environment (JRE), and shipped along with
Oracle JDK releases.
JavaFX development is done under the OpenJFX project
by individual contributors and companies. Anyone can
contribute to JavaFX development; however, the contribution
follows a set procedure under which the submitted code is
reviewed by the community via open source mailing lists.
Review is strictly done on the lines of OpenJDK guidelines
and bylaws. Anybody is allowed to download the code, which
is a mix of native and Java code, use it in applications or
port it to other platforms as well. It is supported on Windows
32/64-bit, Linux 32/64-bit and Mac OS X. The mailing list
for OpenJFX development is openjfx-dev, which can be
subscribed to at the OpenJFX Wiki.
Building and testing
The JavaFX build system uses Mercurial as the source
control system and Gradle for building the libraries.
Anyone having Windows, Linux or Mac OS X can install
Mercurial and extract the source code for JavaFX, the
builds of which are fairly complex. These require a set of
native compilers and open source tools, for which detailed
instructions can be obtained on the OpenJFX Wiki. Post
extraction, JavaFX can be locally built and tested. An open
source test repository can be used for running regression
and the proposed changes. JavaFX product issues can be
viewed and filed using the bug database. Anyone willing
to contribute patches or enhancements can view open bugs
and submit them to the OpenJFX community by following
instructions in the Wiki.
Stable JavaFX sources matching JDK8 update releases
can be extracted using the 8u-dev branch and the Mercurial
command, as follows:
hg clone http://hg.openjdk.java.net/openjfx/8u-dev/rt
The active development stream targeted for JDK9 can be
extracted using:
hg clone http://hg.openjdk.java.net/openjfx/9-dev/rt
The first and simplest task to build JavaFX is sdk.
The sdk task will compile all Java sources and native sources
for your target platform. It will create the appropriate sdk
directory, and populate it with the native dynamic libraries
and jfxrt.jar. JavaFX builds are also supported for cross-
builds using Gradle configuration files. Gradle allows you
to build JavaFX libraries for platforms which are different
from the host platform. It also supports unit testing of the
JavaFX build using test tasks. This runs all the unit tests
associated with delta changes in the build. Gradle will
re-execute only those tests that have changed, or were
dependent on code that was changed on subsequent runs.
You can, of course, execute Gradle CleanTest to clean all
the test results so that they run afresh.
JavaFX architecture

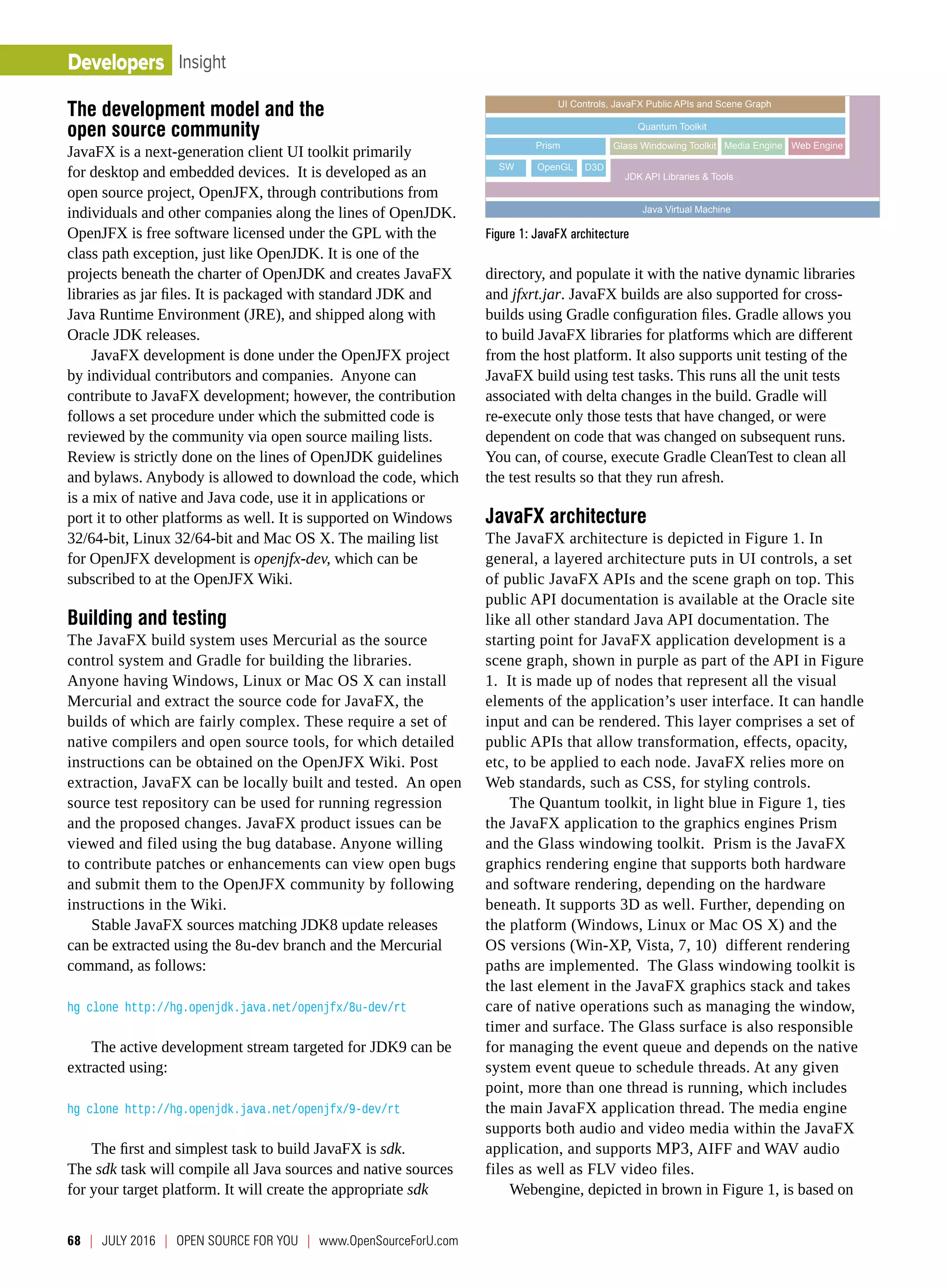

The JavaFX architecture is depicted in Figure 1. In
general, a layered architecture puts in UI controls, a set
of public JavaFX APIs and the scene graph on top. This
public API documentation is available at the Oracle site
like all other standard Java API documentation. The
starting point for JavaFX application development is a
scene graph, shown in purple as part of the API in Figure
1. It is made up of nodes that represent all the visual
elements of the application’s user interface. It can handle
input and can be rendered. This layer comprises a set of
public APIs that allow transformation, effects, opacity,
etc, to be applied to each node. JavaFX relies more on
Web standards, such as CSS, for styling controls.
The Quantum toolkit, in light blue in Figure 1, ties
the JavaFX application to the graphics engines Prism
and the Glass windowing toolkit. Prism is the JavaFX
graphics rendering engine that supports both hardware
and software rendering, depending on the hardware
beneath. It supports 3D as well. Further, depending on
the platform (Windows, Linux or Mac OS X) and the
OS versions (Win-XP, Vista, 7, 10) different rendering
paths are implemented. The Glass windowing toolkit is
the last element in the JavaFX graphics stack and takes
care of native operations such as managing the window,
timer and surface. The Glass surface is also responsible
for managing the event queue and depends on the native
system event queue to schedule threads. At any given
point, more than one thread is running, which includes
the main JavaFX application thread. The media engine
supports both audio and video media within the JavaFX
application, and supports MP3, AIFF and WAV audio
files as well as FLV video files.
Webengine, depicted in brown in Figure 1, is based on
UI Controls, JavaFX Public APIs and Scene Graph
Glass Windowing Toolkit
OpenGL D3D
JDK API Libraries & Tools
Java Virtual Machine
Web Engine
SW
Media Engine
Quantum Toolkit
Prism
Figure 1: JavaFX architecture
68 | july 2016 | OPEN SOURCE For You | www.OpenSourceForU.com

3. DevelopersInsight
webkit.org. It is open source and provides the ability to render
Web pages embedded in the JavaFX application. It supports
HTML5, CSS, Java-Script, DOM and SVG.
Major JavaFX features
The main features of JavaFX are listed below.
ƒƒ Availability: The JavaFX APIs are available as part of the
Java Runtime Environment (JRE) and Java Distribution
Kit (JDK) distribution, and do not require any special
configuration to be used in applications. These APIs can
directly call other Java APIs used in the application or
business logic implementation layer.
ƒƒ Scene graph model: JavaFX is based on a scene graph
model, where UI elements such as buttons, labels, text
fields, etc, can be defined as hierarchical structures and
transforms can be applied to position elements. Scene graph
allows UI creation with much less effort than Swing and
gives high performance, using the hardware accelerated
graphics pipeline especially crucial for 3D animation.
ƒƒ CSS styling of UI controls: JavaFX provides all the UI
controls needed to design a full-featured application.
As of JavaFX 8, all the controls can be styled using
CSS, similar to HTML page styling. The root node can
be styled to give a new look to the entire frame without
changing any Java code.
ƒƒ WebView: This is a Web component which allows
you to embed Web pages in the JavaFX application. It
is based on the open source browser engine, Webkit,
and supports the latest HTML5, CSS, JavaScript and
additional features such as Web socket, Web workers,
Web fonts and printing capabilities.
ƒƒ Swing interoperability: JavaFX introduces the
SwingNode class, using which Swing contents can
be embedded in JavaFX. In the same way, Swing
applications can embed JavaFX using the JFXPanel.
ƒƒ Charts: JavaFX has a rich package that includes several
chart types: pie charts, bar charts, line charts, bubble
charts, scatter charts, area charts, stacked area charts,
stacked bar charts, etc.
ƒƒ 3D graphics: JavaFX has introduced Shape3D APIs,
which support Box, Cylinder, Mesh View and Sphere sub-
classes; SubScene, Material, PickResult, LightBase
(AmbientLight and PointLight) sub-classes, etc.
The Camera API class has also been updated in this release.
JavaFX versus Swing versus HTML5/CSS3
Swing was a UI technology developed in the 90s. It does
not offer support for touch, animation and data binding. It
has no support for WebView and media as well. JavaFX
addresses all these shortcomings. Its differentiating
feature, scene graph, is at the core of the API. UI widgets
are thus like any other node in the scene graph and can
be animated, transformed, filtered and can leverage
customised event handling.
JavaFX content can be embedded in Swing applications
using JFXPanel. All user input events (key, mouse, and
focus events) are transparently forwarded to the JavaFX
scene. Similarly, a customised Swing component can be
embedded in JavaFX with the SwingNode control. This
option allows users to keep Swing working but still migrate
to the JavaFX world.
A combination of HTML5 and CSS3 is a good platform
for cross-platform UI development. This is especially
true with the new HTML5 and Apache Caradova, where
the entire application logic can be written in JavaScript,
avoiding any server side development needed in JSP, JSF,
etc. This kind of development falls under native HTML5
application development, which is run with the help of
WebView, using an embedded browser. But when it comes
to large data handling and integration of applications
with the server, JavaFX has an advantage. Server side
communication in JavaFX is supported by Websocket, REST
or JSON processing, whereas HTML5/CSS3 depends on
native support of REST and Websocket. JavaFX applications
integrate with server side Java comparatively more easily,
needing the same set of Java skills.
HTML5 development challenges include the inability
to recover from fatal errors, different approaches to
defining classes, and no IDE coding support and threading
– Web workers cannot update the document object model
(DOM). JavaFX challenges include mobile support and
interaction with hardware. HTML5, with features such
as 2D Canvas, webgl, CSS3 (WebFonts, transformations
and CSS animation), remains a good option for hybrid
mobile apps and native mobile application development.
Charts
Rich UI
Control WebView
JavaFX
2D/3D
Graphics
Support
Swing
Interop.
CSS Like
Styling
Figure 2: JavaFX features
www.OpenSourceForU.com | OPEN SOURCE For You | july 2016 | 69

4. Developers Insight
JavaFX, with its strong integration with Java, WebView
and animation features, is a very good option for cross-
platform desktop application development. For example,
a space research company like NASA that needs to analyse
a large amount of data to display celestial objects and their
movements, cannot be supported on the Web. HTML5 and
JavaFX address different segments of applications with a
little overlap.
Developing applications with JavaFX
JavaFX can be used in all types of business applications
including those with databases at the server side as the
backend, as well as Internet applications with thin and thick
clients. In all the cases, server side implementations can
be in Java, with the JavaFX client communicating with the
server using network protocols. It can also be used to create
a media centre. JavaFX applications run on desktops on top
of the native operating system with a compatible JRE. To
overcome the necessity of JRE, JavaFX also provides a tool
that packages the necessary Java Runtime to the application,
which can be deployed independently.
JavaFX makes more sense when there is a need for
highly customised interfaces and large data management
requirements, especially for enterprise applications
intended for focused user sets. The high requirement of
data visualisation involves way too much information for a
browser to manage. The beauty of JavaFX is its ability to
build these software tools with a small, modern, manageable
code base. There have been a large number of successful
commercial applications developed and deployed in the field
of healthcare, automotive, hospitals and finance.
An example of JavaFX code using WebView
The following example illustrates the WebView feature
of JavaFX, which opens a mini browser and displays the
oracle.com site in it. The source code below should be
saved in the file WebViewSample.java, compiled using
javac (javac WebViewSample.java) and run using Java (java
WebViewSample).
import javafx.application.Application;
import javafx.geometry.HPos;
import javafx.geometry.VPos;
import javafx.scene.Node;
import javafx.scene.Scene;
import javafx.scene.layout.HBox;
import javafx.scene.layout.Priority;
import javafx.scene.layout.Region;
import javafx.scene.paint.Color;
import javafx.scene.web.WebEngine;
import javafx.scene.web.WebView;
import javafx.stage.Stage;
public class WebViewSample extends Application {
private Scene scene;
@Override public void start(Stage stage) {
// create the scene
stage.setTitle(“Web View”);
scene = new Scene(new Browser(),900,600);
stage.setScene(scene);
scene.getStylesheets().add(“webviewsample/
BrowserToolbar.css”);
stage.show();
}
public static void main(String[] args){
launch(args);
}
}
class Browser extends Region {
final WebView browser = new WebView();
final WebEngine webEngine = browser.getEngine();
public Browser() {
//apply the styles
getStyleClass().add(“browser”);
// load the web page
webEngine.load(“http://www.oracle.com/products/index.
html”);
//add the web view to the scene
getChildren().add(browser);
}
private Node createSpacer() {
Region spacer = new Region();
HBox.setHgrow(spacer, Priority.ALWAYS);
return spacer;
}
@Override protected void layoutChildren() {
double w = getWidth();
double h = getHeight();
layoutInArea(browser,0,0,w,h,0, HPos.CENTER, VPos.
CENTER);
}
”
Server side UI “
A thick client handles some application
logic in addition to UI interaction
In a thin client architecture, abstract forms go
from the server to the rendering engine and
back to the server for processing
Thick Client
Business Logic
Business Logic
Application
Interaction logic
JavaFX based
Rendering Engine
LayoutData, Events
APIs
Frontend
Application
Interaction logic
JavaFX
based UI
Client side
(Pre-) Business Logic
Thin Client
Frontend
Server
Server
Figure 3: Thin/thick JavaFX client
70 | july 2016 | OPEN SOURCE For You | www.OpenSourceForU.com

5. DevelopersInsight
@Override protected double computePrefWidth(double
height) {
return 900;
}
@Override protected double computePrefHeight(double
width) {
return 600;
}
}
Cross-platform mobile applications
using JavaFX
A lot is happening in the mobile world, and many more
people will be using mobile devices in the near future to
access the Internet. Companies are spending huge amounts
of money on developing mobile applications to tap this
emerging market. The market share of mobile/tablet OSs
is dominated by Android with 60-65 per cent, iOS with
30-35 per cent, with the rest divided between Windows,
Blackberry, Java ME, etc. Any company developing a
mobile application has to target iOS and Android for
deep market penetration. As of now, native applications
are more popular on mobiles. Most of the Android and
iOS native applications are widely developed using
standard SDKs. There are a few cross-platform application
development frameworks like jQuery Mobile, PhoneGap,
etc. However, there is a gap between the demand for
developing cross-platform, cross-device applications,
and the mobile application development platforms that
can do so. JavaFX is a proven UI framework for desktop
applications and,with community support, is ported to
Android and iOS as well. It is possible to develop mobile
applications in JavaFX which can run on Android and iOS.
JavaFXport is a group outside Oracle that has come up
with a framework to port JavaFX applications on Android.
Other related community projects are at http://bitbucket.
org/JavaFXports/android and http://gluonhq.com/open-
source/JavaFXports/.
By: Praveen Srivastava
The author works as senior engineering manager at Oracle,
Bengaluru, and leads the development of Java platform libraries
using open source. He has vast experience in software development,
and can be contacted at praveen.s.srivastava@oracle.com.
[1] http://openjdk.java.net/bylaws
[2] https://wiki.openjdk.java.net/display/OpenJFX/Main
[3] http://bugreport.java.com/bugreport/
[4] http://bugs.java.com/
[5] www.JavaFXports.org
[6] http://bitbucket.org/JavaFXports/android
[7] http://gluonhq.com/open-source/JavaFXports/
[8] https://jaxenter.com/20-javafx-real-world-
applications-123653.html
References
www.OpenSourceForU.com | OPEN SOURCE For You | july 2016 | 71
