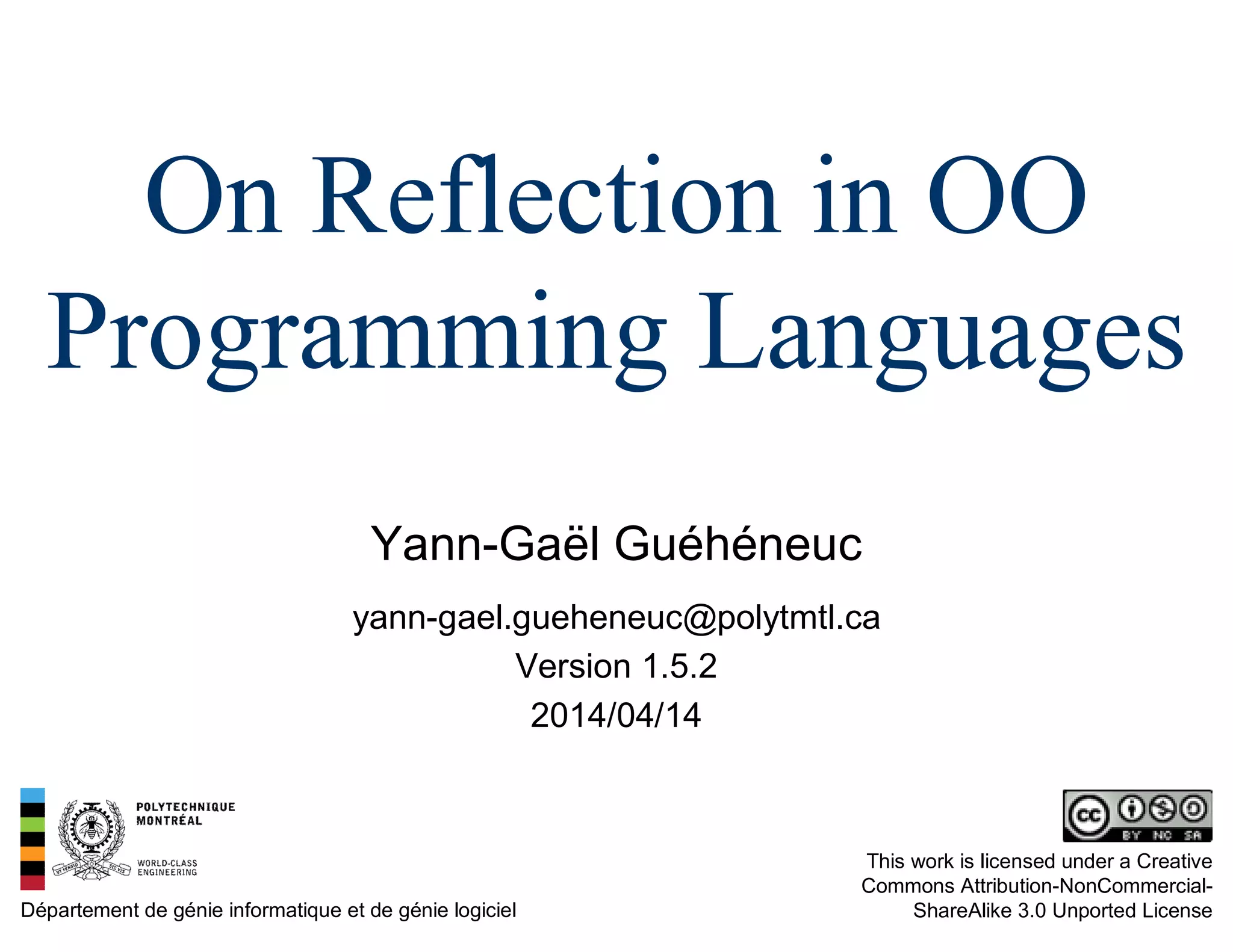

OO Reflection Tutorial

Yann-Gaël Guéhéneuc
This work is licensed under a Creative
Commons Attribution-NonCommercial-
ShareAlike 3.0 Unported LicenseDépartement de génie informatique et de génie logiciel
On Reflection in OO
Programming Languages
yann-gael.gueheneuc@polytmtl.ca
Version 1.5.5
2014/04/30

2/210

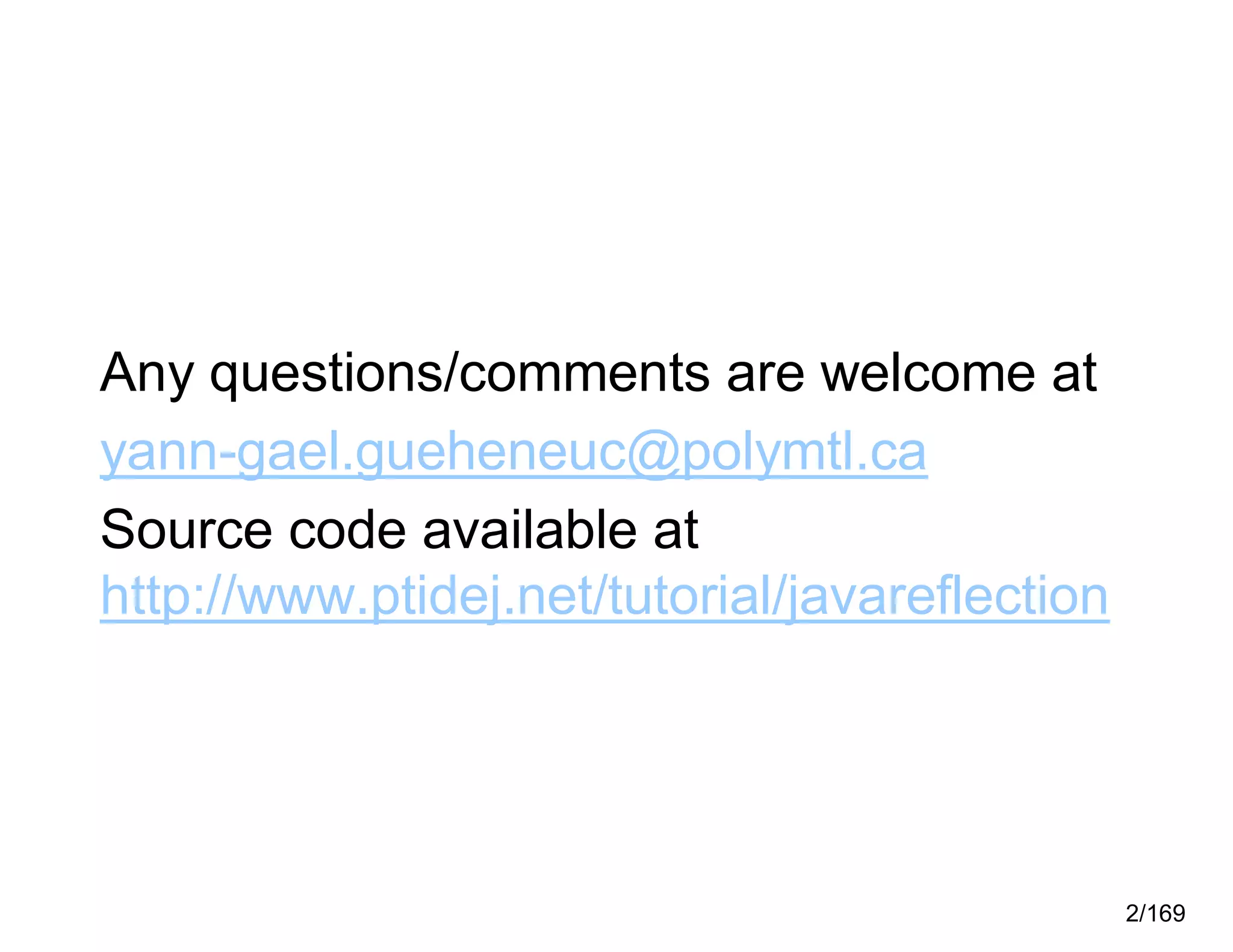

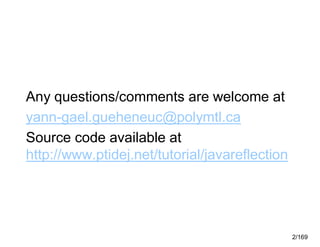

Any questions/comments are welcome at
yann-gael.gueheneuc@polymtl.ca
The source code is available at
http://www.ptidej.net/tutorial/javareflection

3/210

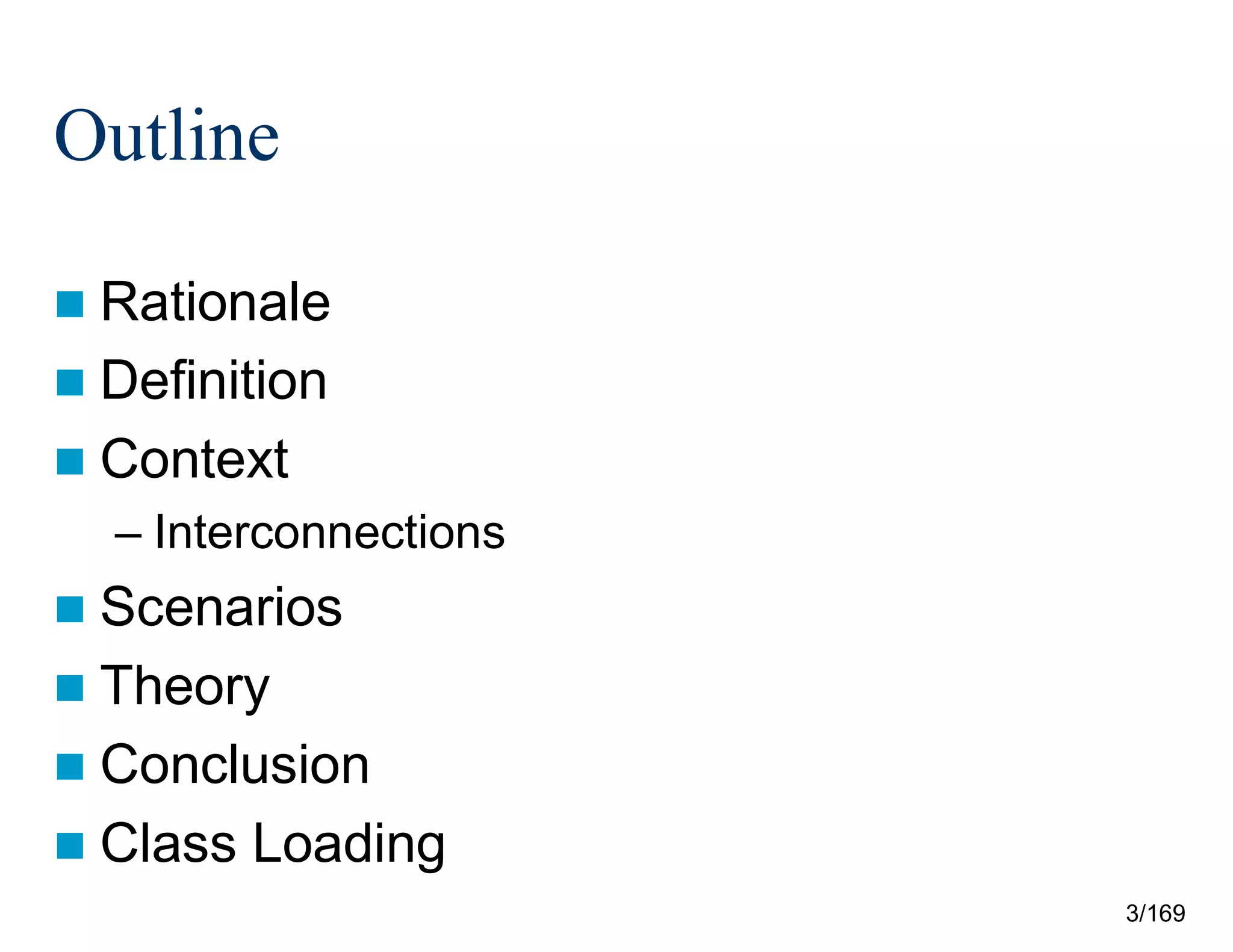

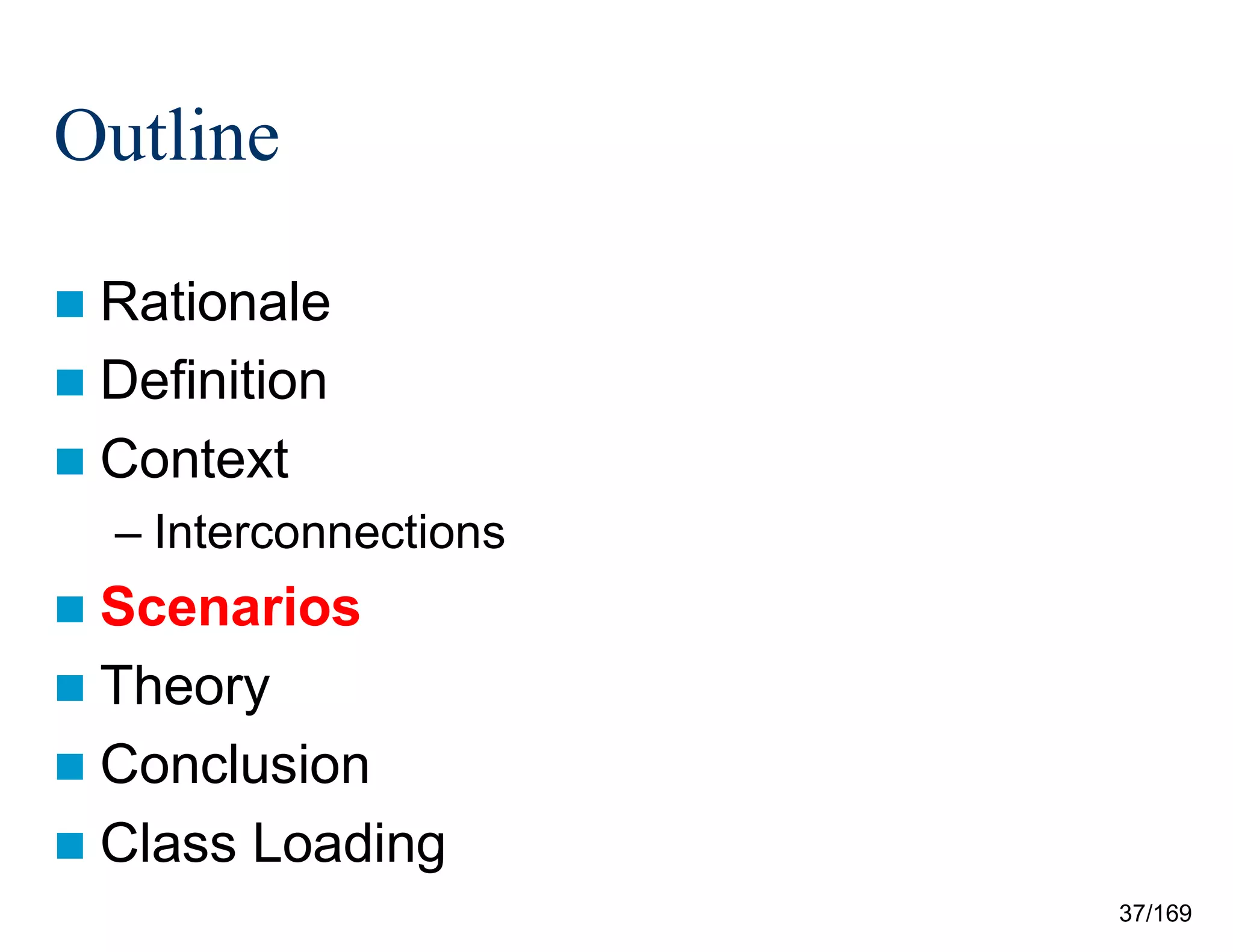

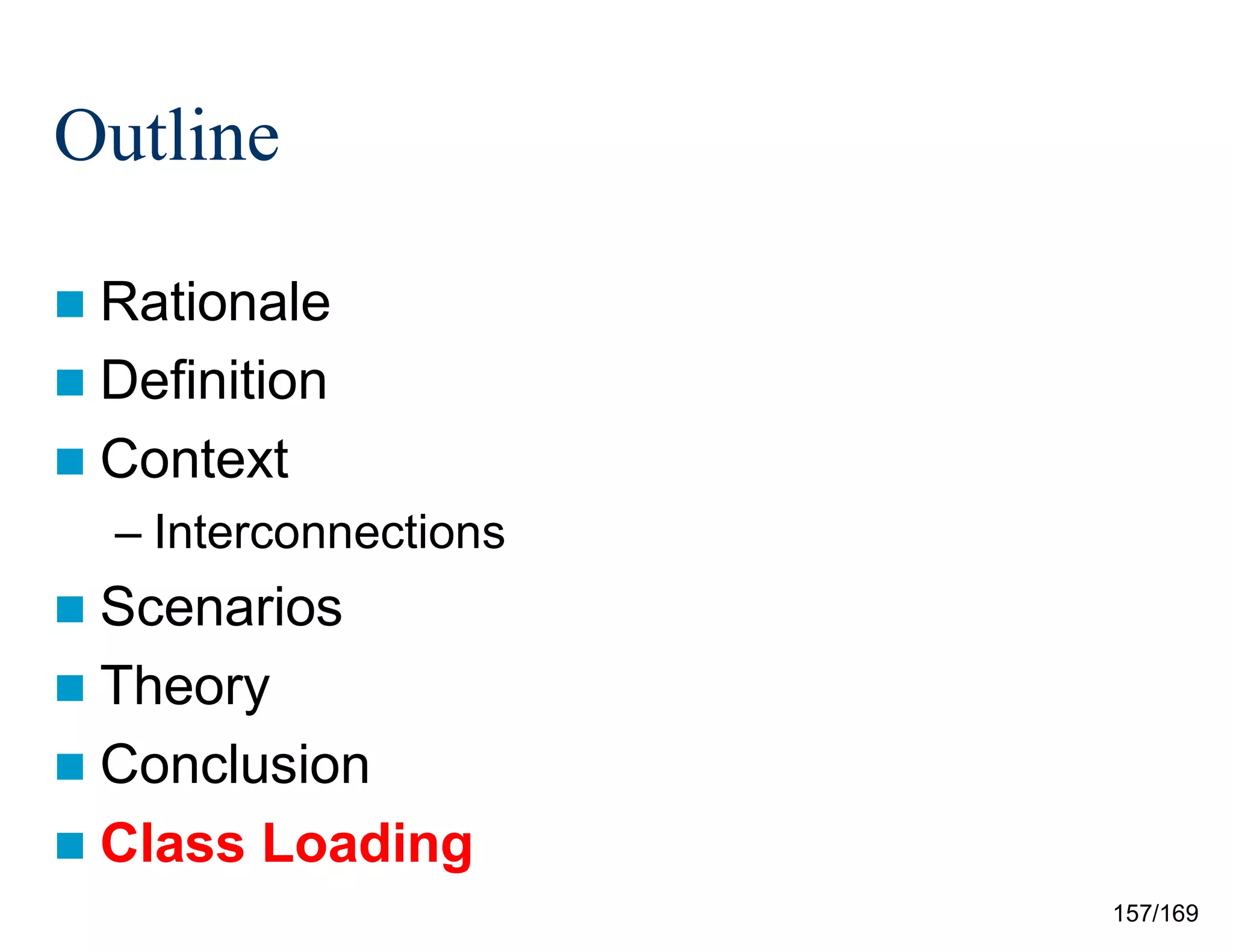

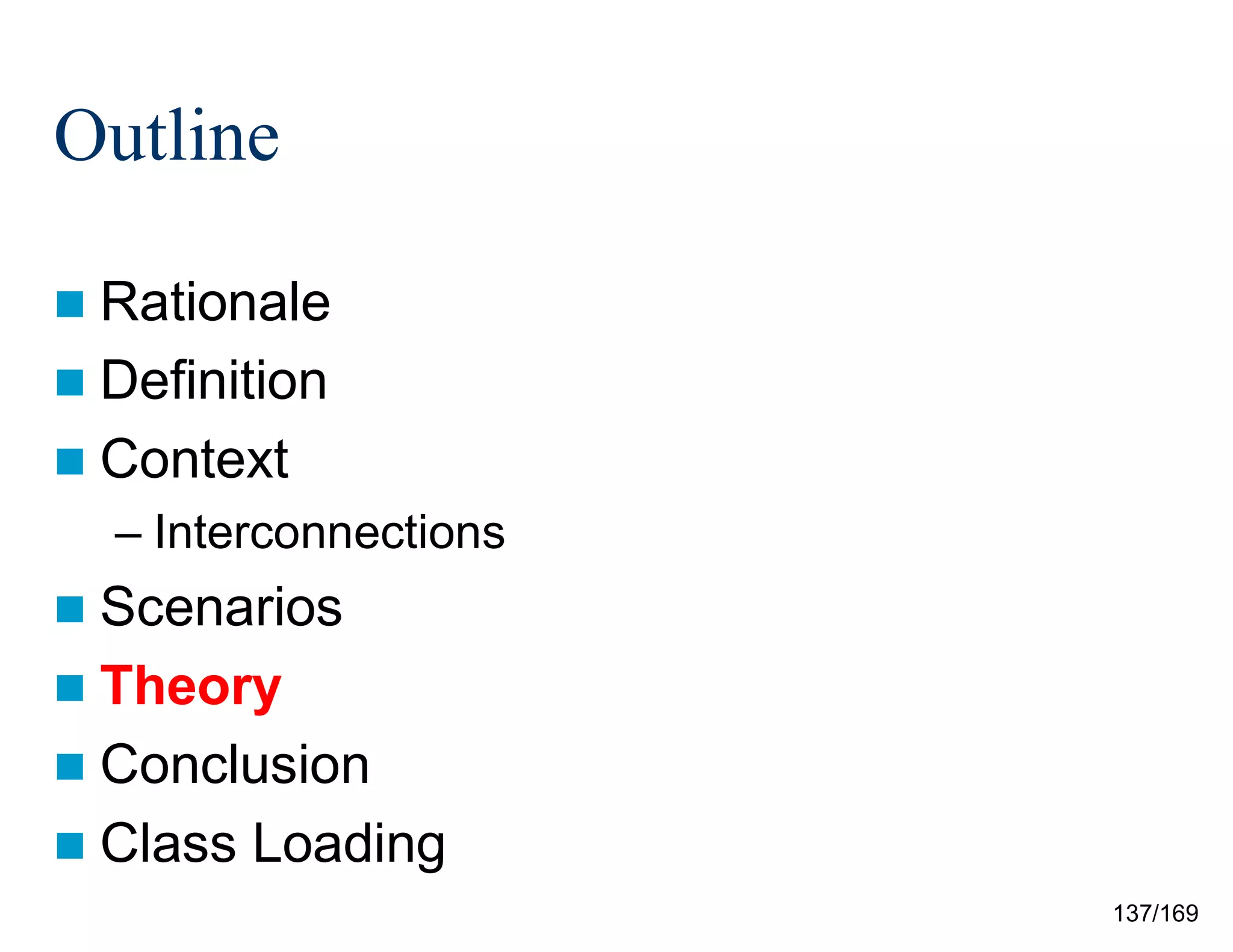

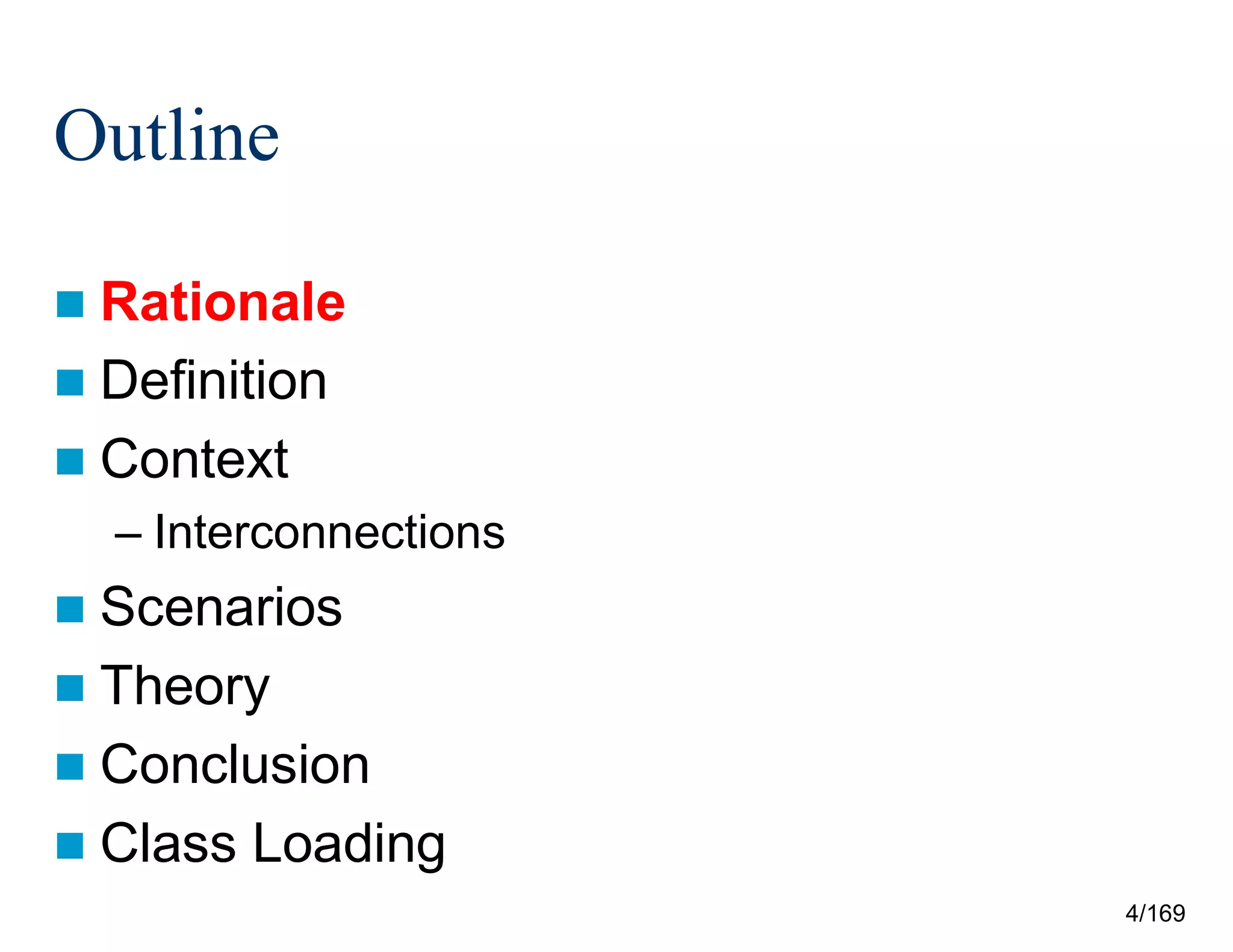

Outline
 Rationale
 Definition
 Context
– Interconnections
 Scenarios
 Theory
 Conclusion
 Class Loading

4/210
Outline
 Rationale
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

5/210

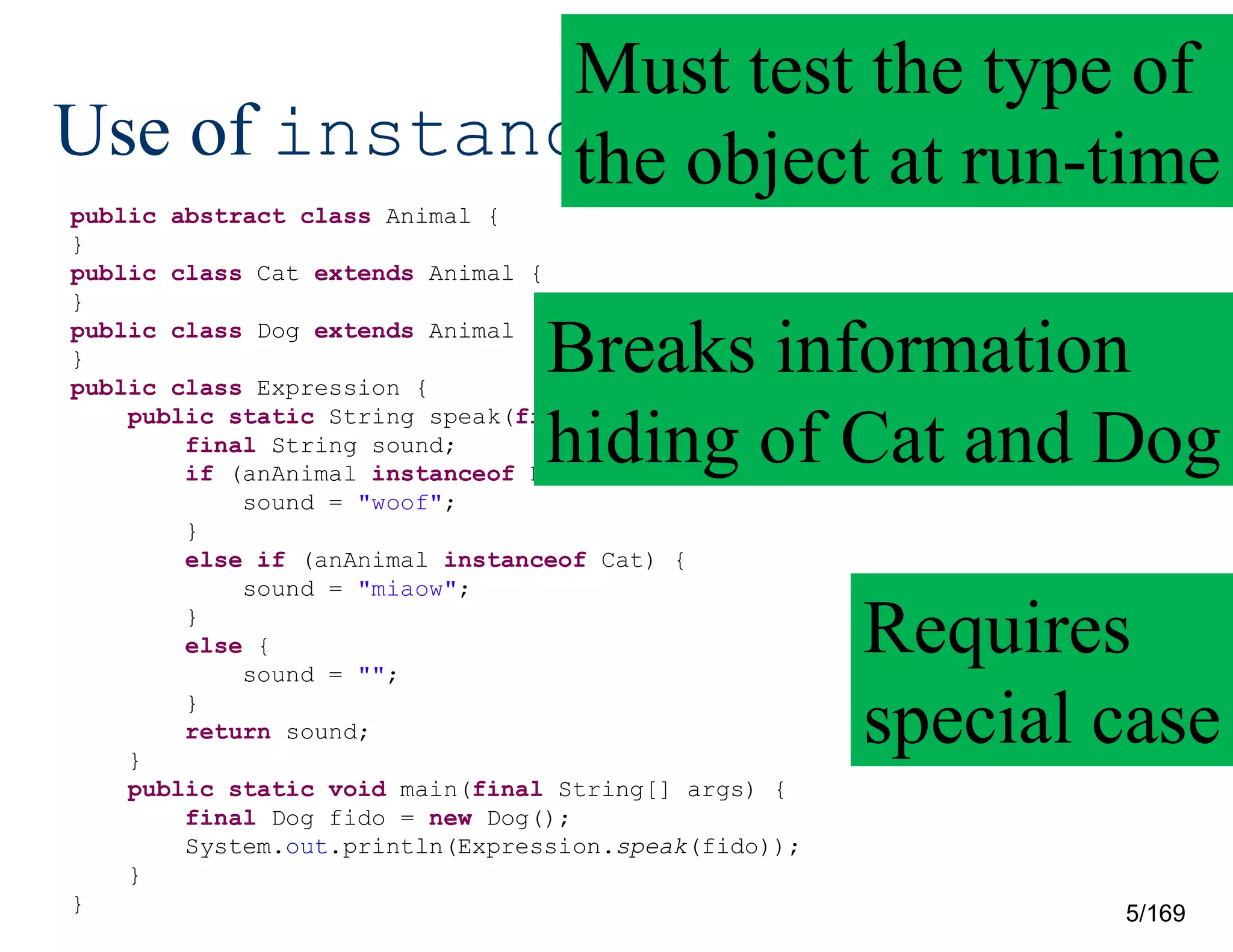

Use of instanceof
public abstract class Animal {
}
public class Cat extends Animal {
}
public class Dog extends Animal {
}
public class Expression {
public static String speak(final Animal anAnimal) {
final String sound;
if (anAnimal instanceof Dog) {
sound = "woof";
}
else if (anAnimal instanceof Cat) {
sound = "miaow";
}
else {
sound = "";
}
return sound;
}
public static void main(final String[] args) {
final Dog fido = new Dog();
System.out.println(Expression.speak(fido));
}
}

6/210
Use of instanceof
}
}
}
final String sound;
sound = "woof";
}
sound = "miaow";
}
else {
sound = "";
}
return sound;
}
}
}
Must test the type of
the object at run-time

7/210
Use of instanceof
}
}
}
final String sound;
sound = "woof";
}
sound = "miaow";
}
else {
sound = "";
}
return sound;
}
}
}
Breaks information
hiding of Cat and Dog

8/210
Use of instanceof
}
}
}
final String sound;
sound = "woof";
}
sound = "miaow";
}
else {
sound = "";
}
return sound;
}
}
}
Breaks information
hiding of Cat and Dog
Requires
special case

9/210

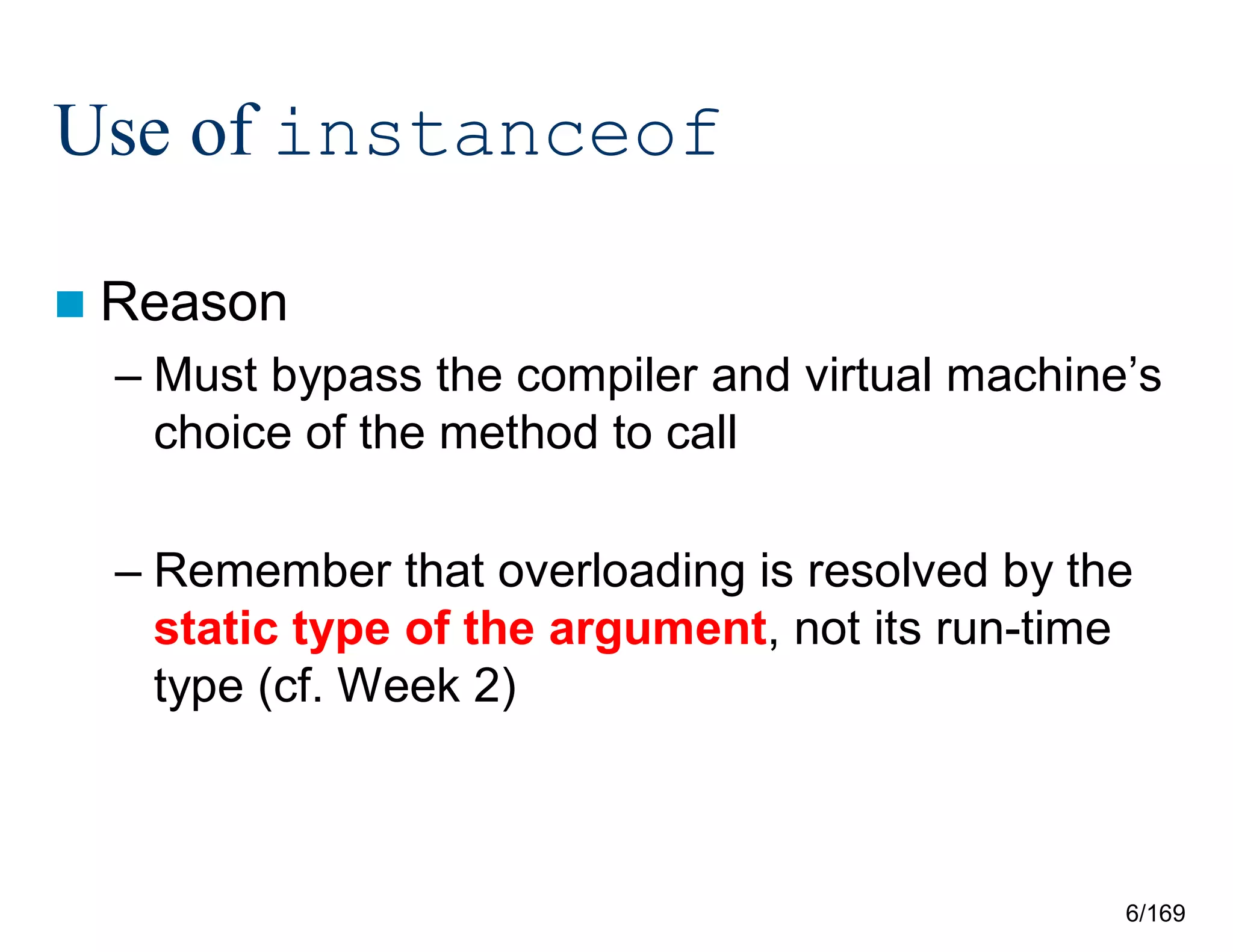

Use of instanceof
 Reason
– Must bypass the compiler and virtual machine’s
choice of the method to call
– Remember that overloading is resolved by the
static type of the argument, not its run-time
type (cf. Week 2)

10/210

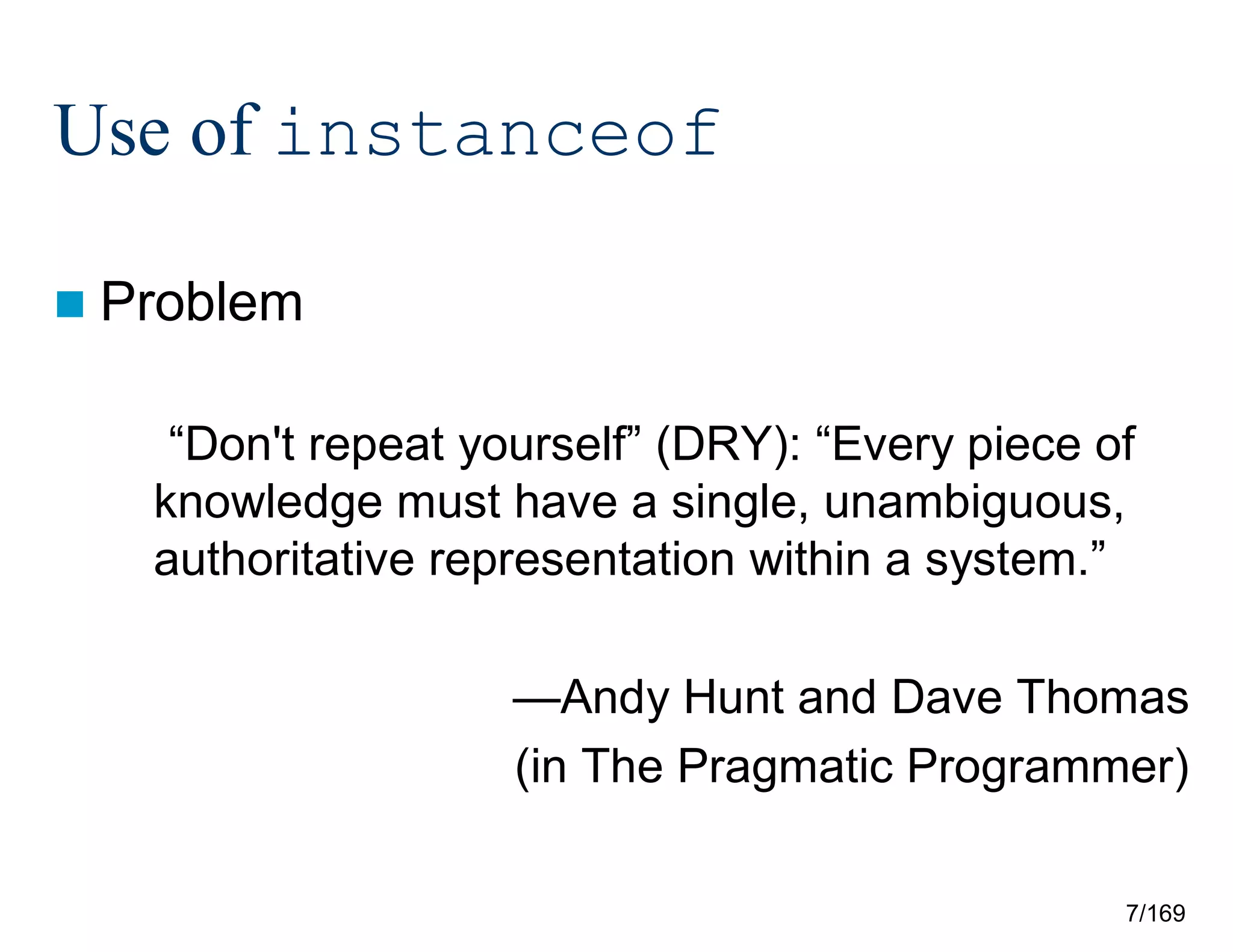

Use of instanceof
 Problem
“Don't repeat yourself” (DRY): “Every piece of
knowledge must have a single, unambiguous,
authoritative representation within a system.”
—Andy Hunt and Dave Thomas
(in The Pragmatic Programmer)

11/210
Use of instanceof
public abstract String speak();
}
@Override
public String speak() {
return "miaow";
}
}
@Override
return "woof";
}
}
System.out.println(fido.speak());
}
}

12/210
Use of instanceof
}
@Override
return "miaow";
}
}
@Override
return "woof";
}
}
}
}

13/210
Use of instanceof
public class Cat {
return "miaow";
}
}
public class Dog {
return "woof";
}
}
public static void main(final String[] args) throws
IllegalAccessException,
IllegalArgumentException,
InvocationTargetException {
final Method[] method = Dog.class.getDeclaredMethods();
System.out.println(method[0].invoke(fido, new Object[0]));
}
}

14/210

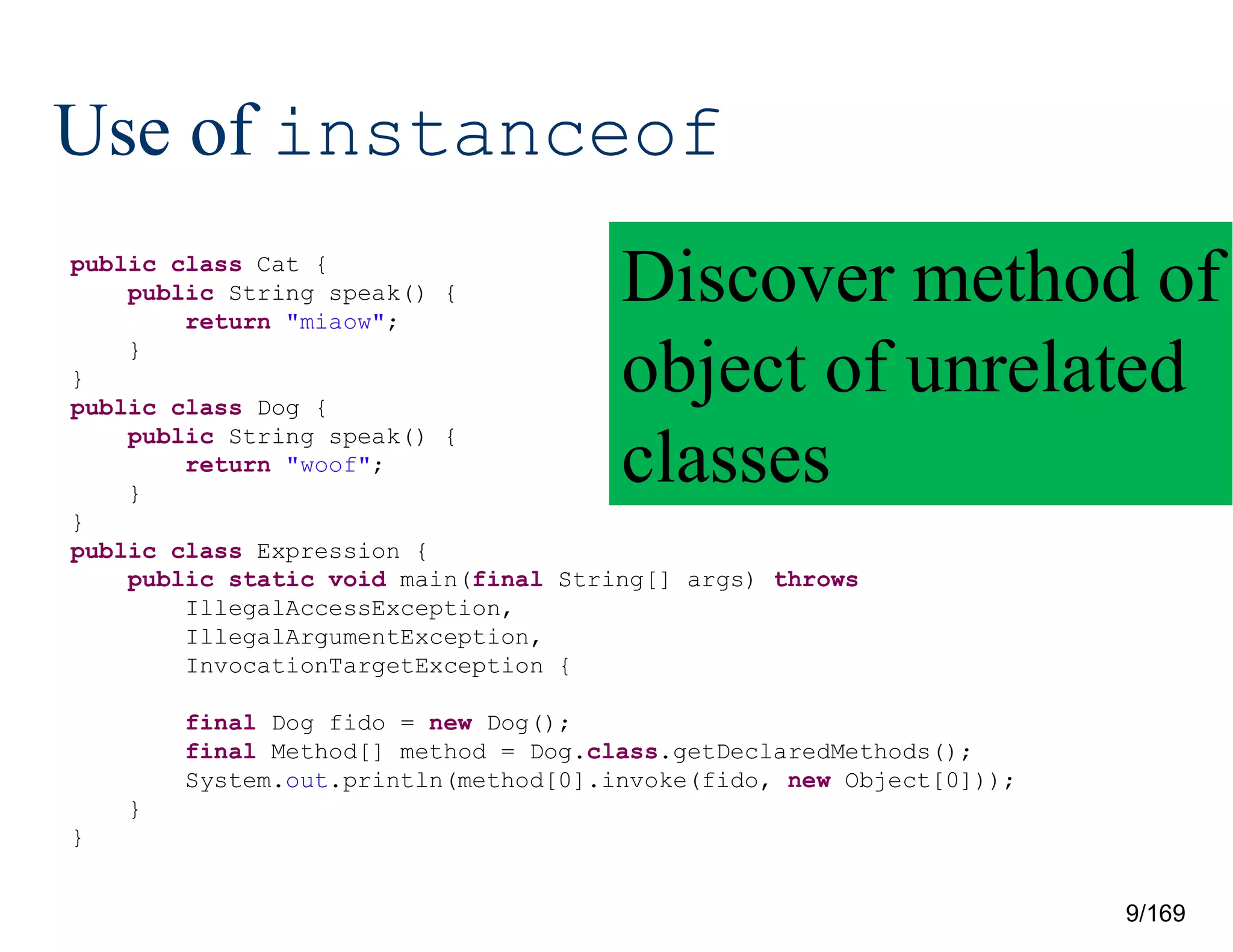

Use of instanceof
public class Cat {
return "miaow";
}
}
public class Dog {
return "woof";
}
}
public static void main(final String[] args) throws
IllegalAccessException,
IllegalArgumentException,
InvocationTargetException {
}
}
Discover method of
object of unrelated
classes

15/210

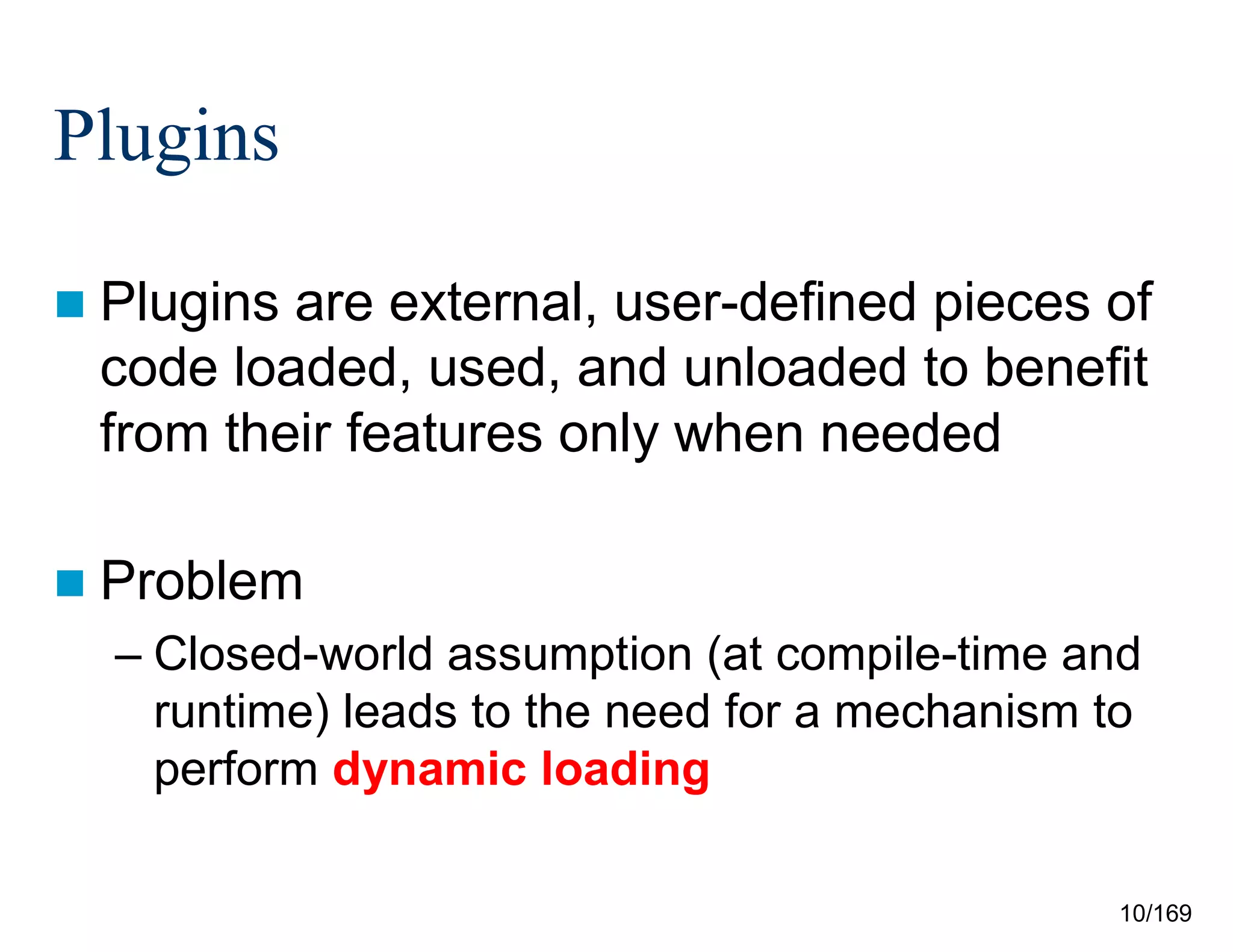

Plugins
 Plugins are external, user-defined pieces of
code loaded, used, and unloaded to benefit
from their features only when needed
 Problem
– Closed-world assumption (at compile-time and
runtime) leads to the need for a mechanism to
perform dynamic loading

16/210

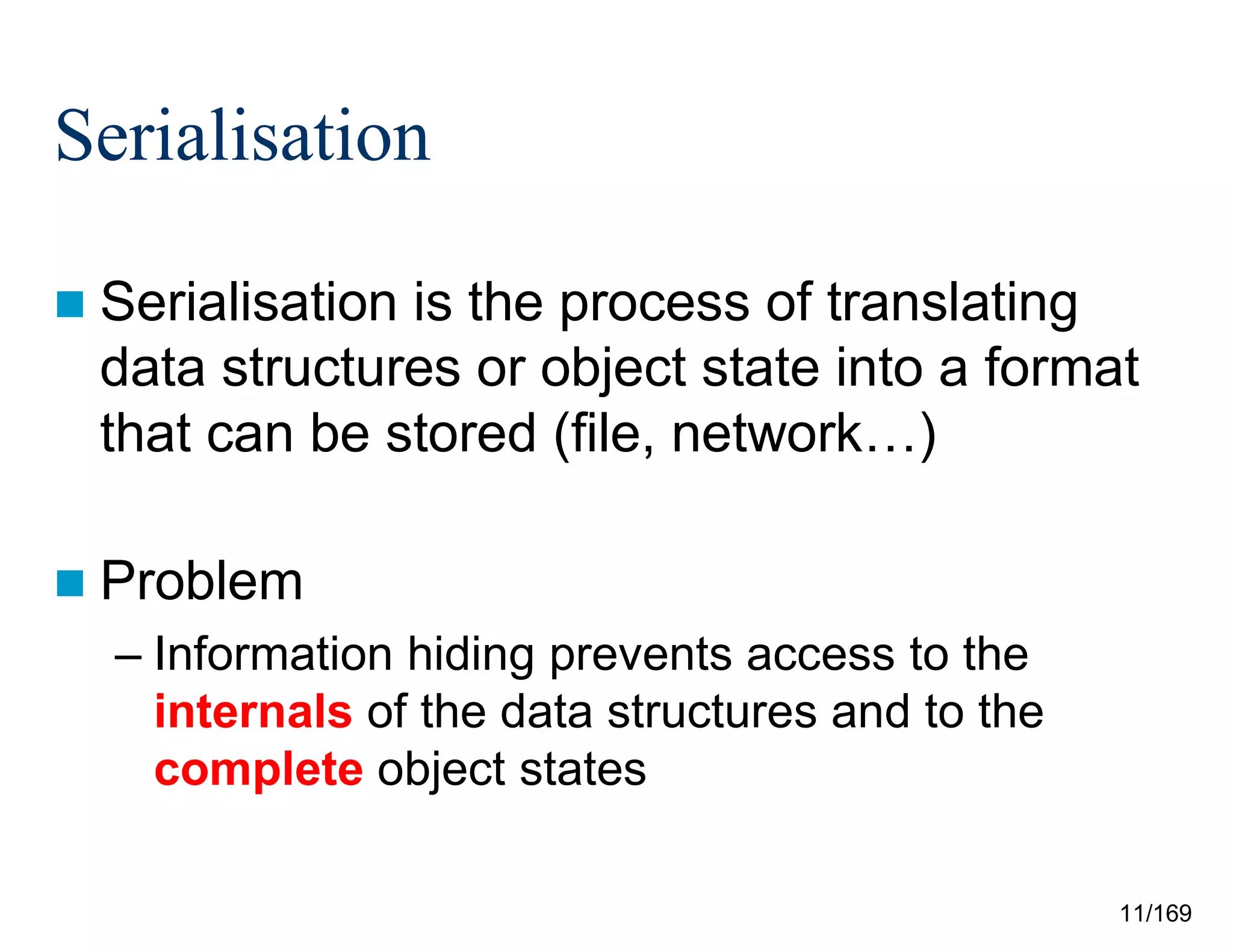

Serialisation
 Serialisation is the process of translating
data structures or object state into a format
that can be stored (file, network…)
 Problem
– Information hiding prevents access to the
internals of the data structures and to the
complete object states

17/210

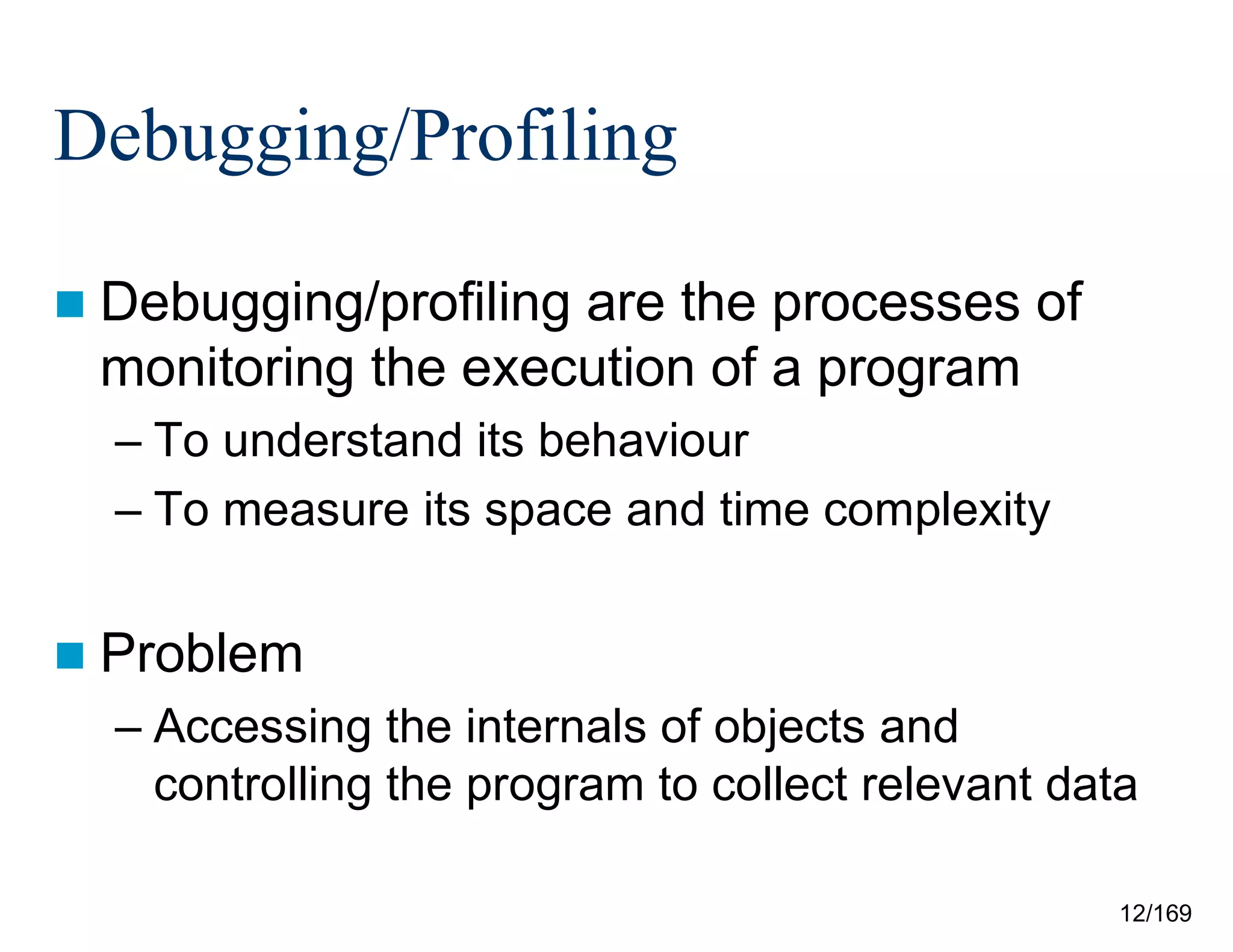

Debugging/Profiling
 Debugging/profiling are the processes of
monitoring the execution of a program
– To understand its behaviour
– To measure its space and time complexity
 Problem
– Accessing the internals of objects and
controlling the program to collect relevant data

18/210

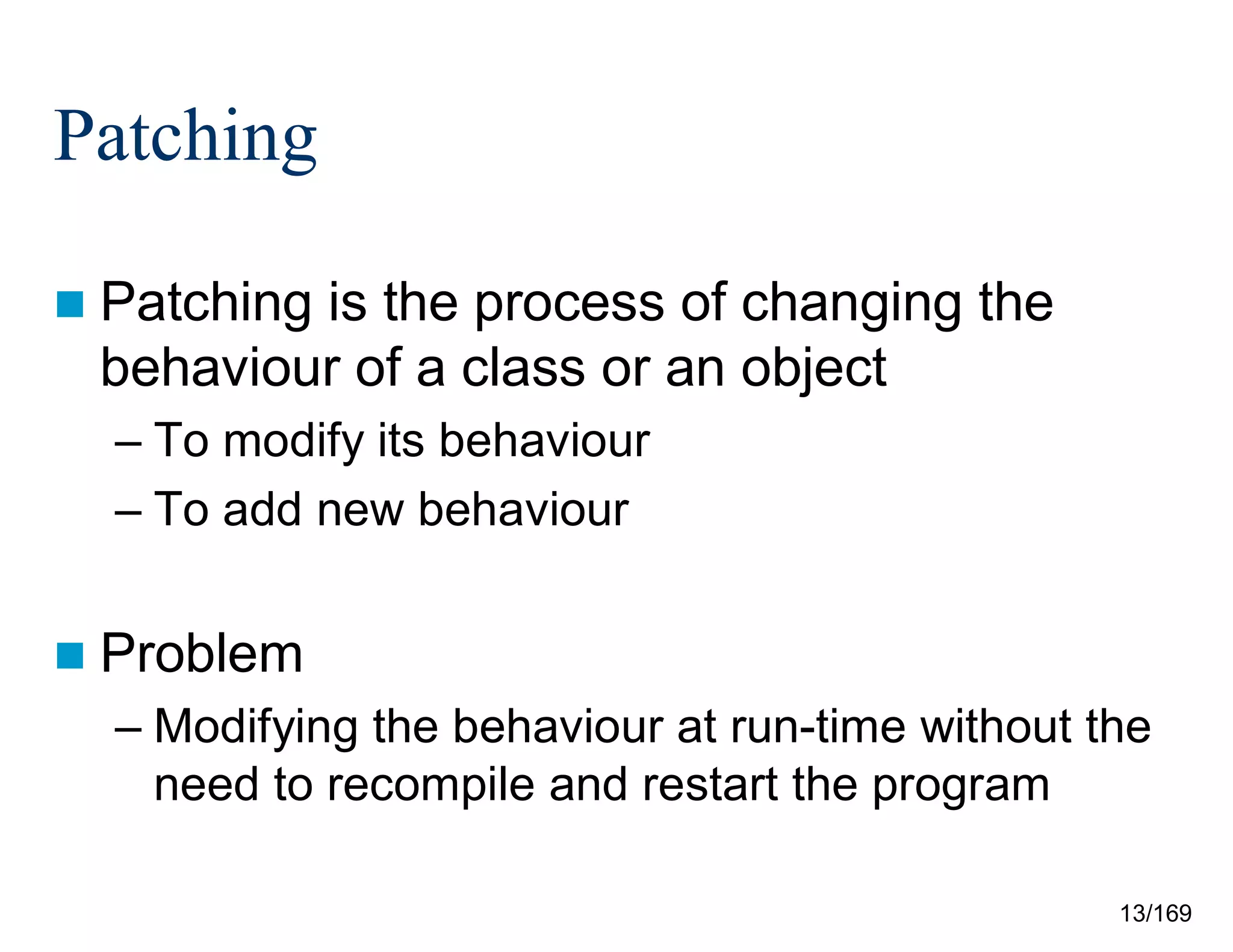

Patching
 Patching is the process of changing the
behaviour of a class or an object
– To modify its behaviour
– To add new behaviour
 Problem
– Modifying the behaviour at run-time without the
need to recompile and restart the program

19/210

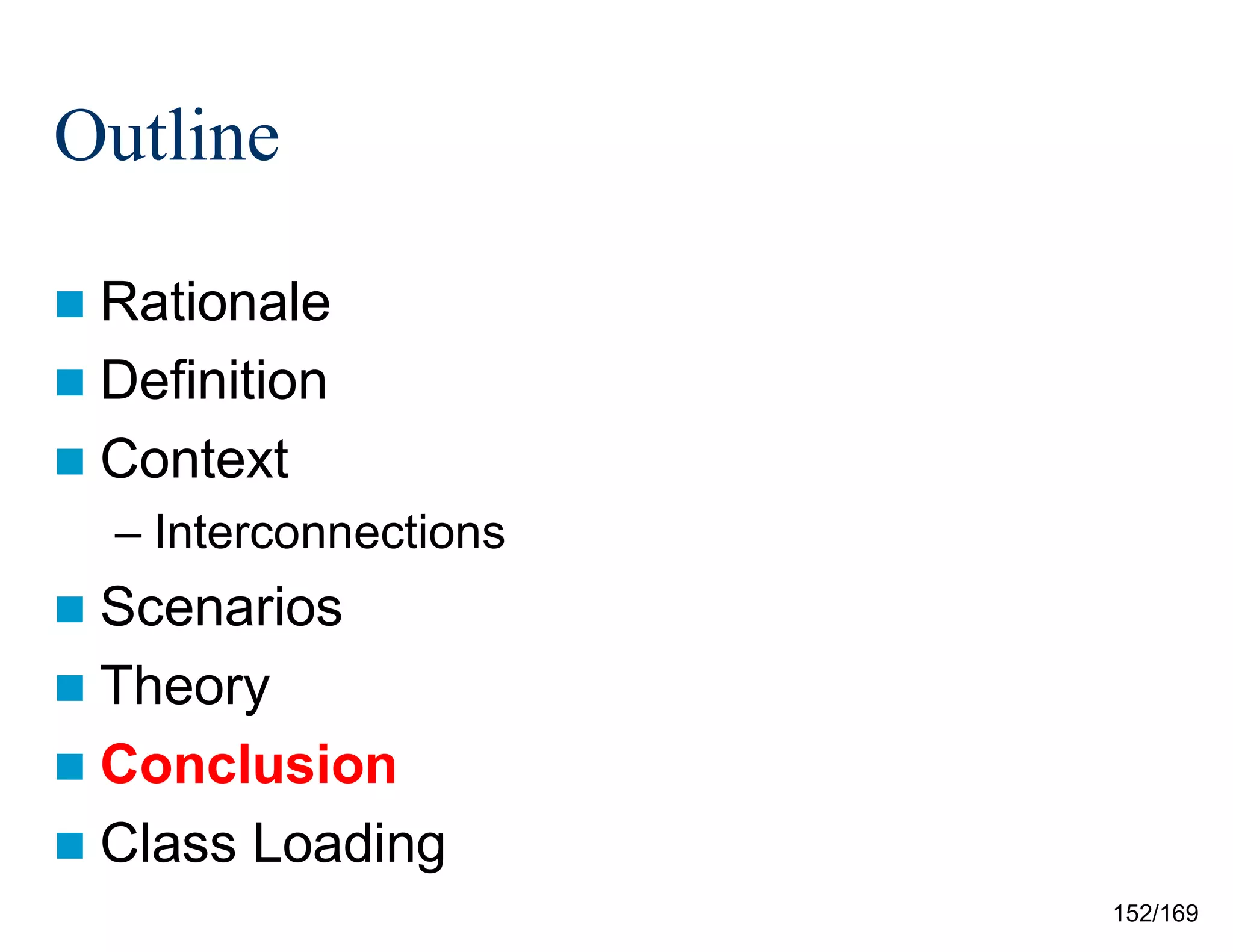

Outline
 Rationale
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

20/210

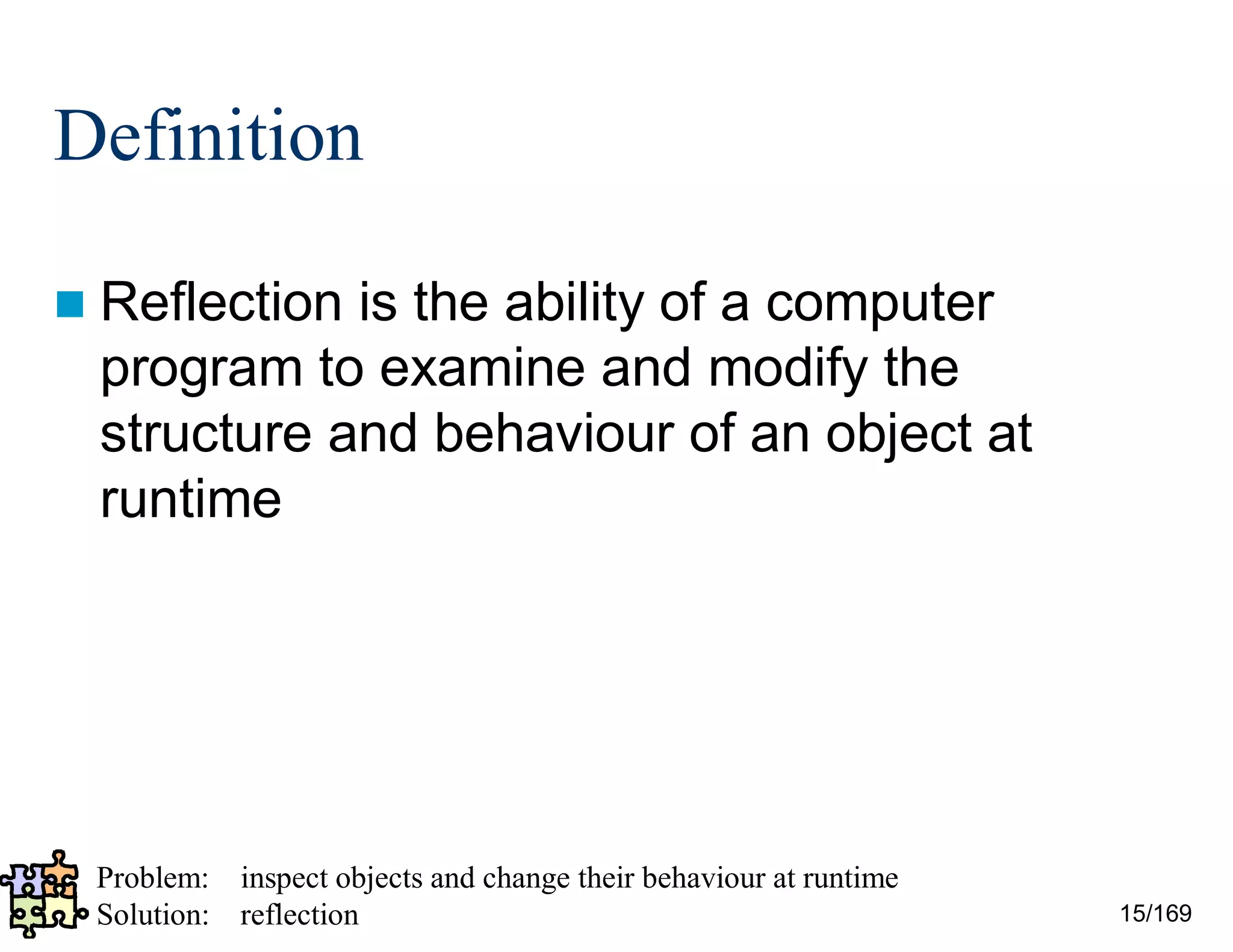

Definition
 Reflection is the ability of a computer
program to examine and modify the
structure and behaviour of an object at
runtime

21/210
Definition
 Reflection is the ability of a computer
program to examine and modify the
structure and behaviour of an object at
runtime
Problem: inspect objects and change their behaviour at runtime
Solution: reflection

22/210
Use of instanceof
}
@Override
return "miaow";
}
}
@Override
return "woof";
}
}
}
}

23/210
Use of instanceof
}
@Override
public String miaow() {
return "miaow";
}
}
@Override
public String bark() {
return "woof";
}
}
}
}

24/210

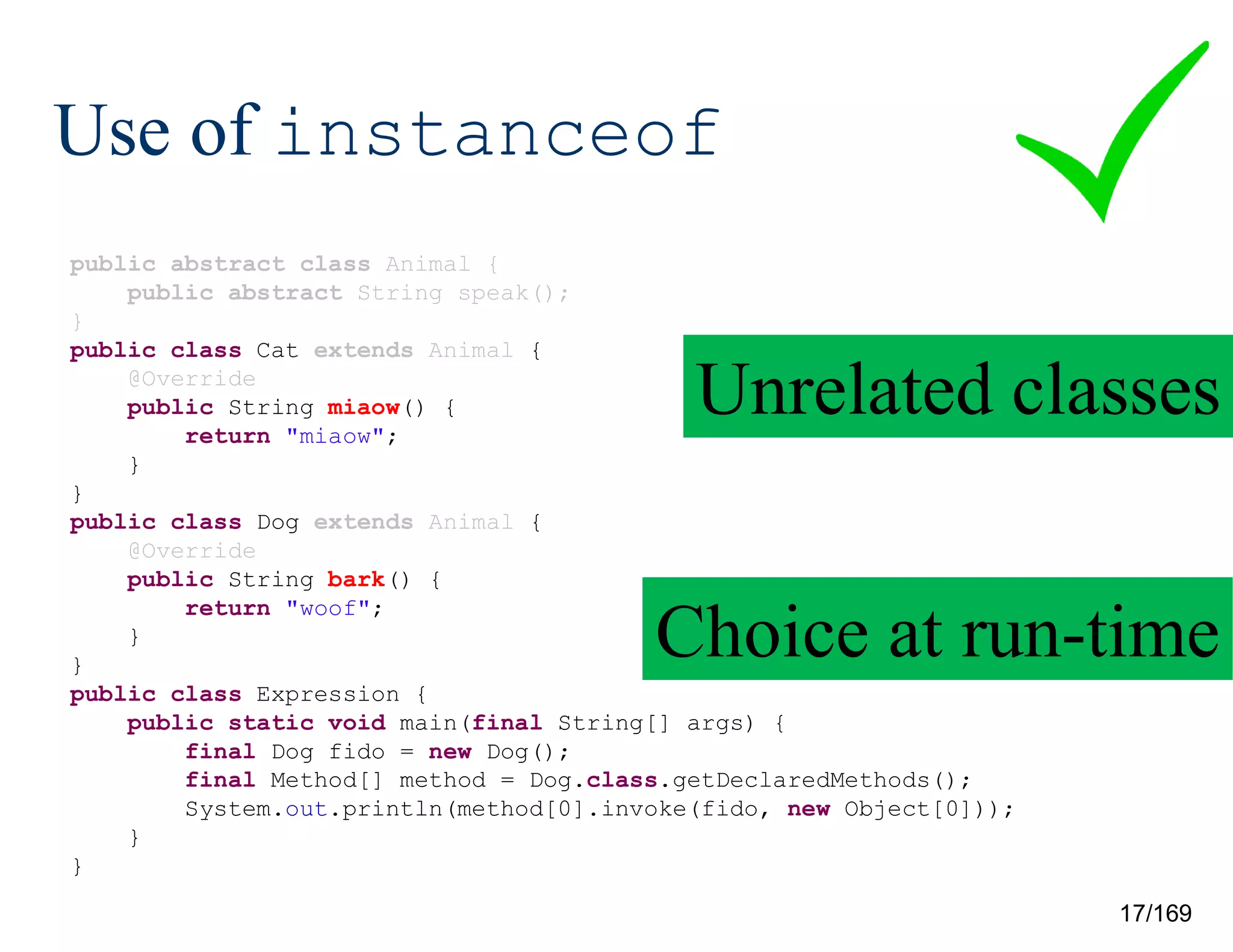

Use of instanceof
}
@Override
return "miaow";
}
}
@Override
return "woof";
}
}
}
}
Unrelated classes

25/210
Use of instanceof
}
@Override
return "miaow";
}
}
@Override
return "woof";
}
}
}
}
Unrelated classes
Choice at run-time

26/210
Use of instanceof
}
@Override
return "miaow";
}
}
@Override
return "woof";
}
}
}
}
Unrelated classes
Choice at run-time

27/210
Outline
 Problems
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

28/210
Context
 Reflection
– Ability of a computer program to examine and
modify the structure and behaviour of an object
at runtime

29/210

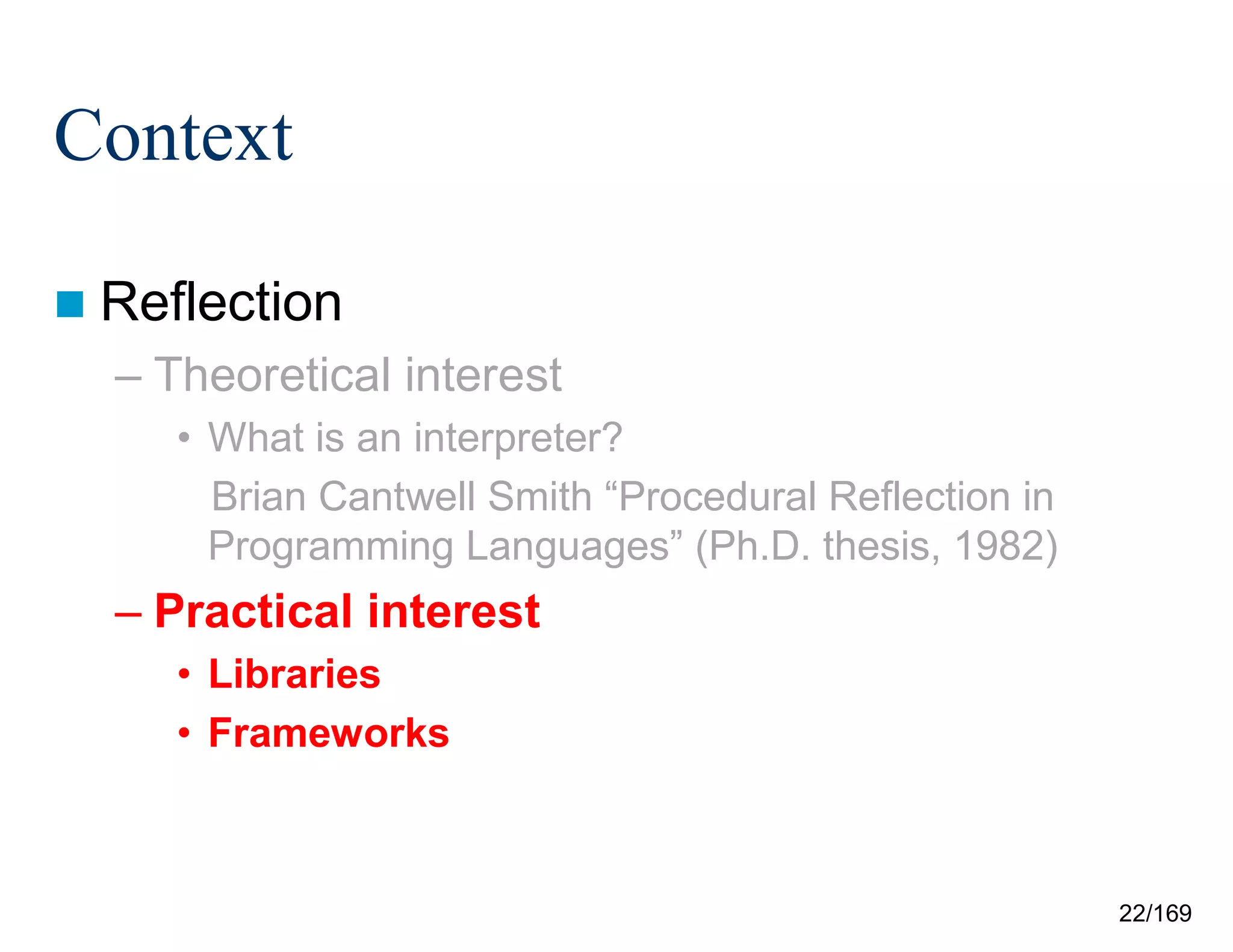

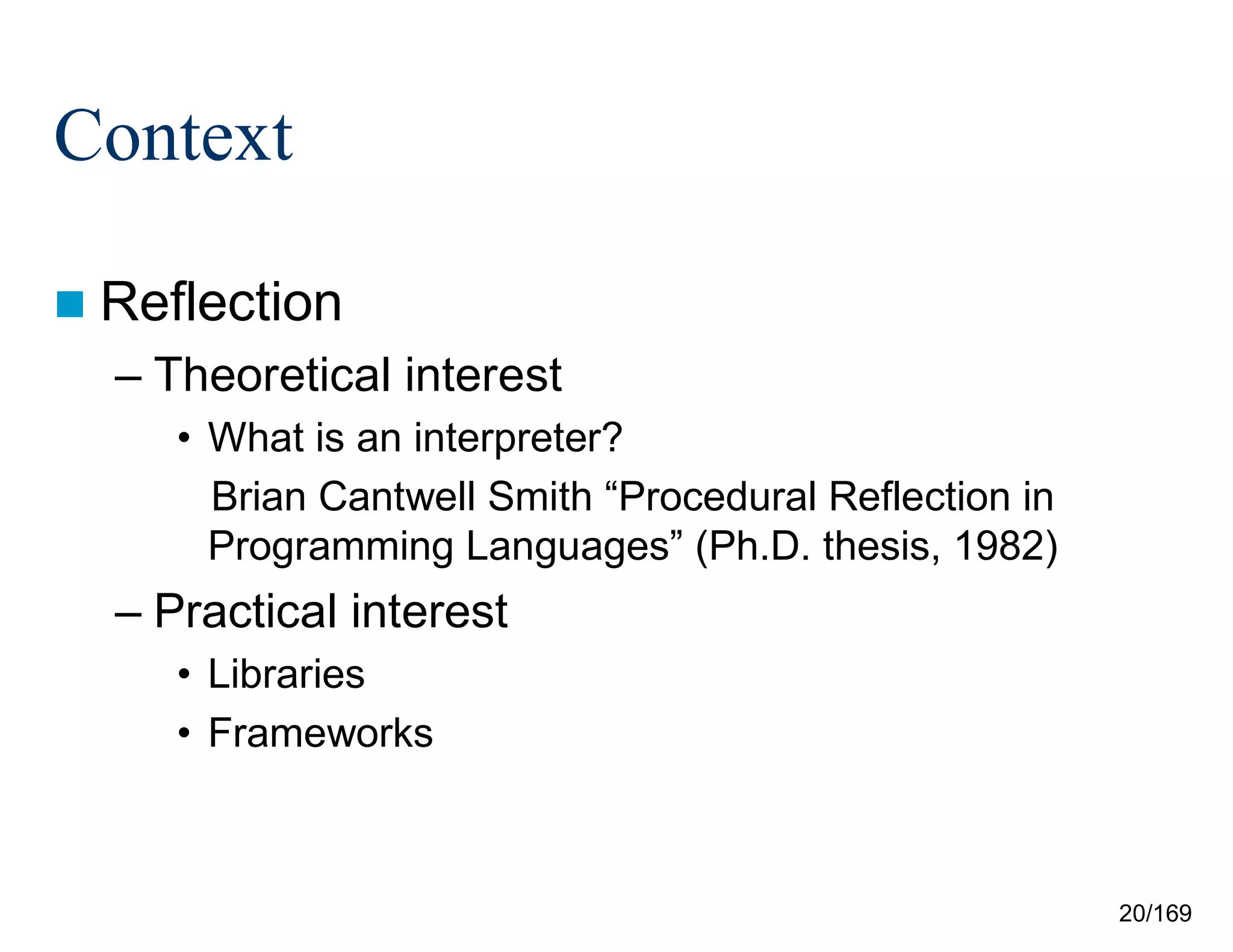

Context
 Reflection
– Theoretical interest
• What is an interpreter?
Brian Cantwell Smith “Procedural Reflection in
Programming Languages” (Ph.D. thesis, 1982)
– Practical interest
• Libraries
• Frameworks

30/210
Context
 Reflection
• Libraries
• Frameworks

31/210
Context
 Reflection
• Libraries
• Frameworks

32/210
Context
 Libraries
– Collections of data structures and algorithms
(possibly encapsulated in classes) used to
develop and run programs
 Frameworks
– Reusable sets of libraries, tools, and
conventions used to develop and run programs

33/210
Context
 Libraries
– Collections of data structures and algorithms
(possibly encapsulated in classes) used to
develop and run programs
 Frameworks
– Reusable sets of libraries, tools, and
conventions used to develop and run programs
Problem: connection between clients and libraries/frameworks
Solution: linking, forking, subclassing, IPC, and dynamic loading

34/210

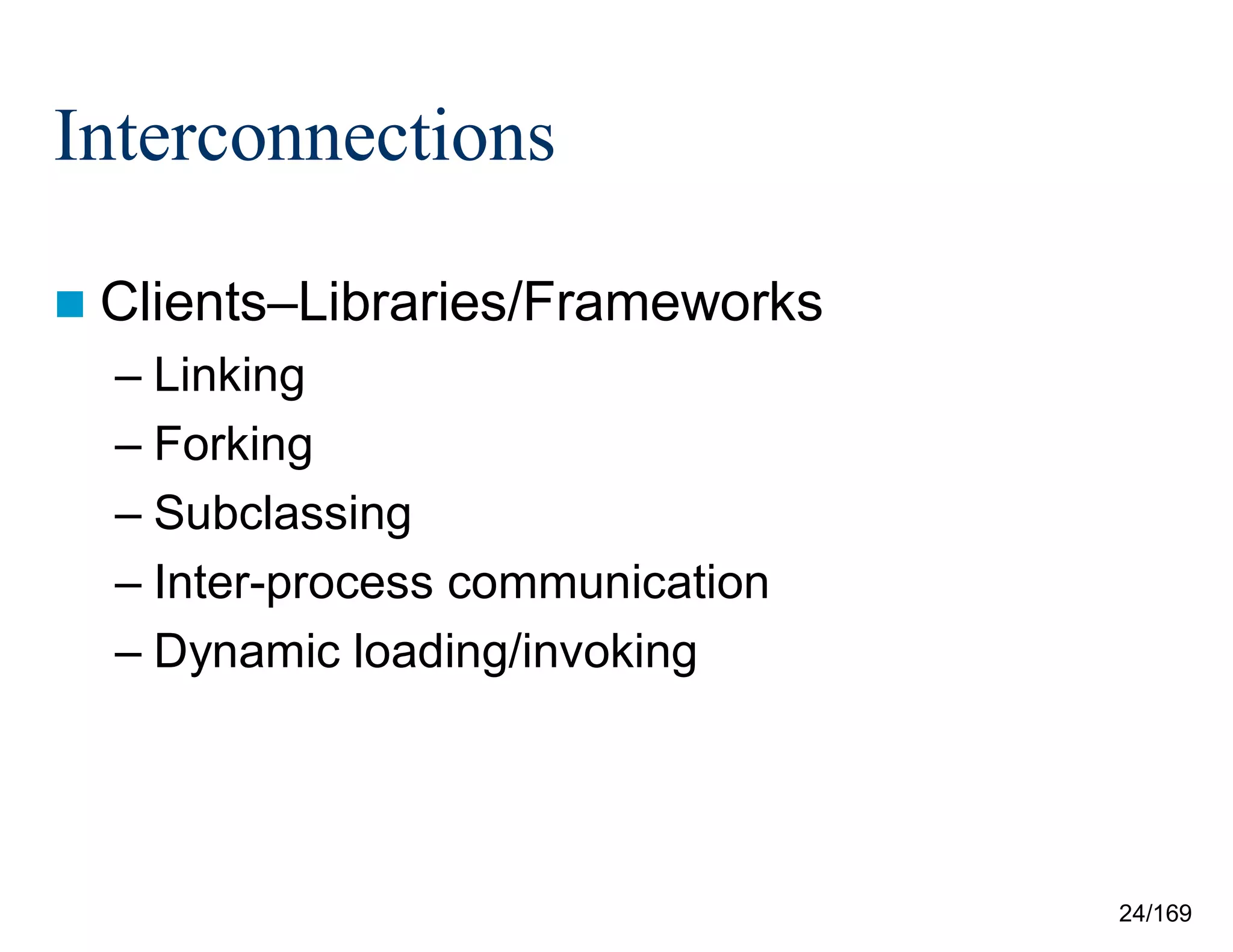

Interconnections
 Clients–Libraries/Frameworks
– Linking
– Forking
– Subclassing
– Inter-process communication
– Dynamic loading/invoking

35/210

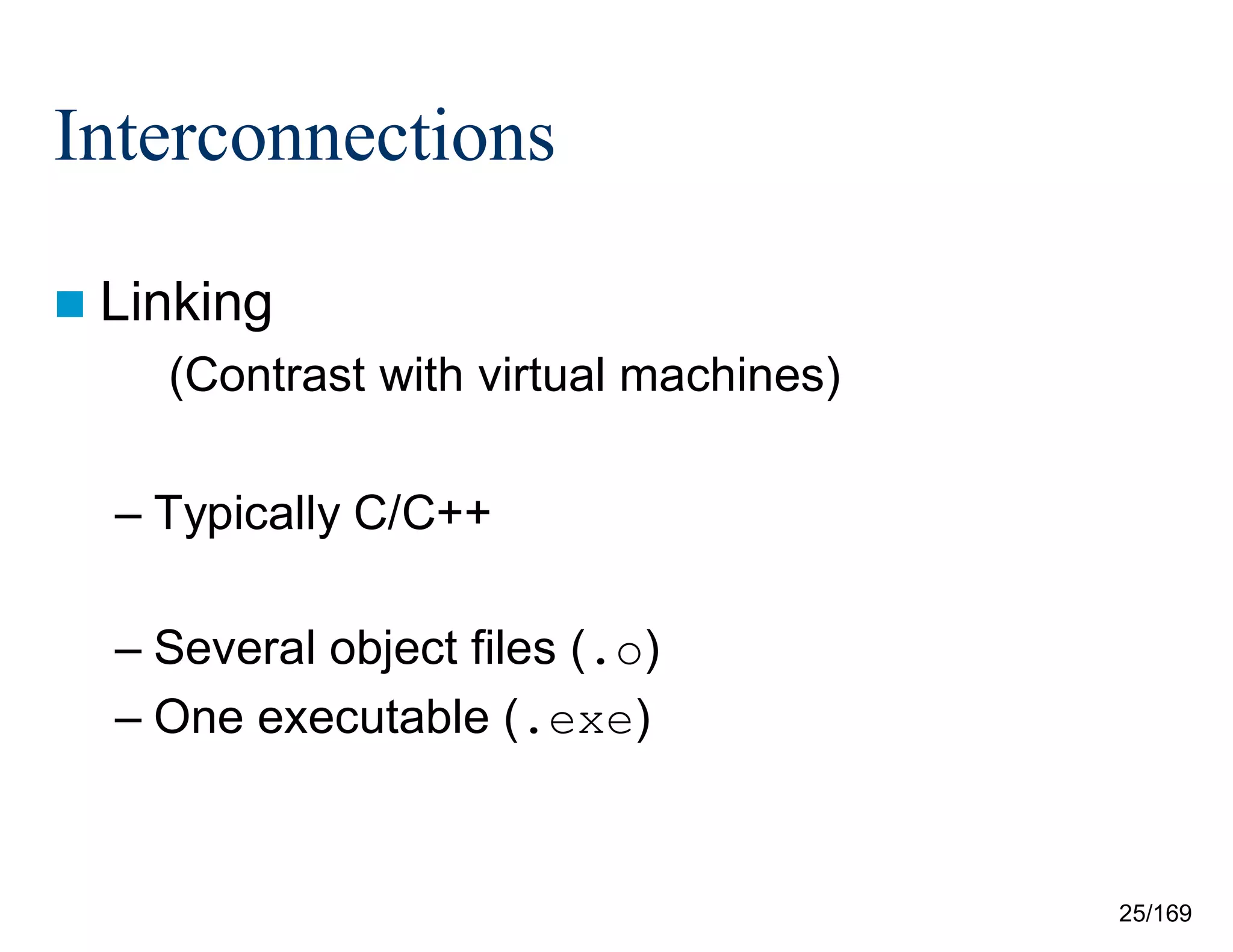

Interconnections
 Linking
(Contrast with virtual machines)
– Typically C/C++
– Several object files (.o)
– One executable (.exe)

36/210

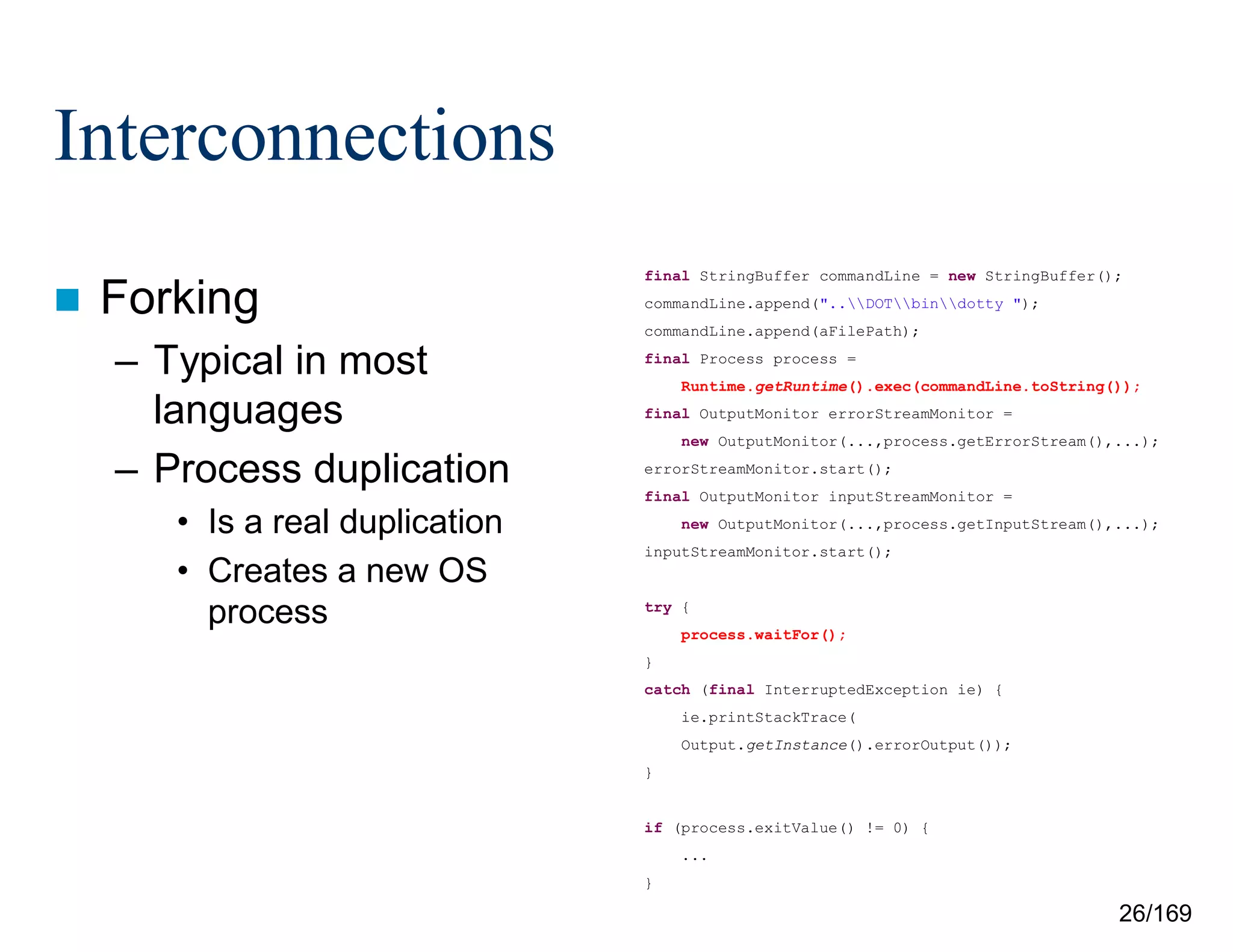

Interconnections
 Forking
– Typical in most
languages
– Process duplication
• Is a real duplication
• Creates a new OS
process
final StringBuffer commandLine = new StringBuffer();
commandLine.append("..DOTbindotty ");
commandLine.append(aFilePath);
final Process process =
Runtime.getRuntime().exec(commandLine.toString());
final OutputMonitor errorStreamMonitor =
new OutputMonitor(...,process.getErrorStream(),...);
errorStreamMonitor.start();
final OutputMonitor inputStreamMonitor =
new OutputMonitor(...,process.getInputStream(),...);
inputStreamMonitor.start();
try {
process.waitFor();
}
catch (final InterruptedException ie) {
ie.printStackTrace(
Output.getInstance().errorOutput());
}
if (process.exitValue() != 0) {
...
}

37/210

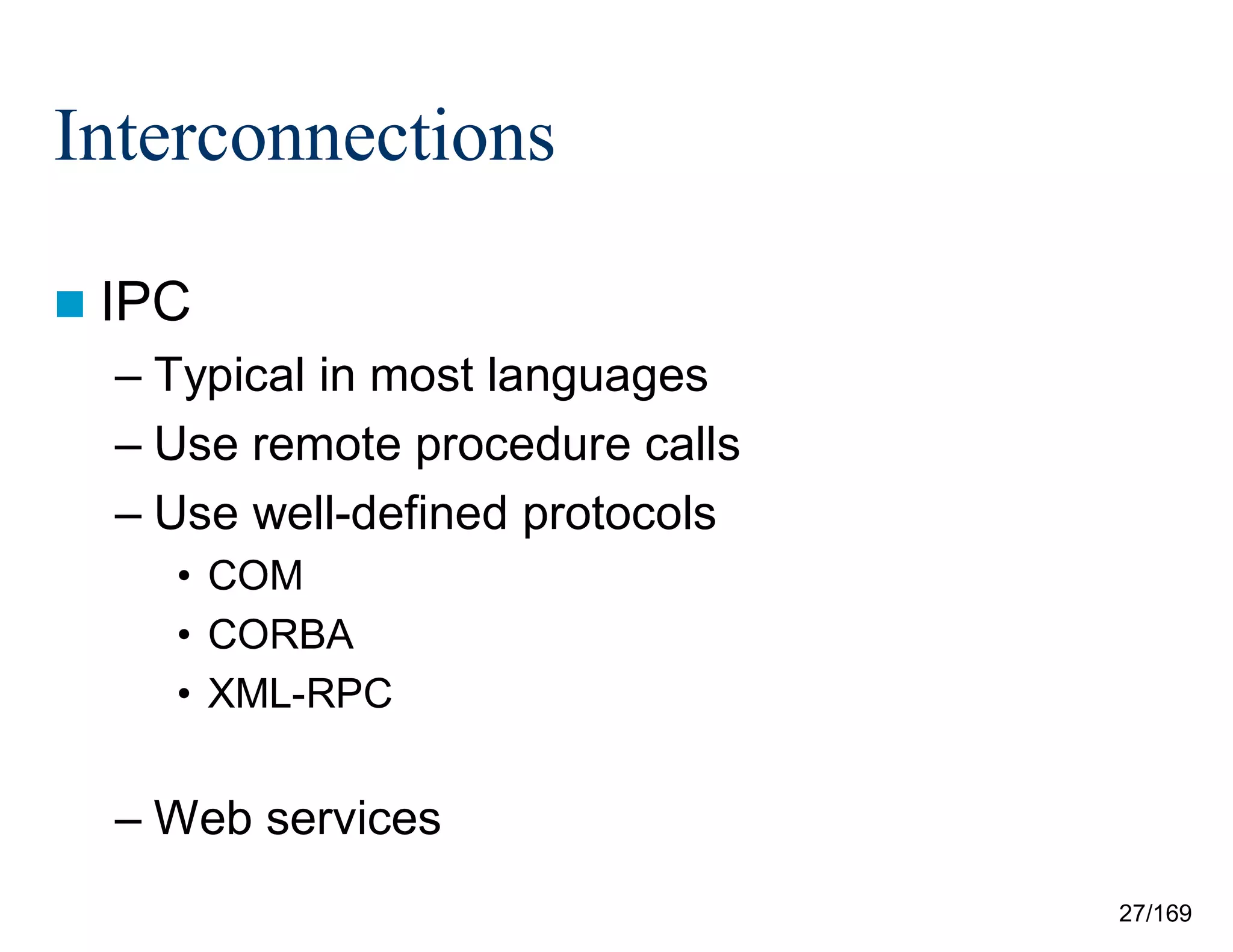

Interconnections
 IPC
– Typical in most languages
– Use remote procedure calls
– Use well-defined protocols
• COM
• CORBA
• XML-RPC
– Web services

38/210
Interconnections
package kr.ac.yonsei.cse3009.rpc;
import java.net.URL;
import org.apache.xmlrpc.client.XmlRpcClient;
import org.apache.xmlrpc.client.XmlRpcClientConfigImpl;
public class Client {
public static void main(final String[] args)
throws Exception {
final XmlRpcClientConfigImpl config =
new XmlRpcClientConfigImpl();
config.setServerURL(
new URL("http://127.0.0.1:8080/xmlrpc"));
final XmlRpcClient client = new XmlRpcClient();
client.setConfig(config);
final Object[] params = new Object[] {
new Integer(33), new Integer(9) };
final Integer result = (Integer)
client.execute("Calculator.add", params);
System.out.println(result);
}
}
import org.apache.xmlrpc.server.PropertyHandlerMapping;
import org.apache.xmlrpc.server.XmlRpcServer;
import org.apache.xmlrpc.webserver.WebServer;
public class Server {
public static void main(final String[] args)
throws Exception {
final WebServer webServer = new WebServer(8080);
final XmlRpcServer xmlRpcServer =
webServer.getXmlRpcServer();
final PropertyHandlerMapping phm =
new PropertyHandlerMapping();
phm.addHandler("Calculator", Calculator.class);
xmlRpcServer.setHandlerMapping(phm);
webServer.start();
}
}
public class Calculator {
public int add(final int i1, final int i2) {
return i1 + i2;
}
public int sub(final int i1, final int i2) {
return i1 - i2;
}
}

39/210

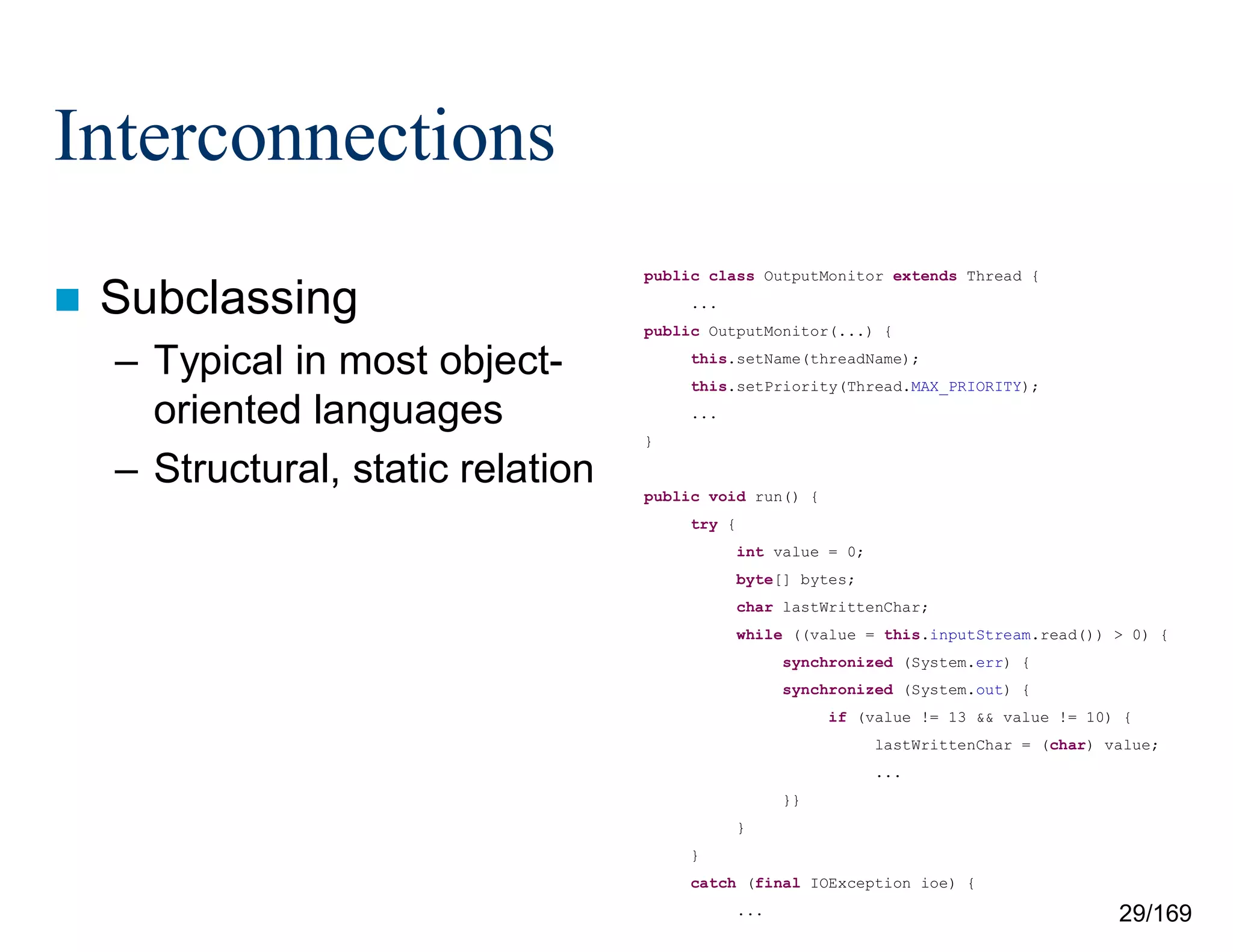

Interconnections
 Subclassing
– Typical in most object-
oriented languages
– Structural, static relation
public class OutputMonitor extends Thread {
...
public OutputMonitor(...) {
this.setName(threadName);
this.setPriority(Thread.MAX_PRIORITY);
...
}
public void run() {
try {
int value = 0;
byte[] bytes;
char lastWrittenChar;
while ((value = this.inputStream.read()) > 0) {
synchronized (System.err) {
synchronized (System.out) {
if (value != 13 && value != 10) {
lastWrittenChar = (char) value;
...
}}
}
}
catch (final IOException ioe) {
...

40/210

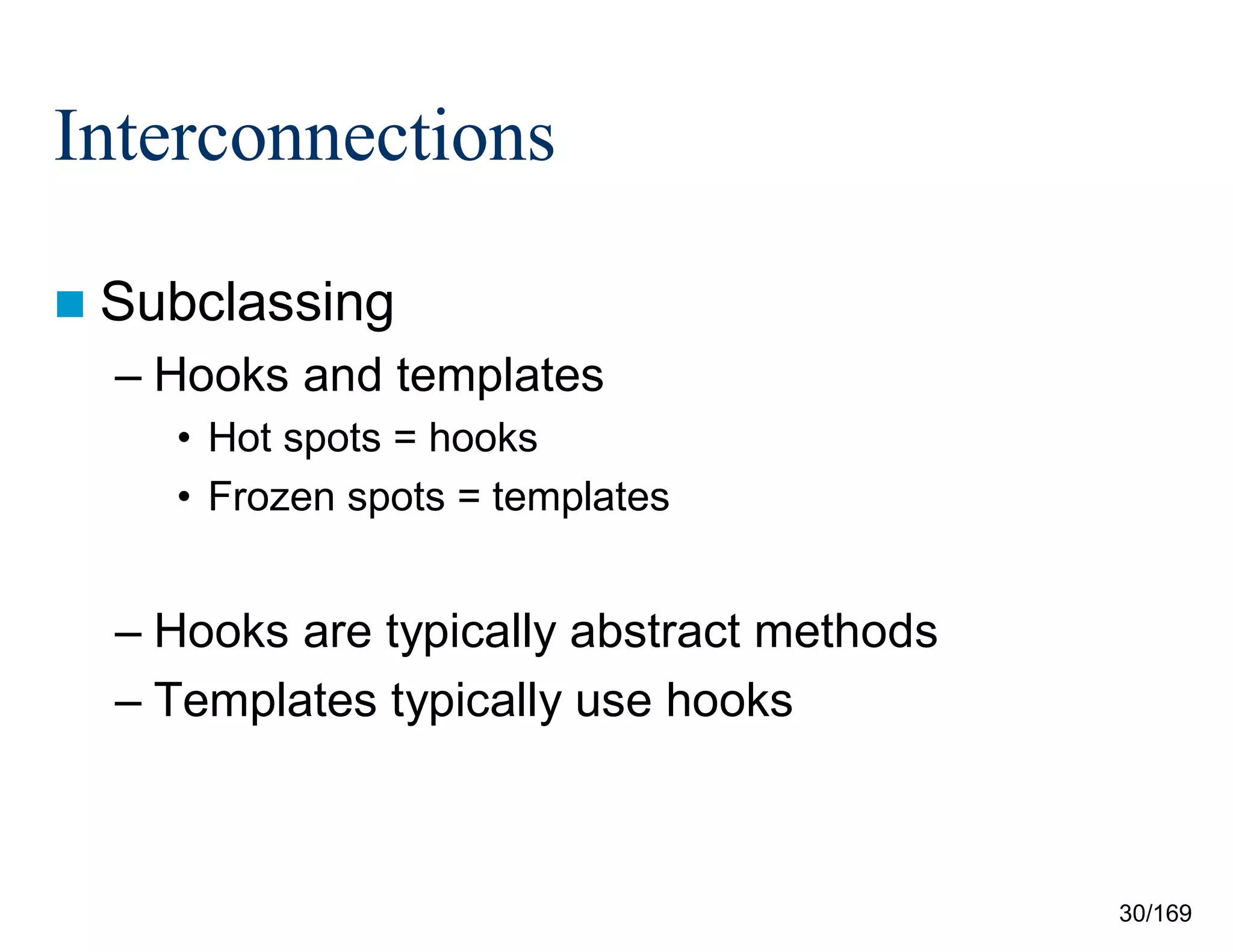

Interconnections
 Subclassing
– Hooks and templates
• Hot spots = hooks
• Frozen spots = templates
– Hooks are typically abstract methods
– Templates typically use hooks

41/210
Interconnections
 Subclassing
– Hooks and templates
• JUnit

42/210

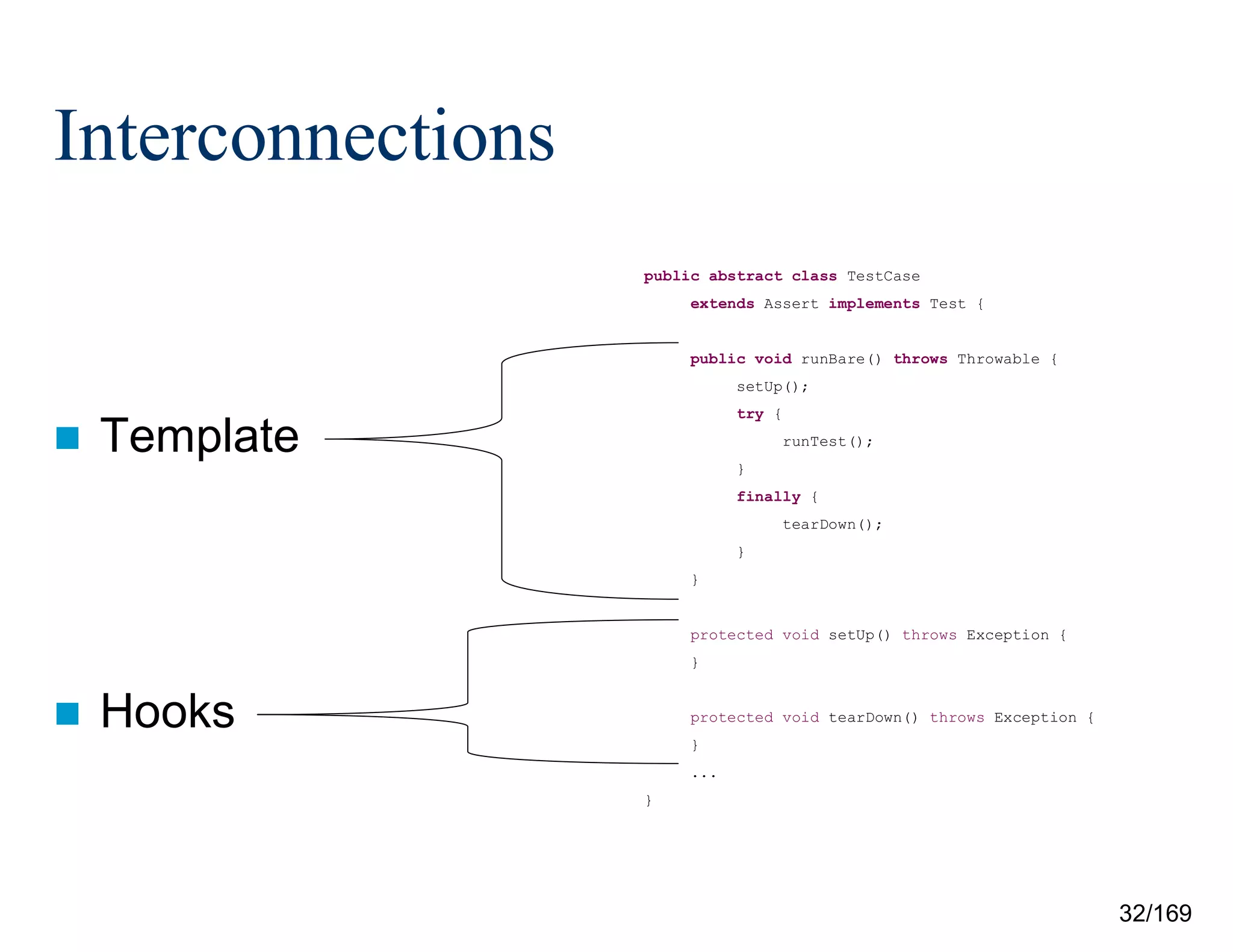

Interconnections
 Template
 Hooks
public abstract class TestCase
extends Assert implements Test {
public void runBare() throws Throwable {
setUp();
try {
runTest();
}
finally {
tearDown();
}
}
protected void setUp() throws Exception {
}
protected void tearDown() throws Exception {
}
...
}

43/210
Interconnections
 Subclassing
– Heavily used in object-oriented programs
– Heavily used in design patterns
(Only Singleton does not explicitly use subclassing)
• Abstract Factory
• Composite
• Decorator
• Observer
• Visitor

44/210

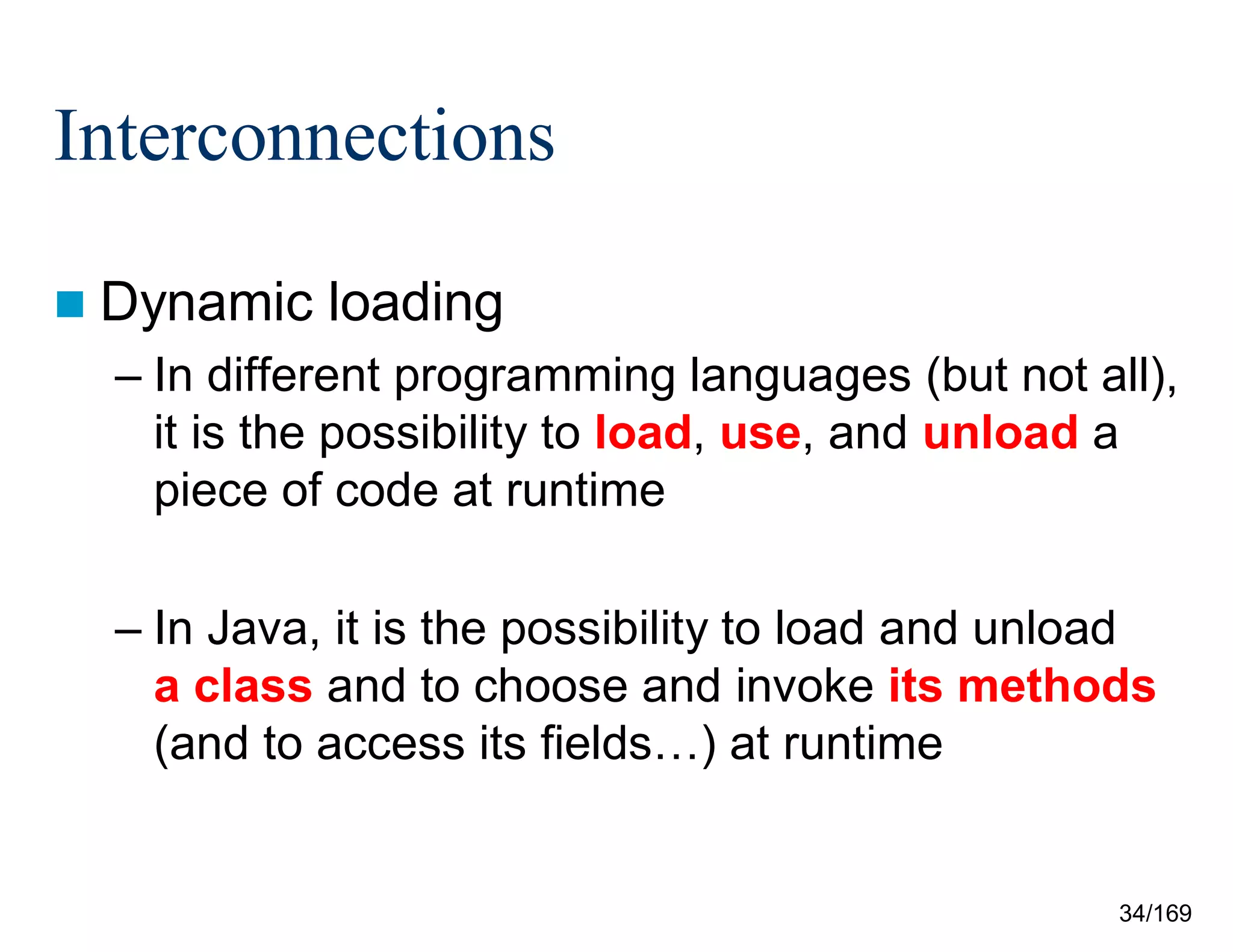

Interconnections
 Dynamic loading
– In different programming languages (but not all),
it is the possibility to load, use, and unload a
piece of code at runtime
– In Java, it is the possibility to load and unload
a class and to choose and invoke its methods
(and to access its fields…) at runtime

45/210
Interconnections
 Poor man’s profiler
– Calls the main() method of a class whose name is
given at runtime, by the user
– Displays the time spent in the called method
public final class PoorManProfiler {
try {
final Class toBeRun = Class.forName(args[0]);
final Method mainMethod =
toBeRun.getMethod("main", new Class[] { String[].class });
final long startTime = System.currentTimeMillis();
mainMethod.invoke(null, new Object[] { new String[0] });
final long endTime = System.currentTimeMillis();
System.out.println();
System.out.println(endTime - startTime);
}
catch (final Exception e) {
e.printStackTrace();
}
}
}

46/210

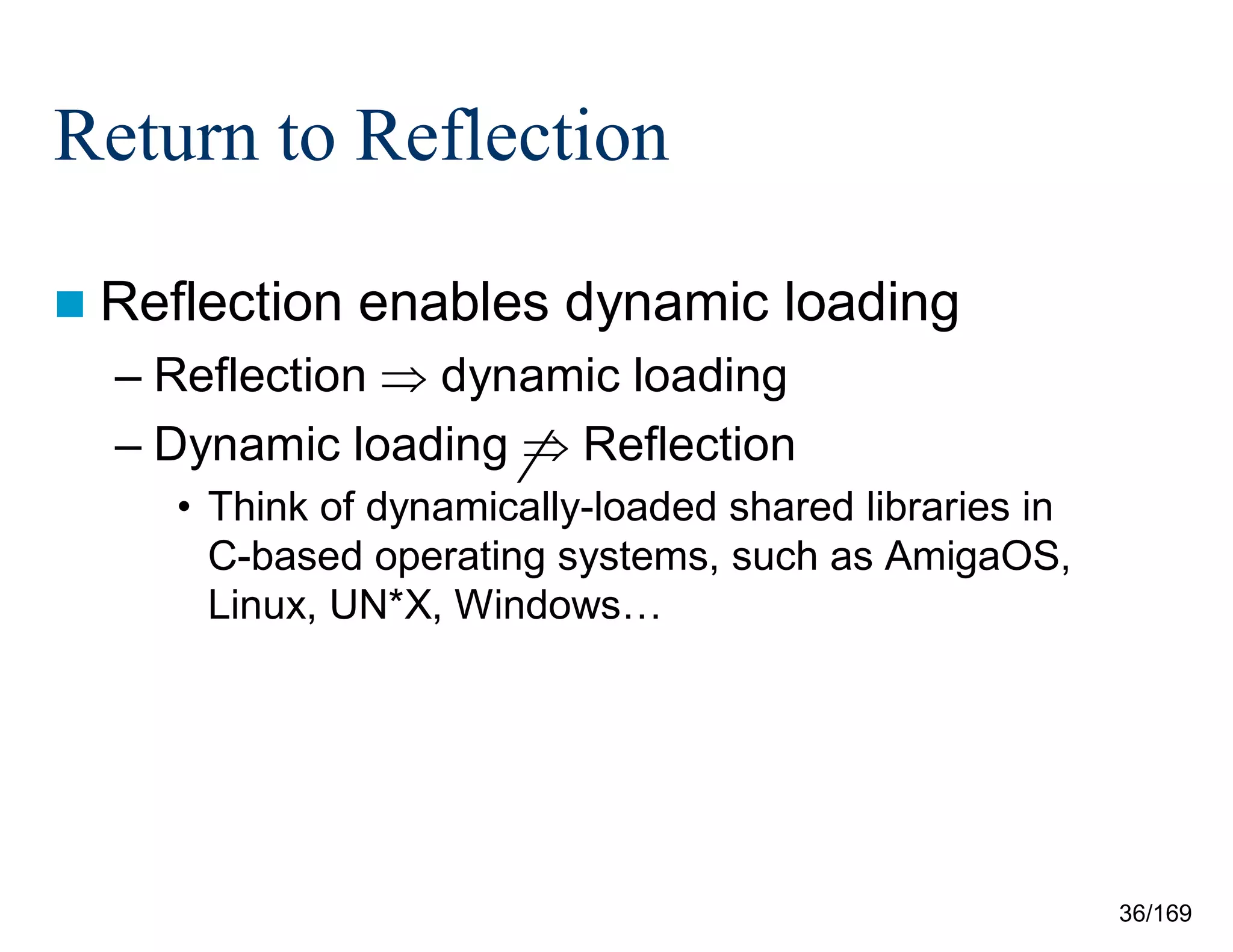

Return to Reflection
 Reflection enables dynamic loading
– Reflection  dynamic loading
– Dynamic loading  Reflection
• Think of dynamically-loaded shared libraries in
C-based operating systems, such as AmigaOS,
Linux, UN*X, Windows…


47/210
Outline
 Rationale
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

48/210

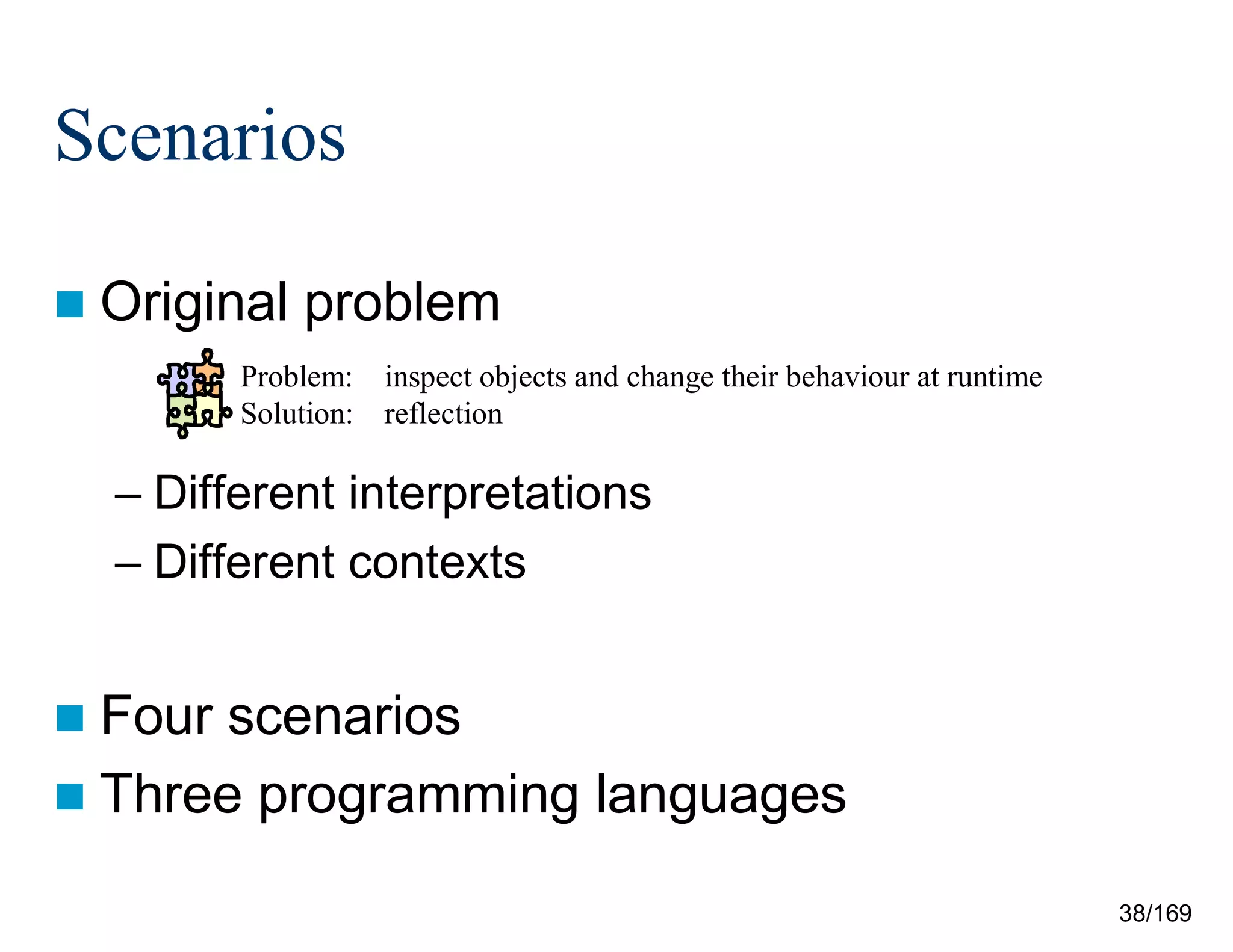

Scenarios
 Original problem
– Different interpretations
– Different contexts
 Four scenarios
 Three programming languages
Problem: inspect objects and change their behaviour at runtime
Solution: reflection

49/210

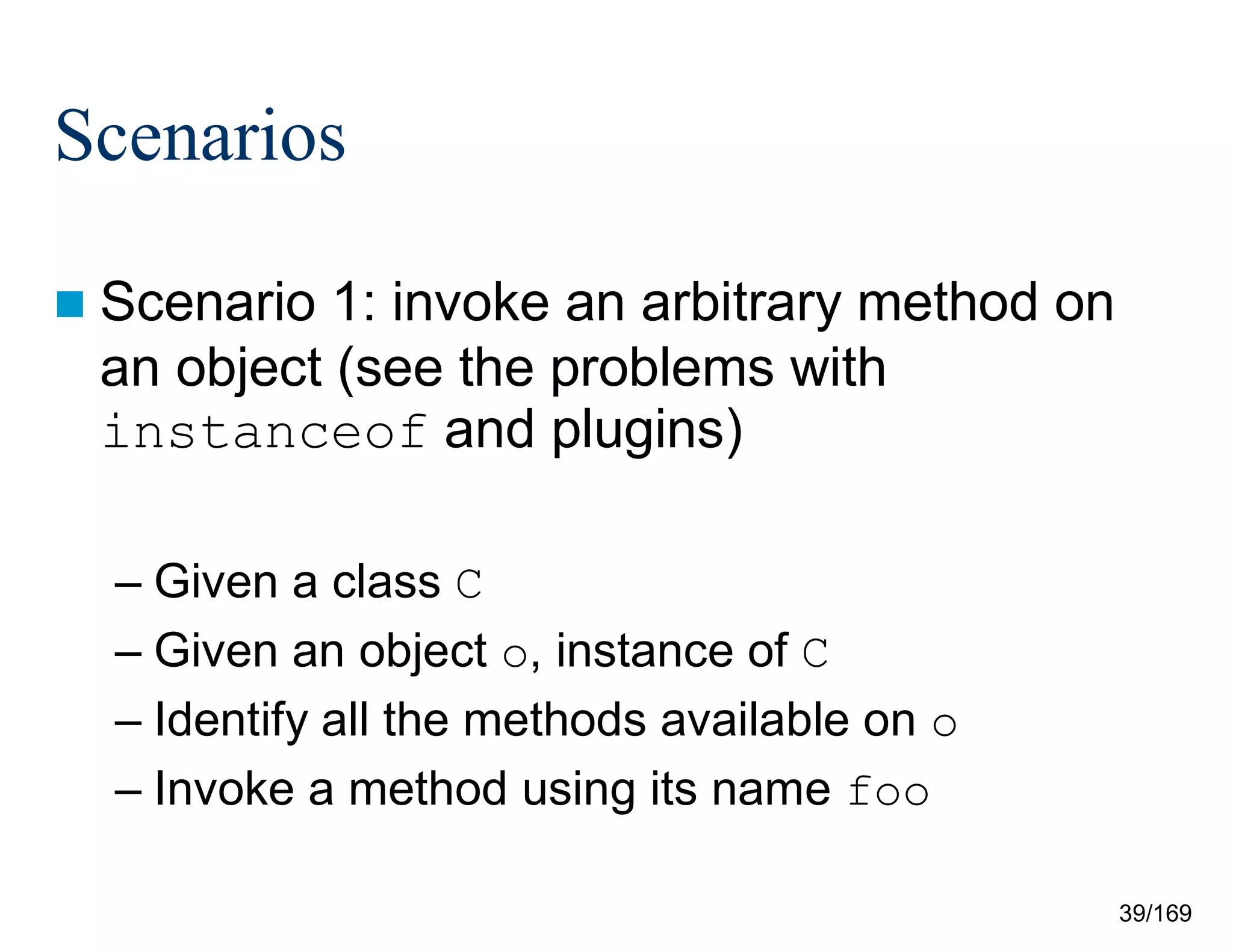

Scenarios
 Scenario 1: invoke an arbitrary method on
an object (see the problems with
instanceof and plugins)
– Given a class C
– Given an object o, instance of C
– Identify all the methods available on o
– Invoke a method using its name foo

50/210
Scenarios
 Scenario 2: access the complete (including
private) state of an object (see the problem
with serialisation)
– Save on disk the complete state of o
– Restore from disk the object o at a later time

51/210

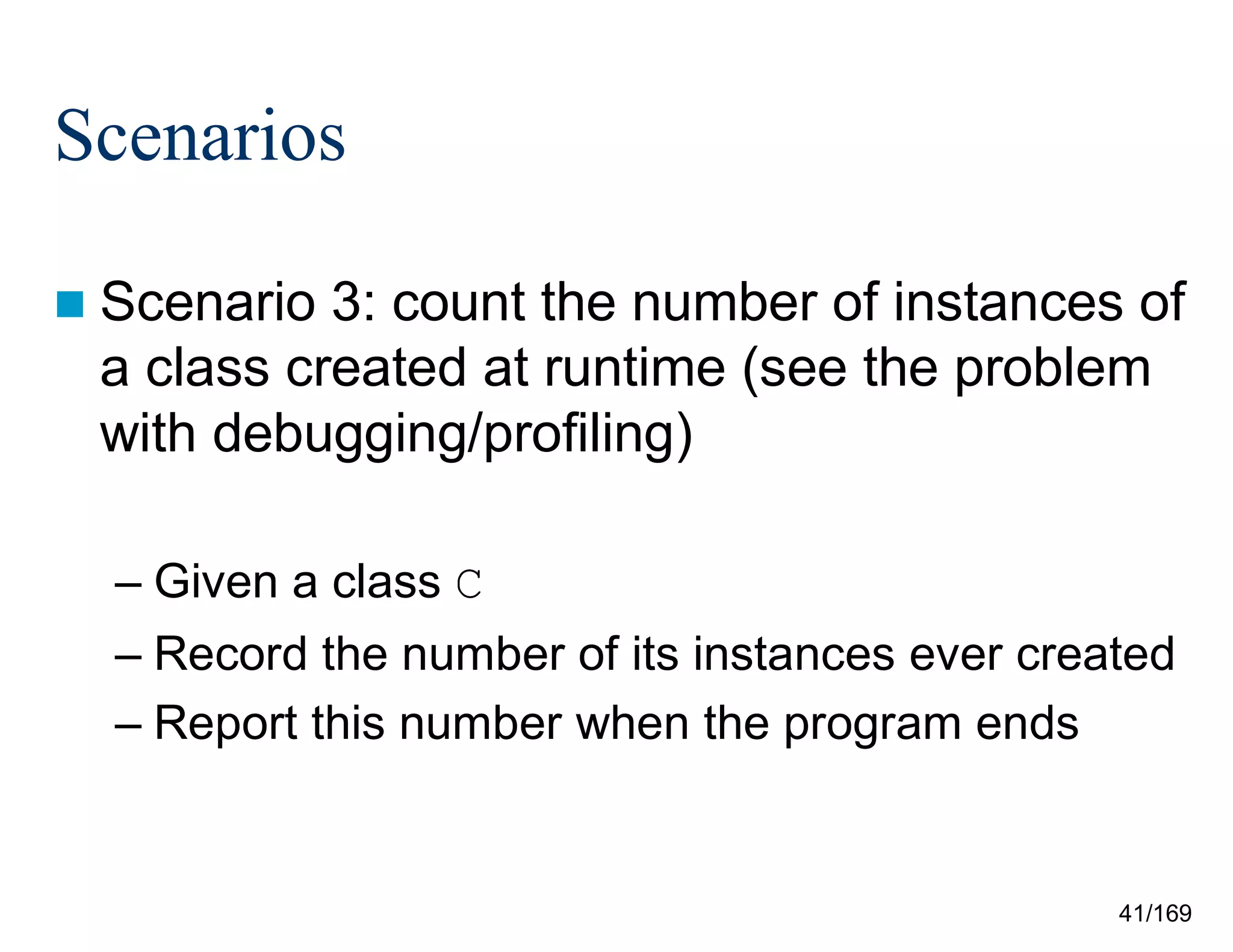

Scenarios
 Scenario 3: count the number of instances of
a class created at runtime (see the problem
with debugging/profiling)
– Given a class C
– Record the number of its instances ever created
– Report this number when the program ends

52/210
Scenarios

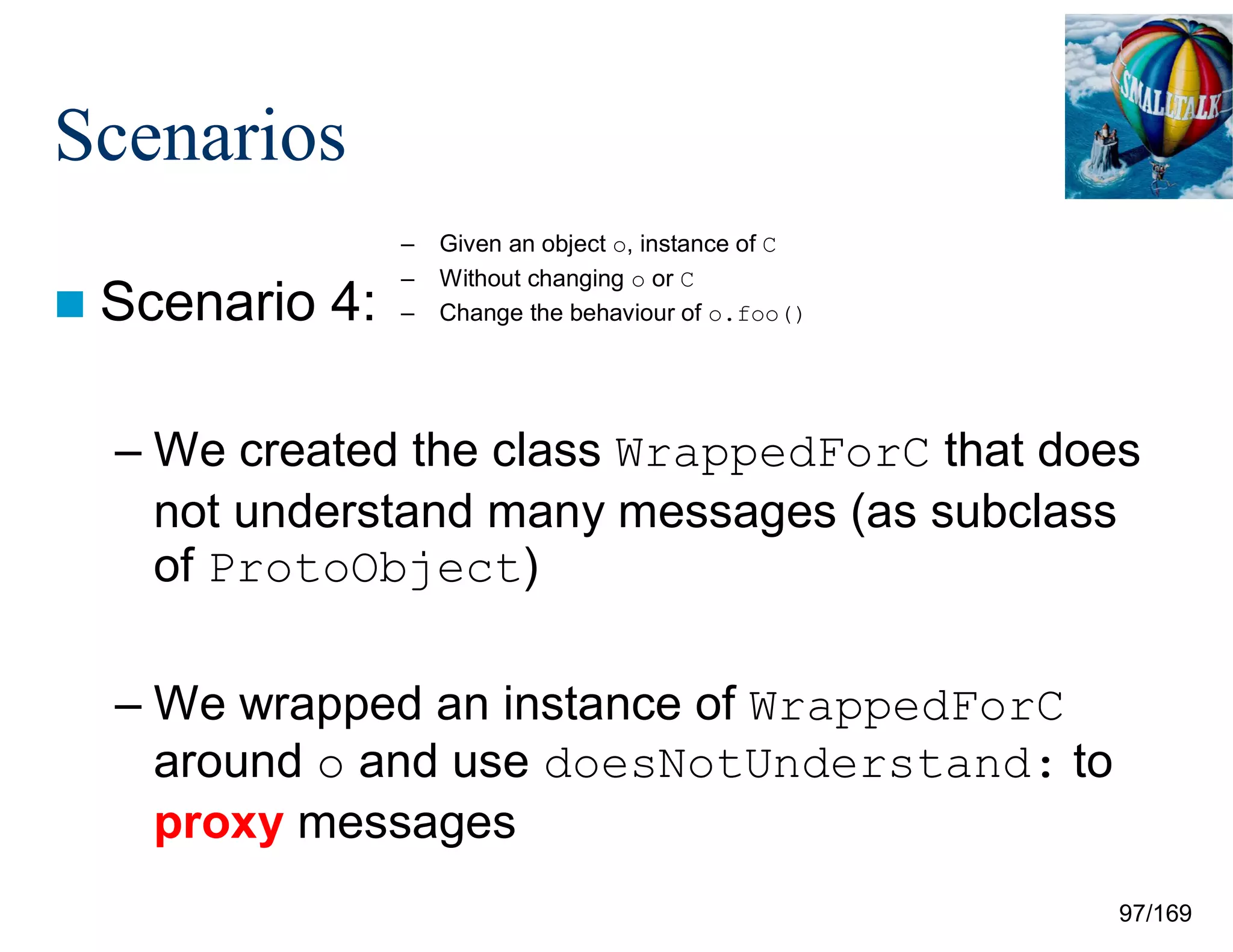

 Scenario 4: patch the method of a class to
change its behaviour (see the problem with
patching)
– Without changing o or C
– Change the behaviour of o.foo()

53/210
Scenarios
Java
Smalltalk
C++

54/210

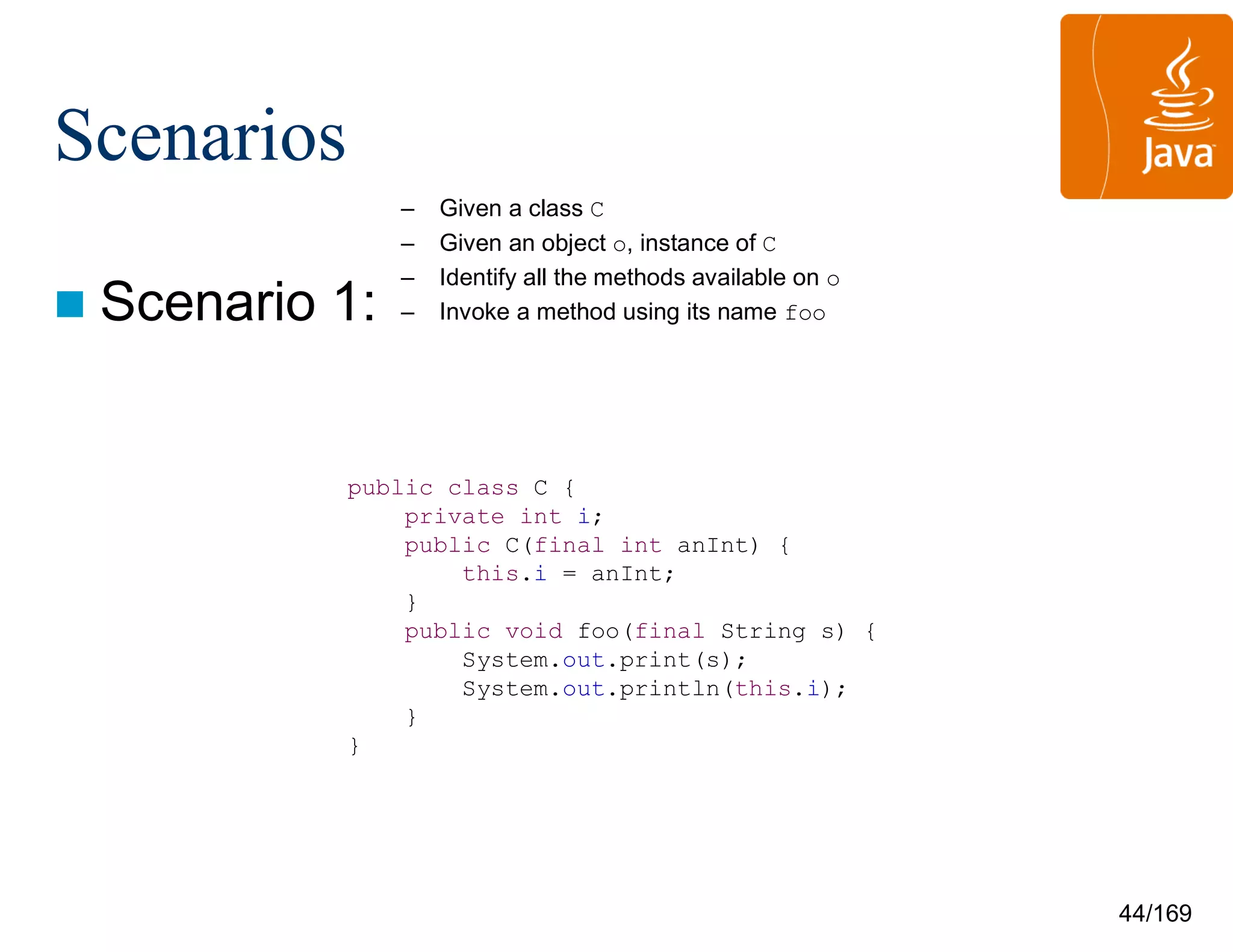

Scenarios
 Scenario 1:
– Given a class C
public class C {
private int i;
public C(final int anInt) {
this.i = anInt;
}
public void foo(final String s) {
System.out.print(s);
System.out.println(this.i);
}
}

55/210

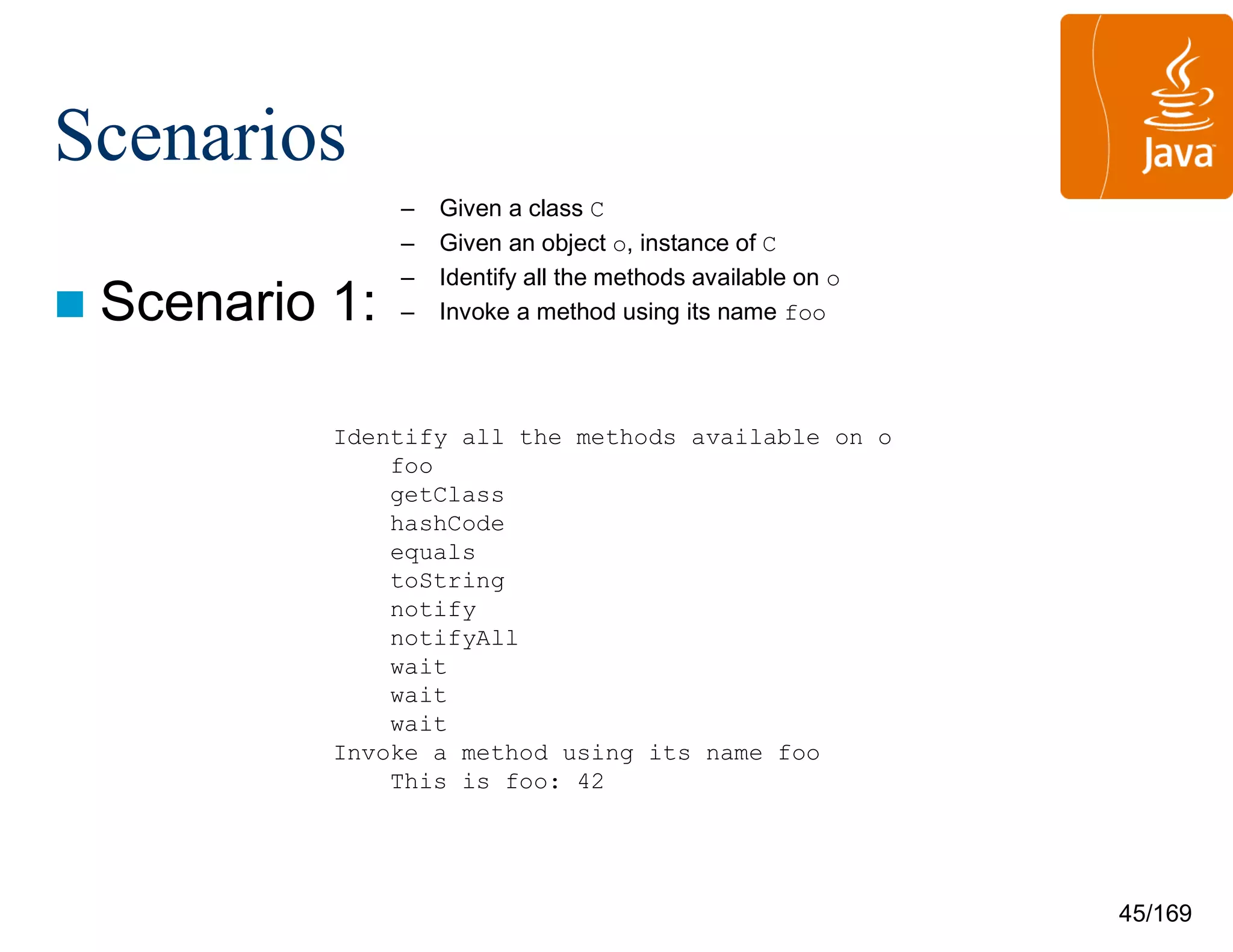

Scenarios
 Scenario 1:
– Given a class C
Identify all the methods available on o
foo
getClass
hashCode
equals
toString
notify
notifyAll
wait
wait
wait
Invoke a method using its name foo
This is foo: 42

56/210

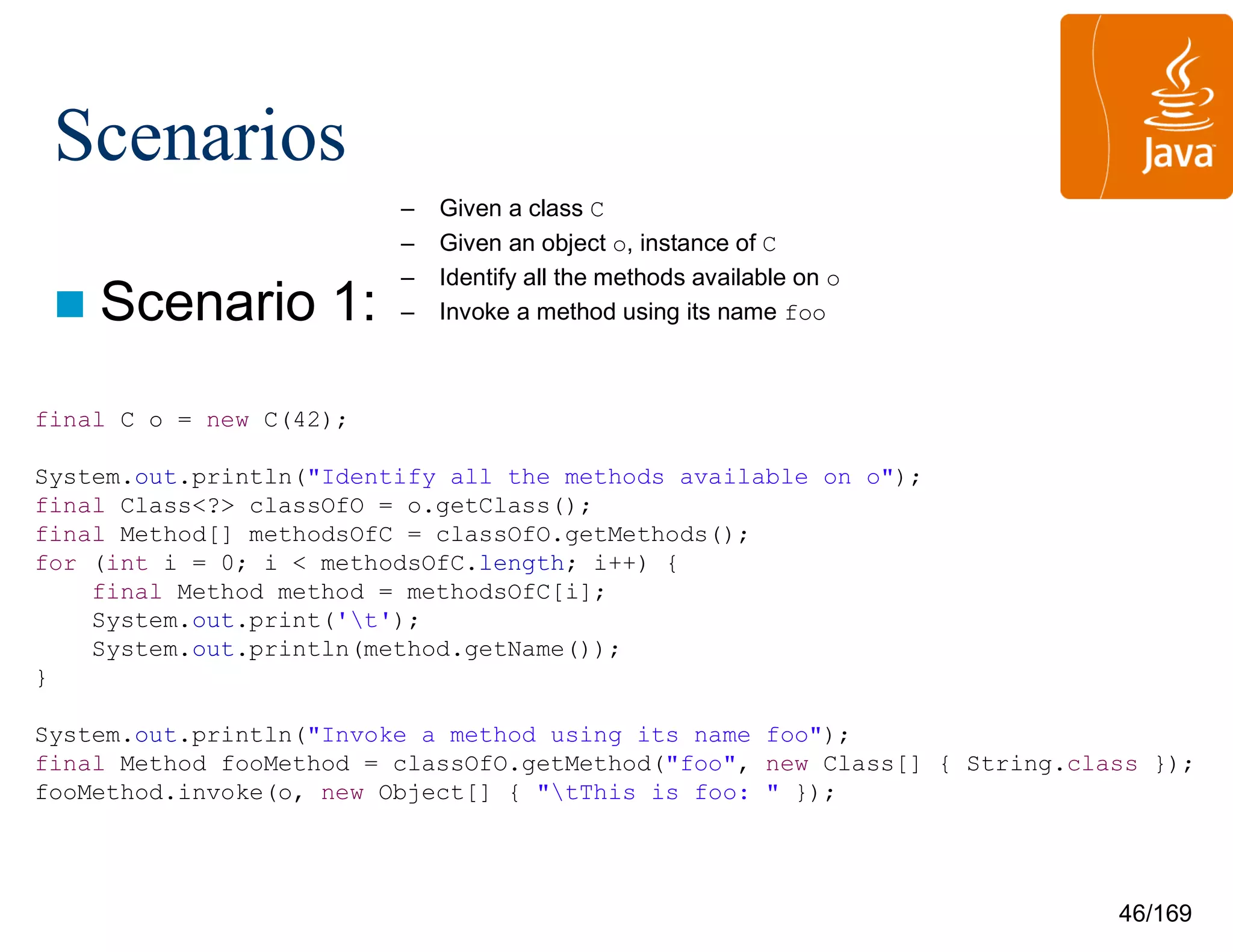

Scenarios
 Scenario 1:
– Given a class C
final C o = new C(42);
System.out.println("Identify all the methods available on o");
final Class<?> classOfO = o.getClass();
final Method[] methodsOfC = classOfO.getMethods();
for (int i = 0; i < methodsOfC.length; i++) {
final Method method = methodsOfC[i];
System.out.print('t');
System.out.println(method.getName());
}
System.out.println("Invoke a method using its name foo");
final Method fooMethod = classOfO.getMethod("foo", new Class[] { String.class });
fooMethod.invoke(o, new Object[] { "tThis is foo: " });

57/210
Scenarios
 Scenario 1:
– Given a class C
foo
getClass
hashCode
equals
toString
notify
notifyAll
wait
wait
wait
This is foo: 42

58/210
Scenarios

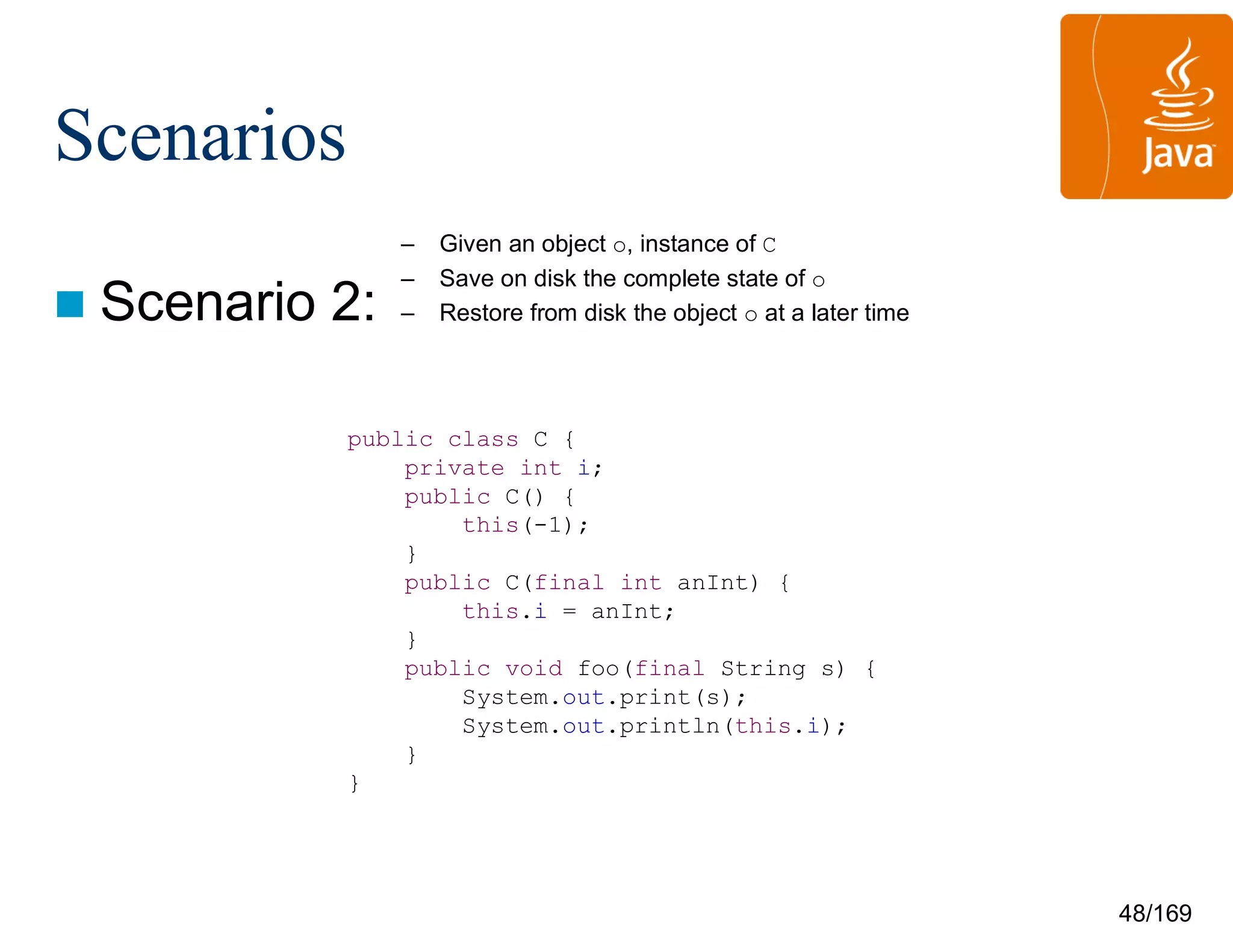

 Scenario 2:
public class C {
private int i;
public C() {
this(-1);
}
this.i = anInt;
}
}
}

59/210

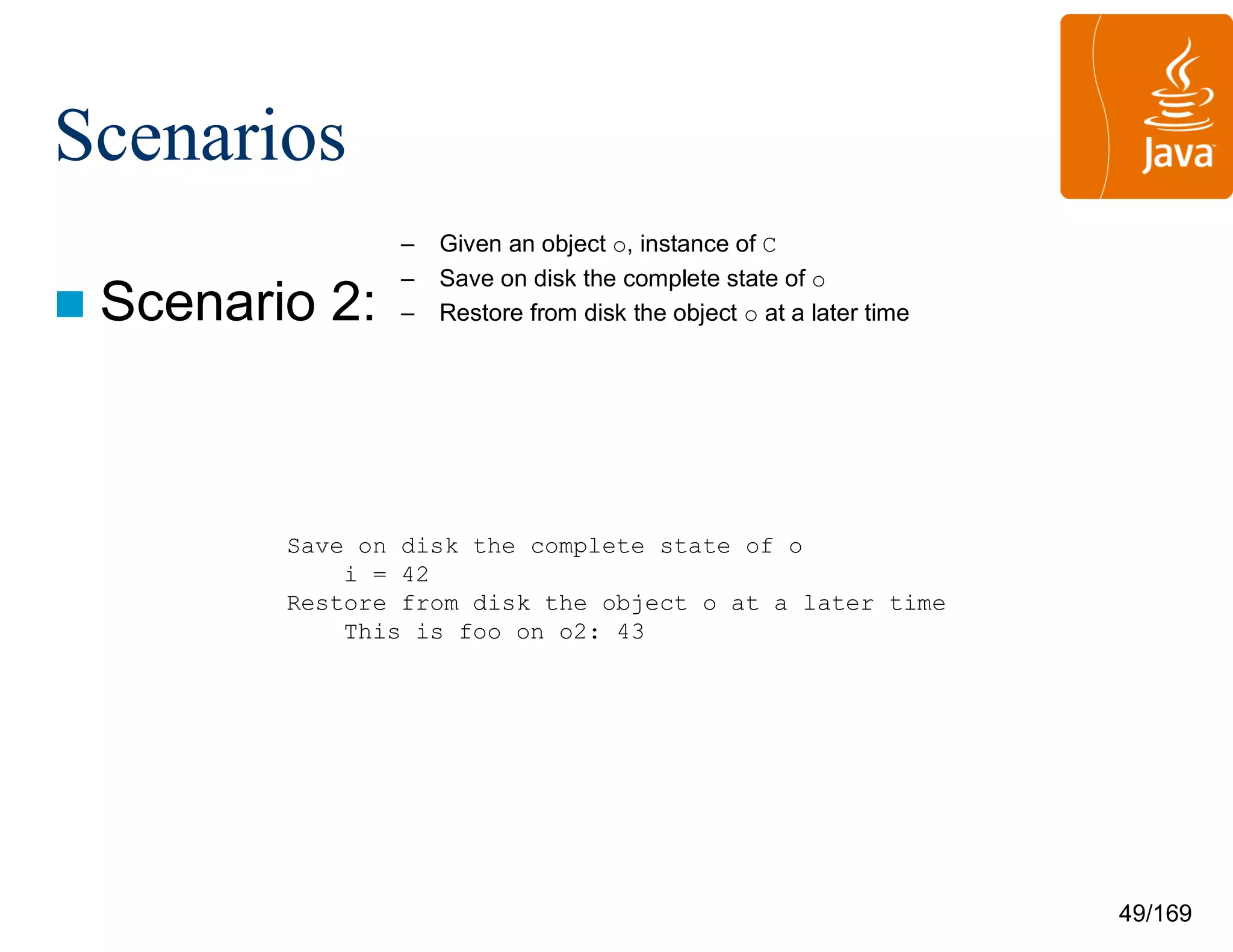

Scenarios
 Scenario 2:
Save on disk the complete state of o
i = 42
Restore from disk the object o at a later time
This is foo on o2: 43

60/210
Scenarios

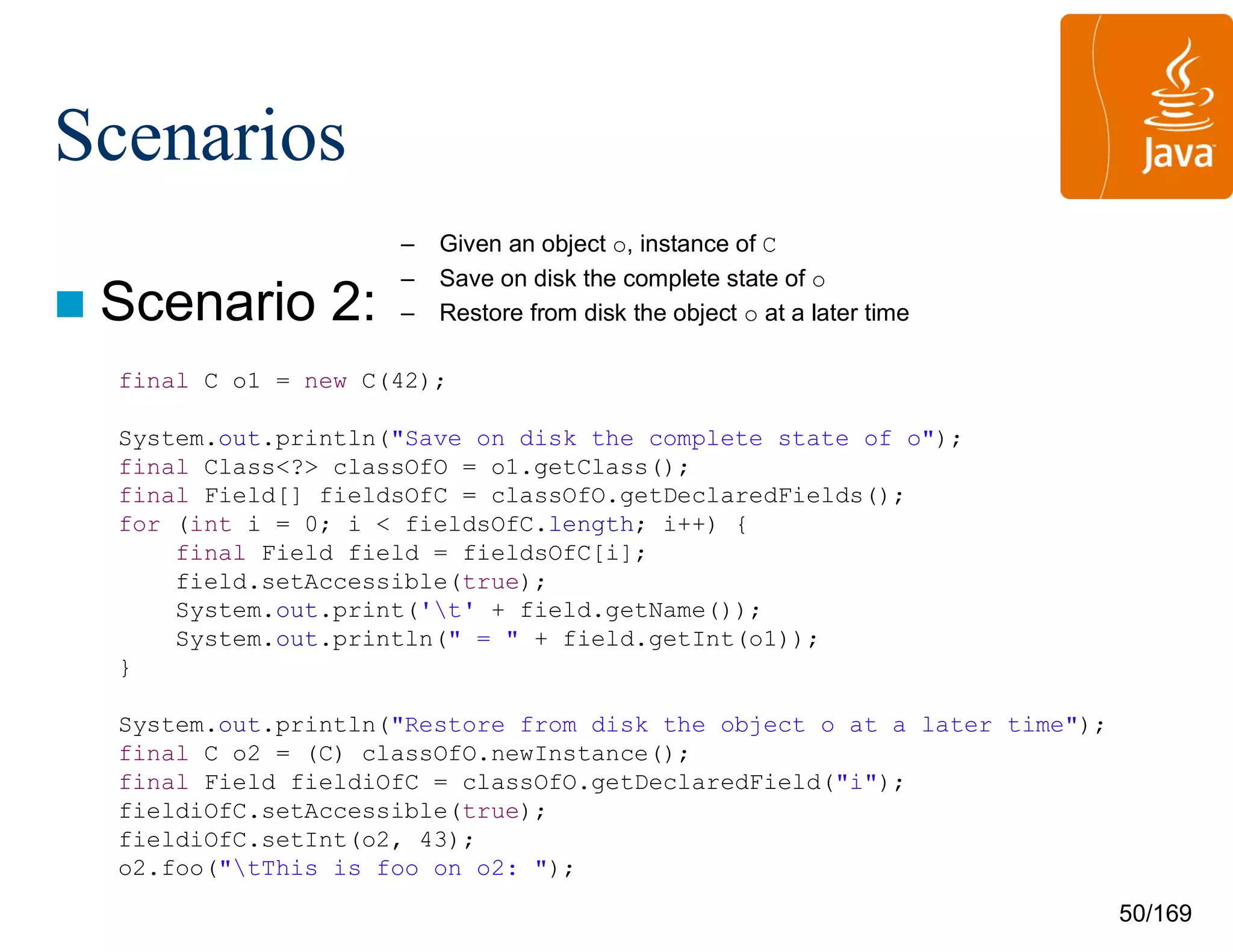

 Scenario 2:
final C o1 = new C(42);
System.out.println("Save on disk the complete state of o");
final Class<?> classOfO = o1.getClass();
final Field[] fieldsOfC = classOfO.getDeclaredFields();
for (int i = 0; i < fieldsOfC.length; i++) {
final Field field = fieldsOfC[i];
field.setAccessible(true);
System.out.print('t' + field.getName());
System.out.println(" = " + field.getInt(o1));
}
System.out.println("Restore from disk the object o at a later time");
final C o2 = (C) classOfO.newInstance();
final Field fieldiOfC = classOfO.getDeclaredField("i");
fieldiOfC.setAccessible(true);
fieldiOfC.setInt(o2, 43);
o2.foo("tThis is foo on o2: ");

61/210
Scenarios
 Scenario 2:
i = 42

62/210

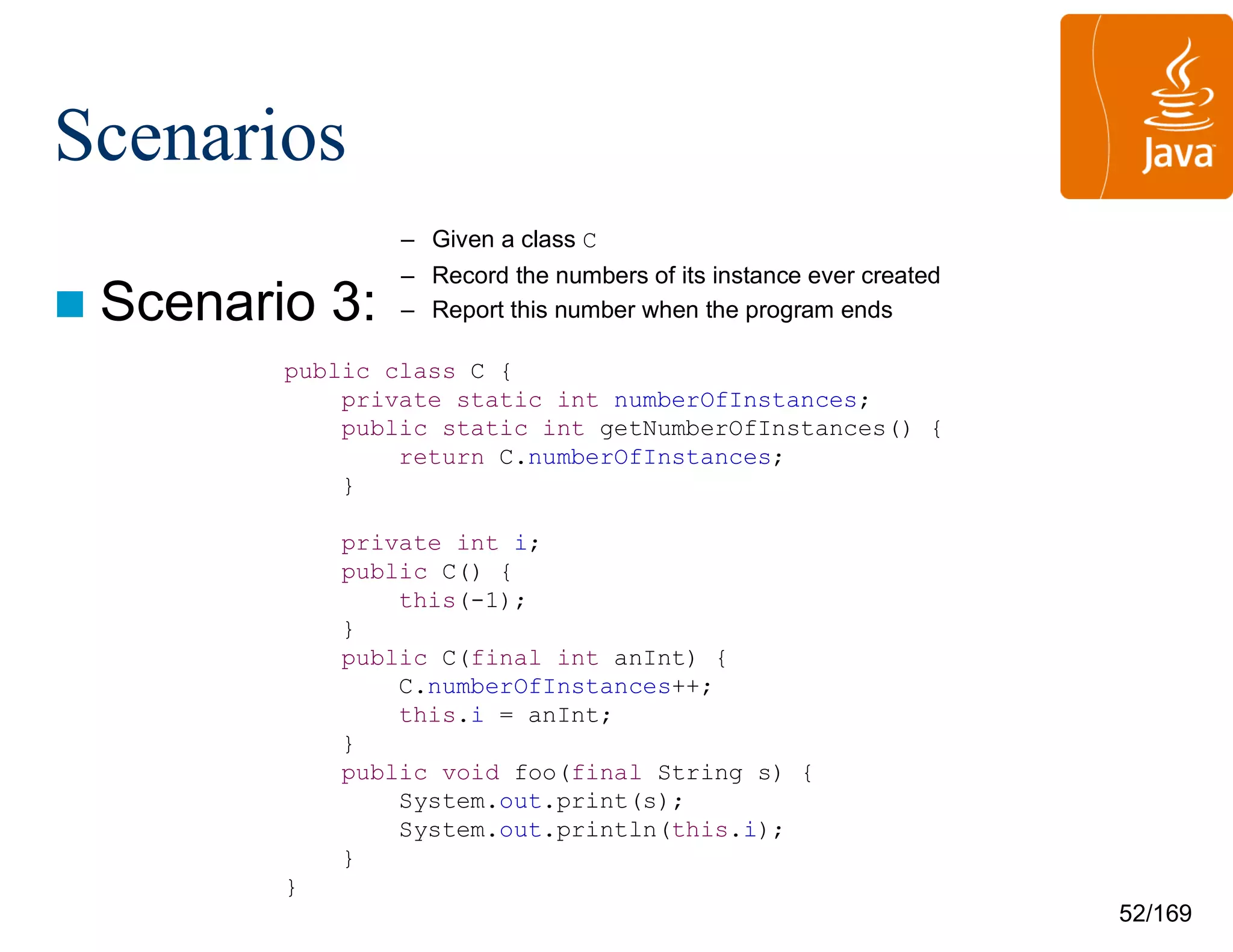

Scenarios

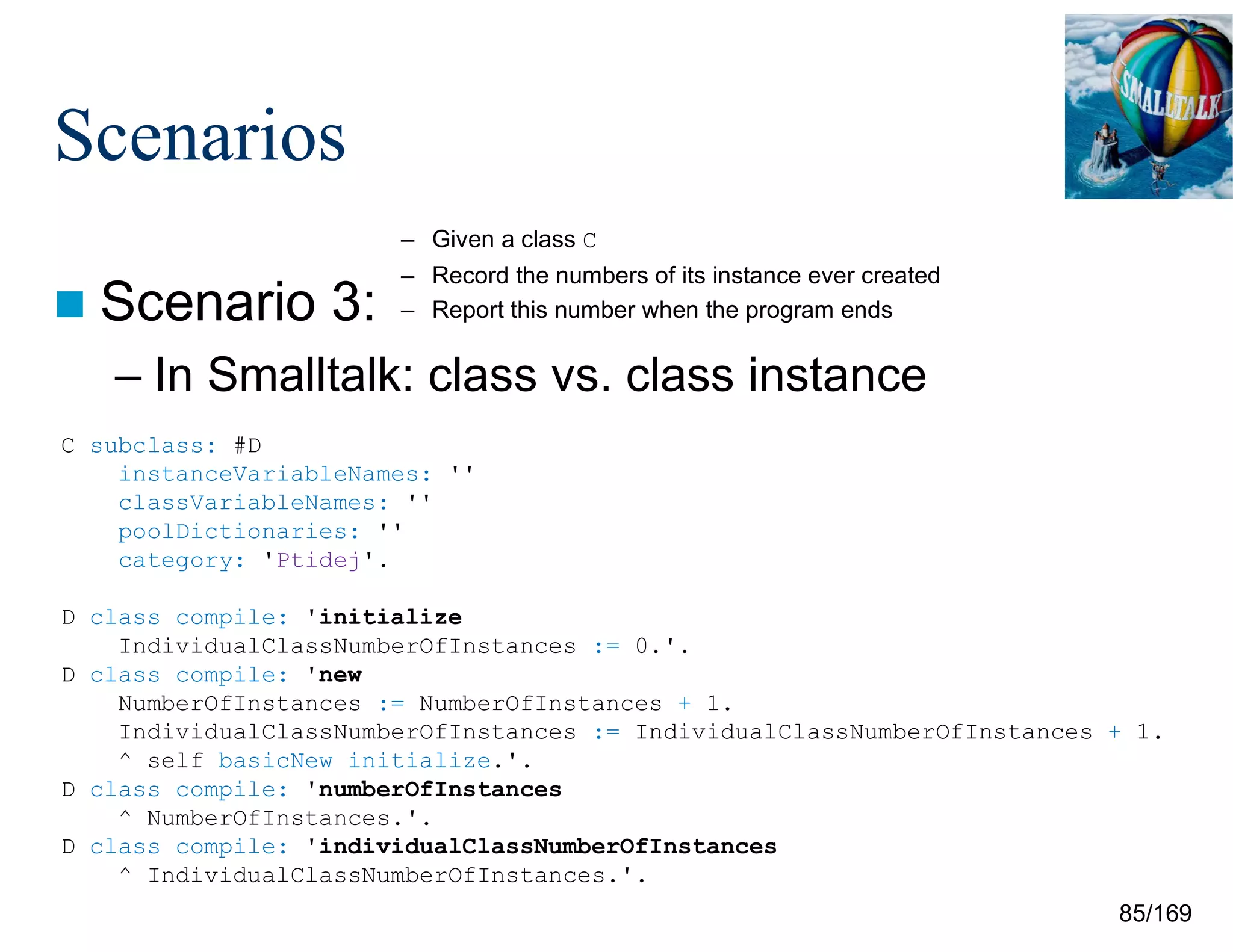

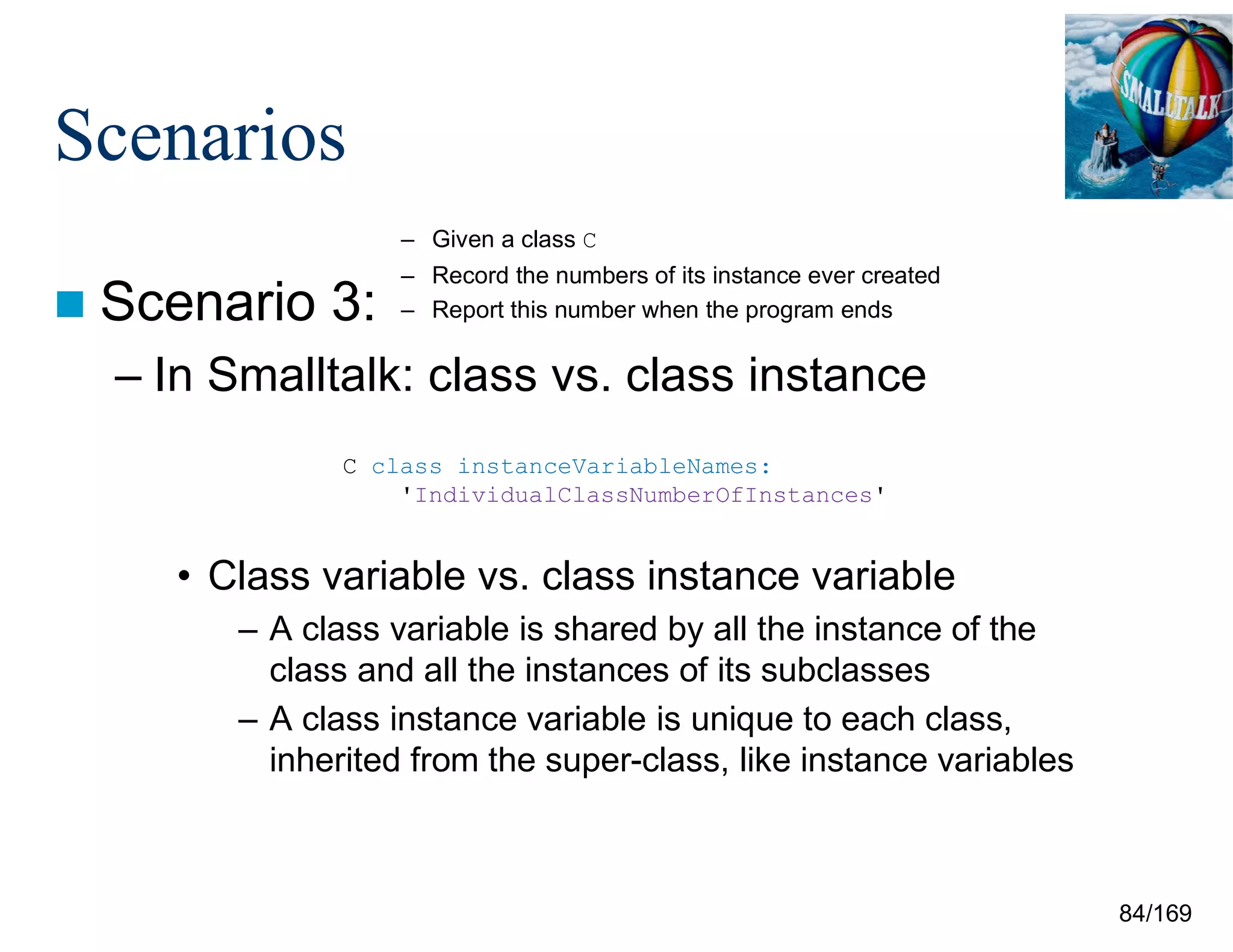

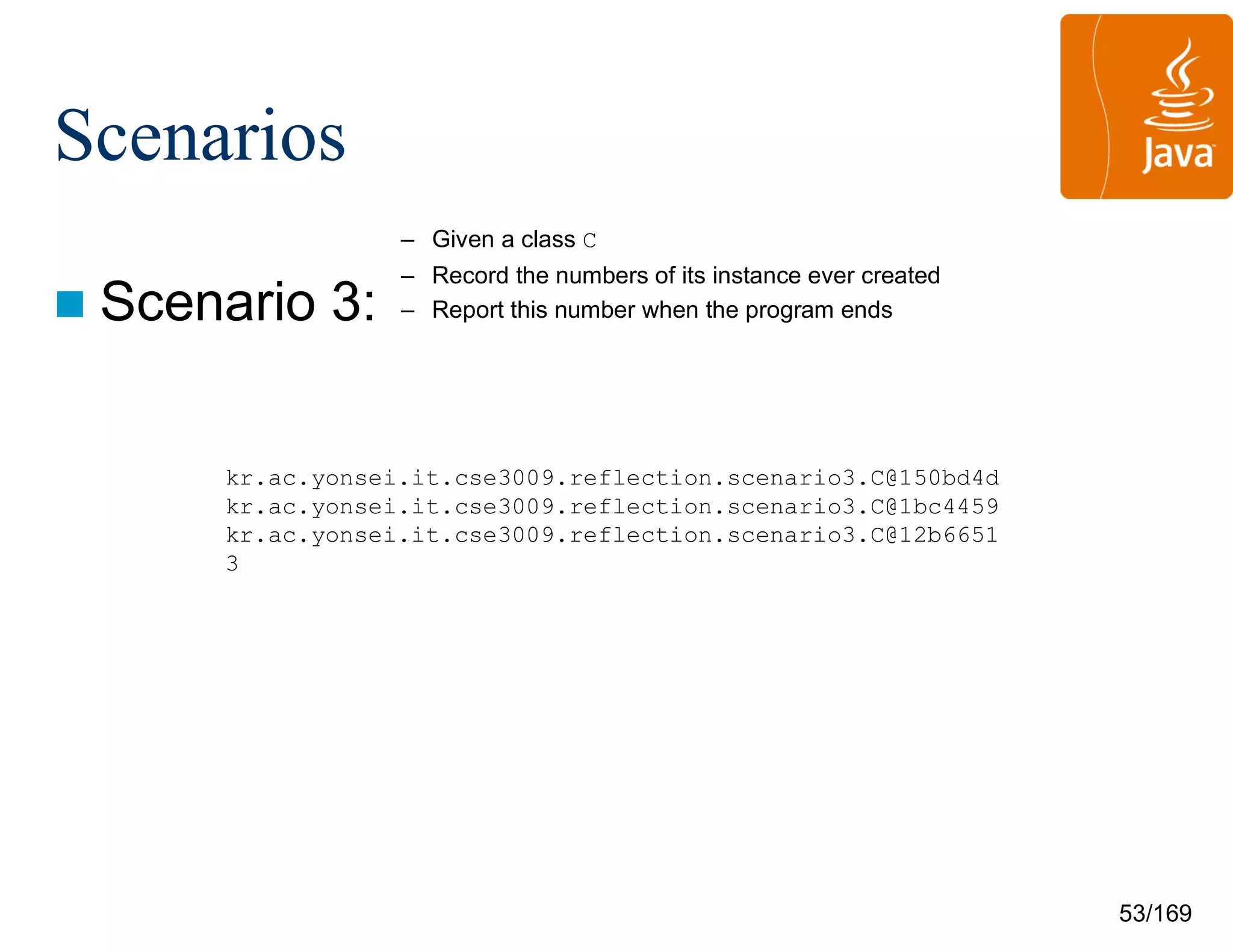

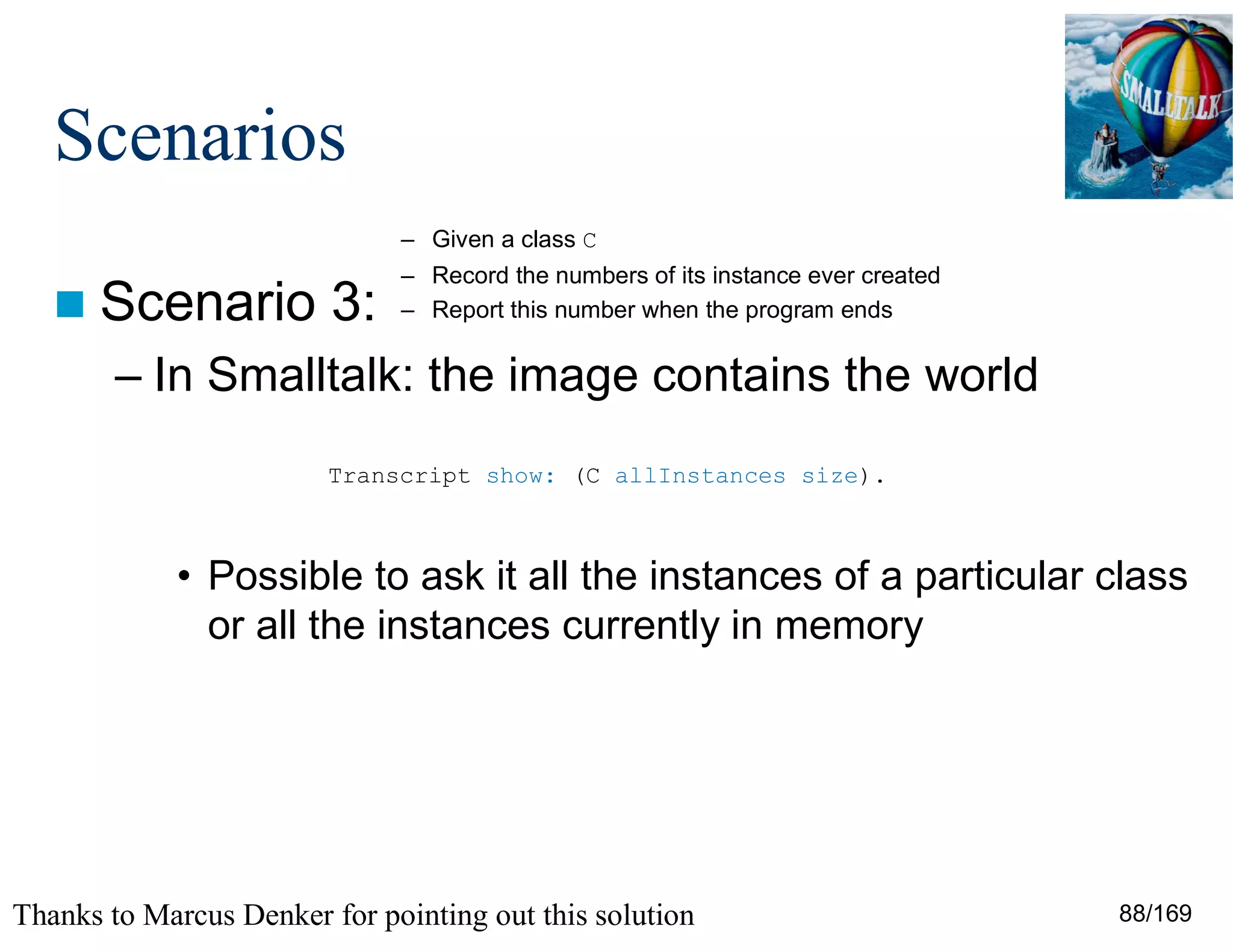

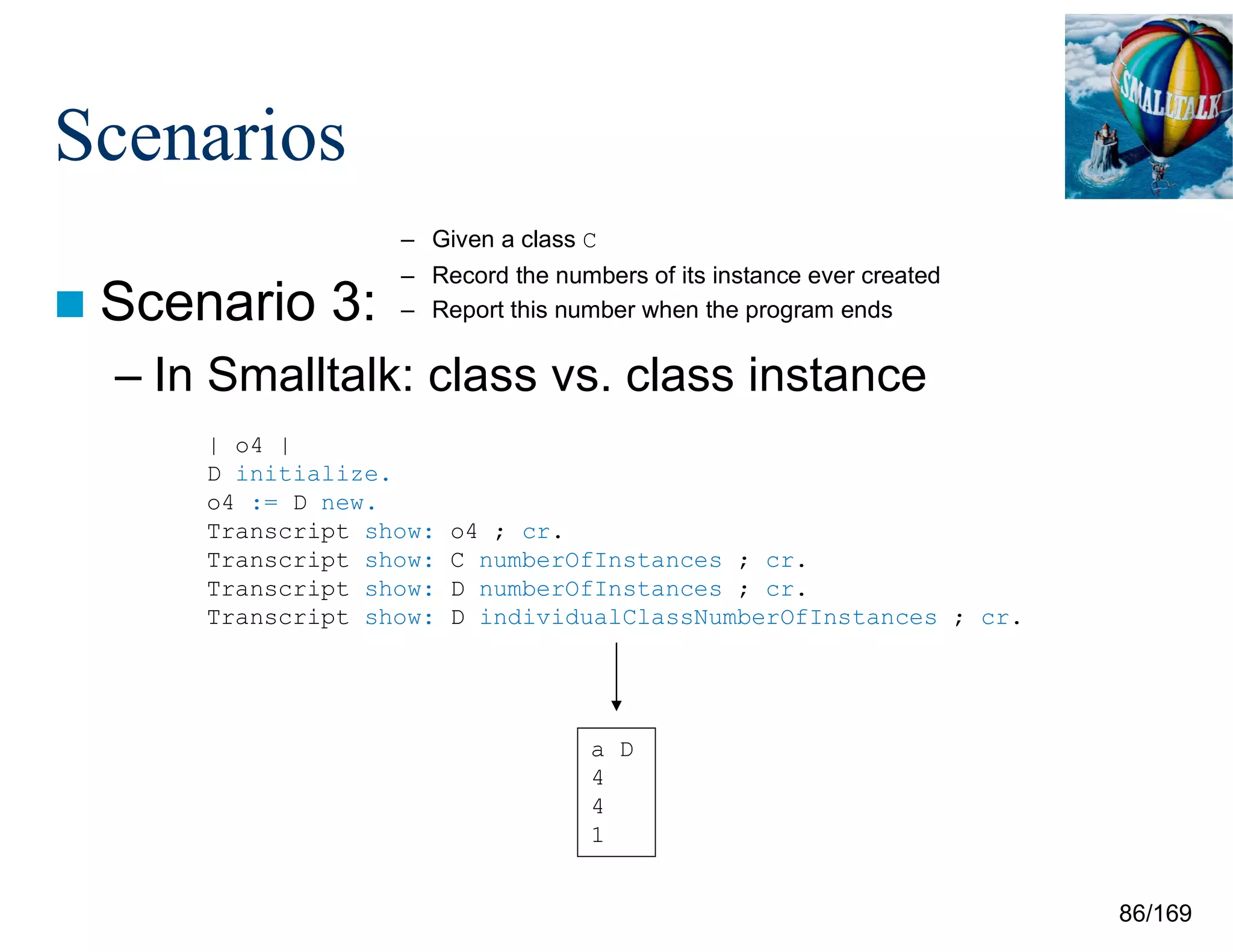

 Scenario 3:
– Given a class C
– Record the numbers of its instance ever created
public class C {
private static int numberOfInstances;
public static int getNumberOfInstances() {
return C.numberOfInstances;
}
private int i;
public C() {
this(-1);
}
C.numberOfInstances++;
this.i = anInt;
}
}
}

63/210
Scenarios
 Scenario 3:
kr.ac.yonsei.it.cse3009.reflection.scenario3.C@150bd4d
kr.ac.yonsei.it.cse3009.reflection.scenario3.C@1bc4459
kr.ac.yonsei.it.cse3009.reflection.scenario3.C@12b6651
3
– Given a class C

64/210

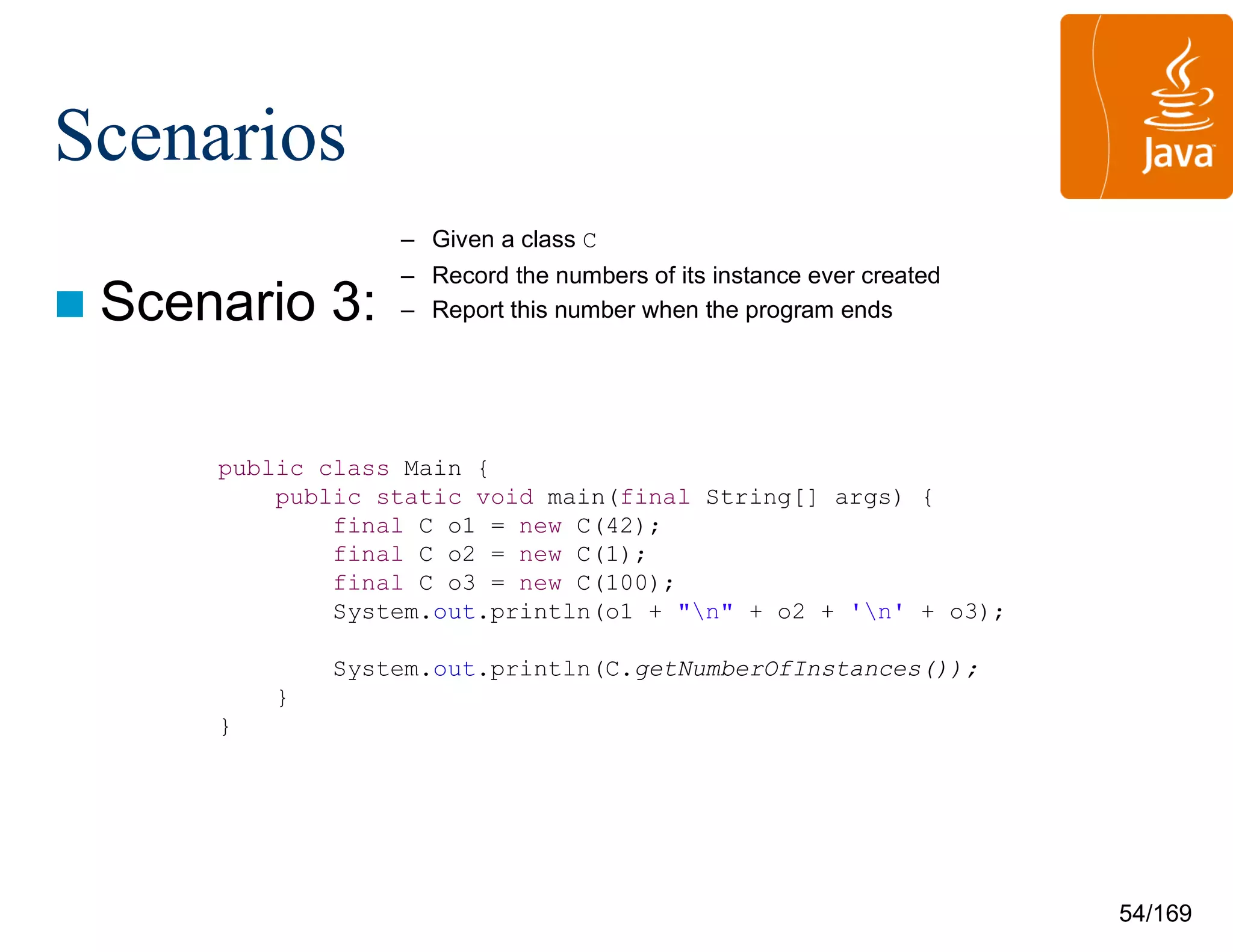

Scenarios
 Scenario 3:
public class Main {
System.out.println(o1 + "n" + o2 + 'n' + o3);
System.out.println(C.getNumberOfInstances());
}
}
– Given a class C

65/210
Scenarios
 Scenario 3:
3
– Given a class C

66/210
Scenarios
 Scenario 3:
3
To fulfill this scenario,
we must modify C
– Given a class C

67/210

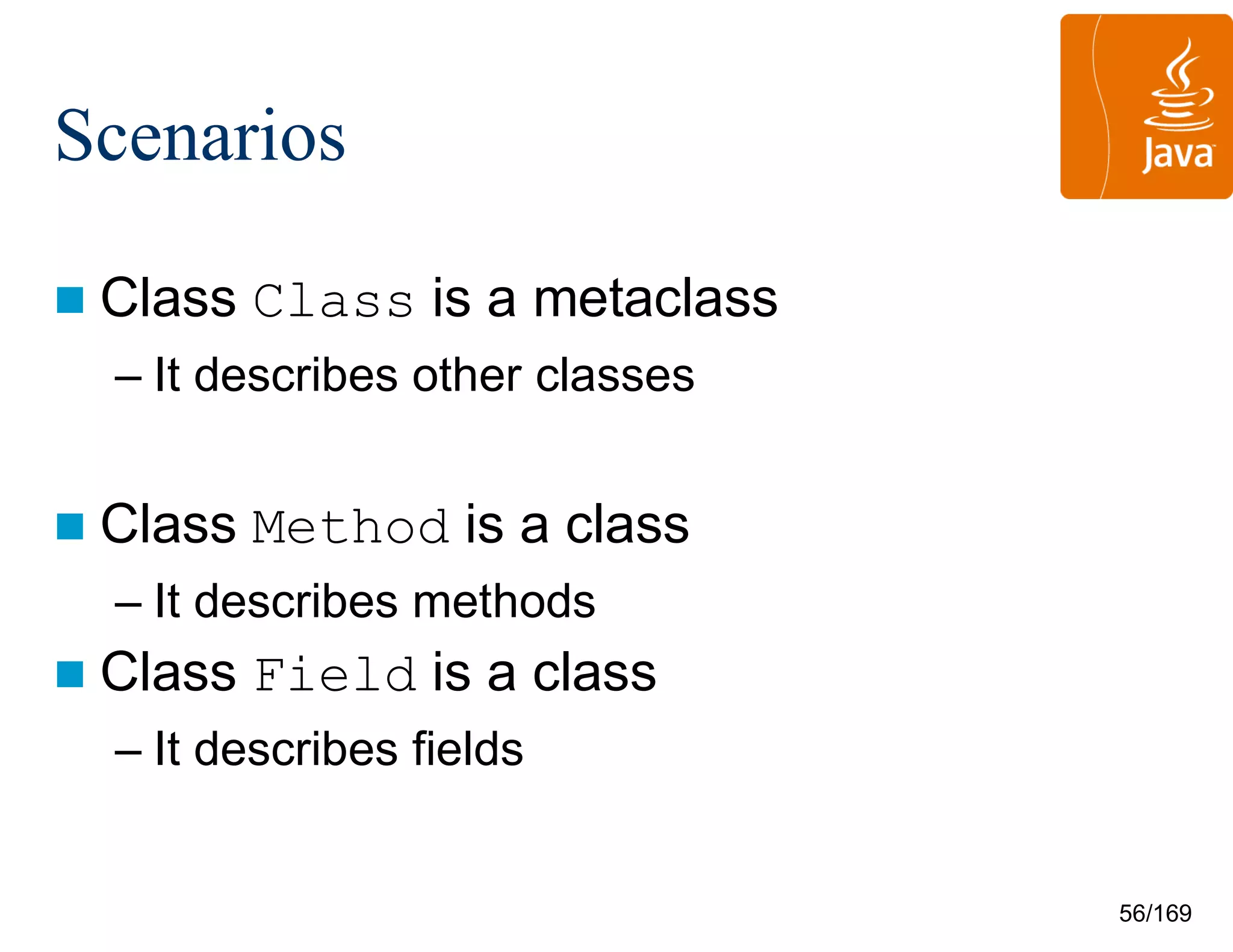

Scenarios

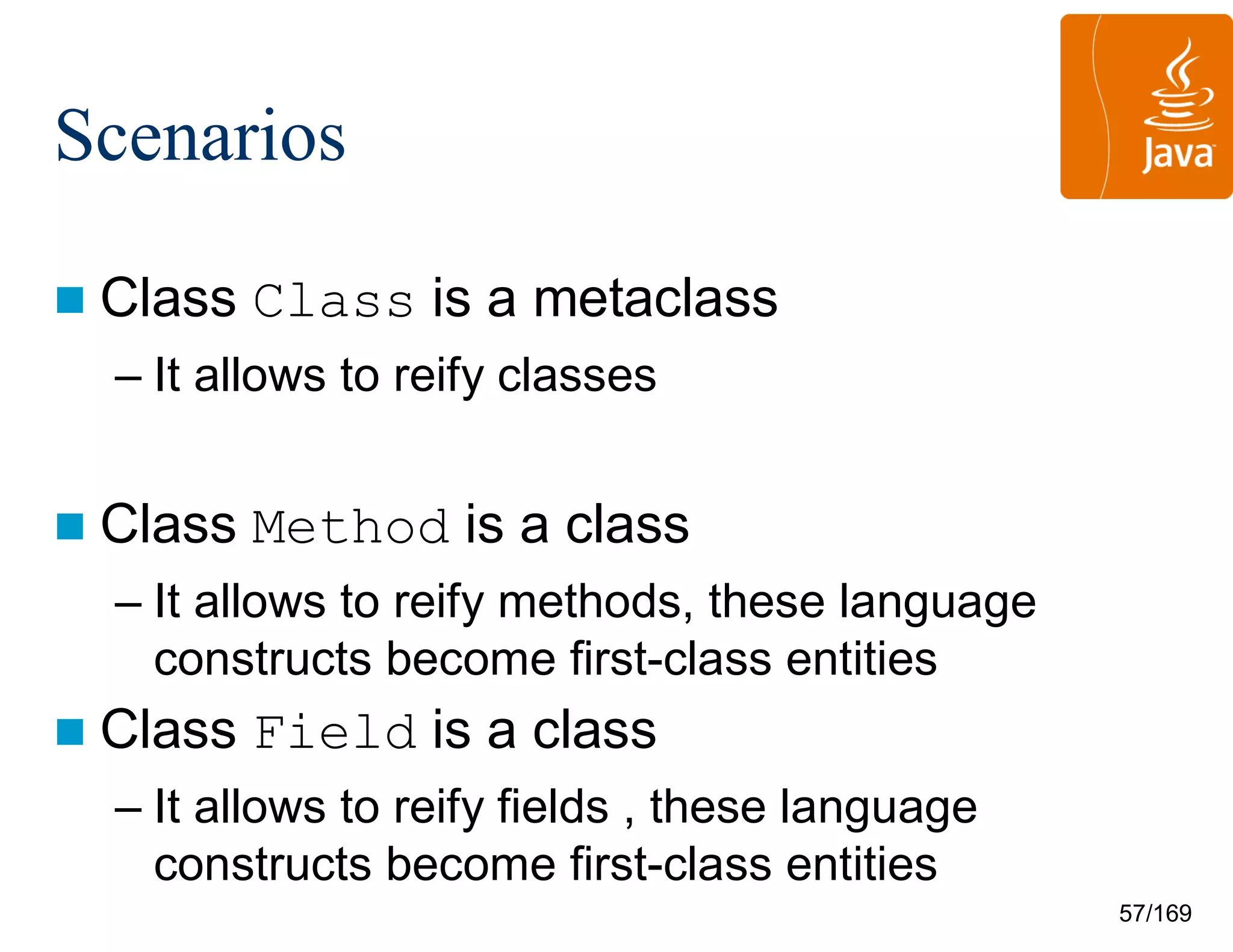

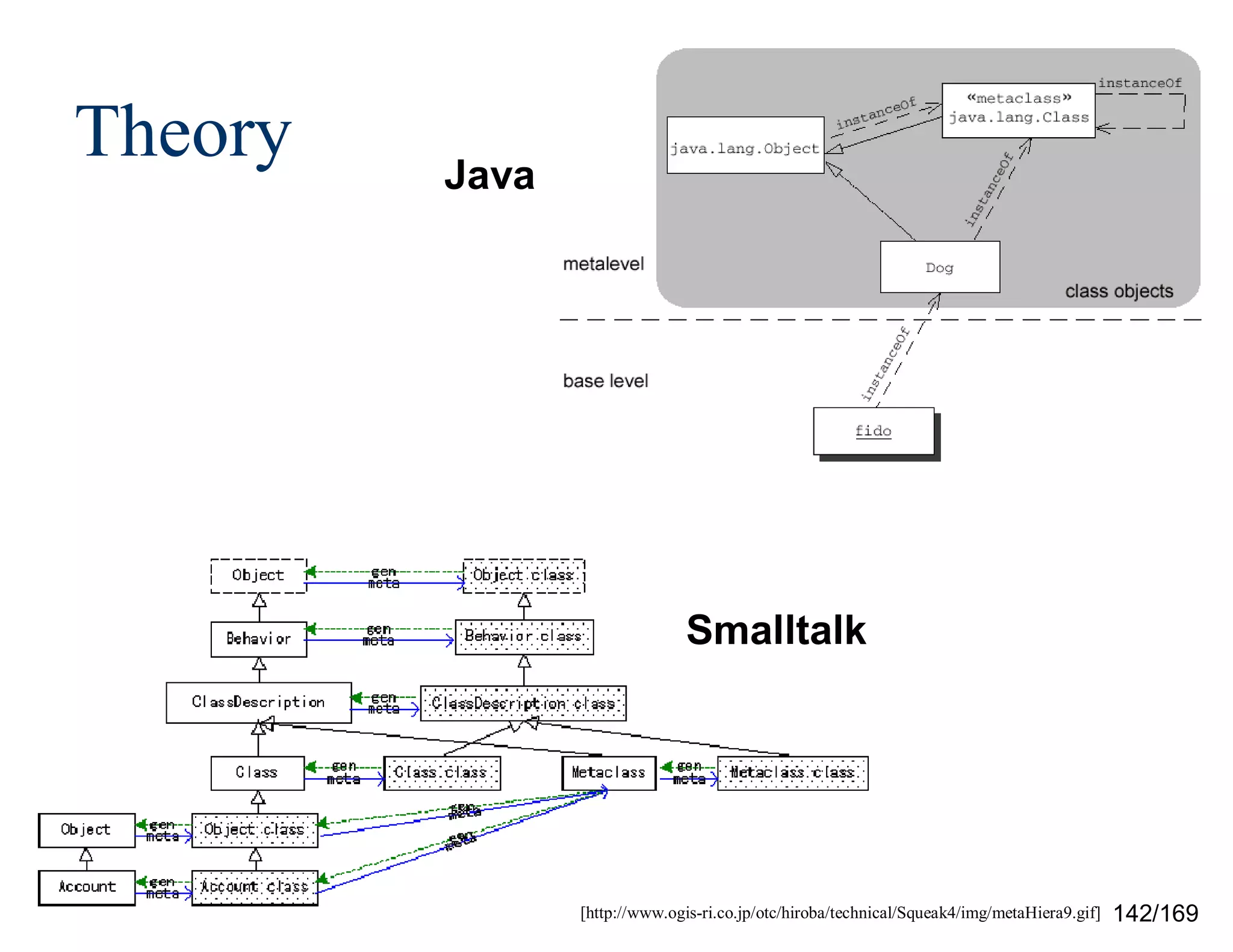

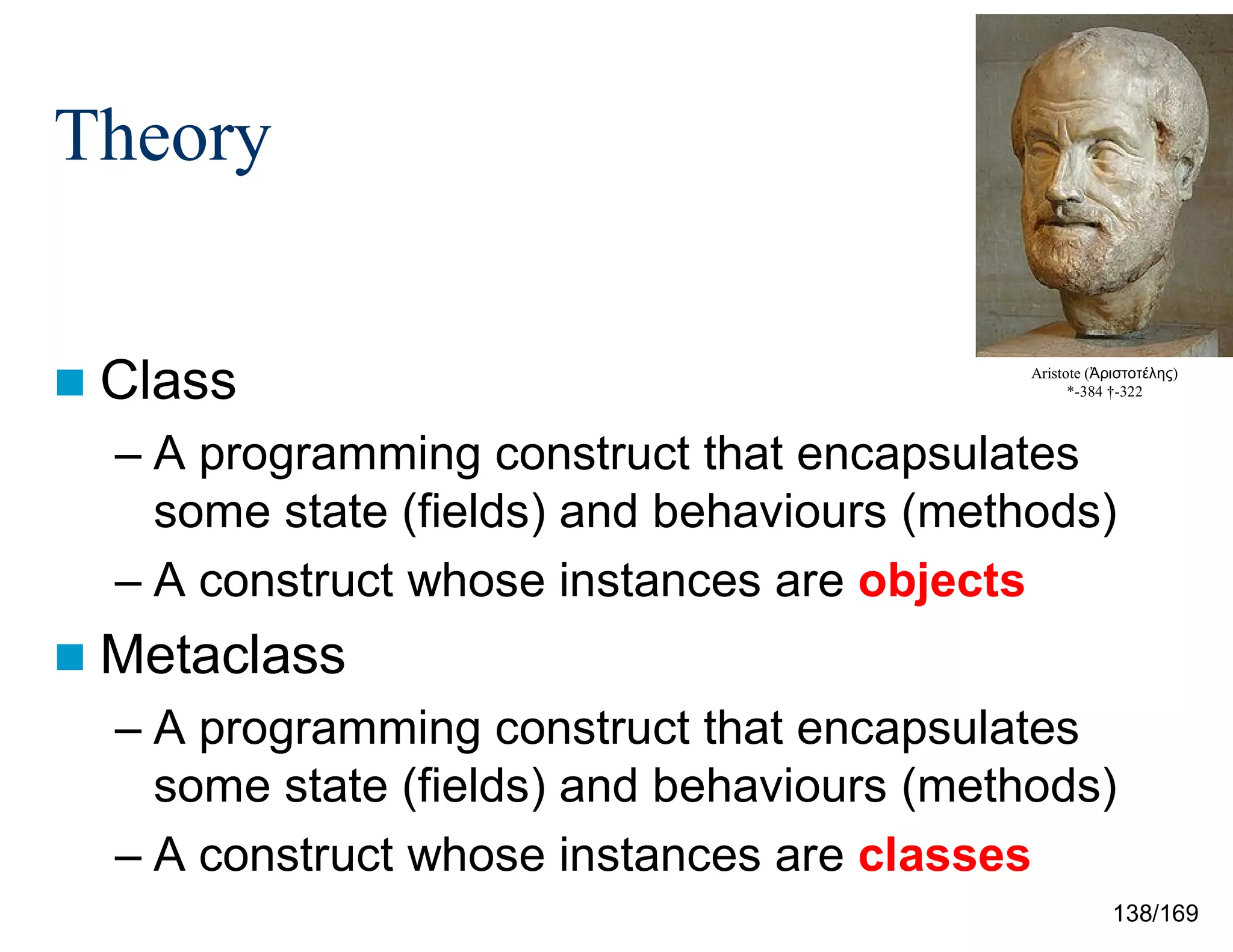

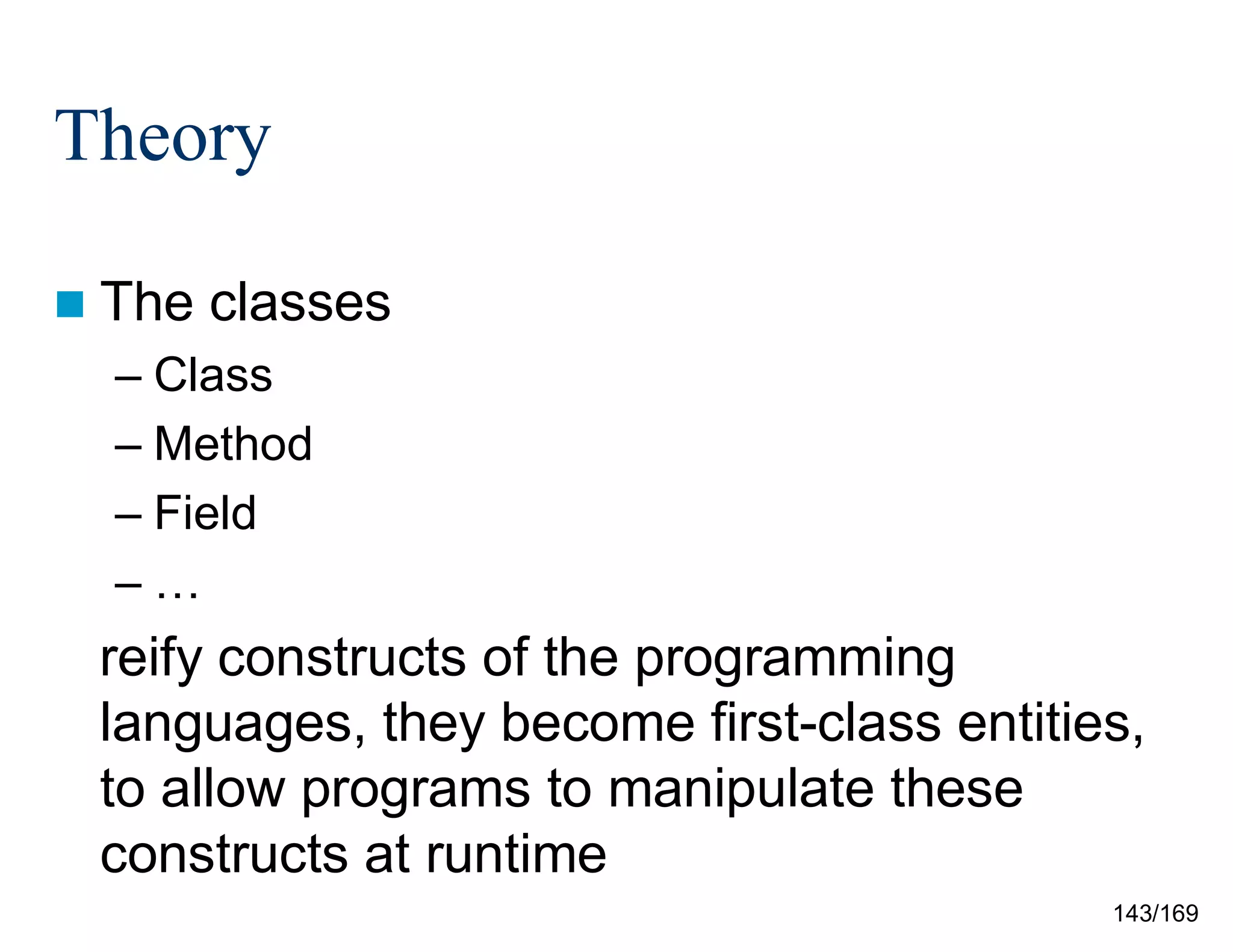

 Class Class is a metaclass
– It describes other classes
 Class Method is a class
– It describes methods
 Class Field is a class
– It describes fields

68/210
Scenarios
– It allows to reify classes
– It allows to reify methods, these language
constructs become first-class entities
– It allows to reify fields , these language

69/210
Scenarios
– It allows to reify fields, these language

70/210
Scenarios
– It allows to reify fields, these language
Reification is the process of
making available an implicit
construct of a language

71/210

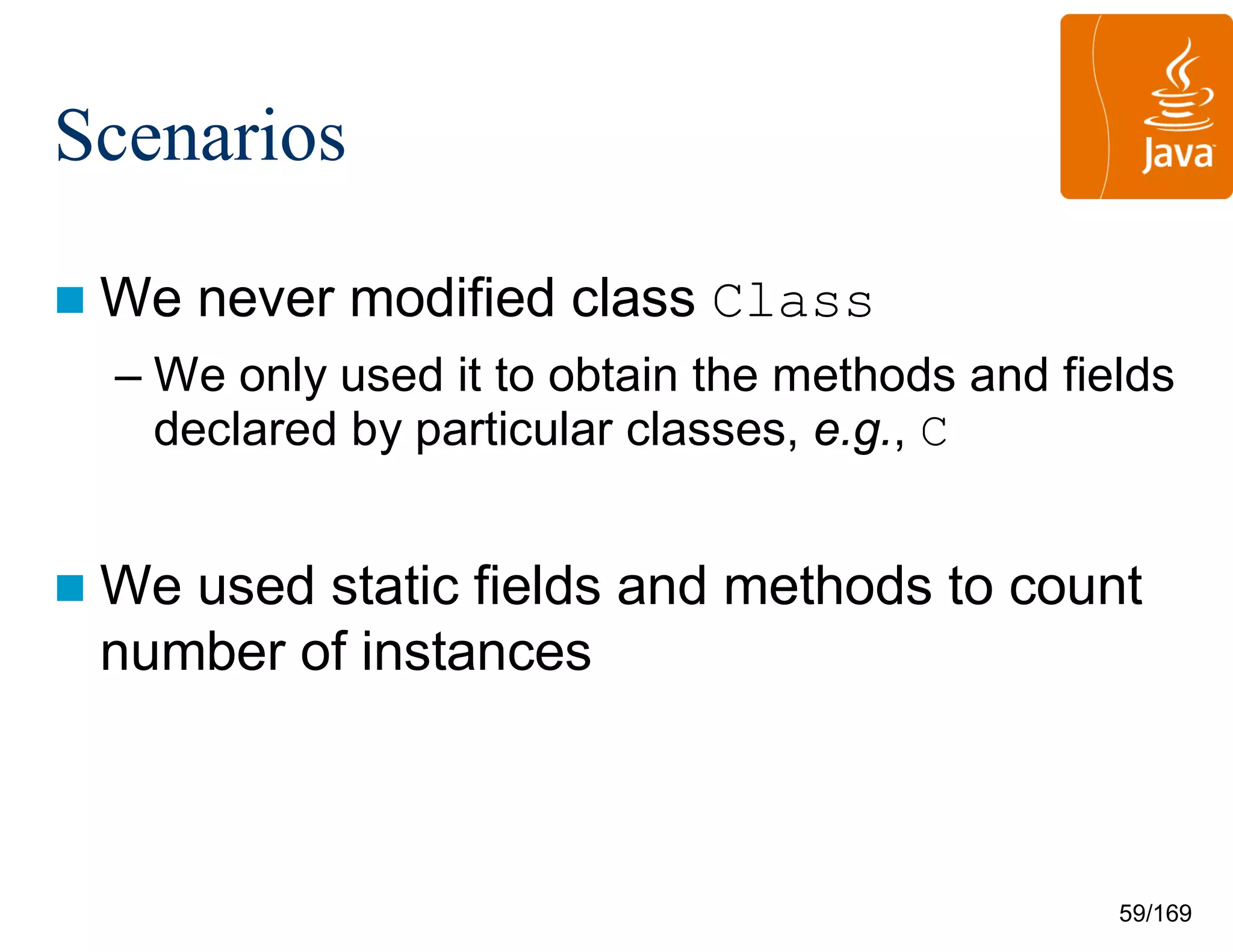

Scenarios
 We never modified class Class
– We only used it to obtain the methods and fields
declared by particular classes, e.g., C
 We used static fields and methods to count
number of instances

72/210
Scenarios

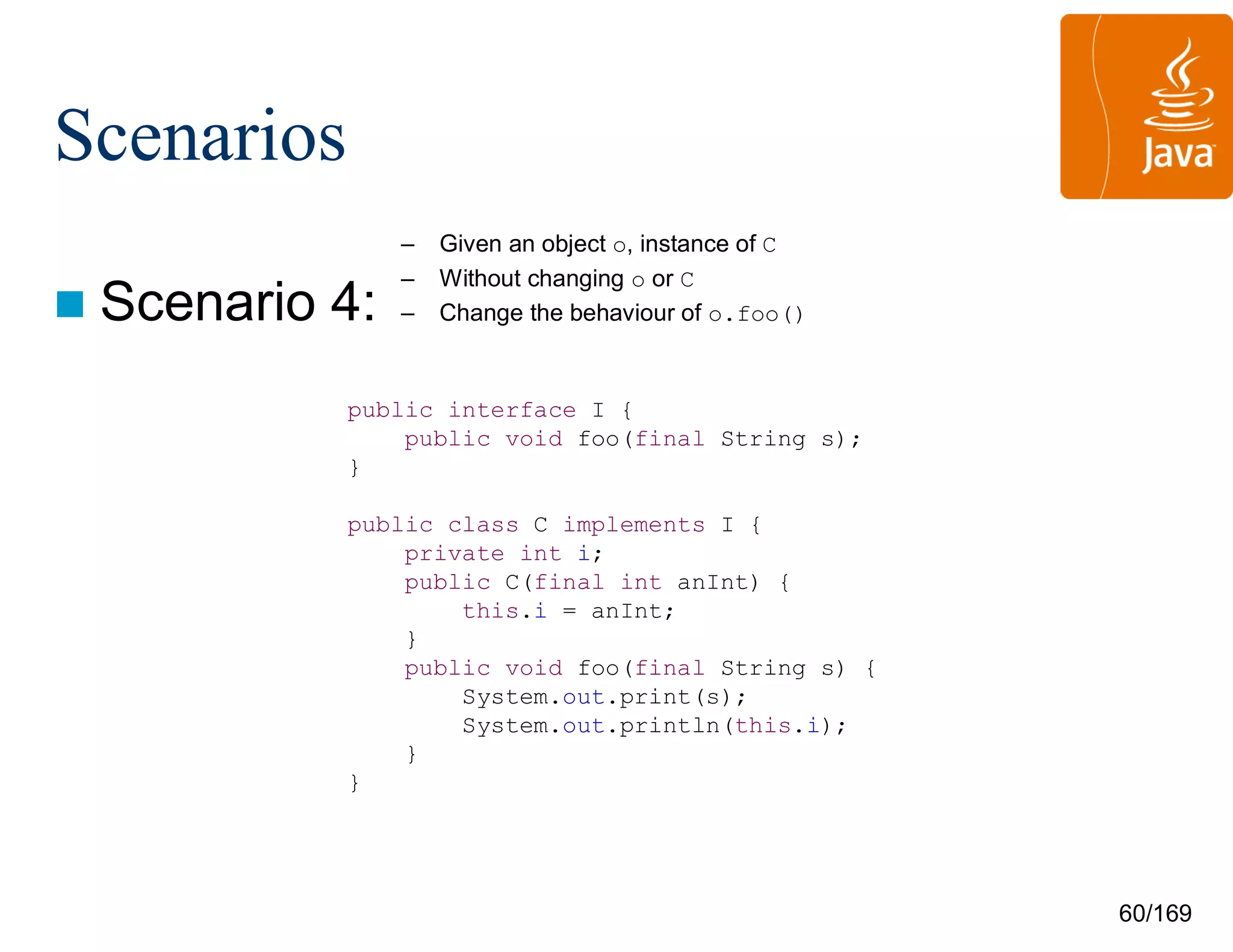

 Scenario 4:
public interface I {
public void foo(final String s);
}
public class C implements I {
private int i;
this.i = anInt;
}
}
}

73/210

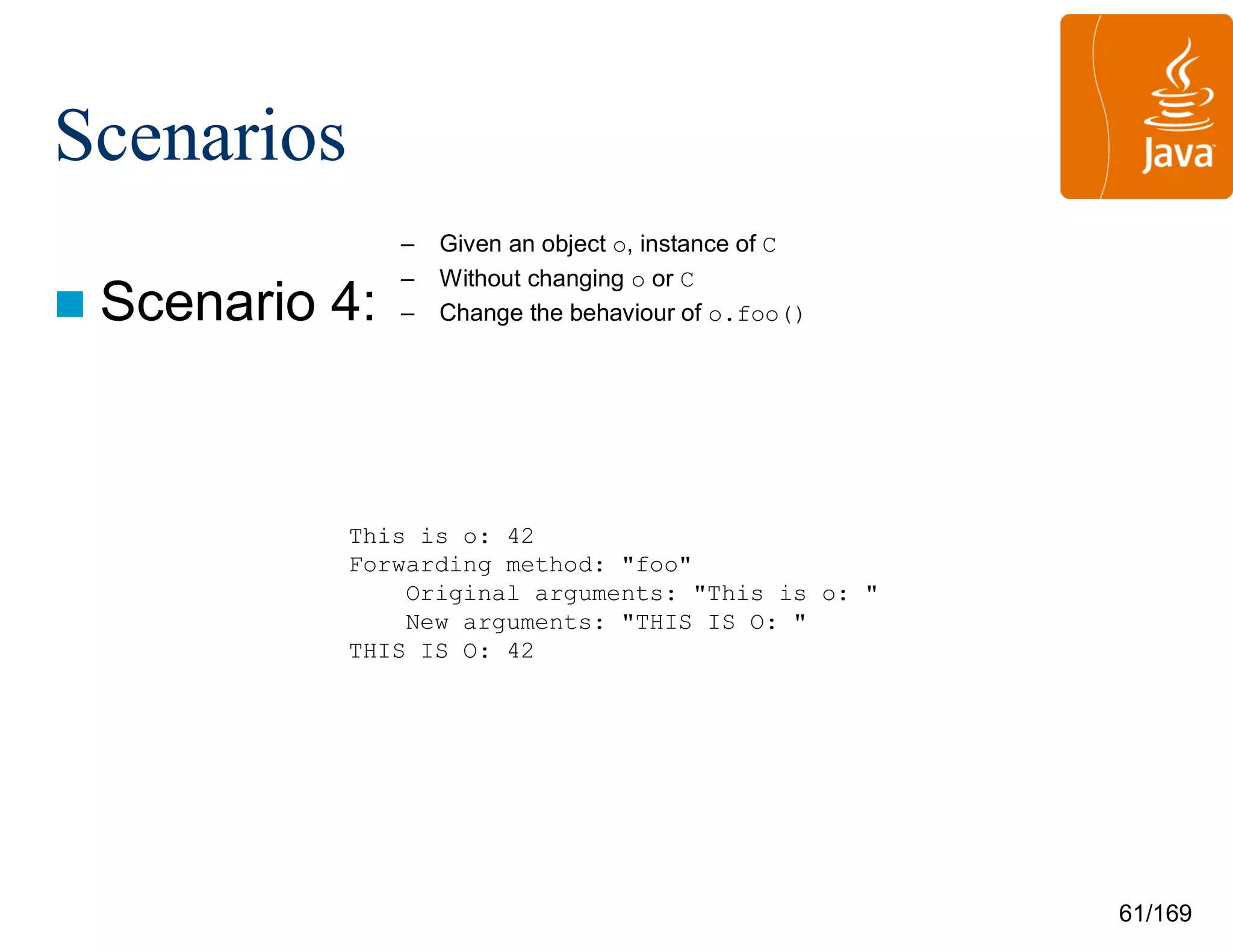

Scenarios
 Scenario 4:
This is o: 42
Forwarding method: "foo"
Original arguments: "This is o: "
New arguments: "THIS IS O: "
THIS IS O: 42

74/210

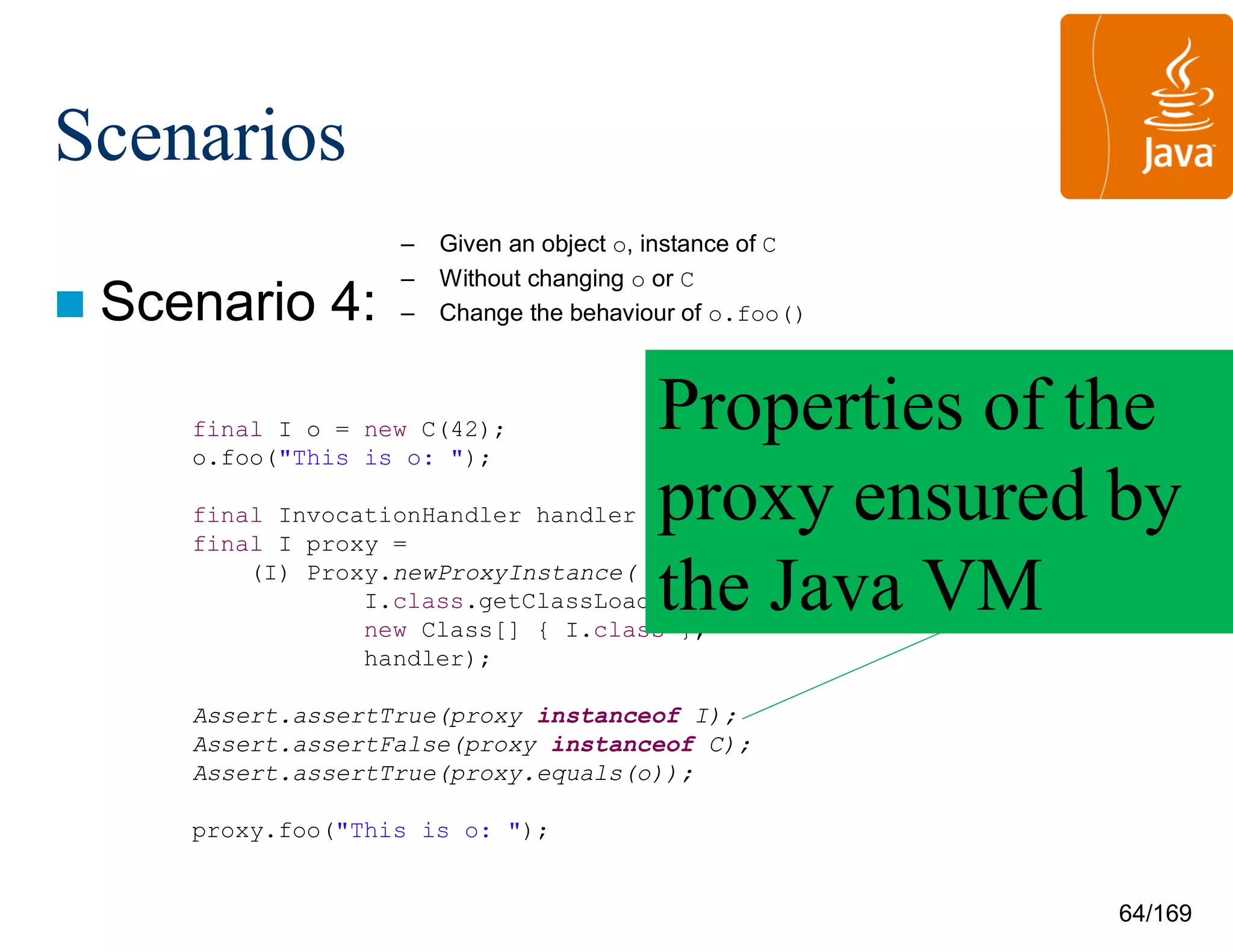

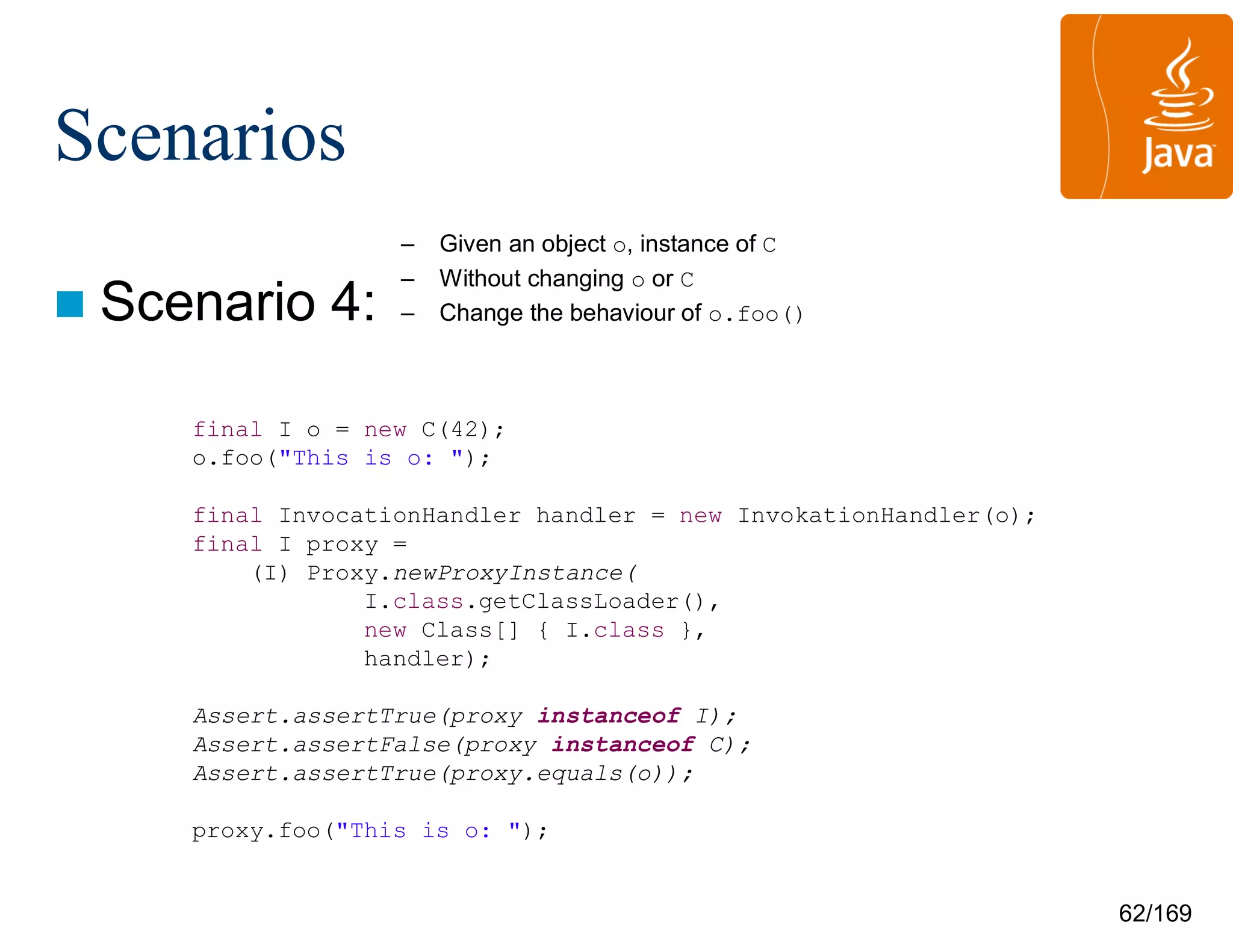

Scenarios
 Scenario 4:
final I o = new C(42);
o.foo("This is o: ");
final InvocationHandler handler = new InvokationHandler(o);
final I proxy =
(I) Proxy.newProxyInstance(
I.class.getClassLoader(),
new Class[] { I.class },
handler);
Assert.assertTrue(proxy instanceof I);
Assert.assertFalse(proxy instanceof C);
Assert.assertTrue(proxy.equals(o));
proxy.foo("This is o: ");

75/210
Scenarios
Scenario4:
public class InvokationHandler implements InvocationHandler {
private final I i;
public InvokationHandler(final I aConcreteImplementationOfI) {
this.i = aConcreteImplementationOfI;
}
public Object invoke(
final Object aProxy,
final Method aMethod,
final Object[] someArgs) throws Throwable {
if (aMethod.getName().equals("foo")) {
final String arg = (String) someArgs[0];
final String newArg = arg.toUpperCase();
System.out.print("Forwarding method: "");
System.out.print(aMethod.getName());
System.out.print(""ntOriginal arguments: "");
System.out.print(arg);
System.out.print(""ntNew arguments: "");
System.out.print(newArg);
System.out.println('"');
this.i.foo(newArg);
return null;
}
else {
return aMethod.invoke(this.i, someArgs);
}
}
}
–Givenanobjecto,instanceofC
–WithoutchangingoorC
–Changethebehaviourofo.foo()

76/210
Scenarios
 Scenario 4:
final I proxy =
handler);

77/210
Scenarios
 Scenario 4:
final I proxy =
handler);
Properties of the
proxy ensured by
the Java VM

78/210
Scenarios
 Smalltalk
– Everything is an object

79/210

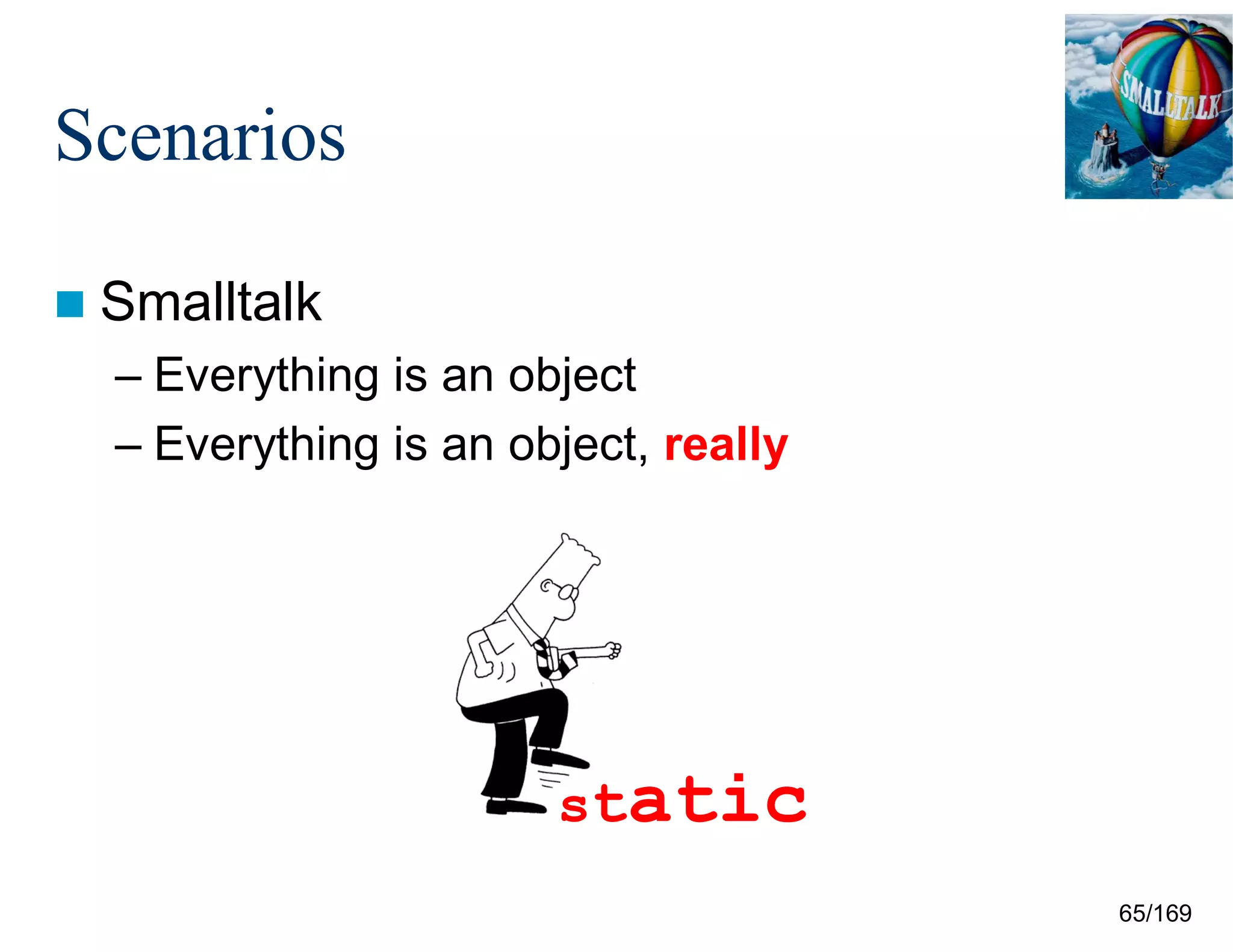

Scenarios
 Smalltalk
– Everything is an object
– Everything is an object, really
static

80/210
Scenarios

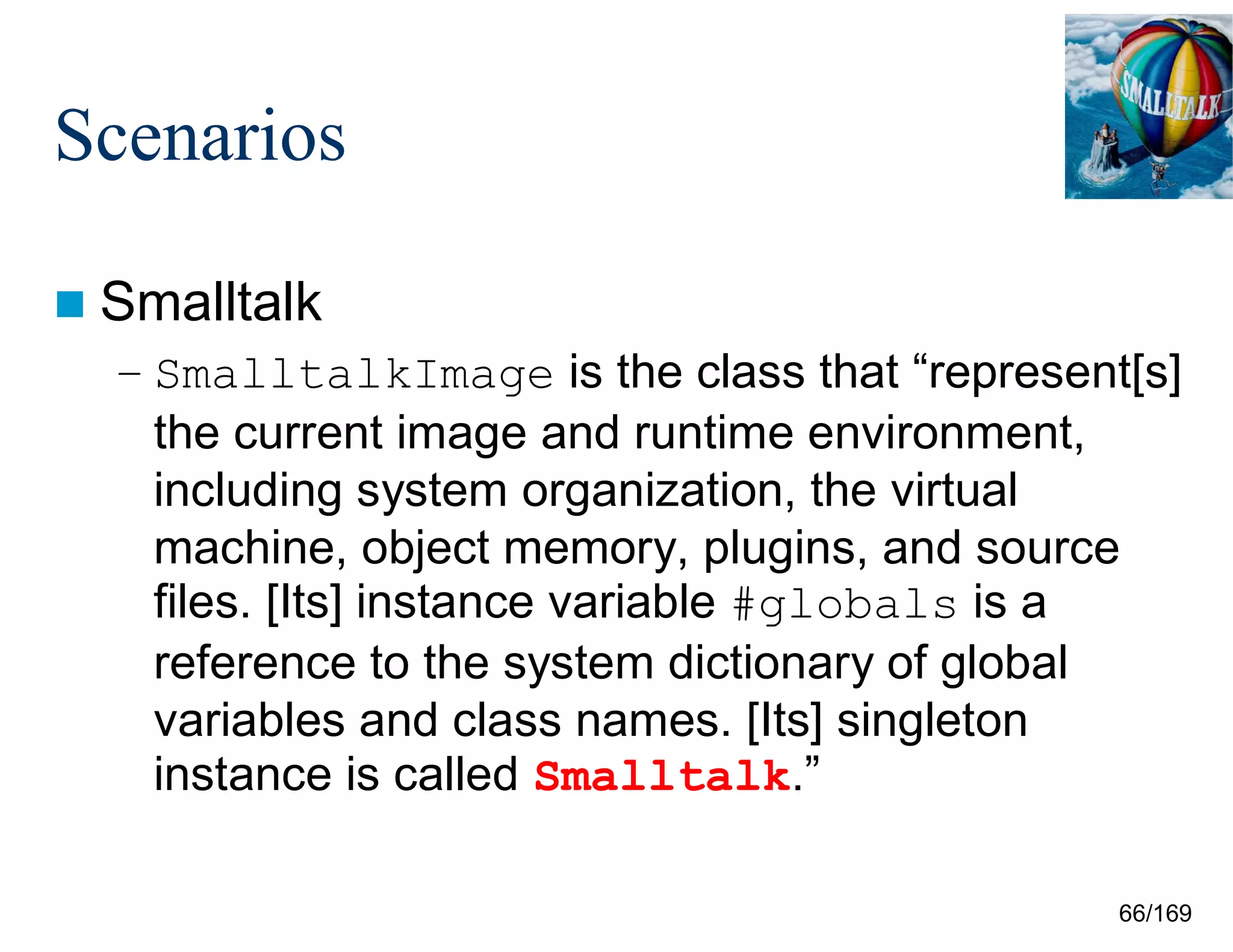

 Smalltalk
– SmalltalkImage is the class that “represent[s]
the current image and runtime environment,
including system organization, the virtual
machine, object memory, plugins, and source
files. [Its] instance variable #globals is a
reference to the system dictionary of global
variables and class names. [Its] singleton
instance is called Smalltalk.”

81/210

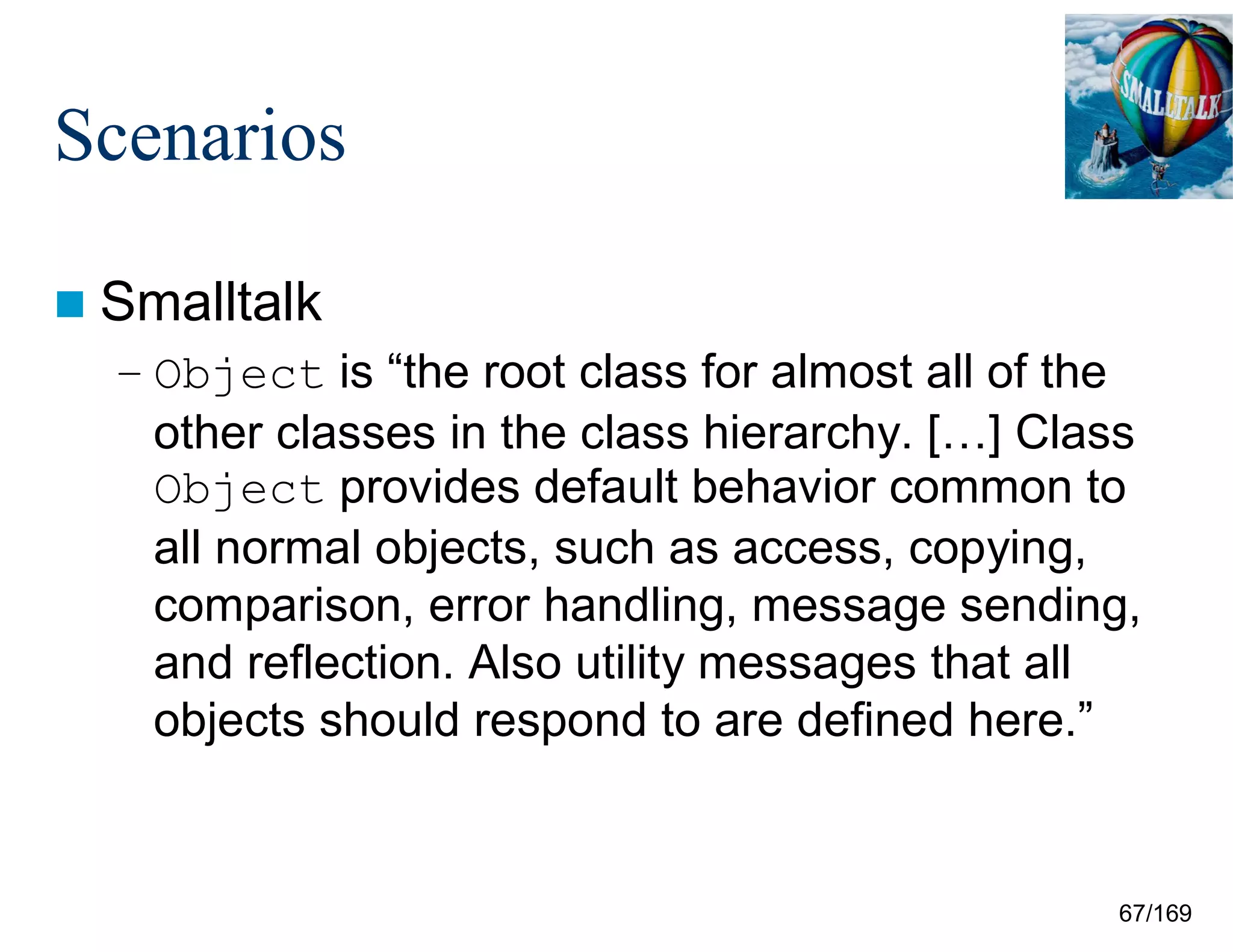

Scenarios
 Smalltalk
– Object is “the root class for almost all of the
other classes in the class hierarchy. […] Class
Object provides default behavior common to
all normal objects, such as access, copying,
comparison, error handling, message sending,
and reflection. Also utility messages that all
objects should respond to are defined here.”

82/210
Scenarios
 Smalltalk

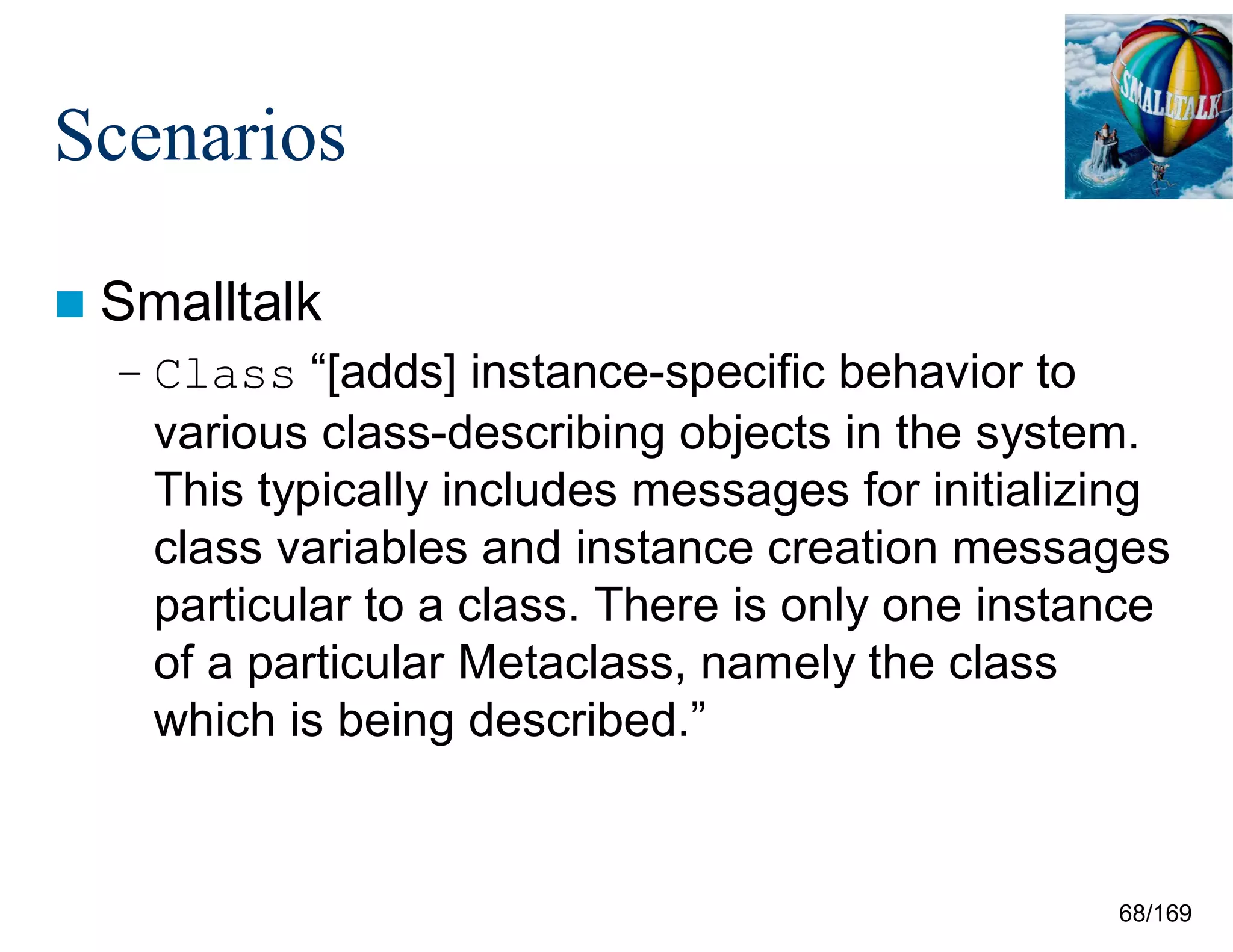

– Class “[adds] instance-specific behavior to
various class-describing objects in the system.
This typically includes messages for initializing
class variables and instance creation messages
particular to a class. There is only one instance
of a particular Metaclass, namely the class
which is being described.”

83/210
Scenarios
 Scenario 1:
– Given a class C
Object subclass: #C
instanceVariableNames: 'i'
classVariableNames: ''
poolDictionaries: ''
category: 'CSE3009'.
C class compile: 'newWithi: anInt
^(self new) i: anInt ; yourself.'.
C compile: 'foo: aText
Transcript show: aText.
Transcript show: i.
Transcript cr.'.
C compile: 'i: anInt
i := anInt.'.

84/210

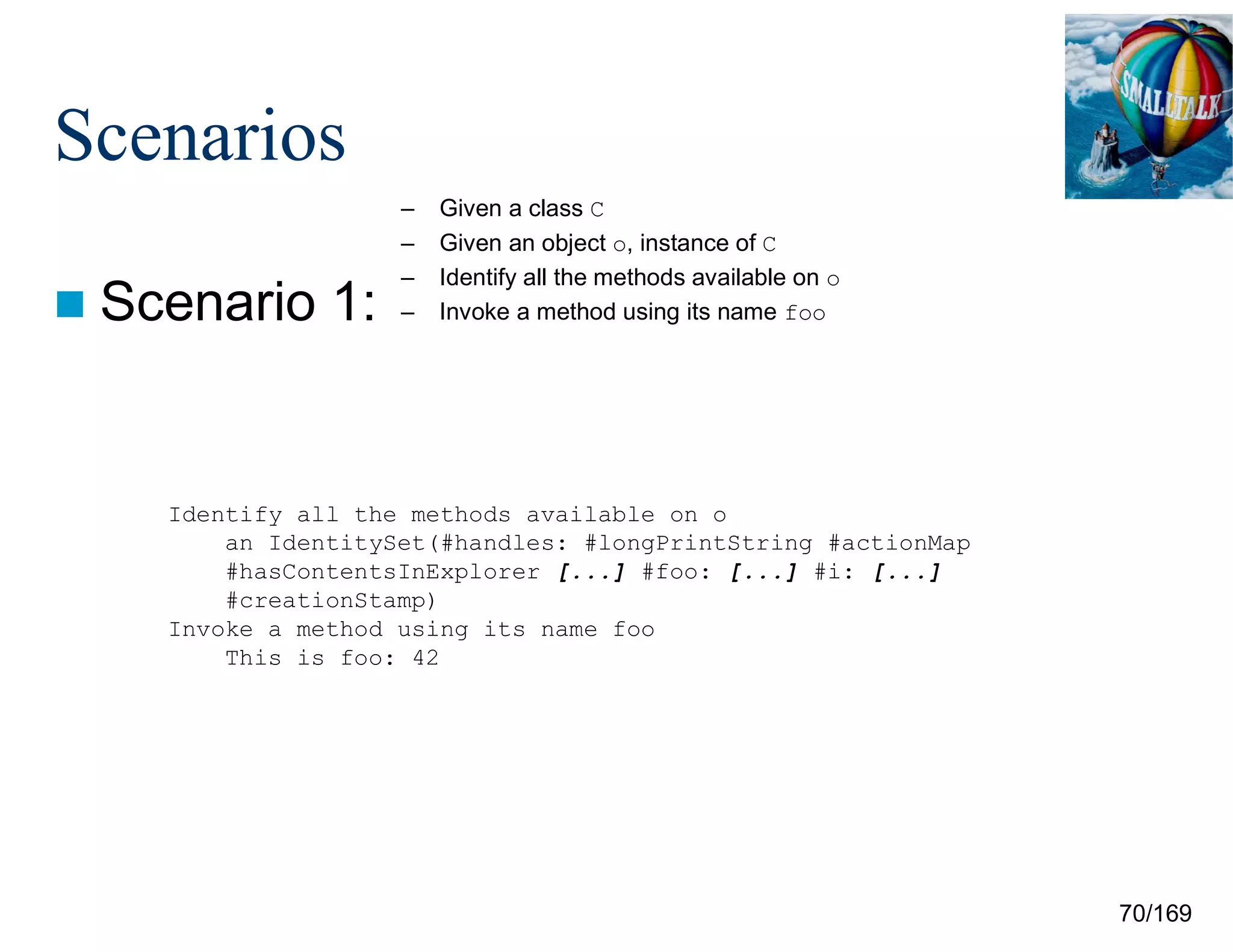

Scenarios
 Scenario 1:
– Given a class C
an IdentitySet(#handles: #longPrintString #actionMap
#hasContentsInExplorer [...] #foo: [...] #i: [...]
#creationStamp)
This is foo: 42

85/210

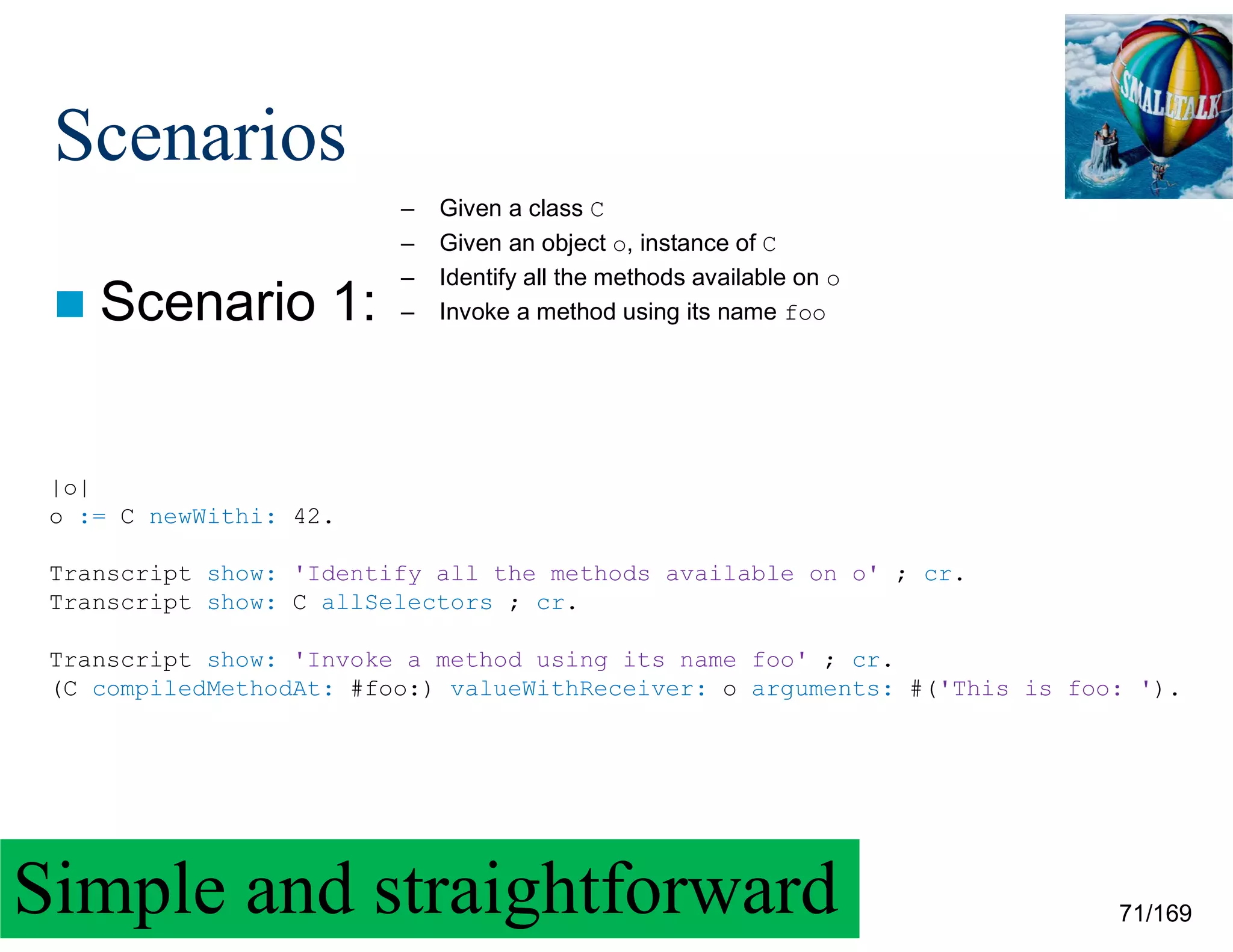

Scenarios
 Scenario 1:
– Given a class C
|o|
o := C newWithi: 42.
Transcript show: 'Identify all the methods available on o' ; cr.
Transcript show: C allSelectors ; cr.
Transcript show: 'Invoke a method using its name foo' ; cr.
(C compiledMethodAt: #foo:) valueWithReceiver: o arguments: #('This is foo: ').

86/210
Scenarios
 Scenario 1:
– Given a class C
|o|
Transcript show: 'Identify all the methods available on o' ; cr.
Transcript show: C allSelectors ; cr.
Transcript show: 'Invoke a method using its name foo' ; cr.
(C compiledMethodAt: #foo:) valueWithReceiver: o arguments: #('This is foo: ').
Simple and straightforward

87/210

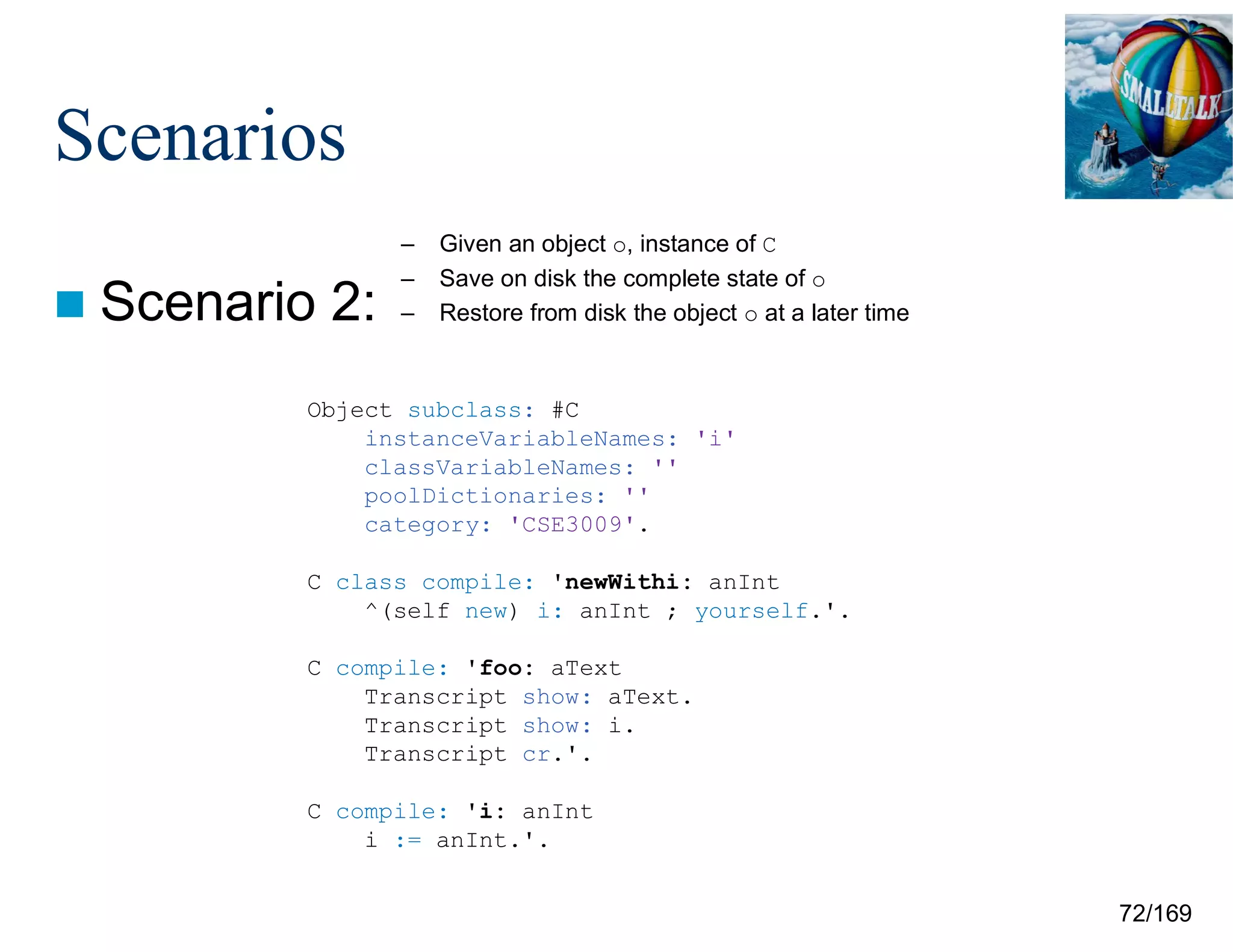

Scenarios
 Scenario 2:
Object subclass: #C
Transcript show: i.
Transcript cr.'.
i := anInt.'.

88/210

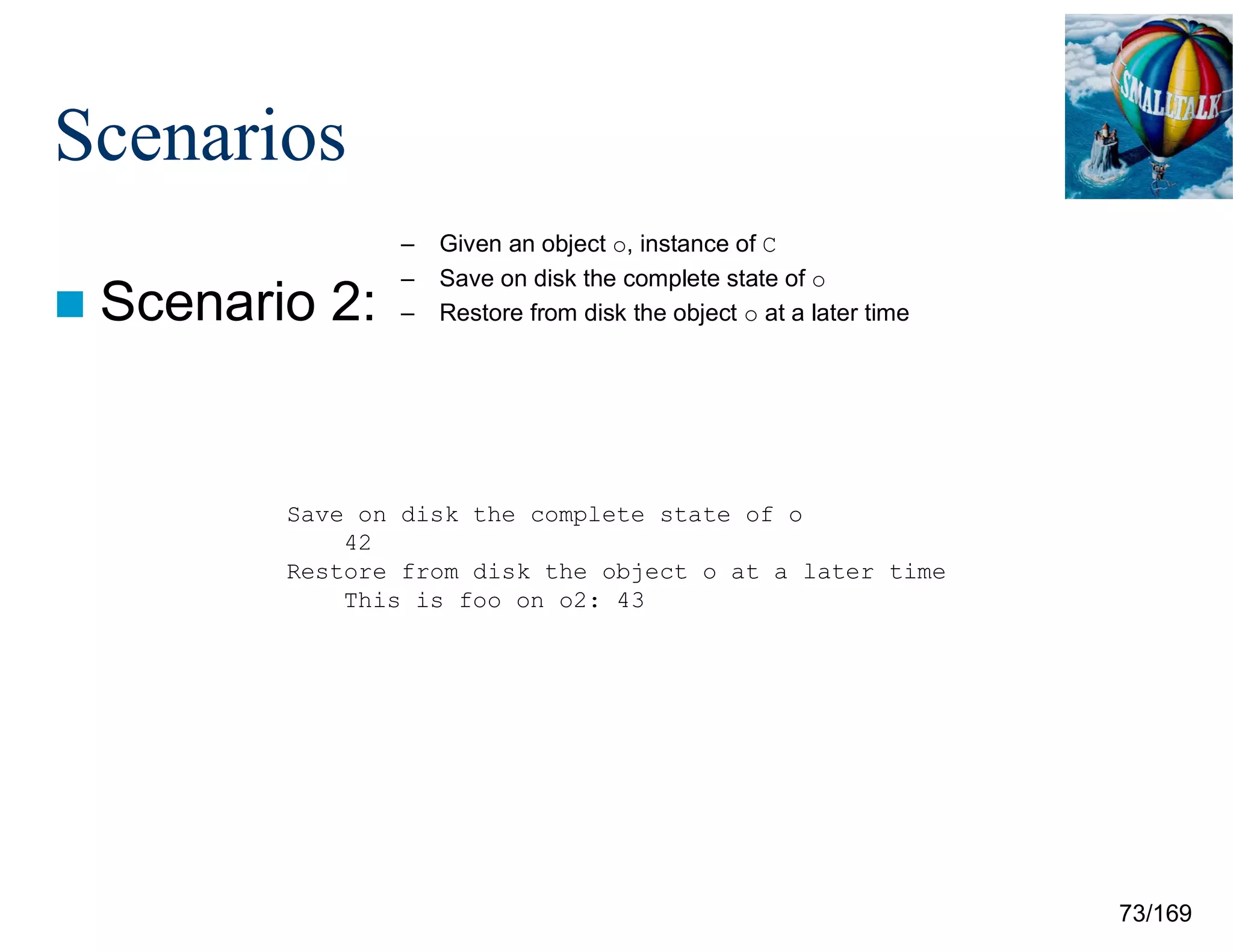

Scenarios
 Scenario 2:
42

89/210

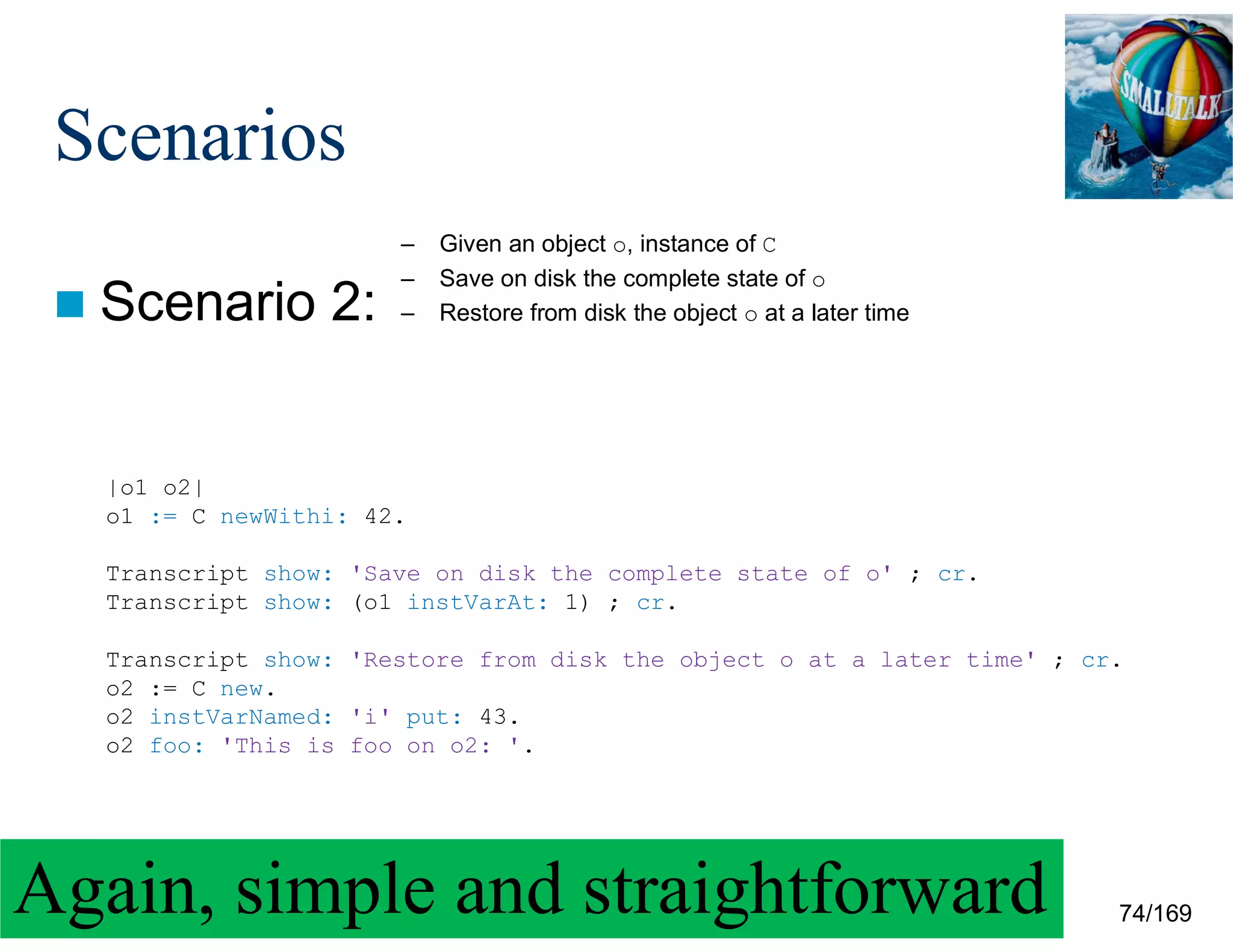

Scenarios
 Scenario 2:
|o1 o2|
o1 := C newWithi: 42.
Transcript show: 'Save on disk the complete state of o' ; cr.
Transcript show: (o1 instVarAt: 1) ; cr.
Transcript show: 'Restore from disk the object o at a later time' ; cr.
o2 := C new.
o2 instVarNamed: 'i' put: 43.
o2 foo: 'This is foo on o2: '.

90/210
Scenarios
 Scenario 2:
|o1 o2|
Transcript show: 'Save on disk the complete state of o' ; cr.
Transcript show: (o1 instVarAt: 1) ; cr.
Transcript show: 'Restore from disk the object o at a later time' ; cr.
o2 := C new.
o2 instVarNamed: 'i' put: 43.
o2 foo: 'This is foo on o2: '.
Again, simple and straightforward

91/210
Scenarios

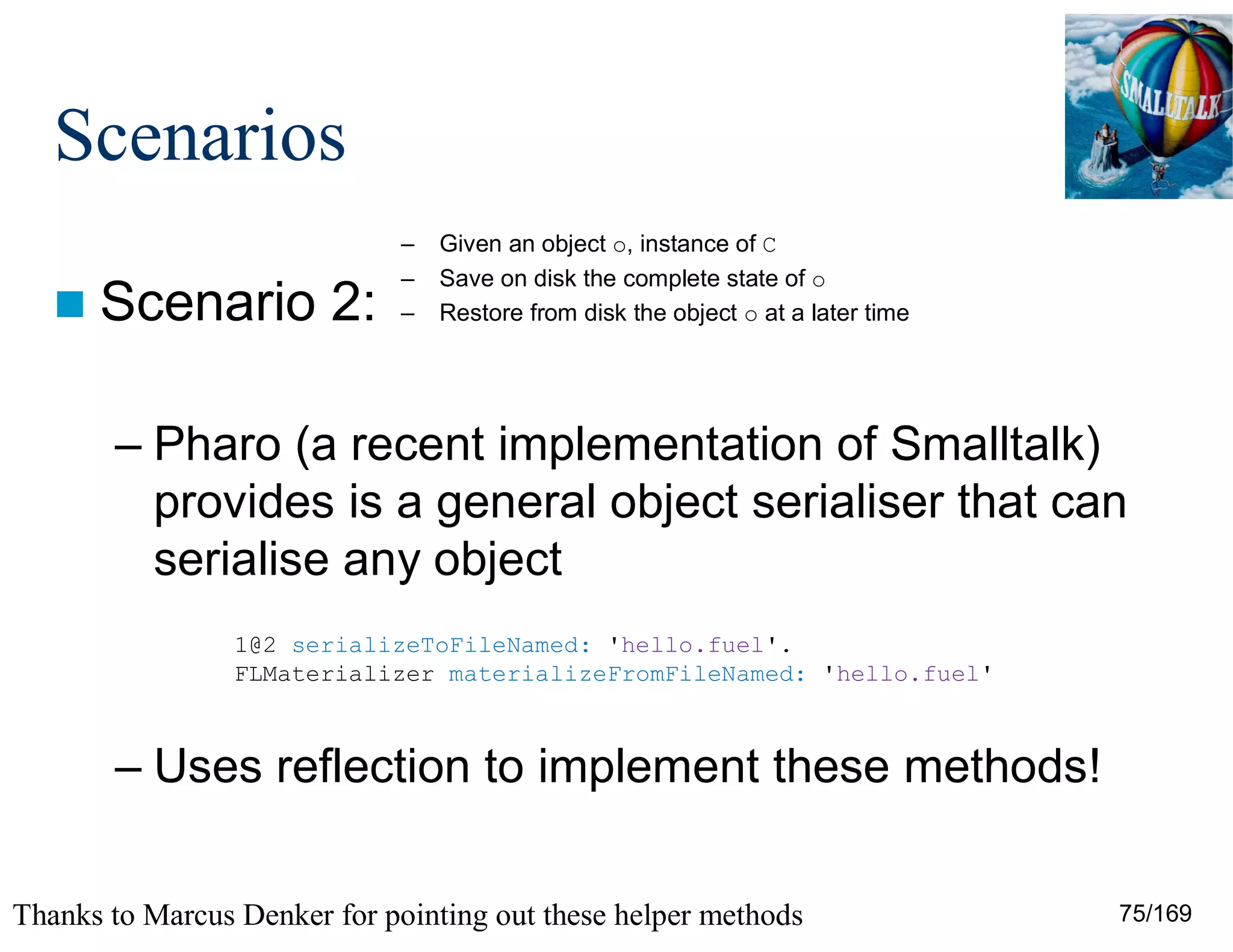

 Scenario 2:
– Pharo (a recent implementation of Smalltalk)
provides is a general object serialiser that can
serialise any object
– Uses reflection to implement these methods!
1@2 serializeToFileNamed: 'hello.fuel'.
FLMaterializer materializeFromFileNamed: 'hello.fuel'
Thanks to Marcus Denker for pointing out these helper methods

92/210
Scenarios
 Scenario 3:
Object subclass: #C
classVariableNames: 'NumberOfInstances'
Transcript show: i.
Transcript cr.'.
i := anInt.'.
– Given a class C

93/210
Scenarios
 Scenario 3:
Object subclass: #C
classVariableNames: 'NumberOfInstances'
Transcript show: i.
Transcript cr.'.
i := anInt.'.
– Given a class C
Only difference with
Scenarios 1 and 2

94/210
Scenarios
 Scenario 3:
Transcript show: i.
Transcript cr.'.
i := anInt.'.
– Given a class C

95/210
Scenarios

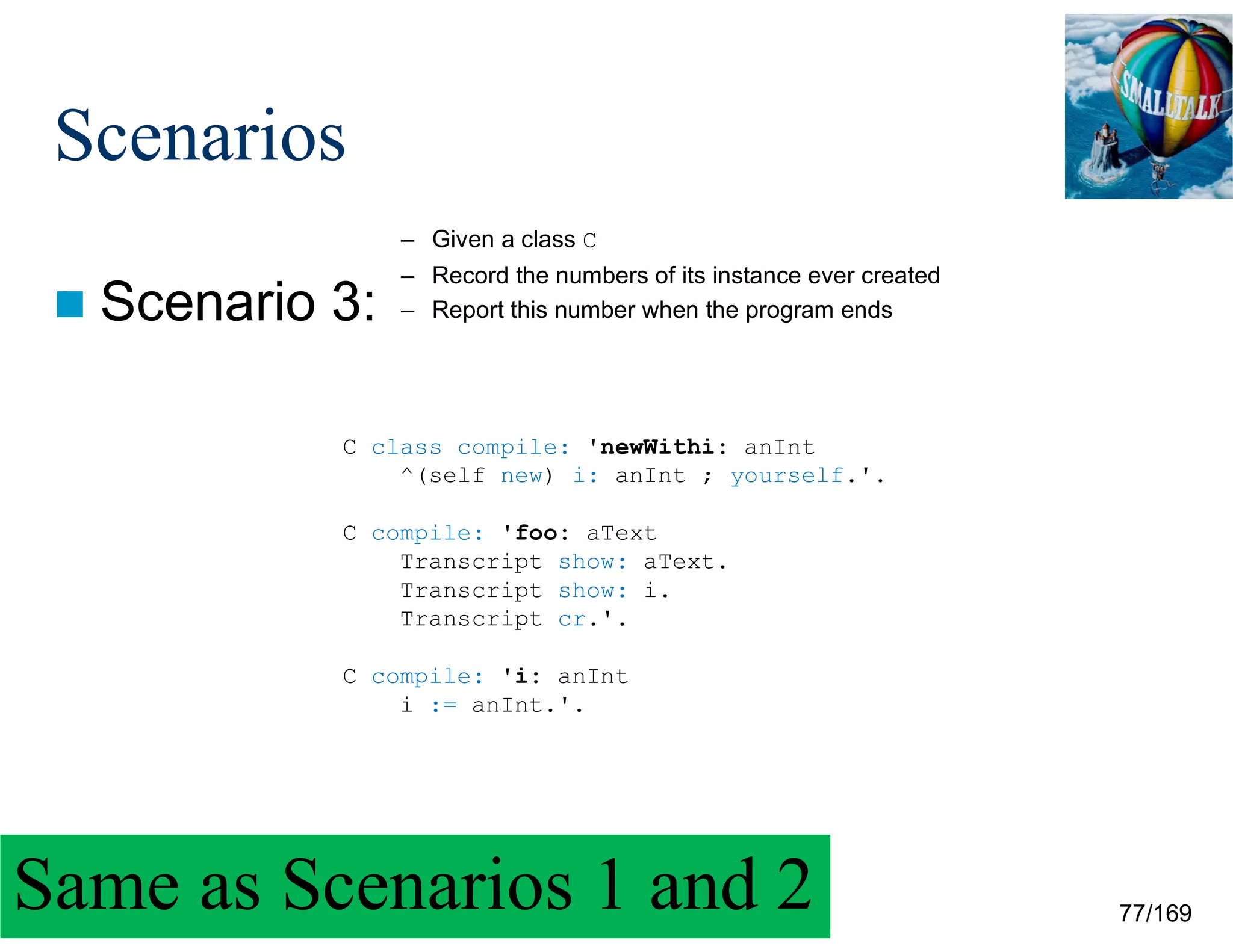

 Scenario 3:
Transcript show: i.
Transcript cr.'.
i := anInt.'.
Same as Scenarios 1 and 2
– Given a class C

96/210
Scenarios
 Scenario 3:
C class compile: 'initialize
NumberOfInstances := 0.'.
C class compile: 'new
NumberOfInstances := NumberOfInstances + 1.
^ self basicNew initialize.'.
C class compile: 'numberOfInstances
^ NumberOfInstances.'.
– Given a class C

97/210
Scenarios
 Scenario 3:
C class compile: 'initialize
NumberOfInstances := 0.'.
C class compile: 'new
C class compile: 'numberOfInstances
– Given a class C
“Write access” to the metaclass

98/210
Scenarios

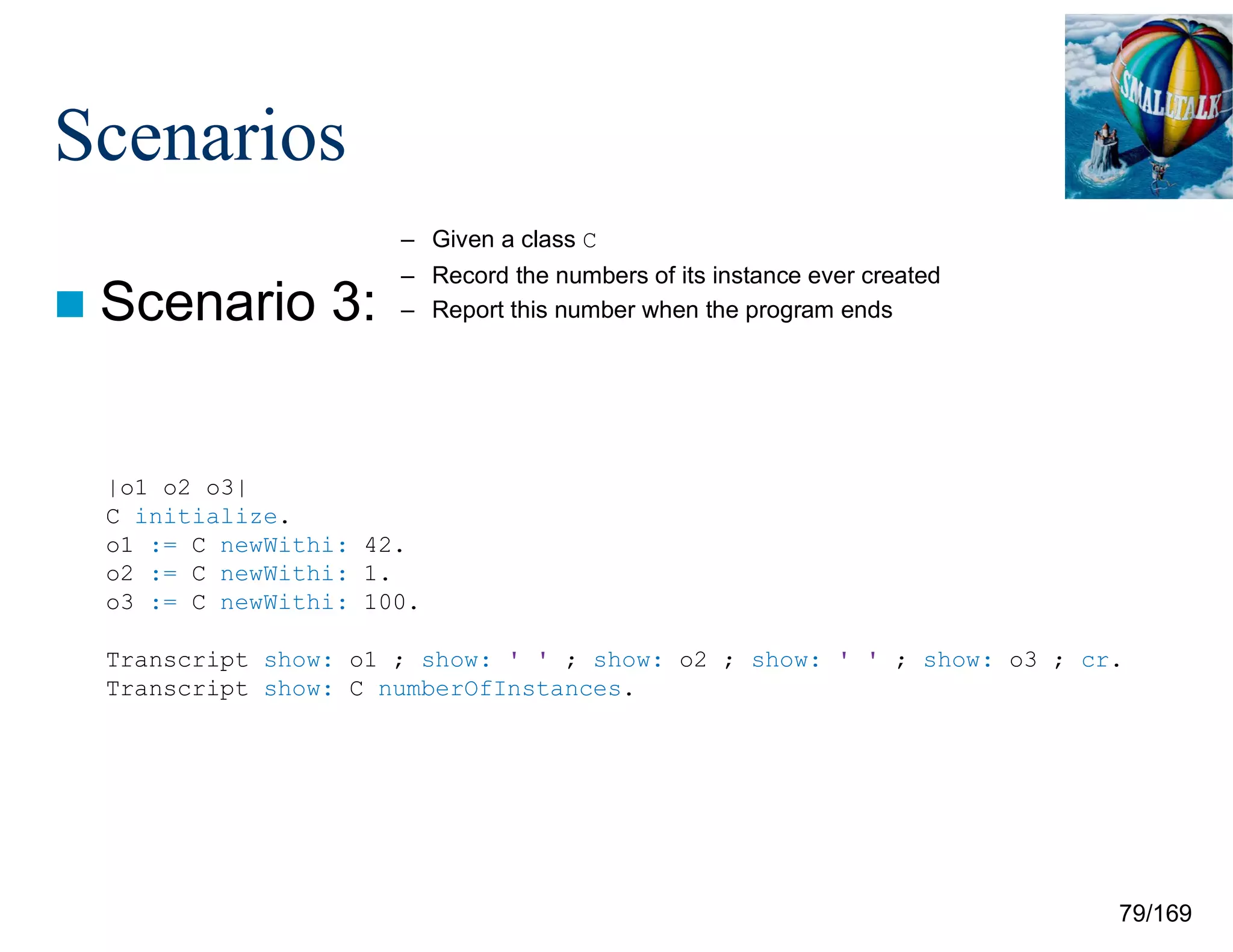

 Scenario 3:
|o1 o2 o3|
C initialize.
Transcript show: o1 ; show: ' ' ; show: o2 ; show: ' ' ; show: o3 ; cr.
Transcript show: C numberOfInstances.
– Given a class C

99/210
Scenarios
 Scenario 3:
a C a C a C
3
– Given a class C

100/210

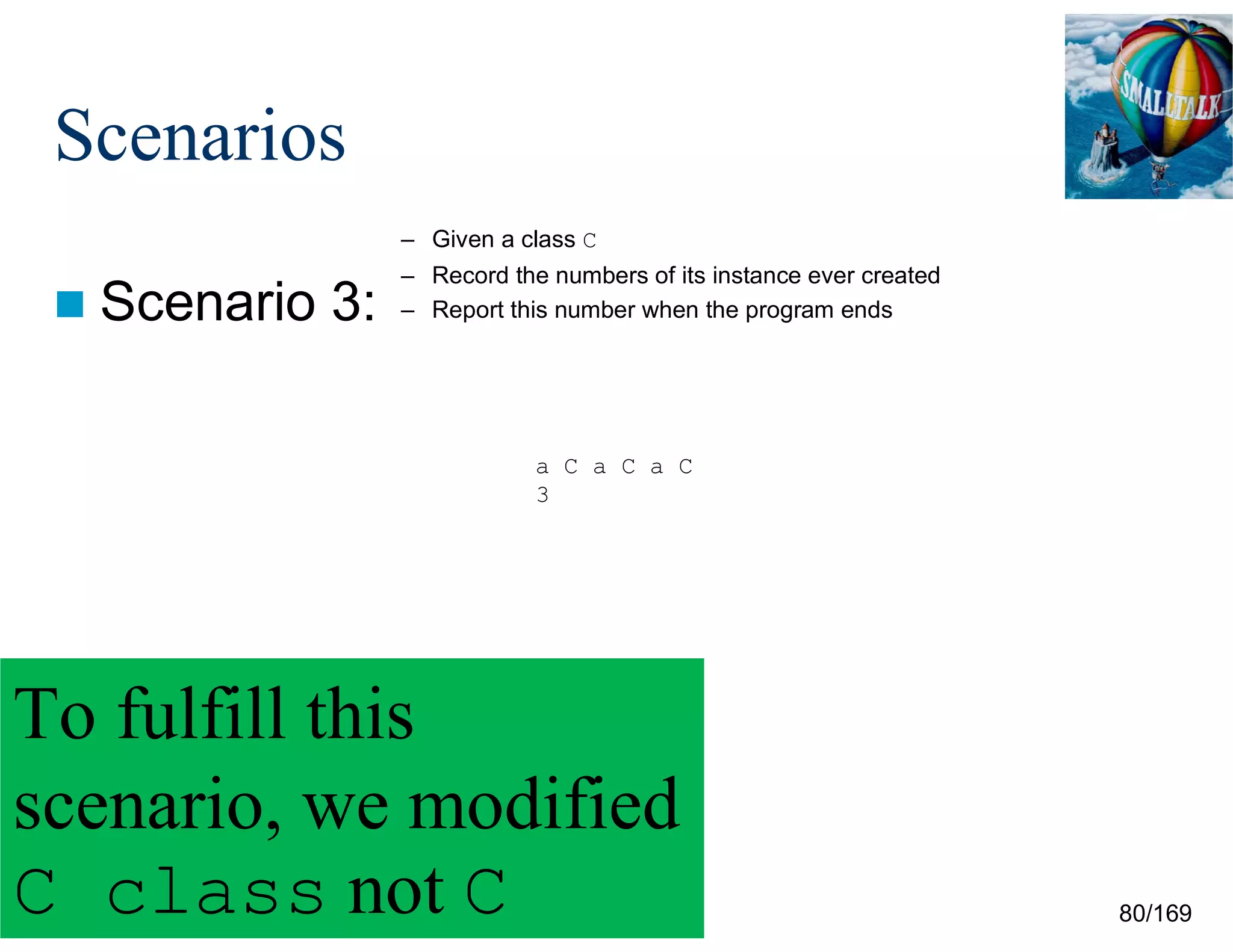

Scenarios
 Scenario 3:
a C a C a C
3
To fulfill this
scenario, we modified
C class not C
– Given a class C

101/210
Scenarios
 Scenario 3:

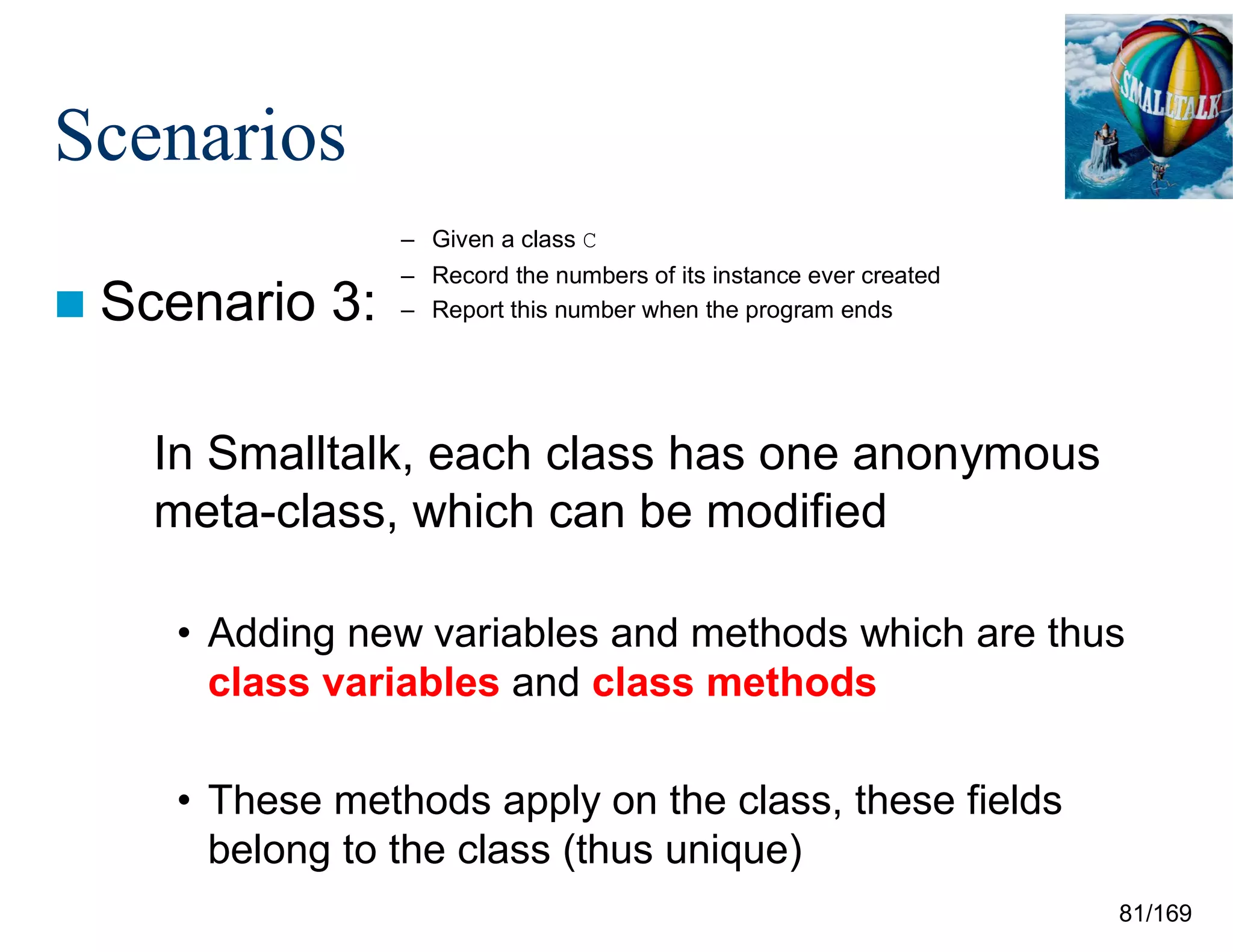

In Smalltalk, each class has one anonymous
meta-class, which can be modified
• Adding new variables and methods which are thus
class variables and class methods
• These methods apply on the class, these fields
belong to the class (thus unique)
– Given a class C

102/210

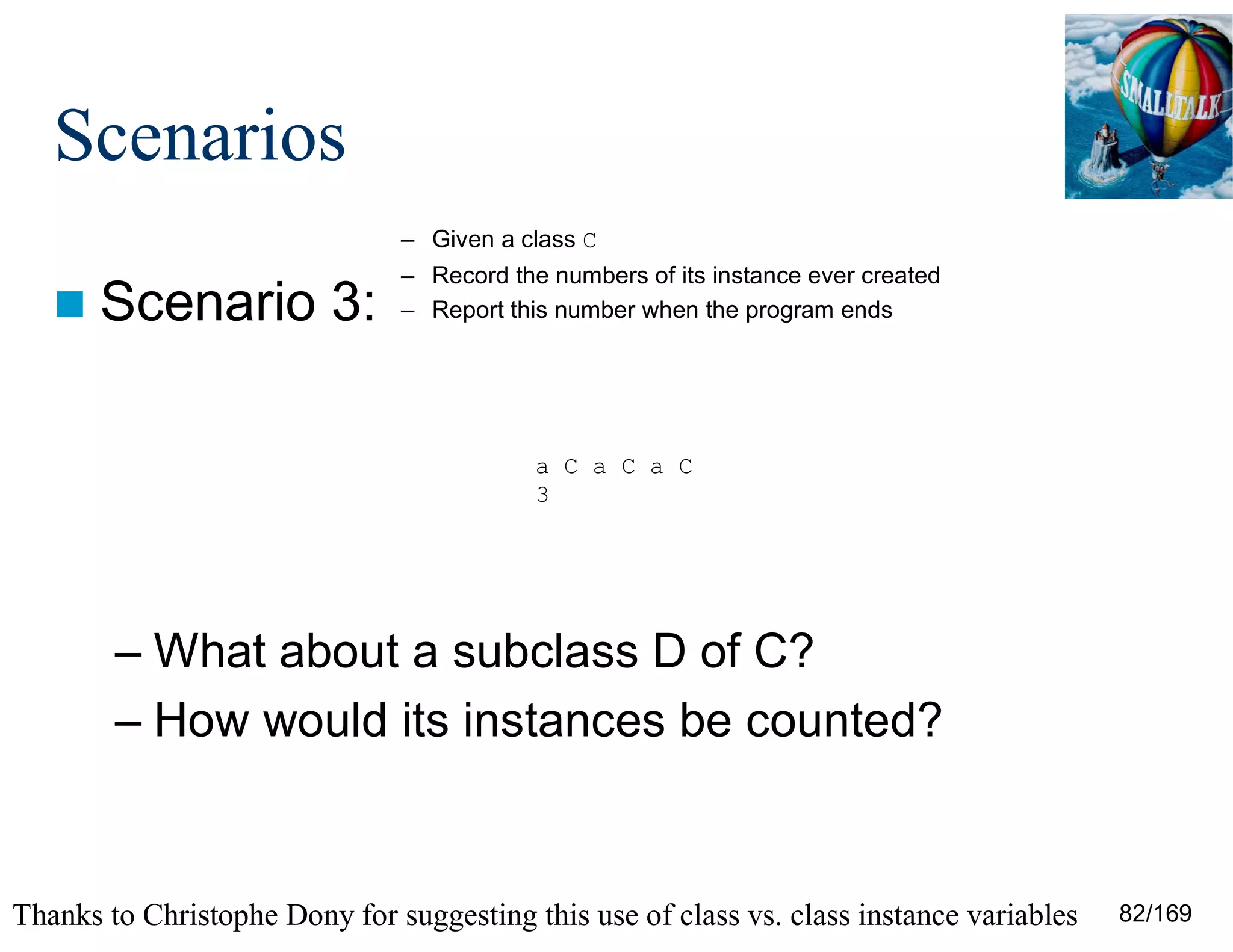

Scenarios
 Scenario 3:
– What about a subclass D of C?
– How would its instances be counted?
a C a C a C
3
– Given a class C
Thanks to Christophe Dony for suggesting this use of class vs. class instance variables

103/210
Scenarios
 Scenario 3:
– In C++ and Java: static = global
• The class variables is shared by all the instances of
its declaring class… and its subclasses!
final D o4 = new D();
// Eclipse advises to use C to call getNumberOfInstances().
System.out.println(o4);
System.out.println(D.getNumberOfInstances());
– Given a class C

104/210
Scenarios
 Scenario 3:

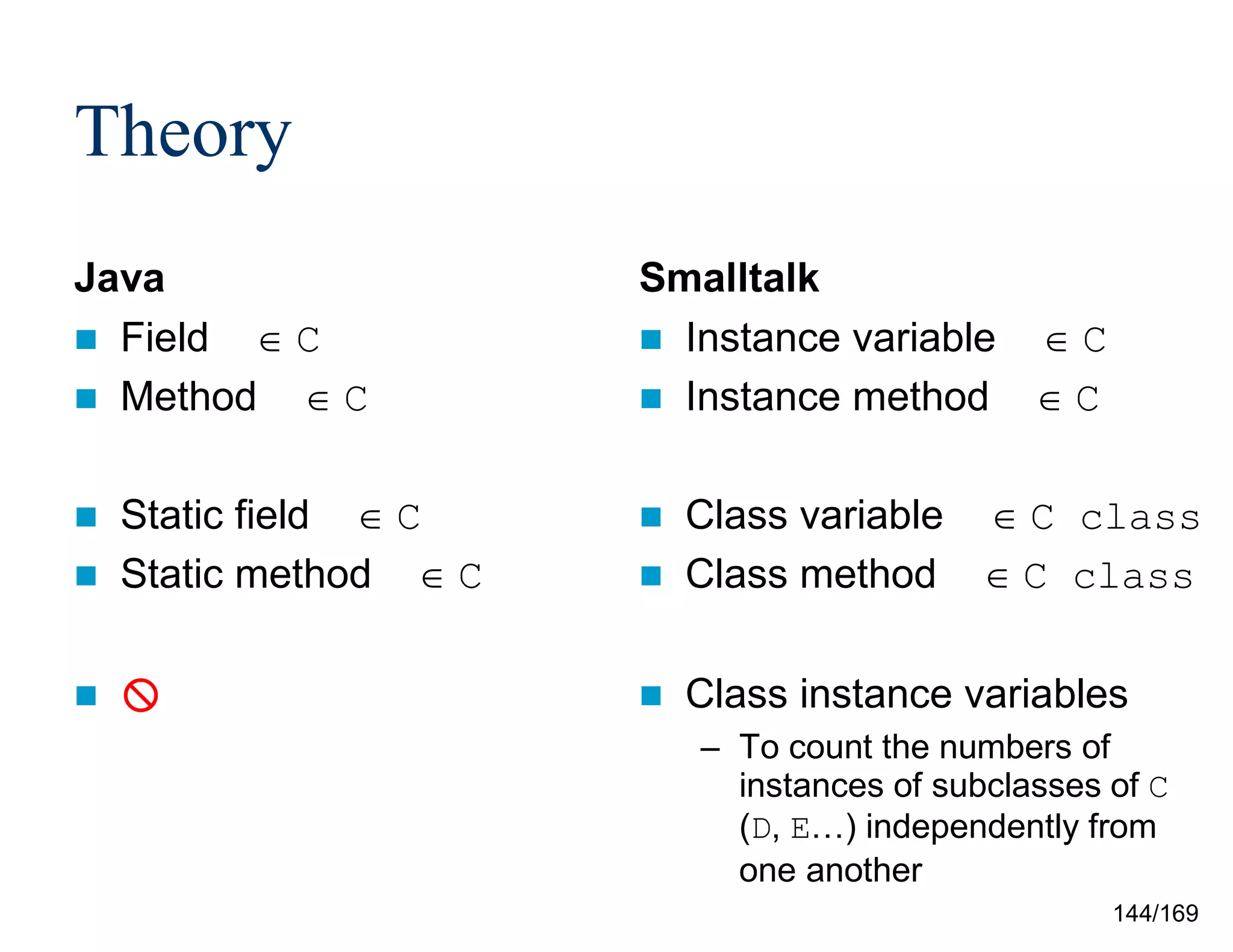

– In Smalltalk: class vs. class instance
• Class variable vs. class instance variable
– A class variable is shared by all the instance of the
class and all the instances of its subclasses
– A class instance variable is unique to each class,
inherited from the super-class, like instance variables
C class instanceVariableNames:
'IndividualClassNumberOfInstances'
– Given a class C

105/210
Scenarios
 Scenario 3:
C subclass: #D
instanceVariableNames: ''
category: 'Ptidej'.
D class compile: 'initialize
IndividualClassNumberOfInstances := 0.'.
D class compile: 'new
IndividualClassNumberOfInstances := IndividualClassNumberOfInstances + 1.
D class compile: 'numberOfInstances
D class compile: 'individualClassNumberOfInstances
^ IndividualClassNumberOfInstances.'.
– Given a class C

106/210
Scenarios
 Scenario 3:
| o4 |
D initialize.
o4 := D new.
Transcript show: o4 ; cr.
Transcript show: C numberOfInstances ; cr.
Transcript show: D numberOfInstances ; cr.
Transcript show: D individualClassNumberOfInstances ; cr.
– Given a class C
a D
4
4
1

107/210
Scenarios

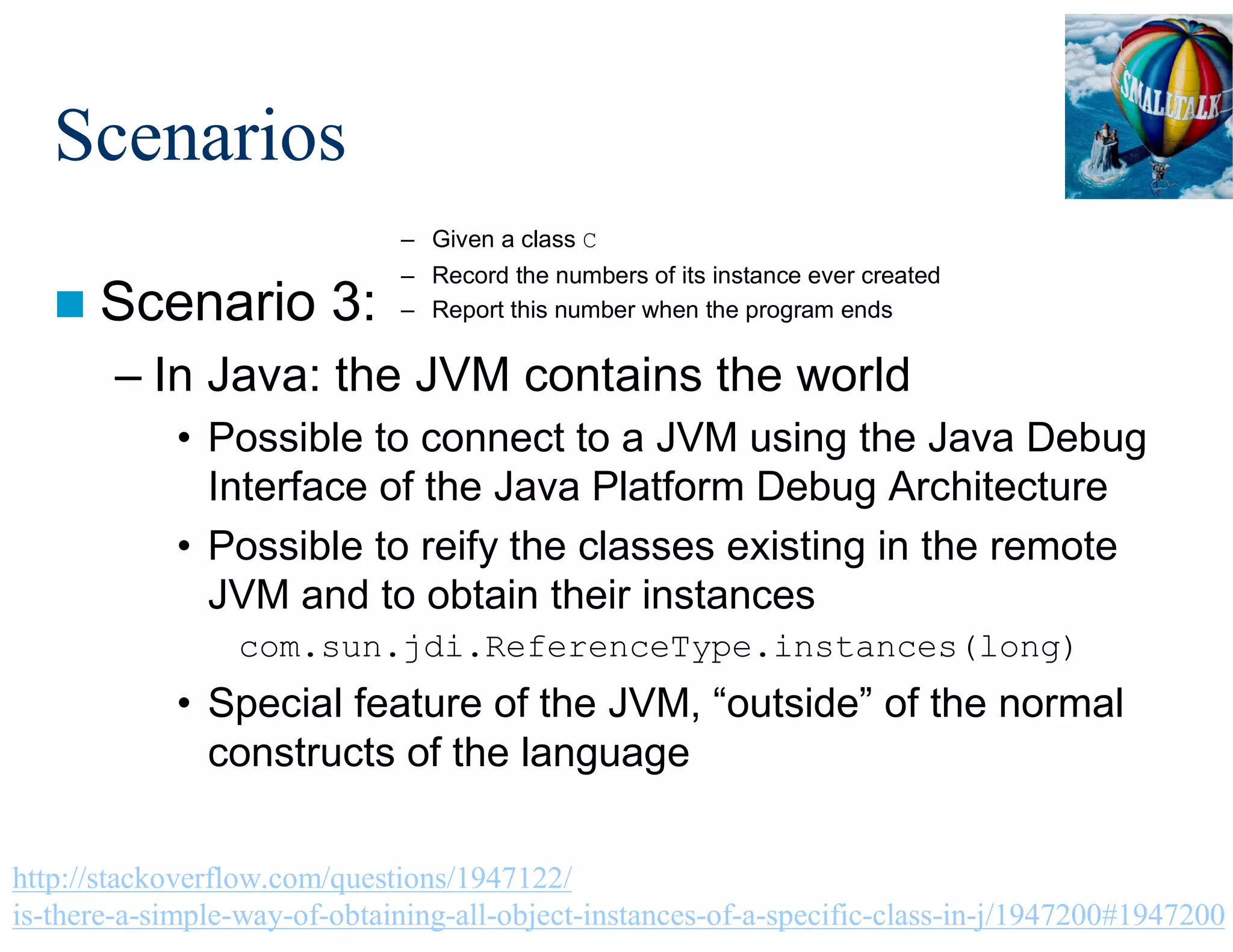

 Scenario 3:
– In Java: the JVM contains the world
• Possible to connect to a JVM using the Java Debug
Interface of the Java Platform Debug Architecture
• Possible to reify the classes existing in the remote
JVM and to obtain their instances
com.sun.jdi.ReferenceType.instances(long)
• Special feature of the JVM, “outside” of the normal
constructs of the language
– Given a class C
http://stackoverflow.com/questions/1947122/
is-there-a-simple-way-of-obtaining-all-object-instances-of-a-specific-class-in-j/1947200#1947200

108/210
Scenarios
 Scenario 3:
– In Smalltalk: the image contains the world
• Possible to ask it all the instances of a particular class
or all the instances currently in memory
Transcript show: (C allInstances size).
– Given a class C
Thanks to Marcus Denker for pointing out this solution

109/210
Scenarios
 Scenario 4:
Object subclass: #C
Transcript show: i.
Transcript cr.'.
i := anInt.'.

110/210
Scenarios
 Scenario 4:
This is o: 42
Intercepting message send: foo:
Original arguments: This is o:
New arguments: THIS IS O:
THIS IS O: 42

111/210
Scenarios
 Scenario 4:

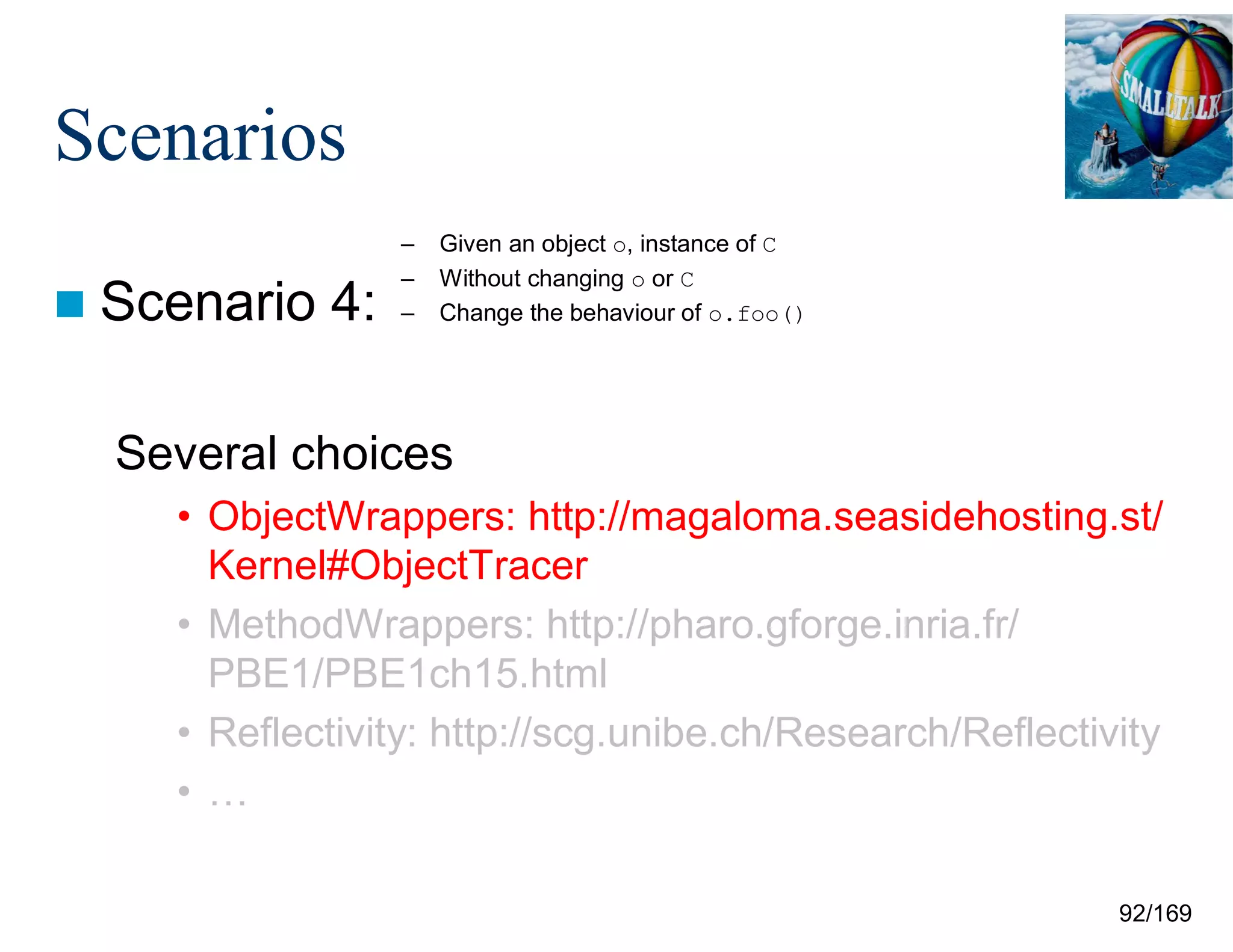

Several choices
• ObjectWrappers: http://magaloma.seasidehosting.st/
Kernel#ObjectTracer
• MethodWrappers: http://pharo.gforge.inria.fr/
PBE1/PBE1ch15.html
• Reflectivity: http://scg.unibe.ch/Research/Reflectivity
• …

112/210
Scenarios
 Scenario 4:
Several choices
Kernel#ObjectTracer
PBE1/PBE1ch15.html
• …

113/210
Scenarios

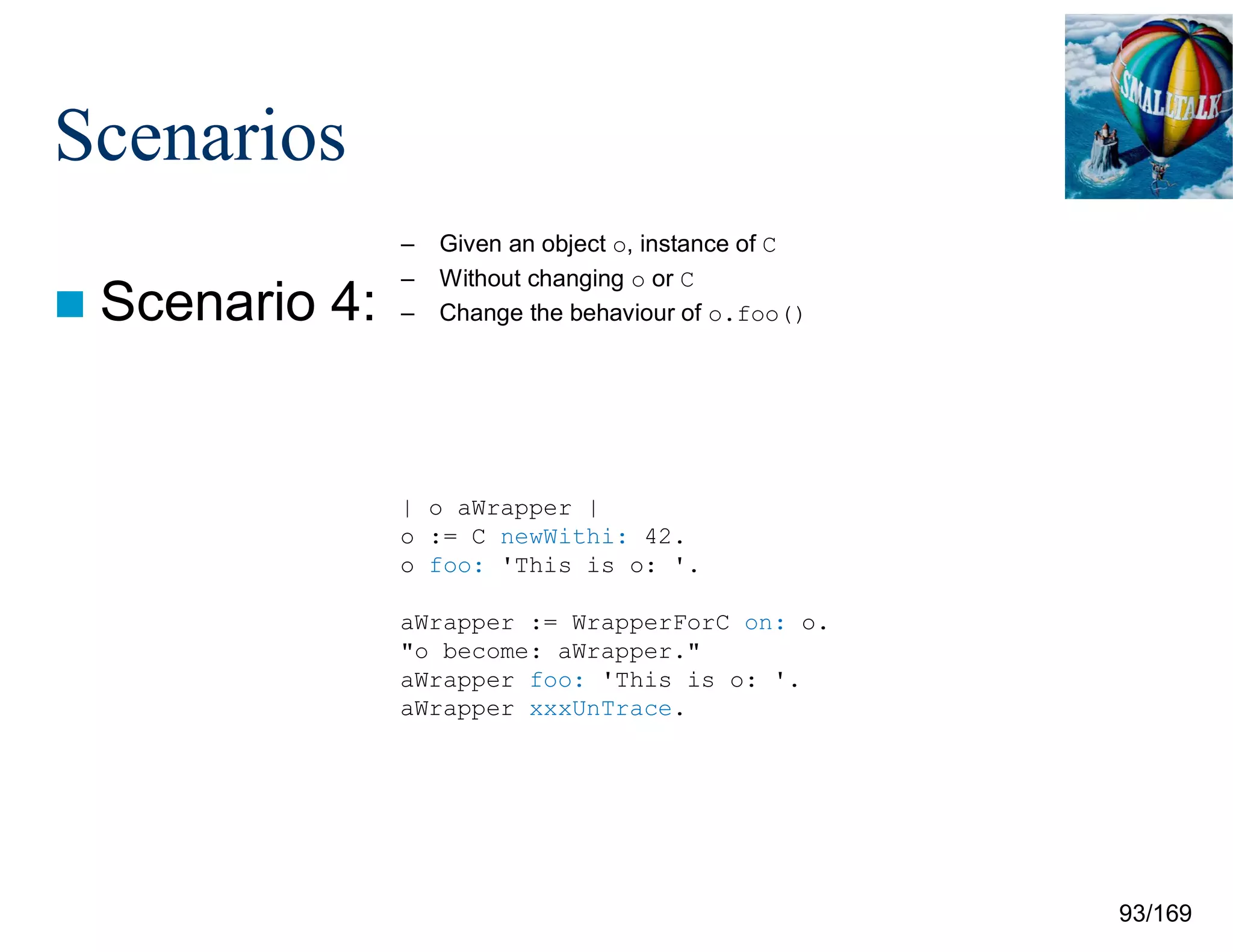

 Scenario 4:
| o aWrapper |
o foo: 'This is o: '.
aWrapper := WrapperForC on: o.
"o become: aWrapper."
aWrapper foo: 'This is o: '.
aWrapper xxxUnTrace.

114/210
 Scenario 4:
ObjectTracer subclass: #WrapperForC
instanceVariableNames: ''
WrapperForC compile: 'doesNotUnderstand: aMessage
"Intercept the selector foo:"
| sel arg newArg |
sel := aMessage selector.
sel = ''foo:'' ifTrue: [
arg := (aMessage arguments) at: 1.
newArg := arg asUppercase.
Transcript show: ''Intercepting message send: '' ; show: sel ; cr.
Transcript tab ; show: ''Original arguments: '' ; show: arg ; cr.
Transcript tab ; show: ''New arguments: '' ; show: newArg ; cr.
aMessage argument: newArg.
aMessage sendTo: (self xxxViewedObject)
]
ifFalse: [
"Transcript show: aMessage."
]'.

115/210
Scenarios
 Scenario 4:
This is o: 42
THIS IS O: 42
| o aWrapper |
aWrapper := WrapperForC on: o.
"o become: aWrapper."
aWrapper foo: 'This is o: '.
aWrapper xxxUnTrace.

116/210
Scenarios
 Scenario 4:
– We created the class WrappedForC that does
not understand many messages (as subclass
of ProtoObject)
– We wrapped an instance of WrappedForC
around o and use doesNotUnderstand: to
proxy messages

117/210
Scenarios
 Scenario 4:
– We created the class WrappedForC that does
not understand many messages (as subclass
of ProtoObject)
– We wrapped an instance of WrappedForC
around o and use doesNotUnderstand: to
proxy messages

118/210

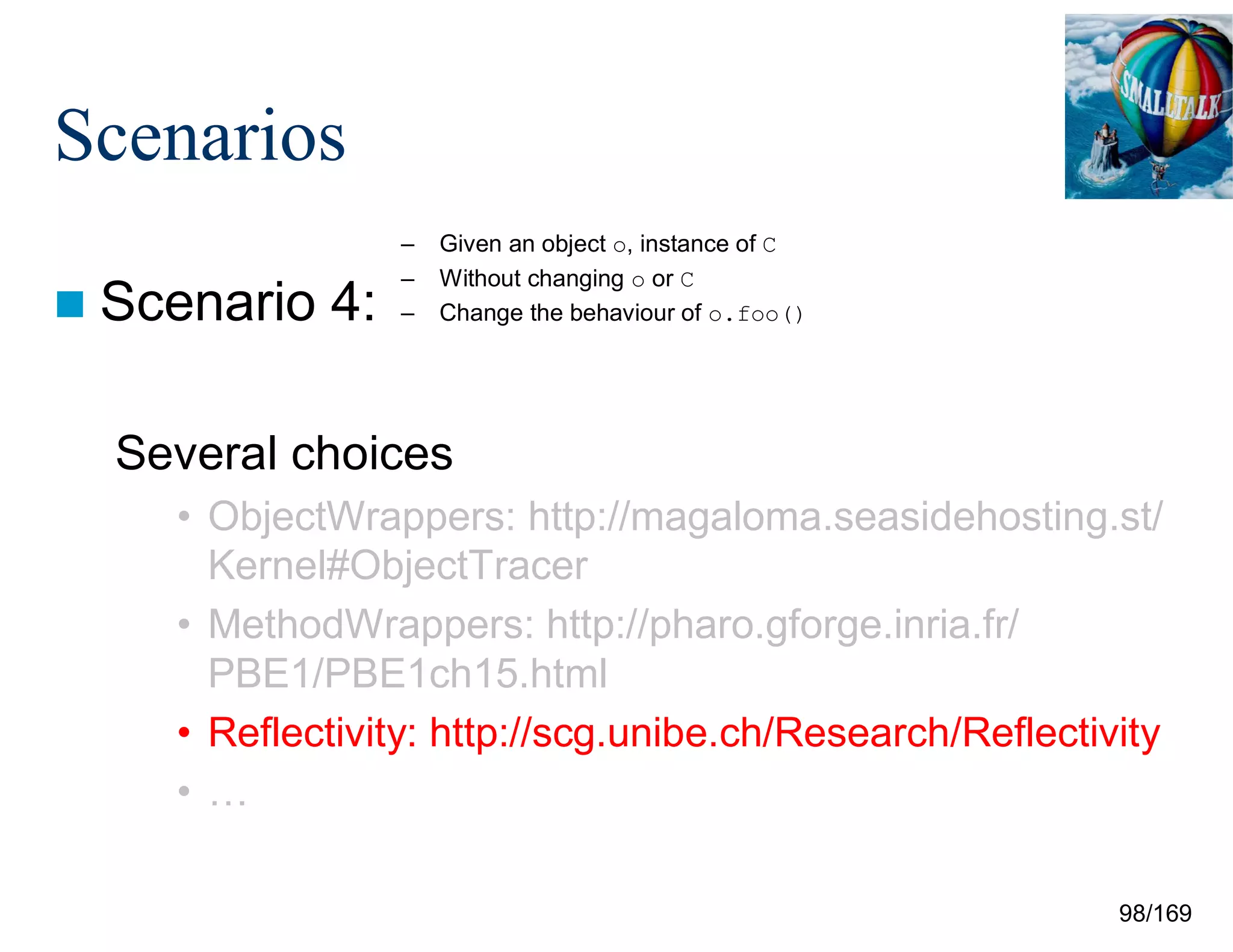

Scenarios
 Scenario 4:
Several choices
Kernel#ObjectTracer
PBE1/PBE1ch15.html
• …

119/210
Scenarios

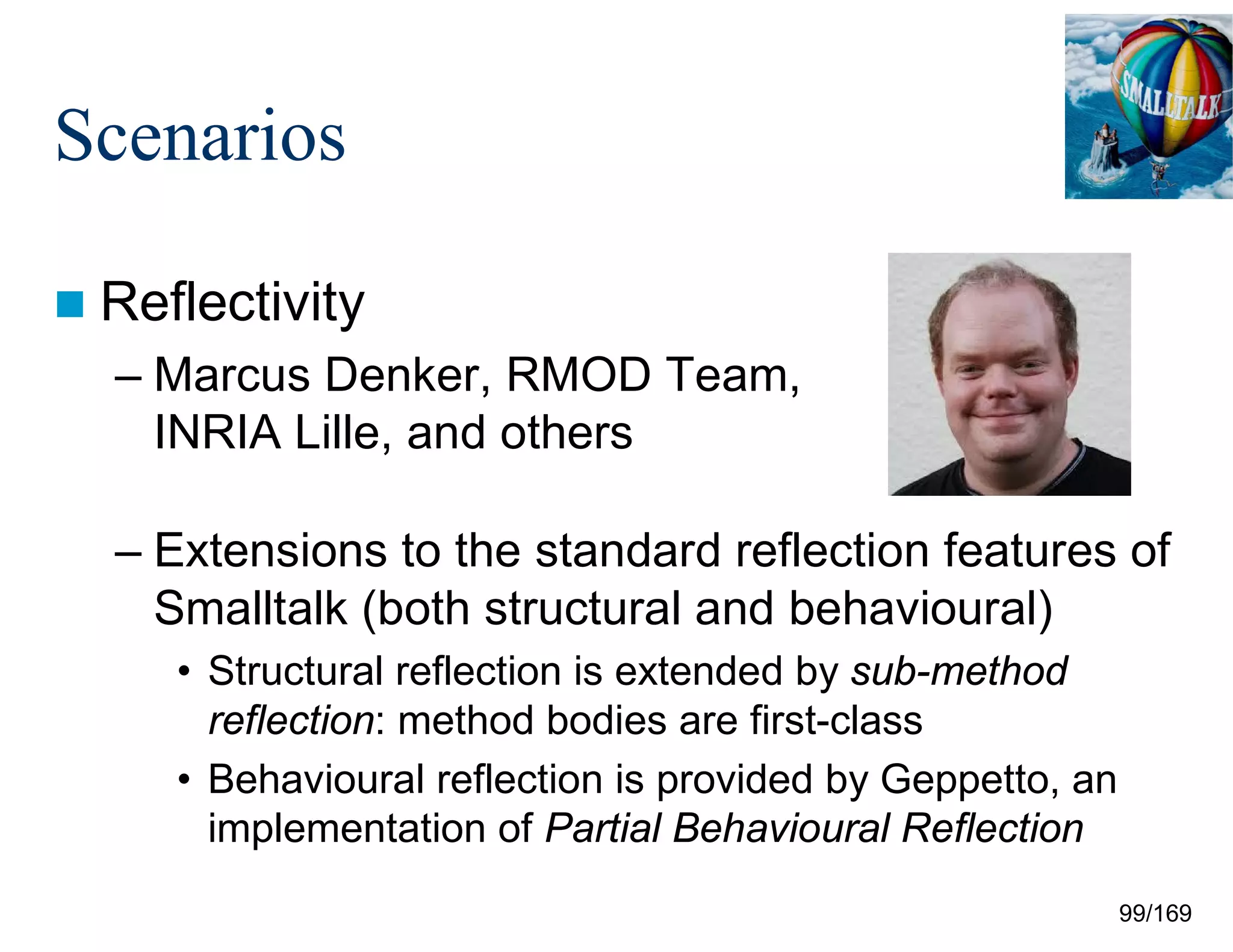

 Reflectivity
– Marcus Denker, RMOD Team,
INRIA Lille, and others
– Extensions to the standard reflection features of
Smalltalk (both structural and behavioural)
• Structural reflection is extended by sub-method
reflection: method bodies are first-class
• Behavioural reflection is provided by Geppetto, an
implementation of Partial Behavioural Reflection

120/210
Scenarios
 Scenario 4:
Object subclass: #C
Transcript show: i.
Transcript cr.'.
i := anInt.'.

121/210
Scenarios
 Scenario 4:

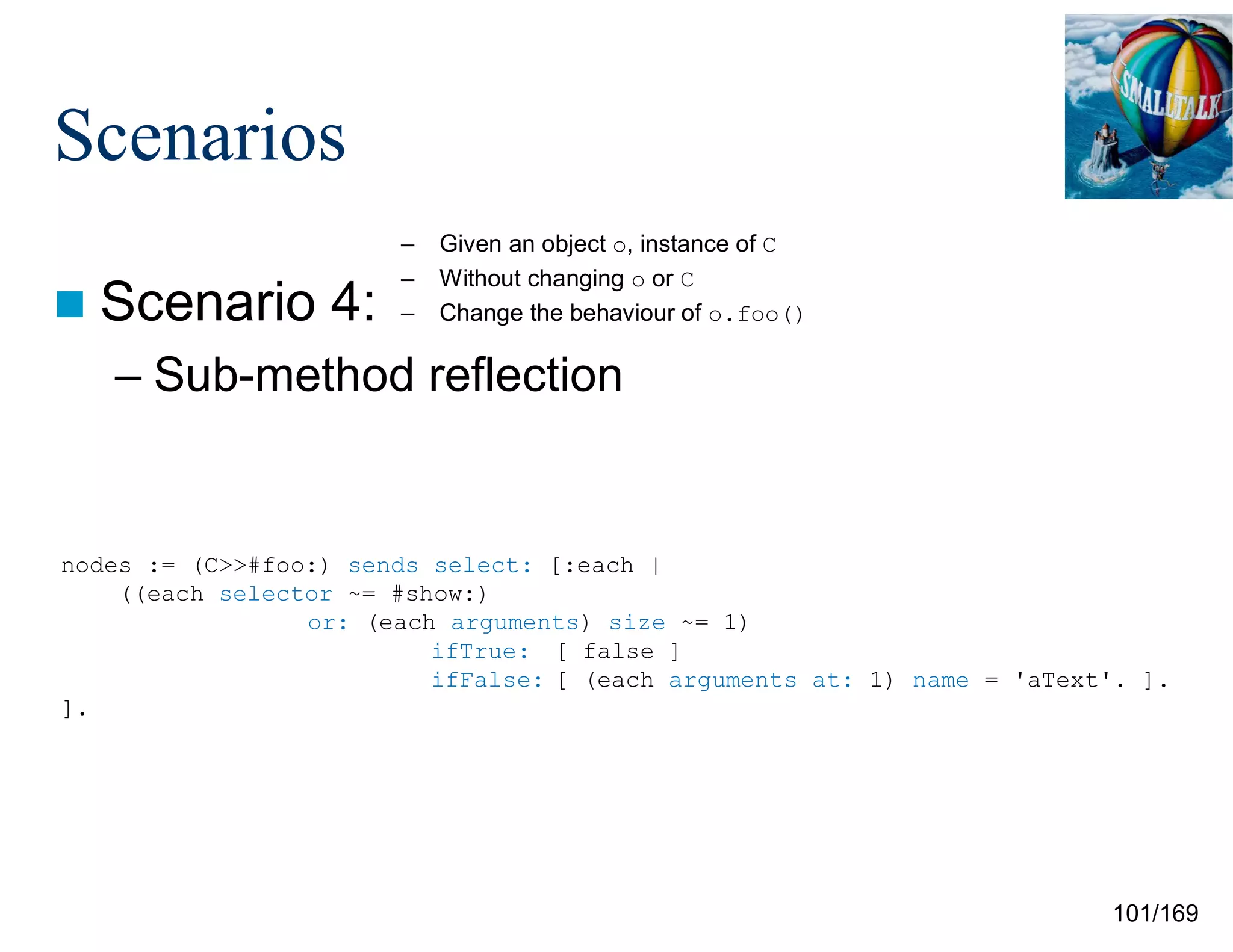

– Sub-method reflection
nodes := (C>>#foo:) sends select: [:each |
((each selector ~= #show:)
or: (each arguments) size ~= 1)
ifTrue: [ false ]
ifFalse: [ (each arguments at: 1) name = 'aText'. ].
].

122/210
Scenarios
 Scenario 4:
– Meta-object
gpLink := GPLink metaObject: [:arg1 :node |
| newArg |
newArg := arg1 asUppercase.
Transcript show: 'Intercepting message send: '.
Transcript show: node ; cr.
Transcript tab ; show: 'Original arguments: '.
Transcript show: arg1 ; cr.
Transcript tab ; show: 'New arguments: '.
Transcript show: newArg ; cr.
Transcript show: newArg.
].
gpLink control: #instead.

123/210
Scenarios

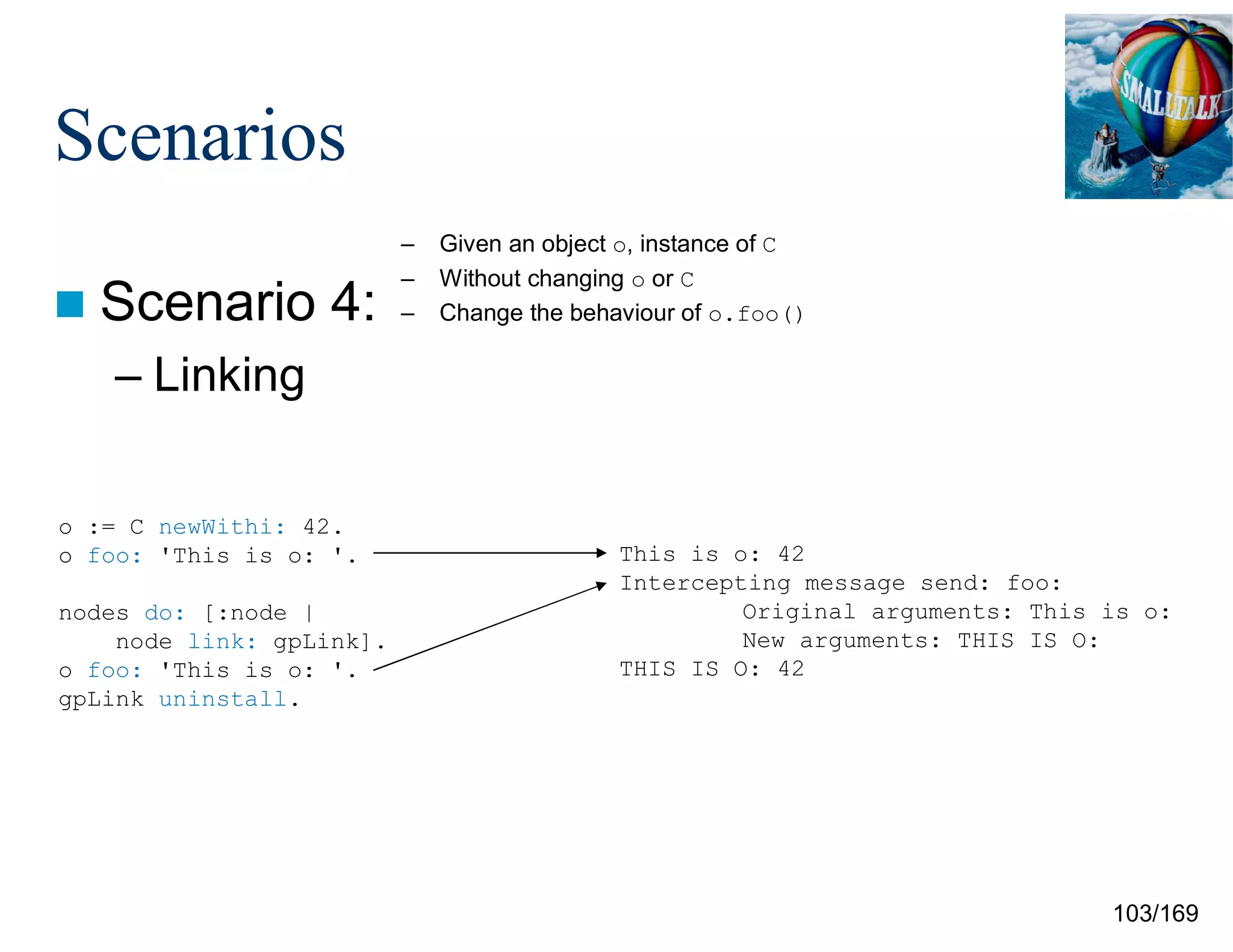

 Scenario 4:
– Linking
nodes do: [:node |
node link: gpLink].
gpLink uninstall.
This is o: 42
THIS IS O: 42

124/210
Scenarios

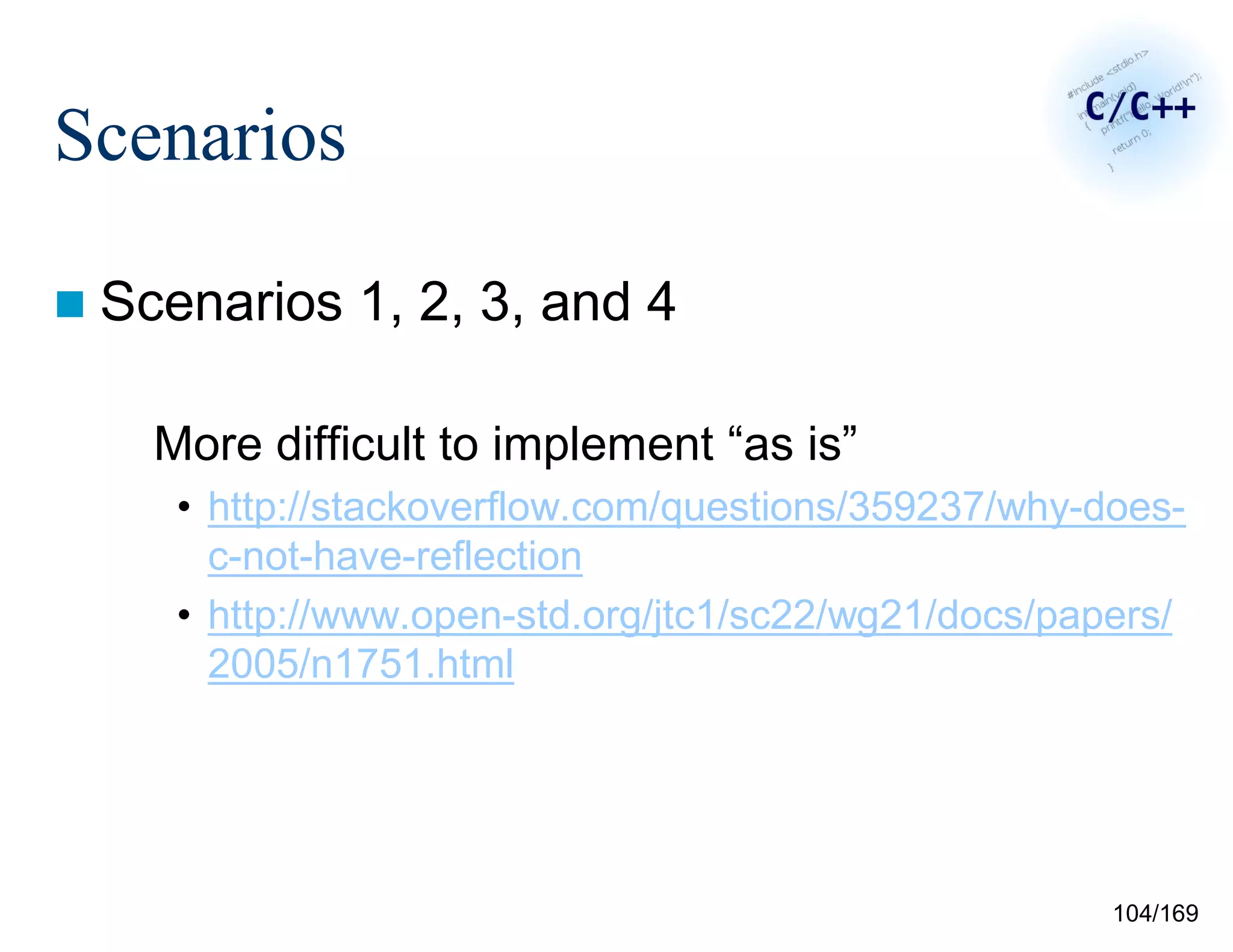

 Scenarios 1, 2, 3, and 4
More difficult to implement “as is”
• http://stackoverflow.com/questions/359237/why-does-
c-not-have-reflection
• http://www.open-std.org/jtc1/sc22/wg21/docs/papers/
2005/n1751.html

125/210

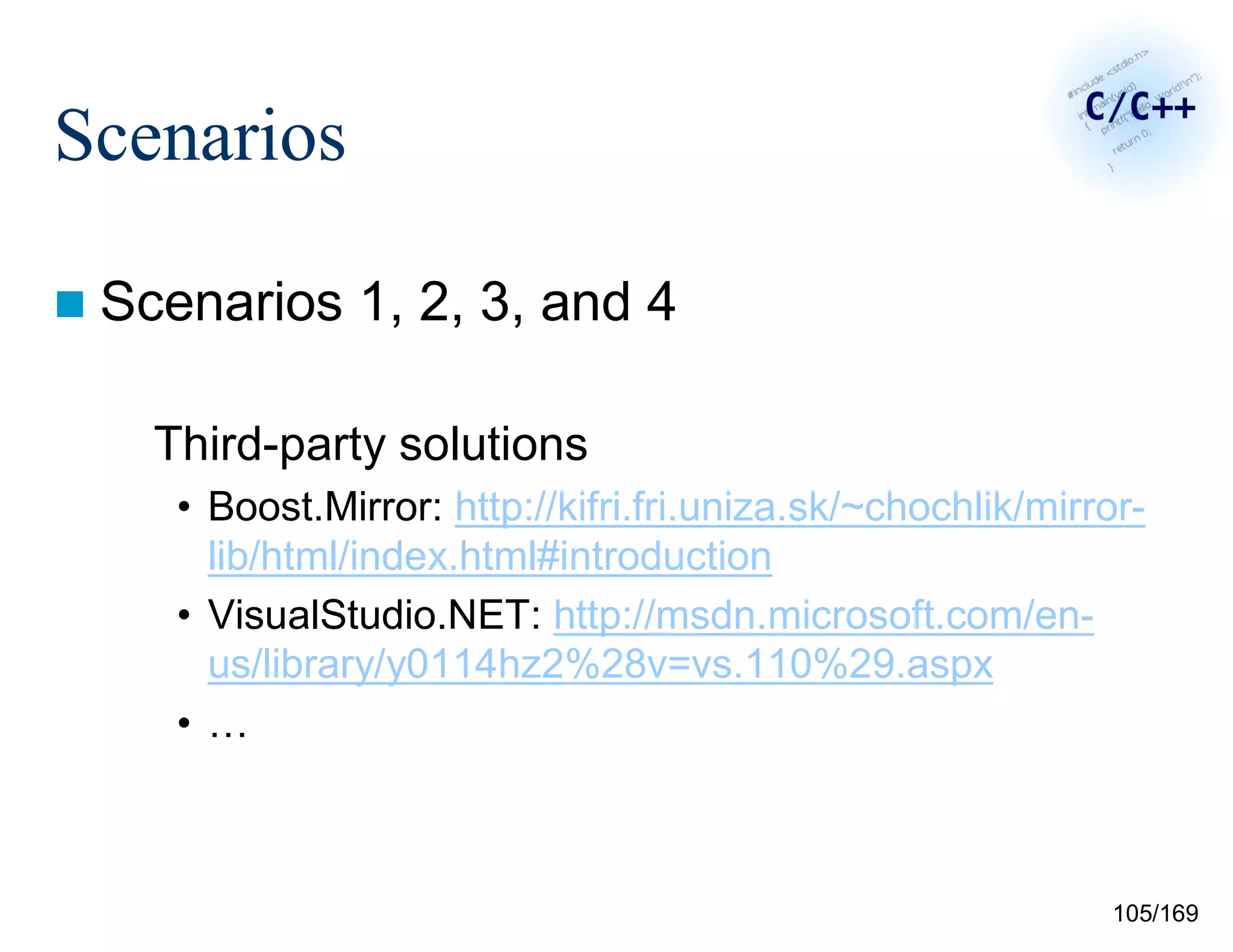

Scenarios

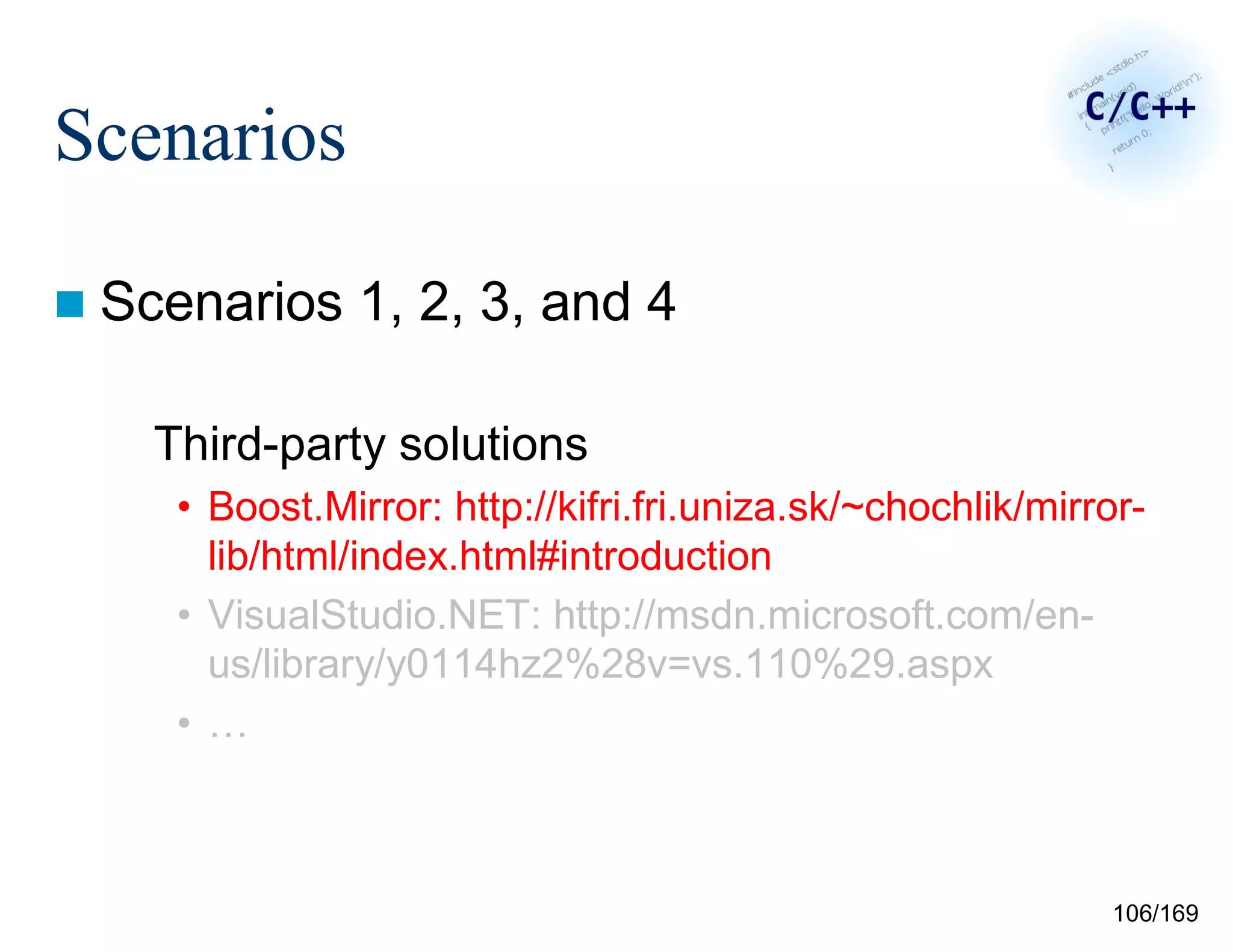

Third-party solutions
• Mirror: http://kifri.fri.uniza.sk/~chochlik/mirror-
lib/html/index.html#introduction
• VisualStudio.NET: http://msdn.microsoft.com/en-
us/library/y0114hz2%28v=vs.110%29.aspx
• …

126/210
Scenarios
Third-party solutions
• Mirror: http://kifri.fri.uniza.sk/~chochlik/mirror-
lib/html/index.html#introduction
• VisualStudio.NET: http://msdn.microsoft.com/en-
us/library/y0114hz2%28v=vs.110%29.aspx
• …

127/210
Scenarios

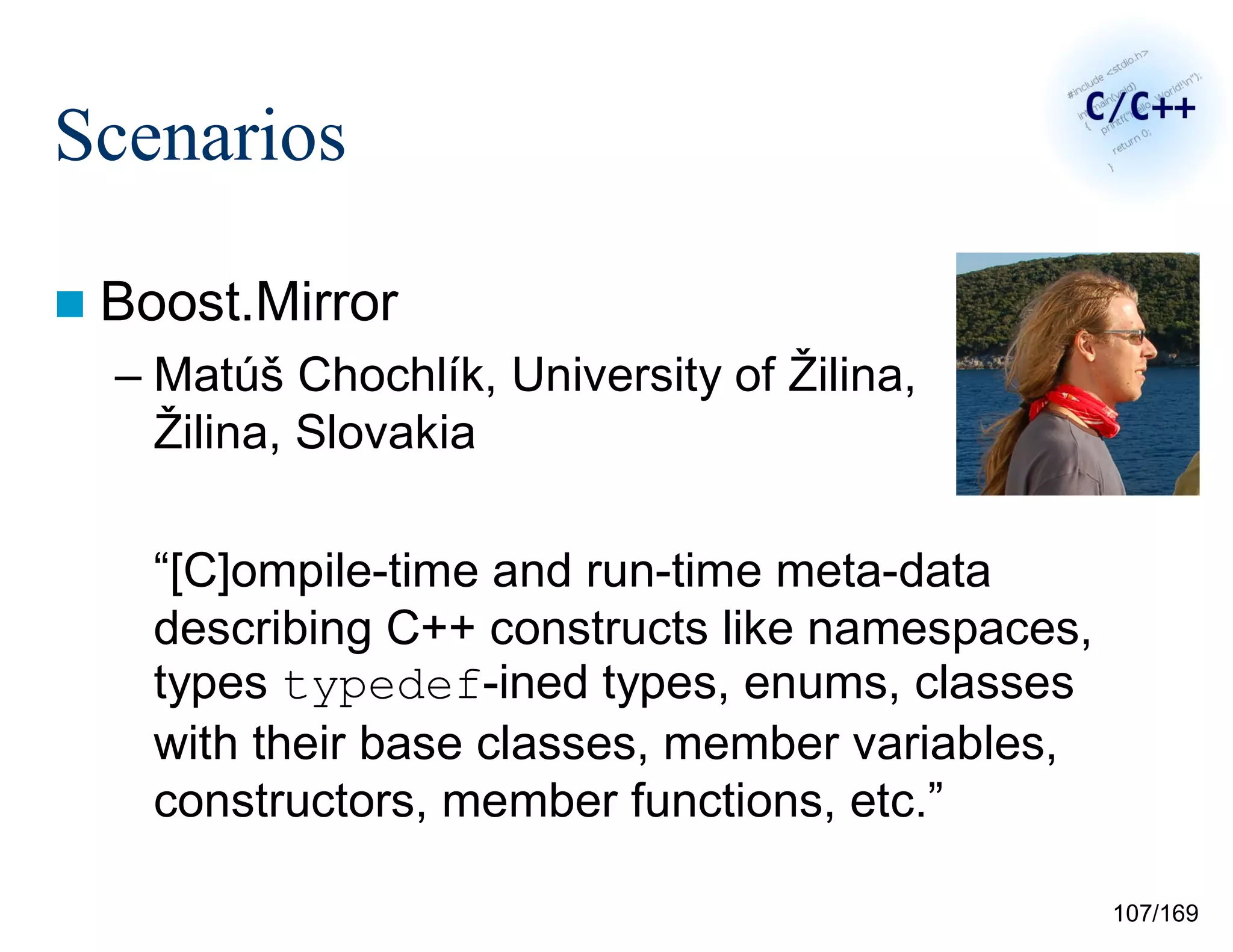

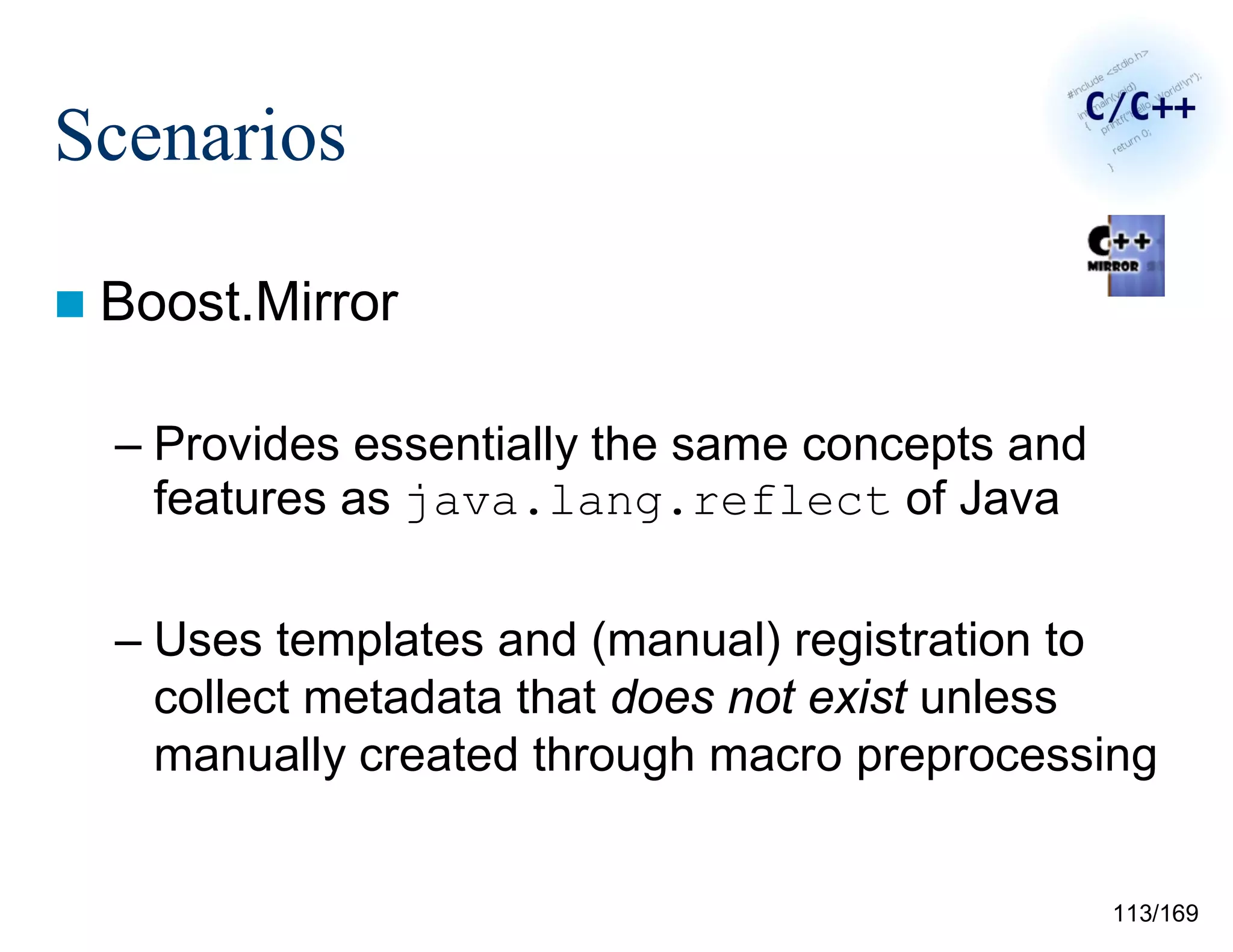

 Mirror
– Matúš Chochlík, University of Žilina,
Žilina, Slovakia
“[C]ompile-time and run-time meta-data
describing C++ constructs like namespaces,
types typedef-ined types, enums, classes
with their base classes, member variables,
constructors, member functions, etc.”

128/210
Scenarios
 Scenario 1:
– Given a class C
namespace cse3009 {
class C {
private:
int i;
public:
C(const int _i) : i(_i) {
}
int get_i(void) const {
return this->i;
}
void set_i(const int _i) {
this->i = _i;
}
void foo(const std::string _s) const {
std::cout << _s << this->i << std::endl;
}
};
}

129/210
Scenarios
 Scenario 1:
– Given a class C
(The type of o is cse3009::C)
cse3009::C::i
cse3009::C::foo
This is foo: 42

130/210

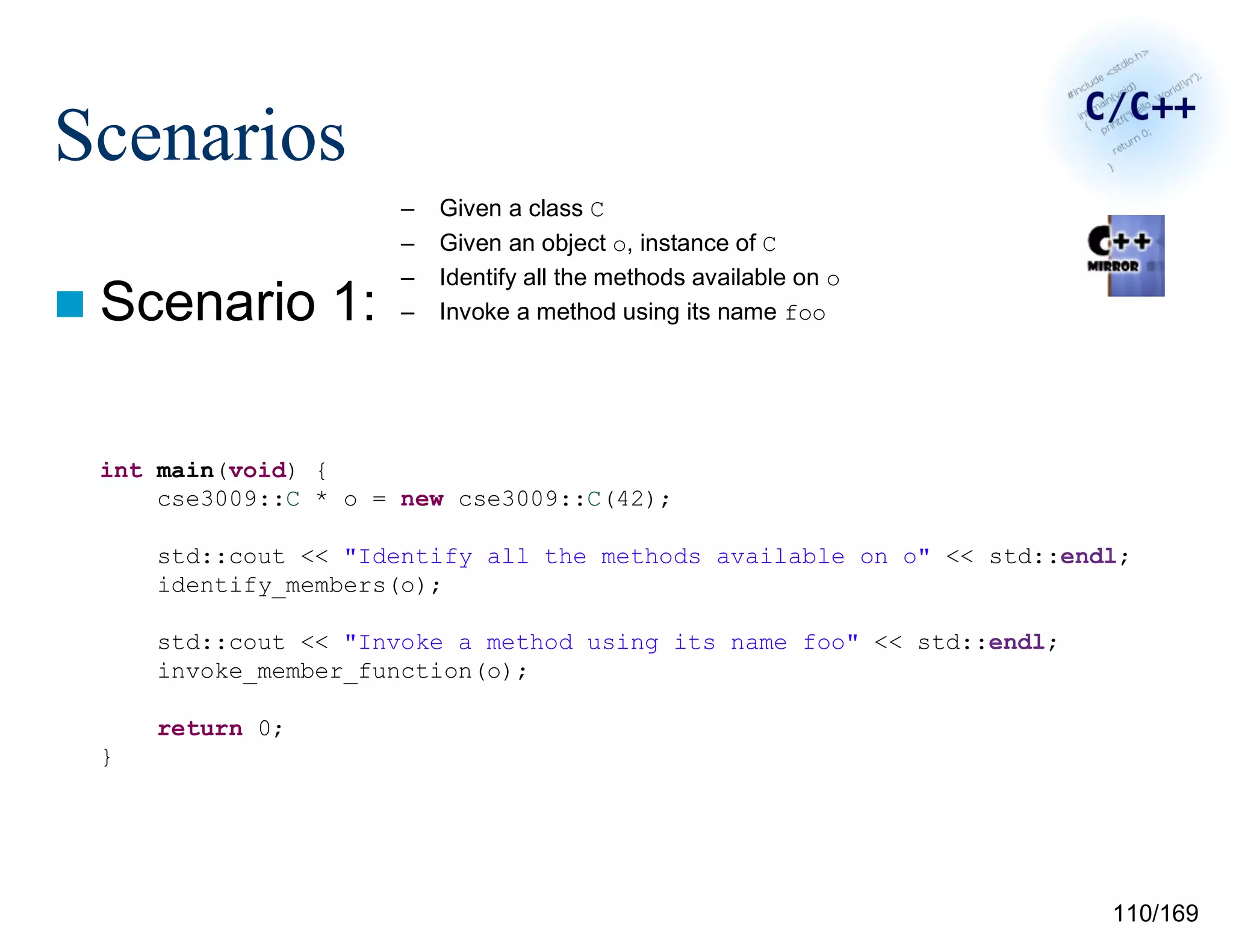

Scenarios
 Scenario 1:
– Given a class C
int main(void) {
cse3009::C * o = new cse3009::C(42);
std::cout << "Identify all the methods available on o" << std::endl;
identify_members(o);
std::cout << "Invoke a method using its name foo" << std::endl;
invoke_member_function(o);
return 0;
}

131/210
Scenarios
 Scenario 1:
– Given a class C
template<typename O>
void identify_members(O * _o) {
using namespace mirror;
typedef MIRRORED_CLASS(O) meta_Class;
std::cout << "t(The type of o is " << meta_Class::full_name()
<< ")" << std::endl;
std::cout << "t";
mp::for_each_ii< all_member_variables<meta_Class> >(info_printer());
std::cout << std::endl << "t";
mp::for_each_ii< member_functions<meta_Class> >(info_printer());
std::cout << std::endl;
}

132/210
Scenarios
 Scenario 1:
– Given a class C
void invoke_member_function(O * _o) {
typedef MIRRORED_CLASS(cse3009::C) meta_Class;
typedef mp::at_c<overloads<
mp::at_c<member_functions<meta_Class>, 0>::type>, 0>::type
meta_foo;
my_invoker_maker::invoker<meta_foo>::type invoker(
std::string("tThis is foo: "));
invoker.call_on(*_o);
}

133/210
Scenarios
 Mirror
– Provides essentially the same concepts and
features as java.lang.reflect of Java
– Uses templates and (manual) registration to
collect metadata that does not exist unless
manually created through macro preprocessing

134/210
Scenarios
 Scenario 1:
– Given a class C
MIRROR_REG_BEGIN
MIRROR_QREG_GLOBAL_SCOPE_NAMESPACE(std)
MIRROR_REG_CLASS_BEGIN(struct, std, string)
MIRROR_REG_CLASS_END
MIRROR_QREG_GLOBAL_SCOPE_NAMESPACE(cse3009)
MIRROR_REG_CLASS_BEGIN(class, cse3009, C)
MIRROR_REG_CLASS_MEM_VARS_BEGIN
MIRROR_REG_CLASS_MEM_VAR_GET_SET(
private, _, int, i, _.get_i(), _.set_i(_i))
MIRROR_REG_CLASS_MEM_VARS_END
MIRROR_REG_MEM_FUNCTIONS_BEGIN
MIRROR_REG_MEM_OVLD_FUNC_BEGIN(foo)
MIRROR_REG_MEM_FUNCTION_BEGIN(public, _, void, foo, 1)
MIRROR_REG_MEM_FUNCTION_PARAM(std::string, _s)
MIRROR_REG_MEM_FUNCTION_END(1, _)
MIRROR_REG_MEM_OVLD_FUNC_END(foo)
MIRROR_REG_MEM_FUNCTIONS_END
MIRROR_REG_CLASS_END
MIRROR_REG_END

135/210

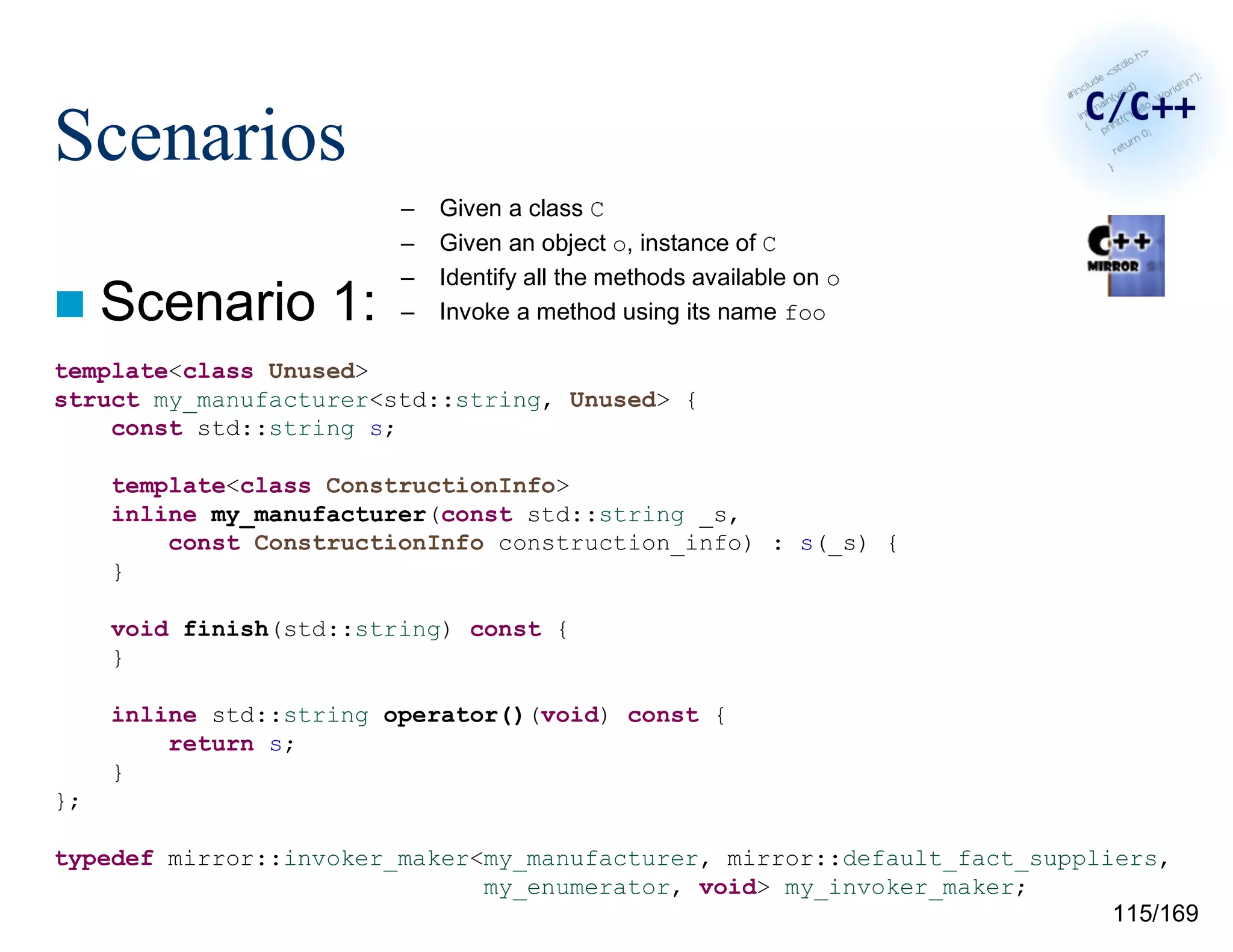

Scenarios
 Scenario 1:
– Given a class C
template<class Unused>
struct my_manufacturer<std::string, Unused> {
const std::string s;
template<class ConstructionInfo>
inline my_manufacturer(const std::string _s,
const ConstructionInfo construction_info) : s(_s) {
}
void finish(std::string) const {
}
inline std::string operator()(void) const {
return s;
}
};
typedef mirror::invoker_maker<my_manufacturer, mirror::default_fact_suppliers,
my_enumerator, void> my_invoker_maker;

136/210

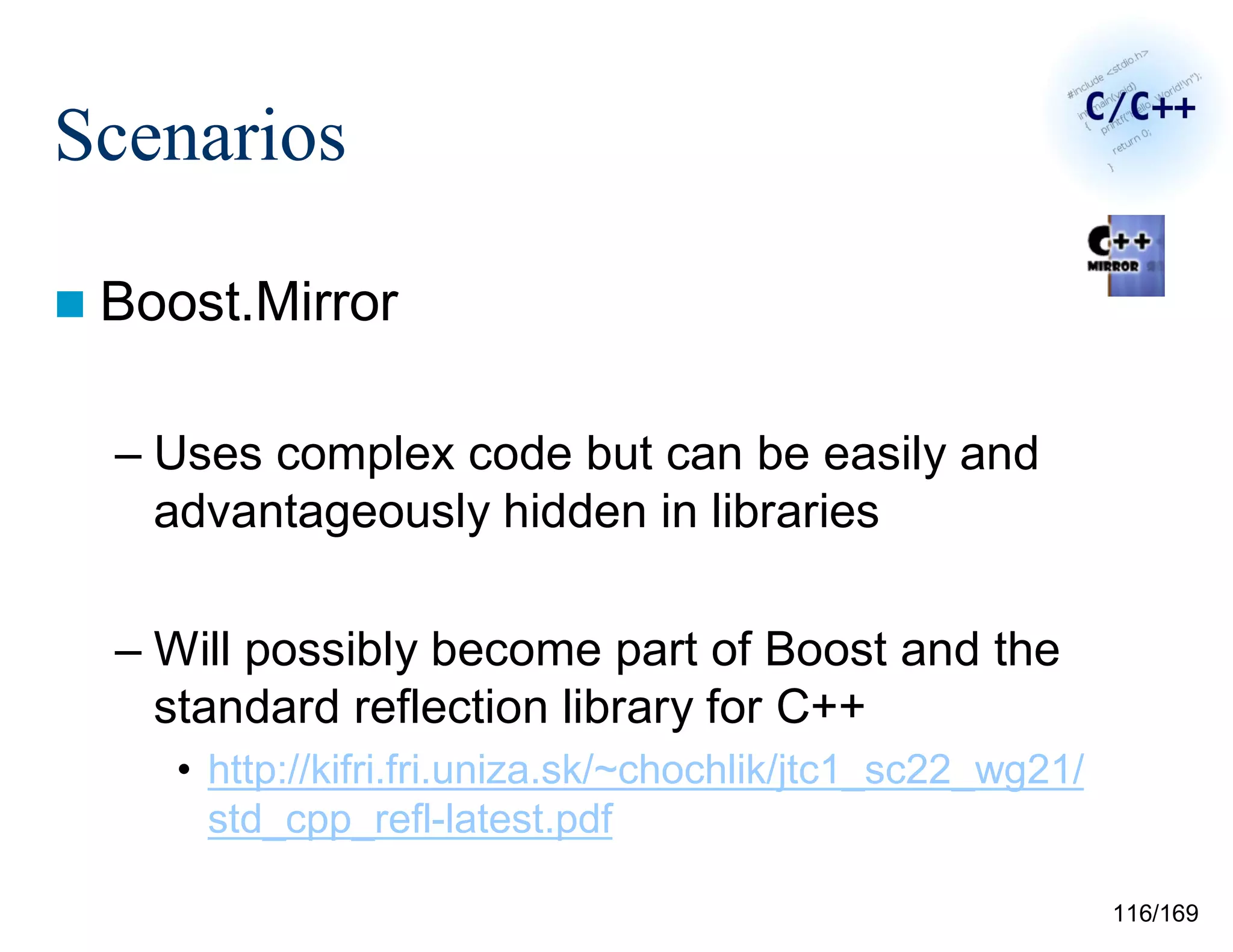

Scenarios
 Mirror
– Uses complex code that can be easily and
advantageously hidden in libraries
– Will possibly become part of Boost and the
standard reflection library for C++
• http://kifri.fri.uniza.sk/~chochlik/jtc1_sc22_wg21/
std_cpp_refl-latest.pdf

137/210
Scenarios
 Scenario 2:
namespace cse3009 {
class C {
private:
int i;
public:
}
int get_i(void) const {
return this->i;
}
void set_i(const int _i) {
this->i = _i;
}
}
};
}

138/210
Scenarios
 Scenario 2:
(The type of o is cse3009::C)
cse3009::C::i = 42
43

139/210
Scenarios
 Scenario 2:

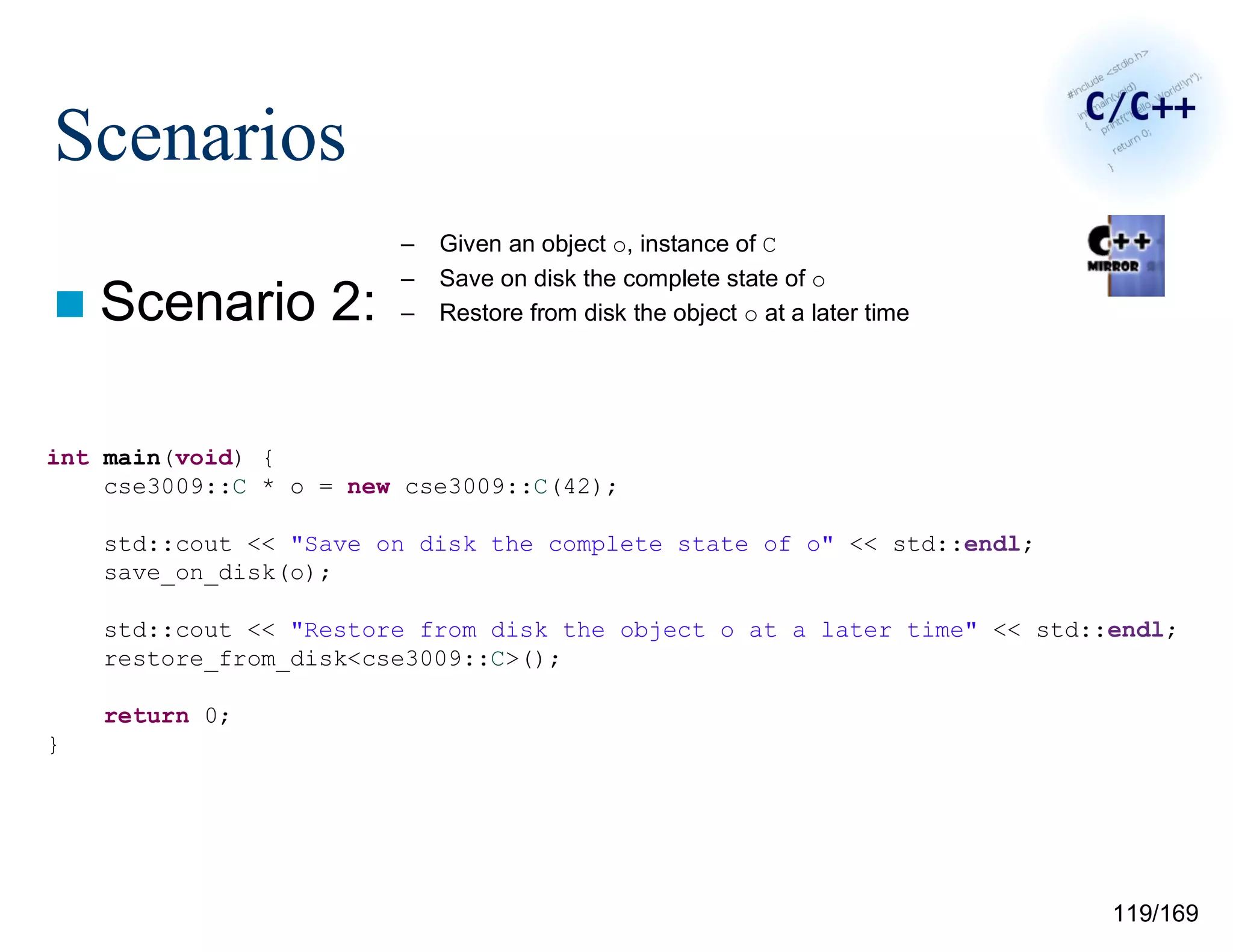

int main(void) {
cse3009::C * o = new cse3009::C(42);
std::cout << "Save on disk the complete state of o" << std::endl;
save_on_disk(o);
std::cout << "Restore from disk the object o at a later time" << std::endl;
restore_from_disk<cse3009::C>();
return 0;
}

140/210
Scenarios

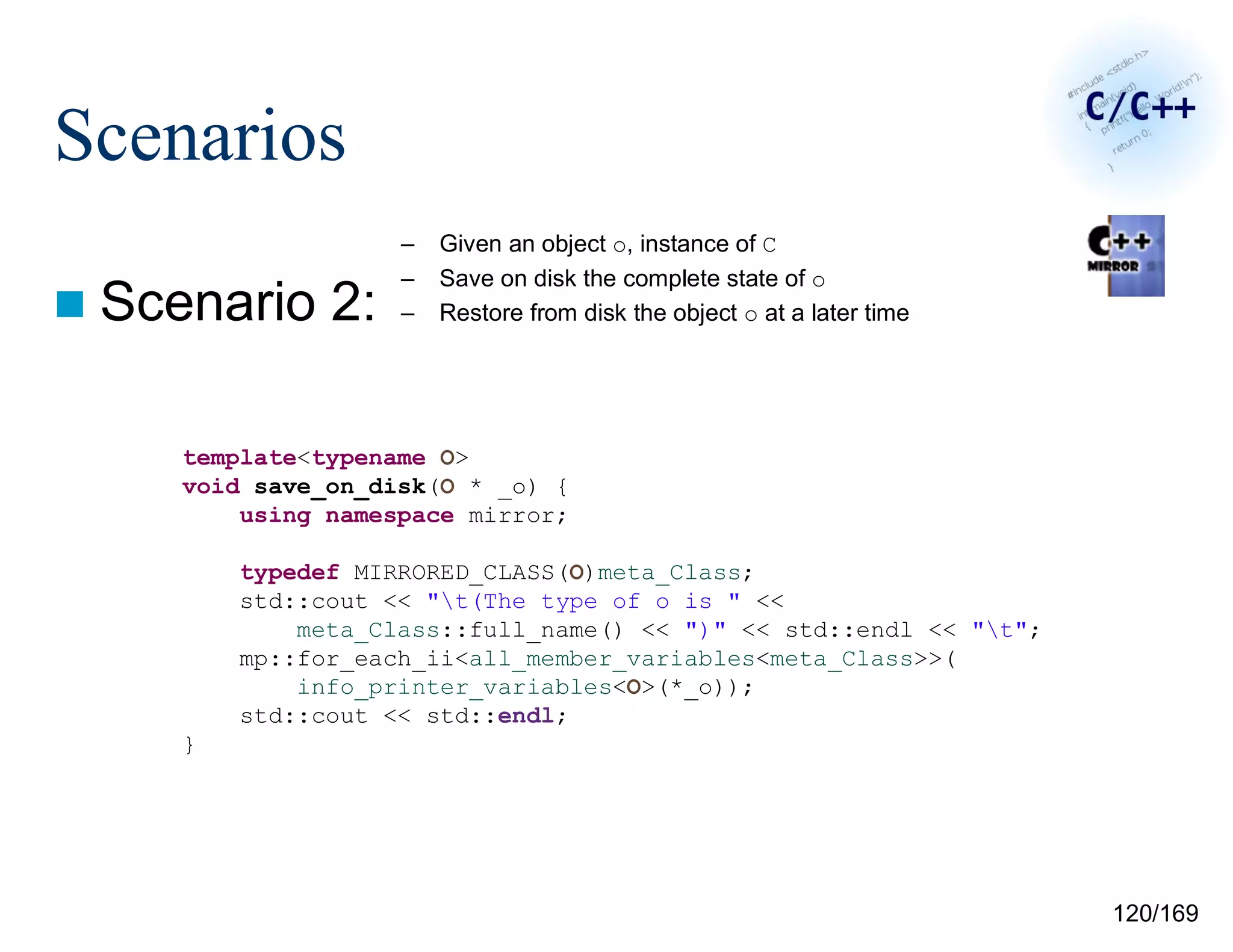

 Scenario 2:
void save_on_disk(O * _o) {
typedef MIRRORED_CLASS(O)meta_Class;
std::cout << "t(The type of o is " <<
meta_Class::full_name() << ")" << std::endl << "t";
mp::for_each_ii<all_member_variables<meta_Class>>(
info_printer_variables<O>(*_o));
}

141/210
Scenarios
 Scenario 2:
template<class O>
struct info_printer_variables {
O o;
inline info_printer_variables(O _o) : o(_o) {
}
template<class IterInfo>
void operator()(IterInfo) {
std::cout << IterInfo::type::full_name()
<< " = " << IterInfo::type::get(o);
if (!IterInfo::is_last::value)
std::cout << ", ";
}
};

142/210
Scenarios
 Scenario 2:
template<class O>
struct info_printer_variables {
O o;
inline info_printer_variables(O _o) : o(_o) {
}
void operator()(IterInfo) {
std::cout << IterInfo::type::full_name()
<< " = " << IterInfo::type::get(o);
if (!IterInfo::is_last::value)
std::cout << ", ";
}
};
Get the value of reflected variable

143/210
Scenarios
 Scenario 2:
void restore_from_disk(void) {
typedef typename my_factory_maker::factory<O>::type my_factory_type;
my_factory_type my_factory(43);
O o(my_factory());
std::cout << "t" << o.get_i() << std::endl;
}

144/210
Scenarios
 Scenario 2:
typedef mirror::factory_maker<
my_manufacturer,
mirror::default_fact_suppliers,
my_enumerator,
void> my_factory_maker;

145/210
Scenarios
 Scenario 2:
typedef mirror::factory_maker<
my_manufacturer,
my_enumerator,
void> my_factory_maker;
Factory generating instances
of (possibly) different types

146/210
Scenarios
 Scenario 2:

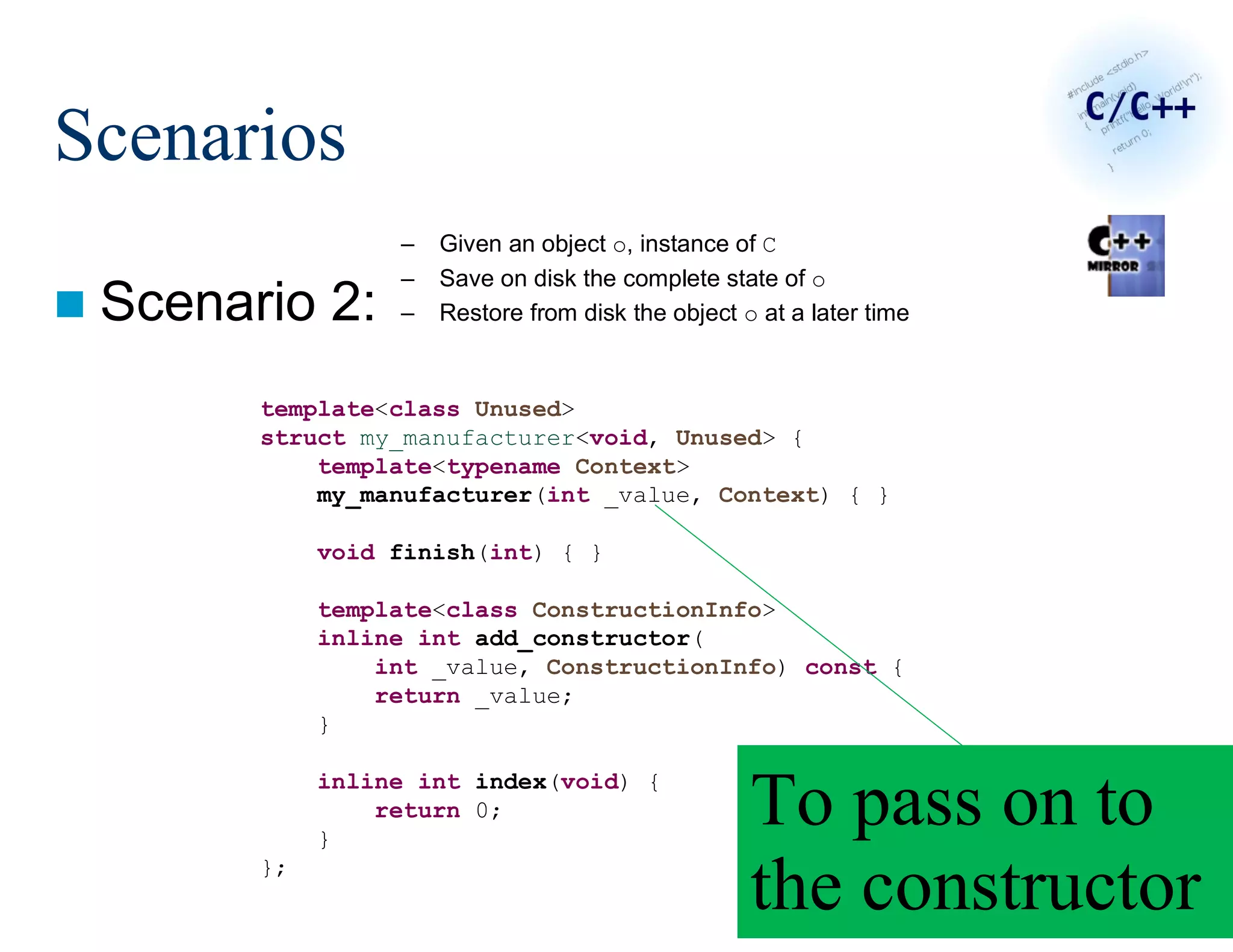

struct my_manufacturer<void, Unused> {
template<typename Context>
my_manufacturer(int _value, Context) { }
void finish(int) { }
inline int add_constructor(
int _value, ConstructionInfo) const {
return _value;
}
inline int index(void) {
return 0;
}
};

147/210
Scenarios
 Scenario 2:
struct my_manufacturer<void, Unused> {
template<typename Context>
my_manufacturer(int _value, Context) { }
inline int add_constructor(
int _value, ConstructionInfo) const {
return _value;
}
inline int index(void) {
return 0;
}
};
To pass on to
the constructor

148/210

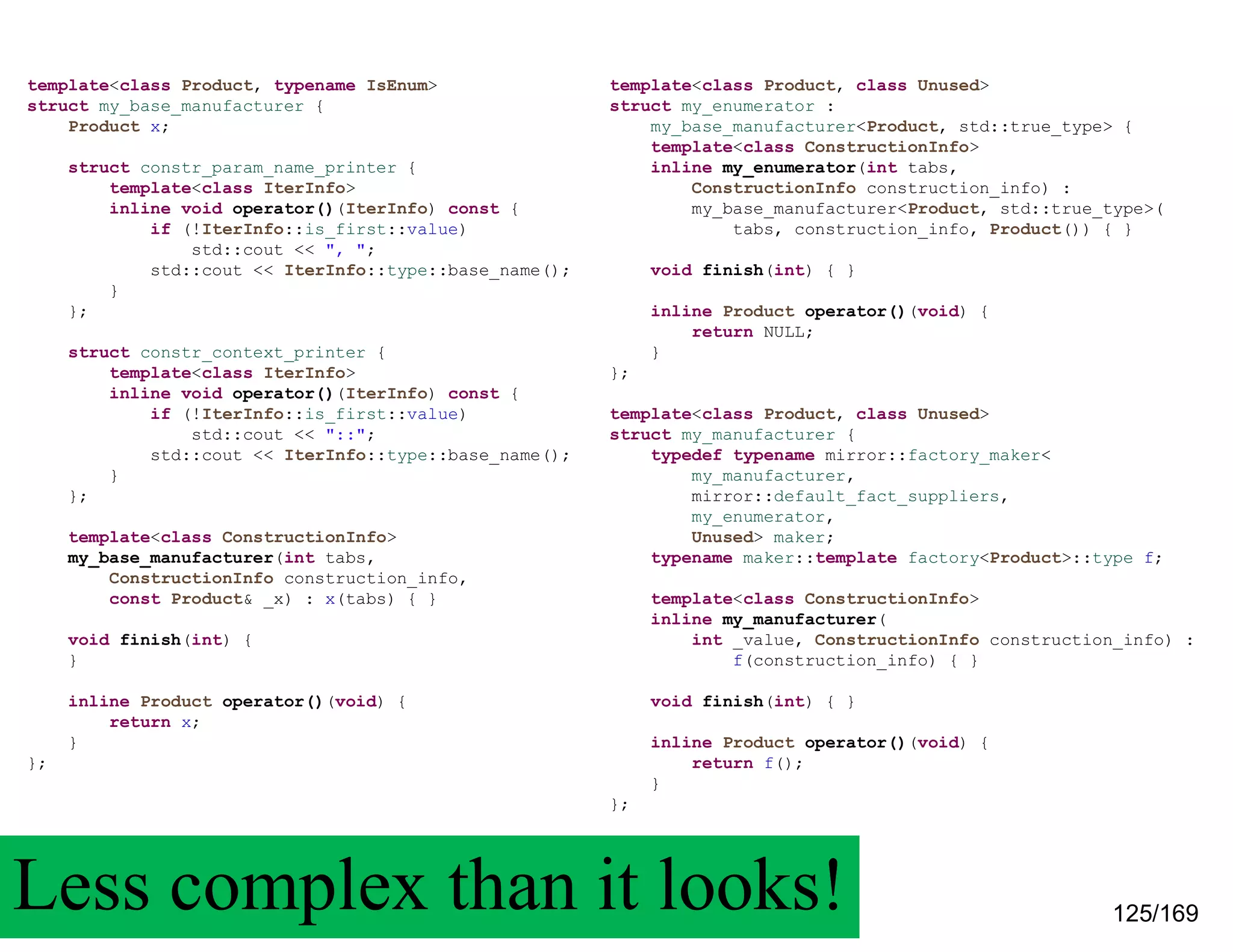

template<class Product, typename IsEnum>
struct my_base_manufacturer {
Product x;
struct constr_param_name_printer {
inline void operator()(IterInfo) const {
if (!IterInfo::is_first::value)
std::cout << ", ";
std::cout << IterInfo::type::base_name();
}
};
struct constr_context_printer {
std::cout << "::";
}
};
my_base_manufacturer(int tabs,
ConstructionInfo construction_info,
const Product& _x) : x(tabs) { }
void finish(int) {
}
inline Product operator()(void) {
return x;
}
};
template<class Product, class Unused>
struct my_enumerator :
my_base_manufacturer<Product, std::true_type> {
inline my_enumerator(int tabs,
ConstructionInfo construction_info) :
my_base_manufacturer<Product, std::true_type>(
tabs, construction_info, Product()) { }
return NULL;
}
};
struct my_manufacturer {
typedef typename mirror::factory_maker<
my_manufacturer,
my_enumerator,
Unused> maker;
typename maker::template factory<Product>::type f;
inline my_manufacturer(
int _value, ConstructionInfo construction_info) :
f(construction_info) { }
return f();
}
};

149/210
Product x;
std::cout << ", ";
}
};
std::cout << "::";
}
};
void finish(int) {
}
return x;
}
};
return NULL;
}
};
my_manufacturer,
my_enumerator,
Unused> maker;
return f();
}
};
Less complex than it looks!

150/210
Product x;
std::cout << ", ";
}
};
std::cout << "::";
}
};
void finish(int) {
}
return x;
}
};
return NULL;
}
};
my_manufacturer,
my_enumerator,
Unused> maker;
return f();
}
};
Less complex than it looks!Can be replaced by existing factories

151/210
Scenarios
 Scenario 2:
– Mirror provides many ready-to-use factories
• From strings (mirror/example/factories/tetrahedron_script.cpp)
• From a SOCI database (mirror/example/factories/tetrahedron_soci.cpp)
// make the input object for the factory
script_factory_input in;
// create a factory plugged with the script parser
script_factory_maker::factory<tetrahedron>::type f = in.data();
// make a tetrahedron object factory
soci_quick_factory_maker::factory<test::tetrahedron>::type
tetrahedron_factory = soci_fact_data(r);
while(r != e) {
test::tetrahedron t = tetrahedron_factory();
// and write it to std output
std::cout << stream::to_json::from(t, [&i](std::ostream& out) {
out << "tetrahedron_" << i; } ) << std::endl;

152/210
Scenarios
 Scenario 3:
namespace cse3009 {
class C {
private:
int i;
static int numberOfInstances;
public:
numberOfInstances++;
}
...
}
static int getNumberOfInstances() {
return numberOfInstances;
}
};
}
– Given a class C

153/210
Scenarios
 Scenario 3:
int cse3009::C::numberOfInstances = 0;
int main(void) {
cse3009::C * o1 = new cse3009::C(42);
cse3009::C * o2 = new cse3009::C(1);
cse3009::C * o3 = new cse3009::C(100);
std::cout << o1 << std::endl << o2 << std::endl << o3 << std::endl;
std::cout << cse3009::C::getNumberOfInstances() << std::endl;
return 0;
}
– Given a class C

154/210
Scenarios
 Scenario 3:
0x800418f8
0x80041908
0x80041918
3
– Given a class C

155/210
Scenarios
 Scenario 3:
0x800418f8
0x80041908
0x80041918
3
– Given a class C
To fulfill this scenario, we
must modify C as in Java

156/210

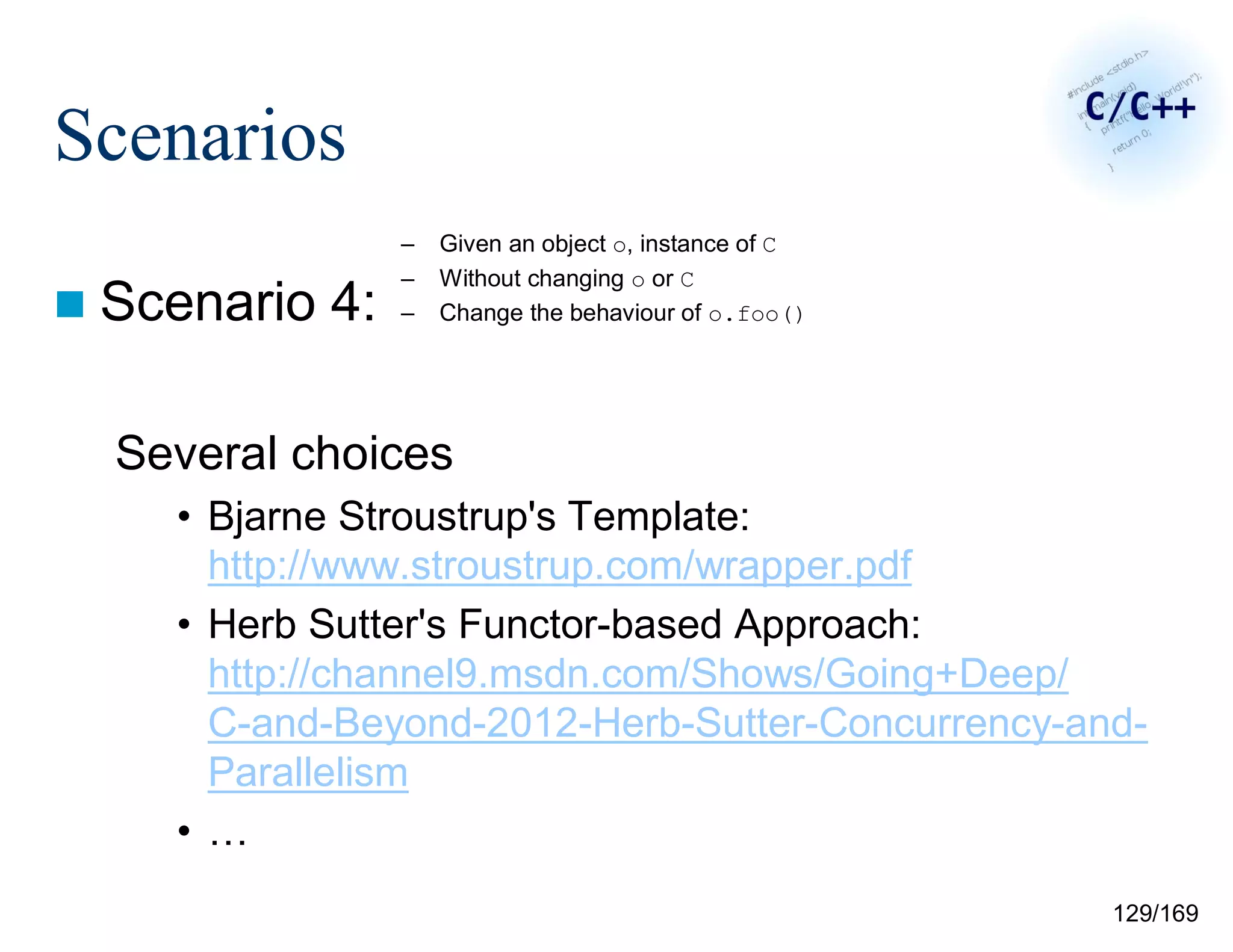

Scenarios

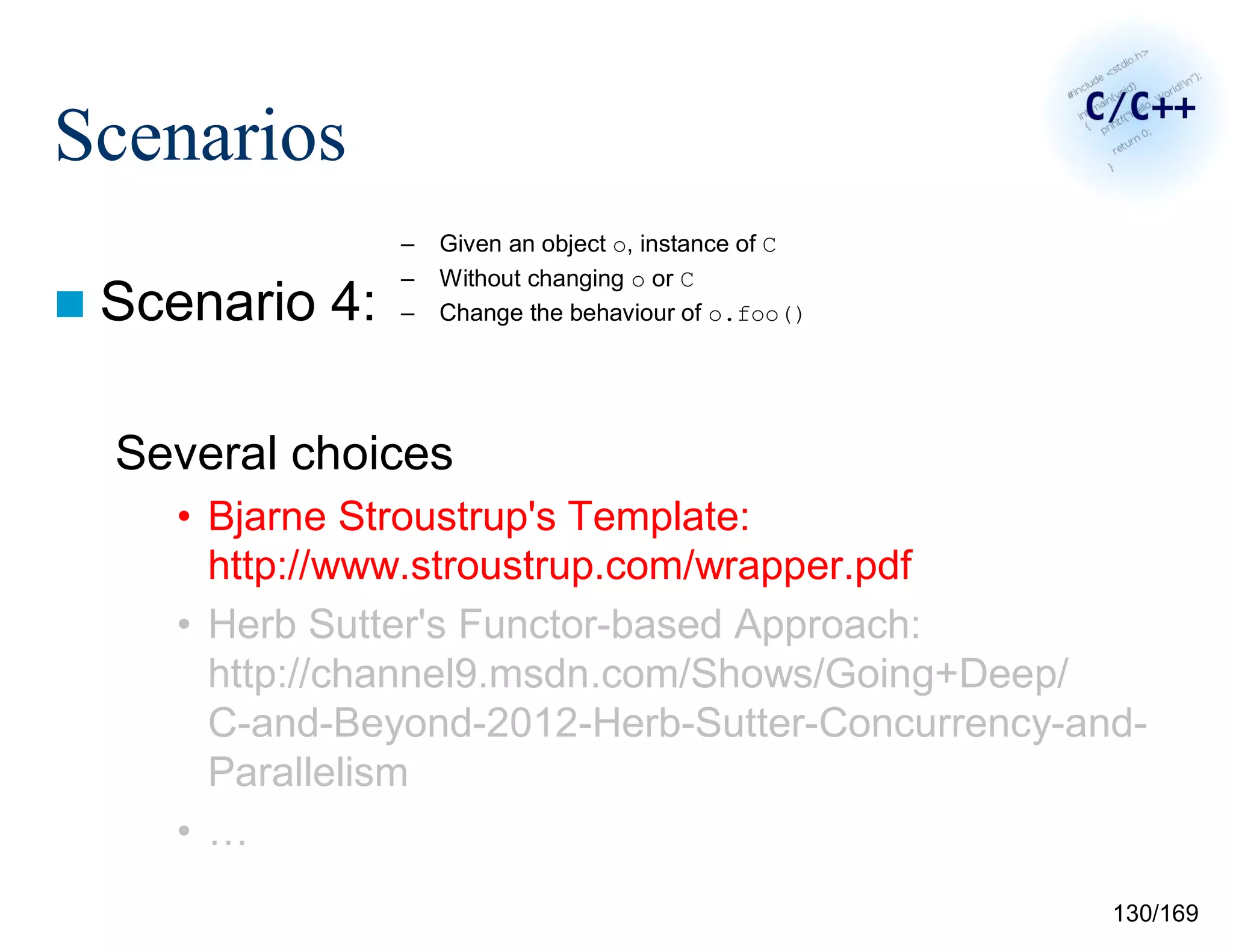

 Scenario 4:
– Several choices
• Bjarne Stroustrup's Template:
http://www.stroustrup.com/wrapper.pdf
• Herb Sutter's Functor-based Approach:
http://channel9.msdn.com/Shows/Going+Deep/
C-and-Beyond-2012-Herb-Sutter-Concurrency-and-
Parallelism
• Ion Armagedescu’s CPatcher:
http://www.codeproject.com/Articles/34237/A-C-Style-
of-Intercepting-Functions

157/210
Scenarios
 Scenario 4:
– Several choices
Parallelism

158/210
Scenarios
 Scenario 4:
Bjarne Stroustrup's Template:
(Prefix::operator->())
This is o: 42

159/210

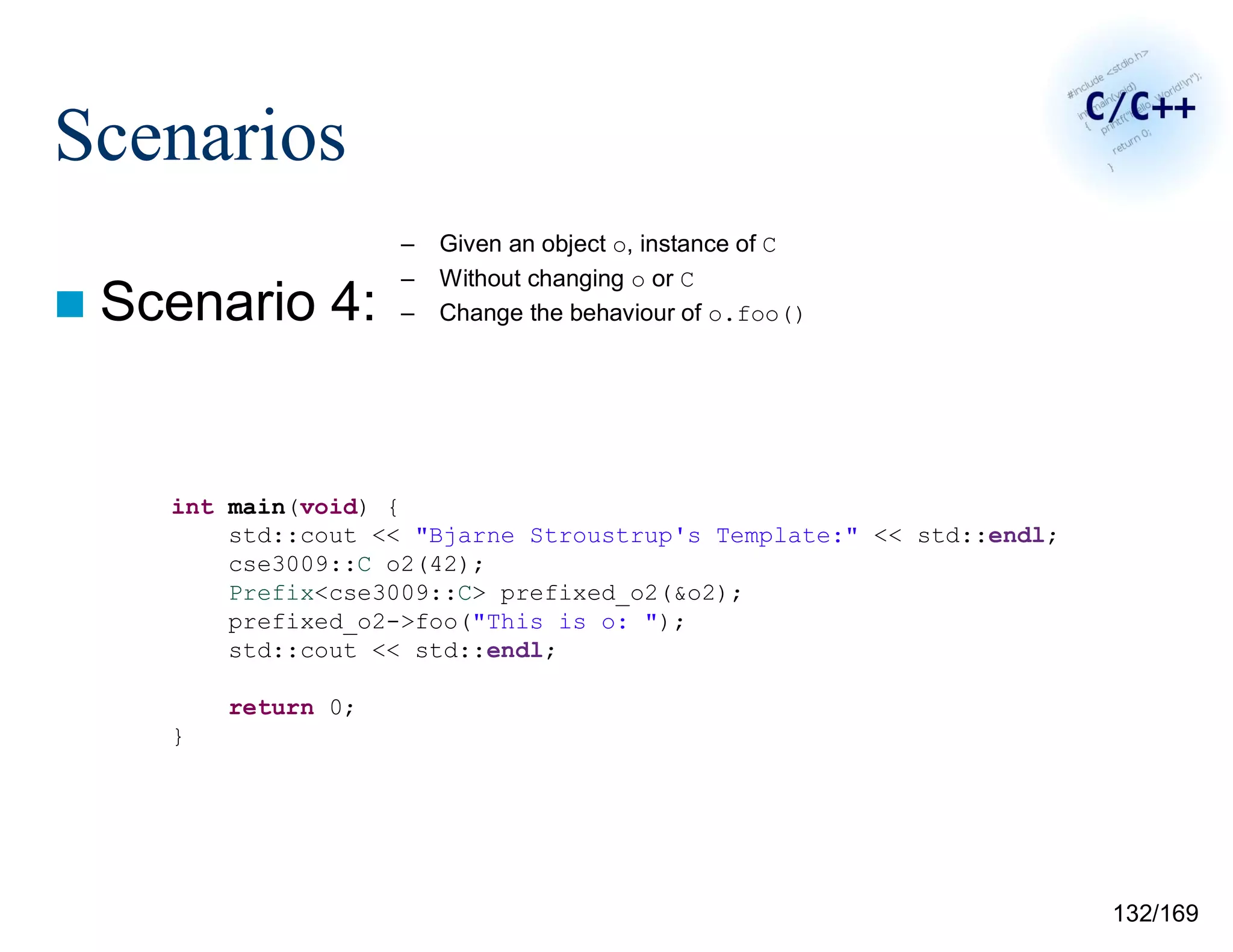

Scenarios
 Scenario 4:
int main(void) {
std::cout << "Bjarne Stroustrup's Template:" << std::endl;
cse3009::C o2(42);
Prefix<cse3009::C> prefixed_o2(&o2);
prefixed_o2->foo("This is o: ");
return 0;
}

160/210
Scenarios
 Scenario 4:
template<class T>
class Prefix {
T* p;
public:
Prefix(T * _p) : p(_p) { }
T* operator->() {
std::cout << "(Prefix::operator->())" << std::endl;
return p;
}
};

161/210

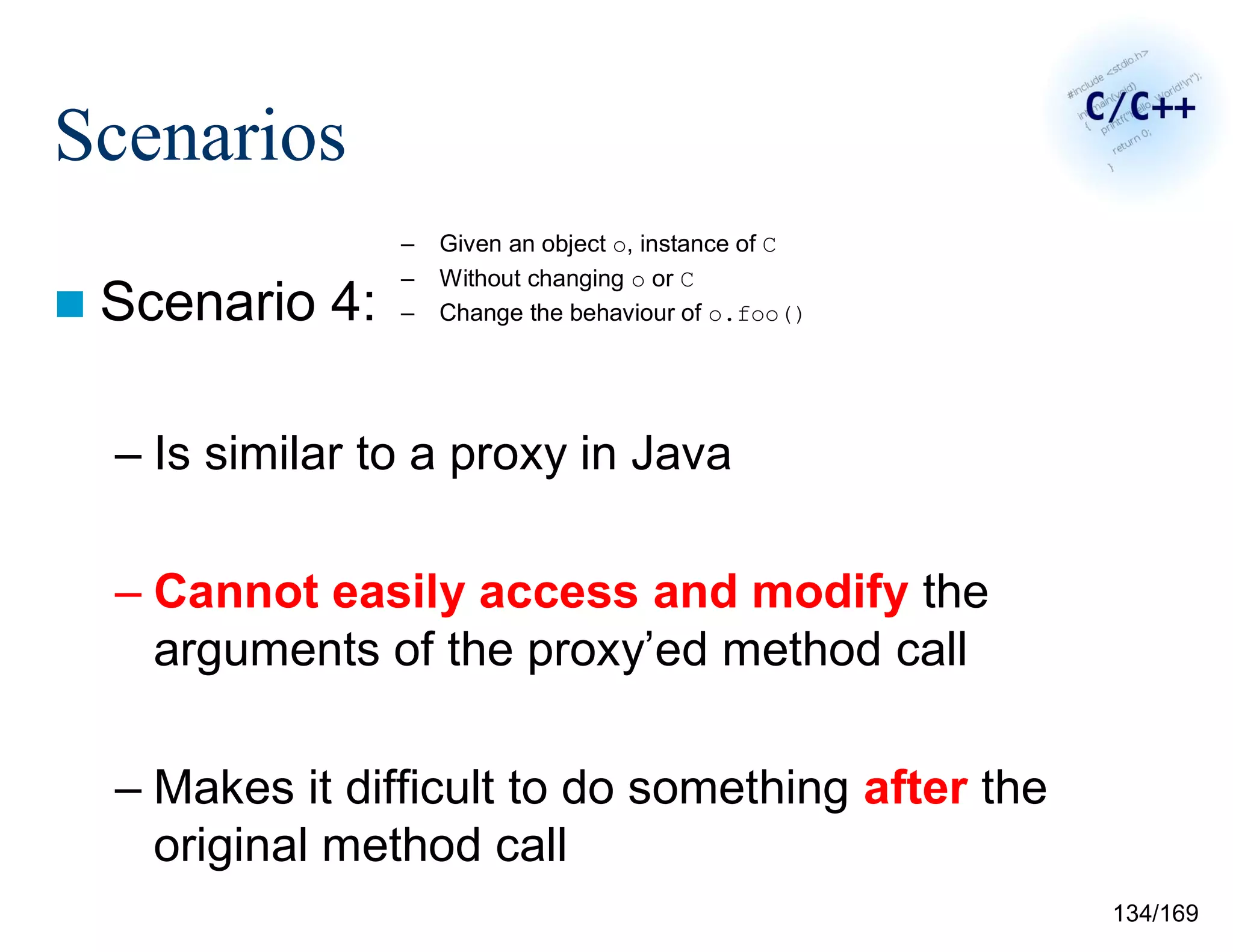

Scenarios
 Scenario 4:
– Is similar to a proxy in Java
– Cannot easily access and modify the
arguments of the proxy’ed method call
– Makes it difficult to do something after the
original method call

162/210
Scenarios
 Scenario 4:
– Several choices
Parallelism

163/210
Scenarios
 Scenario 4:
Dependent on the compiler!
GCC v4.8.2
vs.
Microsoft Visual Studio Express 2013
Visual C++ 2013 06157-004-0441005-02428

164/210
Scenarios
 Scenario 4:
– GCC v4.8.2
In file included from ..Sourcescenario4.cpp:32:0:
..Source../CPatcher/patcher.h: In instantiation of 'void
CPatch::HookClassFunctions(T1&, T2, bool, bool) [with T1 =
void (cse3009::C::*)(std::basic_string<char>); T2 = void
(class_for_patches::*)(std::basic_string<char>)]':
..Source../CPatcher/patcher_defines.h:131:2: required
from 'CPatch::CPatch(TReturnVal (TClassSource::*&)(TArg1),
TReturnVal (TClassTarget::*)(TArg1), bool, bool) [with
TClassSource = cse3009::C; TClassTarget =
class_for_patches; TReturnVal = void; TArg1 =
std::basic_string<char>]' ..Sourcescenario4.cpp:52:61:
required from here

165/210
Scenarios
 Scenario 4:
– GCC v4.8.2
may not be legal
• http://www.codeproject.com/Articles/34237/A-C-Style-
of-Intercepting-Functions?msg=4796042
• http://stackoverflow.com/questions/1307278/casting-
between-void-and-a-pointer-to-member-function
*reinterpret_cast<long*>(&fn_funcToHook)
*reinterpret_cast<long*>(&fn_Hook)

166/210
Scenarios
 Scenario 4:
– Microsoft Visual Studio Express 2013
void(ptidej::C::*pfn_foo)(const std::string) = &ptidej::C::foo;
class proxy {
public:
void my_foo(const std::string s) {
std::cout << "Function foo() is patched!" << std::endl << std::flush;
(reinterpret_cast<ptidej::C*>(this)->*pfn_foo)(s);
}
};
int _tmain(int argc, _TCHAR* argv[]) {
CPatch patch_aclass_doSomething(pfn_foo, &proxy::my_foo);
ptidej::C o(42);
o.foo(std::string("This is o: "));
return 0;
}

167/210
Scenarios
 Scenario 4:
– Microsoft Visual Studio Express 2013
Function foo() is patched!
This is o: 42

168/210
Scenarios
 Scenario 4:
– Is similar to a proxy in Java
– Can easily access and modify the arguments
of the proxy’ed method call
– Makes it difficult to do something after the
original method call

169/210
Scenarios
Java 
Smalltalk 
C++ 

170/210
Conclusion
Java 
Smalltalk 
C++ 

171/210
Conclusion
Java 
Smalltalk 
C++ 
Differences in semantics
and syntax mostly due to
the presence (or absence)
of virtual machines

172/210
Outline
 Rationale
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

173/210
Theory
 Class
– A programming construct that encapsulates
some state (fields) and behaviours (methods)
– A construct whose instances are objects
 Metaclass
– A programming construct that encapsulates
some state (fields) and behaviours (methods)
– A construct whose instances are classes
Aristote (Ἀριστοτέλης)
*-384 †-322

174/210
Theory
 An object is an instance of a class
– A class generates an object
 A class is an instance of a metaclass
– A metaclass generates a class
 A metaclass is an instance of…

175/210
Theory
(a) A meta-metaclass?

176/210
Theory
(b) Itself?

177/210
Theory
(b) Itself

178/210
Theory
 The class Object is the parent of all
classes, including metaclasses
 The class Class is the generator of all
classes, including Object

179/210
Des langages de programmation à objets
à la représentation des connaissances à
travers le MOP : vers une intégration
par Gabriel Pavillet. Thèse de doctorat
en Informatique sous la direction de
Roland Ducournau, soutenue en 2000
à Montpellier 2

180/210
Theory
 The classes
– Class
– Method
– Field
– …
reify constructs of the programming
languages, they become first-class entities,
to allow programs to manipulate these
constructs at runtime

181/210
Theory
Java
 Field  C
 Method  C
 Static field  C
 Static method  C
 
Smalltalk
 Instance variable  C
 Instance method  C
 Class variable  C class
 Class method  C class
 Class instance variables
– To count the numbers of
instances of subclasses of C
(D, E…) independently from
one another

182/210
Theory
 Earlier, we said that reflection is of
• Libraries
• Frameworks

183/210
Theory
• Libraries
• Frameworks

184/210
Theory
• Libraries
• Frameworks
A virtual machine
is an interpreter

185/210
Theory
 In Java, the metaclass is anonymous and
cannot be modified
 In Smalltalk, “[t]here is only one instance of a
particular Metaclass, namely the class which
is being described”

186/210
Theory
 Many other variations are possible
– LISP
• http://www.cliki.net/mop
– Perl 5, 6
• http://search.cpan.org/perldoc?Class::MOP
– Python
• https://www.python.org/doc/essays/metaclasses/
– MetaclassTalk – Noury Bouraqadi, Pierre Cointe
• http://csl.ensm-douai.fr/MetaclassTalk
– NeoClassTalk – Fred Rivard, Pierre Cointe
• http://c2.com/cgi/wiki?NeoClassTalk
– OpenC++ – Shigeru Chiba, Gregor Kiczales
• http://www.csg.ci.i.u-tokyo.ac.jp/~chiba/openc++.html

187/210
Theory
 A Meta Object Protocol exposes some or all
internal structure of the interpreter to the
programmer
 The MOP is (often) a set of classes and
methods that allow a program to inspect the
state of the supporting system and alter its
behaviour

188/210
Theory
 MOP can be accessible at
– Compile-time
• OpenJava
– http://www.csg.ci.i.u-tokyo.ac.jp/openjava/
– Load-time
• Javassist
– http://www.csg.ci.i.u-tokyo.ac.jp/~chiba/javassist/
– Run-time
• AspectJ
– http://eclipse.org/aspectj/

189/210
Outline
 Rationale
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

190/210
Conclusion
 Scenario 1: invoke an arbitrary method on an object (see
the problems with instanceof and plugins)
 Scenario 2: access the complete (including private) state of
an object (see the problem with serialisation)
 Scenario 3: count the number of instances of a class
created at runtime (see the problem with
debugging/profiling)
 Scenario 4: modify the behaviour at run-time of a method
without the need to recompile and restart the program (see
the problem with patching)

191/210
Conclusion
 Reflection helps addressing these scenarios
– Depends on the capabilities of the programming
language and underlying execution environment
– Yields more or less elegant code
 Use reflection sparingly and purposefully
– Complexity
– Performance

192/210
Conclusion
Java 
Smalltalk 
C++ 

193/210
Conclusion
Java 
Smalltalk 
C++ 

194/210
Conclusion
Java 
Smalltalk 
C++ 
Differences in semantics
and syntax mostly due to
the presence (or absence)
of virtual machines

195/210
Outline
 Rationale
 Definition
 Context
 Scenarios
 Theory
 Conclusion
 Class Loading

196/210
Class Loading
 Virtual machines
– Interpreters
– Closed world
 Must
– Access resources
– Load classes

197/210
Class Loading
– Interpreters
– Closed world
 Must
– Load classes

198/210
Class Loading
– Interpreters
– Closed world
 Must
– Load classes

199/210
Class Loading
 Example
– Given an interface ICommand
– Load at runtime a class implementing
ICommand using its binary name
• A binary name is in the form
<pckg1>.….<pckgn>.<ClassName>
– net.ptidej.reflection.java.scenario1.C
final Class<ICommand> command =
this.classLoader.loadClass(binaryName);

200/210
Class Loading
http://map.sdsu.edu/geog583/images/week8.3.gif

201/210
Class Loading
http://www.onjava.com/2005/01/26/graphics/Figure01_MultipleClassLoaders.JPG

202/210
Class Loading
public class ClassLoader extends java.lang.ClassLoader {
private final String directory;
public ClassLoader(
final java.lang.ClassLoader parent,
final String directory) {
super(parent);
this.directory = directory;
}

203/210
Class Loading
protected Class findClass(final String name) {
Class newClass = null;
try {
newClass = super.findClass(name);
}
catch (final ClassNotFoundException cnfe) {
final String osName =
this.directory + name.replace('.', '/') + ".class";
try {
final FileInputStream fis = new FileInputStream(osName);
newClass = this.defineClasses(name, fis);
}
catch (final ClassFormatError cfe) {
cfe.printStackTrace(Output.getInstance().errorOutput());
}
catch (final FileNotFoundException fnfe) {
// fnfe.printStackTrace();
}
}
return newClass;
}

204/210
Class Loading
try {
newClass = super.findClass(name);
}
try {
}
}
}
}
return newClass;
}
Use the method defined in
the superclass on this CL

205/210
Class Loading
private Class defineClasses(final String name, final InputStream inputStream) {
try {
int b;
int length = 0;
byte[] bytes = new byte[4];
while ((b = inputStream.read()) != -1) {
if (length == bytes.length) {
final byte[] temp = new byte[length + 4];
System.arraycopy(bytes, 0, temp, 0, length);
bytes = temp;
}
bytes[length] = (byte) b;
length++;
}
System.out.println(name);
final Class newClass = this.defineClass(name, bytes, 0, length);
return newClass;
}
return null;
}
catch (final NoClassDefFoundError ncdfe) {
ncdfe.printStackTrace(Output.getInstance().errorOutput());
return null;
}
}

206/210
Class Loading
private Class defineClasses(final String name, final InputStream inputStream) {
try {
int b;
int length = 0;
byte[] bytes = new byte[4];
while ((b = inputStream.read()) != -1) {
if (length == bytes.length) {
final byte[] temp = new byte[length + 4];
System.arraycopy(bytes, 0, temp, 0, length);
bytes = temp;
}
bytes[length] = (byte) b;
length++;
}
System.out.println(name);
final Class newClass = this.defineClass(name, bytes, 0, length);
return newClass;
}
return null;
}
catch (final NoClassDefFoundError ncdfe) {
ncdfe.printStackTrace(Output.getInstance().errorOutput());
return null;
}
}
Use the method defined in
the superclass on this CL

207/210
Class Loading
http://www.onjava.com/2005/01/26/graphics/Figure01_MultipleClassLoaders.JPG

208/210
Class Loading
try {
newClass = this.getParent().loadClass(name);
}
try {
}
}
}
}
return newClass;
}

209/210
Class Loading
try {
newClass = this.getParent().loadClass(name);
}
try {
}
}
}
}
return newClass;
}
Ask the parent CL if it
already knows the class

210/210
Conclusion
 Virtual machines must access resources and
load classes, in specific cases
– Can extend ClassLoader
– Must override (typically) method
• Class findClass(String)
– Must be careful with inheritance vs. delegation!
• super vs. getParent()

OO Reflection Tutorial

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to OO Reflection Tutorial

Similar to OO Reflection Tutorial (20)

More from Yann-Gaël Guéhéneuc

More from Yann-Gaël Guéhéneuc (20)

Recently uploaded

Recently uploaded (20)

OO Reflection Tutorial
