1. The Java EE 7 Platform: Developing for the Cloud
Kshitiz Saxena

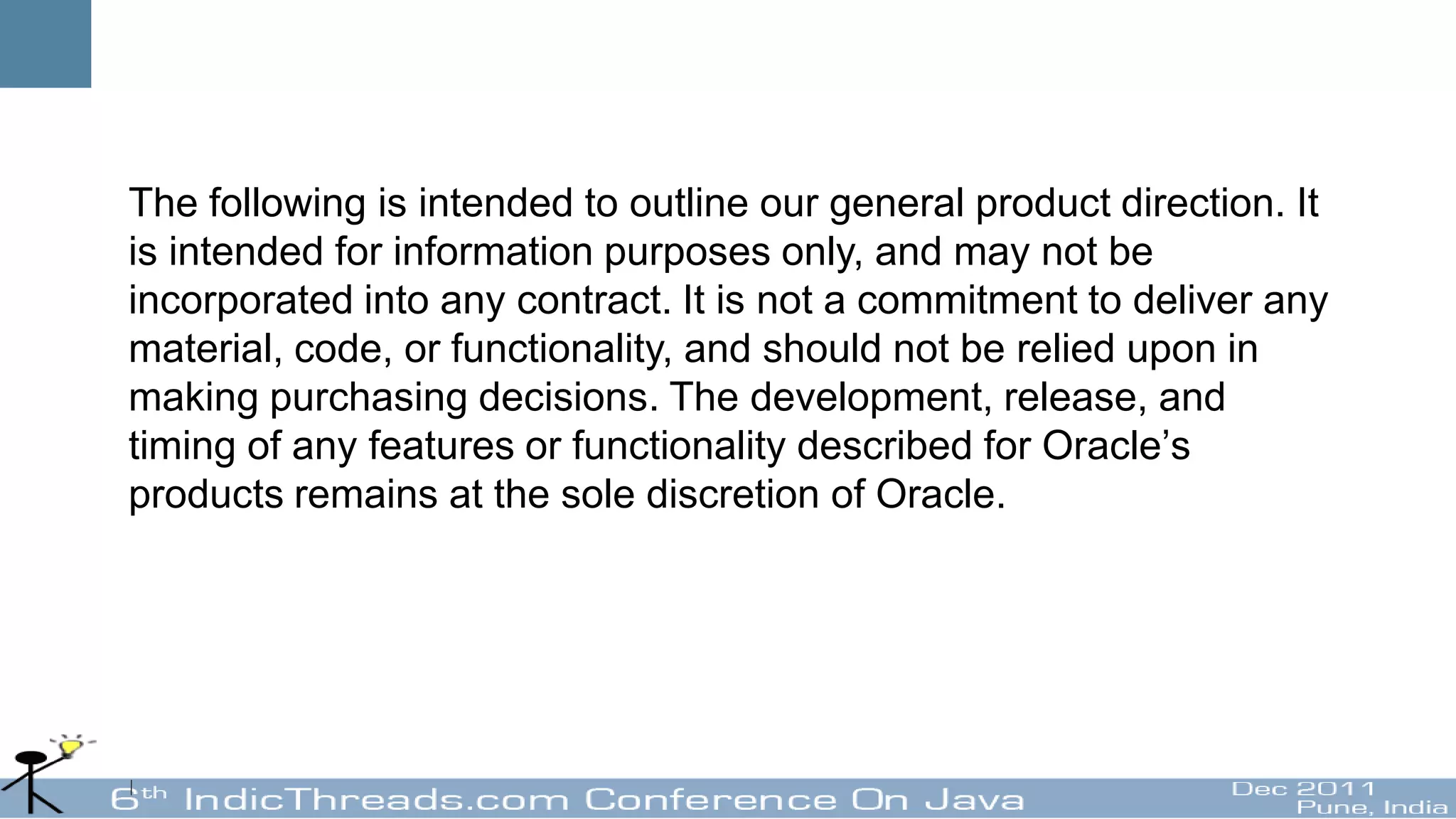

2. The following is intended to outline our general product direction. It
is intended for information purposes only, and may not be
incorporated into any contract. It is not a commitment to deliver any
material, code, or functionality, and should not be relied upon in
making purchasing decisions. The development, release, and
timing of any features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.

3. Java EE 6 Implementations
Fastest implementations of a Java EE release ever!

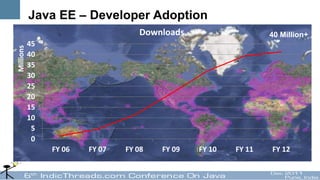

4. Java EE – Developer Adoption
Downloads 40 Million+
45
Millions
40
35
30
25
20
15
10
5
0
FY 06 FY 07 FY 08 FY 09 FY 10 FY 11 FY 12

5. Java EE 7

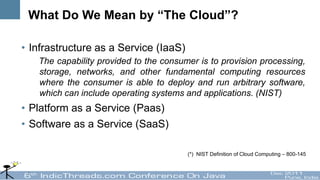

6. What Do We Mean by “The Cloud”?
• Infrastructure as a Service (IaaS)
The capability provided to the consumer is to provision processing,
storage, networks, and other fundamental computing resources
where the consumer is able to deploy and run arbitrary software,
which can include operating systems and applications. (NIST)
• Platform as a Service (Paas)
• Software as a Service (SaaS)
(*) NIST Definition of Cloud Computing – 800-145

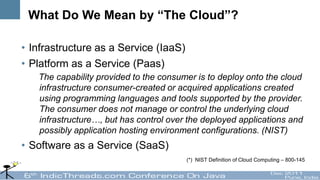

7. What Do We Mean by “The Cloud”?
• Infrastructure as a Service (IaaS)
• Platform as a Service (Paas)
The capability provided to the consumer is to deploy onto the cloud
infrastructure consumer-created or acquired applications created
using programming languages and tools supported by the provider.
The consumer does not manage or control the underlying cloud
infrastructure…, but has control over the deployed applications and
possibly application hosting environment configurations. (NIST)
• Software as a Service (SaaS)
(*) NIST Definition of Cloud Computing – 800-145

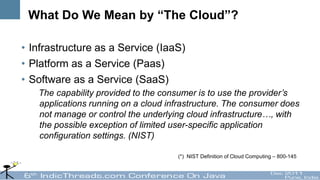

8. What Do We Mean by “The Cloud”?
• Infrastructure as a Service (IaaS)
• Platform as a Service (Paas)
• Software as a Service (SaaS)
The capability provided to the consumer is to use the provider’s
applications running on a cloud infrastructure. The consumer does
not manage or control the underlying cloud infrastructure…, with
the possible exception of limited user-specific application
configuration settings. (NIST)
(*) NIST Definition of Cloud Computing – 800-145

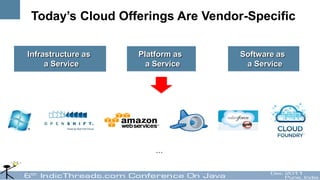

9. Today’s Cloud Offerings Are Vendor-Specific
Infrastructure as Platform as Software as
a Service a Service a Service
…

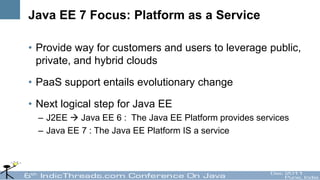

10. Java EE 7 Focus: Platform as a Service
• Provide way for customers and users to leverage public,
private, and hybrid clouds
• PaaS support entails evolutionary change
• Next logical step for Java EE
– J2EE  Java EE 6 : The Java EE Platform provides services
– Java EE 7 : The Java EE Platform IS a service

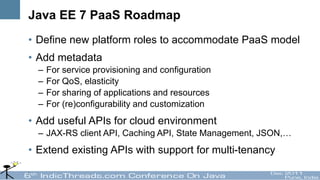

11. Java EE 7 PaaS Roadmap
• Define new platform roles to accommodate PaaS model
• Add metadata
– For service provisioning and configuration
– For QoS, elasticity
– For sharing of applications and resources
– For (re)configurability and customization
• Add useful APIs for cloud environment
– JAX-RS client API, Caching API, State Management, JSON,…
• Extend existing APIs with support for multi-tenancy

12. Roles

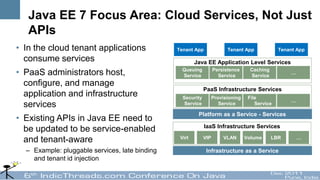

13. Java EE 7 Focus Area: Cloud Services, Not Just
APIs
• In the cloud tenant applications Tenant App Tenant App Tenant App
consume services Java EE Application Level Services
• PaaS administrators host, Queuing
Service
Persistence
Service
Caching
Service
…
configure, and manage
PaaS Infrastructure Services
application and infrastructure Security Provisioning File
…
services Service Service Service
Platform as a Service - Services
• Existing APIs in Java EE need to
IaaS Infrastructure Services
be updated to be service-enabled
Virt VIP VLAN Volume LBR …
and tenant-aware
– Example: pluggable services, late binding Infrastructure as a Service
and tenant id injection

14. Old Java EE model
Database
1 Provision and Initialize Service
• Configure Java EE resources –
JDBC, JMS etc LDAP
2 Service
• Deploy Application EAR Provision and Initialize
Messaging
3 Provision and Initialize Service
Application
4
Provision and Initialize Container
5 Deploy Application (
(EAR/WAR/RAR…)

15. Java EE 7 Model: Auto-Provision Services
from Application Dependencies
• Provision and deploy application 1 Provision and Initialize Cloud Administration Service
resources (e.g. LDAP stripe, data
source instantiation and Database
Service
connection …) 2 Provision and Initialize
• Extensible Deployment Models LDAP
Supporting Multiple Frameworks 3 Provision and Initialize Service
• Spring, Seam, Play …
Messaging
4
Provision and Initialize Service
Application
5 Deploy Application
(EAR/WAR/RAR…)
Container

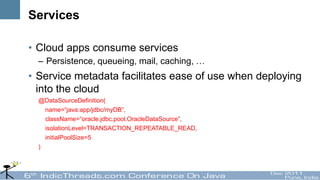

16. Services
• Cloud apps consume services
– Persistence, queueing, mail, caching, …
• Service metadata facilitates ease of use when deploying
into the cloud
@DataSourceDefinition(
name=“java:app/jdbc/myDB”,
className=“oracle.jdbc.pool.OracleDataSource”,
isolationLevel=TRANSACTION_REPEATABLE_READ,
initialPoolSize=5
)

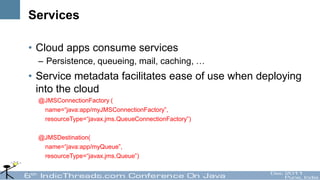

17. Services
• Cloud apps consume services
– Persistence, queueing, mail, caching, …
• Service metadata facilitates ease of use when deploying
into the cloud
@JMSConnectionFactory (
name=“java:app/myJMSConnectionFactory”,
resourceType=“javax.jms.QueueConnectionFactory”)
@JMSDestination(
name=“java:app/myQueue”,
resourceType=“javax.jms.Queue”)

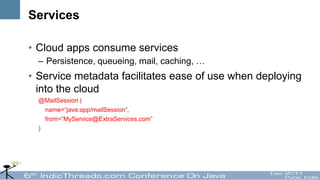

18. Services
• Cloud apps consume services
– Persistence, queueing, mail, caching, …
• Service metadata facilitates ease of use when deploying
into the cloud
@MailSession (
name=“java:app/mailSession”,
from=“MyService@ExtraServices.com”
)

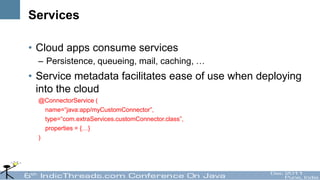

19. Services
• Cloud apps consume services
– Persistence, queueing, mail, caching, …
• Service metadata facilitates ease of use when deploying
into the cloud
@ConnectorService (
name=“java:app/myCustomConnector”,
type=“com.extraServices.customConnector.class”,
properties = {…}
)

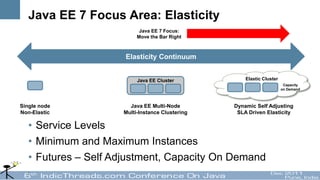

20. Java EE 7 Focus Area: Elasticity
Java EE 7 Focus:
Move the Bar Right
Elasticity Continuum
Java EE Cluster Elastic Cluster
Elastic Cluster
Capacity
Ca
on Demand
Single node Java EE Multi-Node Dynamic Self Adjusting
Non-Elastic Multi-Instance Clustering SLA Driven Elasticity
• Service Levels
• Minimum and Maximum Instances
• Futures – Self Adjustment, Capacity On Demand

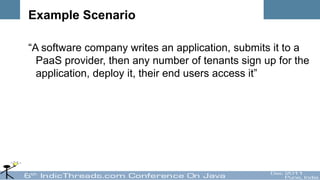

21. Example Scenario
“A software company writes an application, submits it to a
PaaS provider, then any number of tenants sign up for the
application, deploy it, their end users access it”

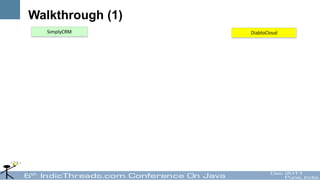

22. Walkthrough (1)
SimplyCRM DiabloCloud

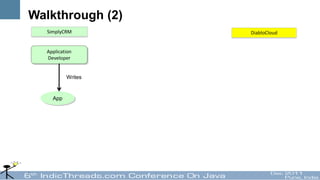

23. Walkthrough (2)
SimplyCRM DiabloCloud
Application
Developer
Writes
App

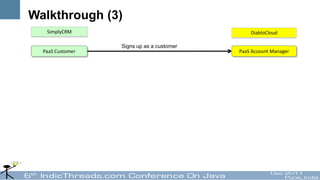

24. Walkthrough (3)
SimplyCRM DiabloCloud
Signs up as a customer
PaaS Customer PaaS Account Manager

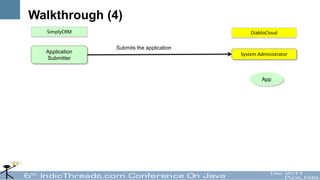

25. Walkthrough (4)
SimplyCRM DiabloCloud
Submits the application
Application System Administrator
Submitter
App

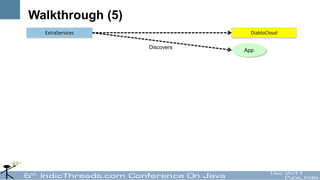

26. Walkthrough (5)
ExtraServices DiabloCloud
Discovers
App

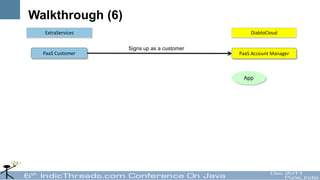

27. Walkthrough (6)
ExtraServices DiabloCloud
Signs up as a customer
PaaS Customer PaaS Account Manager
App

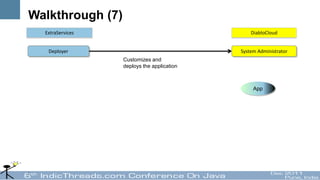

28. Walkthrough (7)
ExtraServices DiabloCloud
Deployer System Administrator
Customizes and
deploys the application
App

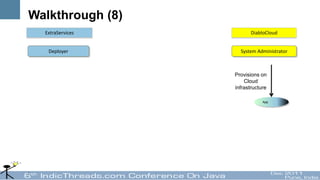

29. Walkthrough (8)
ExtraServices DiabloCloud
Deployer System Administrator
Provisions on
Cloud
infrastructure
App

30. Walkthrough (9)
ExtraServices DiabloCloud
Deployer System Administrator
Provisioned and
Deployed App

31. Walkthrough (10)
ExtraServices DiabloCloud
Access the application
End-Users Provisioned and
Deployed App

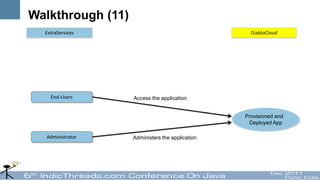

32. Walkthrough (11)
ExtraServices DiabloCloud
End-Users Access the application
Provisioned and
Deployed App
Administrator Administers the application

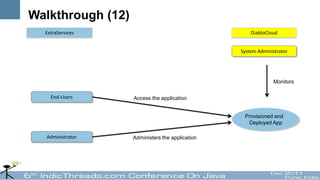

33. Walkthrough (12)
ExtraServices DiabloCloud
System Administrator
Monitors
End-Users Access the application
Provisioned and
Deployed App
Administrator Administers the application

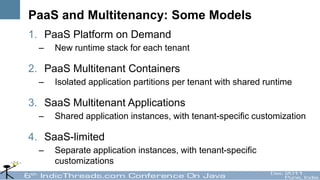

34. PaaS and Multitenancy: Some Models
1. PaaS Platform on Demand
– New runtime stack for each tenant
2. PaaS Multitenant Containers
– Isolated application partitions per tenant with shared runtime
3. SaaS Multitenant Applications
– Shared application instances, with tenant-specific customization
4. SaaS-limited
– Separate application instances, with tenant-specific
customizations

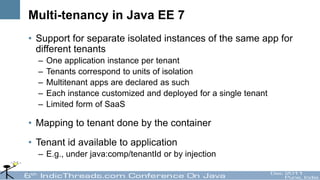

35. Multi-tenancy in Java EE 7
• Support for separate isolated instances of the same app for
different tenants
– One application instance per tenant
– Tenants correspond to units of isolation
– Multitenant apps are declared as such
– Each instance customized and deployed for a single tenant
– Limited form of SaaS
• Mapping to tenant done by the container
• Tenant id available to application
– E.g., under java:comp/tenantId or by injection

36. Java EE 7 Focus Area: Application Level Multi-
Tenancy
• Goal: Simple configuration
• Flexible tenant discriminator support
• Other areas impacted - JNDI, JMS, EJB …
@Entity
@Table(name=“EMP”)
@MultiTenant(SINGLE_TABLE)
@TenantDiscriminator(name=“department-id”, columnName=“DEPT_ID”)
Public class Employee{
EMP
EMP_ID VERSION F_NAME L_NAME GENDER DEPT_ID
1 1 John Doe M 1
2 3 Jane Doe F 2
SELECT * FROM EMPLOYEE WHERE L_NAME LIKE ‘D%’ AND DEPT_ID= 1

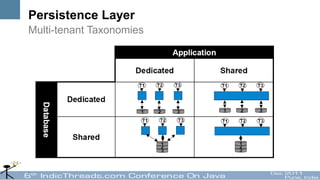

37. Persistence Layer
Multi-tenant Taxonomies

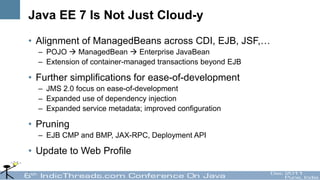

38. Java EE 7 Is Not Just Cloud-y
• Alignment of ManagedBeans across CDI, EJB, JSF,…
– POJO  ManagedBean  Enterprise JavaBean
– Extension of container-managed transactions beyond EJB
• Further simplifications for ease-of-development
– JMS 2.0 focus on ease-of-development
– Expanded use of dependency injection
– Expanded service metadata; improved configuration
• Pruning
– EJB CMP and BMP, JAX-RPC, Deployment API
• Update to Web Profile

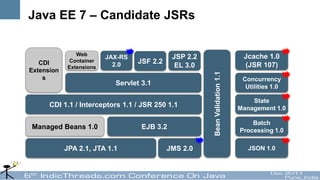

39. Java EE 7 – Candidate JSRs
Web Jcache 1.0
JAX-RS JSP 2.2
CDI Container JSF 2.2
Extensions 2.0 EL 3.0 (JSR 107)
Extension
Bean Validation 1.1
s Concurrency
Servlet 3.1 Utilities 1.0
State
CDI 1.1 / Interceptors 1.1 / JSR 250 1.1 Management 1.0
Batch
Managed Beans 1.0 EJB 3.2 Processing 1.0
JPA 2.1, JTA 1.1 JMS 2.0 JSON 1.0

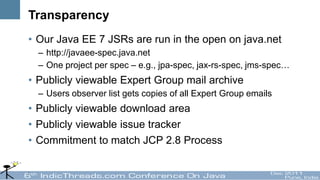

40. Transparency
• Our Java EE 7 JSRs are run in the open on java.net
– http://javaee-spec.java.net
– One project per spec – e.g., jpa-spec, jax-rs-spec, jms-spec…
• Publicly viewable Expert Group mail archive
– Users observer list gets copies of all Expert Group emails
• Publicly viewable download area
• Publicly viewable issue tracker
• Commitment to match JCP 2.8 Process

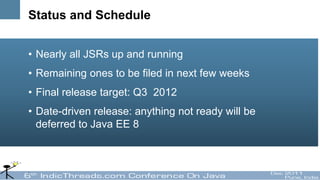

41. Status and Schedule
• Nearly all JSRs up and running
• Remaining ones to be filed in next few weeks
• Final release target: Q3 2012
• Date-driven release: anything not ready will be
deferred to Java EE 8

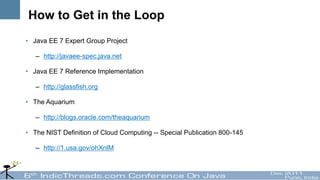

42. How to Get in the Loop
• Java EE 7 Expert Group Project
– http://javaee-spec.java.net
• Java EE 7 Reference Implementation
– http://glassfish.org
• The Aquarium
– http://blogs.oracle.com/theaquarium
• The NIST Definition of Cloud Computing -- Special Publication 800-145
– http://1.usa.gov/ohXnlM
