1. Seminar
On
IP Telephony

2. CONTENTS
 INTRODUCTION
 DIFFERENT TYPES
 WHAT IS H.323
 H.323 COMPONENTS
 PROTOCOL SPECIFED BY H.323
 H.323 CALL ESTABLISHMENT
 H.323 CONTROL SIGNALING FLOW
 H.323 MEDIA STREAM & MEDIA
CONTROL FLOW
 H.323 CALL RELEASE
 CONCLUSION 2

3. Introduction
 Internet telephony uses the Internet protocol to send
audio, video an data between two or more users in the
real time.
 IP telephony is the integration and convergence of
voice and data networks, services, and applications.
 The main motivation of development of IP Telephony
is the cost saving & integrating new services.
3

4. Introduction (cont…)
 Vocaltec introduced the first Internet telephony
software product in early 1995. Running a multimedia
PC, the Vocaltec Internet Phone.
 In 1996, Vocaltec with an Intel Company announced
to produce the first IP telephony gateway.
4

5. Different Types Of
IP Telephony
 PC to PC
 Phone-to-phone over IP
 PC-to-Phone
 Phone-to-PC
5

6. PC to PC
6

7. Phone-to-phone over IP
using Gateways
7

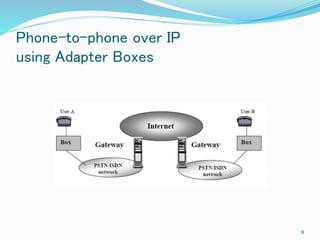

8. Phone-to-phone over IP
using Adapter Boxes
8

9. PC-to-Phone or Phone-to-PC
9

10. Different type of IP telephony
Standard
 H.323 standard
 Session initiation protocol (SIP)
 Media gateway to media controller protocol (MGCP)
10

11. What is H.323
 The H.323 standard for the transmission of real-time
audio, video, and data communications over packet-
based networks based on IP telephony.
 H.323 is a standard produced by the ITU-T Study
Group 16.
 Currently the most widely-supported IP telephony
signaling protocol.
11

12. H.323 Components
 Terminals
 Gateways
 Gatekeepers
 Multipoint Control Units (MCUs)
12

13.  Terminals :
H.323 terminal can either be a personal
computer or a stand-alone device, running
an H.323 and the multimedia applications.
 Gateways :
An H.323 gateway provides connectivity
between an H.323 network and a non-H.323
network.
13

14. Gatekeepers
 Address Translation
 Admission Control
 Bandwidth Control
 Zone Management
 Call-Control Signaling
 Call Authorization
 Call Management
14

15. Multipoint Control Units:
 MCUs provide support for conferences of three or
more H.323 terminals. All terminals participating in
the conference establish a connection with the MCU.
15

16. Protocols Specified by H.323
 audio CODECs
 video CODECs
 H.225 registration, admission, and status (RAS)
 H .225 call signaling
 H.245 control signaling
 real-time transfer protocol (RTP)
 real-time control protocol (RTCP)
16

17. H.225 RAS
 Gatekeeper discovery
 Endpoint registration
 Endpoint location
 Admission control
17

18. H .225 call signaling
 H.225 call signaling is used to set up connections between
H.323 endpoints over which the real-time data can be
transported.
 Two types :
 Direct call signaling
 Gateway routed call signaling
H.245 Control Signaling
 Capabilities Exchange
 Logical Channel Signaling
18

19. Real-Time Transport Protocol
 Real-time transport protocol (RTP) provides
end-to-end delivery services of real time
audio and video.
 RTP is used to transport data via the user
datagram protocol
Real-Time Control Protocol
(RTCP)
 RTCP provides control services for RTP.
19

20. H.323 Call Establishment
20

21. H.323 Control signaling Flows
21

22. H.323 Media stream & media control flow
22

23. H.323 Call Release
23

24. Conclusion
 Internet telephony is cost savings and integrating new
services.
 Internet Telephony is a powerful and economical
communication options by combination of the
telephone networks and data networks.
 Many public telecommunication operators are
establishing their own IP telephony services, and
using IP-based networks as alternative transmission
platforms.
24
