iphone Mobile Browser Application to create sales order

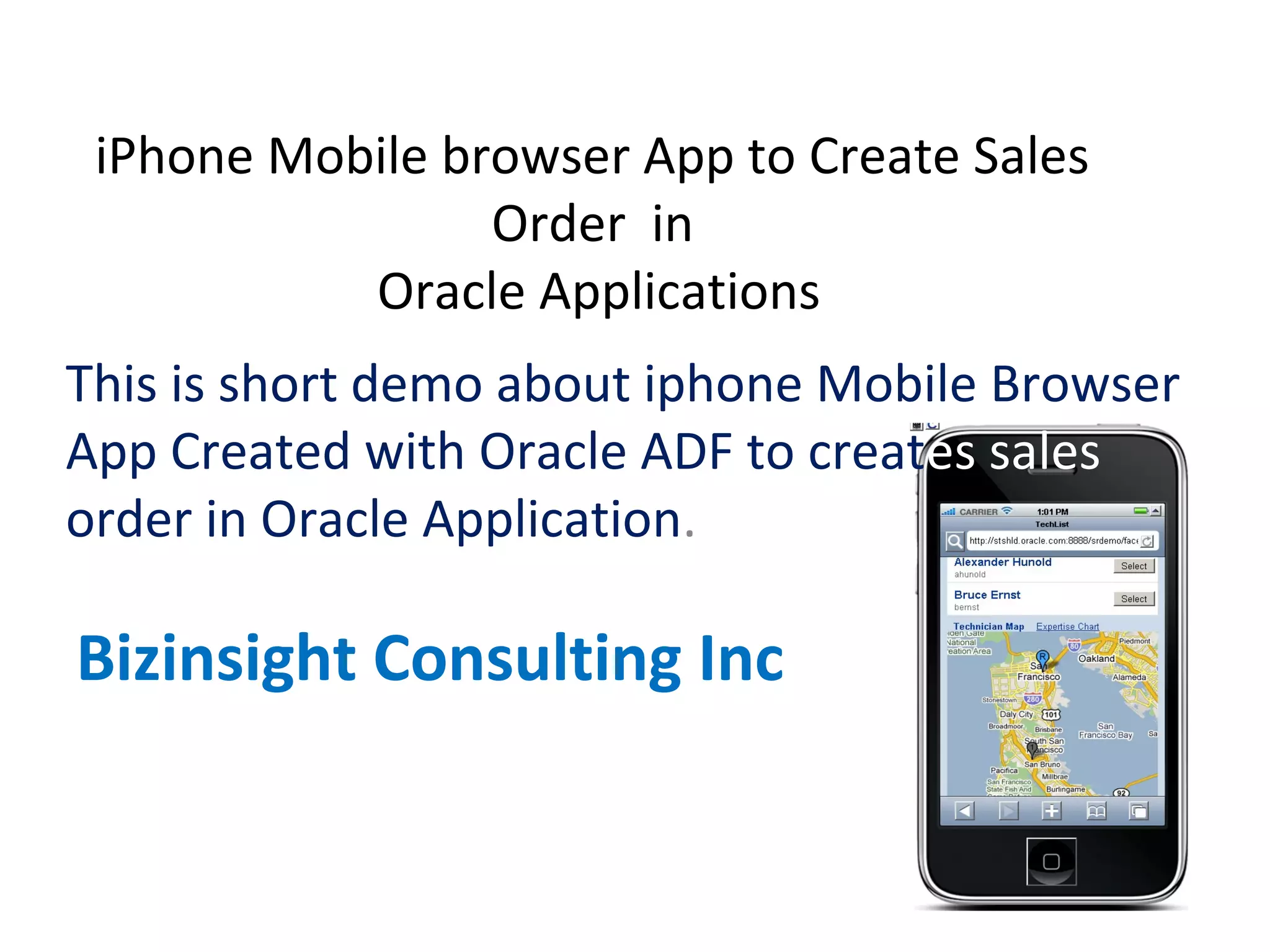

iPhone Mobile browser App to Create Sales
Order in
Oracle Applications
This is short demo about iphone Mobile Browser
App Created with Oracle ADF to creates sales
order in Oracle Application.
Bizinsight Consulting Inc

Mobile Apps with Oracle ADF

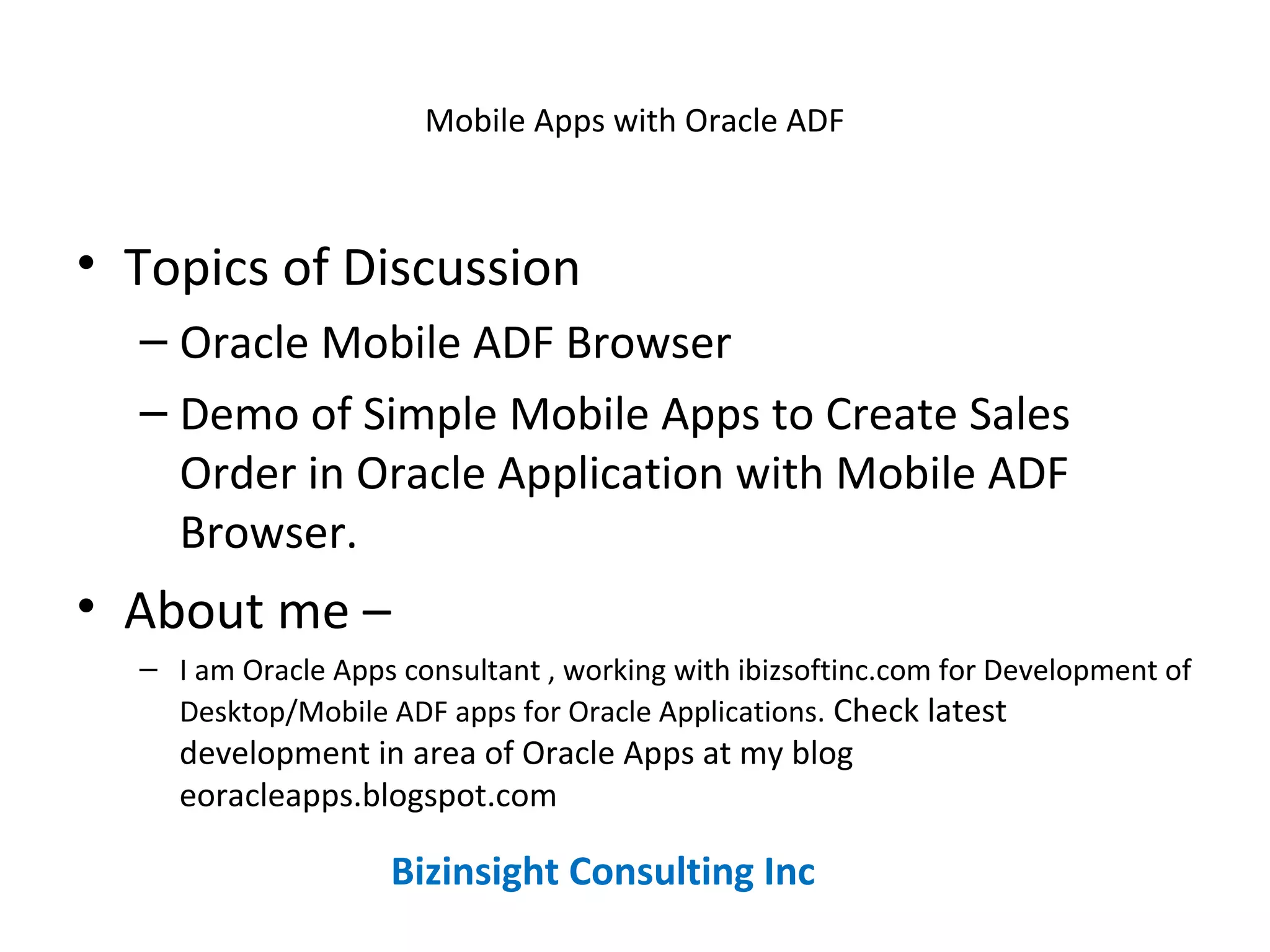

• Topics of Discussion
– Oracle Mobile ADF Browser
– Demo of Simple Mobile Apps to Create Sales
Order in Oracle Application with Mobile ADF
Browser.
• About me –
– I am Oracle Apps consultant , working with ibizsoftinc.com for Development of
Desktop/Mobile ADF apps for Oracle Applications. Check latest
development in area of Oracle Apps at my blog
eoracleapps.blogspot.com

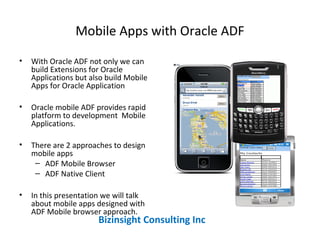

• With Oracle ADF not only we can
build Extensions for Oracle
Applications but also build Mobile
Apps for Oracle Application
• Oracle mobile ADF provides rapid
platform to development Mobile
Applications.
• There are 2 approaches to design
mobile apps
– ADF Mobile Browser
– ADF Native Client
• In this presentation we will talk
about mobile apps designed with
ADF Mobile browser approach.

• Because ADF Mobile browser is built upon the component model of JSF , with
it we can develop mobile applications using same methodologies as we use
for developing JSF applications for desktop.
• JSF provides a Model-View-Controller(MVC) mechanism
• The ADF mobile browser renderer ensures that content can be consumed
correctly by the target browser.
• ADF Mobile browser application is almost identical to ADF Web application
development , except the ADF Mobile browser application development uses
only mobile JSF pages that consist of Apache Myfaces Trinidad components. In
this way we can re-use the desktop browser application’s model and
controller layers to assemble a new view layer for mobile devices by using
similar Apache MyFaces Trinidad Components.

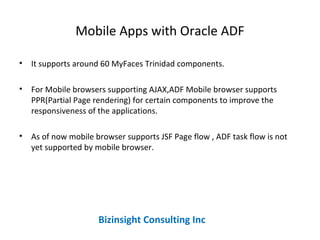

• It supports around 60 MyFaces Trinidad components.
• For Mobile browsers supporting AJAX,ADF Mobile browser supports
PPR(Partial Page rendering) for certain components to improve the
responsiveness of the applications.
• As of now mobile browser supports JSF Page flow , ADF task flow is not
yet supported by mobile browser.

• To Create a ADF Mobile browser application
1. Configure the environment by creating an application and Project.
2. Add a Model Project for ADF-BC ( if Required).
3. Add a Web Project
4. Add the JSF pages using Apache MyFaces Trinidad components.

Our Test case – Create Sales Order in Oracle Order Management from Mobile
Device.
Approach –
• Create PL/SQL wrapper API for Order Creation API OE_ORDER_PUB.
• Create Web Service from pl/sql API ( Created in Step#1).
• Design Mobile UI from this web service with ADF Mobile Browser.
• Deploy and Test Mobile Browser
• Access Mobile Browser App from iphone /Any other Smart Phone.
ibizsoftinc.com eoracleapps.blogspot.com

Step #1 – Create Wrapper API on OE_ORDER_PUB
declare
l_status VARCHAR2(1000);
BEGIN
l_status:= XXMBSALESORDER.createOrder(1437,1005,1024,1000,'USD‘,'PO-9090‘,149,1,'Location');
end;

• Step #2 – Create Web Service Based on
Wrapper API Created in Step #1

Step #3 – Build UI on Web Service.

ADF Page
Web - Services
Oracle Applications

iPhone UI to Create Sales Order in Oracle Order Management
Iphone UI to Create Order Select the Customer from List of Values

Select Price list and Currency Code from List of Values

Select Item , Enter Order Qty and Press Create Order Button

Sales Order 65133 Created in Oracle Order Management with Status = Booked
Order Number

Order Created in Oracle Applications.
Order Number
Status = Booked

Q&A
• For any questions or Development inquiries
contact me at
• inquiry@bizinsightinc.com
Or Visit us at
www.bizinsightinc.com
