- IoT devices generate large streams of data that need to be collected and processed in real-time. MQTT and Kafka are common protocols for collecting IoT data streams. MQTT is lightweight but lacks scalability while Kafka is highly scalable. - Stream processing platforms like Flink, Storm and Spark can be used to analyze the IoT data streams. Flink supports both batch and stream processing while Storm is best for low-latency streaming. Spark is better for machine learning on streams. - An example use case is real-time equipment monitoring in a factory where IoT sensors stream data to Kafka which is then processed by Flink to detect abnormalities and enable predictive maintenance. Performance is evaluated based on latency and

1. IoT Data Streaming
รัฐศิลป์ รานอกภานุวัชร์, D.ENG

2. WHO AM I ?
 อาจารย์ผู้สอน ป.ตรี วิศวกรรมคอมพิวเตอร์ มหาวิทยาลัยธุรกิจบัณฑิตย์
 อาจารย์ผู้สอน ป.โท วิศวกรรมข้อมูลขนาดใหญ่ มหาวิทยาลัยธุรกิจบัณฑิตย์
 อาจารย์พิเศษ สอนวิชา Data Streaming and Real Time Analytics
สถาบันบัณฑิตพัฒนบริหารศาสตร์ นิด้า
 วิทยากรผู้สอน Amazon cloud ประจาสถาบัน 9expert
 ที่ปรึกษาบริษัทเอกชน ทางด้าน BigData และ Blockchain
 งานวิจัย Blockchain, IoT และ BigData
2

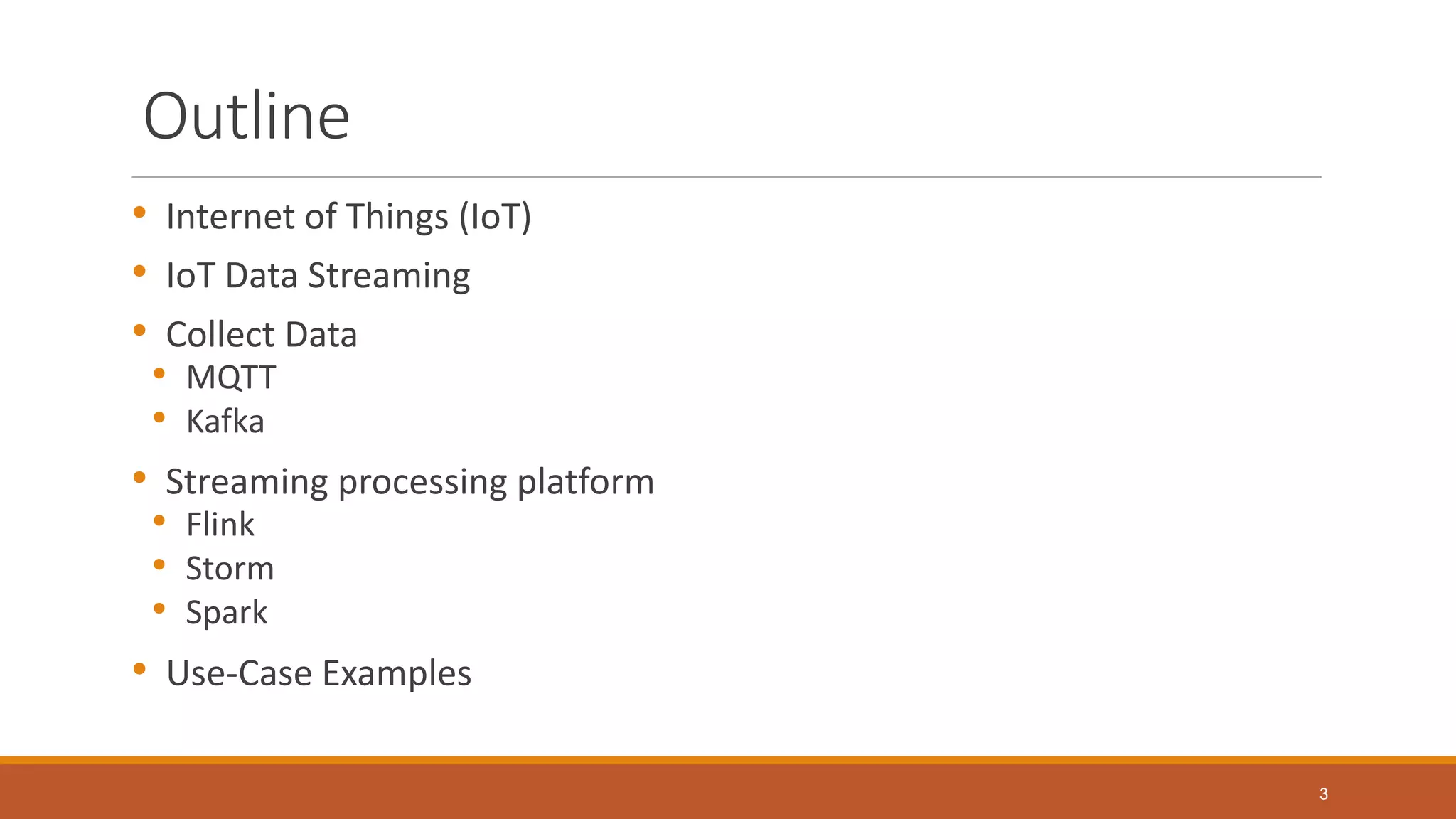

3. Outline
• Internet of Things (IoT)
• IoT Data Streaming
• Collect Data
• MQTT
• Kafka
• Streaming processing platform
• Flink
• Storm
• Spark
• Use-Case Examples
3

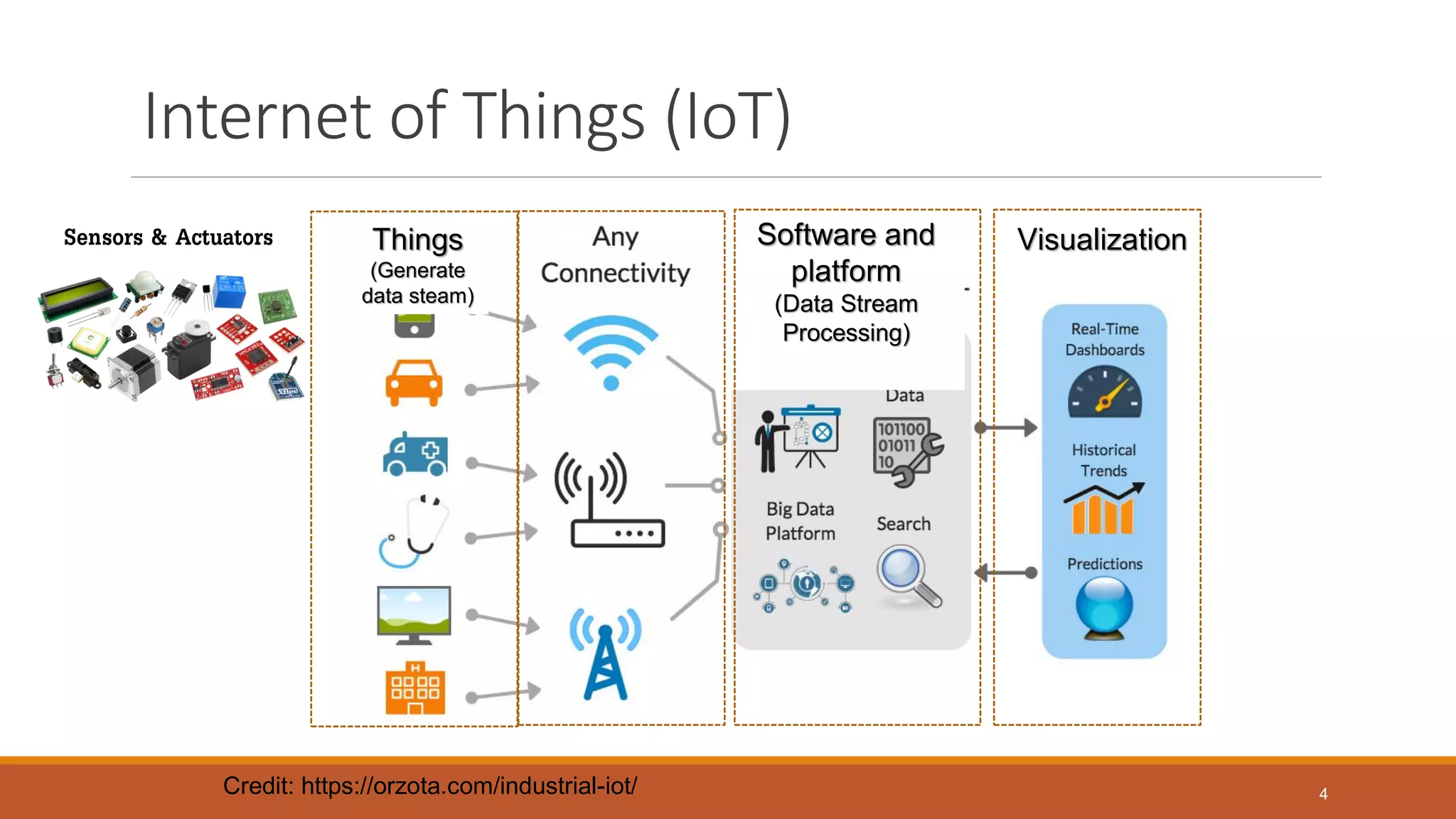

4. Internet of Things (IoT)
Credit: https://orzota.com/industrial-iot/
Software and
platform
(Data Stream
Processing)
VisualizationThings
(Generate
data steam)
4
Sensors & Actuators

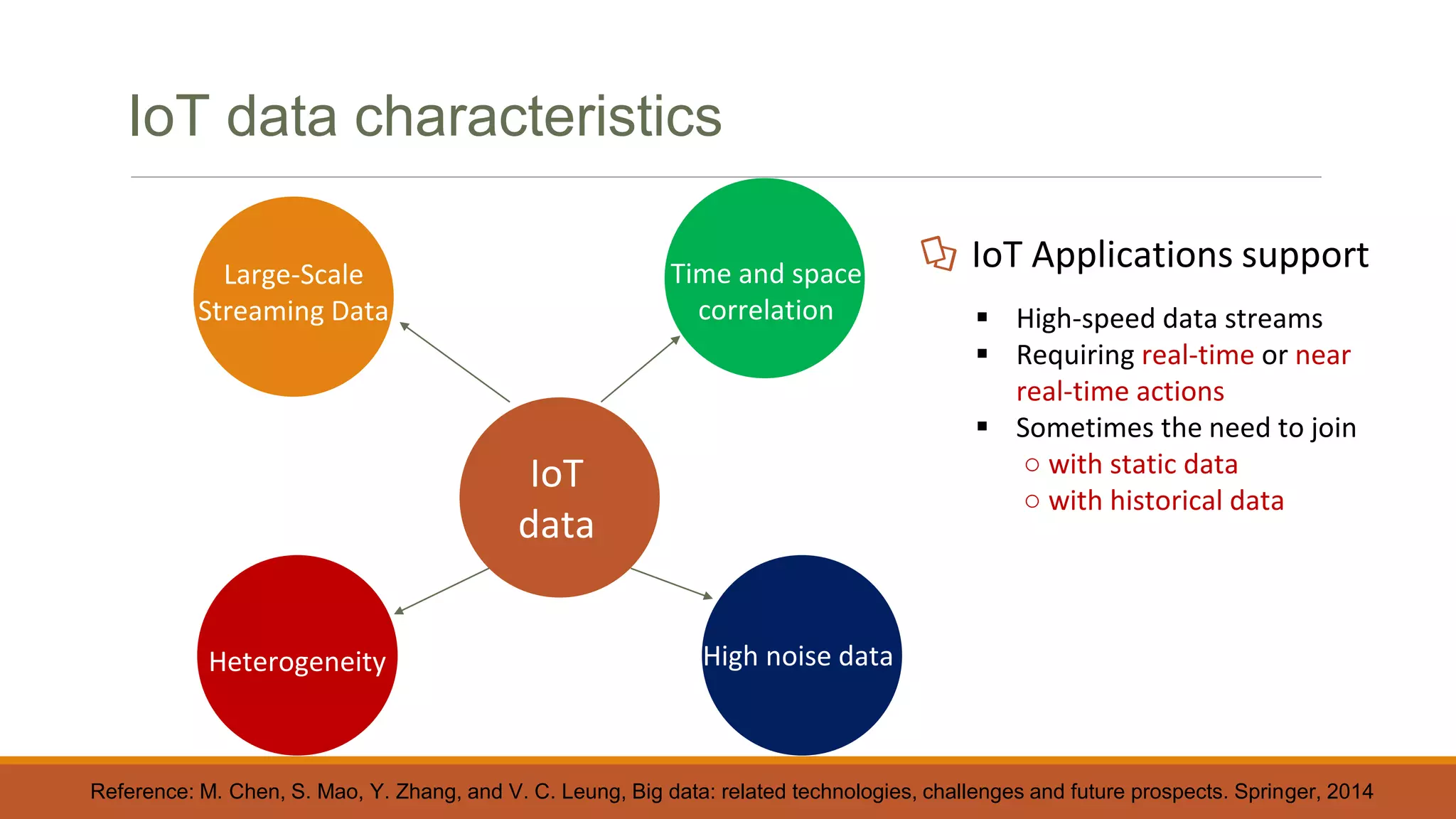

5. IoT data characteristics
Large-Scale
Streaming Data
Heterogeneity
Time and space
correlation
High noise data
IoT
data
IoT Applications support
 High-speed data streams
 Requiring real-time or near
real-time actions
 Sometimes the need to join
○ with static data
○ with historical data
Reference: M. Chen, S. Mao, Y. Zhang, and V. C. Leung, Big data: related technologies, challenges and future prospects. Springer, 2014

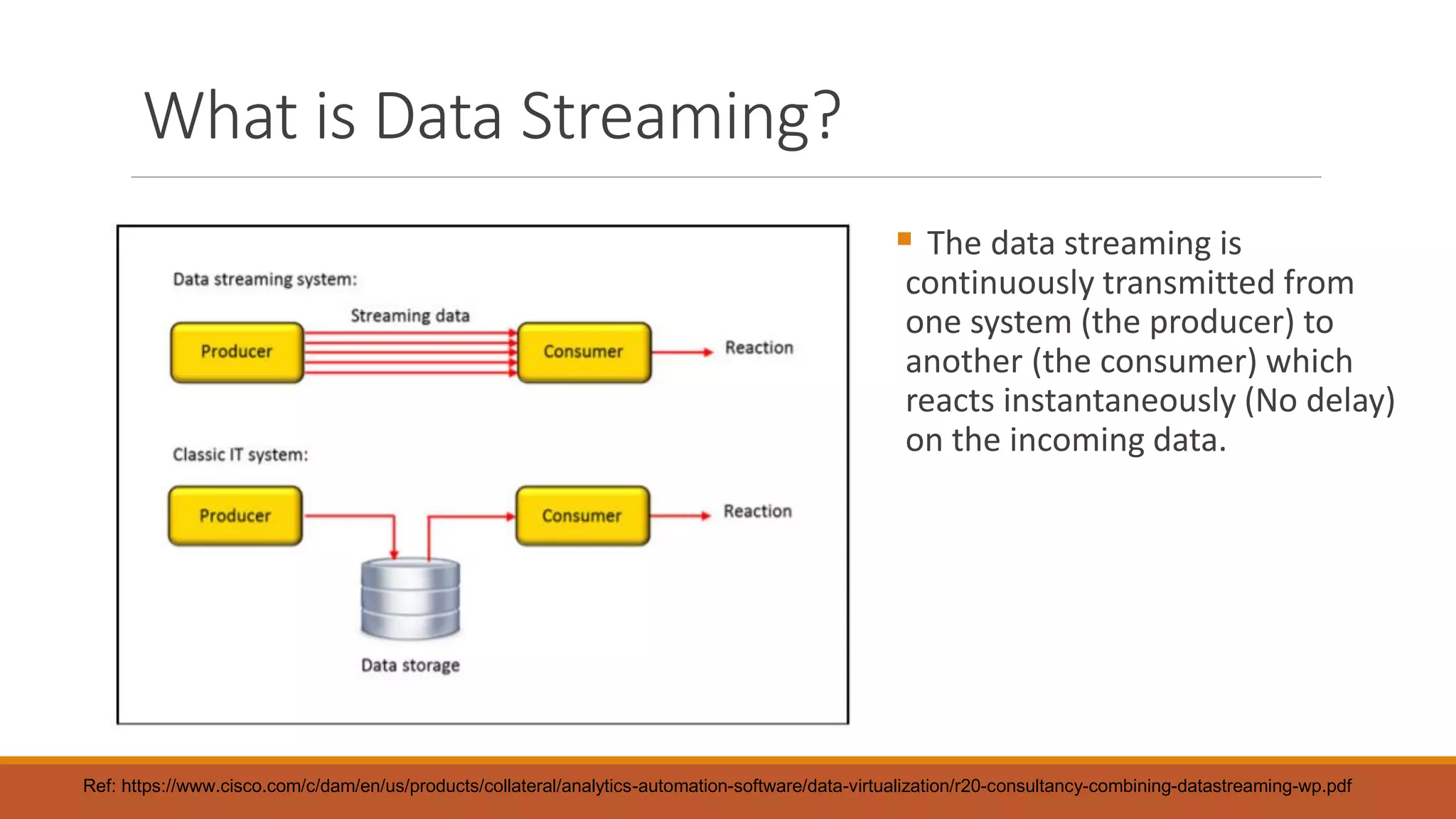

6. What is Data Streaming?
Ref: https://www.cisco.com/c/dam/en/us/products/collateral/analytics-automation-software/data-virtualization/r20-consultancy-combining-datastreaming-wp.pdf
 The data streaming is
continuously transmitted from
one system (the producer) to
another (the consumer) which
reacts instantaneously (No delay)
on the incoming data.

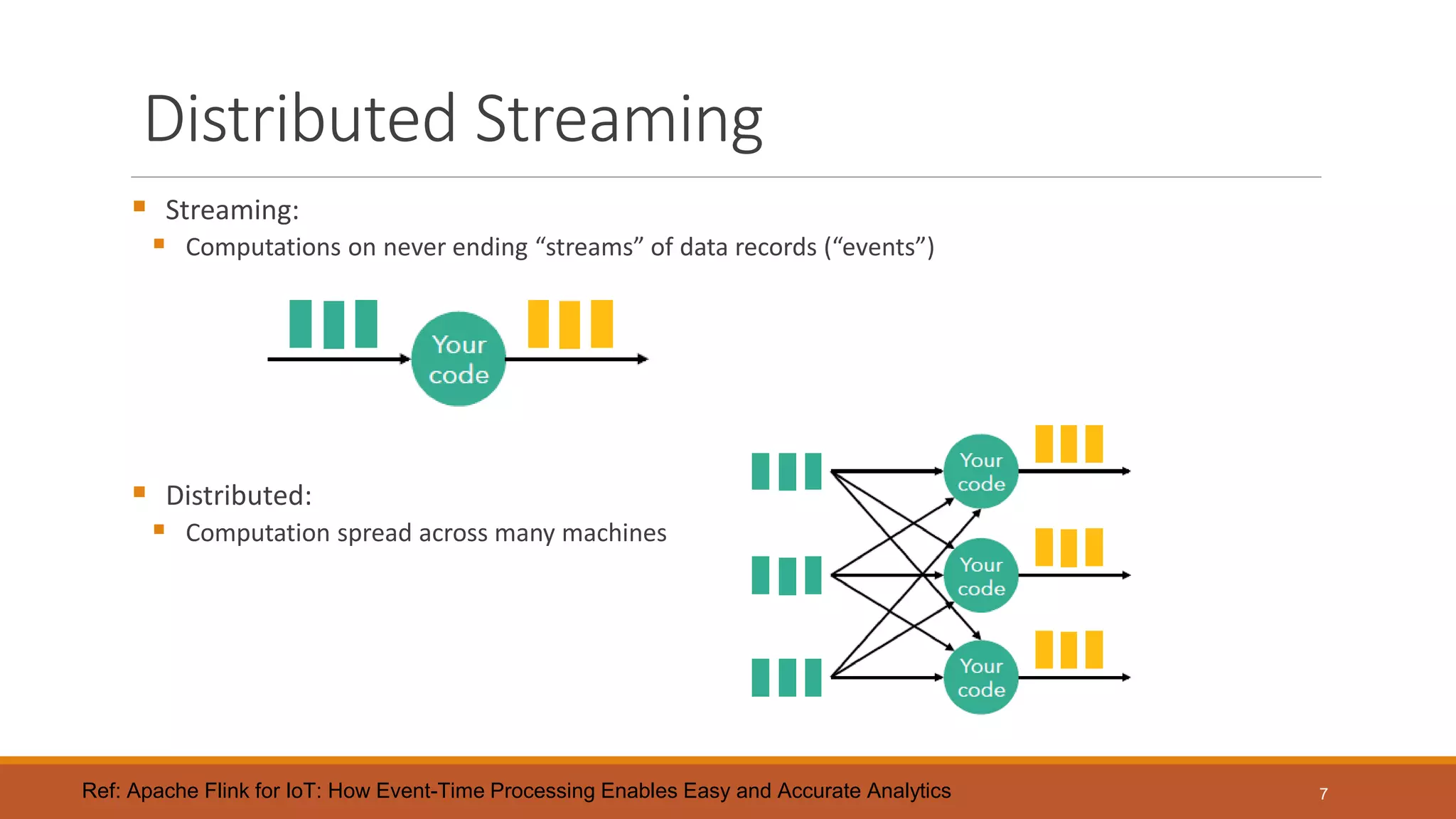

7. Distributed Streaming
 Streaming:
 Computations on never ending “streams” of data records (“events”)
 Distributed:
 Computation spread across many machines
7Ref: Apache Flink for IoT: How Event-Time Processing Enables Easy and Accurate Analytics

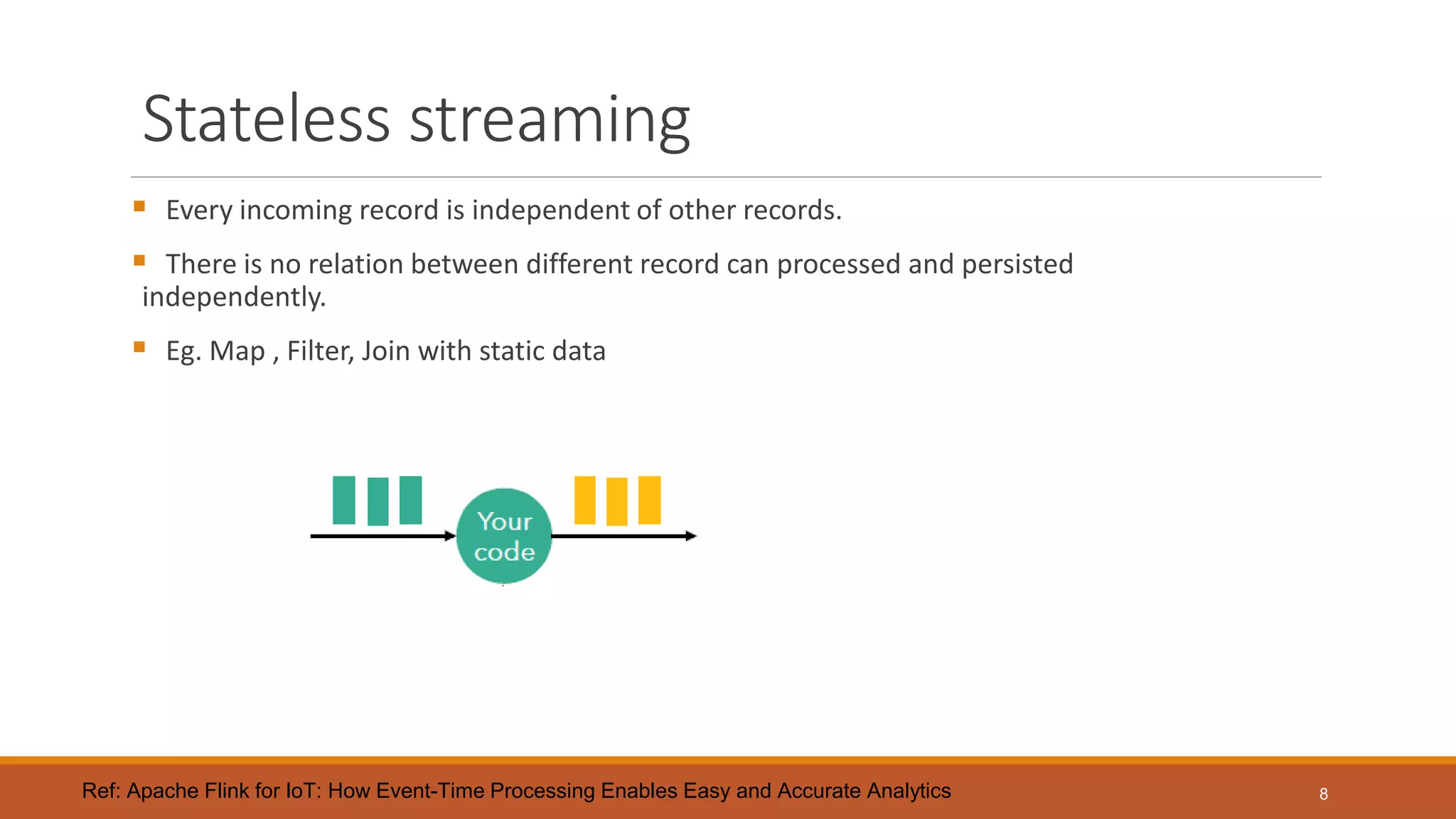

8. Stateless streaming
 Every incoming record is independent of other records.
 There is no relation between different record can processed and persisted
independently.
 Eg. Map , Filter, Join with static data
8Ref: Apache Flink for IoT: How Event-Time Processing Enables Easy and Accurate Analytics

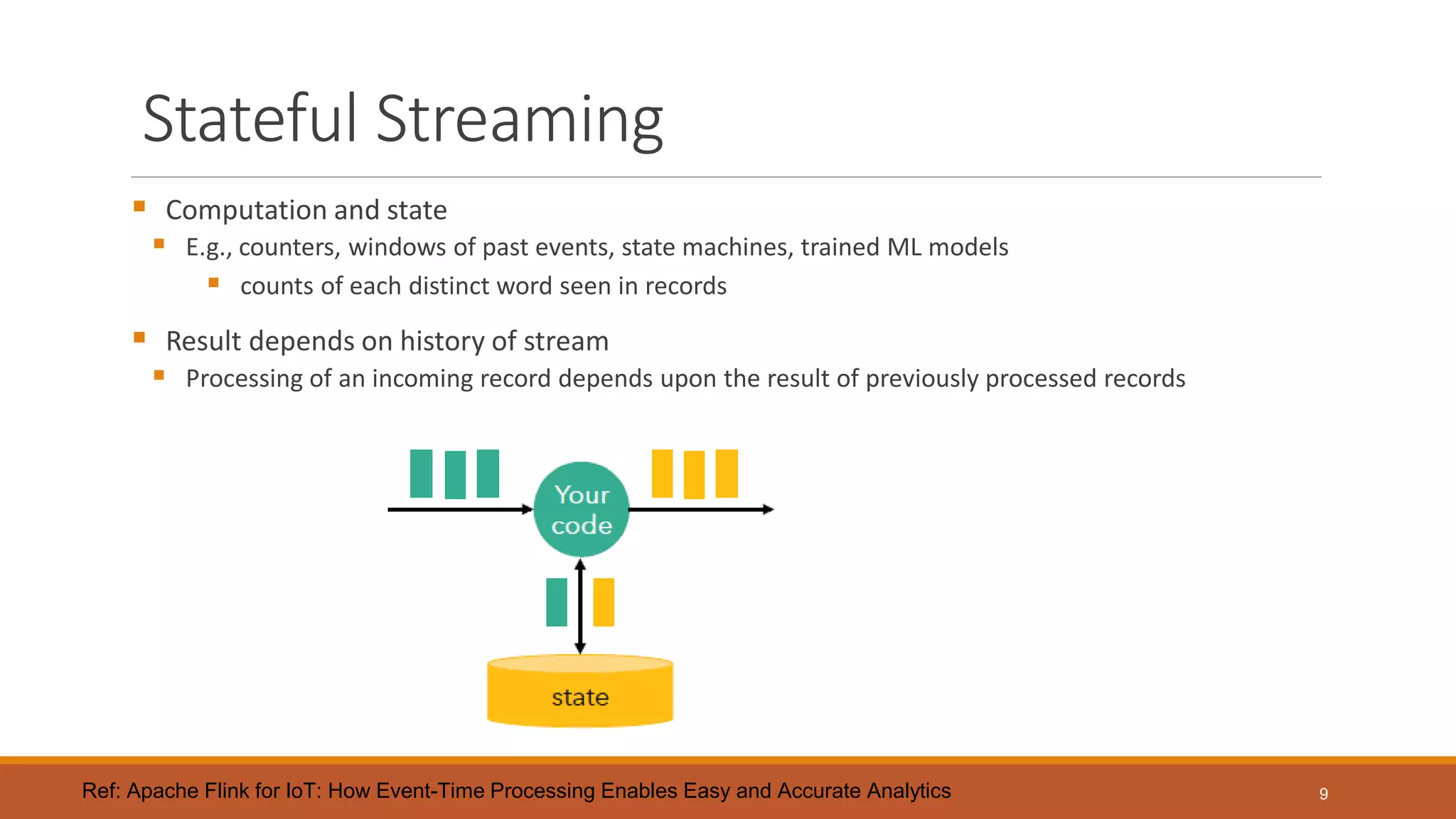

9. Stateful Streaming
 Computation and state
 E.g., counters, windows of past events, state machines, trained ML models
 counts of each distinct word seen in records
 Result depends on history of stream
 Processing of an incoming record depends upon the result of previously processed records
9Ref: Apache Flink for IoT: How Event-Time Processing Enables Easy and Accurate Analytics

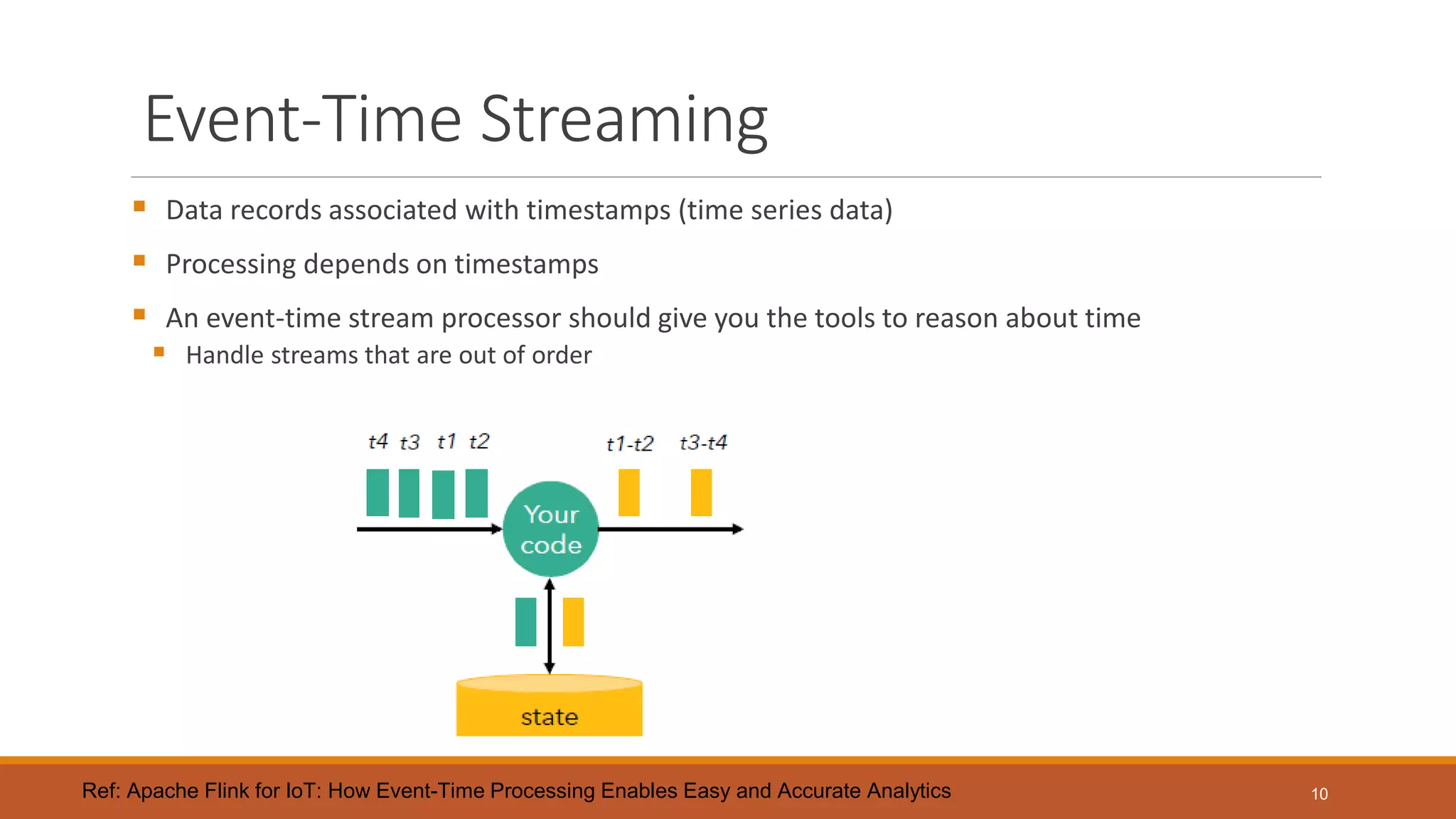

10. Event-Time Streaming
 Data records associated with timestamps (time series data)
 Processing depends on timestamps
 An event-time stream processor should give you the tools to reason about time
 Handle streams that are out of order
10Ref: Apache Flink for IoT: How Event-Time Processing Enables Easy and Accurate Analytics

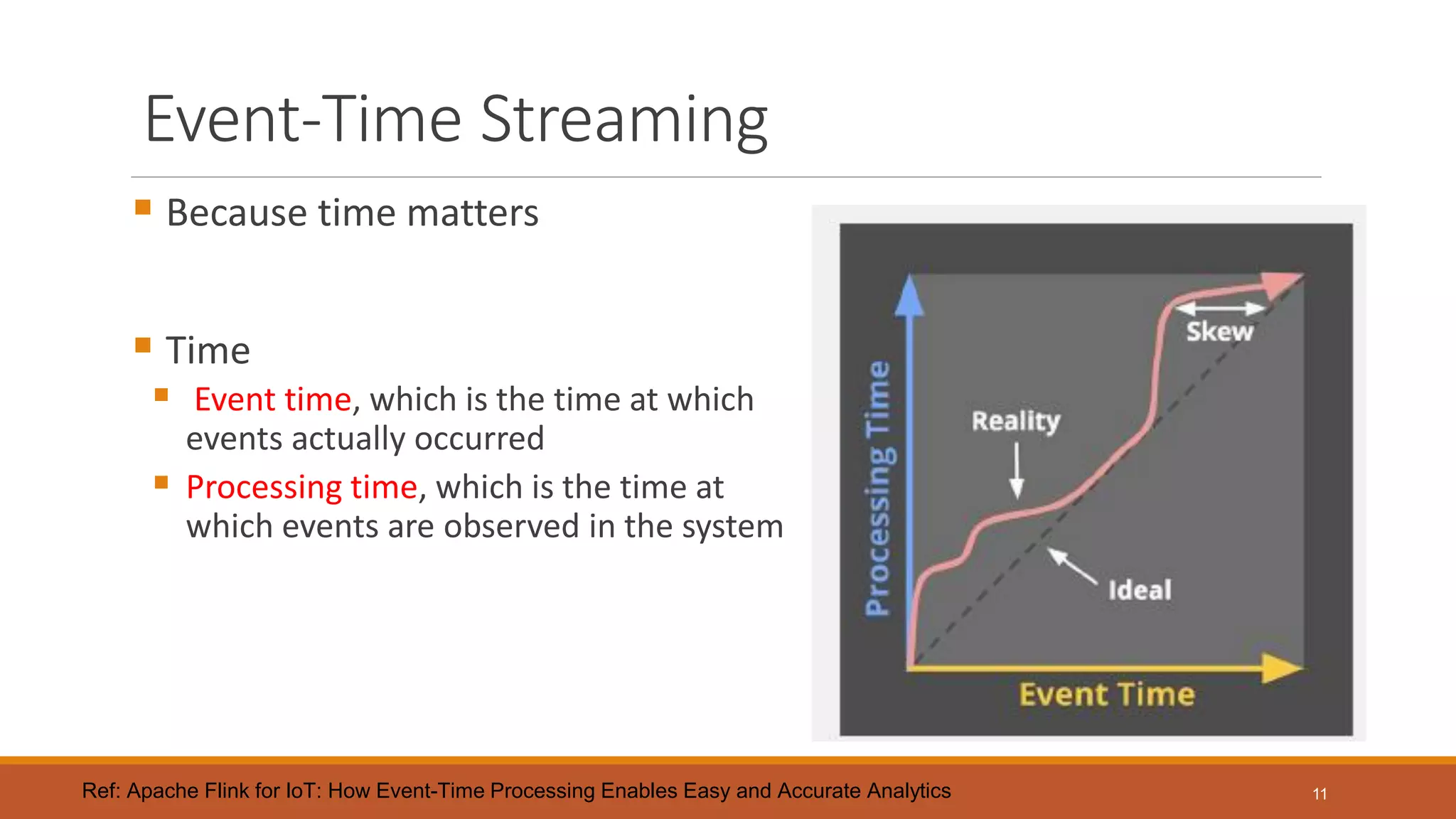

11. Event-Time Streaming
 Because time matters
 Time
 Event time, which is the time at which
events actually occurred
 Processing time, which is the time at
which events are observed in the system
11Ref: Apache Flink for IoT: How Event-Time Processing Enables Easy and Accurate Analytics

12. Things are Producing Streaming Data
12
 Smart city
 Healthcare/Medical
device
 Connected cars
 Logistics
 Home automation
 Airlines
 Farmers
 Smart Machinery
 Security system

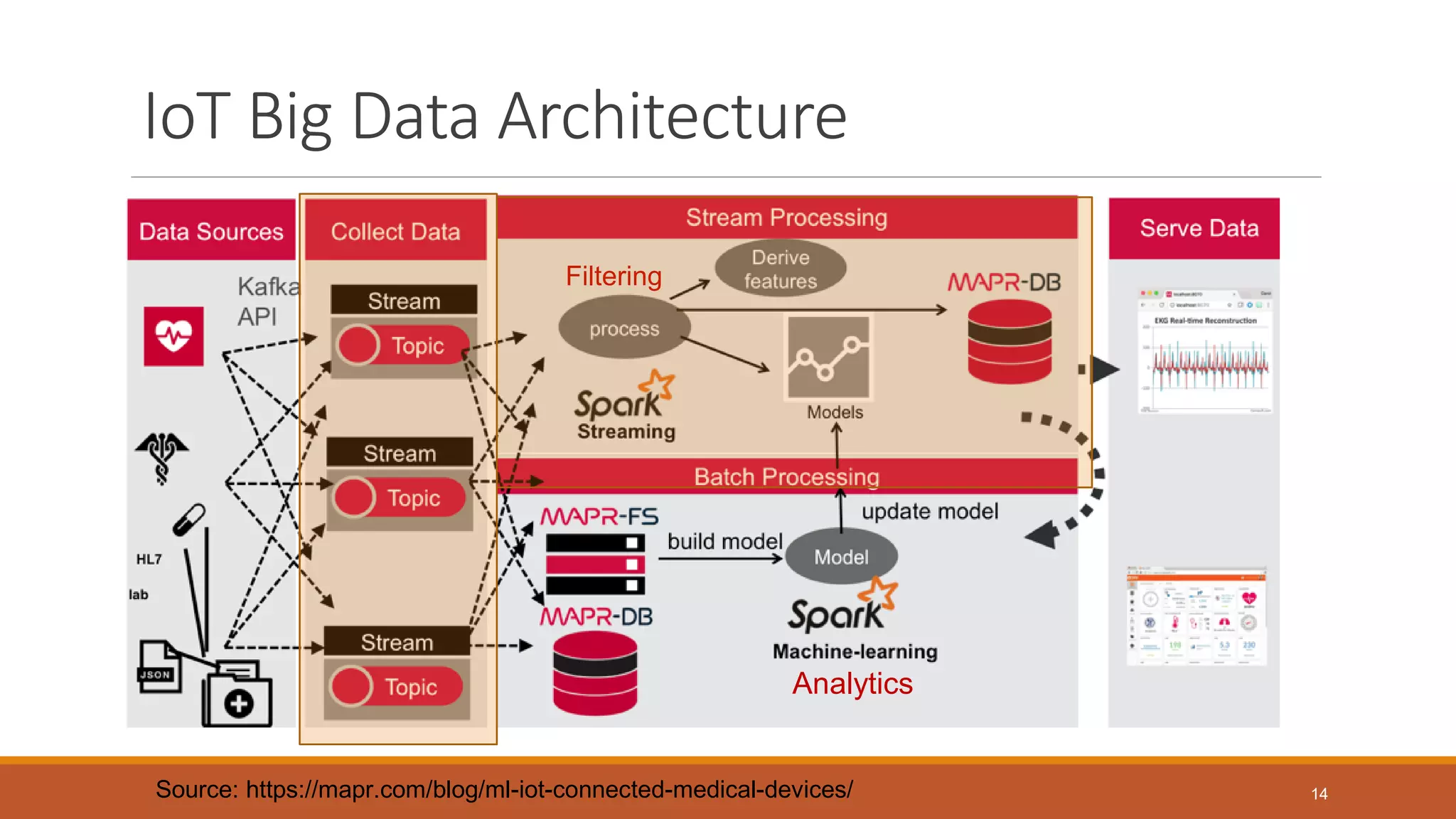

13. IoT Big Data Architecture
Filtering
Analytics
Source: https://mapr.com/blog/ml-iot-connected-medical-devices/ 14

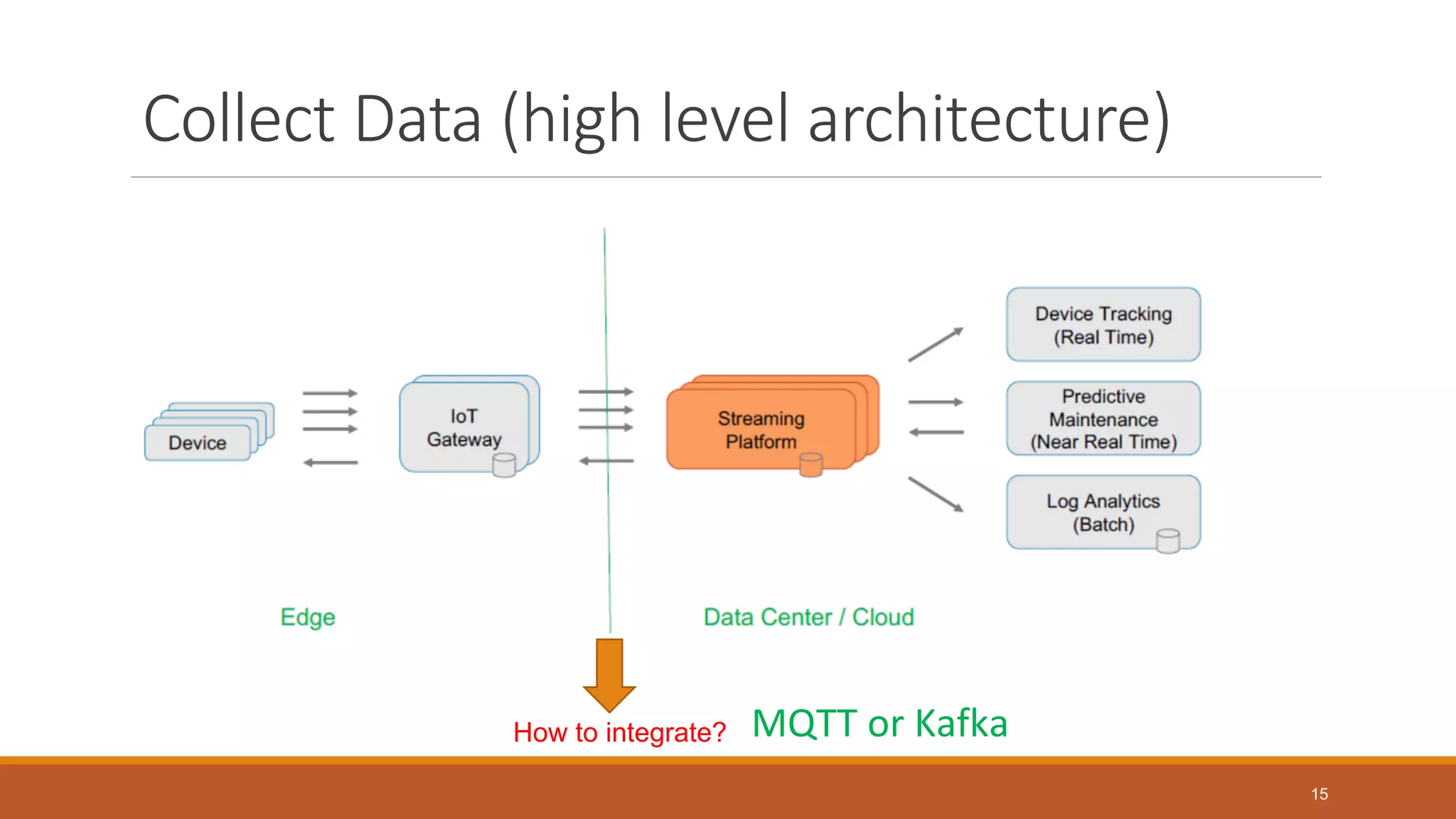

14. Collect Data (high level architecture)
15
How to integrate? MQTT or Kafka

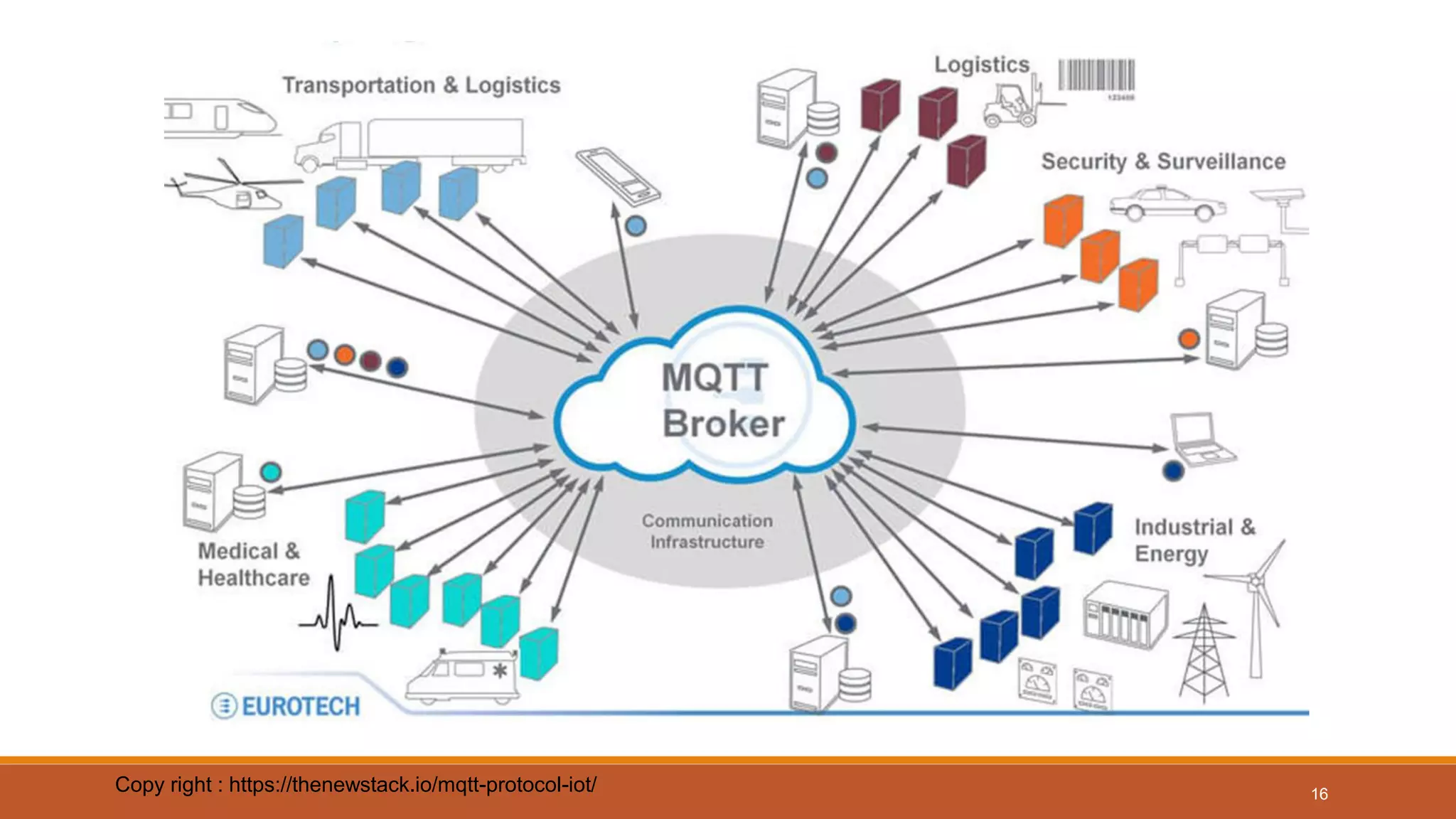

15. 16Copy right : https://thenewstack.io/mqtt-protocol-iot/

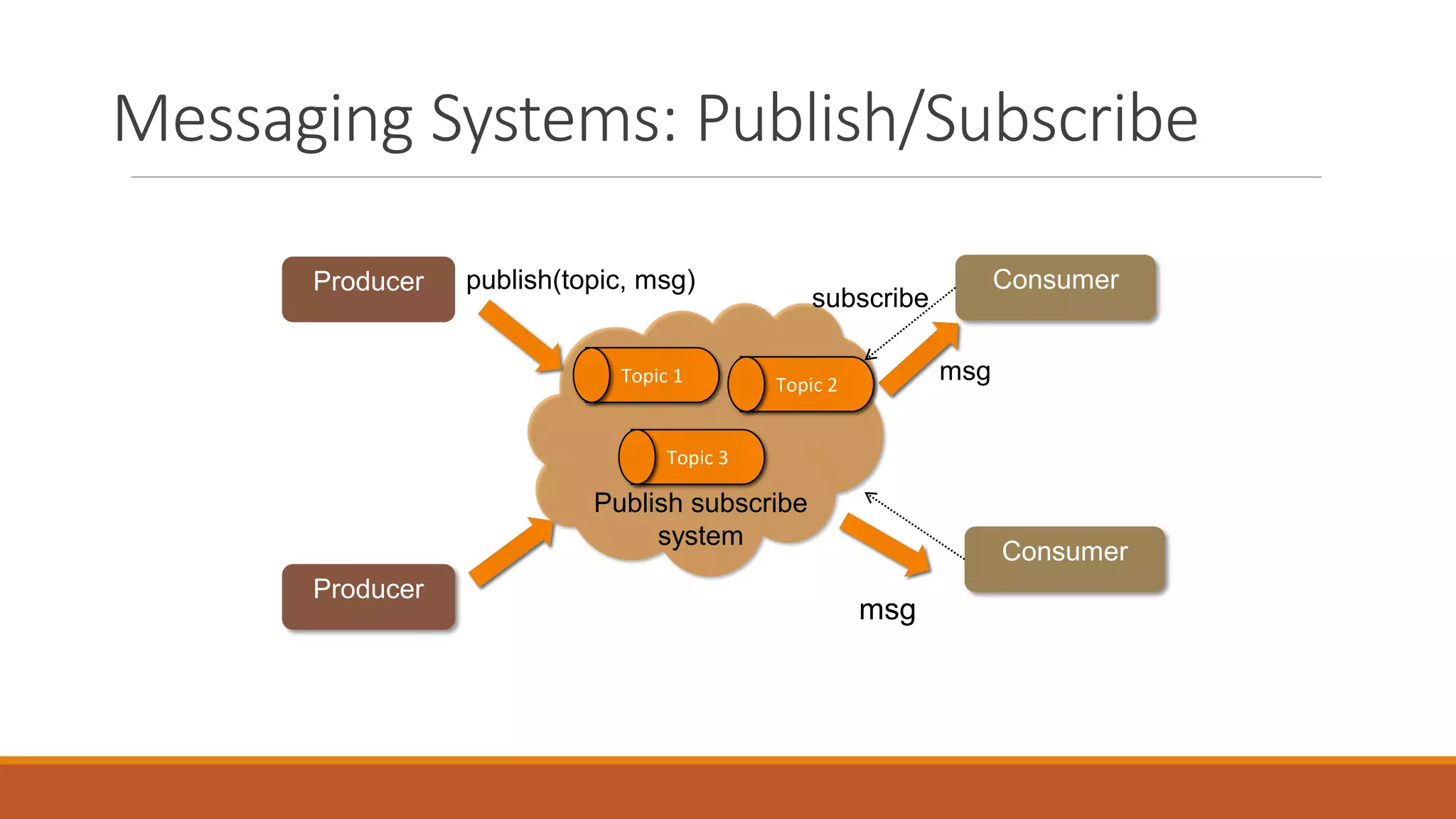

16. Messaging Systems: Publish/Subscribe
Producer Consumer
Producer
Consumer
Topic 1 Topic 2
Topic 3
subscribe
publish(topic, msg)
Publish subscribe
system
msg
msg

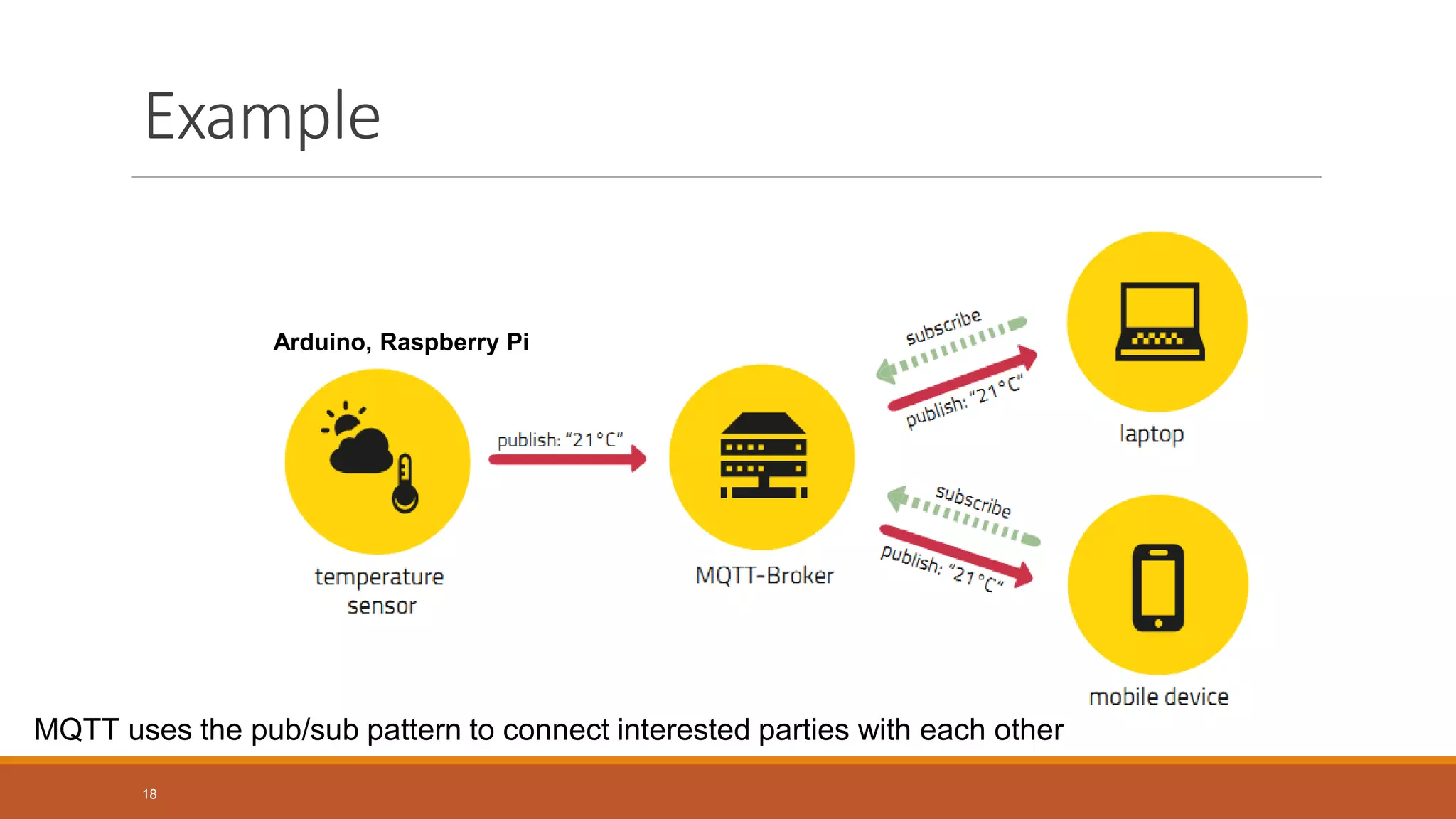

17. Example
18
MQTT uses the pub/sub pattern to connect interested parties with each other
Arduino, Raspberry Pi

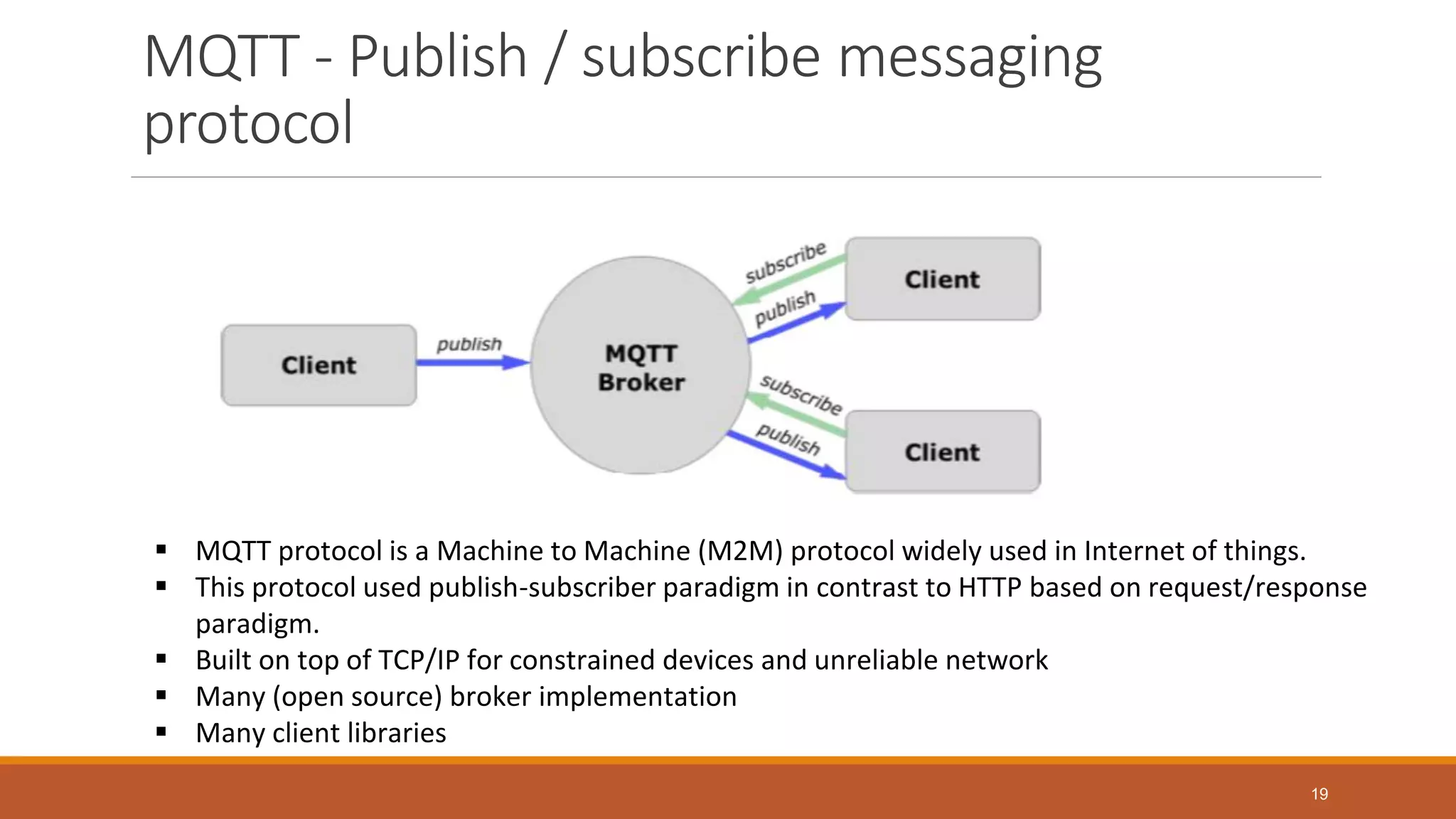

18. MQTT - Publish / subscribe messaging
protocol
19
 MQTT protocol is a Machine to Machine (M2M) protocol widely used in Internet of things.
 This protocol used publish-subscriber paradigm in contrast to HTTP based on request/response
paradigm.
 Built on top of TCP/IP for constrained devices and unreliable network
 Many (open source) broker implementation
 Many client libraries

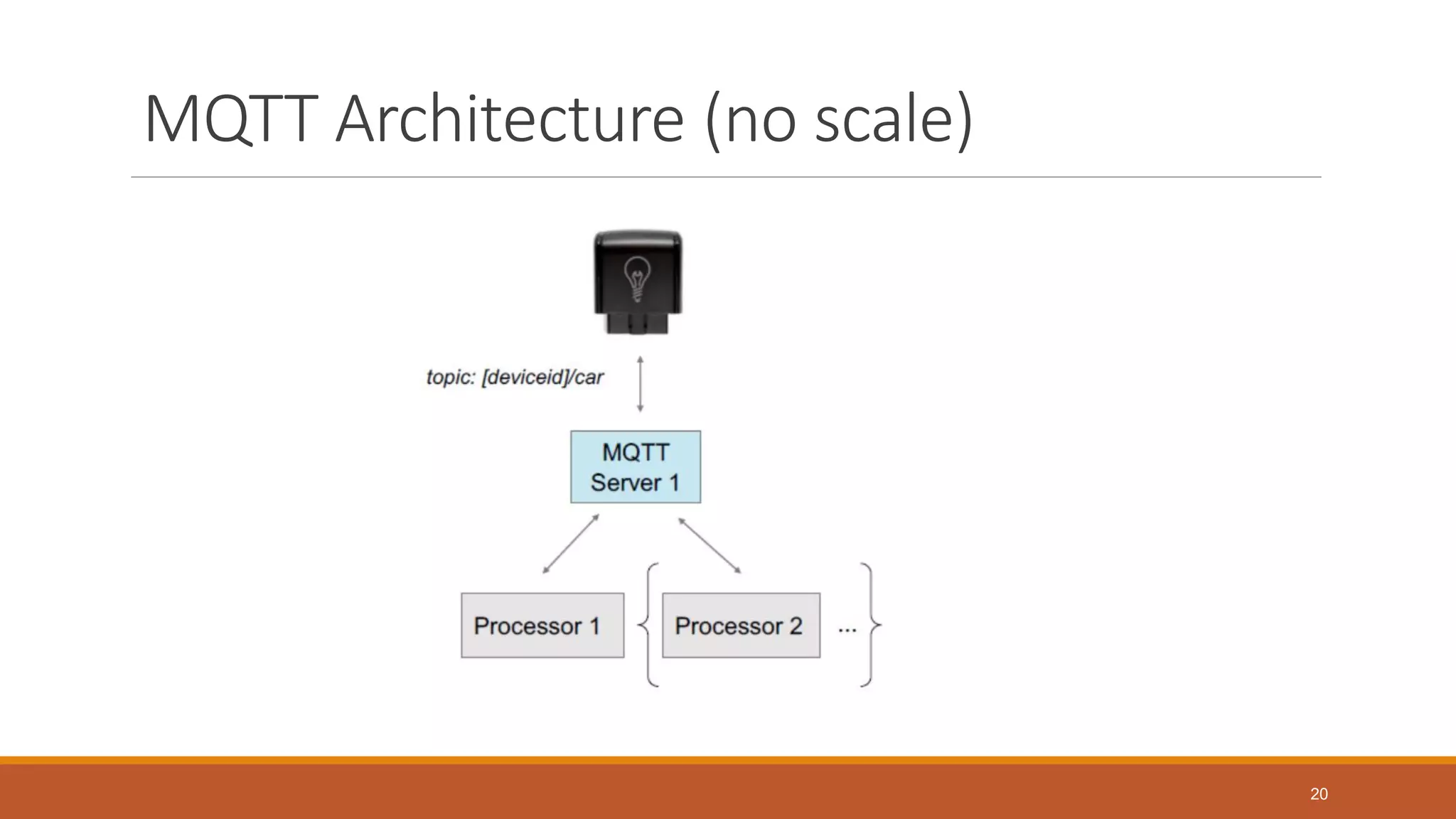

19. MQTT Architecture (no scale)
20

20. MQTT Architecture (clustering depends on
broker implementation)
21

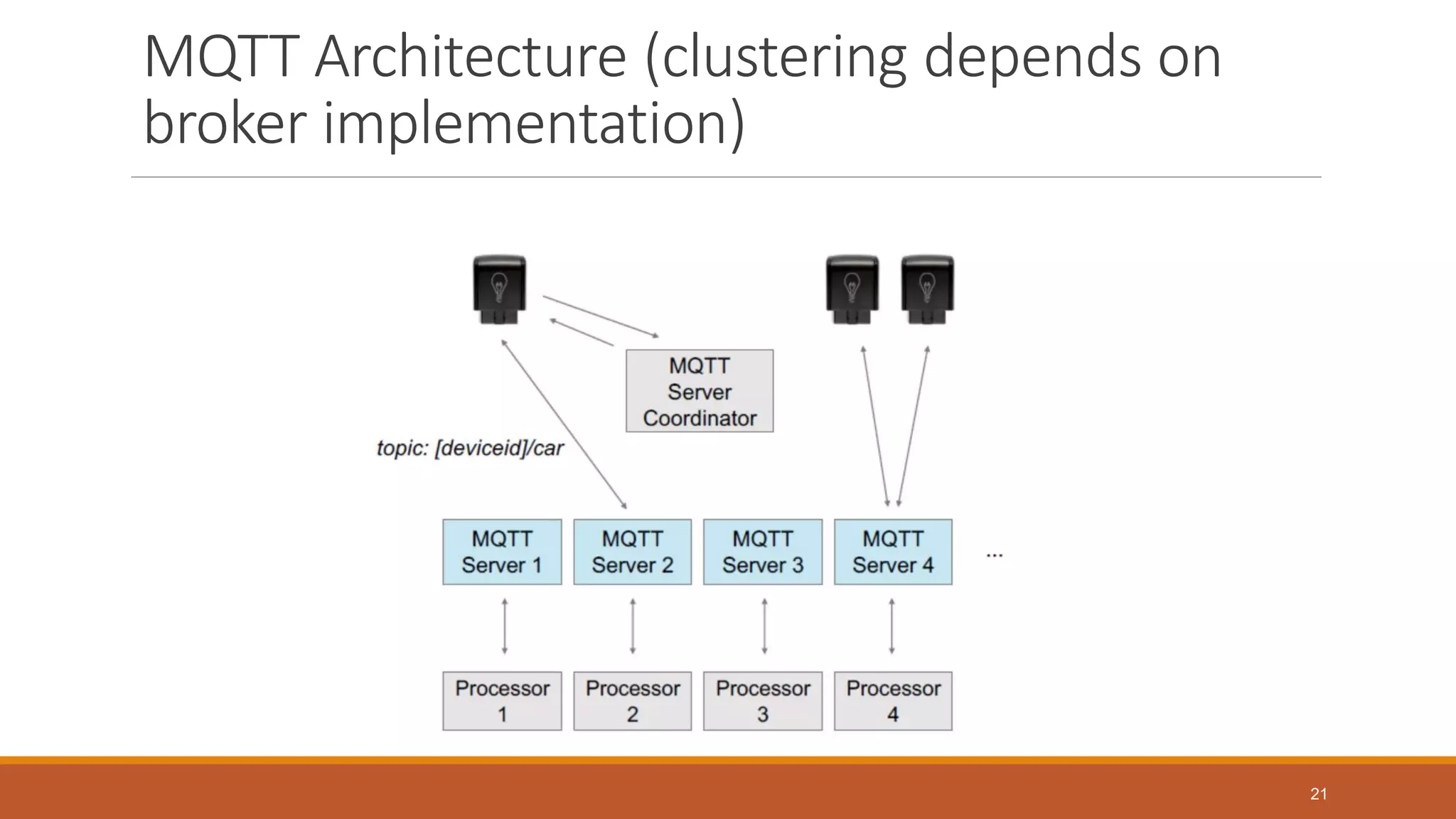

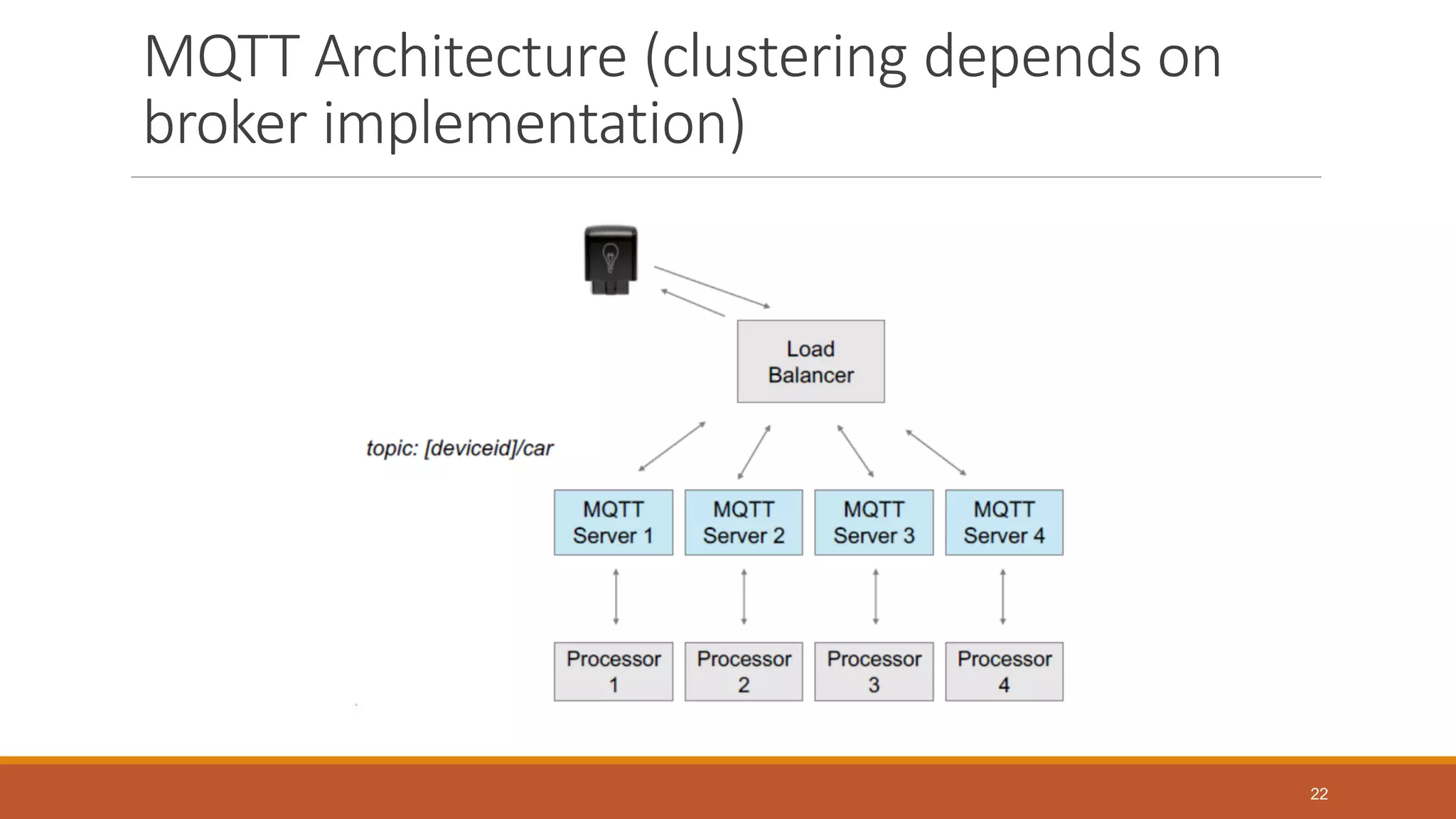

21. MQTT Architecture (clustering depends on
broker implementation)
22

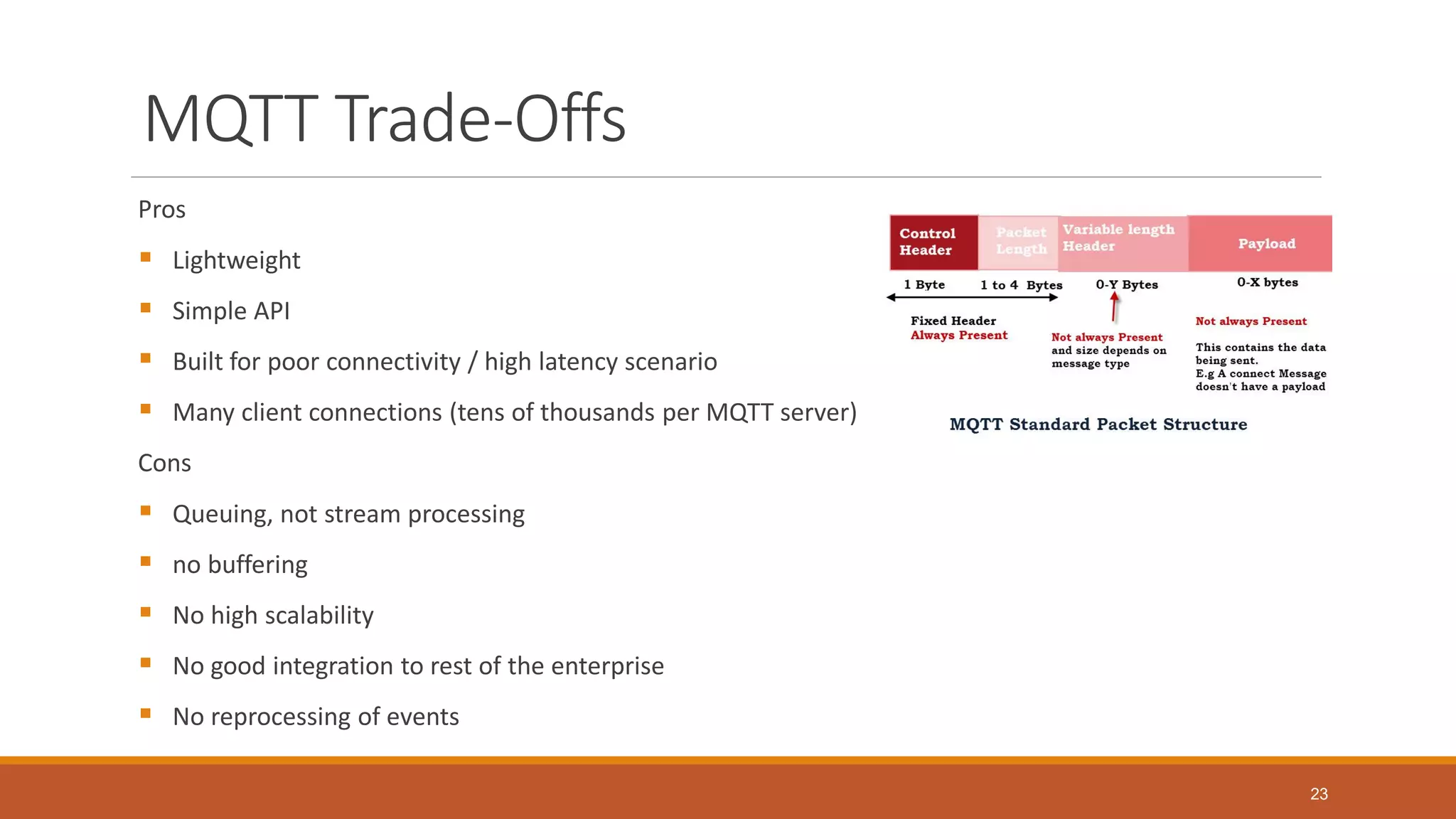

22. MQTT Trade-Offs
Pros
 Lightweight
 Simple API
 Built for poor connectivity / high latency scenario
 Many client connections (tens of thousands per MQTT server)
Cons
 Queuing, not stream processing
 no buffering
 No high scalability
 No good integration to rest of the enterprise
 No reprocessing of events
23

23. Apache Kafka
A distributed streaming platform
24

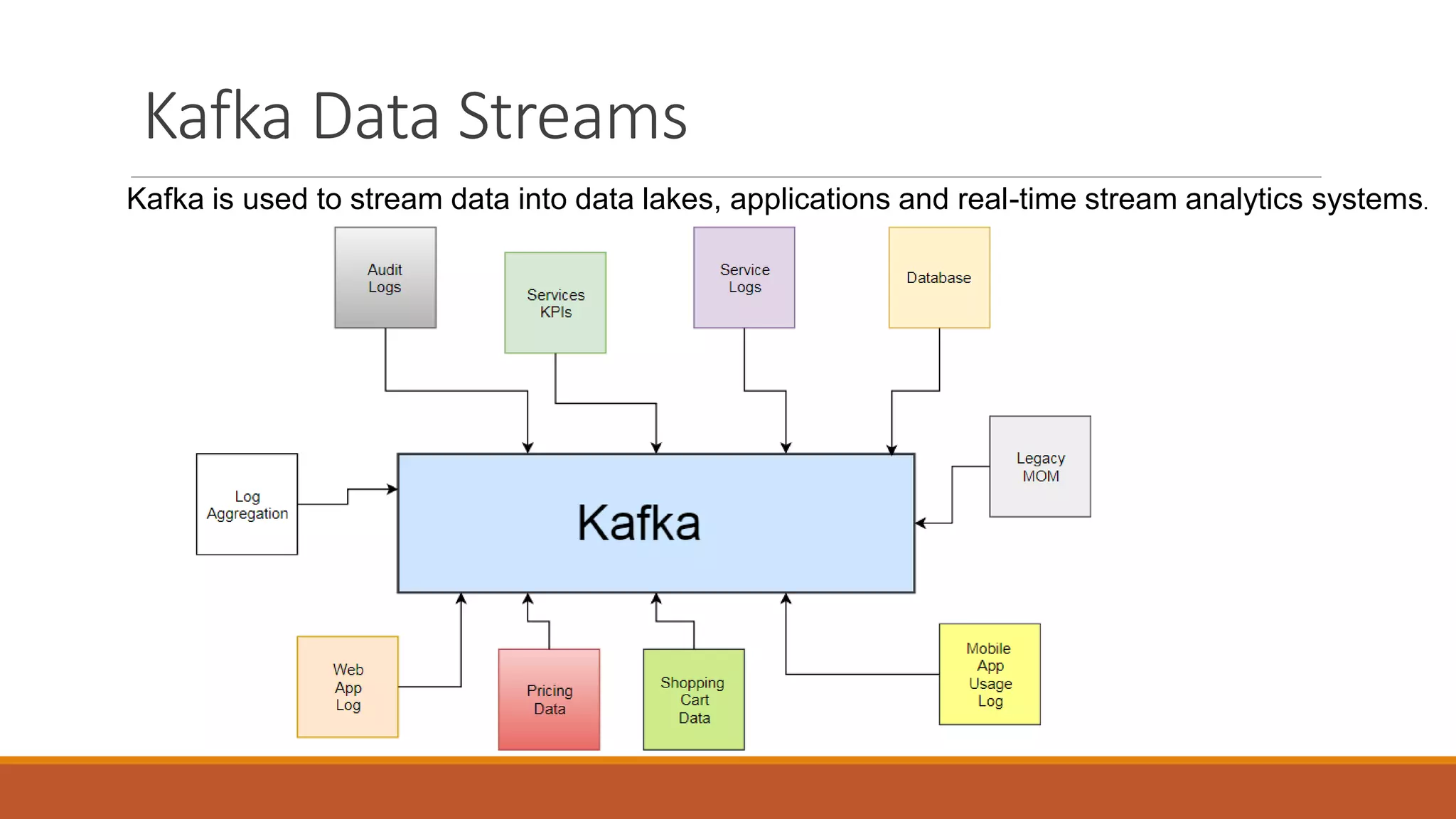

24. Kafka Data Streams
Kafka is used to stream data into data lakes, applications and real-time stream analytics systems.

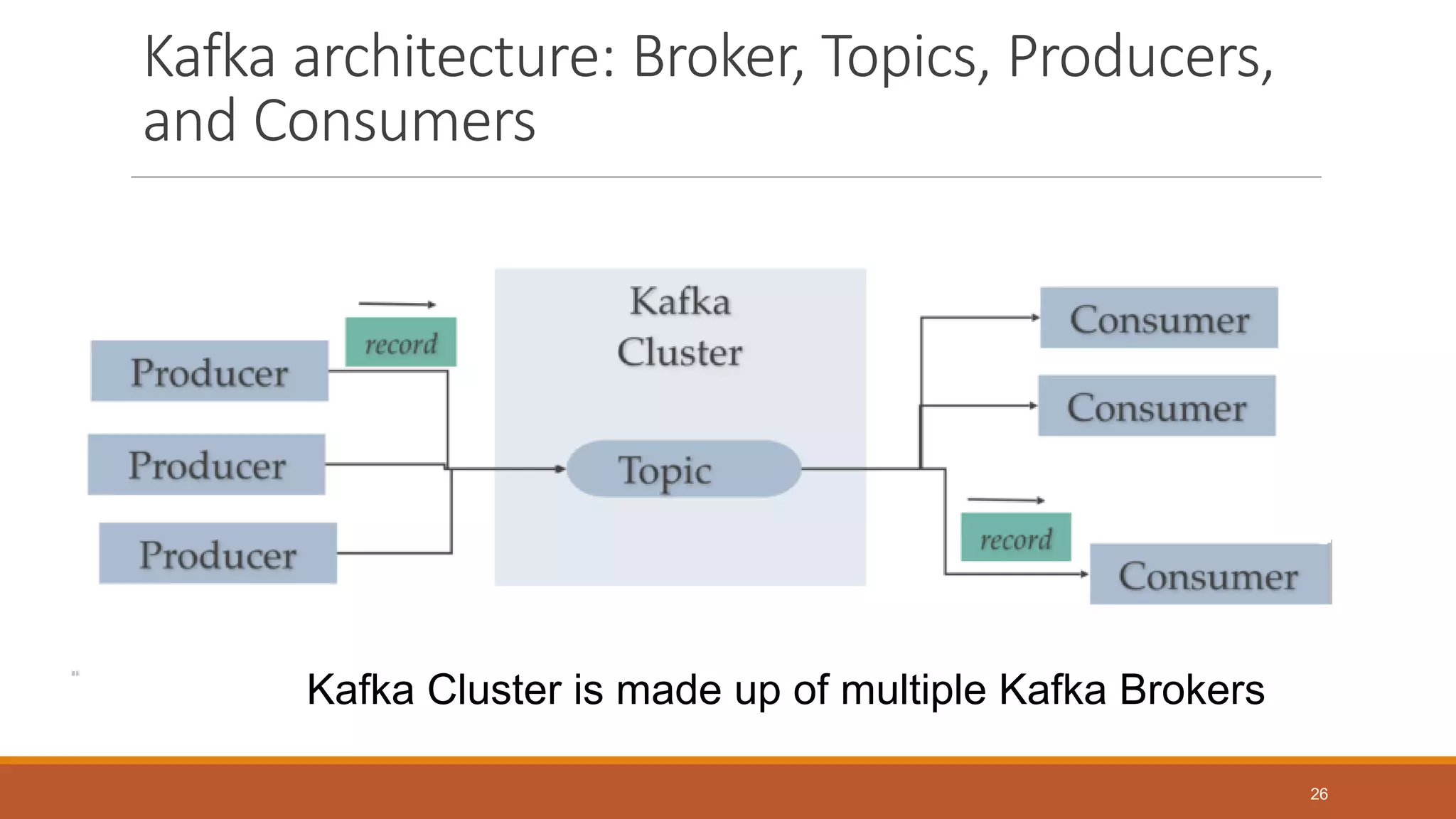

25. Kafka architecture: Broker, Topics, Producers,
and Consumers
26
Kafka Cluster is made up of multiple Kafka Brokers

26. Apache Kafka - Architecture
Producer
Consumer
27

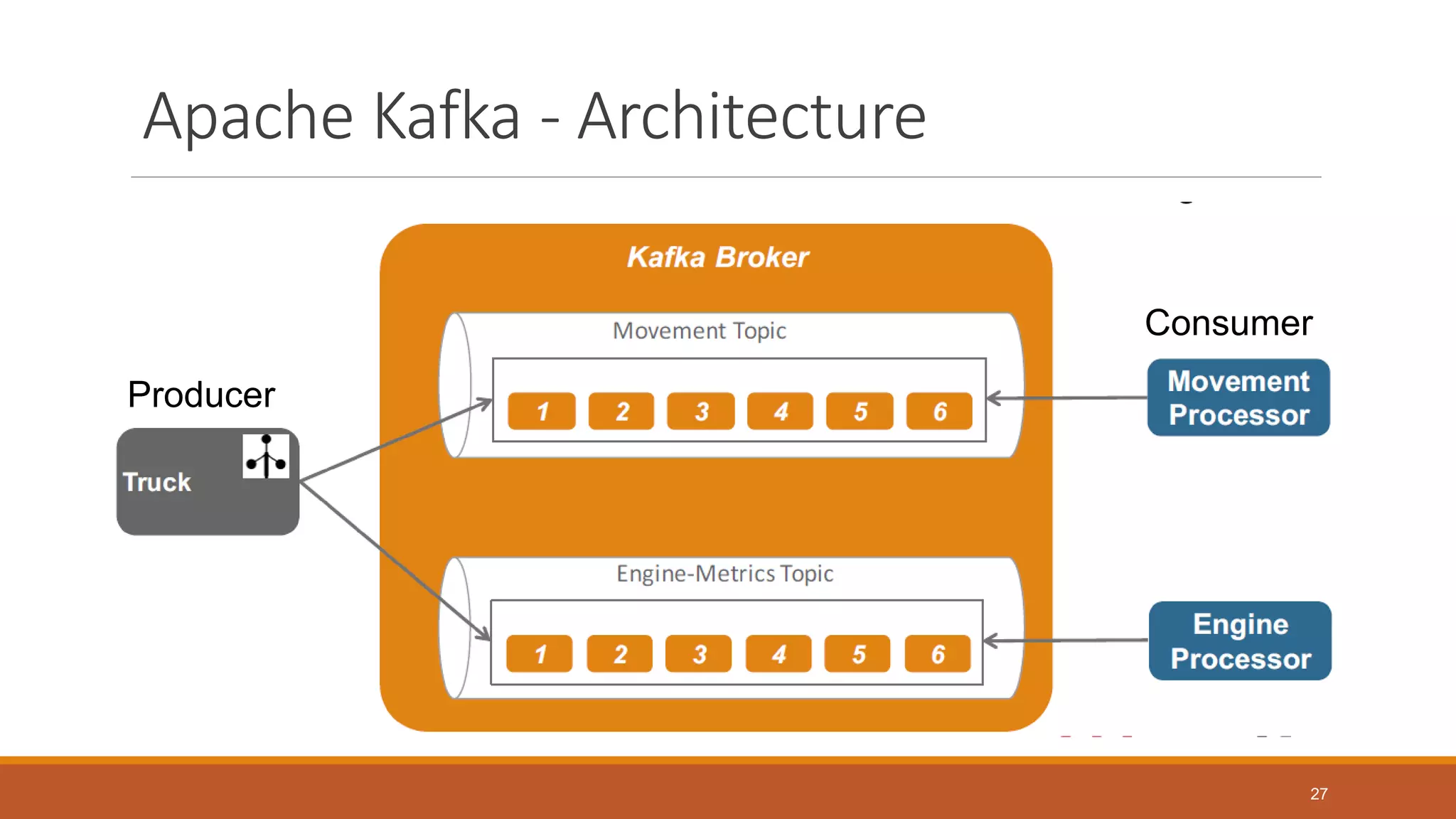

27. Apache Kafka - Architecture
Producer
Consumer
28

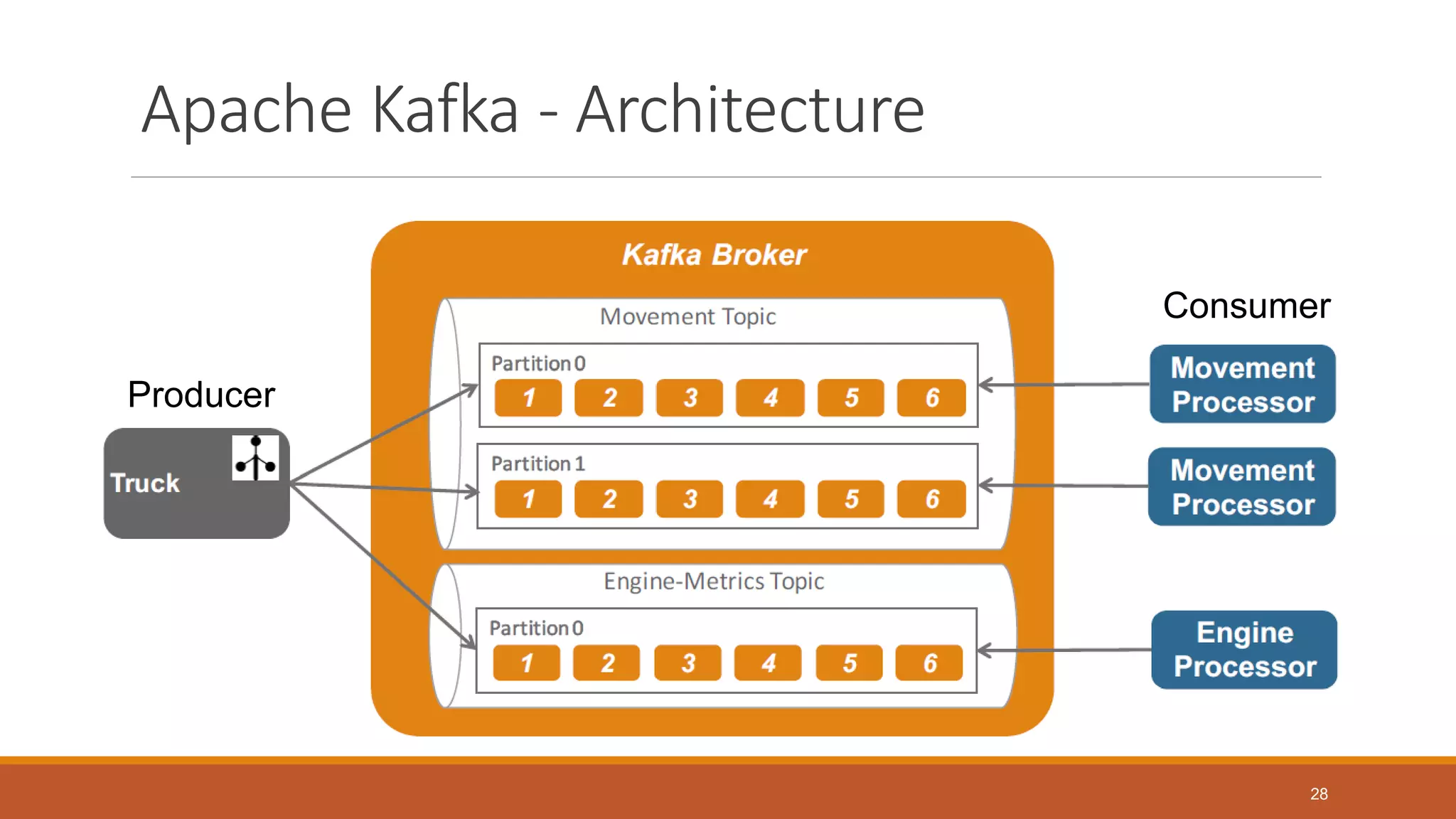

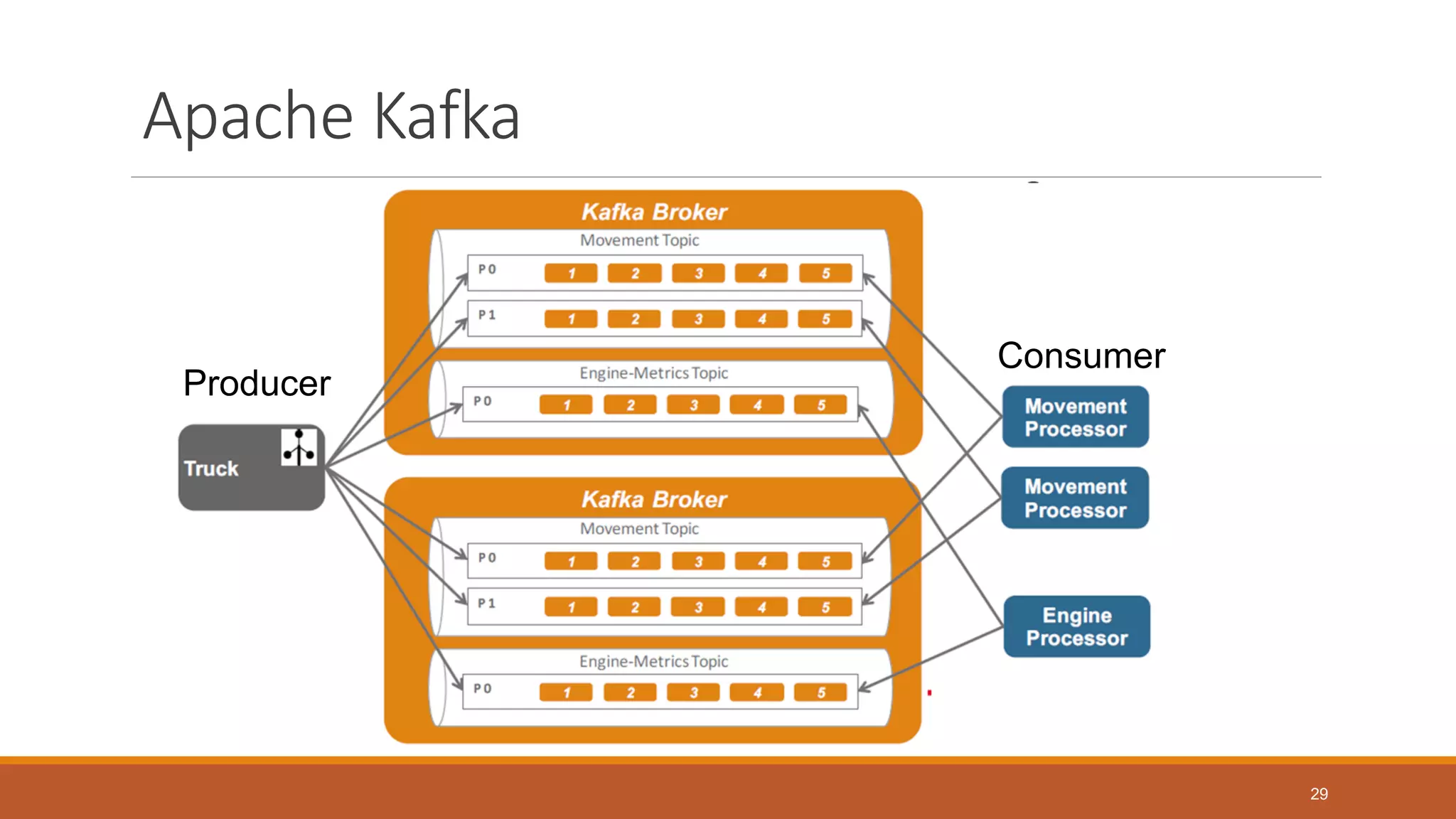

28. Apache Kafka
Producer
Consumer
29

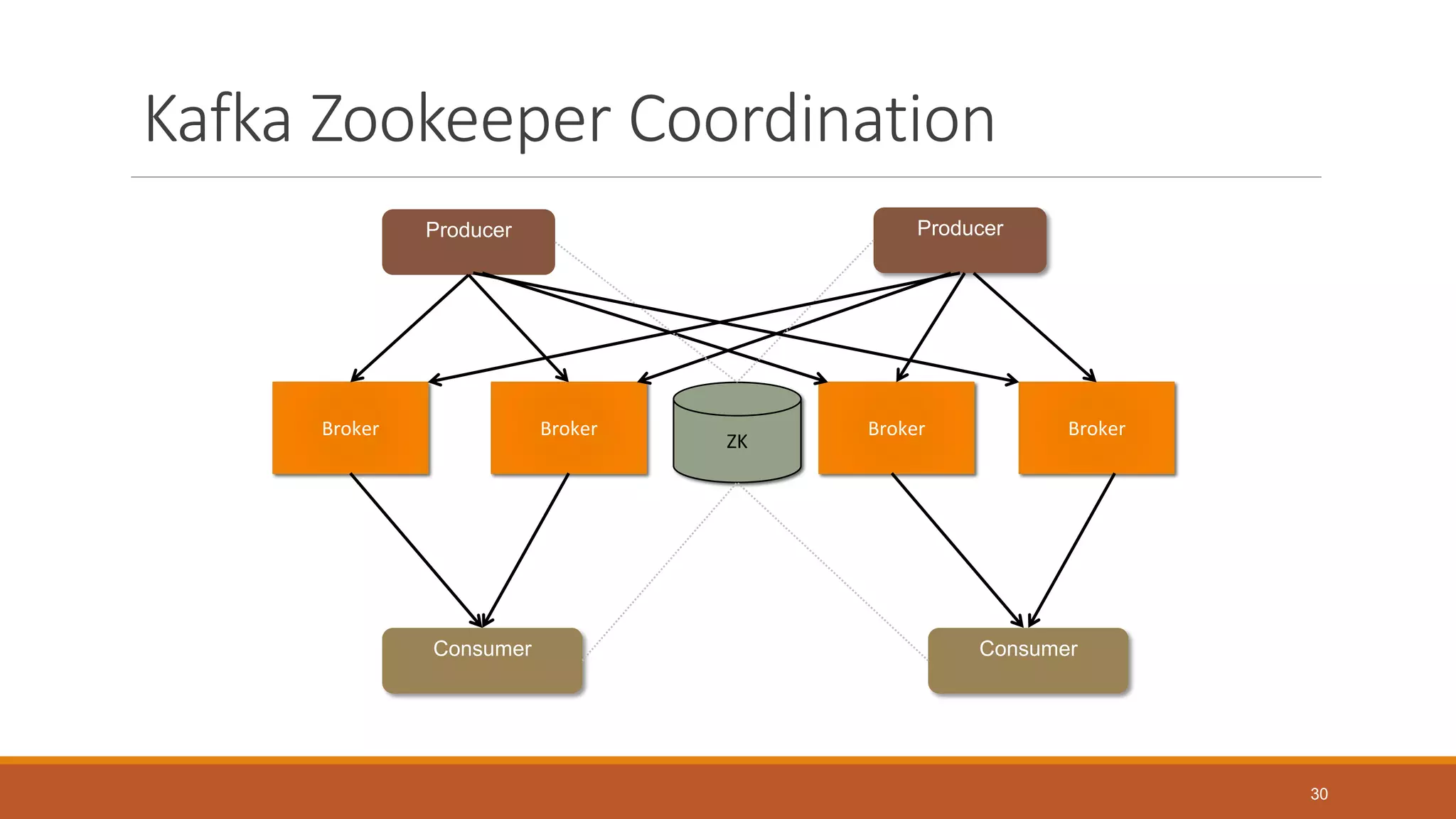

29. Kafka Zookeeper Coordination
Producer
Consumer
Producer
Broker Broker Broker Broker
Consumer
ZK
30

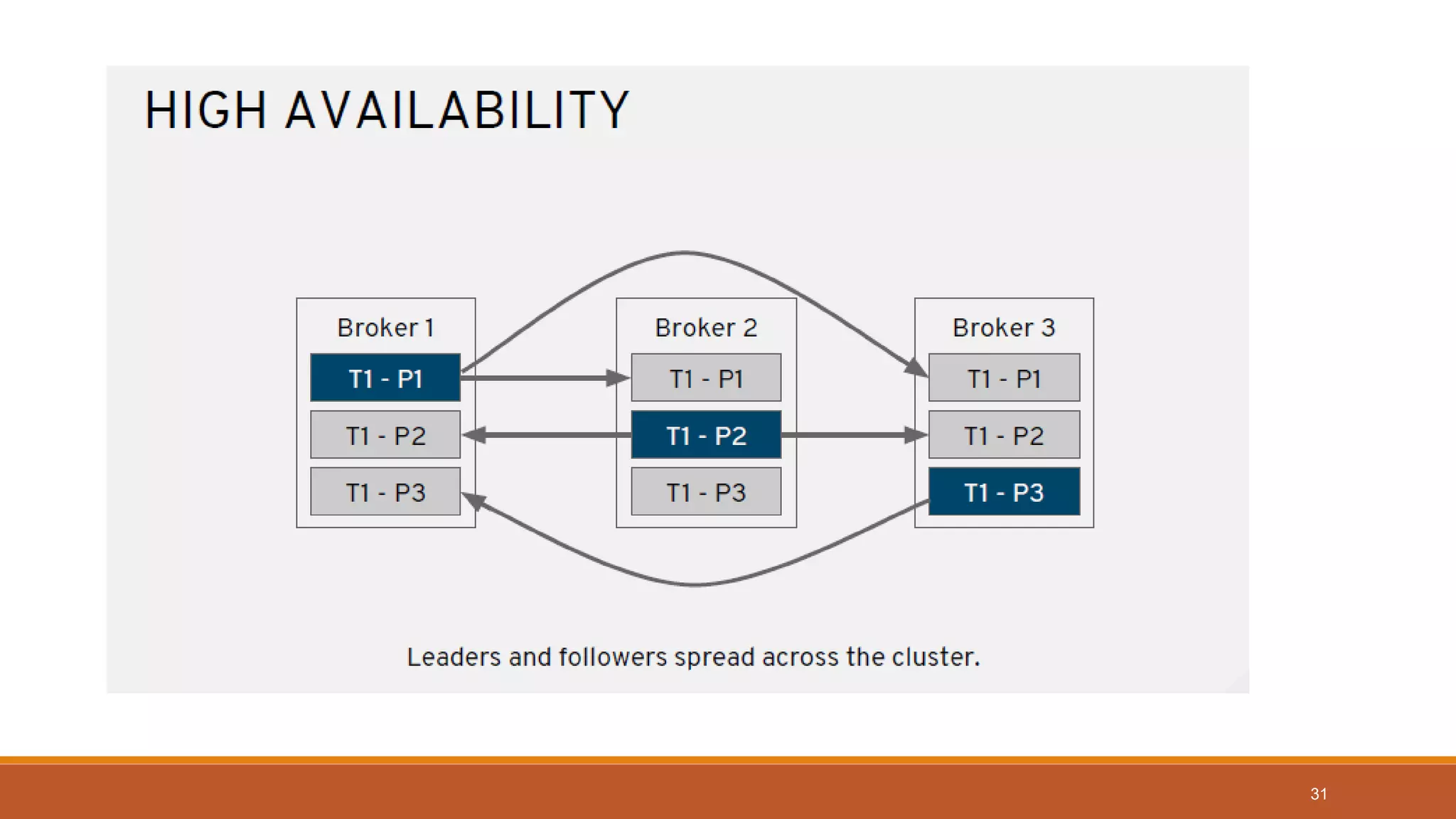

30. 31

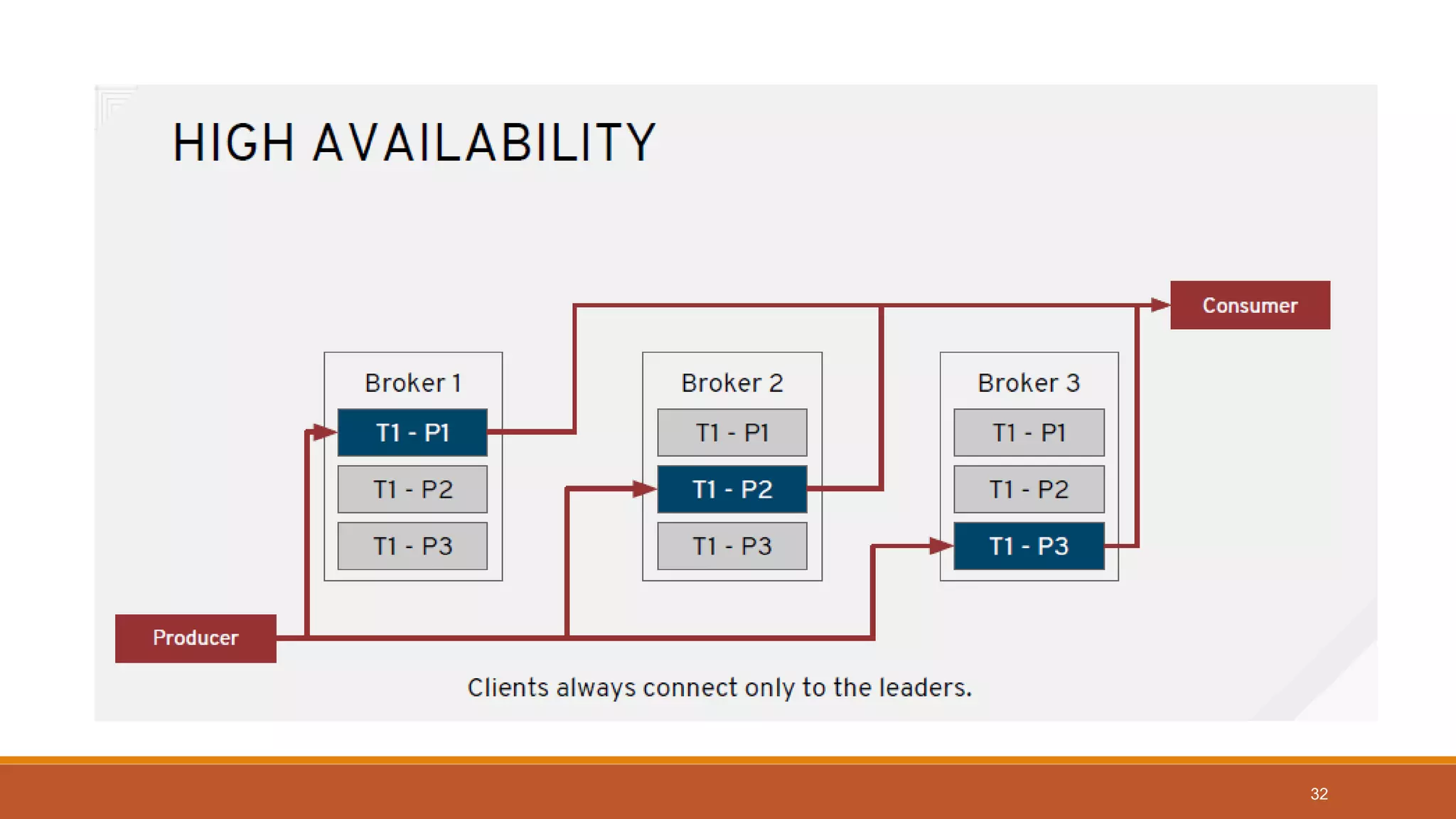

31. 32

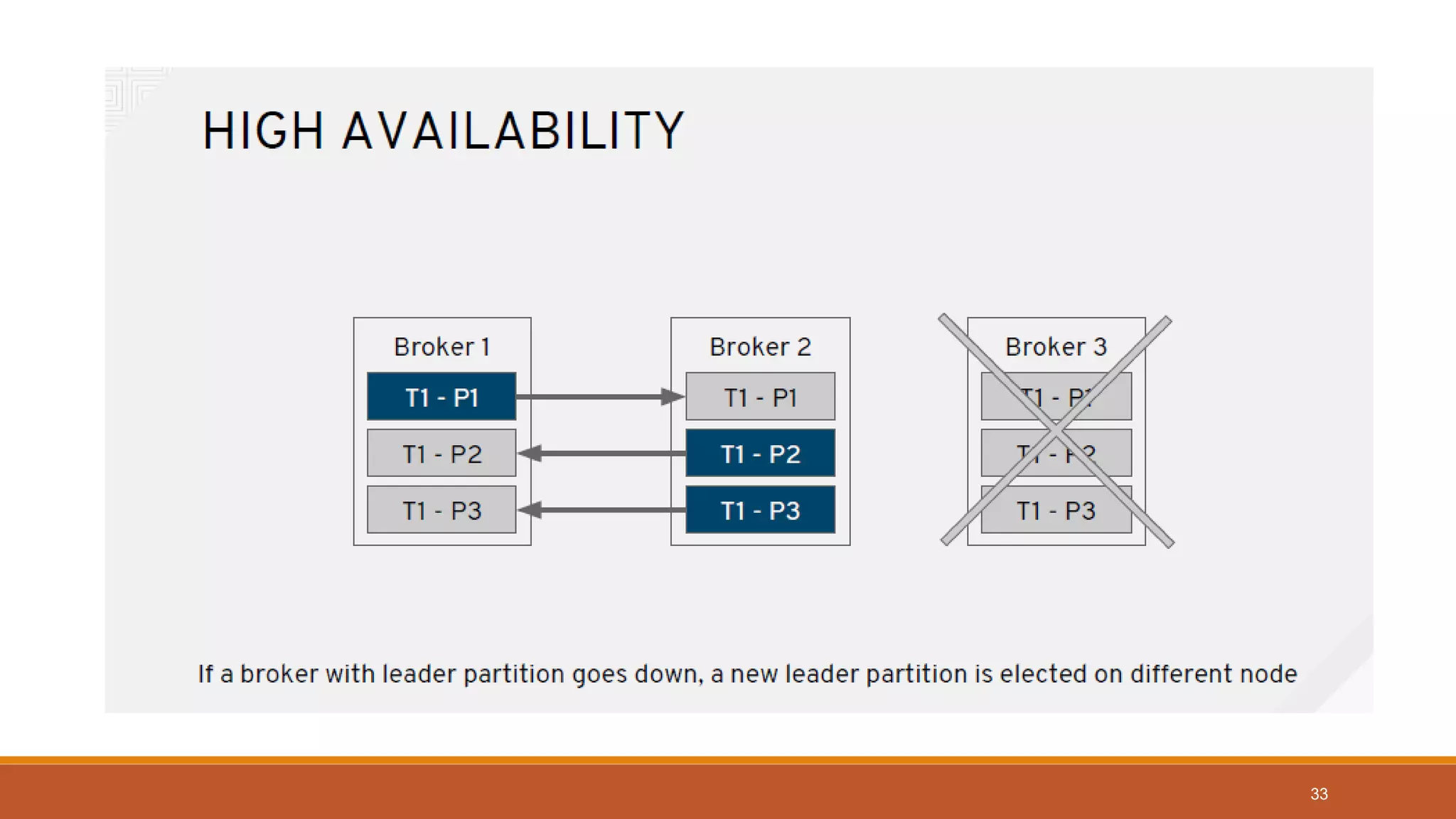

32. 33

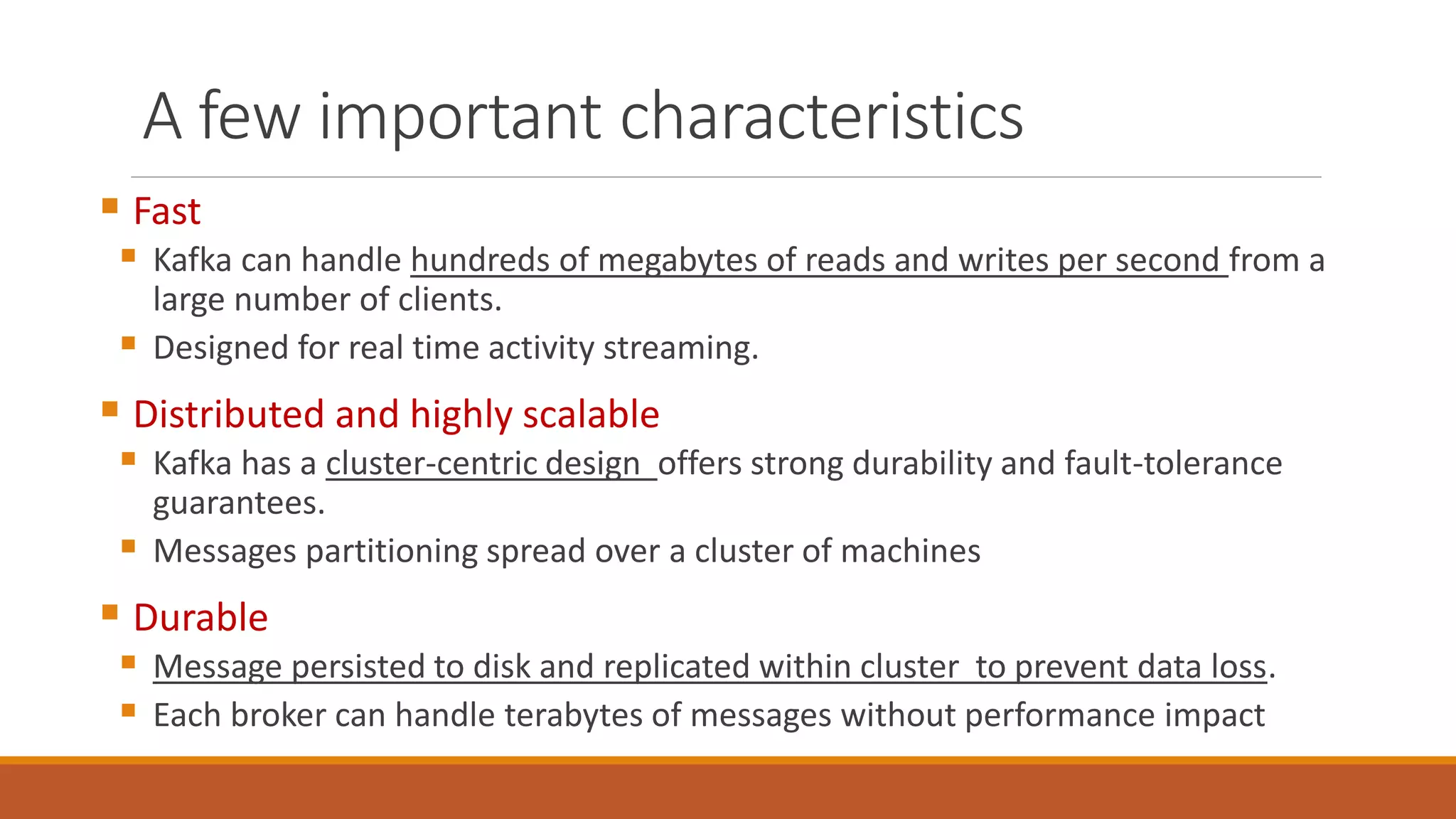

33. A few important characteristics
 Fast
 Kafka can handle hundreds of megabytes of reads and writes per second from a
large number of clients.
 Designed for real time activity streaming.
 Distributed and highly scalable
 Kafka has a cluster-centric design offers strong durability and fault-tolerance
guarantees.
 Messages partitioning spread over a cluster of machines
 Durable
 Message persisted to disk and replicated within cluster to prevent data loss.
 Each broker can handle terabytes of messages without performance impact

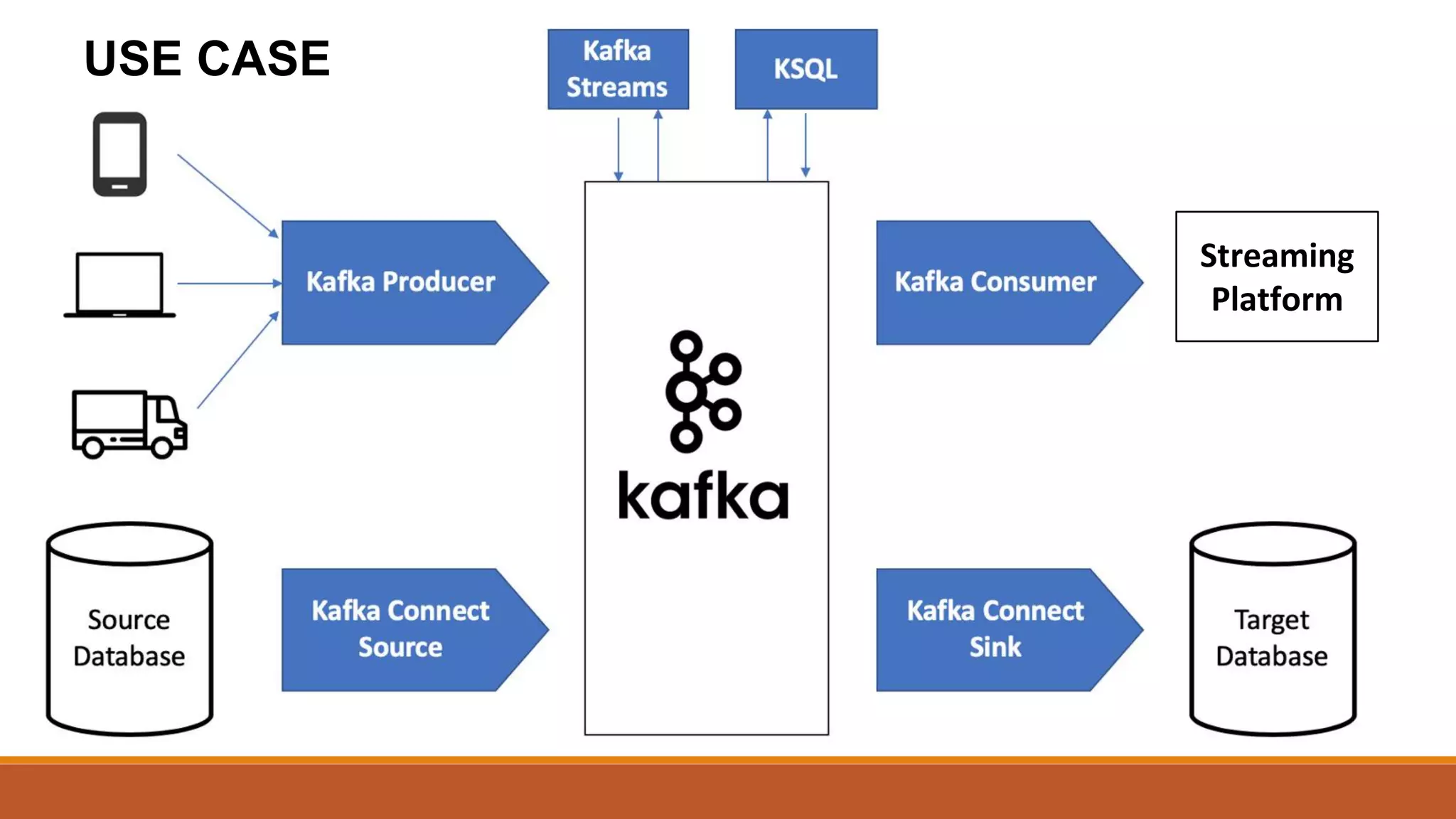

34. Streaming
Platform
USE CASE

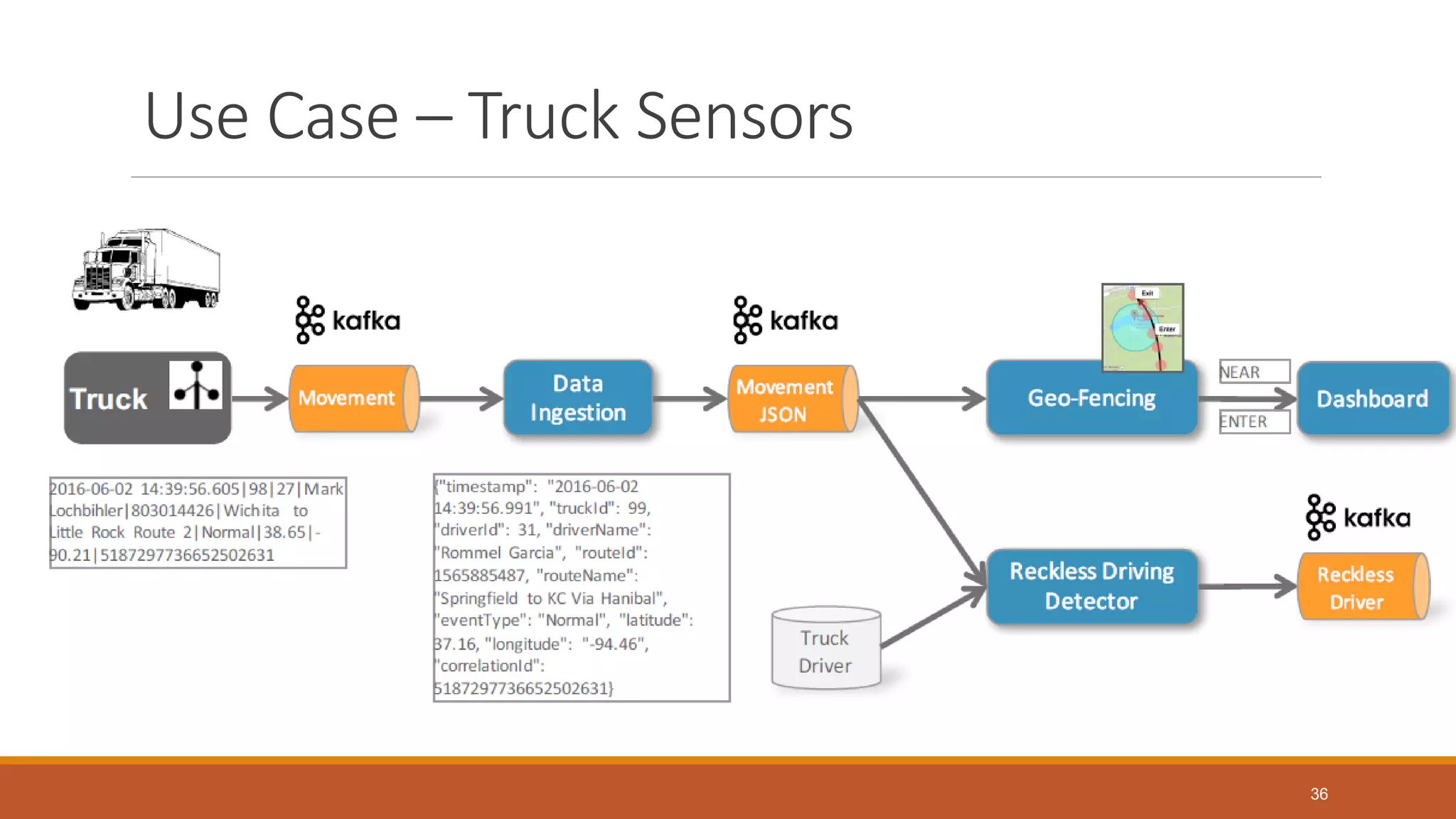

35. Use Case – Truck Sensors
36

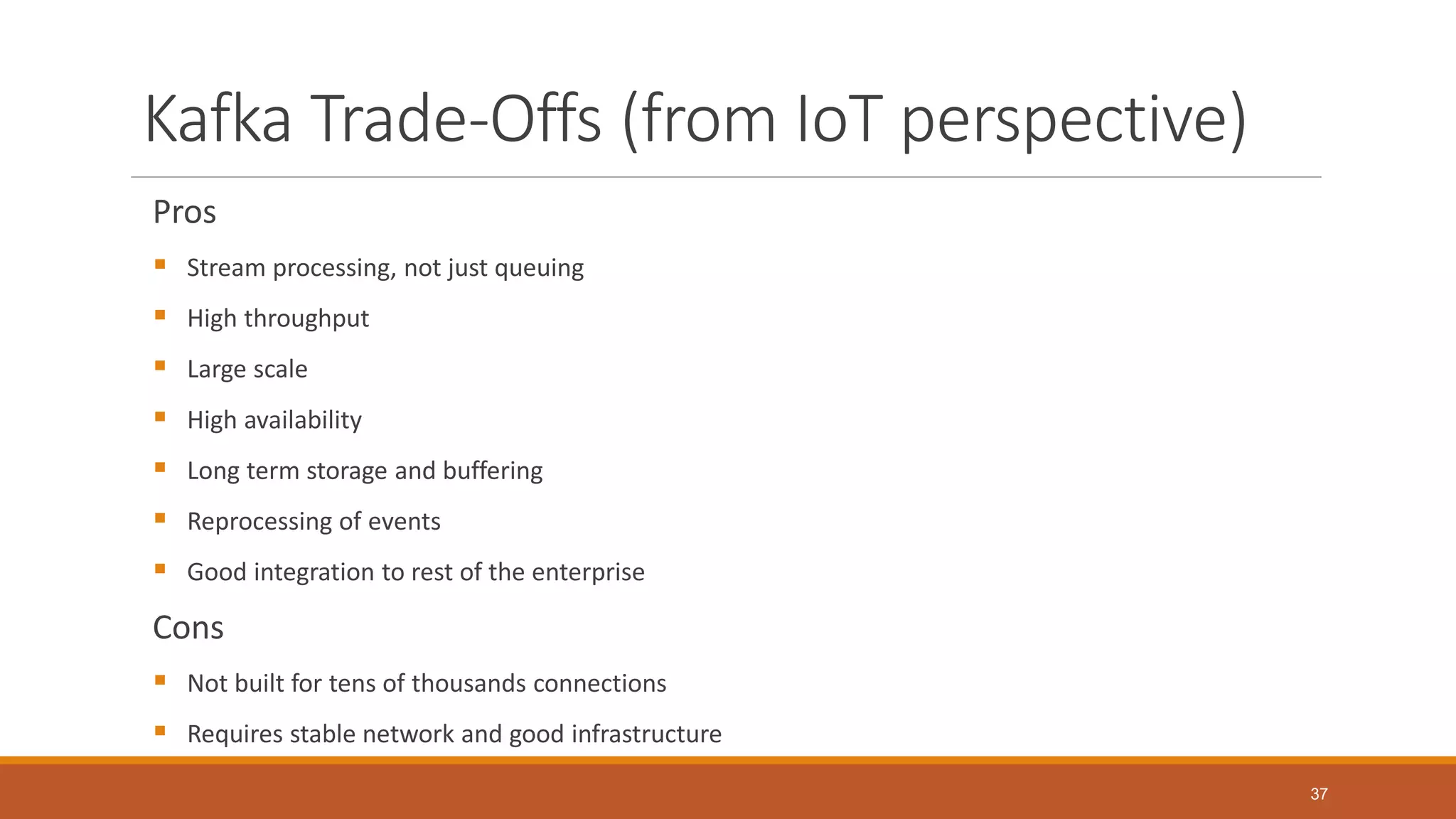

36. Kafka Trade-Offs (from IoT perspective)
Pros
 Stream processing, not just queuing
 High throughput
 Large scale
 High availability
 Long term storage and buffering
 Reprocessing of events
 Good integration to rest of the enterprise
Cons
 Not built for tens of thousands connections
 Requires stable network and good infrastructure
37

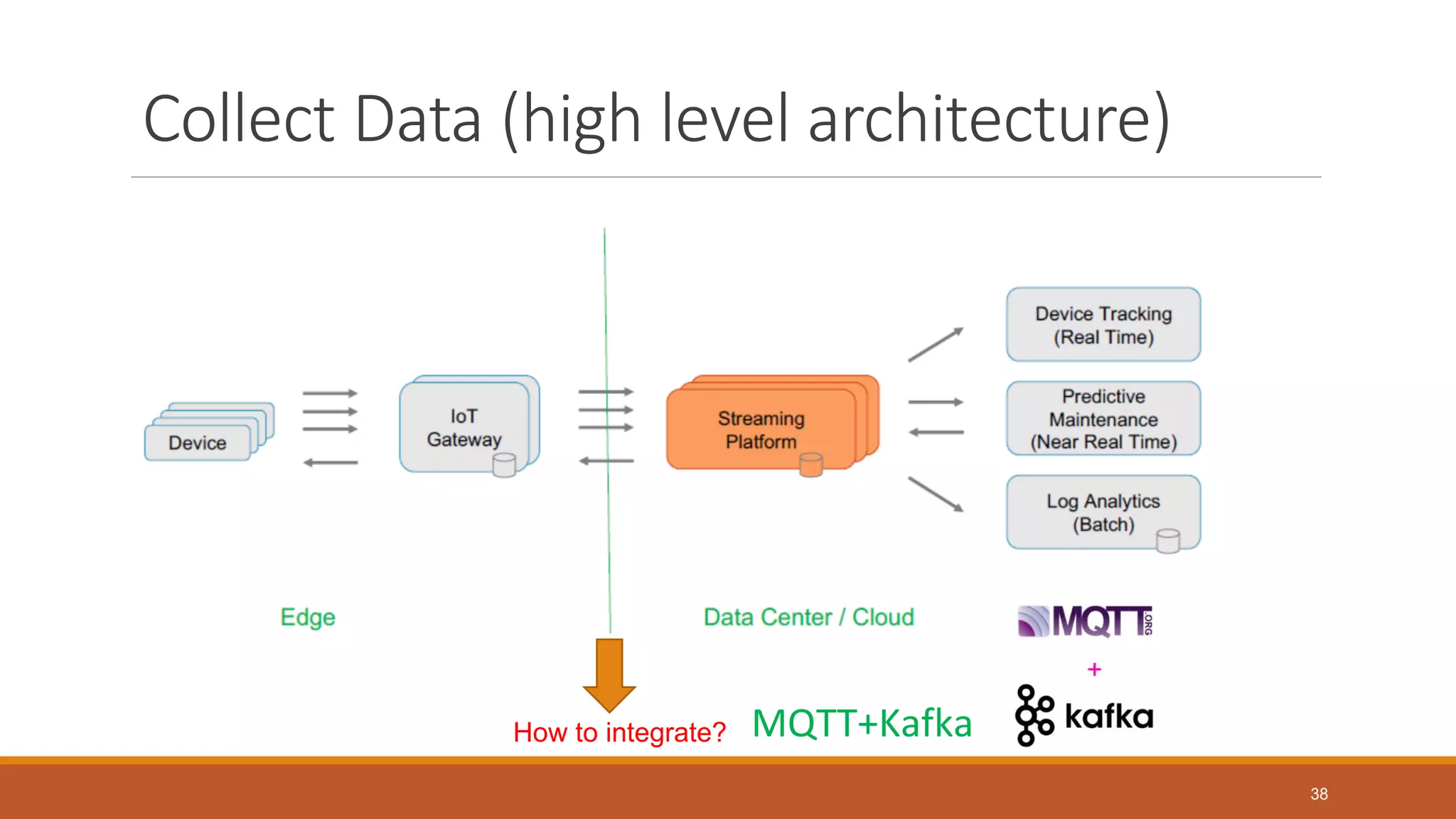

37. Collect Data (high level architecture)
38
How to integrate? MQTT+Kafka

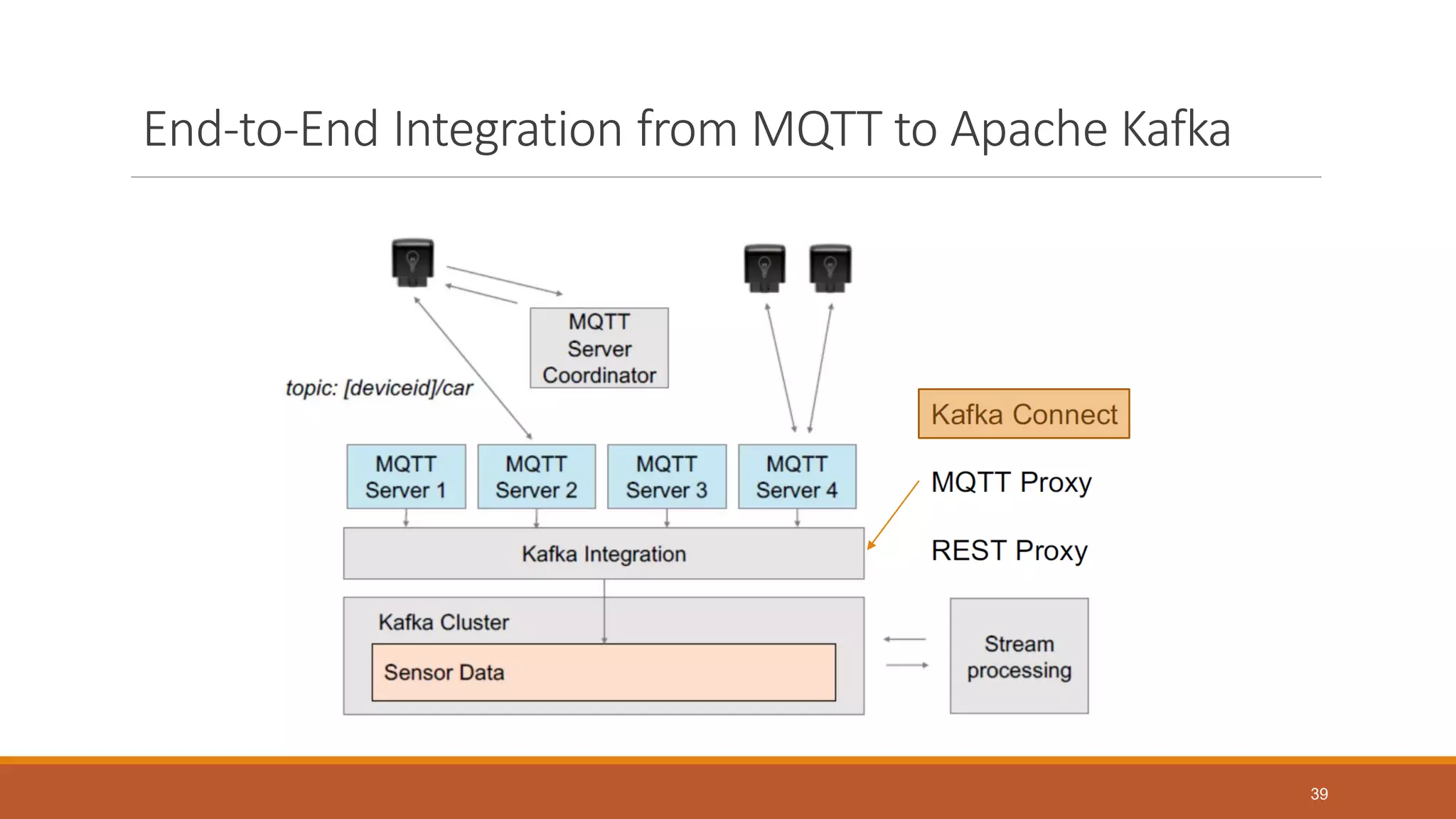

38. End-to-End Integration from MQTT to Apache Kafka
39

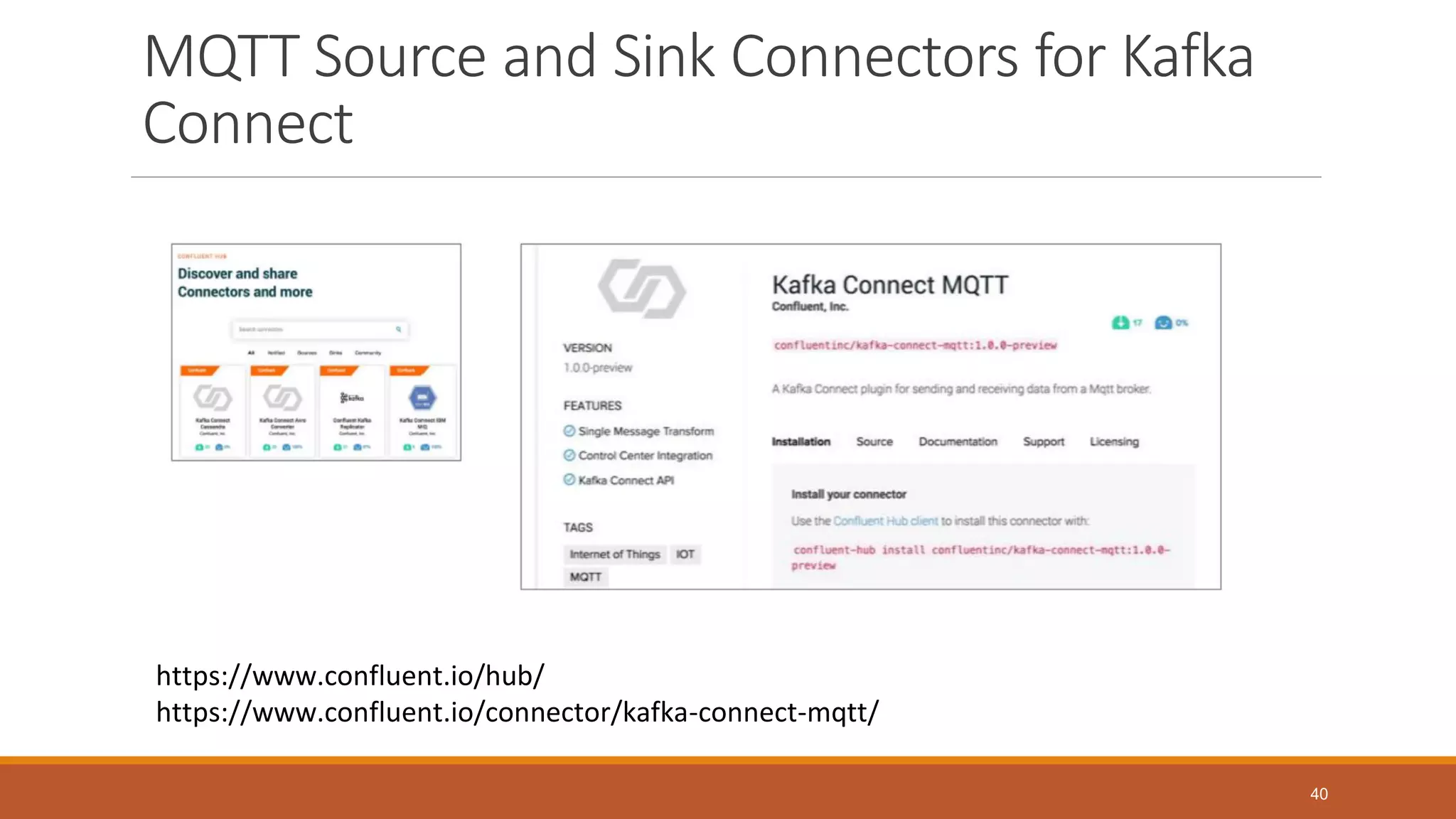

39. MQTT Source and Sink Connectors for Kafka
Connect
40
https://www.confluent.io/hub/
https://www.confluent.io/connector/kafka-connect-mqtt/

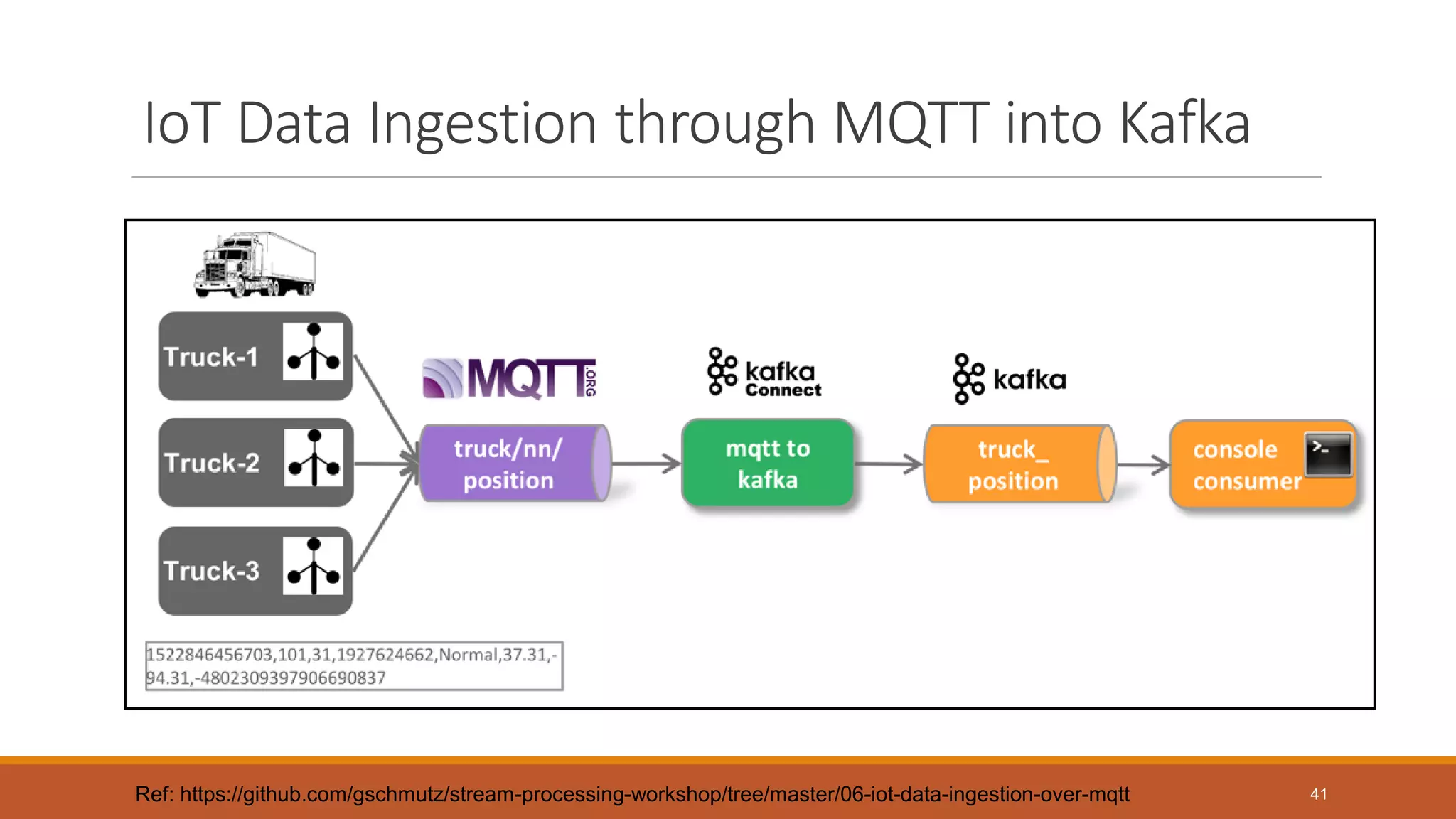

40. IoT Data Ingestion through MQTT into Kafka
41Ref: https://github.com/gschmutz/stream-processing-workshop/tree/master/06-iot-data-ingestion-over-mqtt

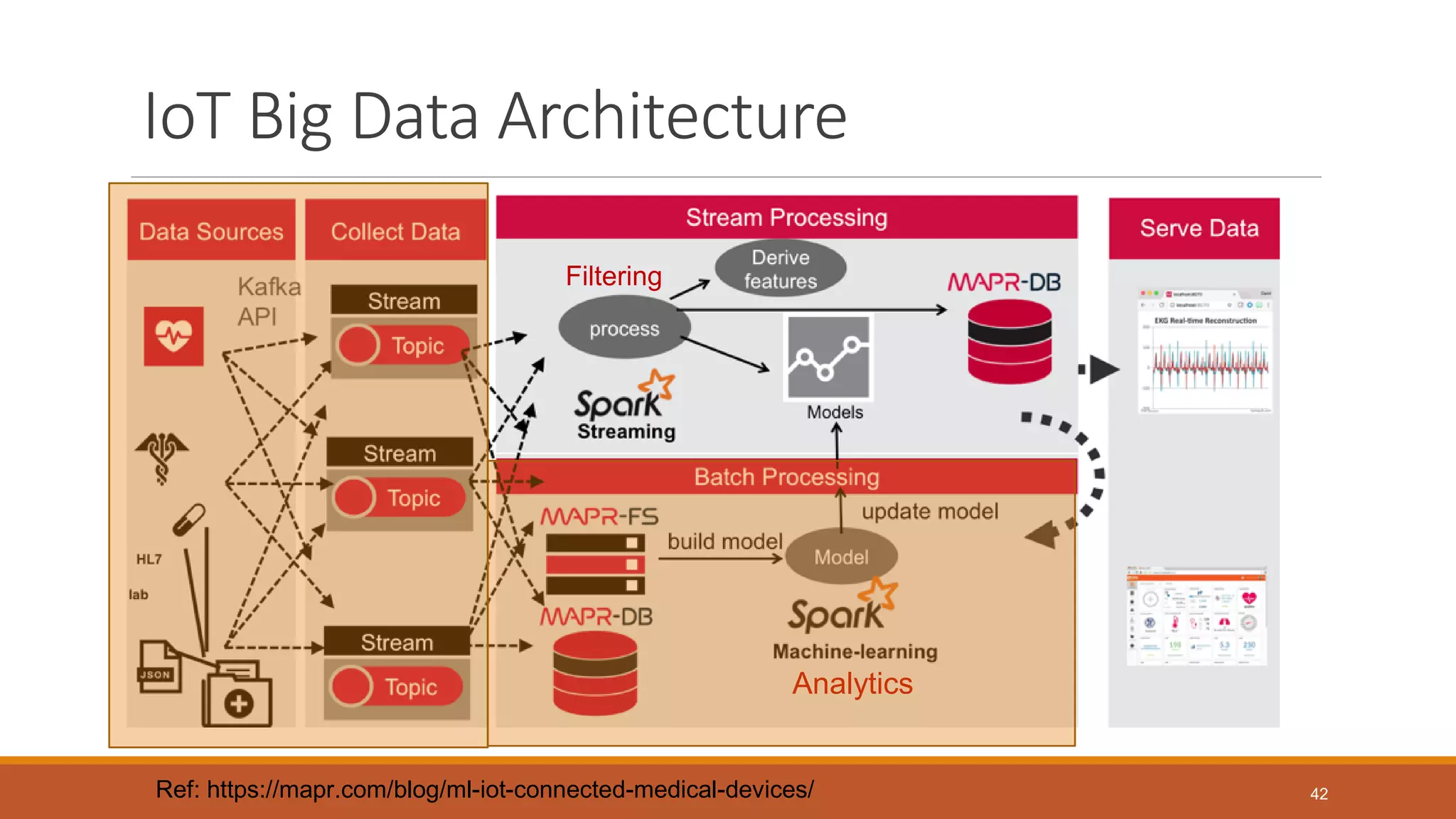

41. IoT Big Data Architecture
Filtering
Analytics
Ref: https://mapr.com/blog/ml-iot-connected-medical-devices/ 42

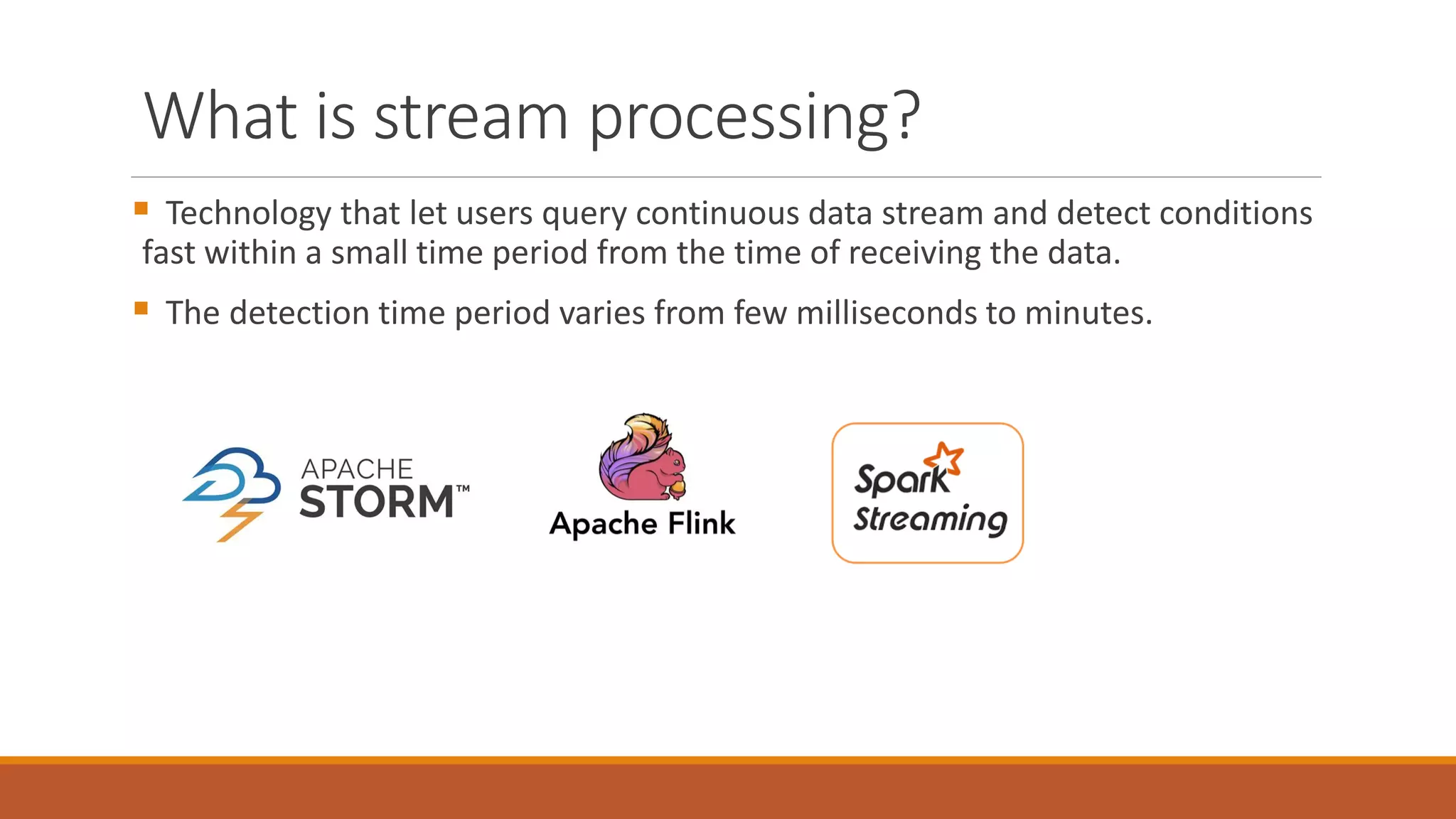

42. What is stream processing?
 Technology that let users query continuous data stream and detect conditions
fast within a small time period from the time of receiving the data.
 The detection time period varies from few milliseconds to minutes.

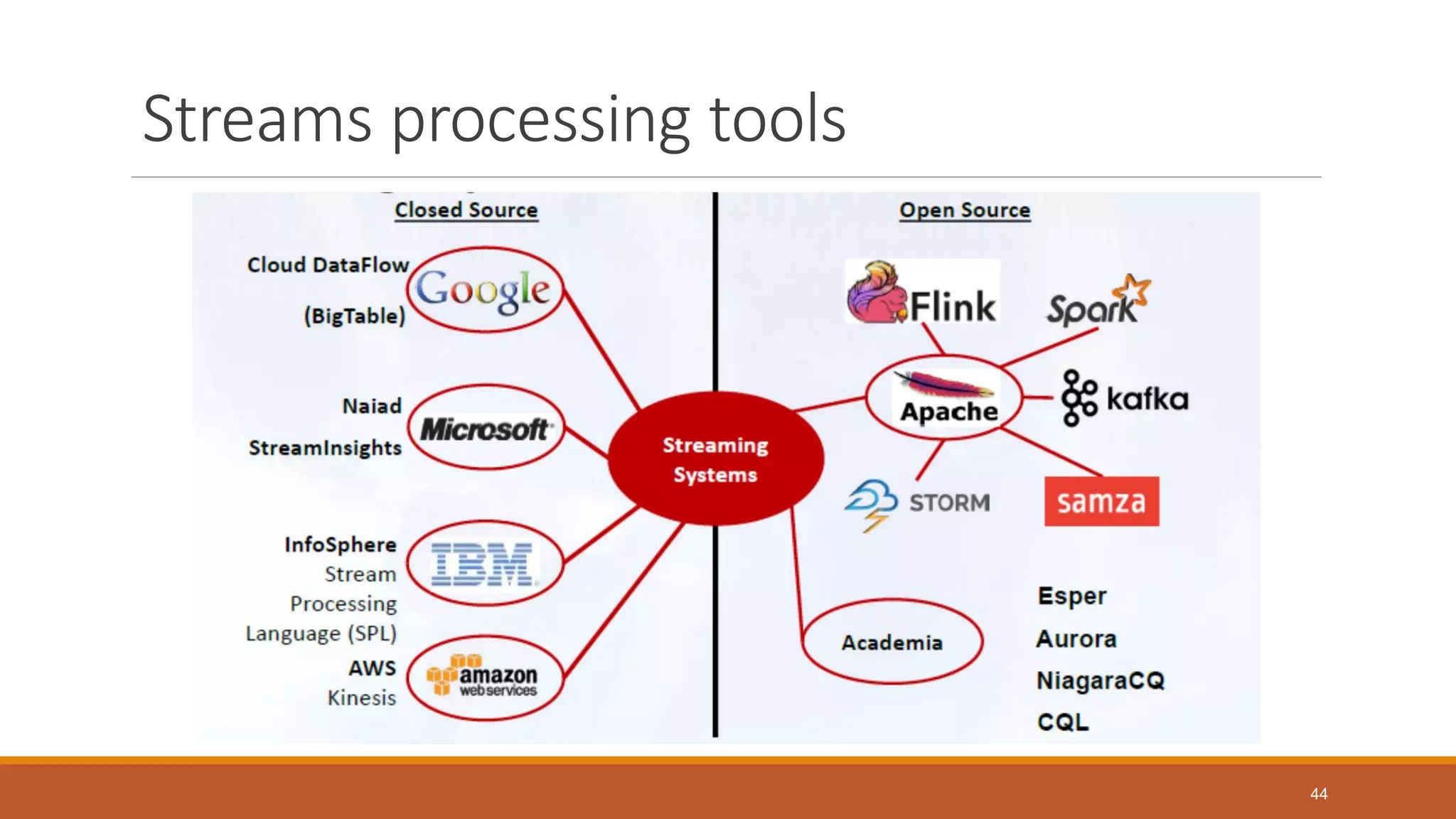

43. Streams processing tools
44

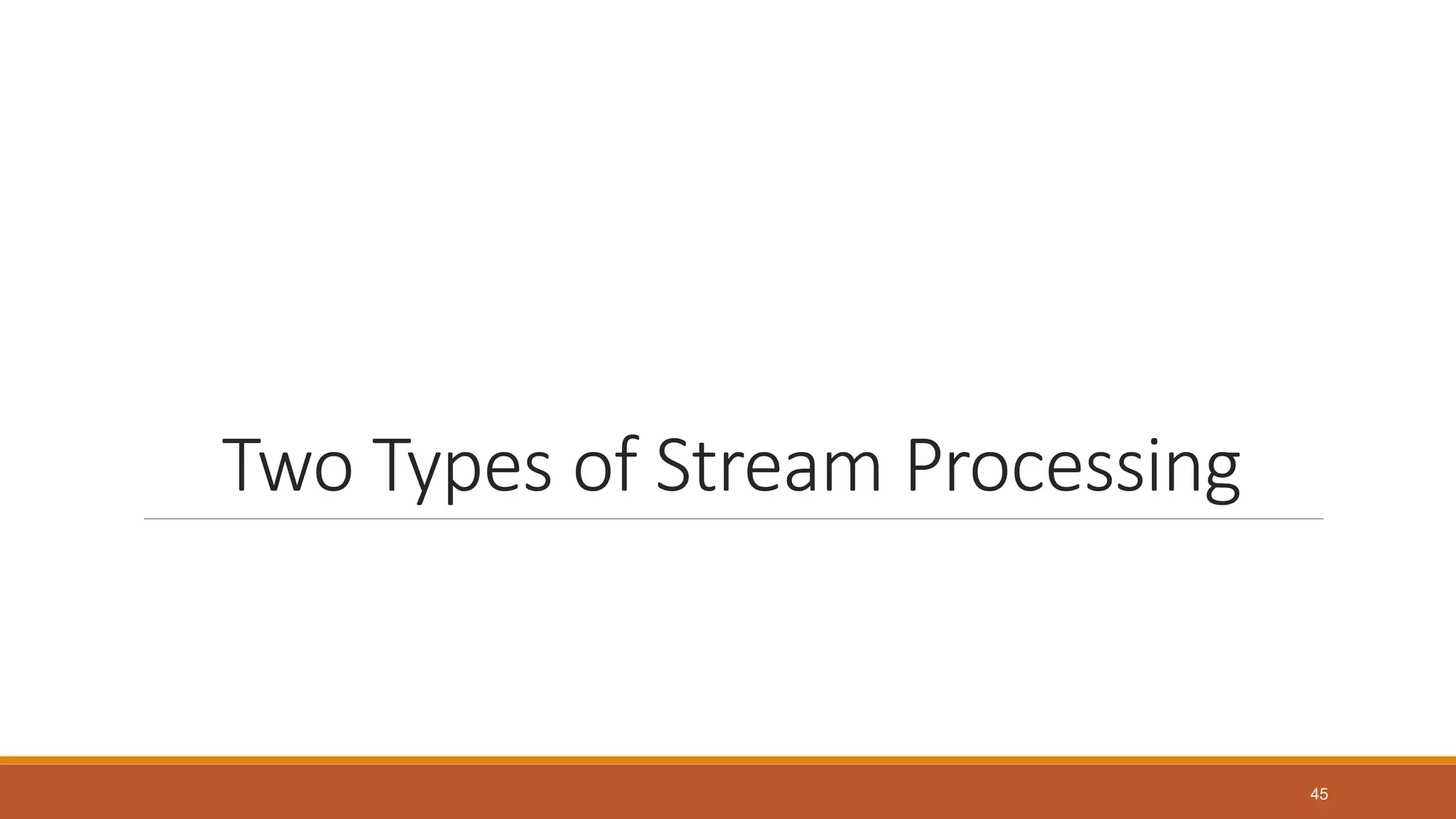

44. Two Types of Stream Processing

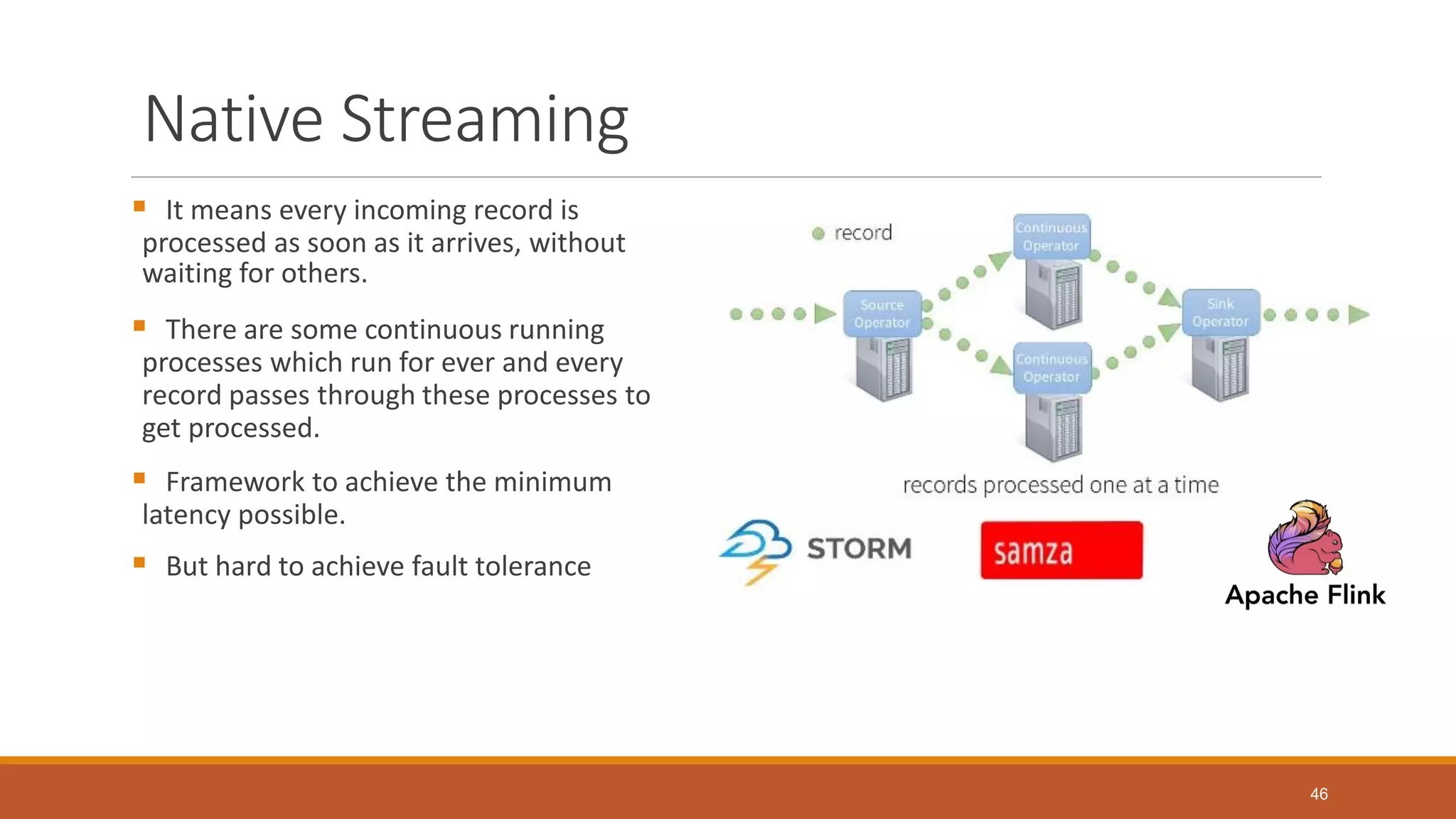

45

45. Native Streaming
 It means every incoming record is
processed as soon as it arrives, without
waiting for others.
 There are some continuous running
processes which run for ever and every
record passes through these processes to
get processed.
 Framework to achieve the minimum
latency possible.
 But hard to achieve fault tolerance
46

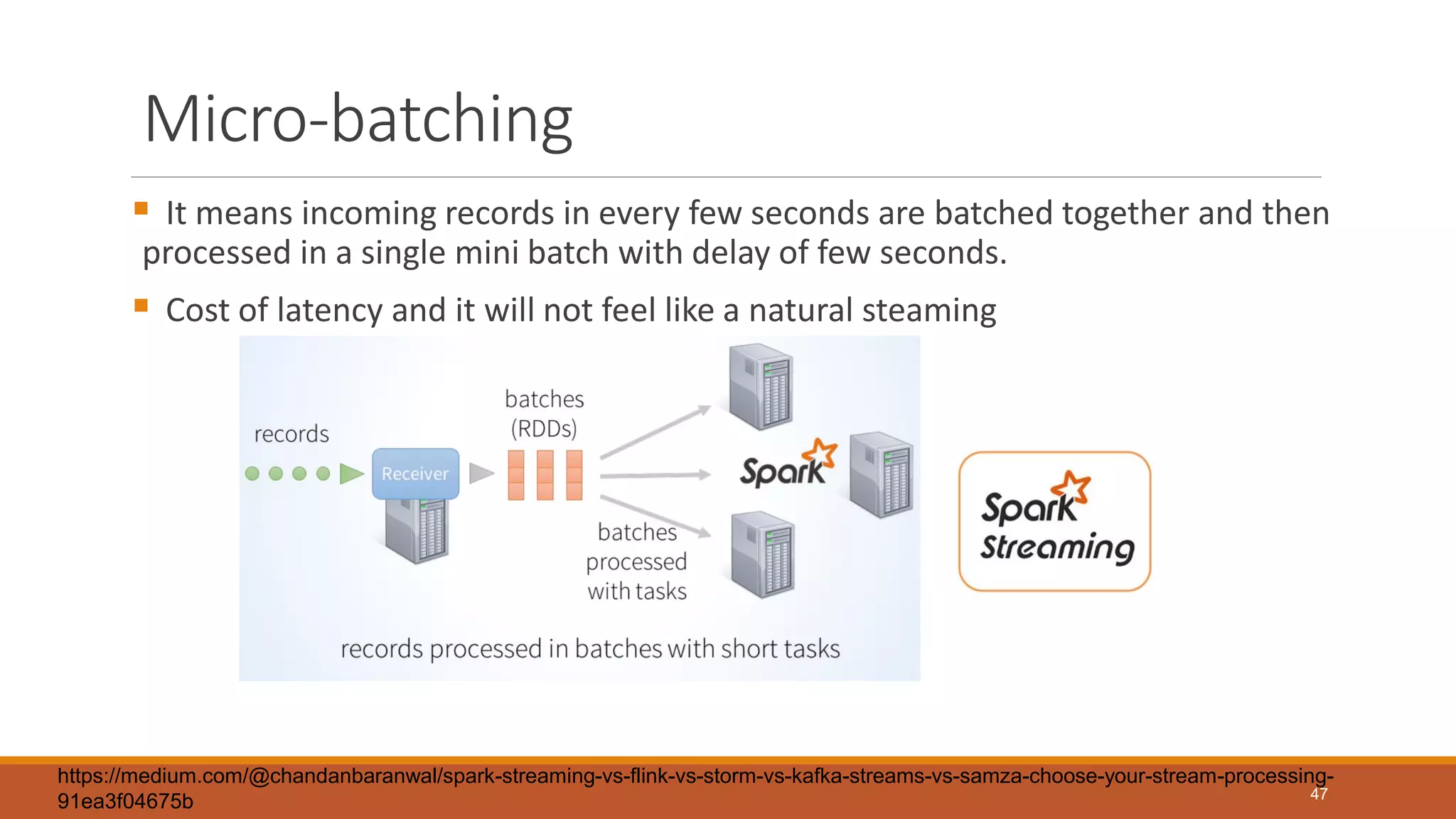

46. Micro-batching
 It means incoming records in every few seconds are batched together and then
processed in a single mini batch with delay of few seconds.
 Cost of latency and it will not feel like a natural steaming
47
https://medium.com/@chandanbaranwal/spark-streaming-vs-flink-vs-storm-vs-kafka-streams-vs-samza-choose-your-stream-processing-
91ea3f04675b

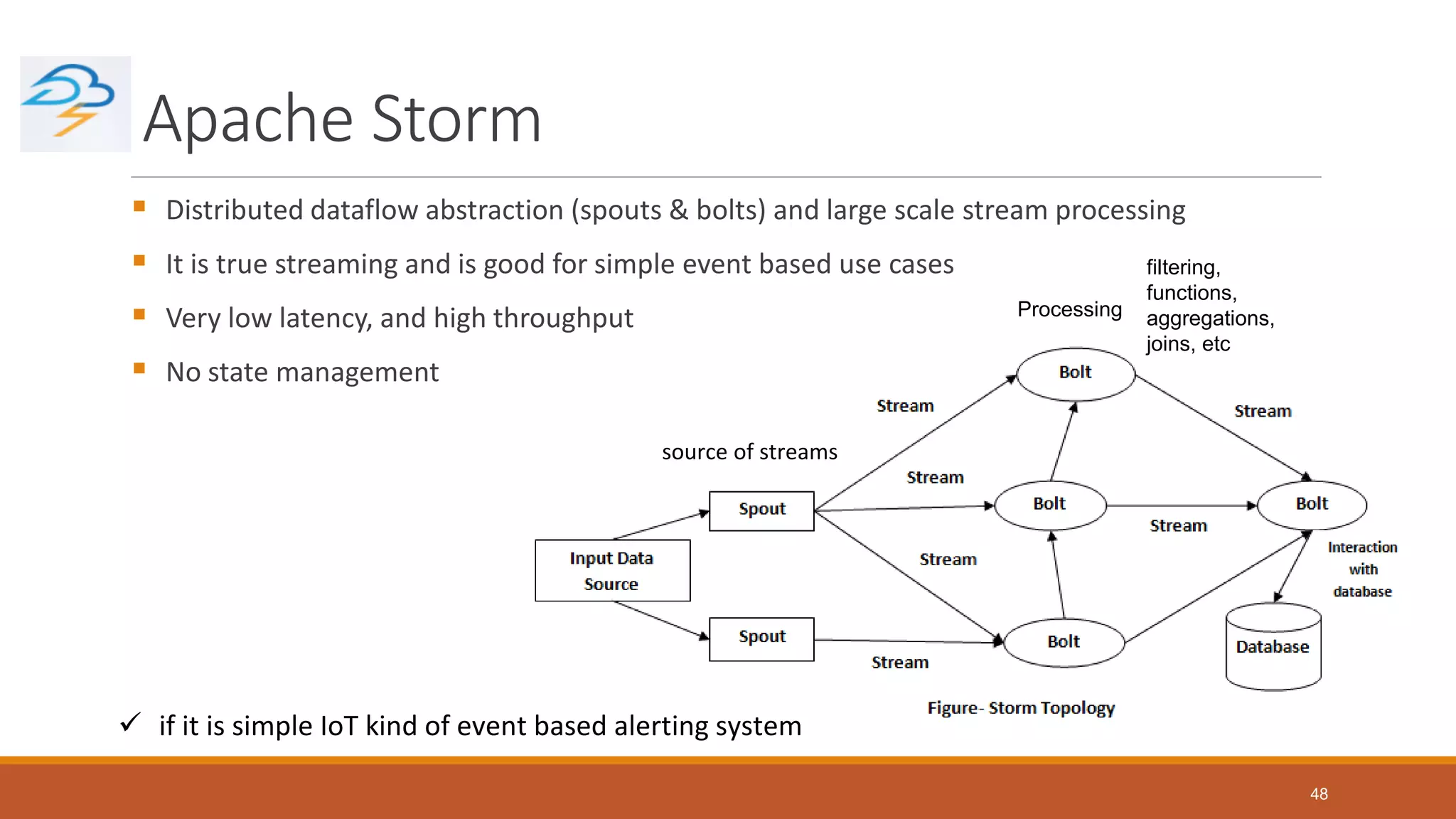

47. Apache Storm
 Distributed dataflow abstraction (spouts & bolts) and large scale stream processing
 It is true streaming and is good for simple event based use cases
 Very low latency, and high throughput
 No state management
48
 if it is simple IoT kind of event based alerting system
source of streams
filtering,
functions,
aggregations,
joins, etc
Processing

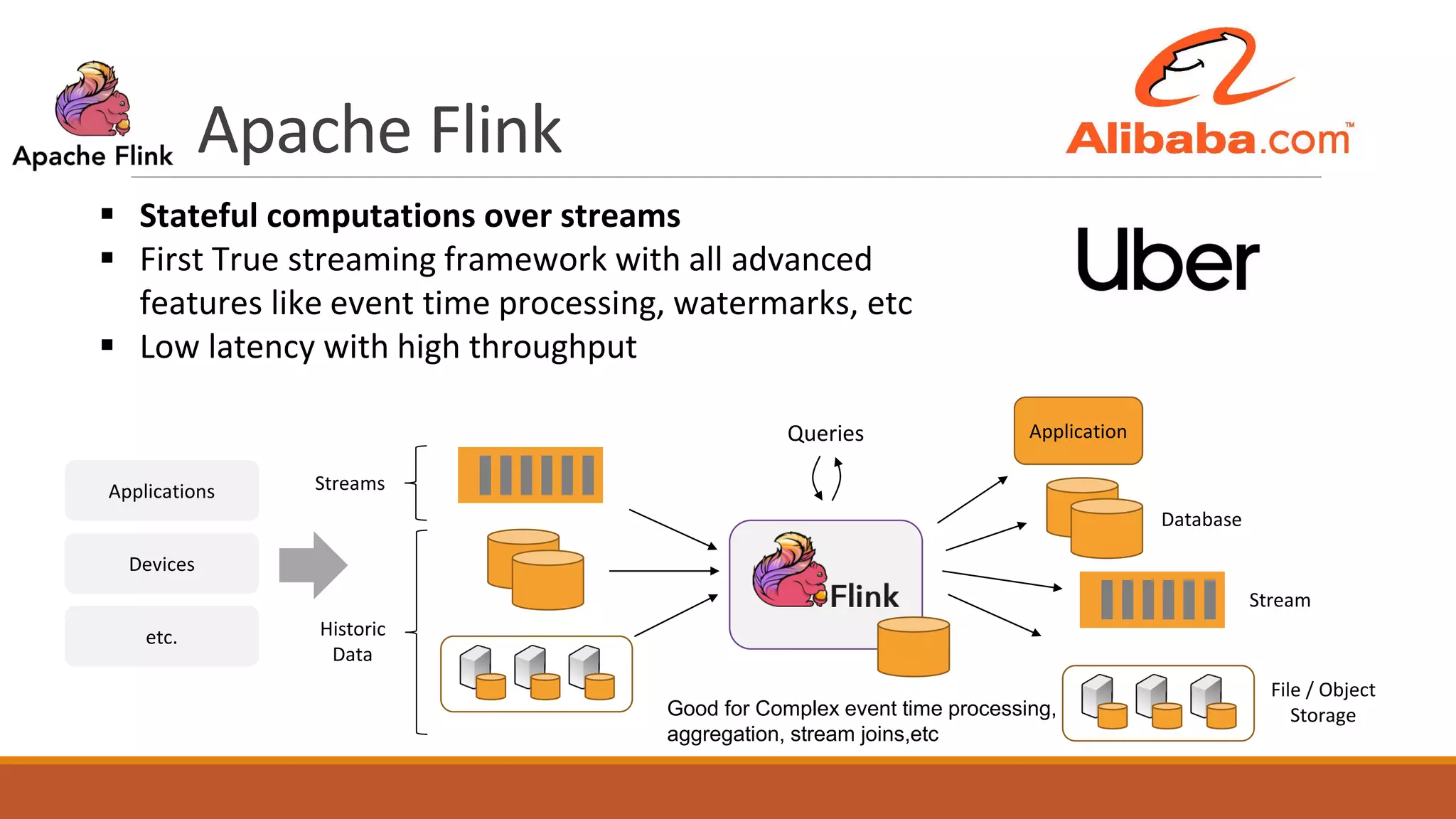

48. Apache Flink
Queries
Applications
Devices
etc.
Database
Stream
File / Object
Storage
 Stateful computations over streams
 First True streaming framework with all advanced
features like event time processing, watermarks, etc
 Low latency with high throughput
Historic
Data
Streams
Application
Good for Complex event time processing,
aggregation, stream joins,etc

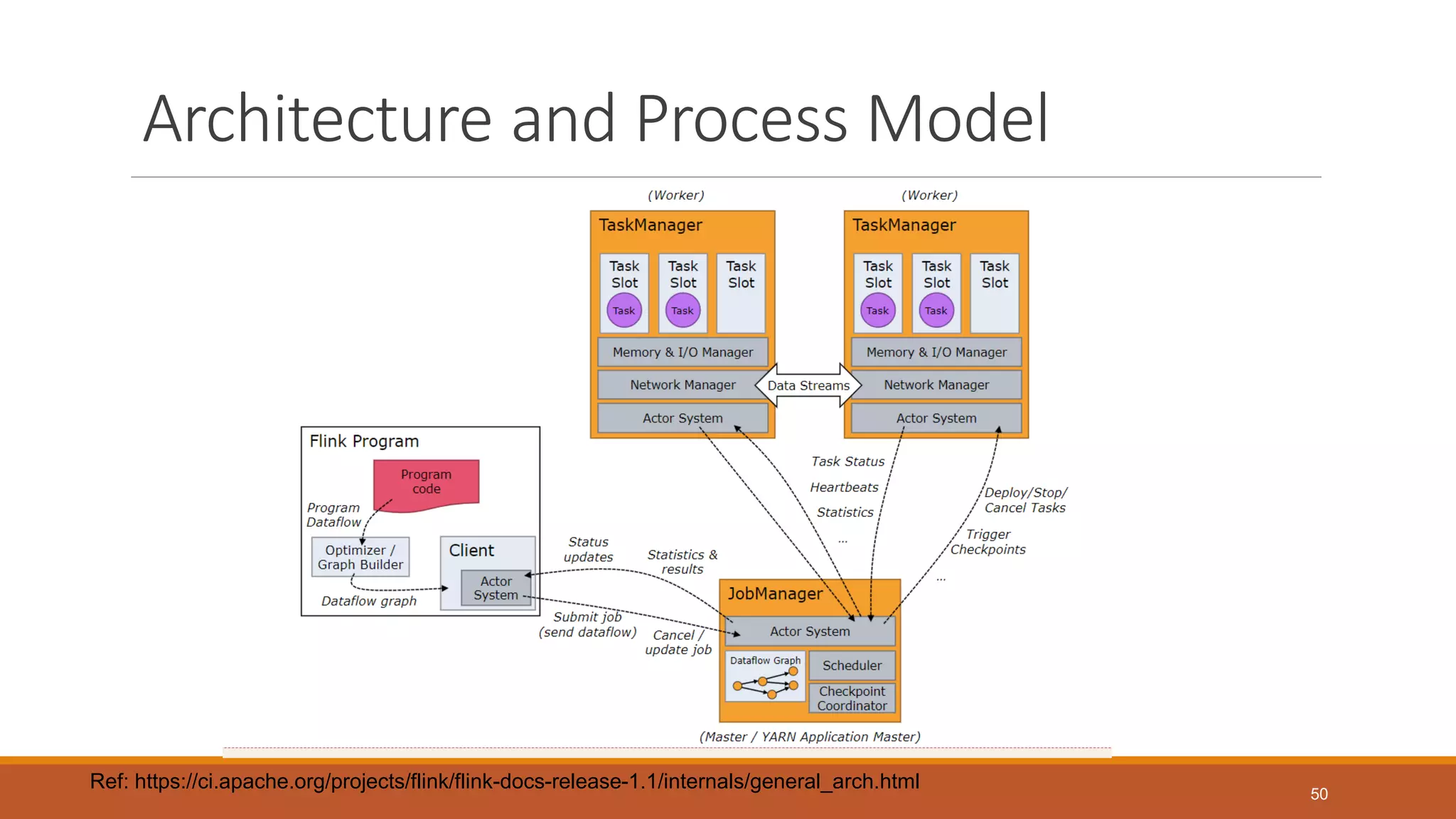

49. Architecture and Process Model
50
Ref: https://ci.apache.org/projects/flink/flink-docs-release-1.1/internals/general_arch.html

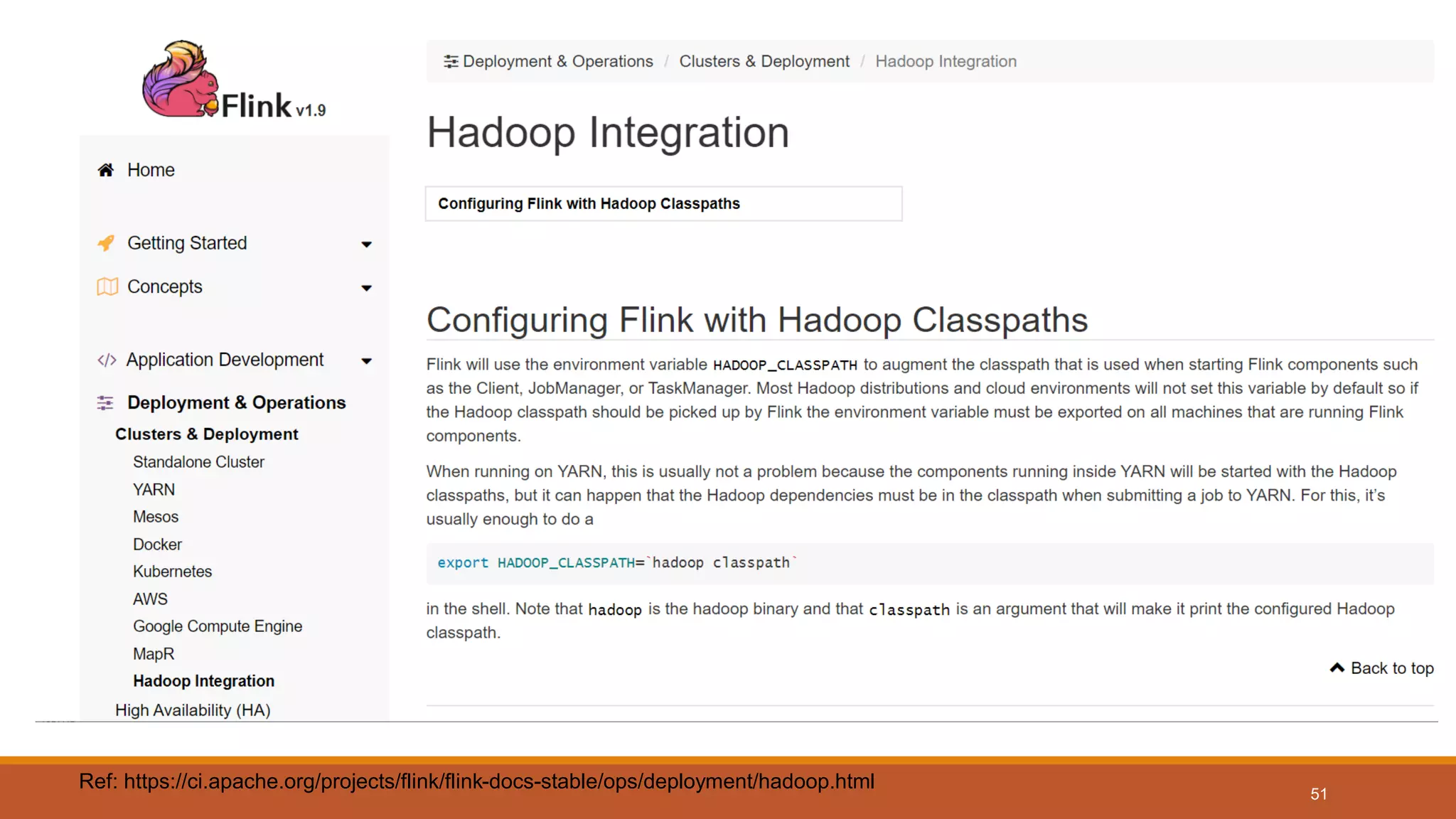

50. 51
Ref: https://ci.apache.org/projects/flink/flink-docs-stable/ops/deployment/hadoop.html

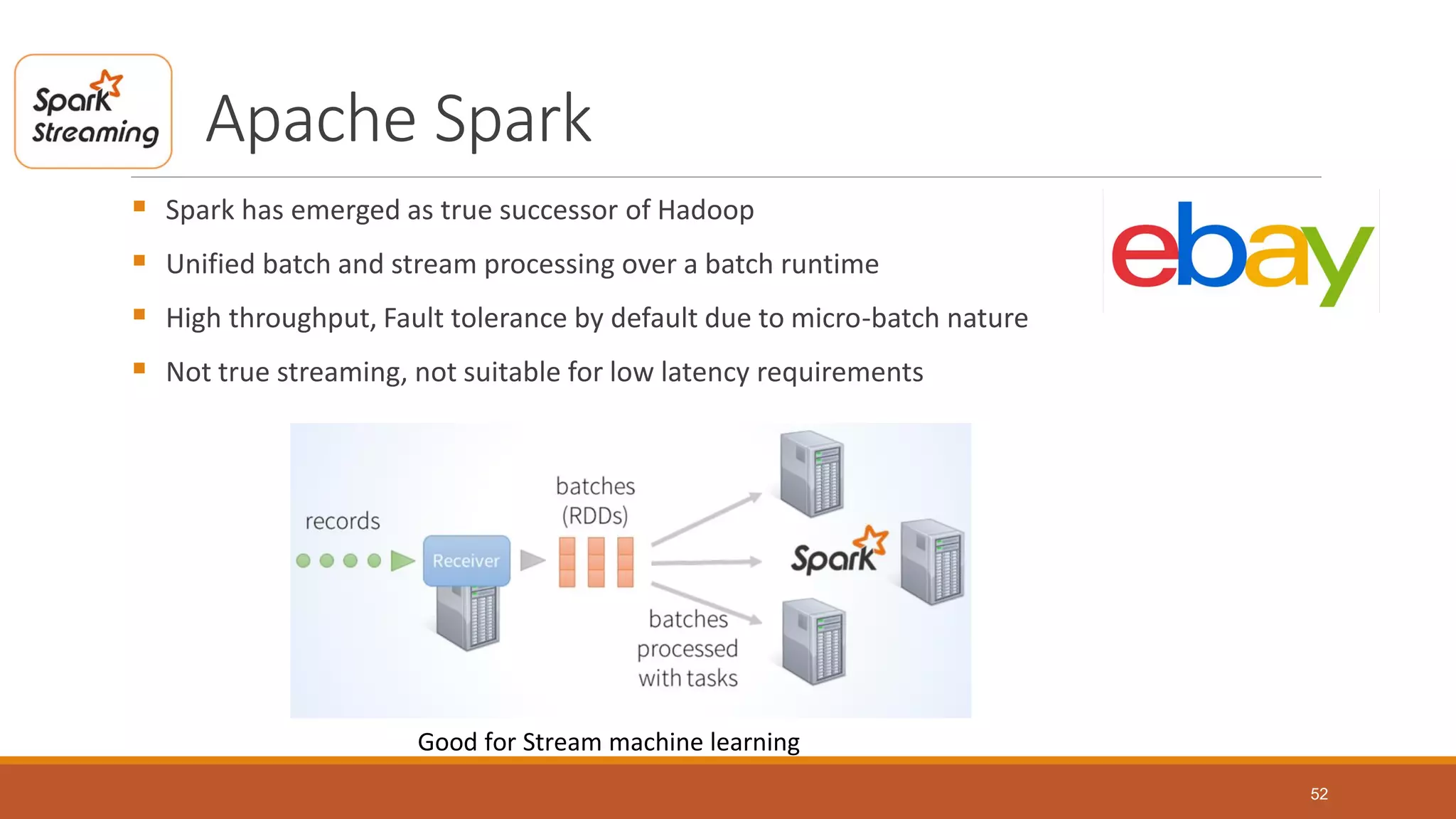

51. Apache Spark
 Spark has emerged as true successor of Hadoop
 Unified batch and stream processing over a batch runtime
 High throughput, Fault tolerance by default due to micro-batch nature
 Not true streaming, not suitable for low latency requirements
52
Good for Stream machine learning

52. Use Case
53

53. 54
Ref: Muhammad Syafrudin, “Performance Analysis of IoT-Based Sensor, Big Data Processing, and Machine Learning Model for Real-Time
Monitoring System in Automotive Manufacturing”

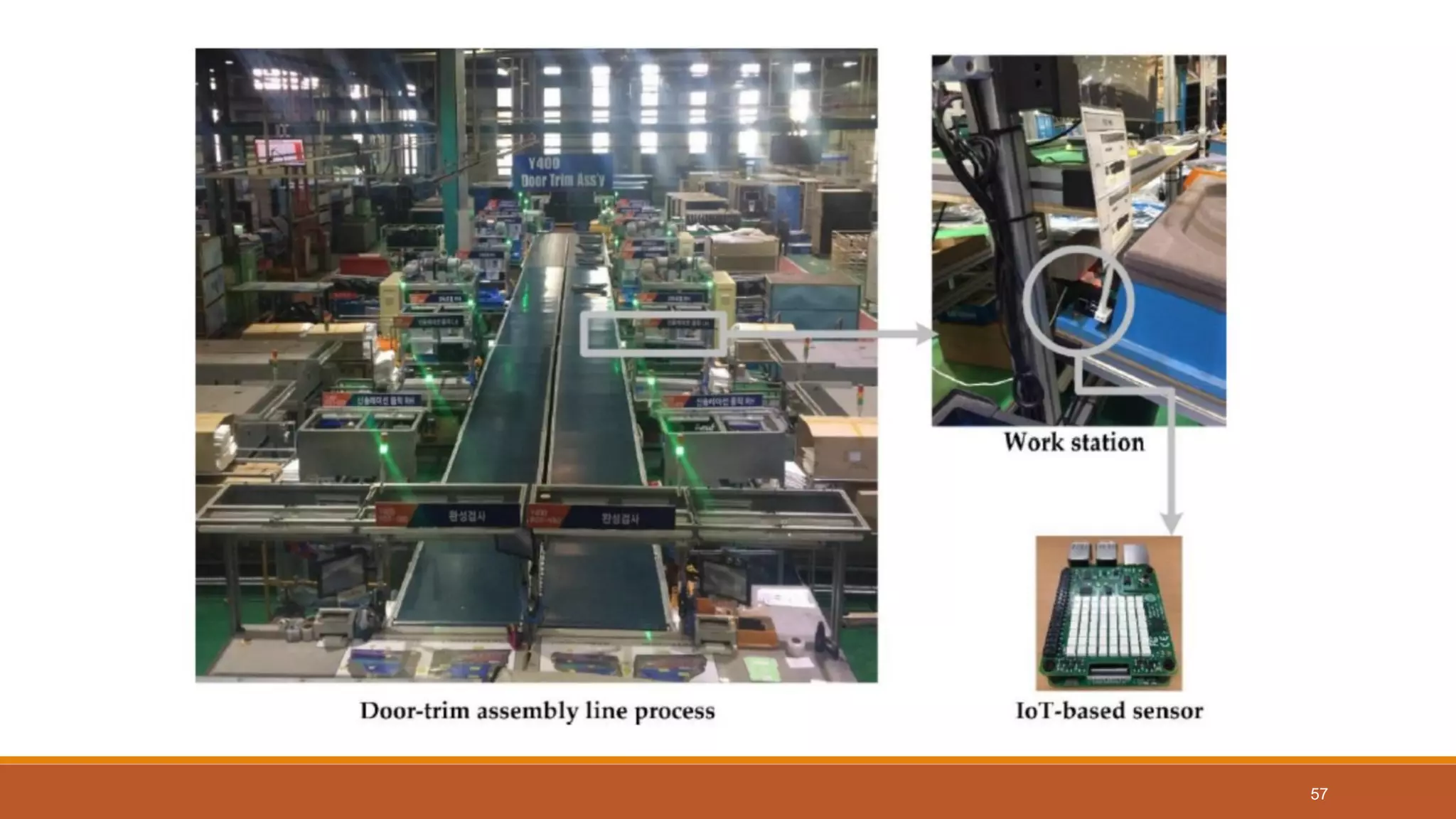

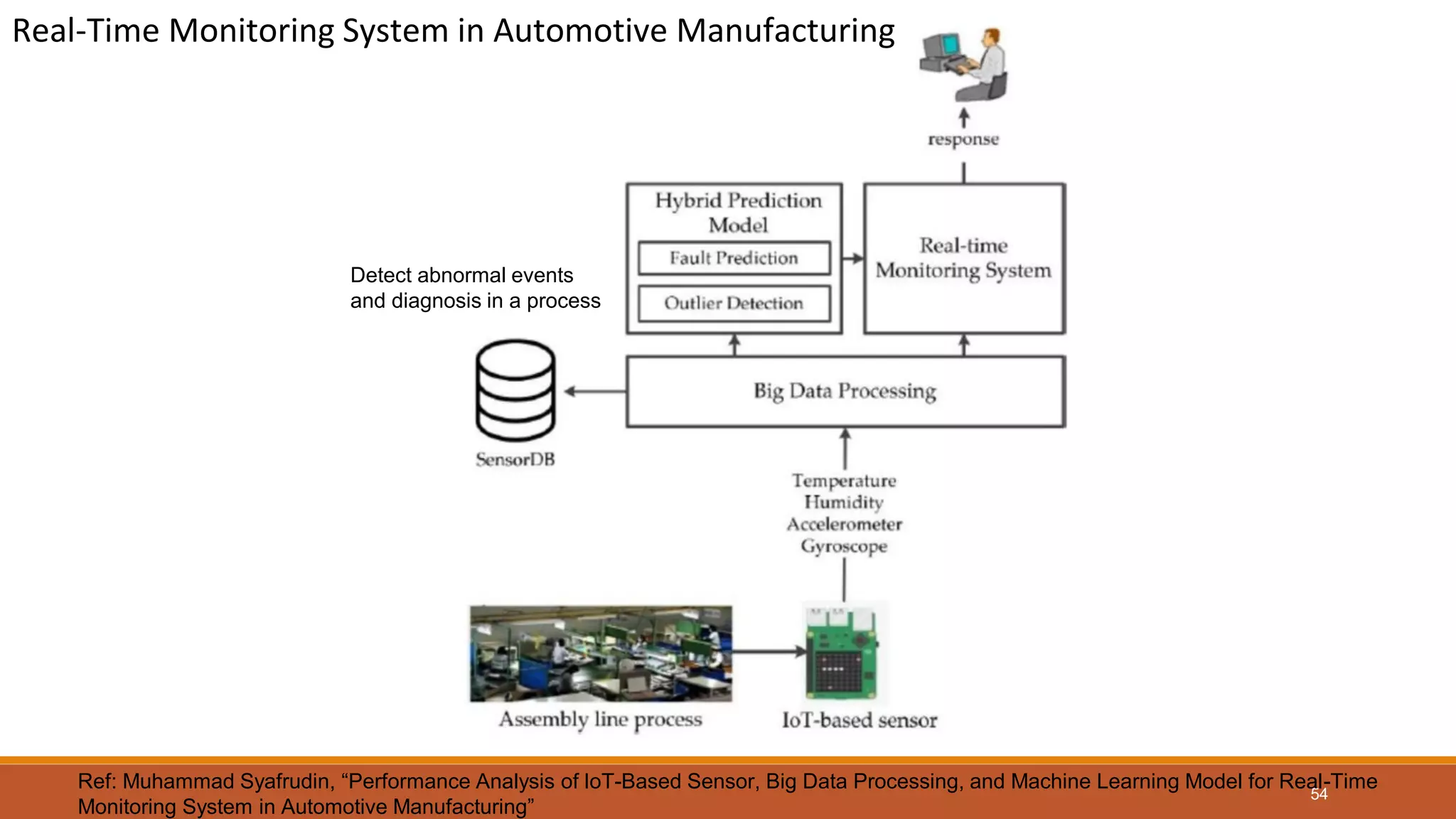

Real-Time Monitoring System in Automotive Manufacturing
Detect abnormal events
and diagnosis in a process

54. 55

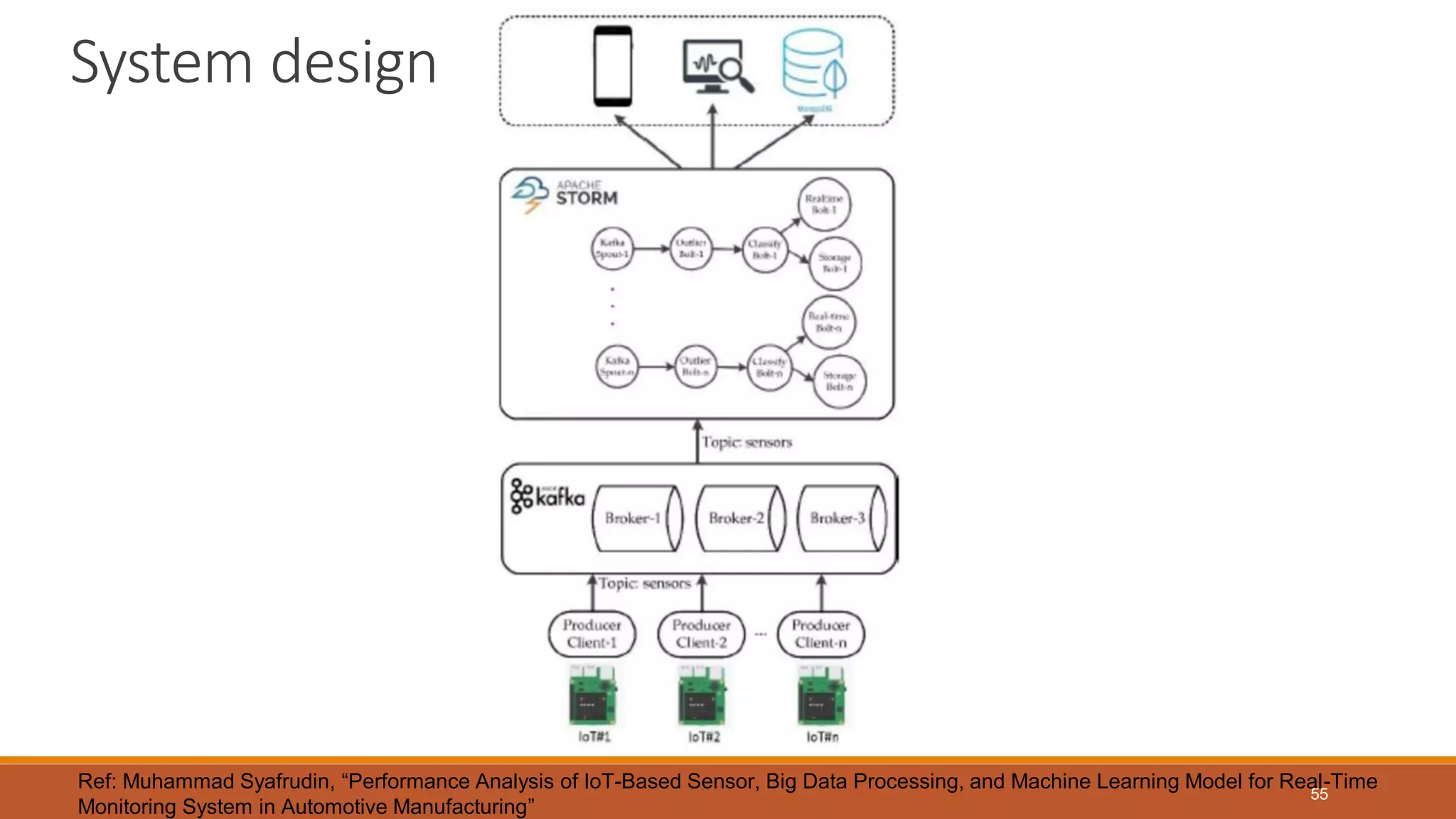

System design
Ref: Muhammad Syafrudin, “Performance Analysis of IoT-Based Sensor, Big Data Processing, and Machine Learning Model for Real-Time
Monitoring System in Automotive Manufacturing”

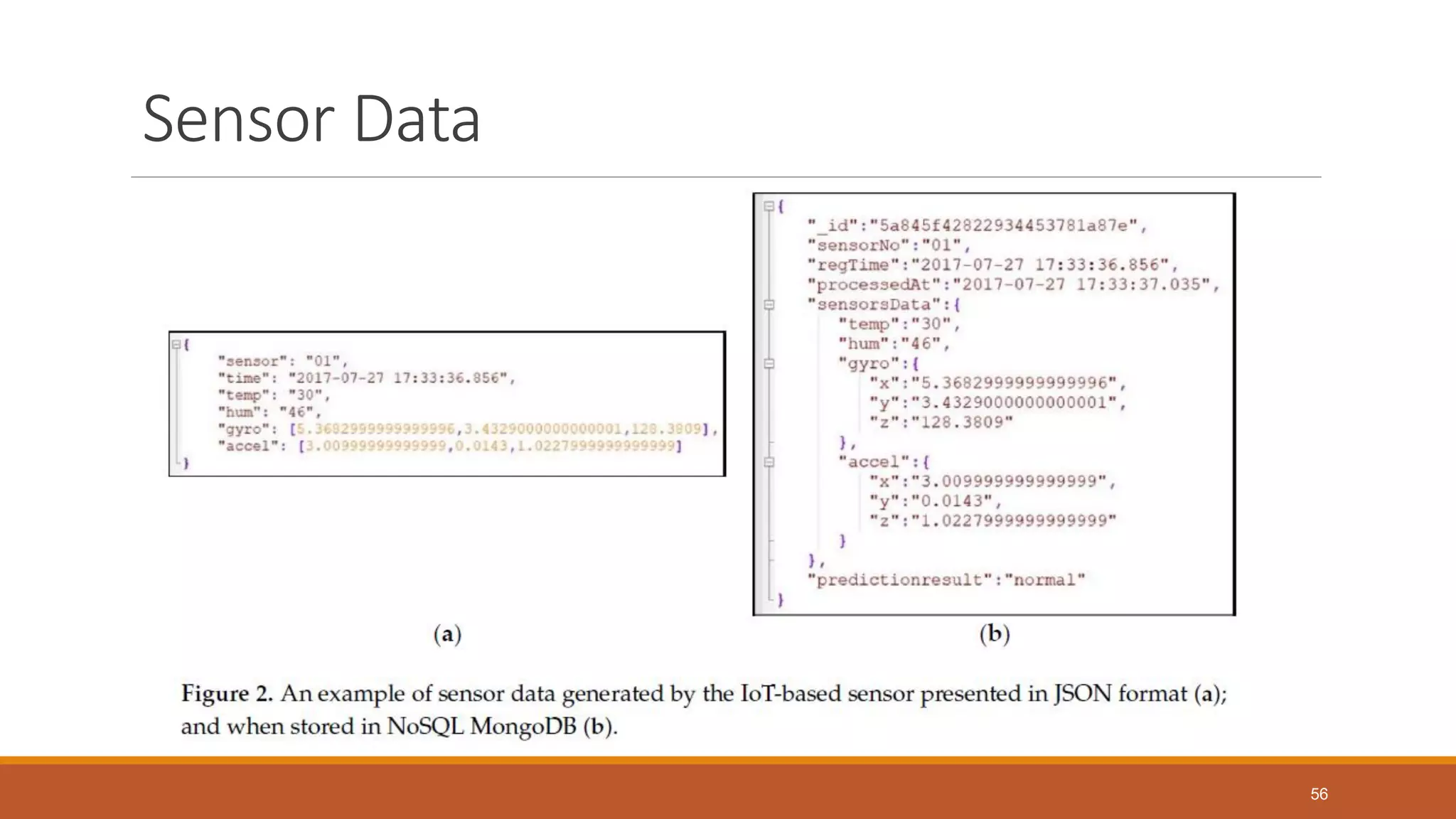

55. Sensor Data
56

56. 57

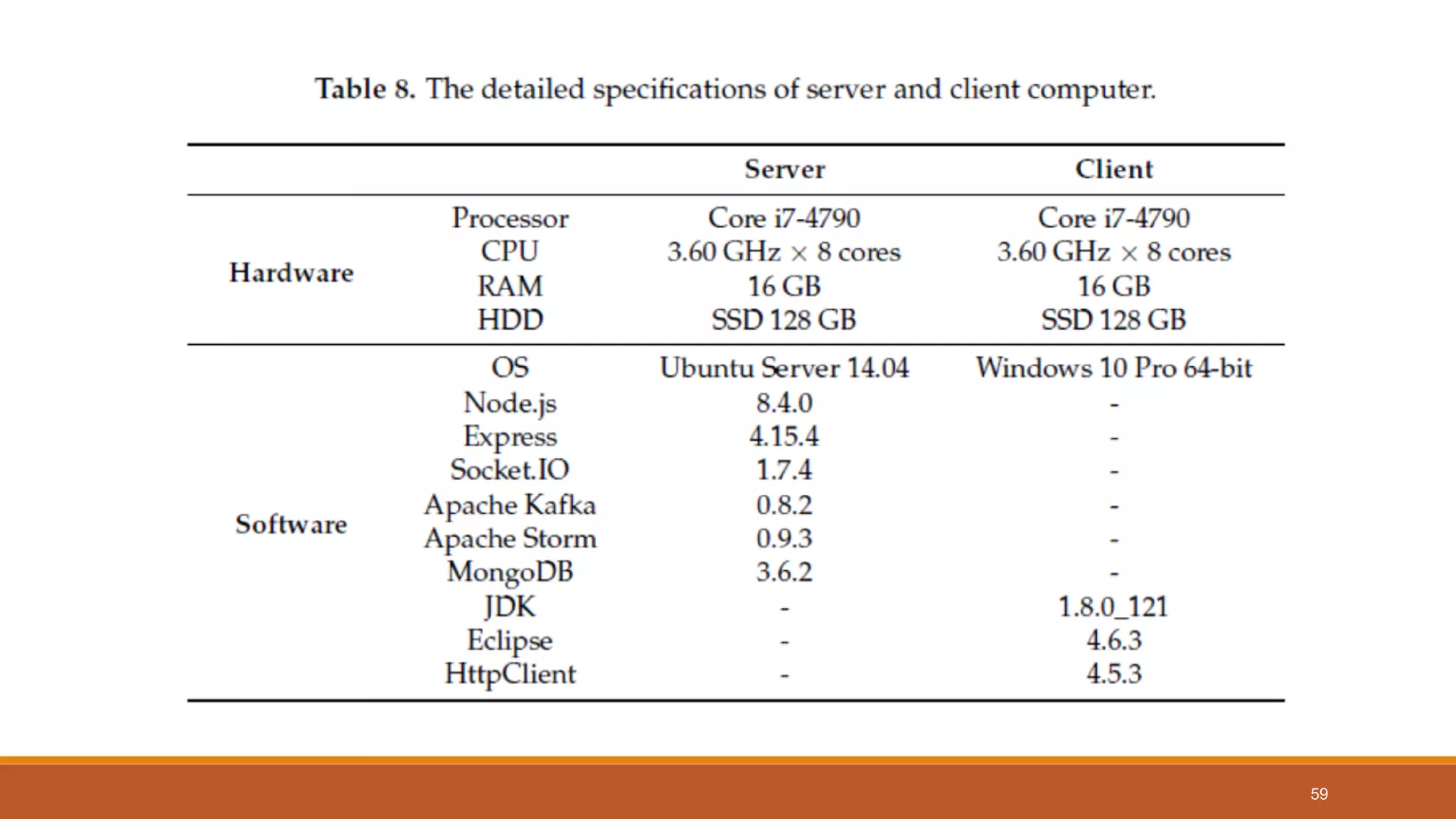

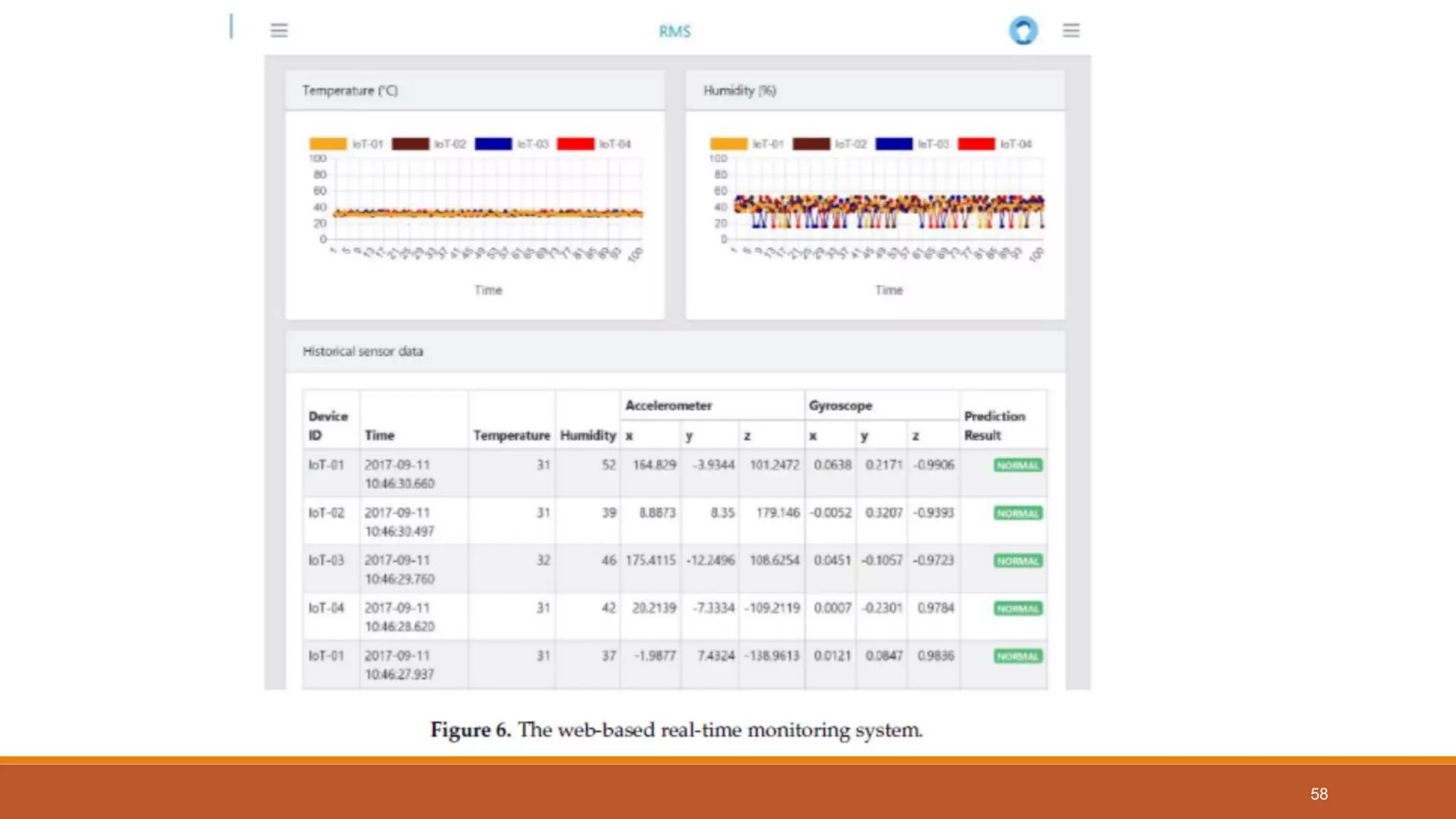

57. 58

58. 59

59. 60

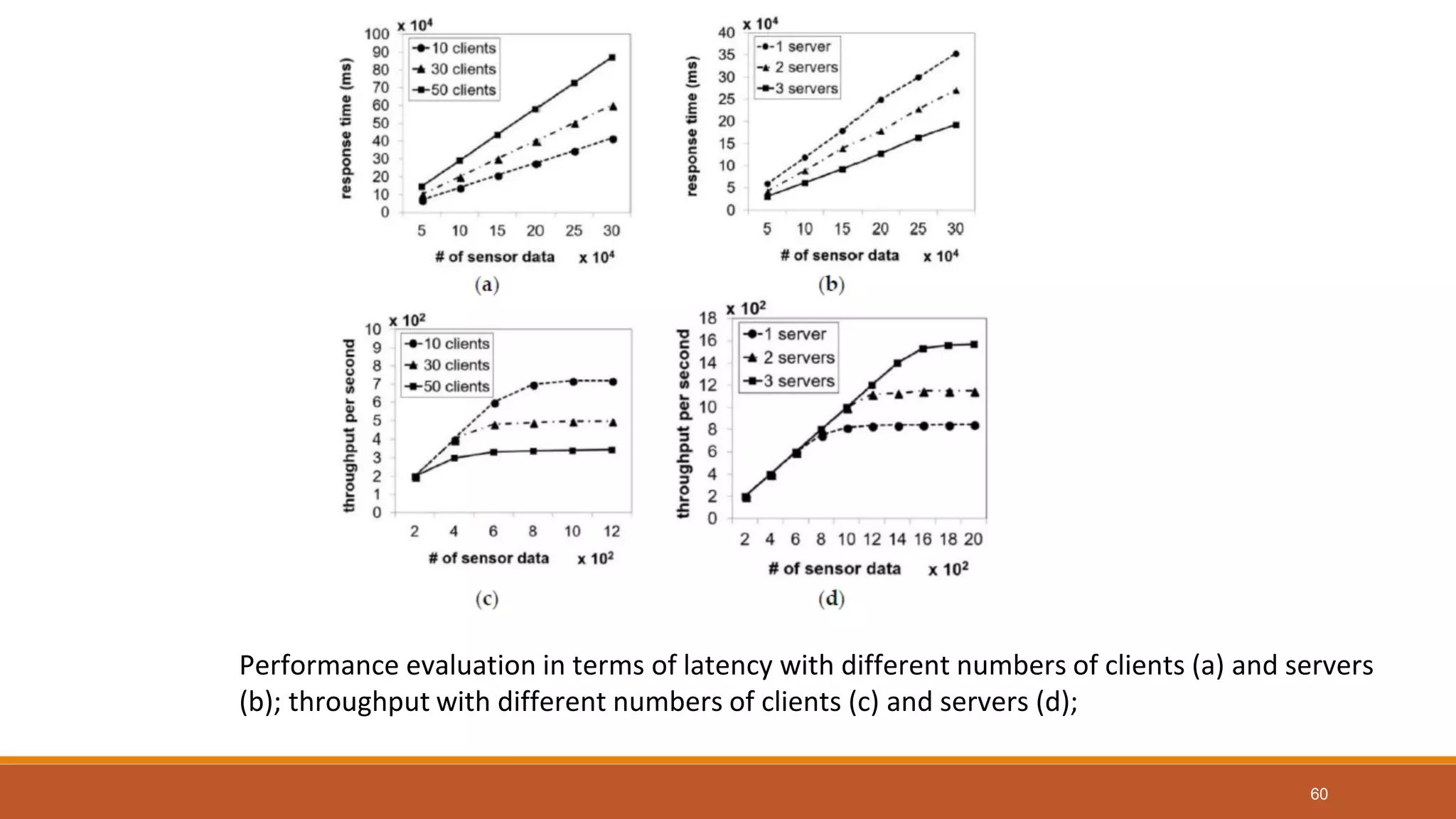

Performance evaluation in terms of latency with different numbers of clients (a) and servers
(b); throughput with different numbers of clients (c) and servers (d);

60. Thank you
