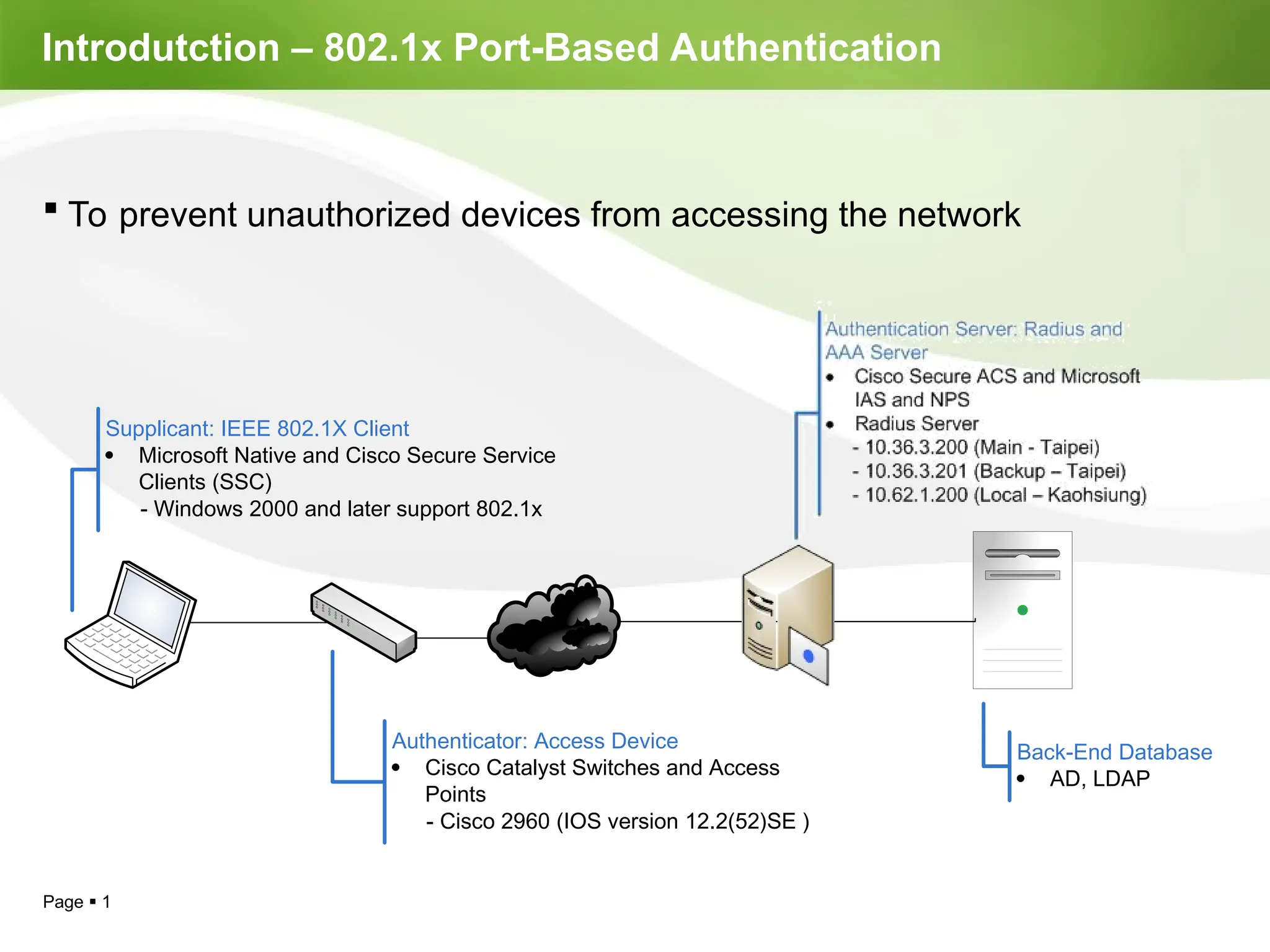

Introdutction – 802.1x Port-Based Authentication

1. Page  1
Introdutction – 802.1x Port-Based Authentication
Supplicant: IEEE 802.1X Client
· Microsoft Native and Cisco Secure Service
Clients (SSC)
- Windows 2000 and later support 802.1x
Authenticator: Access Device
· Cisco Catalyst Switches and Access
Points
- Cisco 2960 (IOS version 12.2(52)SE )
Back-End Database
· AD, LDAP
 To prevent unauthorized devices from accessing the network

2. Page  2

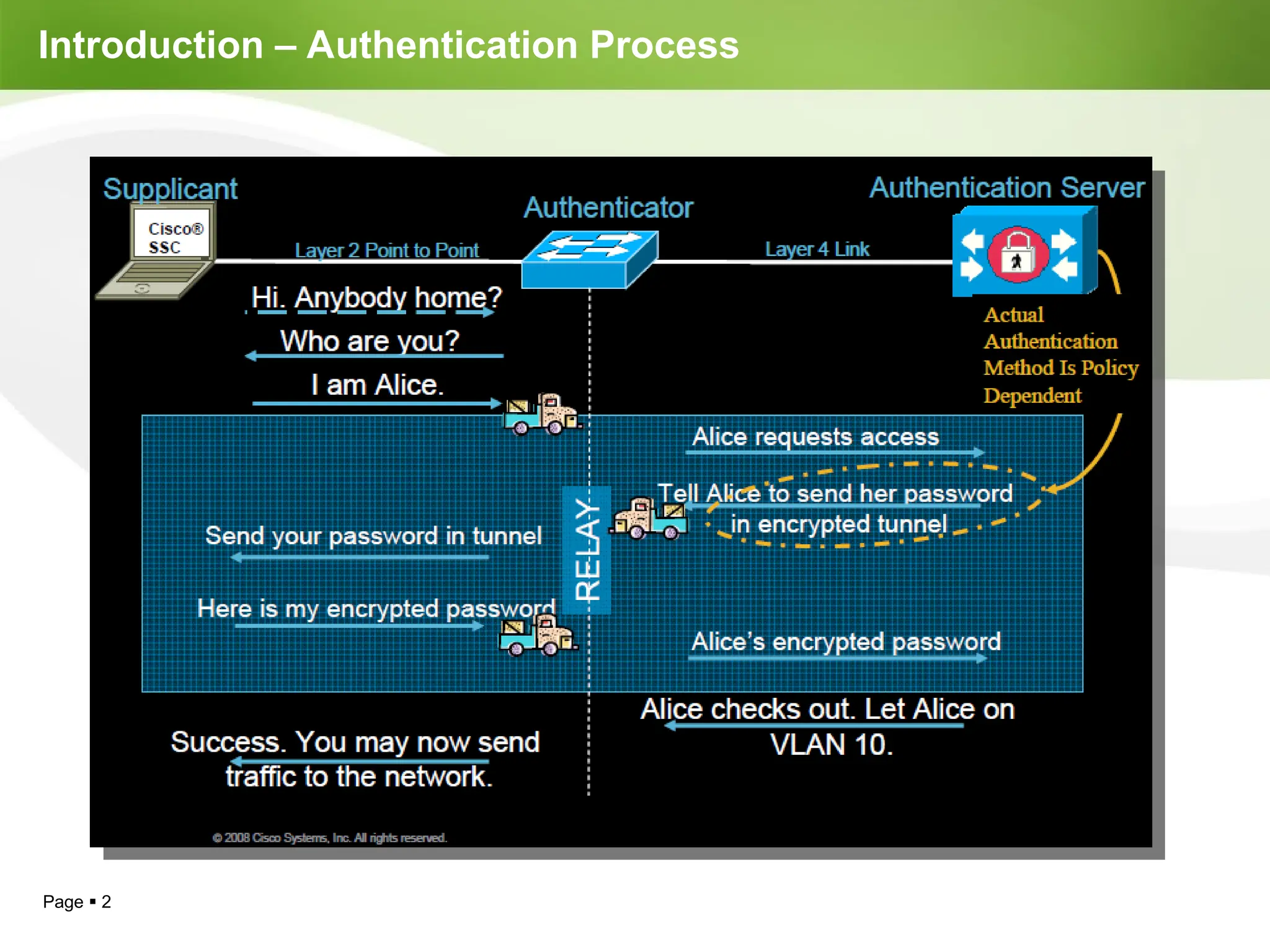

Introduction – Authentication Process

3. Page  3

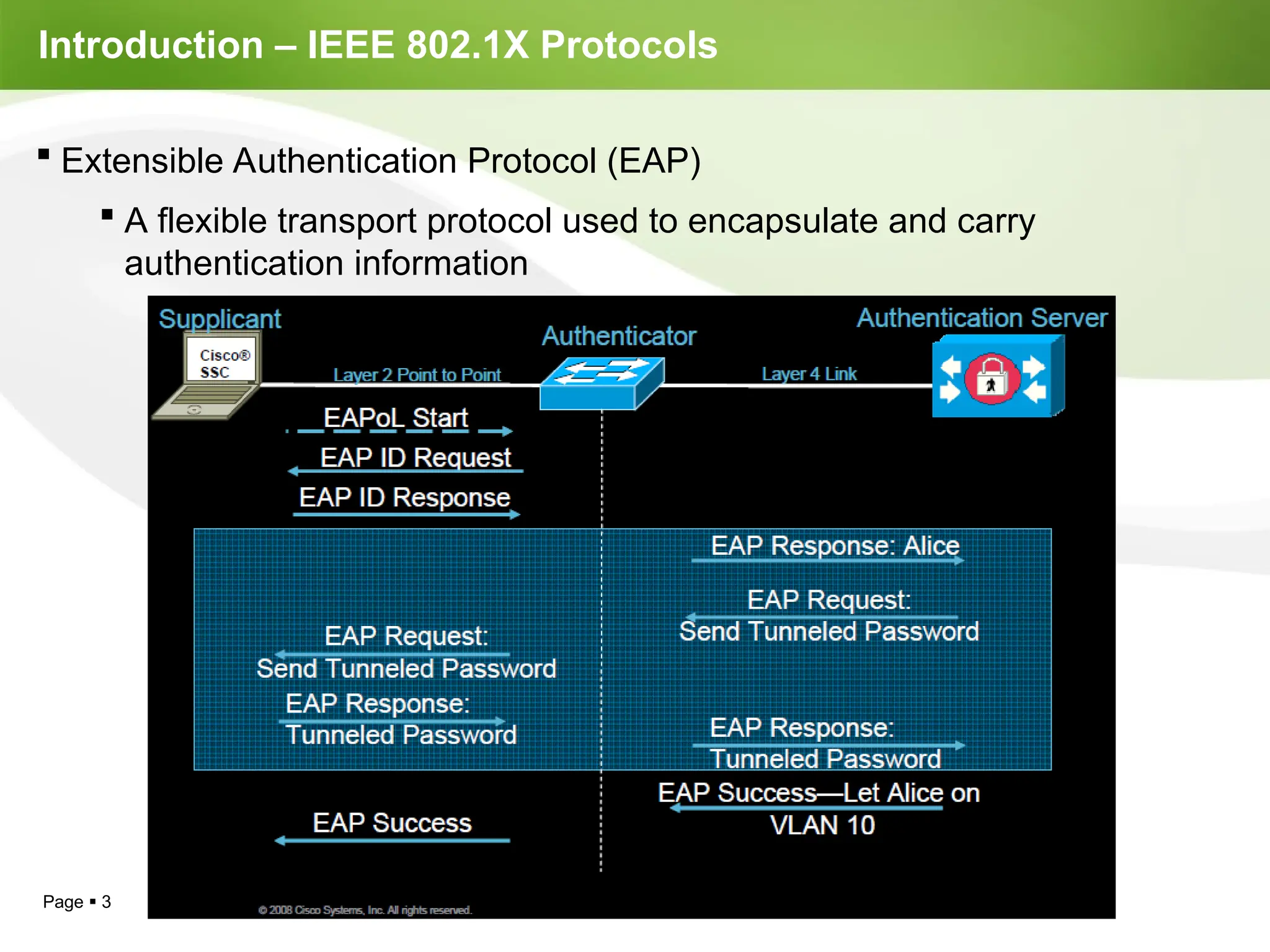

Introduction – IEEE 802.1X Protocols
 Extensible Authentication Protocol (EAP)
 A flexible transport protocol used to encapsulate and carry
authentication information

4. Page  4

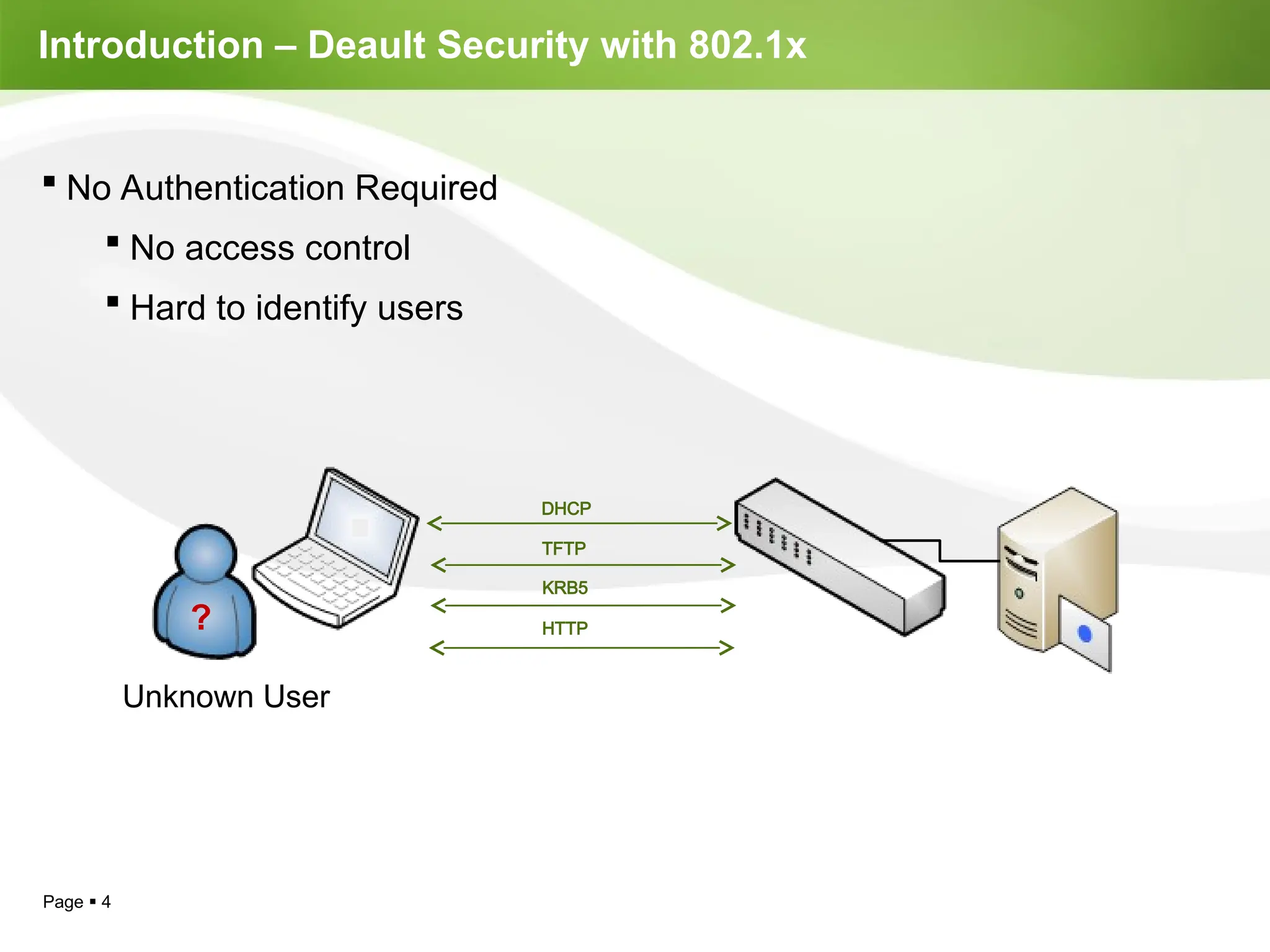

Introduction – Deault Security with 802.1x
Unknown User
DHCP
TFTP
KRB5
HTTP
 No Authentication Required
 No access control
 Hard to identify users
?

5. Page  5

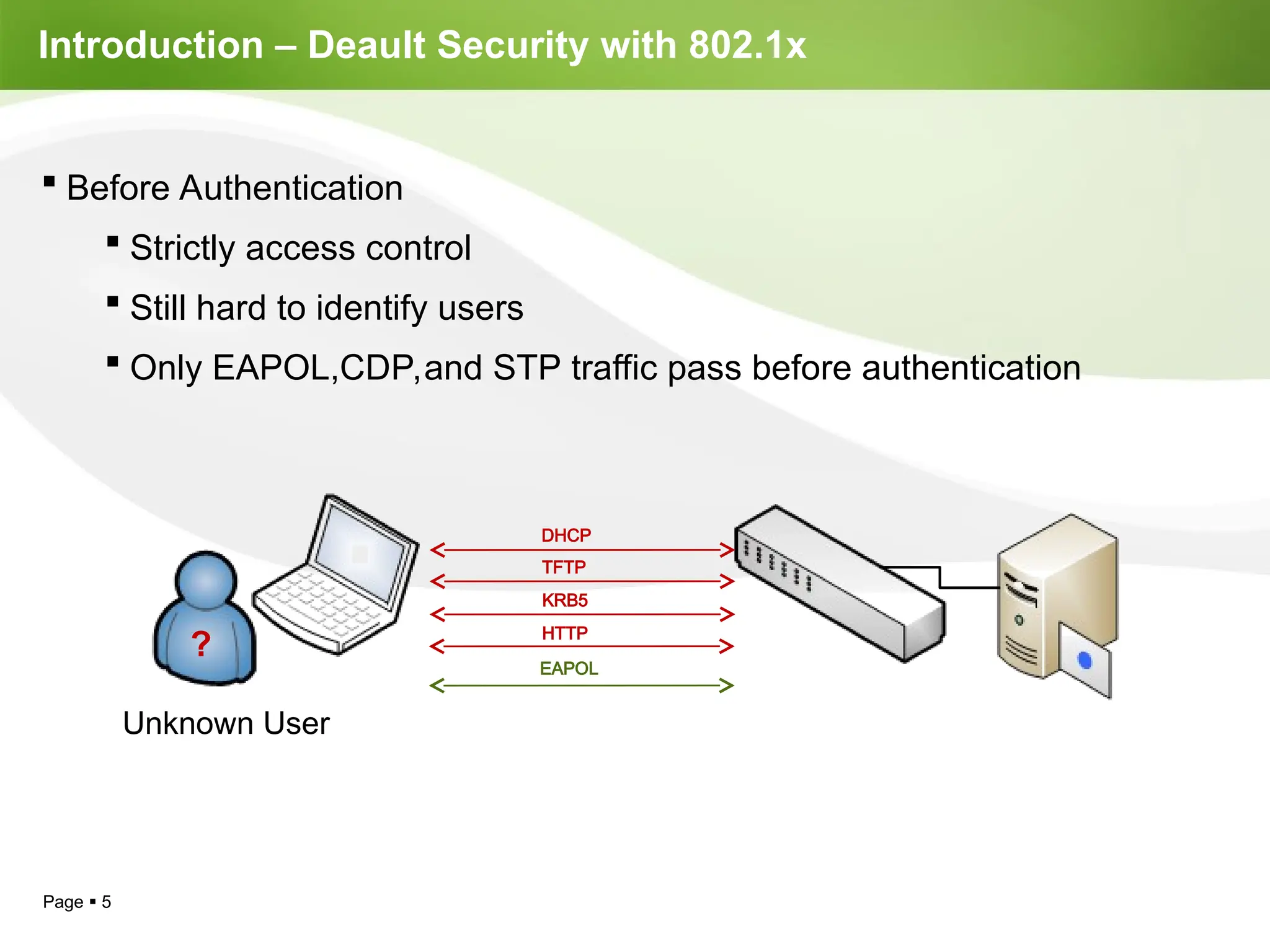

Introduction – Deault Security with 802.1x
Unknown User
DHCP
TFTP
KRB5
HTTP
 Before Authentication
 Strictly access control
 Still hard to identify users
 Only EAPOL,CDP,and STP traffic pass before authentication
?
EAPOL

6. Page  6
Introduction – Deault Security with 802.1x
ID: yichun
Pwd:yichun
DHCP
TFTP
KRB5
HTTP
 After Authentication
 User or device is known
 Identity-based access control
 Single MAC per port (except for IP phone and VMware)

7. Page  7

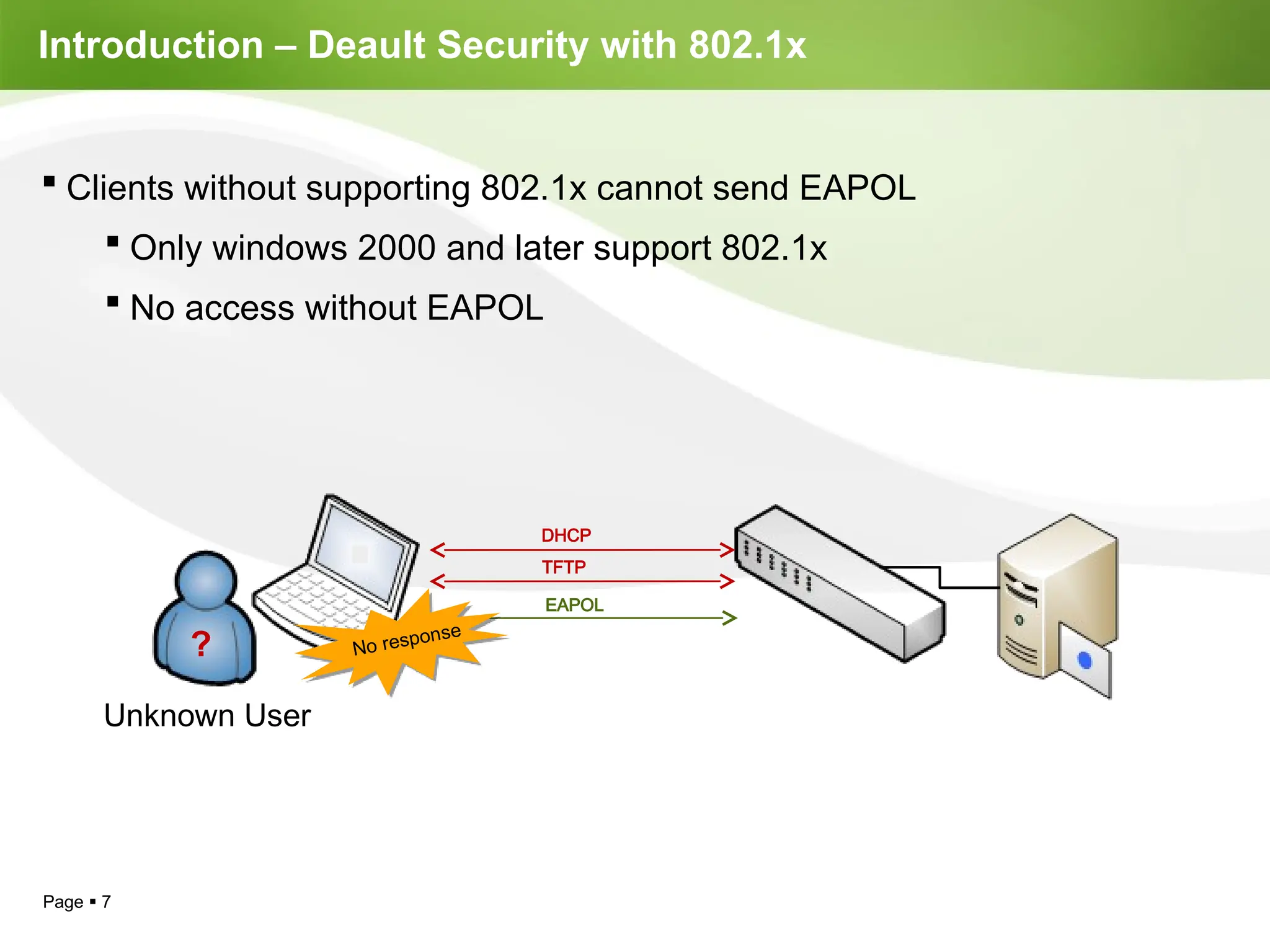

Introduction – Deault Security with 802.1x
Unknown User
DHCP
TFTP
EAPOL
 Clients without supporting 802.1x cannot send EAPOL
 Only windows 2000 and later support 802.1x
 No access without EAPOL
? No response

8. Page  8

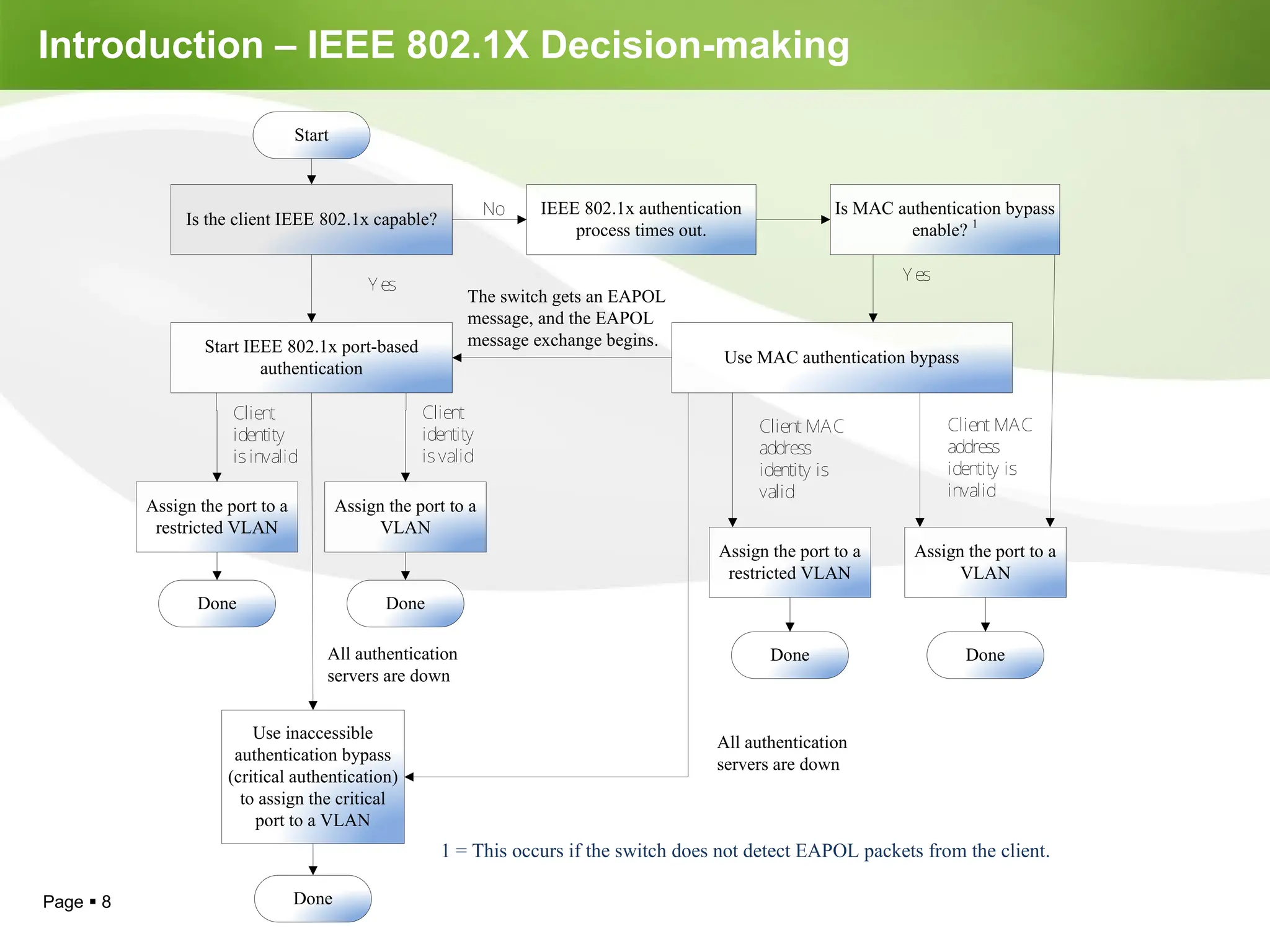

Introduction – IEEE 802.1X Decision-making
Start
Is the client IEEE 802.1x capable?
Start IEEE 802.1x port-based
authentication
Assign the port to a
restricted VLAN
Assign the port to a
VLAN
Done Done
IEEE 802.1x authentication
process times out.
Is MAC authentication bypass
enable? 1
Use MAC authentication bypass
Assign the port to a
restricted VLAN
Assign the port to a
VLAN
Done Done
Use inaccessible
authentication bypass
(critical authentication)
to assign the critical
port to a VLAN
Done
No
Y es
Client
identity
is invalid
Client
identity
is valid
All authentication
servers are down
Y es
All authentication
servers are down
The switch gets an EAPOL
message, and the EAPOL
message exchange begins.
Client MAC
address
identity is
valid
Client MAC
address
identity is
invalid
1 = This occurs if the switch does not detect EAPOL packets from the client.

9. Page  9

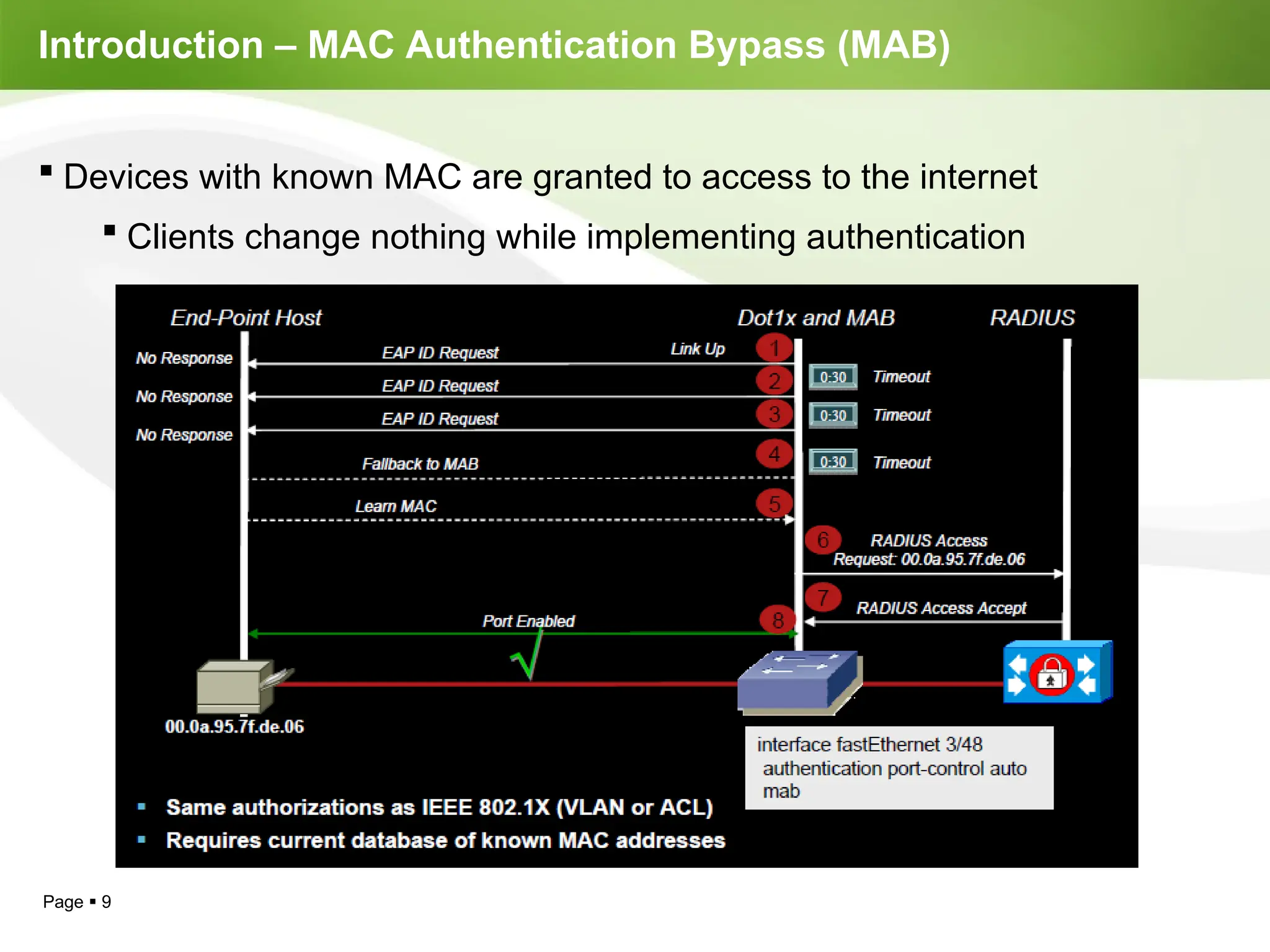

Introduction – MAC Authentication Bypass (MAB)
 Devices with known MAC are granted to access to the internet
 Clients change nothing while implementing authentication

10. Page  10

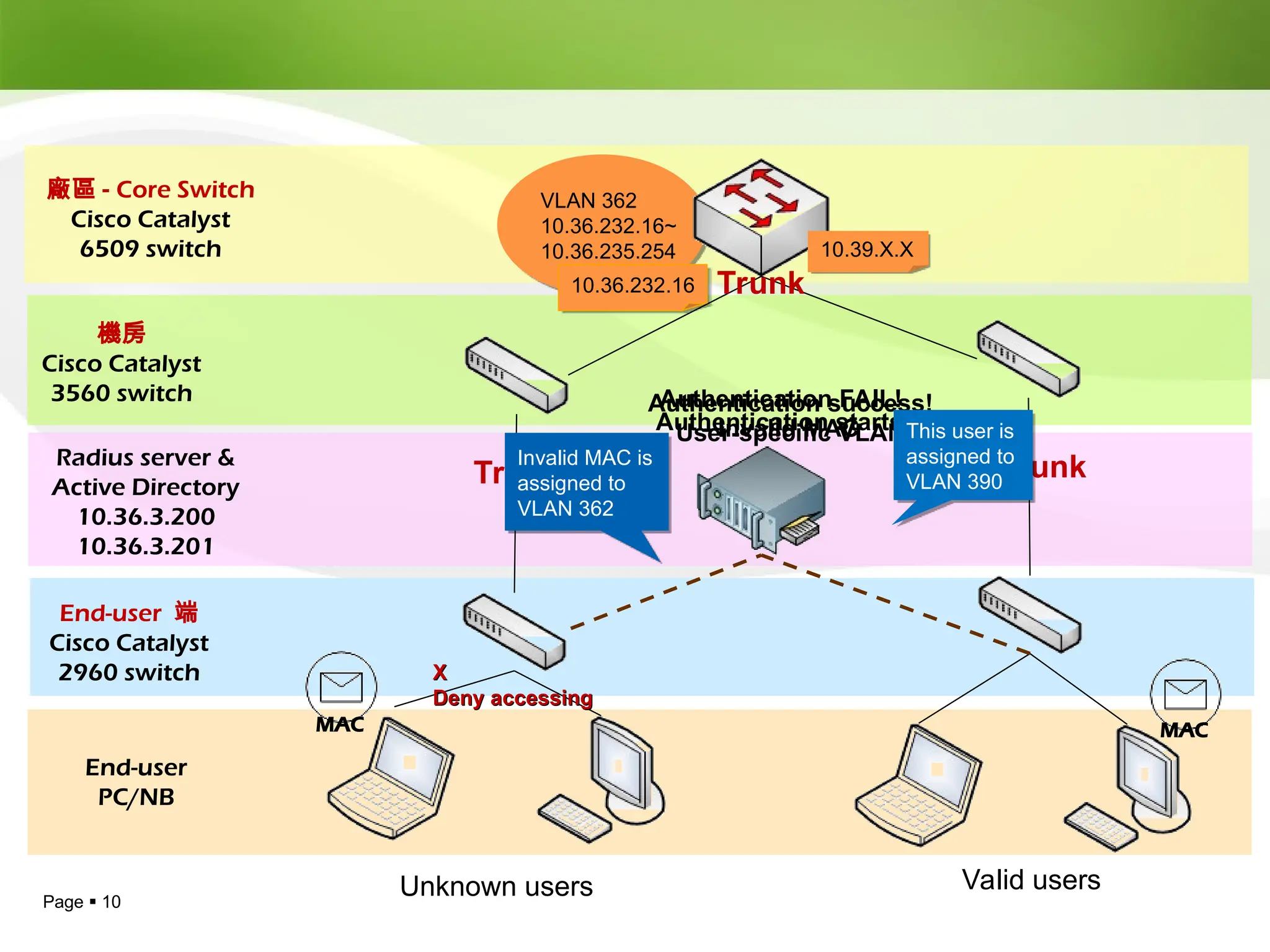

Trunk
Trunk Trunk
廠區 - Core Switch
Cisco Catalyst
6509 switch
機房
Cisco Catalyst
3560 switch
End-user 端
Cisco Catalyst
2960 switch
End-user
PC/NB
Radius server &
Active Directory
10.36.3.200
10.36.3.201
Unknown users Valid users
VLAN 362
10.36.232.16~
10.36.235.254
MAC
Authentication starts!
Authentication FAIL!
- Invalid MAC
Invalid MAC is
assigned to
VLAN 362
10.36.232.16
MAC
Authentication success!
User-specific VLANThis user is
assigned to
VLAN 390
10.39.X.X
X
X
Deny accessing
Deny accessing

11. Page  11

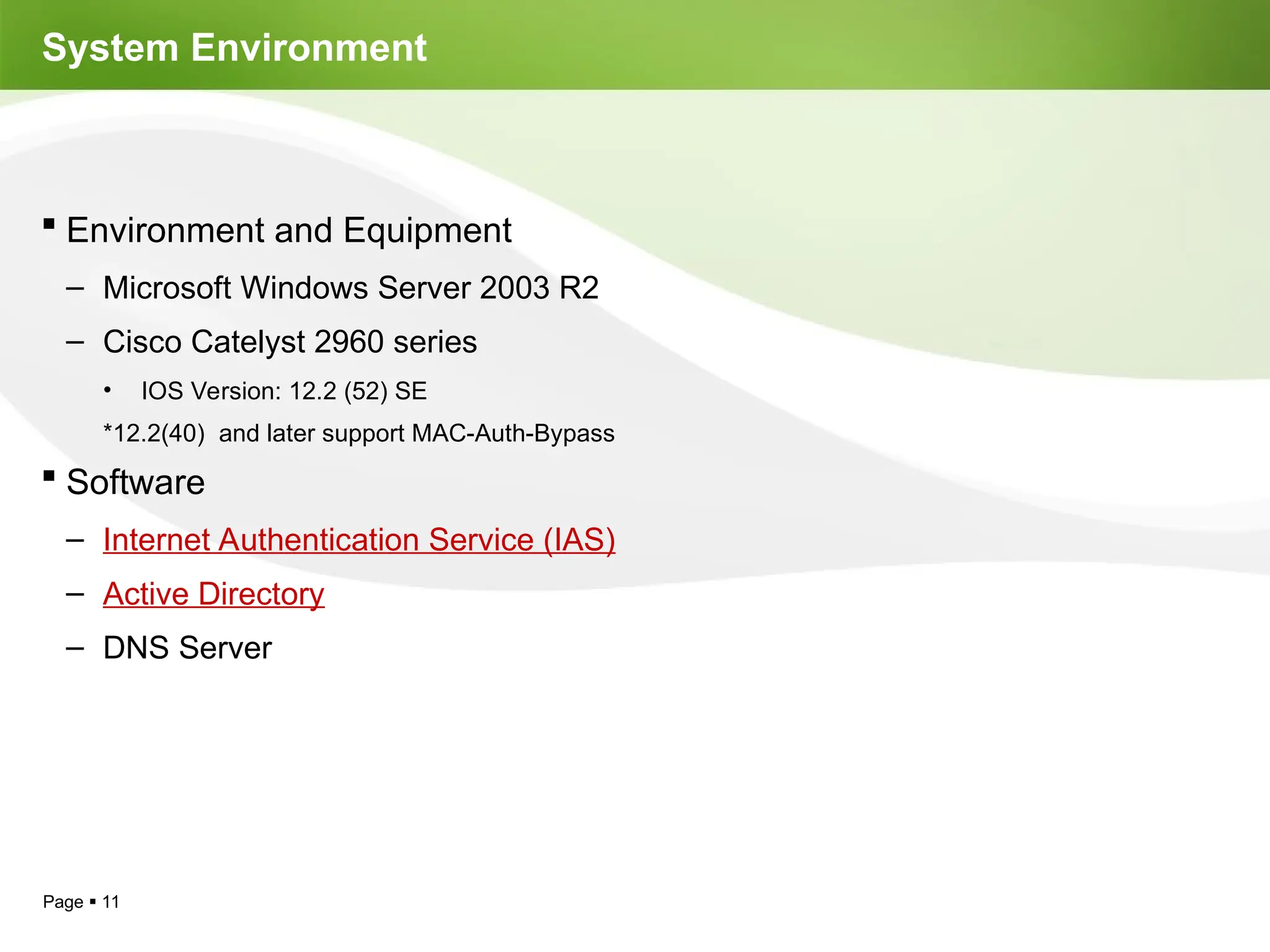

System Environment
 Environment and Equipment
– Microsoft Windows Server 2003 R2
– Cisco Catelyst 2960 series
• IOS Version: 12.2 (52) SE
*12.2(40) and later support MAC-Auth-Bypass
 Software
– Internet Authentication Service (IAS)
– Active Directory
– DNS Server
