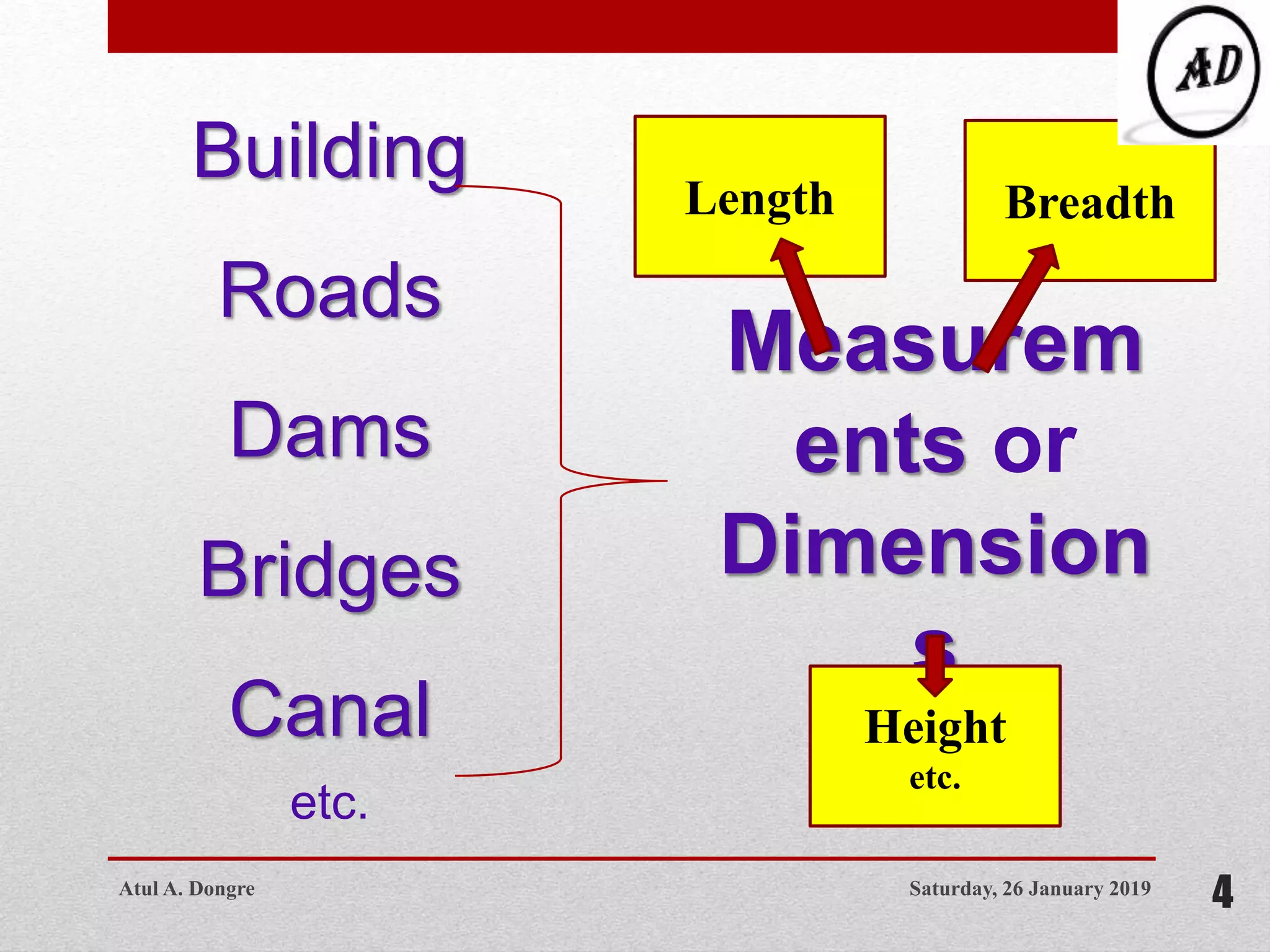

Building
Roads
Dams
Bridges
Canal
etc.
Measurem
ents or
Dimension
s
Length
Height
etc.
Breadth
Atul A. Dongre

5. Saturday, 26 January 2019
5Atul A. Dongre

6. Saturday, 26 January 2019
6
Measurem
ents
Atul A. Dongre

7. Saturday, 26 January 2019
7
Measure the length of road with MEASURING
TAPE or SCALE or Approx. Measurement
techniques
Here comes the
Role of
SURVEYI
NG
Atul A. Dongre

8. Saturday, 26 January 2019
8
Surveying
Credit - 4.5
Length Breadth Height
Horizontal
Angles
Vertical
Angle etc.
Area Volume
Atul A. Dongre

9. Saturday, 26 January 2019
9

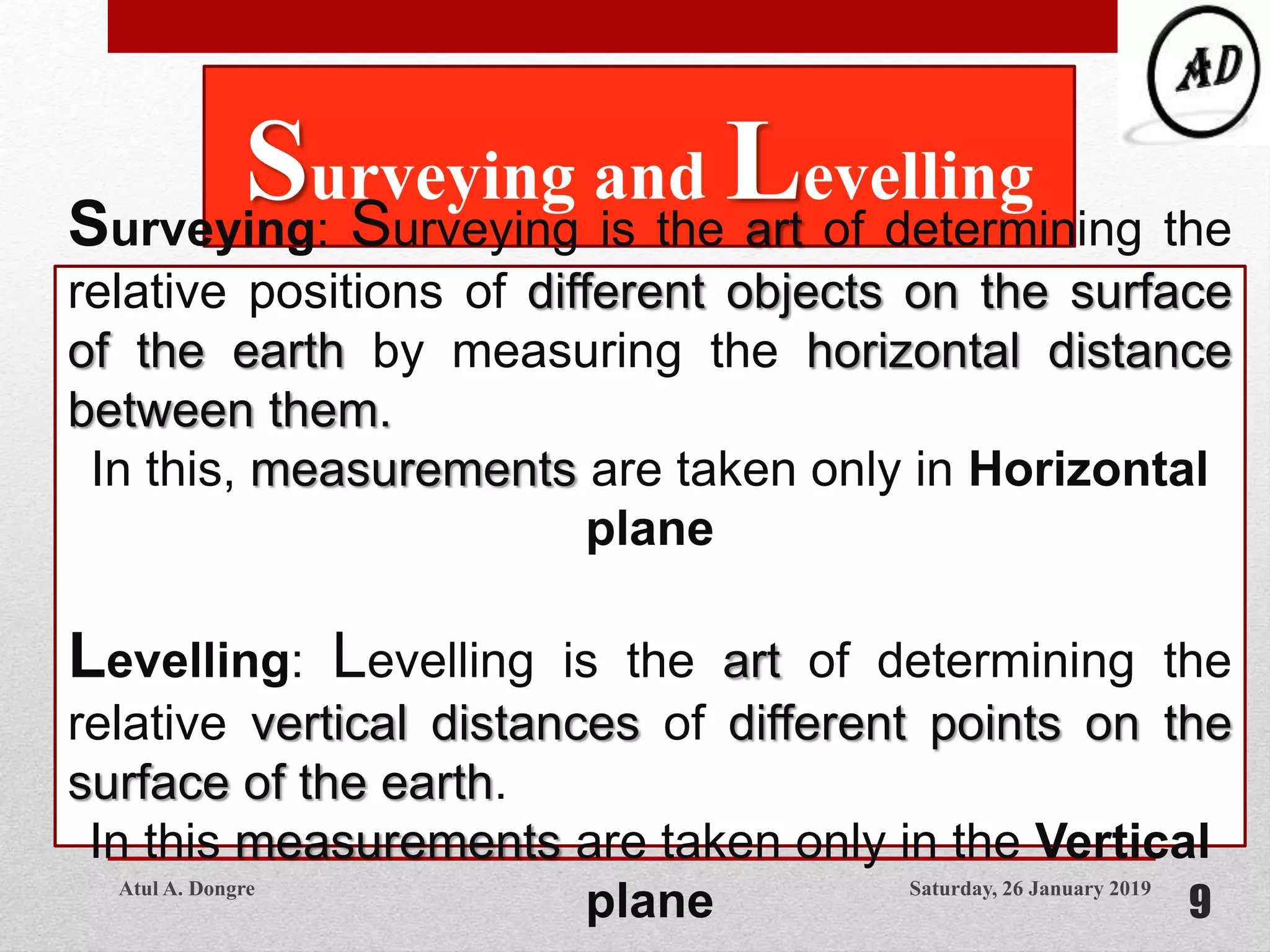

Surveying and Levelling
Surveying: Surveying is the art of determining the
relative positions of different objects on the surface
of the earth by measuring the horizontal distance
between them.
In this, measurements are taken only in Horizontal
plane
Levelling: Levelling is the art of determining the
relative vertical distances of different points on the
surface of the earth.
In this measurements are taken only in the Vertical
planeAtul A. Dongre

10. Saturday, 26 January 2019
10

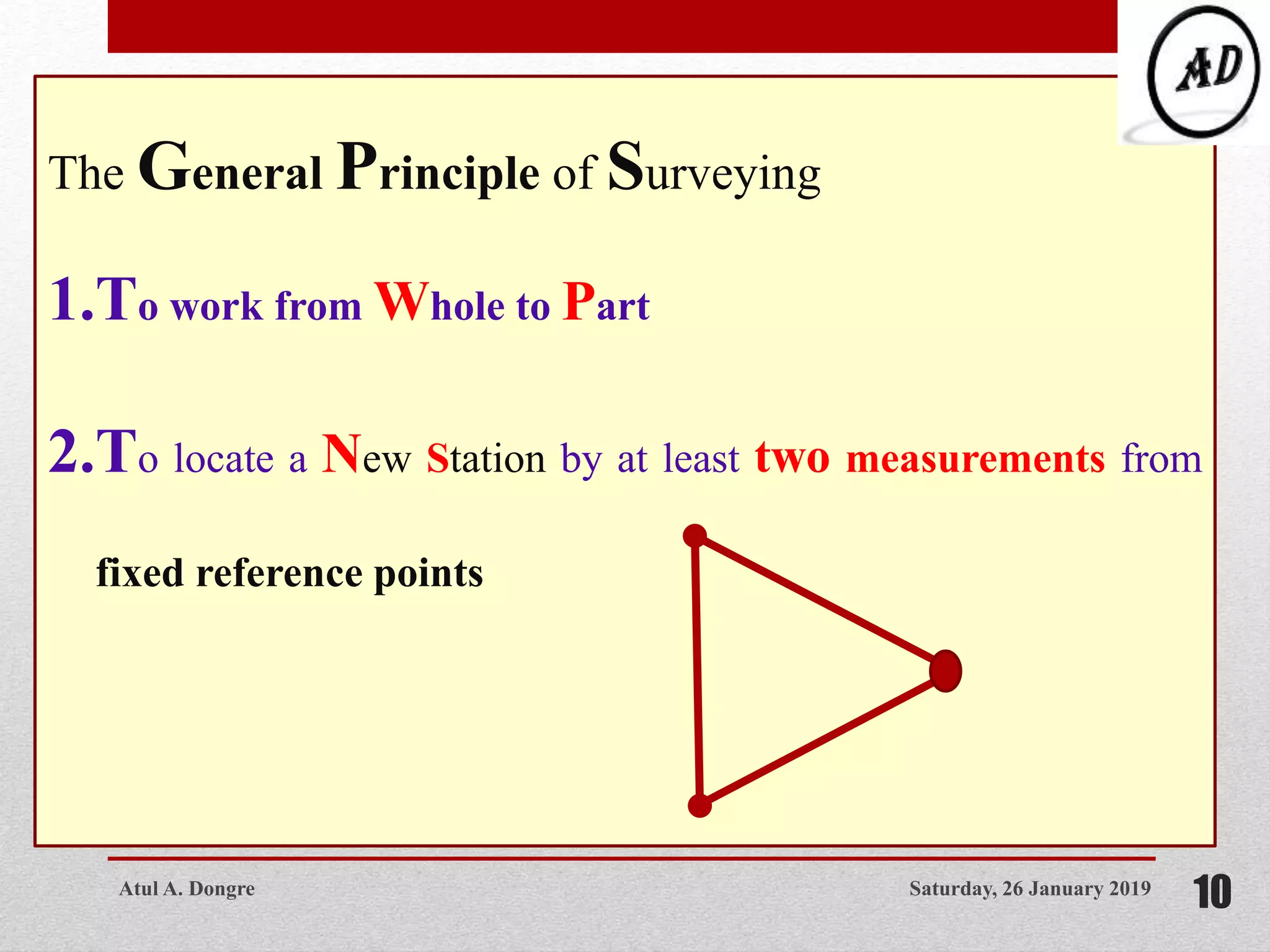

The General Principle of Surveying
1.To work from Whole to Part
2.To locate a New Station by at least two measurements from
fixed reference points
Atul A. Dongre

11. Saturday, 26 January 2019
11

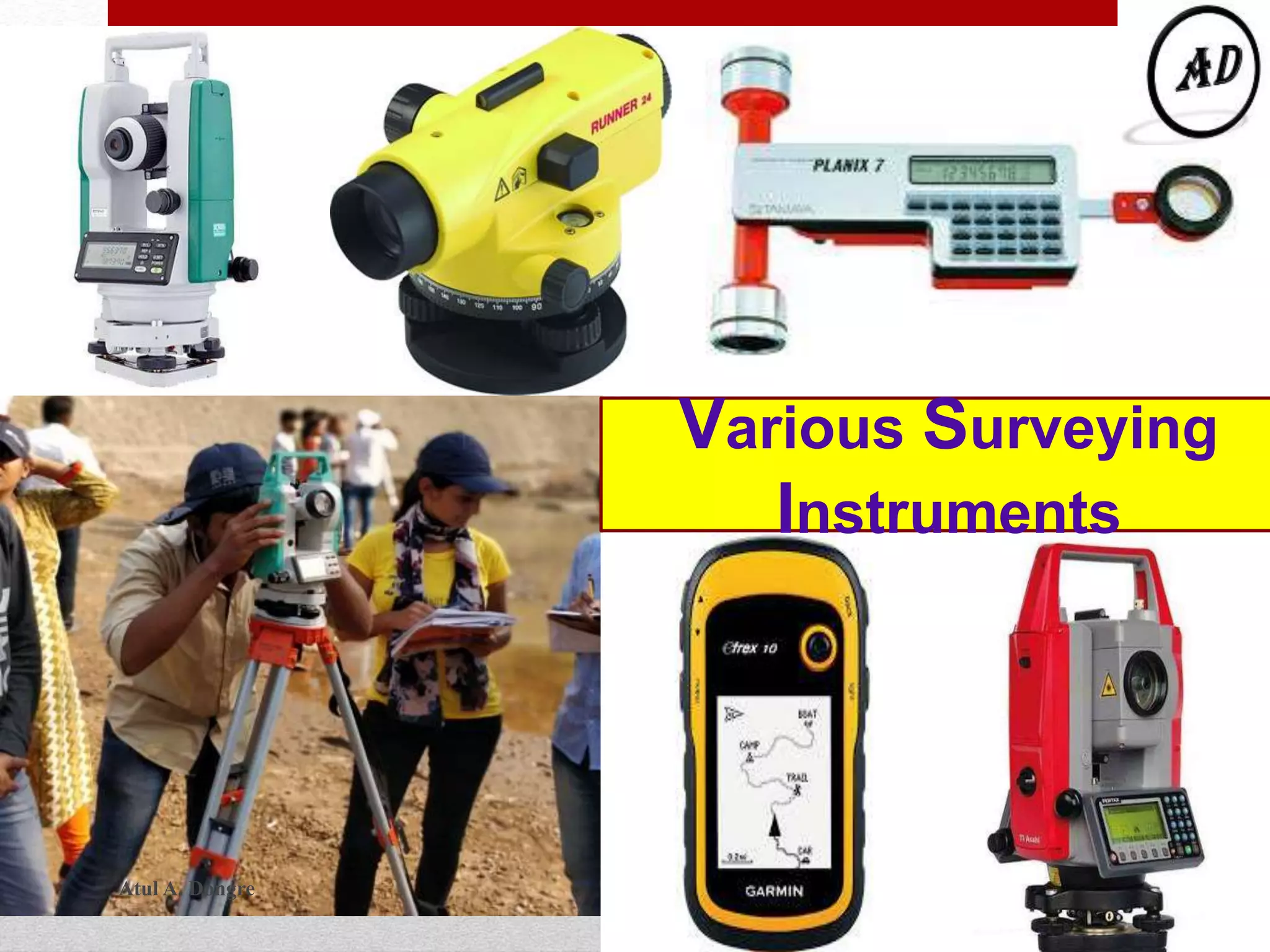

Various Surveying
Instruments
Atul A. Dongre
