Introduction to Ruby threads

1. RubyThreadIntroduction to multithreaded programming with Ruby
Luong VoLuong Vo luong‑komorebiluong‑komorebi

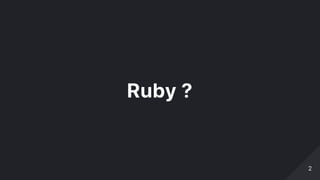

2. Ruby?
22

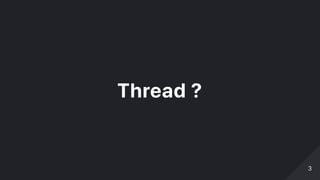

3. Thread?
33

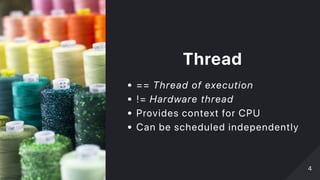

4. Thread
== Thread of execution
!= Hardware thread
Provides context for CPU
Can be scheduled independently
44

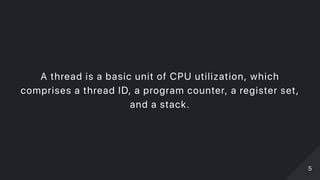

5. A thread is a basic unit of CPU utilization, which
comprises a thread ID, a program counter, a register set,
and a stack.
55

6. HardwarevsSoftwarethread
A "hardware thread" is a physical CPU or core.
66

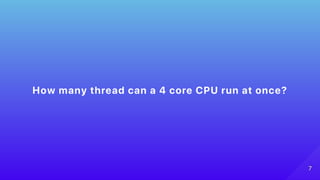

7. How many thread can a 4 core CPU run at once?
77

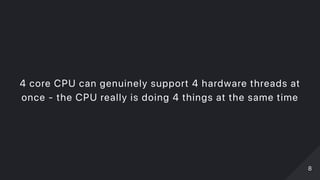

8. 4 core CPU can genuinely support 4 hardware threads at
once ‑ the CPU really is doing 4 things at the same time
88

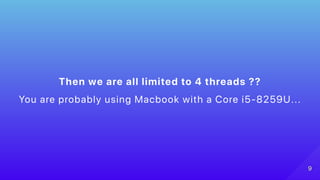

9. Then we are all limited to 4 threads ??
You are probably using Macbook with a Core i5‑8259U...
99

10. NO!
1010

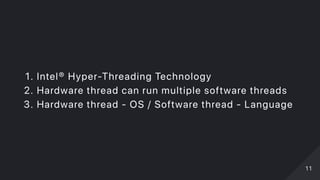

11. 1. Intel® Hyper‑Threading Technology
2. Hardware thread can run multiple software threads
3. Hardware thread ‑ OS / Software thread ‑ Language
1111

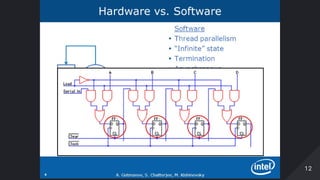

12. 1212

13. 1313

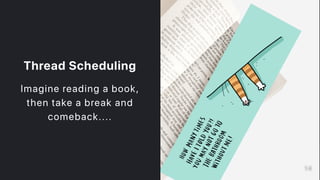

14. ThreadScheduling
Imagine reading a book,
then take a break and
comeback....
1414

15. Ruby
1515

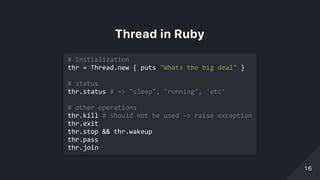

16. ThreadinRuby
# Initialization
thr = Thread.new { puts "Whats the big deal" }
# status
thr.status # => "sleep", "running", 'etc'
# other operations
thr.kill # should not be used ‑> raise exception
thr.exit
thr.stop && thr.wakeup
thr.pass
thr.join
1616

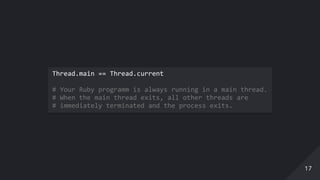

17. Thread.main == Thread.current
# Your Ruby programm is always running in a main thread.
# When the main thread exits, all other threads are
# immediately terminated and the process exits.
1717

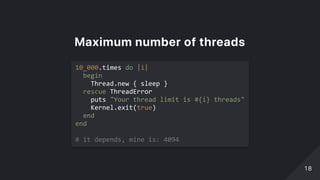

18. Maximumnumberofthreads
10_000.times do |i|
begin
Thread.new { sleep }
rescue ThreadError
puts "Your thread limit is #{i} threads"
Kernel.exit(true)
end
end
# it depends, mine is: 4094
1818

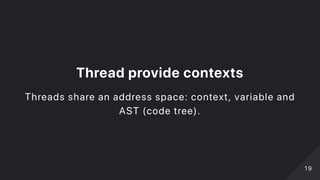

19. Threadprovidecontexts
Threads share an address space: context, variable and
AST (code tree).
1919

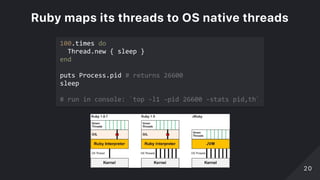

20. RubymapsitsthreadstoOSnativethreads
100.times do
Thread.new { sleep }
end
puts Process.pid # returns 26600
sleep
# run in console: `top ‑l1 ‑pid 26600 ‑stats pid,th`
2020

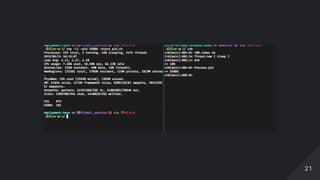

21. 2121

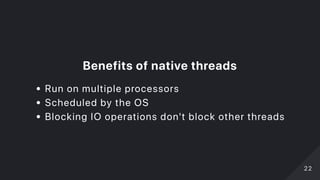

22. Benefitsofnativethreads
Run on multiple processors
Scheduled by the OS
Blocking IO operations don't block other threads
2222

23. Concurrency ? For free ?
2323

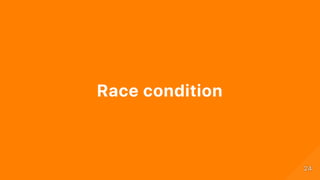

24. Racecondition
2424

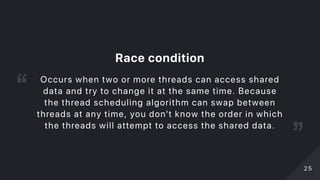

25. Racecondition
Occurs when two or more threads can access shared
data and try to change it at the same time. Because
the thread scheduling algorithm can swap between
threads at any time, you don't know the order in which
the threads will attempt to access the shared data.
2525

26. Example:FileUpload
2626

27. files = {
'daddario.png' => '*image data*',
'elixir.png' => '*image data*'
}
expected_count = 2
100.times do
uploader = FileUploader.new(files)
uploader.upload
actual_size = uploader.results.size
if actual_size != expected_count
raise("Race condition, size = #{actual_size}")
end
end
puts 'No race condition this time'
exit(0)
2727

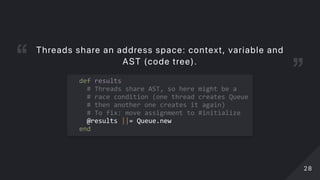

28. def results
# Threads share AST, so here might be a
# race condition (one thread creates Queue
# then another one creates it again)
# To fix: move assignment to #initialize
@results ||= Queue.new
end
Threads share an address space: context, variable and
AST (code tree).
2828

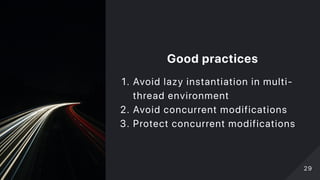

29. Goodpractices
1. Avoid lazy instantiation in multi‑
thread environment
2. Avoid concurrent modifications
3. Protect concurrent modifications
2929

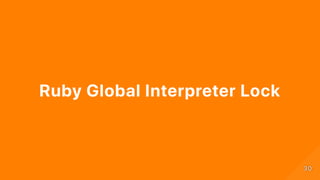

30. RubyGlobalInterpreterLock
3030

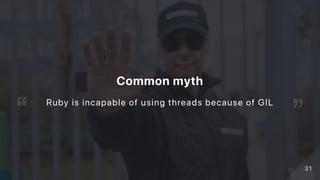

31. Commonmyth
Ruby is incapable of using threads because of GIL
3131

32. 3232

33. 3333

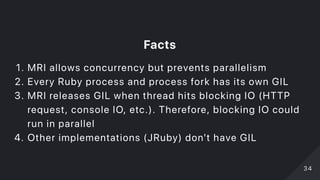

34. Facts
1. MRI allows concurrency but prevents parallelism
2. Every Ruby process and process fork has its own GIL
3. MRI releases GIL when thread hits blocking IO (HTTP
request, console IO, etc.). Therefore, blocking IO could
run in parallel
4. Other implementations (JRuby) don't have GIL
3434

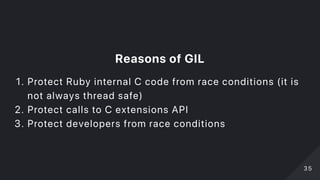

35. ReasonsofGIL
1. Protect Ruby internal C code from race conditions (it is
not always thread safe)
2. Protect calls to C extensions API
3. Protect developers from race conditions
3535

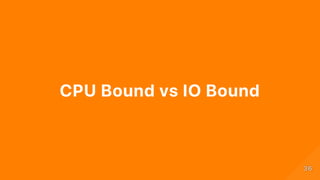

36. CPUBoundvsIOBound
3636

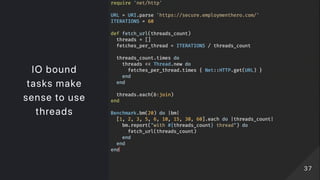

37. IO bound
tasks make
sense to use
threads
3737

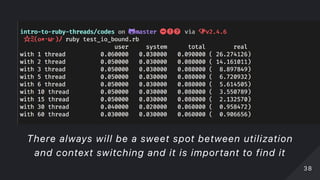

38. There always will be a sweet spot between utilization
and context switching and it is important to find it
3838

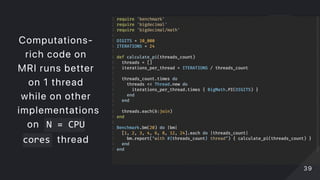

39. Computations‑
rich code on
MRI runs better
on 1 thread
while on other
implementations
on N = CPU
cores thread
3939

40. 4040

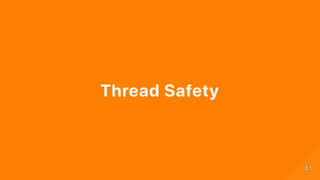

41. ThreadSafety
4141

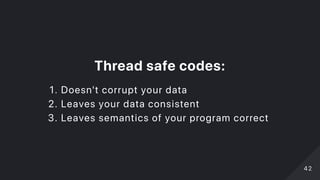

42. Threadsafecodes:
1. Doesn't corrupt your data
2. Leaves your data consistent
3. Leaves semantics of your program correct
4242

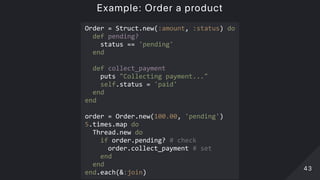

43. Example: Order a product
Order = Struct.new(:amount, :status) do
def pending?
status == 'pending'
end
def collect_payment
puts "Collecting payment..."
self.status = 'paid'
end
end
order = Order.new(100.00, 'pending')
5.times.map do
Thread.new do
if order.pending? # check
order.collect_payment # set
end
end
end.each(&:join)
4343

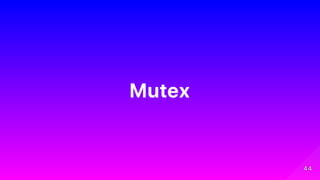

44. Mutex
4444

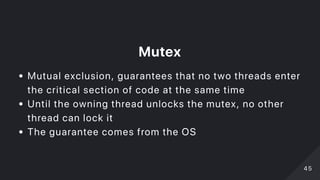

45. Mutex
Mutual exclusion, guarantees that no two threads enter
the critical section of code at the same time
Until the owning thread unlocks the mutex, no other
thread can lock it
The guarantee comes from the OS
4545

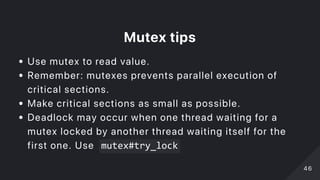

46. Mutextips
Use mutex to read value.
Remember: mutexes prevents parallel execution of
critical sections.
Make critical sections as small as possible.
Deadlock may occur when one thread waiting for a
mutex locked by another thread waiting itself for the
first one. Use mutex#try_lock
4646

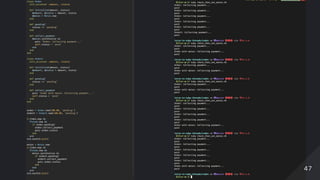

47. 4747

48. That'sall.Thankyou
4848

49. Notyet,actually...
4949

50. ALWAYSSTARTWITHTHE"WHY"
5050

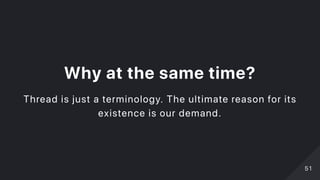

51. Whyatthesametime?
Thread is just a terminology. The ultimate reason for its
existence is our demand.
5151

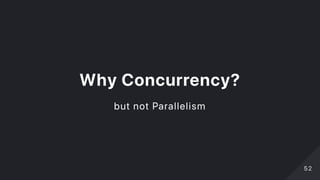

52. WhyConcurrency?
but not Parallelism
5252

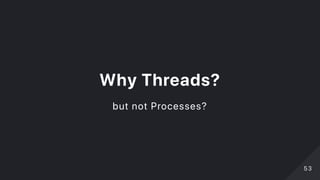

53. WhyThreads?
but not Processes?
5353

54. Whyconcurrencywiththreads?
NODEJS ftw!
5454

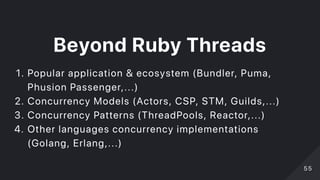

55. BeyondRubyThreads
1. Popular application & ecosystem (Bundler, Puma,
Phusion Passenger,...)
2. Concurrency Models (Actors, CSP, STM, Guilds,...)
3. Concurrency Patterns (ThreadPools, Reactor,...)
4. Other languages concurrency implementations
(Golang, Erlang,...)
5555

56. ThinkBIGGER!
Code:Code: github.com/luong‑komorebi/intro‑to‑ruby‑threads/github.com/luong‑komorebi/intro‑to‑ruby‑threads/
Slide:Slide: https://intro‑to‑ruby‑threads.luongvo.now.sh/https://intro‑to‑ruby‑threads.luongvo.now.sh/ 5656
