MySQL InnoDB Cluster
When MySQL High Availability is Made Easy
Frédéric Descamps - MySQL Community Manager - Oracle
3 / 143

4.

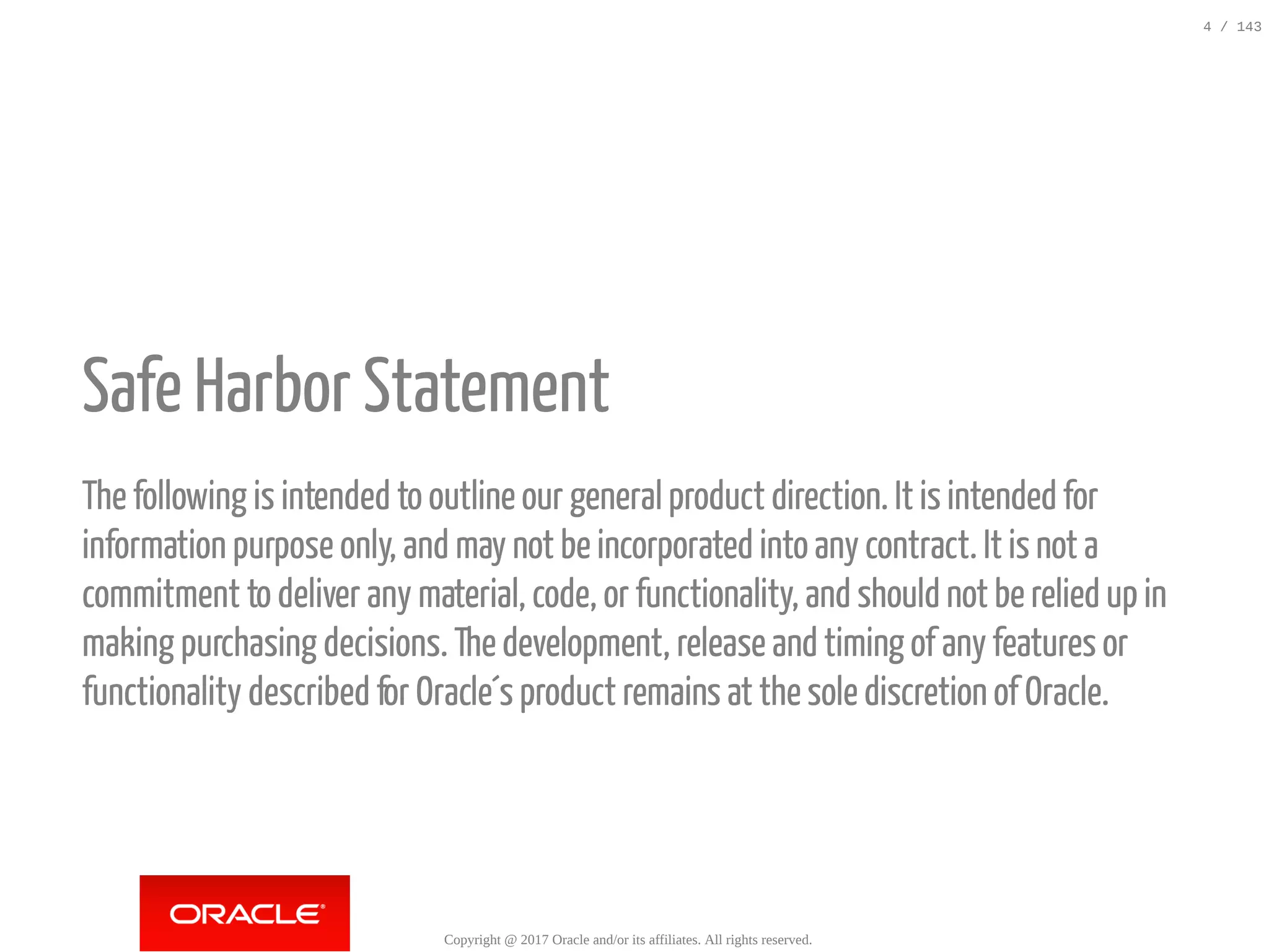

Safe Harbor Statement
The following is intended to outline our generalproduct direction. It isintended for
information purpose only, and may not be incorporated into any contract. It isnot a
commitment to deliver any material, code, or functionality, and should not be relied up in
making purchasing decisions. Thedevelopment, release and timing of any features or
functionality described for Oracle´s product remains at thesole discretion of Oracle.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
4 / 143

5. about.me/lefred
Who am I ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
5 / 143

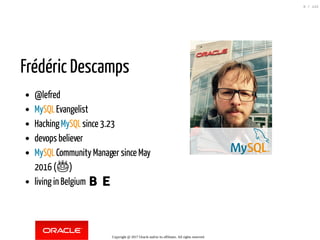

6. Frédéric Descamps
@lefred
MySQLEvangelist
HackingMySQLsince 3.23
devops believer
MySQLCommunity Manager since May
2016 (🎂)
living in Belgium 🇧🇪
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
6 / 143

7. MySQL InnoDB Cluster
Easy MySQL High Availability
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
7 / 143

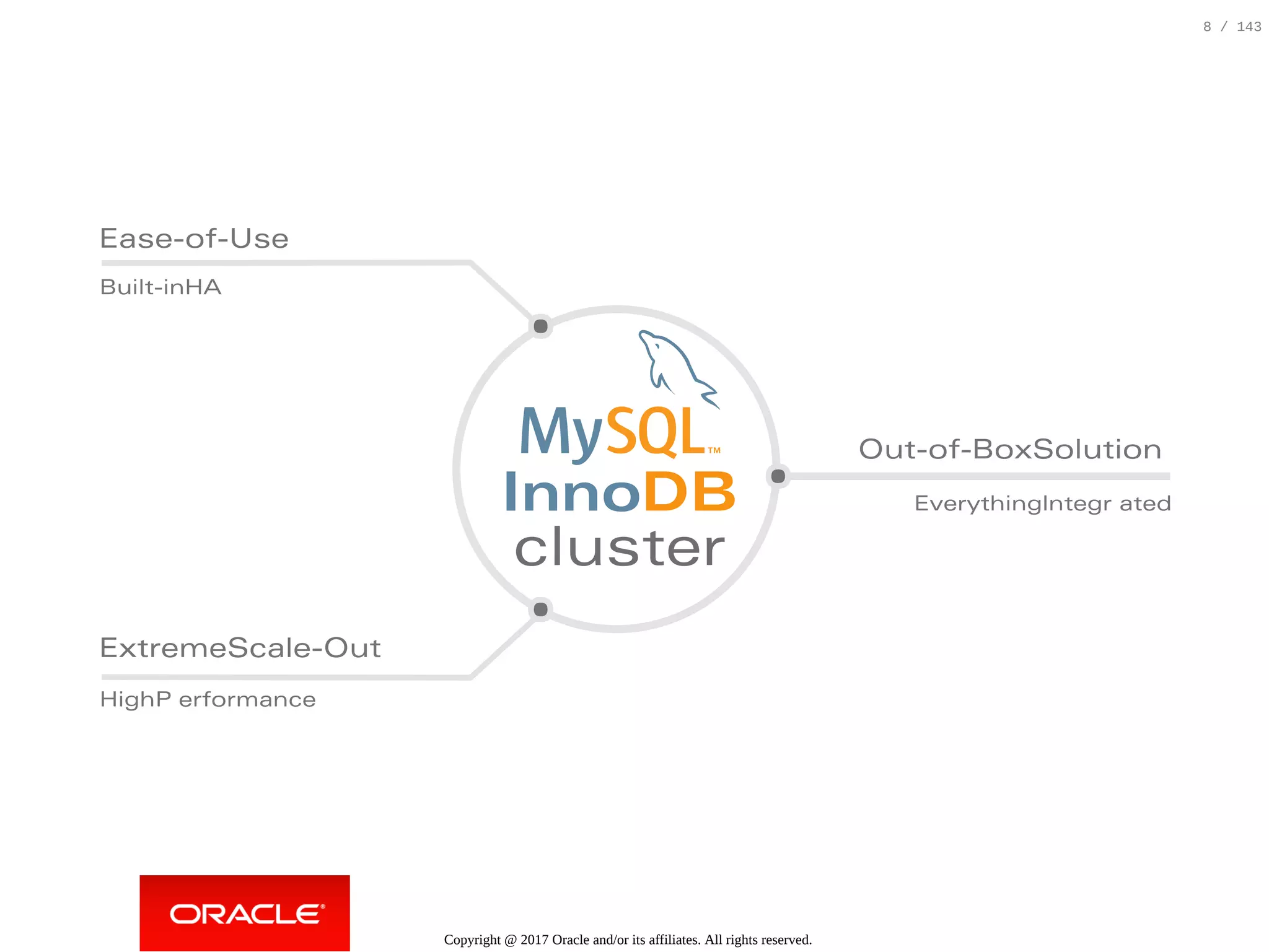

8. InnoDB
cluster
Ease-of-Use
ExtremeScale-Out
Out-of-BoxSolution
Built-inHA
HighP erformance
EverythingIntegr ated
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
8 / 143

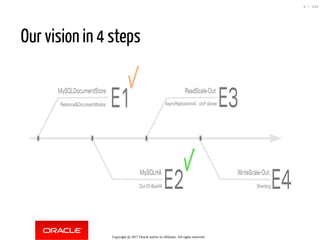

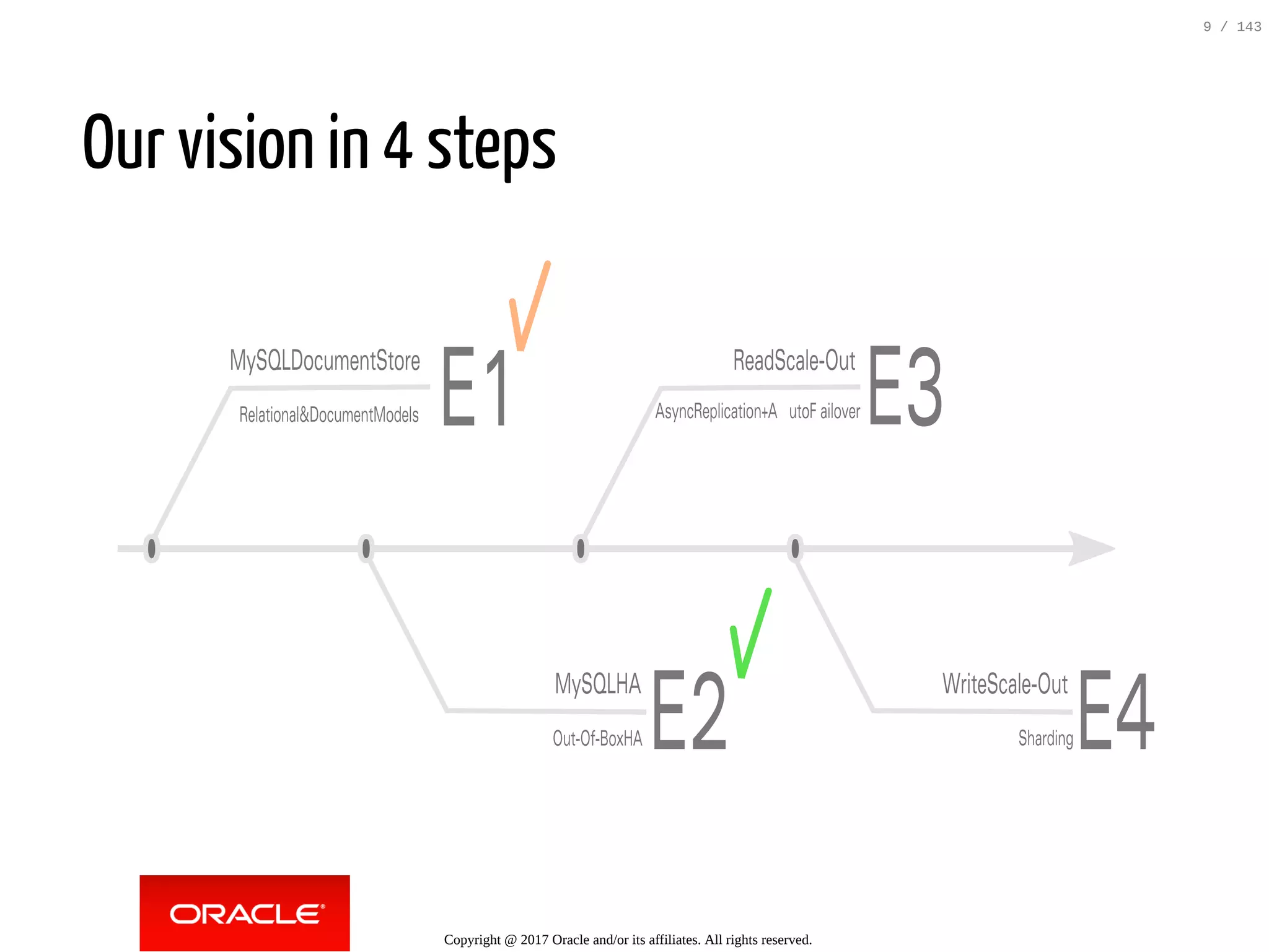

9. Our vision in 4 steps
MySQLDocumentStore
Relational&DocumentModels
MySQLHA
Out-Of-BoxHA
ReadScale-Out
AsyncReplication+A utoFailover
WriteScale-Out
Sharding
E1 E3
E2 E4
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
9 / 143

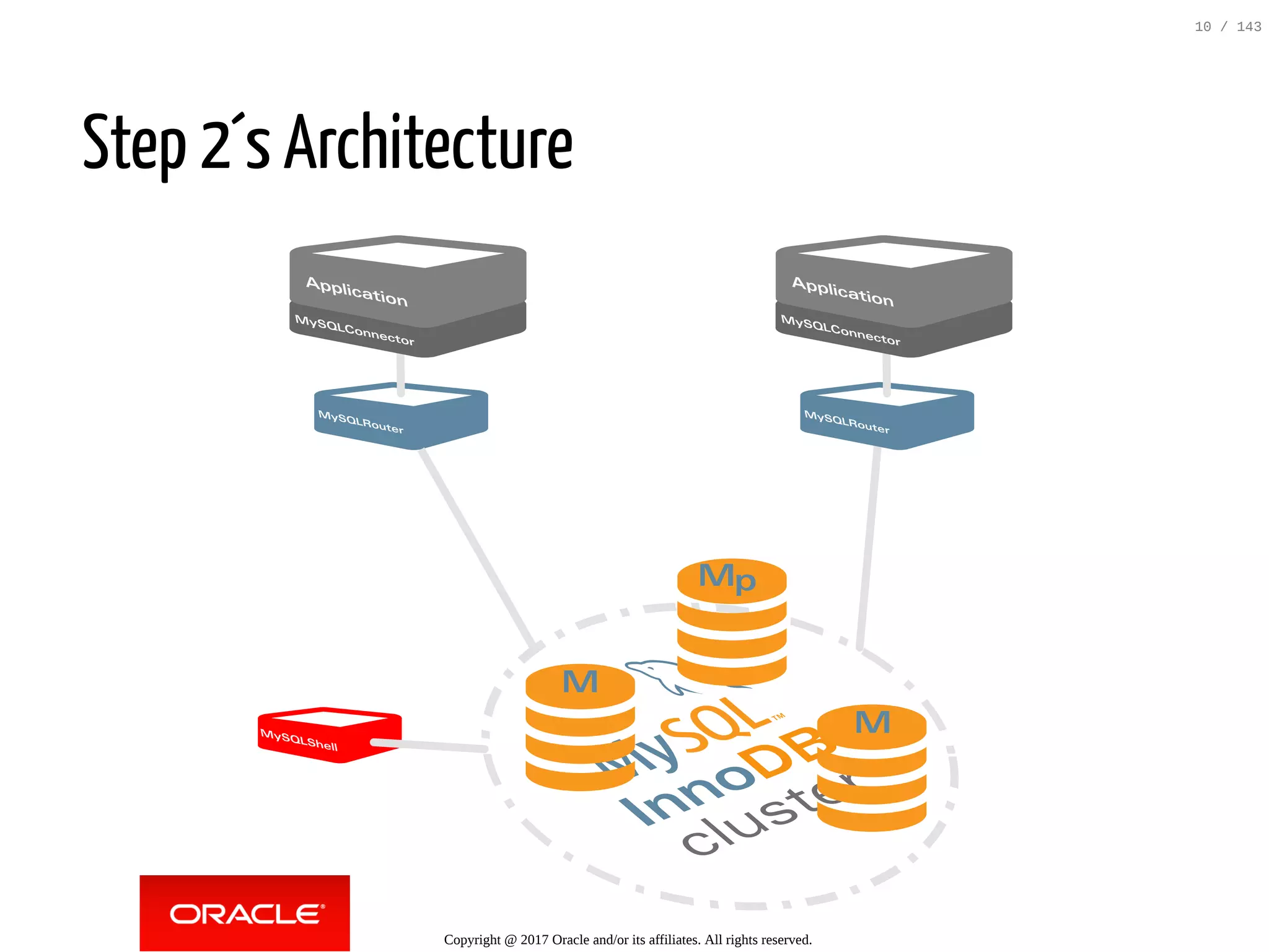

10. Step 2´s Architecture
Application
MySQLConnector
MySQLRouter
MySQLShell
InnoDB
cluster
Application
MySQLConnector
MySQLRouter
Mp
M
M
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
10 / 143

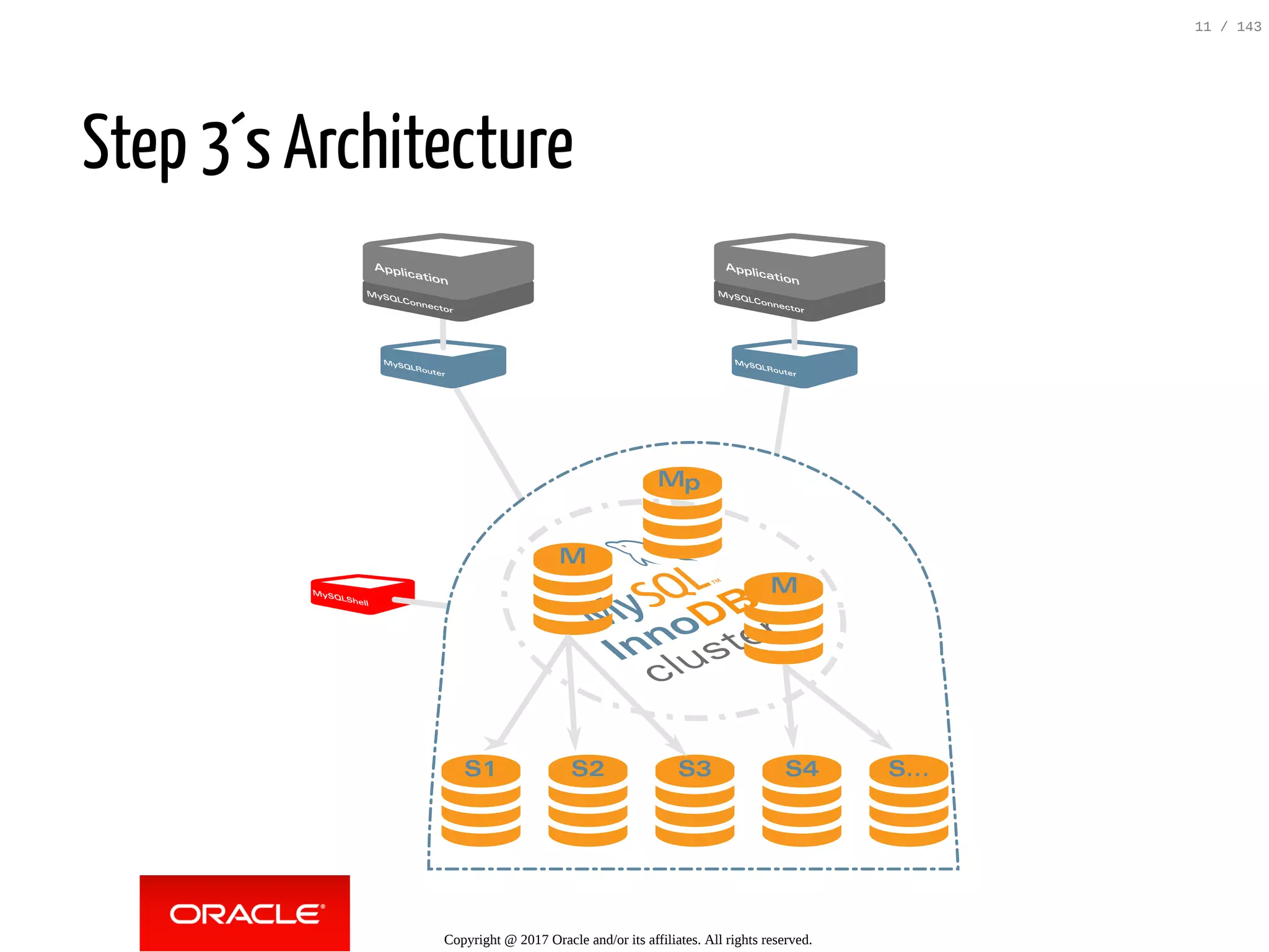

11. Step 3´s Architecture
Application
MySQLConnector
MySQLRouter
MySQLShell
InnoDB
cluster
Application
MySQLConnector
MySQLRouter
Mp
M
M
S1 S2 S3 S4 S...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
11 / 143

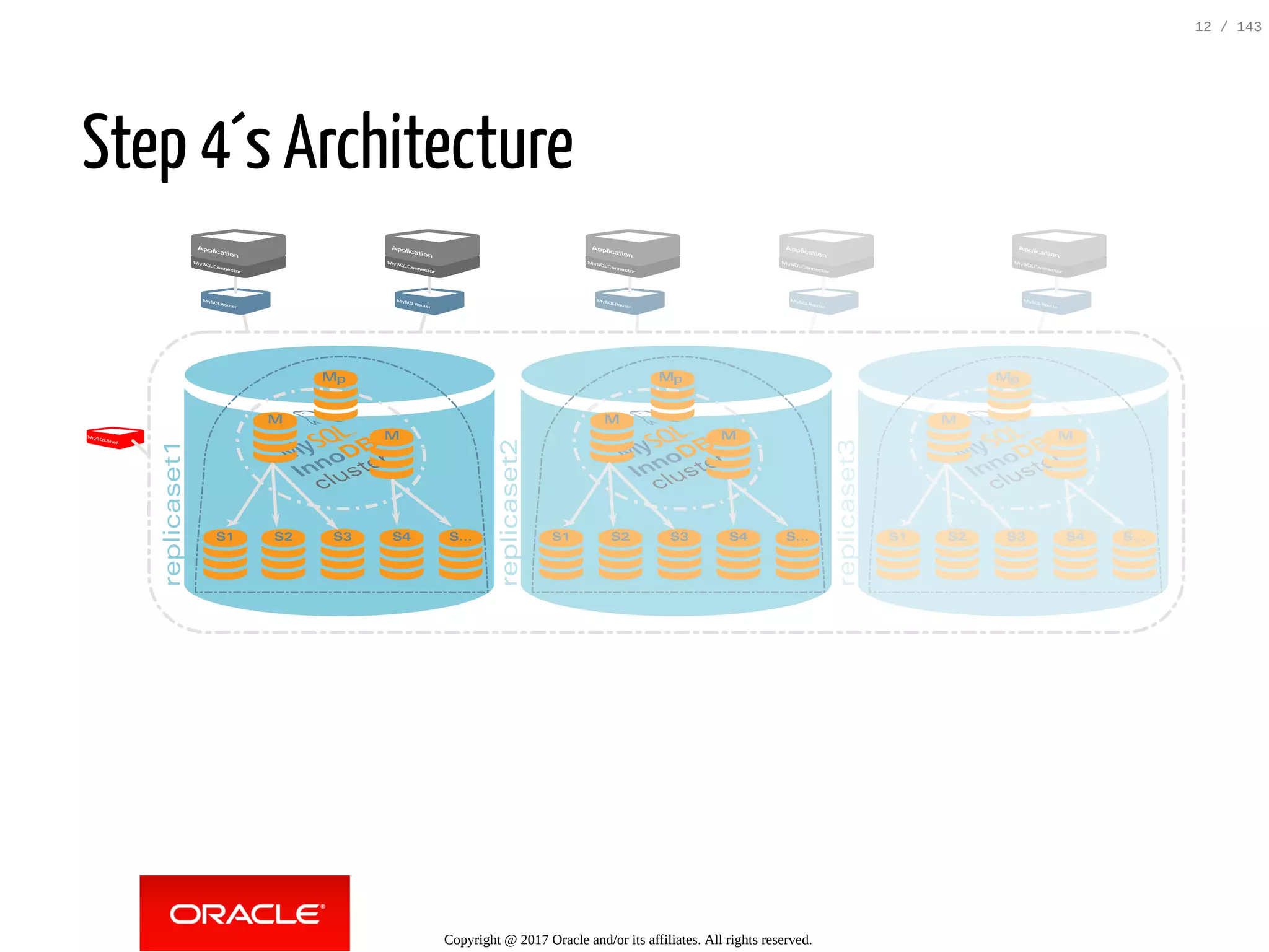

12. Step 4´s Architecture
Application
MySQLConnector
MySQLRouter
MySQLShell
Application
MySQLConnector
MySQLRouter
InnoDB
cluster
Mp
M
M
S2 S3 S4 S...S1
InnoDB
cluster
Mp
M
M
S1 S2 S3 S4 S...
InnoDB
cluster
Mp
M
M
S1 S2 S3 S4 S...
Application
MySQLConnector
MySQLRouter
Application
MySQLConnector
MySQLRouter
Application
MySQLConnector
MySQLRouter
replicaset1
replicaset2
replicaset3
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
12 / 143

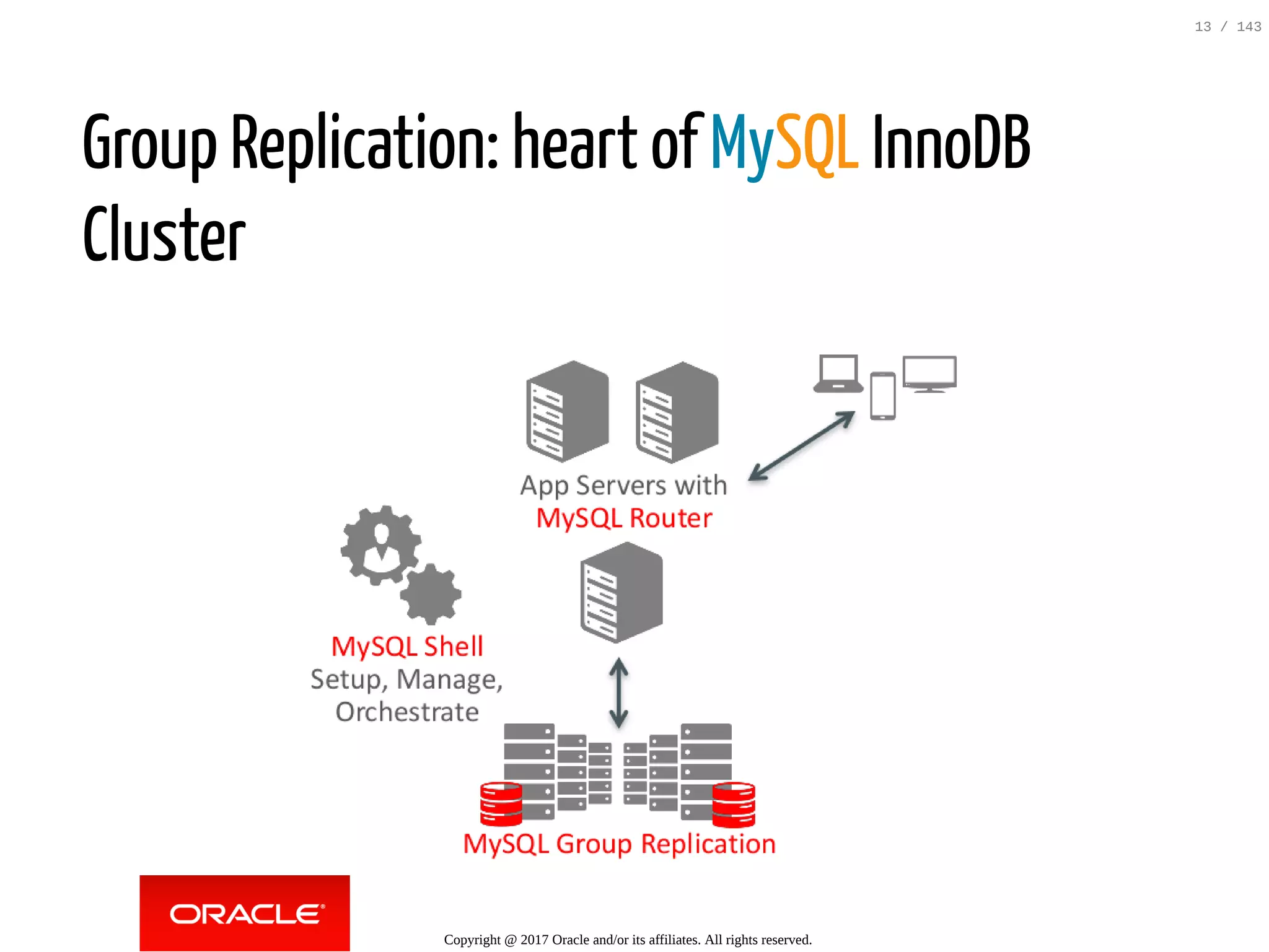

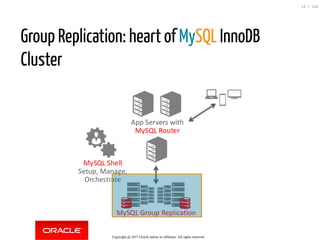

13. Group Replication: heart of MySQL InnoDB
Cluster
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
13 / 143

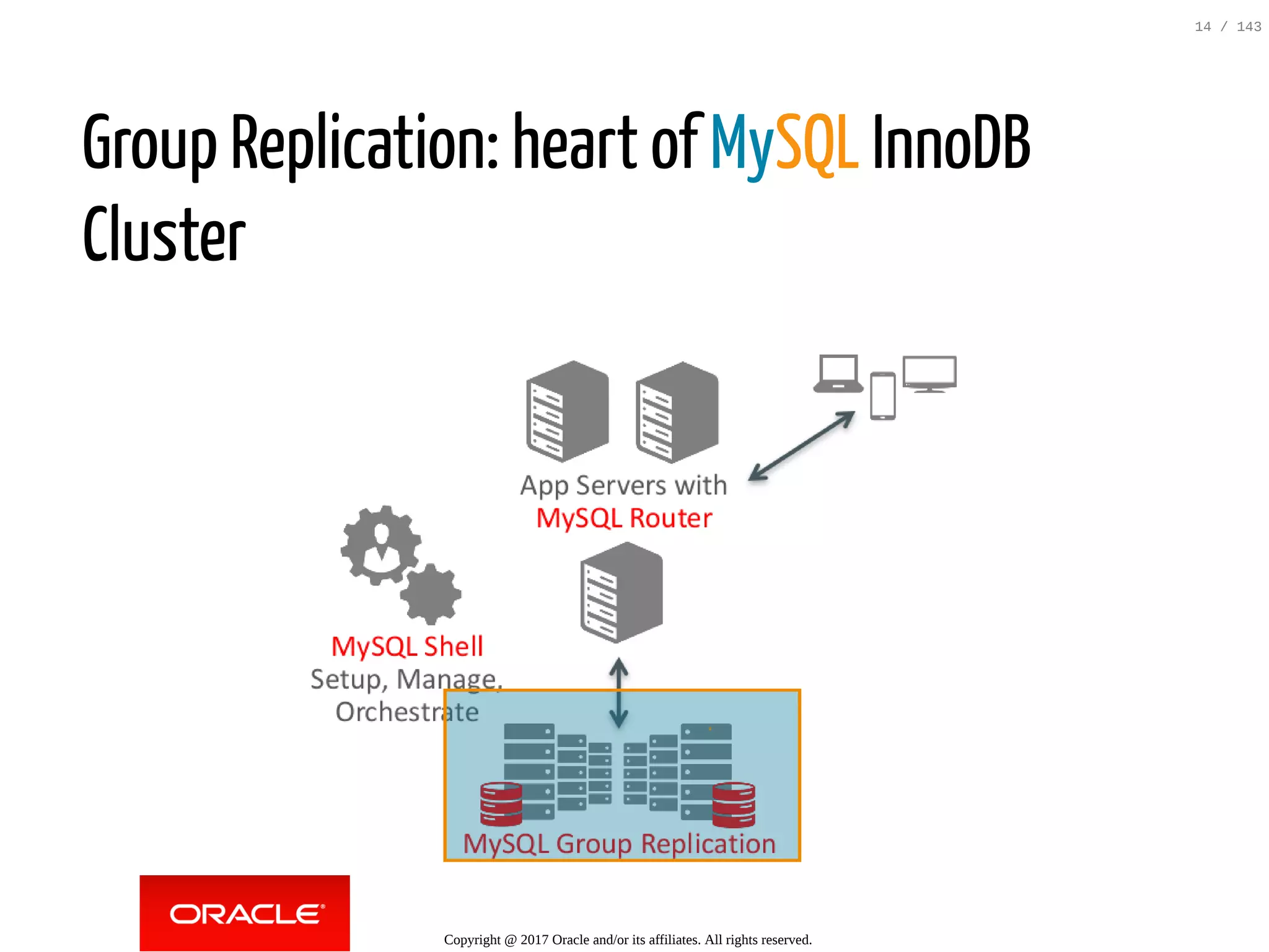

14. Group Replication: heart of MySQL InnoDB
Cluster
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
14 / 143

15. But before going further...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
15 / 143

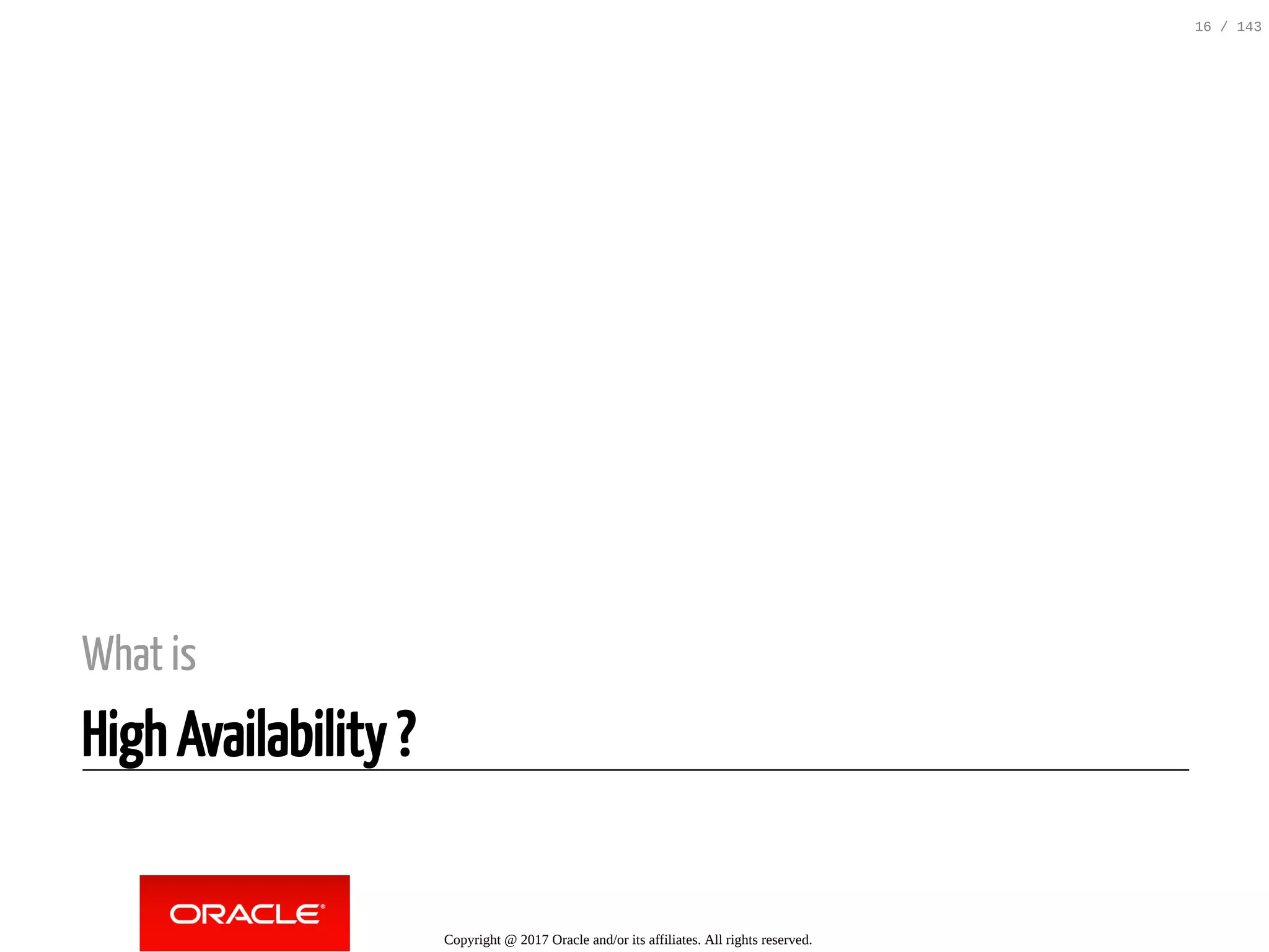

16. What is
High Availability ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
16 / 143

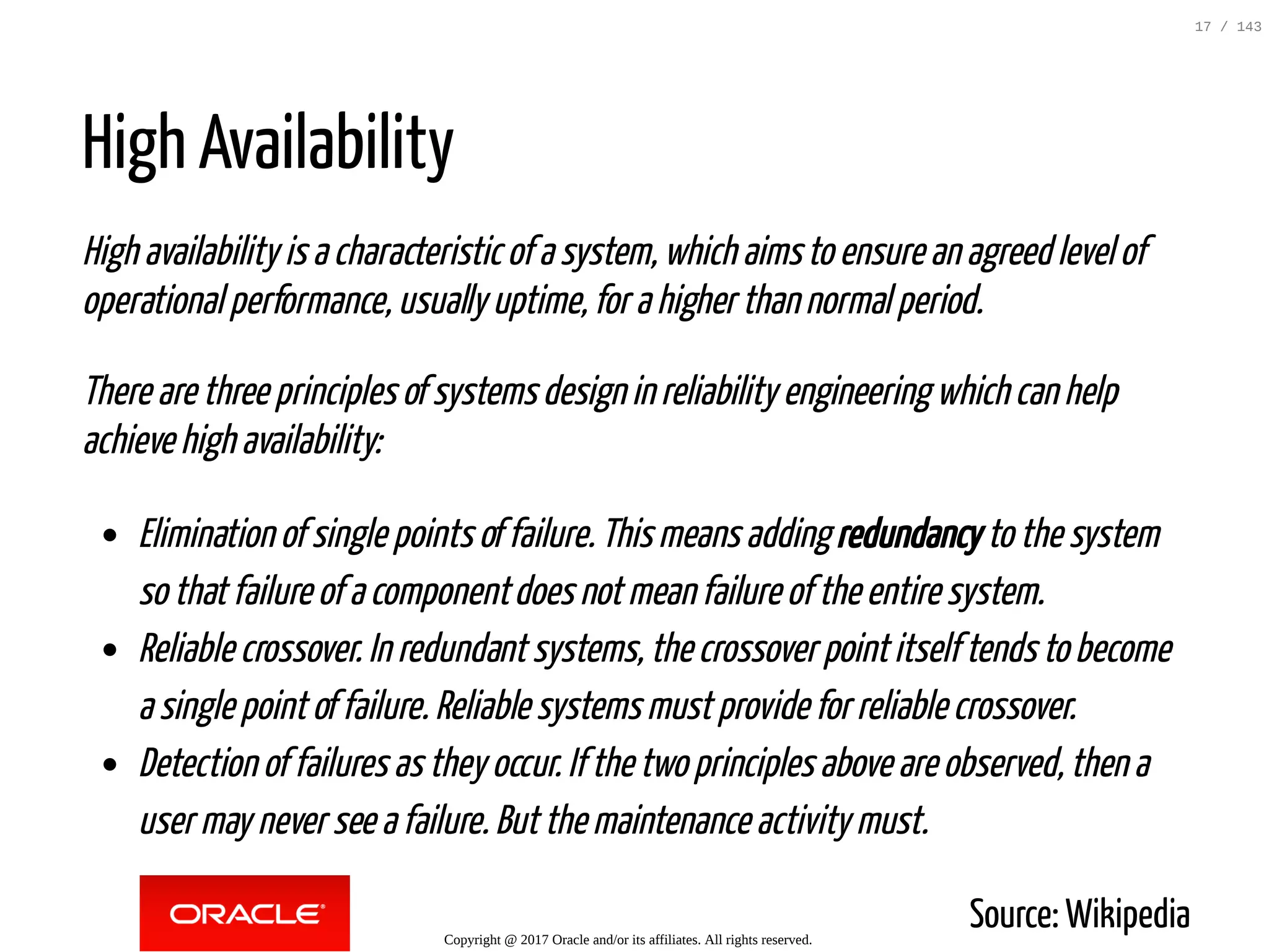

17. High Availability
High availability is a characteristicofa system, which aimstoensureanagreedlevelof
operational performance, usuallyuptime, for a higher thannormalperiod.
There are three principles of systemsdesigninreliabilityengineeringwhichcanhelp
achieve high availability:
Elimination of single points offailure. Thismeansaddingredundancyto the system
so that failure of a componentdoesnotmeanfailureoftheentiresystem.
Reliable crossover. In redundantsystems, thecrossover pointitselftendstobecome
a single point of failure. Reliablesystemsmustprovideforreliablecrossover.
Detection of failures as they occur. Ifthetwoprinciplesaboveareobserved,thena
user may never see a failure. Butthemaintenanceactivitymust.
Source: WikipediaCopyright @ 2017 Oracle and/or its affiliates. All rights reserved.
17 / 143

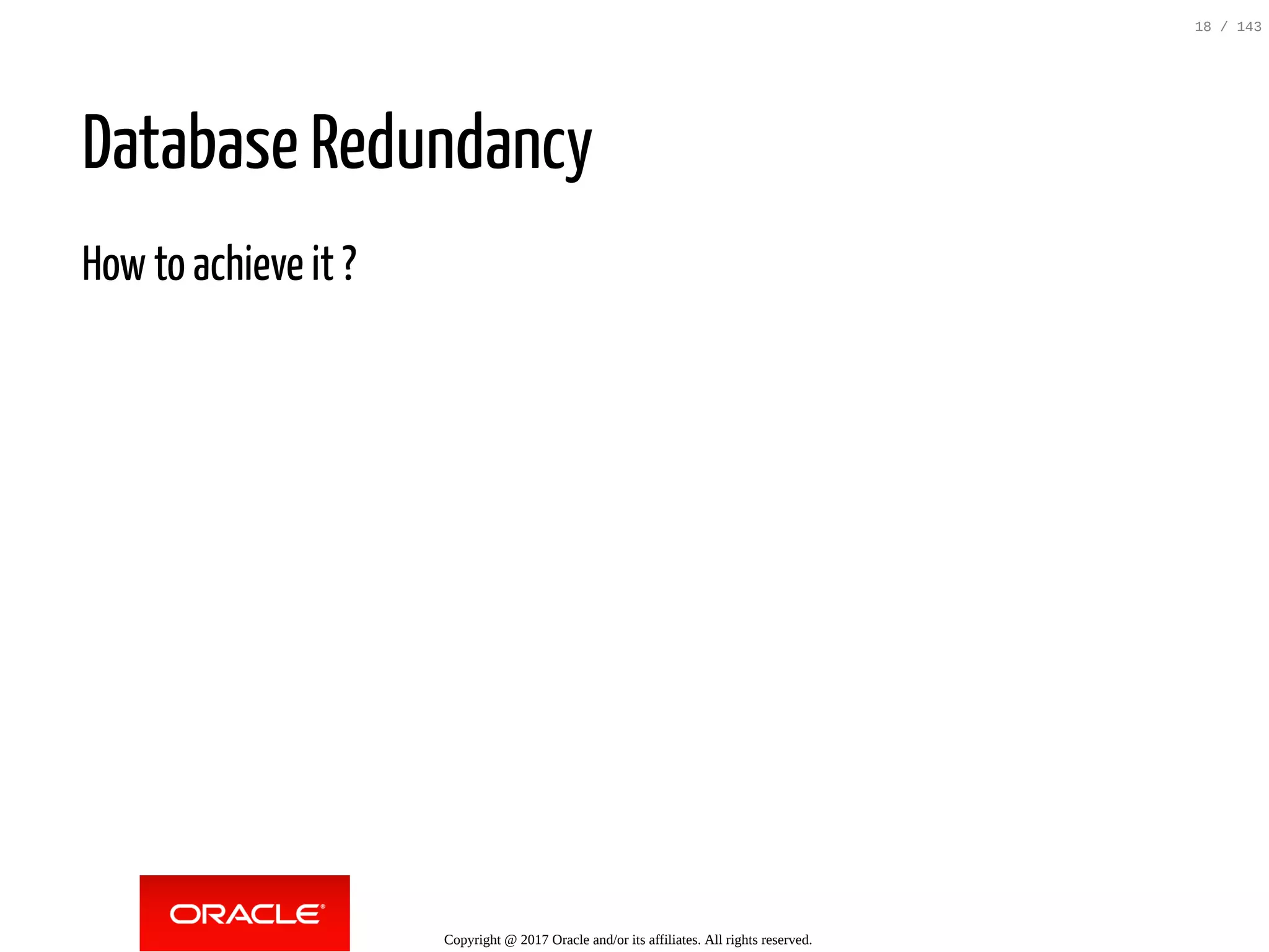

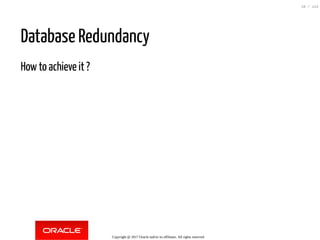

18. Database Redundancy
How to achieve it ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
18 / 143

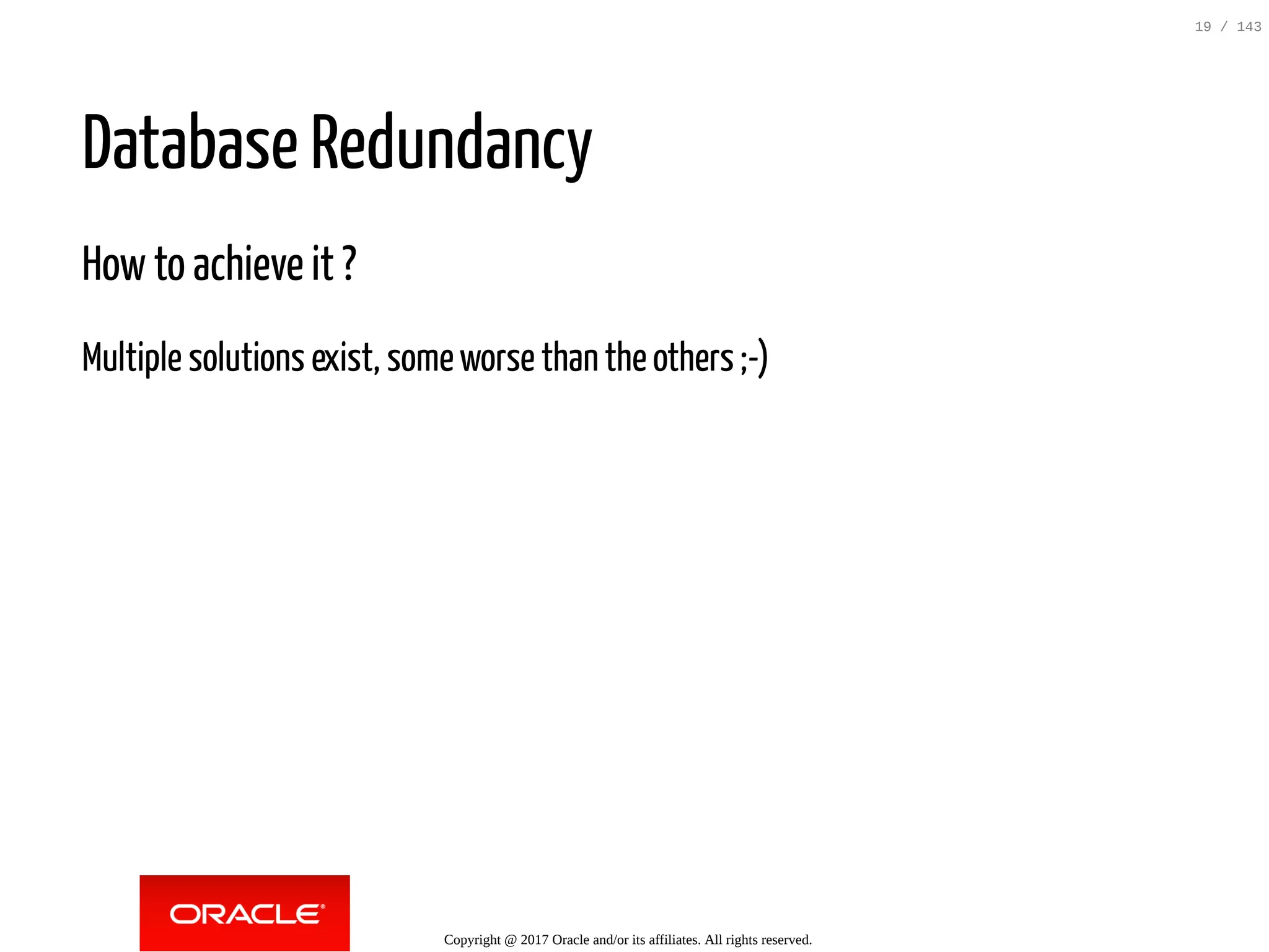

19. Database Redundancy
How to achieve it ?
Multiple solutions exist, someworse thantheothers ;-)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
19 / 143

20. Database Redundancy
How to achieve it ?
Multiple solutions exist, someworse thantheothers ;-)

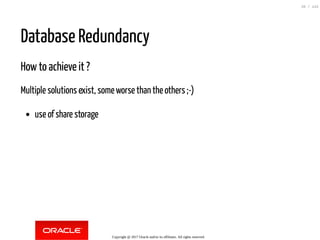

use of share storage
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
20 / 143

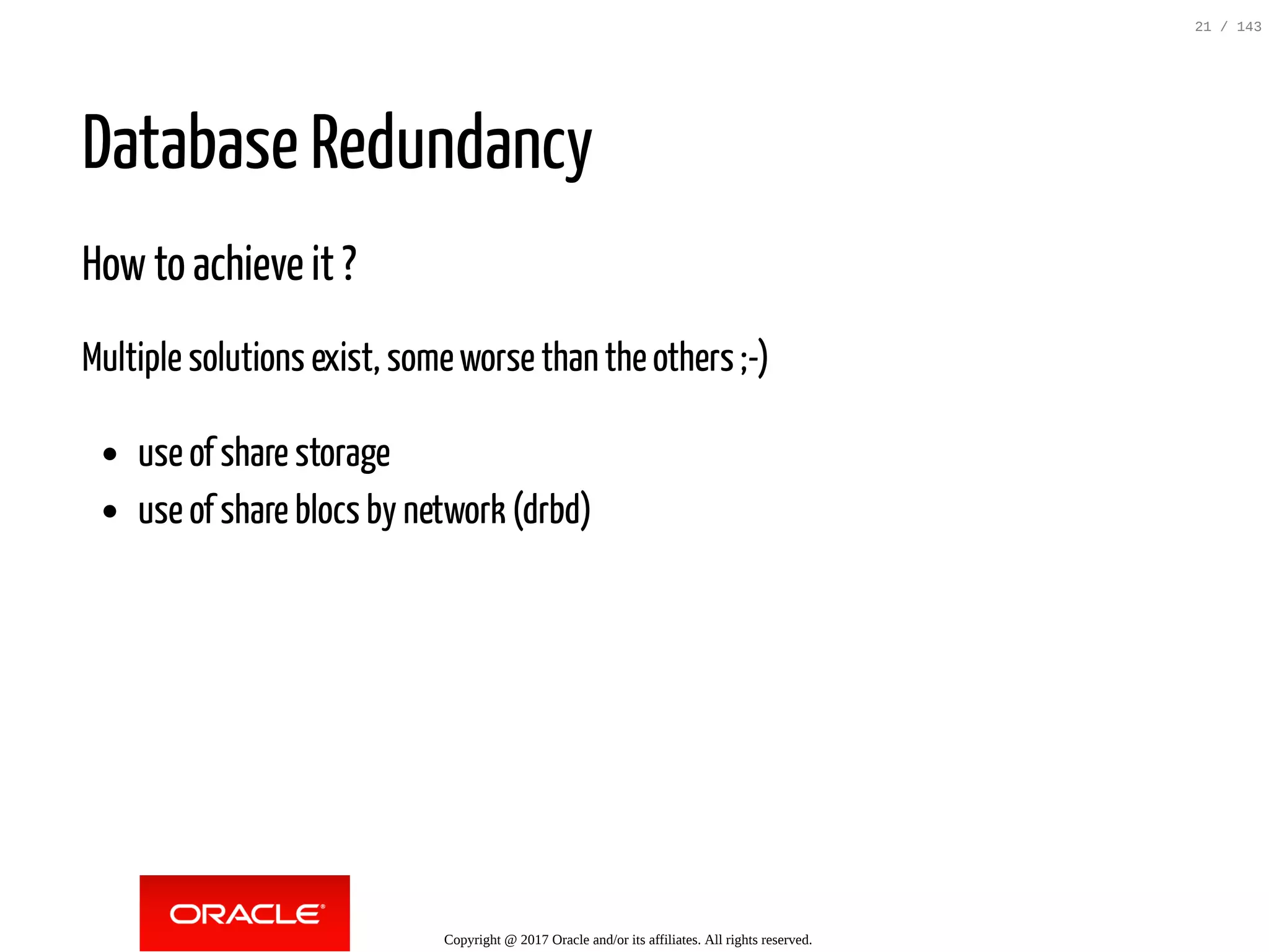

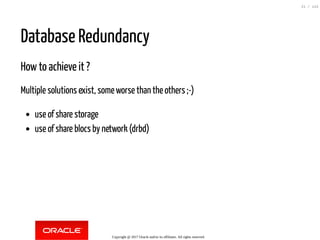

21. Database Redundancy
How to achieve it ?
Multiple solutions exist, someworse thantheothers ;-)
use of share storage
use of share blocs by network(drbd)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
21 / 143

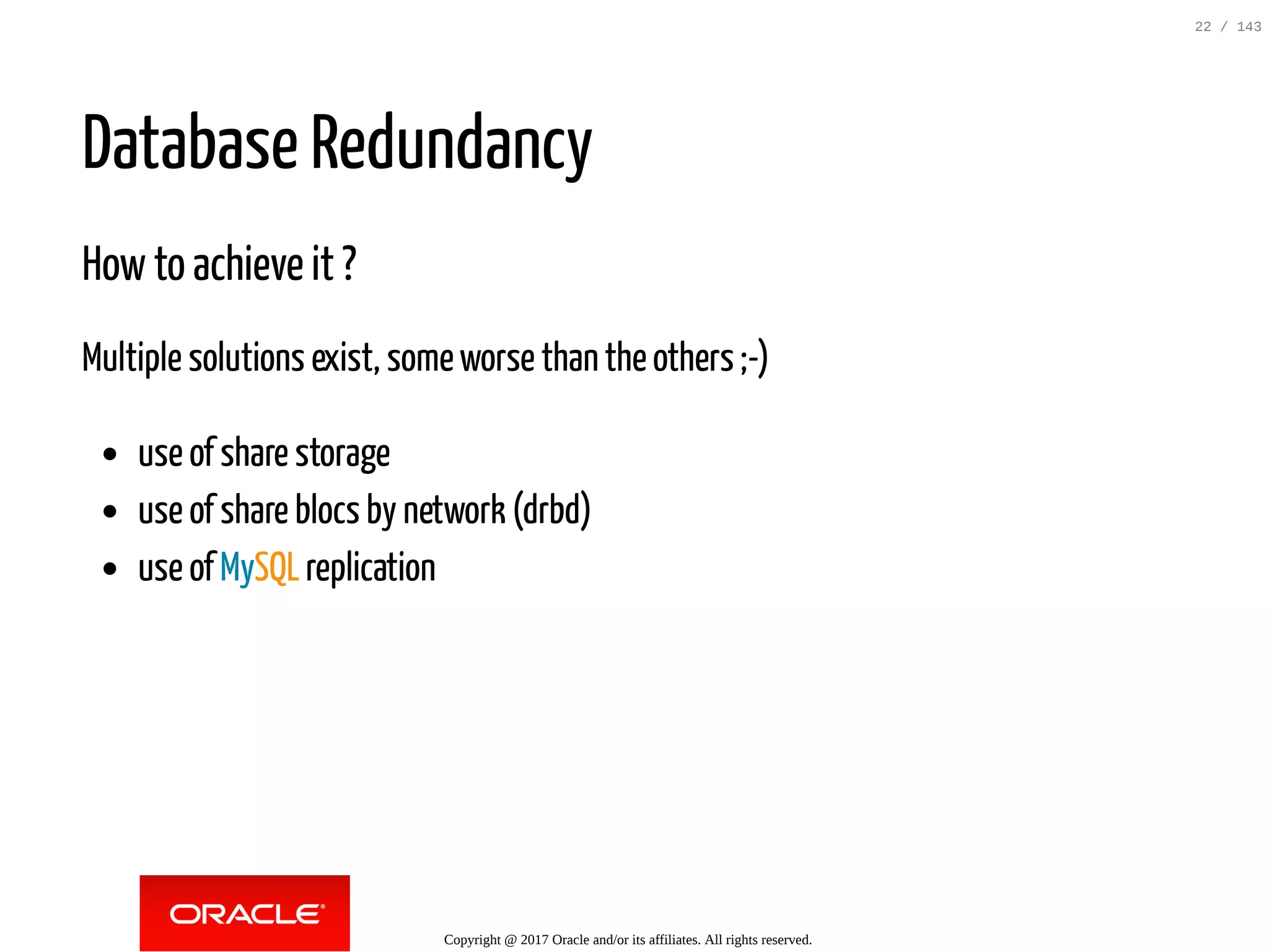

22. Database Redundancy
How to achieve it ?
Multiple solutions exist, someworse thantheothers ;-)
use of share storage
use of share blocs by network(drbd)
use of MySQLreplication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
22 / 143

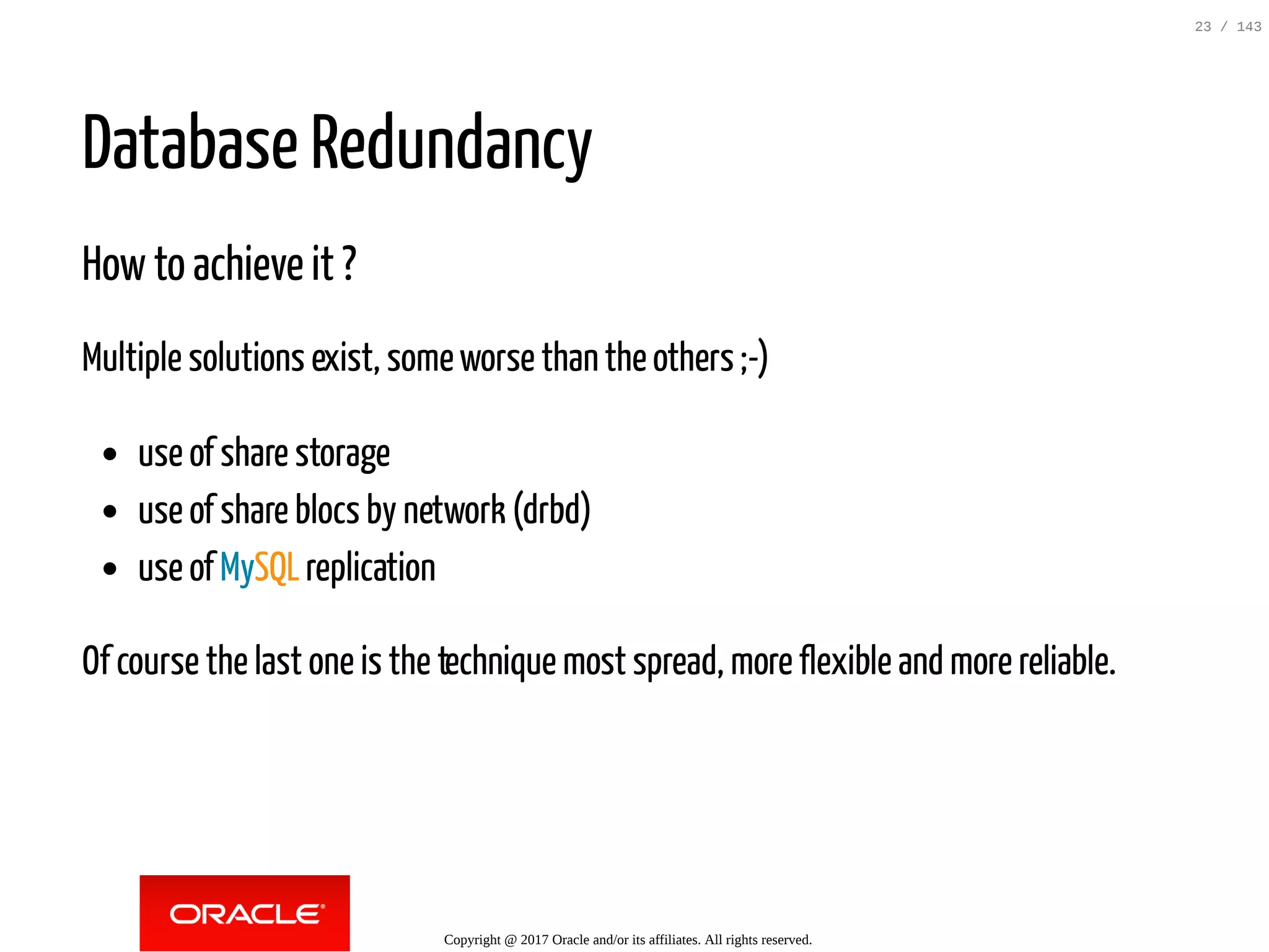

23. Database Redundancy
How to achieve it ?
Multiple solutions exist, someworse thantheothers ;-)
use of share storage
use of share blocs by network(drbd)
use of MySQLreplication
Of course the last one is the technique most spread, more flexible and more reliable.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
23 / 143

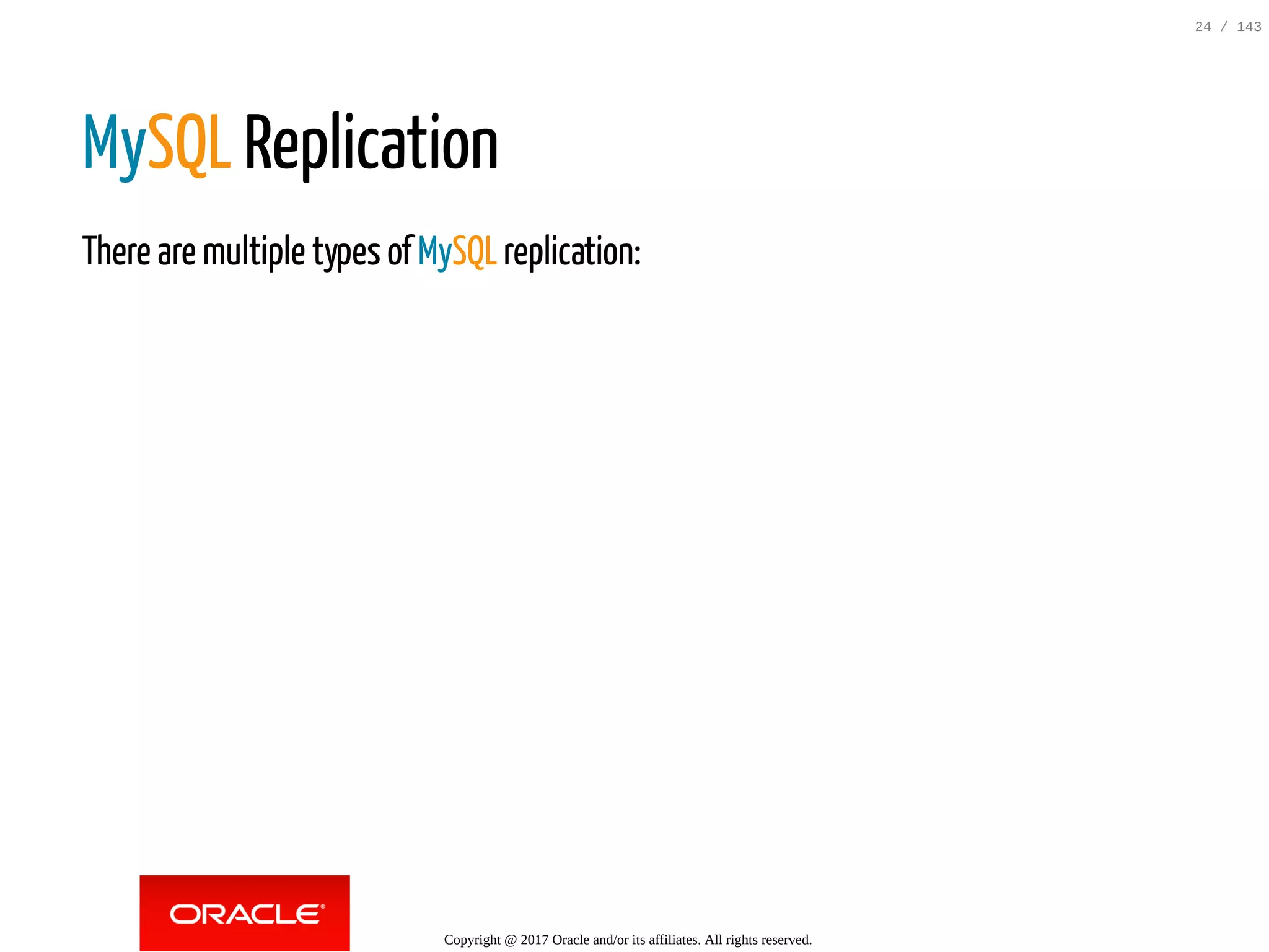

24. MySQL Replication
There are multiple types of MySQLreplication:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
24 / 143

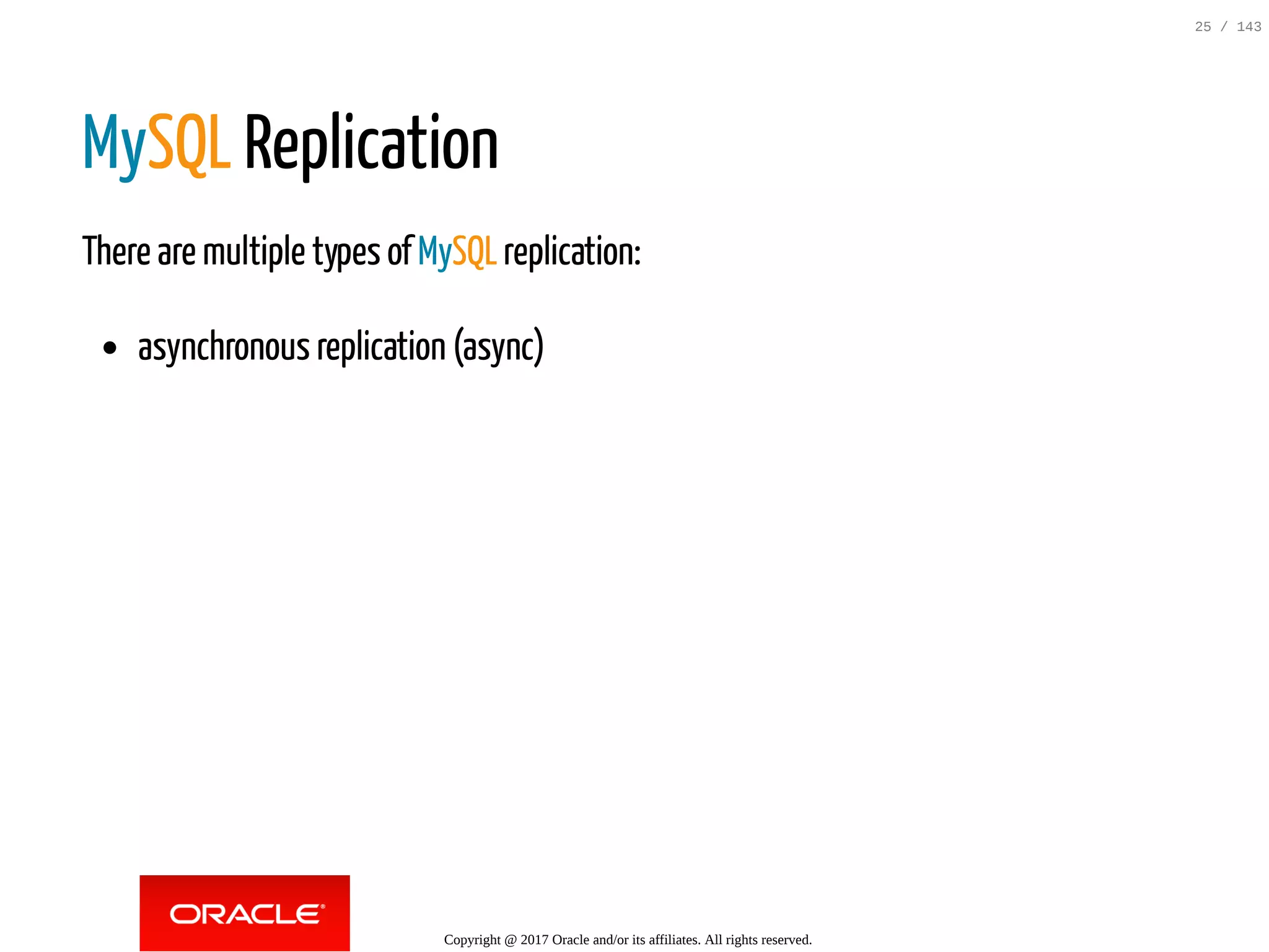

25. MySQL Replication
There are multiple types of MySQLreplication:
asynchronous replication (async)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
25 / 143

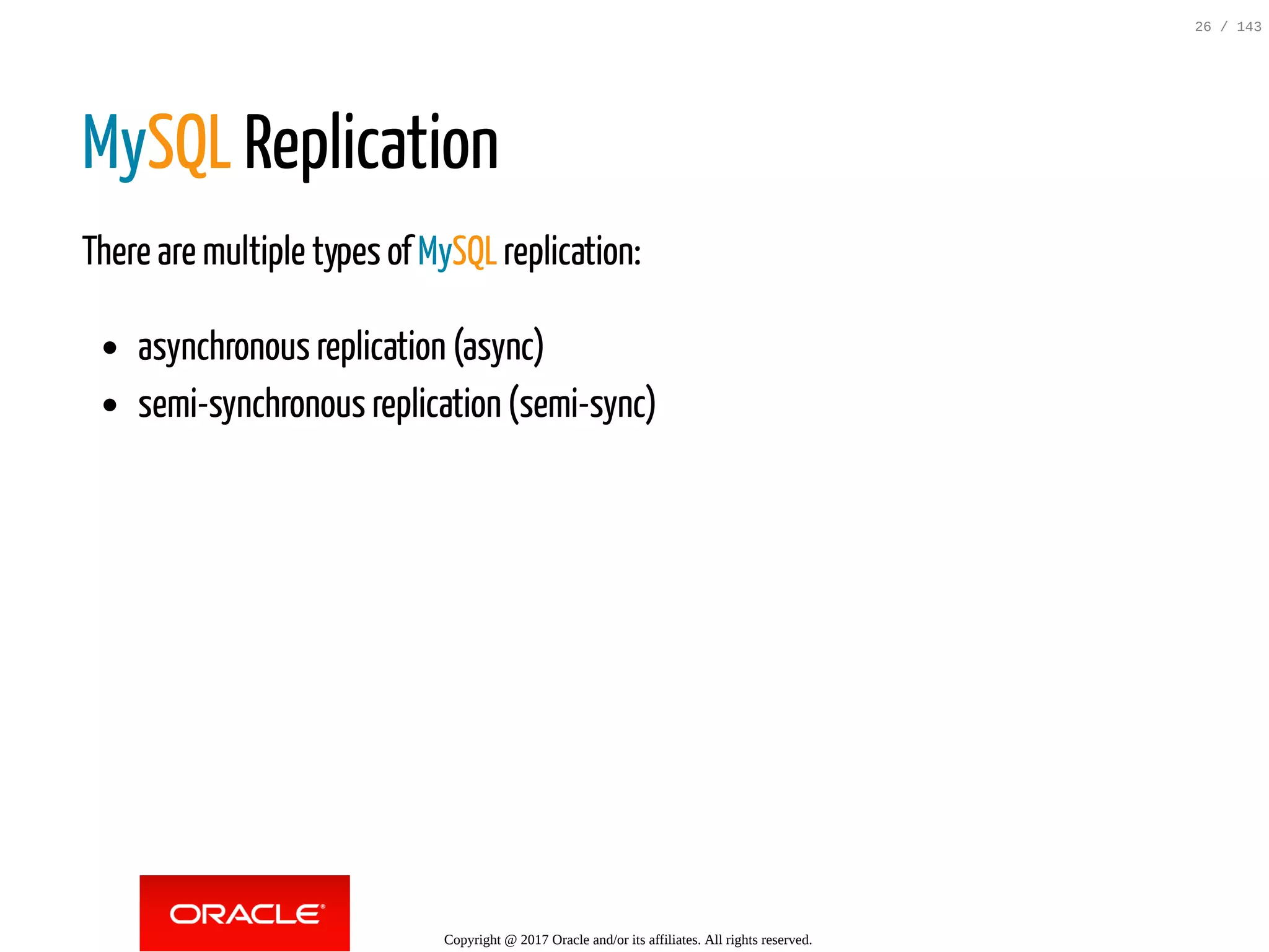

26. MySQL Replication
There are multiple types of MySQLreplication:
asynchronous replication (async)
semi-synchronous replication(semi-sync)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
26 / 143

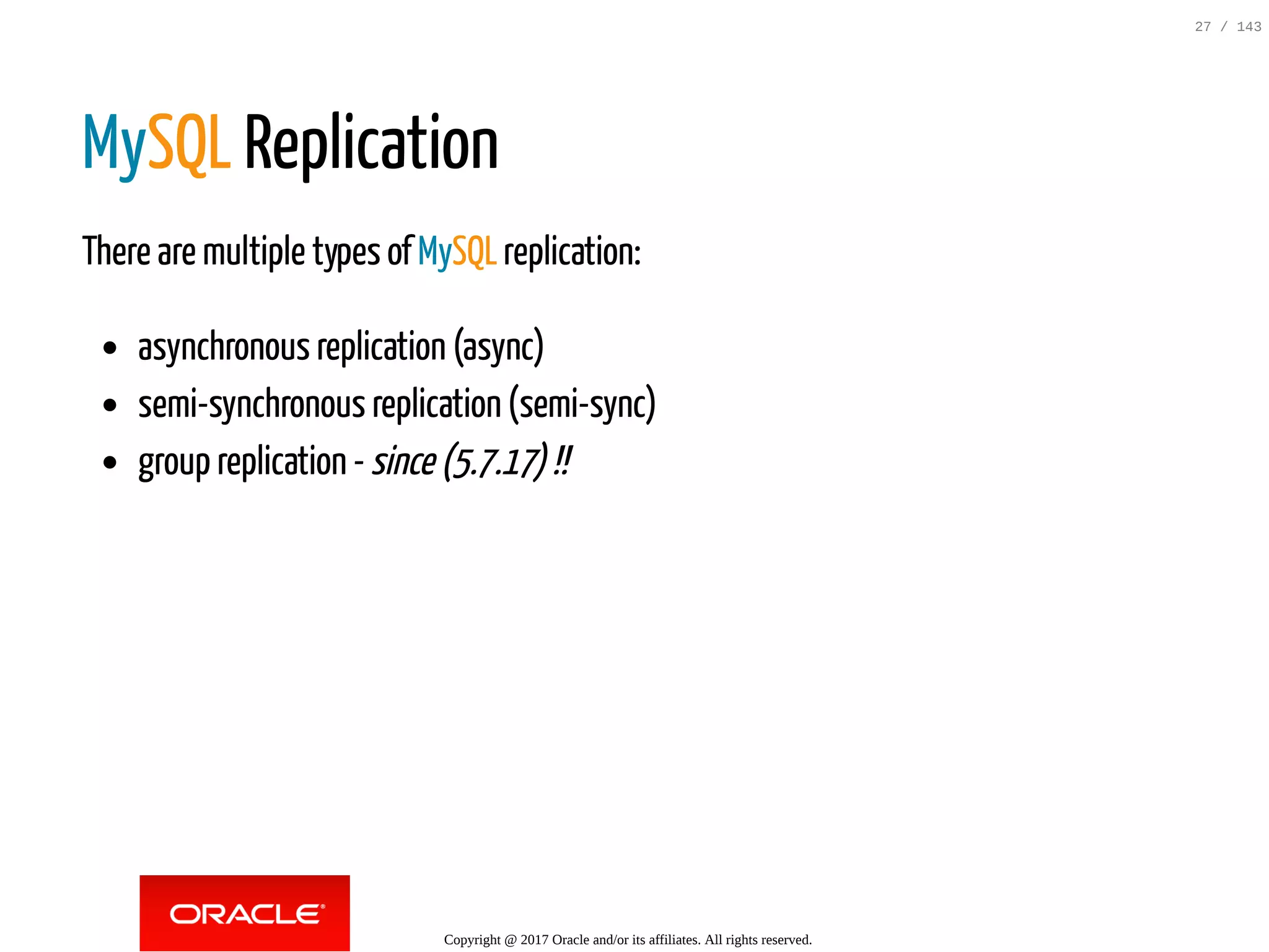

27. MySQL Replication
There are multiple types of MySQLreplication:
asynchronous replication (async)
semi-synchronous replication(semi-sync)
group replication -since (5.7.17) !!
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
27 / 143

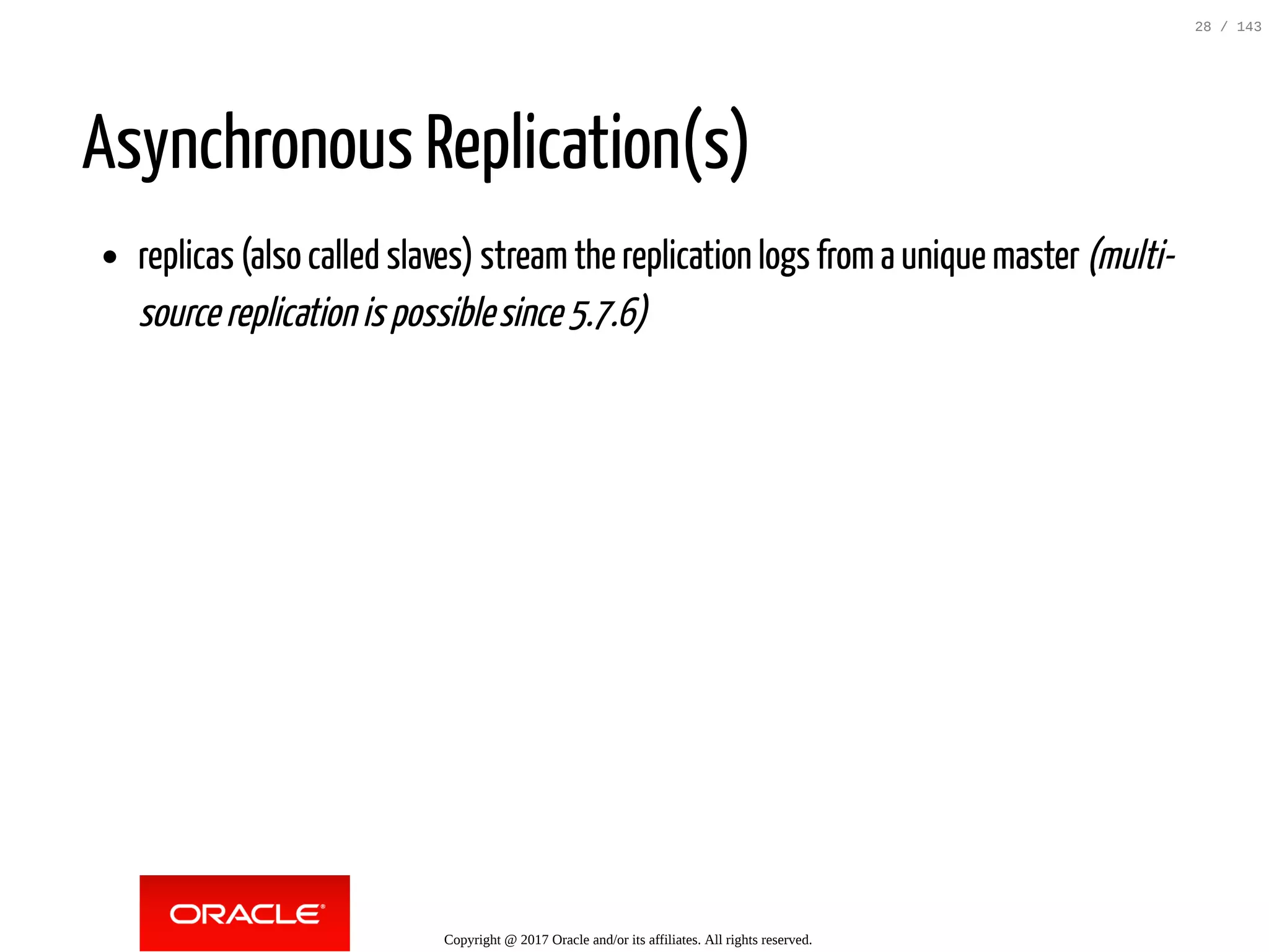

28. Asynchronous Replication(s)
replicas (also called slaves) stream thereplication logs froma unique master (multi-
source replication is possiblesince5.7.6)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
28 / 143

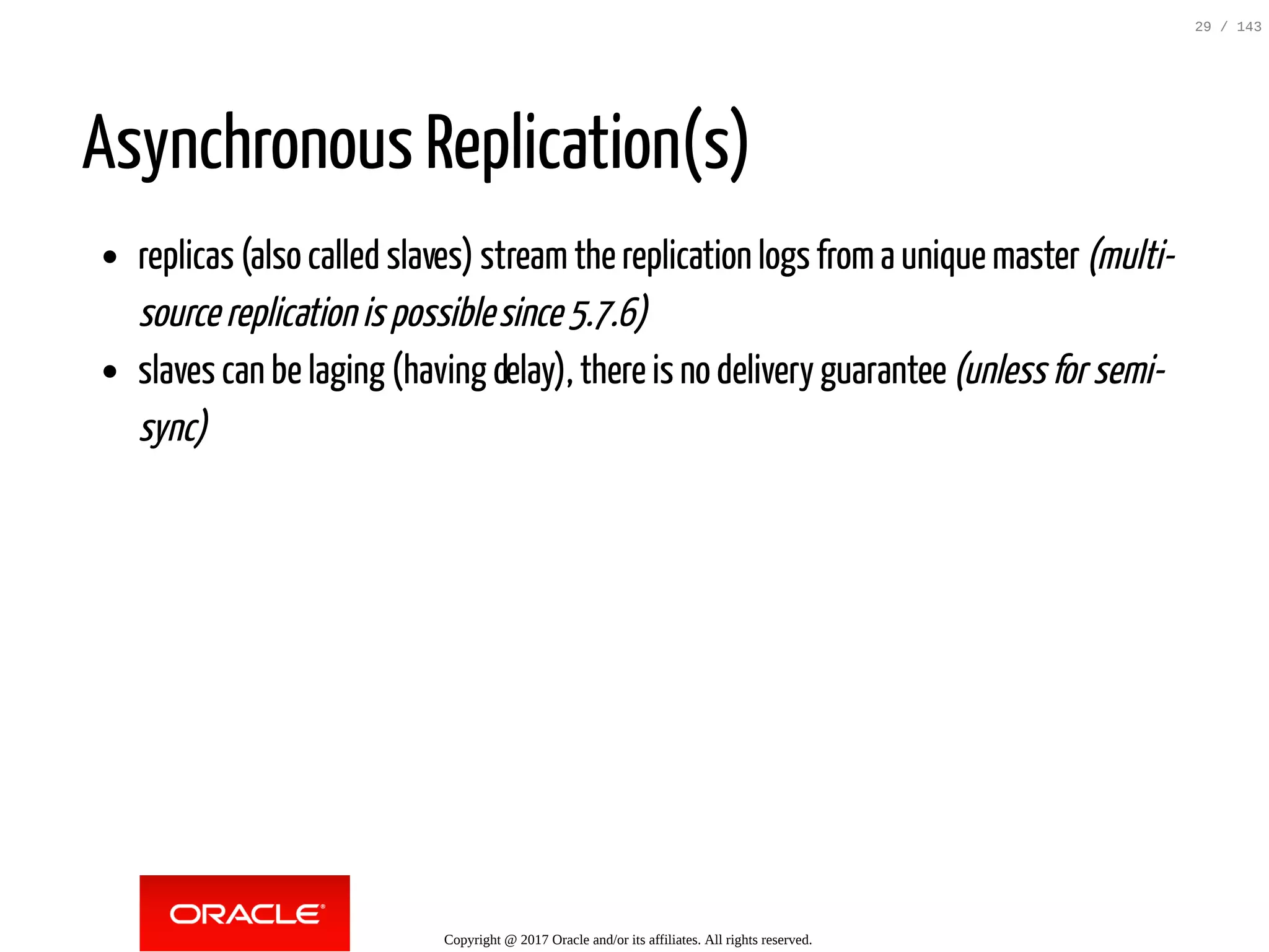

29. Asynchronous Replication(s)
replicas (also called slaves) stream thereplication logs froma unique master (multi-
source replication is possiblesince5.7.6)
slaves can be laging (having delay), there isno delivery guarantee (unless for semi-
sync)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
29 / 143

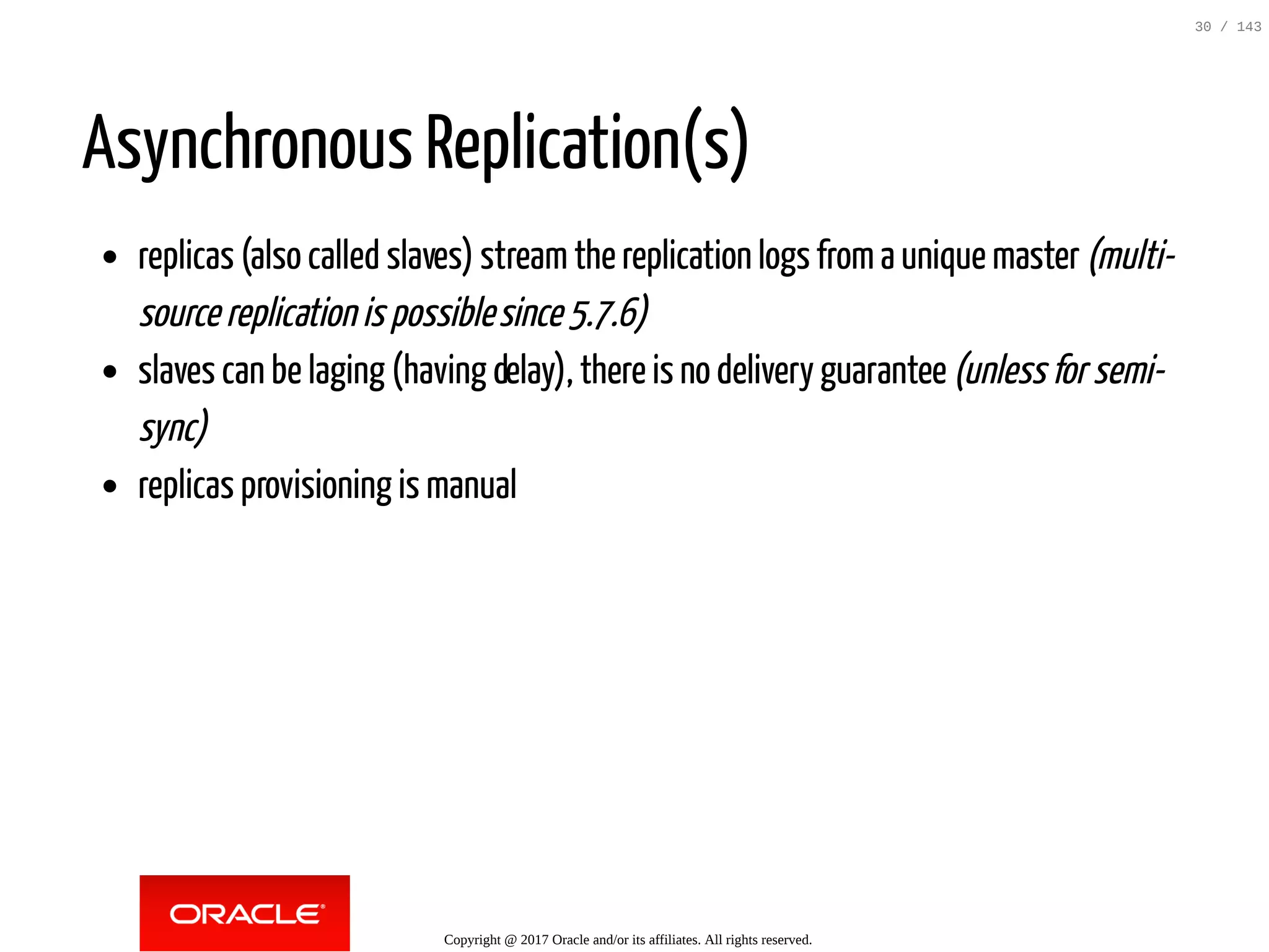

30. Asynchronous Replication(s)
replicas (also called slaves) stream thereplication logs froma unique master (multi-
source replication is possiblesince5.7.6)
slaves can be laging (having delay), there isno delivery guarantee (unless for semi-
sync)
replicas provisioning is manual
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
30 / 143

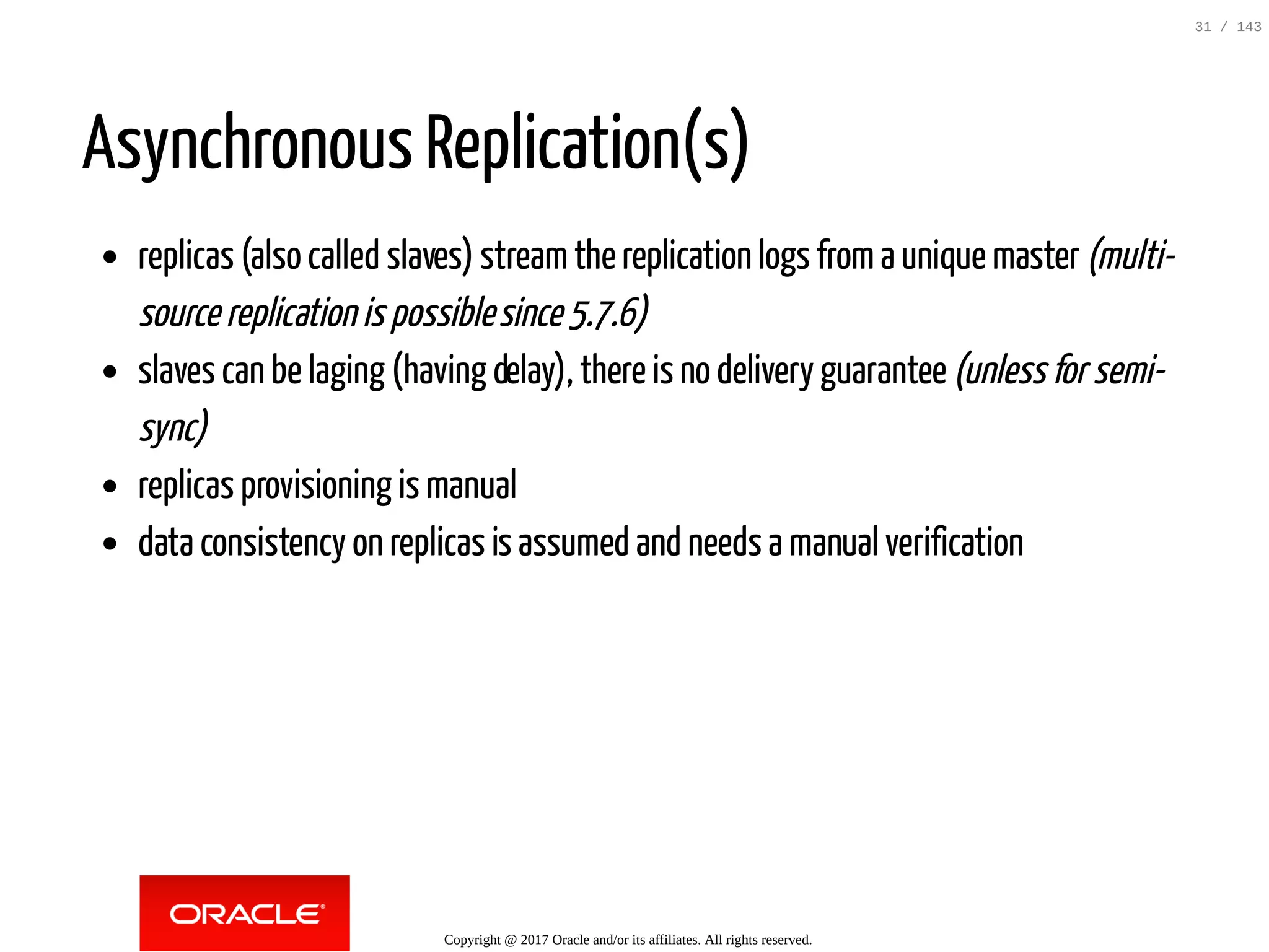

31. Asynchronous Replication(s)
replicas (also called slaves) stream thereplication logs froma unique master (multi-
source replication is possiblesince5.7.6)
slaves can be laging (having delay), there isno delivery guarantee (unless for semi-
sync)
replicas provisioning is manual
data consistency on replicas is assumed and needs a manual verification
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
31 / 143

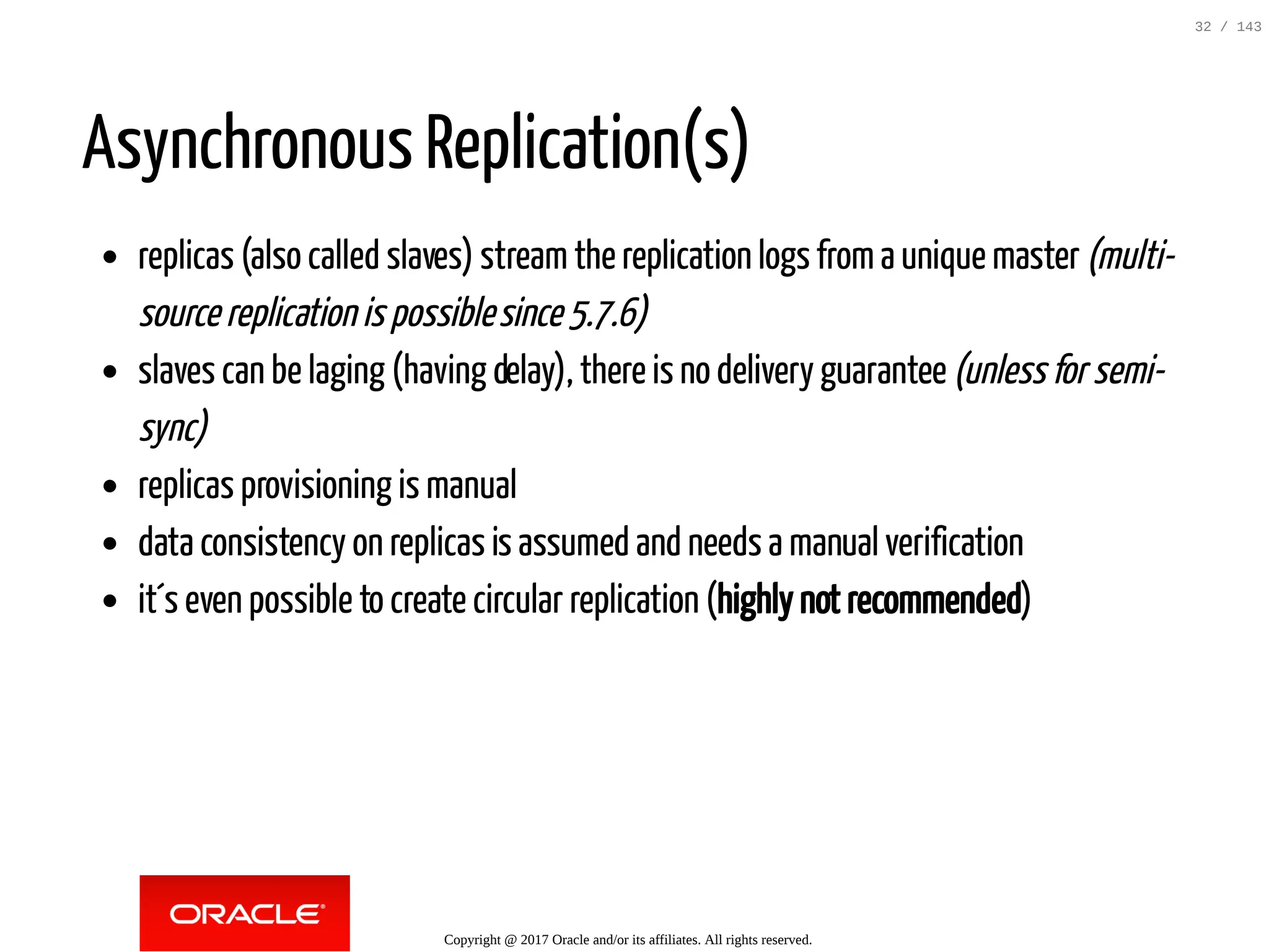

32. Asynchronous Replication(s)
replicas (also called slaves) stream thereplication logs froma unique master (multi-
source replication is possiblesince5.7.6)
slaves can be laging (having delay), there isno delivery guarantee (unless for semi-
sync)
replicas provisioning is manual
data consistency on replicas is assumed and needs a manual verification
it´s even possible to create circular replication (highly not recommended)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
32 / 143

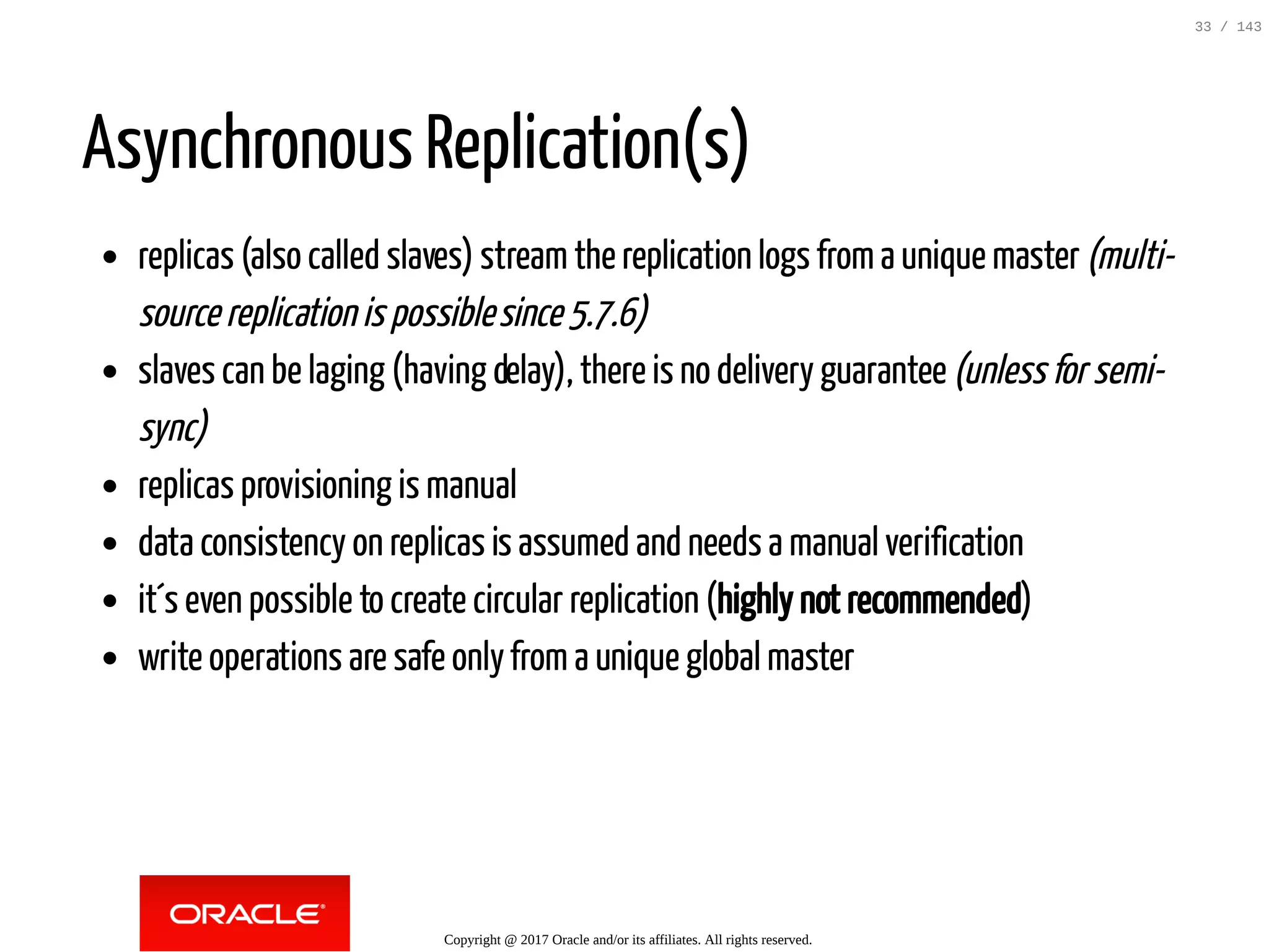

33. Asynchronous Replication(s)
replicas (also called slaves) stream thereplication logs froma unique master (multi-
source replication is possiblesince5.7.6)
slaves can be laging (having delay), there isno delivery guarantee (unless for semi-
sync)
replicas provisioning is manual
data consistency on replicas is assumed and needs a manual verification
it´s even possible to create circular replication (highly not recommended)
write operations are safe onlyfrom a unique global master
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
33 / 143

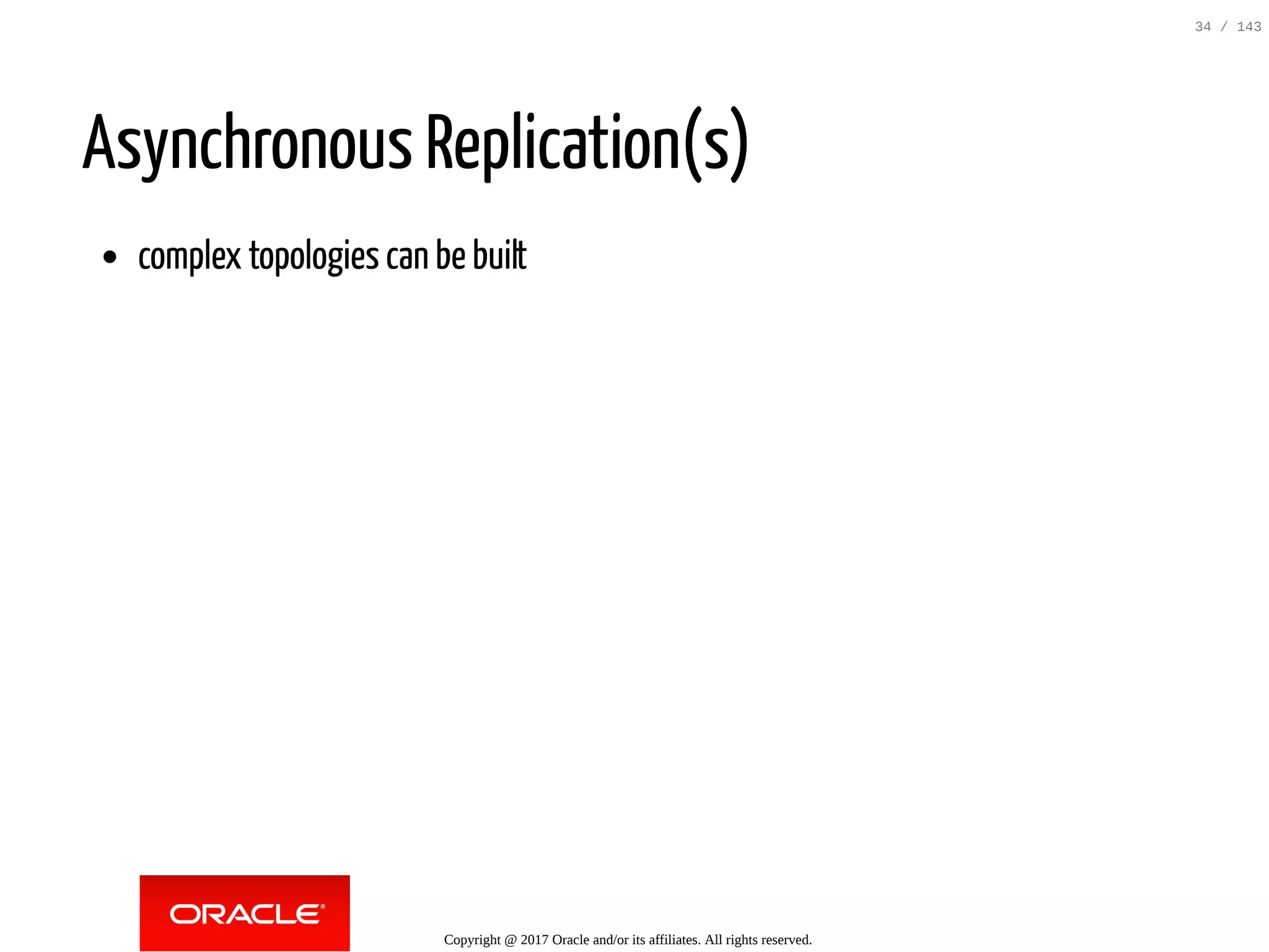

34. Asynchronous Replication(s)
complex topologies can be built
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
34 / 143

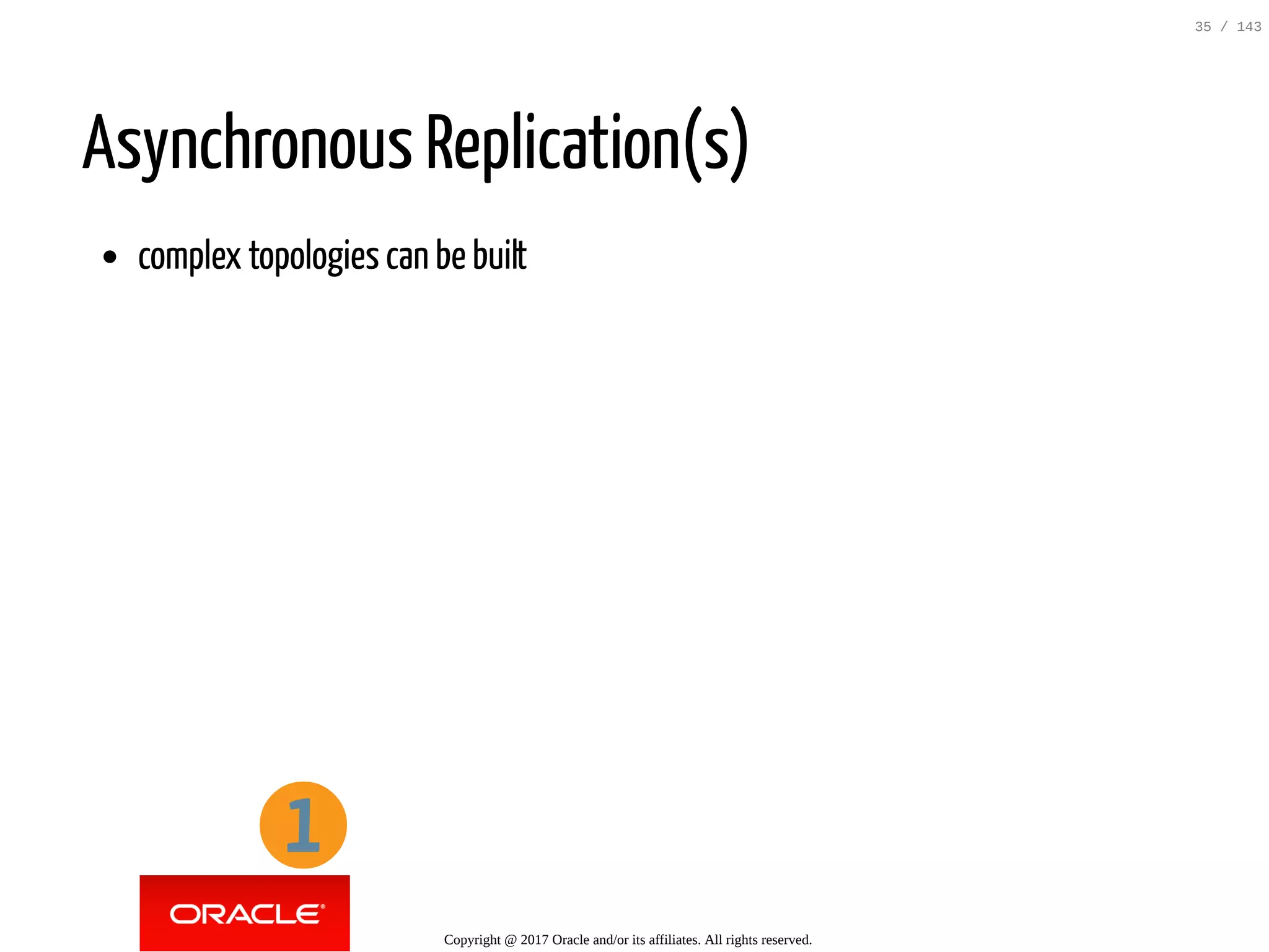

35. Asynchronous Replication(s)
complex topologies can be built
1
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
35 / 143

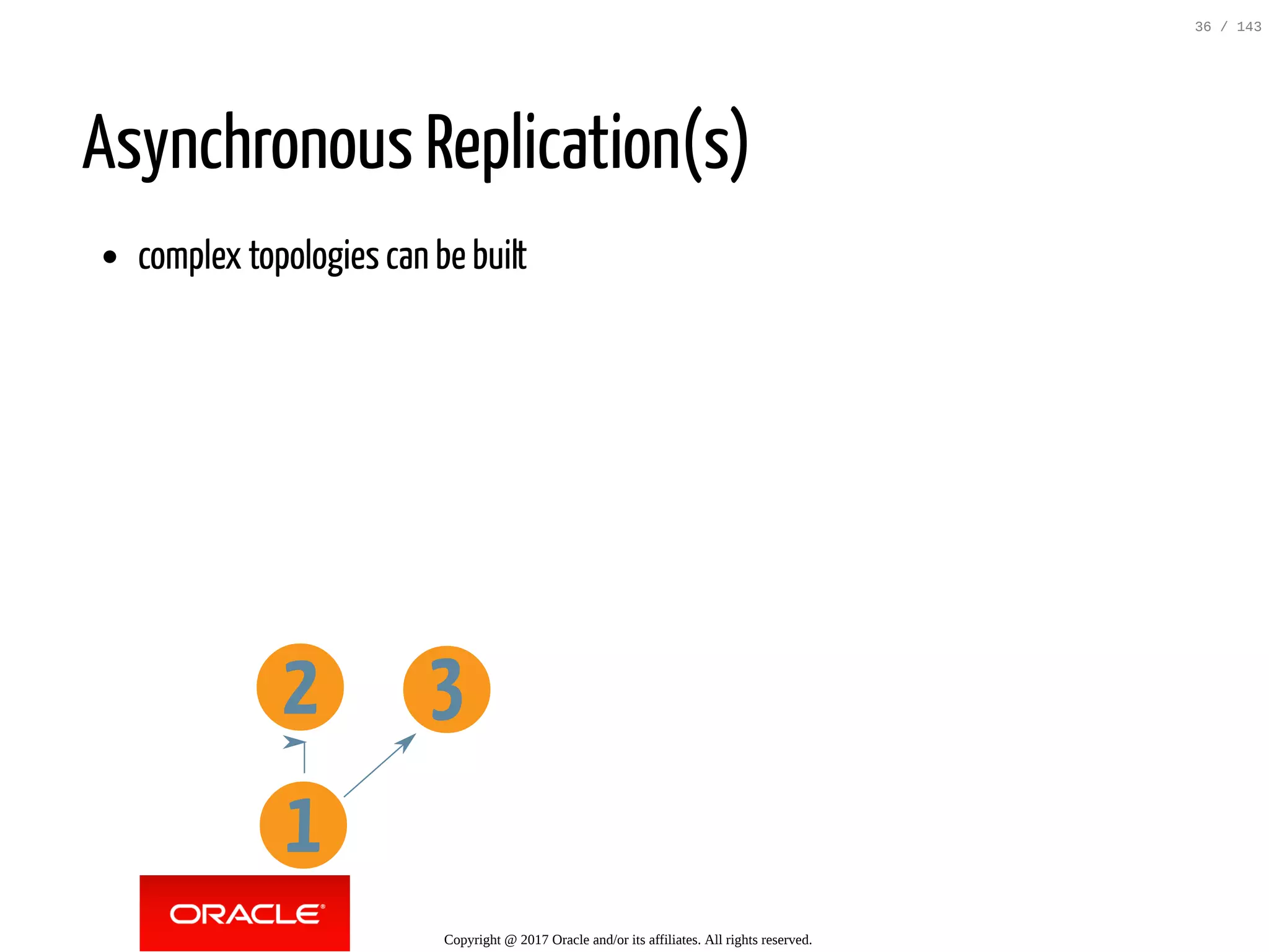

36. Asynchronous Replication(s)
complex topologies can be built
1
32
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
36 / 143

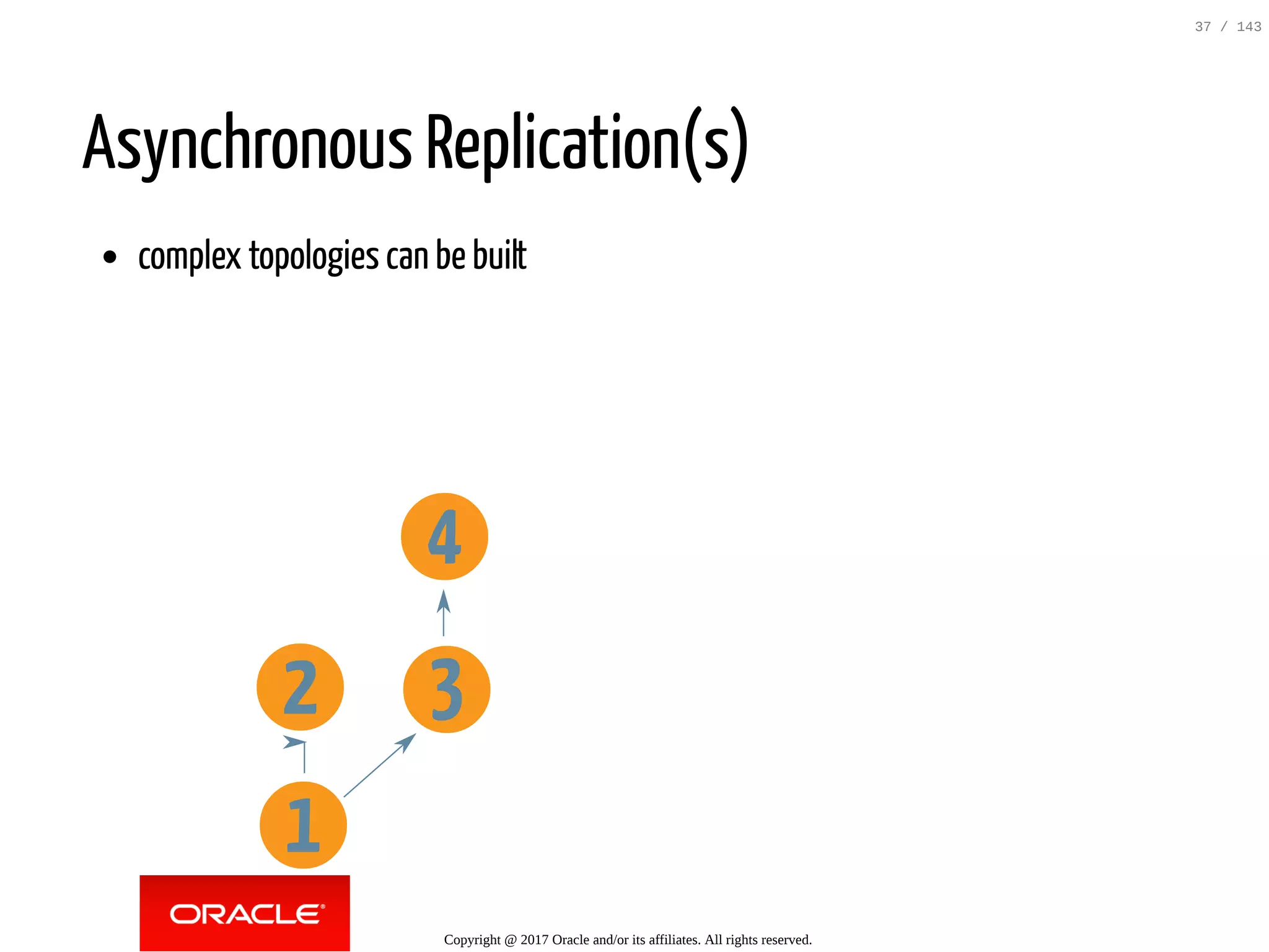

37. Asynchronous Replication(s)
complex topologies can be built
1
32
4
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
37 / 143

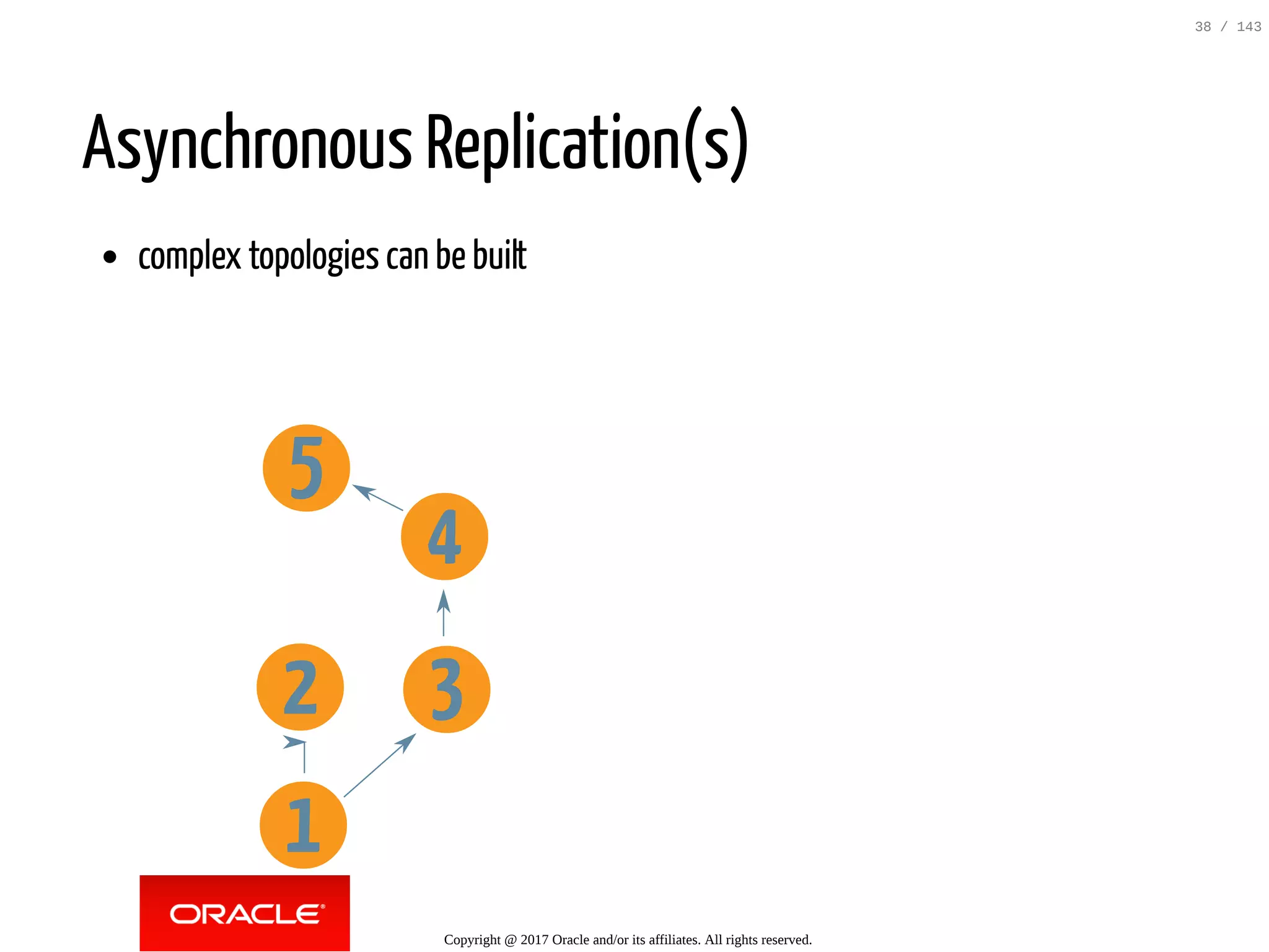

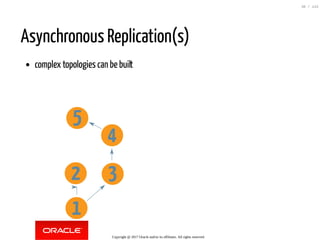

38. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
38 / 143

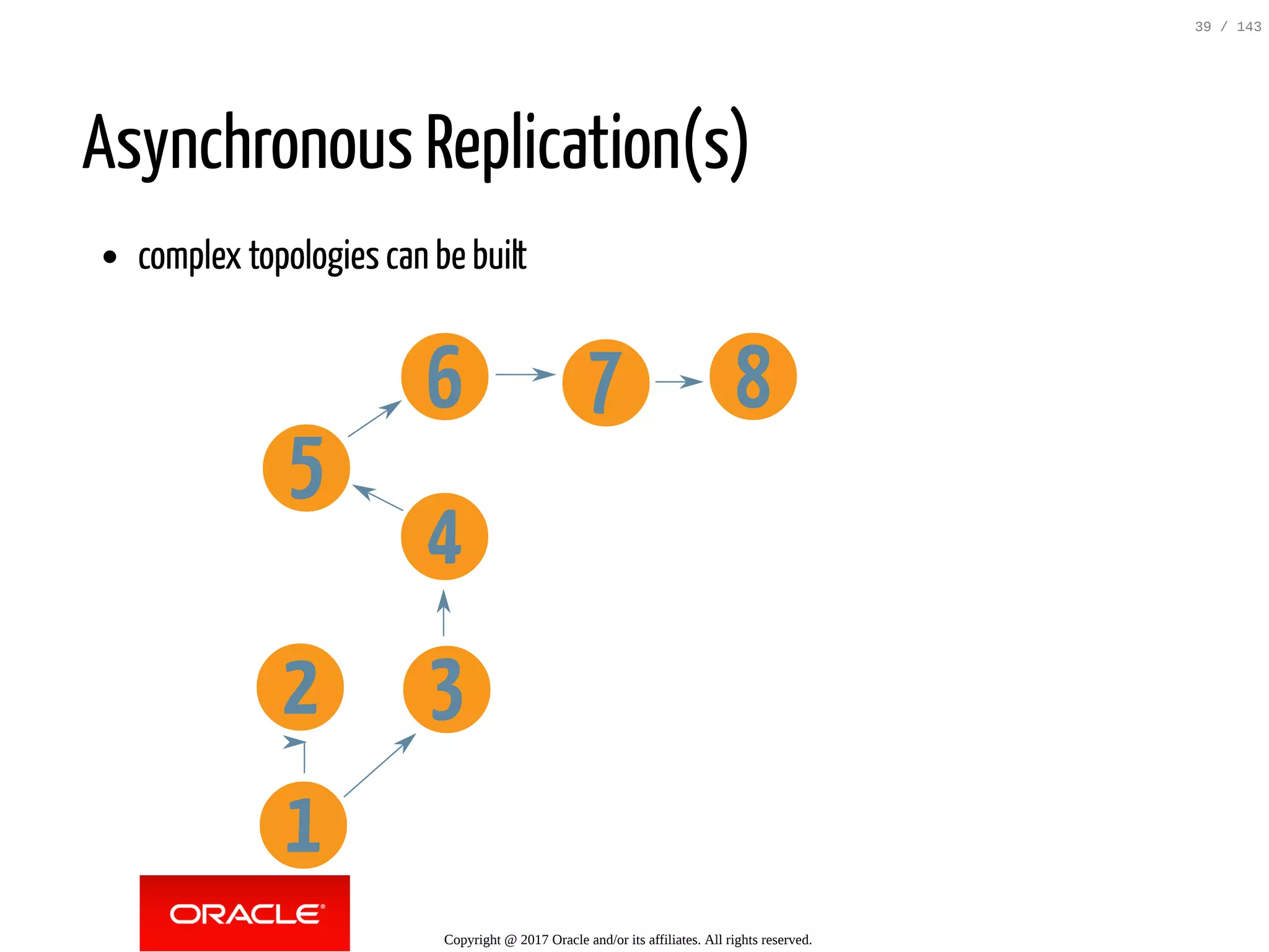

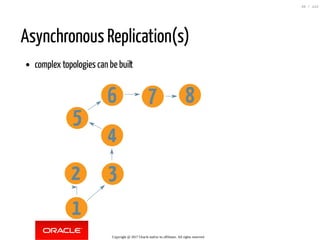

39. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
39 / 143

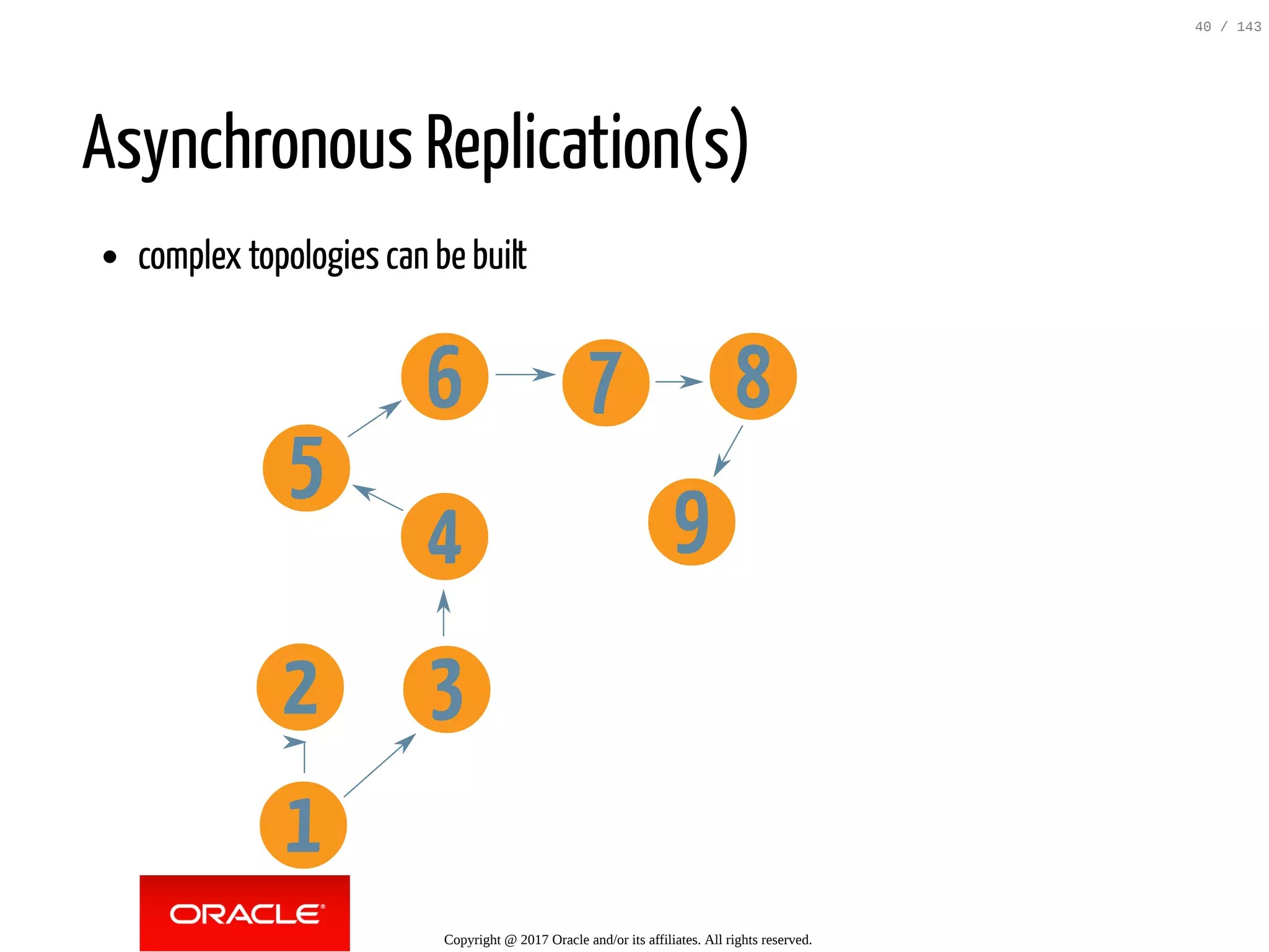

40. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
9
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
40 / 143

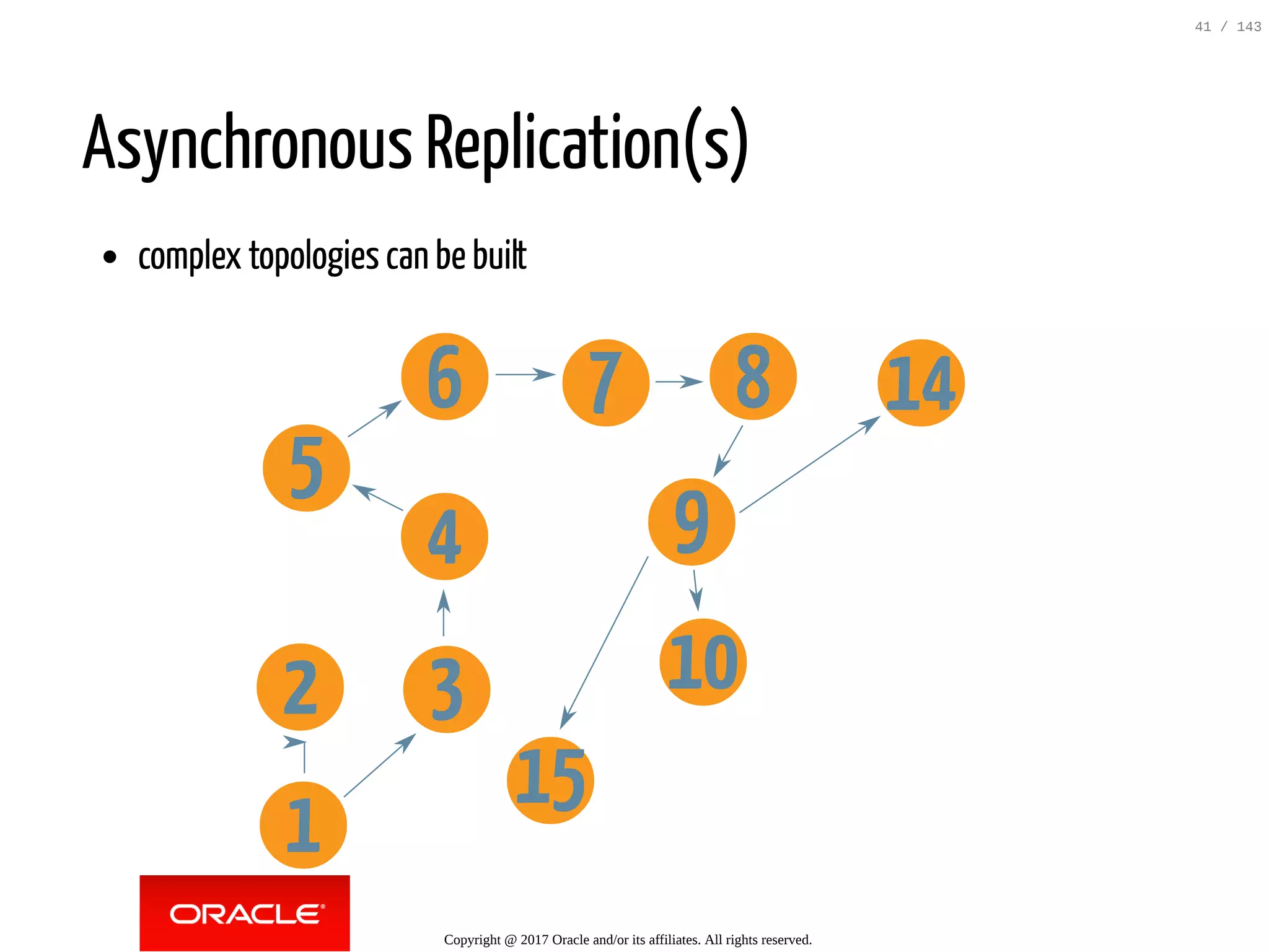

41. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
9
10
14
15
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
41 / 143

42. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
9
10
11
14
15
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
42 / 143

43. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
9
10
11
12
14
15
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
43 / 143

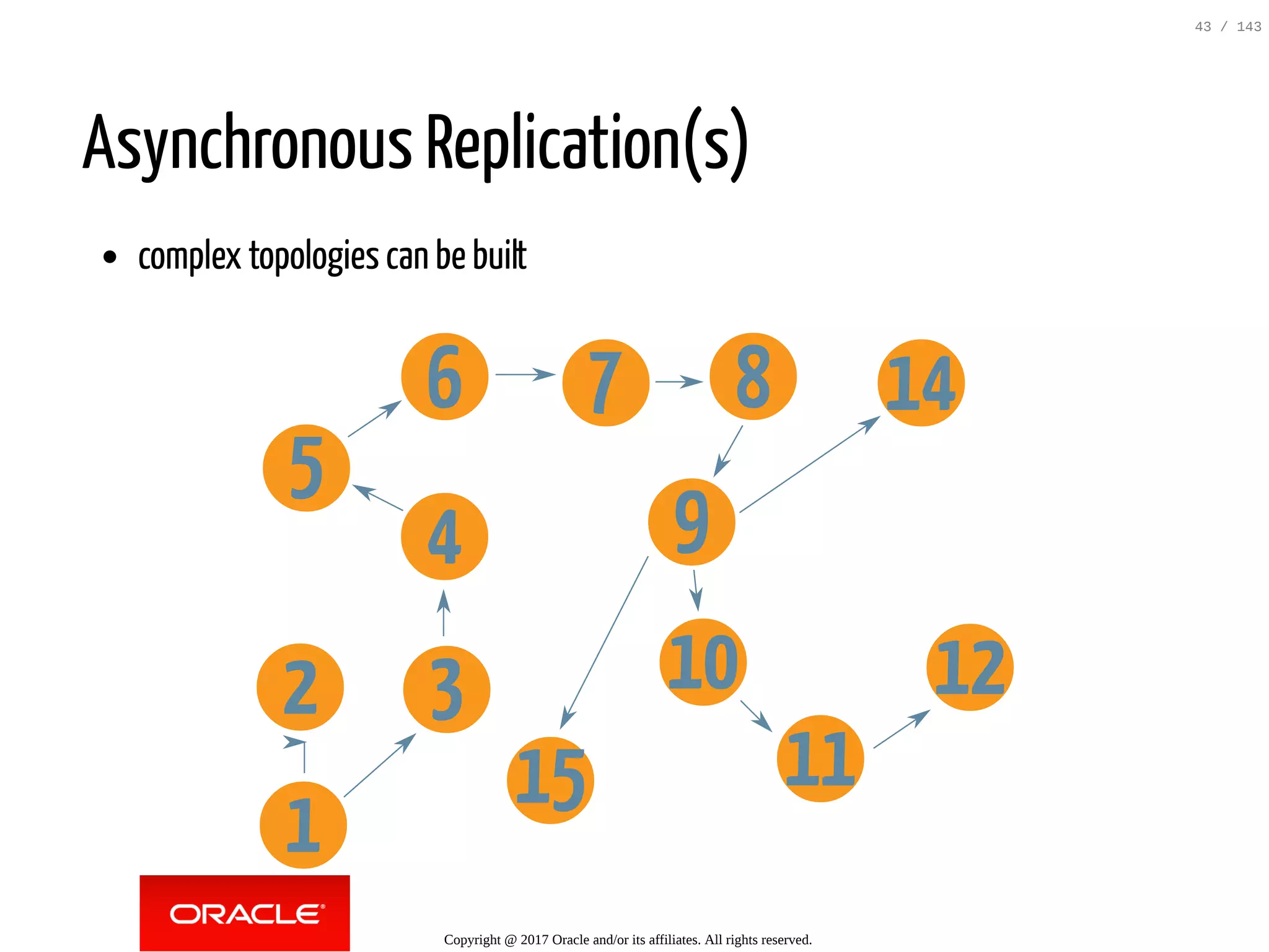

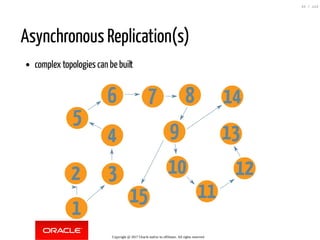

44. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
9
10
11
12
13
14
15
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
44 / 143

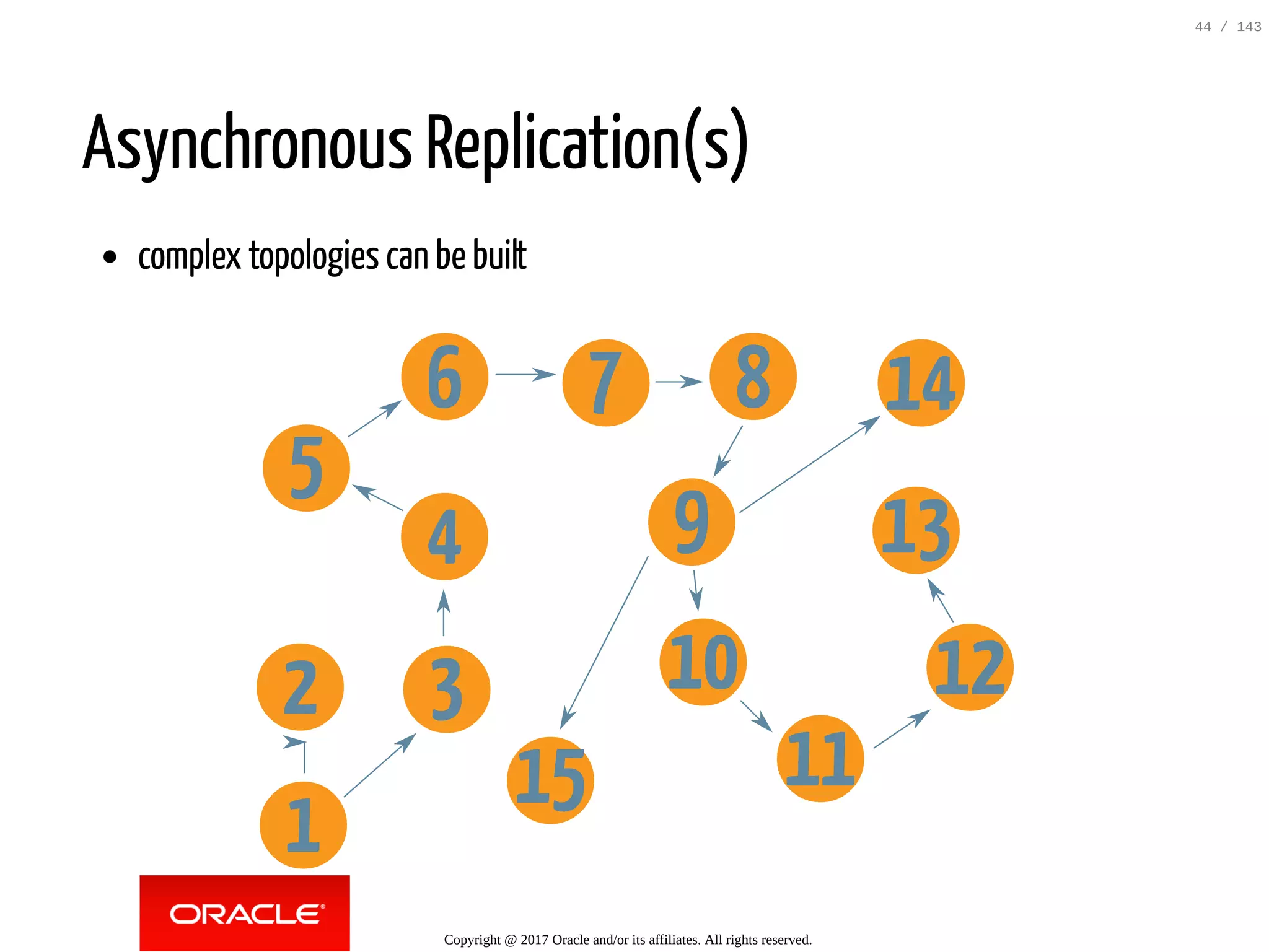

45. Asynchronous Replication(s)
complex topologies can be built
1
32
4
5
6 7 8
9
10
11
12
13
14
15
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
45 / 143

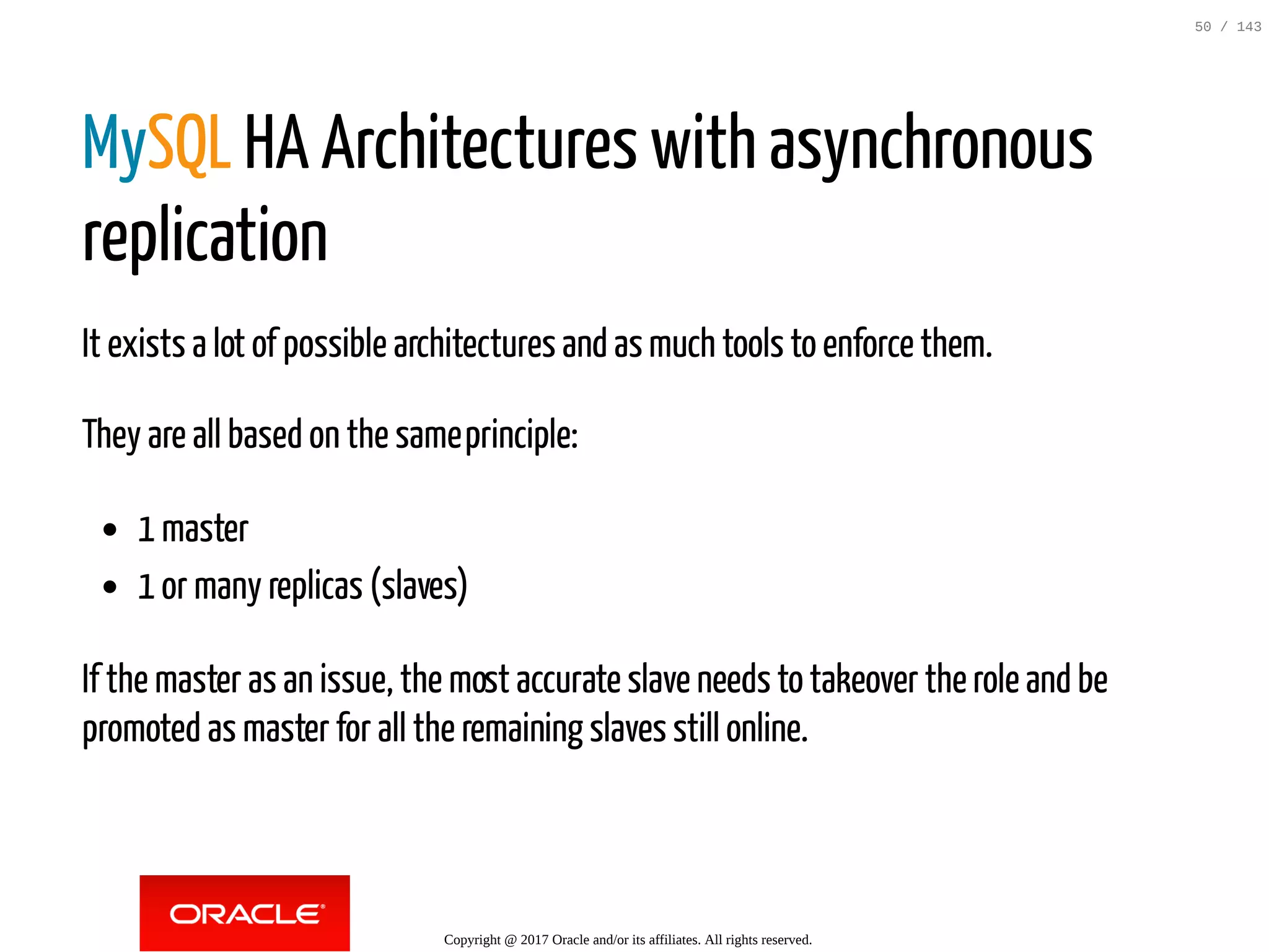

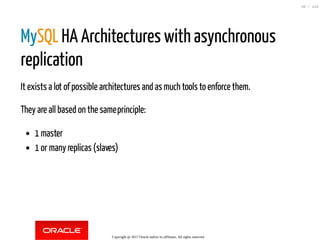

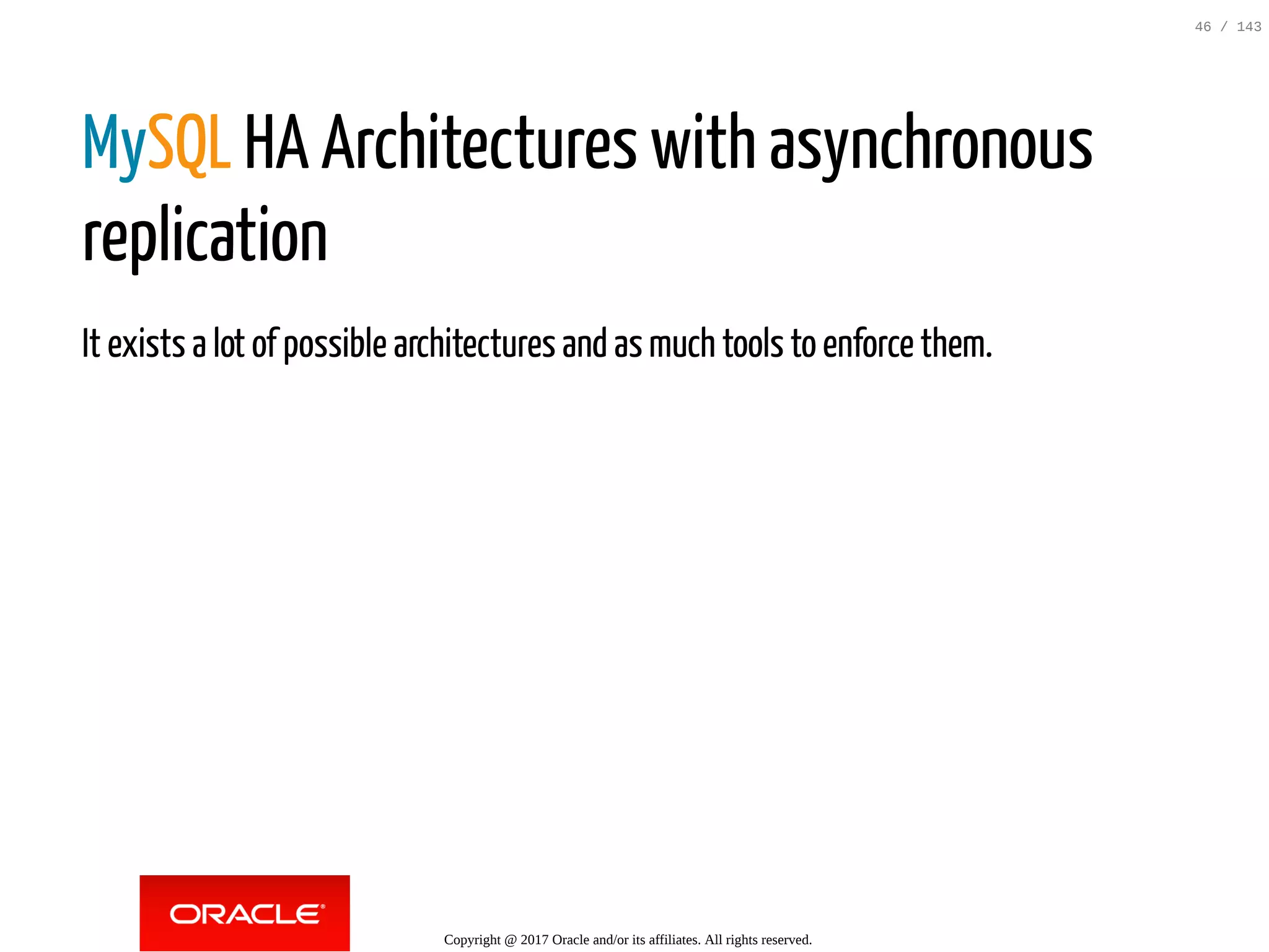

46. MySQL HA Architectures with asynchronous
replication
It exists a lot of possible architectures and asmuch tools to enforce them.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
46 / 143

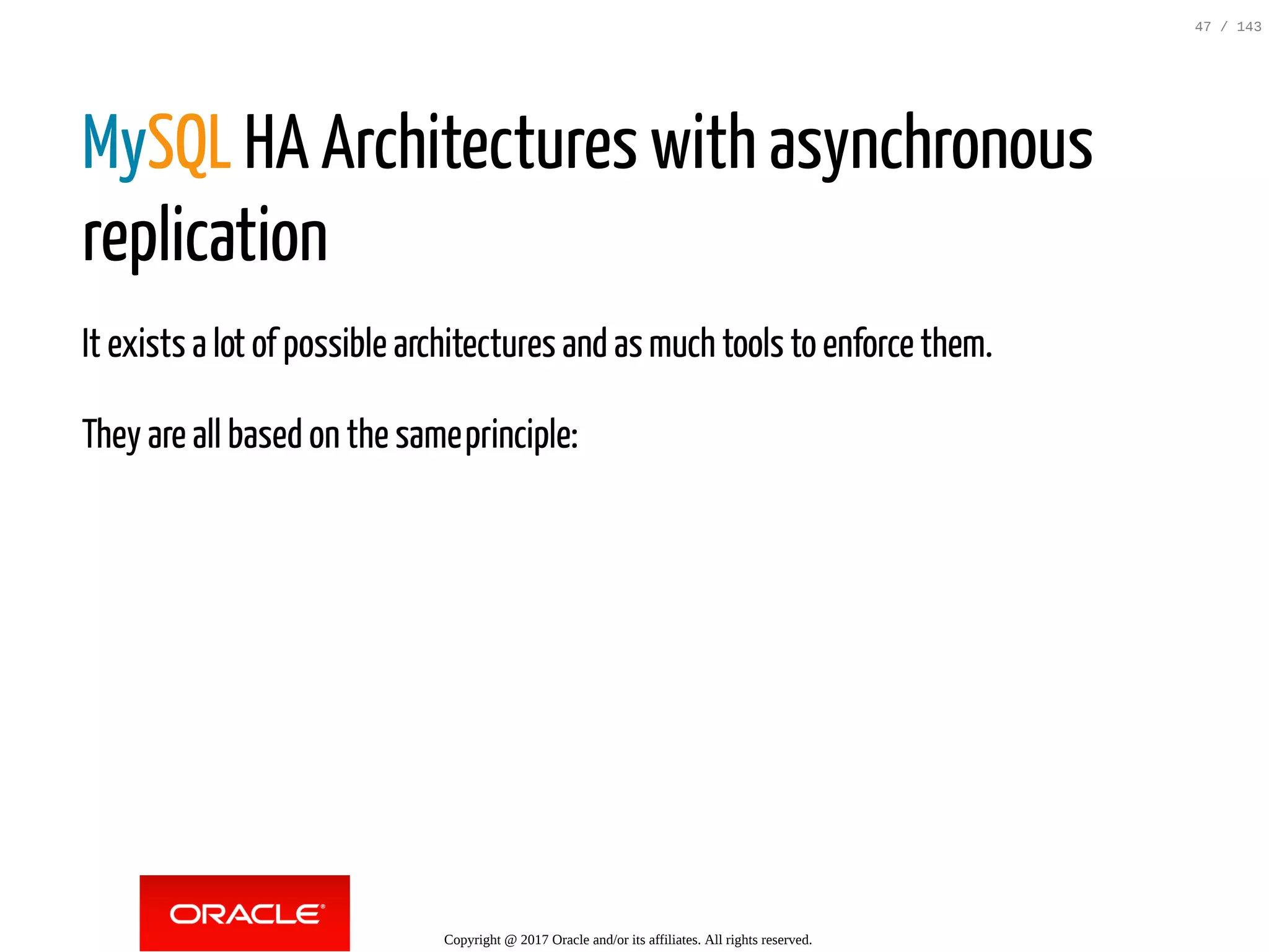

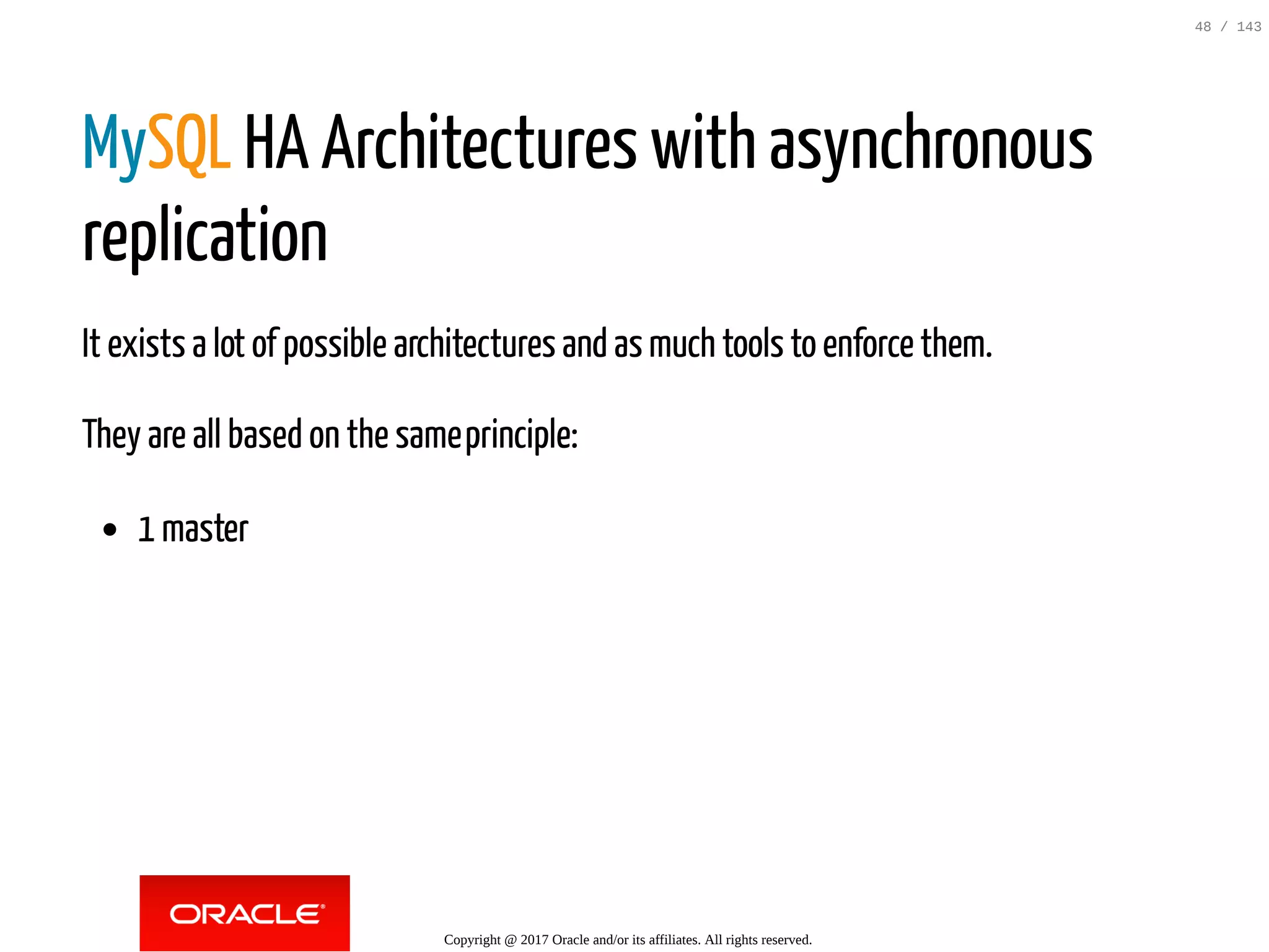

47. MySQL HA Architectures with asynchronous
replication
It exists a lot of possible architectures and asmuch tools to enforce them.
They are all based on the sameprinciple:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
47 / 143

48. MySQL HA Architectures with asynchronous
replication
It exists a lot of possible architectures and asmuch tools to enforce them.
They are all based on the sameprinciple:
1 master
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
48 / 143

49. MySQL HA Architectures with asynchronous
replication
It exists a lot of possible architectures and asmuch tools to enforce them.
They are all based on the sameprinciple:
1 master
1 or many replicas (slaves)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
49 / 143

50. MySQL HA Architectures with asynchronous
replication
It exists a lot of possible architectures and asmuch tools to enforce them.
They are all based on the sameprinciple:
1 master
1 or many replicas (slaves)
If the master as an issue, the most accurate slave needs to takeover therole and be
promoted as master for all the remaining slaves still online.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
50 / 143

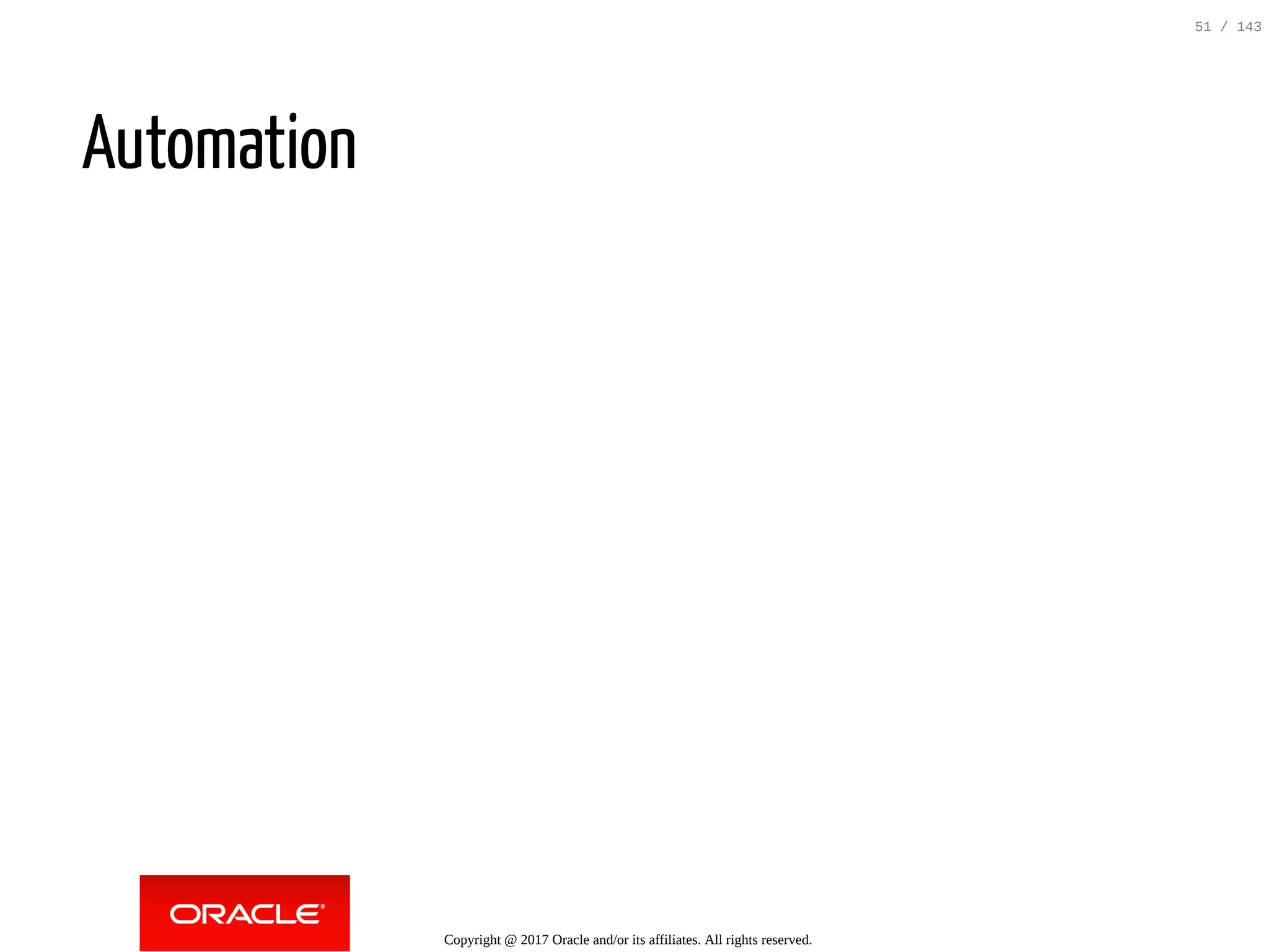

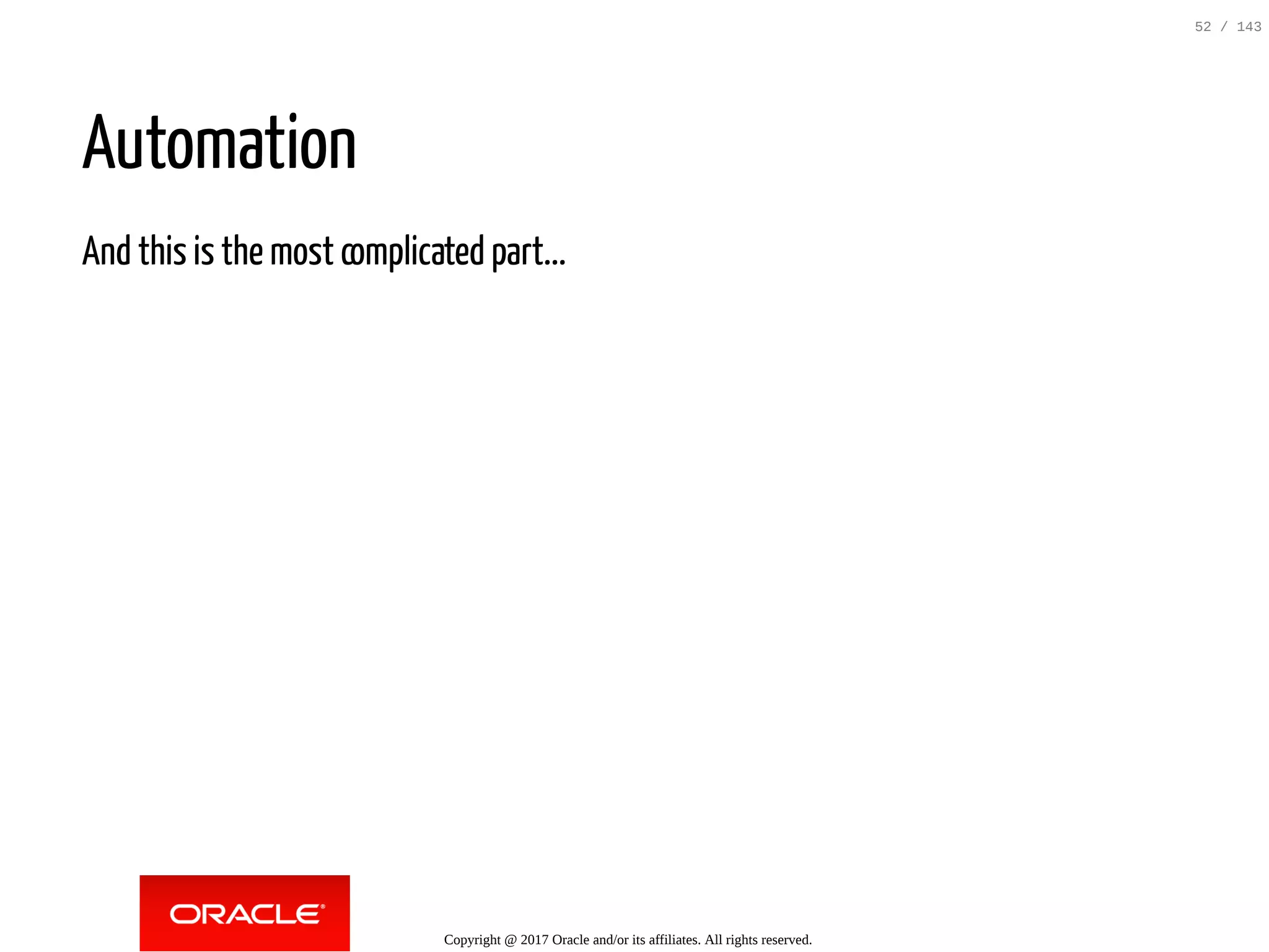

51. Automation
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
51 / 143

52. Automation
And this is the most complicated part...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
52 / 143

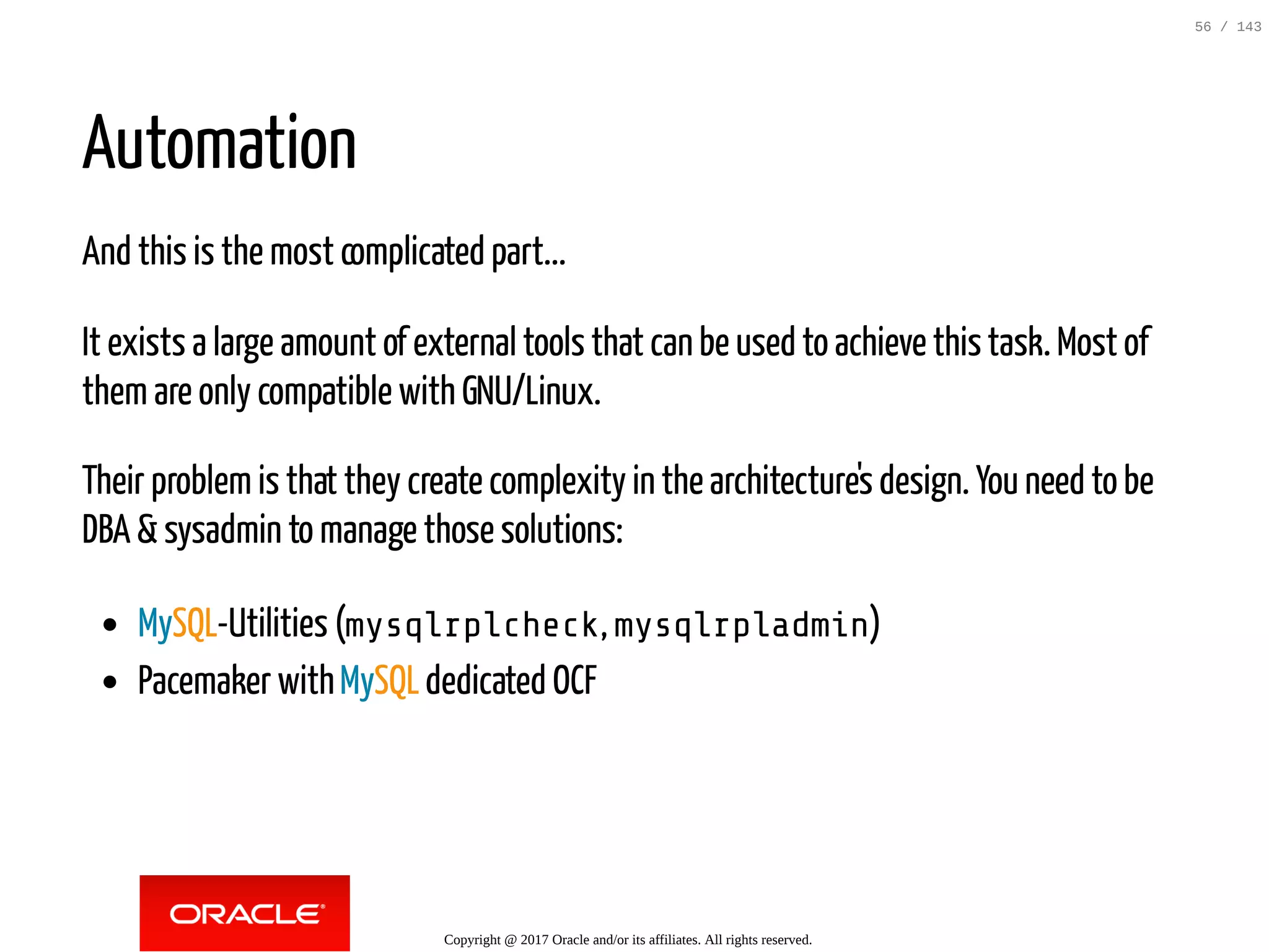

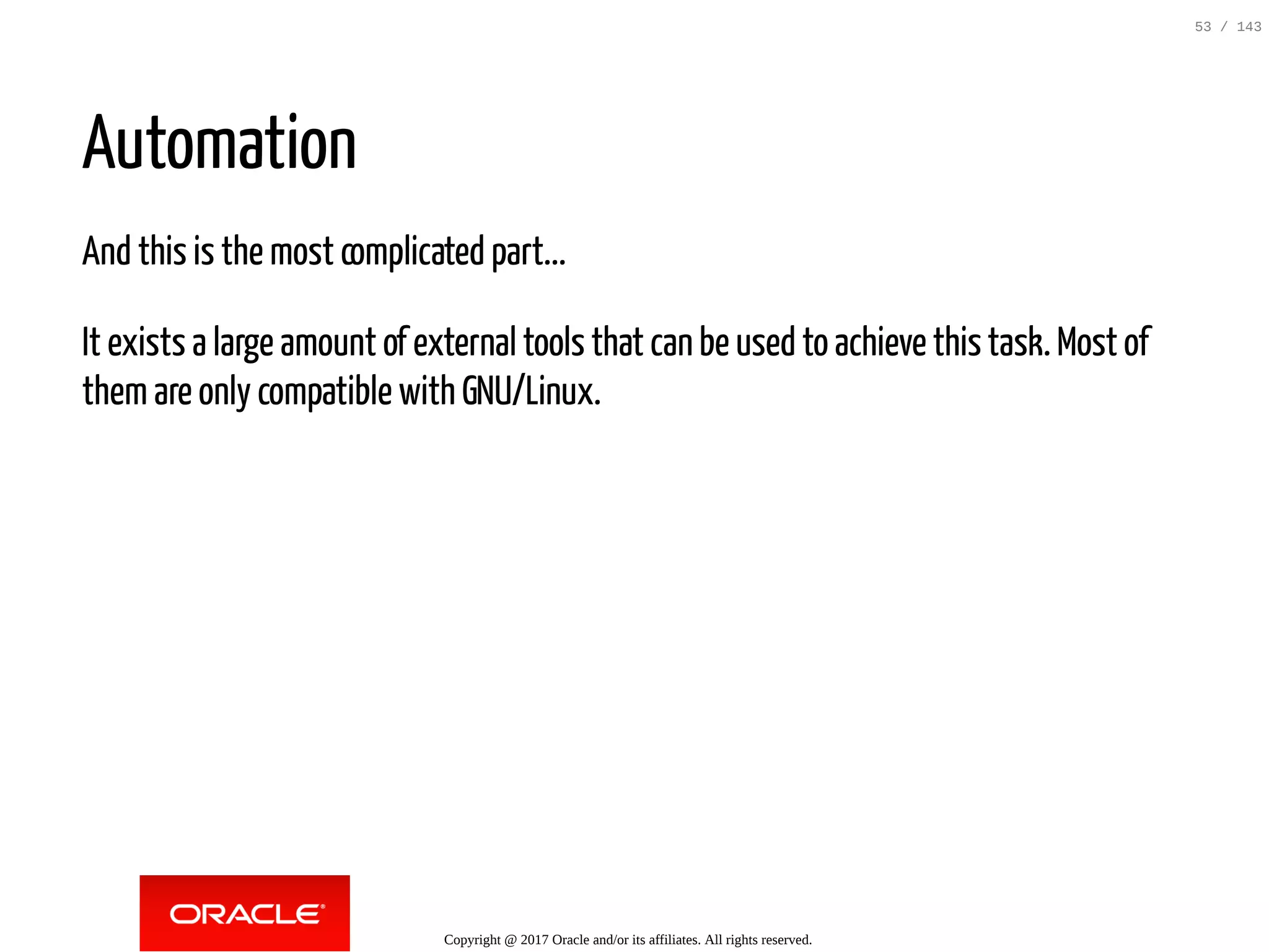

53. Automation
And this is the most complicated part...
It exists a large amount of external tools that canbe used to achieve thistask.Most of
them are only compatible with GNU/Linux.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
53 / 143

54. Automation
And this is the most complicated part...
It exists a large amount of external tools that canbe used to achieve thistask.Most of
them are only compatible with GNU/Linux.
Their problem is that they create complexity inthearchitecture's design. You need to be
DBA & sysadmin to manage those solutions:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
54 / 143

55. Automation
And this is the most complicated part...

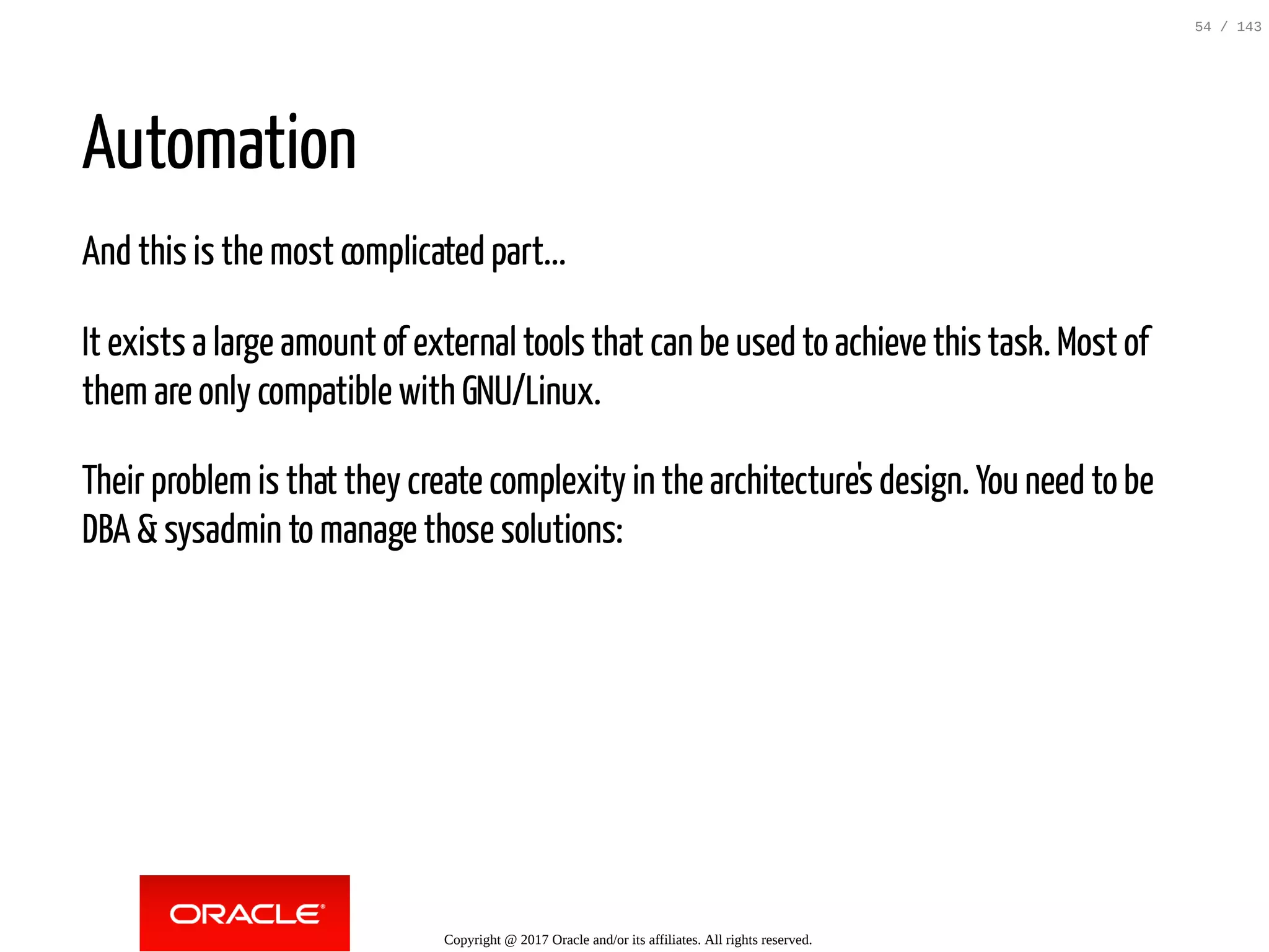

It exists a large amount of external tools that canbe used to achieve thistask.Most of
them are only compatible with GNU/Linux.
Their problem is that they create complexity inthearchitecture's design. You need to be
DBA & sysadmin to manage those solutions:
MySQL-Utilities (mysqlrplcheck, mysqlrpladmin)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
55 / 143

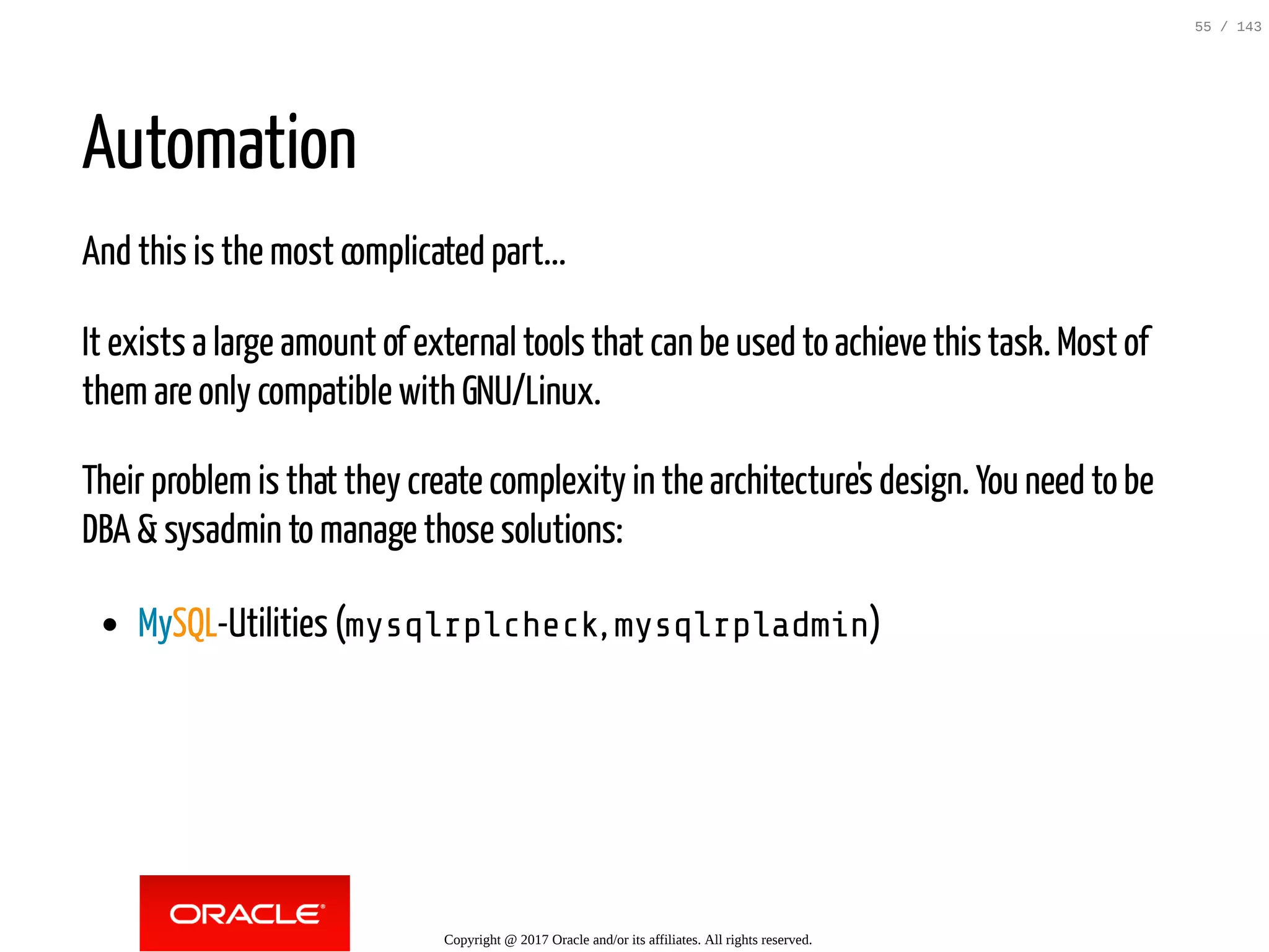

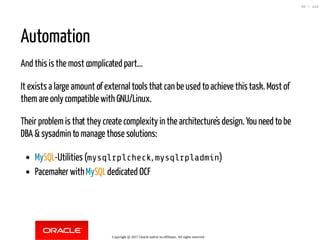

56. Automation
And this is the most complicated part...
It exists a large amount of external tools that canbe used to achieve thistask.Most of
them are only compatible with GNU/Linux.
Their problem is that they create complexity inthearchitecture's design. You need to be
DBA & sysadmin to manage those solutions:
MySQL-Utilities (mysqlrplcheck, mysqlrpladmin)
Pacemaker withMySQLdedicated OCF
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
56 / 143

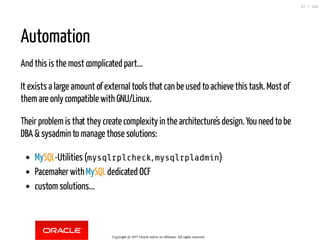

57. Automation
And this is the most complicated part...
It exists a large amount of external tools that canbe used to achieve thistask.Most of
them are only compatible with GNU/Linux.
Their problem is that they create complexity inthearchitecture's design. You need to be
DBA & sysadmin to manage those solutions:
MySQL-Utilities (mysqlrplcheck, mysqlrpladmin)
Pacemaker withMySQLdedicated OCF
custom solutions...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
57 / 143

58. MySQL Group Replication

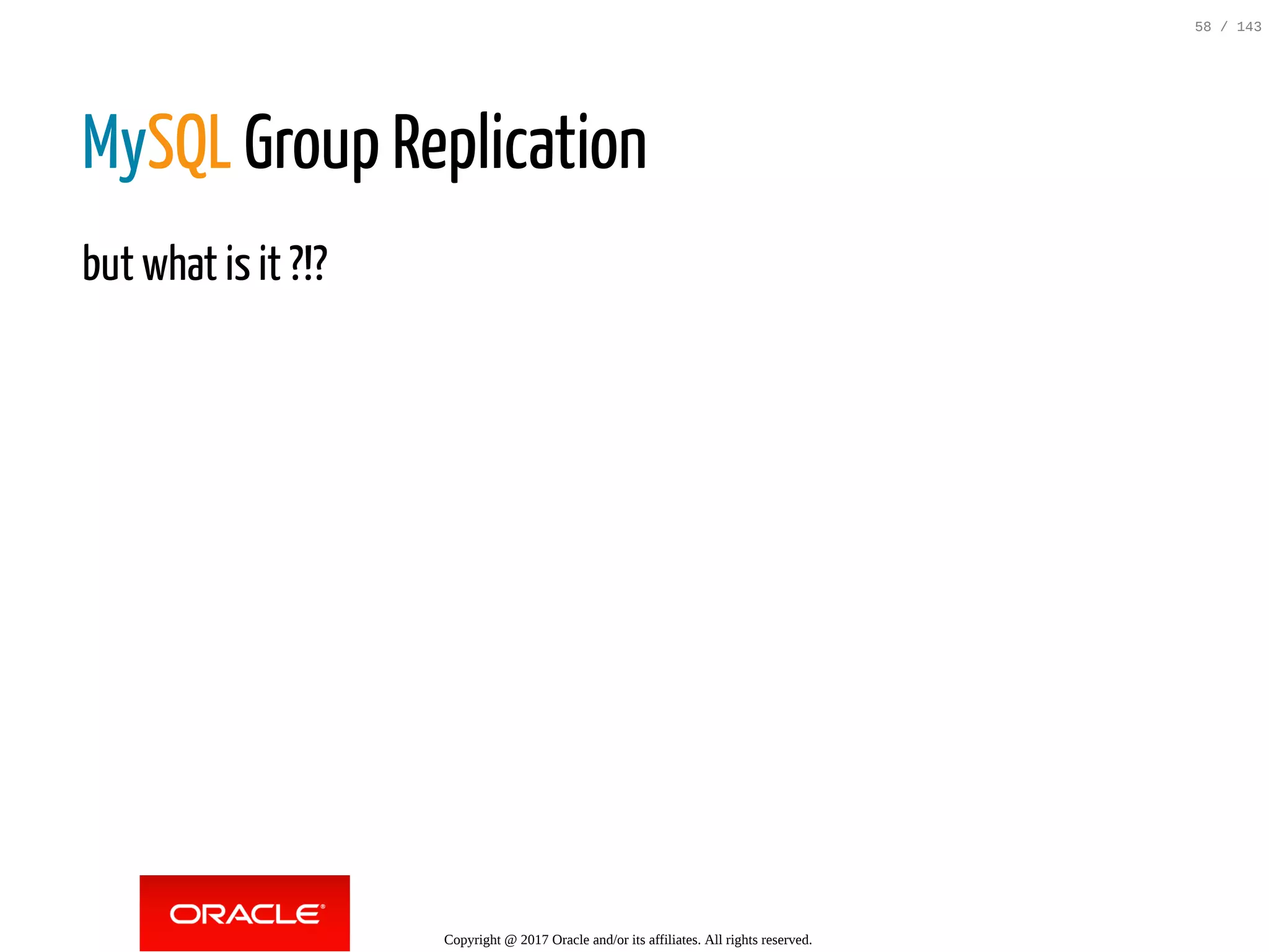

but what is it ?!?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
58 / 143

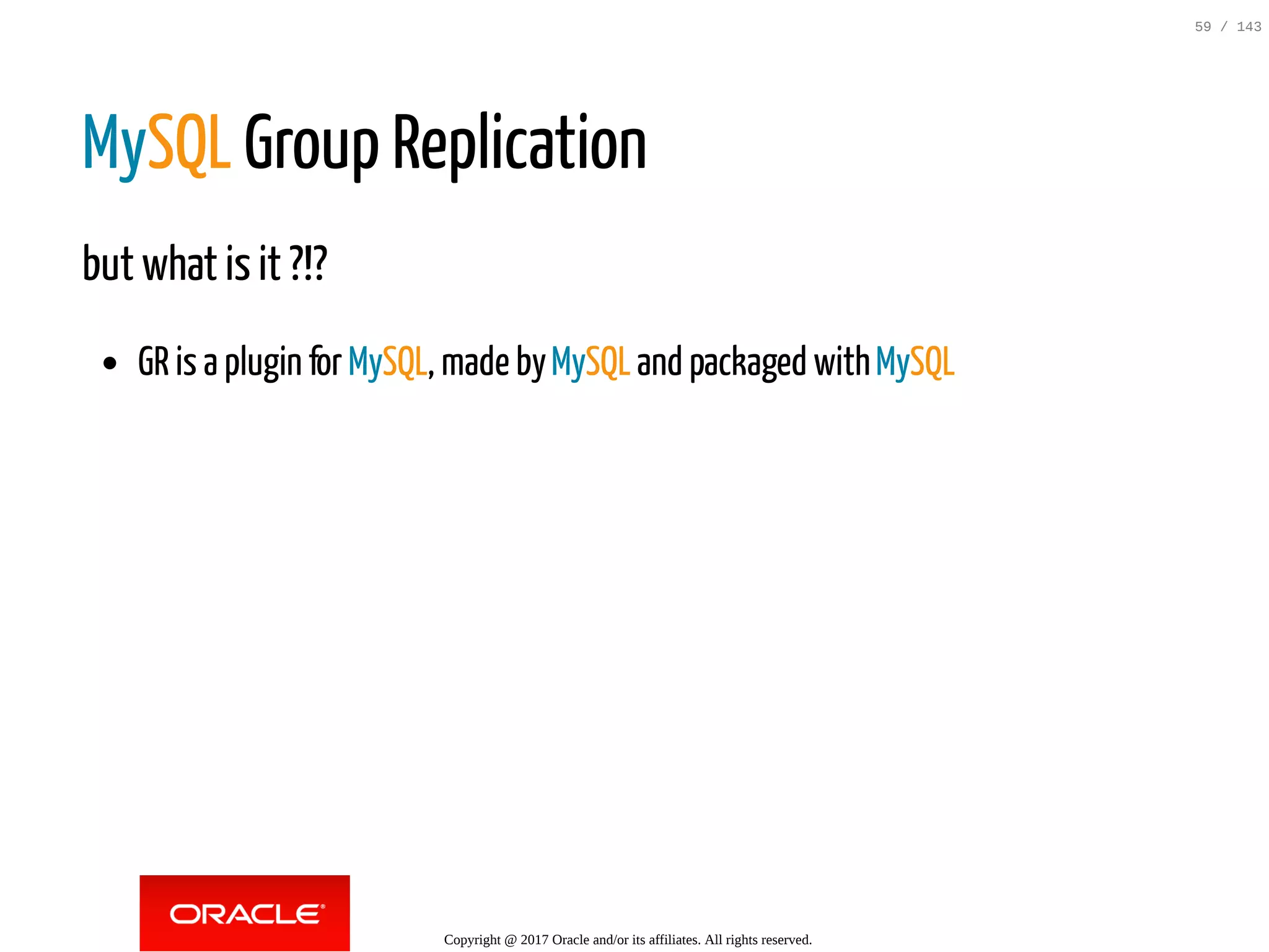

59. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
59 / 143

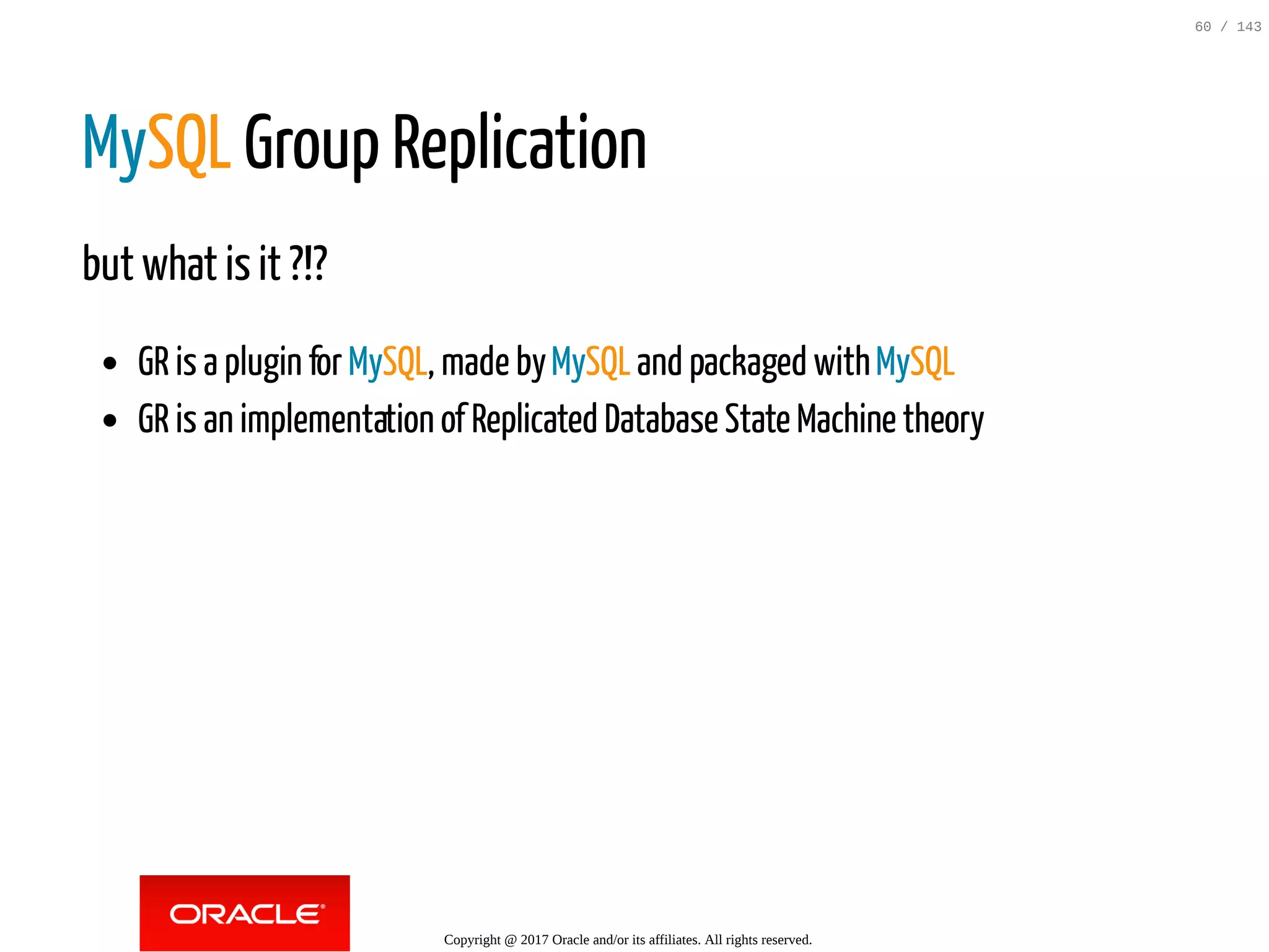

60. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
GR is an implementation of Replicated Database State Machine theory
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
60 / 143

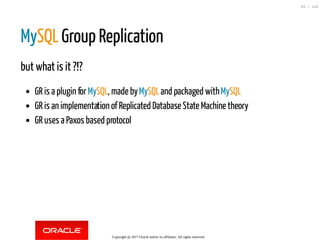

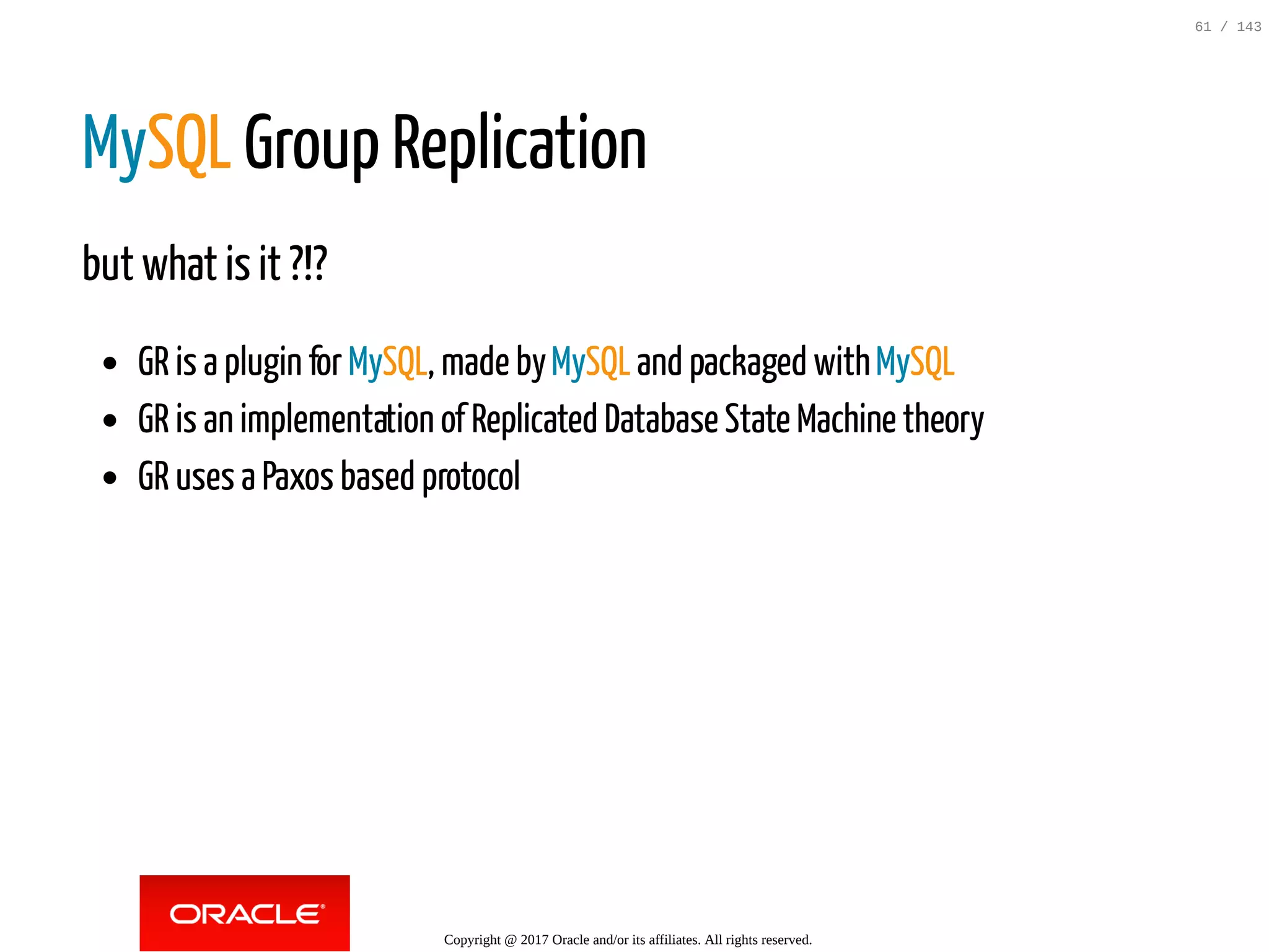

61. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
GR is an implementation of Replicated Database State Machine theory
GR uses a Paxos based protocol
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
61 / 143

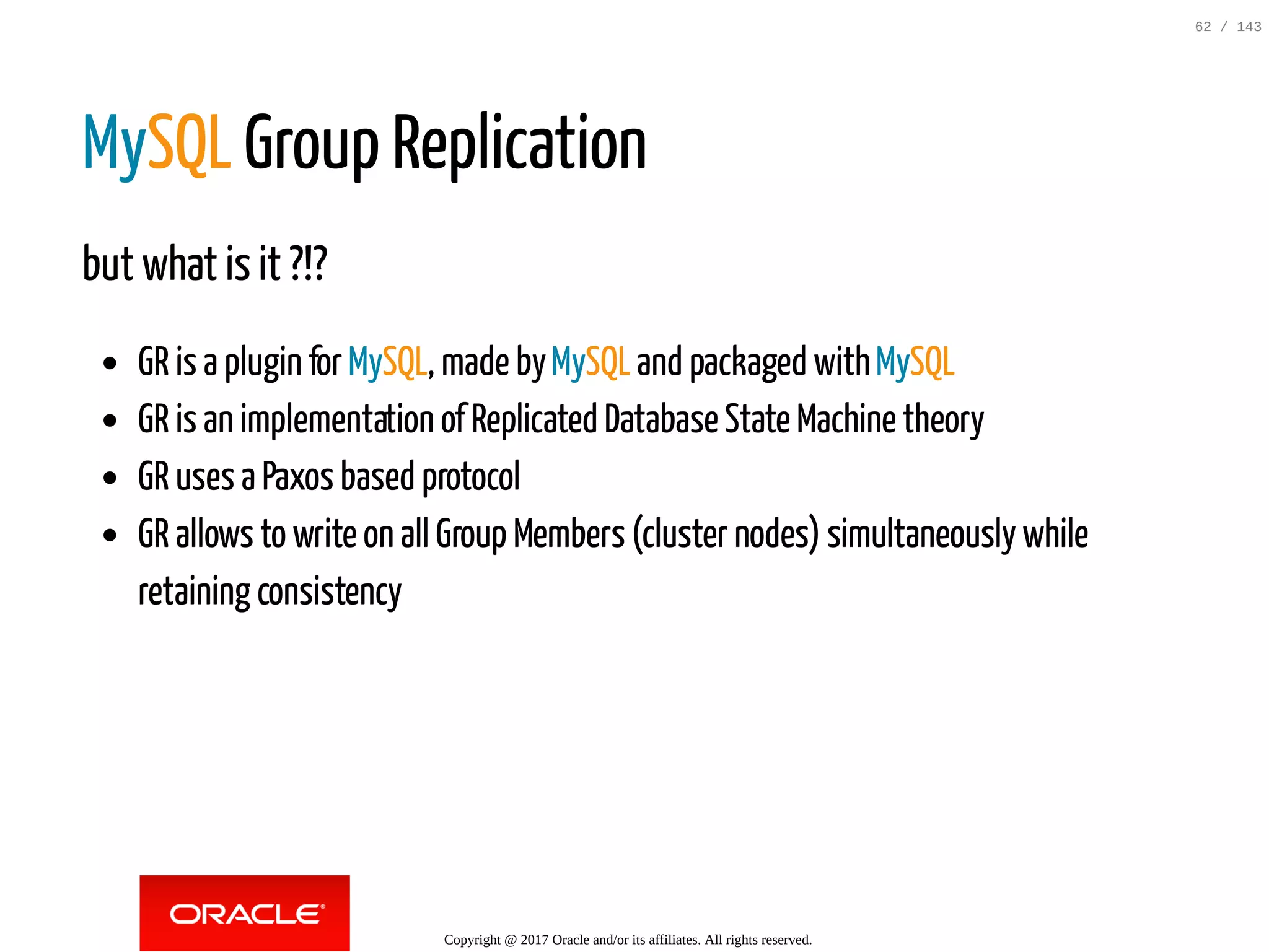

62. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
GR is an implementation of Replicated Database State Machine theory
GR uses a Paxos based protocol
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
62 / 143

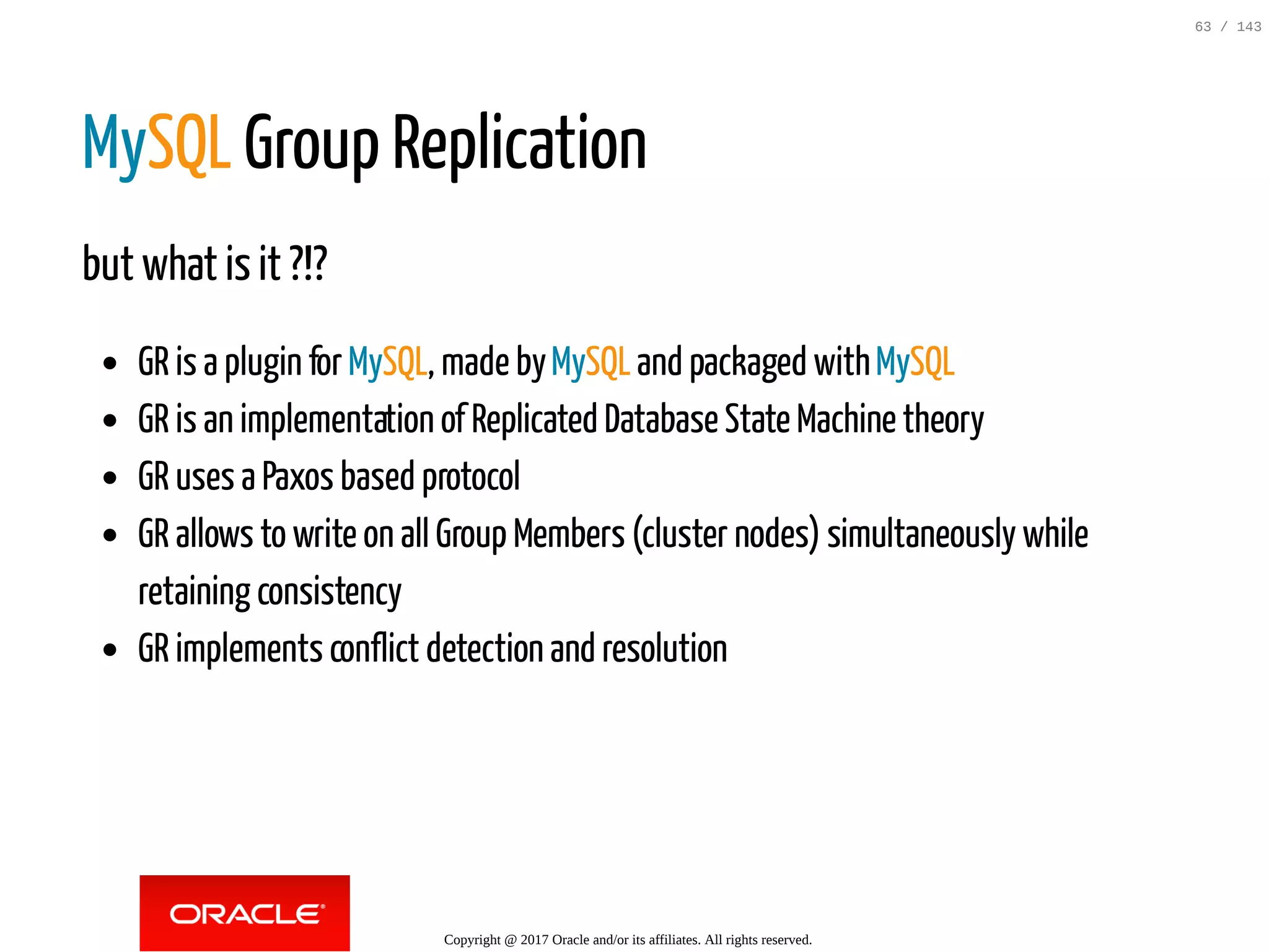

63. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
GR is an implementation of Replicated Database State Machine theory
GR uses a Paxos based protocol
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
GR implements conflict detection and resolution
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
63 / 143

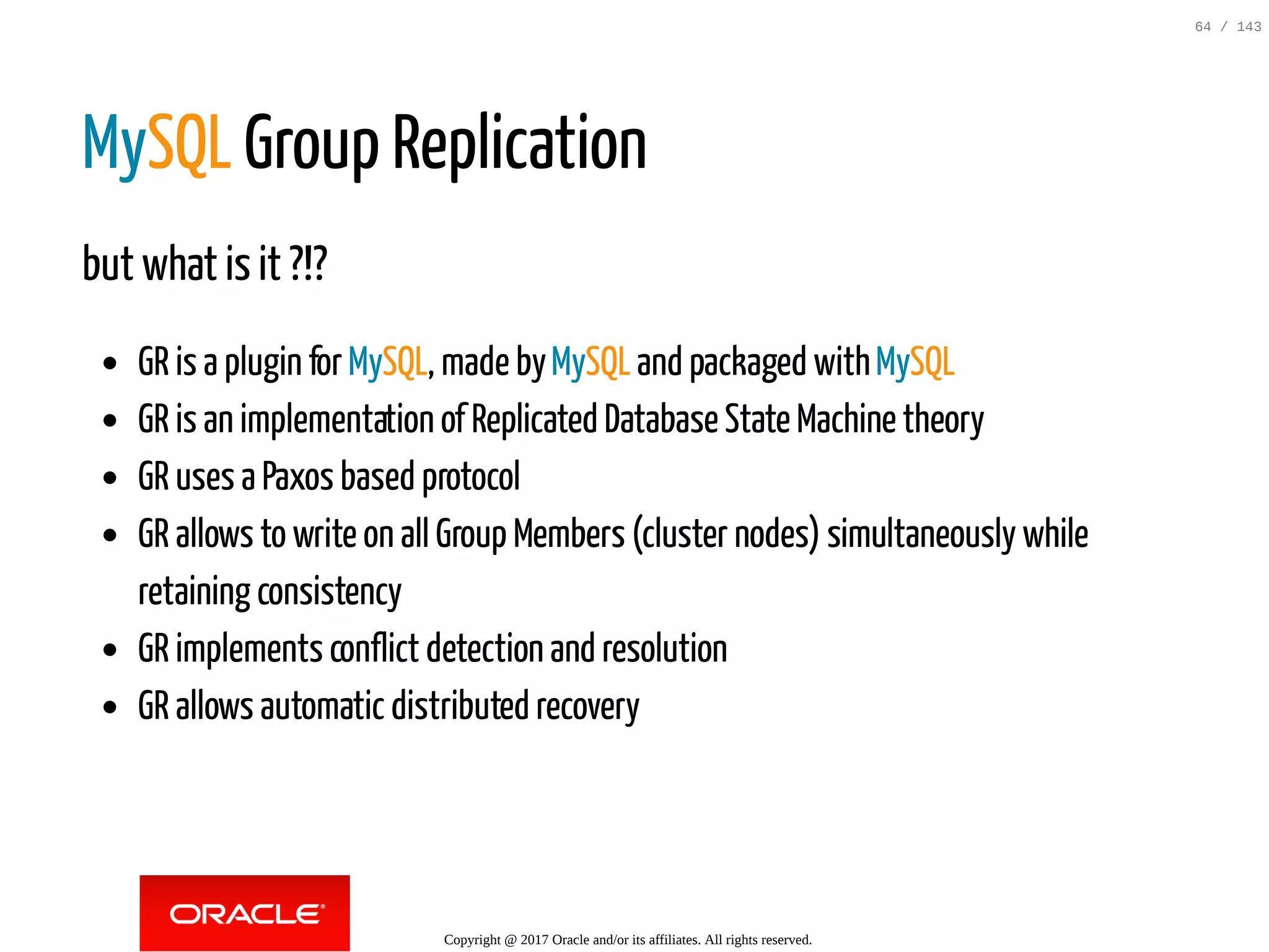

64. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
GR is an implementation of Replicated Database State Machine theory
GR uses a Paxos based protocol
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
GR implements conflict detection and resolution
GR allows automatic distributed recovery
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
64 / 143

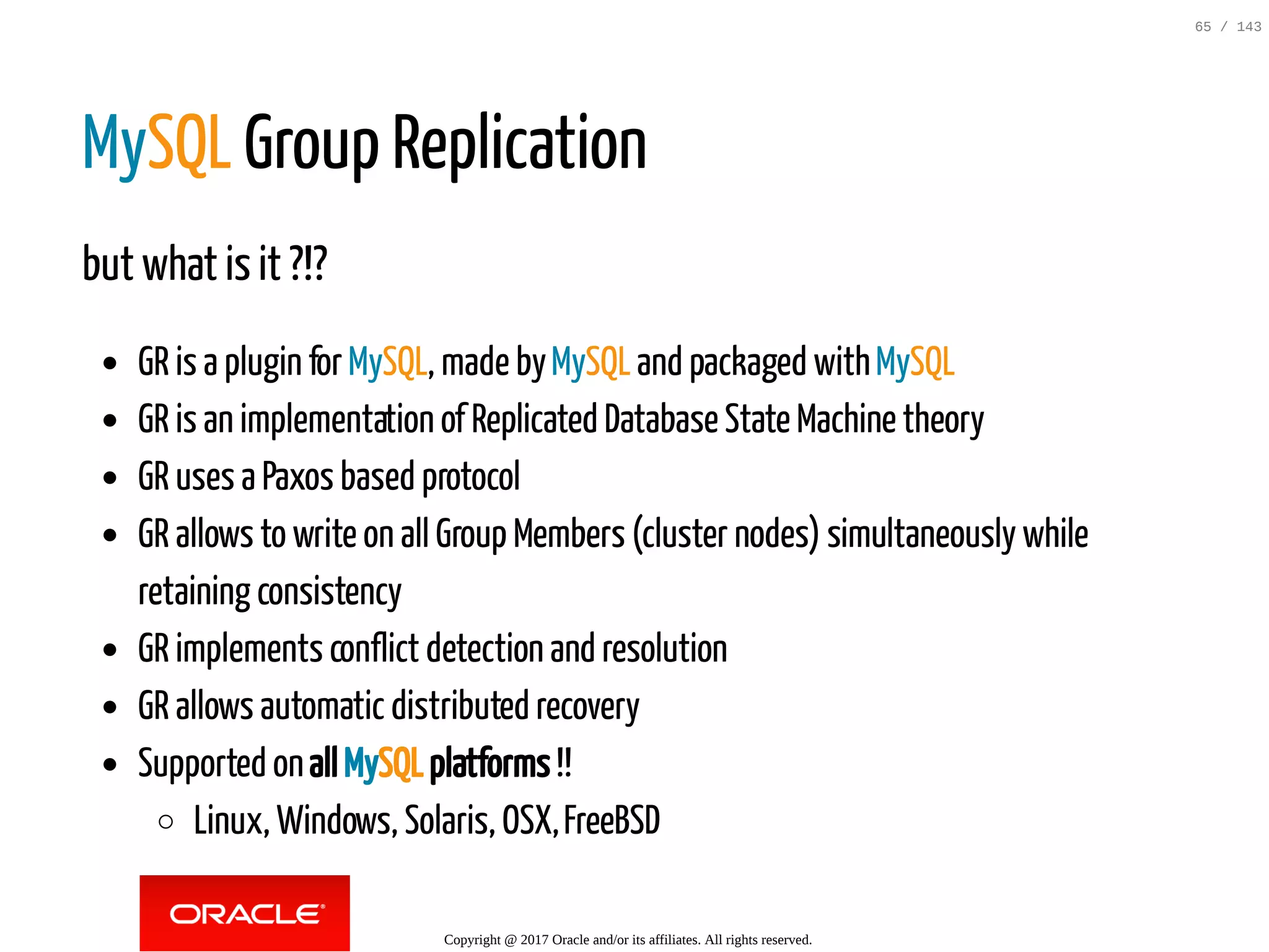

65. MySQL Group Replication
but what is it ?!?
GR is a plugin forMySQL, made byMySQLand packaged withMySQL
GR is an implementation of Replicated Database State Machine theory
GR uses a Paxos based protocol
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
GR implements conflict detection and resolution
GR allows automatic distributed recovery
Supported onallMySQLplatforms!!
Linux, Windows, Solaris, OSX,FreeBSD
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
65 / 143

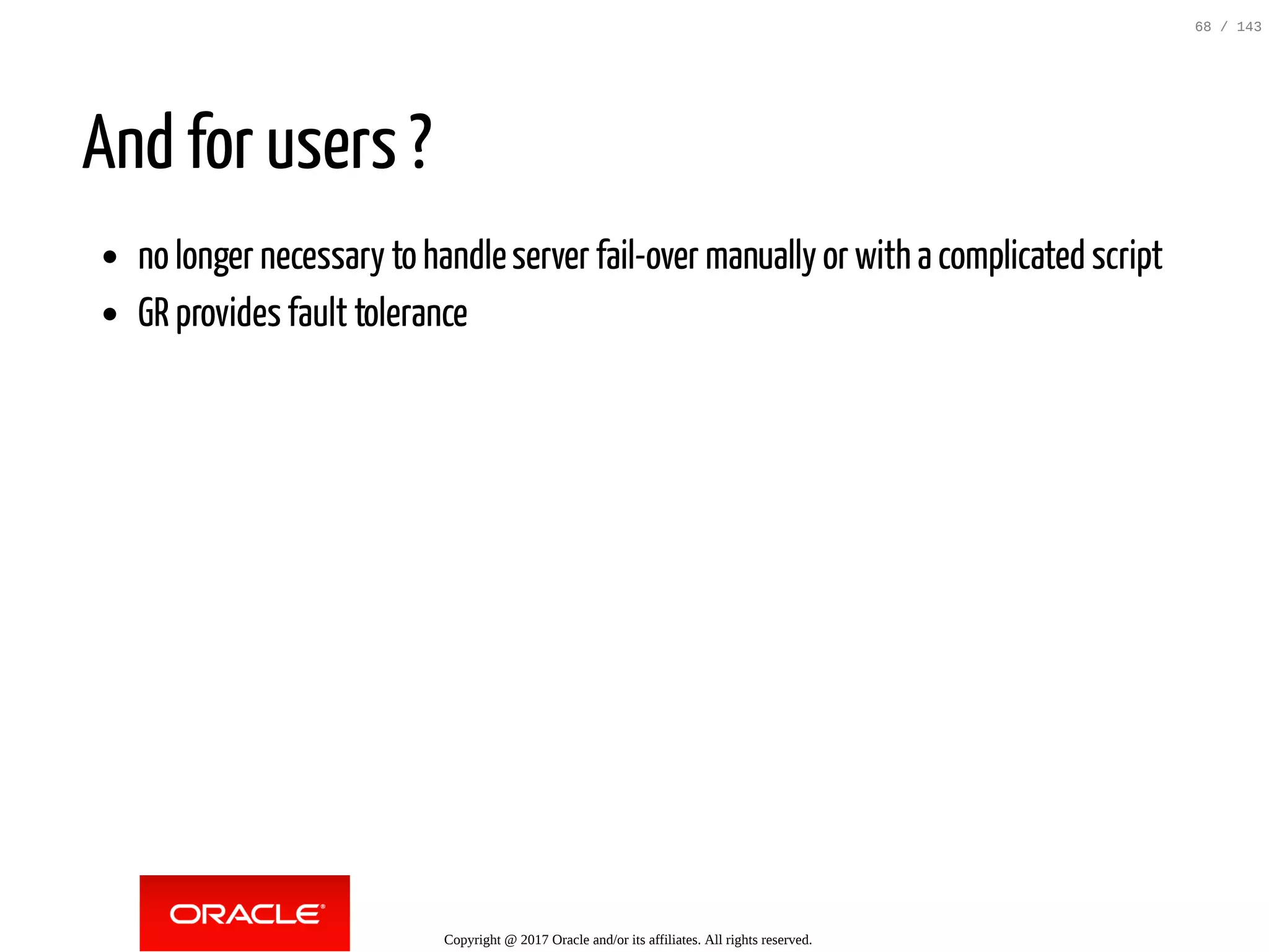

66. And for users ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
66 / 143

67. And for users ?

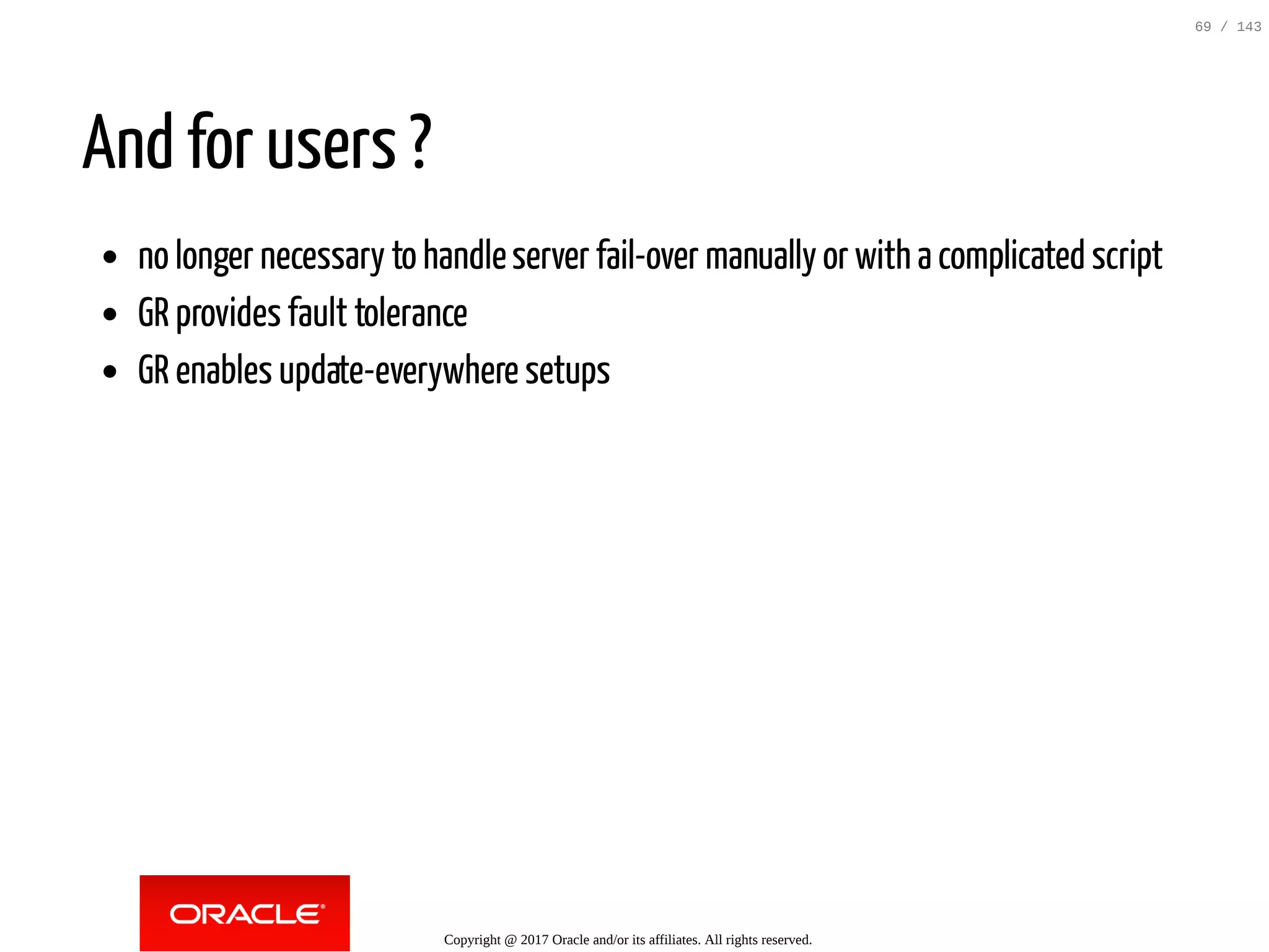

no longer necessary to handleserver fail-over manually or with a complicated script
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
67 / 143

68. And for users ?
no longer necessary to handleserver fail-over manually or with a complicated script
GR provides fault tolerance
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
68 / 143

69. And for users ?
no longer necessary to handleserver fail-over manually or with a complicated script
GR provides fault tolerance
GR enables update-everywhere setups
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
69 / 143

70. And for users ?
no longer necessary to handleserver fail-over manually or with a complicated script
GR provides fault tolerance
GR enables update-everywhere setups

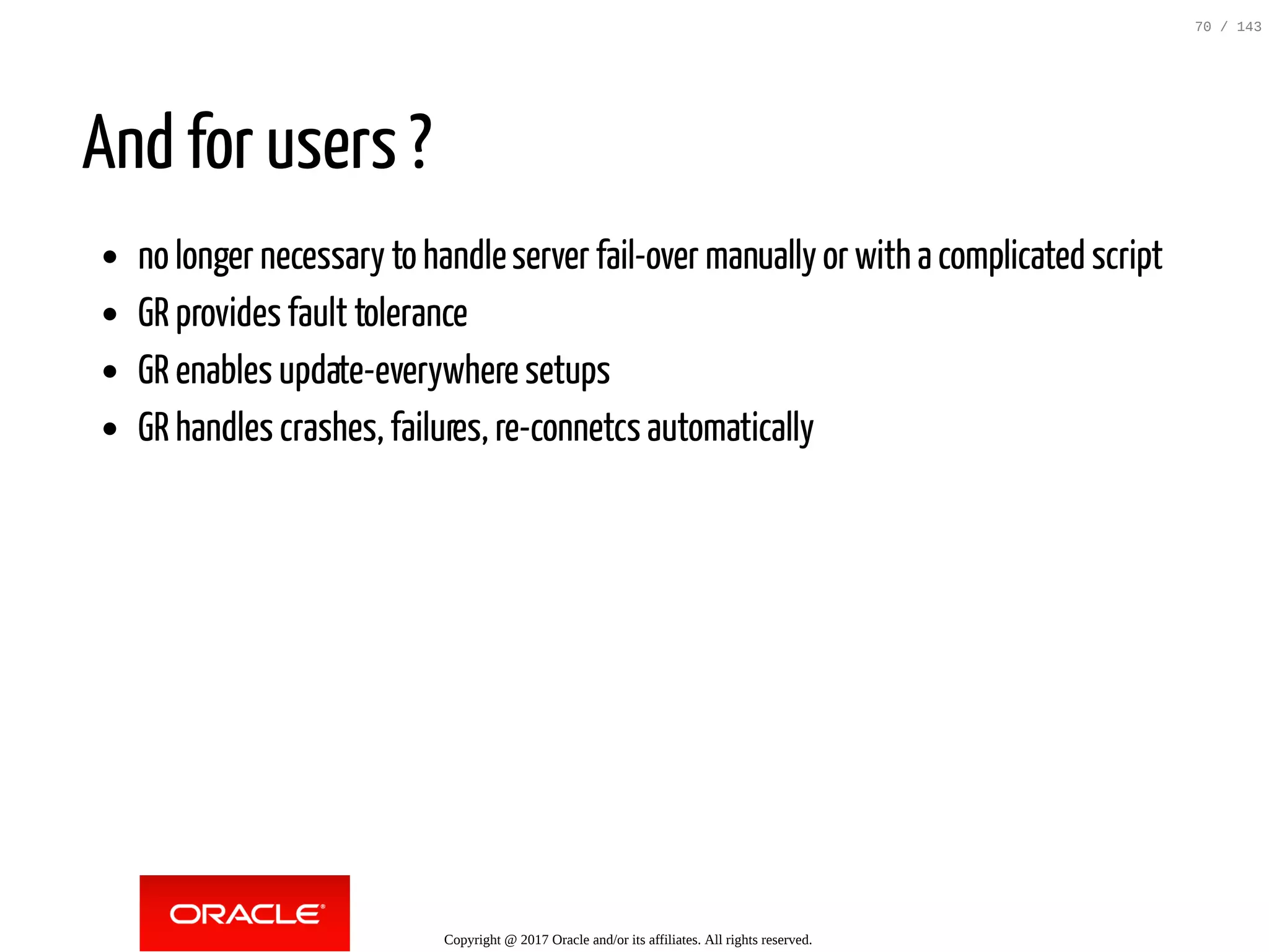

GR handles crashes, failures, re-connetcs automatically
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
70 / 143

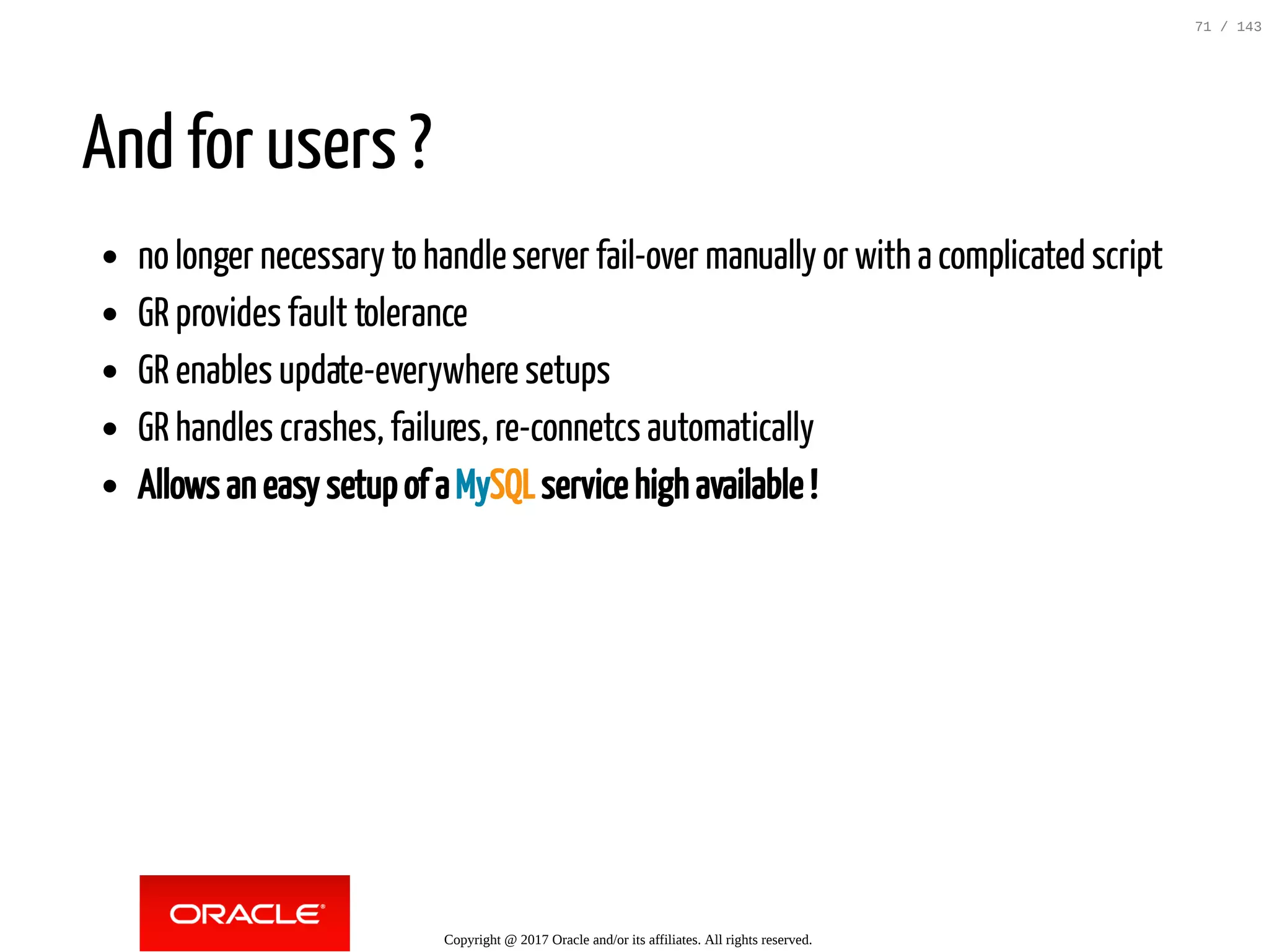

71. And for users ?
no longer necessary to handleserver fail-over manually or with a complicated script
GR provides fault tolerance
GR enables update-everywhere setups
GR handles crashes, failures, re-connetcs automatically
Allows an easy setup of aMySQLservice high available !
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
71 / 143

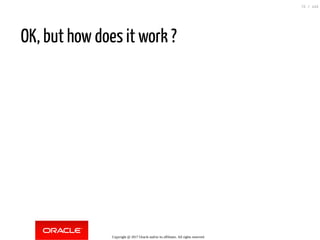

72. OK, but how does it work ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
72 / 143

73. OK, but how does it work ?
it's just ...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
73 / 143

74. OK, but how does it work ?
it's just ...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
74 / 143

75. OK, but how does it work ?
it's just ...

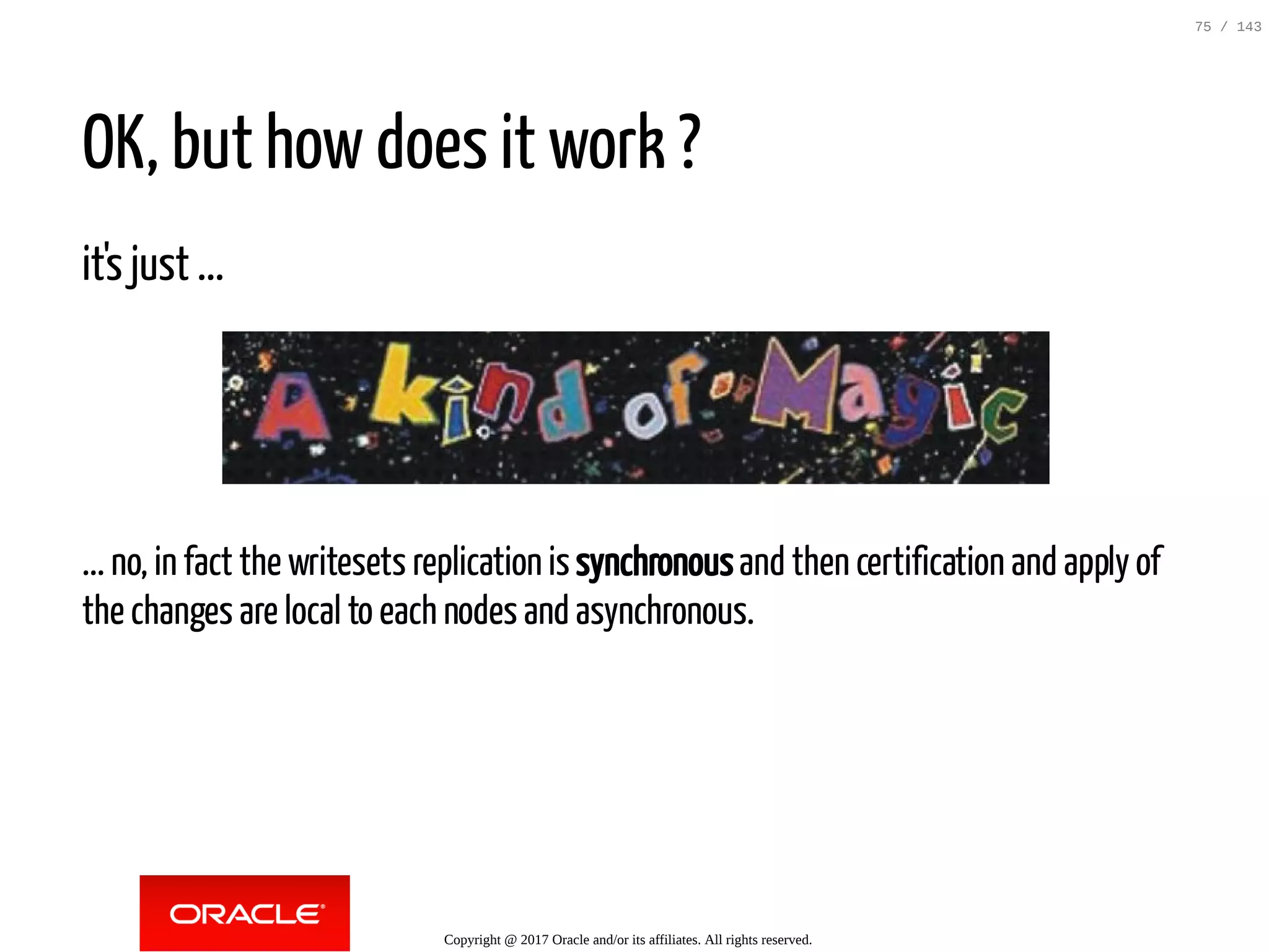

... no, in fact the writesets replication issynchronousand then certification and apply of
the changes are local to each nodes and asynchronous.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
75 / 143

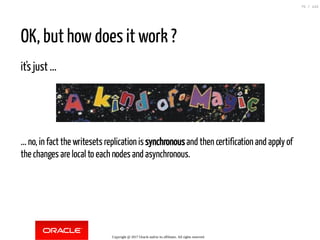

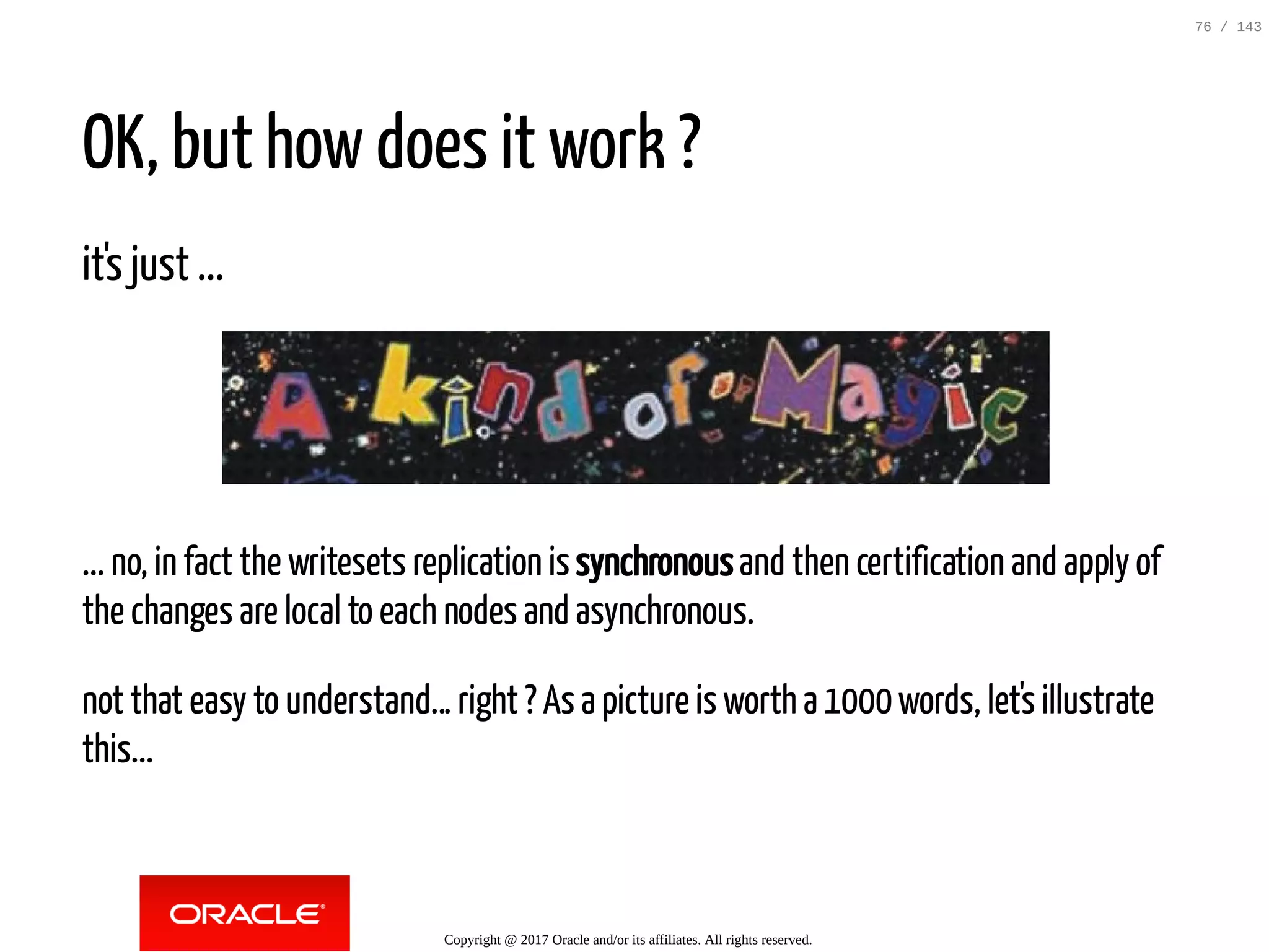

76. OK, but how does it work ?
it's just ...
... no, in fact the writesets replication issynchronousand then certification and apply of
the changes are local to each nodes and asynchronous.
not that easy to understand... right ? As a picture isworth a 1000words, let's illustrate
this...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
76 / 143

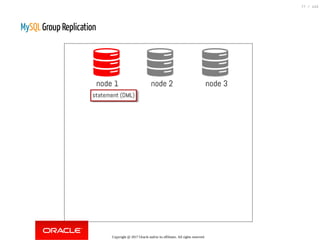

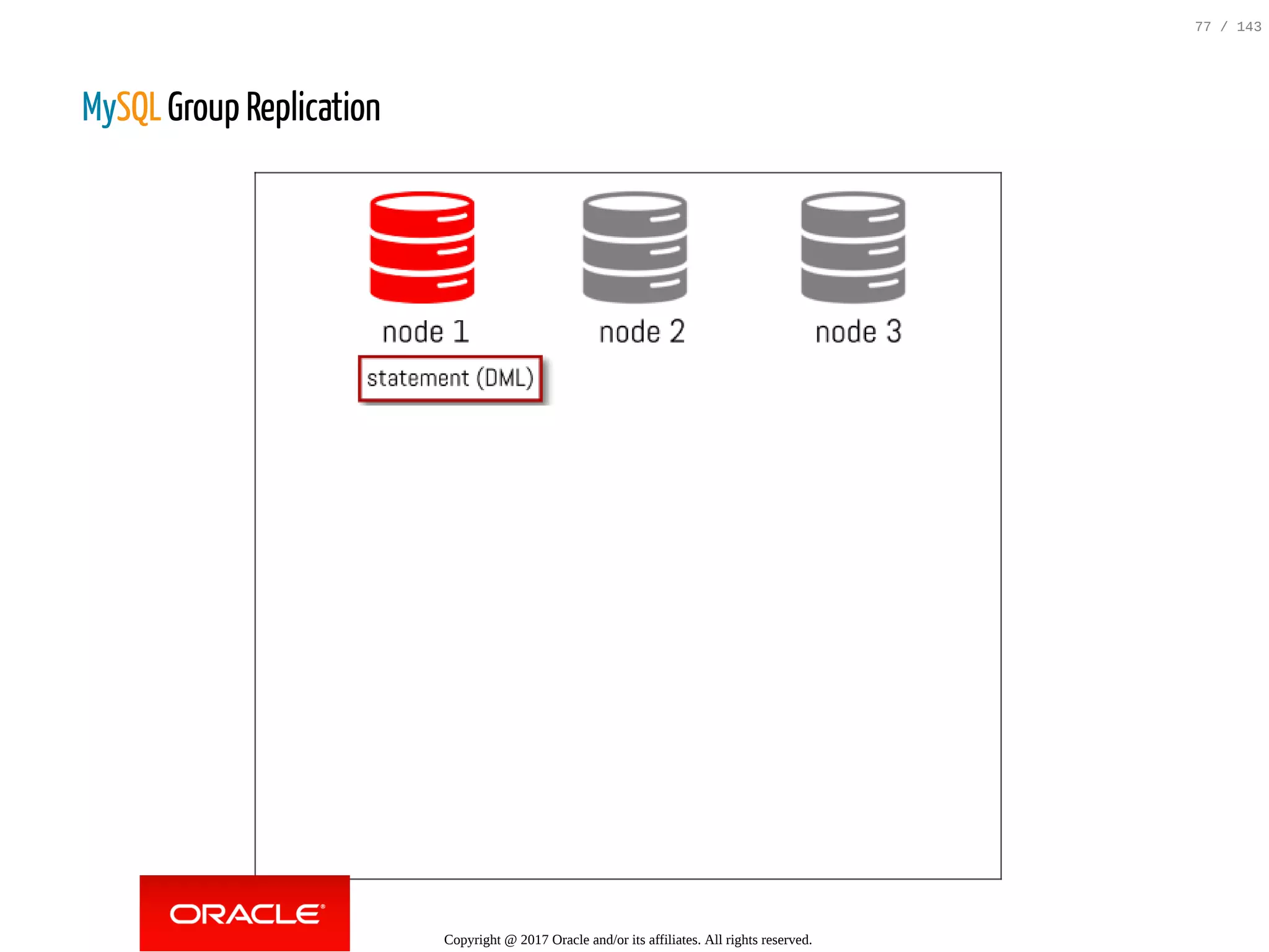

77. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
77 / 143

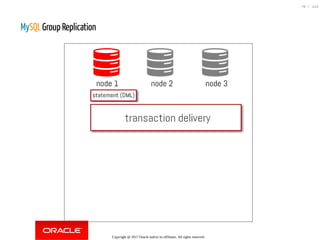

78. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
78 / 143

79. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
79 / 143

80. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
80 / 143

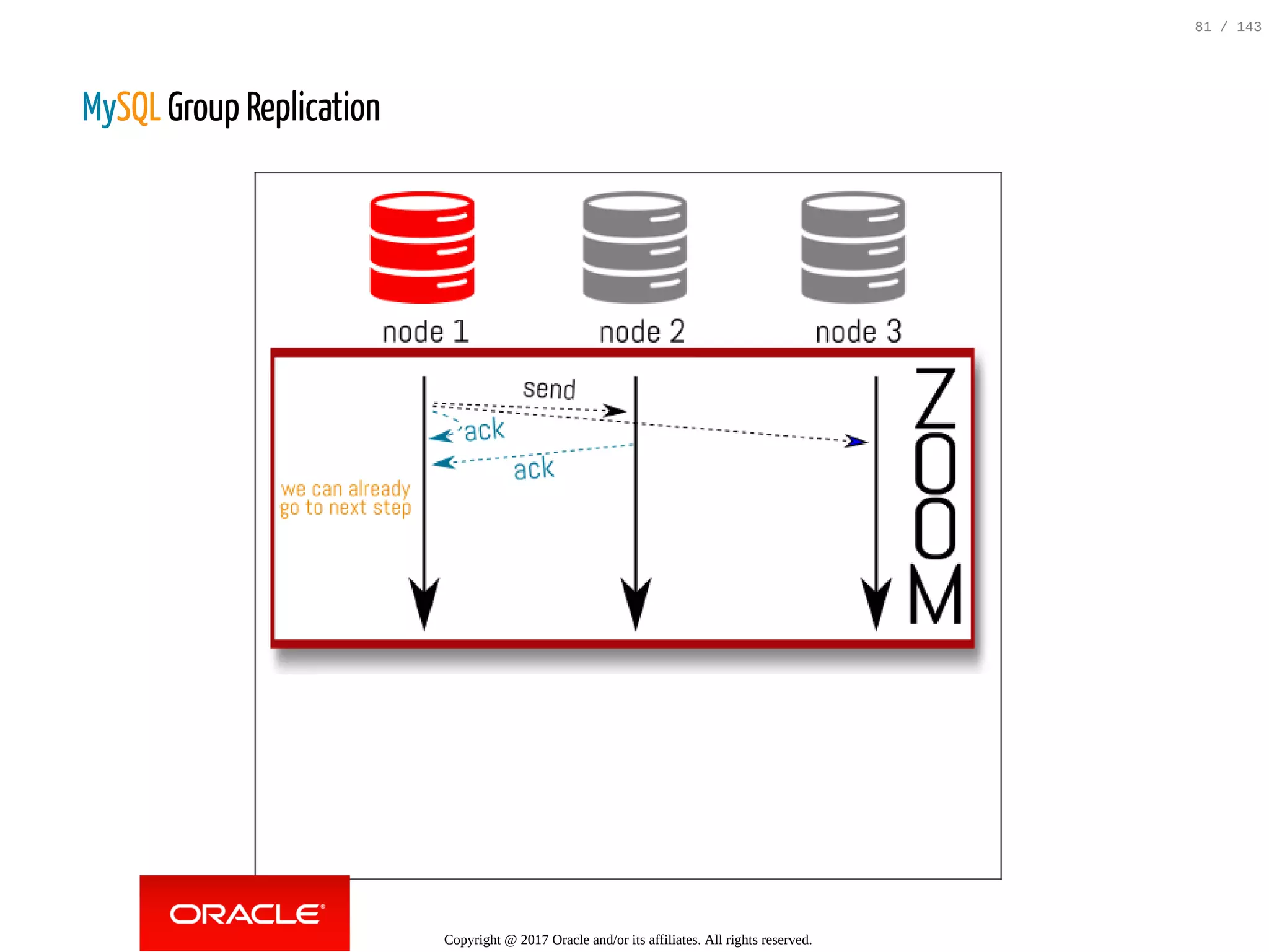

81. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
81 / 143

82. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
82 / 143

83. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
83 / 143

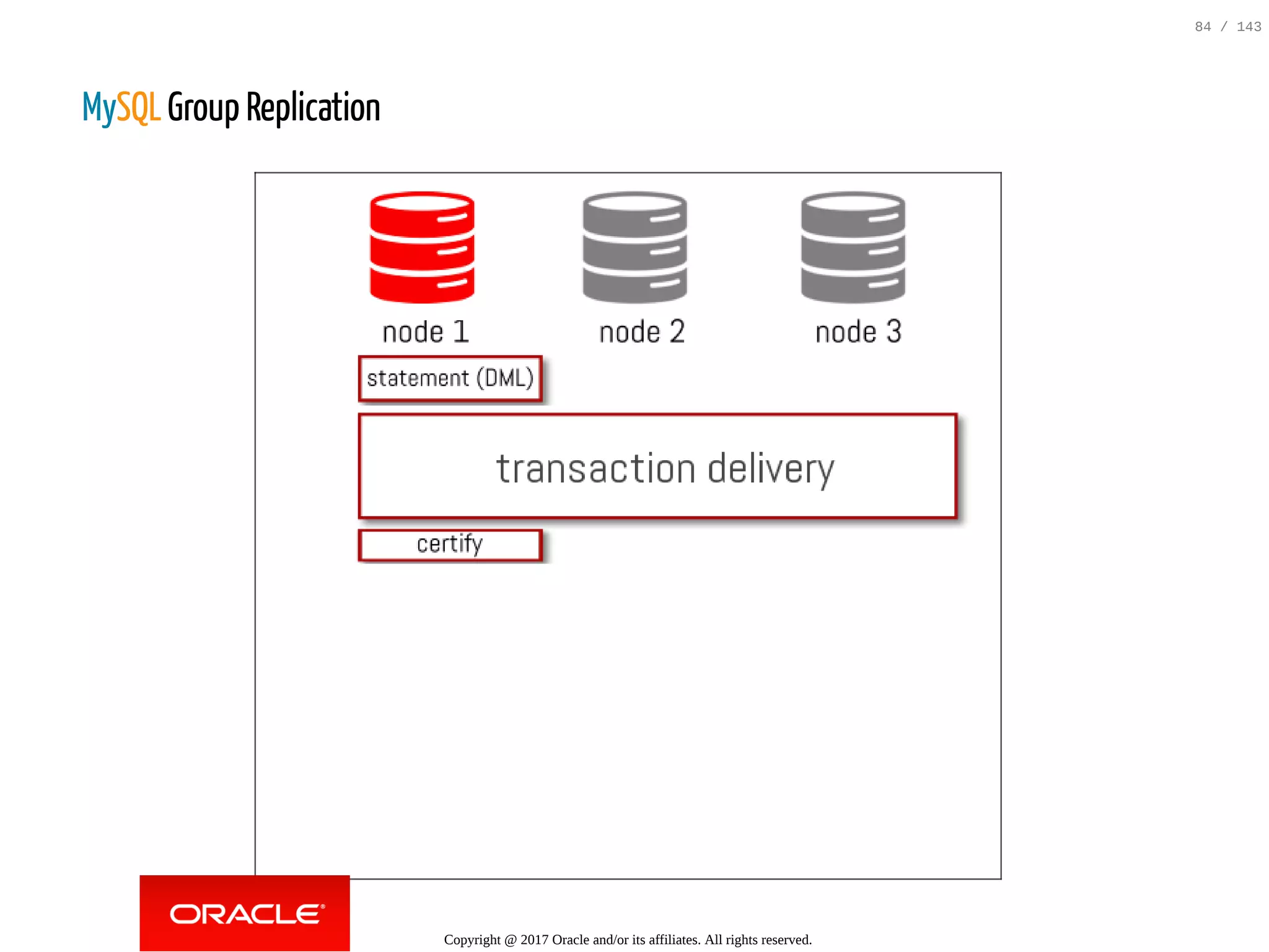

84. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
84 / 143

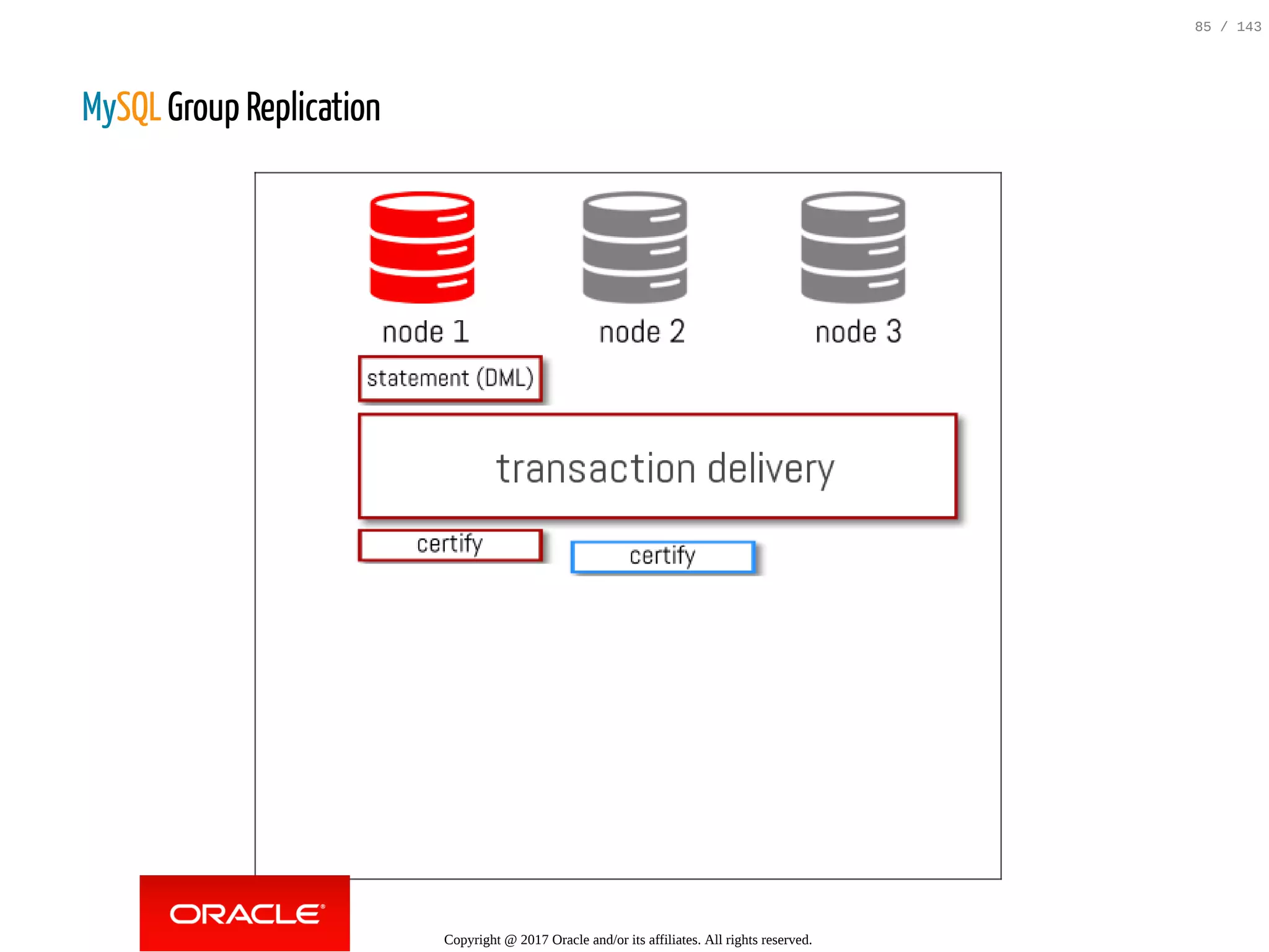

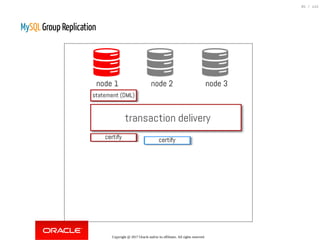

85. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
85 / 143

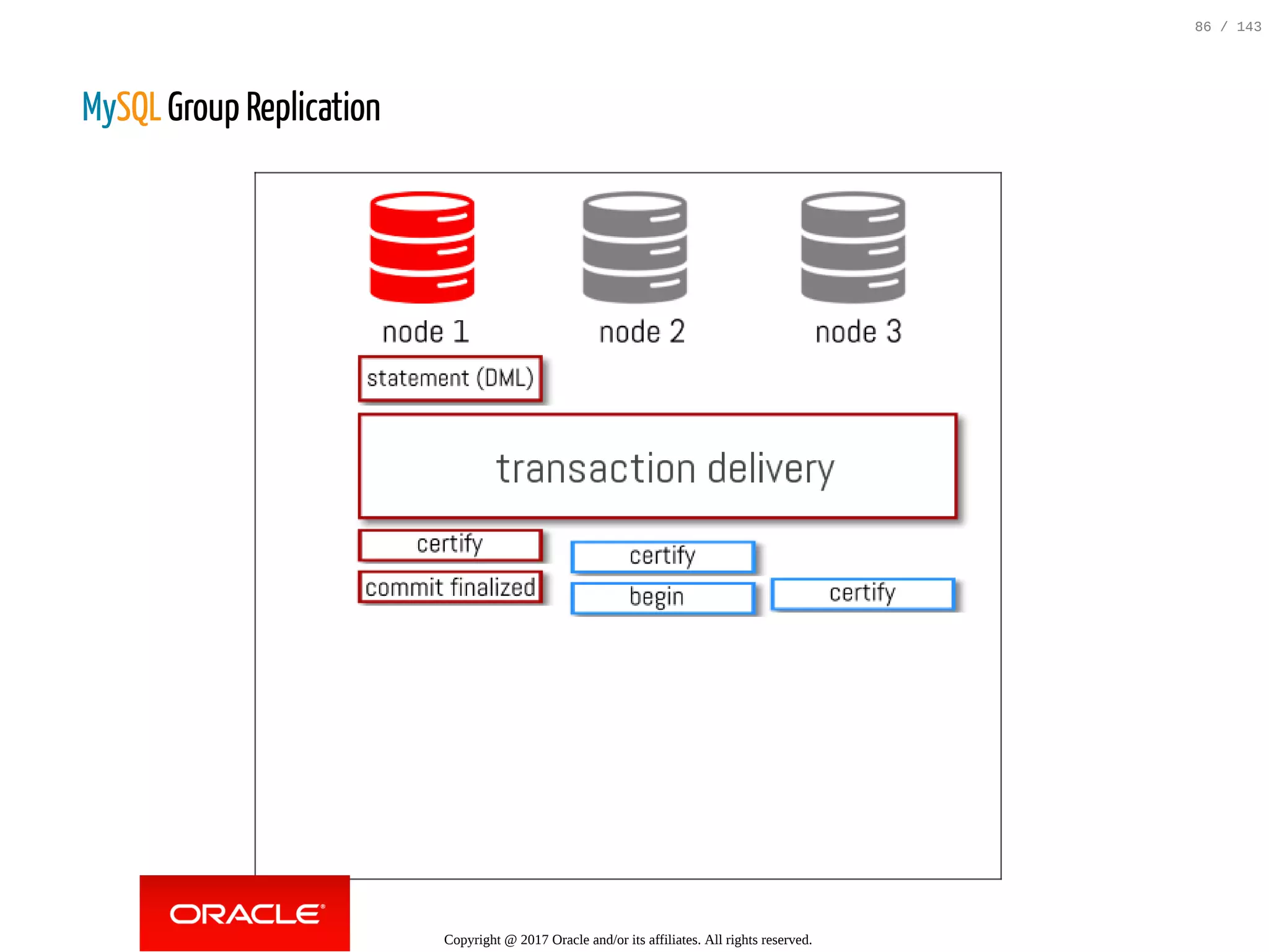

86. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
86 / 143

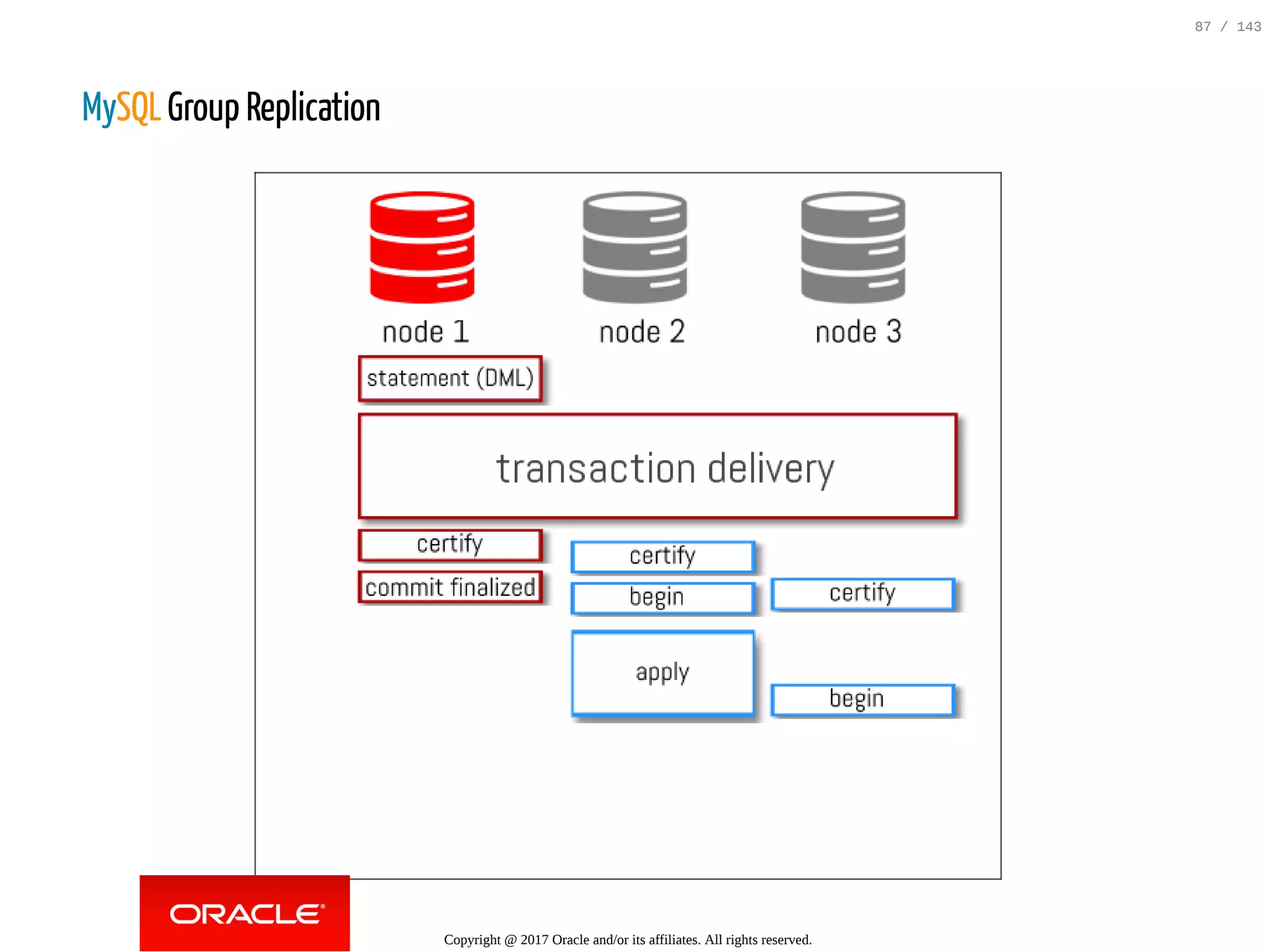

87. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
87 / 143

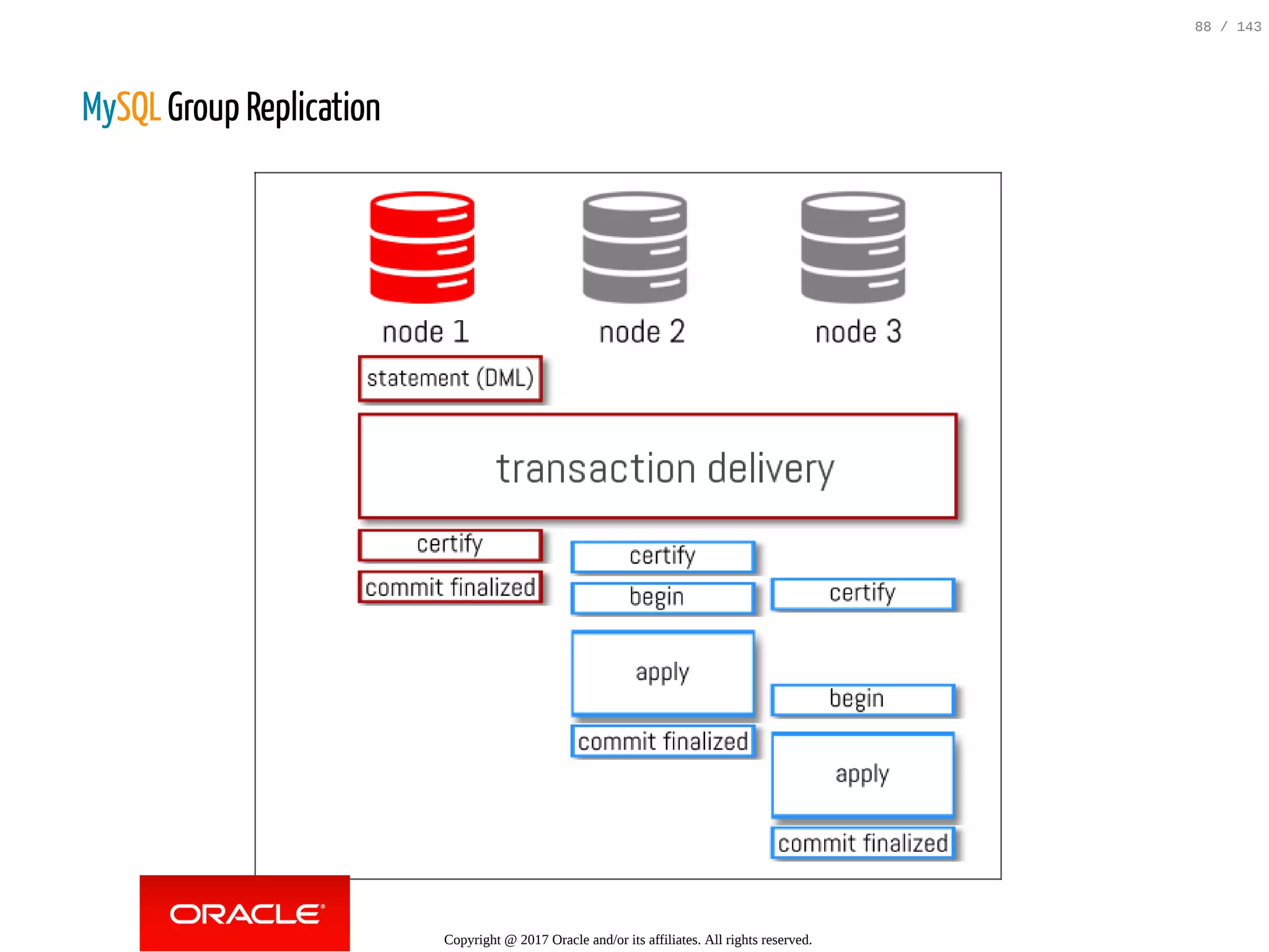

88. MySQLGroup Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
88 / 143

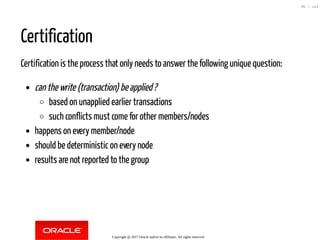

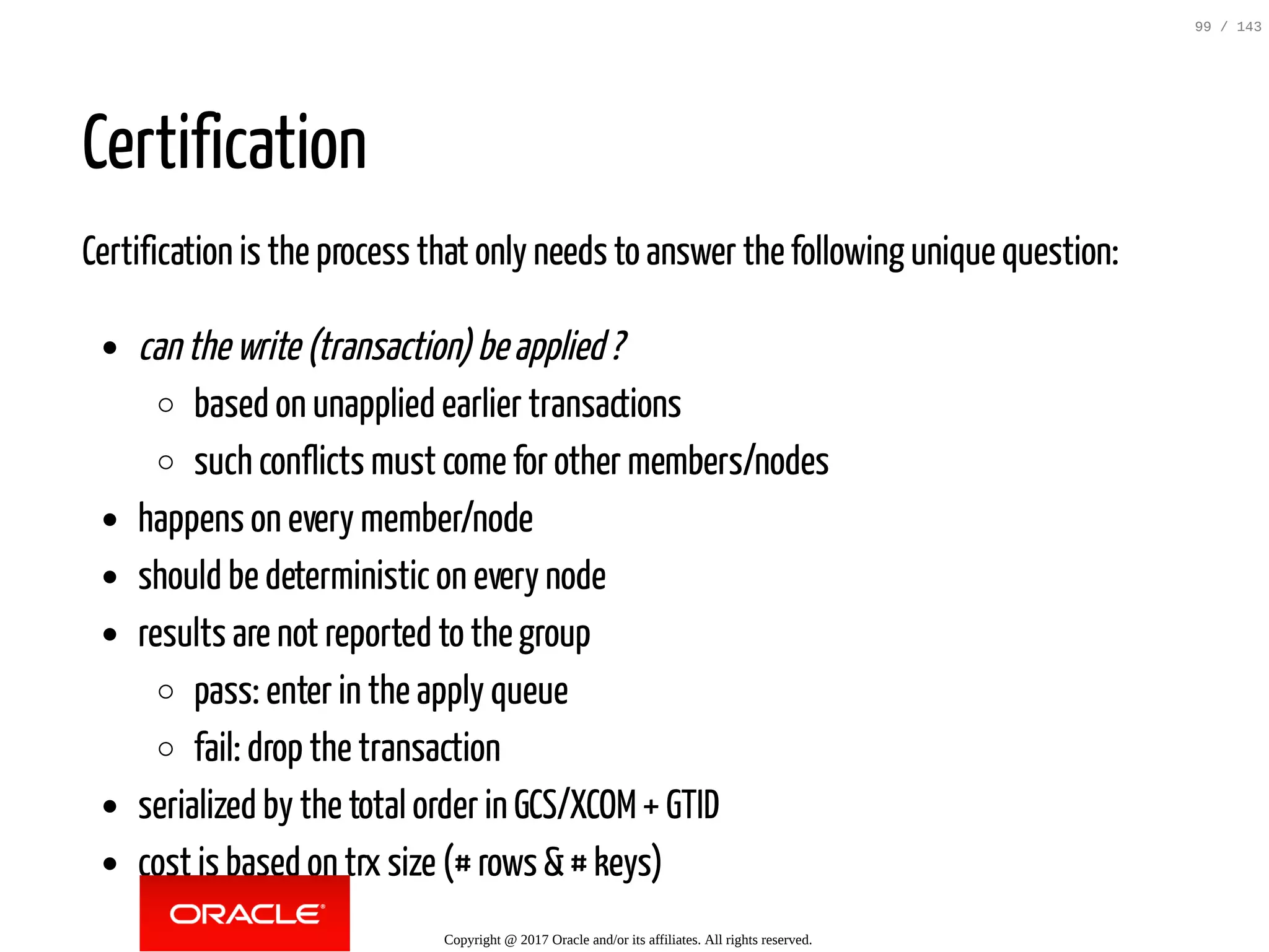

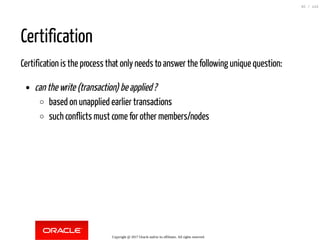

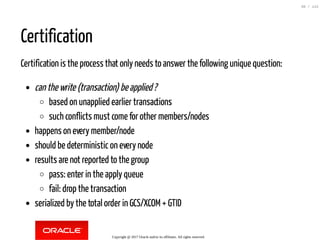

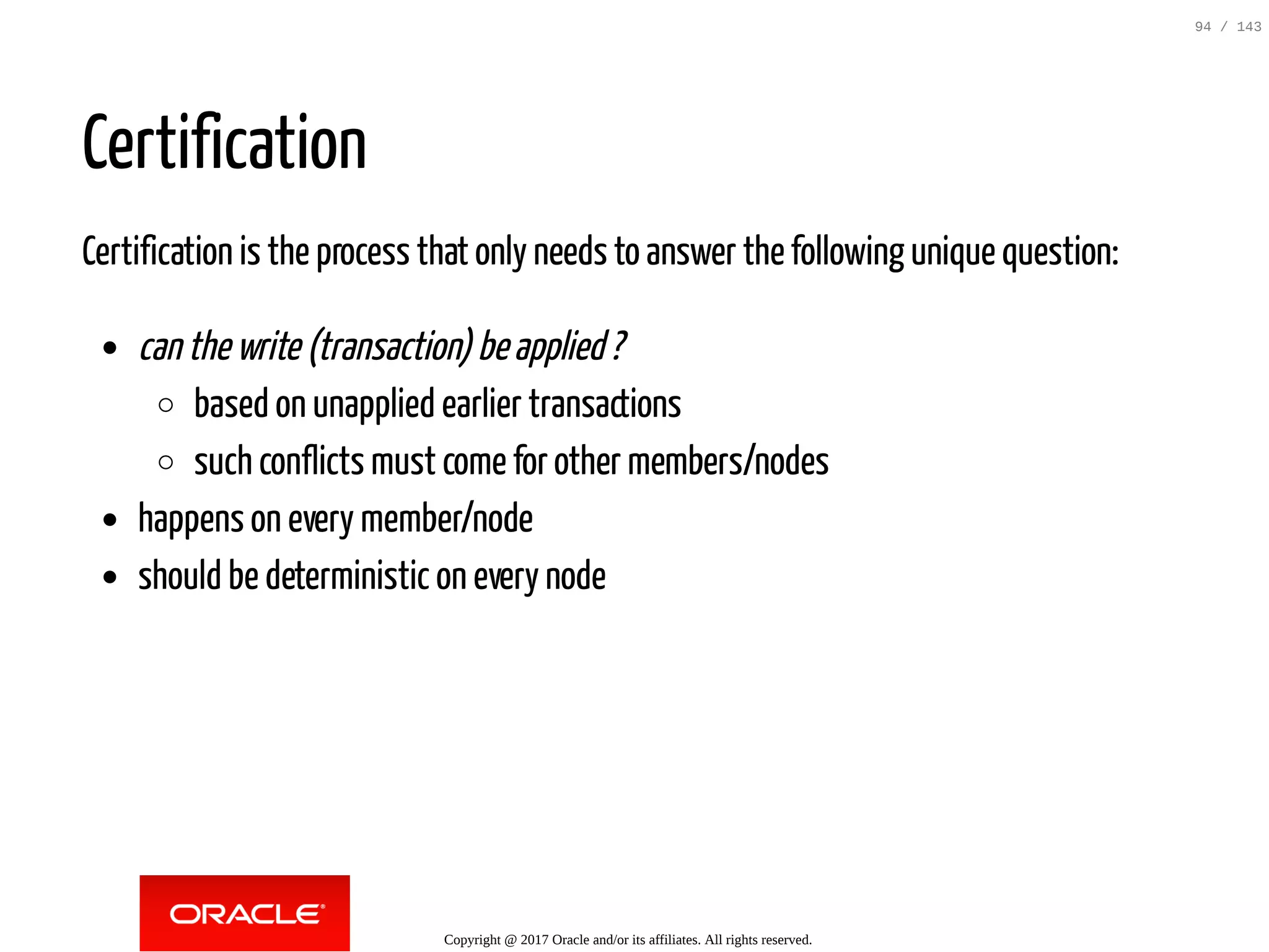

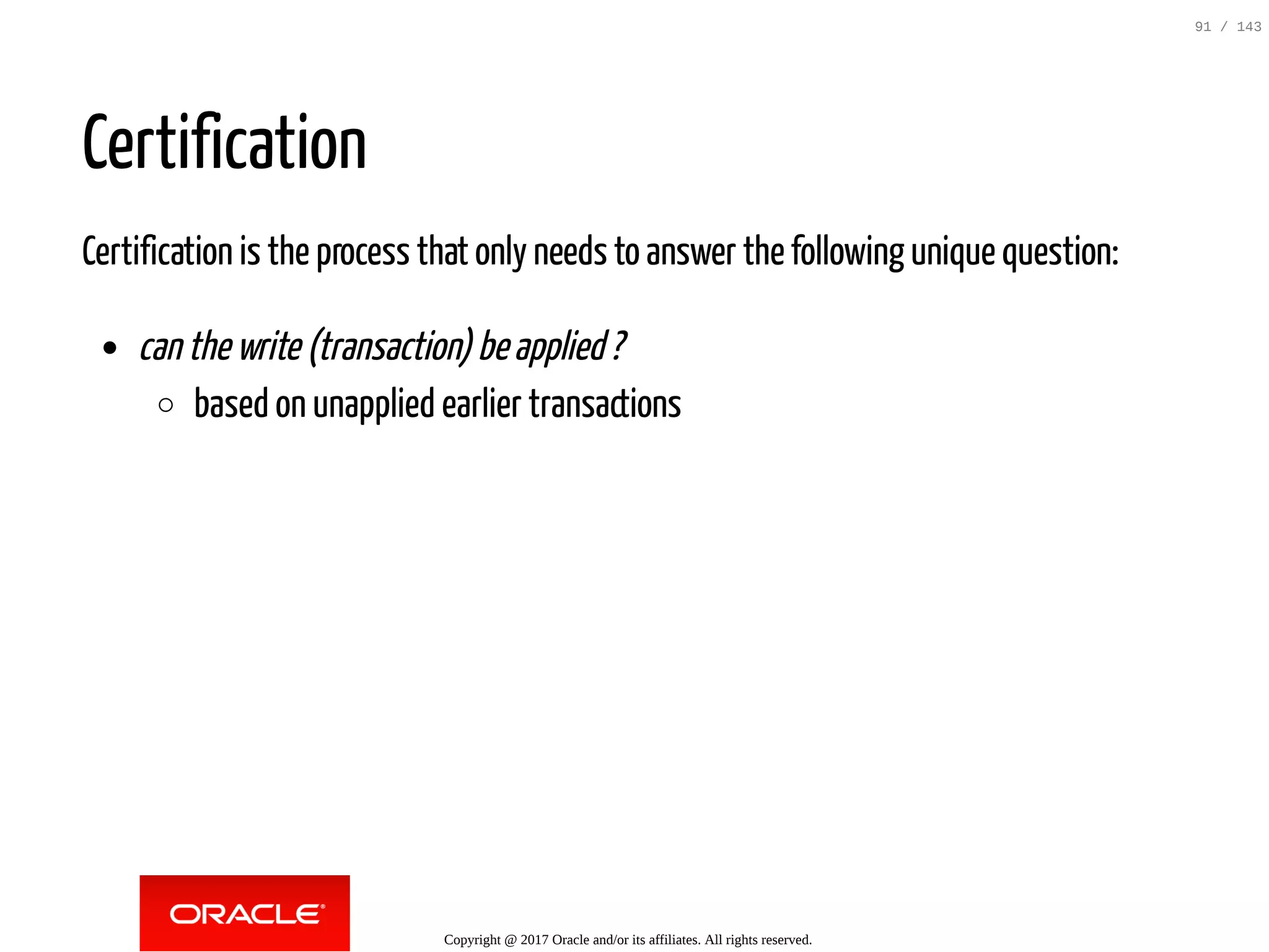

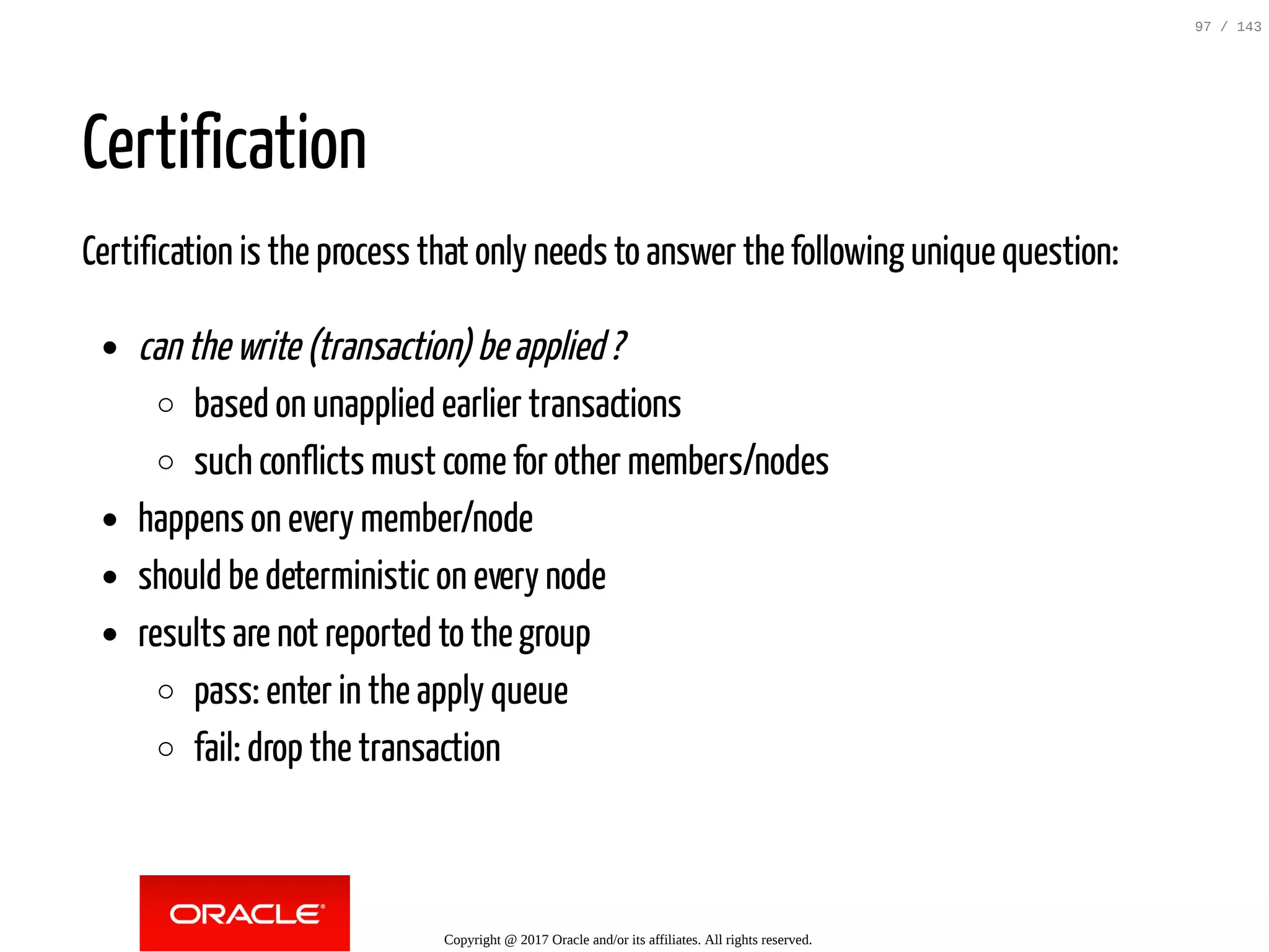

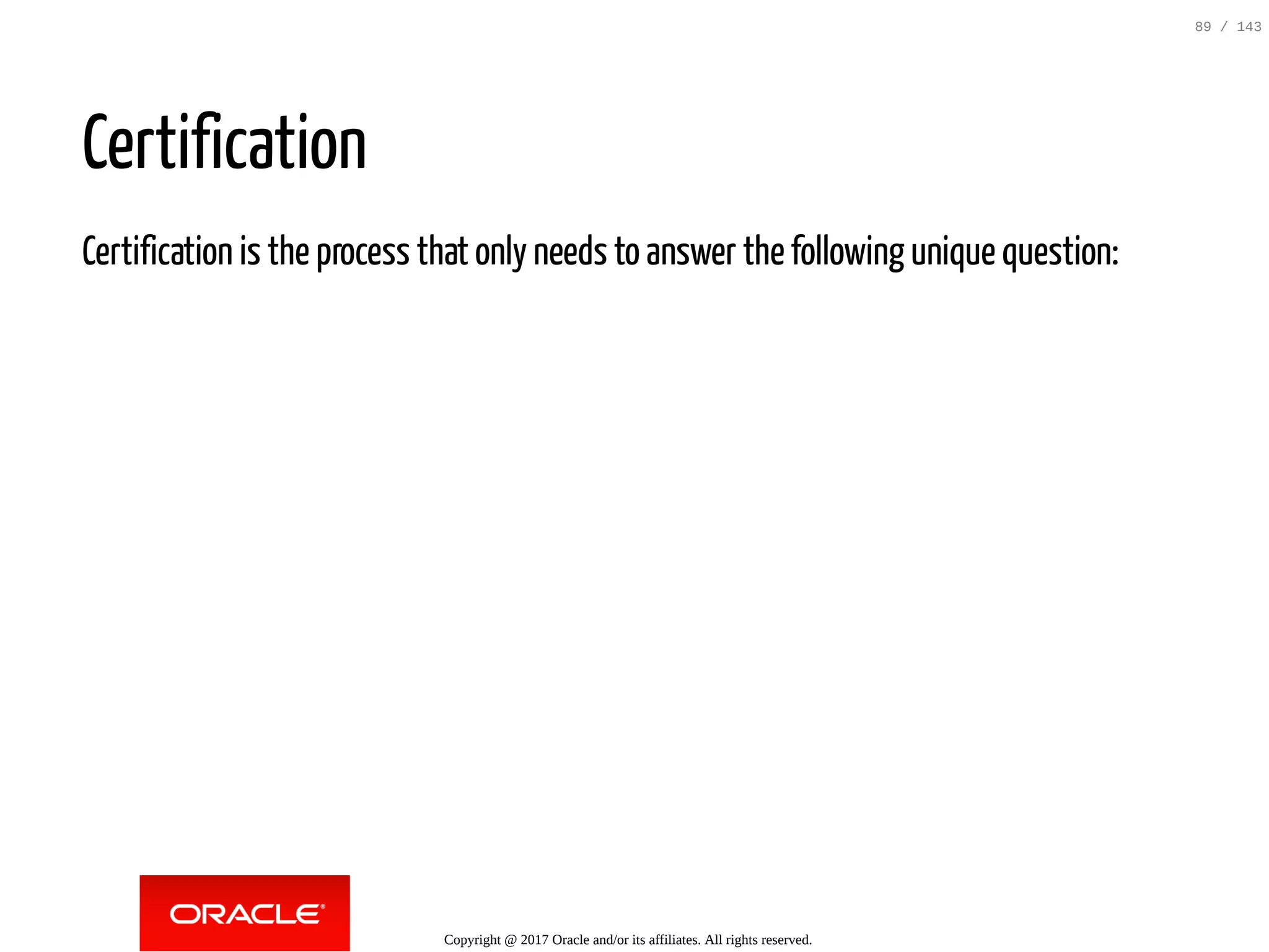

89. Certification
Certification is the process that only needs to answer thefollowing unique question:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
89 / 143

90. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
90 / 143

91. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
91 / 143

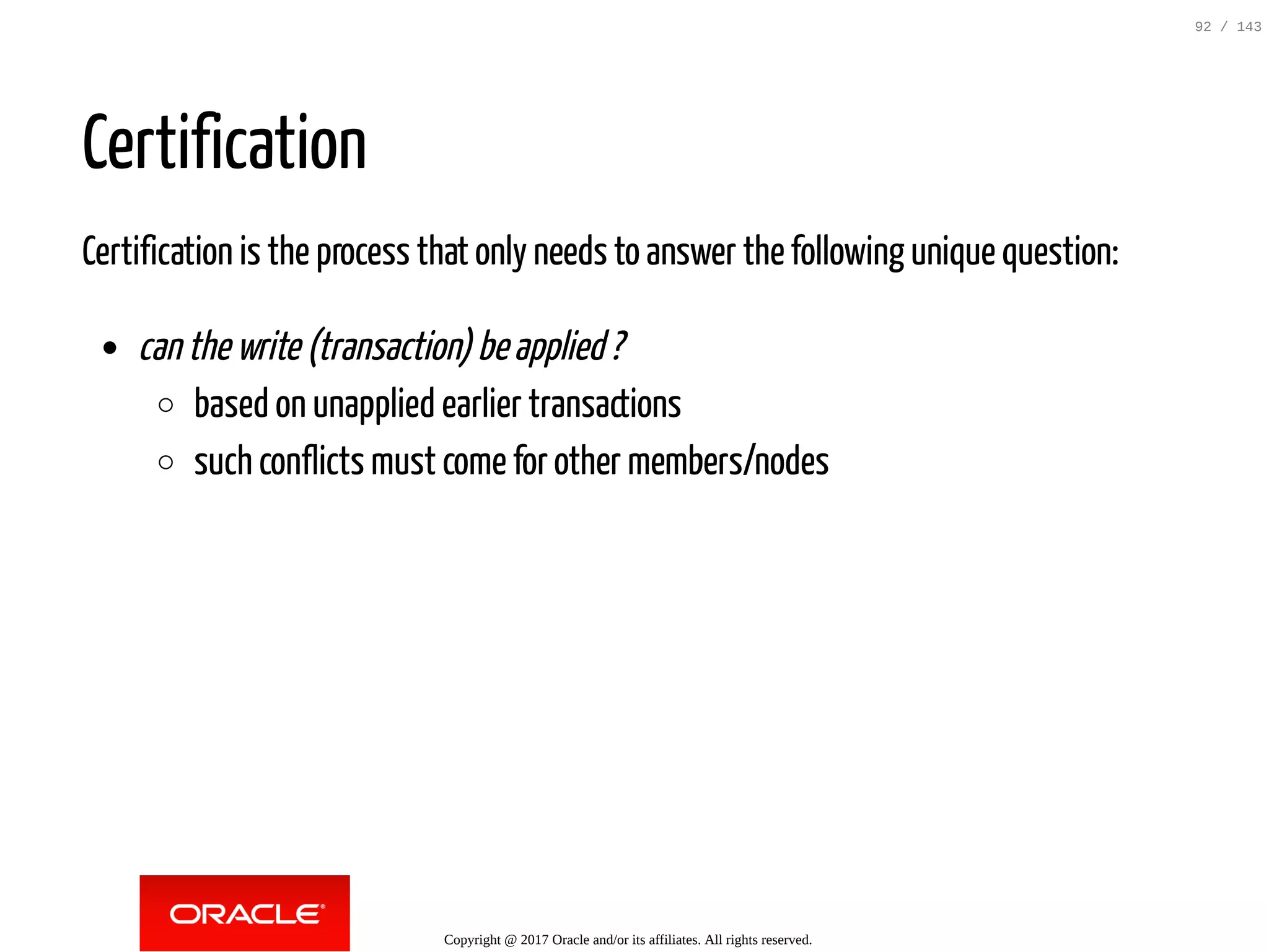

92. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
92 / 143

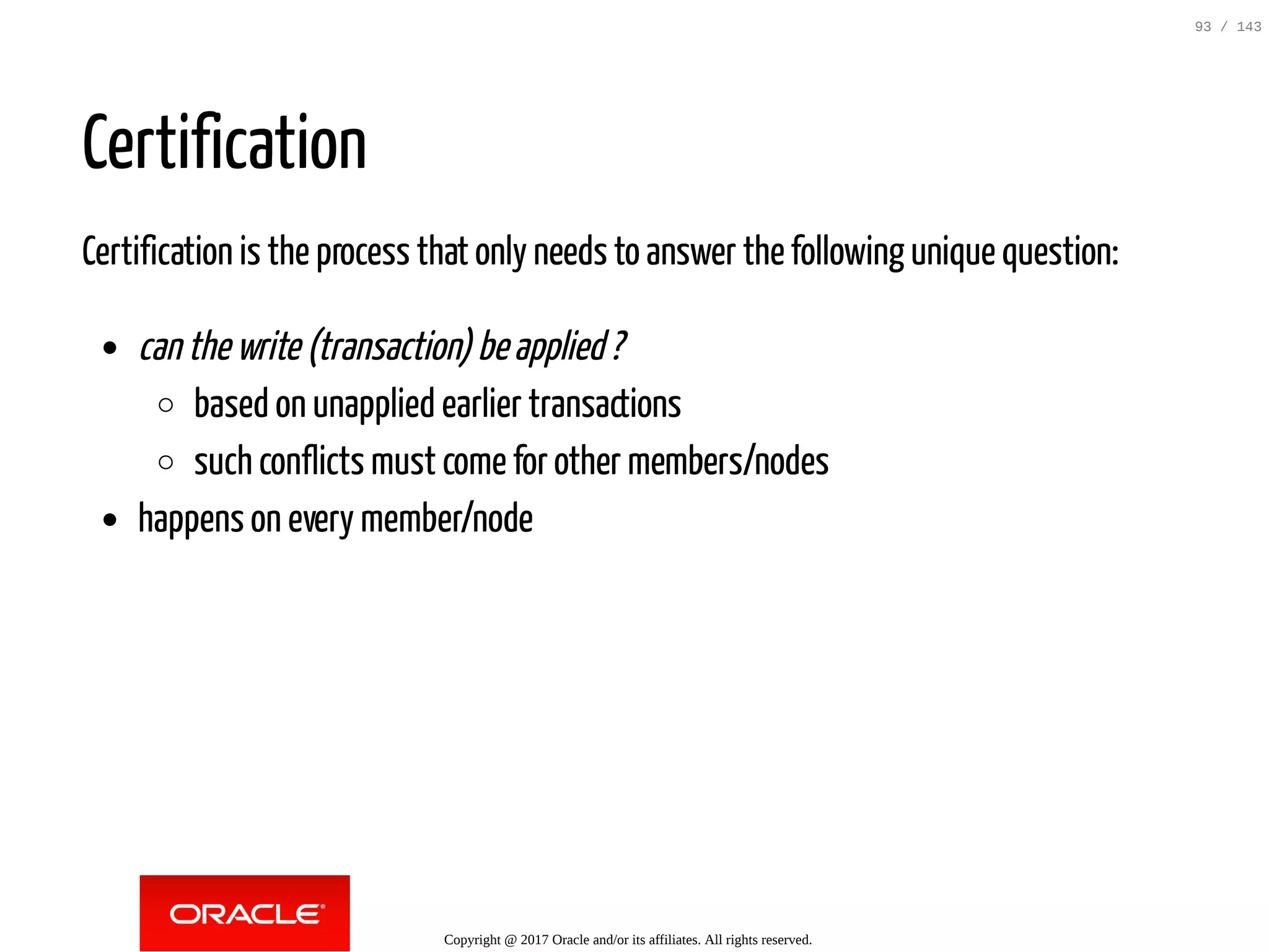

93. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
93 / 143

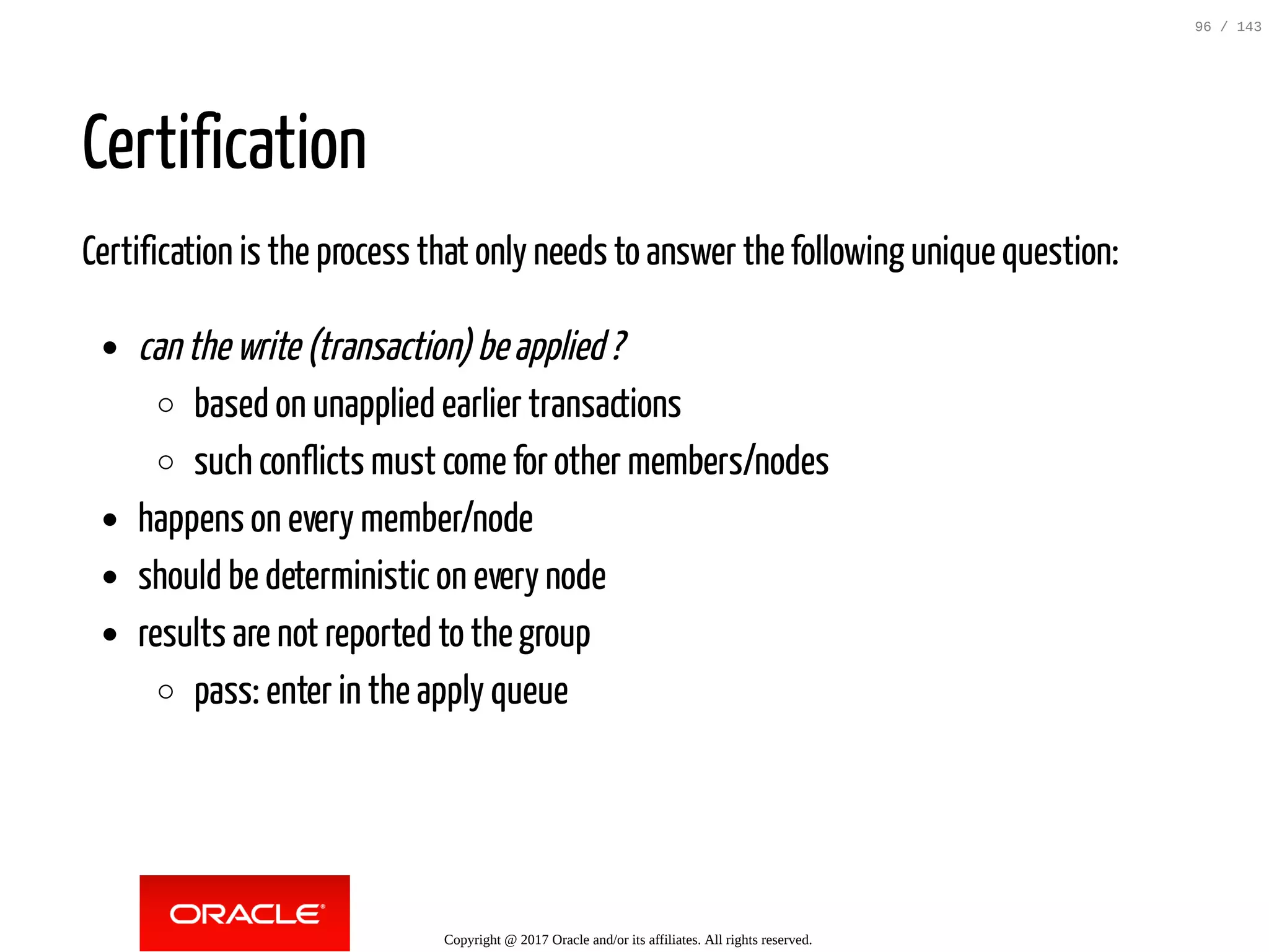

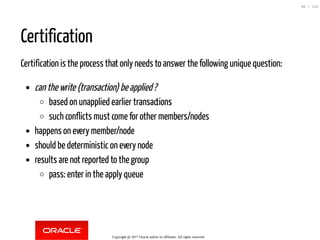

94. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
should be deterministic on every node
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
94 / 143

95. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to thegroup
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
95 / 143

96. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to thegroup
pass: enter in the apply queue
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
96 / 143

97. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to thegroup
pass: enter in the apply queue
fail: drop the transaction
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
97 / 143

98. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to thegroup
pass: enter in the apply queue
fail: drop the transaction
serialized by the total order in GCS/XCOM+ GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
98 / 143

99. Certification
Certification is the process that only needs to answer thefollowing unique question:
can the write (transaction) beapplied?
based on unapplied earlier transactions
such conflicts must come forother members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to thegroup
pass: enter in the apply queue
fail: drop the transaction
serialized by the total order in GCS/XCOM+ GTID
cost is based on trx size (# rows &# keys)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
99 / 143

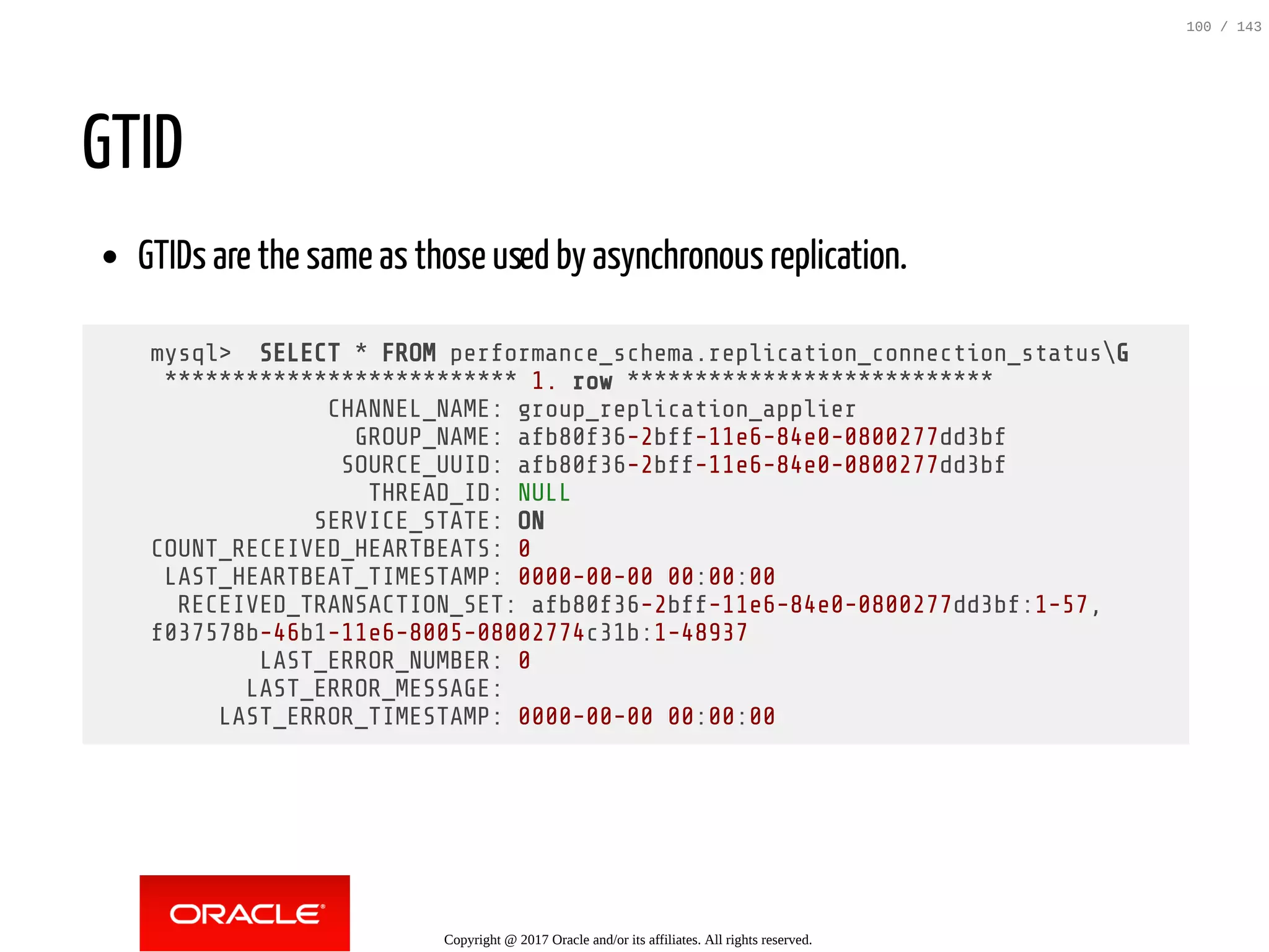

100. GTID
GTIDs are the same as those used by asynchronous replication.
mysql> SELECT * FROM performance_schema.replication_connection_statusG
************************** 1. row ***************************
CHANNEL_NAME: group_replication_applier
GROUP_NAME: afb80f36-2bff-11e6-84e0-0800277dd3bf
SOURCE_UUID: afb80f36-2bff-11e6-84e0-0800277dd3bf
THREAD_ID: NULL
SERVICE_STATE: ON
COUNT_RECEIVED_HEARTBEATS: 0
LAST_HEARTBEAT_TIMESTAMP: 0000-00-00 00:00:00
RECEIVED_TRANSACTION_SET: afb80f36-2bff-11e6-84e0-0800277dd3bf:1-57,
f037578b-46b1-11e6-8005-08002774c31b:1-48937
LAST_ERROR_NUMBER: 0
LAST_ERROR_MESSAGE:
LAST_ERROR_TIMESTAMP: 0000-00-00 00:00:00
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
100 / 143

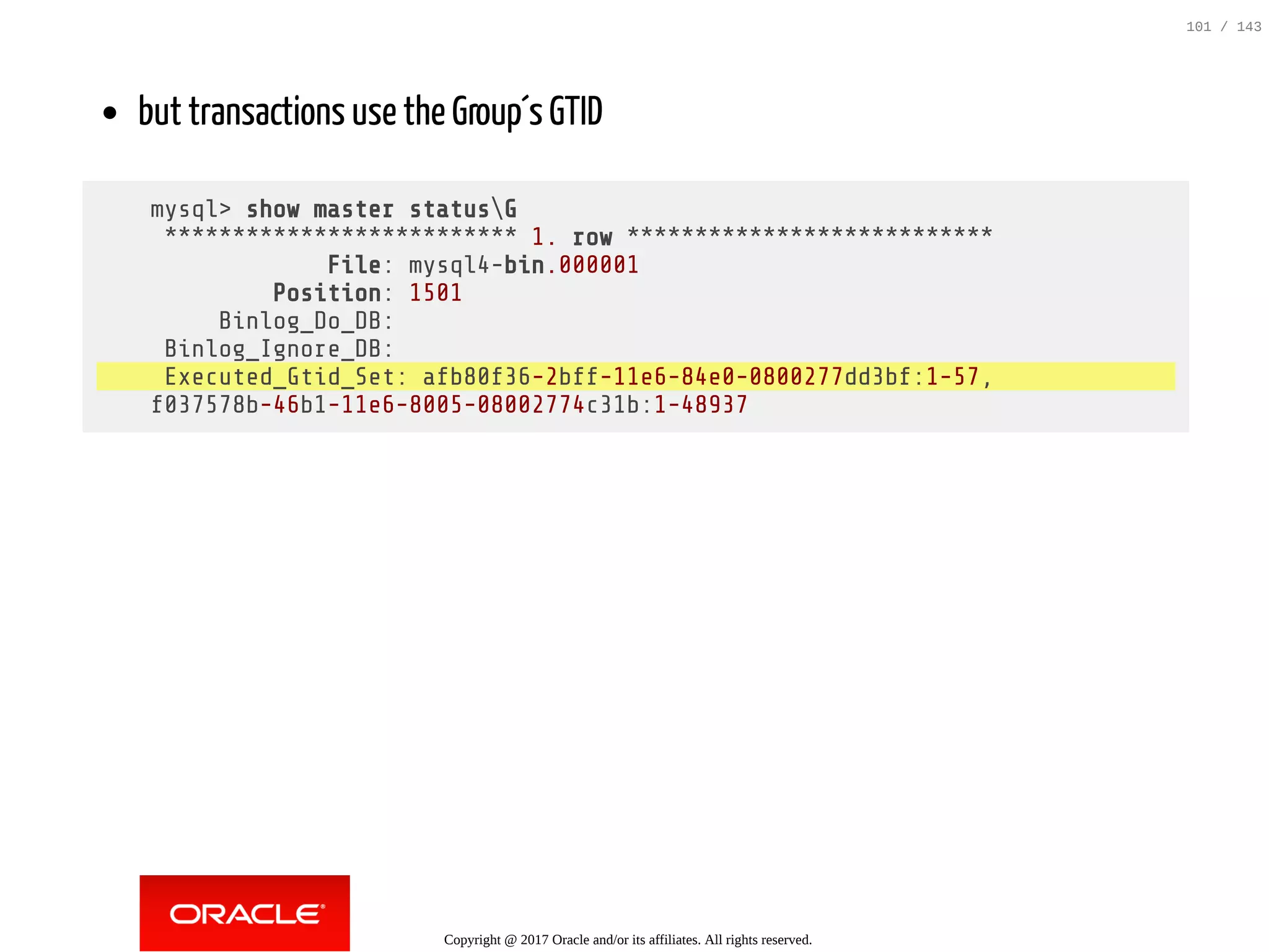

101. but transactions use the Group´s GTID
mysql> show master statusG
************************** 1. row ***************************
File: mysql4-bin.000001
Position: 1501
Binlog_Do_DB:
Binlog_Ignore_DB:
Executed_Gtid_Set: afb80f36-2bff-11e6-84e0-0800277dd3bf:1-57,
f037578b-46b1-11e6-8005-08002774c31b:1-48937
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
101 / 143

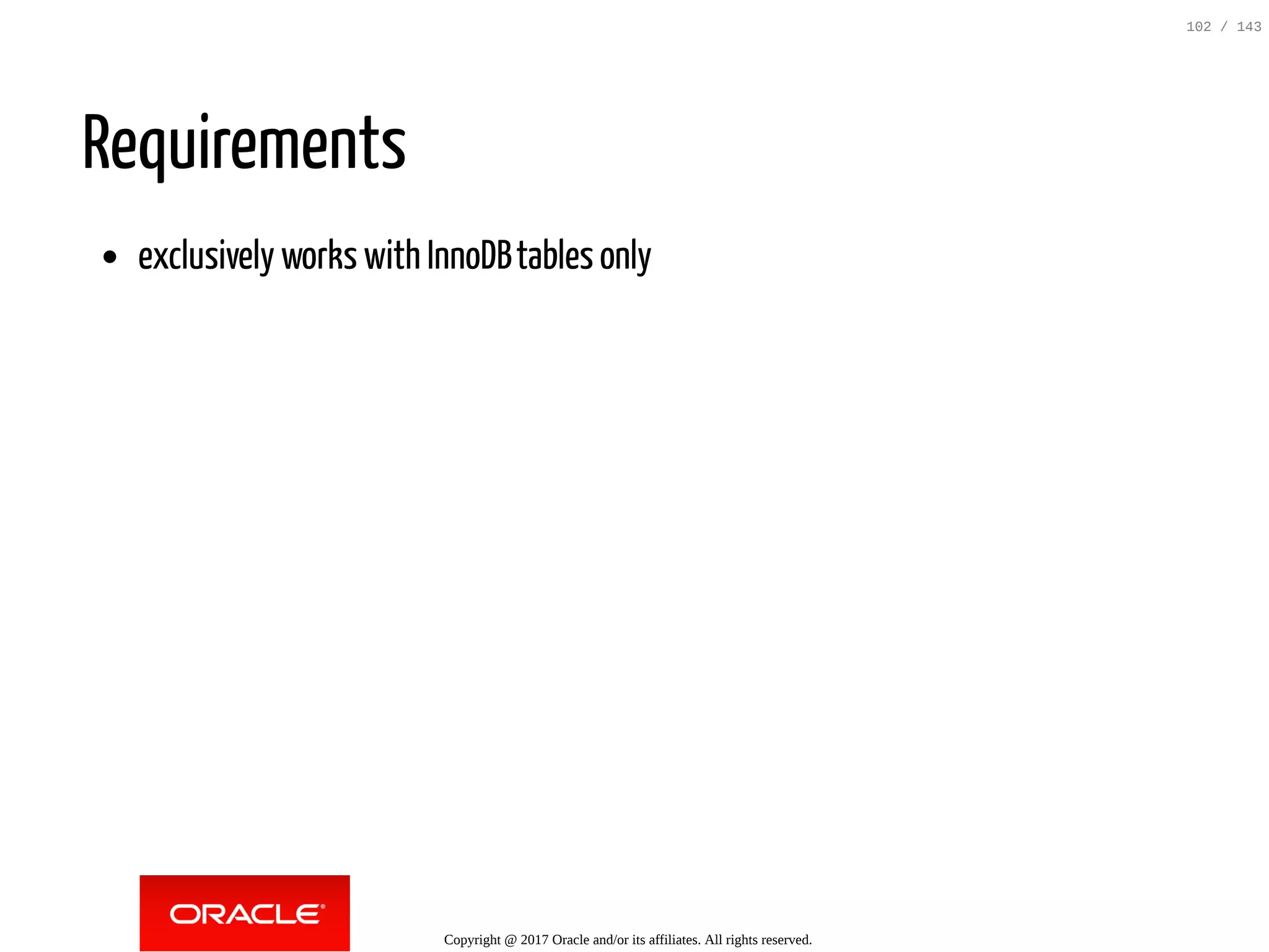

102. Requirements
exclusively works with InnoDBtables only
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
102 / 143

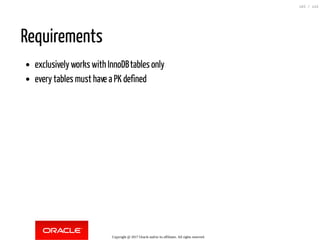

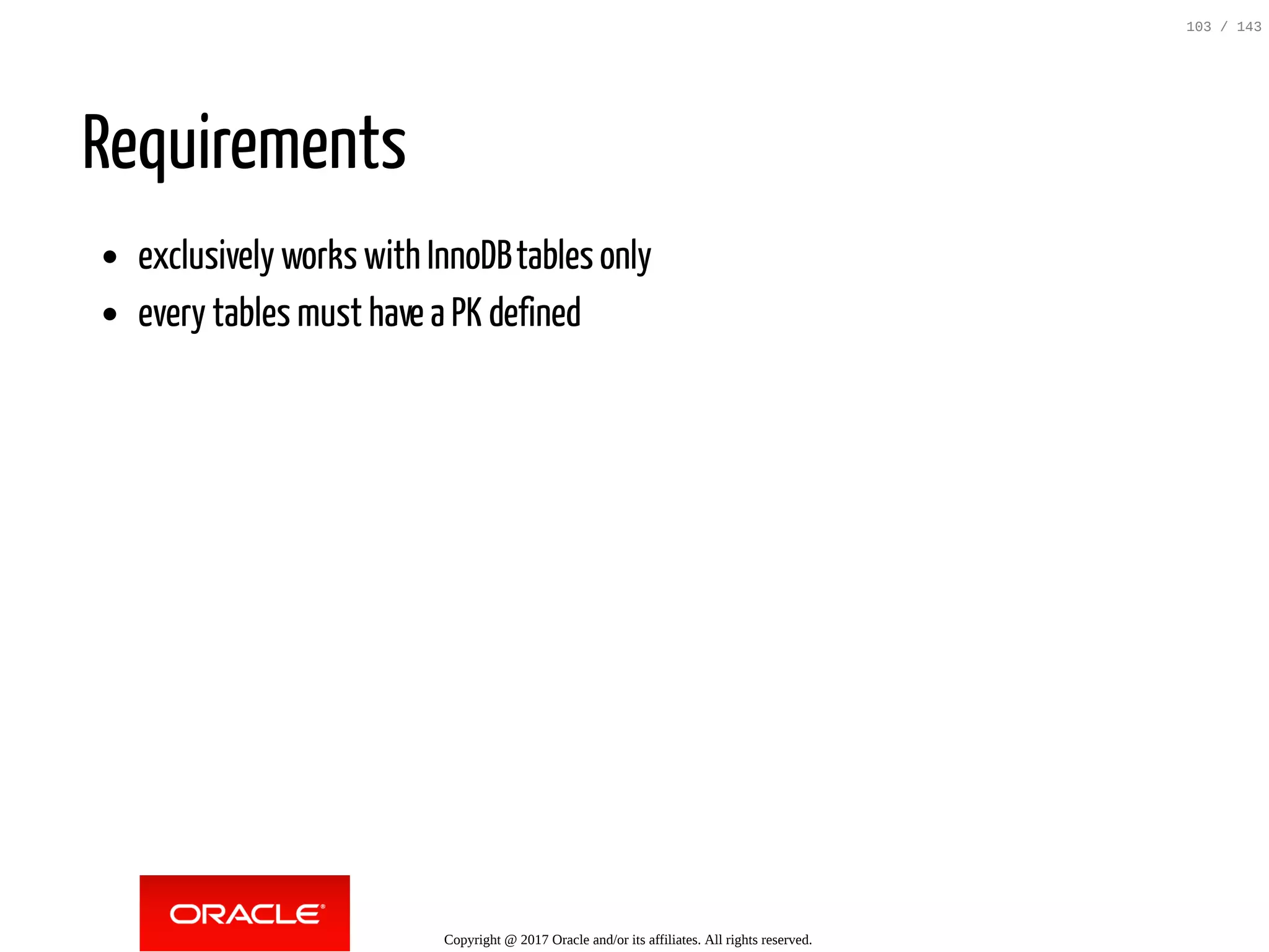

103. Requirements
exclusively works with InnoDBtables only
every tables must have a PK defined
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
103 / 143

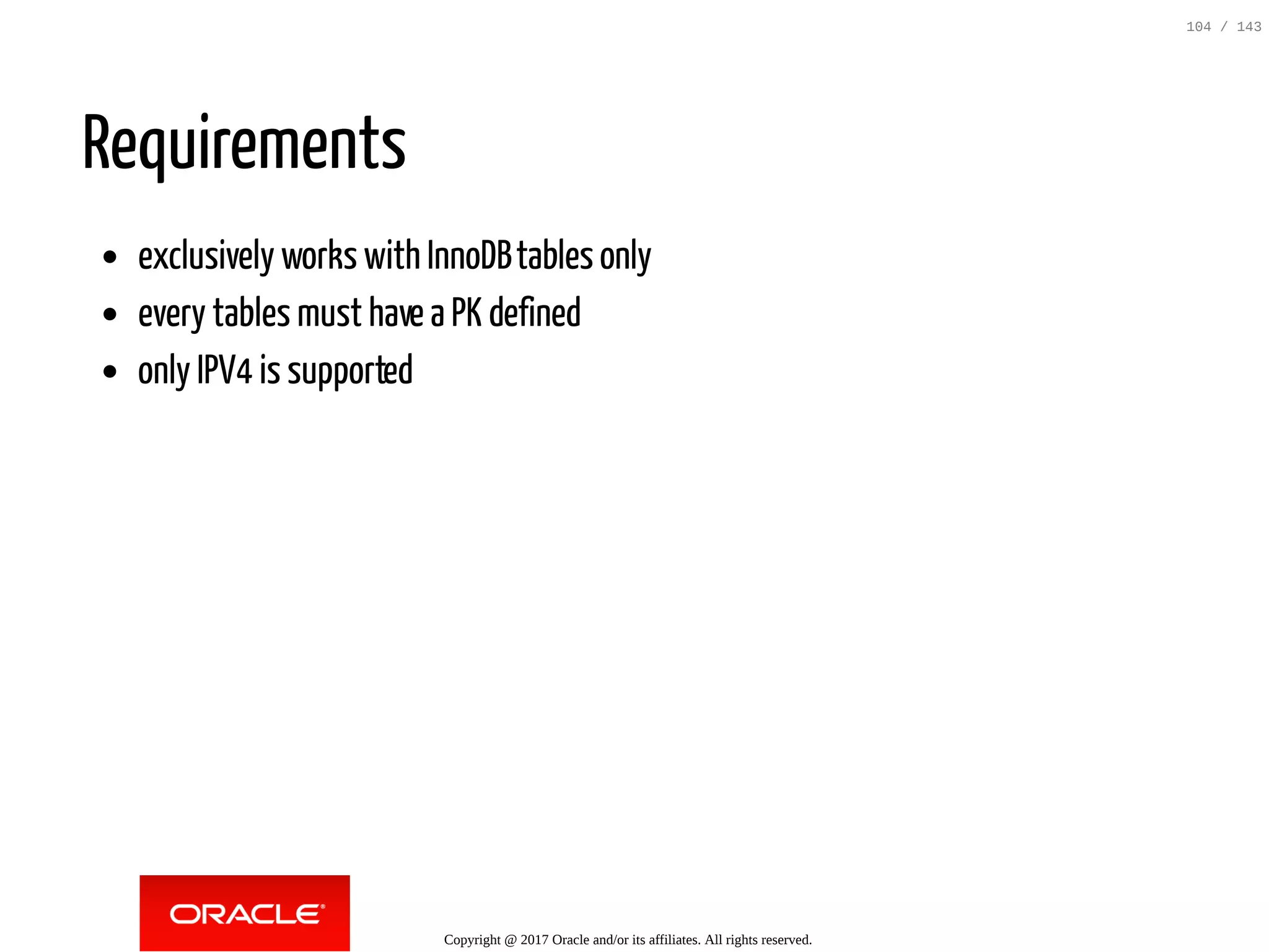

104. Requirements
exclusively works with InnoDBtables only
every tables must have a PK defined
only IPV4 is supported
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
104 / 143

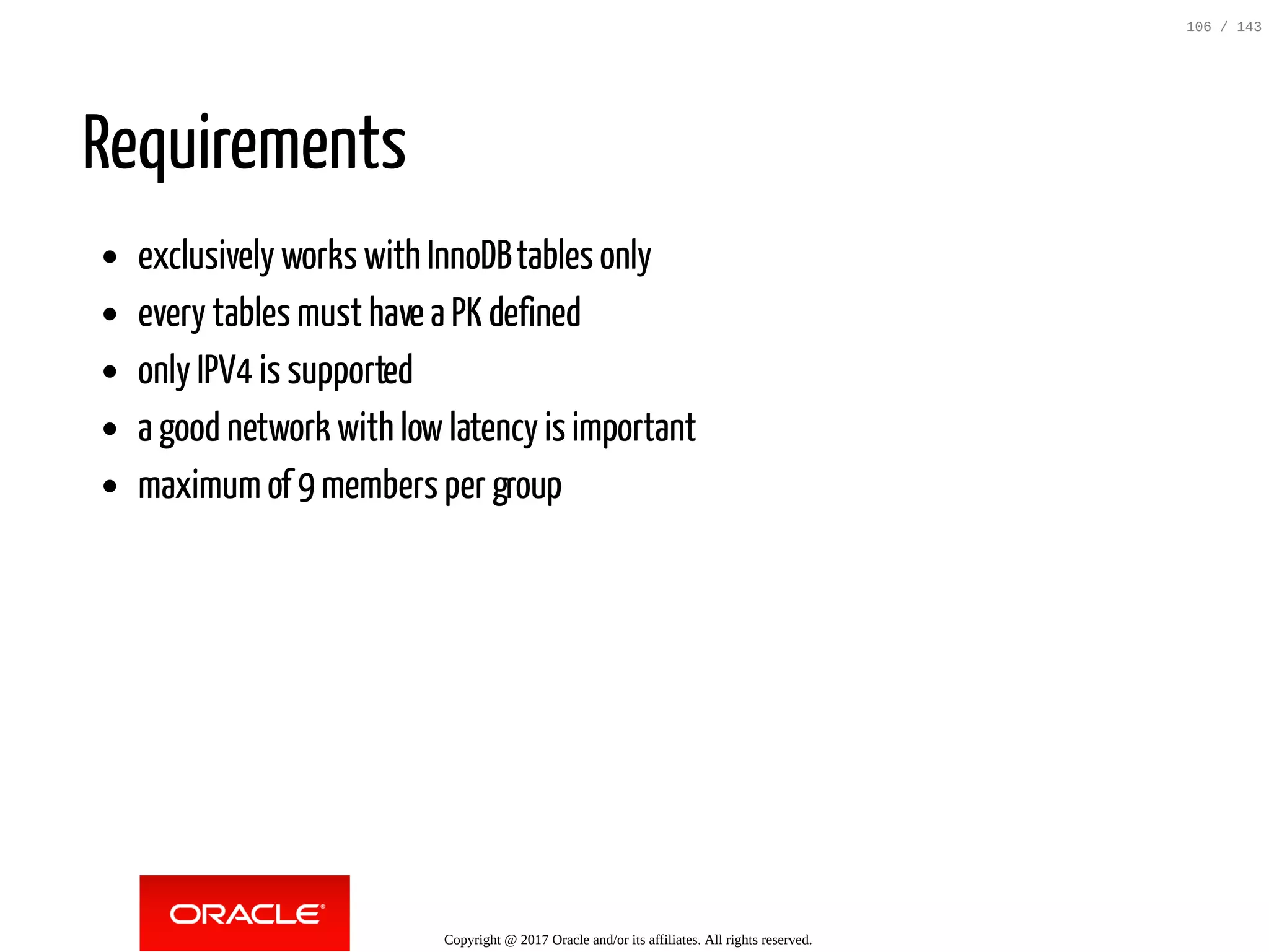

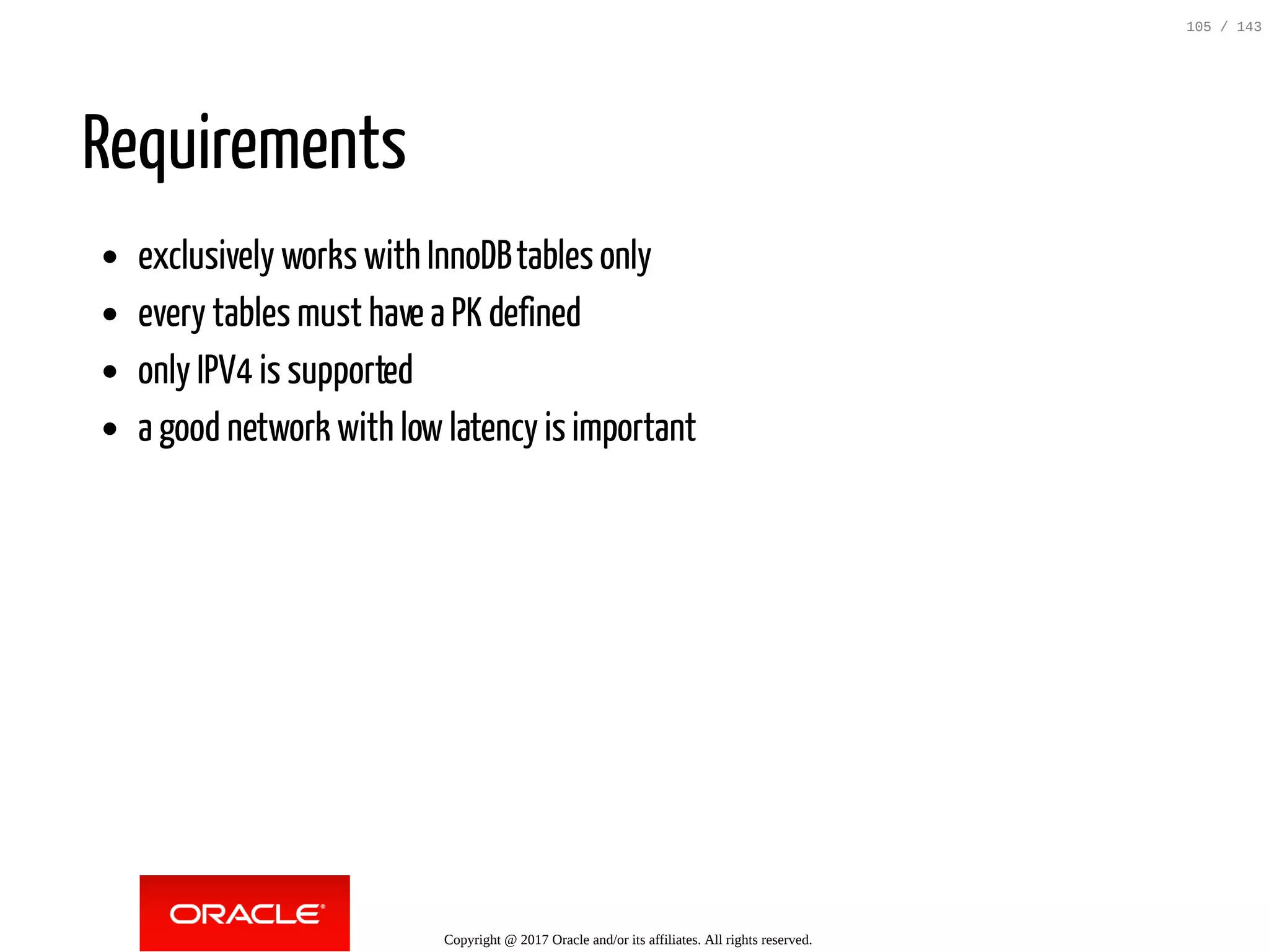

105. Requirements
exclusively works with InnoDBtables only
every tables must have a PK defined
only IPV4 is supported
a good network with low latency isimportant
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
105 / 143

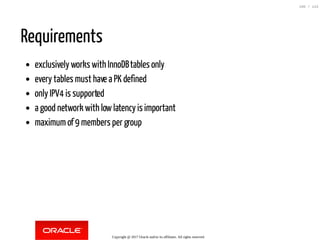

106. Requirements
exclusively works with InnoDBtables only
every tables must have a PK defined
only IPV4 is supported
a good network with low latency isimportant
maximum of 9 members per group
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
106 / 143

107. Requirements
exclusively works with InnoDBtables only
every tables must have a PK defined
only IPV4 is supported
a good network with low latency isimportant
maximum of 9 members per group

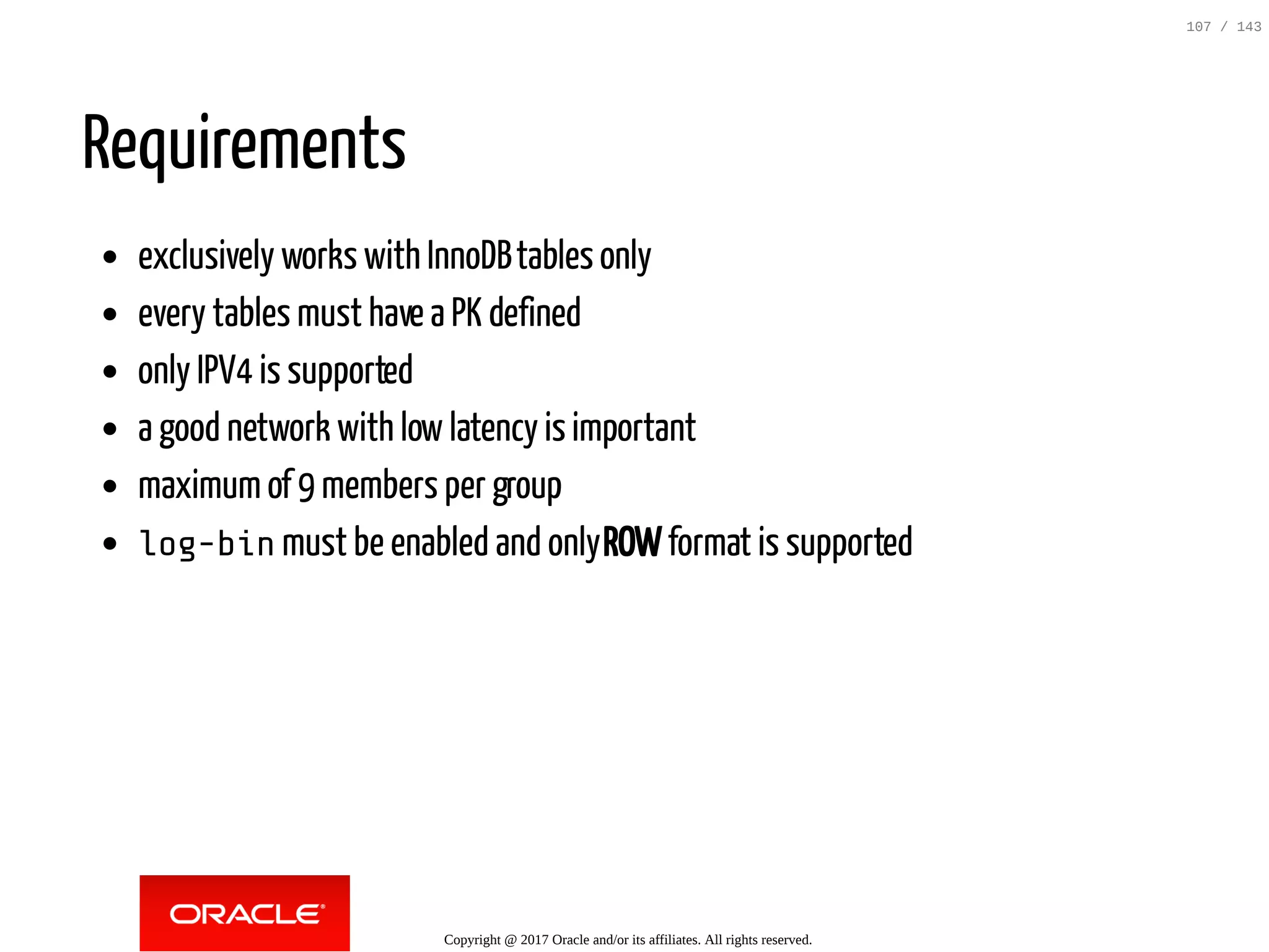

log-bin must be enabled and onlyROWformat is supported
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
107 / 143

108. Requirements (2)
enable GTIDs
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
108 / 143

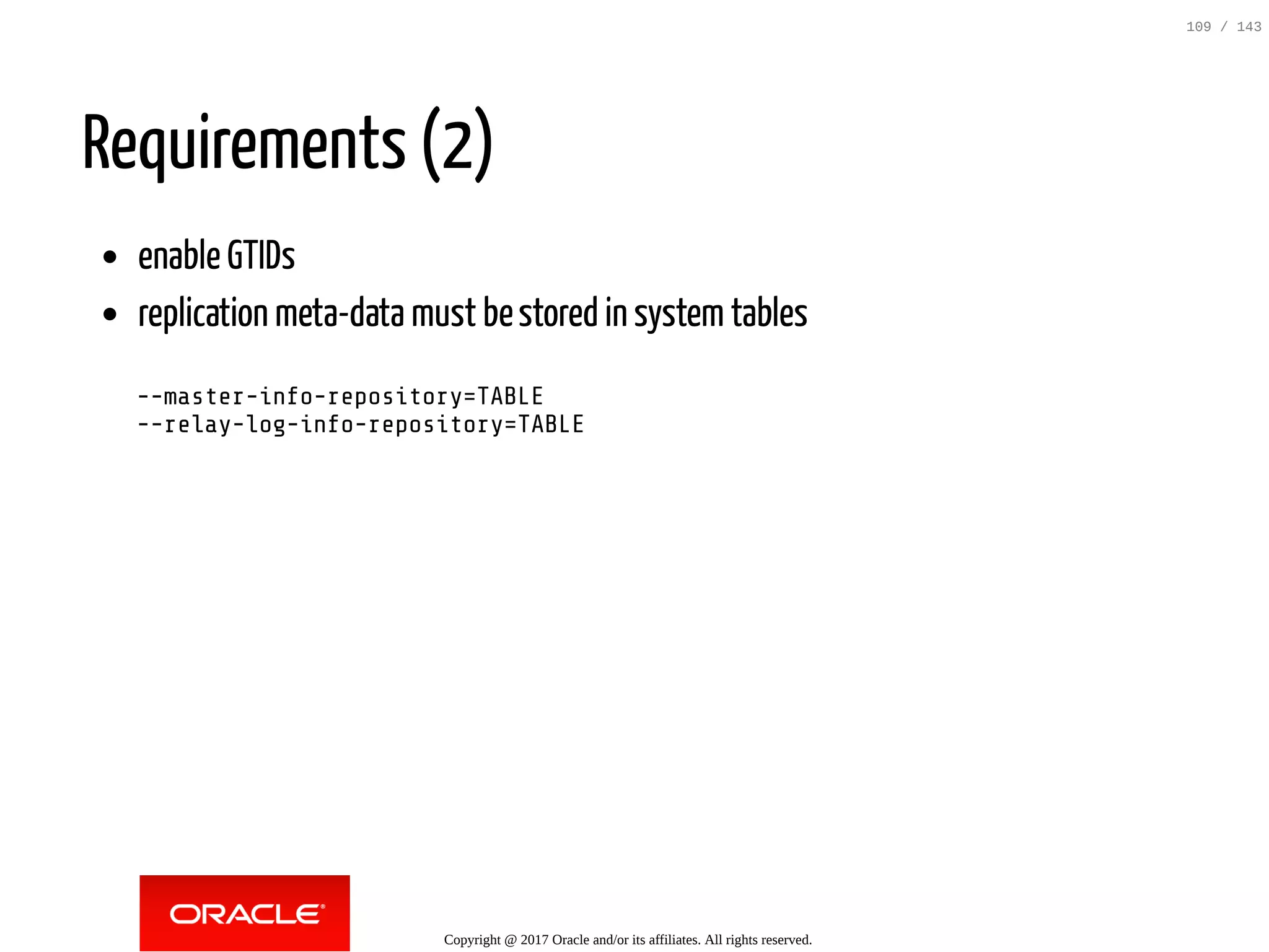

109. Requirements (2)
enable GTIDs
replication meta-data must bestored insystem tables
--master-info-repository=TABLE
--relay-log-info-repository=TABLE
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
109 / 143

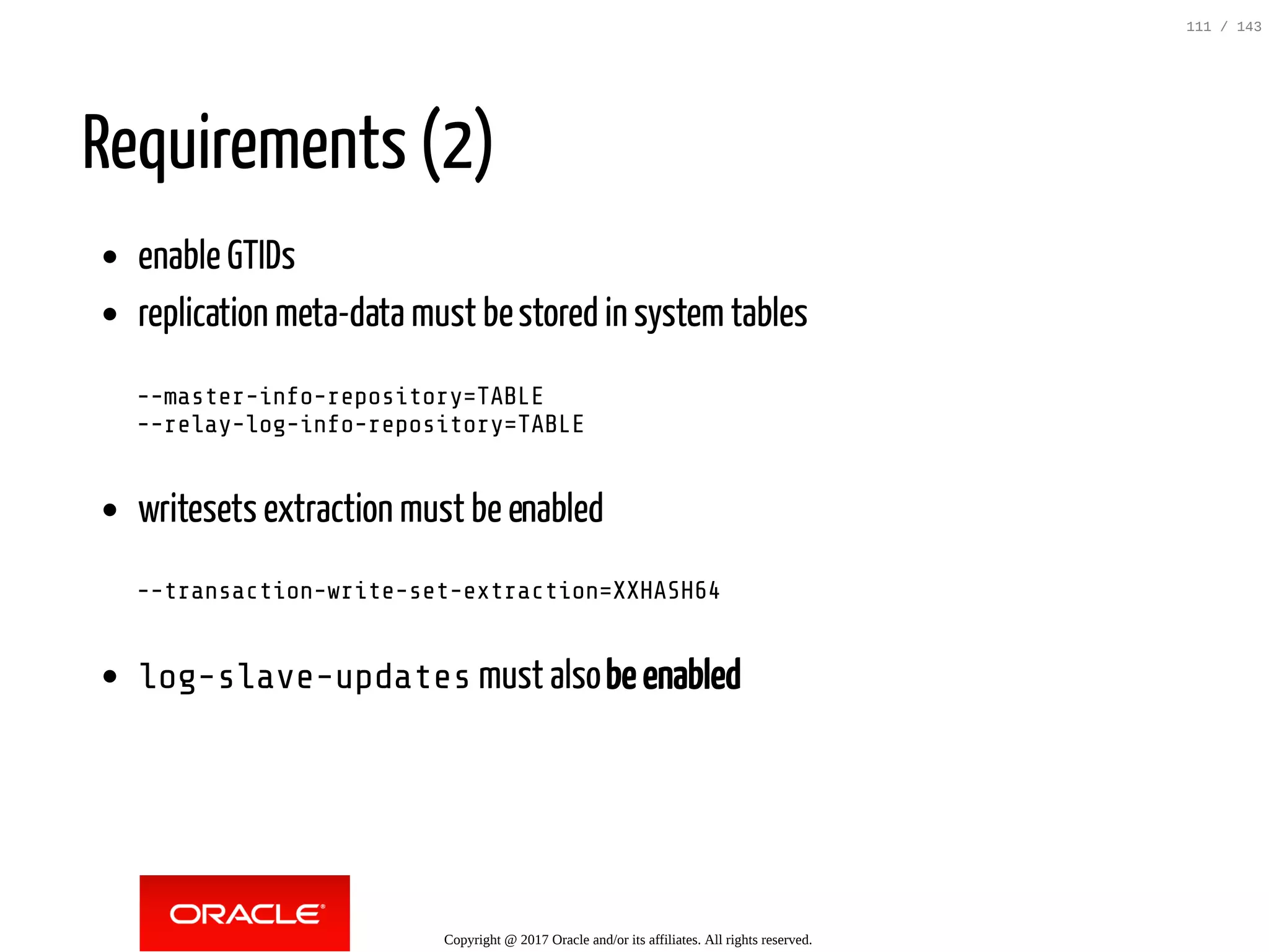

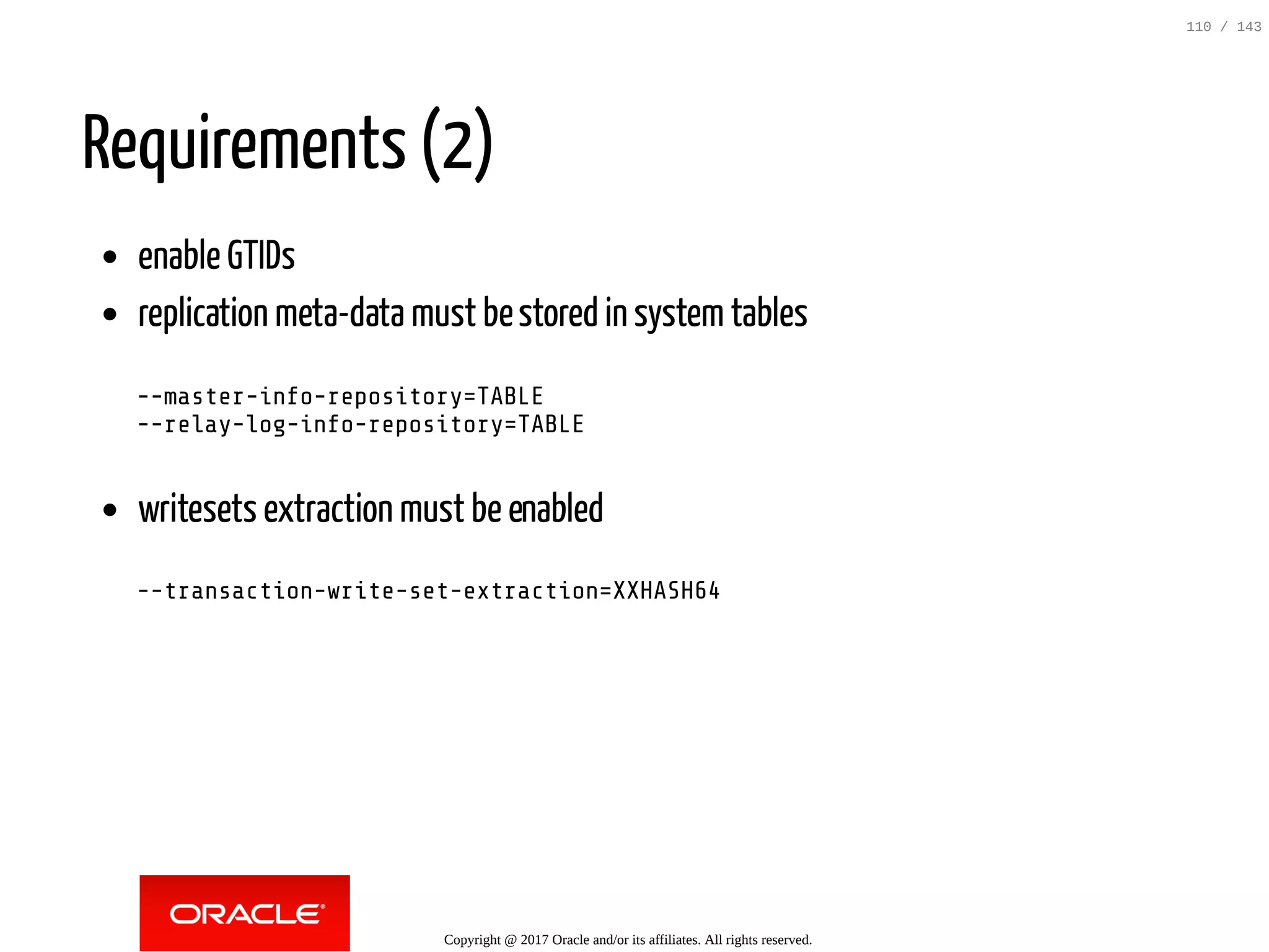

110. Requirements (2)
enable GTIDs
replication meta-data must bestored insystem tables
--master-info-repository=TABLE
--relay-log-info-repository=TABLE
writesets extraction must be enabled
--transaction-write-set-extraction=XXHASH64
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
110 / 143

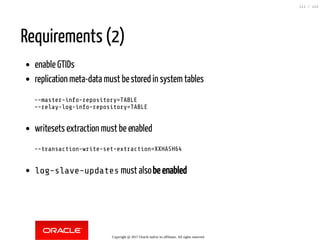

111. Requirements (2)
enable GTIDs
replication meta-data must bestored insystem tables
--master-info-repository=TABLE
--relay-log-info-repository=TABLE
writesets extraction must be enabled
--transaction-write-set-extraction=XXHASH64
log-slave-updates must alsobe enabled
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
111 / 143

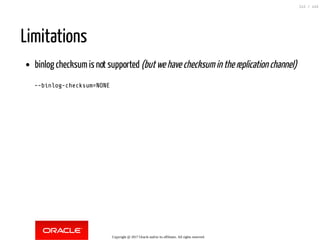

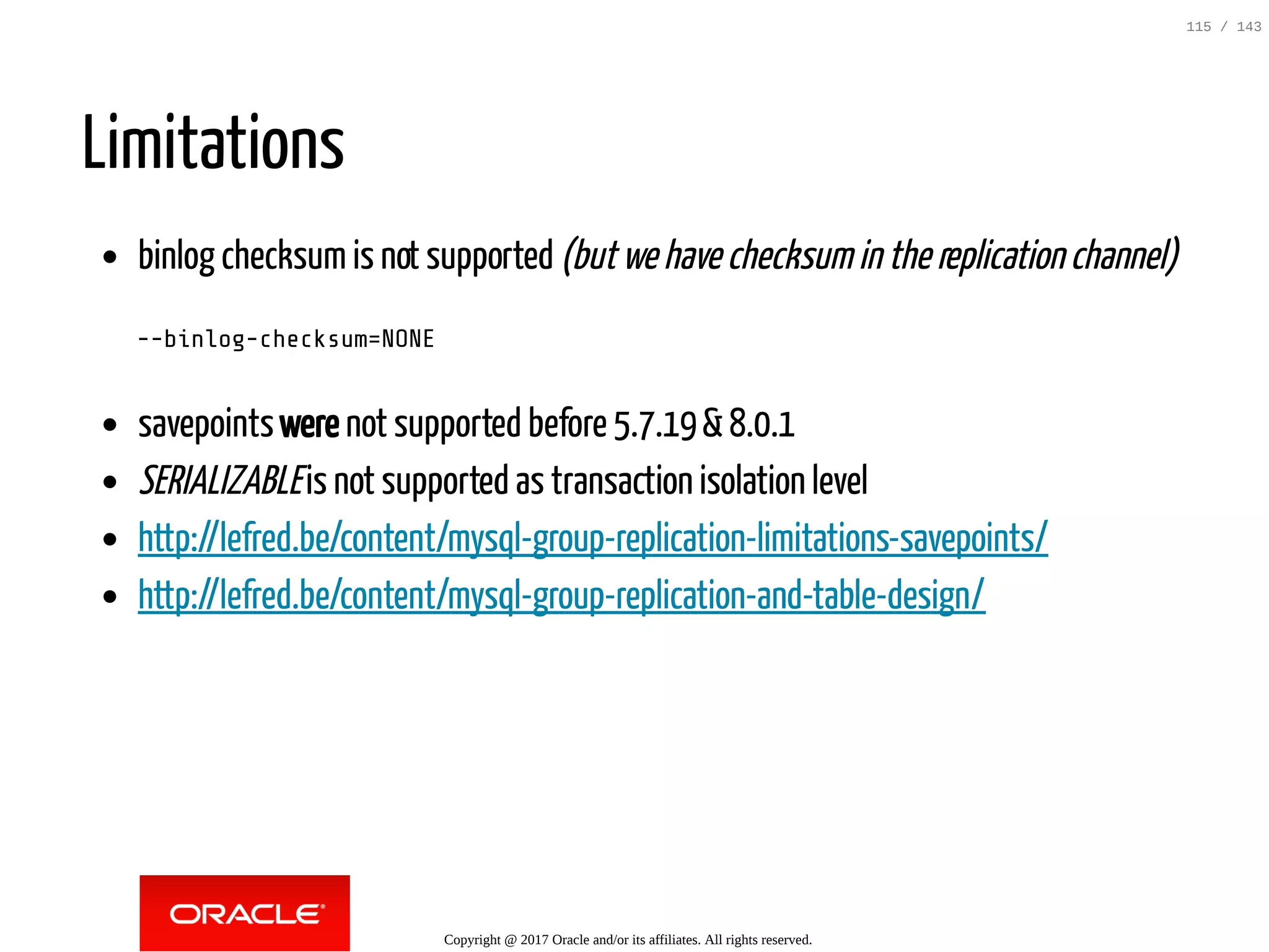

112. Limitations
binlog checksum is not supported (but we have checksum in the replicationchannel)
--binlog-checksum=NONE
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
112 / 143

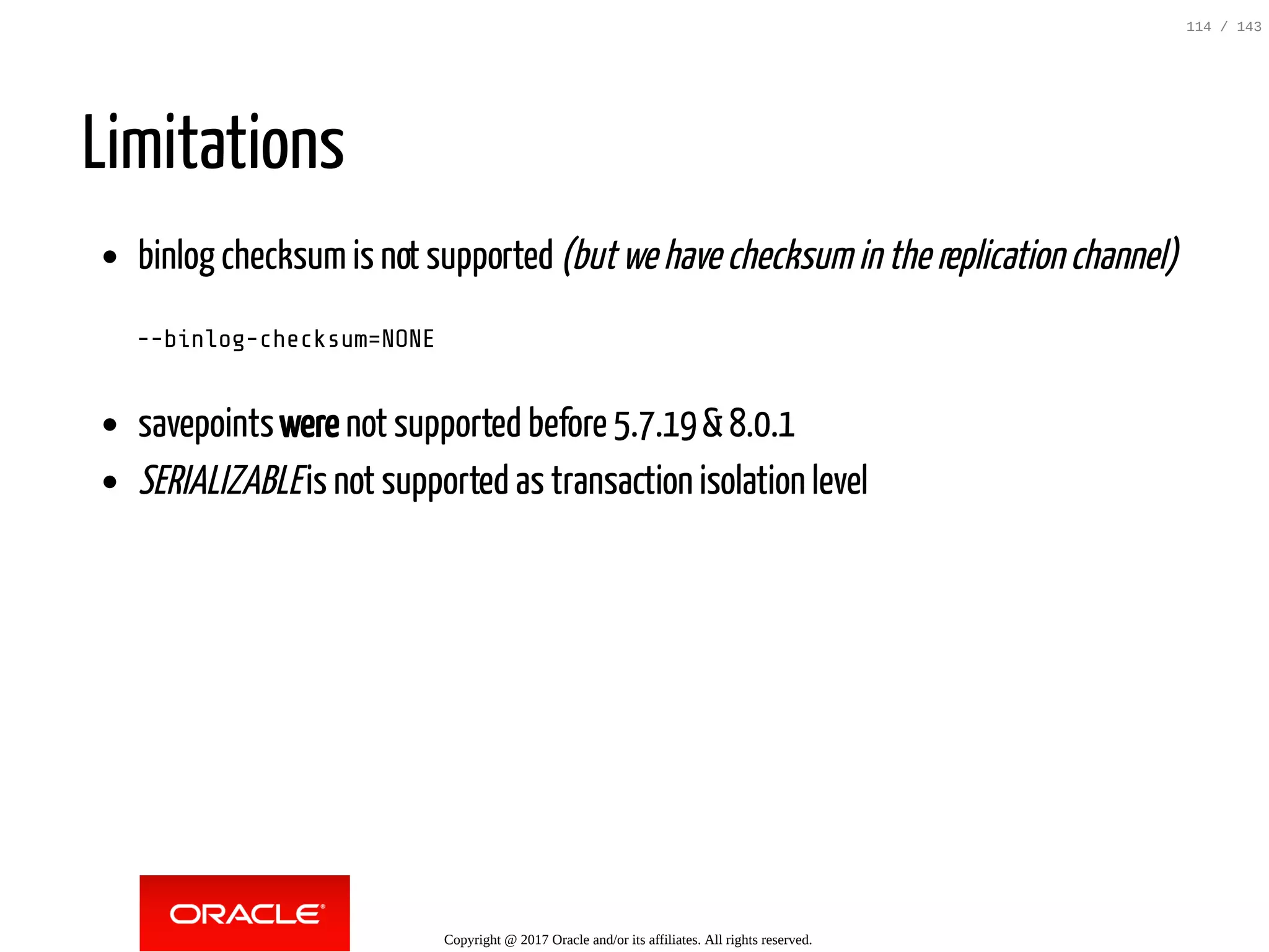

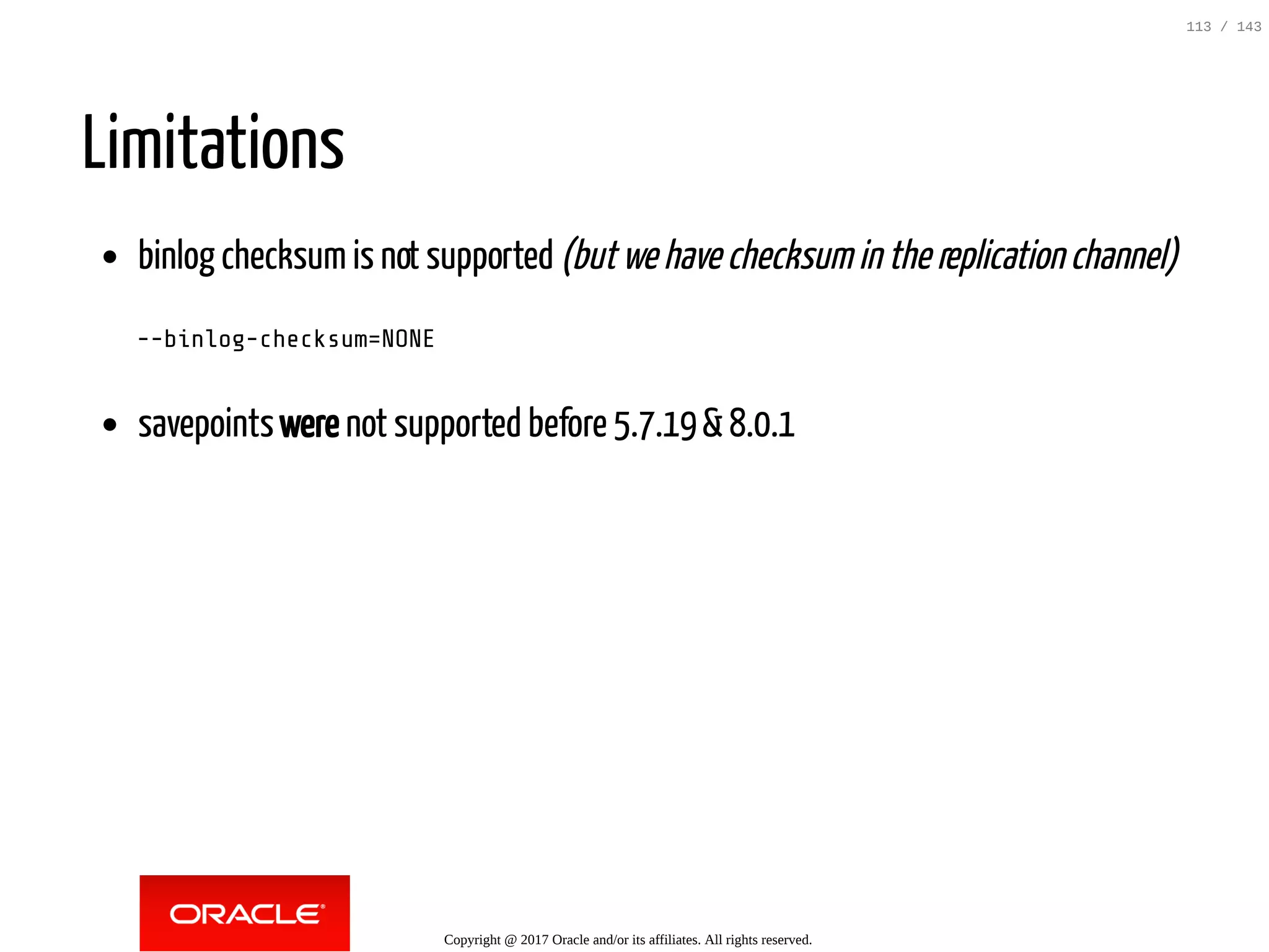

113. Limitations
binlog checksum is not supported (but we have checksum in the replicationchannel)
--binlog-checksum=NONE
savepointswere not supported before 5.7.19& 8.0.1
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
113 / 143

114. Limitations
binlog checksum is not supported (but we have checksum in the replicationchannel)
--binlog-checksum=NONE
savepointswere not supported before 5.7.19& 8.0.1
SERIALIZABLEis not supported as transaction isolation level
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
114 / 143

115. Limitations
binlog checksum is not supported (but we have checksum in the replicationchannel)
--binlog-checksum=NONE
savepointswere not supported before 5.7.19& 8.0.1
SERIALIZABLEis not supported as transaction isolation level
http://lefred.be/content/mysql-group-replication-limitations-savepoints/
http://lefred.be/content/mysql-group-replication-and-table-design/
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
115 / 143

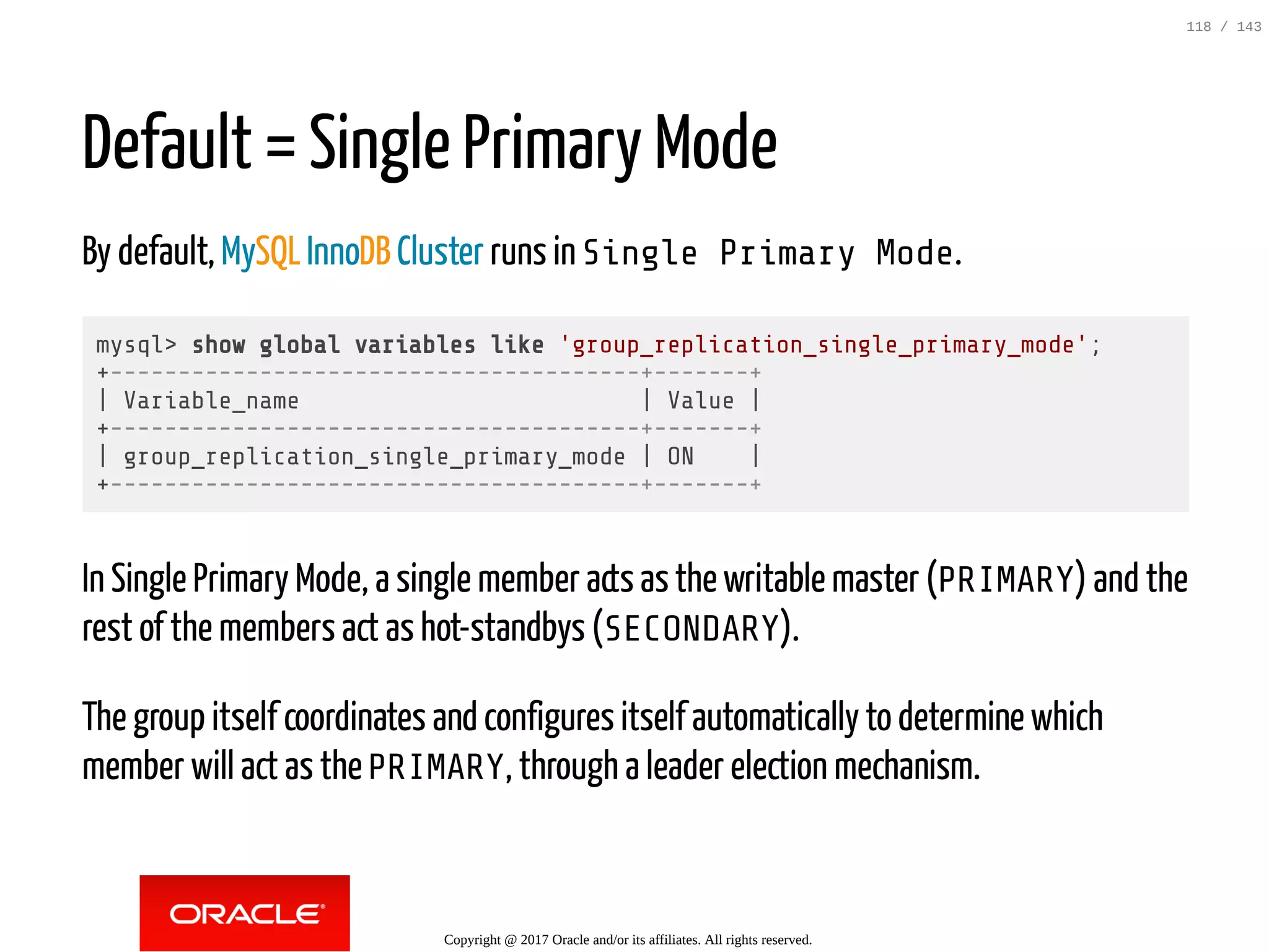

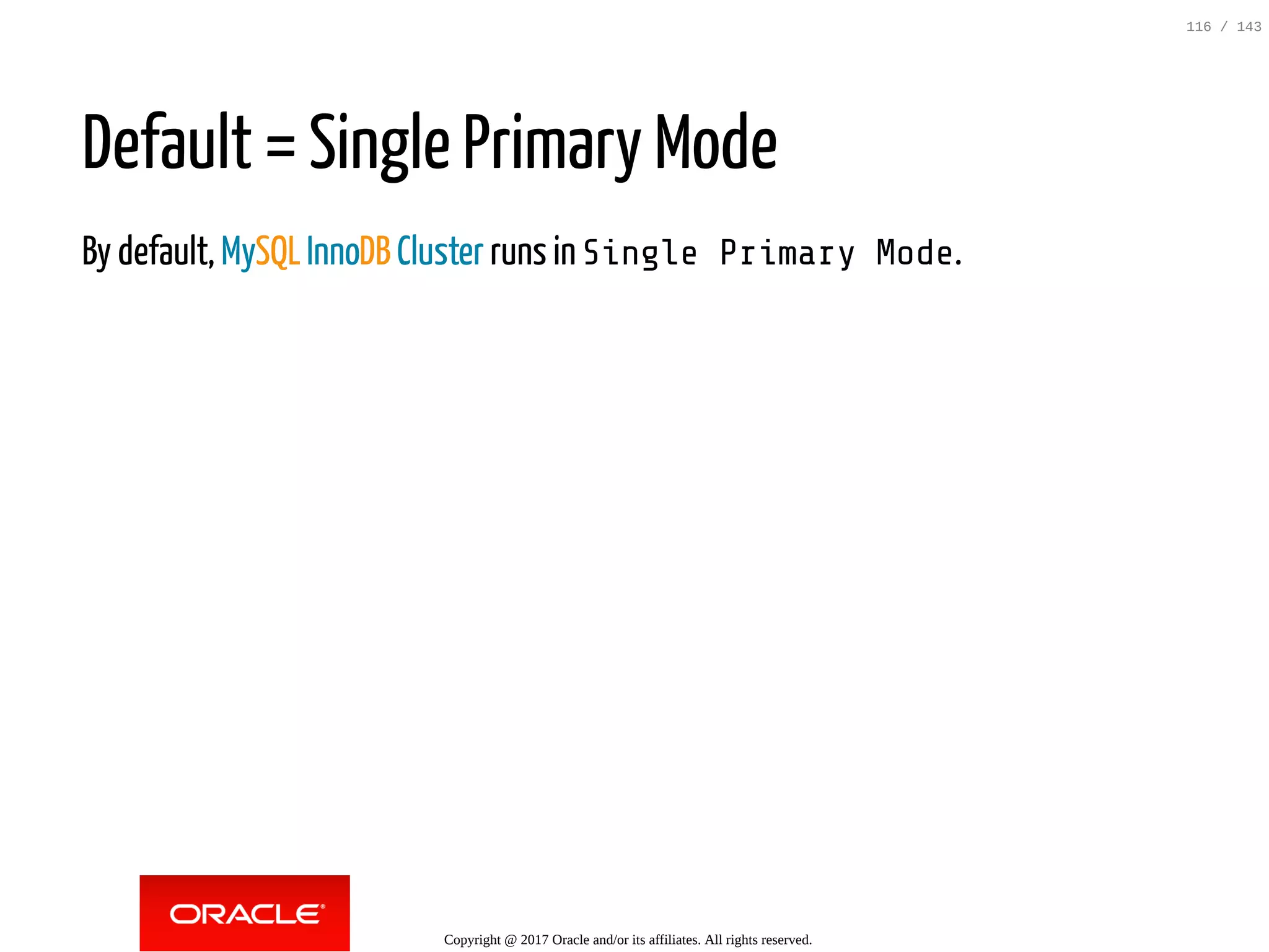

116. Default = Single Primary Mode
By default, MySQLInnoDBClusterruns inSingle Primary Mode.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
116 / 143

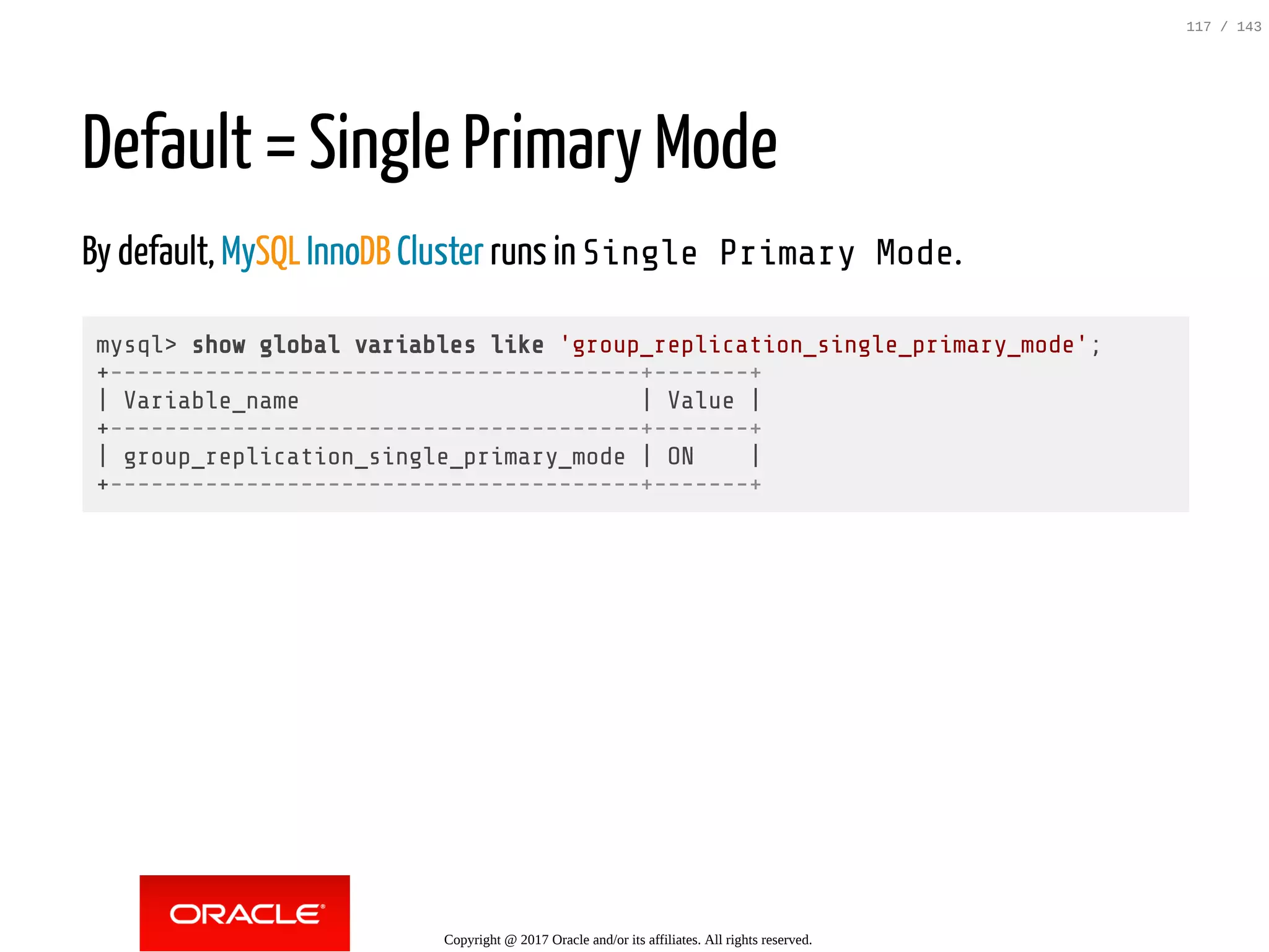

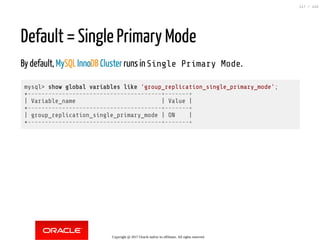

117. Default = Single Primary Mode
By default, MySQLInnoDBClusterruns inSingle Primary Mode.
mysql> show global variables like 'group_replication_single_primary_mode';
+---------------------------------------+-------+
| Variable_name | Value |
+---------------------------------------+-------+
| group_replication_single_primary_mode | ON |
+---------------------------------------+-------+
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
117 / 143

118. Default = Single Primary Mode
By default, MySQLInnoDBClusterruns inSingle Primary Mode.
mysql> show global variables like 'group_replication_single_primary_mode';
+---------------------------------------+-------+
| Variable_name | Value |
+---------------------------------------+-------+
| group_replication_single_primary_mode | ON |
+---------------------------------------+-------+
In Single Primary Mode, a single member acts asthewritable master (PRIMARY) and the
rest of the members act as hot-standbys (SECONDARY).
The group itself coordinates and configures itself automatically to determine which
member will act as thePRIMARY, through a leader election mechanism.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
118 / 143

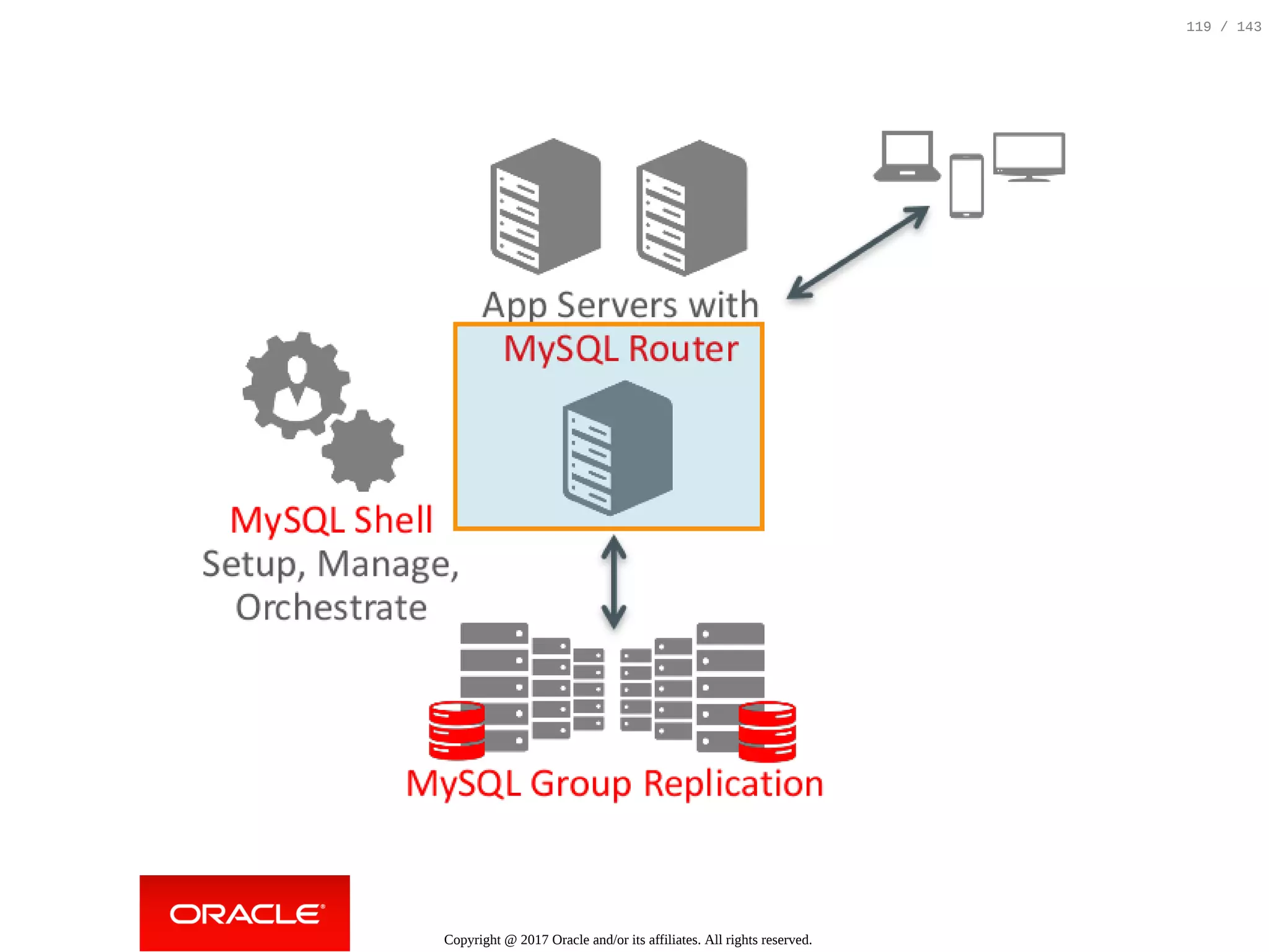

119. Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
119 / 143

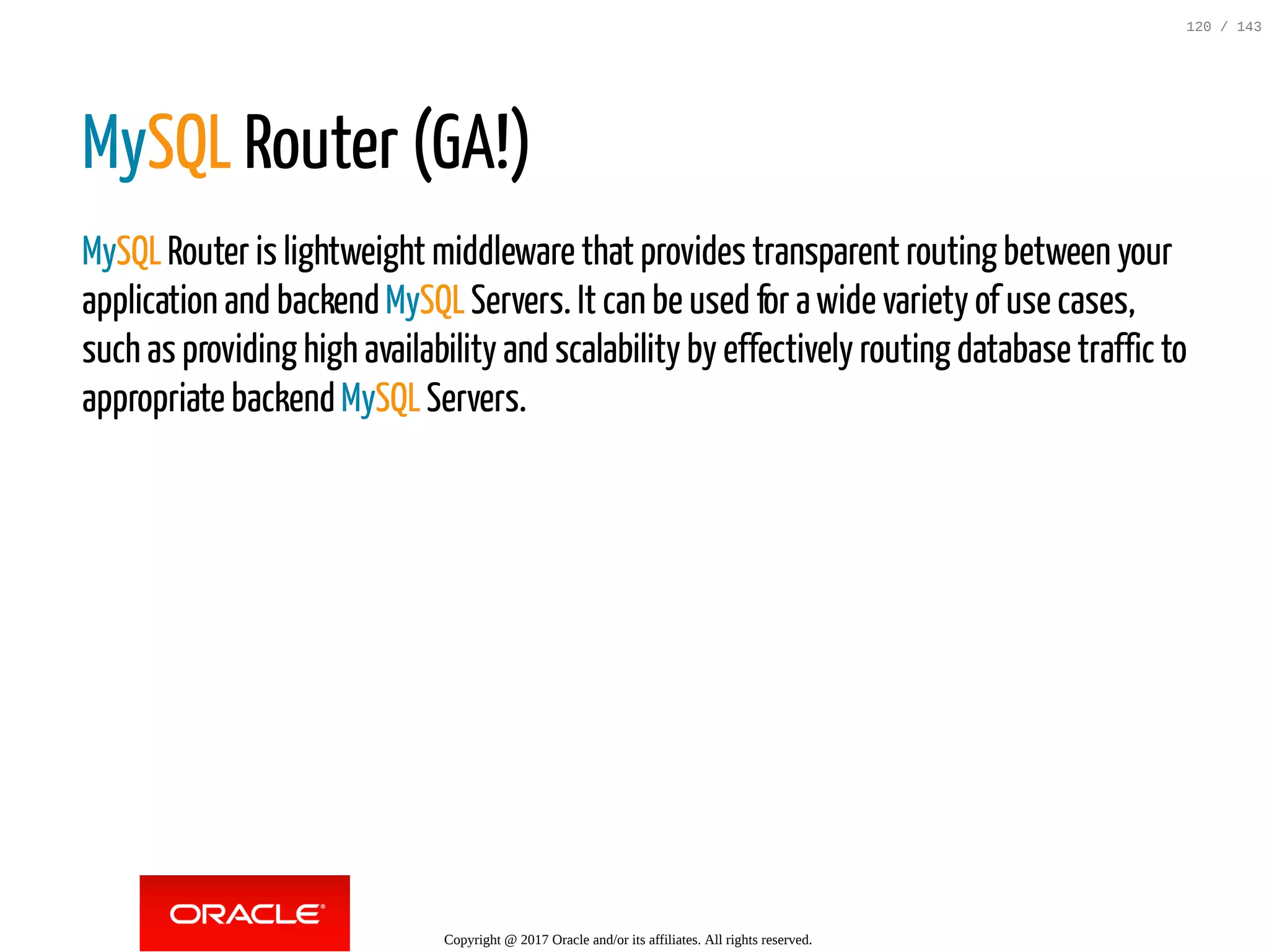

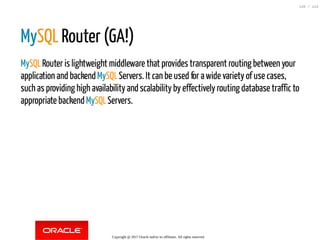

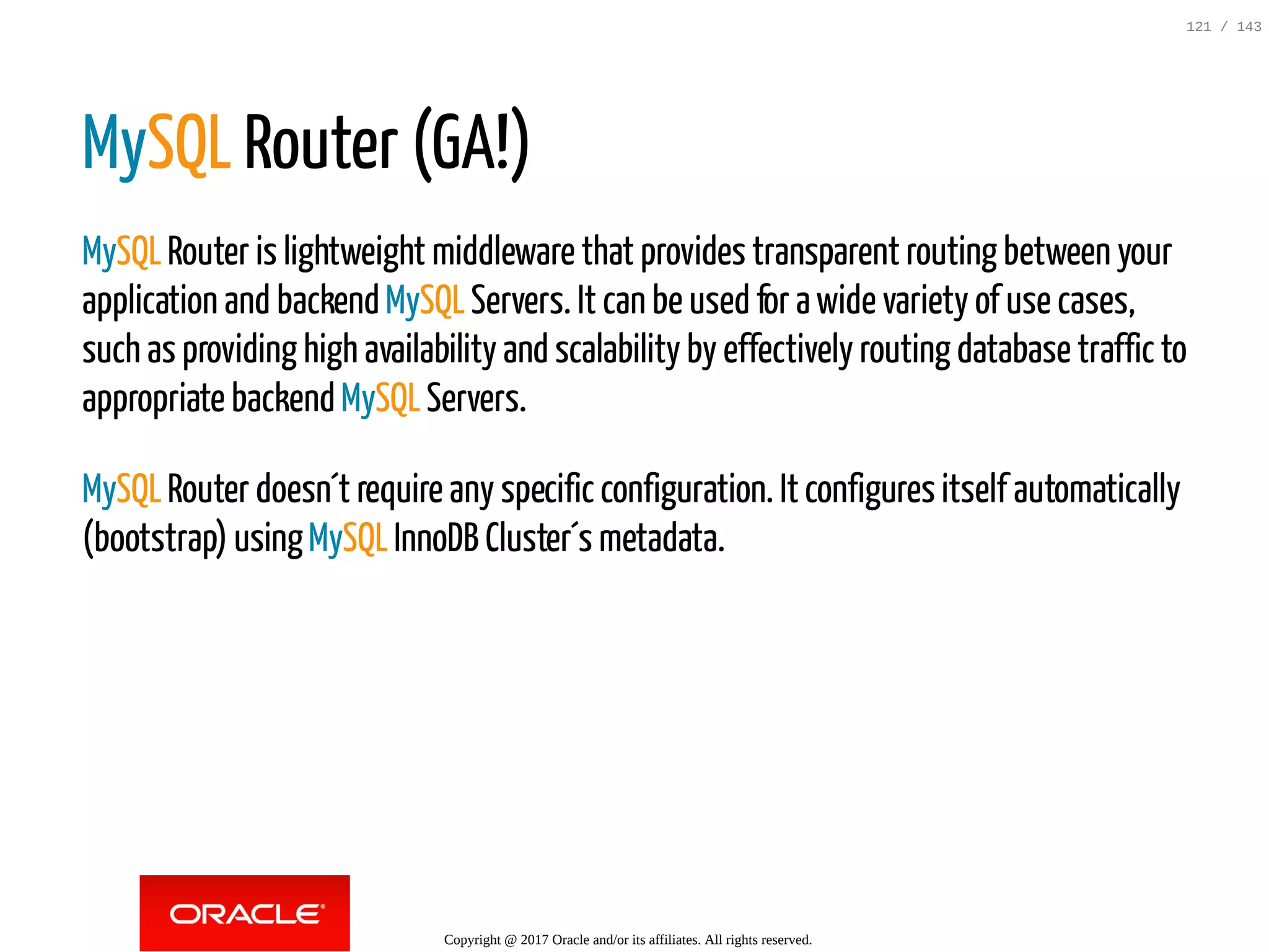

120. MySQL Router (GA!)
MySQLRouter is lightweight middleware that provides transparent routing between your
application and backendMySQLServers. It can be used for awide variety of use cases,
such as providing high availability and scalability by effectively routing database trafficto
appropriate backendMySQLServers.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
120 / 143

121. MySQL Router (GA!)
MySQLRouter is lightweight middleware that provides transparent routing between your
application and backendMySQLServers. It can be used for awide variety of use cases,
such as providing high availability and scalability by effectively routing database trafficto
appropriate backendMySQLServers.
MySQLRouter doesn´t require any specific configuration. Itconfigures itself automatically
(bootstrap) usingMySQLInnoDB Cluster´s metadata.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
121 / 143

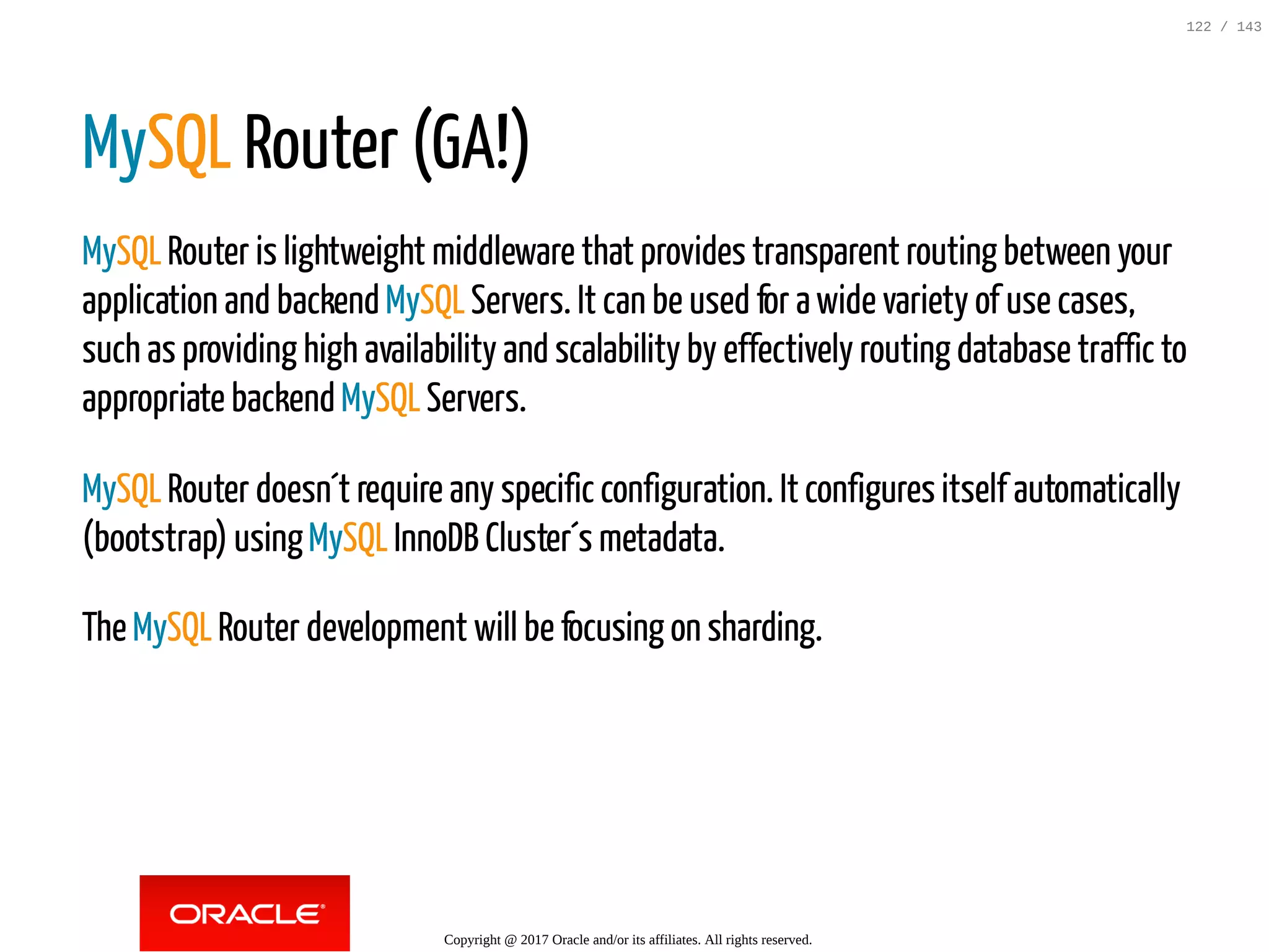

122. MySQL Router (GA!)
MySQLRouter is lightweight middleware that provides transparent routing between your
application and backendMySQLServers. It can be used for awide variety of use cases,
such as providing high availability and scalability by effectively routing database trafficto
appropriate backendMySQLServers.
MySQLRouter doesn´t require any specific configuration. Itconfigures itself automatically
(bootstrap) usingMySQLInnoDB Cluster´s metadata.
TheMySQLRouter development will be focusing on sharding.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
122 / 143

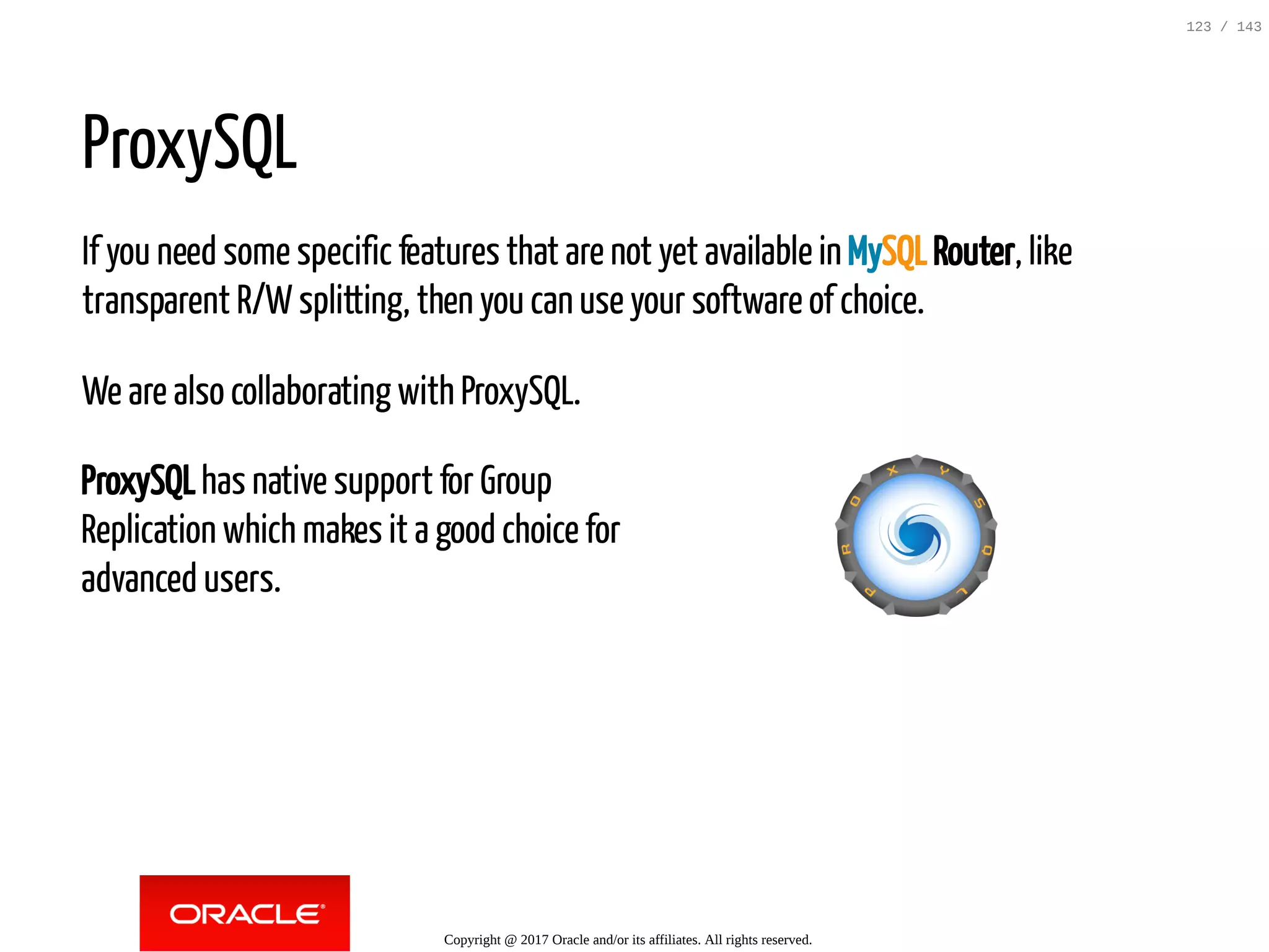

123. ProxySQLhas native support for Group
Replication which makes it a good choice for
advanced users.
ProxySQL
If you need some specific features that are not yet available inMySQLRouter, like
transparent R/W splitting, then you canuse your software of choice.
We are also collaborating with ProxySQL.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
123 / 143

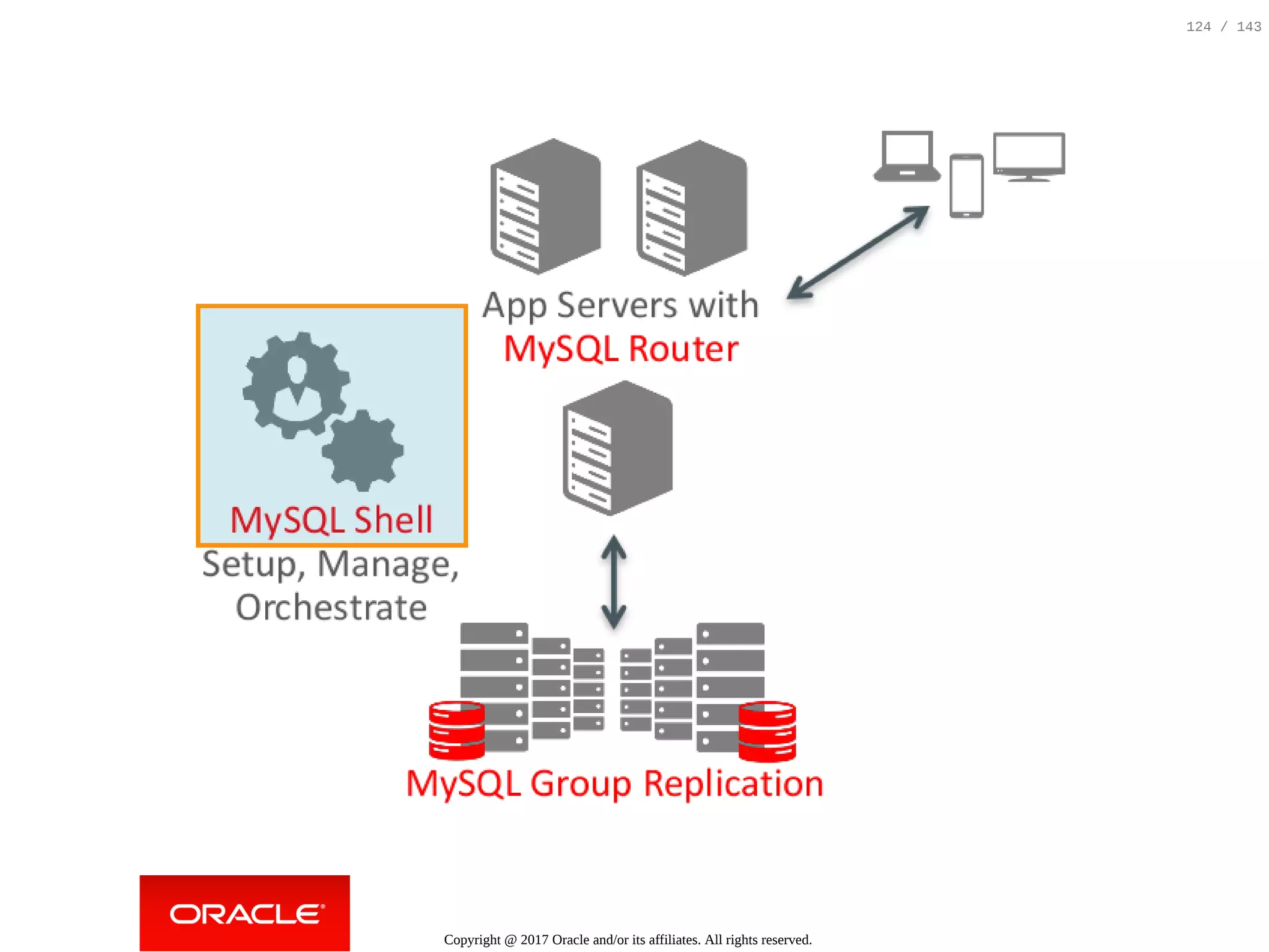

124. Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
124 / 143

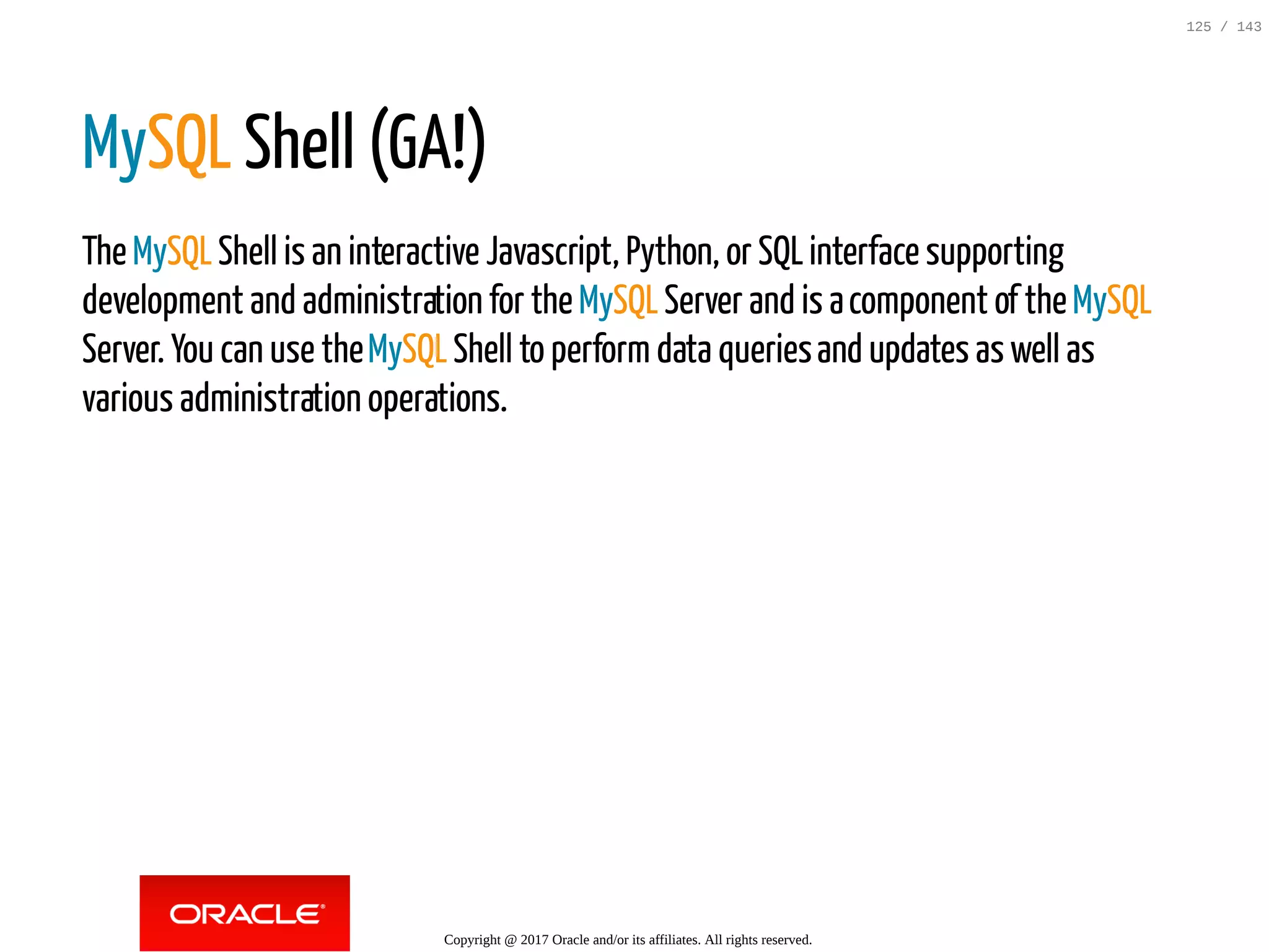

125. MySQL Shell (GA!)
TheMySQLShell is an interactive Javascript, Python, or SQLinterface supporting
development and administration for theMySQLServer and is acomponent of theMySQL
Server. You can use theMySQLShell to perform data queriesand updates aswell as
various administration operations.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
125 / 143

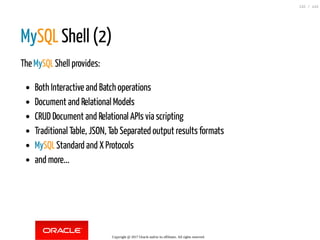

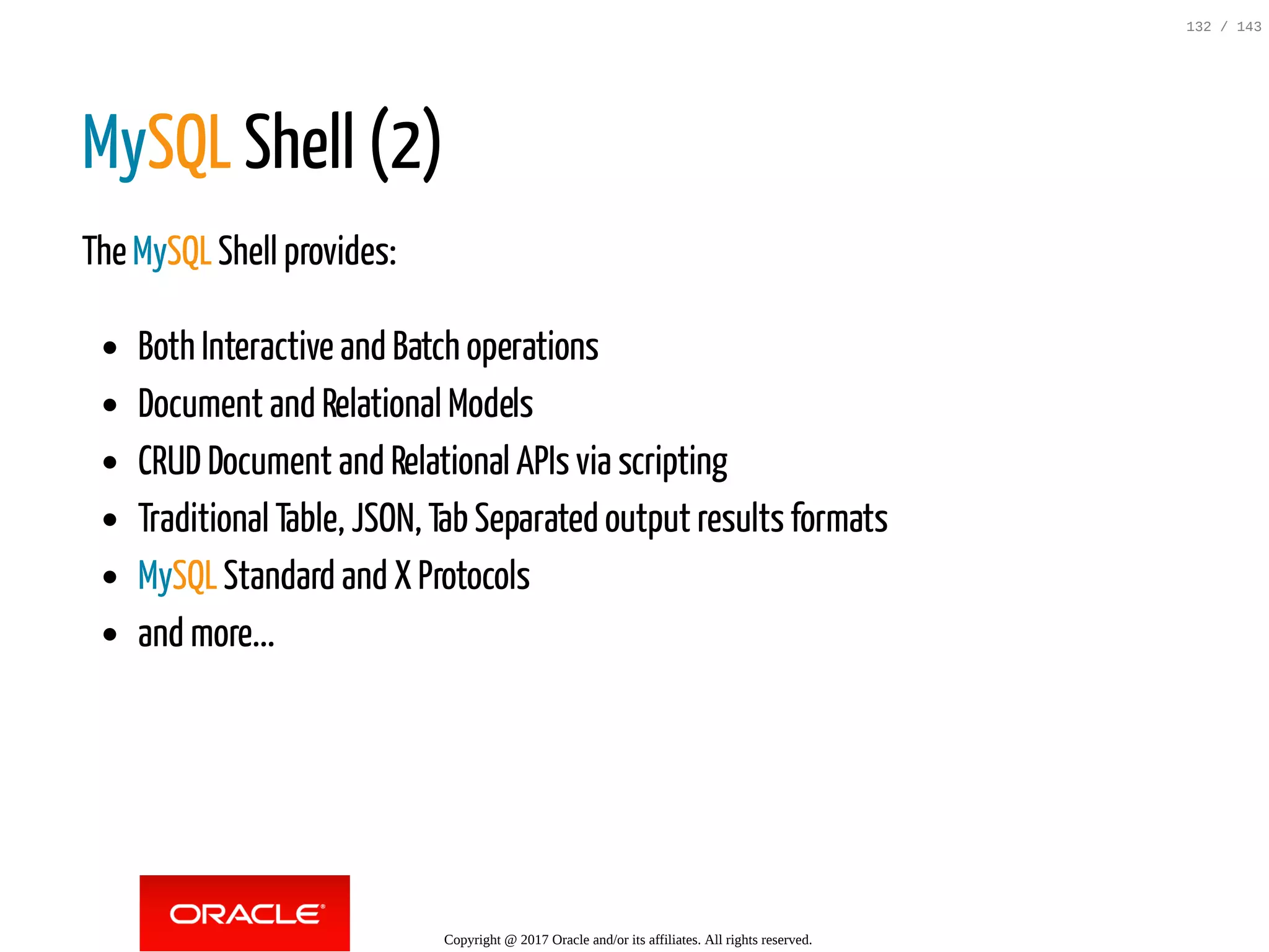

126. MySQL Shell (2)

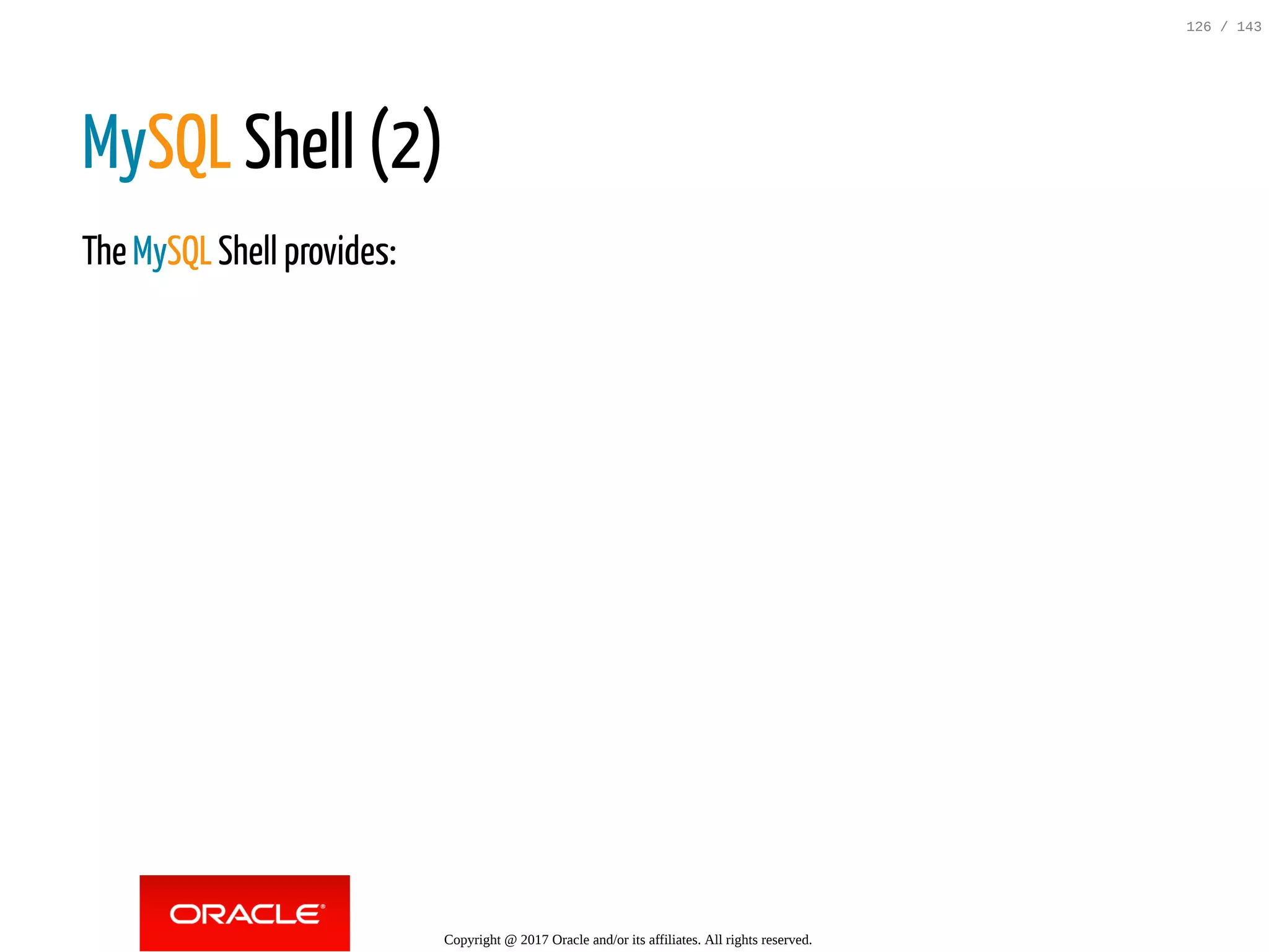

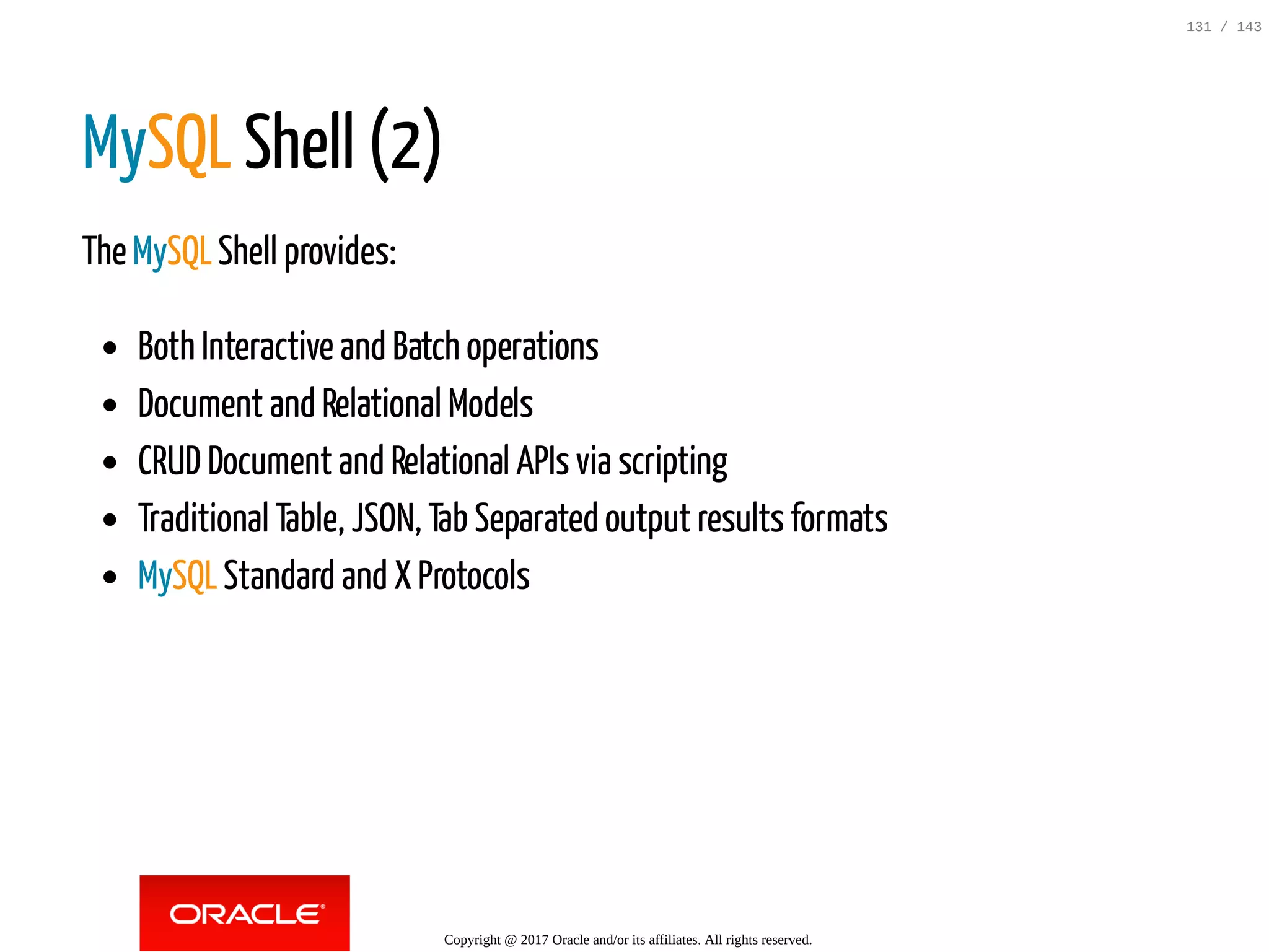

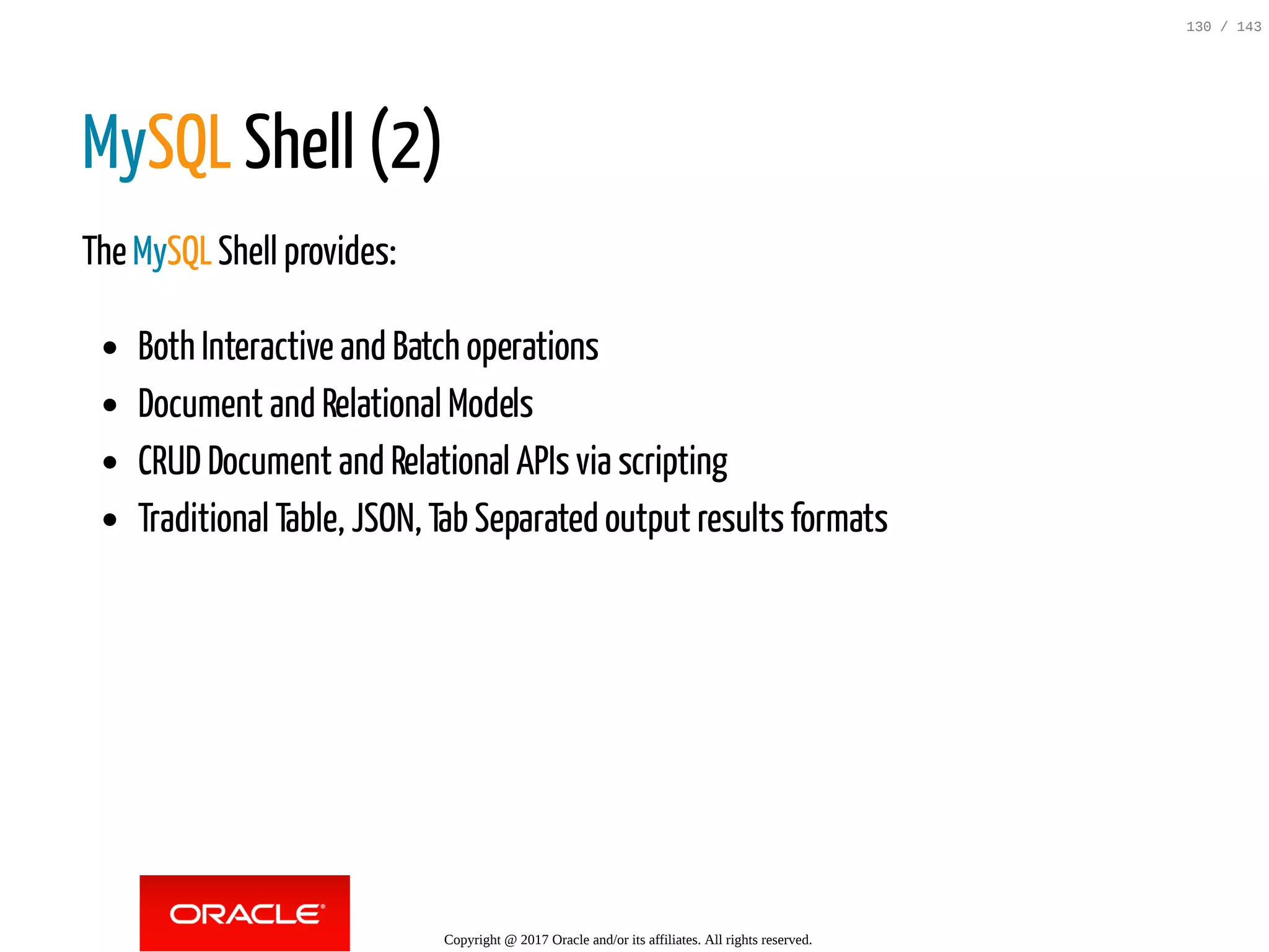

TheMySQLShell provides:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
126 / 143

127. MySQL Shell (2)
TheMySQLShell provides:

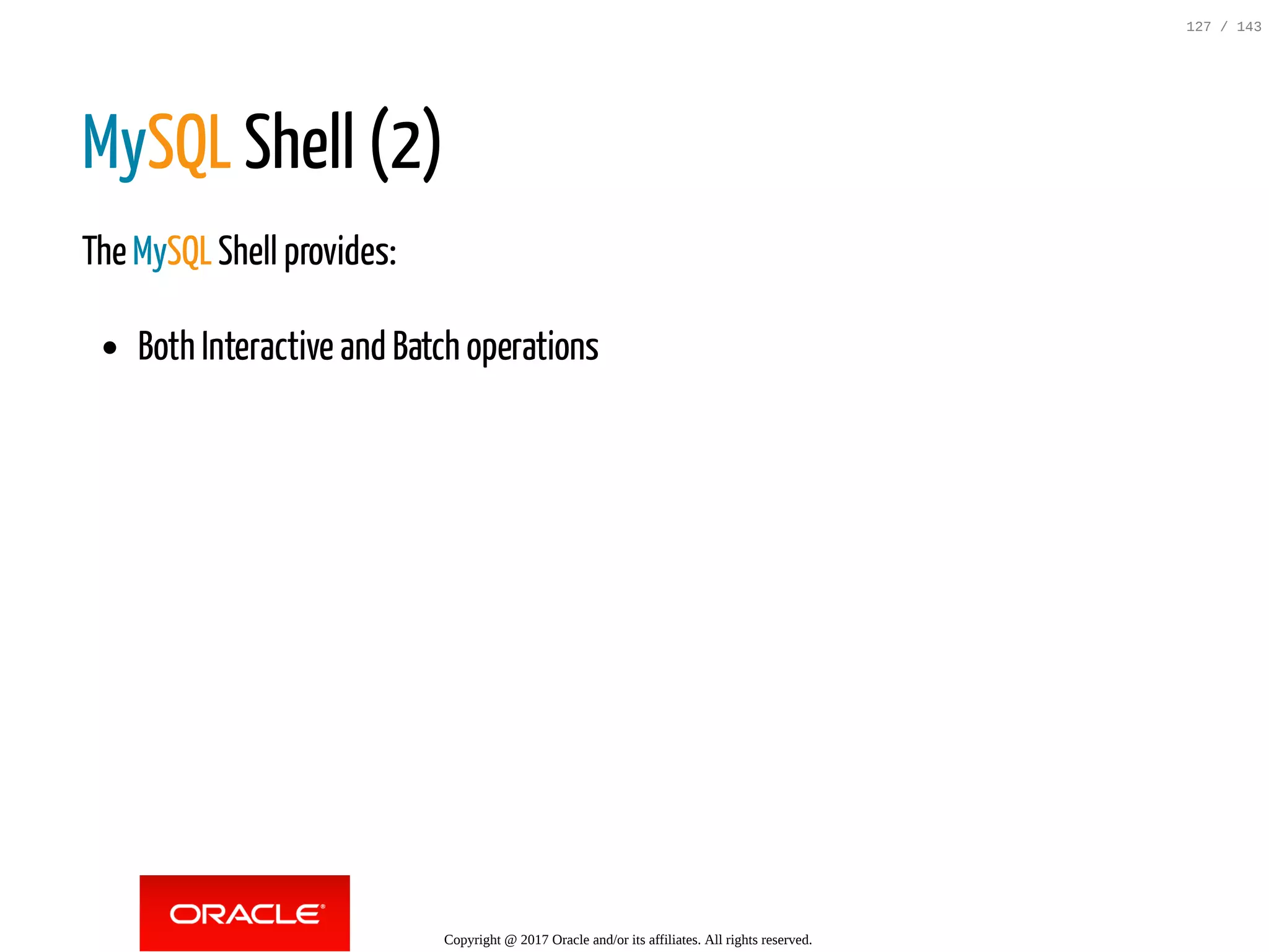

Both Interactive and Batch operations
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
127 / 143

128. MySQL Shell (2)
TheMySQLShell provides:
Both Interactive and Batch operations

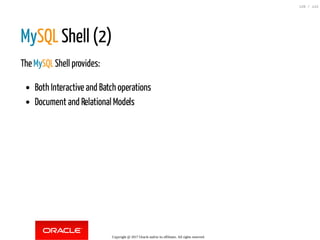

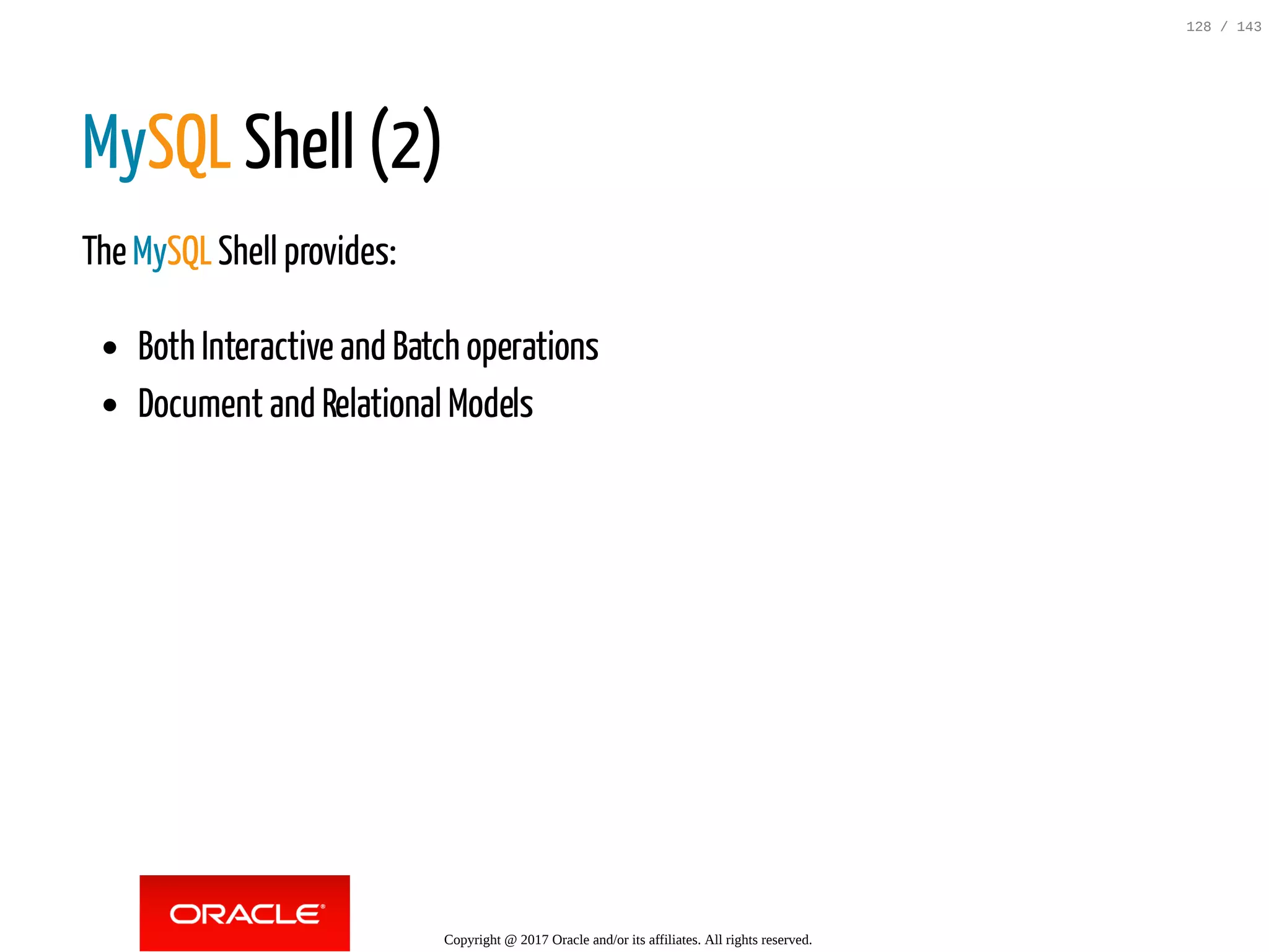

Document and Relational Models
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
128 / 143

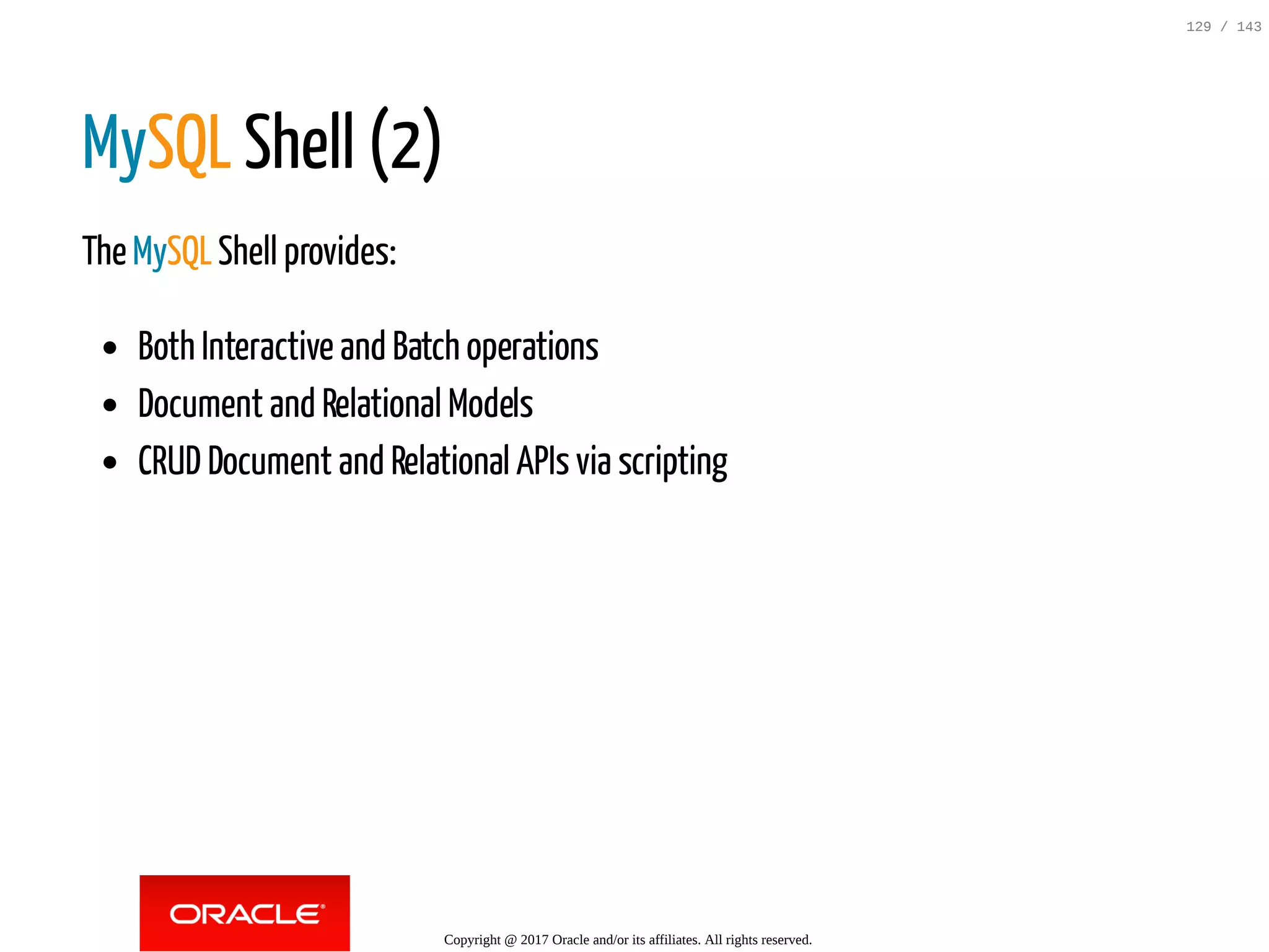

129. MySQL Shell (2)
TheMySQLShell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
129 / 143

130. MySQL Shell (2)
TheMySQLShell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Traditional Table, JSON, Tab Separated output results formats
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
130 / 143

131. MySQL Shell (2)
TheMySQLShell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Traditional Table, JSON, Tab Separated output results formats
MySQLStandard and X Protocols
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
131 / 143

132. MySQL Shell (2)
TheMySQLShell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Traditional Table, JSON, Tab Separated output results formats
MySQLStandard and X Protocols
and more...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
132 / 143

133. MySQL Shell (3)

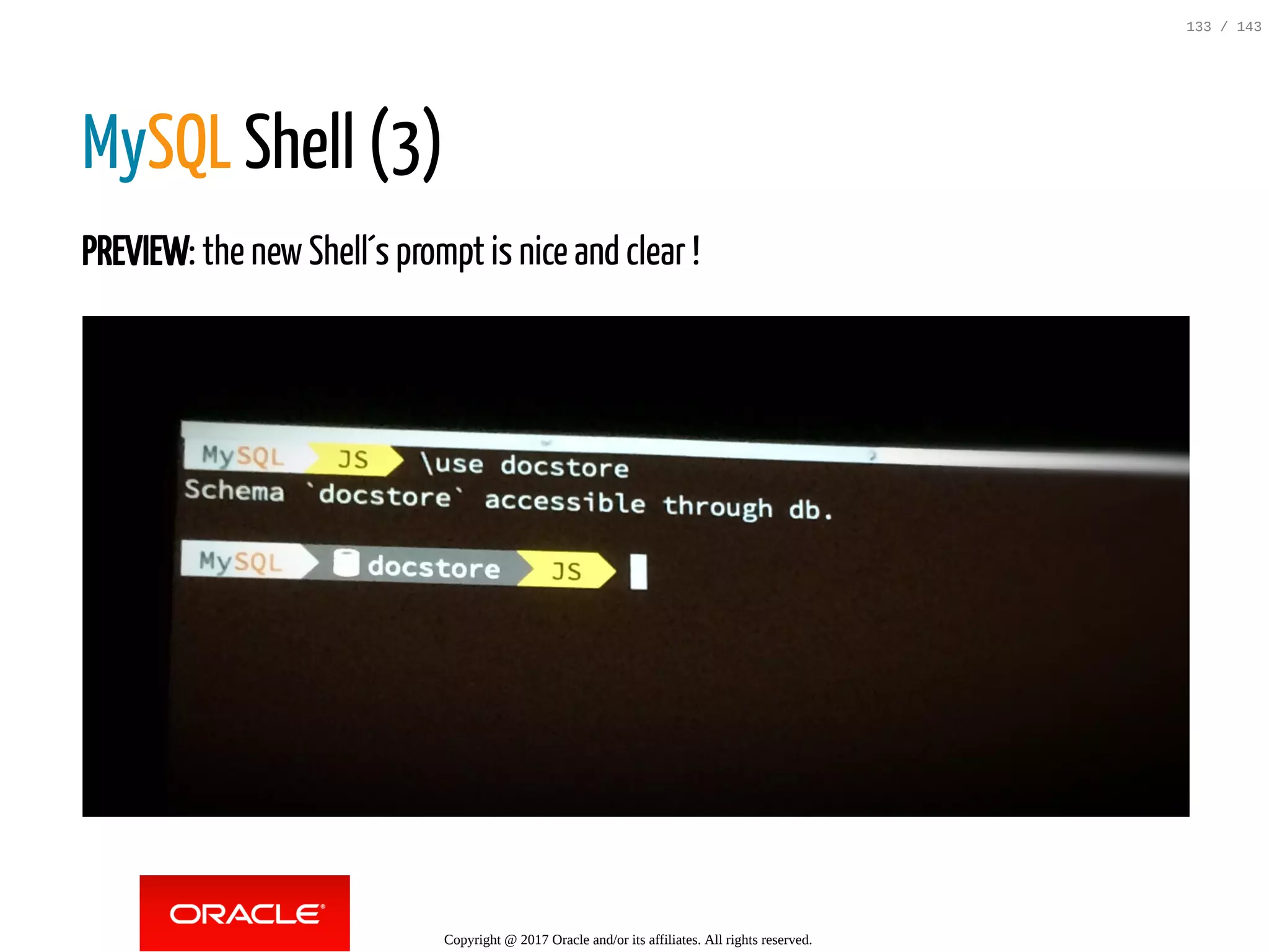

PREVIEW: the new Shell´s prompt is nice and clear !
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
133 / 143

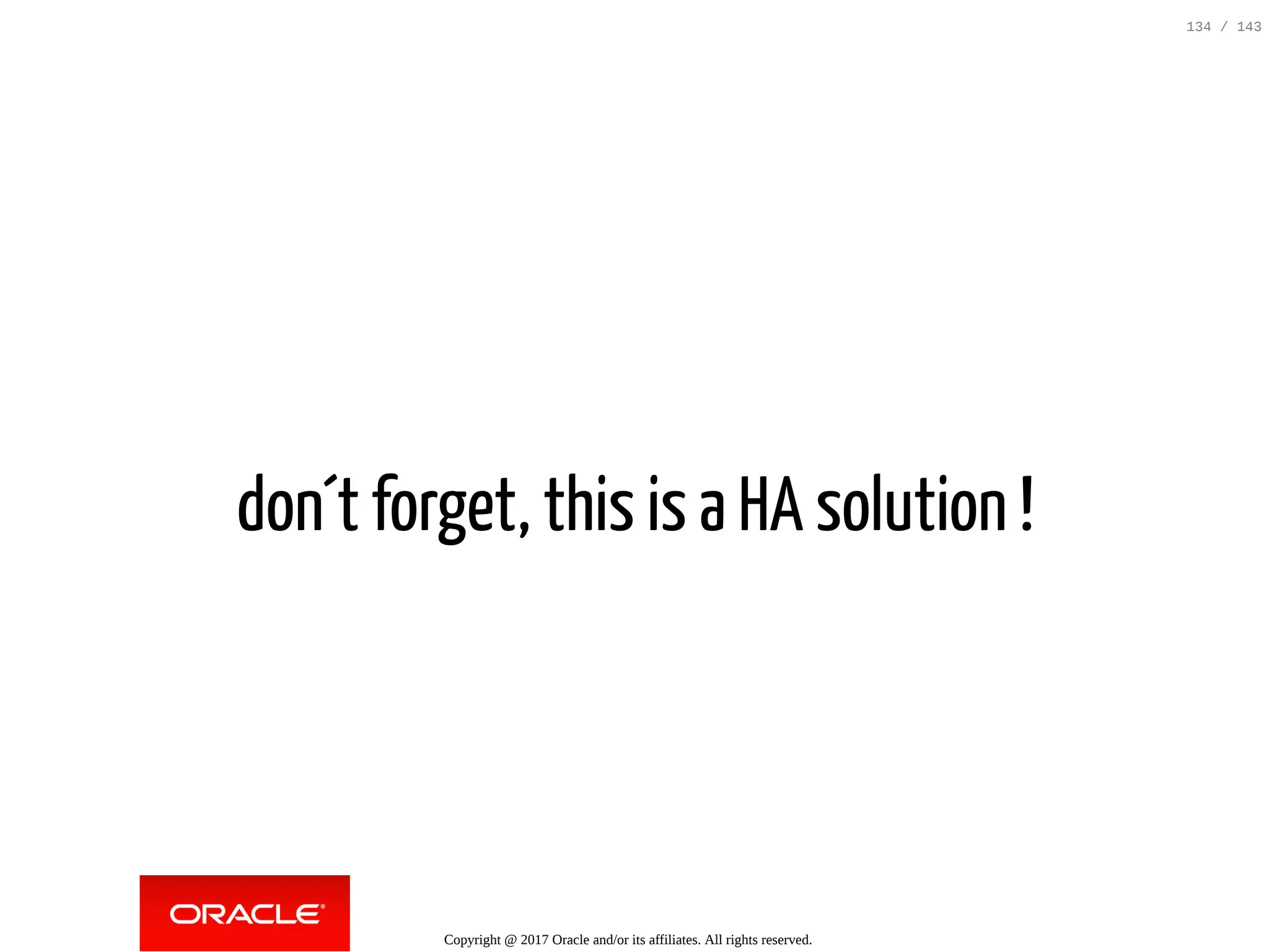

134. don´t forget, this is a HA solution !
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
134 / 143

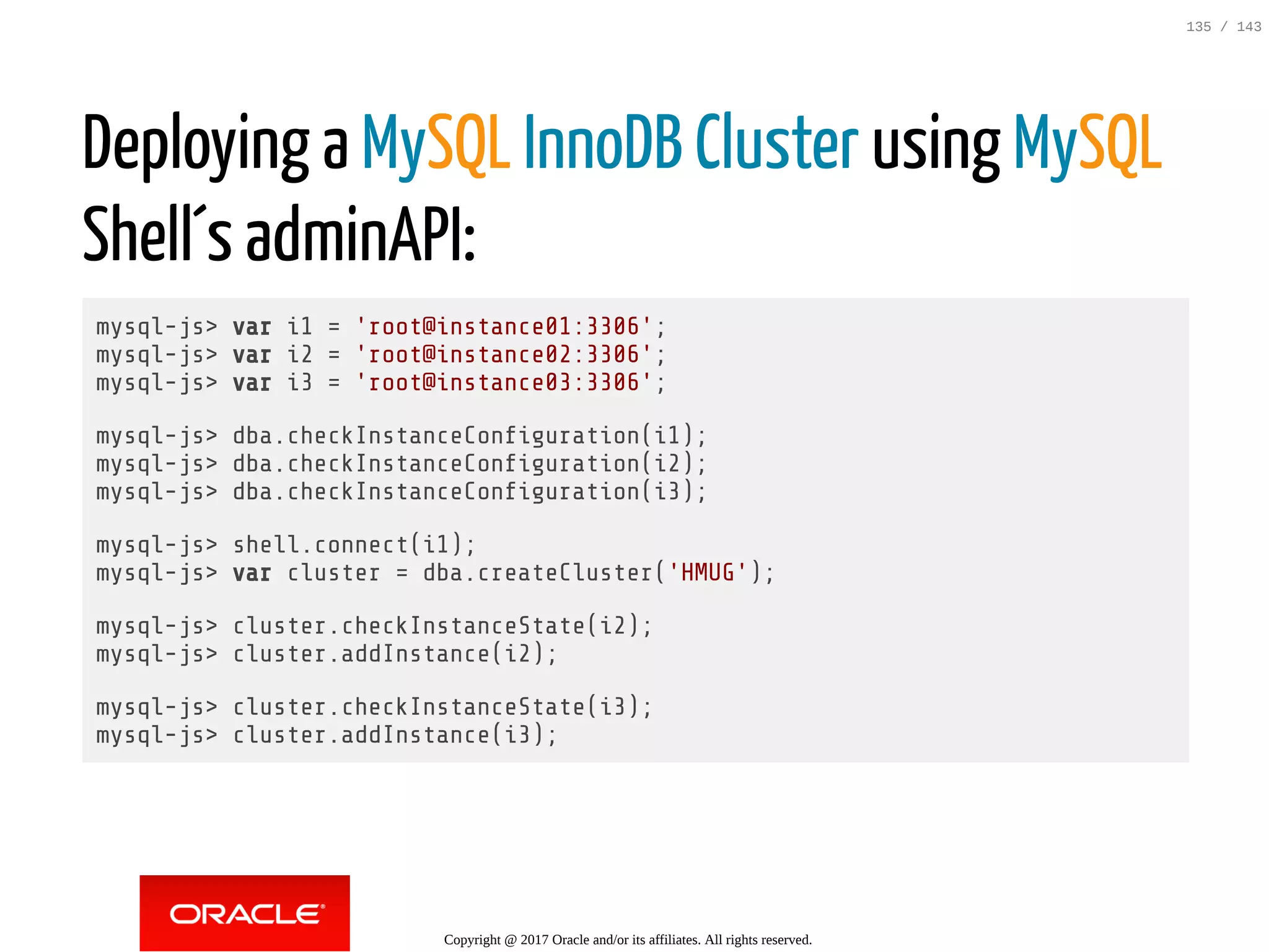

135. Deploying a MySQL InnoDB Cluster using MySQL
Shell´s adminAPI:
mysql-js> var i1 = 'root@instance01:3306';
mysql-js> var i2 = 'root@instance02:3306';
mysql-js> var i3 = 'root@instance03:3306';
mysql-js> dba.checkInstanceCon guration(i1);
mysql-js> dba.checkInstanceCon guration(i2);
mysql-js> dba.checkInstanceCon guration(i3);
mysql-js> shell.connect(i1);
mysql-js> var cluster = dba.createCluster('HMUG');
mysql-js> cluster.checkInstanceState(i2);
mysql-js> cluster.addInstance(i2);
mysql-js> cluster.checkInstanceState(i3);
mysql-js> cluster.addInstance(i3);
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
135 / 143

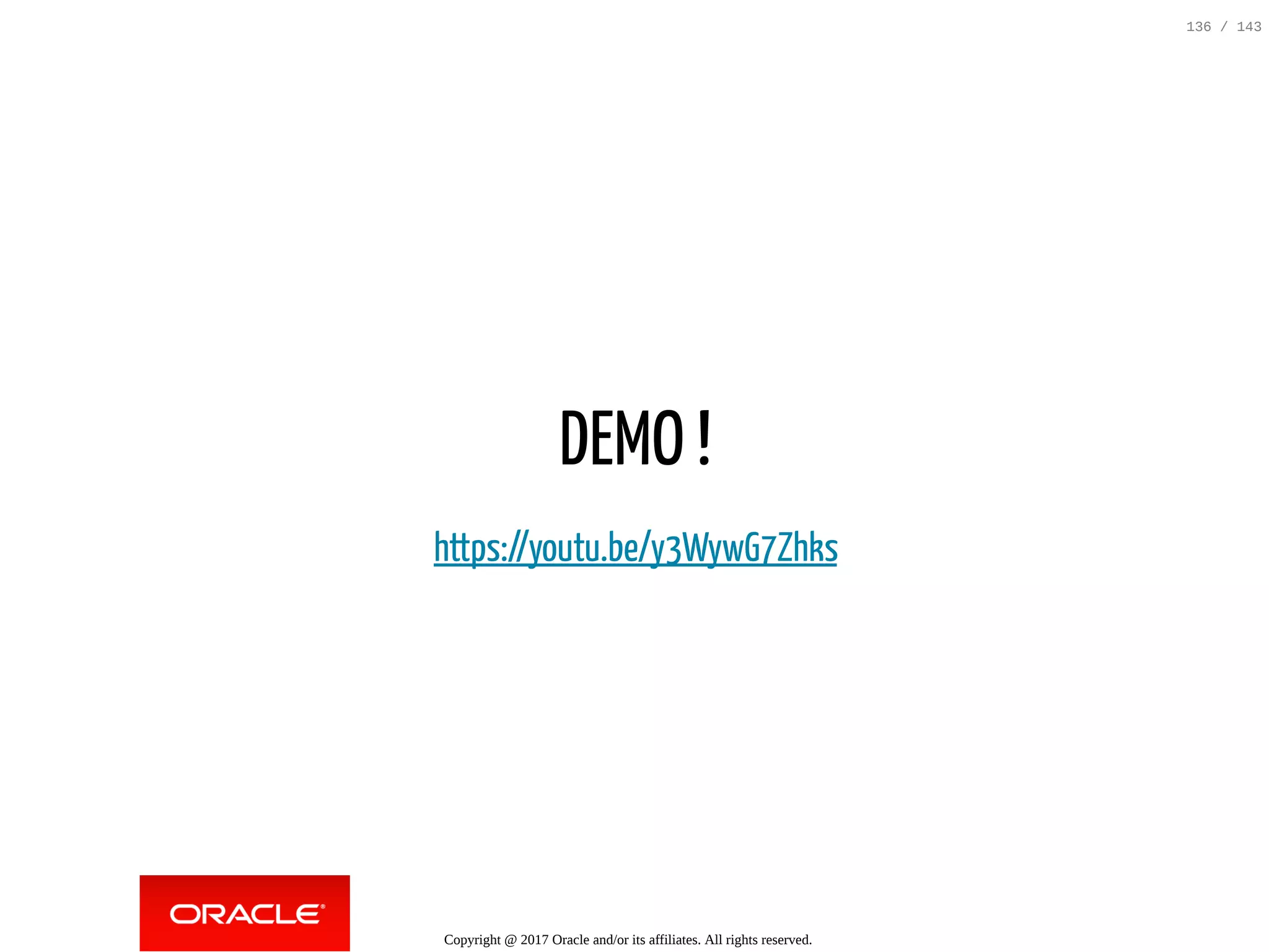

136. DEMO !
https://youtu.be/y3WywG7Zhks
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
136 / 143

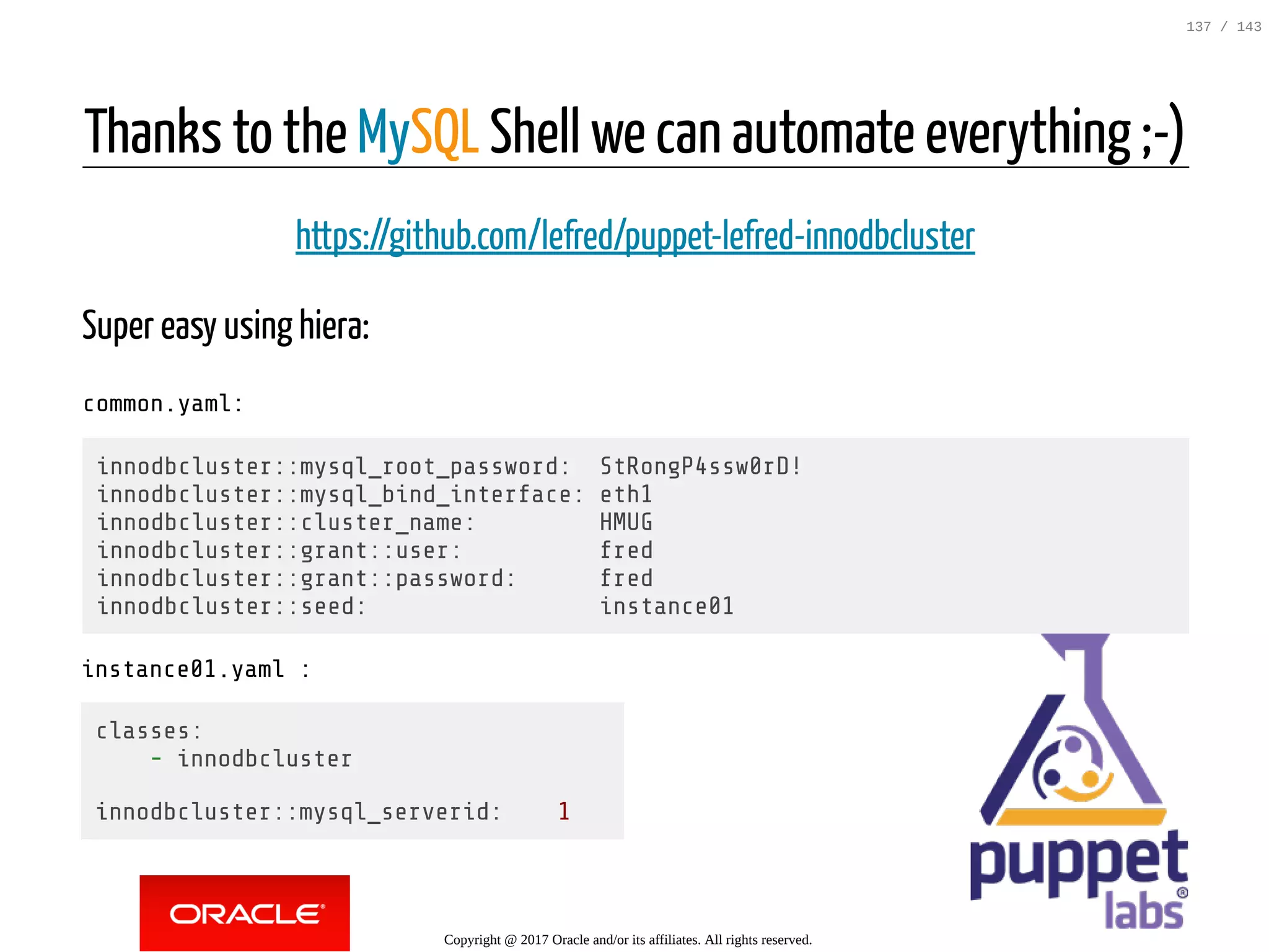

137. instance01.yaml :
classes:
- innodbcluster
innodbcluster::mysql_serverid: 1
Thanks to the MySQL Shell we can automate everything ;-)
https://github.com/lefred/puppet-lefred-innodbcluster
Super easy using hiera:
common.yaml:
innodbcluster::mysql_root_password: StRongP4ssw0rD!
innodbcluster::mysql_bind_interface: eth1
innodbcluster::cluster_name: HMUG
innodbcluster::grant::user: fred
innodbcluster::grant::password: fred
innodbcluster::seed: instance01
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
137 / 143

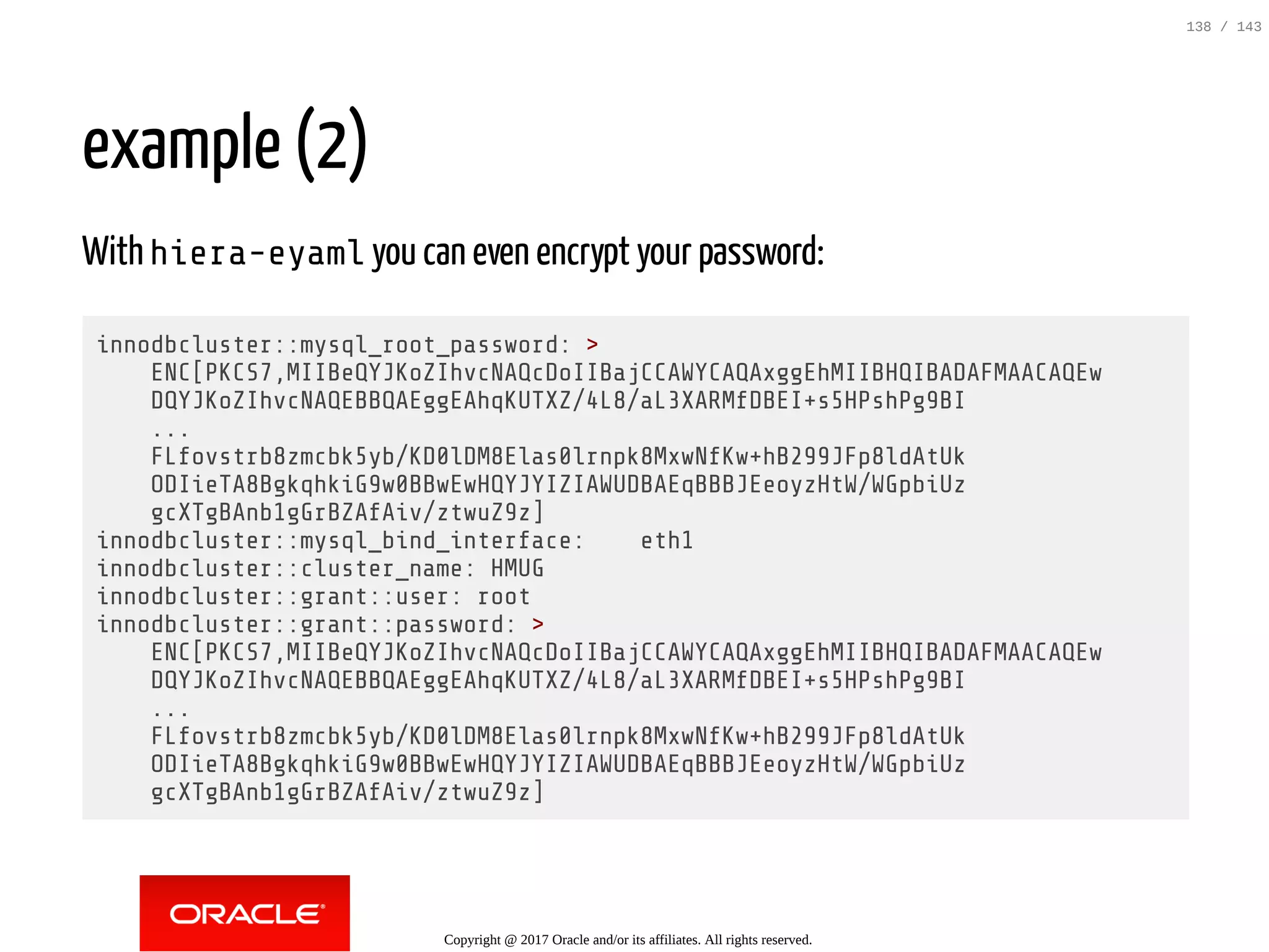

138. example (2)
Withhiera-eyaml you can even encrypt your password:
innodbcluster::mysql_root_password: >
ENC[PKCS7,MIIBeQYJKoZIhvcNAQcDoIIBajCCAWYCAQAxggEhMIIBHQIBADAFMAACAQEw
DQYJKoZIhvcNAQEBBQAEggEAhqKUTXZ/4L8/aL3XARMfDBEI+s5HPshPg9BI
...
FLfovstrb8zmcbk5yb/KD0lDM8Elas0lrnpk8MxwNfKw+hB299JFp8ldAtUk
ODIieTA8BgkqhkiG9w0BBwEwHQYJYIZIAWUDBAEqBBBJEeoyzHtW/WGpbiUz
gcXTgBAnb1gGrBZAfAiv/ztwuZ9z]
innodbcluster::mysql_bind_interface: eth1
innodbcluster::cluster_name: HMUG
innodbcluster::grant::user: root
innodbcluster::grant::password: >
ENC[PKCS7,MIIBeQYJKoZIhvcNAQcDoIIBajCCAWYCAQAxggEhMIIBHQIBADAFMAACAQEw
DQYJKoZIhvcNAQEBBQAEggEAhqKUTXZ/4L8/aL3XARMfDBEI+s5HPshPg9BI
...
FLfovstrb8zmcbk5yb/KD0lDM8Elas0lrnpk8MxwNfKw+hB299JFp8ldAtUk
ODIieTA8BgkqhkiG9w0BBwEwHQYJYIZIAWUDBAEqBBBJEeoyzHtW/WGpbiUz
gcXTgBAnb1gGrBZAfAiv/ztwuZ9z]
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
138 / 143

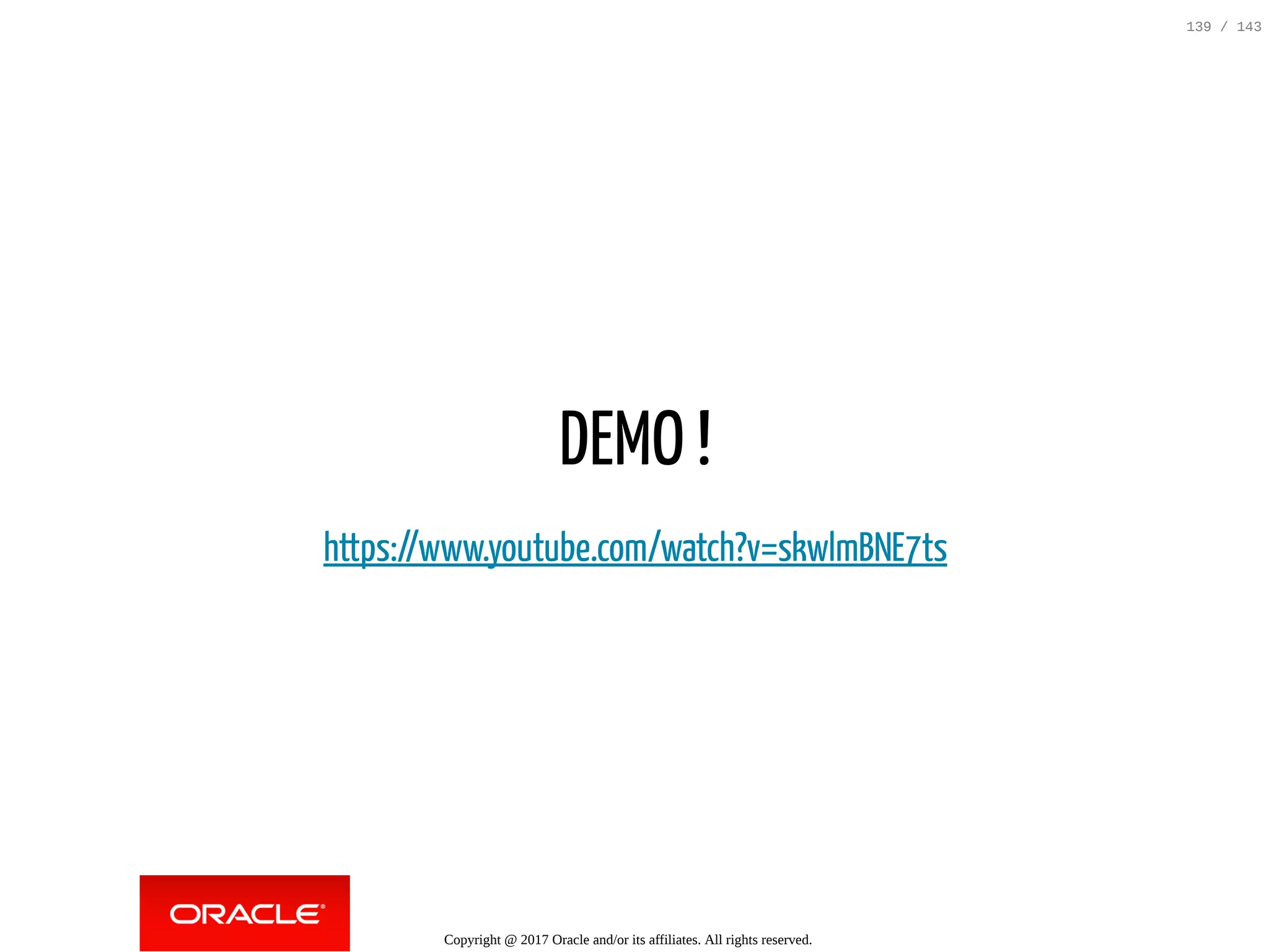

139. DEMO !
https://www.youtube.com/watch?v=skwlmBNE7ts
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
139 / 143

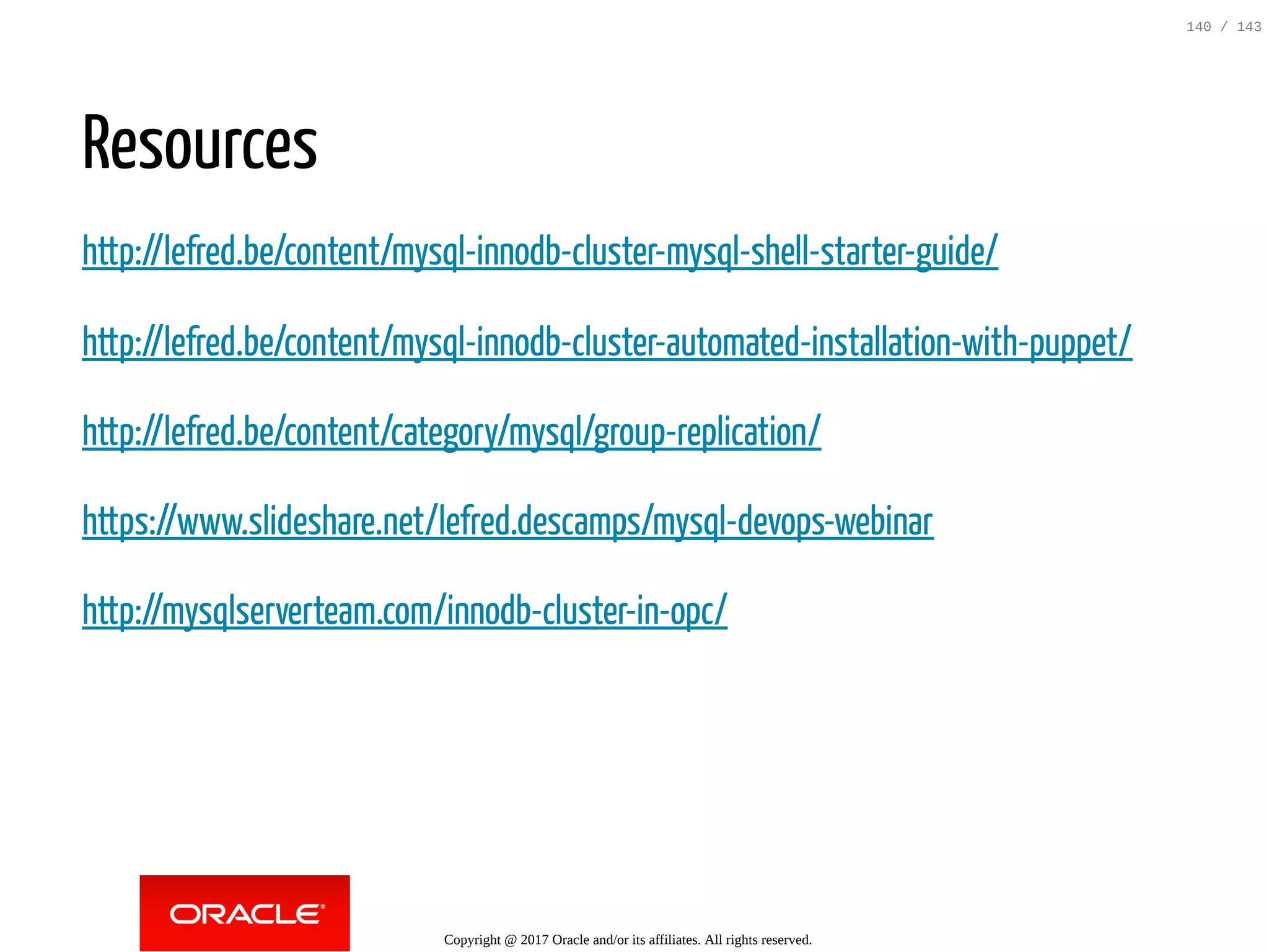

140. Resources
http://lefred.be/content/mysql-innodb-cluster-mysql-shell-starter-guide/
http://lefred.be/content/mysql-innodb-cluster-automated-installation-with-puppet/
http://lefred.be/content/category/mysql/group-replication/
https://www.slideshare.net/lefred.descamps/mysql-devops-webinar
http://mysqlserverteam.com/innodb-cluster-in-opc/
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
140 / 143

141. Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
141 / 143

142. MySQL Enterprise Team Nordics
contact: firstname.lastname@oracle.com
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
142 / 143

143. Thank you !
Any Questions ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
143 / 143
