1. Introduction
to Magento
Optimization
Because sometimes “Copy&Paste” isn’t enough
Fabio Daniele
@fabx2dan
@synesthesiait

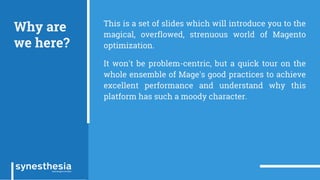

2. Why are
we here?
This is a set of slides which will introduce you to the
magical, overflowed, strenuous world of Magento
optimization.
It won't be problem-centric, but a quick tour on the
whole ensemble of Mage's good practices to achieve
excellent performance and understand why this
platform has such a moody character.

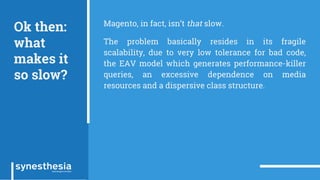

3. Ok then:
what
makes it
so slow?
Magento, in fact, isn’t that slow.
The problem basically resides in its fragile
scalability, due to very low tolerance for bad code,
the EAV model which generates performance-killer
queries, an excessive dependence on media
resources and a dispersive class structure.

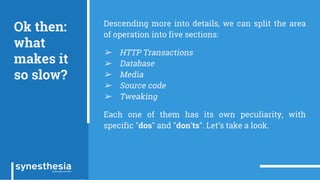

4. Ok then:
what
makes it
so slow?
Descending more into details, we can split the area
of operation into five sections:
➢ HTTP Transactions
➢ Database
➢ Media
➢ Source code
➢ Tweaking
Each one of them has its own peculiarity, with
specific "dos" and "don'ts". Let’s take a look.

5. HTTP
Transactions
The main responsible for client-server
communication, its performance greatly impacts the
user experience on the website.
The best optimization available can be made using a
caching system. There are different kind of them, the
choice will be influenced by the load of the website
and the scope of the cache. We will discuss this
further.
But to rely only on cache for optimization is a bad
mistake. Caching is useful to push optimization over
the boundaries only when there's no other option
left.

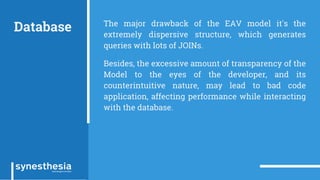

6. Database The major drawback of the EAV model it's the
extremely dispersive structure, which generates
queries with lots of JOINs.
Besides, the excessive amount of transparency of the
Model to the eyes of the developer, and its
counterintuitive nature, may lead to bad code
application, affecting performance while interacting
with the database.

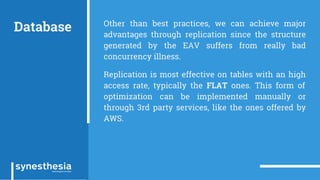

7. Database Other than best practices, we can achieve major
advantages through replication since the structure
generated by the EAV suffers from really bad
concurrency illness.
Replication is most effective on tables with an high
access rate, typically the FLAT ones. This form of
optimization can be implemented manually or
through 3rd party services, like the ones offered by
AWS.

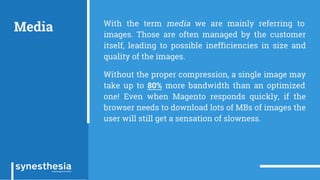

8. Media With the term media we are mainly referring to
images. Those are often managed by the customer
itself, leading to possible inefficiencies in size and
quality of the images.
Without the proper compression, a single image may
take up to 80% more bandwidth than an optimized
one! Even when Magento responds quickly, if the
browser needs to download lots of MBs of images the
user will still get a sensation of slowness.

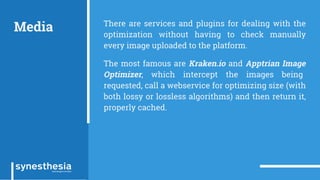

9. Media There are services and plugins for dealing with the
optimization without having to check manually
every image uploaded to the platform.
The most famous are Kraken.io and Apptrian Image
Optimizer, which intercept the images being
requested, call a webservice for optimizing size (with
both lossy or lossless algorithms) and then return it,
properly cached.

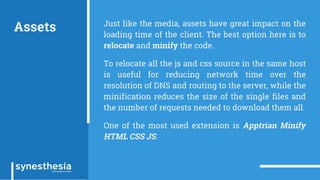

10. Assets Just like the media, assets have great impact on the
loading time of the client. The best option here is to
relocate and minify the code.
To relocate all the js and css source in the same host
is useful for reducing network time over the
resolution of DNS and routing to the server, while the
minification reduces the size of the single files and
the number of requests needed to download them all.
One of the most used extension is Apptrian Minify
HTML CSS JS.

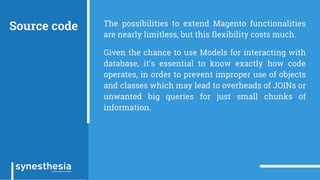

11. Source code The possibilities to extend Magento functionalities
are nearly limitless, but this flexibility costs much.
Given the chance to use Models for interacting with
database, it's essential to know exactly how code
operates, in order to prevent improper use of objects
and classes which may lead to overheads of JOINs or
unwanted big queries for just small chunks of
information.

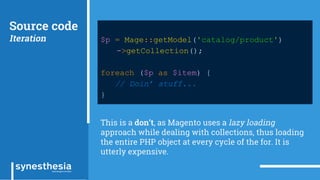

12. Source code
Iteration $p = Mage::getModel('catalog/product')
->getCollection();
foreach ($p as $item) {
// Doin’ stuff...
}
This is a don’t, as Magento uses a lazy loading
approach while dealing with collections, thus loading
the entire PHP object at every cycle of the for. It is
utterly expensive.

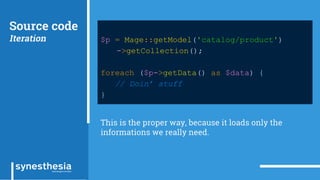

13. Source code
Iteration $p = Mage::getModel('catalog/product')
->getCollection();
foreach ($p->getData() as $data) {
// Doin’ stuff
}
This is the proper way, because it loads only the
informations we really need.

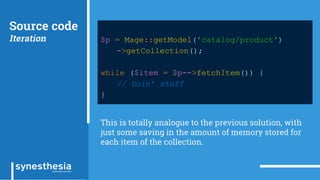

14. Source code
Iteration $p = Mage::getModel('catalog/product')
->getCollection();
while ($item = $p->fetchItem()) {
// Doin’ stuff
}
This is totally analogue to the previous solution, with
just some saving in the amount of memory stored for
each item of the collection.

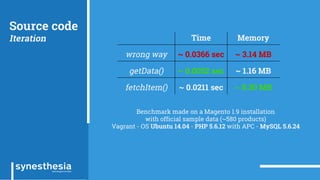

15. Source code
Iteration
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
Time Memory
wrong way ~ 0.0366 sec ~ 3.14 MB
getData() ~ 0.0052 sec ~ 1.16 MB
fetchItem() ~ 0.0211 sec ~ 0.30 MB

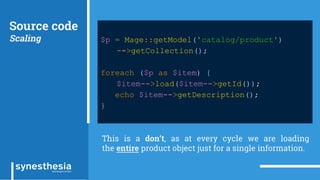

16. Source code
Scaling $p = Mage::getModel('catalog/product')
->getCollection();
foreach ($p as $item) {
$item->load($item->getId());
echo $item->getDescription();
}
This is a don’t, as at every cycle we are loading
the entire product object just for a single information.

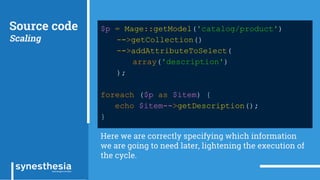

17. Source code
Scaling
$p = Mage::getModel('catalog/product')
->getCollection()
->addAttributeToSelect(
array('description')
);
foreach ($p as $item) {
echo $item->getDescription();
}
Here we are correctly specifying which information
we are going to need later, lightening the execution of
the cycle.

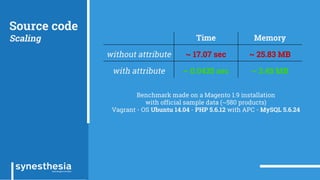

18. Source code
Scaling
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
Time Memory
without attribute ~ 17.07 sec ~ 25.83 MB
with attribute ~ 0.0435 sec ~ 3.45 MB

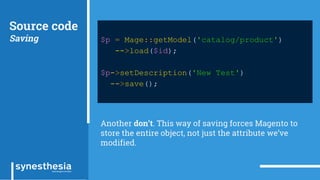

19. Source code
Saving $p = Mage::getModel('catalog/product')
->load($id);
$p->setDescription('New Test')
->save();
Another don’t. This way of saving forces Magento to
store the entire object, not just the attribute we’ve
modified.

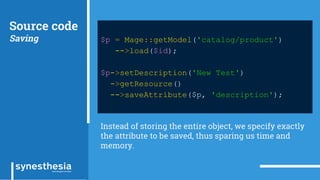

20. Source code
Saving $p = Mage::getModel('catalog/product')
->load($id);
$p->setDescription('New Test')
->getResource()
->saveAttribute($p, 'description');
Instead of storing the entire object, we specify exactly
the attribute to be saved, thus sparing us time and
memory.

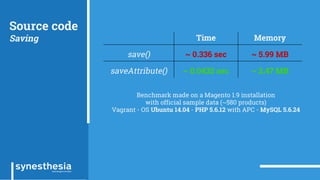

21. Source code
Saving
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
Time Memory
save() ~ 0.336 sec ~ 5.99 MB
saveAttribute() ~ 0.0432 sec ~ 2.47 MB

22. Source code
Reuse & Recycle
# Multiple static call
$nam = Mage::getModel('catalog/product' )->load($id)->getName();
$sku = Mage::getModel('catalog/product' )->load($id)->getSku();
$des = Mage::getModel('catalog/product' )->load($id)->getDescription ();
/******** VERSUS ********/
# Single static call
$p = Mage::getModel('catalog/product' )->load($id);
$nam = $p->getName();
$sku = $p->getSku();
$des = $p->getDescription ();
It may seems obvious, but attention to details is
needed when working with big amount of data.

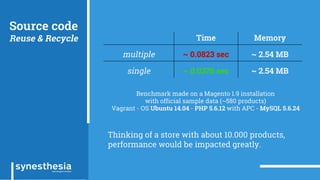

23. Source code
Reuse & Recycle
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
Time Memory
multiple ~ 0.0823 sec ~ 2.54 MB
single ~ 0.0376 sec ~ 2.54 MB
Thinking of a store with about 10.000 products,
performance would be impacted greatly.

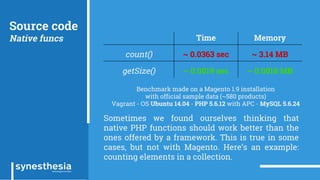

24. Source code
Native funcs
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
Time Memory
count() ~ 0.0363 sec ~ 3.14 MB
getSize() ~ 0.0019 sec ~ 0.0016 MB
Sometimes we found ourselves thinking that
native PHP functions should work better than the
ones offered by a framework. This is true in some
cases, but not with Magento. Here’s an example:
counting elements in a collection.

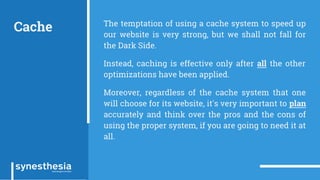

25. Cache The temptation of using a cache system to speed up
our website is very strong, but we shall not fall for
the Dark Side.
Instead, caching is effective only after all the other
optimizations have been applied.
Moreover, regardless of the cache system that one
will choose for its website, it's very important to plan
accurately and think over the pros and the cons of
using the proper system, if you are going to need it at
all.

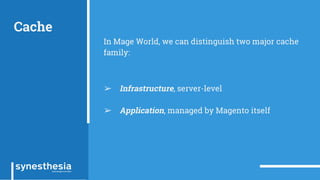

26. Cache
In Mage World, we can distinguish two major cache
family:
➢ Infrastructure, server-level
➢ Application, managed by Magento itself

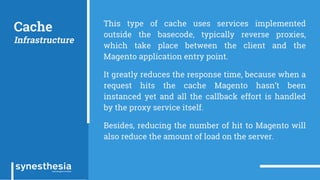

27. Cache
Infrastructure
This type of cache uses services implemented
outside the basecode, typically reverse proxies,
which take place between the client and the
Magento application entry point.
It greatly reduces the response time, because when a
request hits the cache Magento hasn’t been
instanced yet and all the callback effort is handled
by the proxy service itself.
Besides, reducing the number of hit to Magento will
also reduce the amount of load on the server.

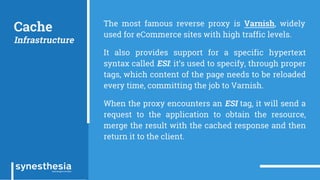

28. Cache
Infrastructure
The most famous reverse proxy is Varnish, widely
used for eCommerce sites with high traffic levels.
It also provides support for a specific hypertext
syntax called ESI: it’s used to specify, through proper
tags, which content of the page needs to be reloaded
every time, committing the job to Varnish.
When the proxy encounters an ESI tag, it will send a
request to the application to obtain the resource,
merge the result with the cached response and then
return it to the client.

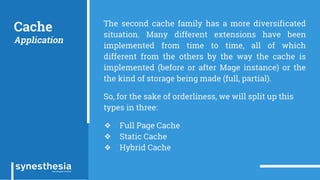

29. Cache
Application
The second cache family has a more diversificated
situation. Many different extensions have been
implemented from time to time, all of which
different from the others by the way the cache is
implemented (before or after Mage instance) or the
the kind of storage being made (full, partial).
So, for the sake of orderliness, we will split up this
types in three:
❖ Full Page Cache
❖ Static Cache
❖ Hybrid Cache

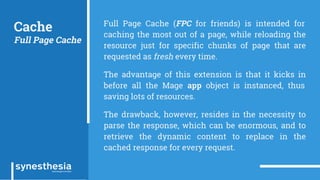

30. Cache
Full Page Cache
Full Page Cache (FPC for friends) is intended for
caching the most out of a page, while reloading the
resource just for specific chunks of page that are
requested as fresh every time.
The advantage of this extension is that it kicks in
before all the Mage app object is instanced, thus
saving lots of resources.
The drawback, however, resides in the necessity to
parse the response, which can be enormous, and to
retrieve the dynamic content to replace in the
cached response for every request.

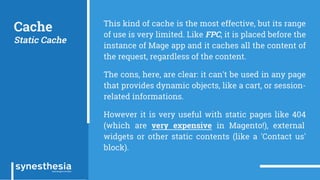

31. Cache
Static Cache
This kind of cache is the most effective, but its range
of use is very limited. Like FPC, it is placed before the
instance of Mage app and it caches all the content of
the request, regardless of the content.
The cons, here, are clear: it can't be used in any page
that provides dynamic objects, like a cart, or session-
related informations.
However it is very useful with static pages like 404
(which are very expensive in Magento!), external
widgets or other static contents (like a 'Contact us'
block).

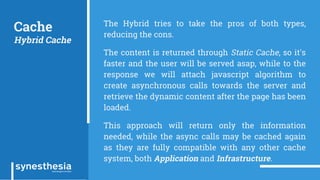

32. Cache
Hybrid Cache
The Hybrid tries to take the pros of both types,
reducing the cons.
The content is returned through Static Cache, so it's
faster and the user will be served asap, while to the
response we will attach javascript algorithm to
create asynchronous calls towards the server and
retrieve the dynamic content after the page has been
loaded.
This approach will return only the information
needed, while the async calls may be cached again
as they are fully compatible with any other cache
system, both Application and Infrastructure.

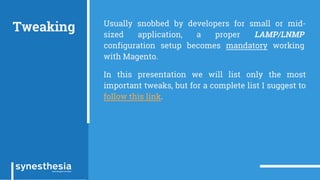

33. Tweaking Usually snobbed by developers for small or mid-
sized application, a proper LAMP/LNMP
configuration setup becomes mandatory working
with Magento.
In this presentation we will list only the most
important tweaks, but for a complete list I suggest to
follow this link.

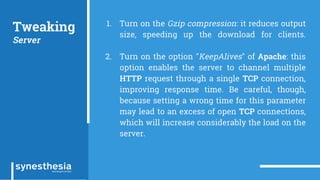

34. Tweaking
Server
1. Turn on the Gzip compression: it reduces output
size, speeding up the download for clients.
2. Turn on the option "KeepAlives" of Apache: this
option enables the server to channel multiple
HTTP request through a single TCP connection,
improving response time. Be careful, though,
because setting a wrong time for this parameter
may lead to an excess of open TCP connections,
which will increase considerably the load on the
server.

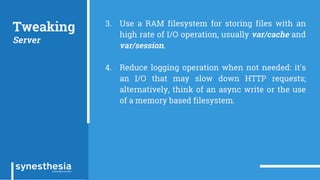

35. Tweaking
Server
3. Use a RAM filesystem for storing files with an
high rate of I/O operation, usually var/cache and
var/session.
4. Reduce logging operation when not needed: it's
an I/O that may slow down HTTP requests;
alternatively, think of an async write or the use
of a memory based filesystem.

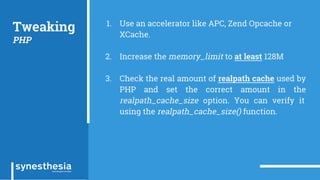

36. Tweaking
PHP
1. Use an accelerator like APC, Zend Opcache or
XCache.
2. Increase the memory_limit to at least 128M
3. Check the real amount of realpath cache used by
PHP and set the correct amount in the
realpath_cache_size option. You can verify it
using the realpath_cache_size() function.

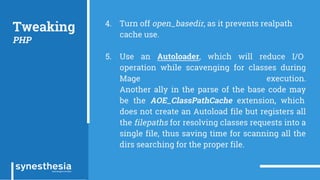

37. Tweaking
PHP
4. Turn off open_basedir, as it prevents realpath
cache use.
5. Use an Autoloader, which will reduce I/O
operation while scavenging for classes during
Mage execution.
Another ally in the parse of the base code may
be the AOE_ClassPathCache extension, which
does not create an Autoload file but registers all
the filepaths for resolving classes requests into a
single file, thus saving time for scanning all the
dirs searching for the proper file.

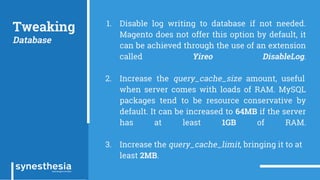

38. Tweaking
Database
1. Disable log writing to database if not needed.
Magento does not offer this option by default, it
can be achieved through the use of an extension
called Yireo DisableLog.
2. Increase the query_cache_size amount, useful
when server comes with loads of RAM. MySQL
packages tend to be resource conservative by
default. It can be increased to 64MB if the server
has at least 1GB of RAM.
3. Increase the query_cache_limit, bringing it to at
least 2MB.

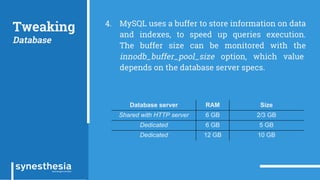

39. Tweaking
Database
4. MySQL uses a buffer to store information on data
and indexes, to speed up queries execution.
The buffer size can be monitored with the
innodb_buffer_pool_size option, which value
depends on the database server specs.
Database server RAM Size
Shared with HTTP server 6 GB 2/3 GB
Dedicated 6 GB 5 GB
Dedicated 12 GB 10 GB

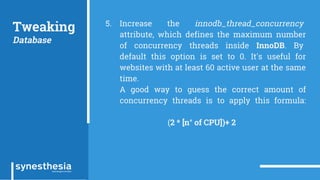

40. Tweaking
Database
5. Increase the innodb_thread_concurrency
attribute, which defines the maximum number
of concurrency threads inside InnoDB. By
default this option is set to 0. It's useful for
websites with at least 60 active user at the same
time.
A good way to guess the correct amount of
concurrency threads is to apply this formula:
(2 * [n° of CPU])+ 2

41. Platform This is not proper optimization, but it’s a good point
to consider when talking about performance.
The platform over which Magento runs can greatly
improve speed, stability and scalability.
One of the best booster for a Magento 1.9 installation
would be a setup composed by PHP 7 FPM and
MySQL Percona 5.6. Advantages are tremendous, and
will be shown in comparison with past benchmarks.

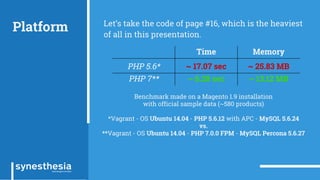

42. Platform Let’s take the code of page #16, which is the heaviest
of all in this presentation.
Time Memory
PHP 5.6* ~ 17.07 sec ~ 25.83 MB
PHP 7** ~ 6.28 sec ~ 13.12 MB
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
*Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
vs.
**Vagrant - OS Ubuntu 14.04 - PHP 7.0.0 FPM - MySQL Percona 5.6.27

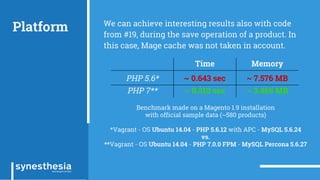

43. Platform We can achieve interesting results also with code
from #19, during the save operation of a product. In
this case, Mage cache was not taken in account.
Time Memory
PHP 5.6* ~ 0.643 sec ~ 7.576 MB
PHP 7** ~ 0.310 sec ~ 3.465 MB
Benchmark made on a Magento 1.9 installation
with official sample data (~580 products)
*Vagrant - OS Ubuntu 14.04 - PHP 5.6.12 with APC - MySQL 5.6.24
vs.
**Vagrant - OS Ubuntu 14.04 - PHP 7.0.0 FPM - MySQL Percona 5.6.27

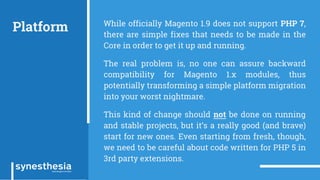

44. Platform While officially Magento 1.9 does not support PHP 7,
there are simple fixes that needs to be made in the
Core in order to get it up and running.
The real problem is, no one can assure backward
compatibility for Magento 1.x modules, thus
potentially transforming a simple platform migration
into your worst nightmare.
This kind of change should not be done on running
and stable projects, but it’s a really good (and brave)
start for new ones. Even starting from fresh, though,
we need to be careful about code written for PHP 5 in
3rd party extensions.

45. At last...
Released under Creative Commons by-nc-nd
...thanks
for watching!
Synesthesia srl
HQ: Via Amedeo Peyron 29, 10143 Torino
Tel: +39 011 0437401 - info@synesthesia.it - www.synesthesia.it - www.droidcon.it
Reg. Office: C.so Galileo Ferraris 110, 10129 Torino - VAT N° IT10502360018
Mobile Apps // Web Development // Ecommerce & Magento // UX&UI Design
