1. INTRODUCTION TO IONIC3
Nitin Arora
Software Consultant
Knoldus Inc
INTRODUCTION TO

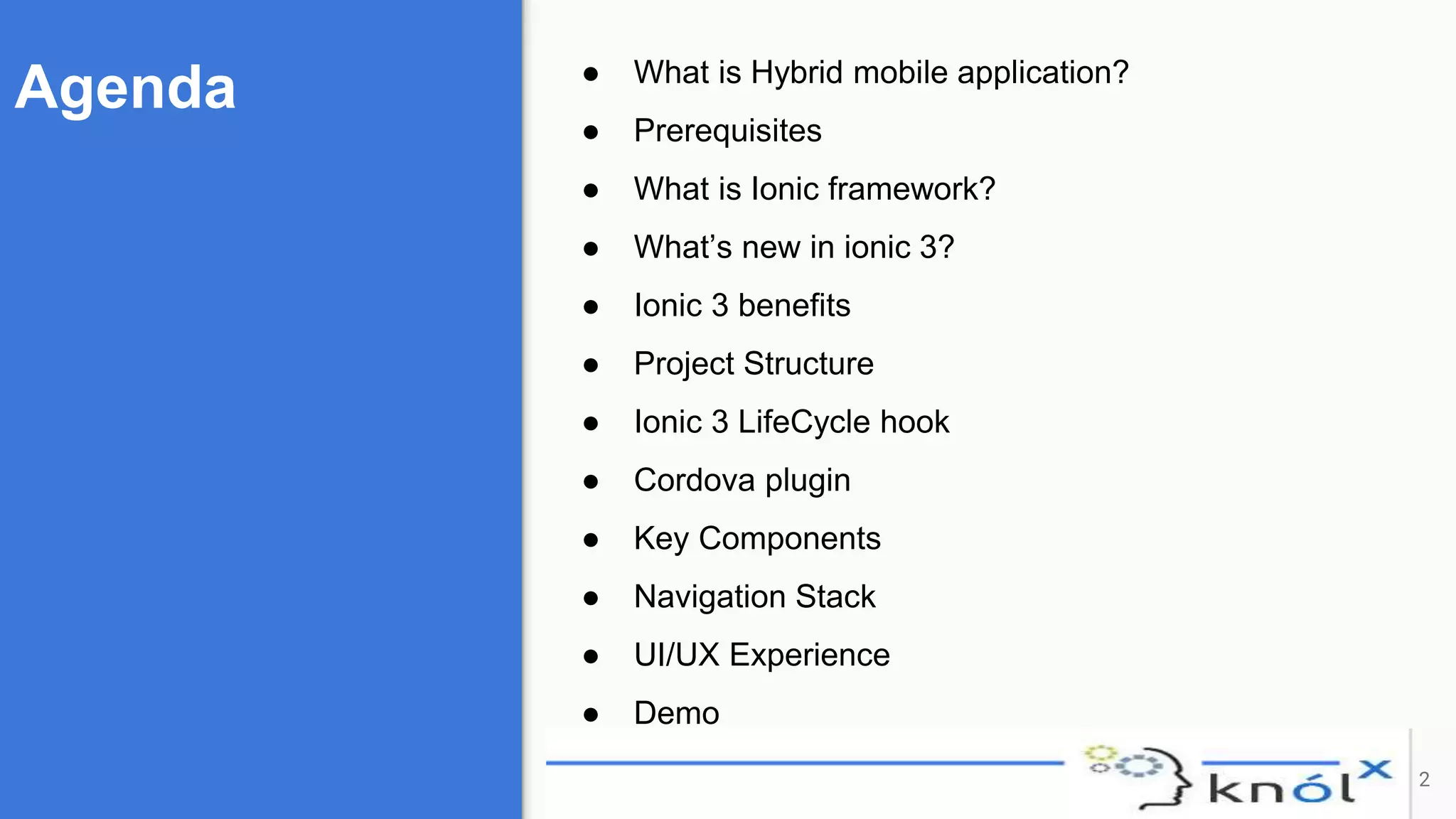

2. Agenda
2
● What is Hybrid mobile application?
● Prerequisites
● What is Ionic framework?
● What’s new in ionic 3?
● Ionic 3 benefits
● Project Structure
● Ionic 3 LifeCycle hook
● Cordova plugin
● Key Components
● Navigation Stack
● UI/UX Experience
● Demo

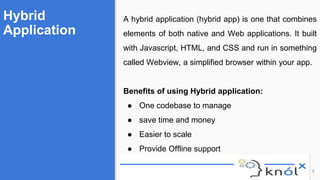

3. Hybrid
Application
3
A hybrid application (hybrid app) is one that combines
elements of both native and Web applications. It built
with Javascript, HTML, and CSS and run in something
called Webview, a simplified browser within your app.
Benefits of using Hybrid application:
● One codebase to manage
● save time and money
● Easier to scale
● Provide Offline support

4. Hybrid Web
Application
Examples
4

5. Prerequisites
5

6. IONIC
Framework
6
The dev-friendly app platform for building cross-
platform apps with one codebase, for any device,
with the web.
What is Ionic?
Ionic makes it easy to build high-performance mobile and Progressive
Web Apps (or PWAs) that look and feel beautiful on any platform or
device. You can think of Ionic as the front-end UI framework that
handles all of the look and feel and UI interactions your app needs in
order to be compelling.

7. What’s New in
Ionic 3
7
● Angular 4.0.0
The upgraded Ionic framework is compatible with Angular 4. This
introduces new updated features, support the new version of
typescript, fast and small applications and many more.
● TypeScript 2.1 and 2.2 compatibility
Typescript acquires all the classes of javascript and therefore
known as the superset of javascript. Ionic works with the latest
version of Typescript same like Angular framework.

8. What’s New in
Ionic 3
8
● IonicPage Decorator
You can set up deep links into your application using IonicPage
Decorator. This allows an easy way to set up lazy loading in your
application and customize the configuration of each and every
individual page.
● Lazy loading
Ionic 3.0 includes support for lazy loading.The changes affect the
file structure and navigation of your application, but they will
ultimately speed the application up.

9. Benefits of
Ionic 3
9
● Platform Independent Framework
● Cross-Platform Mobile App Development
● Default User Interface
● Based on Angular
● Utilizes Cordova Plugins

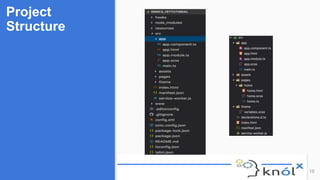

10. Project
Structure
10

11. LifeCycle hook
of Ionic 3
11
● ionViewDidLoad
● ionViewWillEnter
● ionViewDidEnter
● ionViewWillLeave
● ionViewDidLeave
● ionViewWillUnload

12. LifeCycle hook
of Ionic 3
12

13. Building Blocks
of Ionic 3
13
● Modules
● Pages
● Templates
● Services
● External Resources

14. IONIC 3
Navigation
14
● It’s a simple stack
● PUSH new pages to go forward
● POP the top page off to go backward
● SETROOT to navigate back to the home page.
● Navigation using Lazy loading.

15. UI/UX :User
Experience
15
● Platform Specific styles
● Responsive Grids
● Sass Variables
● Theming your Ionic App
● IonIcons

16. Platform
Specific Styles
16
Ionic uses modes to customize the look of
components. Each platform has a default mode, but
this can be overridden. For example, an app being
viewed on an Android platform will use the md
(Material Design) mode.
Usage
<ion-app class="md">
<ion-app class="ios">
<ion-app class="wp">

17. Responsive
Grids
17
It is heavily influenced by Bootstrap’s grid system.The
grid is composed of three units — a grid, row(s) and
column(s). Columns will expand to fill their row, and will
resize to fit additional columns. It is based on a 12
column layout with different breakpoints based on the
screen size.
<ion-grid>
<ion-row>
<ion-col>
1 of 3
</ion-col>
<ion-col>
2 of 3
</ion-col></ion-row>
</ion-grid>

18. Sass Variables
18
Sass Variables allow you to define a value once and
use it in multiple places. Variables begin with dollar
signs and are set like CSS properties.
Example:
$control-height: 40px;
Usage:
let’s assign $control-height to the height attribute of two
selectors:
.header {
height: $control-height;
}

19. Theming your
app
19
Theme support is baked right into Ionic apps. Changing
the theme is as easy as updating the $colors map in
your src/theme/variables.scss file:
$colors: (
primary: #488aff,
secondary: #32db64,
danger: #f53d3d,
light: #f4f4f4,
dark: #222
);

20. Cordova
plugins
20
Cordova is a project that provides web access to native plugins. They
allow your app to use native device capabilities beyond what is
available to pure web apps. Using Cordova plugins you app can have
access to Battery, Camera, Dialogs, Geolocation, and more…
It is very easy to manage cordova with ionic:
$ ionic cordova plugin
Synopsis
$ ionic cordova plugin [<action>] [<plugin>]

21. Cordova
plugins
Description
21
Input Description
action
add or remove a plugin;
Plugin
The name of the plugin (corresponds to add and remove).
Examples:
$ ionic cordova plugin
$ ionic cordova plugin add cordova-plugin-inappbrowser@latest
$ ionic cordova plugin rm cordova-plugin-camera

22. Quick Start
Commands
22
Make sure you have an up-to-date version of
Node.js installed on your system.
● Install ionic with cordova
npm install -g cordova ionic
● Generating a new Project
ionic start myapp blank
● Enter to your project directory and serve you
app
cd myapp
ionic serve
● Generate a new page
Ionic g page pagename

23. References
23
● Official IONIC documentation
https://ionicframework.com/docs/
● IONIC Themes Tutorials
https://ionicthemes.com/tutorials/about/building-a-
complete-mobile-app-with-ionic-3
