- 1. A Brief Introductionto Human-Computer Interaction Presented at Chulalongkorn University Jan 2, 2014 Kanit “Ham” Wongsuphasawat University of Washington @kanitw, kanitw[at]gmail.com http://kanitw.yellowpigz.com See these slides online: bit.ly/hamintrohci 1
- 2. LifeLine: Kanit “Ham”Wongsuphasawat LIVE IN EDUCATION BANGKOK, THAILAND B. Comp Eng. Chulalongkorn SOFTWARE ENGINEERING INTERN STANFORD, CA SEATTLE, WA MS. MS&E Stanford SOFTWARE ENGINEER PhD(?) CSE U OF Washington RESEARCH INTERN PROFESSIONAL EXPERIENCE MANAGEMENT INTERN SOFTWARE ENGINEERING INTERN (HCI GROUP) TIME See my portfolio at kanitw.yellowpigz.com or bit.ly/knowham 2
- 3.

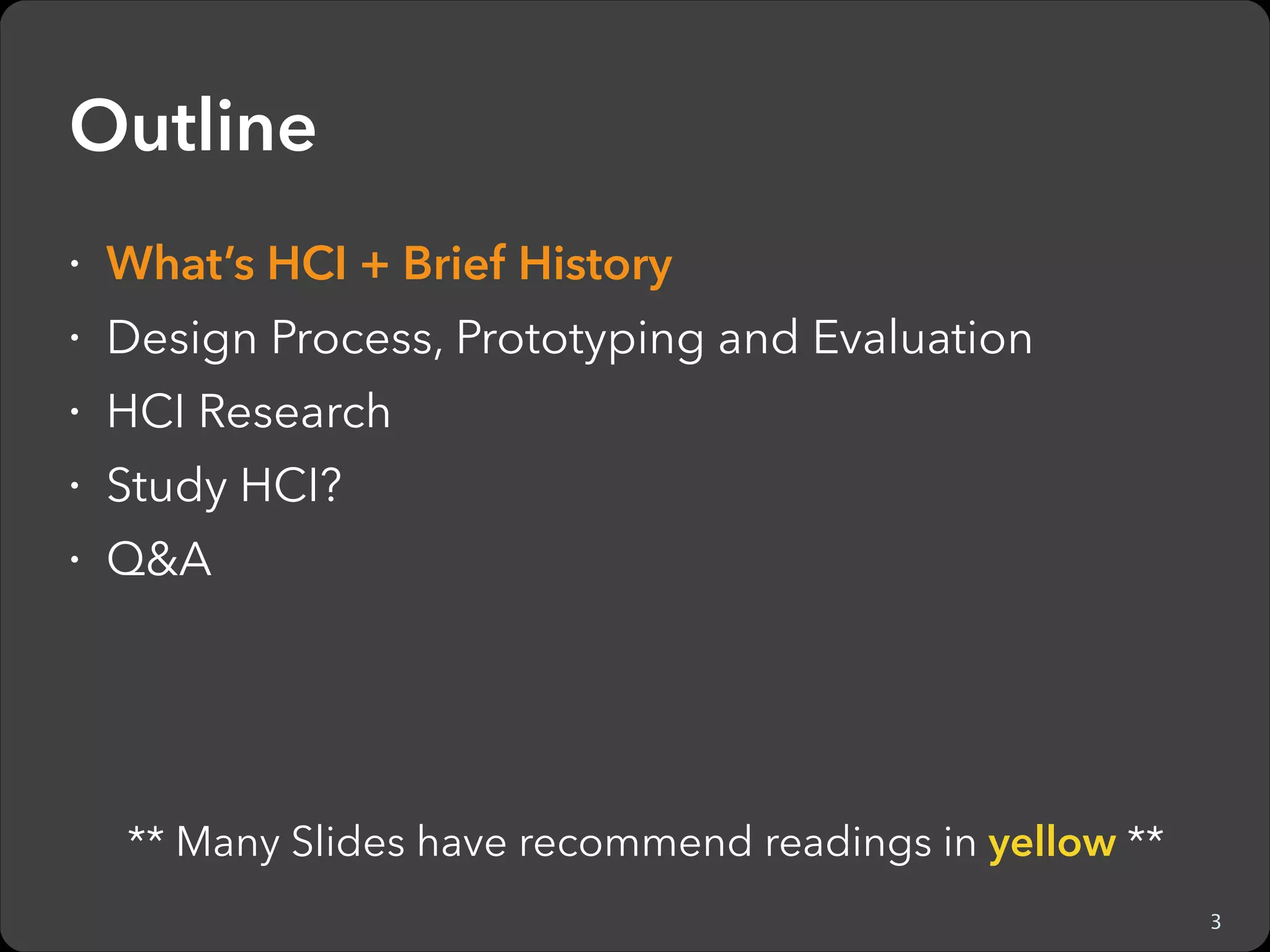

- 4. Outline ž What’s HCI+ Brief History ž Design Process, Prototyping and Evaluation ž HCI Research ž Study HCI? ž Q&A ** Many Slides have recommend readings in yellow ** 4

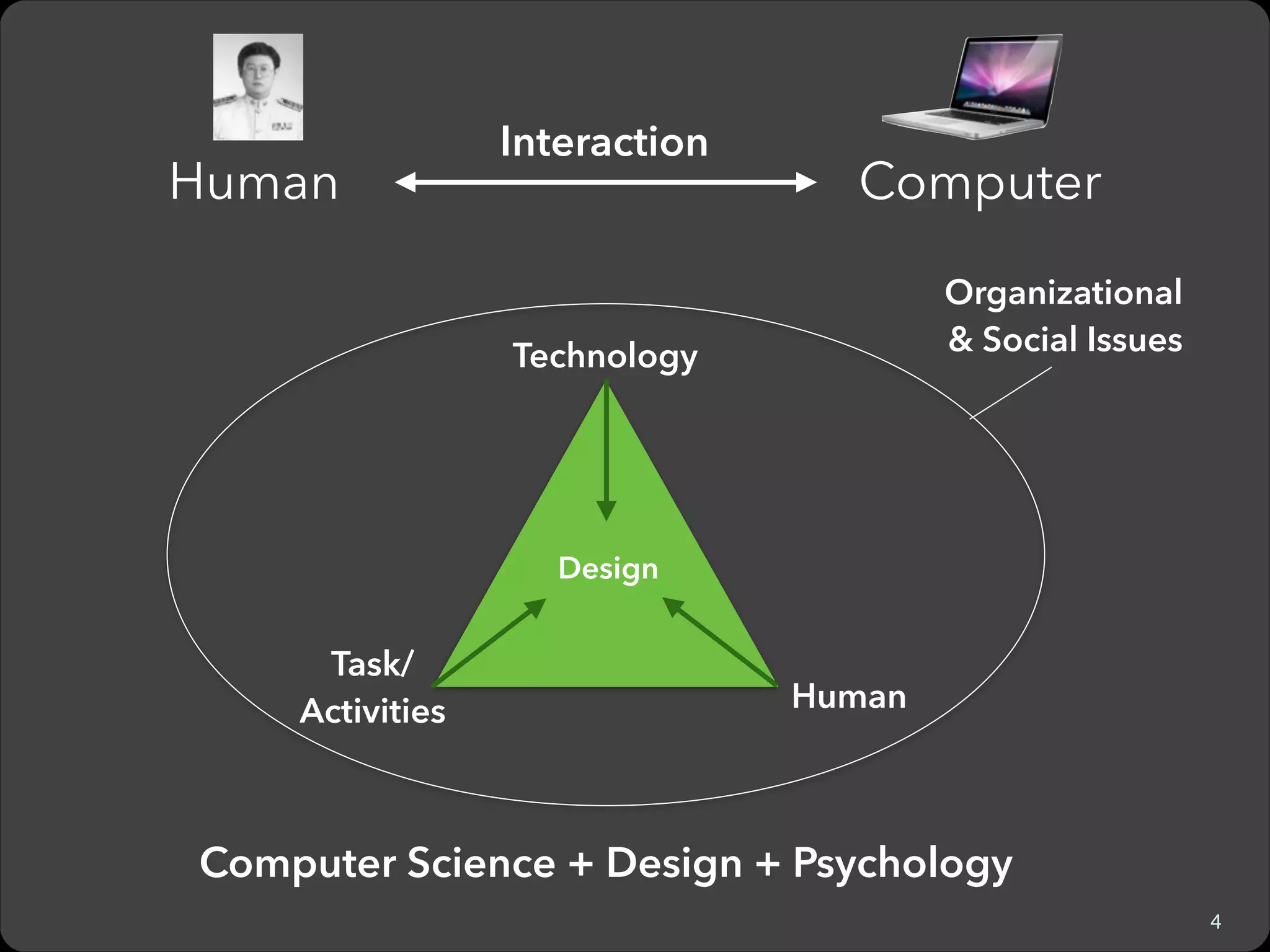

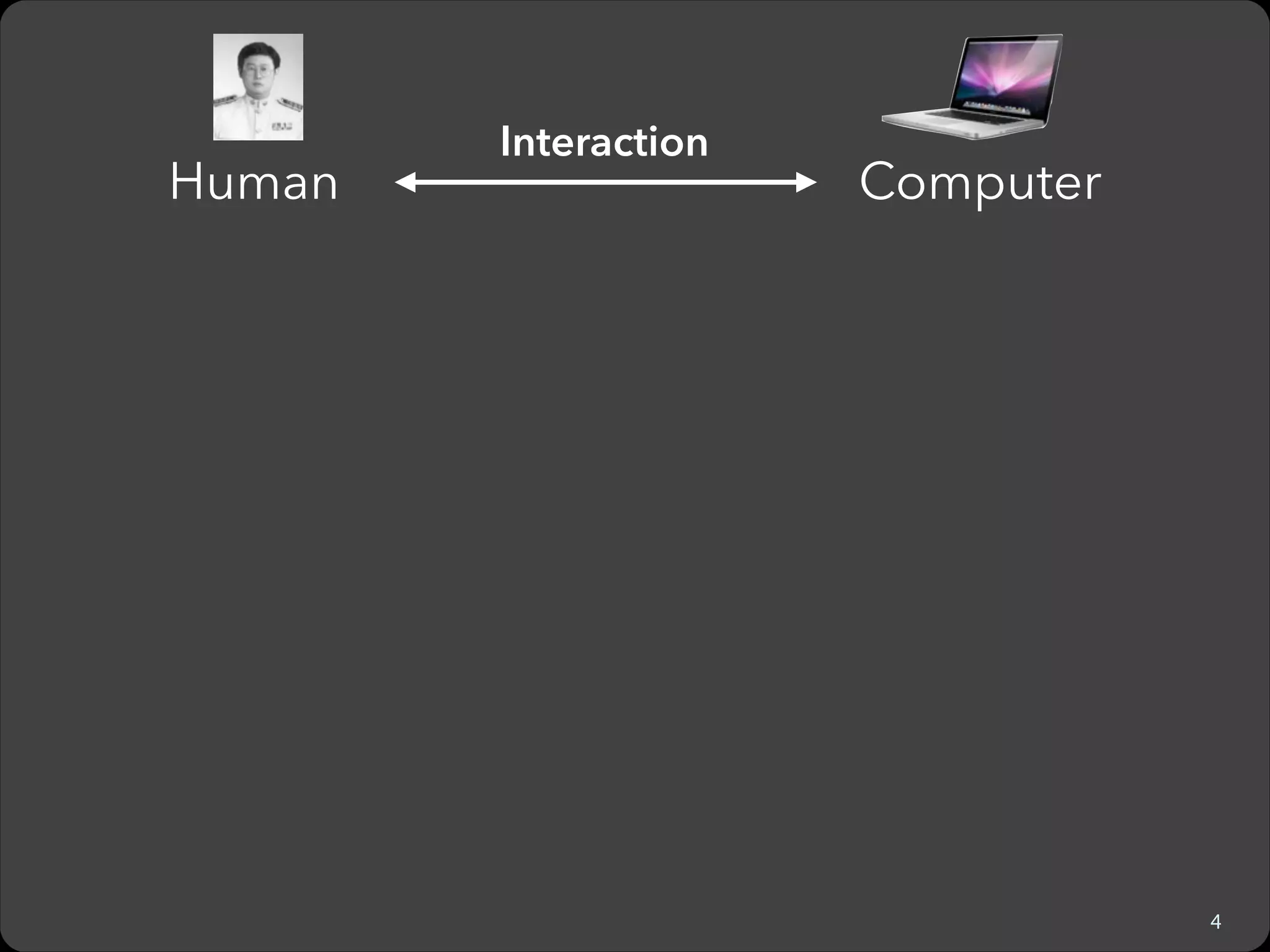

- 5. Human Interaction Computer Organizational & SocialIssues Technology Design Task/ Activities Human Computer Science + Design + Psychology 5
- 6. Brief History: PersonalComputing Bush - Visionary Memex Machine “As we may think” bit.ly/aswemaythink Engelbart - “Augmenting Human Intelligence” See “Augmenting Human Intelligence” PARC’s Xerox Star, Apple Macintosh, Microsoft Windows Today: See also “What the dormouse said” (John Markoff) Images from Wikipedia 6
- 7. Outline ž What’s HCI+ Brief History ž Design Process, Prototyping, and Evaluation ž HCI Research ž Study HCI? ž Q&A 7

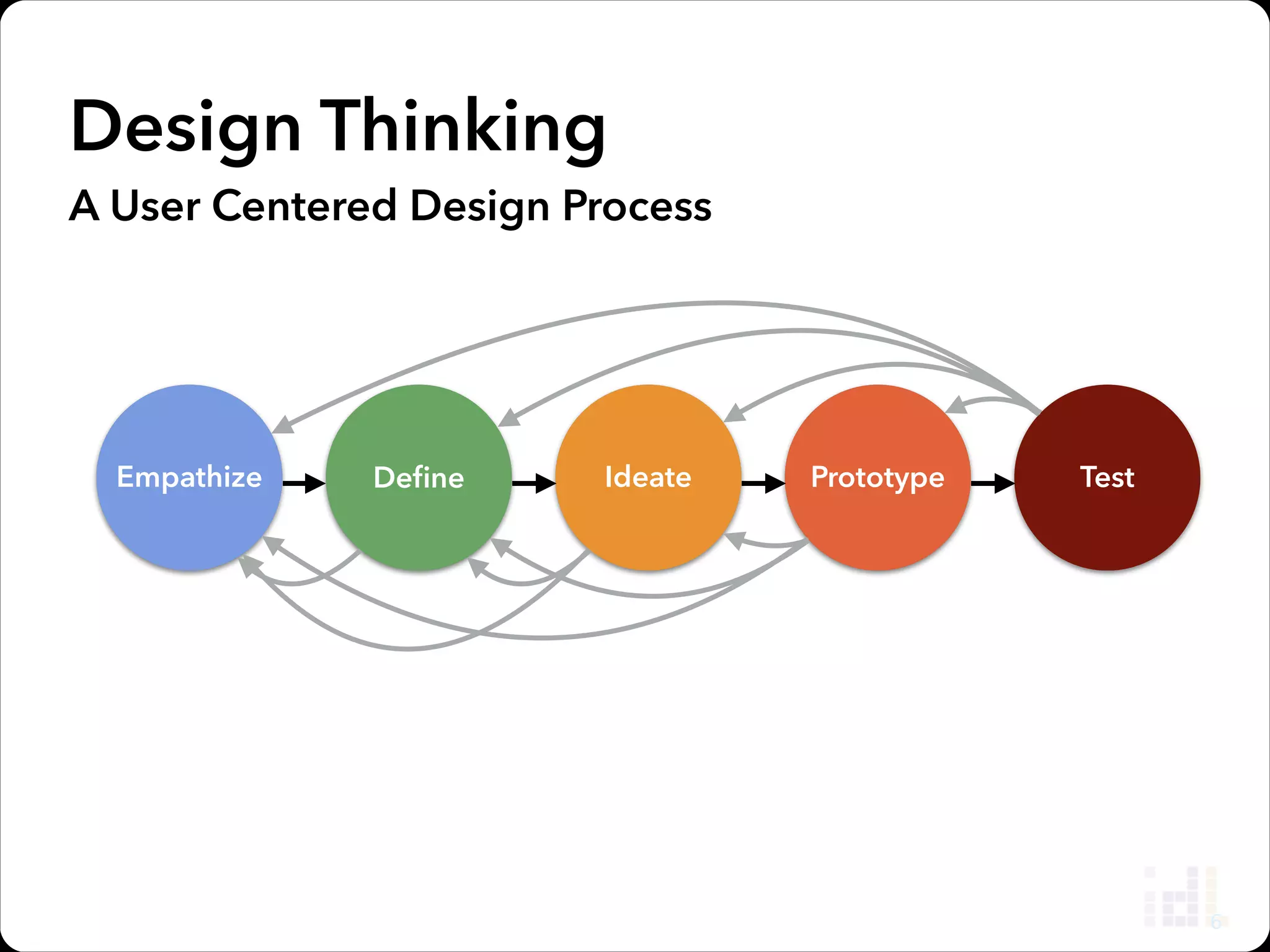

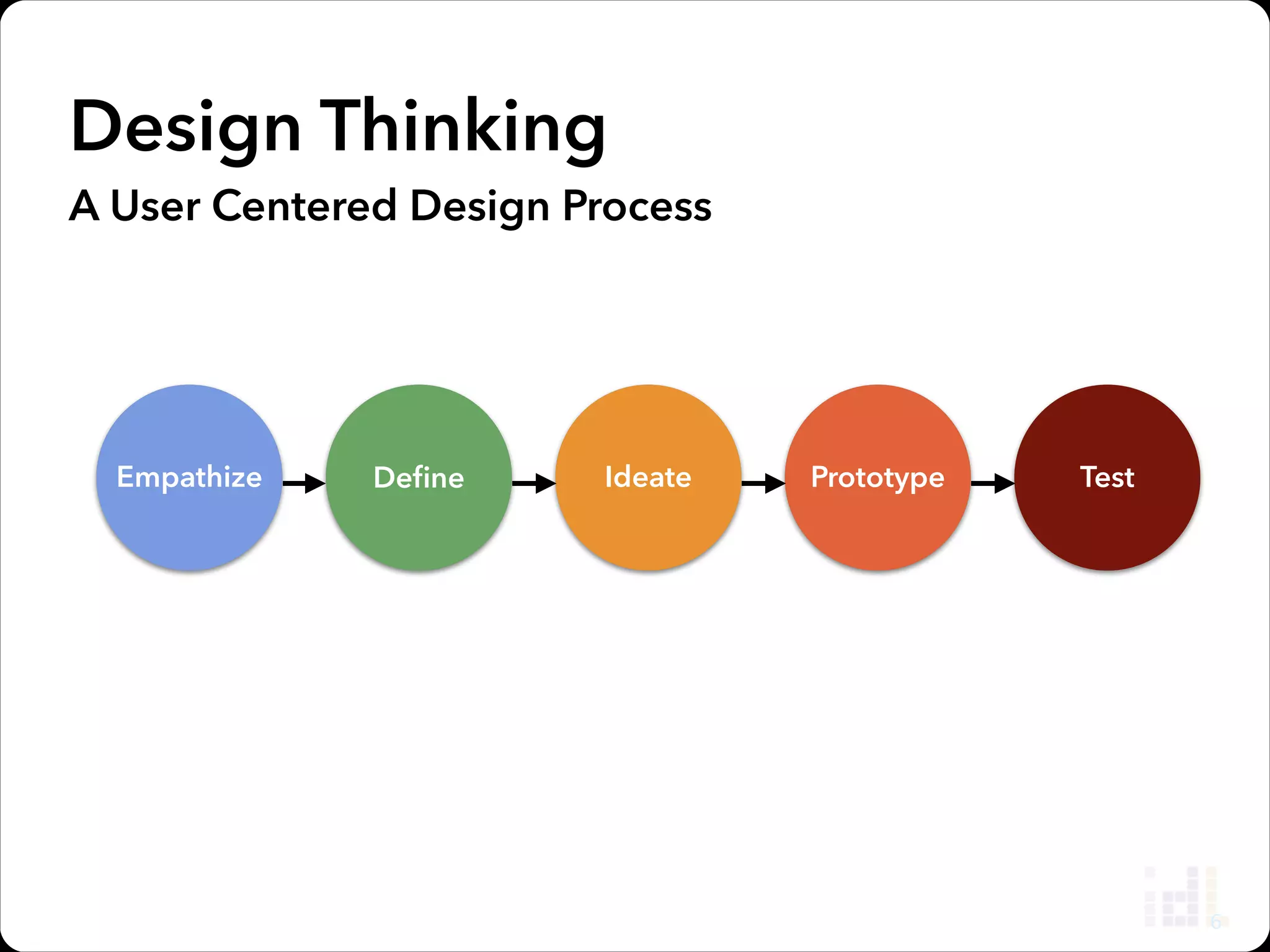

- 8. Design Thinking A UserCentered Design Process Empathize 8 Define Ideate Prototype Test

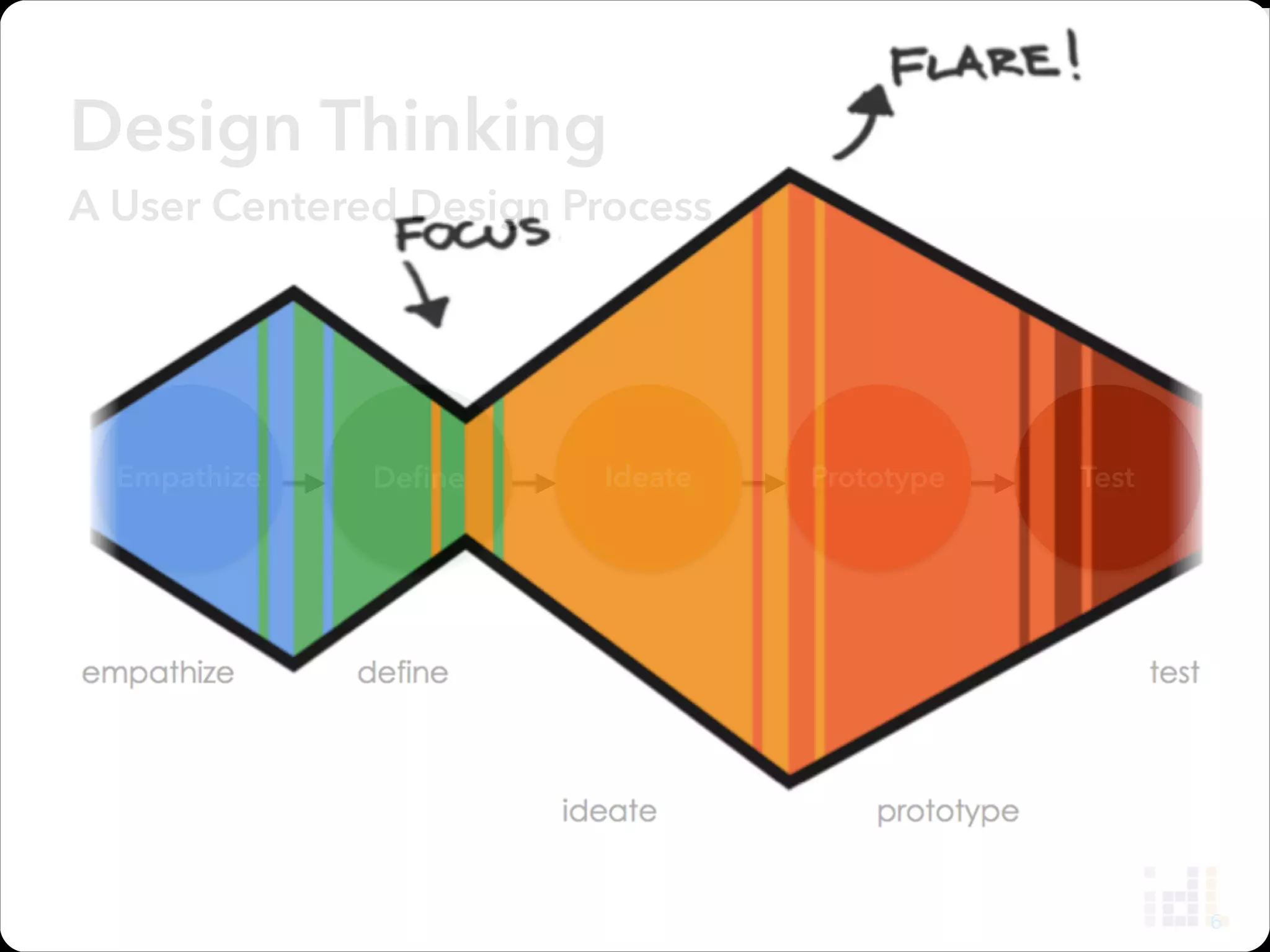

- 9. Design Thinking A UserCentered Design Process Empathize 9 Define Ideate Prototype Test

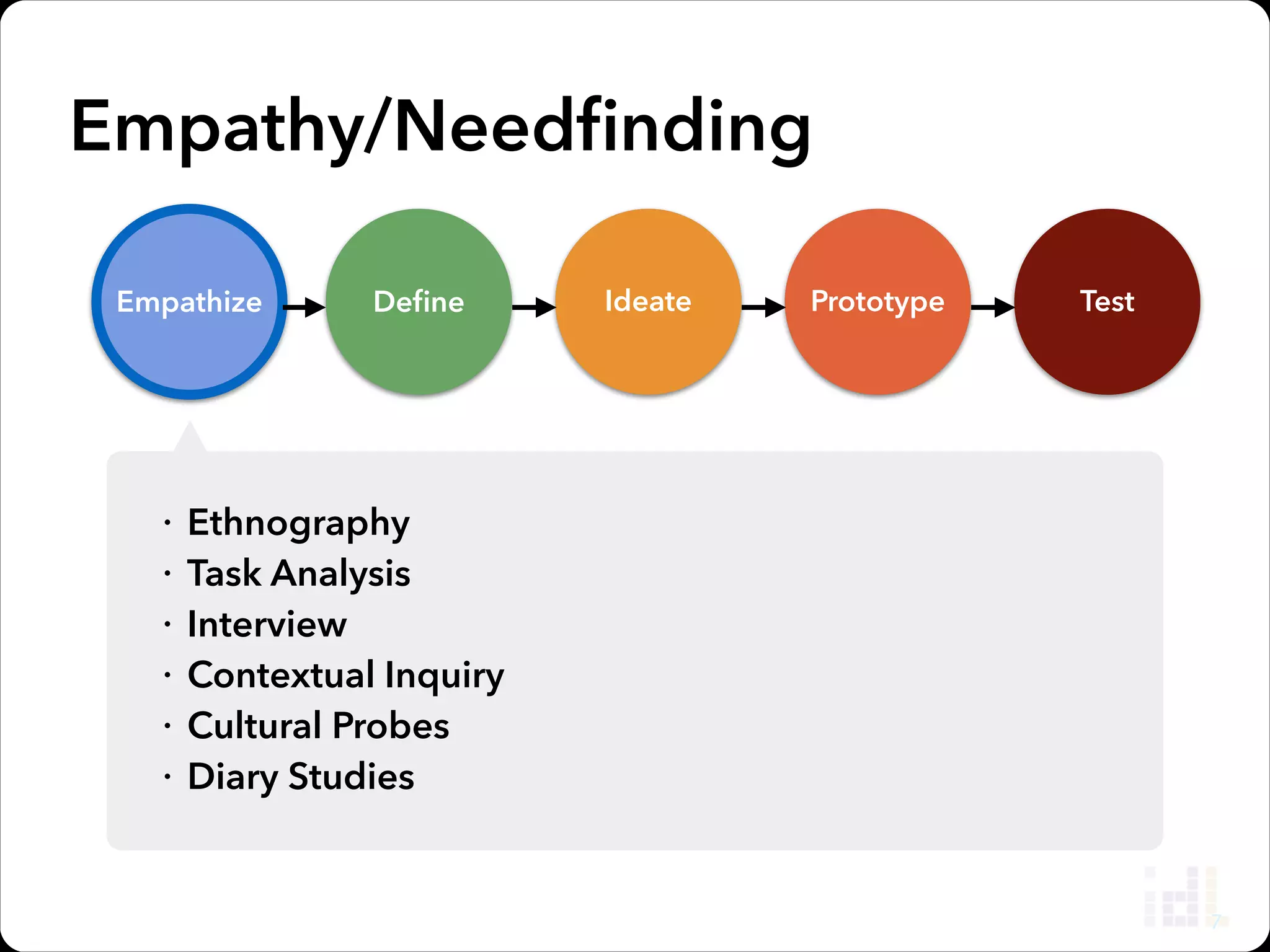

- 10. Empathy/Needfinding Empathize ž ž ž ž ž ž 10 Define Ethnography Task Analysis Interview Contextual Inquiry CulturalProbes Diary Studies Ideate Prototype Test

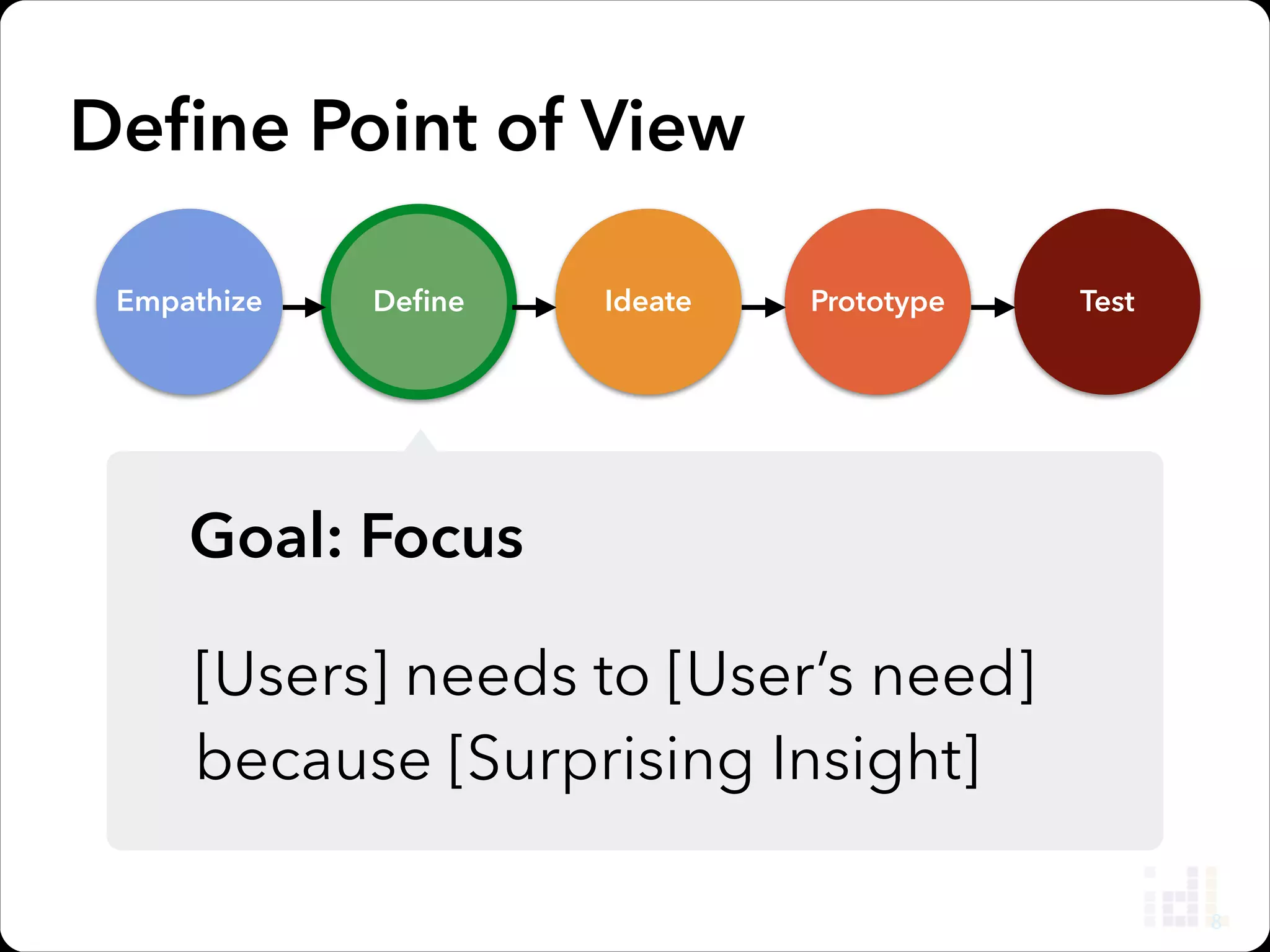

- 11. Define Point ofView Empathize Define Ideate Prototype Goal: Focus [Users] needs to [User’s need] because [Surprising Insight] 11 Test

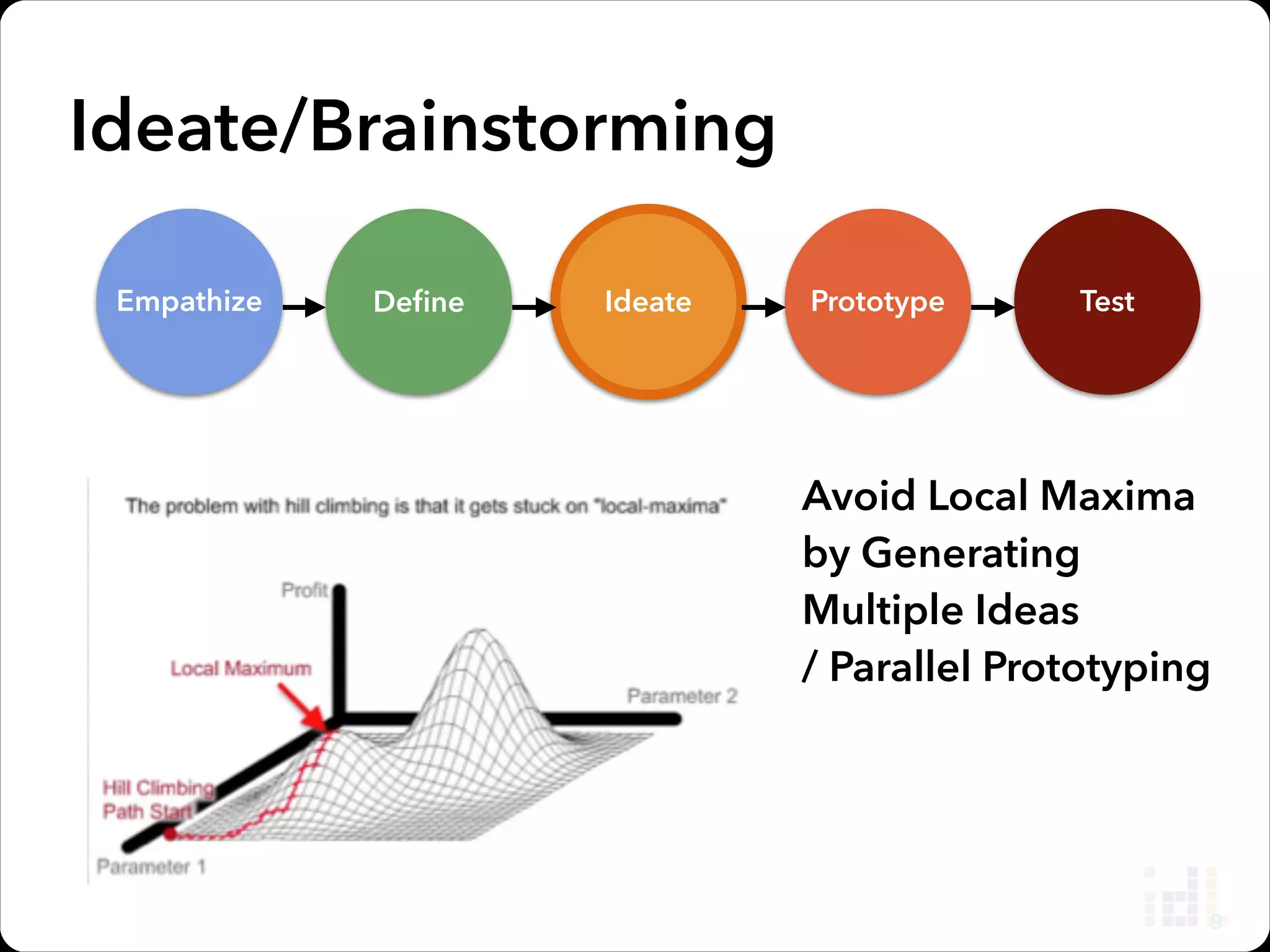

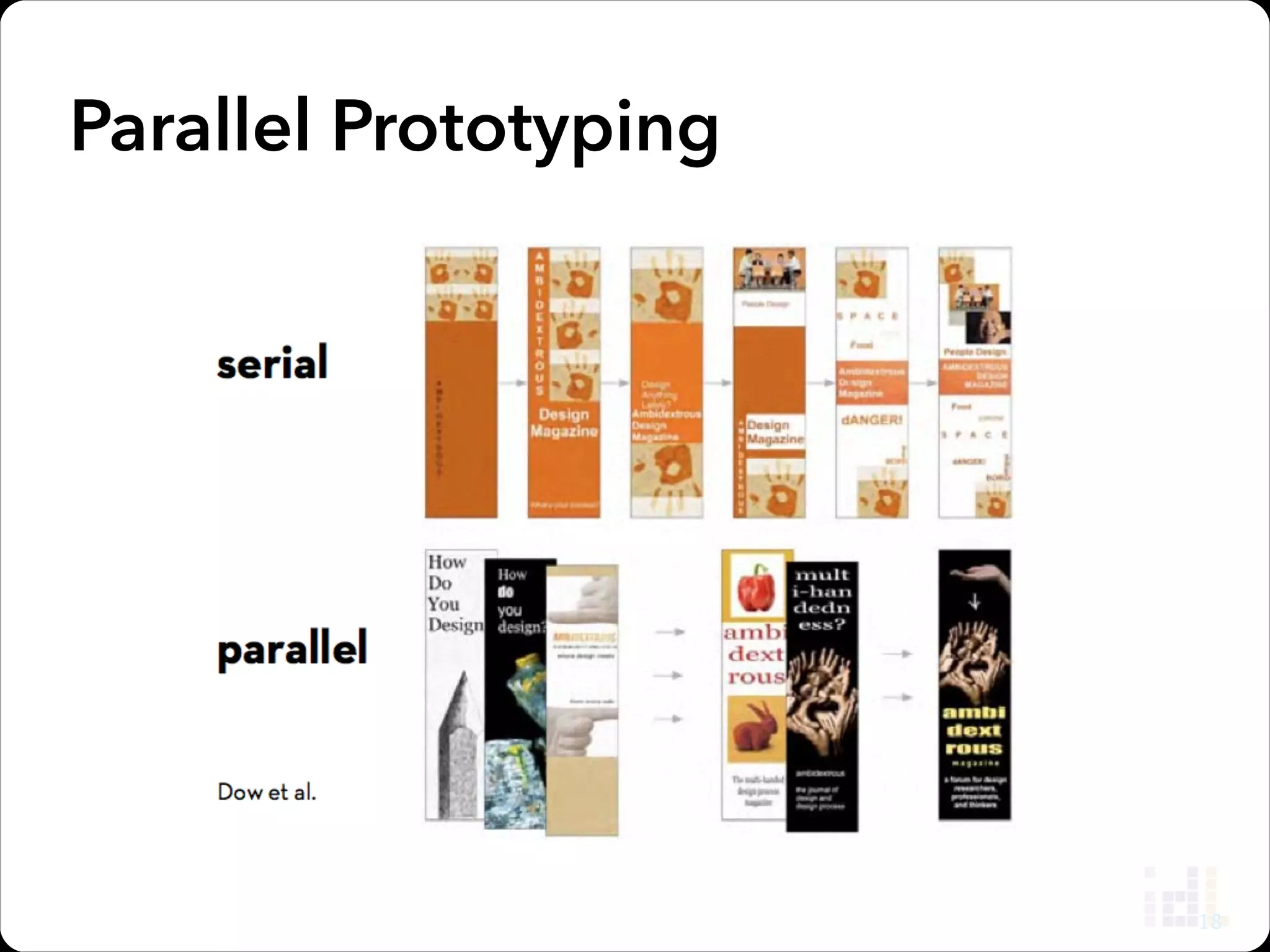

- 12. Ideate/Brainstorming Empathize Define Ideate Prototype Test Avoid Local Maxima byGenerating Multiple Ideas / Parallel Prototyping 12

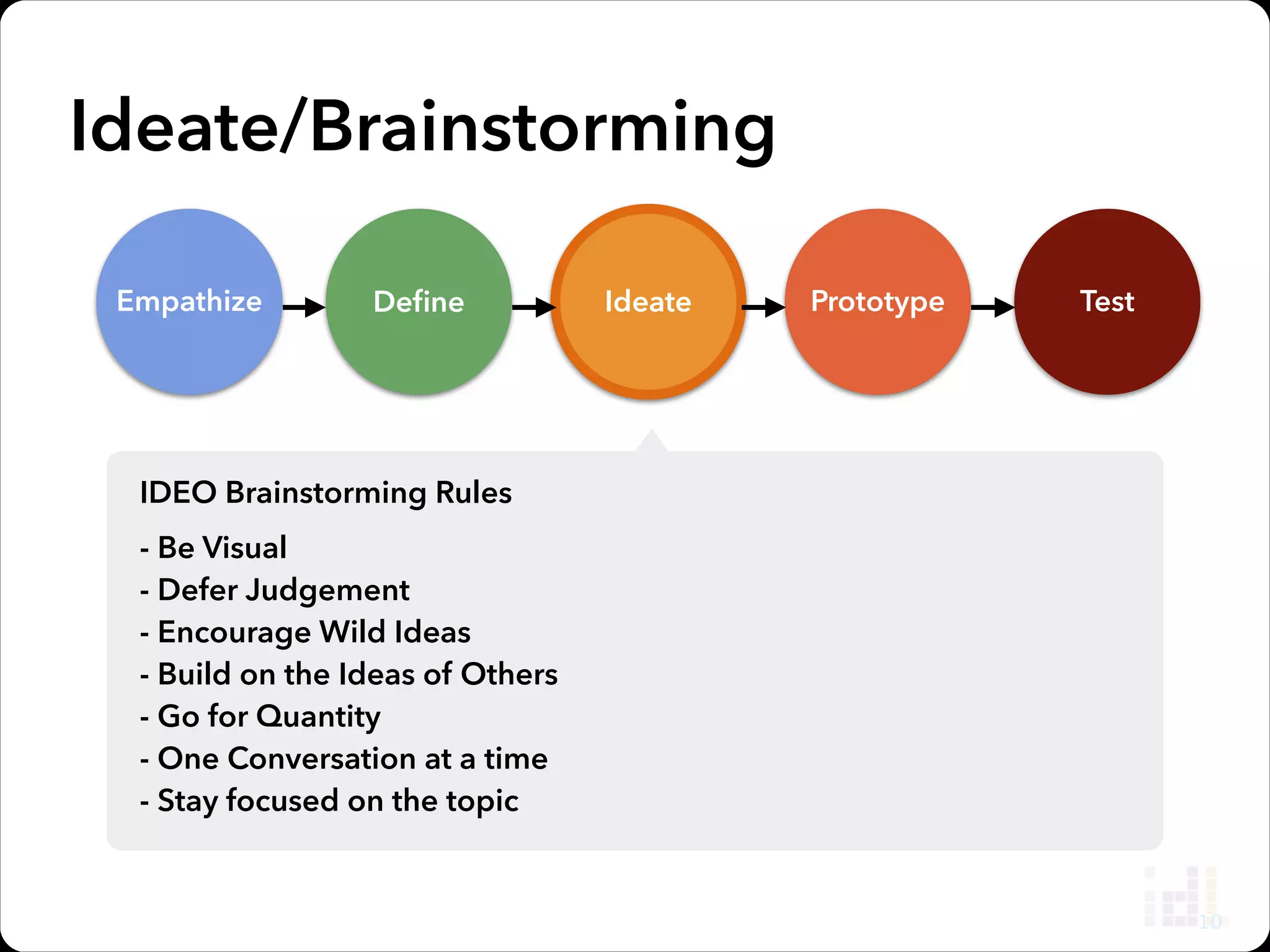

- 13. Ideate/Brainstorming Empathize Define IDEO Brainstorming Rules -Be Visual - Defer Judgement - Encourage Wild Ideas - Build on the Ideas of Others - Go for Quantity - One Conversation at a time - Stay focused on the topic 13 Ideate Prototype Test

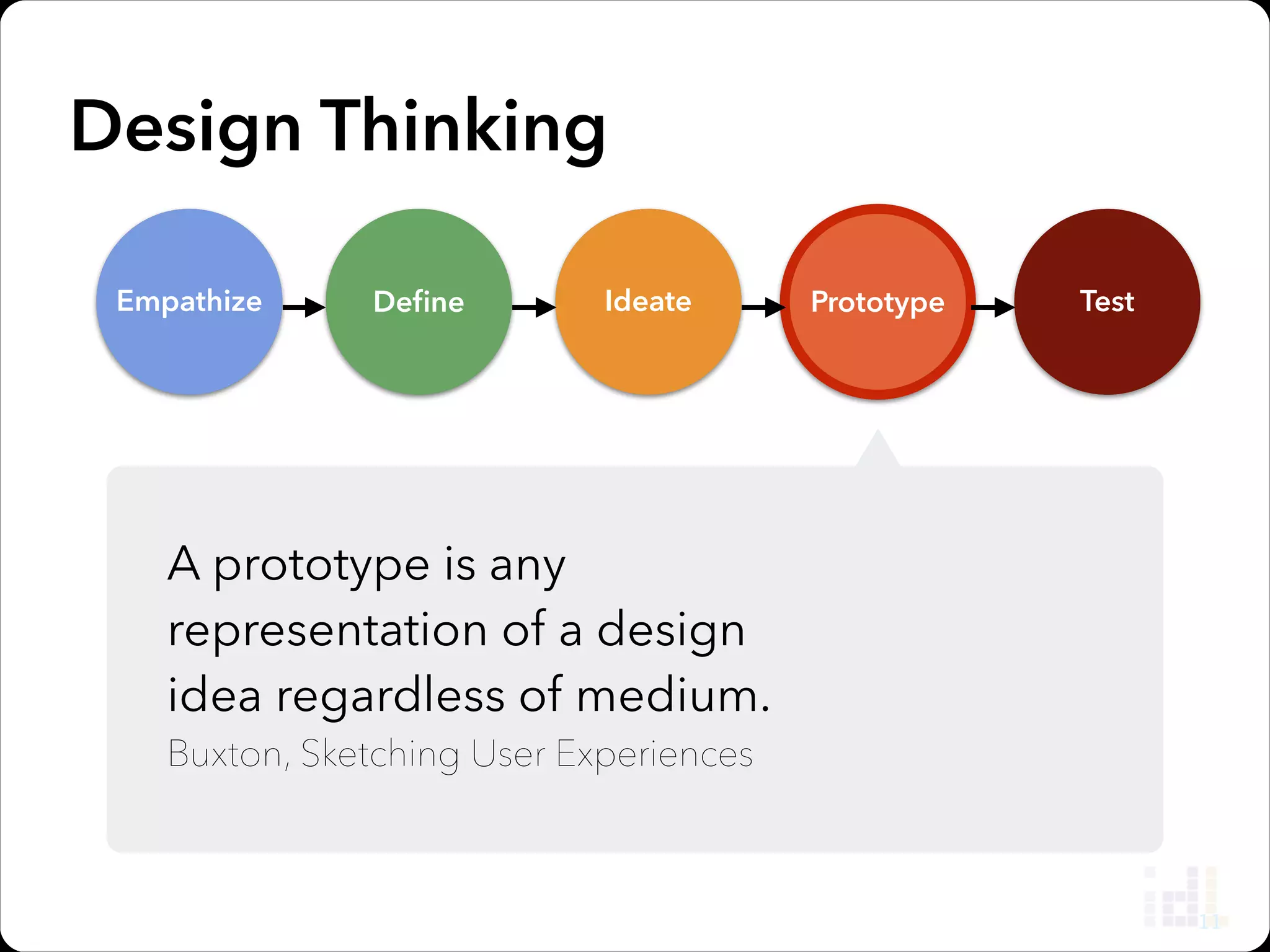

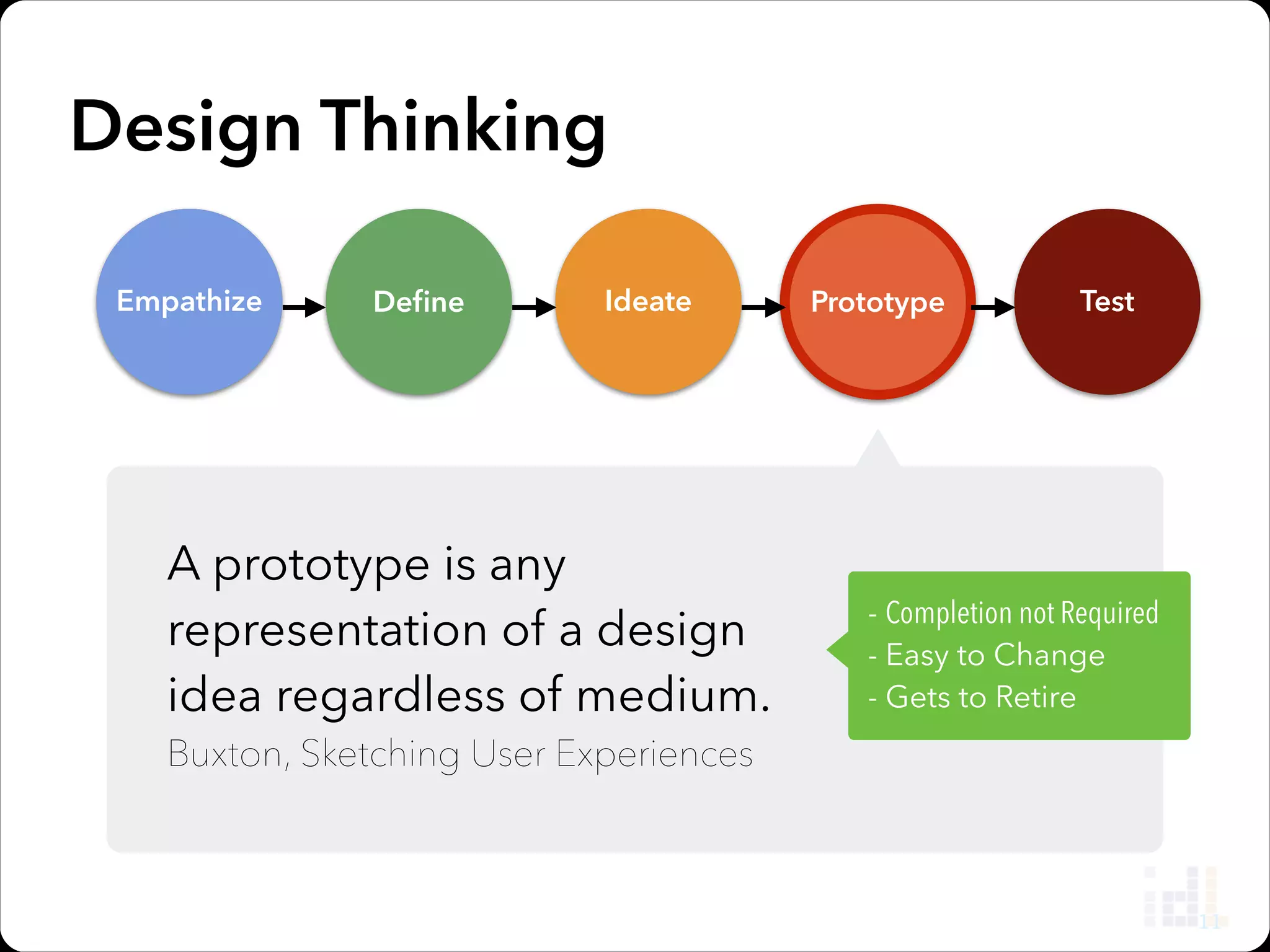

- 14. Design Thinking Empathize Define Ideate A prototypeis any representation of a design idea regardless of medium. Buxton, Sketching User Experiences 14 Prototype Test - Completion not Required - Easy to Change - Gets to Retire

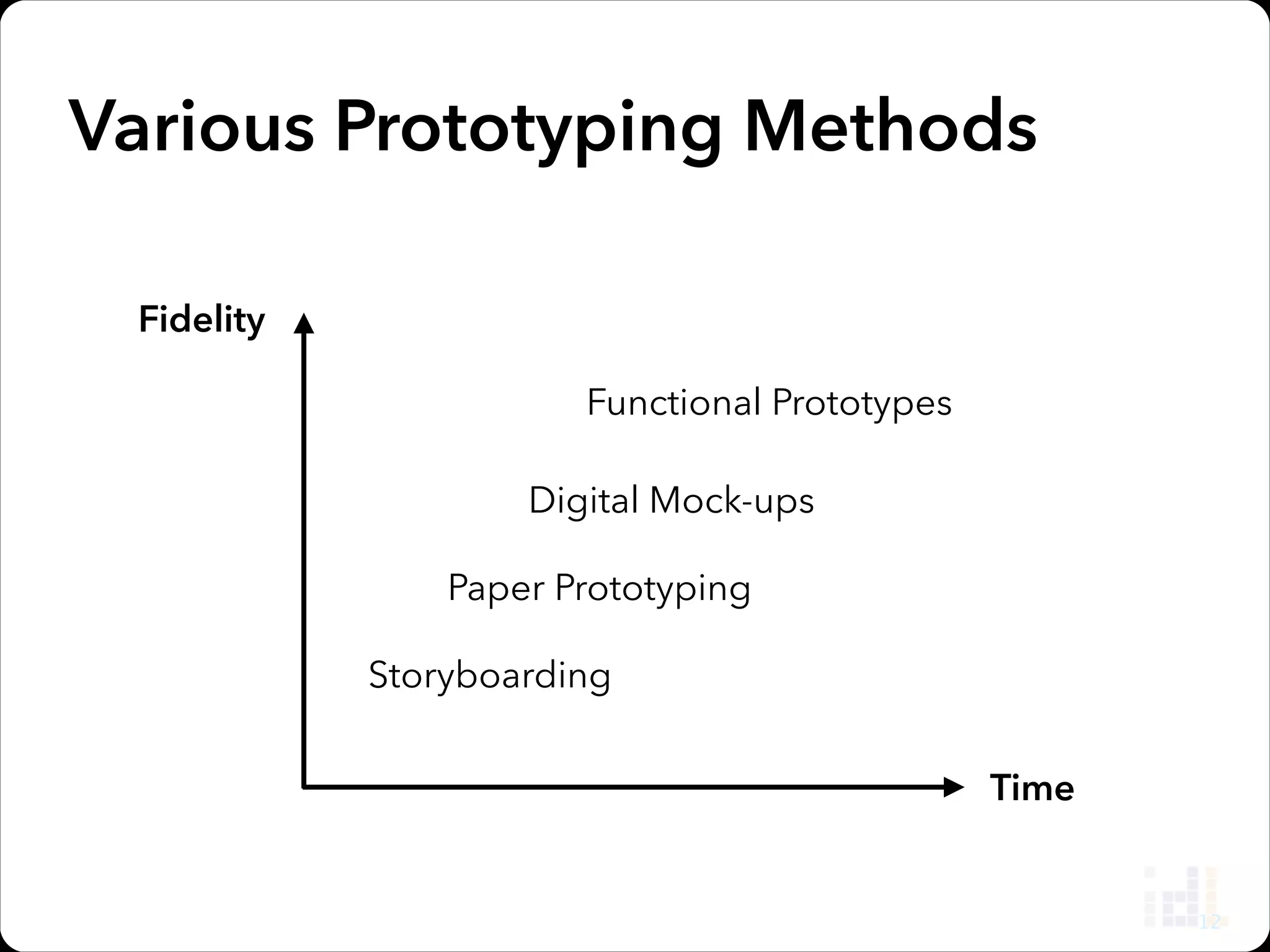

- 15. Various Prototyping Methods Fidelity FunctionalPrototypes Digital Mock-ups Paper Prototyping Storyboarding Time 15

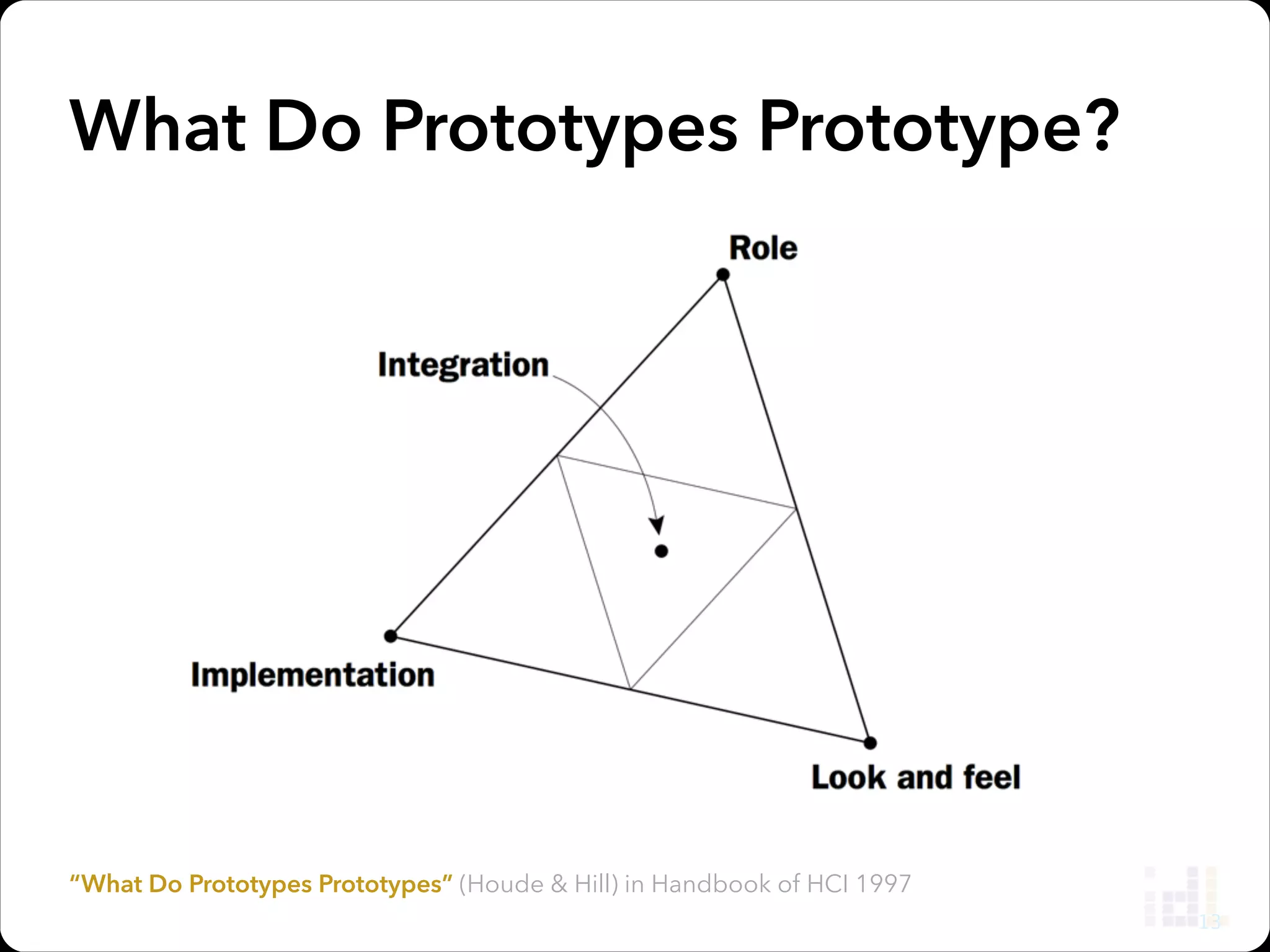

- 16. What Do PrototypesPrototype? “What Do Prototypes Prototypes” (Houde & Hill) in Handbook of HCI 1997 16
- 17.
- 18.

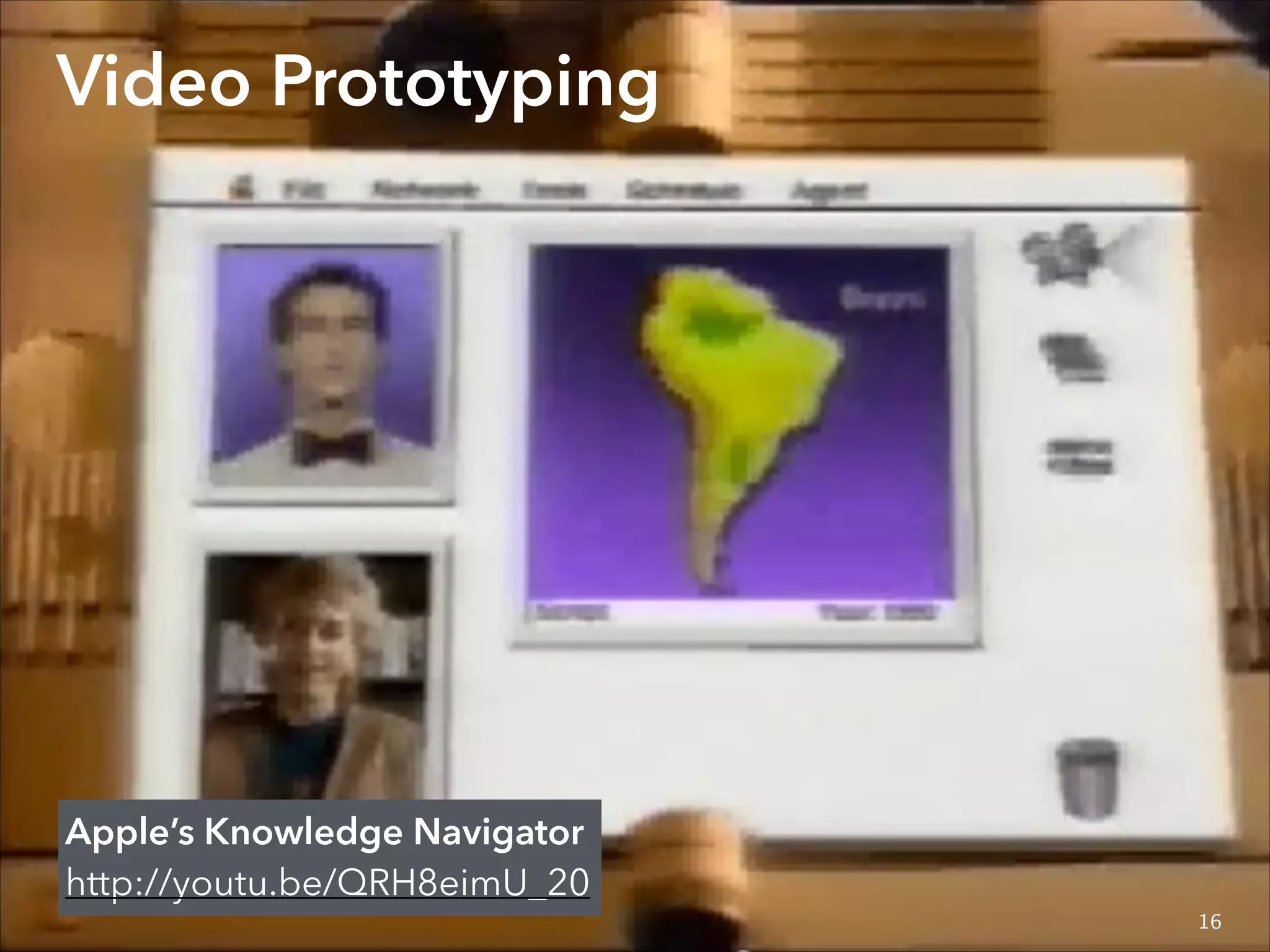

- 19. Video Prototyping Apple’s KnowledgeNavigator http://youtu.be/QRH8eimU_20 19
- 20.
- 21.

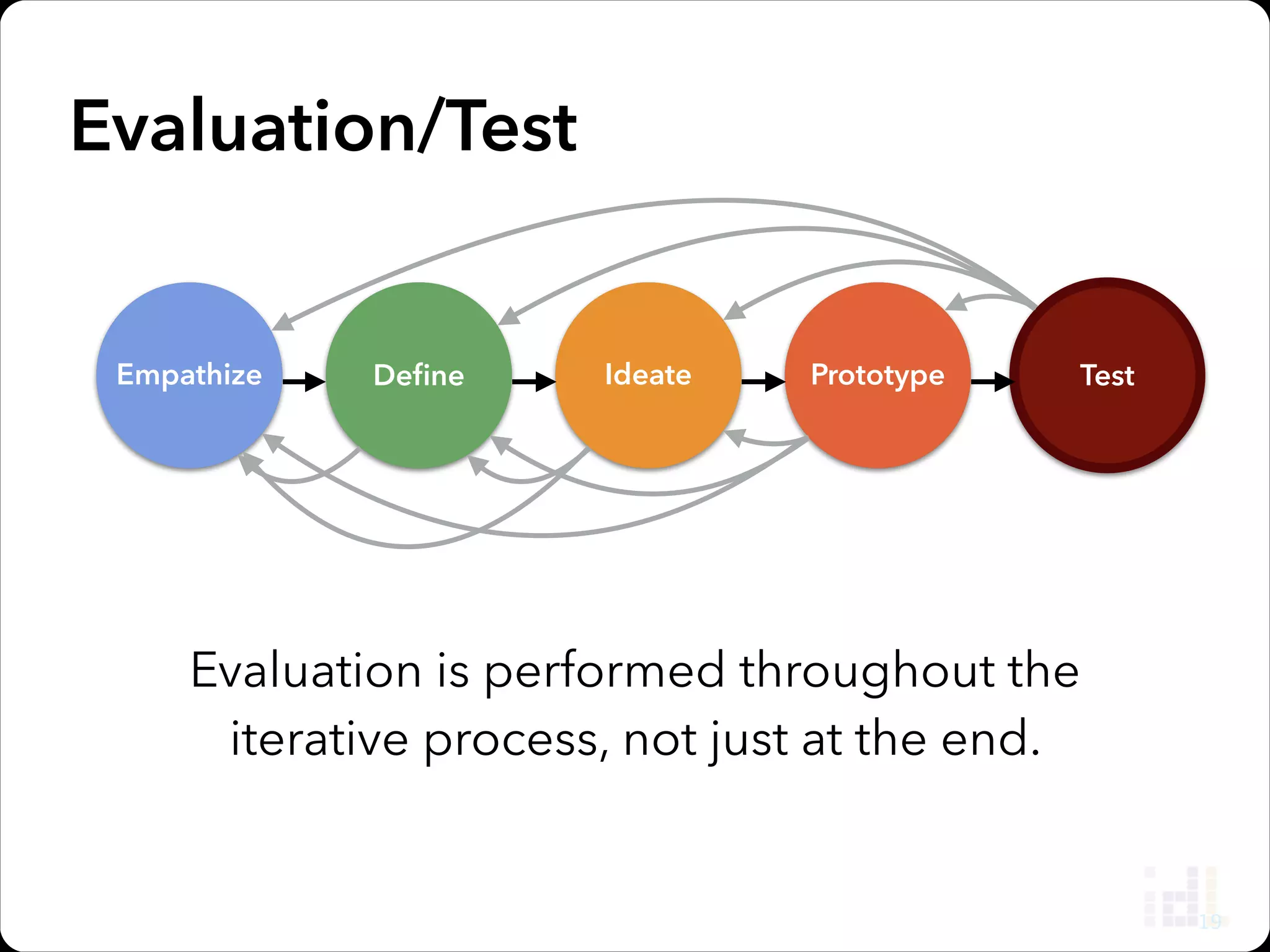

- 22. Evaluation/Test Empathize Define Ideate Prototype Test Evaluation is performedthroughout the iterative process, not just at the end. 22

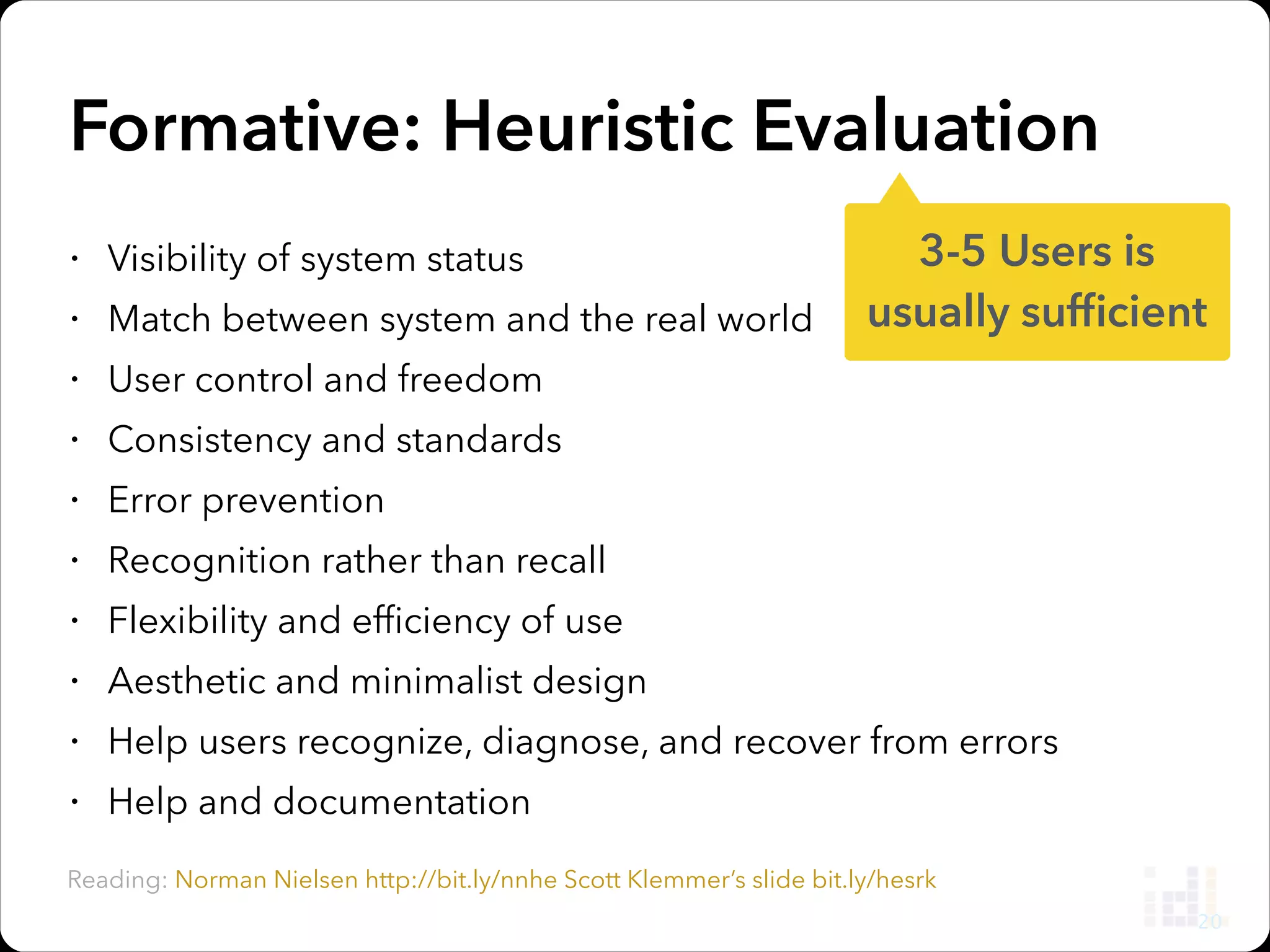

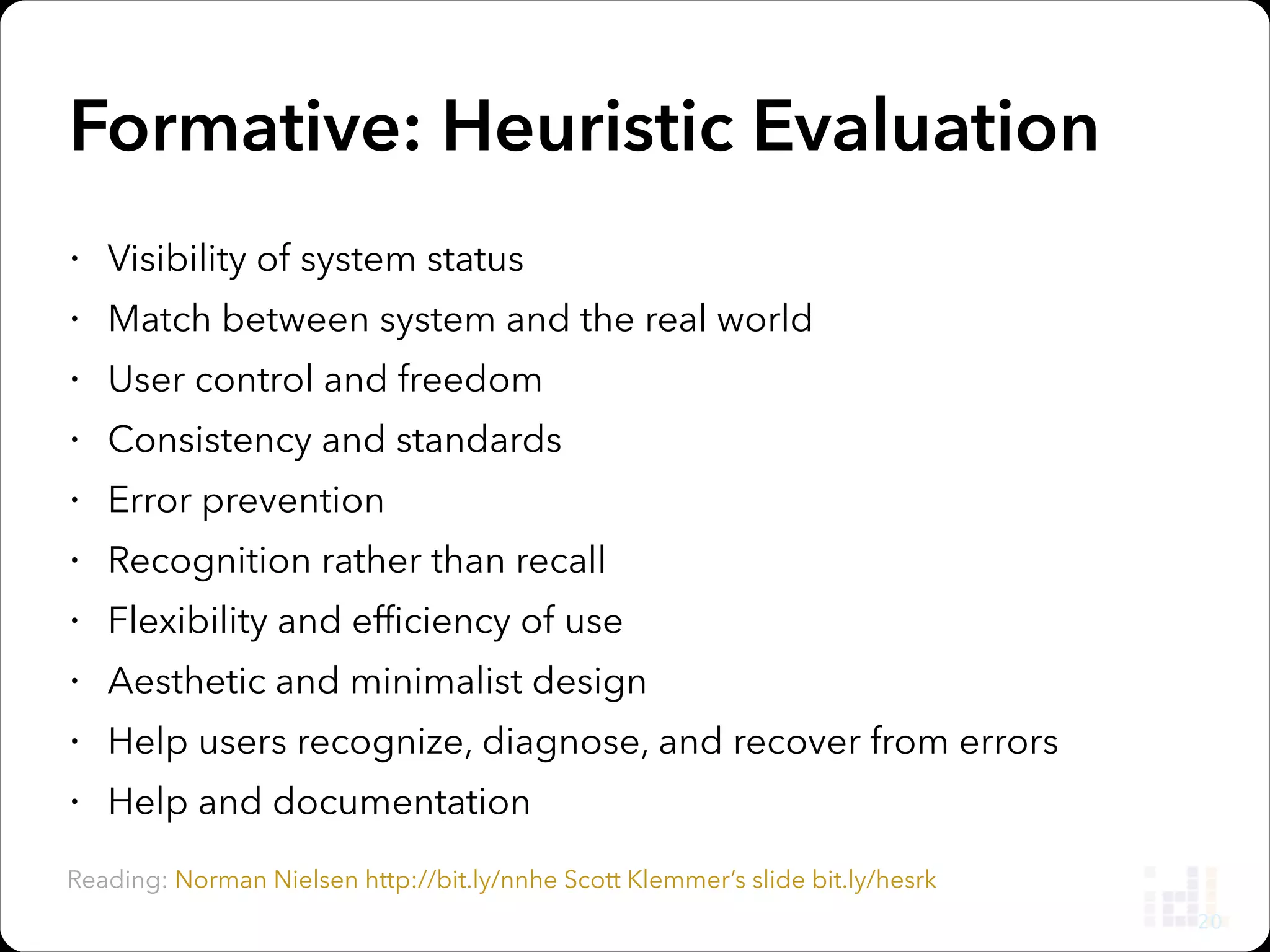

- 23. Formative: Heuristic Evaluation žVisibility of system status ž Match between system and the real world 3-5 Users is usually sufficient ž User control and freedom ž Consistency and standards ž Error prevention ž Recognition rather than recall ž Flexibility and efficiency of use ž Aesthetic and minimalist design ž Help users recognize, diagnose, and recover from errors ž Help and documentation Reading: Norman Nielsen http://bit.ly/nnhe Scott Klemmer’s slide bit.ly/hesrk 23

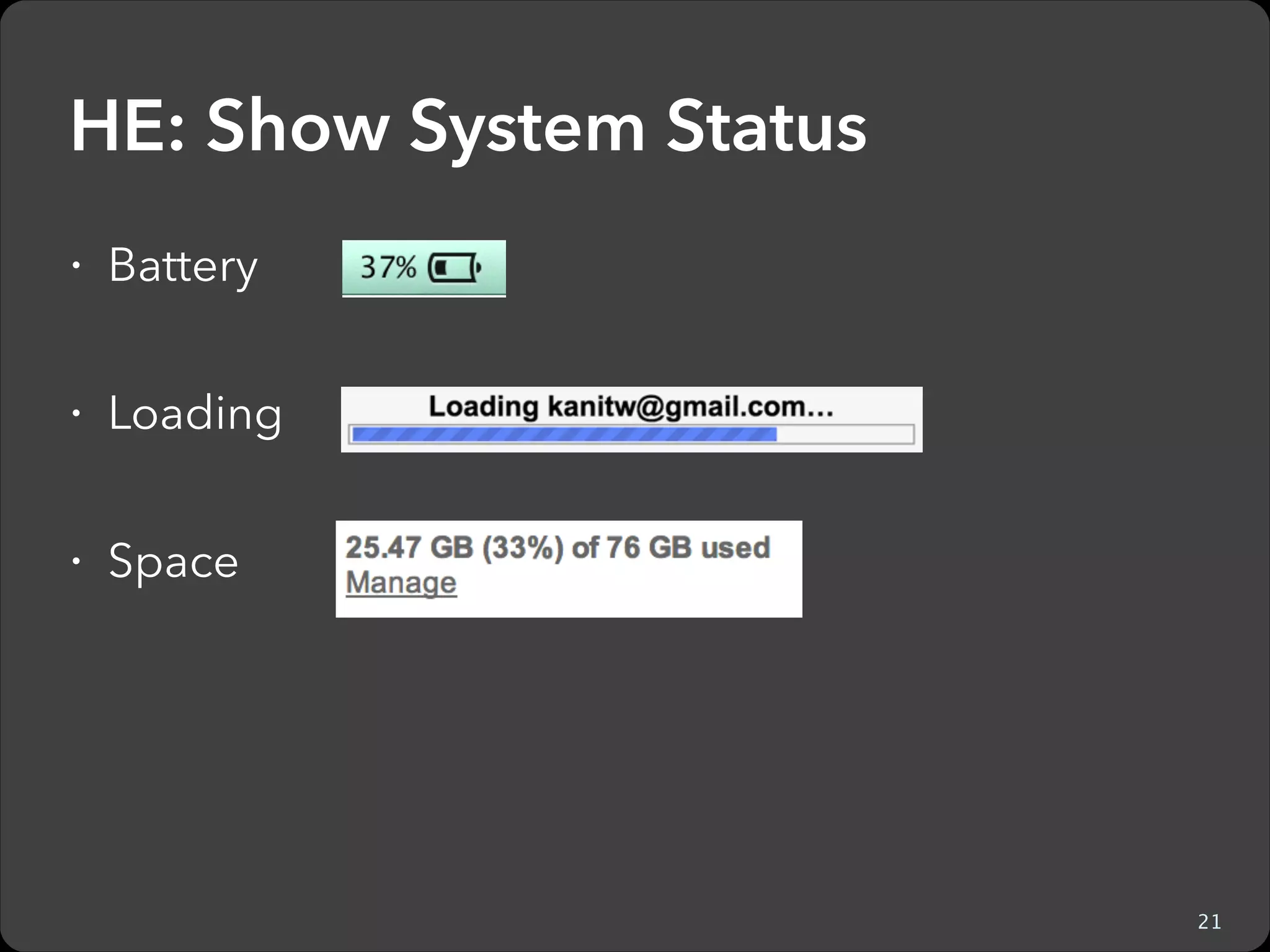

- 24. HE: Show SystemStatus ž Battery ! ž Loading ! ž Space 24

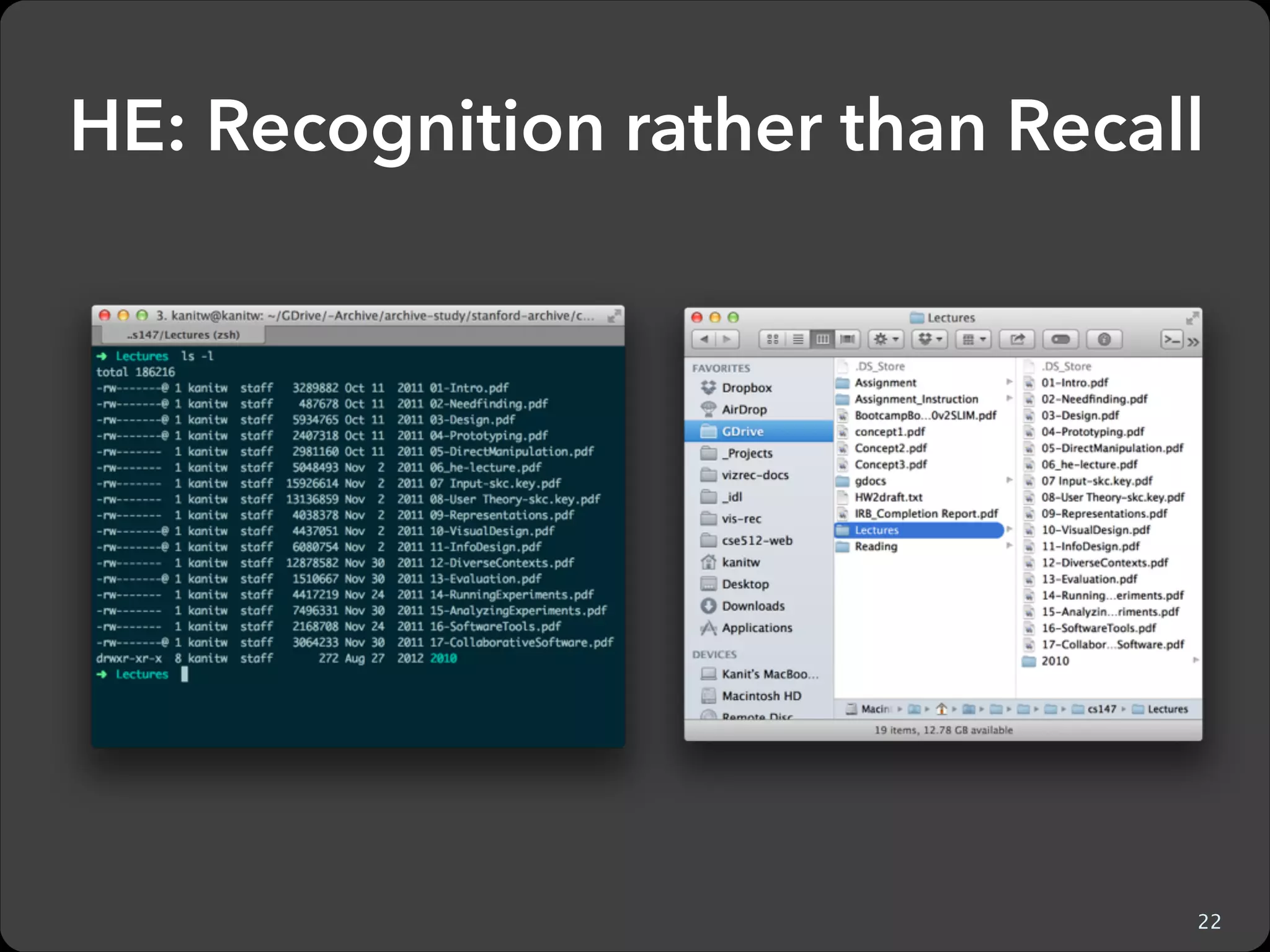

- 25. HE: Recognition ratherthan Recall 25
- 26. Formal Evaluation ž UserStudies, Statistical Testing. Reading: http://bit.ly/doingpsychexp 26

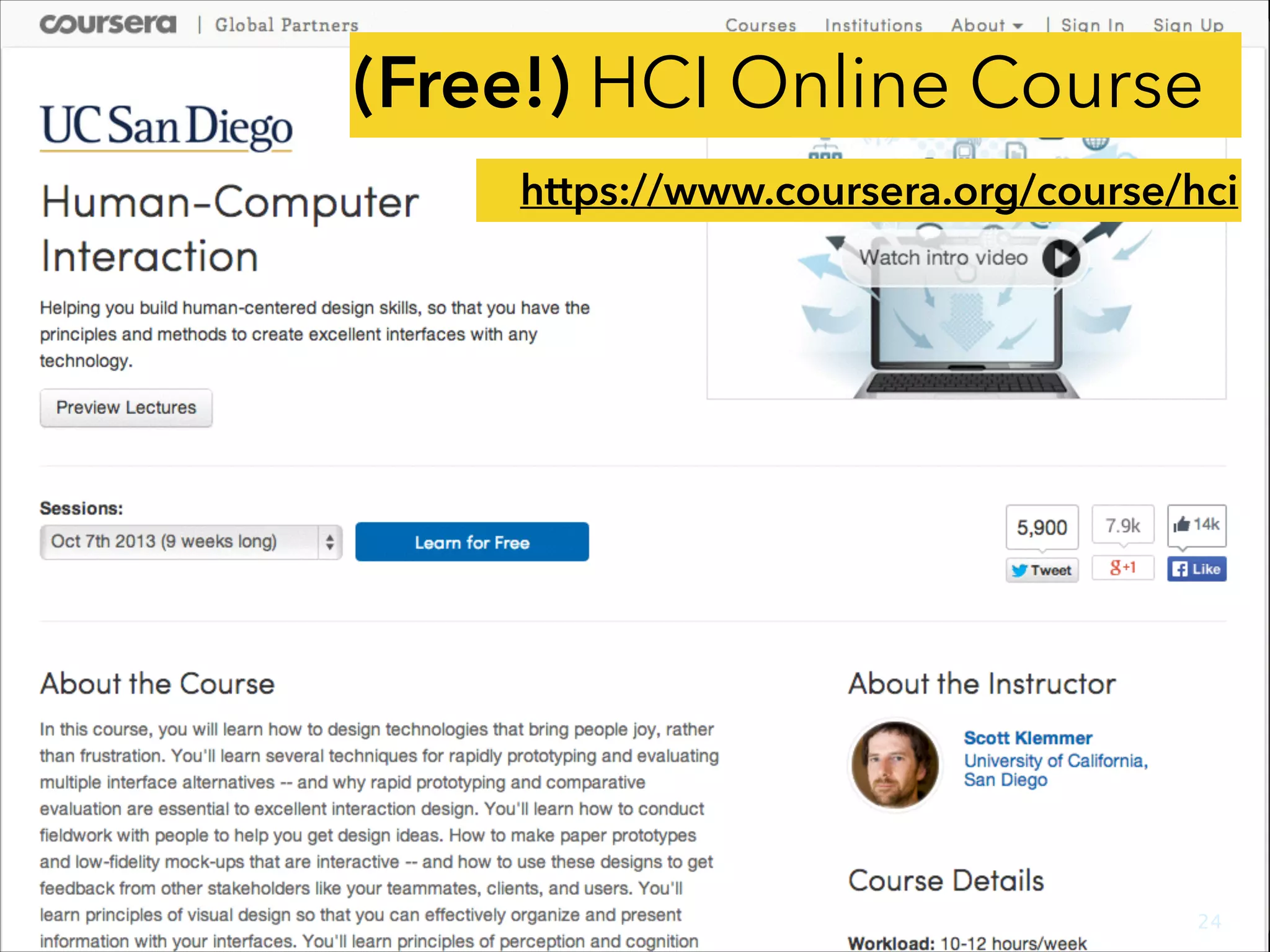

- 27. (Free!) HCI OnlineCourse https://www.coursera.org/course/hci 27

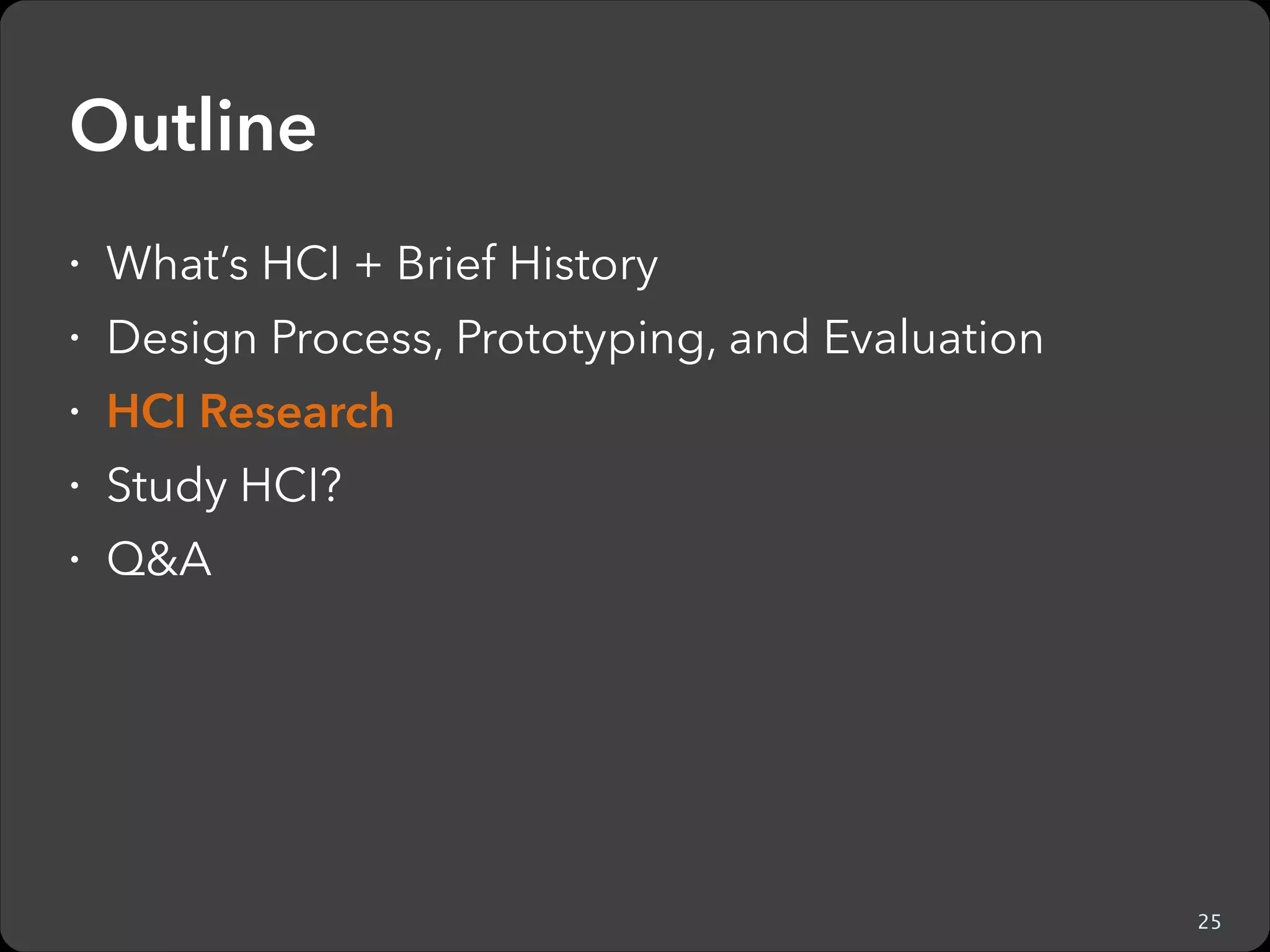

- 28. Outline ž What’s HCI+ Brief History ž Design Process, Prototyping, and Evaluation ž HCI Research ž Study HCI? ž Q&A 28
- 29.

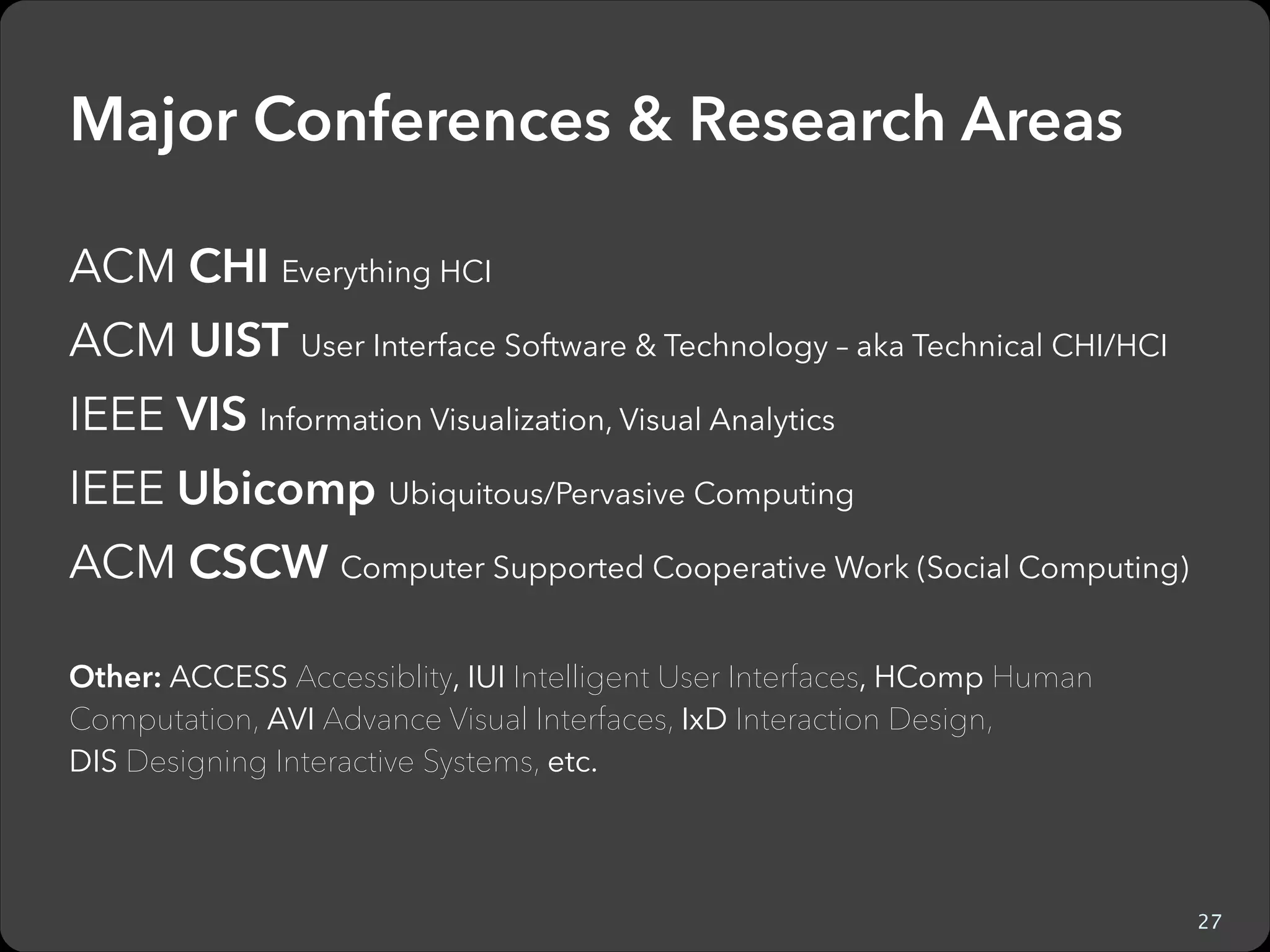

- 30. Major Conferences &Research Areas ACM CHI Everything HCI ACM UIST User Interface Software & Technology – aka Technical CHI/HCI IEEE VIS Information Visualization, Visual Analytics IEEE Ubicomp Ubiquitous/Pervasive Computing ACM CSCW Computer Supported Cooperative Work (Social Computing) ! Other: ACCESS Accessiblity, IUI Intelligent User Interfaces, HComp Human Computation, AVI Advance Visual Interfaces, IxD Interaction Design, DIS Designing Interactive Systems, etc. 30
- 31. UIST: Input Classic Modern Multitouch Future? 31 Vision/Gesture Skinput (Harrison, etal. 2010) http://youtu.be/g3XPUdW9Ryg Images from Wikipedia, shuminzhai.com & chrisharrison.net

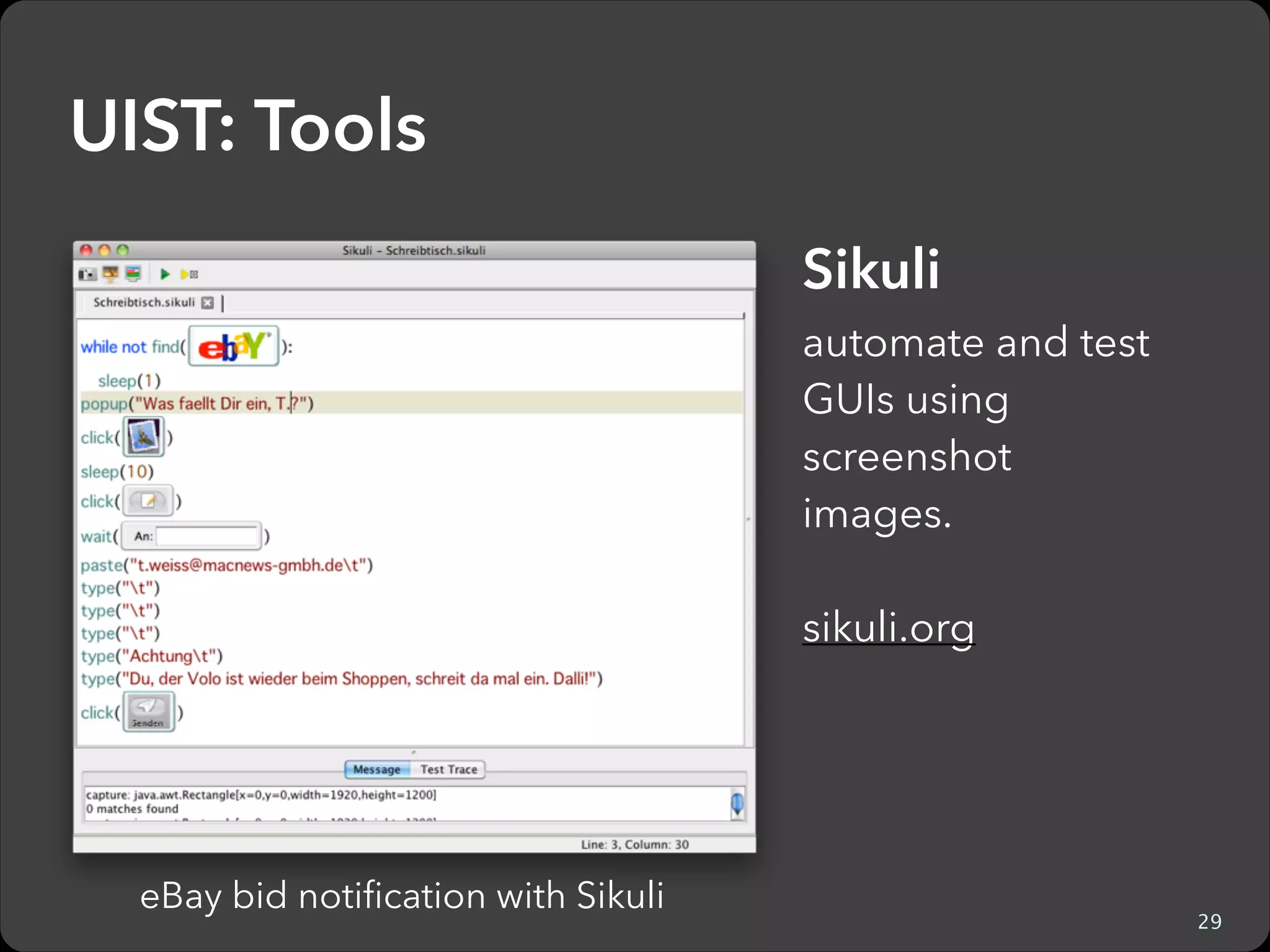

- 32. UIST: Tools Sikuli automate andtest GUIs using screenshot images. ! sikuli.org 32 eBay bid notification with Sikuli
- 33. Ubiquitous Computing Example ofHealth/Persuasive Technology Ubifit Investigating how a ubiquitous, persuasive technology system can encourage individuals to incorporate regular and varied physical activity into their everyday lives ! http://dub.washington.edu/projects/ubifit 33 See ubicomp.org

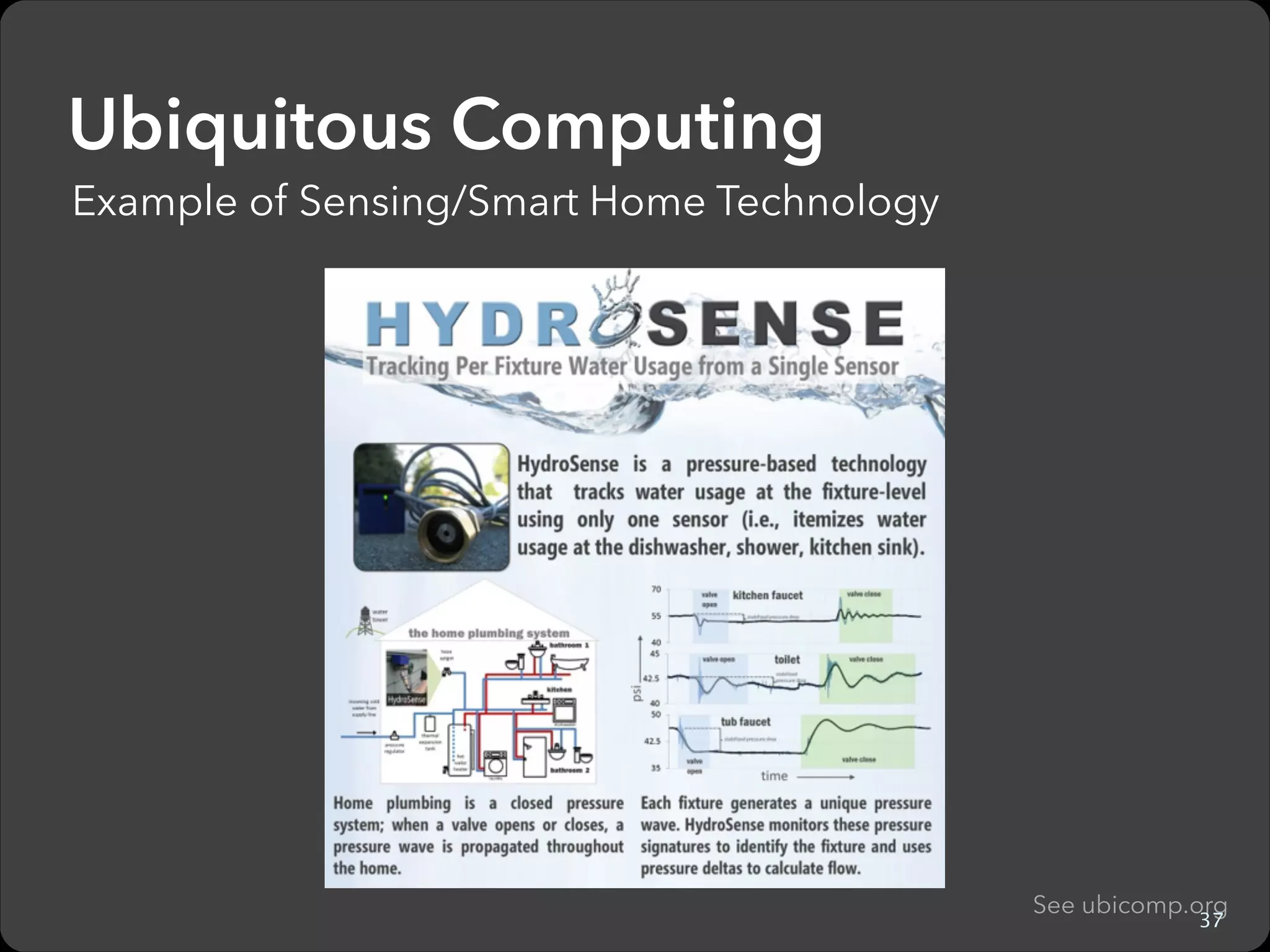

- 34. Ubiquitous Computing Example ofSensing/Smart Home Technology http://ubicomplab.cs.washington.edu/wiki/HydroSense 34
- 35. Social Computing Building Successful OnlineCommunities Kraut & Resnick http://kraut.hciresearch.org/content/books 35 See cscw.acm.org

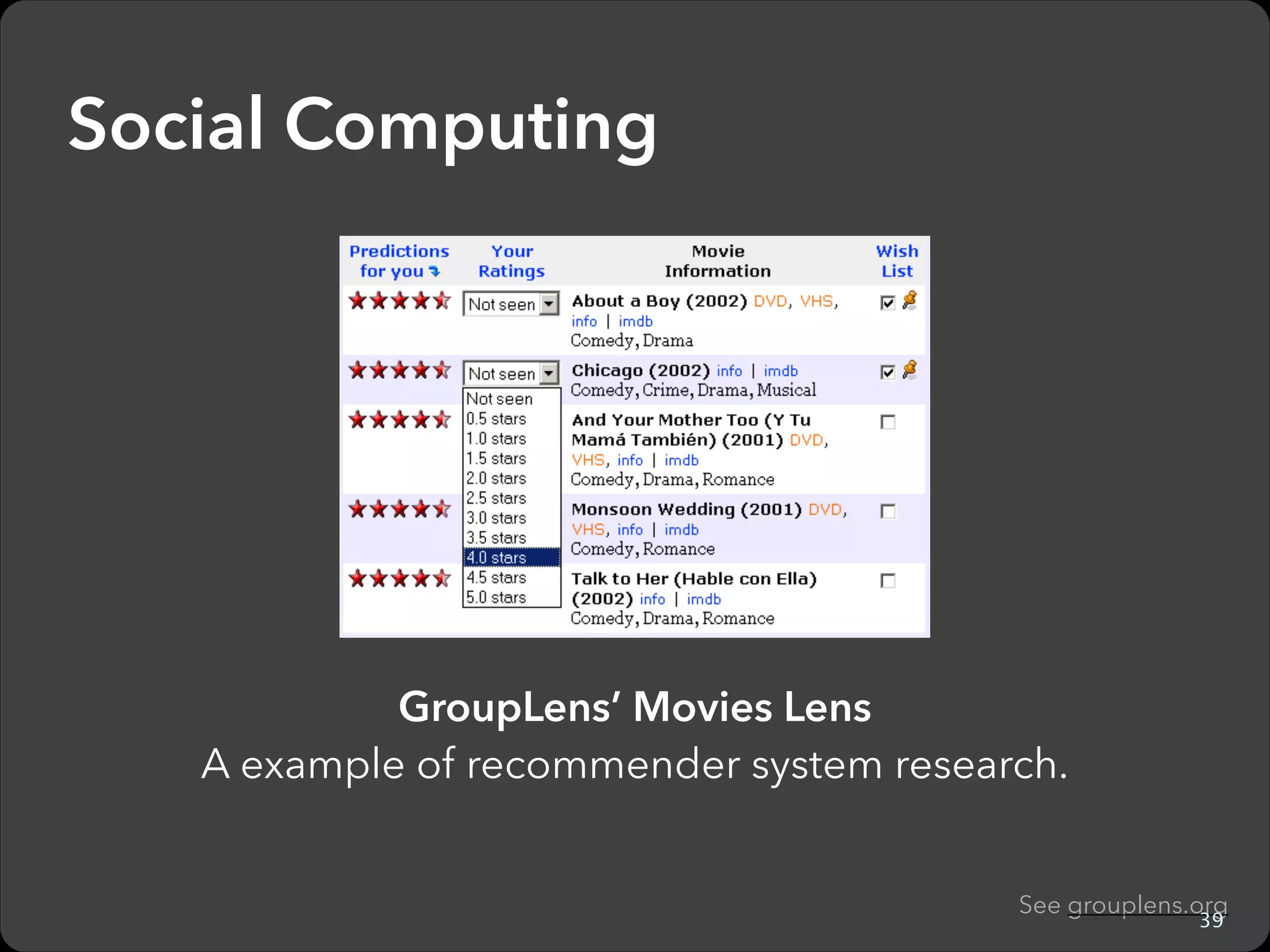

- 36. Social Computing GroupLens’ MoviesLens An example of recommender system research. 36 See grouplens.org
- 37.
- 38.
- 39.
- 40.

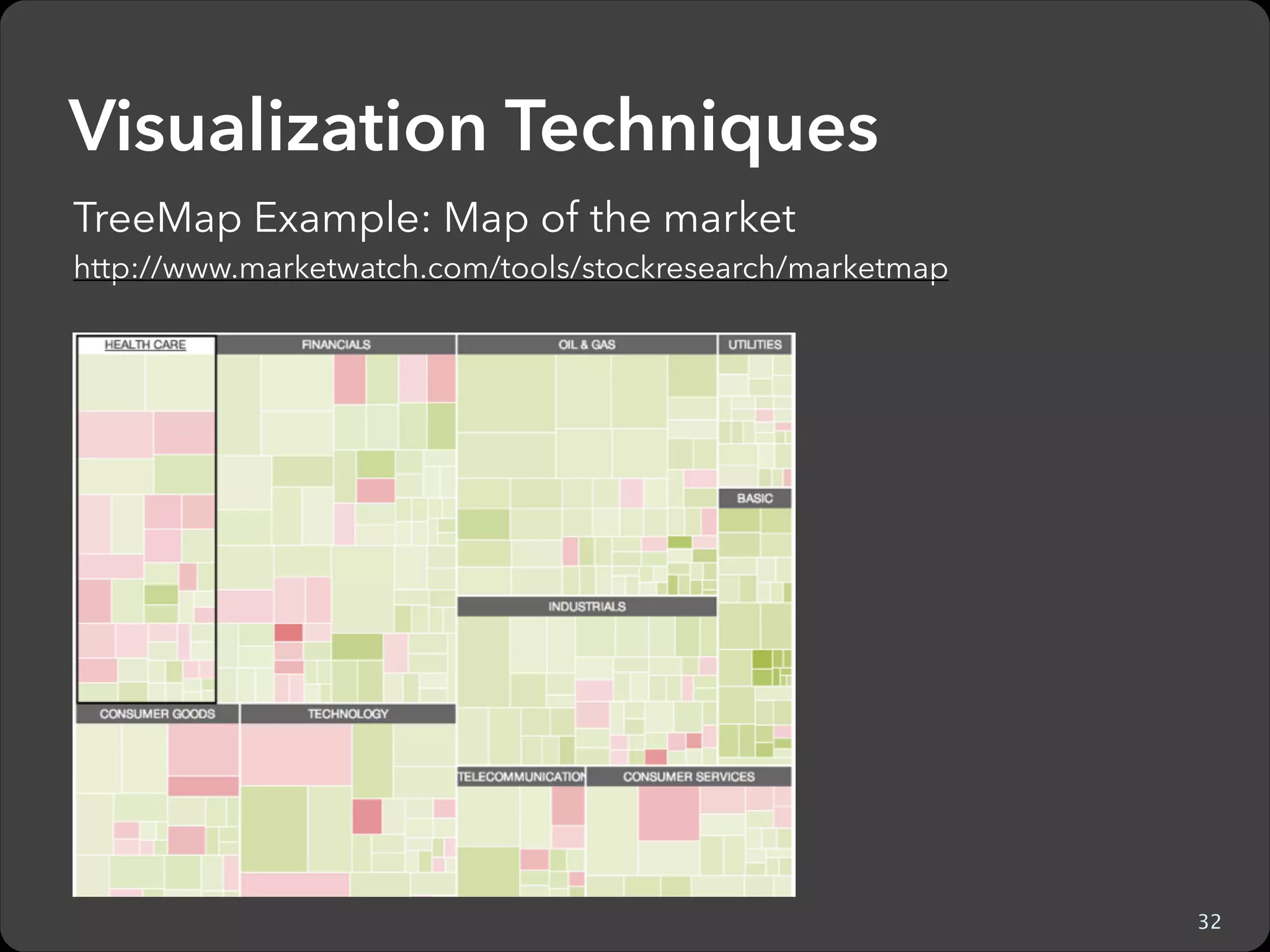

- 41. Visualization Techniques TreeMap Example:Map of the market http://www.marketwatch.com/tools/stockresearch/marketmap 41

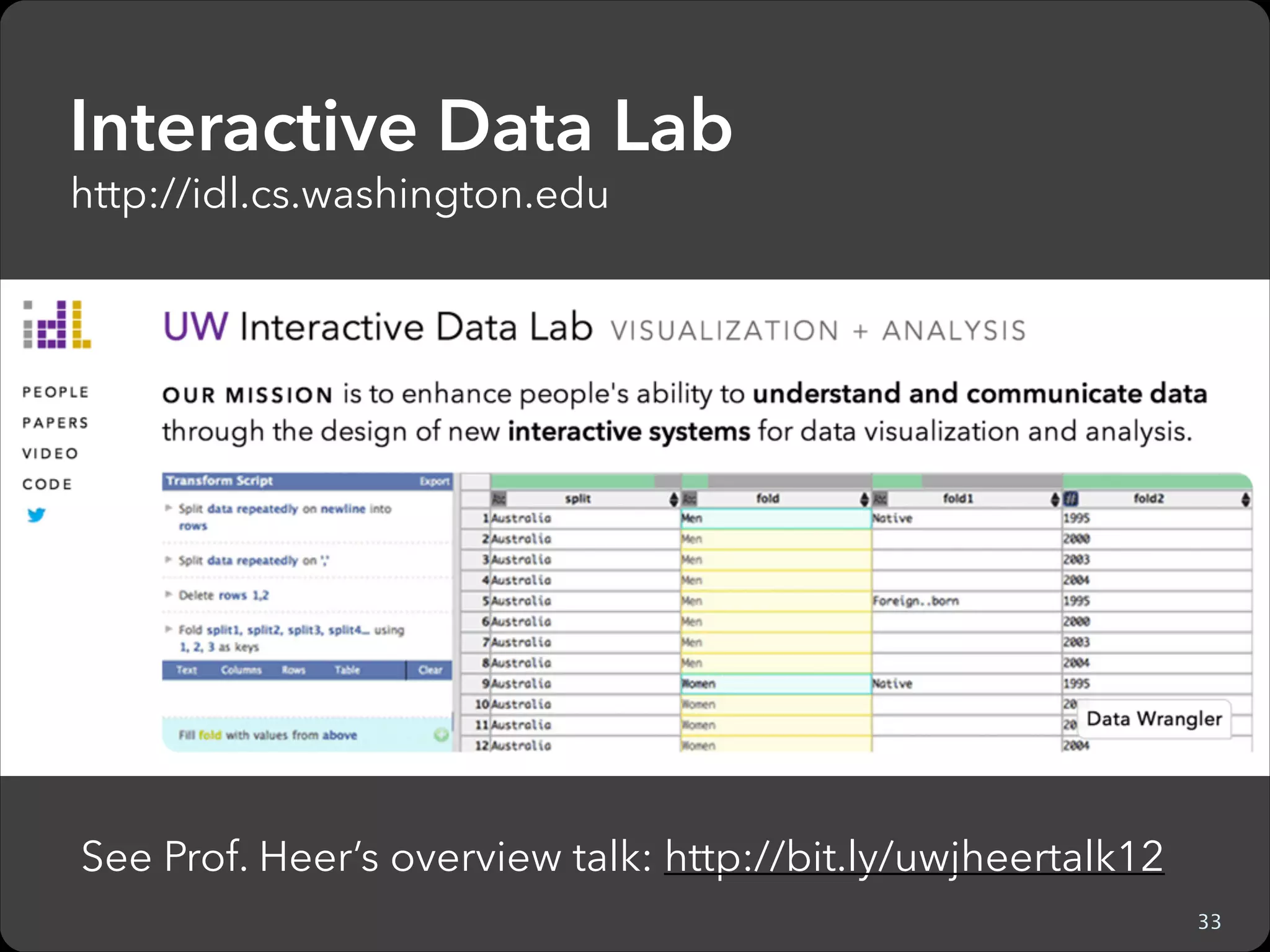

- 42. Interactive Data Lab http://idl.cs.washington.edu ! SeeProf. Heer’s overview talk: http://bit.ly/uwjheertalk12 42
- 43.

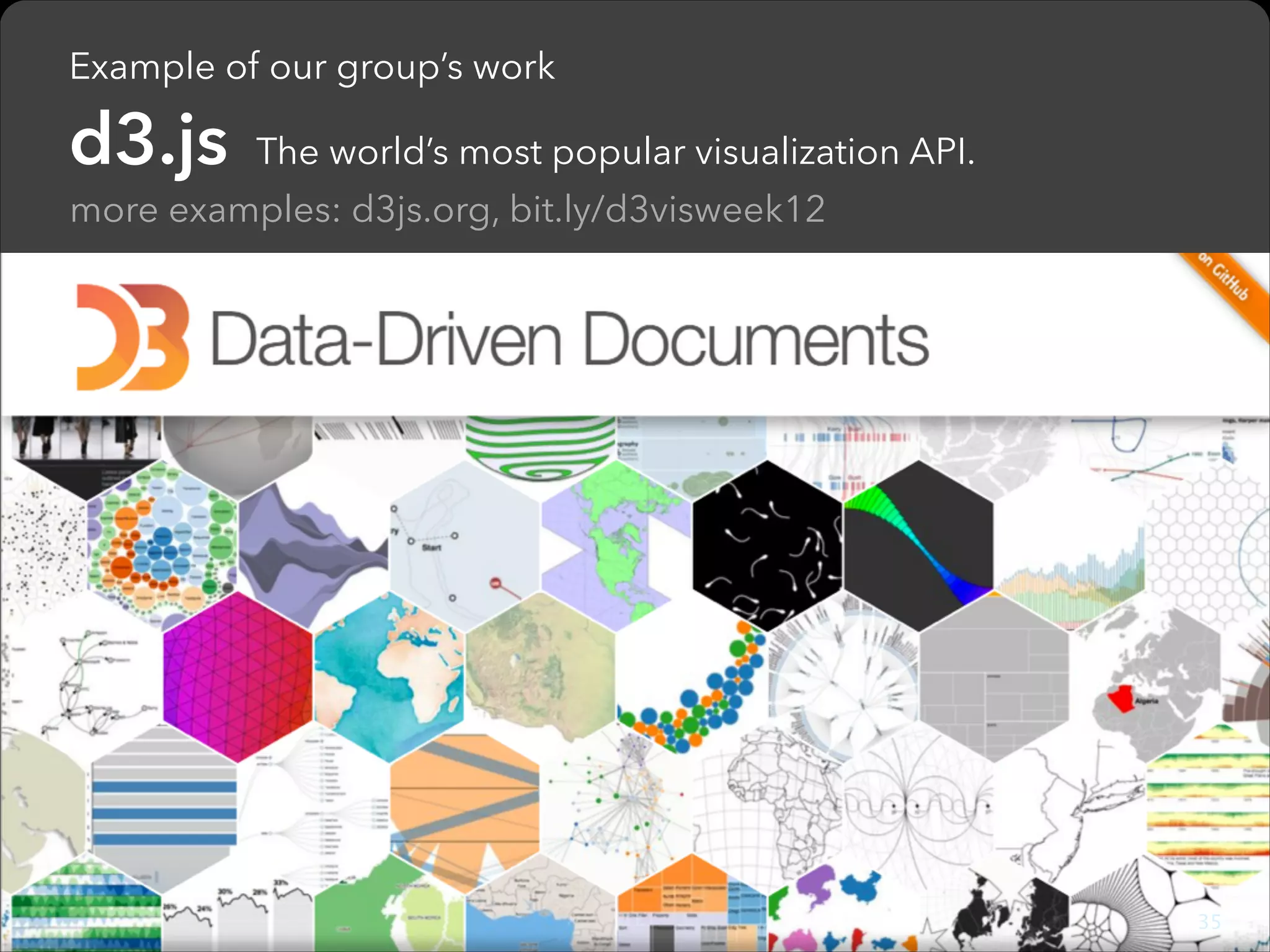

- 44. Example of ourgroup’s work d3.js The world’s most popular visualization API. more examples: d3js.org, bit.ly/d3visweek12 44
- 45. Important Topics NotCovered Today ž Human Information Processing Models ž Direct Manipulation ž Task Analysis ž Error & User Control ž Visual, Information Design ž Front-end Engineering Patterns e.g. MVC ž Software Tools 45
- 46. Other Relevant ResearchAreas ž Accessibility ž Learning Science, Computer Supported Learning ž Interactive Machine Learning ž Methods, Models, Process ž Information & Communication Technology for Development (ICTD) 46
- 47. Outline ž What’s HCI+ Brief History ž Design Process, Prototyping, and Evaluation ž HCI Research ž Study HCI? ž Q&A 47
- 48. Who studied HCI? žProduct Managers, Front End Engineer, UI/UX Designers, User Researchers ž Famous People Larry Page Founder/CEO Google Marissa Mayer Yahoo CEO Mike Krieger Instagram Founder **HCI is currently the most popular undergraduate track in Computer Science at Stanford! ** 48
- 49. Learning more aboutHCI ž HCI Online (coursera.com) ž Read Design of Everyday Things, Sketching User Experience ž Watch Videos ž Seminars: cs547.stanford.edu, dub.washington.edu ž Job Talks of new professors ž research.microsoft.com/apps/catalog/default.aspx?t=videos ž https://www.cs.washington.edu/events/colloquia ž Read Classic Papers 49
- 50. HCI in GraduateSchools ž Common: Computer Science, Information Science ž Other: ž HCI e.g CMU ž Human-centered Computing/Engineering e.g. UW HCDE, GATech HCC ž Cognitive Science e.g. UCSD, Symbolic System e.g. Stanford, MIT MediaLab ž Psychology, Communication e.g. NYU ITP, Education/Learning Science e.g. Stanford LST, Design e.g. CMU, UW http://en.wikipedia.org/wiki/List_of_schools_offering_interaction_design_programs 50
- 51. PhD Programs ž Areyou a builder or an analyst? (not necessarily boolean) ž Top Places for HCI (IMHO): ž “Big HCI School”: Washington CSE, iSchool, HCDE CMU HCII, GATech HCC ž “Top Ranked CS with smaller HCI group(s)”: Berkeley EECS & iSchool, Stanford CS, MIT EECS ž MIT Medialab, Cornell InfoSci, UCSD CogSci, UMich iSchool, UMD CS & iSchool, UIUC CS, Toronto CS, UC Irvine ICS See discussion on Quora: http://qr.ae/Gcmvy 51
- 52. Masters Program I don’thave complete info, but here are some good programs (IMHO): CMU HCII, Stanford CS/Symsys/LDT, Washington HCID, HCDE, GATech HCC, Berkeley EECS, Cornell iSchool, UMich iSchool, MIT Medialab, UMD CS & iSchool, UIUC CS 52 Note: There are new programs every few years See discussion on Quora: http://qr.ae/Gcmvy
- 53. Brief Introduction toHCI ž What’s HCI + Brief History ž Design Process, Prototyping, and Evaluation ž HCI Research ž Study HCI? ž Q&A Kanit “Ham” Wongsuphasawat @kanitw, kanitw[at]gmail.com http://kanitw.yellowpigz.com See these slides online: bit.ly/hamintrohci 53
