![Query
Language Azure Stream Analytics offers a SQL-like query language for
performing transformations and computations over streams of events.
SELECT *
INTO [YourOutputAlias]
FROM [YourInputAlias]
33](https://image.slidesharecdn.com/introductiontoasa-190916152046/85/Introduction-to-Azure-Stream-Analytics-31-320.jpg)
Uploaded bySlava Kokaev
Introduction to Azure Stream Analytics
This document provides an introduction and overview of Azure Stream Analytics presented by Slava Kokaev. The summary includes: - Slava Kokaev introduces Azure Stream Analytics and discusses its key capabilities including ease of use, low cost, reliability, connectivity, ability to join streams with reference data, and scalability. - The architecture of Azure Stream Analytics is explained, including how it connects to data sources like Event Hubs and outputs data to services like Power BI. Stream analytics jobs have inputs, queries to transform data, and outputs. - The presentation covers the Stream Analytics query language and temporal windows like tumbling, hopping, and sliding windows that can be used to analyze streaming data.
More Related Content
Similar to Introduction to Azure Stream Analytics
![[WSO2Con EU 2018] Streaming SQL in the Real World](https://cdn.slidesharecdn.com/ss_thumbnails/wso2coneu2018streamingsqlintherealworld-181113090808-thumbnail.jpg?width=640&height=640&fit=bounds)
Introduction to Azure Stream Analytics
- 1. BBIUG BOSTON Boston Business IntelligenceUser Group – bostonbi.org
- 2. INTRODUCTION TO CIS: SlavaKokaev Boston Business Intelligence User Group AZURE STREAM ANALYTICS
- 3. Welcome! Thank youfor coming Today! 3 Boston Azure Cloud User Group Let’s Begin Now! a journey of a thousand miles begins with a single step
- 4. About Me Slava Kokaev SolutionArchitect at Slalom Boston Business Intelligence User Group Leader
- 5. Slava Kokaev I ama bit shy but passionate. BI Architect Speaker Mentor Business Intelligence Architect, Mentor and Speaker. I am specializing in Design and Development of the Enterprise Business Intelligence Systems, Intelligent Applications, Real-Time and Big Data Analytic solutions. For the past 8 years as Boston Business Intelligence User Group Leader http://www.meetup.com/Boston-Business-Intelligence/ https://www.linkedin.com/groups/2405400 www.bostonbi.org/blog.aspx @SlavaKokaev vkokaev@gmail.comhttps://www.linkedin.com/in/kokaev
- 6. 1 2 3 4 5 6 Today’s Agenda Introduction Stream Analytics Whatis Stream Analytics and why to use it Time Management Performing transformations and computations over streams of events Key capabilities and benefits Usage, Scalability, Reliability and Cost Architecture High level architecture and brief history Base concepts Brief introduction to event hubs Development process Configure, Develop and Deploy Streaming Solution 6
- 7. Key Takeaways From todayspresentation 7
- 8.
- 9. What is AzureStream Analytics Microsoft Azure Stream Analytics makes it easy to set up real-time analytic computations on data streaming from devices, sensors, web sites, social media, applications, infrastructure systems, and more Azure Stream Analytics (ASA) is a fully managed, real-time event processing engine. 9
- 10.
- 11.
- 12. 12 IoT Identity Protection Data Protection SensorsData Analysis Real-time Fraud Detection Click Stream Analytics What can We use Stream Analytics for? Scenarios of real-time streaming analytics can be found across all industries:

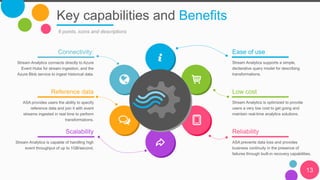

- 13. Key capabilities andBenefits 13 6 points, icons and descriptions Ease of use Stream Analytics supports a simple, declarative query model for describing transformations. Low cost Stream Analytics is optimized to provide users a very low cost to get going and maintain real-time analytics solutions. Reliability ASA prevents data loss and provides business continuity in the presence of failures through built-in recovery capabilities. Connectivity: Stream Analytics connects directly to Azure Event Hubs for stream ingestion, and the Azure Blob service to ingest historical data. Reference data ASA provides users the ability to specify reference data and join it with event streams ingested in real time to perform transformations. Scalability Stream Analytics is capable of handling high event throughput of up to 1GB/second.

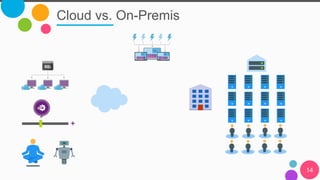

- 14.
- 15.
- 16.

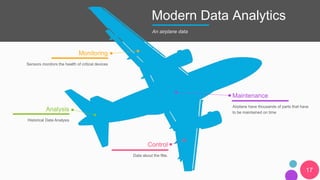

- 17. 17 Modern Data Analytics Monitoring Sensorsmonitors the health of critical devices Analysis Historical Data Analysis Maintenance Airplane have thousands of parts that have to be maintained on time Control Data about the flite. An airplane data

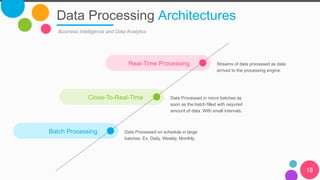

- 18. Close-To-Real-Time Data Processedin micro batches as soon as the batch filled with required amount of data. With small intervals. Data Processing Architectures 18 Business Intelligence and Data Analytics Batch Processing Data Processed on schedule in large batches. Ex. Daily, Weekly, Monthly. Real-Time Processing Streams of data processed as data arrived to the processing engine.

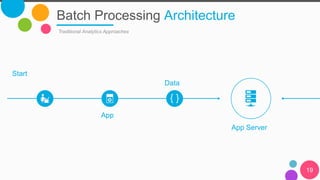

- 19. Batch Processing Architecture TraditionalAnalytics Approaches 19 Start App Data App Server

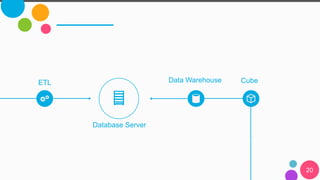

- 20. 20 ETL Data WarehouseCube Database Server
- 21.

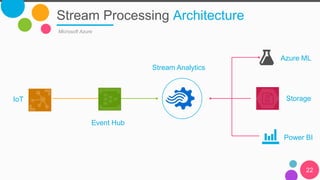

- 22. Stream Processing Architecture MicrosoftAzure 22 IoT Event Hub Stream Analytics Storage Azure ML Power BI

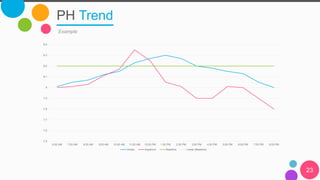

- 23. PH Trend 23 Example 7.5 7.6 7.7 7.8 7.9 8 8.1 8.2 8.3 8.4 6:00 AM7:00 AM 8:00 AM 9:00 AM 10:00 AM 11:00 AM 12:00 PM 1:00 PM 2:00 PM 3:00 PM 4:00 PM 5:00 PM 6:00 PM 7:00 PM 8:00 PM Ocean Aquarium Baseline Linear (Baseline)
- 24.
- 25. Stream Analytics Jobs 25 Components Inputs Thedata connection to Stream Analytics is a data stream of events from a data source. This is called an "input." Stream Analytics has first-class integration with Azure data stream sources Event Hub, IoT Hub, and Blob storage that can be from the same or different Azure subscription as your analytics job. Query Azure Stream Analytics offers a SQL-like query language for performing transformations and computations over streams of events. Stream Analytics query language is a subset of standard T-SQL syntax for doing Streaming computations. Outputs In order to enable a variety of application patterns, Azure Stream Analytics has different options for storing output and viewing analysis results. This makes it easy to view job output and gives you flexibility in the consumption and storage of the job output for data warehousing and other purposes.

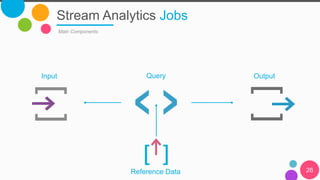

- 26. Stream Analytics Jobs MainComponents 26 QueryInput Output Reference Data
- 27.

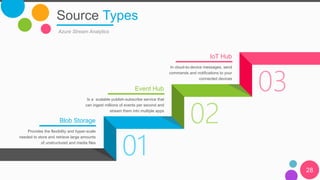

- 28. 01 02 03 Source Types 28 Azure StreamAnalytics Blob Storage Provides the flexibility and hyper-scale needed to store and retrieve large amounts of unstructured and media files Event Hub Is a scalable publish-subscribe service that can ingest millions of events per second and stream them into multiple apps IoT Hub In cloud-to-device messages, send commands and notifications to your connected devices

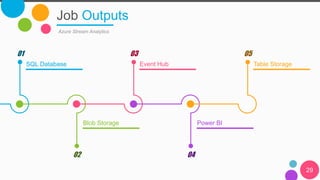

- 29. Job Outputs Azure StreamAnalytics SQL Database 01 Event Hub 03 Table Storage 05 Blob Storage 02 Power BI 04 29

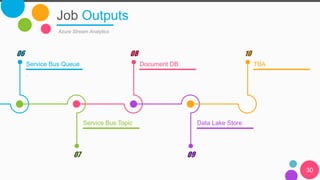

- 30. Job Outputs Azure StreamAnalytics Service Bus Queue . 06 Document DB 08 TBA 10 Service Bus Topic 07 Data Lake Store 09 30

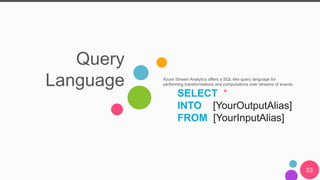

- 31. Query Language Azure StreamAnalytics offers a SQL-like query language for performing transformations and computations over streams of events. SELECT * INTO [YourOutputAlias] FROM [YourInputAlias] 33
- 32. Query Language Overview DML Statements •SELECT • FROM • WHERE • GROUP BY • HAVING • CASE • JOIN • UNION Date and Time Functions DATENAME DATEPART DAY MONTH YEAR DATEDIFF DATADD Aggregate Functions • SUM • COUNT • AVG • MIN • MAX Scaling Functions • WITH • PARTITION BY Statistical Functions • VAR • VARP • STDEV • STDEVP Windowing Extensions • Tumbling Window • Hopping Window • Sliding Window • Duration String Functions • LEN • CONCAT • CHARINDEX • SUBSTRING • PATINDEX
- 33.
- 34.

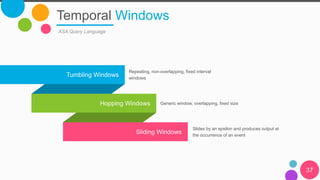

- 35. Temporal Windows 37 ASA QueryLanguage Tumbling Windows Hopping Windows Sliding Windows Repeating, non-overlapping, fixed interval windows Generic window, overlapping, fixed size Slides by an epsilon and produces output at the occurrence of an event
- 36.
Editor's Notes
- #12 From business point of view: Vast amounts of data are flowing at high velocity over the wire today. Organizations that can process and act on this streaming data in real time can dramatically improve efficiencies and differentiate themselves in the market. From technology point of view it is a rapid application development, testability, on demand scalability, very little learning curve, easy maintenance, which ultimately means faster delivery to the market.
- #13 There is many use cases when a Businesses needs to control, manage their environments and gather insights in real-time to make critical decisions faster and at the right time in response to changes in the business processes and operations.
- #14 Ease of use: Stream Analytics supports a simple, declarative query model for describing transformations. In order to optimize for ease of use, Stream Analytics uses a SQL variant, and removes the need for customers to deal with the technical complexities of stream processing systems. Using the Stream Analytics query language in the in browser query editor, you get intelli-sense auto-complete to help you can quickly and easily implement time series queries, including temporal-based joins, windowed aggregates, temporal filters, and other common operations such as joins, aggregates, projections, and filters. In addition, in-browser query testing against a sample data file enables quick, iterative development. Scalability: Stream Analytics is capable of handling high event throughput of up to 1GB/second. Integration with Azure Event Hubs allows the solution to ingest millions of events per second coming from connected devices, clickstreams, and log files, to name a few. In order to achieve this, Stream Analytics leverages the partitioning capability of Event Hubs, which can yield 1MB/s per partition. Users are able to partition the computation into a number of logical steps within the query definition, each with the ability to be further partitioned to increase scalability. Reliability, repeatability and quick recovery: A managed service in the cloud, Stream Analytics helps prevent data loss and provides business continuity in the presence of failures through built-in recovery capabilities. With the ability to internally maintain state, the service provides repeatable results ensuring it is possible to archive events and reapply processing in the future, always getting the same results. This enables customers to go back in time and investigate computations when doing root-cause analysis, what-if analysis, etc. Low cost: As a cloud service, Stream Analytics is optimized to provide users a very low cost to get going and maintain real-time analytics solutions. The service is built for you to pay as you go based on Streaming Unit usage and the amount of data processed by the system. Usage is derived based on the volume of events processed and the amount of compute power provisioned within the cluster to handle the respective Stream Analytics jobs. Reference data: Stream Analytics provides users the ability to specify and use reference data. This could be historical data or simply non-streaming data that changes less frequently over time. The system simplifies the use of reference data to be treated like any other incoming event stream to join with other event streams ingested in real time to perform transformations. Connectivity: Stream Analytics connects directly to Azure Event Hubs for stream ingestion, and the Azure Blob service to ingest historical data. Results can be written from Stream Analytics to Azure Storage Blobs or Tables, Azure SQL DB, Event Hubs, Azure Service Bus Topics or Queues, and Power BI, where it can then be visualized, further processed by workflows, used in batch analytics via Azure HDInsight or processed again as a series of events. When using Event Hubs it is possible to compose multiple Stream Analytics together with other data sources and processing engines without losing the streaming nature of the computations.
- #18 ASA plays major role in the what we call Modern Data Architecture. So you would probably say what is MDA and why should I care. And what is wrong with the old one. So lets try to understand.
- #19 Traditionally the majority of business intelligence and analytics solutions have been designed around the concept of batch operations that move data between different persisted data stores, such as relational databases or analytics cubes. Users would then issue a query against the data at rest to support scenarios such as ad-hoc analysis, dashboards or scorecards.
- #24 No Slide Master
