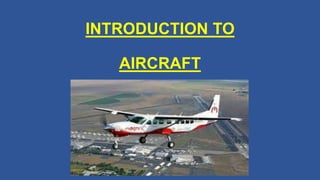

3. INTRODUCTION TO
AIRCRAFT

4. SCOPE
Brief History of Aviation
Basic Structure of Aircraft & Main Parts
Principle Behind Flying
Summary
4

5. HISTORY OF AVIATION
5
Mythological literature

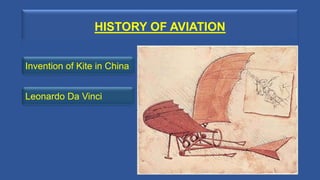

6. HISTORY OF AVIATION
6
Invention of Kite in China
Leonardo Da Vinci

7. HISTORY OF AVIATION
7
Leonardo Da Vinci

8. HISTORY OF AVIATION
8
17th Century’s lighter than air flying objects by montgolfier brothers

9. HISTORY OF AVIATION
9

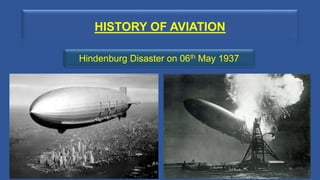

Hindenburg Disaster on 06th May 1937

10. HISTORY OF AVIATION
10
First Heavier than Air Aircraft on17th Dec 1903
The Wright Brothers

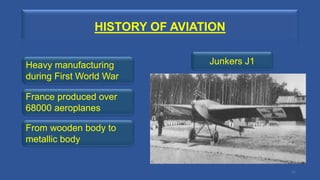

11. HISTORY OF AVIATION
11
Heavy manufacturing
during First World War
France produced over
68000 aeroplanes
From wooden body to
metallic body
Junkers J1

12. HISTORY OF AVIATION
12
Second World War
Invention of Jet Engine
Huge Air Forces Created

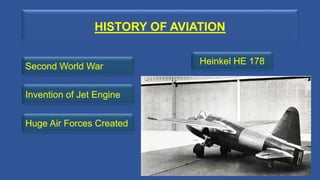

Heinkel HE 178

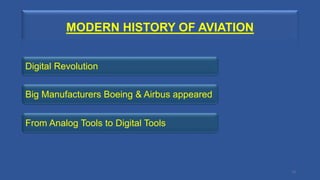

13. MODERN HISTORY OF AVIATION
13
Digital Revolution
Big Manufacturers Boeing & Airbus appeared
From Analog Tools to Digital Tools

14. MODERN HISTORY OF AVIATION
14

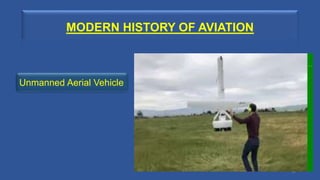

Unmanned Aerial Vehicle

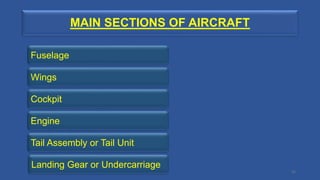

15. MAIN SECTIONS OF AIRCRAFT
15
Fuselage
Wings
Cockpit
Engine
Tail Assembly or Tail Unit
Landing Gear or Undercarriage

16. MAIN SECTIONS OF AIRCRAFT
• The fuselage is the main section, or body, of the airplane. This
is where you’ll find passengers, cargo, and the flight crew. The
fuselage is the foundation for the structure of the aircraft.
16

17. MAIN SECTIONS OF AIRCRAFT

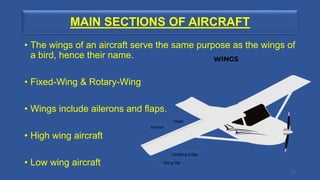

• The wings of an aircraft serve the same purpose as the wings of
a bird, hence their name.
• Fixed-Wing & Rotary-Wing
• Wings include ailerons and flaps.
• High wing aircraft
• Low wing aircraft
17

18. MAIN SECTIONS OF AIRCRAFT
• This is where the pilot
controls the aircraft.
• The cockpit includes flight
instruments, avionics,
audio/radio communications,
and flight controls.
18

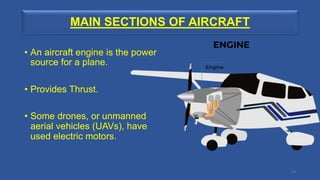

19. MAIN SECTIONS OF AIRCRAFT
• An aircraft engine is the power
source for a plane.
• Provides Thrust.
• Some drones, or unmanned
aerial vehicles (UAVs), have
used electric motors.
19

20. MAIN SECTIONS OF AIRCRAFT
• Located at the rear of an
airplane.
• It provides stability during flight.
like feathers on an arrow.
• The tail assembly consists of the
vertical stabilizer, rudder,
elevator, horizontal stabilizer,
and static wicks.
20

21. MAIN SECTIONS OF AIRCRAFT

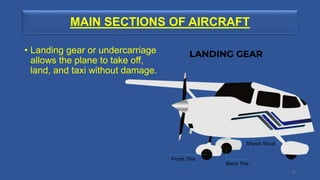

• Landing gear or undercarriage
allows the plane to take off,
land, and taxi without damage.
21

22. BASIC PRINCIPLE OF AERONAUTICS

23. BASIC PRINCIPLE OF AERONAUTICS

24. BASIC PRINCIPLE OF AERONAUTICS

25. LET’S SUMMARIZE

26. 26

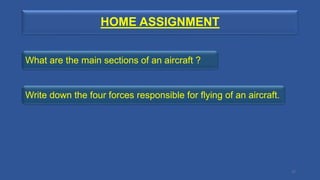

27. HOME ASSIGNMENT
27
What are the main sections of an aircraft ?
Write down the four forces responsible for flying of an aircraft.
