internet of things based parking system using app
- 1.

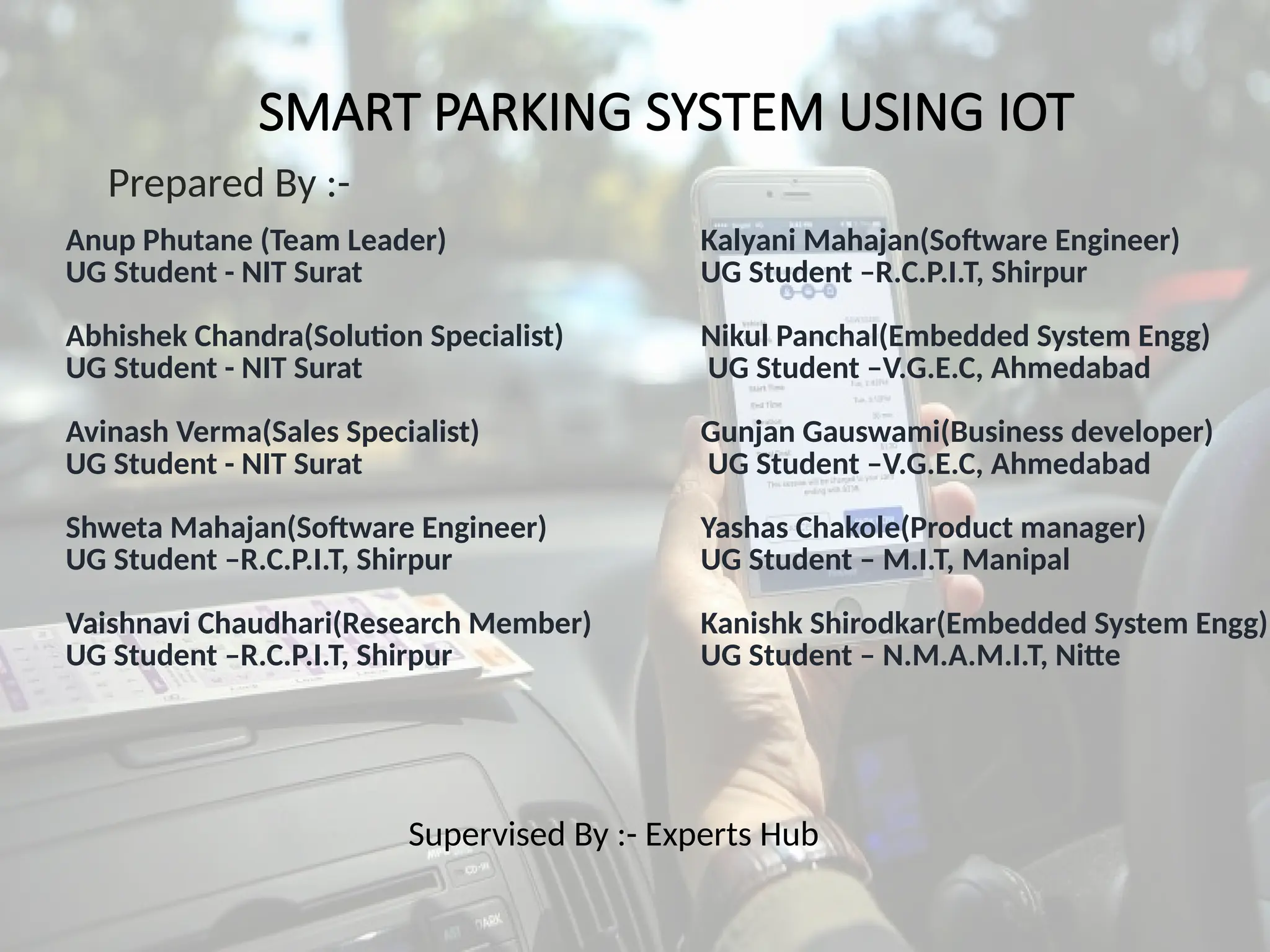

- 2. SMART PARKING SYSTEMUSING IOT Anup Phutane (Team Leader) UG Student - NIT Surat Abhishek Chandra(Solution Specialist) UG Student - NIT Surat Avinash Verma(Sales Specialist) UG Student - NIT Surat Shweta Mahajan(Software Engineer) UG Student –R.C.P.I.T, Shirpur Vaishnavi Chaudhari(Research Member) UG Student –R.C.P.I.T, Shirpur Kalyani Mahajan(Software Engineer) UG Student –R.C.P.I.T, Shirpur Nikul Panchal(Embedded System Engg) UG Student –V.G.E.C, Ahmedabad Gunjan Gauswami(Business developer) UG Student –V.G.E.C, Ahmedabad Yashas Chakole(Product manager) UG Student – M.I.T, Manipal Kanishk Shirodkar(Embedded System Engg) UG Student – N.M.A.M.I.T, Nitte Prepared By :- Supervised By :- Experts Hub

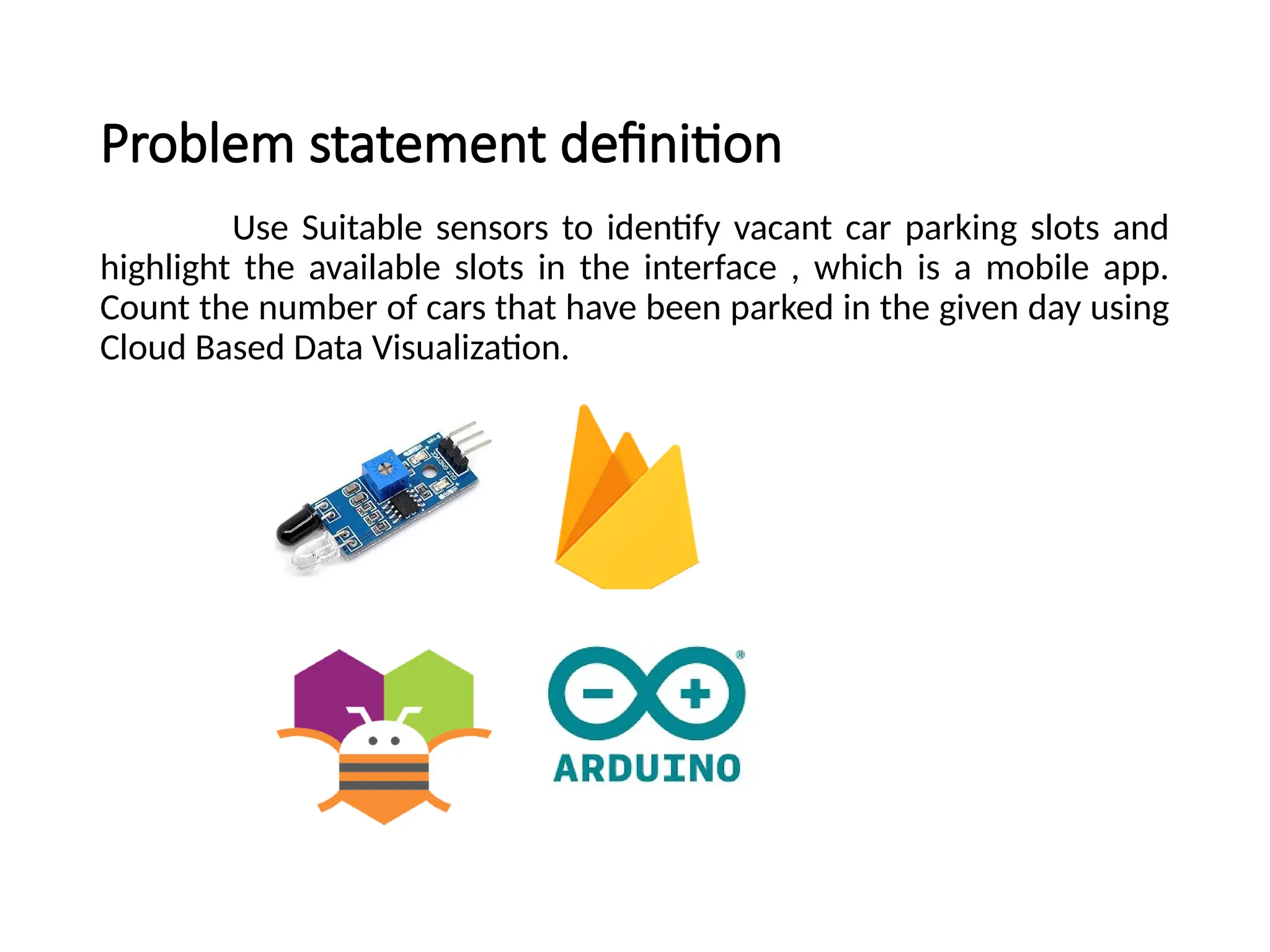

- 3. Problem statement definition UseSuitable sensors to identify vacant car parking slots and highlight the available slots in the interface , which is a mobile app. Count the number of cars that have been parked in the given day using Cloud Based Data Visualization.

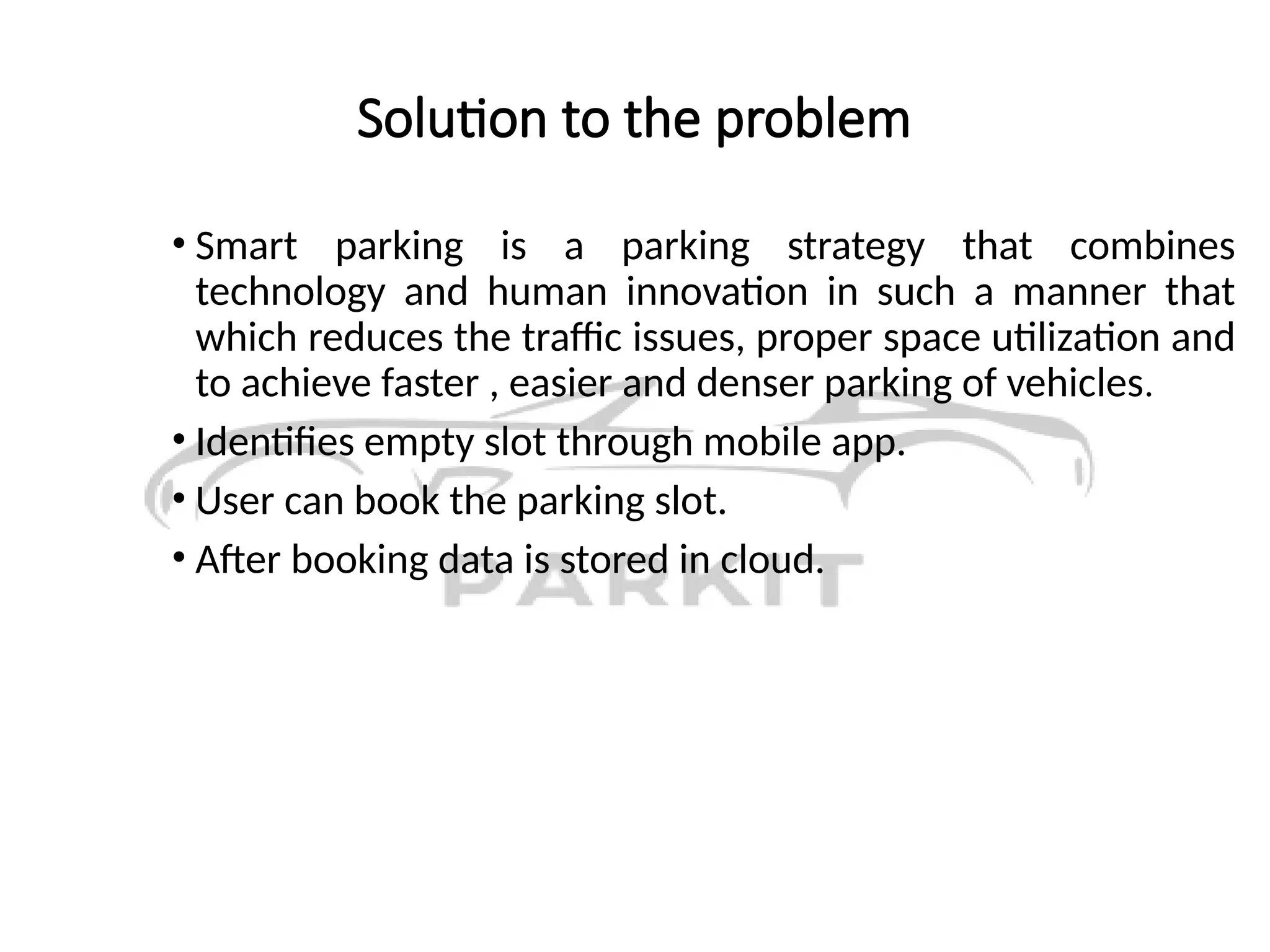

- 4. Solution to theproblem • Smart parking is a parking strategy that combines technology and human innovation in such a manner that which reduces the traffic issues, proper space utilization and to achieve faster , easier and denser parking of vehicles. • Identifies empty slot through mobile app. • User can book the parking slot. • After booking data is stored in cloud.

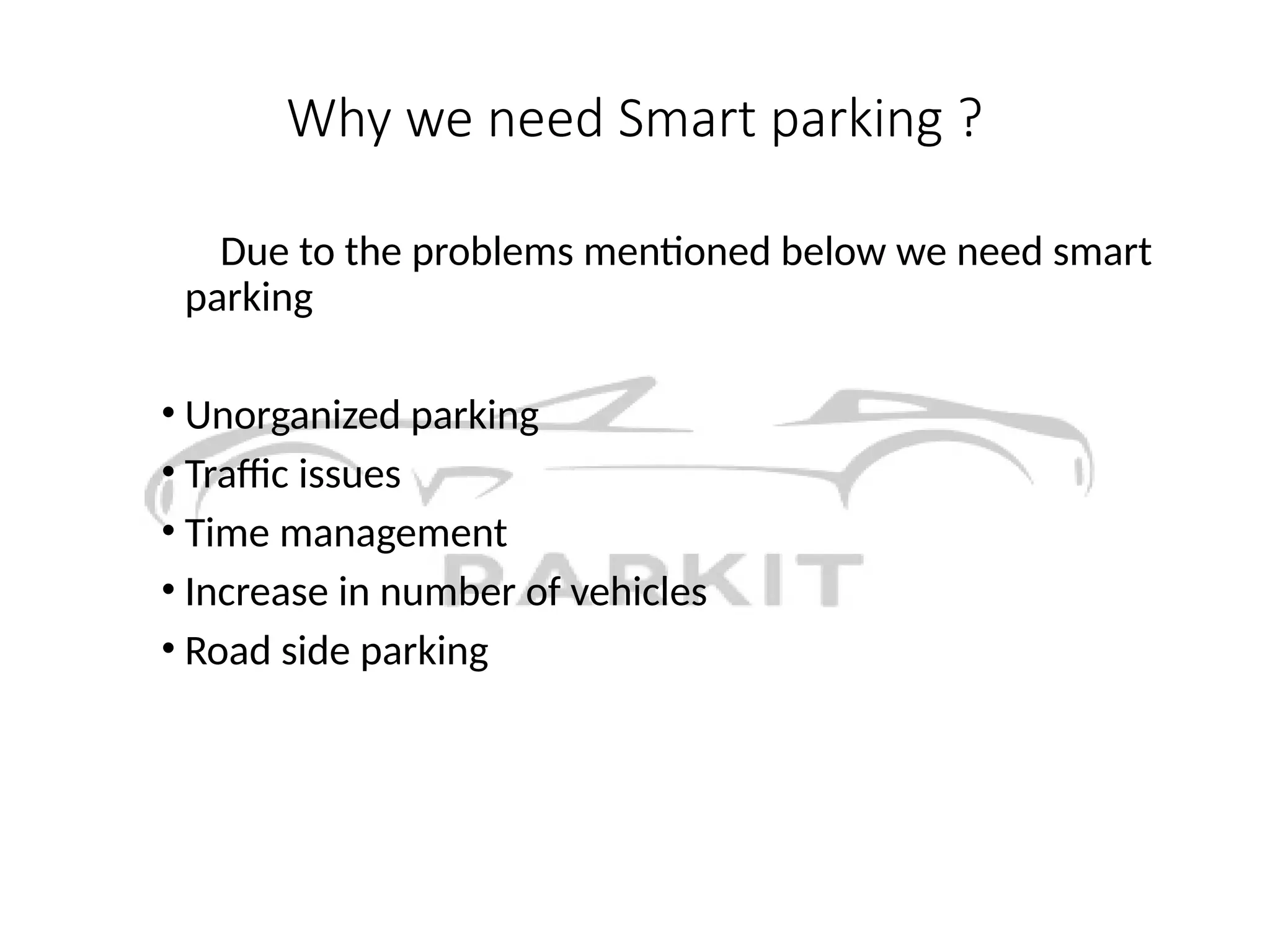

- 5. Why we needSmart parking ? Due to the problems mentioned below we need smart parking • Unorganized parking • Traffic issues • Time management • Increase in number of vehicles • Road side parking

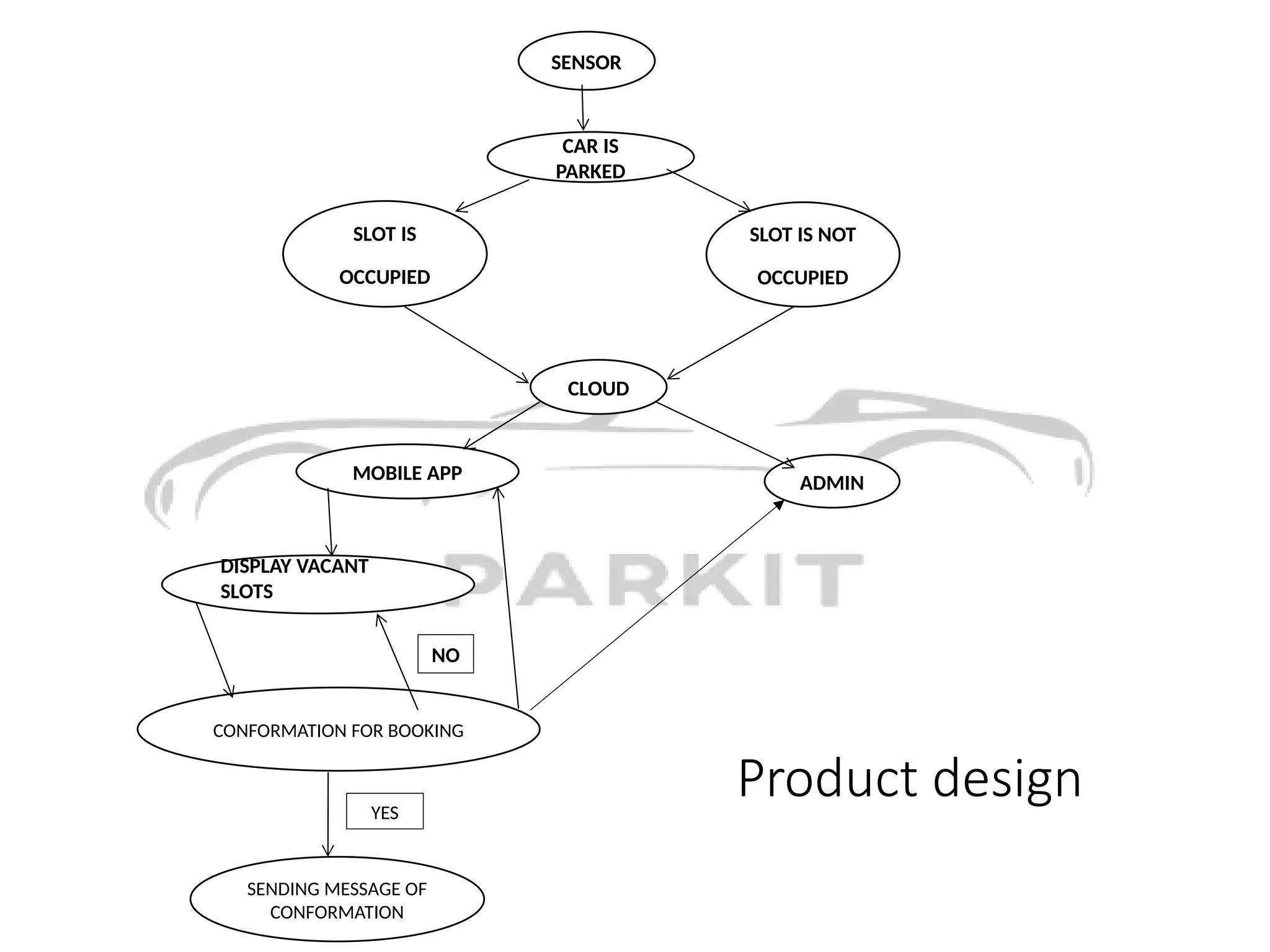

- 6. Product design SENSOR CAR IS PARKED SLOTIS OCCUPIED SLOT IS NOT OCCUPIED CLOUD ADMIN MOBILE APP DISPLAY VACANT SLOTS CONFORMATION FOR BOOKING SENDING MESSAGE OF CONFORMATION NO YES

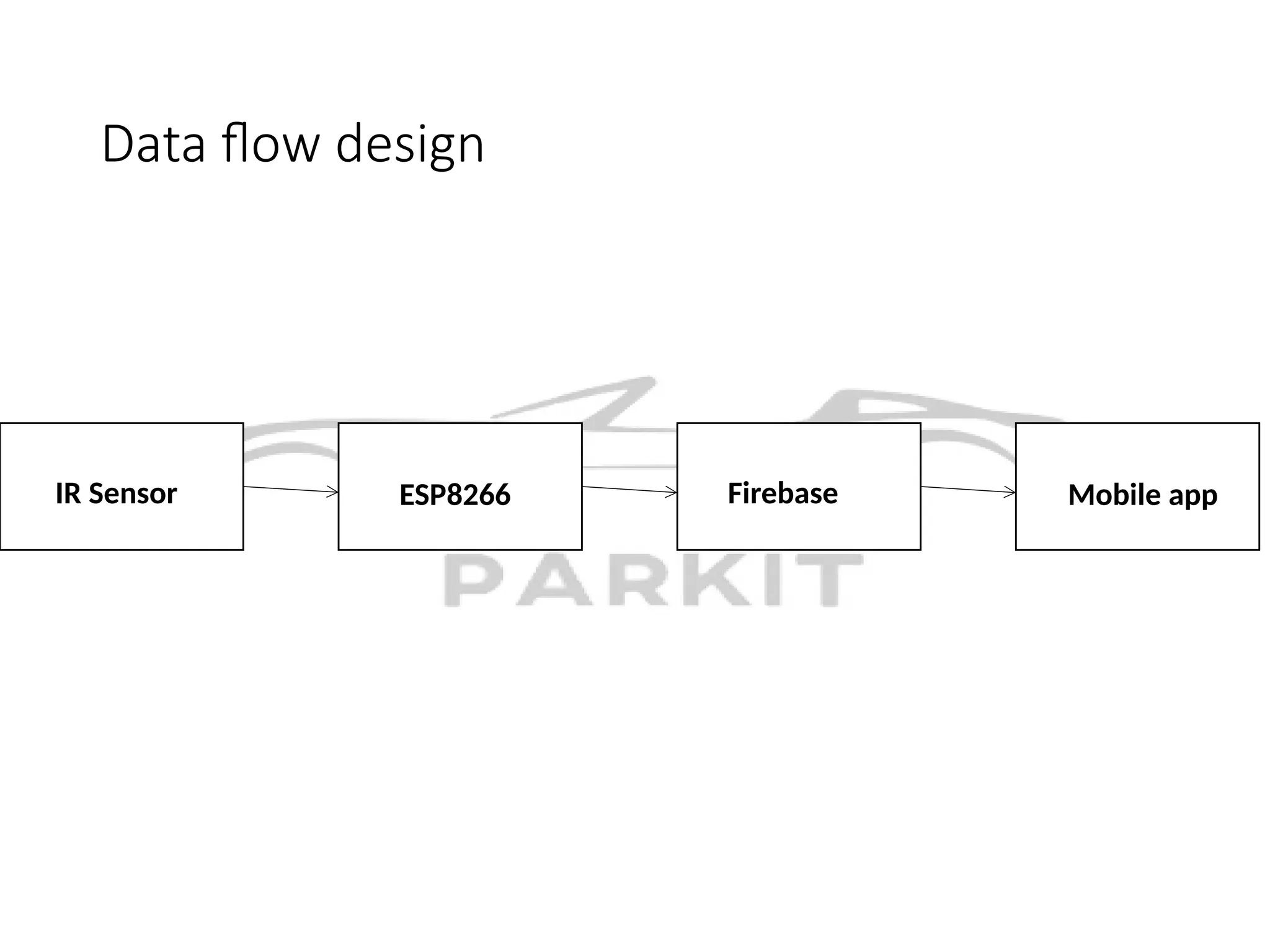

- 7. Data flow design IRSensor ESP8266 Firebase Mobile app

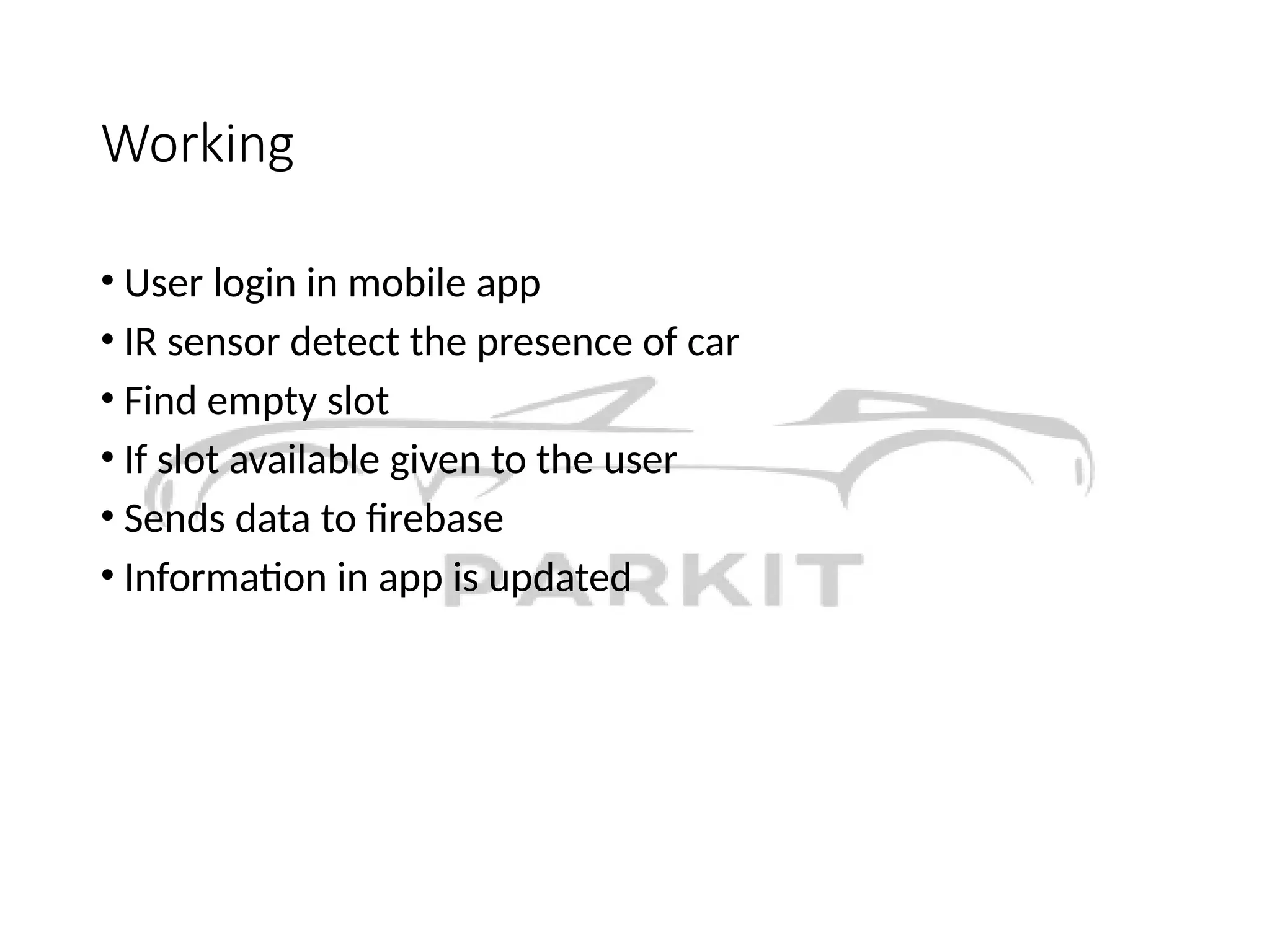

- 8. Working • User loginin mobile app • IR sensor detect the presence of car • Find empty slot • If slot available given to the user • Sends data to firebase • Information in app is updated
- 9. SWOT Analysis • Managethe parking system • Saves time & energy • Free and Easy access to app • Easy to implement • Doesn’t work fine outside the sunlight • Range of IR sensor • To be accepted by driver culture • Illiteracy of user • Can be implemented in any parking system • Reduces Pollution • High future scope due to increase in number of vehicles Strength Weakness Threats Opportunity

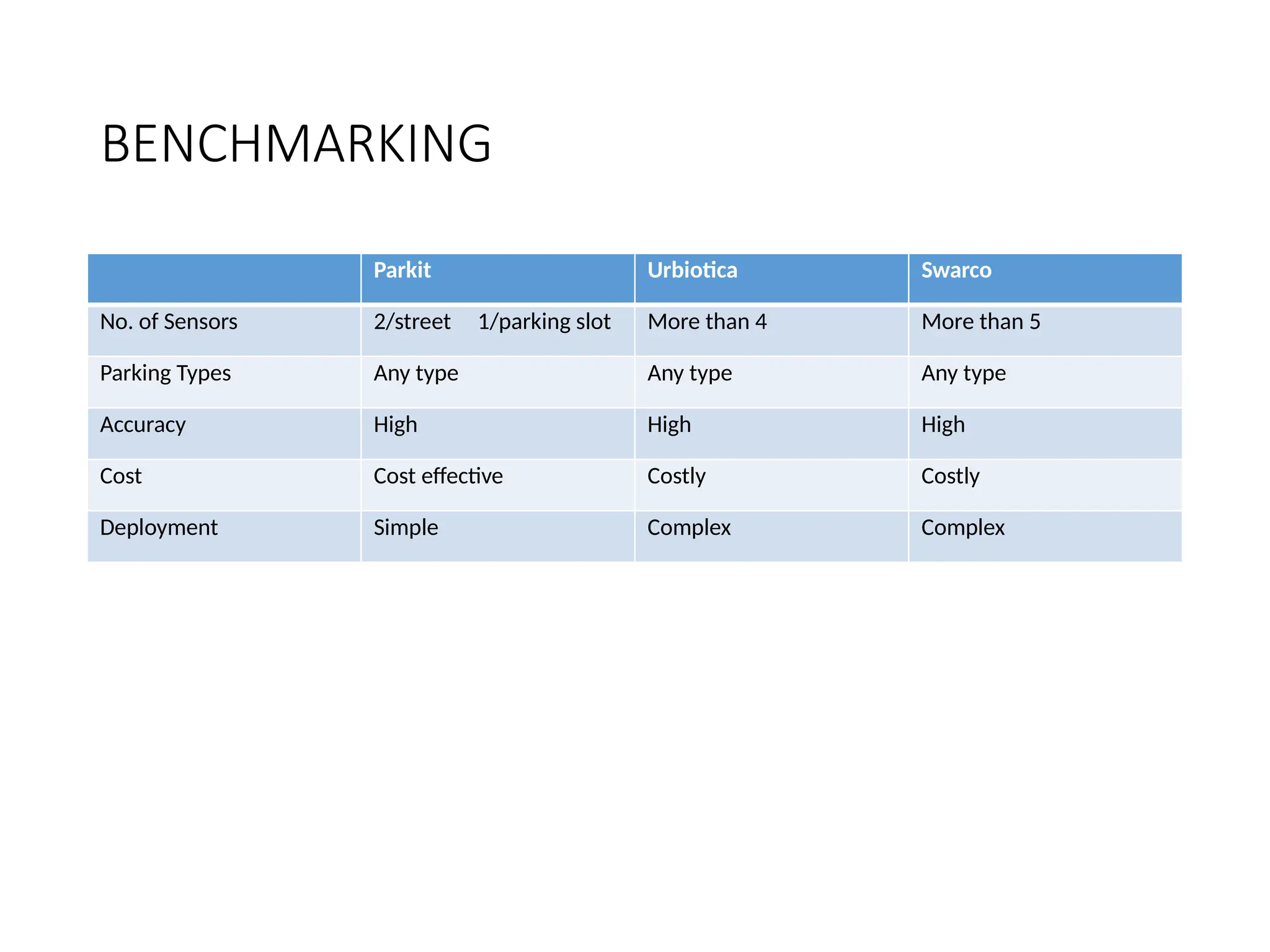

- 10. BENCHMARKING Parkit Urbiotica Swarco No.of Sensors 2/street 1/parking slot More than 4 More than 5 Parking Types Any type Any type Any type Accuracy High High High Cost Cost effective Costly Costly Deployment Simple Complex Complex

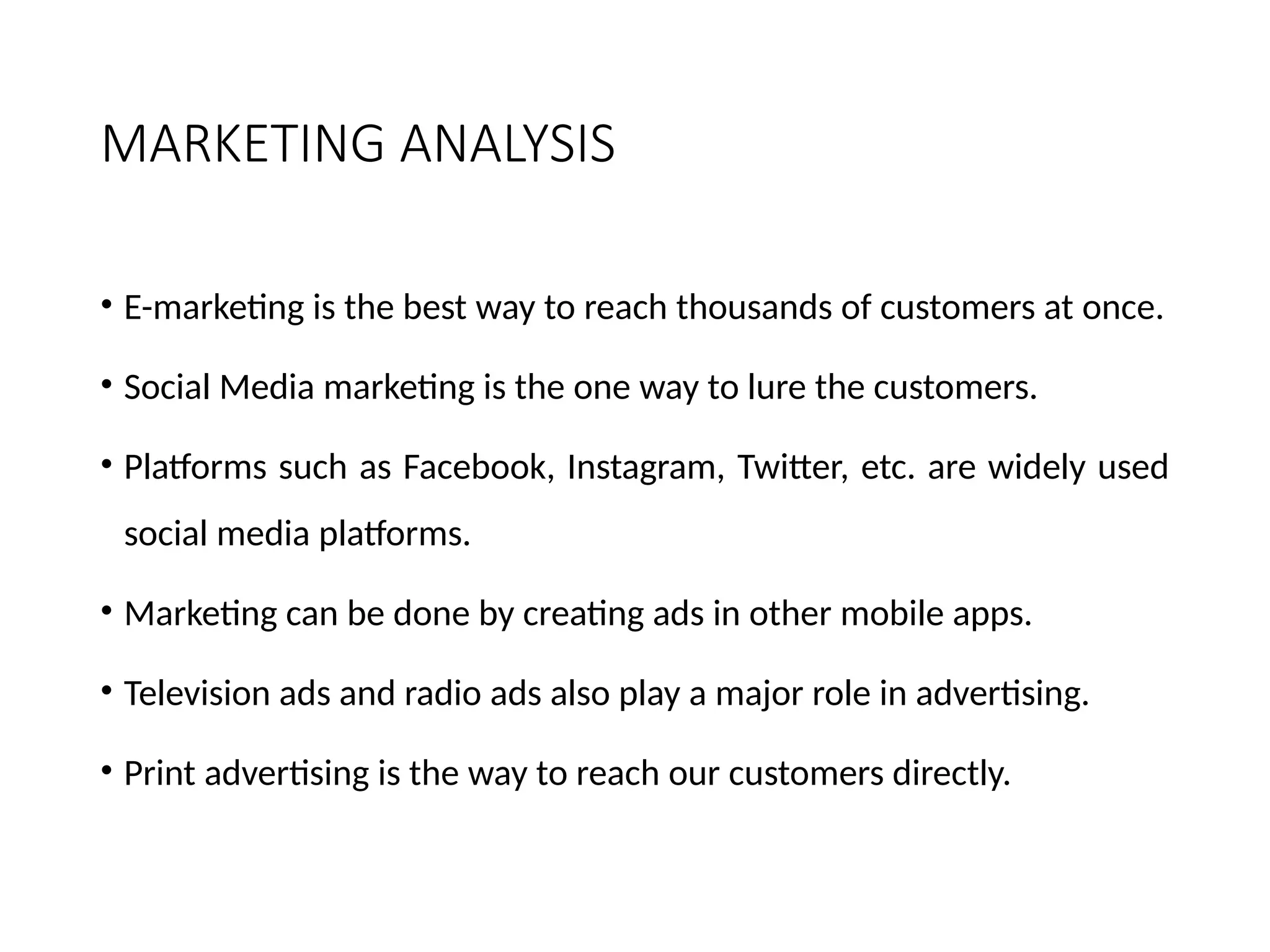

- 11. MARKETING ANALYSIS • E-marketingis the best way to reach thousands of customers at once. • Social Media marketing is the one way to lure the customers. • Platforms such as Facebook, Instagram, Twitter, etc. are widely used social media platforms. • Marketing can be done by creating ads in other mobile apps. • Television ads and radio ads also play a major role in advertising. • Print advertising is the way to reach our customers directly.
- 12.

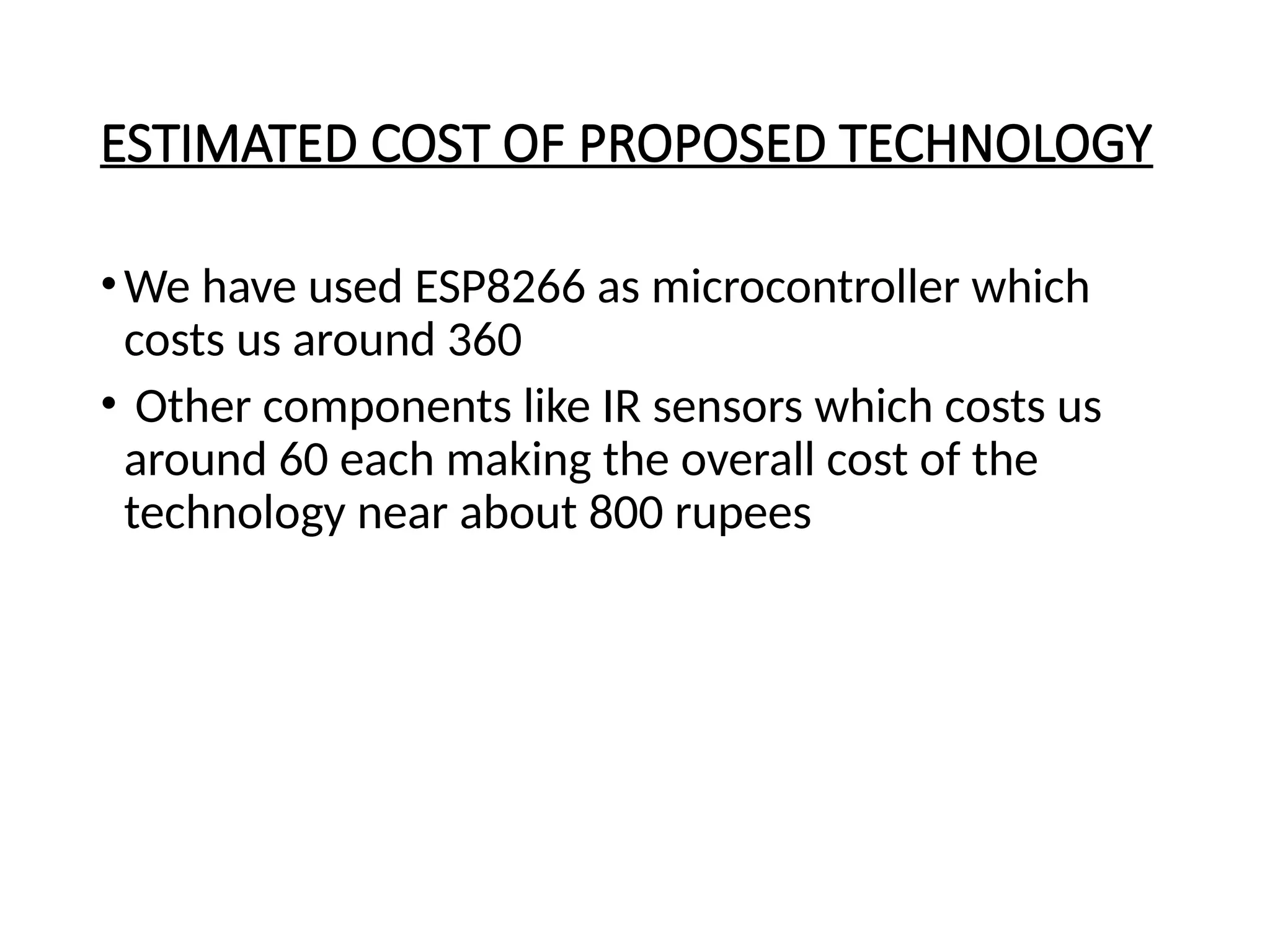

- 13. ESTIMATED COST OFPROPOSED TECHNOLOGY •We have used ESP8266 as microcontroller which costs us around 360 • Other components like IR sensors which costs us around 60 each making the overall cost of the technology near about 800 rupees
- 14. Conclusion • Our smartparking system project is planned to integrated with another software application to help drivers to find empty spot in parking lot more easily with less time.
