This document summarizes Evan Schwartz's presentation on Interledger. The key points are: 1. Interledger is an internetworking protocol that connects different payment networks like blockchains, banks, and mobile money to allow payments from any network to any network. 2. It uses the same concepts as internet networking, with ledger abstraction, connectors acting as routers, multi-hop transfers secured by two-phase execution, and addressing and routing. 3. This interoperability could enable new use cases, lower costs through efficient switching, and commoditize reach like the internet did for information networks.

1. Interledger
Evan Schwartz
Node.js Dev at Ripple
Co-Inventor of Interledger
@_emschwartz
Internetworking for Money

2. Agenda
1. Payments need interoperability
2. Interledger connects ledgers
3. Impact of internetworking
4. Demo!

3. Developer has an idea for a new service

4. How to monetize?

5. Credit card to sign up?

6. Few services can convince users to give CCs

7. Advertising?

8. Selling users’ data?

9. Why is it so hard to just get paid?

10. Payments are broken.

11. Payment Methods Accepted By Prineta.com
Accepting Payments OnlineAccepting Payments Online

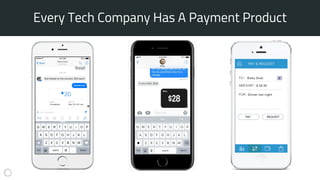

12. Every Tech Company Has A Payment Product

13. Blockchains Have the Same Problem

14. Payment Networks Are Disconnected
BlockchainBanks Mobile Money Online Wallets

15. ?

16. X

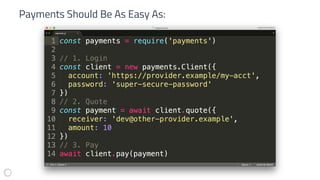

17. Need to pay from any network, to any network
Payments Should Be As Easy As:

18. We need:
1. A standardized payment API
2. To pay anyone, on any network

19. We need:
Internetworking

20. in·ter·net·work·ing
Connecting networks through gateways that
route data packets between the networks
noun

21. Internetworking Connects Everyone

22. BlockchainBanks Mobile Money Online Wallets
Internetworking For Payment Networks

23. Interledger
Internetworking for Money

24. Interledger Project
KEY FACTS
Open Protocol Community Group @ W3C 240+ Contributors
Banks
Central banks
Payments companies
Tech giants
Consulting companies
Blockchain companies

26. Interledger is
not a blockchain.

27. Interledger has
not a single network.

28. Interledger has
no built-in currency.

29. Interledger is an
internetworking protocol.

30. OUR INSPIRATION
The History & Architecture of the Internet

31. SIMPLICITY

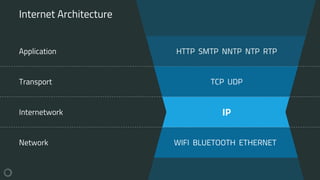

32. Internet Architecture
IP
WIFI BLUETOOTH ETHERNET
Internetwork
Network
Transport TCP UDP
Application HTTP SMTP NNTP NTP RTP

33. Interledger Architecture
ILP
BLOCKCHAINS
BANKS MOBILE MONEY
Interledger
Ledger
Transport IPR PSK PSK-ECDH
Application SPSP HTTP-ILP PAYTORRENT

34. Interledger 101

35. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

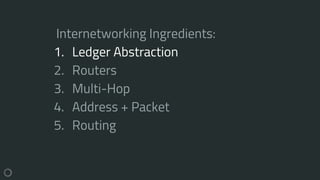

36. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

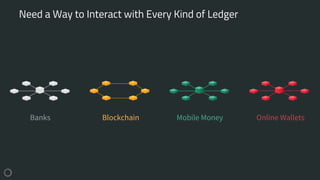

37. BlockchainBanks Mobile Money Online Wallets
Need a Way to Interact with Every Kind of Ledger

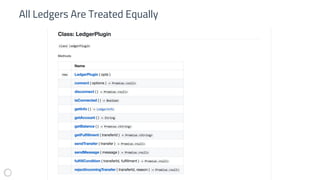

38. All Ledgers Are Treated Equally

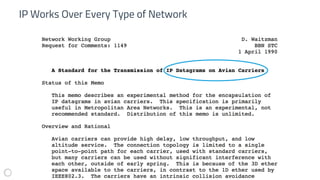

39. IP Works Over Every Type of Network

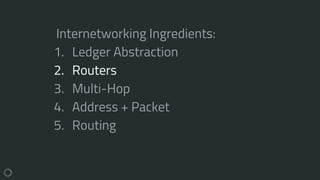

40. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

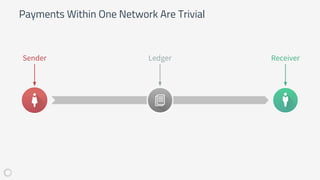

41. Payments Within One Network Are Trivial
Sender ReceiverLedger

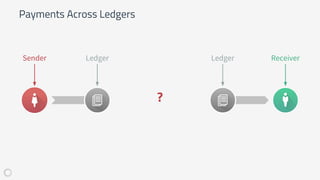

42. Payments Across Ledgers
Sender ReceiverLedger Ledger
?

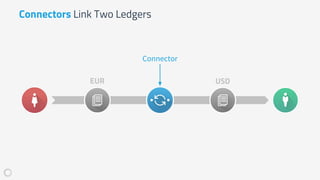

43. Connectors Link Two Ledgers
Connector
EUR USD

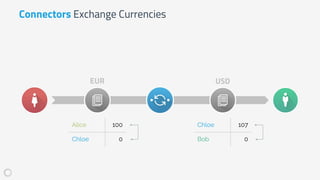

44. Connectors Exchange Currencies
Alice 100
Chloe 0
Chloe 107
Bob 0
EUR USD

45. Connectors Generate Revenue from Spreads
Alice 100
Chloe 0
Chloe 107
Bob 0
EUR USD

46. Payments Across Connectors?
EUR USD
?
BTC

47. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

48. Multi-hop is trickier with
money than with data

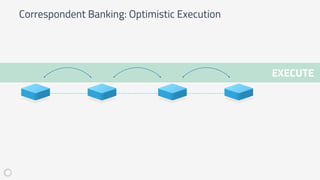

49. Correspondent Banking: Optimistic Execution
EXECUTE

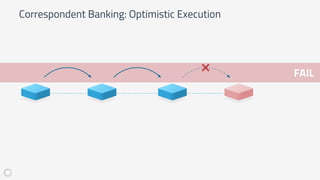

50. Correspondent Banking: Optimistic Execution
FAIL

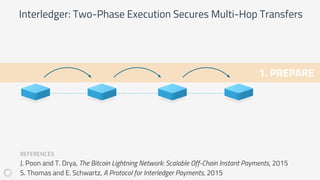

51. 1. PREPARE
Interledger: Two-Phase Execution Secures Multi-Hop Transfers
REFERENCES
J. Poon and T. Drya, The Bitcoin Lightning Network: Scalable Off-Chain Instant Payments, 2015
S. Thomas and E. Schwartz, A Protocol for Interledger Payments, 2015

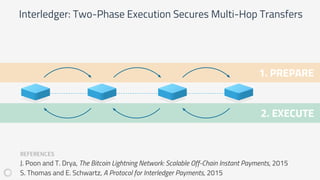

52. 1. PREPARE
2. EXECUTE
Interledger: Two-Phase Execution Secures Multi-Hop Transfers
REFERENCES
J. Poon and T. Drya, The Bitcoin Lightning Network: Scalable Off-Chain Instant Payments, 2015
S. Thomas and E. Schwartz, A Protocol for Interledger Payments, 2015

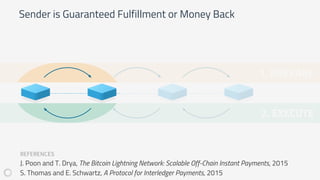

53. 1. PREPARE
2. EXECUTE
Sender is Guaranteed Fulfillment or Money Back
REFERENCES
J. Poon and T. Drya, The Bitcoin Lightning Network: Scalable Off-Chain Instant Payments, 2015
S. Thomas and E. Schwartz, A Protocol for Interledger Payments, 2015

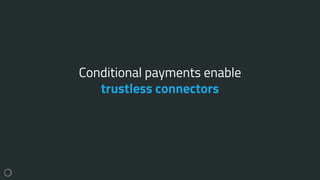

54. Conditional payments enable
trustless connectors

55. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

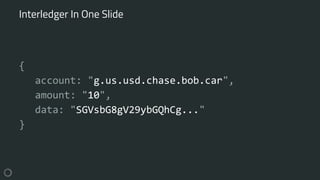

56. {
account: "g.us.usd.chase.bob.car",
amount: "10",
data: "SGVsbG8gV29ybGQhCg..."
}
Interledger In One Slide

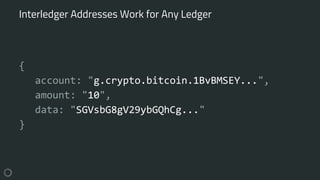

57. {
account: "g.crypto.bitcoin.1BvBMSEY...",
amount: "10",
data: "SGVsbG8gV29ybGQhCg..."
}
Interledger Addresses Work for Any Ledger

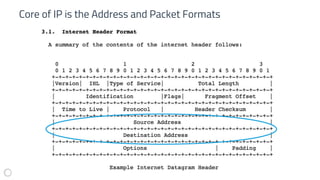

58. Core of IP is the Address and Packet Formats

59. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

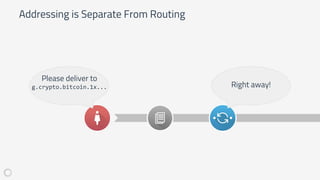

60. Addressing is Separate From Routing
Please deliver to
g.crypto.bitcoin.1x... Right away!

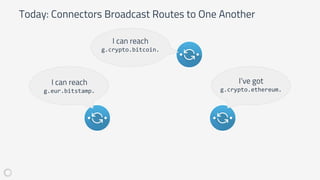

61. Today: Connectors Broadcast Routes to One Another
I’ve got
g.crypto.ethereum.
I can reach
g.eur.bitstamp.
I can reach
g.crypto.bitcoin.

62. Internetworking Ingredients:
1. Ledger Abstraction
2. Routers
3. Multi-Hop
4. Address + Packet
5. Routing

63. Internetworking:
Payments From Anyone, to Anywhere

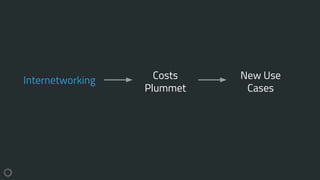

64. Internetworking Costs
Plummet
New Use
Cases

65. Everywhere you want to be.
There are some things money can't buy.
For everything else, there's MasterCard.
TODAY
Payment Networks Compete For Reach

66. This used to be true for
information networks too

67. "… biggest …"
"… more members …"
"… more services…"

68. Internetworking commoditized reach

69. America's fastest Internet.
Reliable. Safe. Fast.
High-speed Internet from AT&T
Fast, reliable, unlimited Internet
WITH INTERNETWORKING
Providers Compete on Speed, Reliability, Ease-of-use

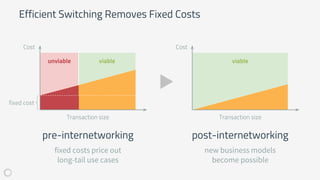

70. Efficient Switching Removes Fixed Costs
unviable viable viable
fixed cost
Transaction size
Cost
Transaction size
Cost
pre-internetworking
fixed costs price out
long-tail use cases
post-internetworking
new business models
become possible

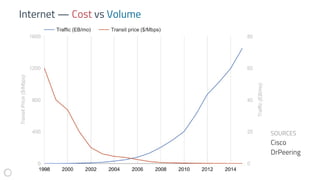

71. Internet — Cost vs Volume
SOURCES
Cisco
DrPeering

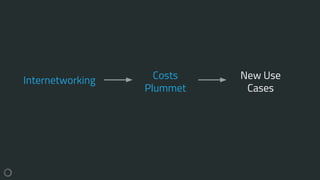

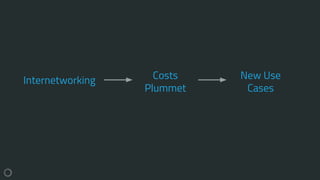

72. Internetworking Costs
Plummet
New Use
Cases

74. The Internet Enabled Fundamentally New Business Models

75. Internetworking Costs
Plummet
New Use
Cases

76. INTERNET OF VALUE
Pay For Lunch with Gold, Stocks, or Community Currency

77. INTERNET OF VALUE
Pay for Media As You Stream It

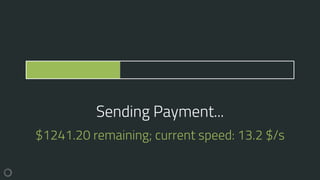

78. Sending Payment...
$1241.20 remaining; current speed: 13.2 $/s

79. Demo Time!

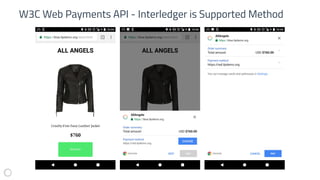

80. W3C Web Payments API - Interledger is Supported Method

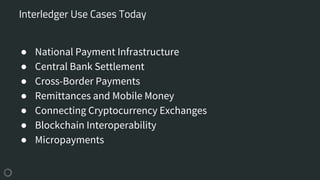

81. ● National Payment Infrastructure
● Central Bank Settlement
● Cross-Border Payments
● Remittances and Mobile Money
● Connecting Cryptocurrency Exchanges
● Blockchain Interoperability
● Micropayments
Interledger Use Cases Today

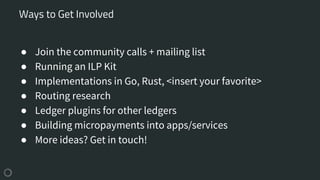

82. ● Join the community calls + mailing list
● Running an ILP Kit
● Implementations in Go, Rust, <insert your favorite>
● Routing research
● Ledger plugins for other ledgers
● Building micropayments into apps/services
● More ideas? Get in touch!
Ways to Get Involved

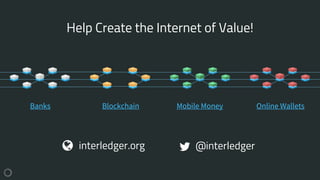

83. BlockchainBanks Mobile Money Online Wallets
Help Create the Internet of Value!
interledger.org @interledger
