ADF 3D laser scanning generates in-depth point cloud data that can be used to create accurate 3D models and as-built drawings in even the most challenging facilities. Our 3D laser scanning services take site documentation to new levels of accuracy and precision with greater efficiency than ever before. We can obtain more data faster at lower costs, and with less risk to personnel and products—even in complex or hazardous environments.

1. - 1 -
Client
Logo
Client
Logo
ADF 3D Laser Scanning
and Modeling Capabilities
Presented by: Justin Hays
Designer and 3D Laser Scan Operator

2. - 2 -
Client
Logo
Client
Logo

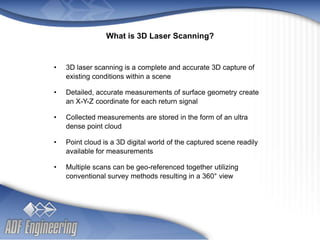

What is 3D Laser Scanning?
• 3D laser scanning is a complete and accurate 3D capture of
existing conditions within a scene
• Detailed, accurate measurements of surface geometry create
an X-Y-Z coordinate for each return signal
• Collected measurements are stored in the form of an ultra
dense point cloud
• Point cloud is a 3D digital world of the captured scene readily
available for measurements
• Multiple scans can be geo-referenced together utilizing
conventional survey methods resulting in a 360° view

3. - 3 -
Client
Logo
Client
Logo

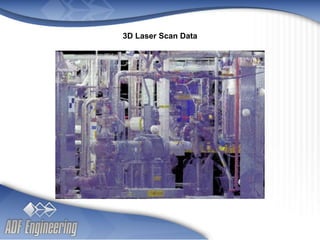

3D Laser Scan Data

4. - 4 -
Client
Logo
Client
Logo

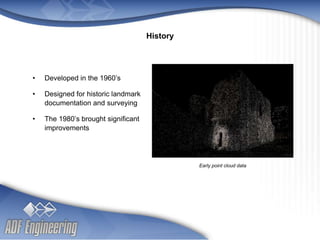

• Developed in the 1960’s
• Designed for historic landmark
documentation and surveying
• The 1980’s brought significant
improvements
History
Early point cloud data

5. - 5 -
Client
Logo
Client
Logo

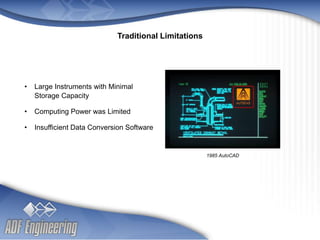

• Large Instruments with Minimal
Storage Capacity
• Computing Power was Limited
• Insufficient Data Conversion Software
Traditional Limitations
1985 AutoCAD

6. - 6 -
Client
Logo
Client
Logo

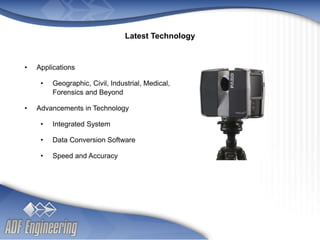

• Applications
• Geographic, Civil, Industrial, Medical,
Forensics and Beyond
• Advancements in Technology
• Integrated System
• Data Conversion Software
• Speed and Accuracy
Latest Technology

7. - 7 -
Client
Logo
Client
Logo

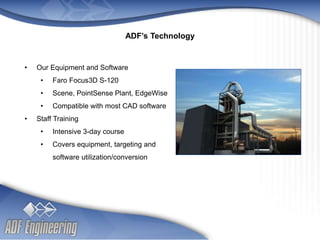

• Our Equipment and Software
• Faro Focus3D S-120
• Scene, PointSense Plant, EdgeWise
• Compatible with most CAD software
• Staff Training
• Intensive 3-day course
• Covers equipment, targeting and
software utilization/conversion
ADF’s Technology

8. - 8 -
Client
Logo
Client
Logo
Image from Laser Scanner Point Cloud from
Laser Scanner
Converted Point Cloud
Data to 3D Model
Rendering Developed
from 3D Model
Merging Technologies

9. - 9 -
Client
Logo
Client
Logo
Point Cloud Overlay AutoCAD 3D Model
Merging Technologies

10. - 10 -
Client
Logo
Client
Logo

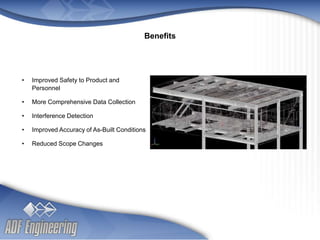

• Improved Safety to Product and
Personnel
• More Comprehensive Data Collection
• Interference Detection
• Improved Accuracy of As-Built Conditions
• Reduced Scope Changes
Benefits

11. - 12 -
Client
Logo
Client
Logo
Unlimited Opportunity
• Smaller Scanning Devices
• Compact Data Storage Capacity
• Automated Data Conversion
Future Technologies

12. - 13 -
Client
Logo
Client
Logo

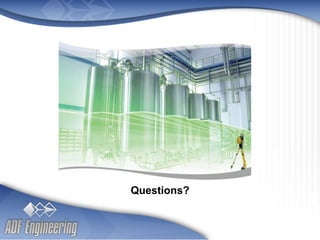

Questions?
