FM Listening Bug
by mpilchf amily
Download
12 St eps
Collect ion I Madeit !
Favor it e
Shar e

The on thing every spy needs is a small and w ell concealed listening device. The FM Listening Bug Kit gives you all you
need to build a small, single Transistor, FM transmitter that can operate betw een 80 MHz and 150 MHz. Allow ing you to tun
it to an open frequency on an FM Radio and listen to w hat is going on in the room you leave that bug in. This bug has an
effective range of about 100 meters.
In this Instructable w e w ill cover:
 The Schematic and some basics of how it w orks
 Parts needed
 Getting the PCB layout onto a prototyping board (pegboard)
 Laying out the components on the board
 Tools needed to assemble the kit
 Soldering everything together.
Remove these ads by Signing Up
Step 1:

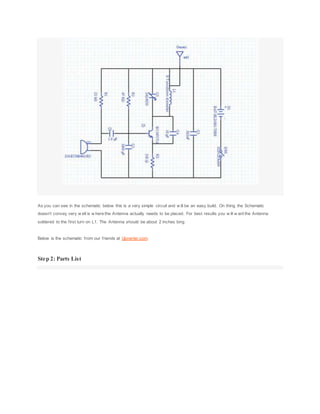

As you can see in the schematic below this is a very simple circuit and w ill be an easy build. On thing the Schematic
doesn't convey very w ell is w here the Antenna actually needs to be placed. For best results you w ill w ant the Antenna
soldered to the first turn on L1. The Antenna should be about 2 inches long
Below is the schematic from our friends at Upverter.com.
Step 2: Parts List

Note: A full parts list is attached to this page. Listing the part, manufacture, part number, link to Mouser.com, quantity and
price (as of the publishing of this Instructable).
Parts List:
 1x 22 k Ohm Resistor $0.07
 1x 330 Ohm Resistor $0.06
 1x 1000 pF Ceramic Capacitor $0.06
 1x Omnidirectional Microphone $1.29
 1x 1.0 uF Aluminum Electrolytic Capacitor $0.32
 350mm (1 foot) of 20/22 AWG Sold copper or Magnetic Wire
 1x BC547 Bipolar NPN Transistor $0.07
 1x Coin Cell Battery Holder $0.60
 1x .022uF Ceramic Disc Capacitor $0.16
 1x 47 K Ohm Resistor $0.06
 1x 10 pF Ceramic Capacitor $0.08
 1x SPST Slide Sw itch $0.37
 1x Variable Capacitor 9.8 pF to 50 pF $0.48
 1x Dual mini breadboard $2.19
 Altoids Smalls Tin
 CR2032 Cell Battery

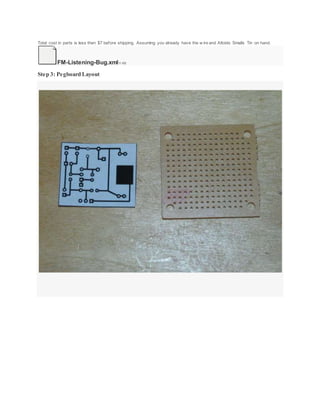

Total cost in parts is less then $7 before shipping. Assuming you already have the w ire and Altoids Smalls Tin on hand.
FM-Listening-Bug.xml11 KB

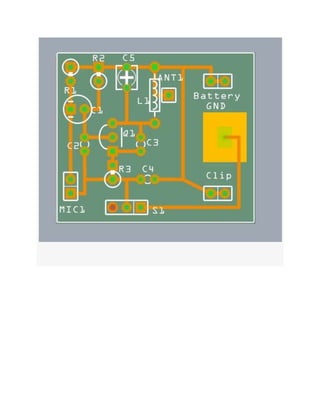

Step 3: Pegboard Layout

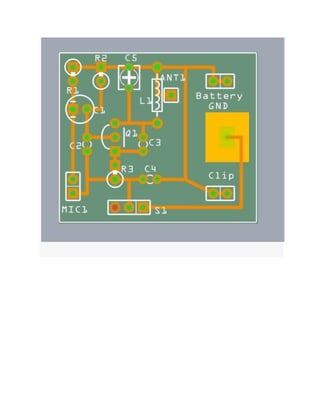

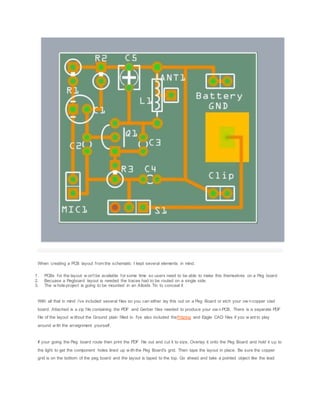

When creating a PCB layout from the schematic I kept several elements in mind.
1. PCBs for the layout w on't be available for some time so users need to be able to make this themselves on a Peg board
2. Becuase a Pegboard layout is needed the traces had to be routed on a single side.
3. The w hole project is going to be mounted in an Altoids Tin to conceal it
With all that in mind i've included several files so you can either lay this out on a Peg Board or etch your ow n copper clad
board. Attached is a zip file containing the PDF and Gerber files needed to produce your ow n PCB. There is a separate PDF
file of the layout w ithout the Ground plain filled in. I've also included theFritzing and Eagle CAD files if you w ant to play
around w ith the arraignment yourself.

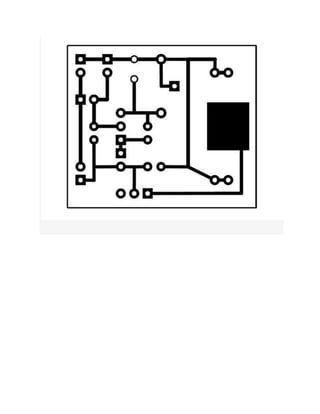

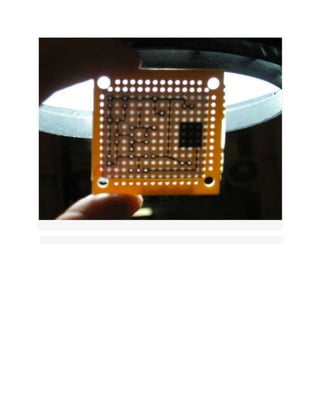

If your going the Peg board route then print the PDF file out and cut it to size. Overlay it onto the Peg Board and hold it up to
the light to get the component holes lined up w ith the Peg Board's grid. Then tape the layout in place. Be sure the copper
grid is on the bottom of the peg board and the layout is taped to the top. Go ahead and take a pointed object like the lead

from one of the parts and poke out all the component holes.
FM Listening Bug PCB files.zip301 KB
FM Bug_etch_copper_bottom.pdf3 KB
FM Bug.fzz19 KB
FM Listening Bug EagleCAD.zip35 KB

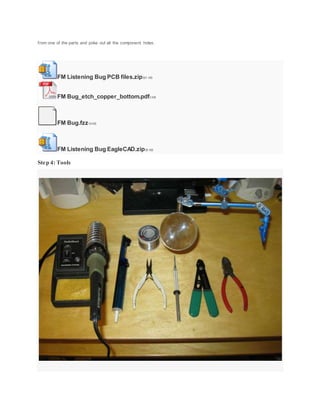

Step 4: Tools

Before w e start piecing this together lets gather the tools w e'll need for this.
Tools:
 Soldering iron
 Solder
 Needle nose pliers
 Wire cutters
 Wire strippers
 Helping hand/PCB clamp
 Small flat head screw driver or Probe
 Solder braid/pump/bulb
 Magnifying glass
 Electrical Tape
 Small Phillips Head Screw driver
 FM Radio
Most of these tools are self explanatory. Of course you need a soldering iron and solder to put the kit together. You'll need a
small flat head screw driver or probe to help break any unw anted solder bridges. You can very easily bridge contacts
unintentionally w hile soldering the traces. especially w hen you have traces that w ill be very close together like the ones
around the Voltage regulator. The magnifying glass w ill come in real handy inspecting your w orkand ensuring there are no
unw anted solder bridges.
Now to start putting everything together.

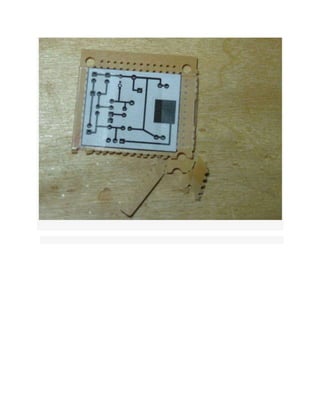

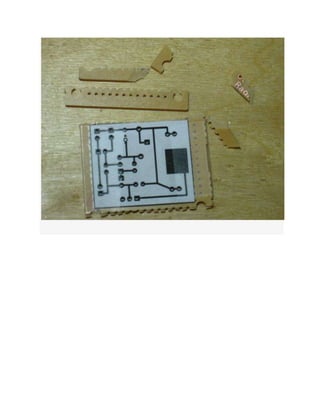

Step 5: Sizing the Pegboard

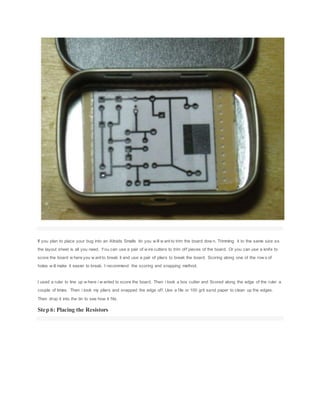

If you plan to place your bug into an Altoids Smalls tin you w ill w ant to trim the board dow n. Trimming it to the same size as
the layout sheet is all you need. You can use a pair of w ire cutters to trim off pieces of the board. Or you can use a knife to
score the board w here you w ant to break it and use a pair of pliers to break the board. Scoring along one of the row s of
holes w ill make it easier to break. I recommend the scoring and snapping method.
I used a ruler to line up w here i w anted to score the board. Then i took a box cutter and Scored along the edge of the ruler a
couple of times. Then i took my pliers and snapped the edge off. Use a file or 100 grit sand paper to clean up the edges.
Then drop it into the tin to see how it fits.

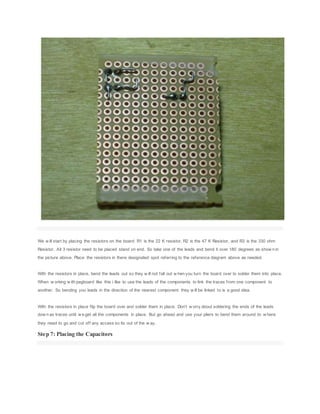

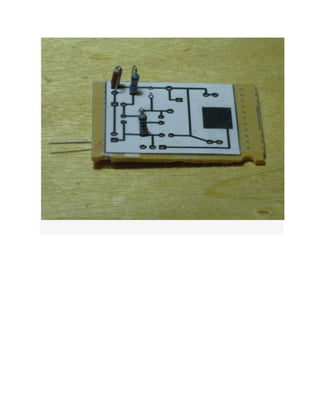

Step 6: Placing the Resistors

We w ill start by placing the resistors on the board. R1 is the 22 K resistor, R2 is the 47 K Resistor, and R3 is the 330 ohm

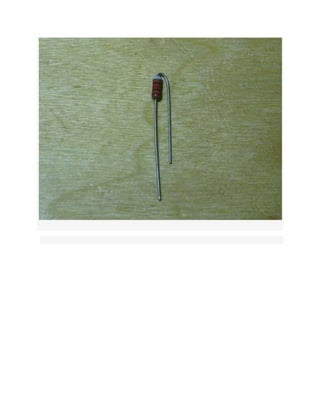

Resistor. All 3 resistor need to be placed stand on end. So take one of the leads and bend it over 180 degrees as show n in
the picture above. Place the resistors in there designated spot referring to the reference diagram above as needed.
With the resistors in place, bend the leads out so they w ill not fall out w hen you turn the board over to solder them into place.
When w orking w ith pegboard like this i like to use the leads of the components to link the traces from one component to
another. So bending you leads in the direction of the nearest component they w ill be linked to is a good idea.
With the resistors in place flip the board over and solder them in place. Don't w orry about soldering the ends of the leads
dow n as traces until w e get all the components in place. But go ahead and use your pliers to bend them around to w here
they need to go and cut off any access so its out of the w ay.

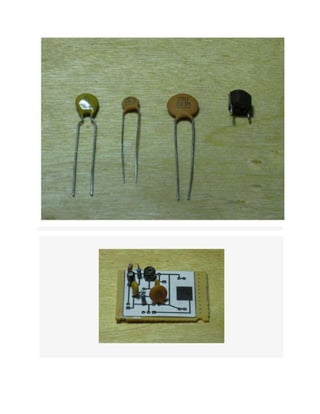

Step 7: Placing the Capacitors

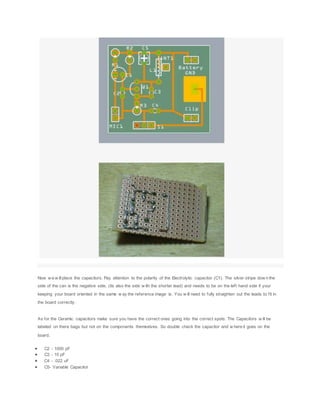

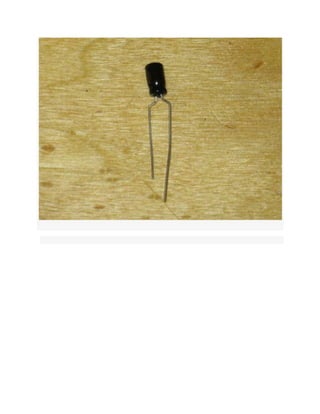

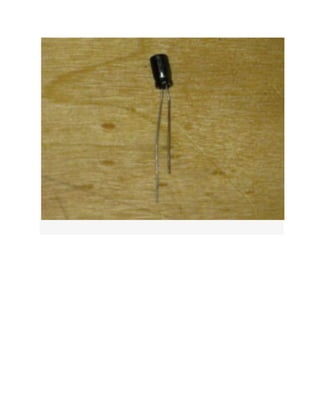

Now w e w illplace the capacitors. Pay attention to the polarity of the Electrolytic capacitor (C1). The silver stripe dow n the
side of the can is the negative side, (its also the side w ith the shorter lead) and needs to be on the left hand side if your
keeping your board oriented in the same w ay the reference image is. You w ill need to fully straighten out the leads to fit in
the board correctly.
As for the Ceramic capacitors make sure you have the correct ones going into the correct spots. The Capacitors w ill be
labeled on there bags but not on the components themselves. So double check the capacitor and w here it goes on the
board.
 C2 - 1000 pF
 C3 - 10 pF
 C4 - .022 uF
 C5- Variable Capacitor

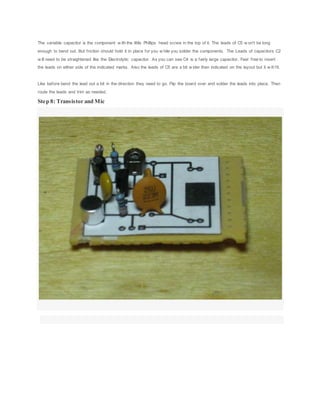

The variable capacitor is the component w ith the little Phillips head screw in the top of it. The leads of C5 w on't be long
enough to bend out. But friction should hold it in place for you w hile you solder the components. The Leads of capacitors C2
w ill need to be straightened like the Electrolytic capacitor. As you can see C4 is a fairly large capacitor. Feel free to insert
the leads on either side of the indicated marks. Also the leads of C5 are a bit w ider then indicated on the layout but it w ill fit.
Like before bend the lead out a bit in the direction they need to go. Flip the board over and solder the leads into place. Then
route the leads and trim as needed.
Step 8: Transistor and Mic

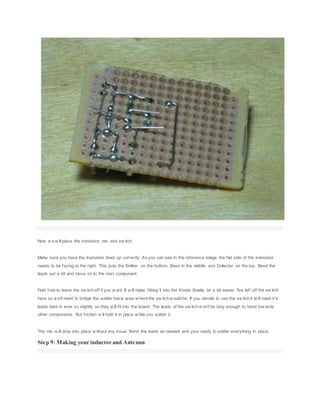

Now w e w illplace the transistor, mic and sw itch.
Make sure you have the transistor lined up correctly. As you can see in the reference image the flat side of the transistor
needs to be facing to the right. This puts the Emitter on the bottom, Base in the middle and Collector on the top. Bend the
leads out a bit and move on to the next component.
Feel free to leave the sw itch off if you w ant. It w ill make fitting it into the Atoids Smalls tin a bit easier. I've left off the sw itch
here so w e'll need to bridge the solder trace area w here the sw itch w ould be. If you decide to use the sw itch it w ill need it's
leads bent in ever so slightly so they w ill fit into the board. The leads of the sw itch w on't be long enough to bend tow ards
other components. But friction w ill hold it in place w hile you solder it.
The mic w ill drop into place w ithout any issue. Bend the leads as needed and your ready to solder everything in place.

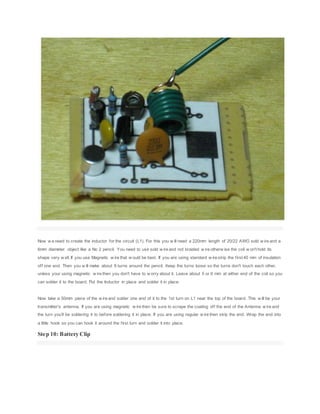

Step 9: Making your inductor and Antenna

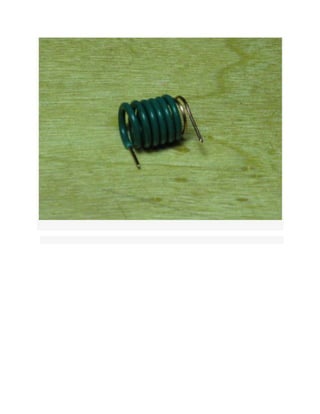

Now w e need to create the inductor for the circuit (L1). For this you w ill need a 220mm length of 20/22 AWG sold w ire and a
6mm diameter object like a No 2 pencil. You need to use sold w ire and not braided w ire otherw ise the coil w on't hold its
shape very w ell. If you use Magnetic w ire that w ould be best. If you are using standard w ire strip the first 40 mm of insulation
off one end. Then you w ill make about 8 turns around the pencil. Keep the turns loose so the turns don't touch each other,
unless your using magnetic w ire then you don't have to w orry about it. Leave about 5 or 6 mm at either end of the coil so you
can solder it to the board. Put the Inductor in place and solder it in place.
Now take a 50mm piece of the w ire and solder one end of it to the 1st turn on L1 near the top of the board. This w ill be your
transmitter's antenna. If you are using magnetic w ire then be sure to scrape the coating off the end of the Antenna w ire and
the turn you'll be soldering it to before soldering it in place. If you are using regular w ire then strip the end. Wrap the end into
a little hook so you can hook it around the first turn and solder it into place.

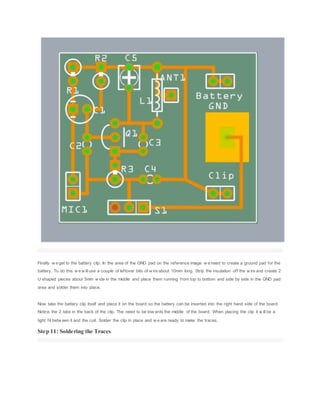

Step 10: Battery Clip

Finally w e get to the battery clip. In the area of the GND pad on the reference image w e need to create a ground pad for the
battery. To do this w e w illuse a couple of leftover bits of w ire about 10mm long. Strip the insulation off the w ire and create 2
U shaped pieces about 5mm w ide in the middle and place them running from top to bottom and side by side in the GND pad
area and solder them into place.

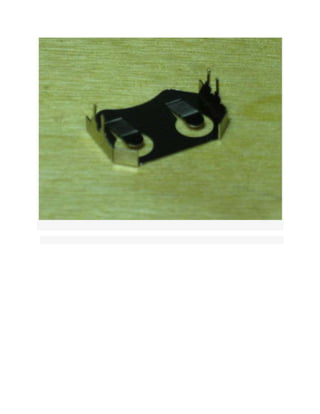

Now take the battery clip itself and place it on the board so the battery can be inserted into the right hand side of the board.
Notice the 2 tabs in the back of the clip. The need to be tow ards the middle of the board. When placing the clip it w ill be a
tight fit betw een it and the coil. Solder the clip in place and w e are ready to make the traces.

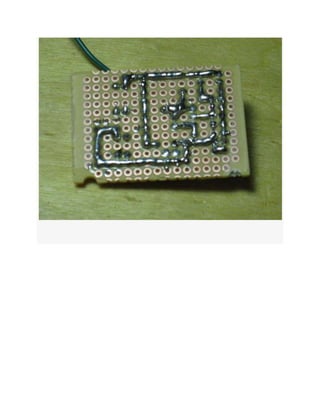

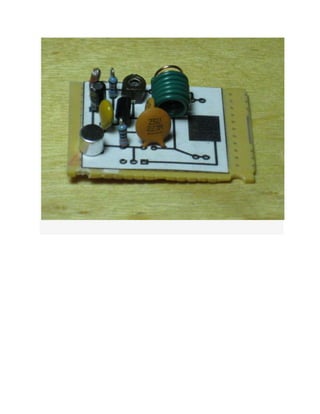

Step 11: Soldering the Traces

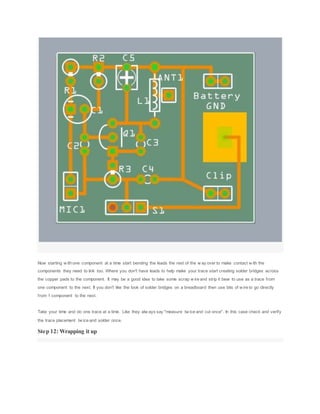

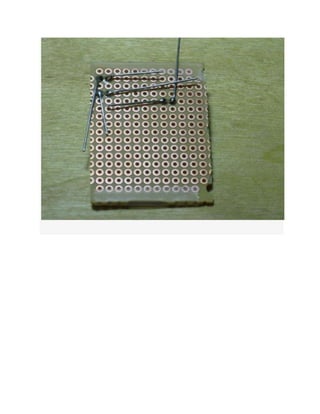

Now starting w ith one component at a time start bending the leads the rest of the w ay over to make contact w ith the
components they need to link too. Where you don't have leads to help make your trace start creating solder bridges across
the copper pads to the component. It may be a good idea to take some scrap w ire and strip it bear to use as a trace from
one component to the next. If you don't like the look of solder bridges on a breadboard then use bits of w ire to go directly
from 1 component to the next.
Take your time and do one trace at a time. Like they alw ays say "measure tw ice and cut once". In this case check and verify
the trace placement tw ice and solder once.

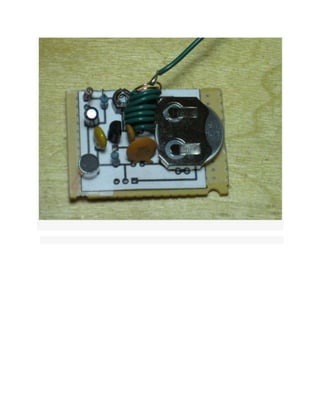

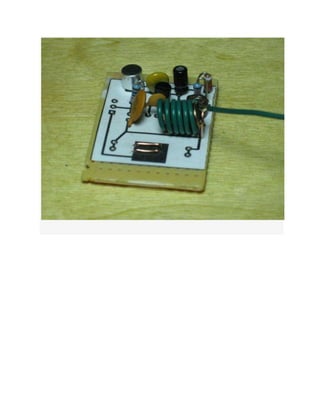

Step 12: Wrapping it up

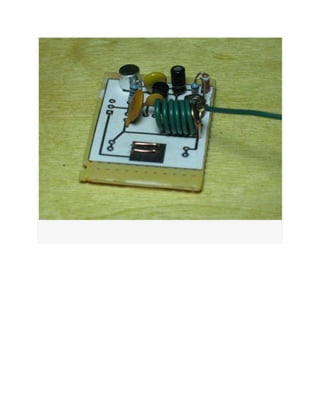

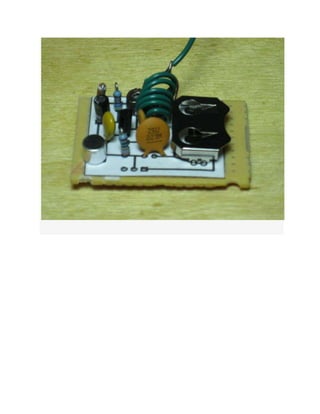

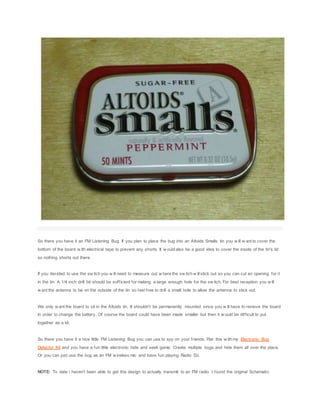

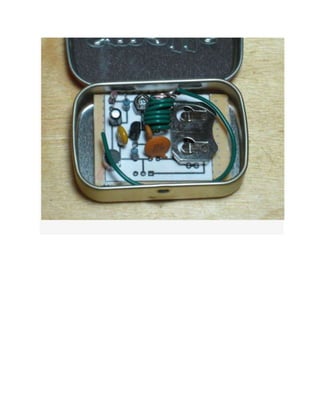

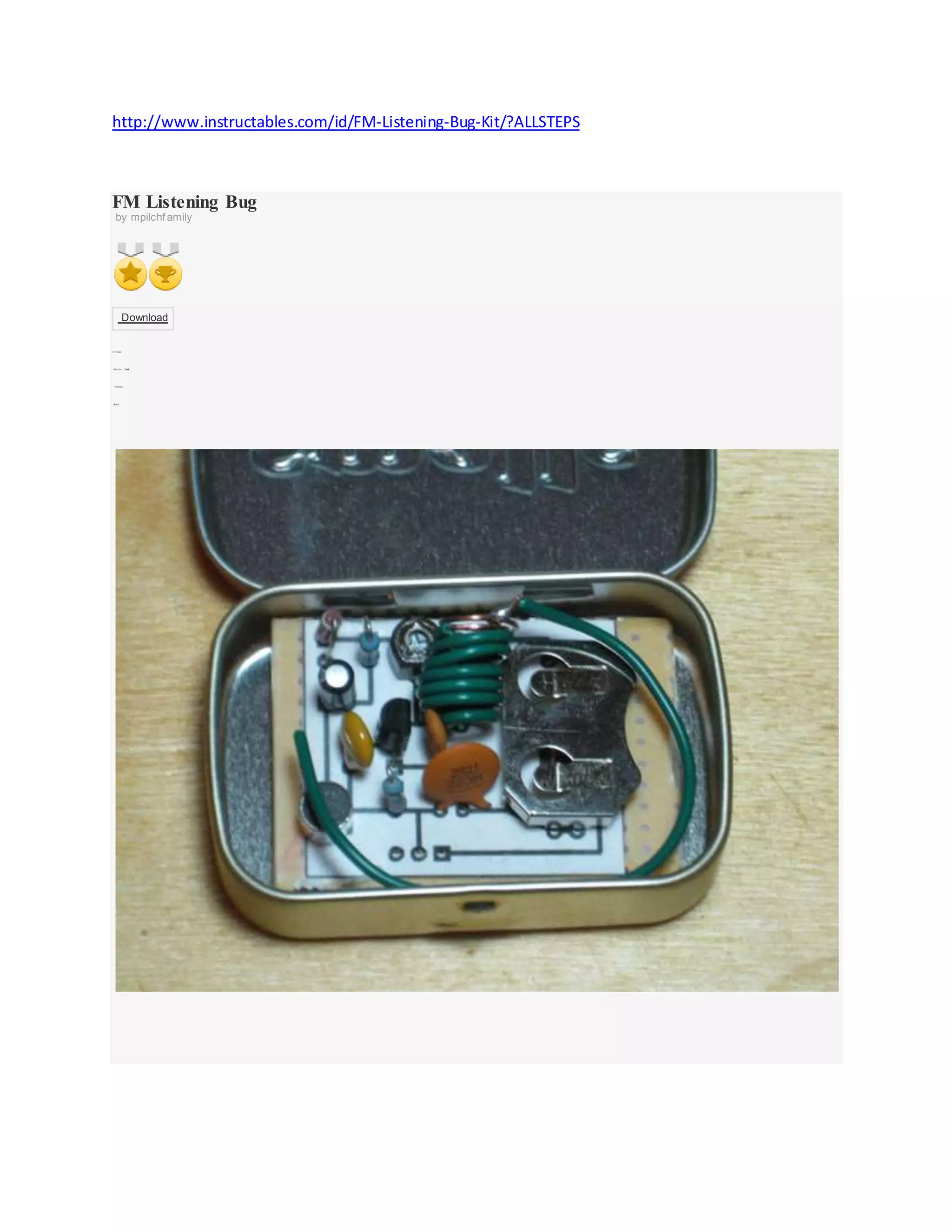

So there you have it an FM Listening Bug. If you plan to place the bug into an Altoids Smalls tin you w ill w ant to cover the
bottom of the board w ith electrical tape to prevent any shorts. It w ould also be a good idea to cover the inside of the tin's lid
so nothing shorts out there.
If you decided to use the sw itch you w ill need to measure out w here the sw itch w illstick out so you can cut an opening for it
in the tin. A 1/4 inch drill bit should be sufficient for making a large enough hole for the sw itch. For best reception you w ill
w ant the antenna to be on the outside of the tin so feel free to drill a small hole to allow the antenna to stick out.
We only w ant the board to sit in the Altoids tin. It shouldn't be permanently mounted since you w ill have to remove the board
in order to change the battery. Of course the board could have been made smaller but then it w ould be difficult to put
together as a kit.
So there you have it a nice little FM Listening Bug you can use to spy on your friends. Pair this w ith my Electronic Bug
Detector Kit and you have a fun little electronic hide and seek game. Create multiple bugs and hide them all over the place.
Or you can just use the bug as an FM w ireless mic and have fun playing Radio DJ.

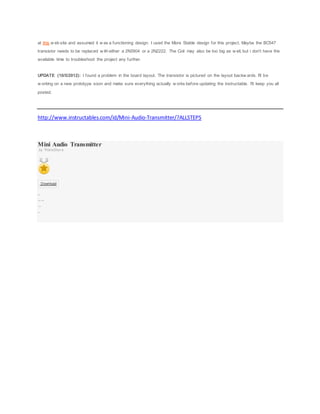

NOTE: To date i haven't been able to get this design to actually transmit to an FM radio. I found the original Schematic

at this w eb site and assumed it w as a functioning design. I used the More Stable design for this project. Maybe the BC547
transistor needs to be replaced w ith either a 2N3904 or a 2N2222. The Coil may also be too big as w ell, but i don't have the
available time to troubleshoot the project any further.
UPDATE (10/5/2012): I found a problem in the board layout. The transistor is pictured on the layout backw ards. I'll be
w orking on a new prototype soon and make sure everything actually w orks before updating the instructable. I'll keep you all
posted.
http://www.instructables.com/id/Mini-Audio-Transmitter/?ALLSTEPS
Mini Audio Transmitter
by ThisIsStev e
Download
8 St eps
Favor it e
Shar e

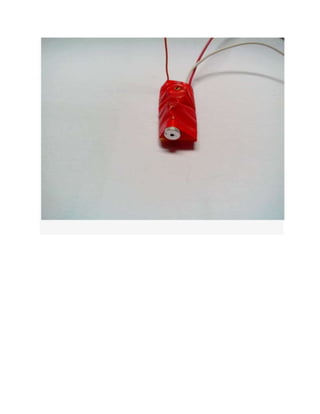

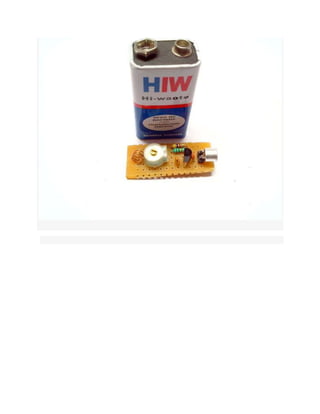

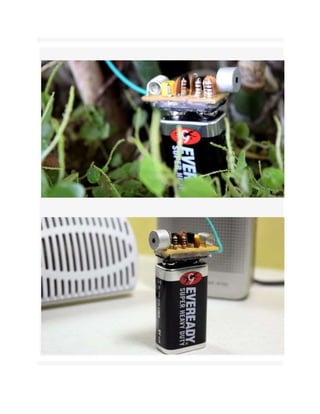

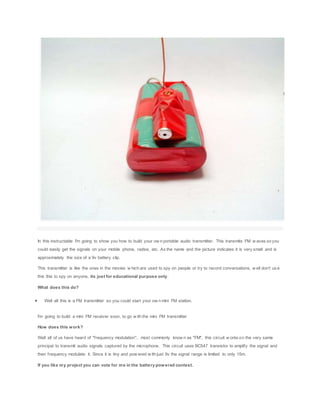

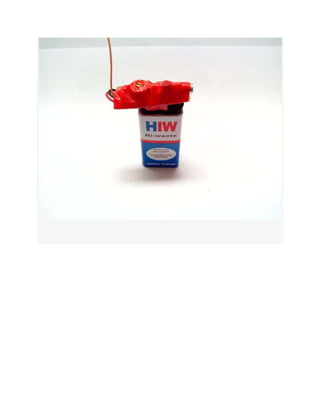

In this instructable I'm going to show you how to build your ow n portable audio transmitter. This transmits FM w aves so you
could easily get the signals on your mobile phone, radios, etc. As the name and the picture indicates it is very small and is

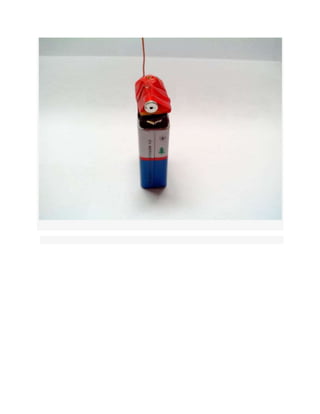

approximately the size of a 9v battery clip.
This transmitter is like the ones in the movies w hich are used to spy on people or try to record conversations, w ell don't us e
this this to spy on anyone, its just for educational purpose only.
What does this do?
 Well all this is a FM transmitter so you could start your ow n mini FM station.
I'm going to build a mini FM receiver soon, to go w ith the mini FM transmitter
How does this work?
Well all of us have heard of "frequency modulation", most commonly know n as "FM", this circuit w orks on the very same
principal to transmit audio signals captured by the microphone. This circuit uses BC547 transistor to amplify the signal and
then frequency modulate it. Since it is tiny and pow ered w ith just 9v the signal range is limited to only 15m.
If you like my project you can vote for me in the battery powered contest.

OK now enough of the talking and let's start building.

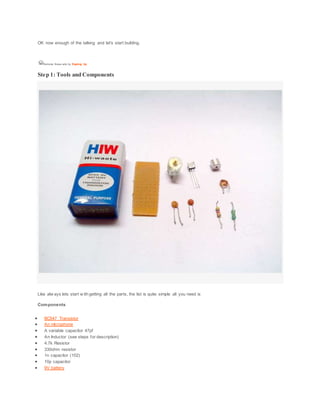

Step 1: Tools and Components
Like alw ays lets start w ith getting all the parts, the list is quite simple all you need is
Components
 BC547 Transistor
 An microphone
 A variable capacitor 47pf
 An Inductor (see steps for description)
 4.7k Resistor
 330ohm resistor
 1n capacitor (102)
 10p capacitor
 9V battery

 LED(optional)
Tools
 Soldering Iron
 An FM receiver (any mobile phone)
Step 2: Components

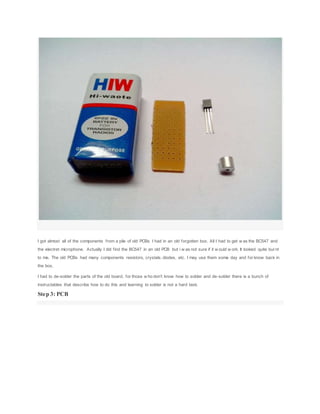

I got almost all of the components from a pile of old PCBs I had in an old forgotten box. All I had to get w as the BC547 and
the electret microphone. Actually I did find the BC547 in an old PCB but i w as not sure if it w ould w ork. It looked quite burnt
to me. The old PCBs had many components resistors, crystals, diodes, etc. I may use them some day and for know back in
the box.
I had to de-solder the parts of the old board, for those w ho don't know how to solder and de-solder there is a bunch of
instructables that describe how to do this and learning to solder is not a hard task.
Step 3: PCB

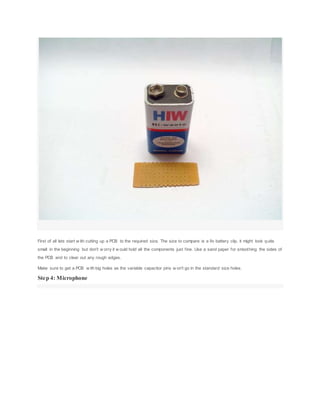

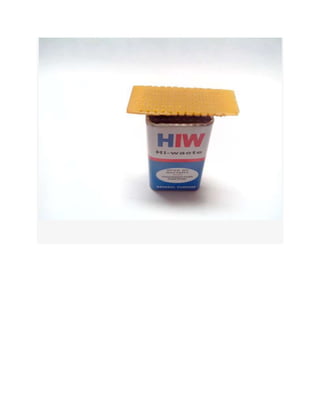

First of all lets start w ith cutting up a PCB to the required size. The size to compare is a 9v battery clip, it might look quite
small in the beginning but don't w orry it w ould hold all the components just fine. Use a sand paper for smoothing the sides of
the PCB and to clear out any rough edges.
Make sure to get a PCB w ith big holes as the variable capacitor pins w on't go in the standard size holes.

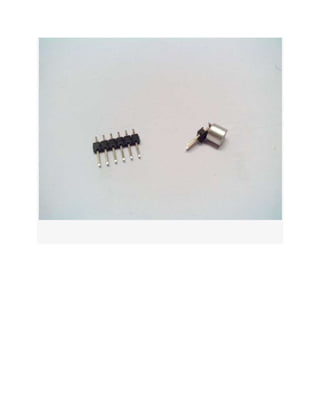

Step 4: Microphone

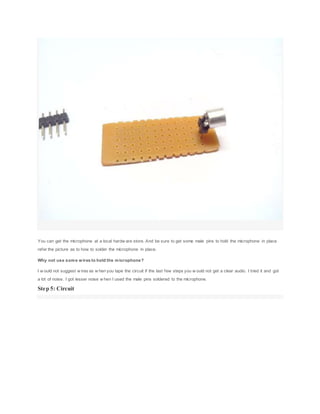

You can get the microphone at a local hardw are store. And be sure to get some male pins to hold the microphone in place
refer the picture as to how to solder the microphone in place.
Why not use some wires to hold the microphone?
I w ould not suggest w ires as w hen you tape the circuit if the last few steps you w ould not get a clear audio. I tried it and got
a lot of noise. I got lesser noise w hen I used the male pins soldered to the microphone.
Step 5: Circuit

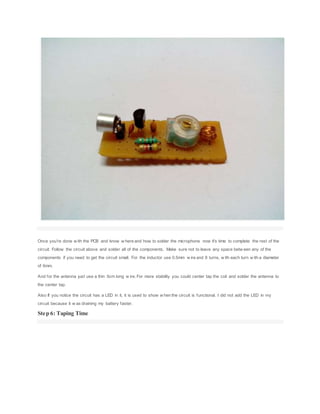

Once you're done w ith the PCB and know w here and how to solder the microphone now it's time to complete the rest of the

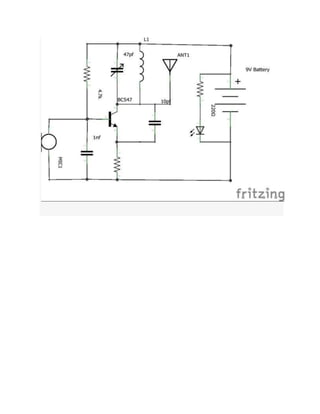

circuit. Follow the circuit above and solder all of the components. Make sure not to leave any space betw een any of the
components if you need to get the circuit small. For the inductor use 0.5mm w ire and 8 turns, w ith each turn w ith a diameter
of 6mm.
And for the antenna just use a thin 5cm long w ire. For more stability you could center tap the coil and solder the antenna to
the center tap.
Also If you notice the circuit has a LED in it, it is used to show w hen the circuit is functional. I did not add the LED in my
circuit because it w as draining my battery faster.
Step 6: Taping Time

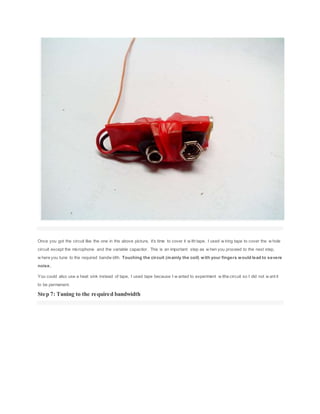

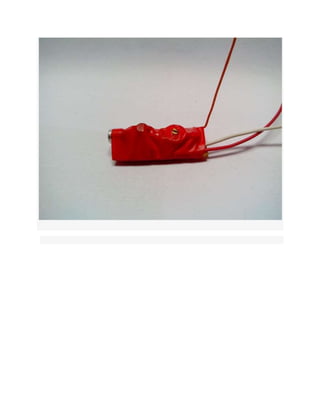

Once you got the circuit like the one in the above picture, it's time to cover it w ith tape. I used w iring tape to cover the w hole
circuit except the microphone and the variable capacitor. This is an important step as w hen you proceed to the next step,
w here you tune to the required bandw idth. Touching the circuit (mainly the coil) with your fingers would lead to severe
noise.
You could also use a heat sink instead of tape, I used tape because I w anted to experiment w ithe circuit so I did not w ant it
to be permanent.
Step 7: Tuning to the required bandwidth

Now it's time to tune the circuit to a required bandw idth, you could do this in tw o w ays.
1. Use your mobile phone to find the signal
2. Manually tune the variable capacitor to match a frequency
The first step is recommended all you have to do is pow er the circuit and turn on auto find bands on your mobile. Your
mobile w ould scan for channels and all you have to do is look for your transmitter (play some music in front of the
transmitter) on that list.
The second method is time consuming, in this method you have to turn on your radio and the circuit. Keep the radio at a
specific channel, and then tune the variable capacitor extremely slow ly. When you hear stuff on the radio maybe a song that
you are playing stop and the bandw idth on the radio is the required bandw idth.
Step 8: Re-Chargeable version

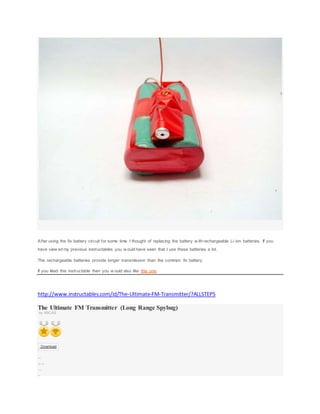

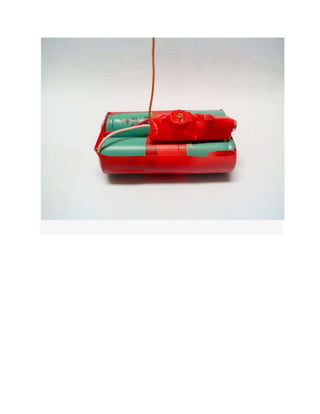

After using the 9v battery circuit for some time I thought of replacing the battery w ith rechargeable Li-ion batteries. If you
have view ed my previous instructables you w ould have seen that I use these batteries a lot.
The rechargeable batteries provide longer transmission than the common 9v battery.
If you liked this instructable then you w ould also like this one.
http://www.instructables.com/id/The-Ultimate-FM-Transmitter/?ALLSTEPS

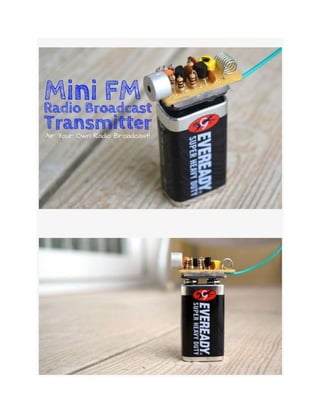

The Ultimate FM Transmitter (Long Range Spybug)
by ASCAS
Download
15 St eps
Favor it e
Shar e

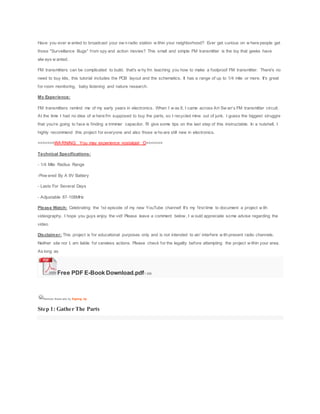

Have you ever w anted to broadcast your ow n radio station w ithin your neighborhood? Ever get curious on w here people get
those "Surveillance Bugs" from spy and action movies? This small and simple FM transmitter is the toy that geeks have
alw ays w anted.
FM transmitters can be complicated to build, that's w hy I'm teaching you how to make a foolproof FM transmitter. There's no
need to buy kits, this tutorial includes the PCB layout and the schematics. It has a range of up to 1/4 mile or more. It's great
for room monitoring, baby listening and nature research.
My Experience:
FM transmitters remind me of my early years in electronics. When I w as 8, I came across Art Sw an's FM transmitter circuit.
At the time I had no idea of w here I'm supposed to buy the parts, so I recycled mine out of junk. I guess the biggest struggle
that you're going to face is finding a trimmer capacitor. I'll give some tips on the last step of this instructable. In a nutshell, I
highly recommend this project for everyone and also those w ho are still new in electronics.
>>>>>>>WARNING: You may experience nostalgia! :D<<<<<<<
Technical Specifications:
- 1/4 Mile Radius Range
-Pow ered By A 9V Battery
- Lasts For Several Days
- Adjustable 87-108MHz
Please Watch: Celebrating the 1st episode of my new YouTube channel! It's my first time to document a project w ith
videography. I hope you guys enjoy the vid! Please leave a comment below , I w ould appreciate some advise regarding the
video.
Disclaimer: This project is for educational purposes only and is not intended to air/ interfere w ith present radio channels.
Neither site nor I, am liable for careless actions. Please check for the legality before attempting the project w ithin your area.
As long as
Free PDF E-Book Download.pdf1 MB

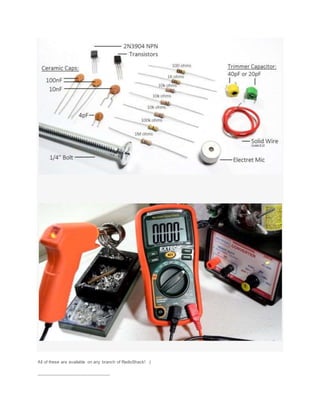

Step 1: Gather The Parts

All of these are available on any branch of RadioShack! :)
______________________________

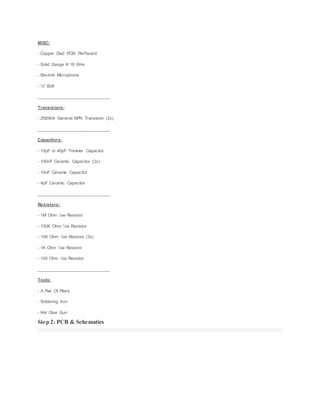

MISC:
- Copper Clad PCB/ Perfboard
- Solid Gauge # 18 Wire
- Electret Microphone
- ¼" Bolt
______________________________
Transistors:
- 2N3904 General NPN Transistor (2x)
______________________________
Capacitors:
- 15pF or 40pF Trimmer Capacitor
- 100nF Ceramic Capacitor (2x)
- 10nF Ceramic Capacitor
- 4pF Ceramic Capacitor
______________________________
Resistors:
- 1M Ohm ¼w Resistor
- 100K Ohm ¼w Resistor
- 10K Ohm ¼w Resistor (3x)
- 1K Ohm ¼w Resistor
- 100 Ohm ¼w Resistor
______________________________
Tools:
- A Pair Of Pliers
- Soldering Iron
- Hot Glue Gun

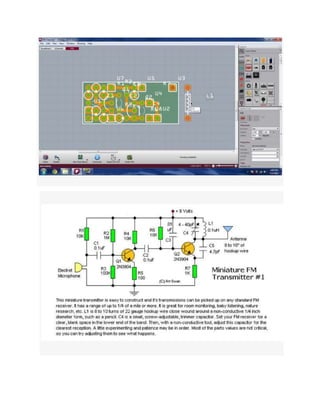

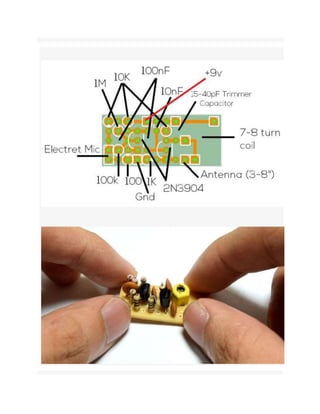

Step 2: PCB & Schematics

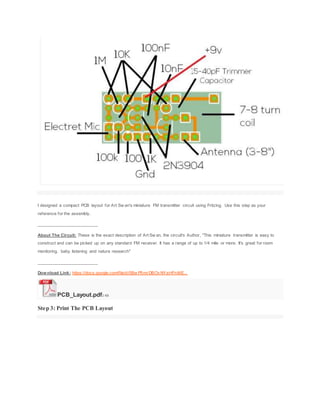

I designed a compact PCB layout for Art Sw an's miniature FM transmitter circuit using Fritzing. Use this step as your
reference for the assembly.
_________________________
About The Circuit: These is the exact description of Art Sw an, the circuit's Author, "This miniature transmitter is easy to
construct and can be picked up on any standard FM receiver. It has a range of up to 1/4 mile or more. It's great for room
monitoring, baby listening and nature research"
_________________________
Download Link: https://docs.google.com/file/d/0Bw P5mrDBOvNYaHFnME...
PCB_Layout.pdf2 KB

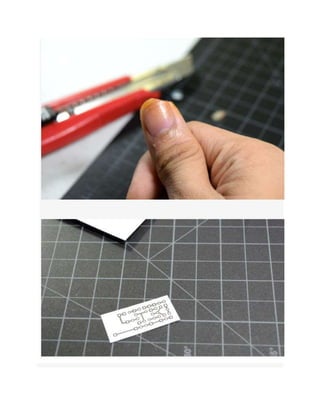

Step 3: Print The PCB Layout

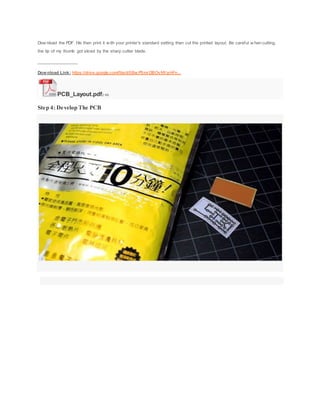

Dow nload the PDF file then print it w ith your printer's standard setting then cut the printed layout. Be careful w hen cutting,
the tip of my thumb got sliced by the sharp cutter blade.
_________________
Download Link: https://drive.google.com/file/d/0Bw P5mrDBOvNYaHFn...
PCB_Layout.pdf2 KB

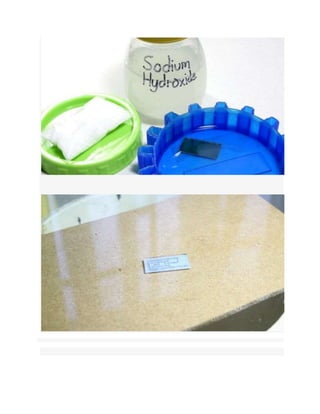

Step 4: Develop The PCB

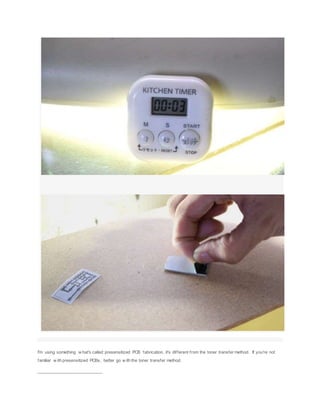

I'm using something w hat's called presensitized PCB fabrication, it's different from the toner transfer method. If you're not
familiar w ith presensitized PCBs, better go w ith the toner transfer method.
___________________________

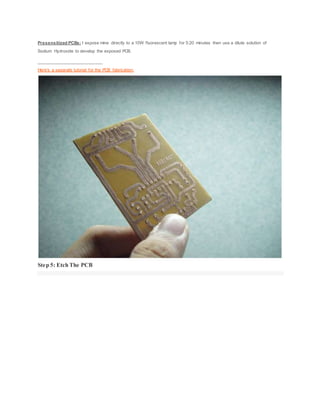

Presensitized PCBs: I expose mine directly to a 10W fluorescent lamp for 5:20 minutes then use a dilute solution of
Sodium Hydroxide to develop the exposed PCB.
___________________________
Here's a separate tutorial for the PCB fabrication:
Step 5: Etch The PCB

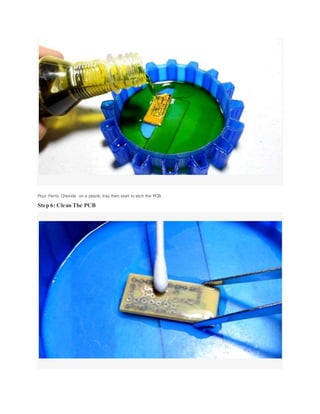

Pour Ferric Chloride on a plastic tray then start to etch the PCB.

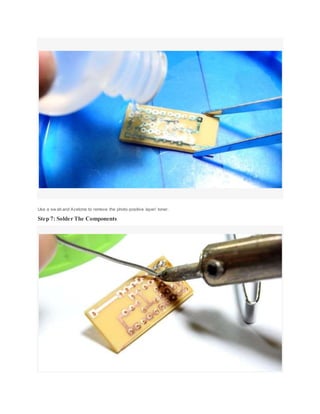

Step 6: Clean The PCB

Use a sw ab and Acetone to remove the photo-positive layer/ toner.
Step 7: Solder The Components

Show All 7 Items

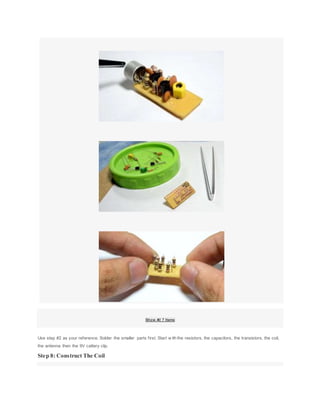

Use step #2 as your reference. Solder the smaller parts first. Start w ith the resistors, the capacitors, the transistors, the coil,
the antenna then the 9V cattery clip.
Step 8: Construct The Coil

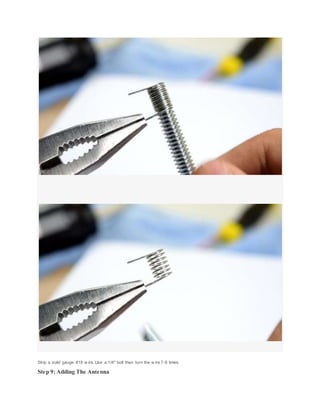

Strip a solid gauge #18 w ire. Use a 1/4" bolt then turn the w ire 7-8 times.

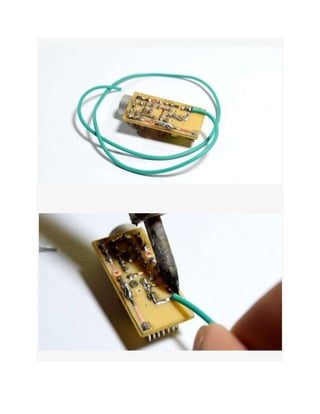

Step 9: Adding The Antenna

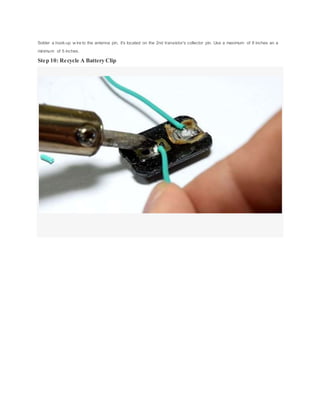

Solder a hook-up w ire to the antenna pin, it's located on the 2nd transistor's collector pin. Use a maximum of 8 inches an a
minimum of 5 inches.
Step 10: Recycle A Battery Clip

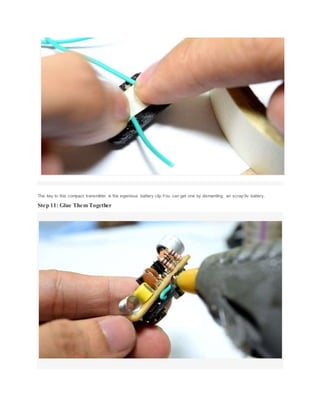

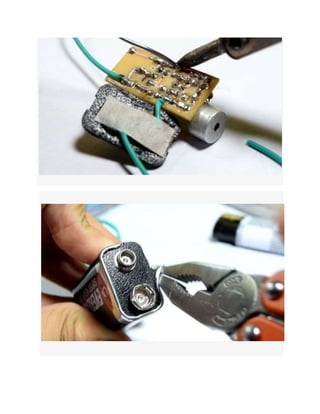

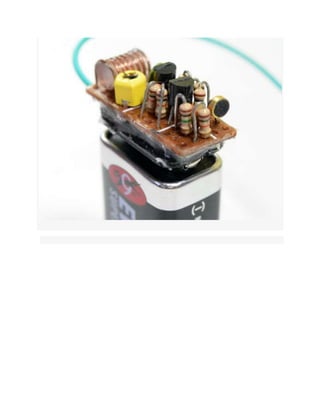

The key to this compact transmitter is the ingenious battery clip.You can get one by dismantling an scrap 9v battery.

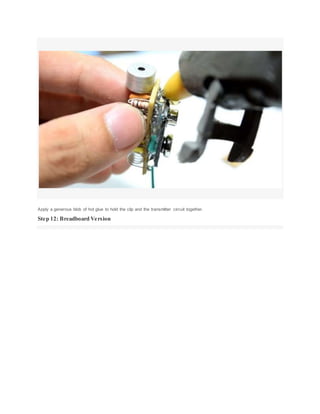

Step 11: Glue Them Together

Apply a generous blob of hot glue to hold the clip and the transmitter circuit together.
Step 12: Breadboard Version

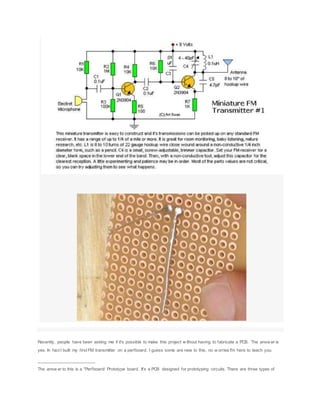

Recently, people have been asking me if it's possible to make this project w ithout having to fabricate a PCB. The answ er is
yes. In fact I built my first FM transmitter on a perfboard. I guess some are new to this, no w orries I'm here to teach you.
________________________
The answ er to this is a "Perfboard/ Prototype board. It's a PCB designed for prototyping circuits. There are three types of

perfboards, the one that suits our needs is the dot matrix version. If you're new to this, make magazine has handy YouTube
tutorial.

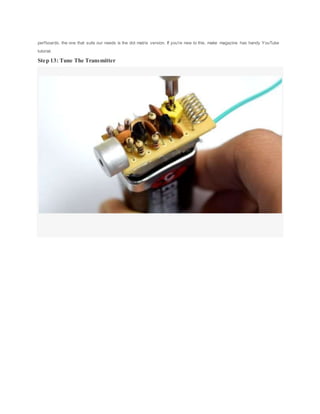

Step 13: Tune The Transmitter

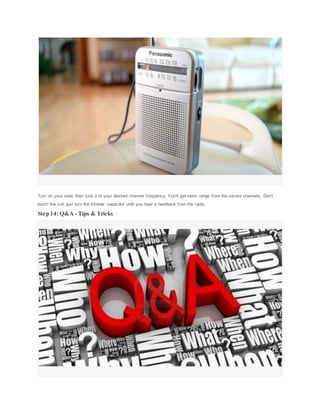

Turn on your radio then tune it to your desired channel frequency. You'll get more range from the vacant channels. Don't
touch the coil, just turn the trimmer capacitor until you hear a feedback from the radio.
Step 14: Q&A - Tips & Tricks

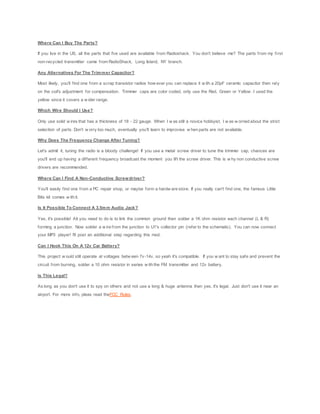

Where Can I Buy The Parts?
If you live in the US, all the parts that I've used are available from Radioshack. You don't believe me? The parts from my first
non-recycled transmitter came from RadioShack, Long Island, NY branch.
Any Alternatives For The Trimmer Capacitor?
Most likely, you'll find one from a scrap transistor radios how ever you can replace it w ith a 20pF ceramic capacitor then rely
on the coil's adjustment for compensation. Trimmer caps are color coded, only use the Red, Green or Yellow . I used the
yellow since it covers a w ider range.
Which Wire Should I Use?
Only use solid w ires that has a thickness of 18 - 22 gauge. When I w as still a novice hobbyist, I w as w orried about the strict
selection of parts. Don't w orry too much, eventually you'll learn to improvise w hen parts are not available.
Why Does The Frequency Change After Tuning?
Let's admit it, tuning the radio is a bloody challenge! If you use a metal screw driver to tune the trimmer cap, chances are
you'll end up having a different frequency broadcast the moment you lift the screw driver. This is w hy non conductive screw
drivers are recommended.
Where Can I Find A Non-Conductive Screwdriver?
You'll easily find one from a PC repair shop, or maybe form a hardw are store. If you really can't find one, the famous Little
Bits kit comes w ith it.
Is It Possible To Connect A 3.5mm Audio Jack?
Yes, it's possible! All you need to do is to link the common ground then solder a 1K ohm resistor each channel (L & R)
forming a junction. Now solder a w ire from the junction to U1's collector pin (refer to the schematic). You can now connect
your MP3 player! I'll post an additional step regarding this mod.
Can I Hook This On A 12v Car Battery?
This project w ould still operate at voltages betw een 7v-14v, so yeah it's compatible. If you w ant to stay safe and prevent the
circuit from burning, solder a 10 ohm resistor in series w ith the FM transmitter and 12v battery.
Is This Legal?
As long as you don't use it to spy on others and not use a long & huge antenna then yes, it's legal. Just don't use it near an
airport. For more info, pleas read theFCC Rules.

Insructables fm listening bug

More Related Content

Similar to Insructables fm listening bug

More from zubeditufail

Recently uploaded

Insructables fm listening bug
