Innovative Tool is an ISO9001-2008 registered company established in 2004 that provides CNC machining, stamping, and prototype services. They have over 45 years of automotive industry experience and serve tier 1 and 2 automotive suppliers. Innovative Tool prides itself on high precision work, maintaining tight tolerances, and reliable customer service. They have a variety of CNC and stamping equipment to produce short-run production components.

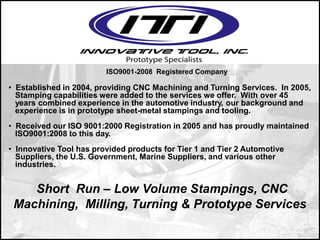

2. Short Run – Low Volume Stampings, CNC
Machining, Milling, Turning & Prototype Services
ISO9001-2008 Registered Company
• Established in 2004, providing CNC Machining and Turning Services. In 2005,
Stamping capabilities were added to the services we offer. With over 45
years combined experience in the automotive industry, our background and
experience is in prototype sheet-metal stampings and tooling.

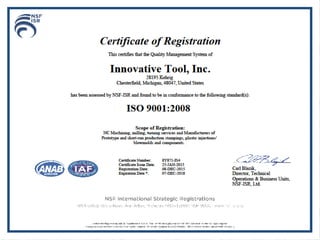

• Received our ISO 9001:2000 Registration in 2005 and has proudly maintained
ISO9001:2008 to this day.
• Innovative Tool has provided products for Tier 1 and Tier 2 Automotive
Suppliers, the U.S. Government, Marine Suppliers, and various other
industries.

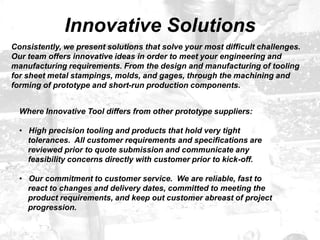

3. Innovative Solutions
Where Innovative Tool differs from other prototype suppliers:
• High precision tooling and products that hold very tight
tolerances. All customer requirements and specifications are
reviewed prior to quote submission and communicate any
feasibility concerns directly with customer prior to kick-off.
• Our commitment to customer service. We are reliable, fast to
react to changes and delivery dates, committed to meeting the
product requirements, and keep out customer abreast of project
progression.
Consistently, we present solutions that solve your most difficult challenges.
Our team offers innovative ideas in order to meet your engineering and
manufacturing requirements. From the design and manufacturing of tooling
for sheet metal stampings, molds, and gages, through the machining and
forming of prototype and short-run production components.

4. Stamping & Forming
 Prototype Stampings
 Short-Run Production
Automotive
Aerospace
Military
 Blank Development
 Up to 750 Tons Forming
 Bed Sizes up to 6 ft.

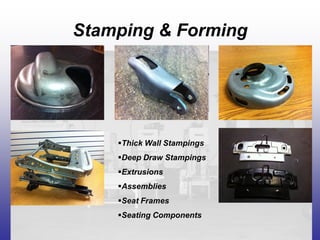

5. Stamping & Forming
Thick Wall Stampings
Deep Draw Stampings
Extrusions
Assemblies
Seat Frames
Seating Components

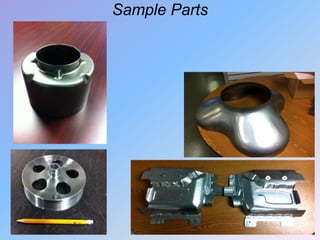

6. Sample Parts

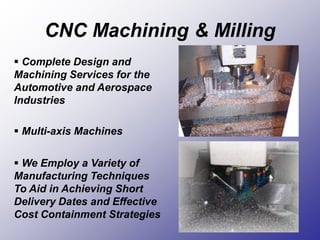

7. CNC Machining & Milling
 Complete Design and
Machining Services for the
Automotive and Aerospace
Industries
 Multi-axis Machines
 We Employ a Variety of
Manufacturing Techniques
To Aid in Achieving Short
Delivery Dates and Effective
Cost Containment Strategies

8. CNC Machining & Milling
 Materials Machined Range
from Foam, Steel, Aluminum
and Kirksite
 We Process Core and
Cavities as well as Inserts that
are Cut Cluster Style,
Individually, or Pre-Spotted
Inside the Tool.
 Table Sizes up to 80” x 30”

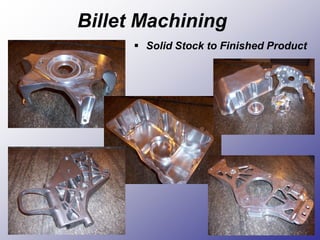

9. Billet Machining

10.  Solid Stock to Finished Product
Billet Machining

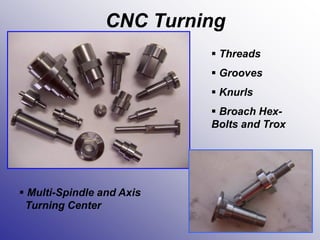

11. CNC Turning
 Multi-Spindle and Axis
Turning Center
 Threads
 Grooves
 Knurls
 Broach Hex-
Bolts and Trox

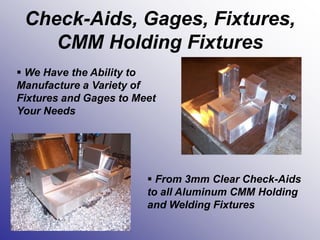

12. Check-Aids, Gages, Fixtures,
CMM Holding Fixtures
 We Have the Ability to
Manufacture a Variety of
Fixtures and Gages to Meet
Your Needs
 From 3mm Clear Check-Aids
to all Aluminum CMM Holding
and Welding Fixtures

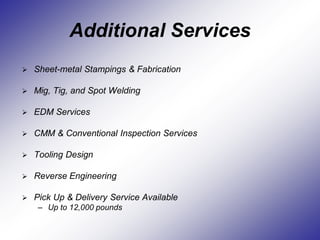

13. Additional Services
 Sheet-metal Stampings & Fabrication
 Mig, Tig, and Spot Welding
 EDM Services
 CMM & Conventional Inspection Services
 Tooling Design
 Reverse Engineering
 Pick Up & Delivery Service Available
– Up to 12,000 pounds

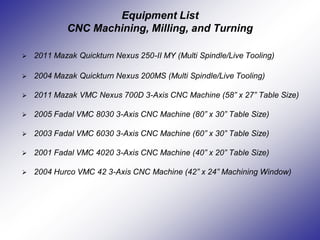

14. Equipment List
CNC Machining, Milling, and Turning
 2011 Mazak Quickturn Nexus 250-II MY (Multi Spindle/Live Tooling)
 2004 Mazak Quickturn Nexus 200MS (Multi Spindle/Live Tooling)
 2011 Mazak VMC Nexus 700D 3-Axis CNC Machine (58” x 27” Table Size)
 2005 Fadal VMC 8030 3-Axis CNC Machine (80” x 30” Table Size)
 2003 Fadal VMC 6030 3-Axis CNC Machine (60” x 30” Table Size)
 2001 Fadal VMC 4020 3-Axis CNC Machine (40” x 20” Table Size)
 2004 Hurco VMC 42 3-Axis CNC Machine (42” x 24” Machining Window)

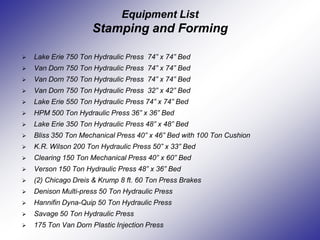

15. Equipment List
Stamping and Forming
 Lake Erie 750 Ton Hydraulic Press 74” x 74” Bed
 Van Dorn 750 Ton Hydraulic Press 74” x 74” Bed
 Van Dorn 750 Ton Hydraulic Press 74” x 74” Bed
 Van Dorn 750 Ton Hydraulic Press 32” x 42” Bed
 Lake Erie 550 Ton Hydraulic Press 74” x 74” Bed
 HPM 500 Ton Hydraulic Press 36” x 36” Bed
 Lake Erie 350 Ton Hydraulic Press 48” x 48” Bed
 Bliss 350 Ton Mechanical Press 40” x 46” Bed with 100 Ton Cushion
 K.R. Wilson 200 Ton Hydraulic Press 50” x 33” Bed
 Clearing 150 Ton Mechanical Press 40” x 60” Bed
 Verson 150 Ton Hydraulic Press 48” x 36” Bed
 (2) Chicago Dreis & Krump 8 ft. 60 Ton Press Brakes
 Denison Multi-press 50 Ton Hydraulic Press
 Hannifin Dyna-Quip 50 Ton Hydraulic Press
 Savage 50 Ton Hydraulic Press
 175 Ton Van Dorn Plastic Injection Press

16. 3 & 5 Axis Laser Cutting
• NTC America – Laser Group
• 3300W Laser Oscillator
• Cenit Software
• CMM Teaching Probe
• 5-Axis Joy Stick
• High Pressure Gas Assist
• “Superior Cut”
• 122” X Axis
• 85” Y Axis
• 31” Z Axis
• Patented Nozzle Design
• Up to 787”/min. Speed Feed Rate
• Cuts HSLA, Low Carbon, High Carbon, Stainless, Titanium, Aluminum, Plastic
Wood, Aluminized Steel

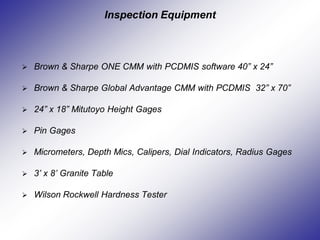

17. Inspection Equipment
 Brown & Sharpe ONE CMM with PCDMIS software 40” x 24”
 Brown & Sharpe Global Advantage CMM with PCDMIS 32” x 70”
 24” x 18” Mitutoyo Height Gages
 Pin Gages
 Micrometers, Depth Mics, Calipers, Dial Indicators, Radius Gages
 3’ x 8’ Granite Table
 Wilson Rockwell Hardness Tester

18. General Shop Equipment
 Cincinnati 6 ft. Shear
 (2) Bridgeports
 (2) Band Saws
 (2) DoAll Cutoff Saws
 Millermatic 252 Mig Welder
 Miller Syncrowave 300 Tig Welder
 Harig Super 612 Surface Grinder
 Spot Welder with a Medar Weld Controller
 Full Wood Shop Equipment
 Hyster Forklift – 10,000 Pound Lift Capacity
 2007 Ford F350 Flatbed Stake Truck

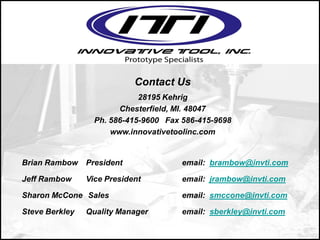

20. Contact Us
28195 Kehrig
Chesterfield, MI. 48047
Ph. 586-415-9600 Fax 586-415-9698
www.innovativetoolinc.com
Brian Rambow President email: brambow@invti.com
Jeff Rambow Vice President email: jrambow@invti.com
Sharon McCone Sales email: smccone@invti.com
Steve Berkley Quality Manager email: sberkley@invti.com
