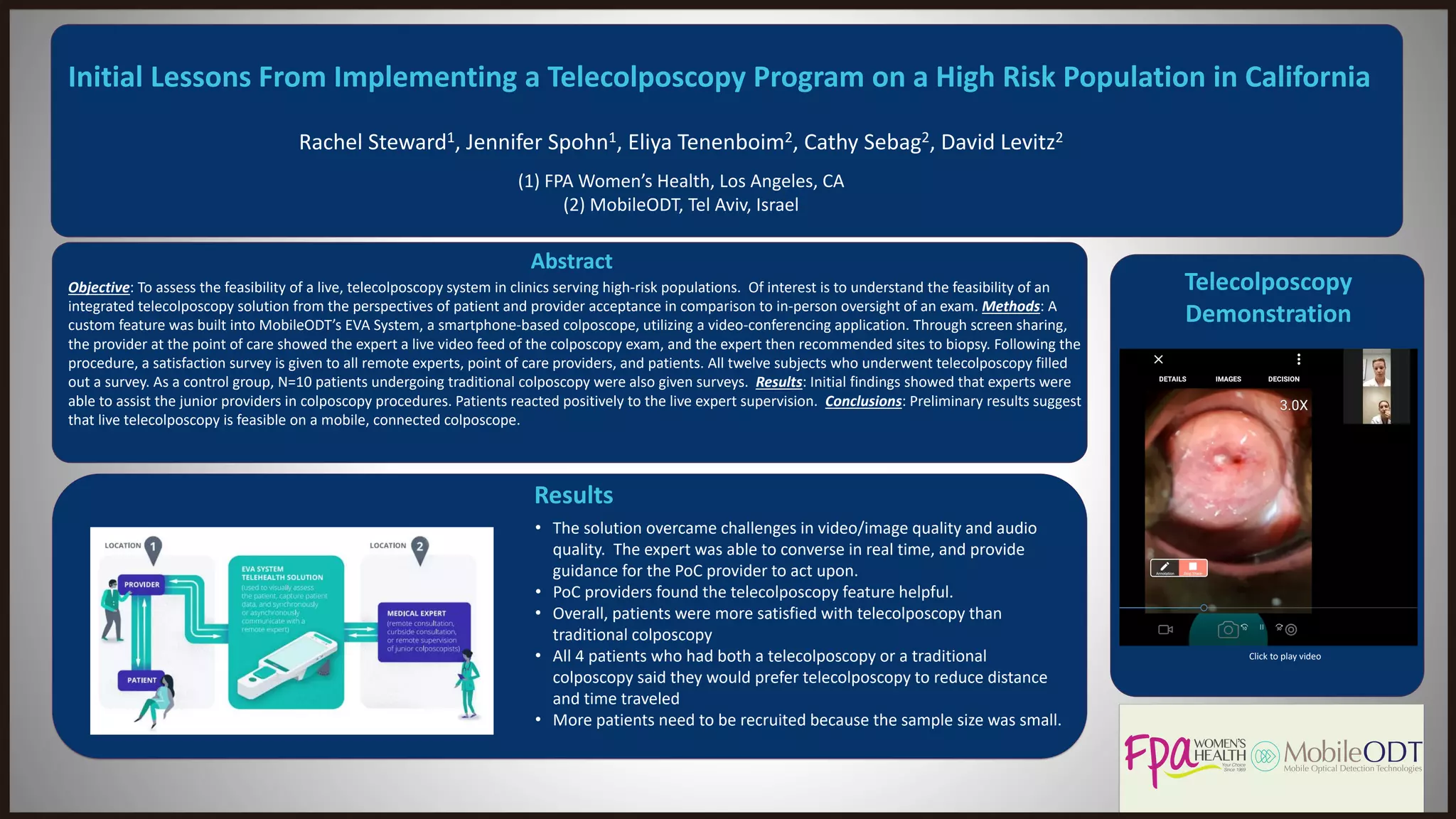

Initial Lessons From Implementing a Telecolposcopy Program on a High Risk Population in California
Rachel Steward1, Jennifer Spohn1, Eliya Tenenboim2, Cathy Sebag2, David Levitz2
(1) FPA Women’s Health, Los Angeles, CA
(2) MobileODT, Tel Aviv, Israel
Telecolposcopy
Demonstration
Click to play video
Abstract
Results
Objective: To assess the feasibility of a live, telecolposcopy system in clinics serving high-risk populations. Of interest is to understand the feasibility of an
integrated telecolposcopy solution from the perspectives of patient and provider acceptance in comparison to in-person oversight of an exam. Methods: A
custom feature was built into MobileODT’s EVA System, a smartphone-based colposcope, utilizing a video-conferencing application. Through screen sharing,
the provider at the point of care showed the expert a live video feed of the colposcopy exam, and the expert then recommended sites to biopsy. Following the
procedure, a satisfaction survey is given to all remote experts, point of care providers, and patients. All twelve subjects who underwent telecolposcopy filled
out a survey. As a control group, N=10 patients undergoing traditional colposcopy were also given surveys. Results: Initial findings showed that experts were
able to assist the junior providers in colposcopy procedures. Patients reacted positively to the live expert supervision. Conclusions: Preliminary results suggest
that live telecolposcopy is feasible on a mobile, connected colposcope.
• The solution overcame challenges in video/image quality and audio
quality. The expert was able to converse in real time, and provide
guidance for the PoC provider to act upon.
• PoC providers found the telecolposcopy feature helpful.
• Overall, patients were more satisfied with telecolposcopy than
traditional colposcopy
• All 4 patients who had both a telecolposcopy or a traditional
colposcopy said they would prefer telecolposcopy to reduce distance
and time traveled
• More patients need to be recruited because the sample size was small.

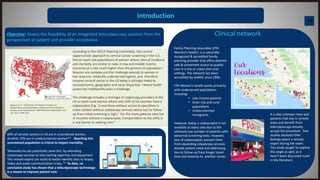

Introduction
Objective: Assess the feasibility of an integrated telecolposcopy solution from the
perspectives of patient and provider acceptance
Clinical network
Rayburn et. al. "Distribution of American Congress of
Obstetricians and Gynecologists Fellows and Junior Fellows in
Practice in the United States" OBSTETRICS & GYNECOLOGY, VOL.
119, NO. 5, MAY 2012
According to the ASCCP Steering Committee, the current
opportunistic approach to cervical cancer screening in the U.S.
fails to reach sub-populations of women where rates of incidence
and mortality are similar to rates in low and middle income
countries at a rate much higher than the general US population.1
Reasons are complex and the challenge extends to women in
low-resource, medically underserved regions, and therefore
invasive cervical cancer in the US today is strongly linked to
socioeconomic, geographic and racial disparities 1 where health
access has traditionally been a challenge.
The challenge includes a shortage of colposcopy providers in the
US to reach rural women where only 50% of US counties have a
colposcopist (Fig. 1) and those without access to specialists in
urban centers without colposcopy services where loss to follow-
up from initial screening is high.2 For the many patients who live
in counties without a colposcopist, transportation to the clinic is
a real barrier to seeking care.3
Family Planning Associates (FPA
Women’s Health) is a nationally
recognized & accredited family
planning provider that offers patients
safe & convenient access to quality
care in a mix or urban and rural
settings. The network has been
accredited by AAAHC since 1996.
FPA Women’s Health works primarily
with underserved populations
including:
• Low income patients
• Inner-city and rural
populations
• Undocumented
immigrants
However, today, a colposcopist is not
available at many sites due to the
relatively low number of patients with
abnormal screening tests. However,
lack of colposcopists prevent them
from expanding colposcopy services
despite patient need and addressing
loss to follow-up from longer travel
time and distance to another center.
50% of cervical cancers in US are in unscreened women.
Another 10% are in underscreened women4-6 . Reaching this
unscreened population is critical to impact mortality.
Telemedicine can potentially solve this, by extending
colposcopy services to sites lacking expertise and equipment.
The remote expert can assist to better identify sites to biopsy.
Video and audio communication is key. 7-9 To date, no
conclusive study has shown that a telecolposcopy technology
is a means to improve patient care.
It is also unknown how well
patients that live in remote
areas and benefit from
telecolposcopy actually
accept the procedure. Few
studies assessed their
feelings about a remote
expert during the exam.
This study sought to explore
this angle as well, as it
hasn’t been discussed much
in the literature.

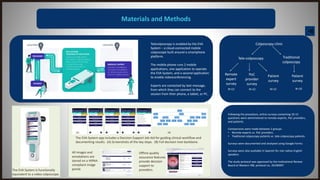

Materials and Methods
The EVA System app includes a Decision Support Job Aid for guiding clinical workflow and
documenting results. (A) Screenshots of the key steps. (B) Full decision tree backbone.
(A) (B)
Colposcopy clinic
Tele-colposcopy Traditional
colposcopy
Patient
survey
Patient
survey
Remote
expert
survey
PoC
provider
survey
N=12 N=12 N=12 N=10
The EVA System is functionally
equivalent to a video colposcope.
Telecolposcopy is enabled by the EVA
System – a cloud-connected mobile
colposcope built around a smartphone
platform.
The mobile phone runs 2 mobile
applications, one application to operate
the EVA System, and a second application
to enable videoconferencing.
Experts are contacted by text message,
from which they can connect to the
session from their phone, a tablet, or PC.
All images and
annotations are
stored on a HIPAA-
compliant image
portal.
Offline quality
assurance features
provide decision
support to
providers.
Following the procedure, online surveys containing 10-15
questions were administered to remote experts, PoC providers,
and patients.
Comparisons were made between 2 groups:
• Remote experts vs. PoC providers.
• Traditional colposcopy patients vs. tele-colposcopy patients
Surveys were documented and analyzed using Google Forms.
Surveys were also available in Spanish for non-native English
speakers.
The study protocol was approved by the Institutional Review
Board at Western IRB, protocol no. 20190097.

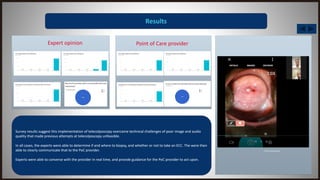

Results
Survey results suggest this implementation of telecolposcopy overcame technical challenges of poor image and audio
quality that made previous attempts at telecolposcopy unfeasible.
In all cases, the experts were able to determine if and where to biopsy, and whether or not to take an ECC. The were then
able to clearly communicate that to the PoC provider.
Experts were able to converse with the provider in real time, and provide guidance for the PoC provider to act upon.
Expert opinion Point of Care provider
Click to play video

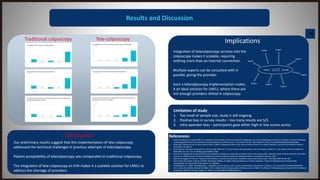

Results and Discussion
References:
1. Saslow D, Solomon D, Lawson HW, et al. American Cancer Society, American Society for Colposcopy and Cervical Pathology, and American Society for Clinical Pathology
screening guidelines for the prevention and early detection of cervical cancer. J Low Genit Tract Dis. 2012;16(3):175–204. doi:10.1097/LGT.0b013e31824ca9d5
2. B Peterson, Neeraja & Han, Jini & M Freund, Karen. (2003). Inadequate Follow-Up for Abnormal Pap Smears in an Urban Population. Journal of the National Medical
Association. 95. 825-32.
3. Coronado GD, Thompson B, Koepsell TD, Schwartz SM, McLerran D. Use of Pap test among Hispanics and non-Hispanic whites in a rural setting. Preventive Medicine.
2004;38(6):713–722. doi: 10.1016/j.ypmed.2004.01.009.
4. Freeman H, Wingrove B. Excess Cervical Cancer Mortality: A Marker for Low Access to Health Care in Poor Communities. National Cancer Institute; Rockville, MD: 2005.
5. [January 19, 2012];Division of Cancer Prevention and Control, National Center for Disease Prevention and Health Promotion. 2011
6. Spence AR, Goggin P, Franco EL. Process of care failures in invasive cervical cancer: systematic review and meta-analysis. Prev Med. 2007;45:93–106.
7. Ferris, Daron & S Litaker, Mark & S Macfee, Michael & A Miller, Jill. (2003). Remote diagnosis of cervical neoplasia: 2 Types of telecolposcopy compared with
cervicography. The Journal of family practice. 52. 298-304.
8. J Etherington, Ian. (2002). Telecolposcopy - a feasibility study in primary care. Journal of telemedicine and telecare. 8 Suppl 2. 22-4. 10.1258/135763302320301876.
9. Ferris, Daron & S Macfee, Michael & A Miller, Jill & S Litaker, Mark & Crawley, Debra & Watson, Diane. (2002). The Efficacy of Telecolposcopy Compared With Traditional
Colposcopy. Obstetrics and gynecology. 99. 248-54. 10.1016/S0029-7844(01)01671-4.
Limitation of study
1. Too small of sample size, study is still ongoing
2. Positive bias in survey results – too many results are 5/5
3. Intra-operator bias – participants gave either high or low scores across
Implications
Patient Provider
Expert
Expert
Expert
Expert
Expert
Expert
Expert
Expert
Integration of telecolposcopy services into the
colposcope makes it scalable, requiring
nothing more than an internet connection.
Multiple experts can be consulted with in
parallel, giving the provider.
Such a telecolposcopy implementation makes
it an ideal solution for LMICs, where there are
not enough providers skilled in colposcopy.
Traditional colposcopy Tele-colposcopy
Conclusion
Our preliminary results suggest that this implementation of tele-colposcopy
addressed the technical challenges in previous attempts of telecolposcopy.
Patient acceptability of telecolposcopy was comparable to traditional colposcopy.
The integration of tele-colposcopy on EVA makes it a scalable solution for LMICs to
address the shortage of providers.

More Related Content

What's hot

Tct presentation final
Tct presentation finalTct presentation final
Tct presentation finalBGuez

mHealth Israel_Startup Contest Finalist_Biop Medical_one pager
mHealth Israel_Startup Contest Finalist_Biop Medical_one pagermHealth Israel_Startup Contest Finalist_Biop Medical_one pager
mHealth Israel_Startup Contest Finalist_Biop Medical_one pagerLevi Shapiro

Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)
Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)
Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)Esmeralda Casas-Silva, Ph.D.

Could this change how radiology residents record their clinical output?
Could this change how radiology residents record their clinical output?Could this change how radiology residents record their clinical output?
Could this change how radiology residents record their clinical output?Apparao Mukkamala

Considerations for a Successful Teledermatology Application
Considerations for a Successful Teledermatology Application Considerations for a Successful Teledermatology Application
Considerations for a Successful Teledermatology Application Health Informatics New Zealand

Cyber knife robotic radiosurgery system
Cyber knife robotic radiosurgery systemCyber knife robotic radiosurgery system
Cyber knife robotic radiosurgery systemBelinda Toney

[Typ]Poster[Sbj]1593Synoptics[Dte]20150906
[Typ]Poster[Sbj]1593Synoptics[Dte]20150906[Typ]Poster[Sbj]1593Synoptics[Dte]20150906
[Typ]Poster[Sbj]1593Synoptics[Dte]20150906Mark Gusack

LuCIFEx: Lung Cancer Identification through Feature Extraction
LuCIFEx: Lung Cancer Identification through Feature ExtractionLuCIFEx: Lung Cancer Identification through Feature Extraction
LuCIFEx: Lung Cancer Identification through Feature ExtractionNECST Lab @ Politecnico di Milano

How the Cloud Save Lives by MobileODT
How the Cloud Save Lives by MobileODTHow the Cloud Save Lives by MobileODT
How the Cloud Save Lives by MobileODTAriel Beery

The Waikato Virtual Lesion Clinic - better, sooner and more convenient
The Waikato Virtual Lesion Clinic - better, sooner and more convenientThe Waikato Virtual Lesion Clinic - better, sooner and more convenient
The Waikato Virtual Lesion Clinic - better, sooner and more convenientHealth Informatics New Zealand

Transitioning into 24/7 Teleradiology Coverage - Dr Anjali Agrawal
Transitioning into 24/7 Teleradiology Coverage - Dr Anjali AgrawalTransitioning into 24/7 Teleradiology Coverage - Dr Anjali Agrawal
Transitioning into 24/7 Teleradiology Coverage - Dr Anjali AgrawalMathew B R

Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...
Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...
Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...Devon Bernard

Morphological and Spectral Markers of Cervical Cancer Cells
Morphological and Spectral Markers of Cervical Cancer CellsMorphological and Spectral Markers of Cervical Cancer Cells
Morphological and Spectral Markers of Cervical Cancer CellsGlobal Risk Forum GRFDavos

Radiology Safety at the Forefront of Patient Care
Radiology Safety at the Forefront of Patient CareRadiology Safety at the Forefront of Patient Care
Radiology Safety at the Forefront of Patient CareFoundation Radiology Group

Personalized Medicine through Tumor Sequencing
Personalized Medicine through Tumor SequencingPersonalized Medicine through Tumor Sequencing
Personalized Medicine through Tumor SequencingGolden Helix Inc

Utilization of virtual microscopy in a cooperative group setting
Utilization of virtual microscopy in a cooperative group settingUtilization of virtual microscopy in a cooperative group setting
Utilization of virtual microscopy in a cooperative group settingBIT002


What's hot (20)

Tct presentation final
Tct presentation finalTct presentation final
Tct presentation final

mHealth Israel_Startup Contest Finalist_Biop Medical_one pager
mHealth Israel_Startup Contest Finalist_Biop Medical_one pagermHealth Israel_Startup Contest Finalist_Biop Medical_one pager
mHealth Israel_Startup Contest Finalist_Biop Medical_one pager

Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)
Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)
Clinical Trial Accrual Challenges: Is Social Media Here to Help? (A. Denicoff)

Could this change how radiology residents record their clinical output?
Could this change how radiology residents record their clinical output?Could this change how radiology residents record their clinical output?
Could this change how radiology residents record their clinical output?

Considerations for a Successful Teledermatology Application
Considerations for a Successful Teledermatology Application Considerations for a Successful Teledermatology Application
Considerations for a Successful Teledermatology Application

Cyber knife robotic radiosurgery system
Cyber knife robotic radiosurgery systemCyber knife robotic radiosurgery system
Cyber knife robotic radiosurgery system

[Typ]Poster[Sbj]1593Synoptics[Dte]20150906
[Typ]Poster[Sbj]1593Synoptics[Dte]20150906[Typ]Poster[Sbj]1593Synoptics[Dte]20150906
[Typ]Poster[Sbj]1593Synoptics[Dte]20150906

LuCIFEx: Lung Cancer Identification through Feature Extraction
LuCIFEx: Lung Cancer Identification through Feature ExtractionLuCIFEx: Lung Cancer Identification through Feature Extraction
LuCIFEx: Lung Cancer Identification through Feature Extraction

How the Cloud Save Lives by MobileODT
How the Cloud Save Lives by MobileODTHow the Cloud Save Lives by MobileODT
How the Cloud Save Lives by MobileODT

The Waikato Virtual Lesion Clinic - better, sooner and more convenient
The Waikato Virtual Lesion Clinic - better, sooner and more convenientThe Waikato Virtual Lesion Clinic - better, sooner and more convenient
The Waikato Virtual Lesion Clinic - better, sooner and more convenient

Cost effective healthcare in medical imaging
Cost effective healthcare in medical imagingCost effective healthcare in medical imaging
Cost effective healthcare in medical imaging

Transitioning into 24/7 Teleradiology Coverage - Dr Anjali Agrawal
Transitioning into 24/7 Teleradiology Coverage - Dr Anjali AgrawalTransitioning into 24/7 Teleradiology Coverage - Dr Anjali Agrawal
Transitioning into 24/7 Teleradiology Coverage - Dr Anjali Agrawal

Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...
Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...
Medical Deep Learning: Clinical, Technical, & Regulatory Challenges and How t...

eHealth Reality in North America
eHealth Reality in North AmericaeHealth Reality in North America
eHealth Reality in North America

Morphological and Spectral Markers of Cervical Cancer Cells
Morphological and Spectral Markers of Cervical Cancer CellsMorphological and Spectral Markers of Cervical Cancer Cells
Morphological and Spectral Markers of Cervical Cancer Cells

doc
docdoc
doc

Radiology Safety at the Forefront of Patient Care
Radiology Safety at the Forefront of Patient CareRadiology Safety at the Forefront of Patient Care
Radiology Safety at the Forefront of Patient Care

Personalized Medicine through Tumor Sequencing
Personalized Medicine through Tumor SequencingPersonalized Medicine through Tumor Sequencing
Personalized Medicine through Tumor Sequencing

CellDetect Bladder
CellDetect BladderCellDetect Bladder
CellDetect Bladder

Utilization of virtual microscopy in a cooperative group setting
Utilization of virtual microscopy in a cooperative group settingUtilization of virtual microscopy in a cooperative group setting
Utilization of virtual microscopy in a cooperative group setting


Similar to Initial Lessons From Implementing a Telecolposcopy Program on a High Risk Population in California

Cancer and the General Internist
Cancer and the General InternistCancer and the General Internist
Cancer and the General InternistLanceCatedral

Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...
Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...
Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...Prunariu Ludmila

Oral cancer screening_aids
Oral cancer screening_aidsOral cancer screening_aids
Oral cancer screening_aidsJoydeep Das

EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...
EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...
EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...Universiti Malaysia Sabah

Reliability, accuracy and cost effectiveness of prenatal screening
Reliability, accuracy and cost effectiveness of prenatal screeningReliability, accuracy and cost effectiveness of prenatal screening
Reliability, accuracy and cost effectiveness of prenatal screeningRustem Celami

Neep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_Oncology
Neep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_OncologyNeep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_Oncology
Neep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_OncologyMichael Neep

Cancer and Internist - Koronadal Internist Society.pdf
Cancer and Internist - Koronadal Internist Society.pdfCancer and Internist - Koronadal Internist Society.pdf
Cancer and Internist - Koronadal Internist Society.pdfLanceCatedral

Detecting Distress in Gynecologic Cancer Patients Worksheet.docx
Detecting Distress in Gynecologic Cancer Patients Worksheet.docxDetecting Distress in Gynecologic Cancer Patients Worksheet.docx
Detecting Distress in Gynecologic Cancer Patients Worksheet.docxstudywriters

AlisonSlemaker_PHS Conference Poster
AlisonSlemaker_PHS Conference PosterAlisonSlemaker_PHS Conference Poster
AlisonSlemaker_PHS Conference PosterAlison Slemaker

Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net)
Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net) Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net)
Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net) UCLA CTSI

Addressing rural and remote access disparities for patients with inflammatory...
Addressing rural and remote access disparities for patients with inflammatory...Addressing rural and remote access disparities for patients with inflammatory...
Addressing rural and remote access disparities for patients with inflammatory...Vicki Cristol

VOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docx
VOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docxVOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docx
VOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docxjessiehampson

Use of new image capturing and sharing systems in colposcopy training Ameli T...
Use of new image capturing and sharing systems in colposcopy training Ameli T...Use of new image capturing and sharing systems in colposcopy training Ameli T...
Use of new image capturing and sharing systems in colposcopy training Ameli T...triumphbenelux

How evidence affects clinical practice in egypt
How evidence affects clinical practice in egyptHow evidence affects clinical practice in egypt
How evidence affects clinical practice in egyptWafaa Benjamin

Unth breast cancer management protocol
Unth breast cancer management protocolUnth breast cancer management protocol
Unth breast cancer management protocolNwamaka Lasebikan

Practicum Presentation
Practicum PresentationPracticum Presentation
Practicum Presentationguest231e1f

ENRS_Smith_Poster.ppt
ENRS_Smith_Poster.pptENRS_Smith_Poster.ppt
ENRS_Smith_Poster.pptFiNi17

Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...
Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...
Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...Duncan Maru


Similar to Initial Lessons From Implementing a Telecolposcopy Program on a High Risk Population in California (20)

Cancer and the General Internist
Cancer and the General InternistCancer and the General Internist
Cancer and the General Internist

Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...
Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...
Benefit vs[1][1][2][1]. risk in children's exposure to radiation for medical ...

Oral cancer screening_aids
Oral cancer screening_aidsOral cancer screening_aids
Oral cancer screening_aids

EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...
EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...
EXPLORATION OF WILLINGNESS TO PAY FOR CANCER GENETIC TESTING AMONG COLORECTAL...

Reliability, accuracy and cost effectiveness of prenatal screening
Reliability, accuracy and cost effectiveness of prenatal screeningReliability, accuracy and cost effectiveness of prenatal screening
Reliability, accuracy and cost effectiveness of prenatal screening

Neep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_Oncology
Neep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_OncologyNeep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_Oncology
Neep_et_al-2014-Journal_of_Medical_Imaging_and_Radiation_Oncology

Cancer and Internist - Koronadal Internist Society.pdf
Cancer and Internist - Koronadal Internist Society.pdfCancer and Internist - Koronadal Internist Society.pdf
Cancer and Internist - Koronadal Internist Society.pdf

Detecting Distress in Gynecologic Cancer Patients Worksheet.docx
Detecting Distress in Gynecologic Cancer Patients Worksheet.docxDetecting Distress in Gynecologic Cancer Patients Worksheet.docx
Detecting Distress in Gynecologic Cancer Patients Worksheet.docx

AlisonSlemaker_PHS Conference Poster
AlisonSlemaker_PHS Conference PosterAlisonSlemaker_PHS Conference Poster
AlisonSlemaker_PHS Conference Poster

Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net)
Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net) Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net)
Primary care-based, teleretinal-screening protocol (Los Angeles Safety Net)

Addressing rural and remote access disparities for patients with inflammatory...
Addressing rural and remote access disparities for patients with inflammatory...Addressing rural and remote access disparities for patients with inflammatory...
Addressing rural and remote access disparities for patients with inflammatory...

VOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docx
VOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docxVOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docx
VOLUME 22, NUMBER 1 CLINICAL JOURNAL OF ONCOLOGY NURSING 69CJO.docx

Use of new image capturing and sharing systems in colposcopy training Ameli T...
Use of new image capturing and sharing systems in colposcopy training Ameli T...Use of new image capturing and sharing systems in colposcopy training Ameli T...
Use of new image capturing and sharing systems in colposcopy training Ameli T...

International Journal of Reproductive Medicine & Gynecology
International Journal of Reproductive Medicine & GynecologyInternational Journal of Reproductive Medicine & Gynecology
International Journal of Reproductive Medicine & Gynecology

How evidence affects clinical practice in egypt
How evidence affects clinical practice in egyptHow evidence affects clinical practice in egypt
How evidence affects clinical practice in egypt

Unth breast cancer management protocol
Unth breast cancer management protocolUnth breast cancer management protocol
Unth breast cancer management protocol

Practicum Presentation
Practicum PresentationPracticum Presentation
Practicum Presentation

ENRS_Smith_Poster.ppt
ENRS_Smith_Poster.pptENRS_Smith_Poster.ppt
ENRS_Smith_Poster.ppt

Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...
Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...
Nyaya Health Ultrasound Program: Implications for Teleradiology in Resource-D...

China v1
China v1China v1
China v1


Recently uploaded

ISO 15189 2022 standards for laboratory quality and competence
ISO 15189 2022 standards for laboratory quality and competenceISO 15189 2022 standards for laboratory quality and competence
ISO 15189 2022 standards for laboratory quality and competencePathKind Labs

Bobath Technique (Samrth Pareta) .ppt.pptx
Bobath Technique (Samrth Pareta) .ppt.pptxBobath Technique (Samrth Pareta) .ppt.pptx
Bobath Technique (Samrth Pareta) .ppt.pptxSamrth Pareta

An overview of Muir Wood Adolescent and Family Services teen treatment programs.
An overview of Muir Wood Adolescent and Family Services teen treatment programs.An overview of Muir Wood Adolescent and Family Services teen treatment programs.
An overview of Muir Wood Adolescent and Family Services teen treatment programs.pdamico1

obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogjaobat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogjanitatalita796

obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di baliobat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di balinitatalita796

TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...
TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...
TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...rightmanforbloodline

Student ergonomics ( Samrth Pareta ) .pptx
Student ergonomics ( Samrth Pareta ) .pptxStudent ergonomics ( Samrth Pareta ) .pptx
Student ergonomics ( Samrth Pareta ) .pptxSamrth Pareta

TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...
TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...
TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...rightmanforbloodline

Spauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCESpauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCEDR.PRINCE C P

Navigating Conflict in PE Using Strengths-Based Approaches
Navigating Conflict in PE Using Strengths-Based ApproachesNavigating Conflict in PE Using Strengths-Based Approaches
Navigating Conflict in PE Using Strengths-Based ApproachesCHICommunications

Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...
Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...
Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...icha27638

Lion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active IndividualsLion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active IndividualsMyCo Planet

Personnel and Equipment - Code and Rapid Response Workshop
Personnel and Equipment - Code and Rapid Response WorkshopPersonnel and Equipment - Code and Rapid Response Workshop
Personnel and Equipment - Code and Rapid Response WorkshopBrian Locke

Technology transfer documentation and strategies
Technology transfer documentation and strategiesTechnology transfer documentation and strategies
Technology transfer documentation and strategiesNidhi Joshi

Lack of sleep actually hinders your mental health.pptx
Lack of sleep actually hinders your mental health.pptxLack of sleep actually hinders your mental health.pptx
Lack of sleep actually hinders your mental health.pptxapaulnit

TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North CarolinaTIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North CarolinaMebane Rash

Etiology for RRT and Code Blue Workshop.
Etiology for RRT and Code Blue Workshop.Etiology for RRT and Code Blue Workshop.
Etiology for RRT and Code Blue Workshop.Brian Locke

TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...
TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...
TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...rightmanforbloodline

Pulse Check Decisions - RRT and Code Blue Workshop
Pulse Check Decisions - RRT and Code Blue WorkshopPulse Check Decisions - RRT and Code Blue Workshop
Pulse Check Decisions - RRT and Code Blue WorkshopBrian Locke

The 2024 Outlook for Older Adults: Healthcare Consumer Survey
The 2024 Outlook for Older Adults: Healthcare Consumer SurveyThe 2024 Outlook for Older Adults: Healthcare Consumer Survey
The 2024 Outlook for Older Adults: Healthcare Consumer SurveyMedia Logic


Recently uploaded (20)

ISO 15189 2022 standards for laboratory quality and competence
ISO 15189 2022 standards for laboratory quality and competenceISO 15189 2022 standards for laboratory quality and competence
ISO 15189 2022 standards for laboratory quality and competence

Bobath Technique (Samrth Pareta) .ppt.pptx
Bobath Technique (Samrth Pareta) .ppt.pptxBobath Technique (Samrth Pareta) .ppt.pptx
Bobath Technique (Samrth Pareta) .ppt.pptx

An overview of Muir Wood Adolescent and Family Services teen treatment programs.
An overview of Muir Wood Adolescent and Family Services teen treatment programs.An overview of Muir Wood Adolescent and Family Services teen treatment programs.
An overview of Muir Wood Adolescent and Family Services teen treatment programs.

obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogjaobat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja

obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di baliobat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali

TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...
TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...
TEST BANK For Leddy & Pepper’s Professional Nursing, 10th Edition by Lucy Hoo...

Student ergonomics ( Samrth Pareta ) .pptx
Student ergonomics ( Samrth Pareta ) .pptxStudent ergonomics ( Samrth Pareta ) .pptx
Student ergonomics ( Samrth Pareta ) .pptx

TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...
TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...
TEST BANK For Success in Practical Vocational Nursing 10th Edition by Carrol ...

Spauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCESpauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCE

Navigating Conflict in PE Using Strengths-Based Approaches
Navigating Conflict in PE Using Strengths-Based ApproachesNavigating Conflict in PE Using Strengths-Based Approaches
Navigating Conflict in PE Using Strengths-Based Approaches

Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...
Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...
Obat aborsi Jakarta Timur Wa 081225888346 Jual Obat aborsi Cytotec asli Di Ja...

Lion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active IndividualsLion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active Individuals

Personnel and Equipment - Code and Rapid Response Workshop
Personnel and Equipment - Code and Rapid Response WorkshopPersonnel and Equipment - Code and Rapid Response Workshop
Personnel and Equipment - Code and Rapid Response Workshop

Technology transfer documentation and strategies
Technology transfer documentation and strategiesTechnology transfer documentation and strategies
Technology transfer documentation and strategies

Lack of sleep actually hinders your mental health.pptx
Lack of sleep actually hinders your mental health.pptxLack of sleep actually hinders your mental health.pptx
Lack of sleep actually hinders your mental health.pptx

TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North CarolinaTIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina

Etiology for RRT and Code Blue Workshop.
Etiology for RRT and Code Blue Workshop.Etiology for RRT and Code Blue Workshop.
Etiology for RRT and Code Blue Workshop.

TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...
TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...
TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...

Pulse Check Decisions - RRT and Code Blue Workshop
Pulse Check Decisions - RRT and Code Blue WorkshopPulse Check Decisions - RRT and Code Blue Workshop
Pulse Check Decisions - RRT and Code Blue Workshop

The 2024 Outlook for Older Adults: Healthcare Consumer Survey
The 2024 Outlook for Older Adults: Healthcare Consumer SurveyThe 2024 Outlook for Older Adults: Healthcare Consumer Survey
The 2024 Outlook for Older Adults: Healthcare Consumer Survey


Initial Lessons From Implementing a Telecolposcopy Program on a High Risk Population in California

  • 1. Initial Lessons From Implementing a Telecolposcopy Program on a High Risk Population in California Rachel Steward1, Jennifer Spohn1, Eliya Tenenboim2, Cathy Sebag2, David Levitz2 (1) FPA Women’s Health, Los Angeles, CA (2) MobileODT, Tel Aviv, Israel Telecolposcopy Demonstration Click to play video Abstract Results Objective: To assess the feasibility of a live, telecolposcopy system in clinics serving high-risk populations. Of interest is to understand the feasibility of an integrated telecolposcopy solution from the perspectives of patient and provider acceptance in comparison to in-person oversight of an exam. Methods: A custom feature was built into MobileODT’s EVA System, a smartphone-based colposcope, utilizing a video-conferencing application. Through screen sharing, the provider at the point of care showed the expert a live video feed of the colposcopy exam, and the expert then recommended sites to biopsy. Following the procedure, a satisfaction survey is given to all remote experts, point of care providers, and patients. All twelve subjects who underwent telecolposcopy filled out a survey. As a control group, N=10 patients undergoing traditional colposcopy were also given surveys. Results: Initial findings showed that experts were able to assist the junior providers in colposcopy procedures. Patients reacted positively to the live expert supervision. Conclusions: Preliminary results suggest that live telecolposcopy is feasible on a mobile, connected colposcope. • The solution overcame challenges in video/image quality and audio quality. The expert was able to converse in real time, and provide guidance for the PoC provider to act upon. • PoC providers found the telecolposcopy feature helpful. • Overall, patients were more satisfied with telecolposcopy than traditional colposcopy • All 4 patients who had both a telecolposcopy or a traditional colposcopy said they would prefer telecolposcopy to reduce distance and time traveled • More patients need to be recruited because the sample size was small.
  • 2. Introduction Objective: Assess the feasibility of an integrated telecolposcopy solution from the perspectives of patient and provider acceptance Clinical network Rayburn et. al. "Distribution of American Congress of Obstetricians and Gynecologists Fellows and Junior Fellows in Practice in the United States" OBSTETRICS & GYNECOLOGY, VOL. 119, NO. 5, MAY 2012 According to the ASCCP Steering Committee, the current opportunistic approach to cervical cancer screening in the U.S. fails to reach sub-populations of women where rates of incidence and mortality are similar to rates in low and middle income countries at a rate much higher than the general US population.1 Reasons are complex and the challenge extends to women in low-resource, medically underserved regions, and therefore invasive cervical cancer in the US today is strongly linked to socioeconomic, geographic and racial disparities 1 where health access has traditionally been a challenge. The challenge includes a shortage of colposcopy providers in the US to reach rural women where only 50% of US counties have a colposcopist (Fig. 1) and those without access to specialists in urban centers without colposcopy services where loss to follow- up from initial screening is high.2 For the many patients who live in counties without a colposcopist, transportation to the clinic is a real barrier to seeking care.3 Family Planning Associates (FPA Women’s Health) is a nationally recognized & accredited family planning provider that offers patients safe & convenient access to quality care in a mix or urban and rural settings. The network has been accredited by AAAHC since 1996. FPA Women’s Health works primarily with underserved populations including: • Low income patients • Inner-city and rural populations • Undocumented immigrants However, today, a colposcopist is not available at many sites due to the relatively low number of patients with abnormal screening tests. However, lack of colposcopists prevent them from expanding colposcopy services despite patient need and addressing loss to follow-up from longer travel time and distance to another center. 50% of cervical cancers in US are in unscreened women. Another 10% are in underscreened women4-6 . Reaching this unscreened population is critical to impact mortality. Telemedicine can potentially solve this, by extending colposcopy services to sites lacking expertise and equipment. The remote expert can assist to better identify sites to biopsy. Video and audio communication is key. 7-9 To date, no conclusive study has shown that a telecolposcopy technology is a means to improve patient care. It is also unknown how well patients that live in remote areas and benefit from telecolposcopy actually accept the procedure. Few studies assessed their feelings about a remote expert during the exam. This study sought to explore this angle as well, as it hasn’t been discussed much in the literature.
  • 3. Materials and Methods The EVA System app includes a Decision Support Job Aid for guiding clinical workflow and documenting results. (A) Screenshots of the key steps. (B) Full decision tree backbone. (A) (B) Colposcopy clinic Tele-colposcopy Traditional colposcopy Patient survey Patient survey Remote expert survey PoC provider survey N=12 N=12 N=12 N=10 The EVA System is functionally equivalent to a video colposcope. Telecolposcopy is enabled by the EVA System – a cloud-connected mobile colposcope built around a smartphone platform. The mobile phone runs 2 mobile applications, one application to operate the EVA System, and a second application to enable videoconferencing. Experts are contacted by text message, from which they can connect to the session from their phone, a tablet, or PC. All images and annotations are stored on a HIPAA- compliant image portal. Offline quality assurance features provide decision support to providers. Following the procedure, online surveys containing 10-15 questions were administered to remote experts, PoC providers, and patients. Comparisons were made between 2 groups: • Remote experts vs. PoC providers. • Traditional colposcopy patients vs. tele-colposcopy patients Surveys were documented and analyzed using Google Forms. Surveys were also available in Spanish for non-native English speakers. The study protocol was approved by the Institutional Review Board at Western IRB, protocol no. 20190097.
  • 4. Results Survey results suggest this implementation of telecolposcopy overcame technical challenges of poor image and audio quality that made previous attempts at telecolposcopy unfeasible. In all cases, the experts were able to determine if and where to biopsy, and whether or not to take an ECC. The were then able to clearly communicate that to the PoC provider. Experts were able to converse with the provider in real time, and provide guidance for the PoC provider to act upon. Expert opinion Point of Care provider Click to play video
  • 5. Results and Discussion References: 1. Saslow D, Solomon D, Lawson HW, et al. American Cancer Society, American Society for Colposcopy and Cervical Pathology, and American Society for Clinical Pathology screening guidelines for the prevention and early detection of cervical cancer. J Low Genit Tract Dis. 2012;16(3):175–204. doi:10.1097/LGT.0b013e31824ca9d5 2. B Peterson, Neeraja & Han, Jini & M Freund, Karen. (2003). Inadequate Follow-Up for Abnormal Pap Smears in an Urban Population. Journal of the National Medical Association. 95. 825-32. 3. Coronado GD, Thompson B, Koepsell TD, Schwartz SM, McLerran D. Use of Pap test among Hispanics and non-Hispanic whites in a rural setting. Preventive Medicine. 2004;38(6):713–722. doi: 10.1016/j.ypmed.2004.01.009. 4. Freeman H, Wingrove B. Excess Cervical Cancer Mortality: A Marker for Low Access to Health Care in Poor Communities. National Cancer Institute; Rockville, MD: 2005. 5. [January 19, 2012];Division of Cancer Prevention and Control, National Center for Disease Prevention and Health Promotion. 2011 6. Spence AR, Goggin P, Franco EL. Process of care failures in invasive cervical cancer: systematic review and meta-analysis. Prev Med. 2007;45:93–106. 7. Ferris, Daron & S Litaker, Mark & S Macfee, Michael & A Miller, Jill. (2003). Remote diagnosis of cervical neoplasia: 2 Types of telecolposcopy compared with cervicography. The Journal of family practice. 52. 298-304. 8. J Etherington, Ian. (2002). Telecolposcopy - a feasibility study in primary care. Journal of telemedicine and telecare. 8 Suppl 2. 22-4. 10.1258/135763302320301876. 9. Ferris, Daron & S Macfee, Michael & A Miller, Jill & S Litaker, Mark & Crawley, Debra & Watson, Diane. (2002). The Efficacy of Telecolposcopy Compared With Traditional Colposcopy. Obstetrics and gynecology. 99. 248-54. 10.1016/S0029-7844(01)01671-4. Limitation of study 1. Too small of sample size, study is still ongoing 2. Positive bias in survey results – too many results are 5/5 3. Intra-operator bias – participants gave either high or low scores across Implications Patient Provider Expert Expert Expert Expert Expert Expert Expert Expert Integration of telecolposcopy services into the colposcope makes it scalable, requiring nothing more than an internet connection. Multiple experts can be consulted with in parallel, giving the provider. Such a telecolposcopy implementation makes it an ideal solution for LMICs, where there are not enough providers skilled in colposcopy. Traditional colposcopy Tele-colposcopy Conclusion Our preliminary results suggest that this implementation of tele-colposcopy addressed the technical challenges in previous attempts of telecolposcopy. Patient acceptability of telecolposcopy was comparable to traditional colposcopy. The integration of tele-colposcopy on EVA makes it a scalable solution for LMICs to address the shortage of providers.
