1. Ingredients for
creating Dapps
by stefaan ponnet
API Craftsmanship Meetup aug 11 2016

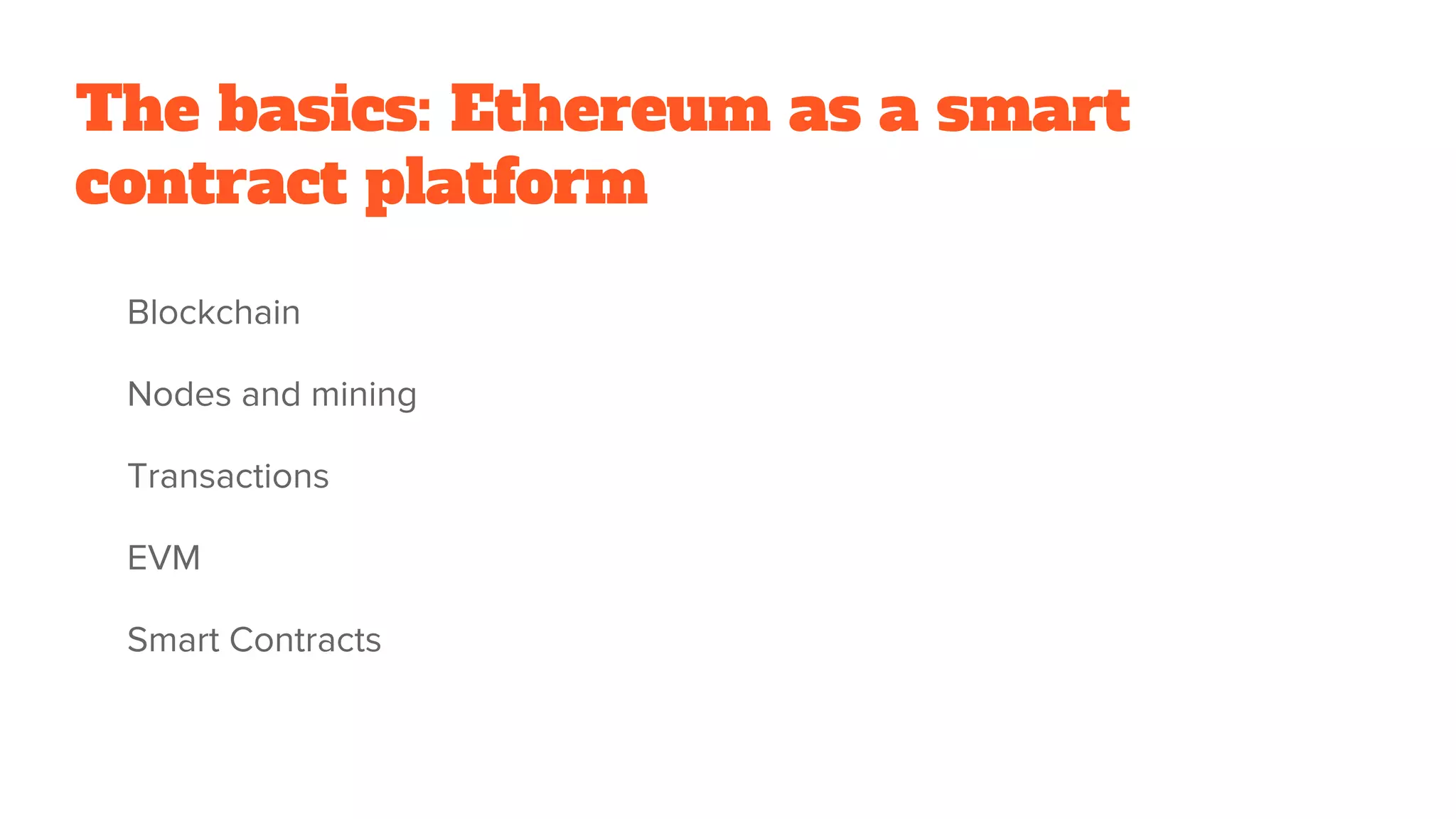

2. The basics: Ethereum as a smart
contract platform
Blockchain
Nodes and mining
Transactions
EVM
Smart Contracts

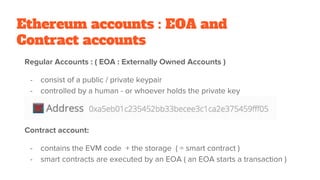

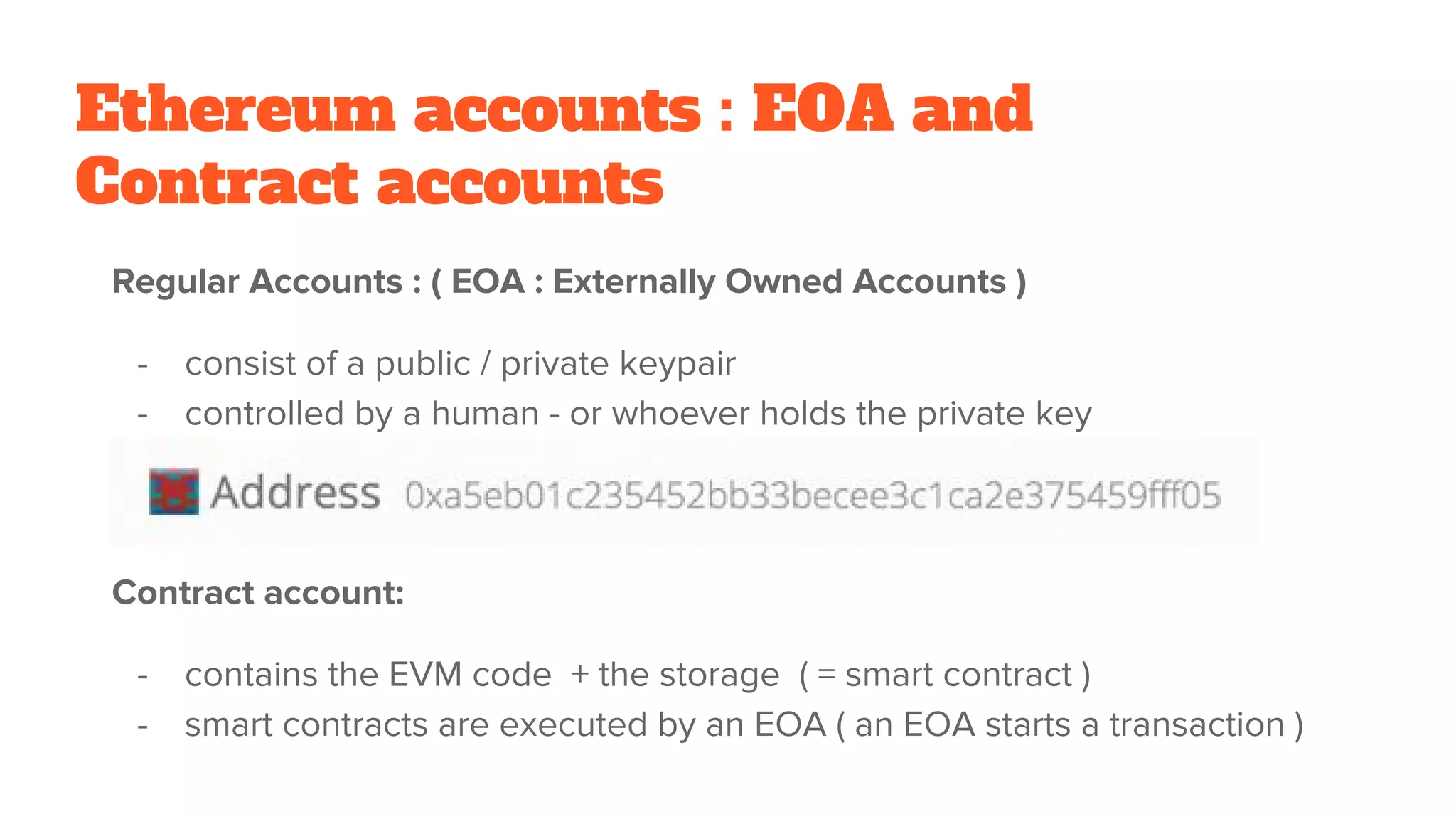

3. Ethereum accounts : EOA and
Contract accounts
Regular Accounts : ( EOA : Externally Owned Accounts )
- consist of a public / private keypair
- controlled by a human - or whoever holds the private key
Contract account:
- contains the EVM code + the storage ( = smart contract )
- smart contracts are executed by an EOA ( an EOA starts a transaction )

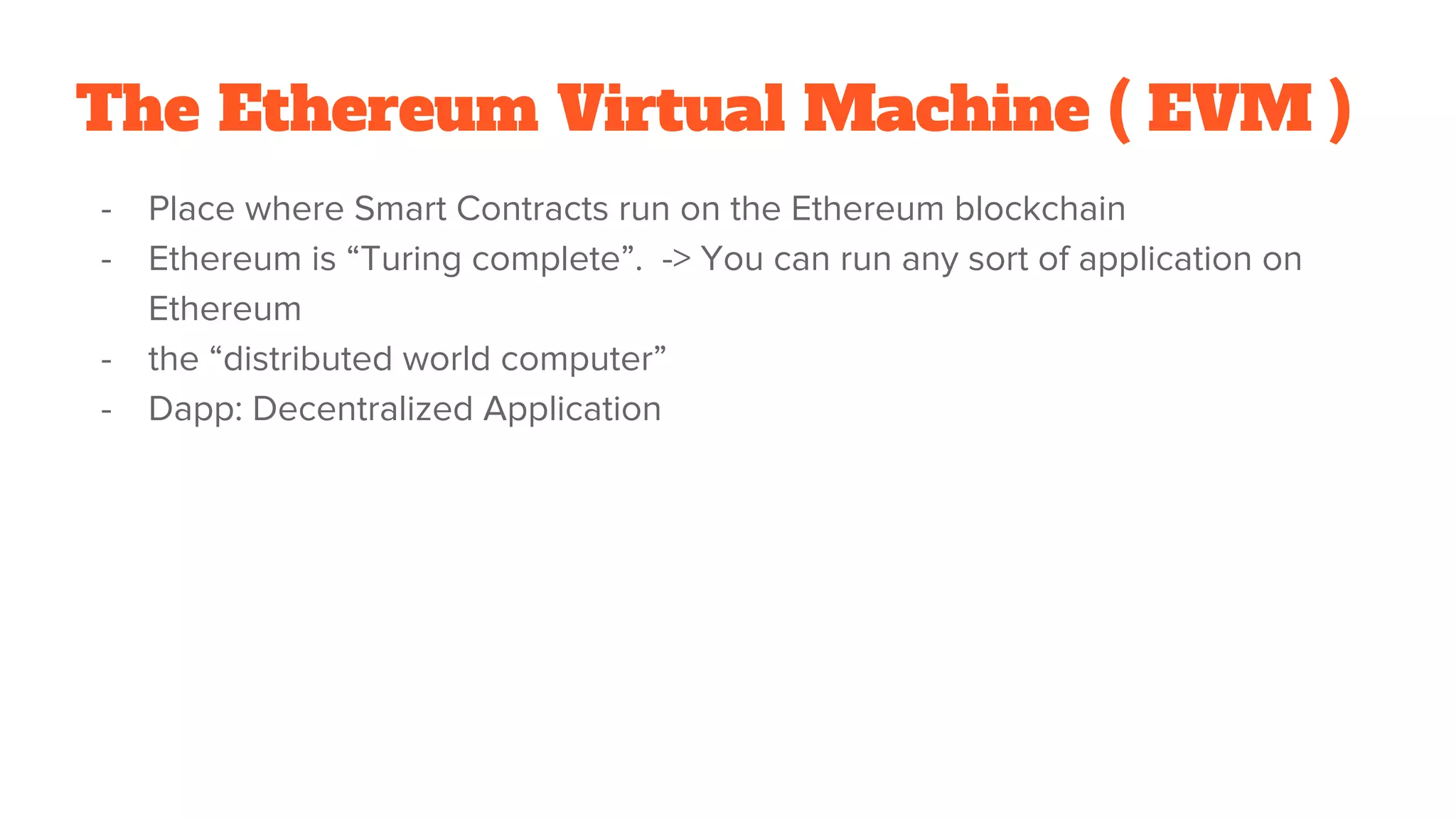

4. The Ethereum Virtual Machine ( EVM )
- Place where Smart Contracts run on the Ethereum blockchain
- Ethereum is “Turing complete”. -> You can run any sort of application on
Ethereum
- the “distributed world computer”
- Dapp: Decentralized Application

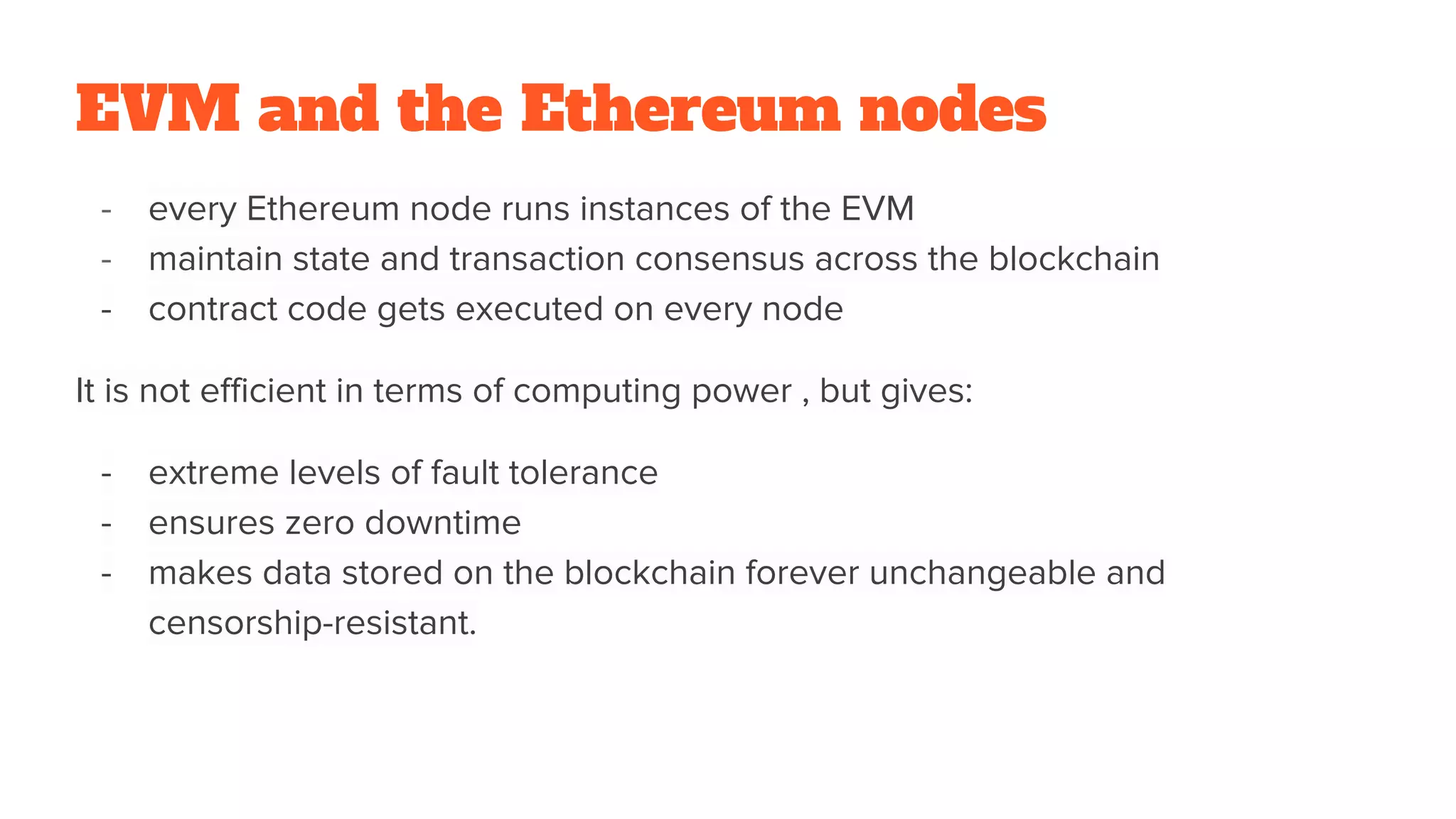

5. EVM and the Ethereum nodes
- every Ethereum node runs instances of the EVM
- maintain state and transaction consensus across the blockchain
- contract code gets executed on every node
It is not efficient in terms of computing power , but gives:
- extreme levels of fault tolerance
- ensures zero downtime
- makes data stored on the blockchain forever unchangeable and
censorship-resistant.

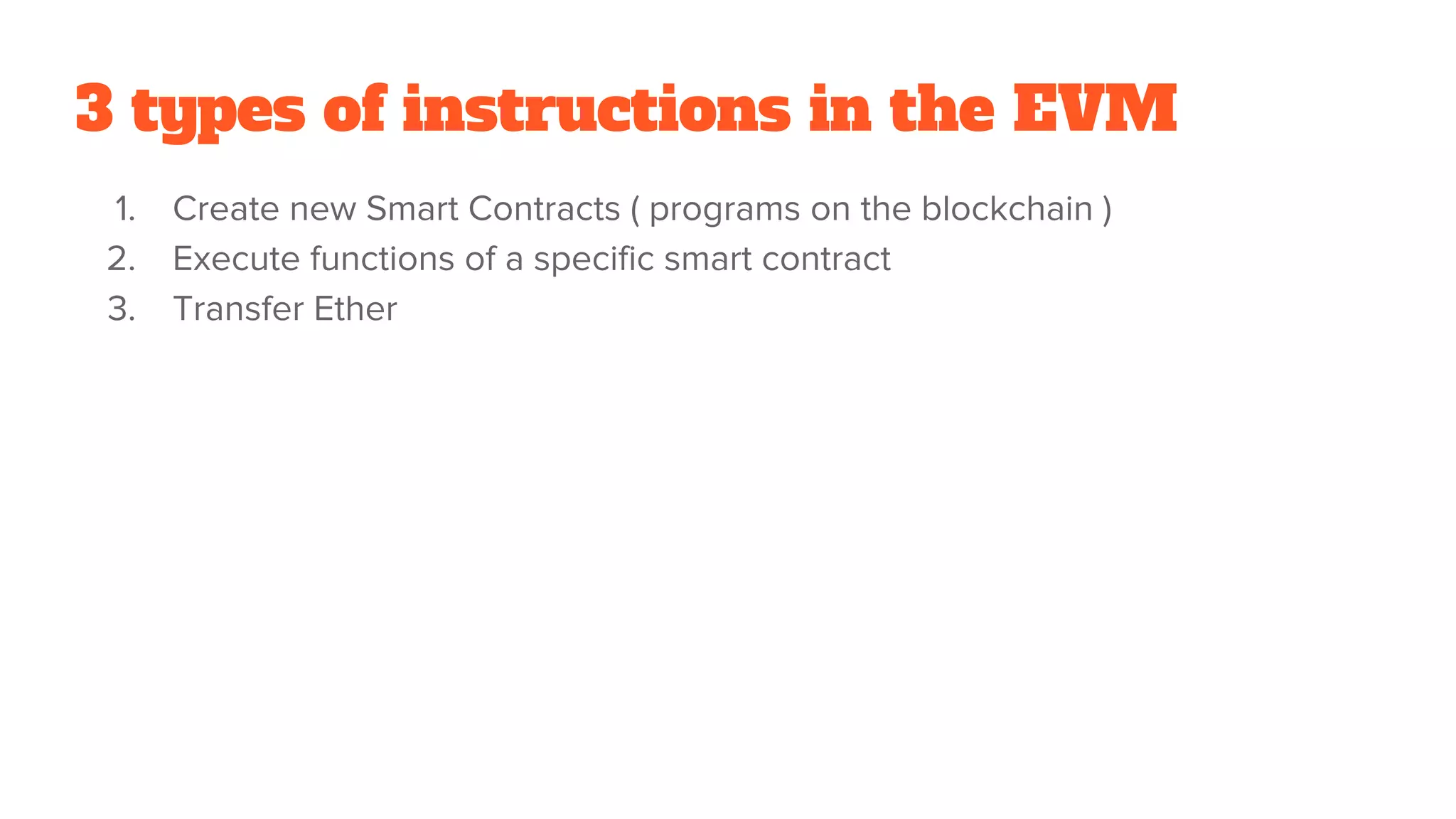

6. 3 types of instructions in the EVM
1. Create new Smart Contracts ( programs on the blockchain )
2. Execute functions of a specific smart contract
3. Transfer Ether

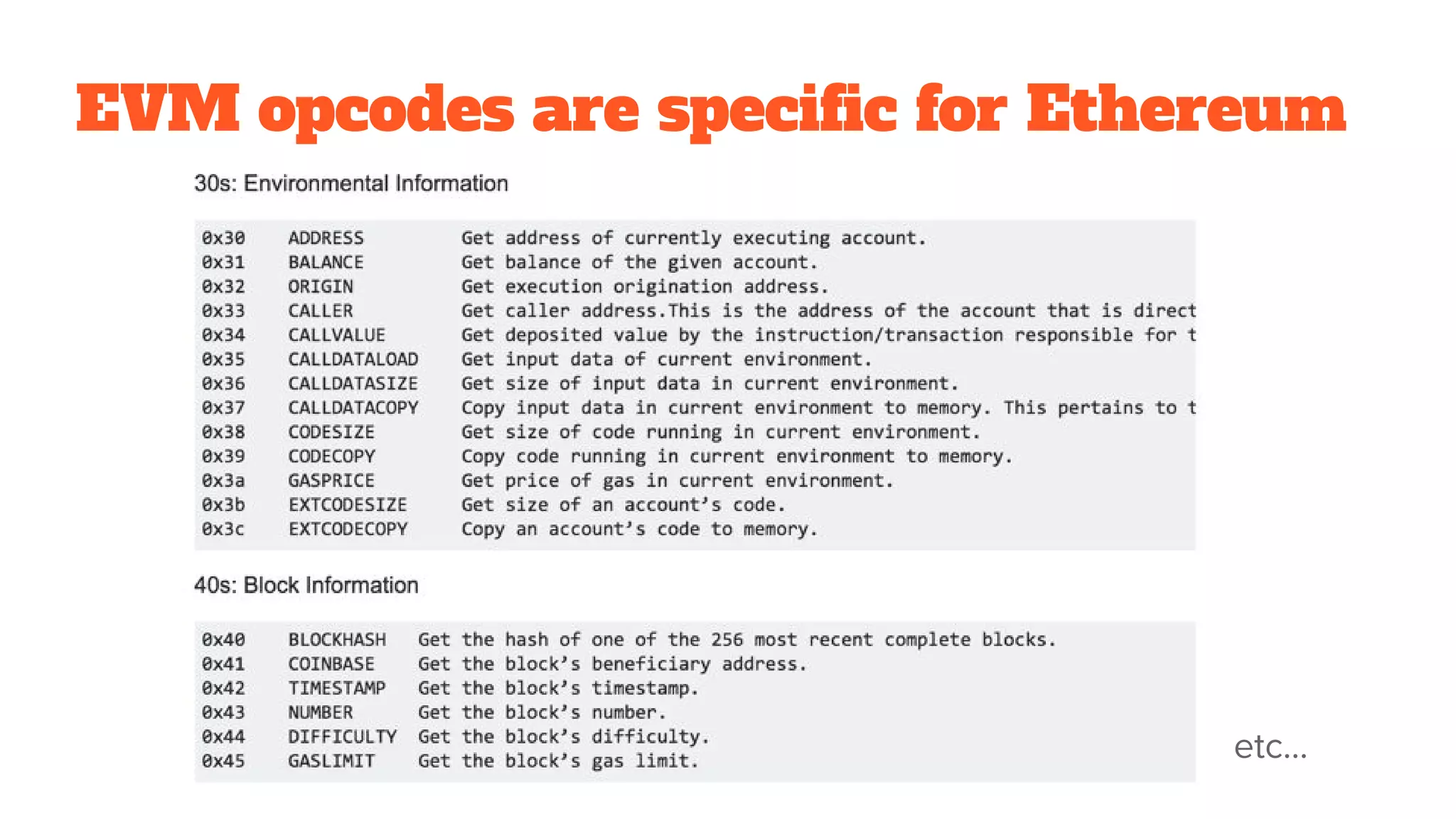

7. EVM opcodes are specific for Ethereum
etc...

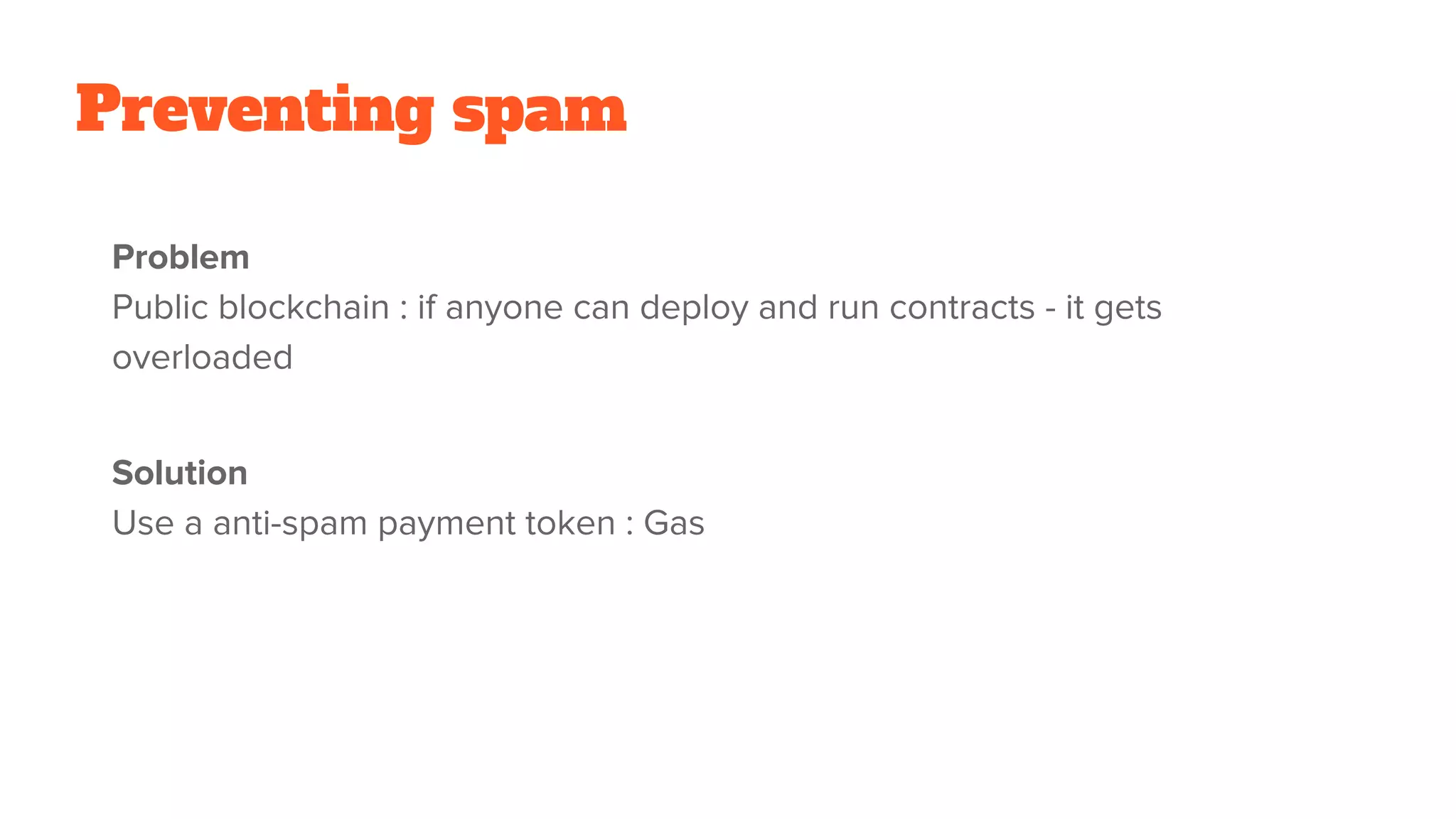

8. Preventing spam
Problem
Public blockchain : if anyone can deploy and run contracts - it gets
overloaded
Solution
Use a anti-spam payment token : Gas

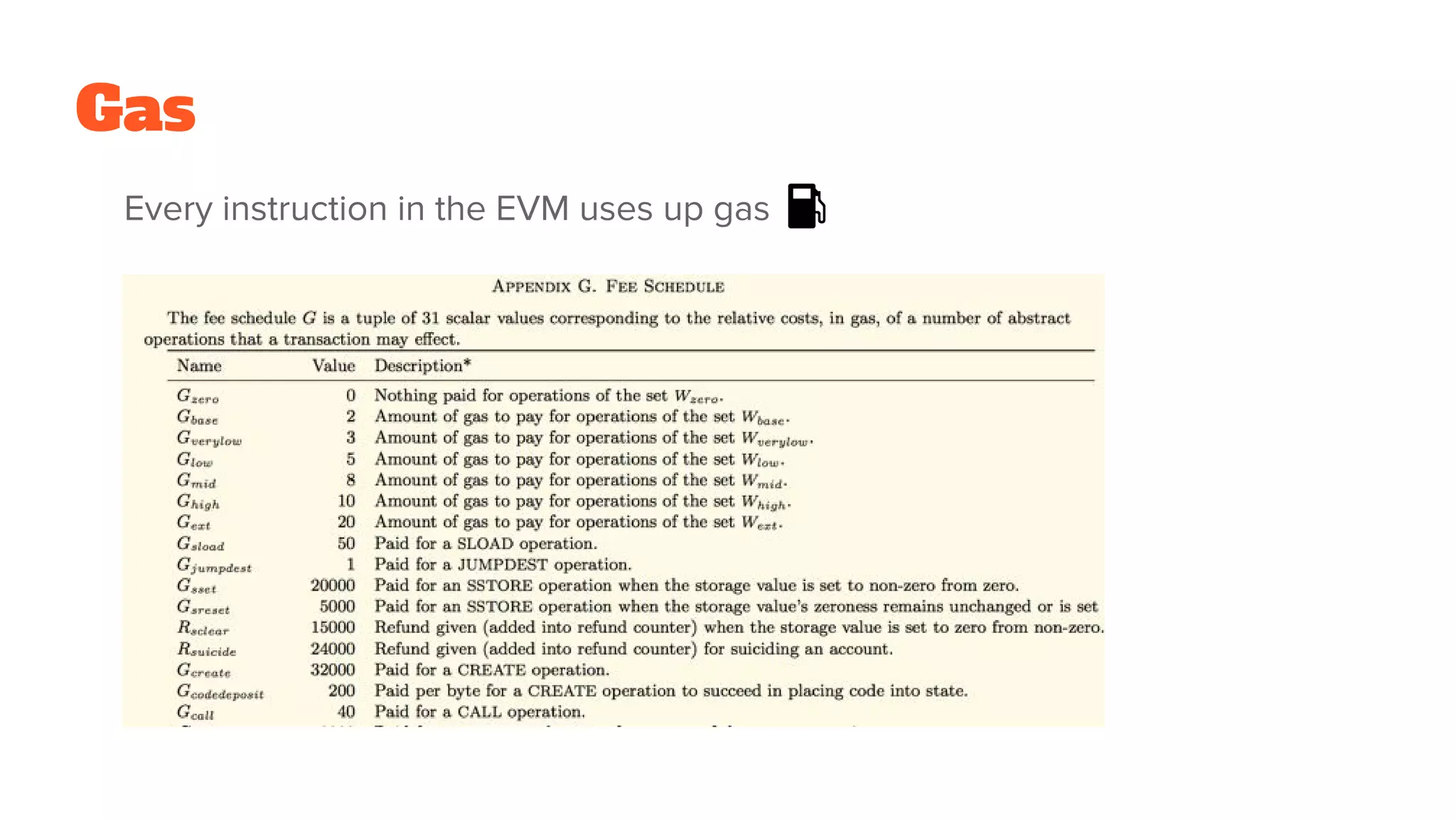

9. Gas
Every instruction in the EVM uses up gas

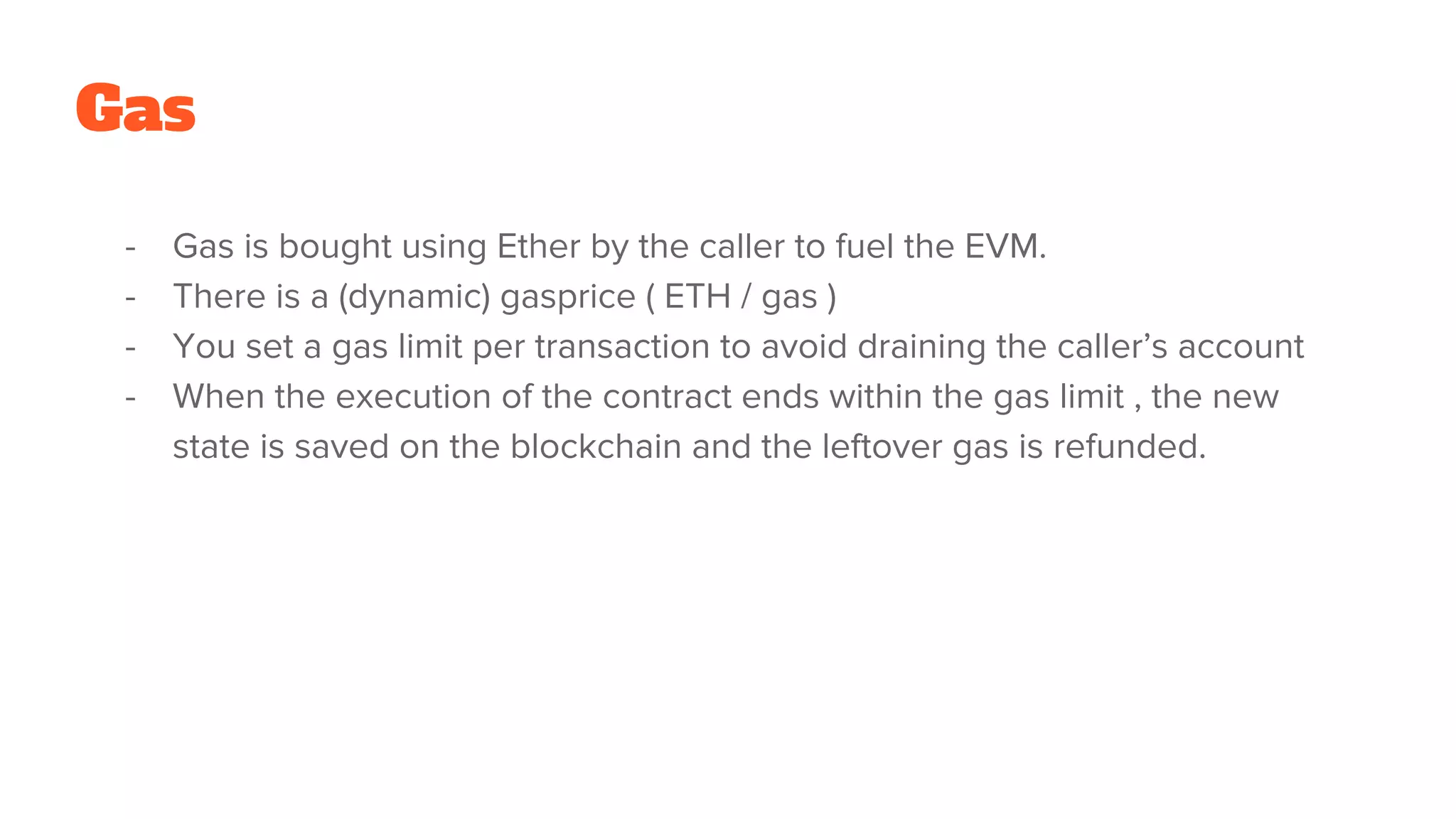

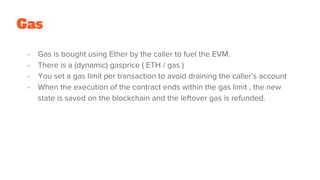

10. - Gas is bought using Ether by the caller to fuel the EVM.
- There is a (dynamic) gasprice ( ETH / gas )
- You set a gas limit per transaction to avoid draining the caller’s account
- When the execution of the contract ends within the gas limit , the new
state is saved on the blockchain and the leftover gas is refunded.
Gas

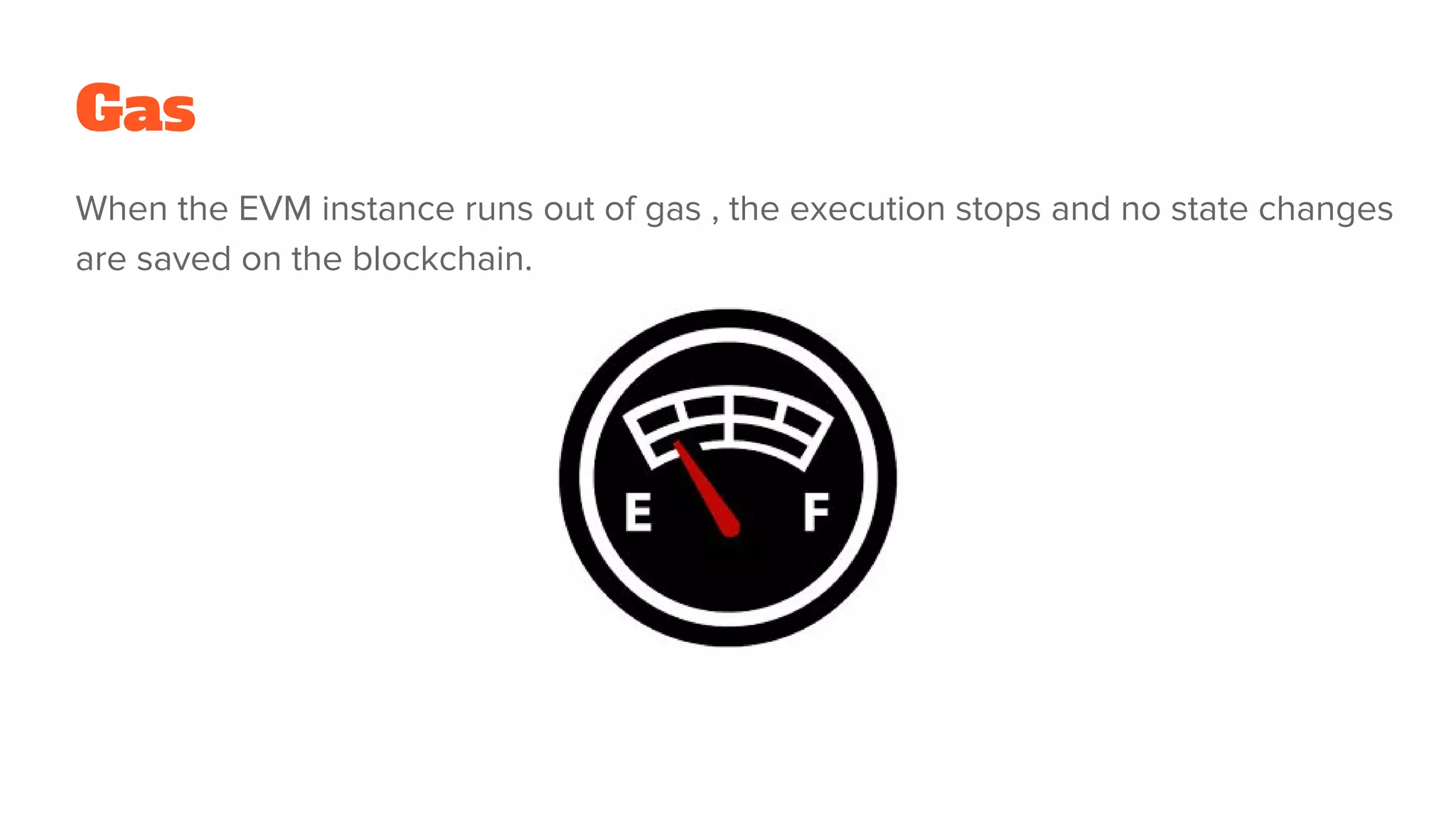

11. Gas
When the EVM instance runs out of gas , the execution stops and no state changes
are saved on the blockchain.

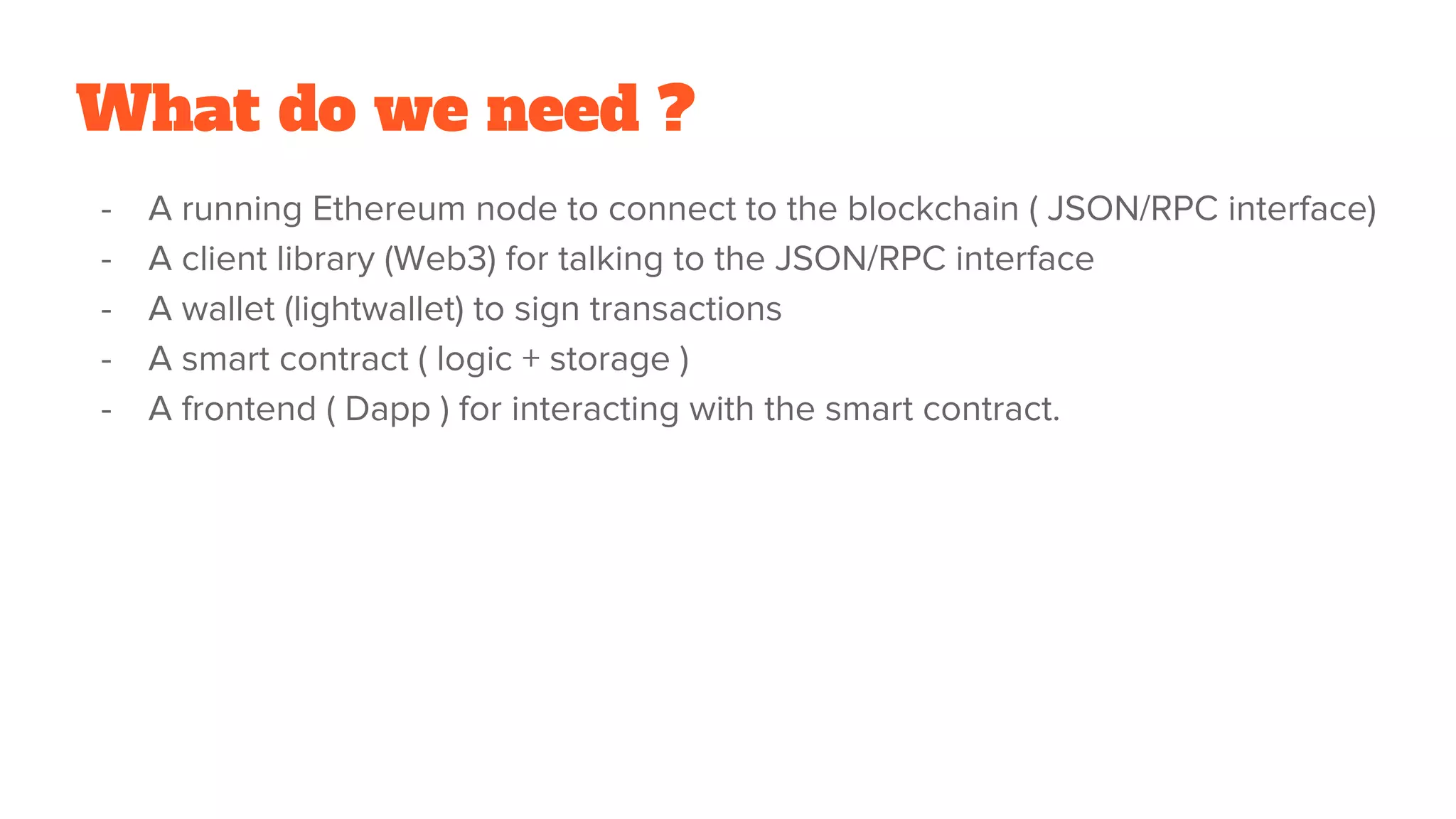

12. What do we need ?
- A running Ethereum node to connect to the blockchain ( JSON/RPC interface)
- A client library (Web3) for talking to the JSON/RPC interface
- A wallet (lightwallet) to sign transactions
- A smart contract ( logic + storage )
- A frontend ( Dapp ) for interacting with the smart contract.

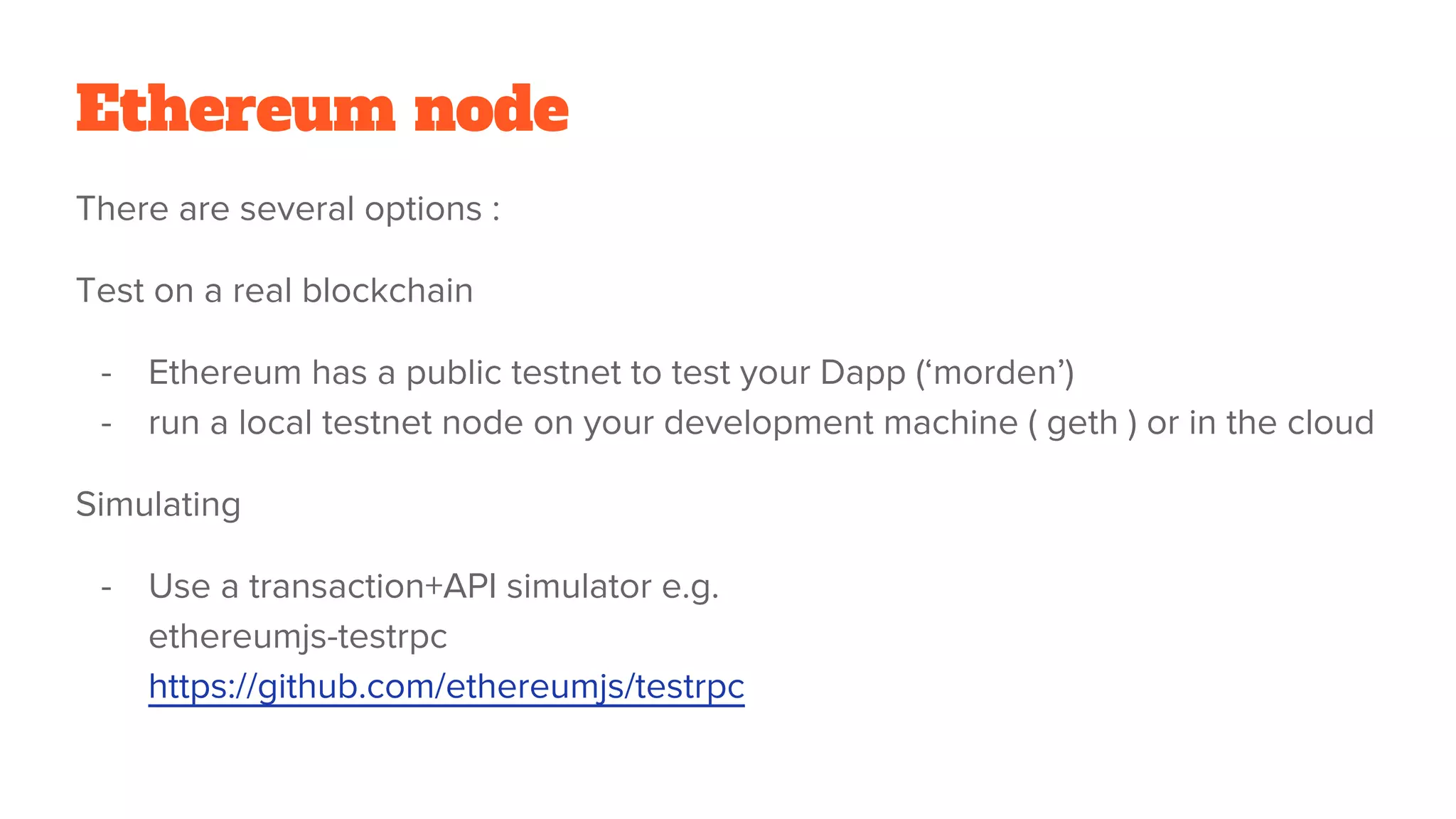

13. Ethereum node
There are several options :
Test on a real blockchain
- Ethereum has a public testnet to test your Dapp (‘morden’)
- run a local testnet node on your development machine ( geth ) or in the cloud
Simulating
- Use a transaction+API simulator e.g.
ethereumjs-testrpc
https://github.com/ethereumjs/testrpc

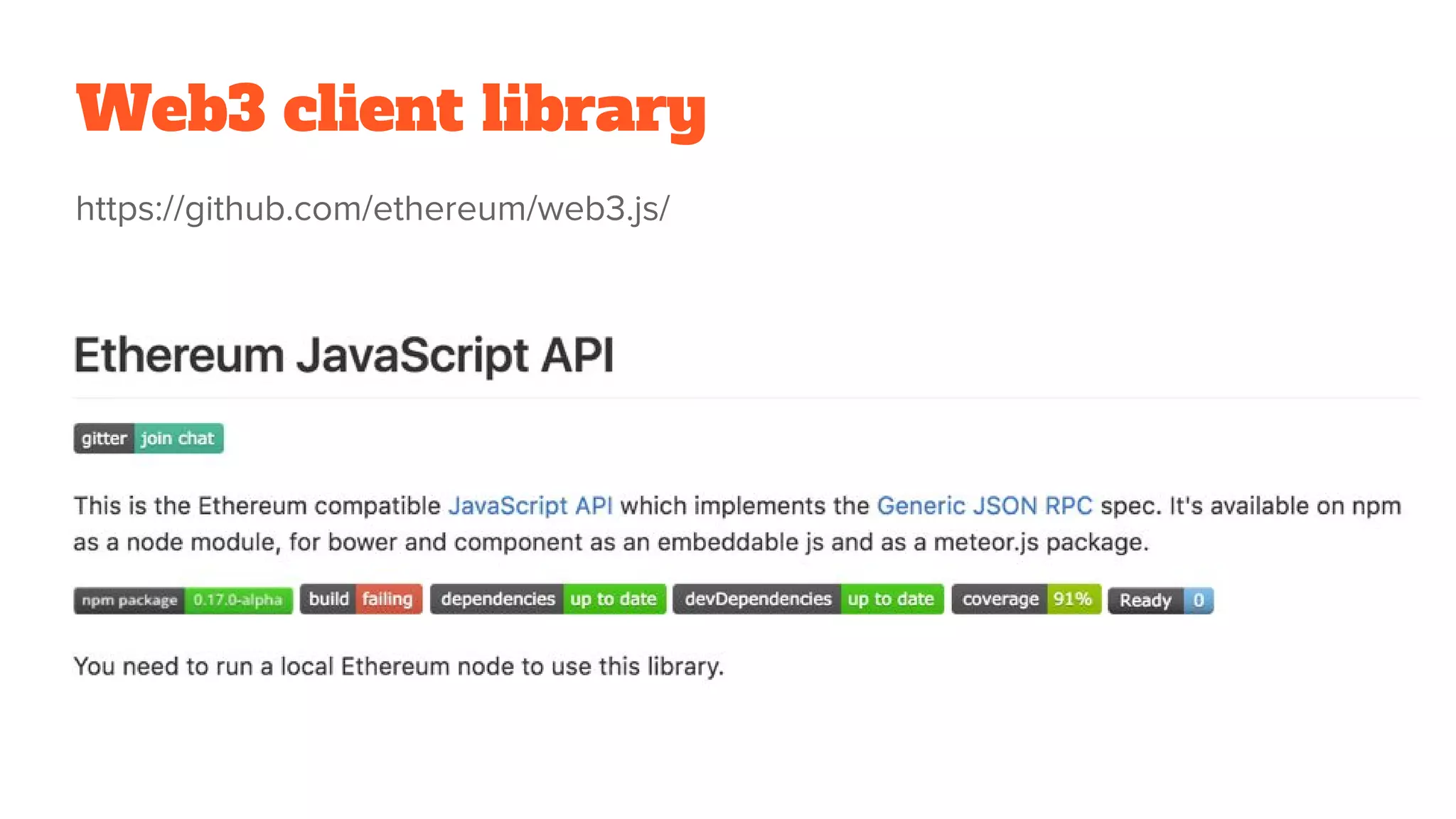

14. Web3 client library
https://github.com/ethereum/web3.js/

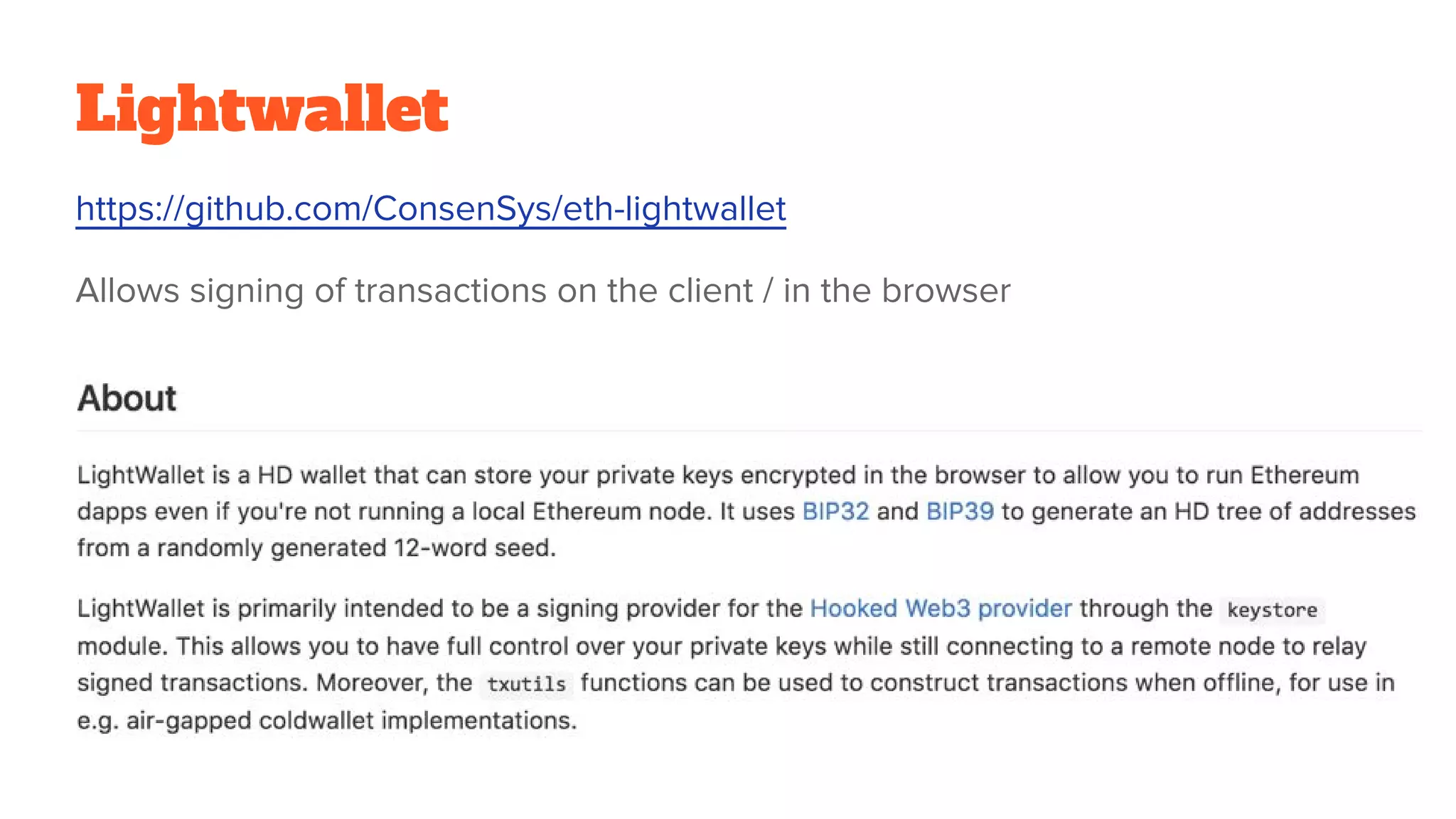

15. Lightwallet
https://github.com/ConsenSys/eth-lightwallet
Allows signing of transactions on the client / in the browser

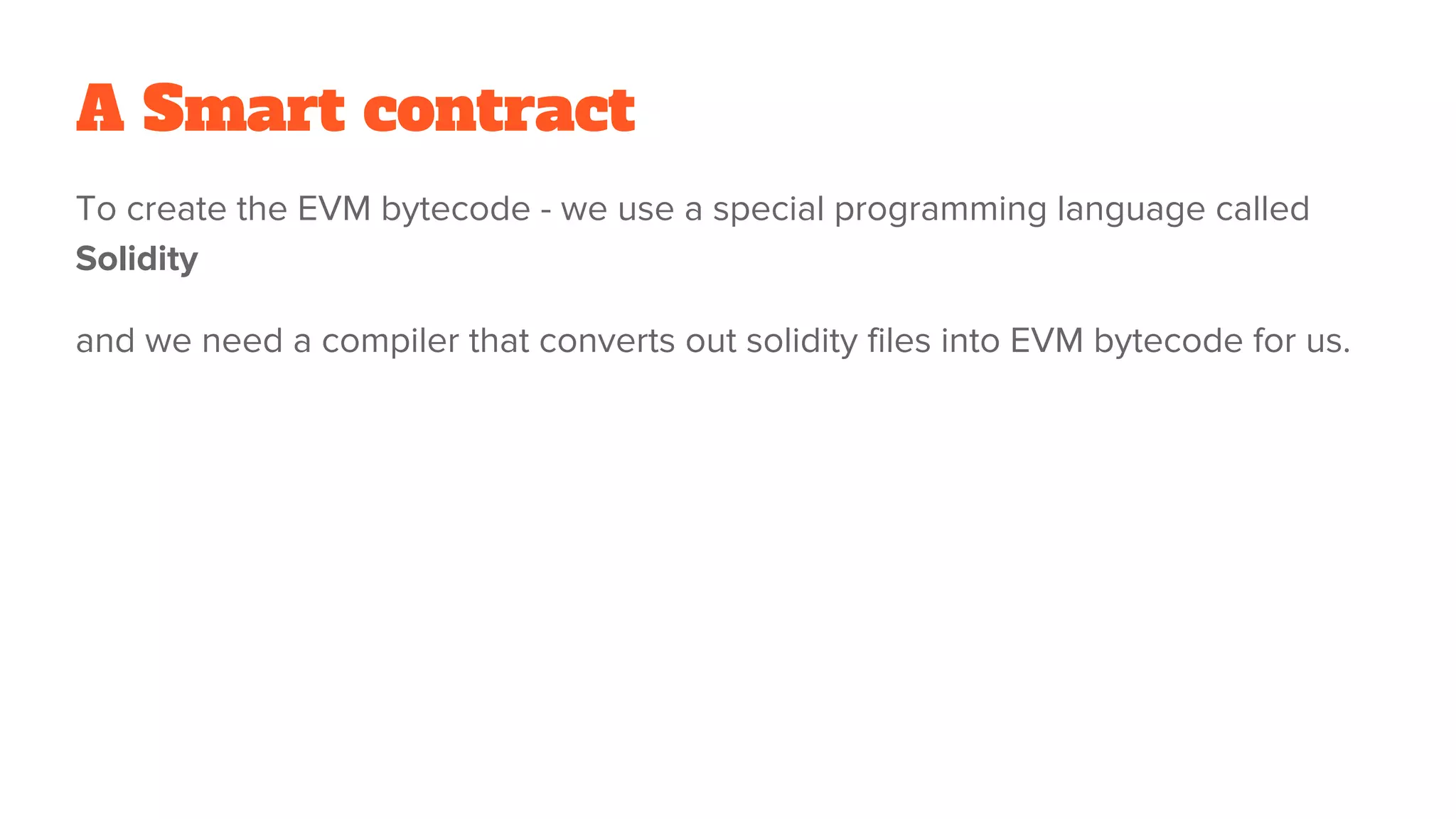

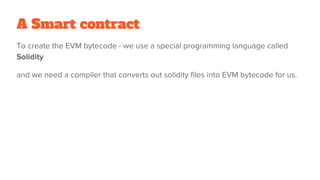

16. A Smart contract
To create the EVM bytecode - we use a special programming language called
Solidity
and we need a compiler that converts out solidity files into EVM bytecode for us.

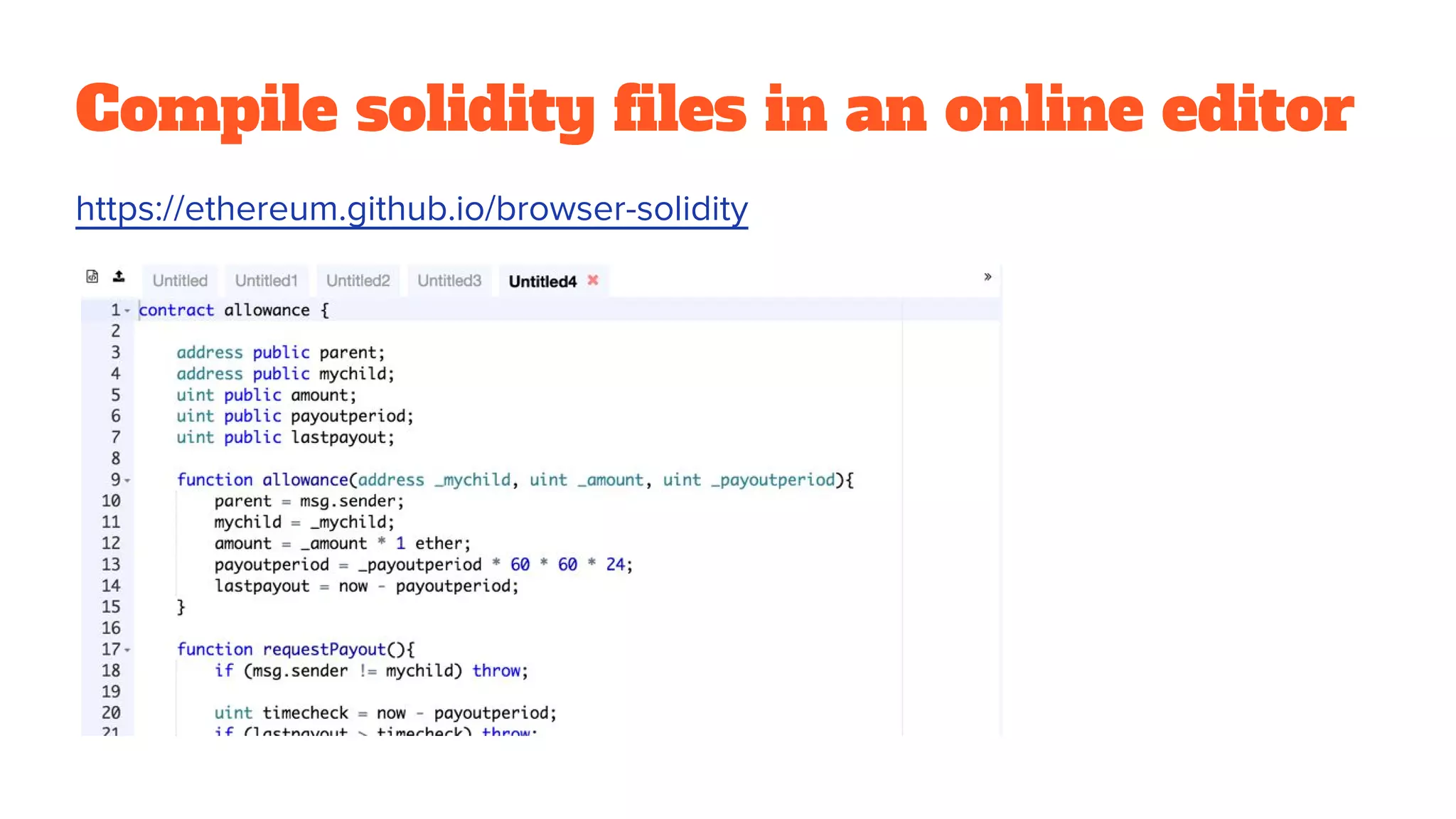

17. Compile solidity files in an online editor
https://ethereum.github.io/browser-solidity

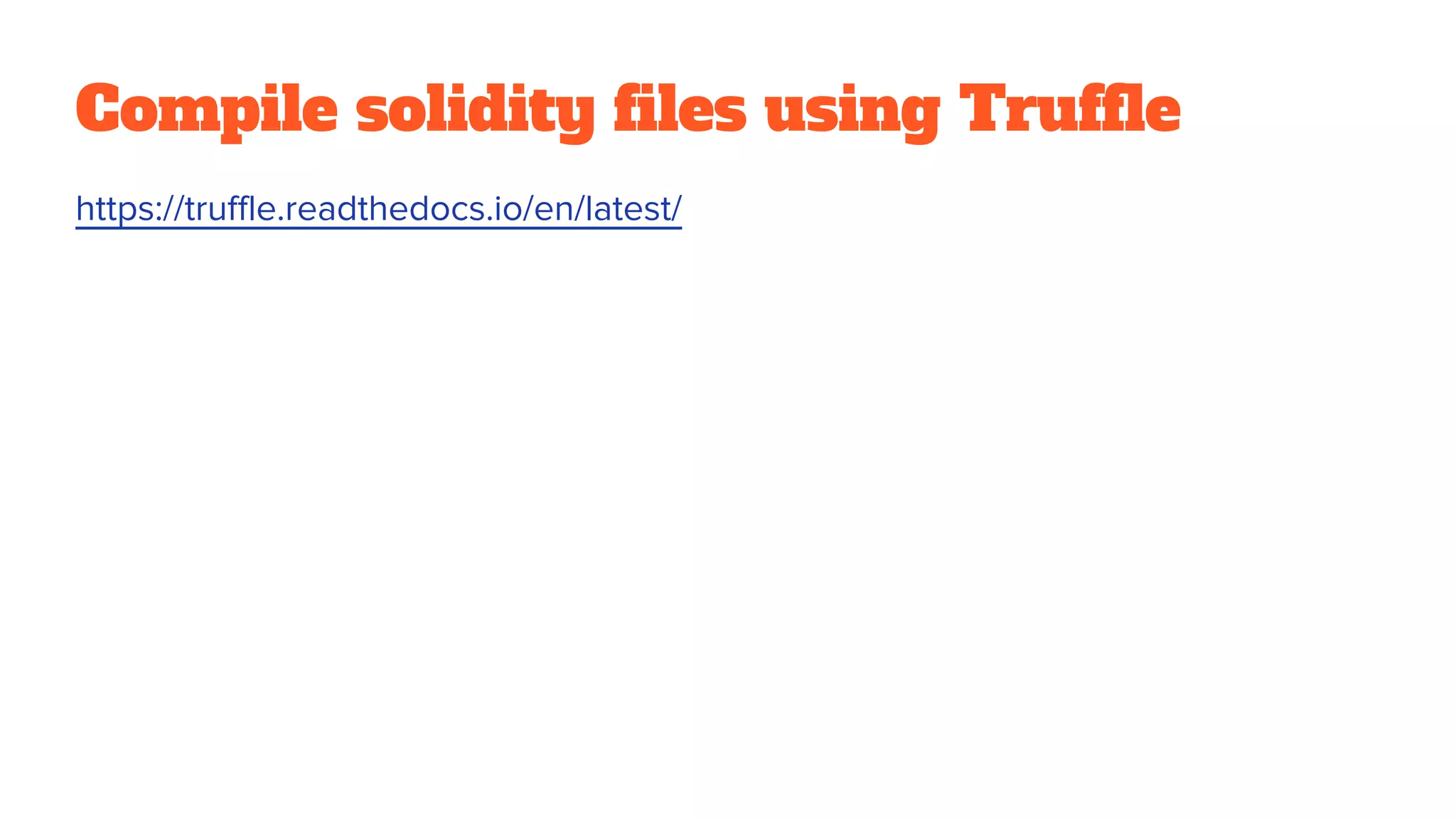

18. Compile solidity files using Truffle
https://truffle.readthedocs.io/en/latest/

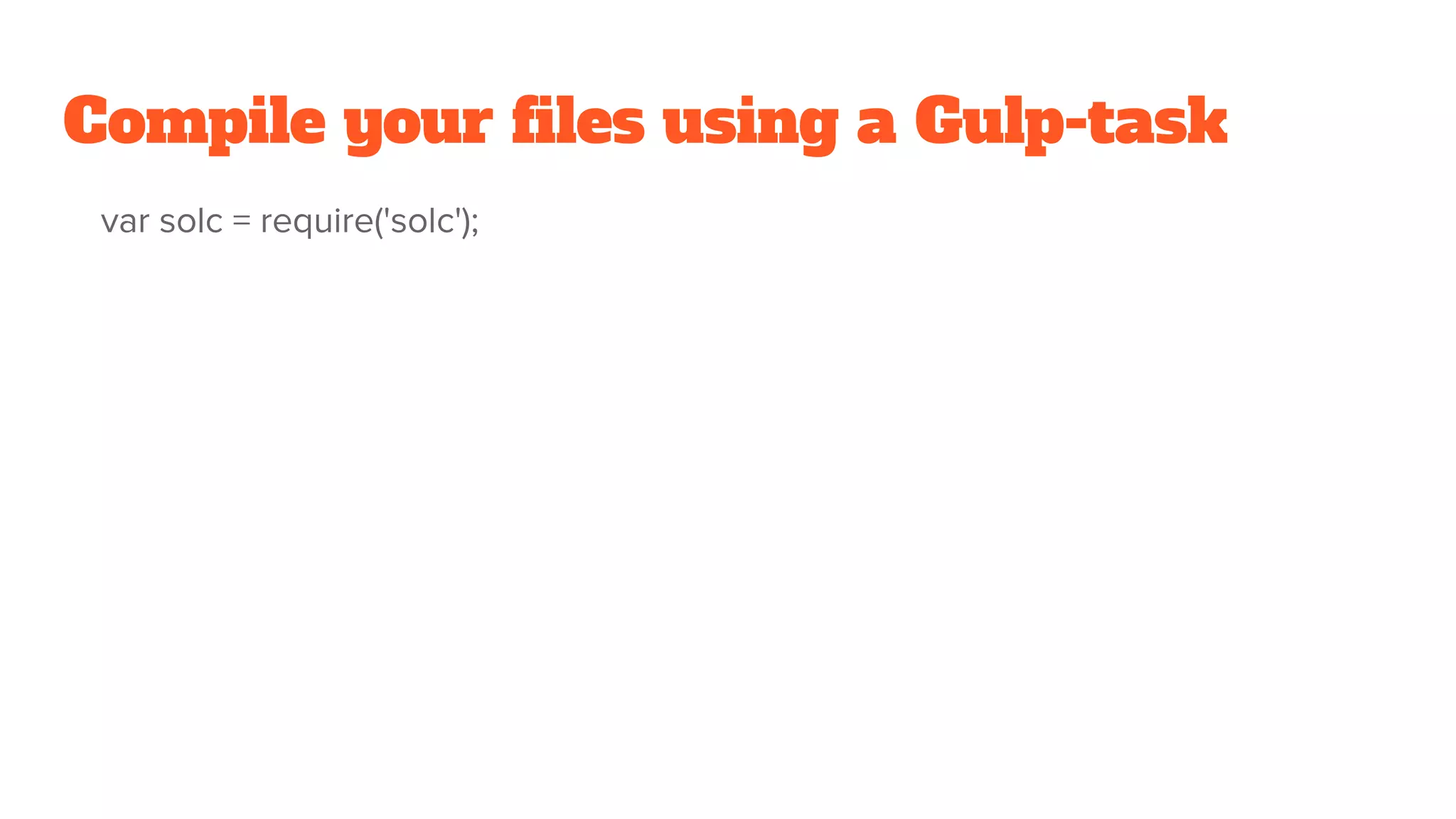

19. Compile your files using a Gulp-task
var solc = require('solc');

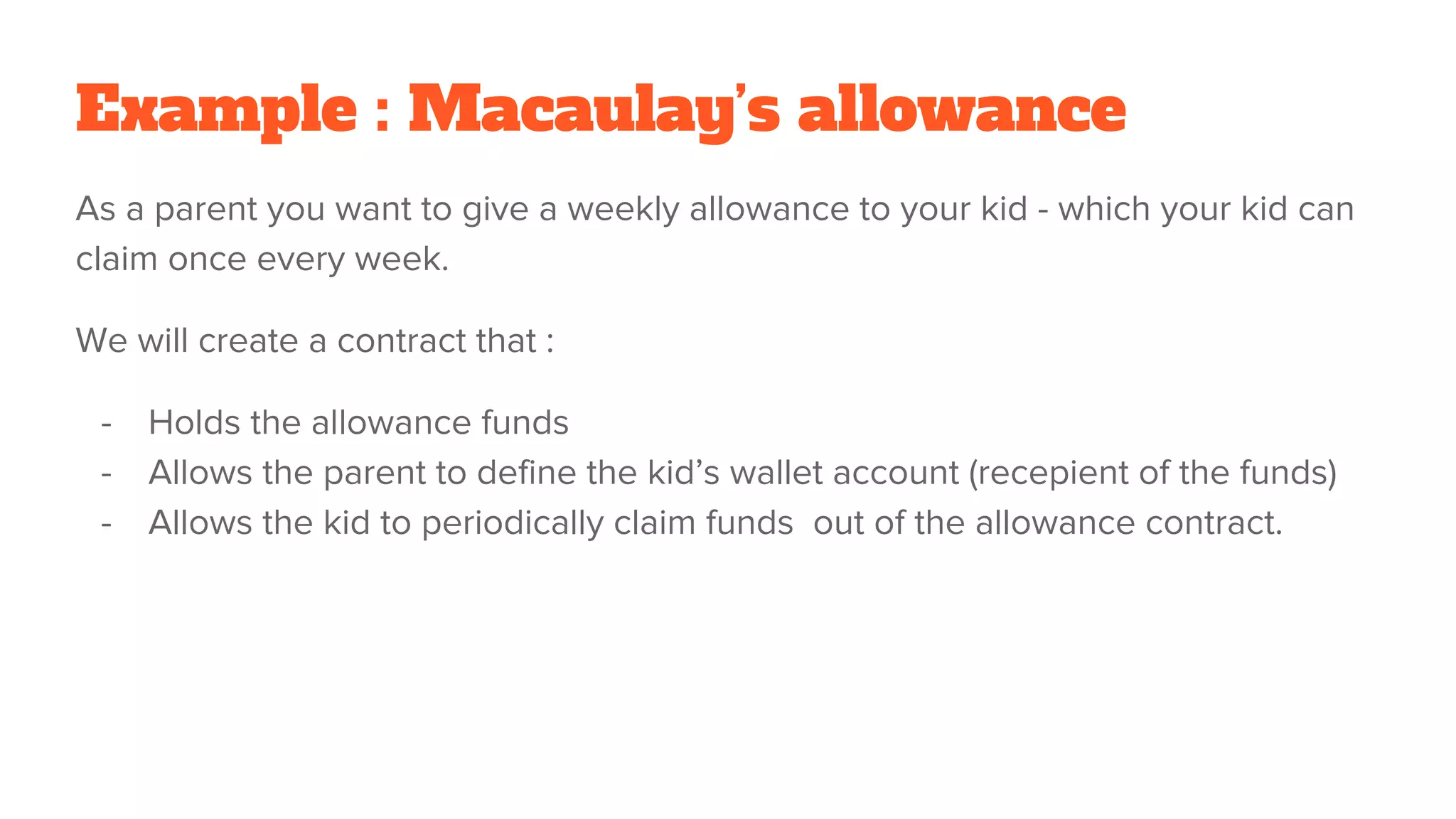

20. Example : Macaulay’s allowance
As a parent you want to give a weekly allowance to your kid - which your kid can
claim once every week.
We will create a contract that :
- Holds the allowance funds
- Allows the parent to define the kid’s wallet account (recepient of the funds)
- Allows the kid to periodically claim funds out of the allowance contract.

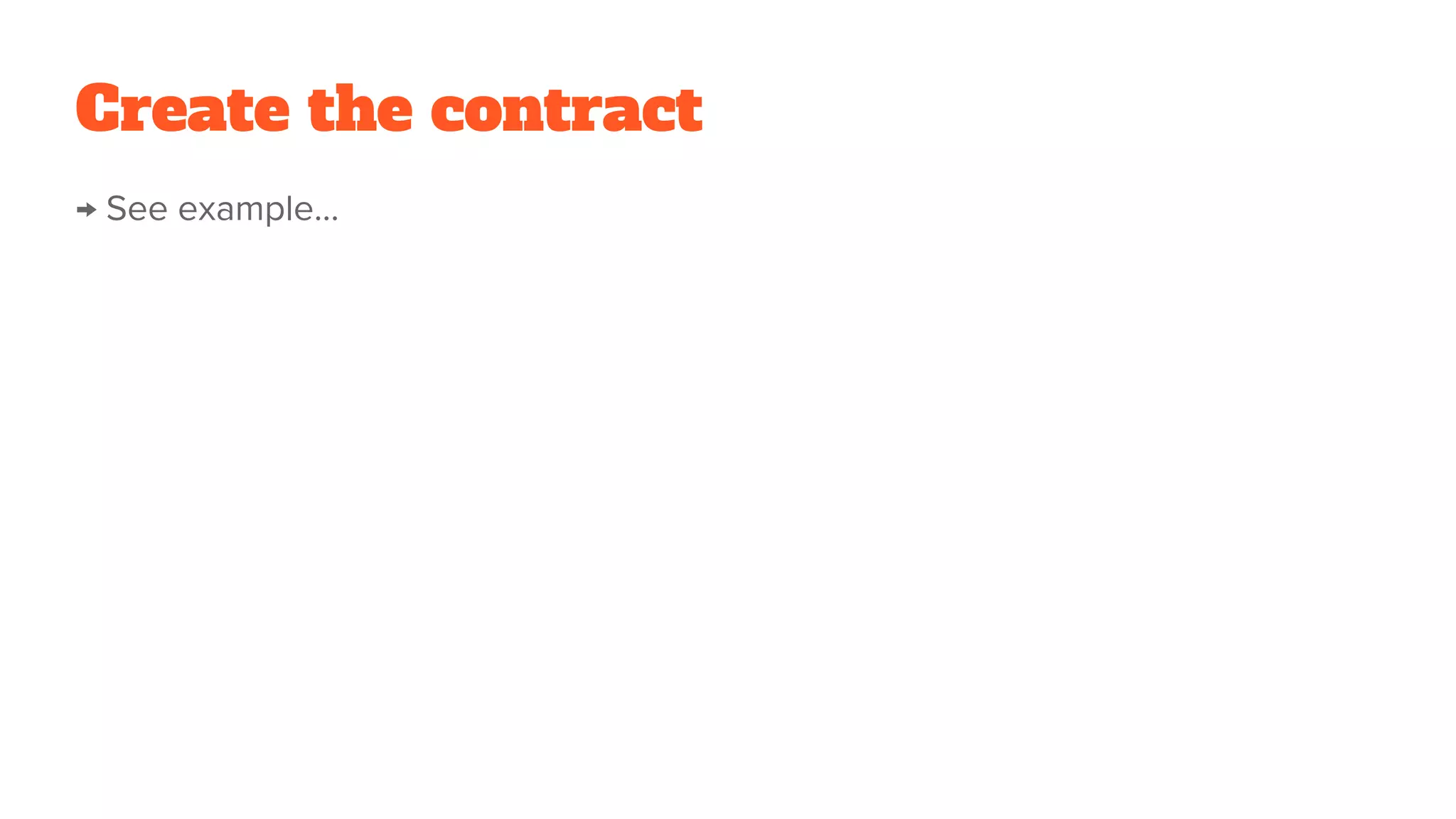

21. Create the contract
→ See example...

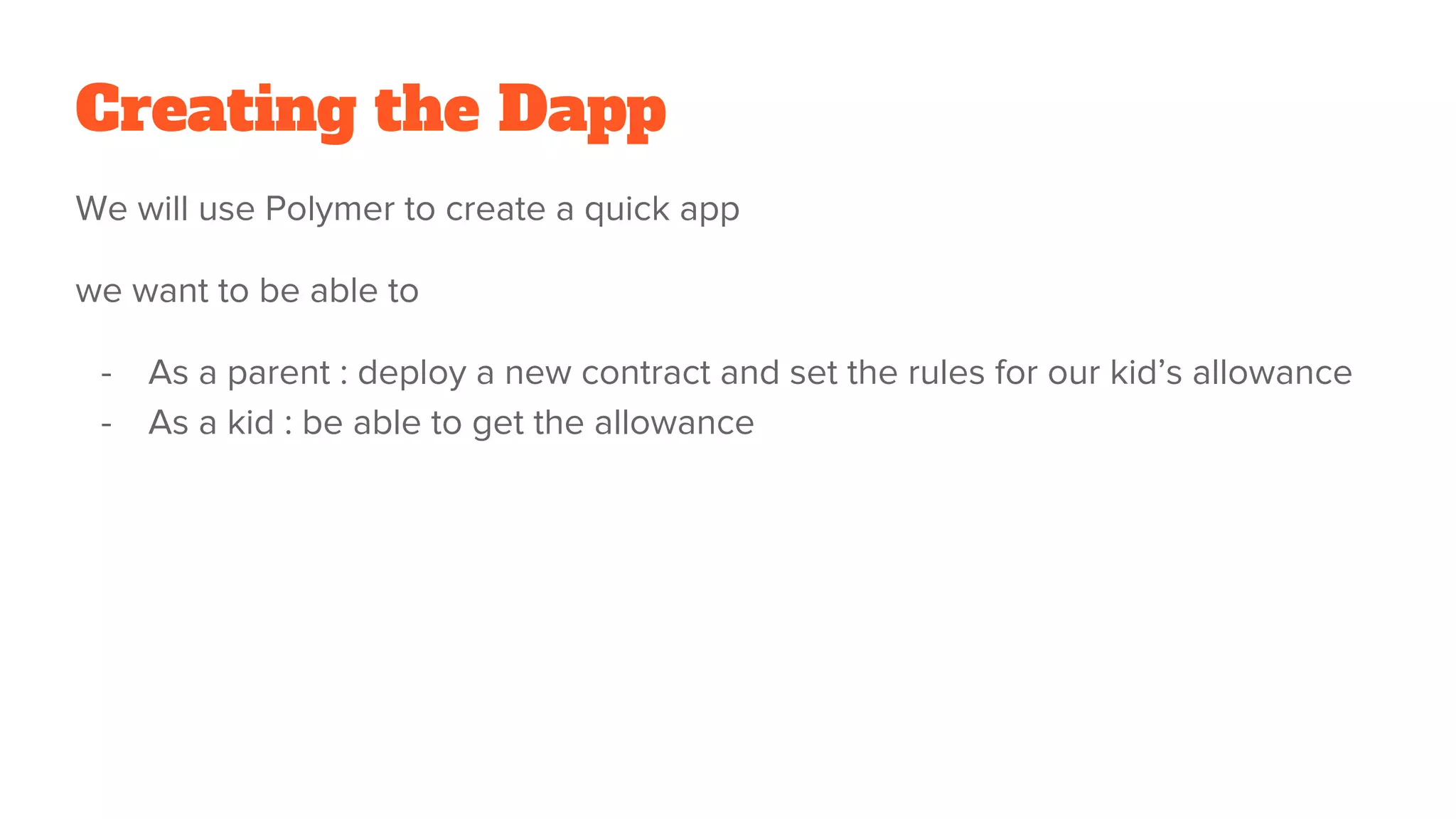

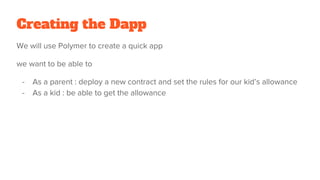

22. Creating the Dapp
We will use Polymer to create a quick app
we want to be able to
- As a parent : deploy a new contract and set the rules for our kid’s allowance
- As a kid : be able to get the allowance

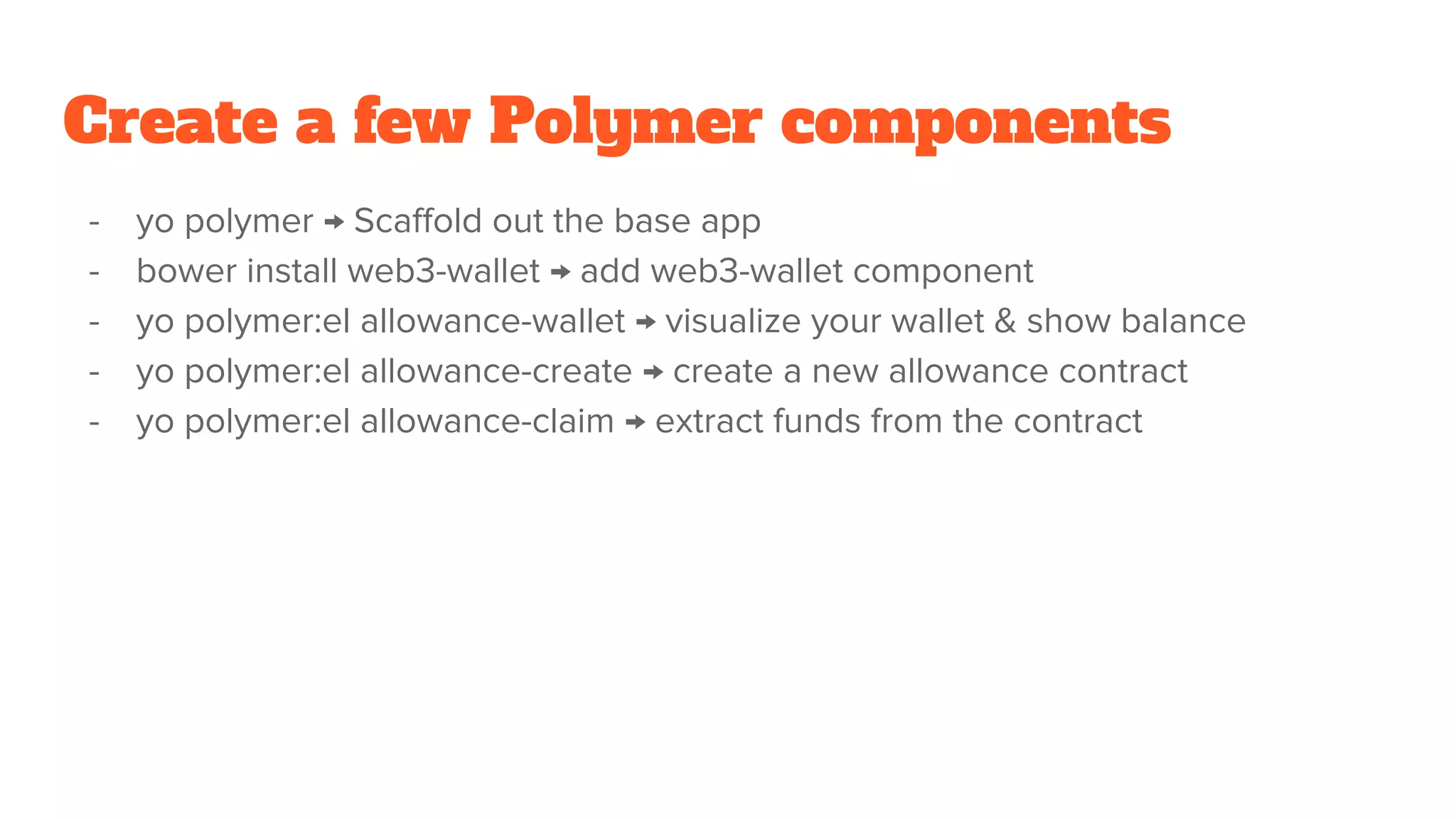

23. Create a few Polymer components
- yo polymer → Scaffold out the base app
- bower install web3-wallet → add web3-wallet component
- yo polymer:el allowance-wallet → visualize your wallet & show balance
- yo polymer:el allowance-create → create a new allowance contract
- yo polymer:el allowance-claim → extract funds from the contract

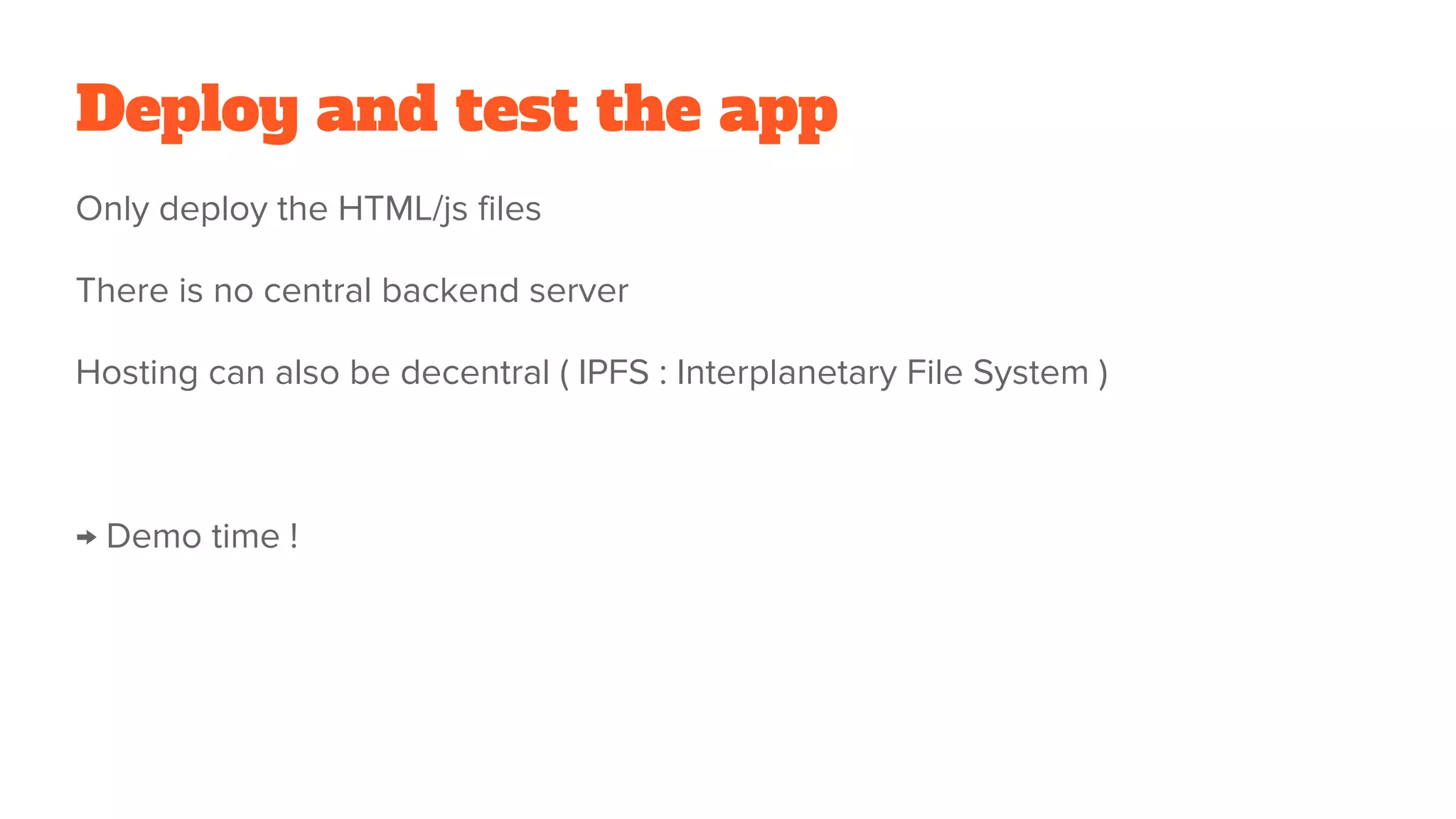

24. Deploy and test the app
Only deploy the HTML/js files
There is no central backend server
Hosting can also be decentral ( IPFS : Interplanetary File System )
→ Demo time !

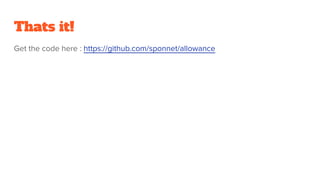

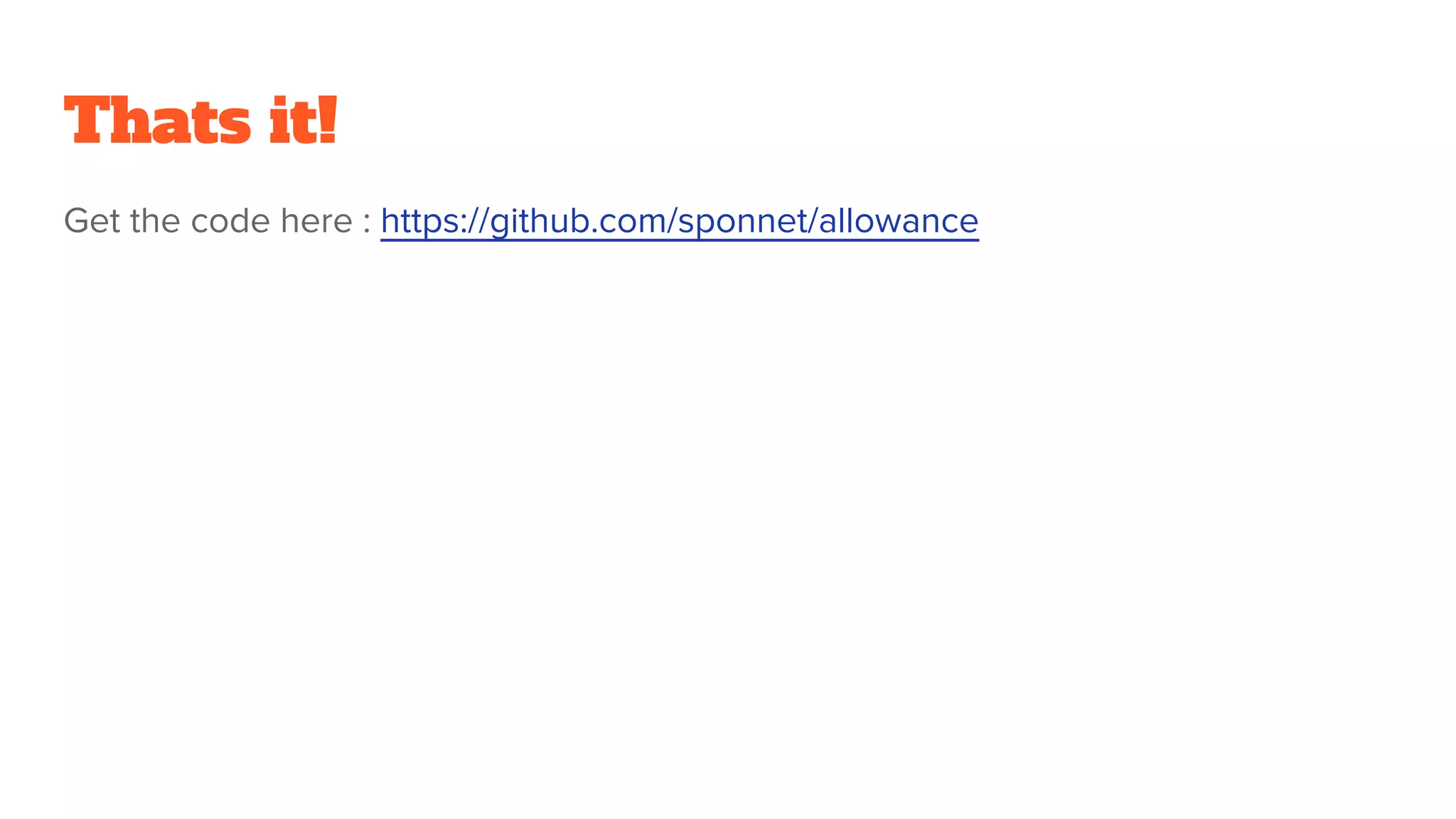

25. Thats it!
Get the code here : https://github.com/sponnet/allowance

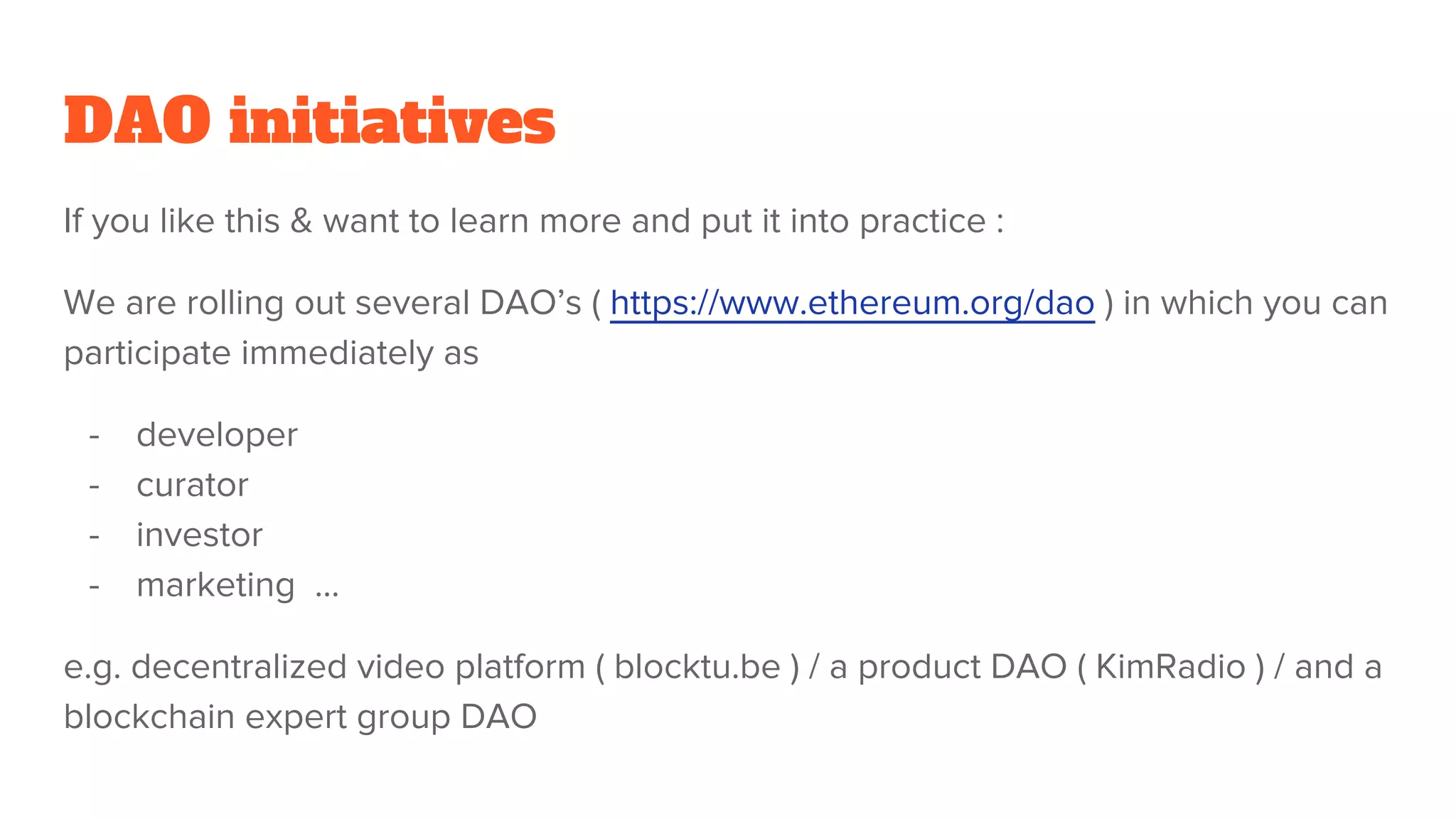

26. DAO initiatives
If you like this & want to learn more and put it into practice :
We are rolling out several DAO’s ( https://www.ethereum.org/dao ) in which you can
participate immediately as
- developer
- curator
- investor
- marketing ...
e.g. decentralized video platform ( blocktu.be ) / a product DAO ( KimRadio ) / and a
blockchain expert group DAO

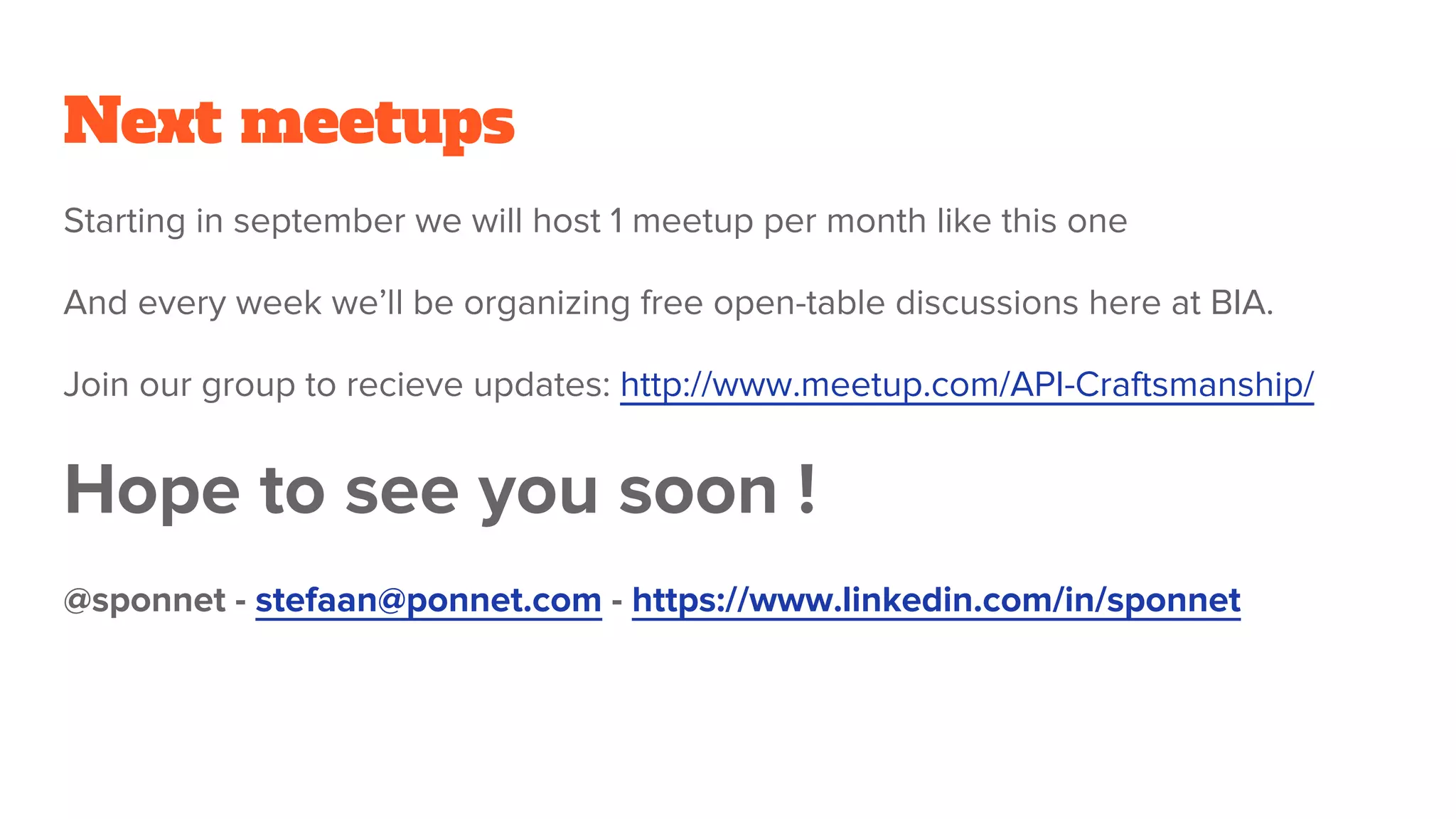

27. Next meetups
Starting in september we will host 1 meetup per month like this one
And every week we’ll be organizing free open-table discussions here at BIA.
Join our group to recieve updates: http://www.meetup.com/API-Craftsmanship/
Hope to see you soon !
@sponnet - stefaan@ponnet.com - https://www.linkedin.com/in/sponnet
