1. Industrial antenna
applications
By
K Nagalakshmaiah
Antenna design engineer
MMRFIC Technology Pvt. Ltd.

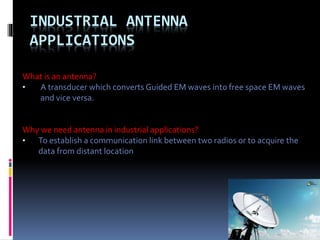

2. INDUSTRIAL ANTENNA
APPLICATIONS
What is an antenna?
• A transducer which converts Guided EM waves into free space EM waves
and vice versa.
Why we need antenna in industrial applications?
• To establish a communication link between two radios or to acquire the
data from distant location

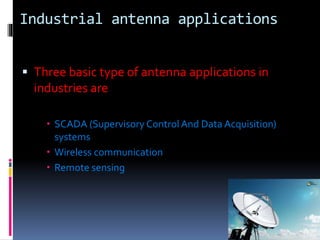

3. Industrial antenna applications
 Three basic type of antenna applications in
industries are
 SCADA (Supervisory Control And Data Acquisition)
systems
 Wireless communication
 Remote sensing

4. Industrial antenna applications
 SCADA:
 To transmit data from sensors and other devices to the
SCADA system, allowing operators to monitor and
control the infrastructure from a central location.
 Useful in the cases where human intervention is not
possible like nuclear reactor temperature monitor.

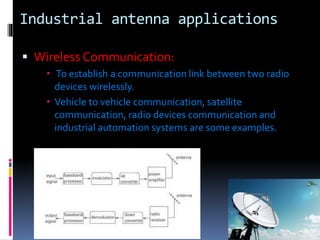

5. Industrial antenna applications
 Wireless Communication:
 To establish a communication link between two radio
devices wirelessly.
 Vehicle to vehicle communication, satellite
communication, radio devices communication and
industrial automation systems are some examples.

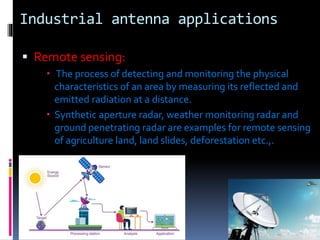

6. Industrial antenna applications
 Remote sensing:
 The process of detecting and monitoring the physical
characteristics of an area by measuring its reflected and
emitted radiation at a distance.
 Synthetic aperture radar, weather monitoring radar and
ground penetrating radar are examples for remote sensing
of agriculture land, land slides, deforestation etc.,.

7. Industrial antenna applications
 Factors to be consider for antenna selection:
 Frequency range
 Input Power level to antenna
 Gain
 Directionality
 Environmental factors

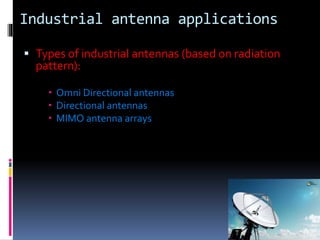

8. Industrial antenna applications
 Types of industrial antennas (based on radiation
pattern):
 Omni Directional antennas
 Directional antennas
 MIMO antenna arrays

9. Industrial antenna applications
Omni Directional antenna
radiation pattern
(a) (b)
Helical antenna radiation pattern
(a) axial mode (b) normal mode
Isotropic radiation pattern

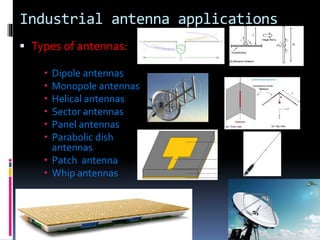

10. Industrial antenna applications
 Types of antennas:
 Dipole antennas
 Monopole antennas
 Helical antennas
 Sector antennas
 Panel antennas
 Parabolic dish
antennas
 Patch antenna
 Whip antennas

11. Industrial antenna applications
How to select antenna based on application?
 Frequency of operation
 Low frequency
 High frequency
 Bandwidth
 Low bandwidth
 High bandwidth
 Gain
 Power handling capability
 Directional Property based
 Environmental factors
 Temperature
 Humidity
 Stress

12. Queries ?
