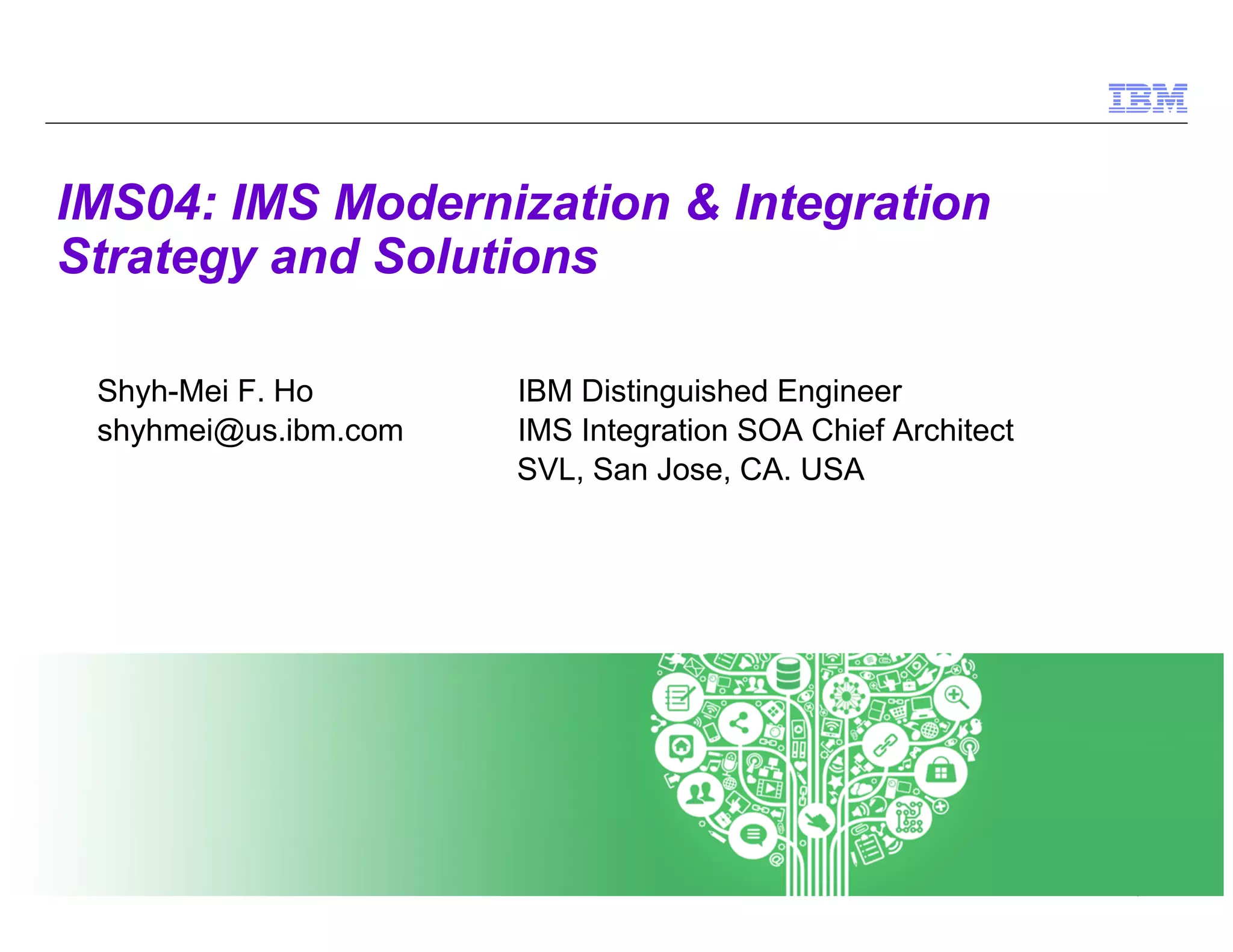

IMS04: IMS Modernization & Integration
Strategy and Solutions
Shyh-Mei F. Ho IBM Distinguished Engineer
shyhmei@us.ibm.com IMS Integration SOA Chief Architect
SVL, San Jose, CA. USA

2. © 2014 IBM Corporation
2
Availability. References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which
IBM operates.

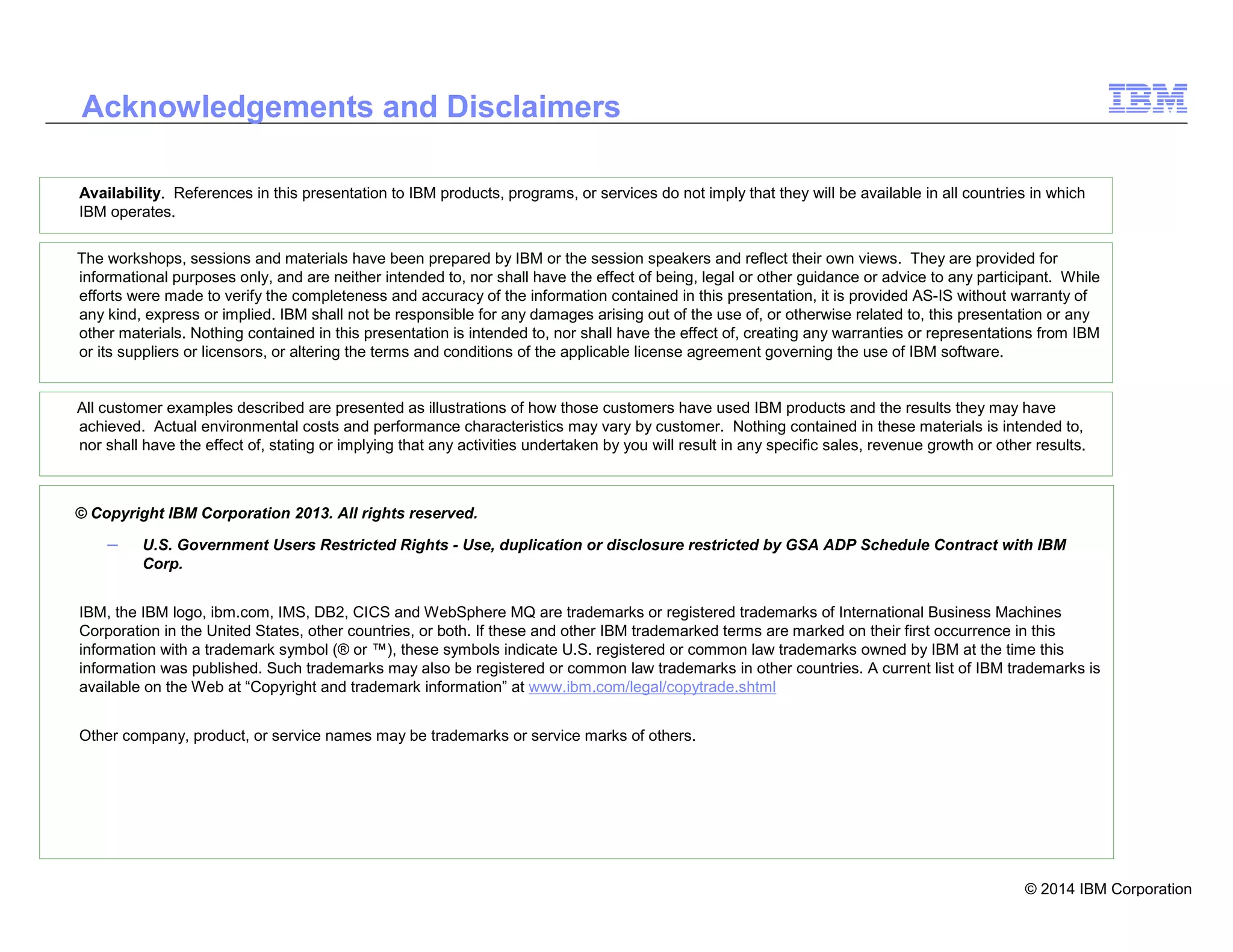

Acknowledgements and Disclaimers
© Copyright IBM Corporation 2013. All rights reserved.
– U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM
Corp.
IBM, the IBM logo, ibm.com, IMS, DB2, CICS and WebSphere MQ are trademarks or registered trademarks of International Business Machines
Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this
information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this
information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is
available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml
Other company, product, or service names may be trademarks or service marks of others.
The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for
informational purposes only, and are neither intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While
efforts were made to verify the completeness and accuracy of the information contained in this presentation, it is provided AS-IS without warranty of
any kind, express or implied. IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this presentation or any
other materials. Nothing contained in this presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM
or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have
achieved. Actual environmental costs and performance characteristics may vary by customer. Nothing contained in these materials is intended to,
nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results.

3. © 2014 IBM Corporation
3

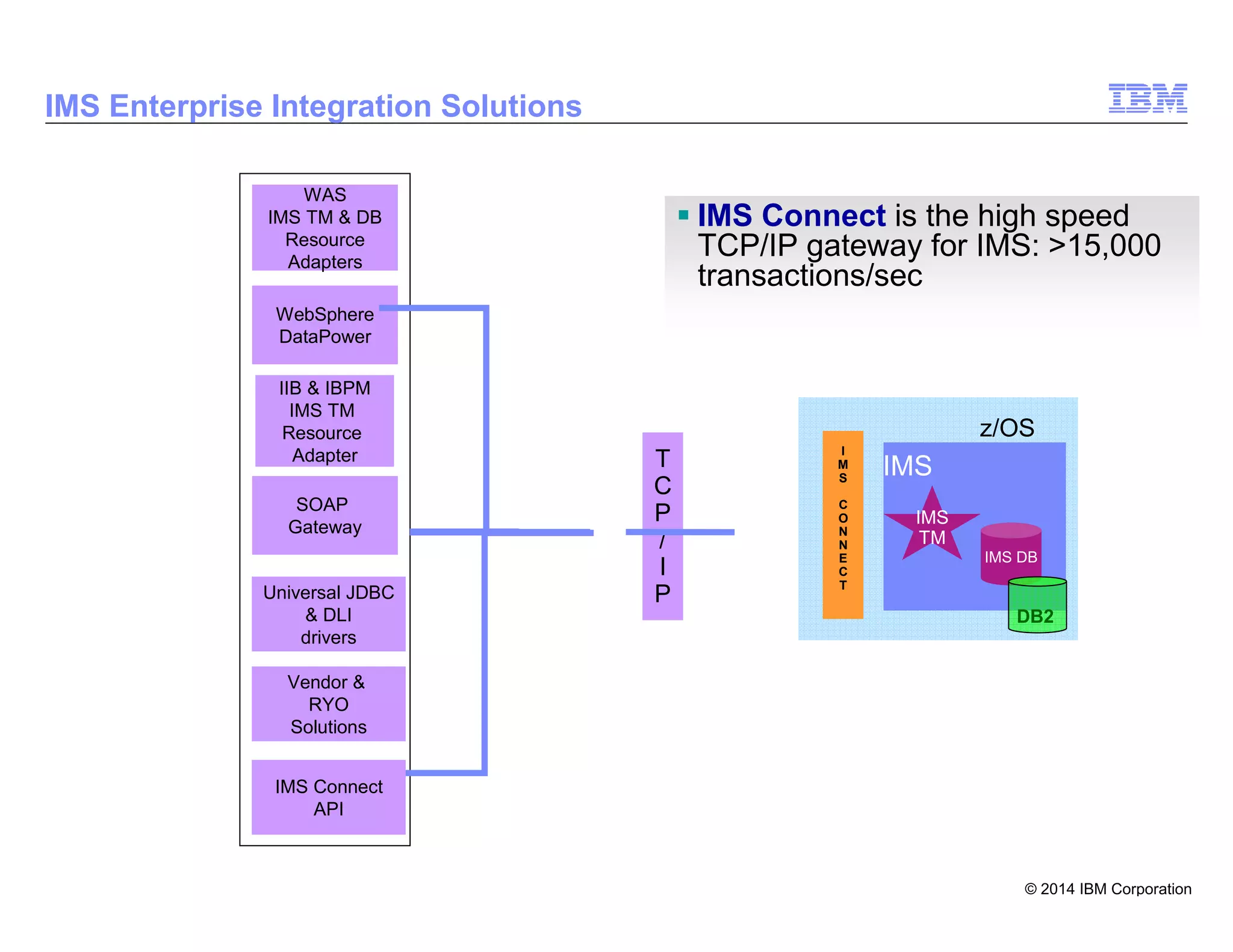

IMS Enterprise Integration Solutions
z/OS
T
C
P
/
I
P
WAS
IMS TM & DB
Resource
Adapters
Universal JDBC
& DLI
drivers
Vendor &
RYO
Solutions
WebSphere
DataPower
SOAP
Gateway
IIB & IBPM
IMS TM
Resource
Adapter
IMS
TM
IMS
IMS DB
IMS Connect is the high speed
TCP/IP gateway for IMS: >15,000
transactions/sec
IMS Connect
API
I
M
S
C
O
N
N
E
C
T
DB2

4. © 2014 IBM Corporation
4

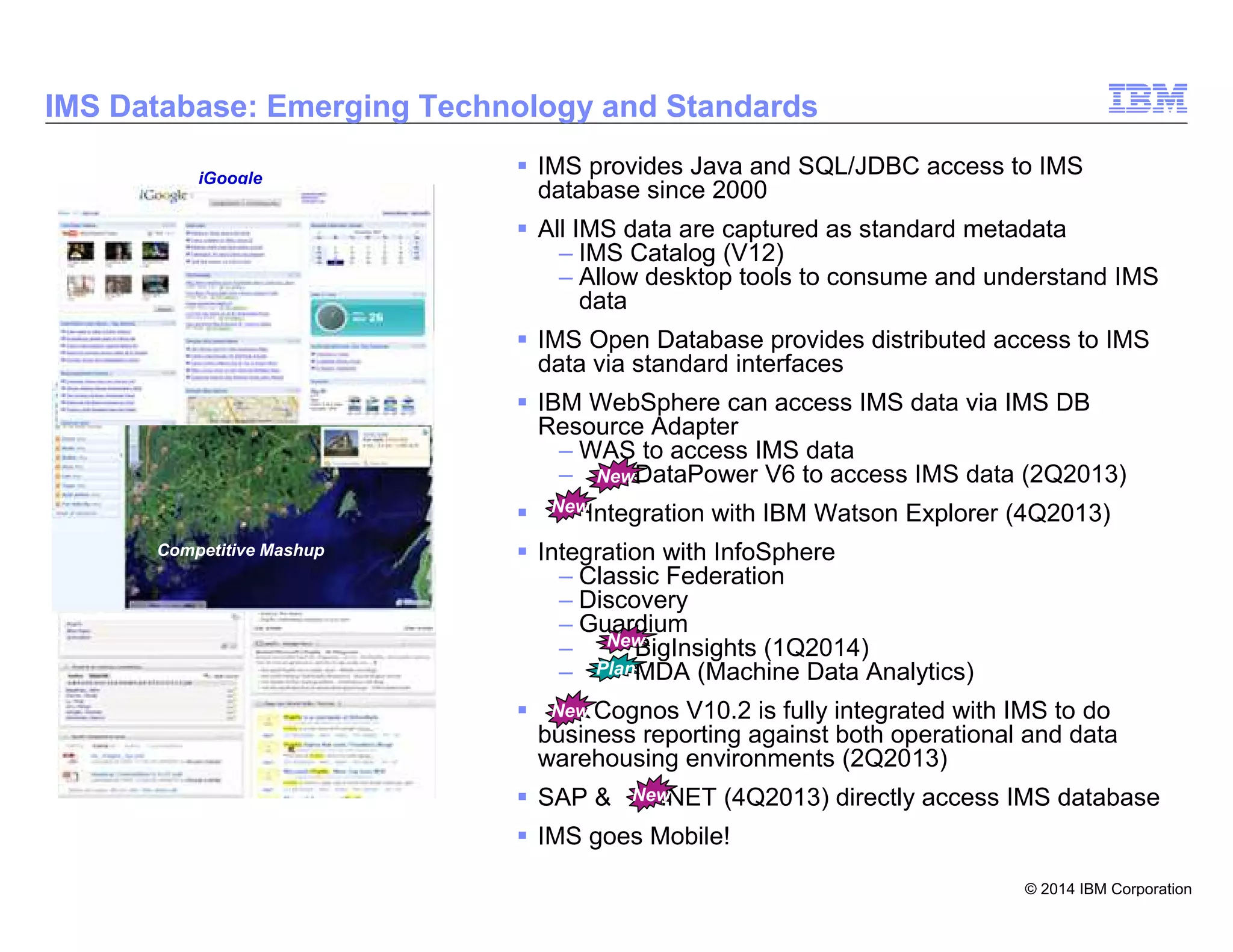

IMS Database: Emerging Technology and Standards
IMS provides Java and SQL/JDBC access to IMS
database since 2000
All IMS data are captured as standard metadata
– IMS Catalog (V12)
– Allow desktop tools to consume and understand IMS
data
IMS Open Database provides distributed access to IMS
data via standard interfaces
IBM WebSphere can access IMS data via IMS DB
Resource Adapter
– WAS to access IMS data
– DataPower V6 to access IMS data (2Q2013)
Integration with IBM Watson Explorer (4Q2013)
Integration with InfoSphere
– Classic Federation
– Discovery
– Guardium
– BigInsights (1Q2014)
– MDA (Machine Data Analytics)
Cognos V10.2 is fully integrated with IMS to do
business reporting against both operational and data
warehousing environments (2Q2013)
SAP & .NET (4Q2013) directly access IMS database
IMS goes Mobile!
Zillow.com
Competitive Mashup
iGoogle
New
New
New
New
Plan
New

5. © 2014 IBM Corporation

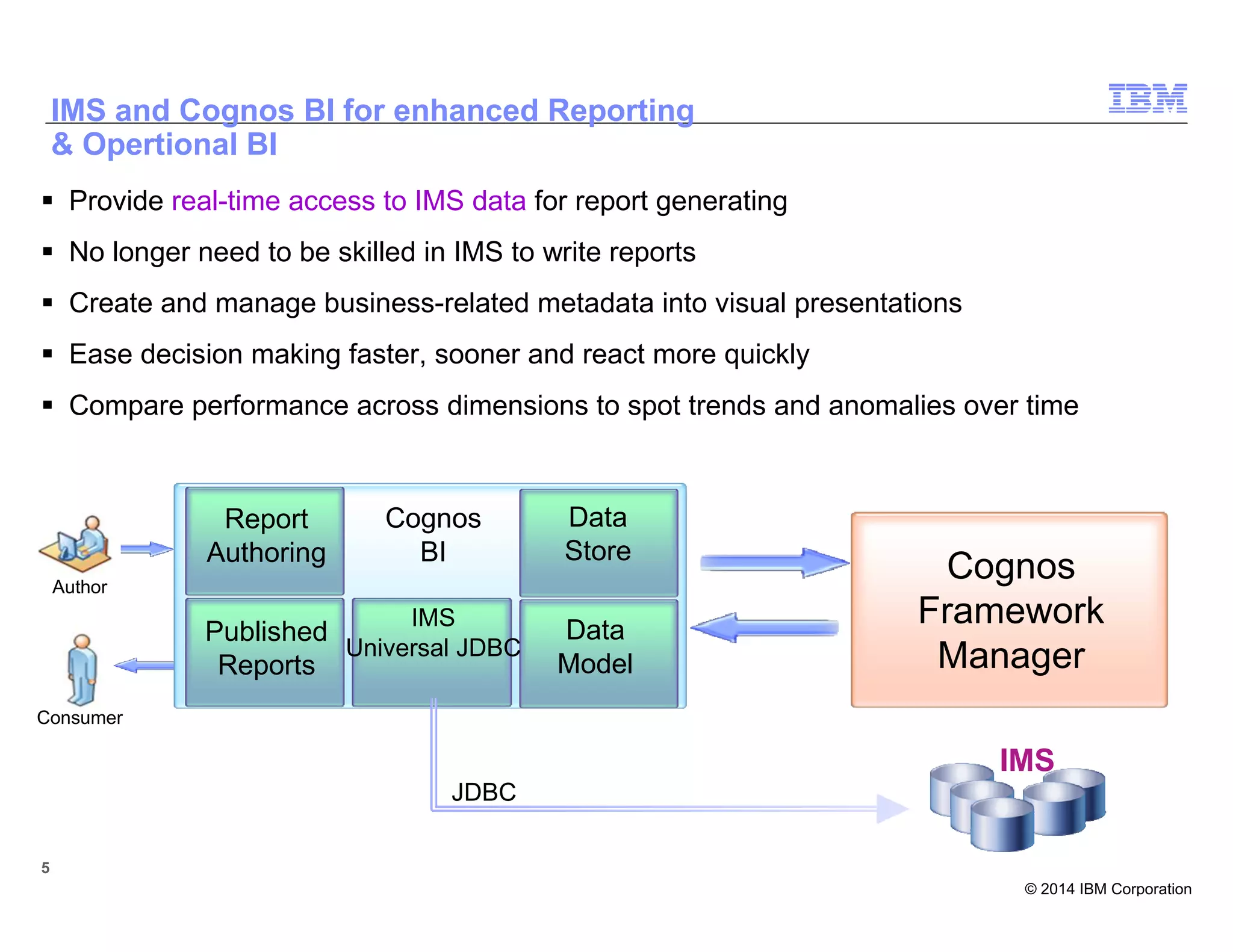

IMS and Cognos BI for enhanced Reporting
& Opertional BI
Provide real-time access to IMS data for report generating
No longer need to be skilled in IMS to write reports
Create and manage business-related metadata into visual presentations
Ease decision making faster, sooner and react more quickly
Compare performance across dimensions to spot trends and anomalies over time
5
Cognos
BI
Data
Store
IMS
IMS
Universal JDBC
Data
Model
Published
Reports
Report
Authoring
Cognos
Framework
Manager
Consumer
Author
JDBC

6. © 2014 IBM Corporation
6
6
Accelerators
Information Integration & Governance
Data
Warehouse
Stream
Computing
Hadoop System
DiscoveryApplication
Development
Systems
Management
BIG DATA PLATFORM
Watson Explorer
Find, navigate, visualize all data
Accelerators
Speed time to value with analytic and application
accelerators
InfoSphere BigInsights
Bringing Hadoop to the enterprise
InfoSphere Data Warehouse
Delivers deep insight with advanced database
analytics & operational analytics
Information Integration and Governance
Governs data quality and manages the information
lifecycle
InfoSphere Streams
Analytics for data in-motion exploration

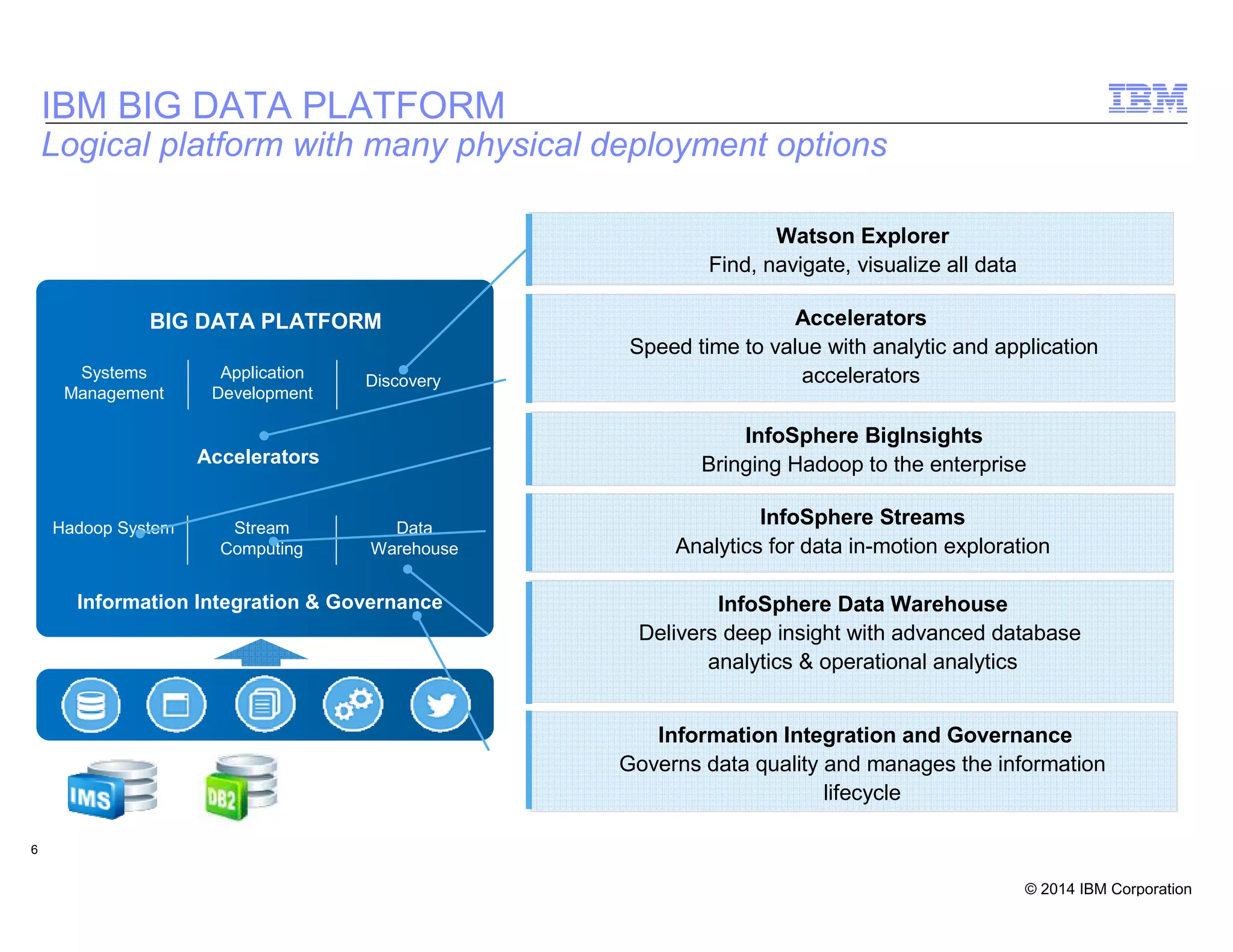

IBM BIG DATA PLATFORM
Logical platform with many physical deployment options

7. © 2014 IBM Corporation
7 7

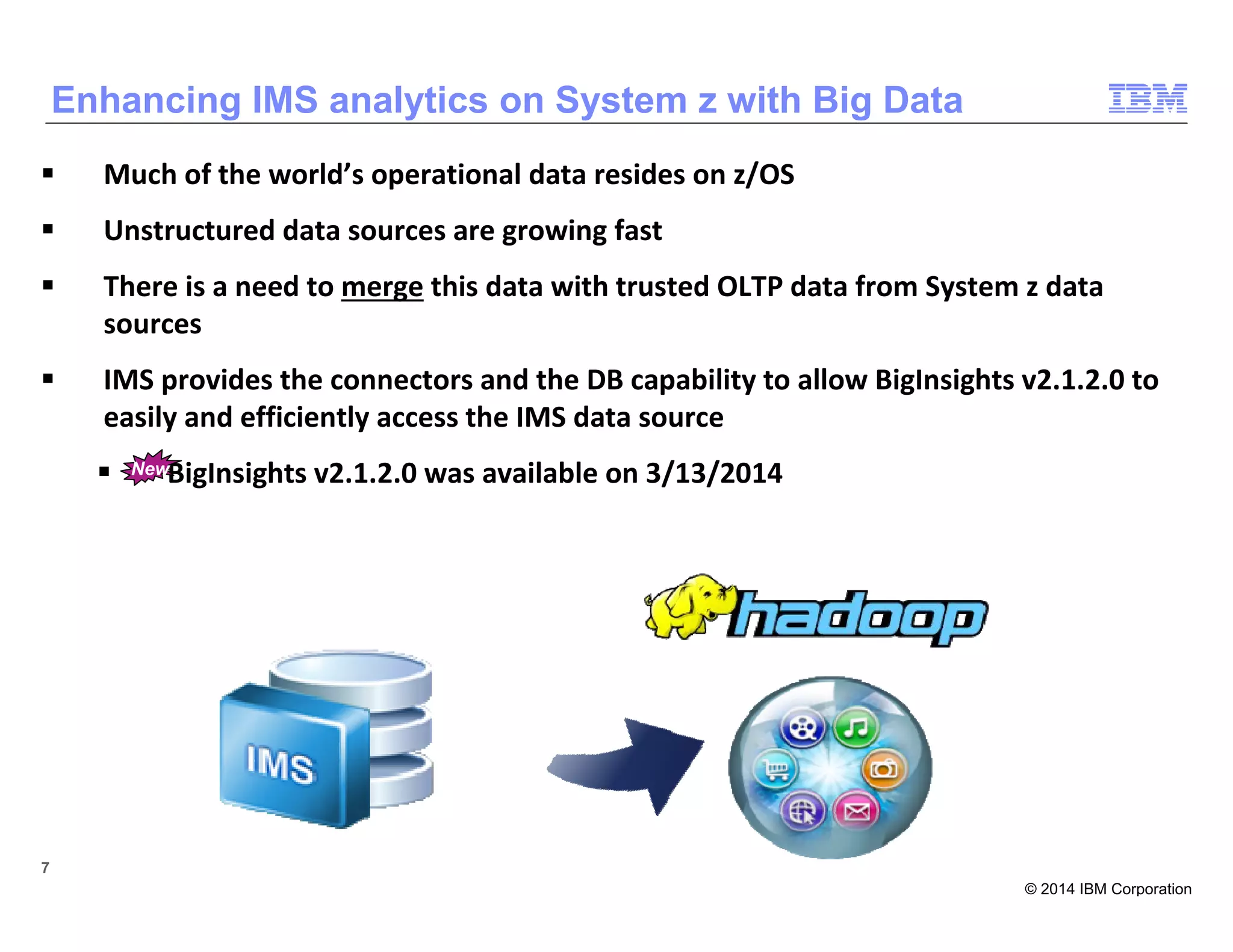

Much of the world’s operational data resides on z/OS
Unstructured data sources are growing fast
There is a need to merge this data with trusted OLTP data from System z data
sources
IMS provides the connectors and the DB capability to allow BigInsights v2.1.2.0 to
easily and efficiently access the IMS data source
BigInsights v2.1.2.0 was available on 3/13/2014
Enhancing IMS analytics on System z with Big Data
New

8. © 2014 IBM Corporation
8

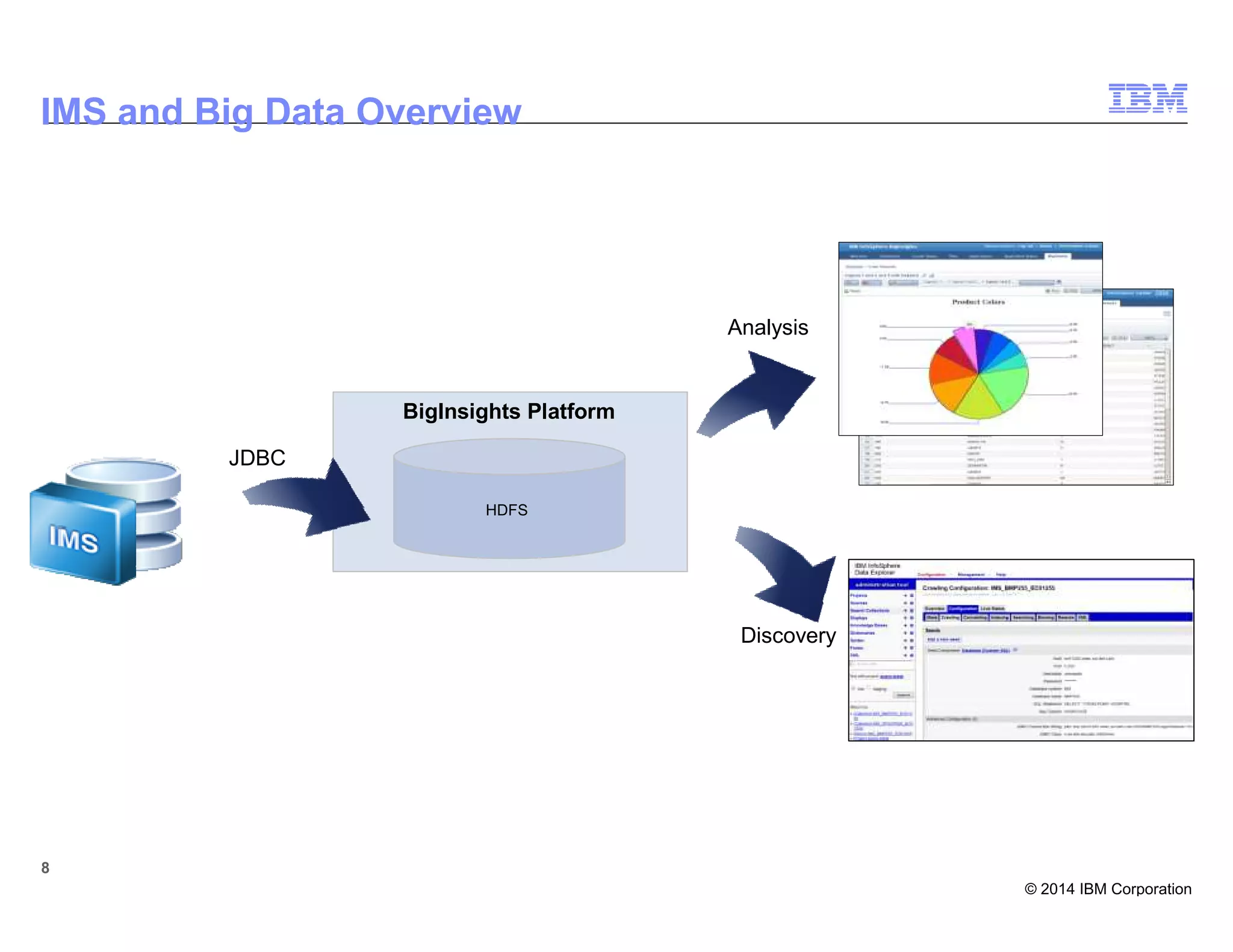

HDFS
BigInsights Platform
JDBC
Analysis
Discovery
IMS and Big Data Overview
8

9. © 2014 IBM Corporation
9

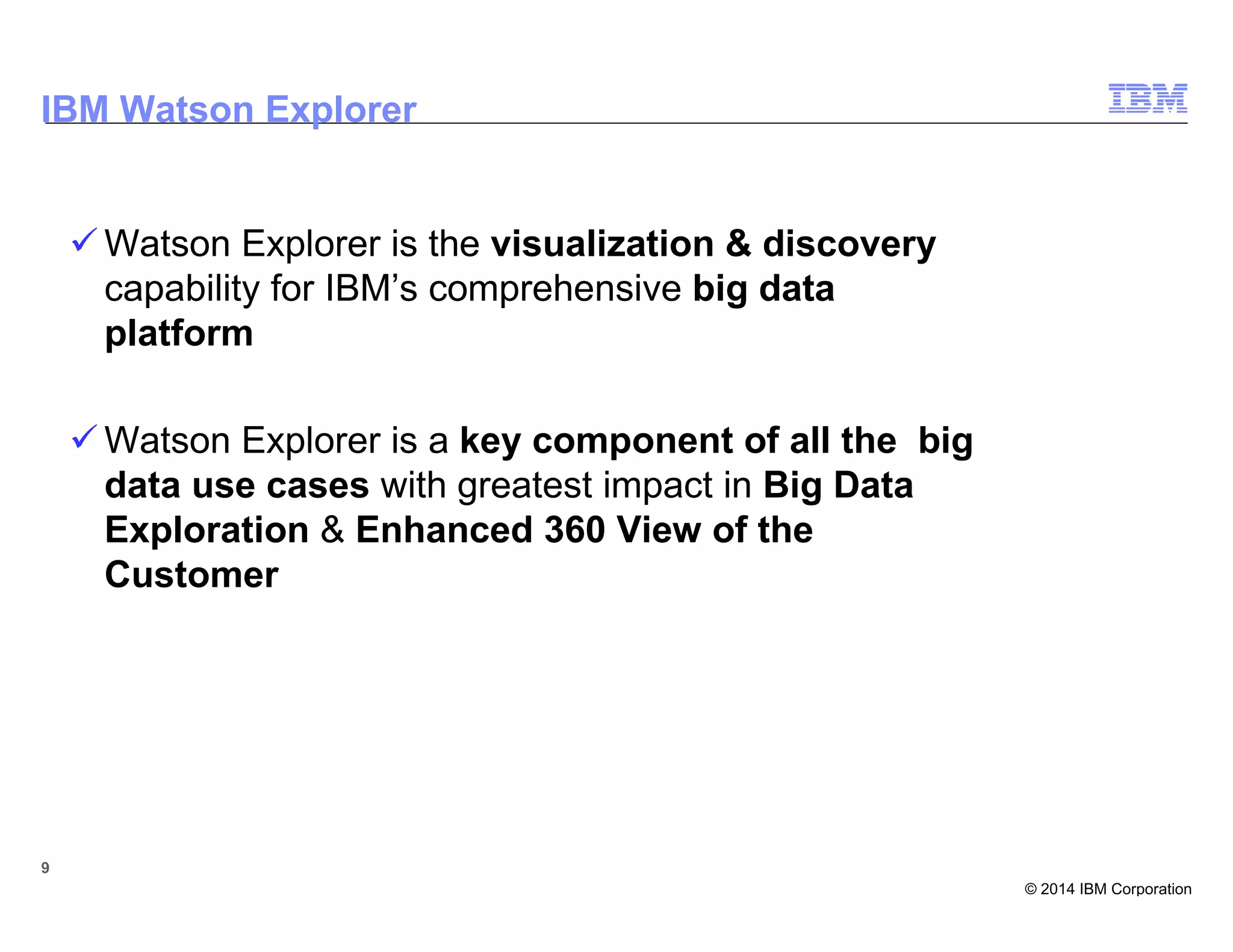

Watson Explorer is the visualization & discovery
capability for IBM’s comprehensive big data
platform
Watson Explorer is a key component of all the big
data use cases with greatest impact in Big Data
Exploration & Enhanced 360 View of the
Customer
9
IBM Watson Explorer

10. © 2014 IBM Corporation
10

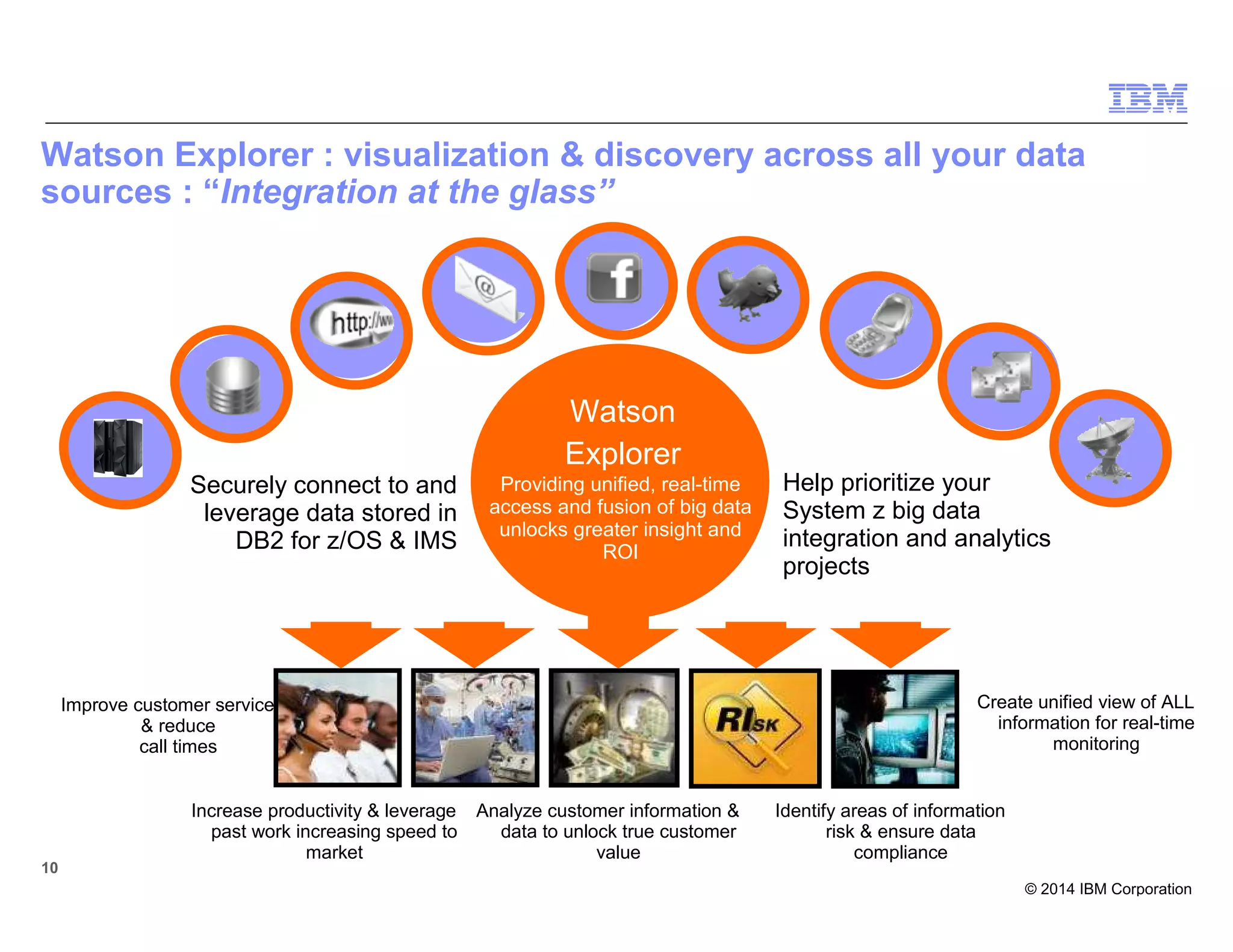

Watson Explorer : visualization & discovery across all your data
sources : “Integration at the glass”
Create unified view of ALL
information for real-time
monitoring
Identify areas of information
risk & ensure data
compliance
Analyze customer information &
data to unlock true customer
value
Increase productivity & leverage
past work increasing speed to
market
Improve customer service
& reduce
call times
Watson
Explorer
Providing unified, real-time
access and fusion of big data
unlocks greater insight and
ROI
Securely connect to and
leverage data stored in
DB2 for z/OS & IMS
Help prioritize your
System z big data
integration and analytics
projects
10

11. © 2014 IBM Corporation
1111

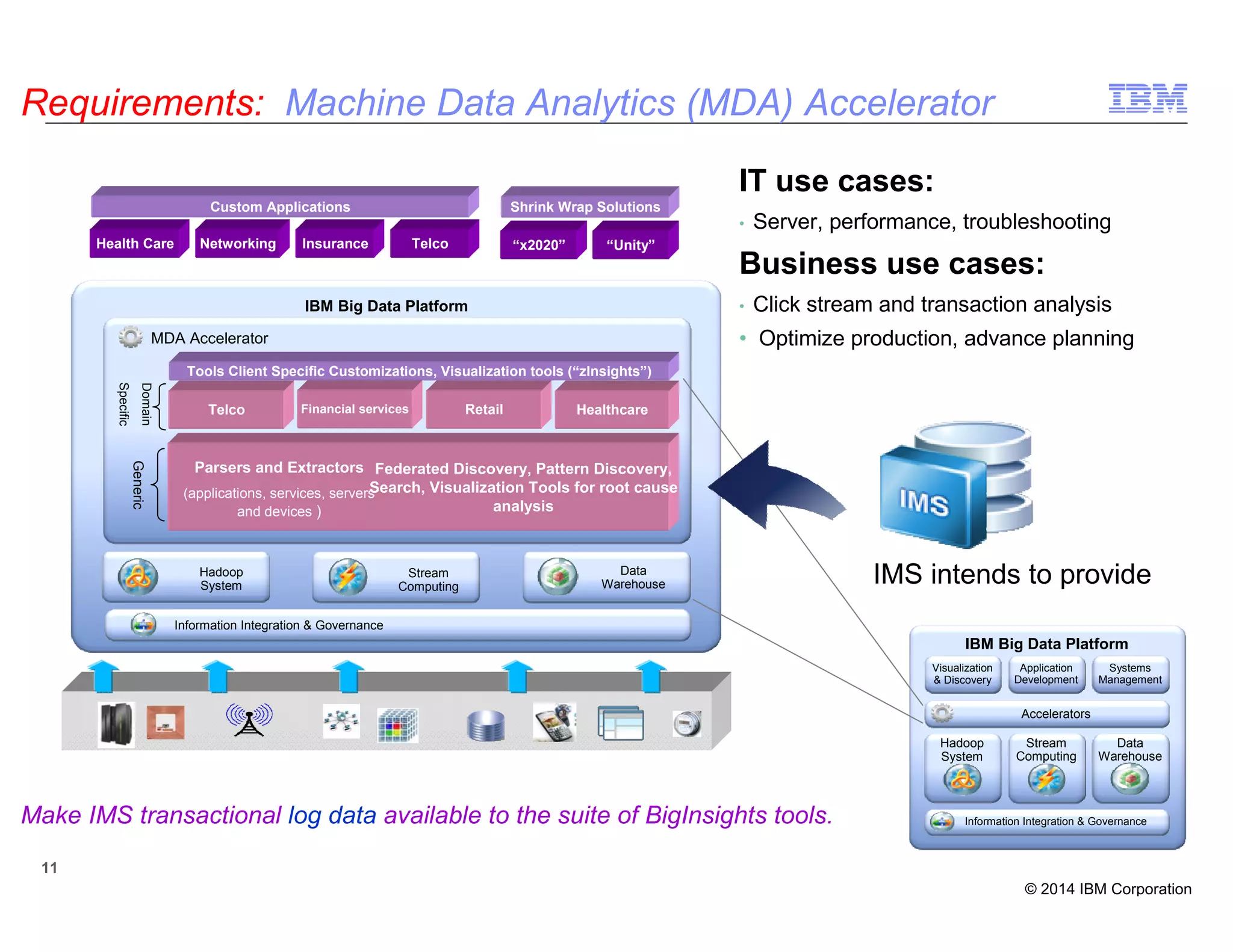

Requirements: Machine Data Analytics (MDA) Accelerator
IBM Big Data Platform
Systems
Management
Application
Development
Visualization
& Discovery
Accelerators
Information Integration & Governance
Hadoop
System
Stream
Computing
Data
Warehouse
Custom Applications Shrink Wrap Solutions
Health Care Networking Insurance Telco “x2020” “Unity”
IBM Big Data Platform
Hadoop
System
Stream
Computing
Data
Warehouse
Information Integration & Governance
MDA Accelerator
Telco HealthcareRetailFinancial services
Parsers and Extractors
(applications, services, servers
and devices )
Federated Discovery, Pattern Discovery,
Search, Visualization Tools for root cause
analysis
Generic
Domain
Specific
Tools Client Specific Customizations, Visualization tools (“zInsights”)
IT use cases:
• Server, performance, troubleshooting
Business use cases:
• Click stream and transaction analysis
• Optimize production, advance planning
IMS intends to provide
Make IMS transactional log data available to the suite of BigInsights tools.

12. © 2014 IBM Corporation
12

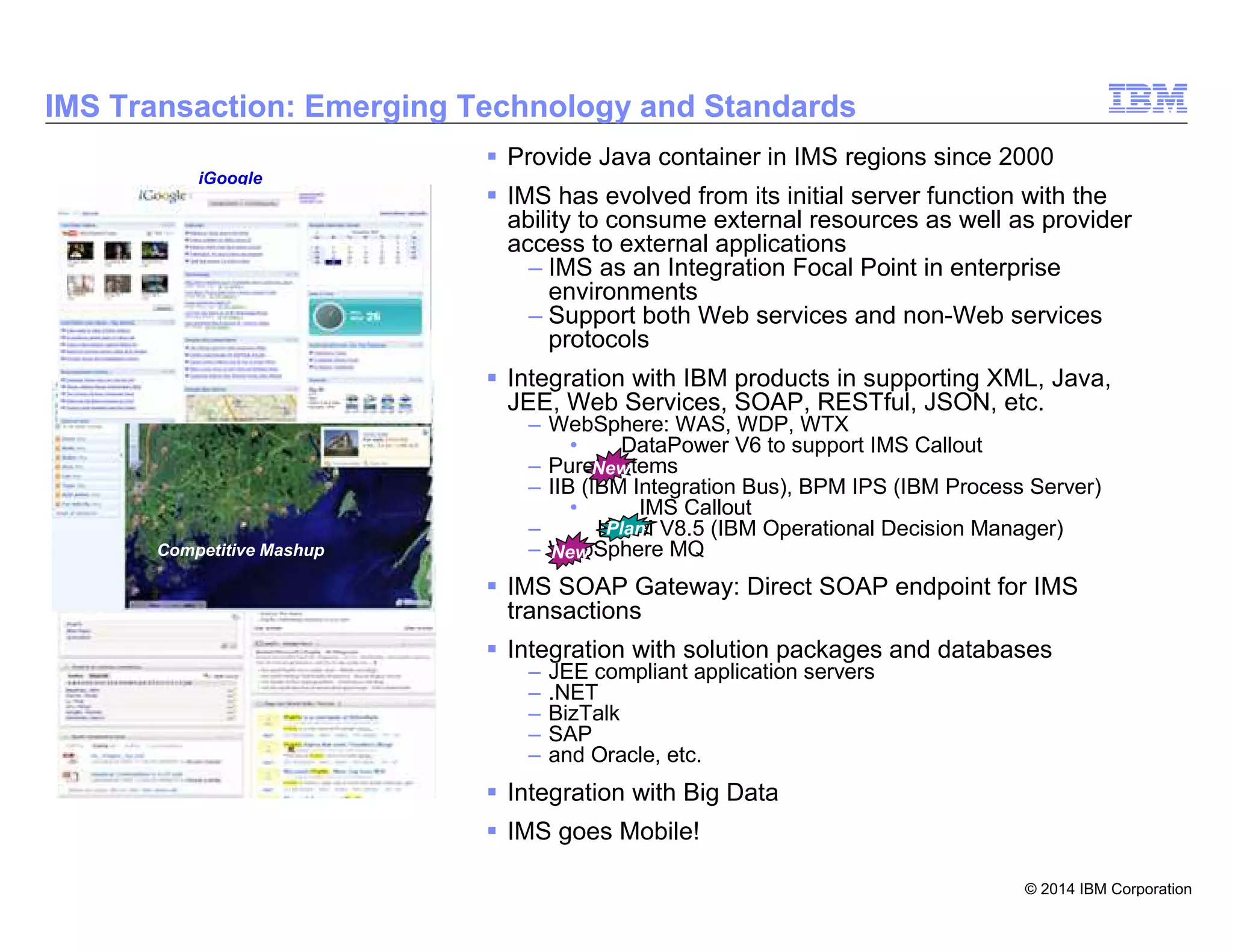

IMS Transaction: Emerging Technology and Standards
Provide Java container in IMS regions since 2000
IMS has evolved from its initial server function with the
ability to consume external resources as well as provider
access to external applications
– IMS as an Integration Focal Point in enterprise
environments
– Support both Web services and non-Web services
protocols
Integration with IBM products in supporting XML, Java,
JEE, Web Services, SOAP, RESTful, JSON, etc.
– WebSphere: WAS, WDP, WTX
• DataPower V6 to support IMS Callout
– PureSystems
– IIB (IBM Integration Bus), BPM IPS (IBM Process Server)
• IMS Callout
– IODM V8.5 (IBM Operational Decision Manager)
– WebSphere MQ
IMS SOAP Gateway: Direct SOAP endpoint for IMS
transactions
Integration with solution packages and databases
– JEE compliant application servers
– .NET
– BizTalk
– SAP
– and Oracle, etc.
Integration with Big Data
IMS goes Mobile!
Zillow.com
Competitive Mashup
iGoogle
Plan
New
New

13. © 2014 IBM Corporation
13

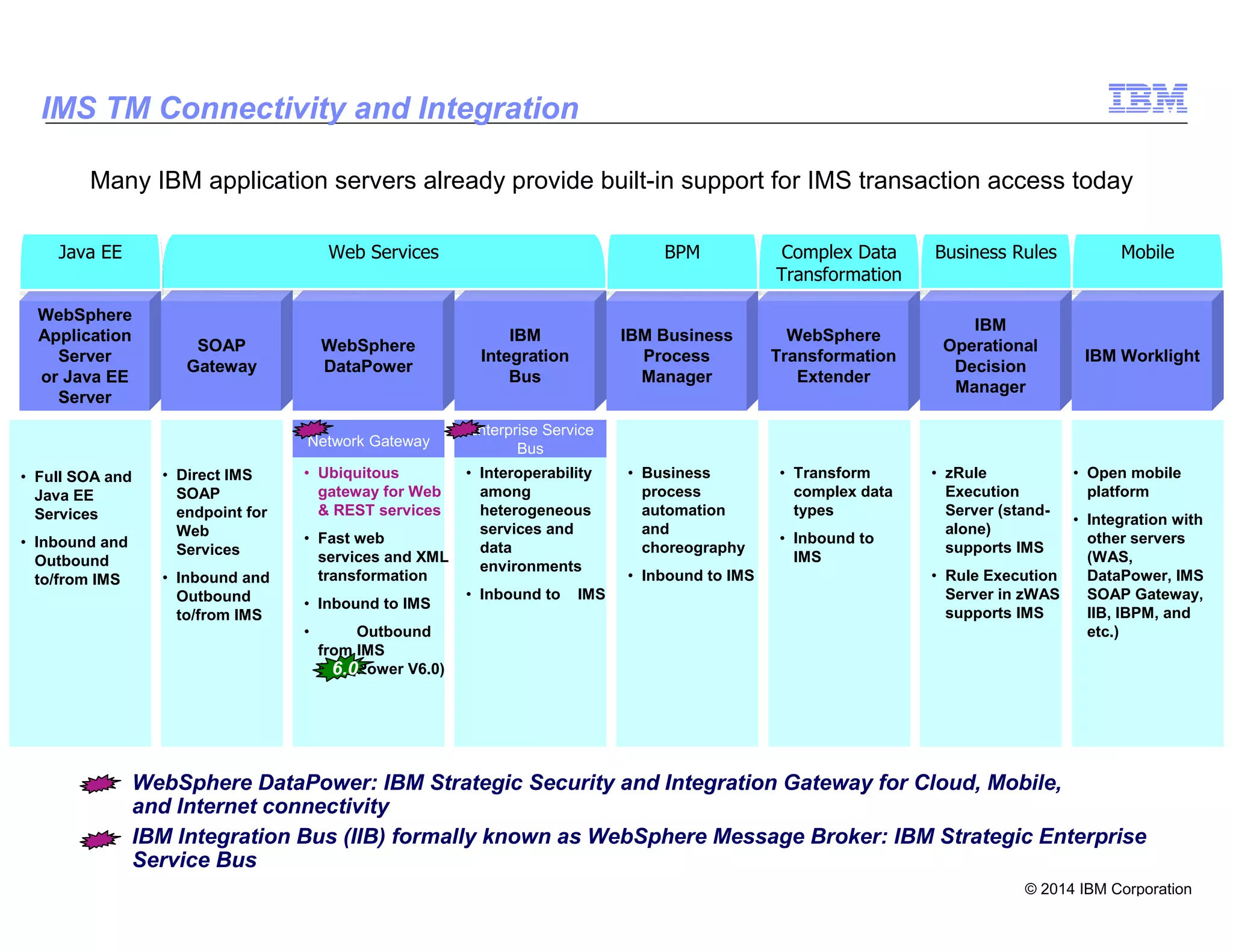

SOAP
Gateway
WebSphere
DataPower
IBM
Integration
Bus
Enterprise Service
Bus
Web ServicesWeb Services
• Direct IMS
SOAP
endpoint for
Web
Services
• Inbound and
Outbound
to/from IMS
• Ubiquitous
gateway for Web
& REST services
• Fast web
services and XML
transformation
• Inbound to IMS
• Outbound
from IMS
(DataPower V6.0)
IBM Business
Process
Manager
WebSphere
Transformation
Extender
BPMBPM
• Transform
complex data
types
• Inbound to
IMS
Complex Data
Transformation
Complex Data
Transformation
• Business
process
automation
and
choreography
• Inbound to IMS
• Interoperability
among
heterogeneous
services and
data
environments
• Inbound to IMS
Network Gateway
WebSphere
Application
Server
or Java EE
Server
Java EEJava EE
• Full SOA and
Java EE
Services
• Inbound and
Outbound
to/from IMS
IBM
Operational
Decision
Manager
Business RulesBusiness Rules
• zRule
Execution
Server (stand-
alone)
supports IMS
• Rule Execution
Server in zWAS
supports IMS
IBM Worklight
MobileMobile
• Open mobile
platform
• Integration with
other servers
(WAS,
DataPower, IMS
SOAP Gateway,
IIB, IBPM, and
etc.)
WebSphere DataPower: IBM Strategic Security and Integration Gateway for Cloud, Mobile,
and Internet connectivity
6.0
IMS TM Connectivity and Integration
Many IBM application servers already provide built-in support for IMS transaction access today
IBM Integration Bus (IIB) formally known as WebSphere Message Broker: IBM Strategic Enterprise
Service Bus

14. © 2014 IBM Corporation
14

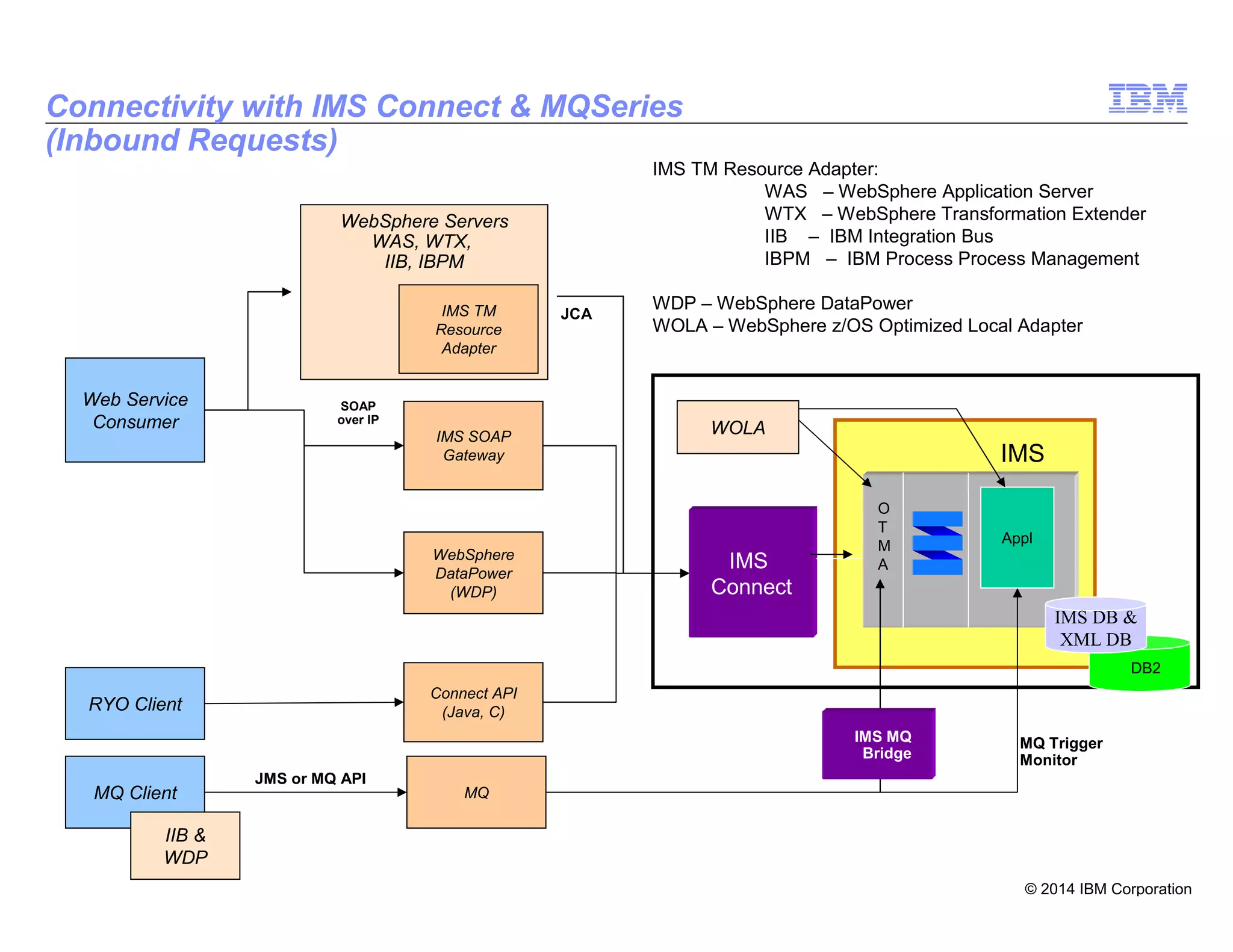

WebSphere Servers
WAS, WTX,
IIB, IBPM
Connectivity with IMS Connect & MQSeries
(Inbound Requests)
IMS
Connect
O
T
M
A
IMS DB &
XML DB
IMS
IMS SOAP
Gateway
WebSphere
DataPower
(WDP)
Connect API
(Java, C)
MQMQ Client
RYO Client
Web Service
Consumer
IMS TM
Resource
Adapter
DB2
Appl
JCA
JMS or MQ API
SOAP
over IP
IIB &
WDP
MQ Trigger
Monitor
IMS TM Resource Adapter:
WAS – WebSphere Application Server
WTX – WebSphere Transformation Extender
IIB – IBM Integration Bus
IBPM – IBM Process Process Management
WDP – WebSphere DataPower
WOLA – WebSphere z/OS Optimized Local Adapter
IMS MQ
Bridge
WOLA

15. © 2014 IBM Corporation
15

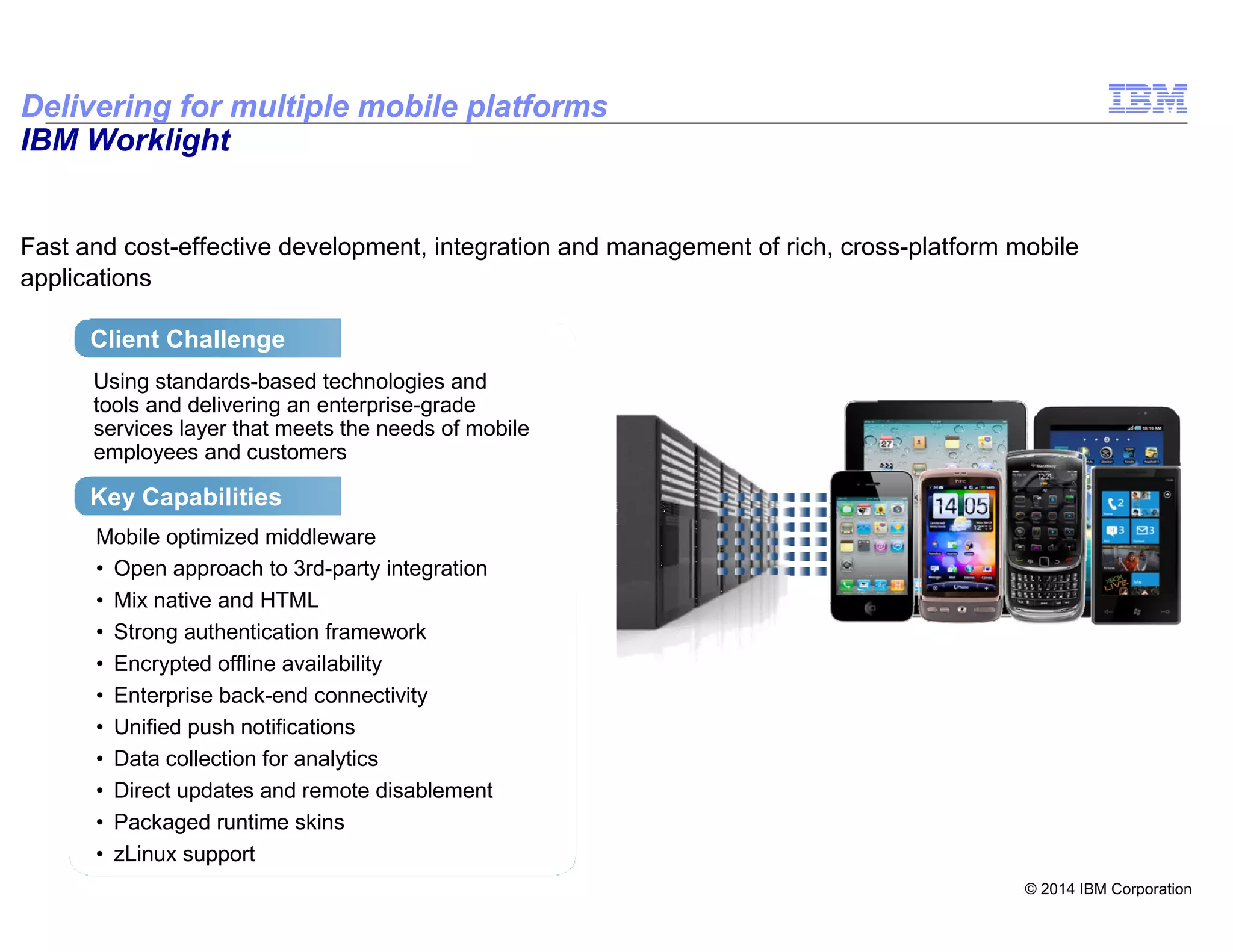

Fast and cost-effective development, integration and management of rich, cross-platform mobile
applications
Client Challenge
Key Capabilities
Using standards-based technologies and
tools and delivering an enterprise-grade
services layer that meets the needs of mobile
employees and customers
Mobile optimized middleware
• Open approach to 3rd-party integration
• Mix native and HTML
• Strong authentication framework
• Encrypted offline availability
• Enterprise back-end connectivity
• Unified push notifications
• Data collection for analytics
• Direct updates and remote disablement
• Packaged runtime skins
• zLinux support
Delivering for multiple mobile platforms
IBM Worklight

16. © 2014 IBM Corporation
16

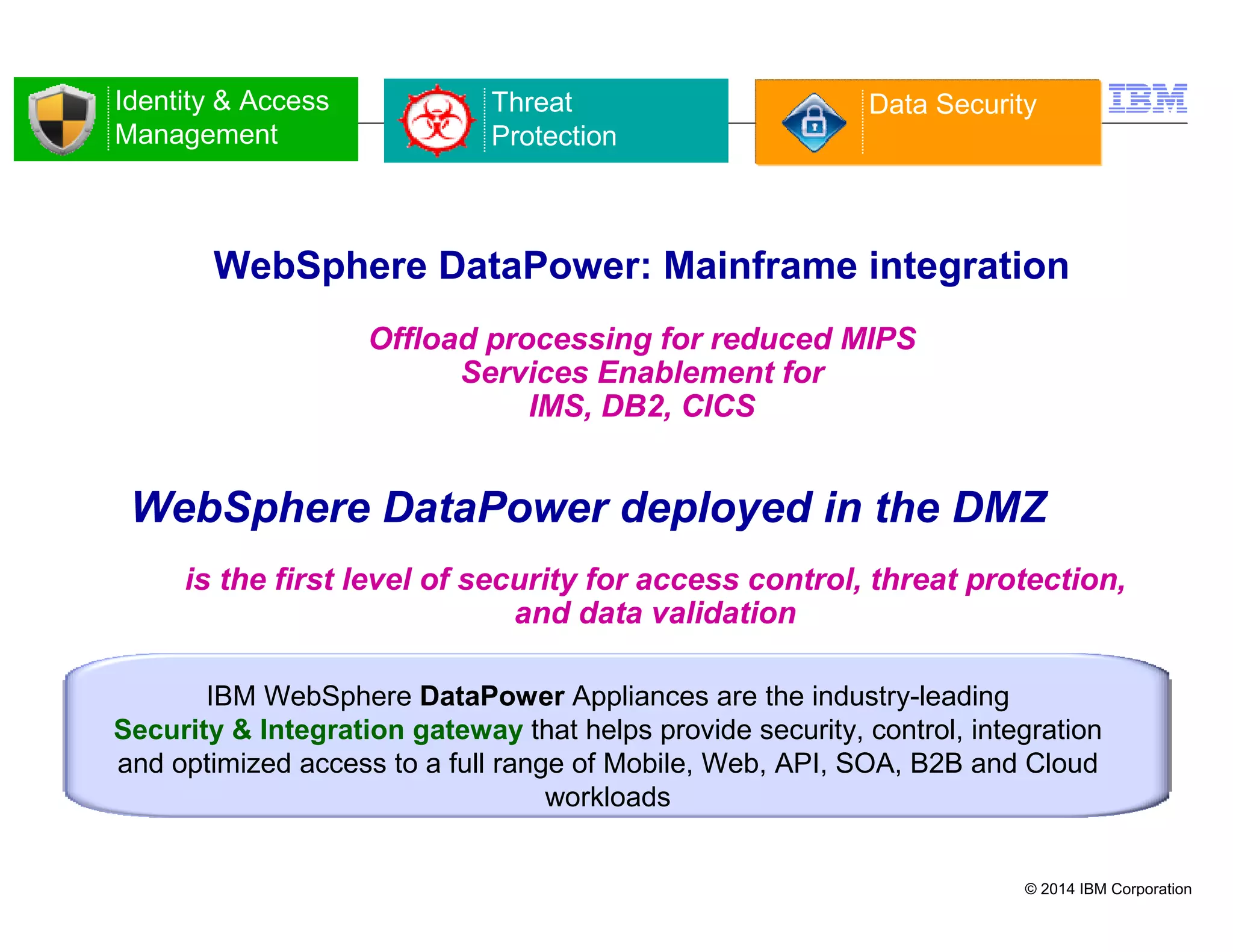

WebSphere DataPower: Mainframe integration
Offload processing for reduced MIPS
Services Enablement for
IMS, DB2, CICS
IBM WebSphere DataPower Appliances are the industry-leading
Security & Integration gateway that helps provide security, control, integration
and optimized access to a full range of Mobile, Web, API, SOA, B2B and Cloud
workloads
is the first level of security for access control, threat protection,
and data validation
WebSphere DataPower deployed in the DMZ
Identity & Access
Management
Threat
Protection
Data Security

17. © 2014 IBM Corporation
17

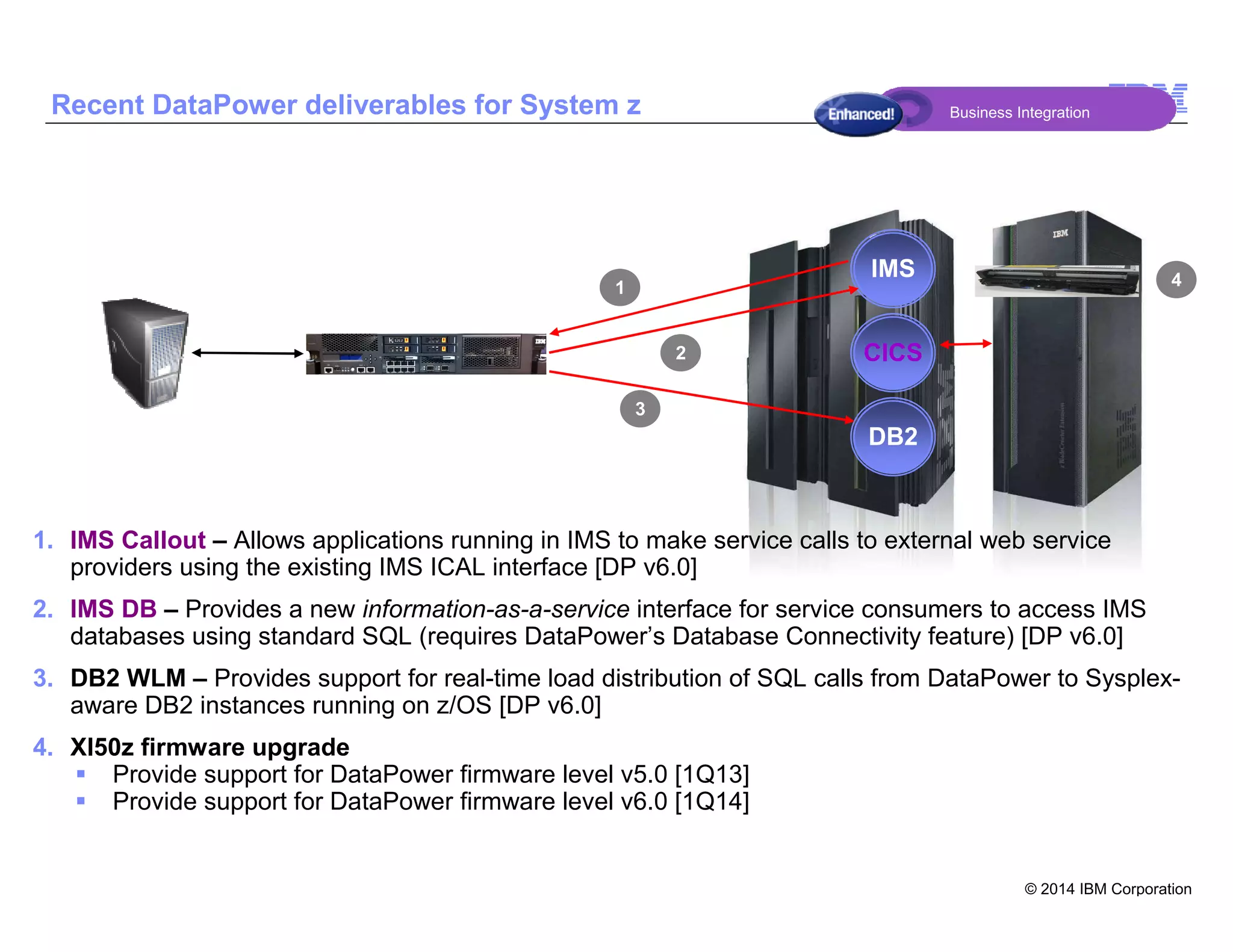

Recent DataPower deliverables for System z
1. IMS Callout – Allows applications running in IMS to make service calls to external web service
providers using the existing IMS ICAL interface [DP v6.0]
2. IMS DB – Provides a new information-as-a-service interface for service consumers to access IMS
databases using standard SQL (requires DataPower’s Database Connectivity feature) [DP v6.0]
3. DB2 WLM – Provides support for real-time load distribution of SQL calls from DataPower to Sysplex-
aware DB2 instances running on z/OS [DP v6.0]
4. XI50z firmware upgrade
Provide support for DataPower firmware level v5.0 [1Q13]
Provide support for DataPower firmware level v6.0 [1Q14]
IMS
CICS
DB2
1
2
3
4
Business Integration

18. © 2014 IBM Corporation
18

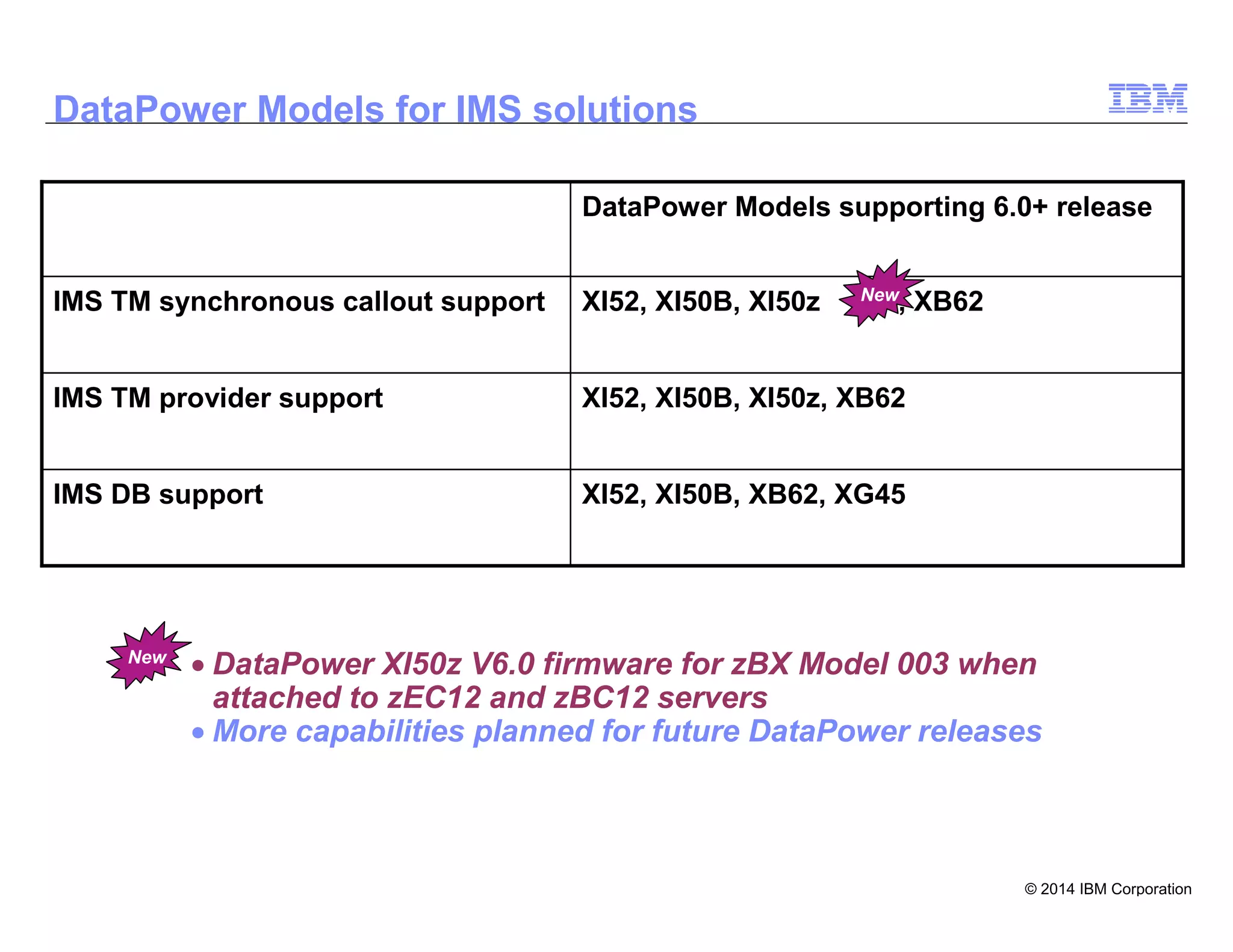

DataPower Models for IMS solutions
XI52, XI50B, XB62, XG45IMS DB support
XI52, XI50B, XI50z, XB62IMS TM provider support
XI52, XI50B, XI50z , XB62IMS TM synchronous callout support
DataPower Models supporting 6.0+ release
• DataPower XI50z V6.0 firmware for zBX Model 003 when
attached to zEC12 and zBC12 servers
• More capabilities planned for future DataPower releases
New
New

19. © 2014 IBM Corporation
19
IMS
IMSConnect
WebSphere
DataPower (DP)
REST
client
JSON
OTMA
IMSApp

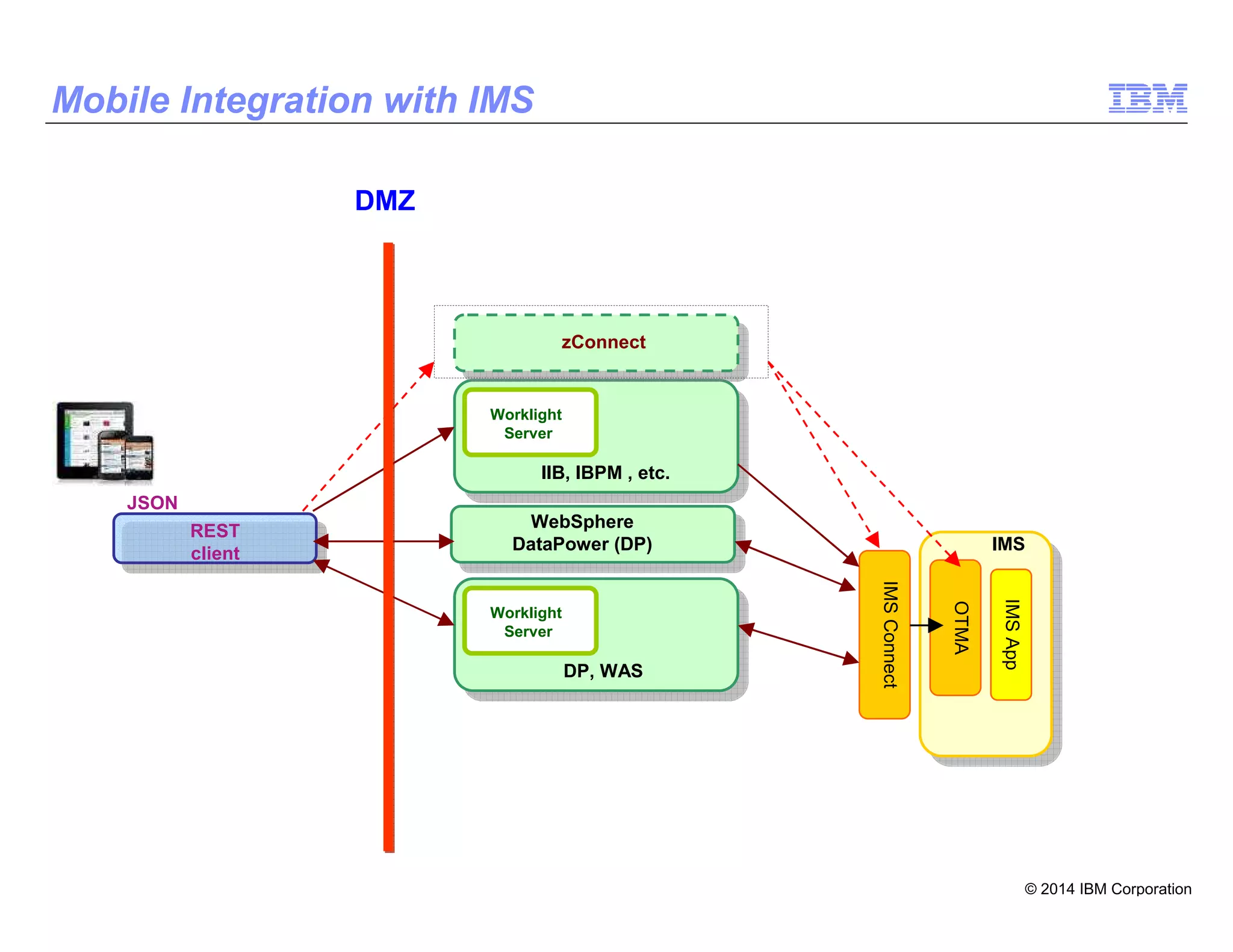

Mobile Integration with IMS
Worklight
Server
IIB, IBPM , etc.
zConnect
Worklight
Server
DP, WAS
DMZ

20. © 2014 IBM Corporation
20

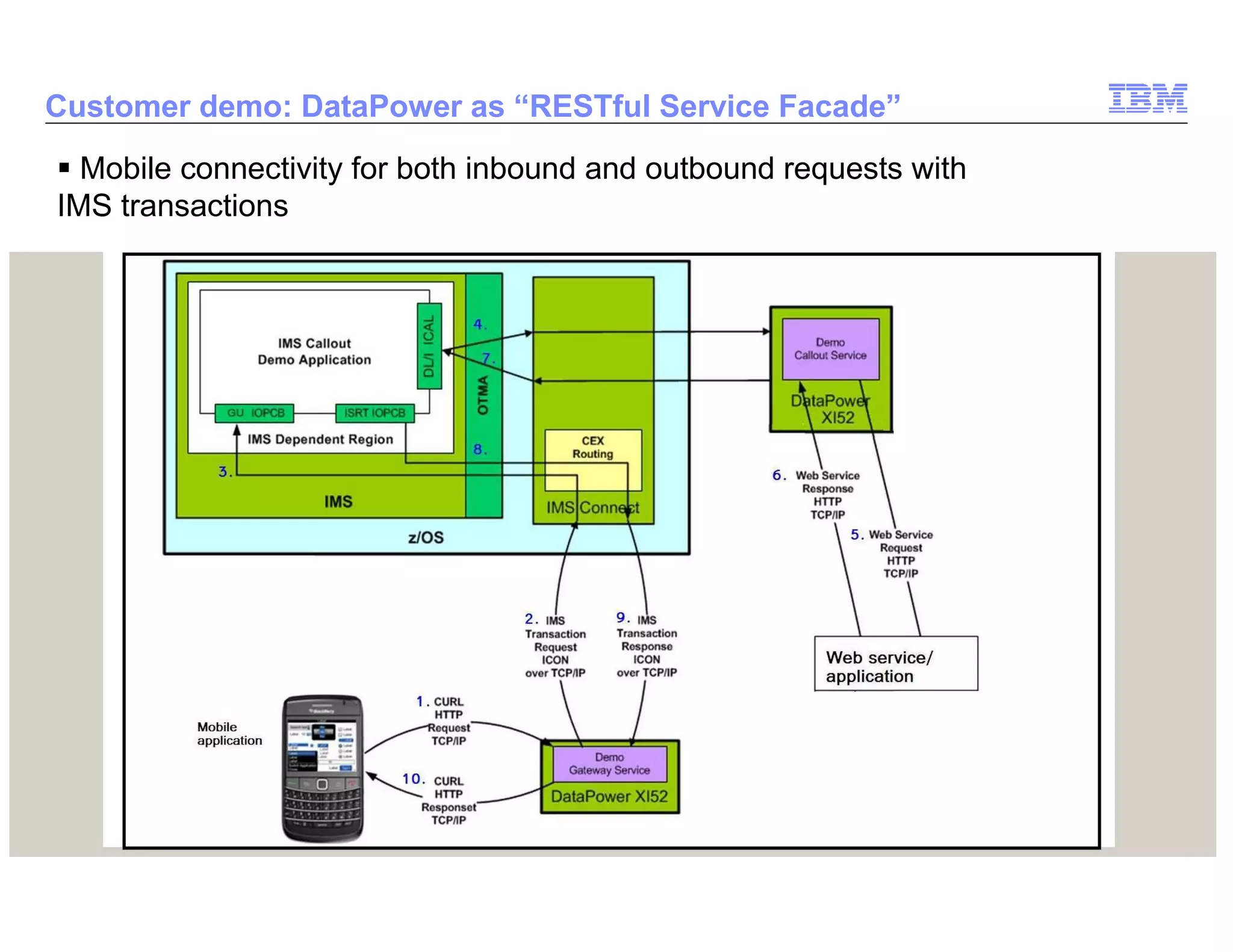

Customer demo: DataPower as “RESTful Service Facade”
Mobile connectivity for both inbound and outbound requests with
IMS transactions

21. © 2014 IBM Corporation
21

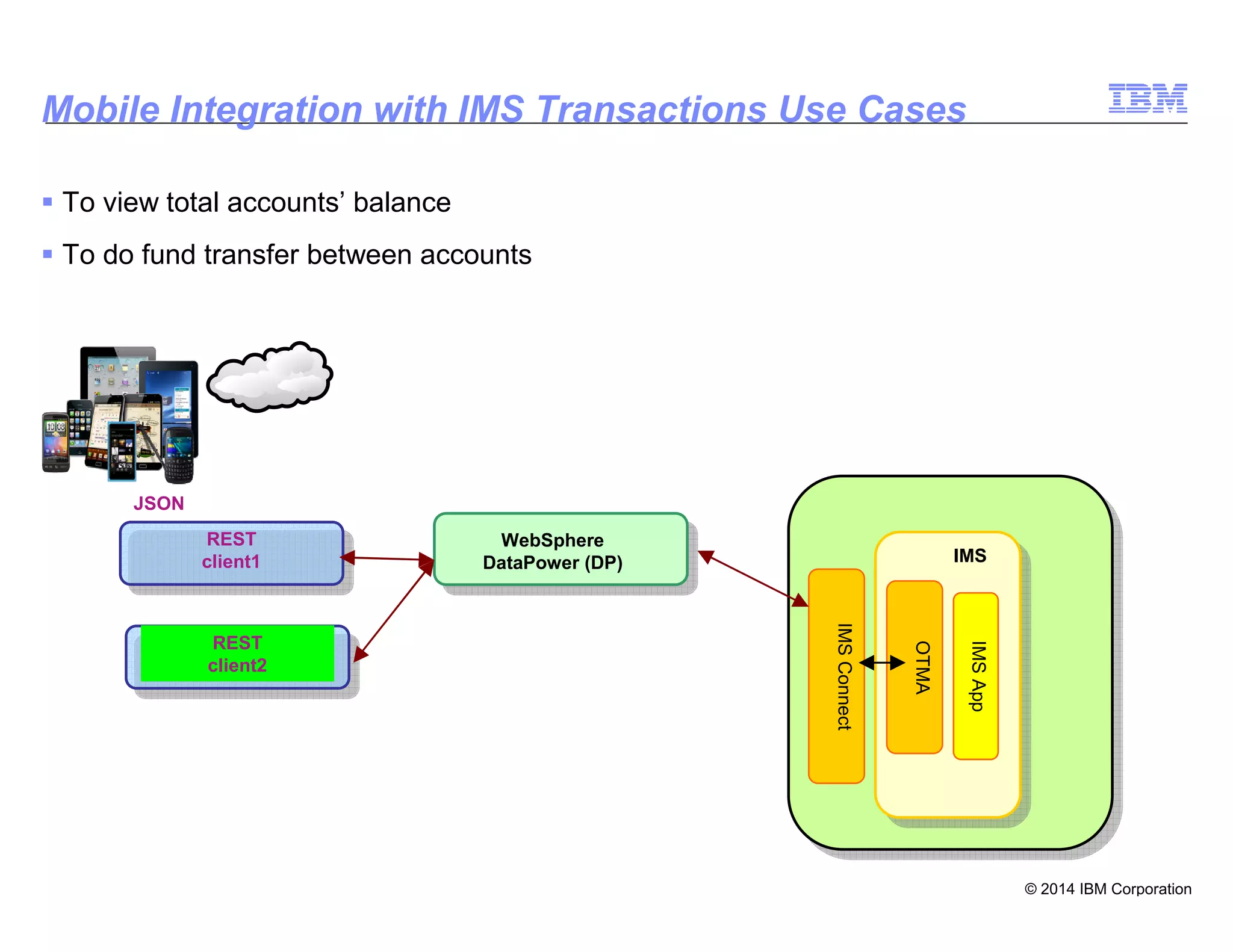

Mobile Integration with IMS Transactions Use Cases
To view total accounts’ balance
To do fund transfer between accounts
IMS
IMSConnect
WebSphere
DataPower (DP)
REST
client1
JSON
OTMA
IMSApp
REST
client2

22. © 2014 IBM Corporation
22

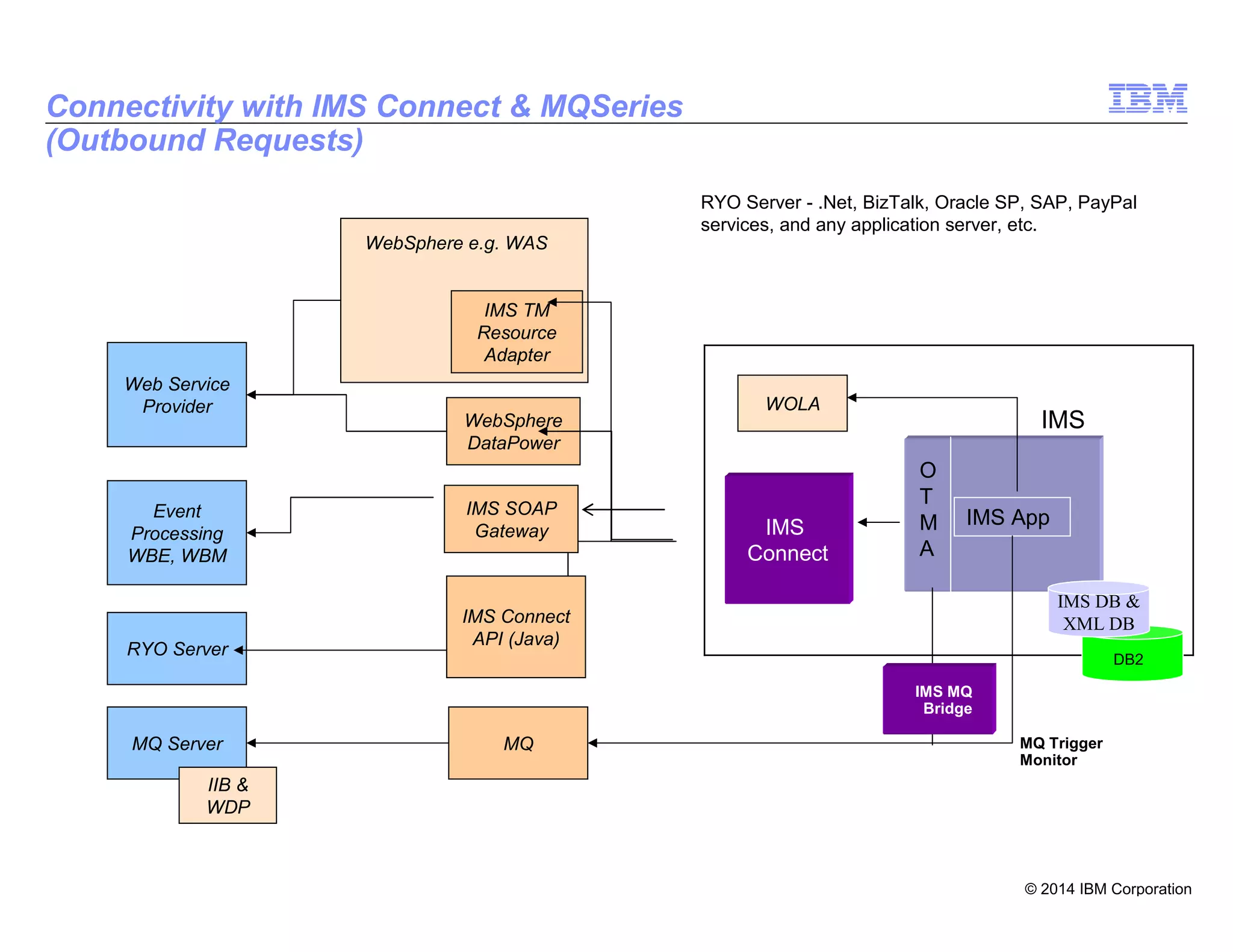

Connectivity with IMS Connect & MQSeries
(Outbound Requests)
IMS
Connect
O
T
M
A
IMS DB &
XML DB
IMS
IMS App
IMS TM
Resource
Adapter
WebSphere e.g. WAS
WebSphere
DataPower
MQMQ Server
RYO Server
Web Service
Provider
Event
Processing
WBE, WBM
RYO Server - .Net, BizTalk, Oracle SP, SAP, PayPal
services, and any application server, etc.
DB2
IMS MQ
Bridge
IMS Connect
API (Java)
IIB &
WDP
IMS SOAP
Gateway
WOLA
MQ Trigger
Monitor

23. © 2014 IBM Corporation
23

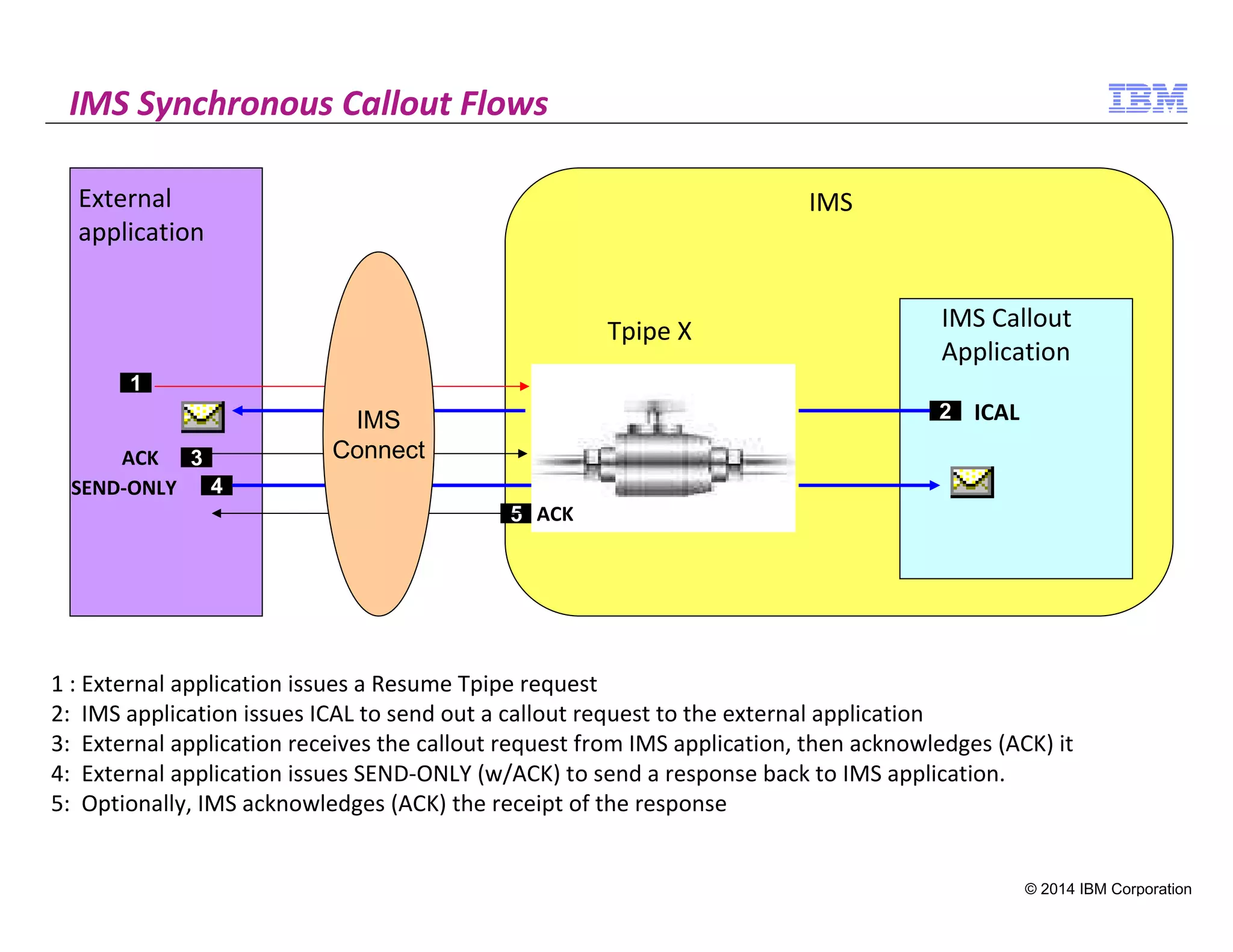

IMS Synchronous Callout Flows
IMS Callout
Application
Tpipe X
External
application
1
1 : External application issues a Resume Tpipe request
2: IMS application issues ICAL to send out a callout request to the external application
3: External application receives the callout request from IMS application, then acknowledges (ACK) it
4: External application issues SEND-ONLY (w/ACK) to send a response back to IMS application.
5: Optionally, IMS acknowledges (ACK) the receipt of the response
2 ICAL
3
4SEND-ONLY
5
ACK
ACK
IMS
IMS
Connect
ACK

24. © 2014 IBM Corporation
24

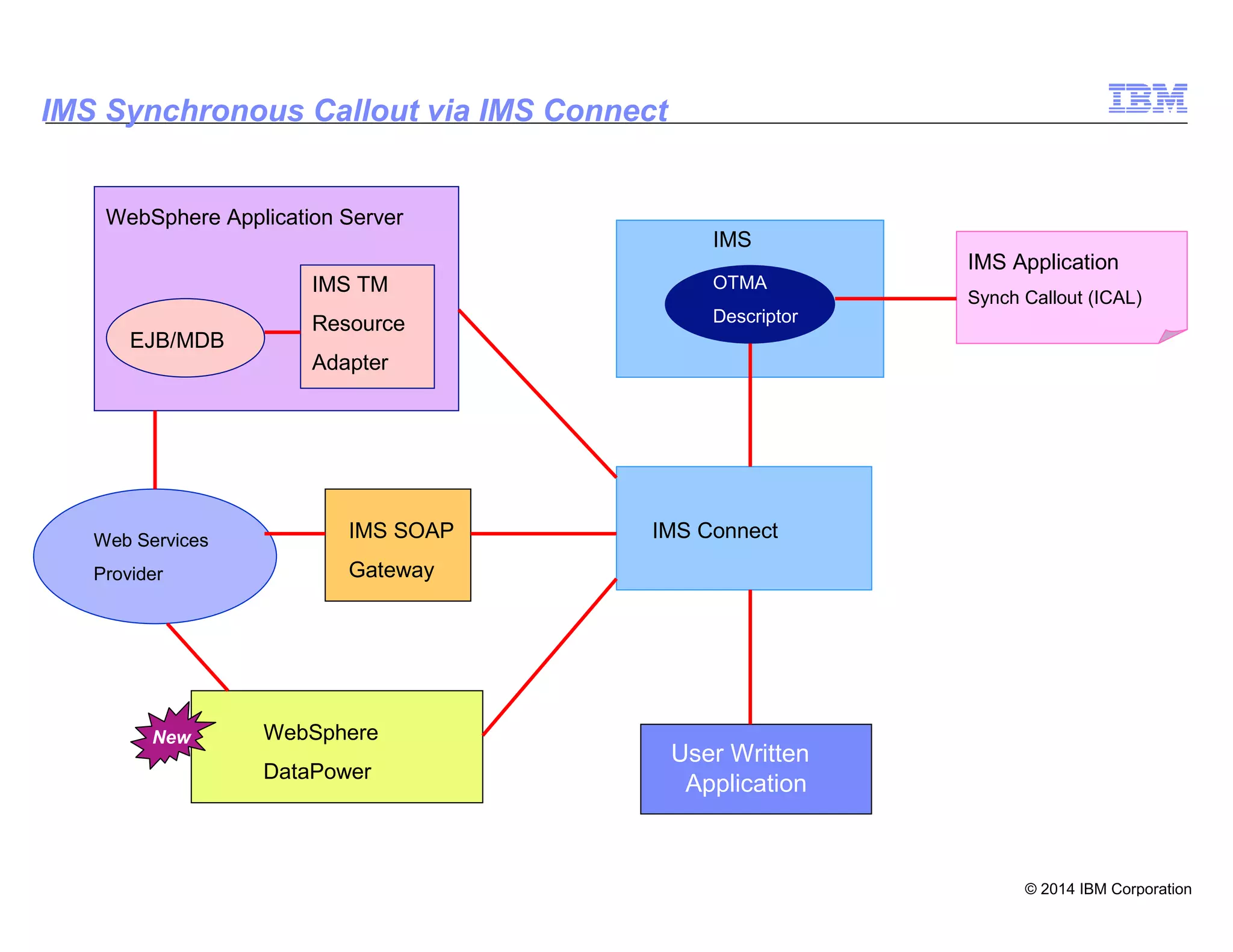

IMS Synchronous Callout via IMS Connect
IMS SOAP
Gateway
IMS Connect
OTMA
Descriptor
WebSphere Application Server
IMS TM
Resource
Adapter
IMS
EJB/MDB
Web Services
Provider
IMS Application
Synch Callout (ICAL)
User Written
Application
WebSphere
DataPower
New

25. © 2014 IBM Corporation
25
Requirements: IMS Transactions and
Large Attachments Requirements

26. © 2014 IBM Corporation
26

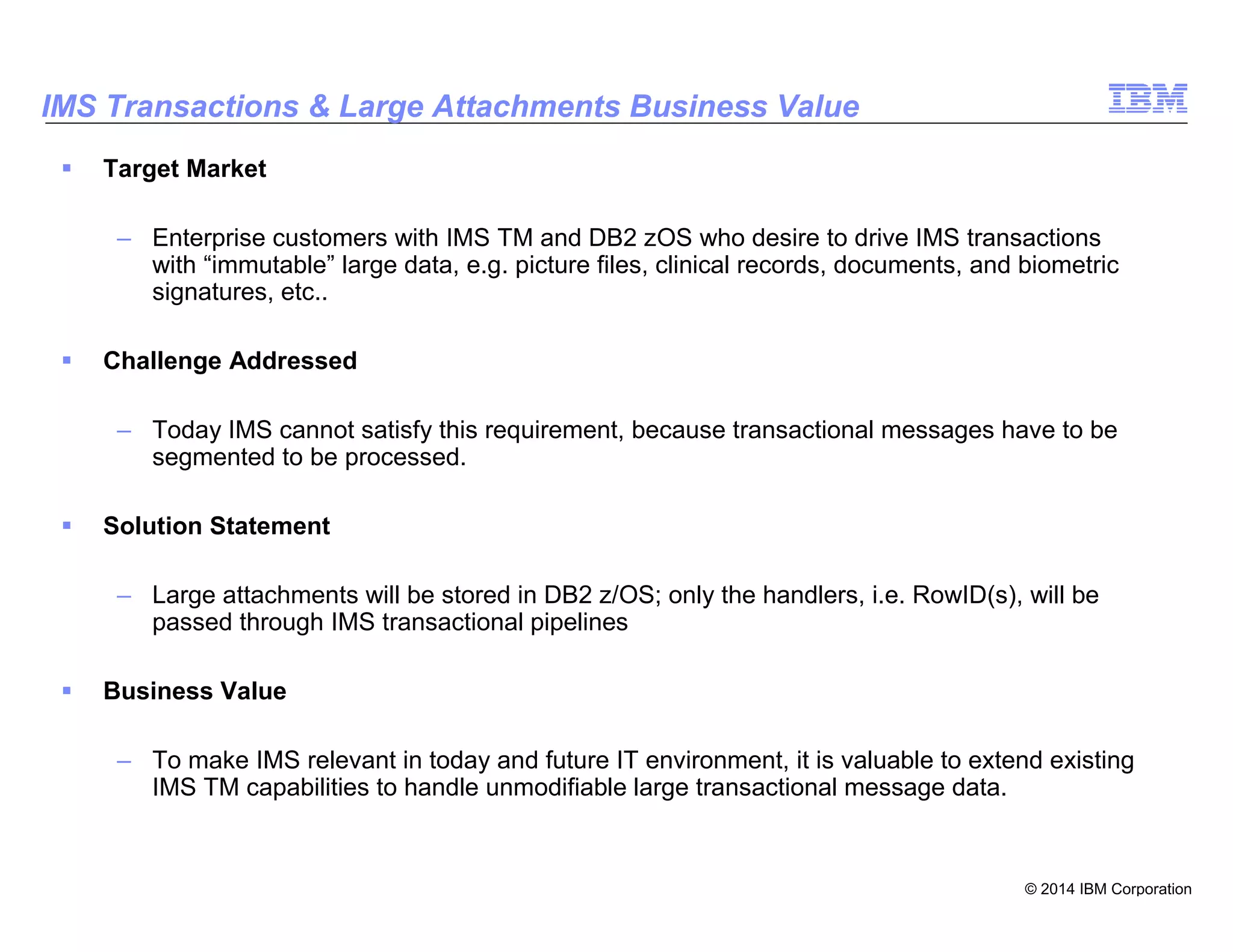

IMS Transactions & Large Attachments Business Value
Target Market
– Enterprise customers with IMS TM and DB2 zOS who desire to drive IMS transactions
with “immutable” large data, e.g. picture files, clinical records, documents, and biometric
signatures, etc..
Challenge Addressed
– Today IMS cannot satisfy this requirement, because transactional messages have to be
segmented to be processed.
Solution Statement
– Large attachments will be stored in DB2 z/OS; only the handlers, i.e. RowID(s), will be
passed through IMS transactional pipelines
Business Value
– To make IMS relevant in today and future IT environment, it is valuable to extend existing
IMS TM capabilities to handle unmodifiable large transactional message data.

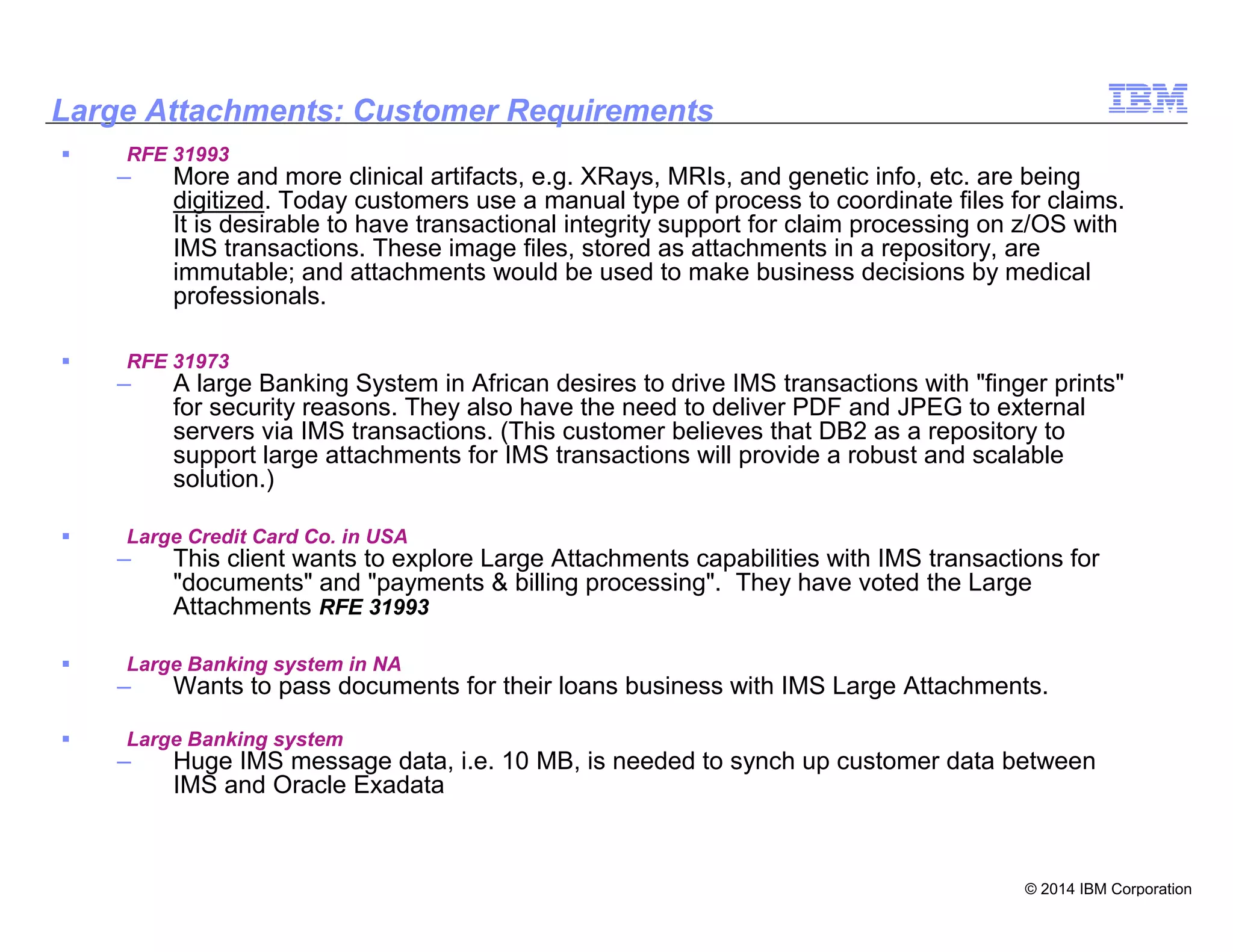

27. © 2014 IBM Corporation
27
Large Attachments: Customer Requirements
RFE 31993
– More and more clinical artifacts, e.g. XRays, MRIs, and genetic info, etc. are being
digitized. Today customers use a manual type of process to coordinate files for claims.
It is desirable to have transactional integrity support for claim processing on z/OS with
IMS transactions. These image files, stored as attachments in a repository, are
immutable; and attachments would be used to make business decisions by medical
professionals.
RFE 31973
– A large Banking System in African desires to drive IMS transactions with "finger prints"
for security reasons. They also have the need to deliver PDF and JPEG to external
servers via IMS transactions. (This customer believes that DB2 as a repository to
support large attachments for IMS transactions will provide a robust and scalable
solution.)
Large Credit Card Co. in USA
– This client wants to explore Large Attachments capabilities with IMS transactions for
"documents" and "payments & billing processing". They have voted the Large
Attachments RFE 31993
Large Banking system in NA
– Wants to pass documents for their loans business with IMS Large Attachments.
Large Banking system
– Huge IMS message data, i.e. 10 MB, is needed to synch up customer data between
IMS and Oracle Exadata

28. © 2014 IBM Corporation
28

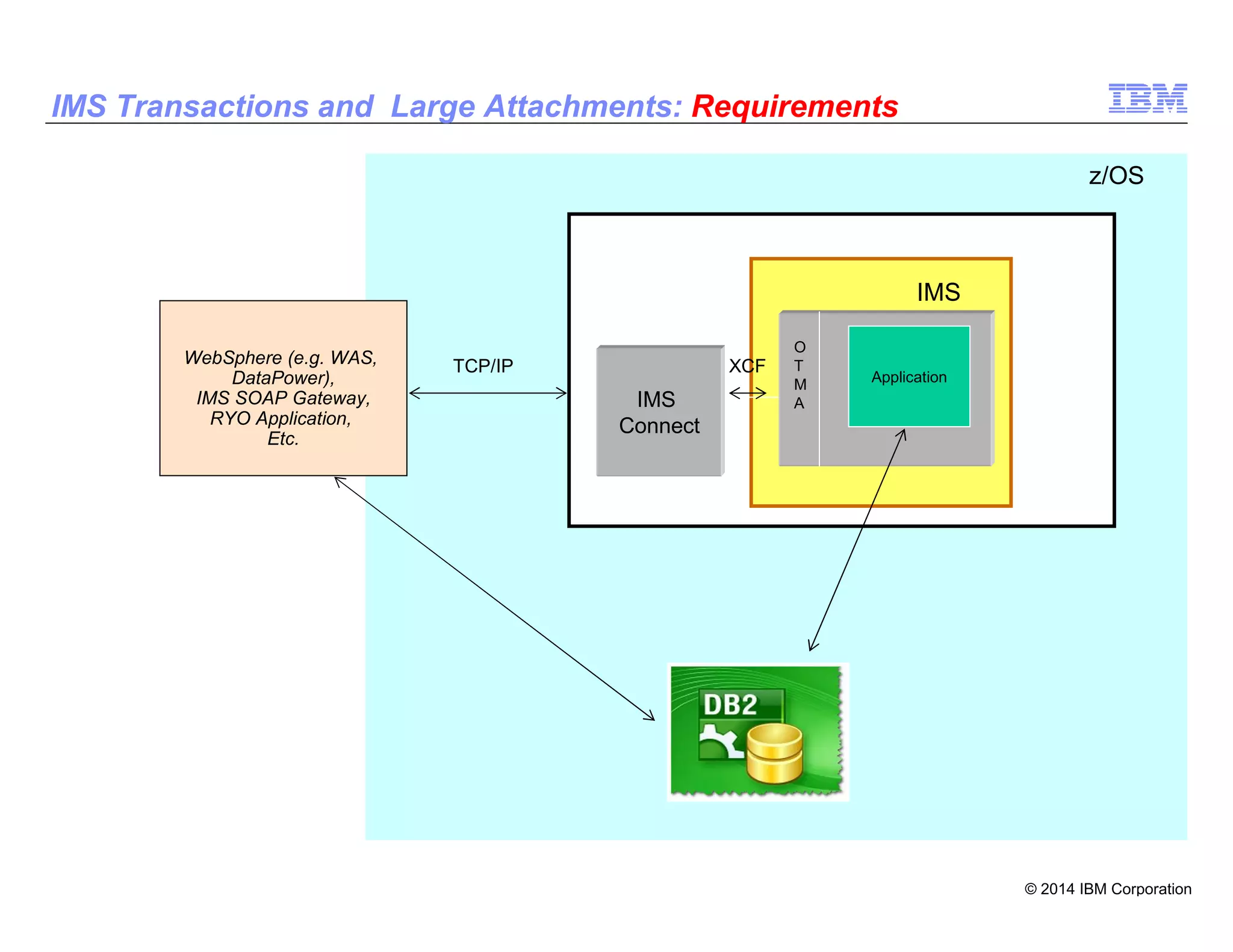

IMS Transactions and Large Attachments: Requirements
IMS
Connect
O
T
M
A
IMS
Application
WebSphere (e.g. WAS,
DataPower),
IMS SOAP Gateway,
RYO Application,
Etc.
z/OS
TCP/IP XCF

29. © 2014 IBM Corporation
29
Requirements: Network Security
Credential Propagation

30. © 2014 IBM Corporation
30
System z
z/OS
IBM
Directory
Server
LDAP
RACF
WebSphere
Application Server
DB 2
CICS
MQ
IMS

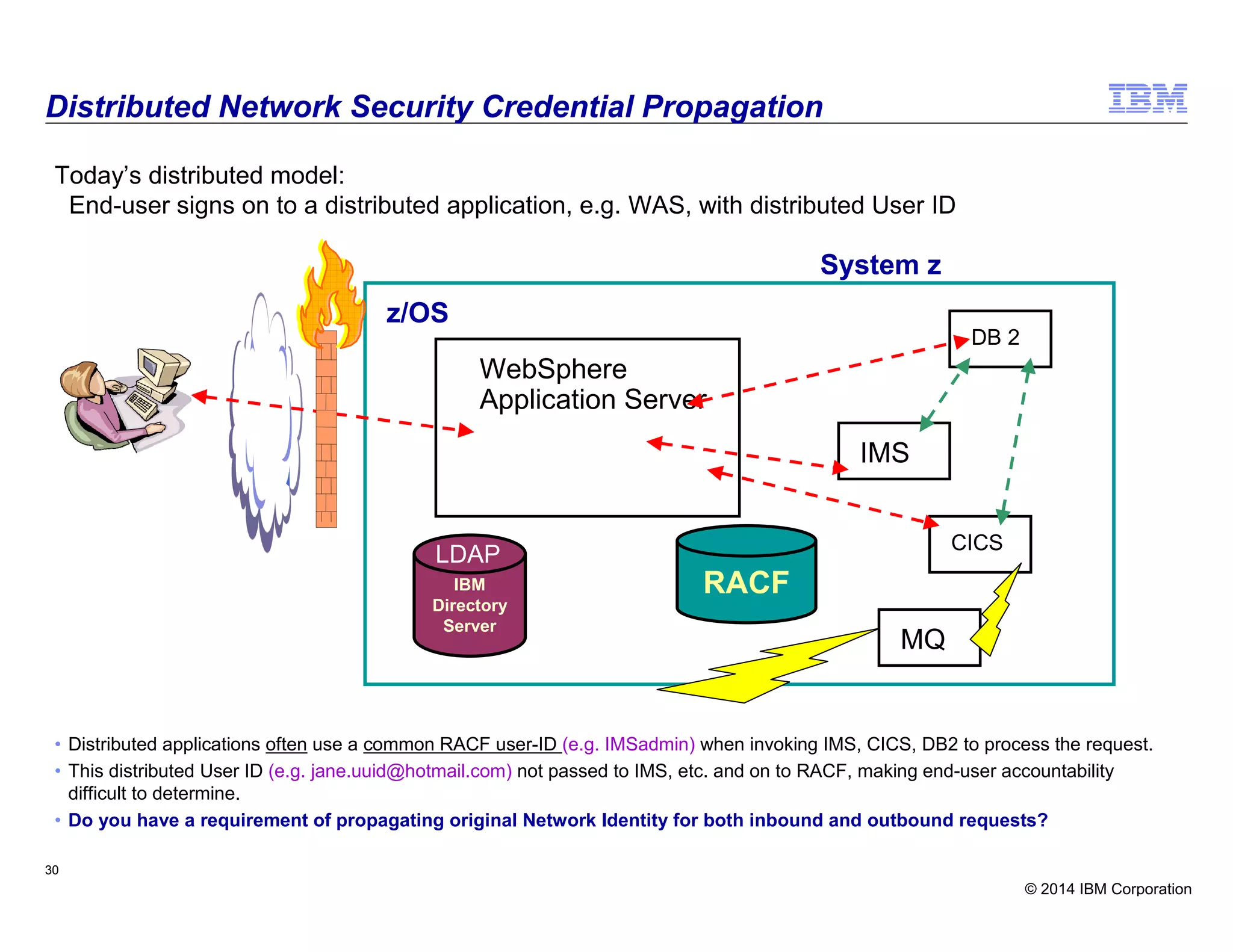

Distributed Network Security Credential Propagation
Today’s distributed model:
End-user signs on to a distributed application, e.g. WAS, with distributed User ID
• Distributed applications often use a common RACF user-ID (e.g. IMSadmin) when invoking IMS, CICS, DB2 to process the request.
• This distributed User ID (e.g. jane.uuid@hotmail.com) not passed to IMS, etc. and on to RACF, making end-user accountability
difficult to determine.
• Do you have a requirement of propagating original Network Identity for both inbound and outbound requests?
30

31. © 2014 IBM Corporation
31

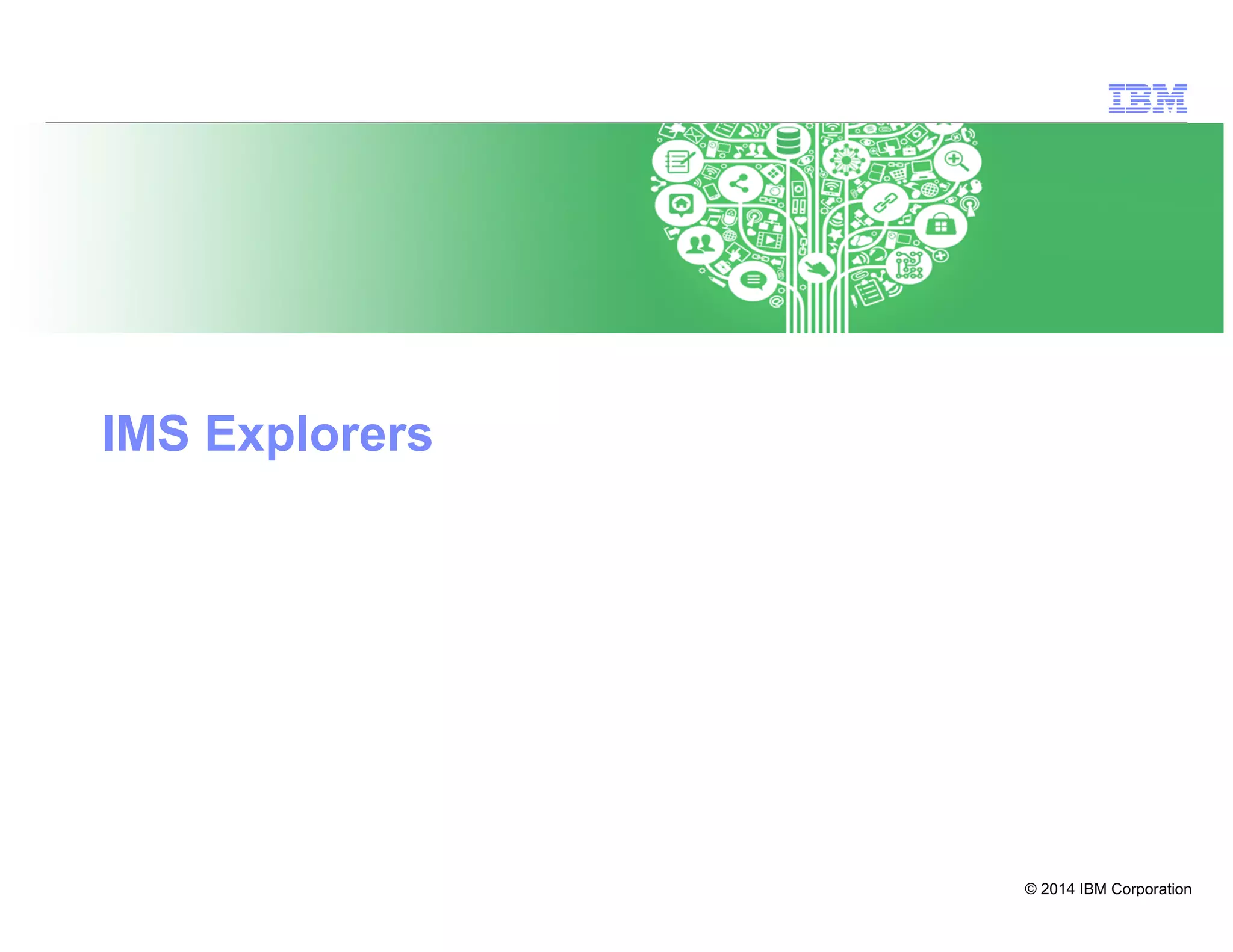

IMS Explorers

32. © 2014 IBM Corporation
32
IMSISPF
IMS Explorer for Administration (Web
Browser)
AdministratorsDevelopers
IMS Explorer for Development
(Eclipse)

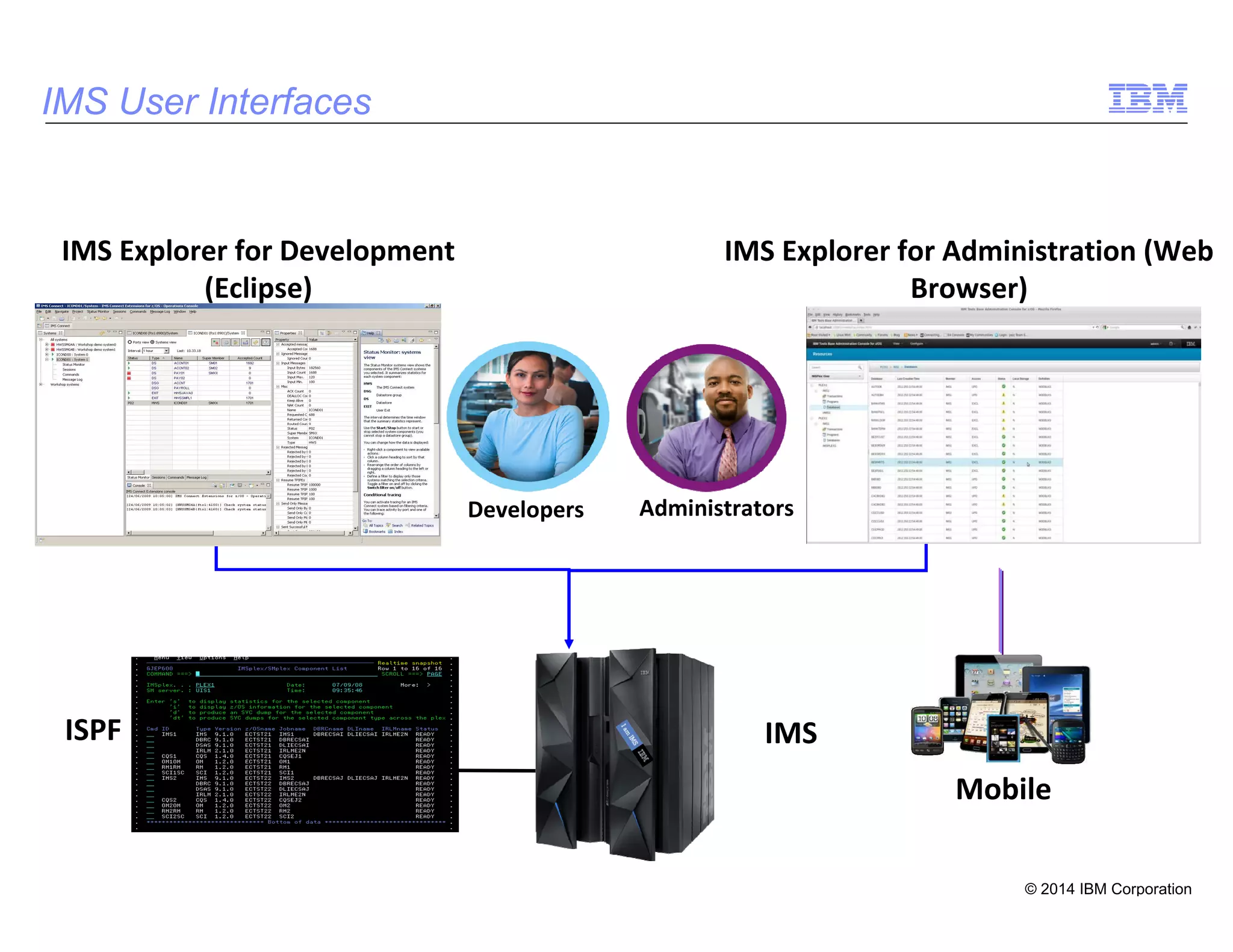

IMS User Interfaces
Mobile

33. © 2014 IBM Corporation
33

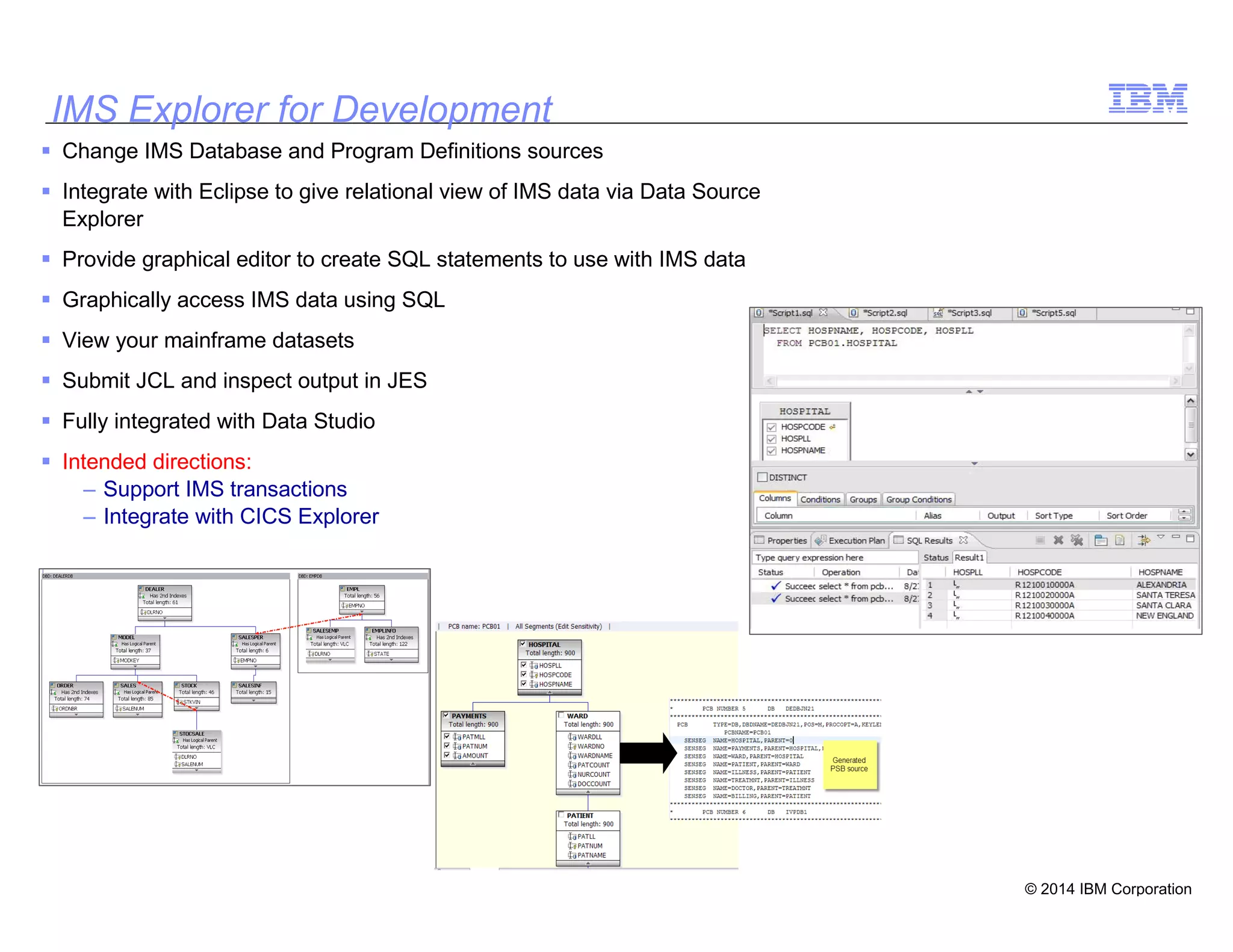

IMS Explorer for Development
Change IMS Database and Program Definitions sources
Integrate with Eclipse to give relational view of IMS data via Data Source
Explorer
Provide graphical editor to create SQL statements to use with IMS data
Graphically access IMS data using SQL
View your mainframe datasets
Submit JCL and inspect output in JES
Fully integrated with Data Studio
Intended directions:
– Support IMS transactions
– Integrate with CICS Explorer
Automatic
Generation

34. © 2014 IBM Corporation
34

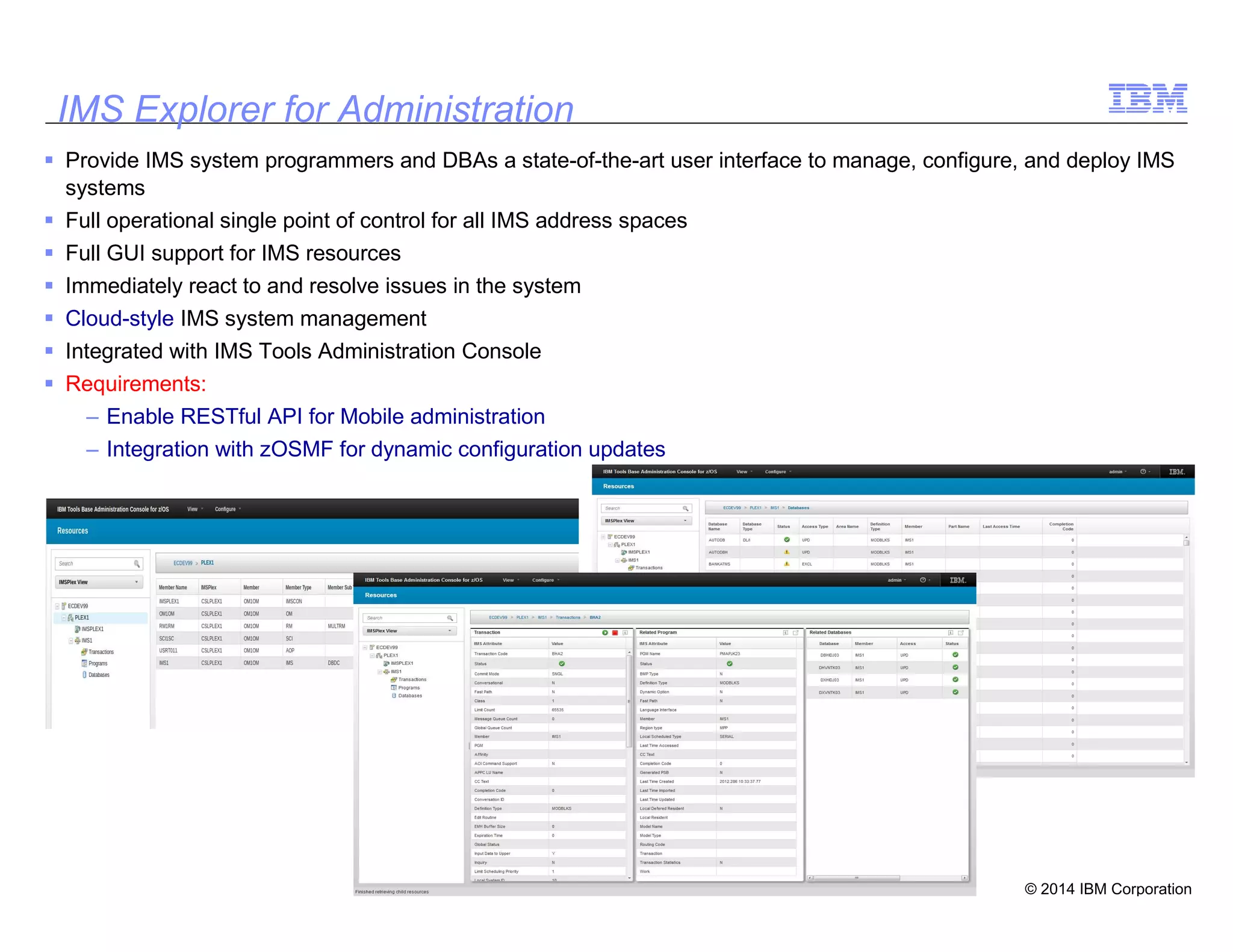

IMS Explorer for Administration
Provide IMS system programmers and DBAs a state-of-the-art user interface to manage, configure, and deploy IMS
systems
Full operational single point of control for all IMS address spaces
Full GUI support for IMS resources
Immediately react to and resolve issues in the system
Cloud-style IMS system management
Integrated with IMS Tools Administration Console
Requirements:
– Enable RESTful API for Mobile administration
– Integration with zOSMF for dynamic configuration updates

35. © 2014 IBM Corporation

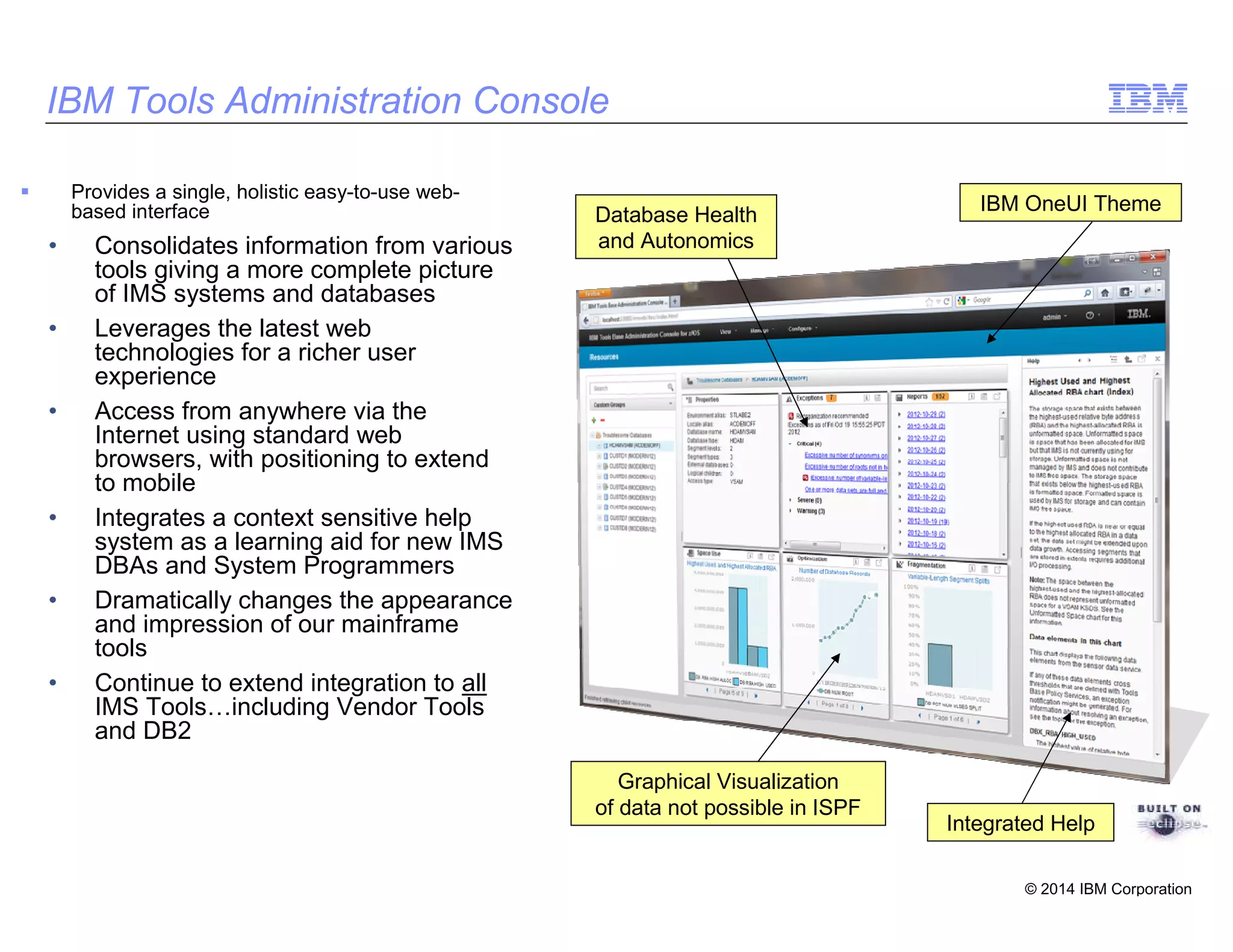

IBM Tools Administration Console
Provides a single, holistic easy-to-use web-
based interface
• Consolidates information from various
tools giving a more complete picture
of IMS systems and databases
• Leverages the latest web
technologies for a richer user
experience
• Access from anywhere via the
Internet using standard web
browsers, with positioning to extend
to mobile
• Integrates a context sensitive help
system as a learning aid for new IMS
DBAs and System Programmers
• Dramatically changes the appearance
and impression of our mainframe
tools
• Continue to extend integration to all
IMS Tools including Vendor Tools
and DB2
Database Health
and Autonomics
Graphical Visualization
of data not possible in ISPF
IBM OneUI Theme
Integrated Help

36. © 2014 IBM Corporation
36

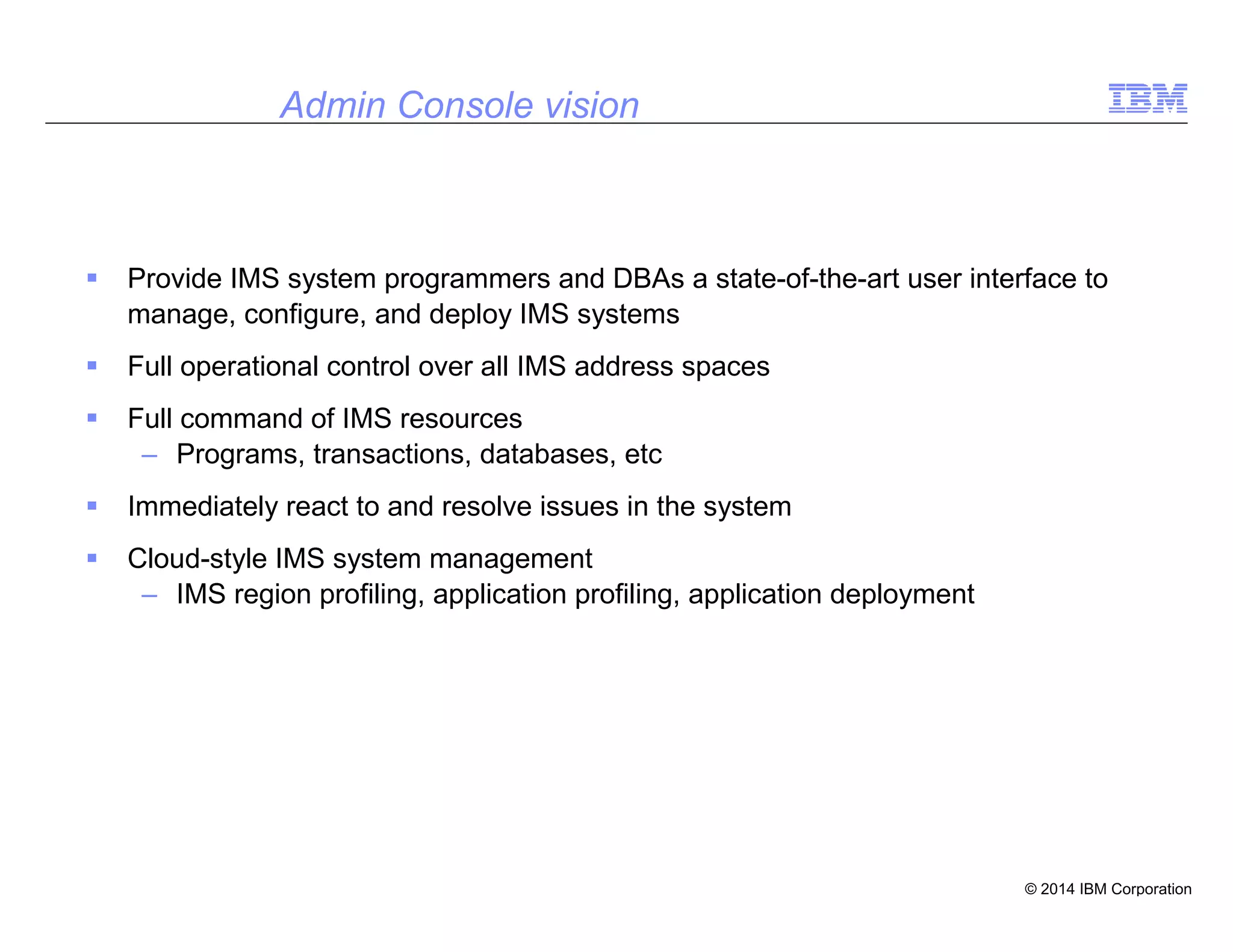

Admin Console vision
Provide IMS system programmers and DBAs a state-of-the-art user interface to
manage, configure, and deploy IMS systems
Full operational control over all IMS address spaces
Full command of IMS resources
– Programs, transactions, databases, etc
Immediately react to and resolve issues in the system
Cloud-style IMS system management
– IMS region profiling, application profiling, application deployment

37. © 2014 IBM Corporation
37

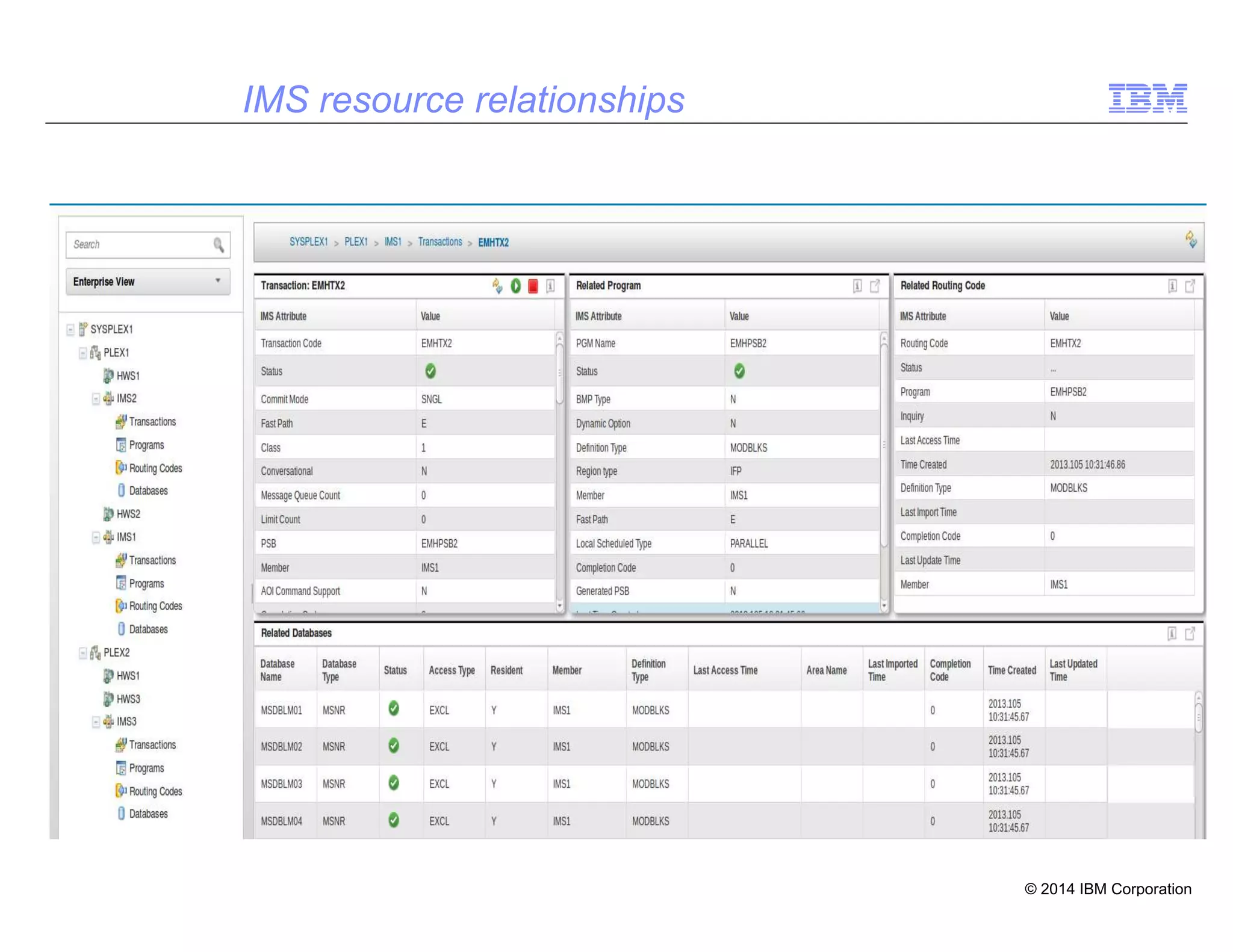

IMS resource relationships

38. © 2014 IBM Corporation
38

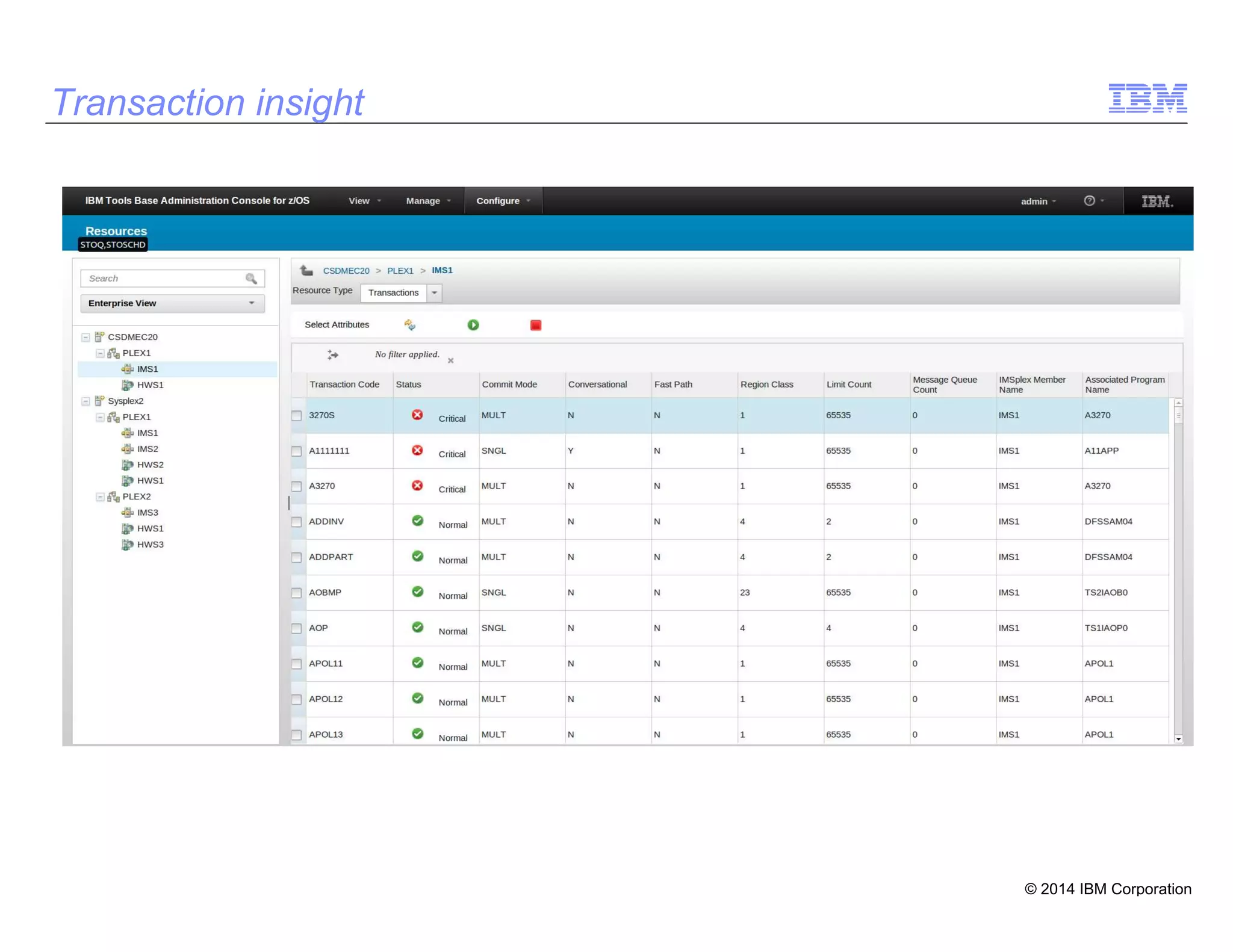

Transaction insight

39. © 2014 IBM Corporation
39

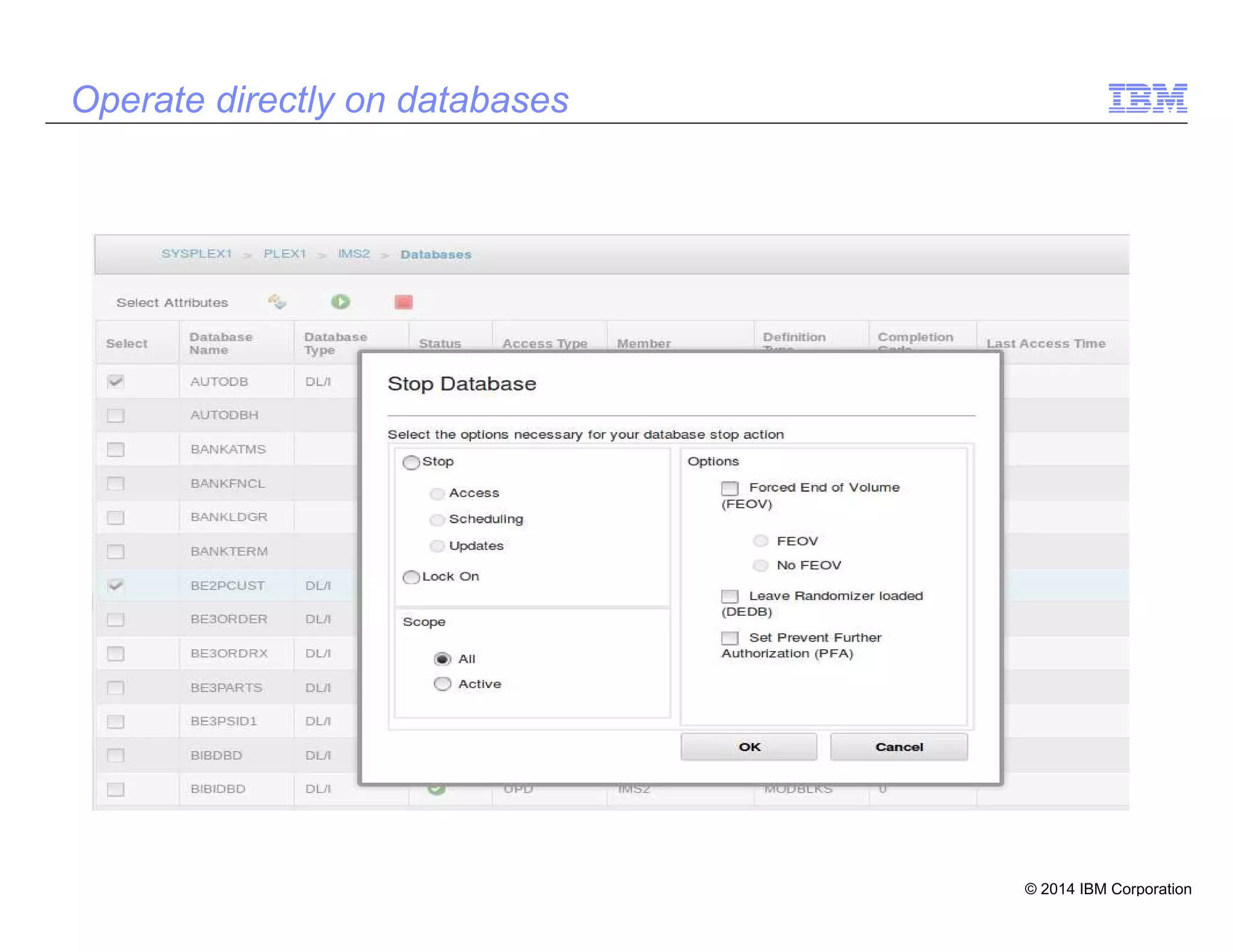

Operate directly on databases

40. © 2014 IBM Corporation
4040
Thank You
