1. Charles Severance, Ph.D. Affiliate Coordinator IMS Global Learning Consortium (IMS GLC) http://www.imsglobal.org/ http://www.dr-chuck.com/ IMS Learning Tools Interoperability

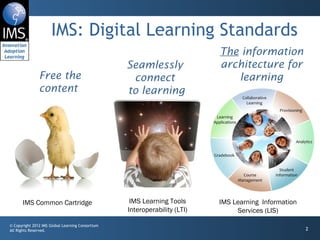

2. IMS: Digital Learning Standards Free the content IMS Common Cartridge Seamlessly connect to learning IMS Learning Tools Interoperability (LTI) The information architecture for learning IMS Learning Information Services (LIS)

3. IMS: Digital Learning Standards Free the content Seamlessly connect to learning

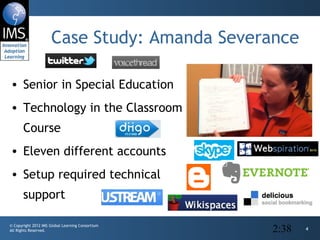

4. Case Study: Amanda Severance Senior in Special Education Technology in the Classroom Course Eleven different accounts Setup required technical support 2:38

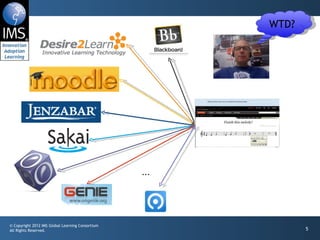

5. WTD? ...

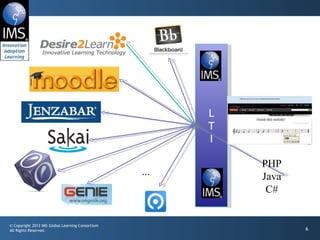

6. L T I PHP Java C# ...

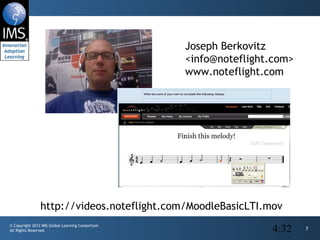

7. Joseph Berkovitz <info@noteflight.com> www.noteflight.com http://videos.noteflight.com/MoodleBasicLTI.mov 4:32

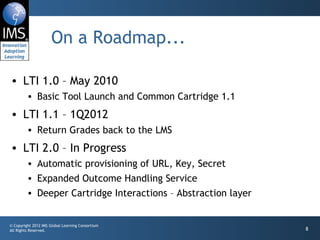

8. On a Roadmap... LTI 1.0 – May 2010 Basic Tool Launch and Common Cartridge 1.1 LTI 1.1 – 1Q2012 Return Grades back to the LMS LTI 2.0 – In Progress Automatic provisioning of URL, Key, Secret Expanded Outcome Handling Service Deeper Cartridge Interactions – Abstraction layer

10. LTI 1.0 Launch Data lti_version=LTI-1p0 lti_message_type=basic-lti-launch-request oauth_consumer_key=lmsng.school.edu resource_link_id=120988f929-274612 user_id=292832126 roles=Instructor lis_person_name_full=Charles R. Severance lis_person_contact_email_primary = csev@umich.edu context_id=456434513 context_title=SI301 – PHP tool_consumer_instance_description=University of School

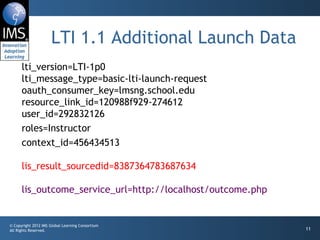

11. LTI 1.1 Additional Launch Data lti_version=LTI-1p0 lti_message_type=basic-lti-launch-request oauth_consumer_key=lmsng.school.edu resource_link_id=120988f929-274612 user_id=292832126 roles=Instructor context_id=456434513 lis_result_sourcedid=8387364783687634 lis_outcome_service_url=http://localhost/outcome.php

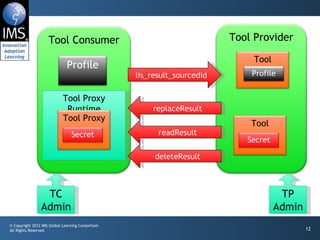

12. TC Admin Tool Proxy Runtime TP Admin replaceResult readResult deleteResult lis_result_sourcedid Tool Consumer Tool Provider Profile Tool Proxy Secret Tool Secret Tool Profile

13. Purpose of Certification Assure the end-user/purchaser that products will interoperate Any certified Provider (Tool) should be able to interoperate with any certified Consumer (LMS)

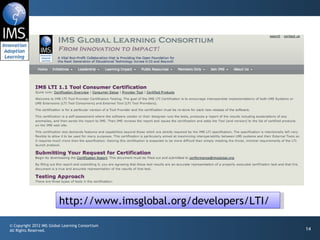

14. http://www.imsglobal.org/developers/LTI/

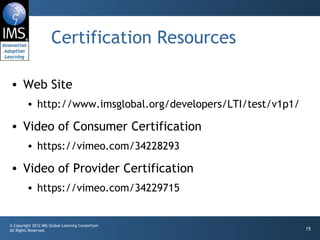

15. Certification Resources Web Site http://www.imsglobal.org/developers/LTI/test/v1p1/ Video of Consumer Certification https://vimeo.com/34228293 Video of Provider Certification https://vimeo.com/34229715

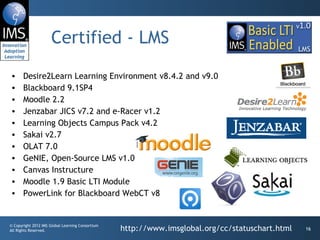

16. Certified - LMS Desire2Learn Learning Environment v8.4.2 and v9.0 Blackboard 9.1SP4 Moodle 2.2 Jenzabar JICS v7.2 and e-Racer v1.2 Learning Objects Campus Pack v4.2 Sakai v2.7 OLAT 7.0 GeNIE, Open-Source LMS v1.0 Canvas Instructure Moodle 1.9 Basic LTI Module PowerLink for Blackboard WebCT v8 http://www.imsglobal.org/cc/statuschart.html

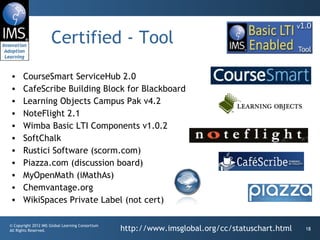

18. Certified - Tool CourseSmart ServiceHub 2.0 CafeScribe Building Block for Blackboard Learning Objects Campus Pak v4.2 NoteFlight 2.1 Wimba Basic LTI Components v1.0.2 SoftChalk Rustici Software (scorm.com) Piazza.com (discussion board) MyOpenMath (iMathAs) Chemvantage.org WikiSpaces Private Label (not cert) http://www.imsglobal.org/cc/statuschart.html

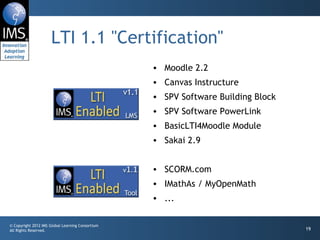

19. LTI 1.1 &quot;Certification&quot; Moodle 2.2 Canvas Instructure SPV Software Building Block SPV Software PowerLink BasicLTI4Moodle Module Sakai 2.9 SCORM.com IMathAs / MyOpenMath ...

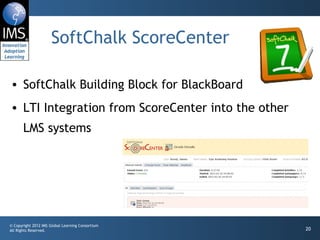

20. SoftChalk ScoreCenter SoftChalk Building Block for BlackBoard LTI Integration from ScoreCenter into the other LMS systems

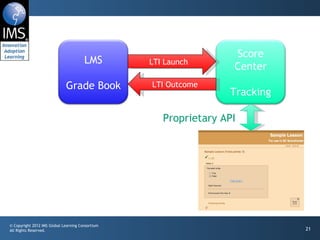

21. LTI Outcome LTI Launch Proprietary API LMS Grade Book Score Center Tracking

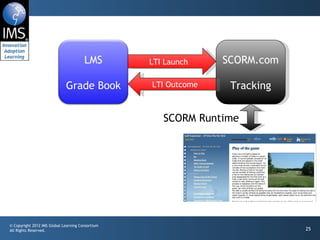

25. SCORM.com Tracking LTI Outcome LTI Launch SCORM Runtime LMS Grade Book

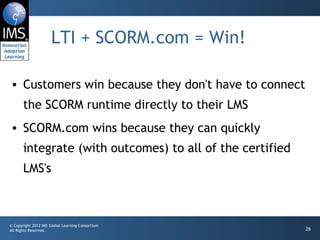

26. LTI + SCORM.com = Win! Customers win because they don't have to connect the SCORM runtime directly to their LMS SCORM.com wins because they can quickly integrate (with outcomes) to all of the certified LMS's

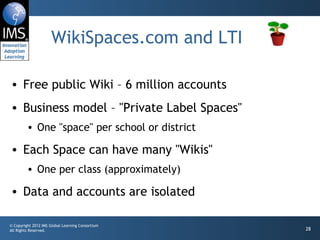

28. WikiSpaces.com and LTI Free public Wiki – 6 million accounts Business model – &quot;Private Label Spaces&quot; One &quot;space&quot; per school or district Each Space can have many &quot;Wikis&quot; One per class (approximately) Data and accounts are isolated

31. LTI Experiences @ WikiSpaces

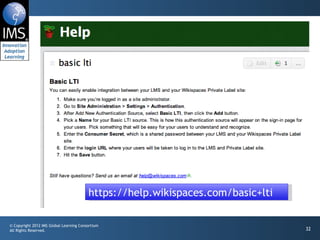

32. https://help.wikispaces.com/basic+lti

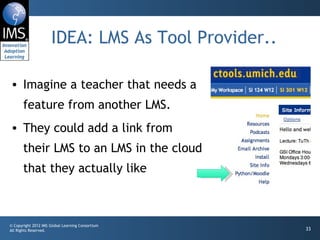

33. IDEA: LMS As Tool Provider.. Imagine a teacher that needs a feature from another LMS. They could add a link from their LMS to an LMS in the cloud that they actually like

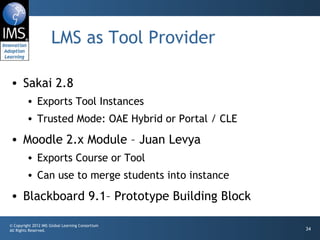

34. LMS as Tool Provider Sakai 2.8 Exports Tool Instances Trusted Mode: OAE Hybrid or Portal / CLE Moodle 2.x Module – Juan Levya Exports Course or Tool Can use to merge students into instance Blackboard 9.1– Prototype Building Block

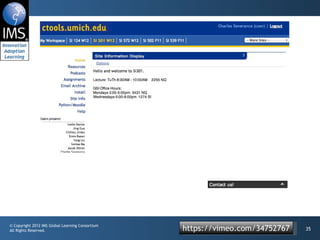

35. https://vimeo.com/34752767

36. https://vimeo.com/34752767

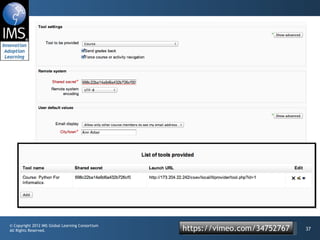

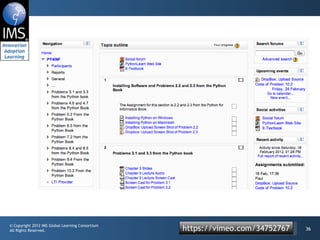

37. https://vimeo.com/34752767

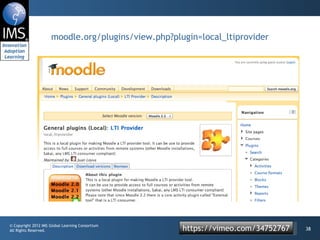

38. moodle.org/plugins/view.php?plugin=local_ltiprovider https://vimeo.com/34752767

39. CourseSites As Tool Provider? Prototype Not-a-product Just good clean fun BbDevCon 2011 (Las Vegas!) https://vimeo.com/26310497

40. LTI 1.0 Common Cartridge 1.1 Seamlessly connect to learning IMS Learning Tools Interoperability (LTI)

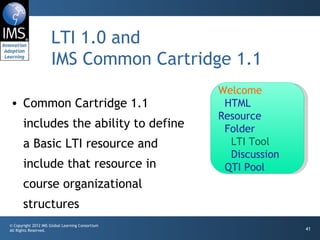

41. LTI 1.0 and IMS Common Cartridge 1.1 Common Cartridge 1.1 includes the ability to define a Basic LTI resource and include that resource in course organizational structures Welcome HTML Resource Folder LTI Tool Discussion QTI Pool

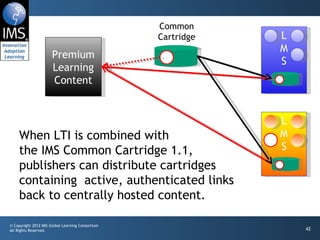

42. L M S Premium Learning Content Common Cartridge L M S When LTI is combined with the IMS Common Cartridge 1.1, publishers can distribute cartridges containing active, authenticated links back to centrally hosted content.

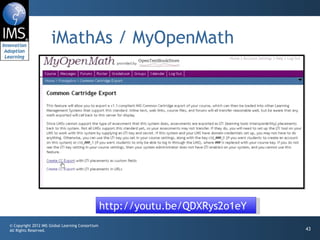

43. iMathAs / MyOpenMath http://youtu.be/QDXRys2o1eY

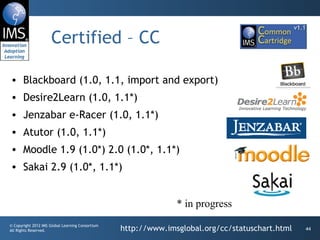

44. Certified – CC Blackboard (1.0, 1.1, import and export) Desire2Learn (1.0, 1.1*) Jenzabar e-Racer (1.0, 1.1*) Atutor (1.0, 1.1*) Moodle 1.9 (1.0*) 2.0 (1.0*, 1.1*) Sakai 2.9 (1.0*, 1.1*) http://www.imsglobal.org/cc/statuschart.html * in progress

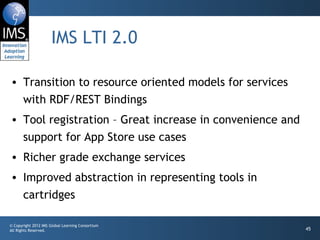

45. IMS LTI 2.0 Transition to resource oriented models for services with RDF/REST Bindings Tool registration – Great increase in convenience and support for App Store use cases Richer grade exchange services Improved abstraction in representing tools in cartridges

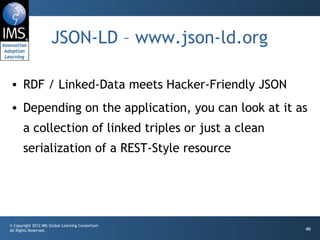

46. JSON-LD – www.json-ld.org RDF / Linked-Data meets Hacker-Friendly JSON Depending on the application, you can look at it as a collection of linked triples or just a clean serialization of a REST-Style resource

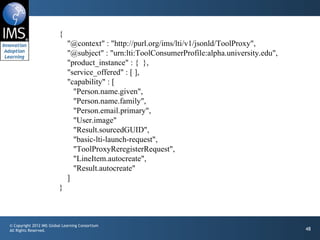

48. { &quot;@context&quot; : &quot;http://purl.org/ims/lti/v1/jsonld/ToolProxy&quot;, &quot;@subject&quot; : &quot;urn:lti:ToolConsumerProfile:alpha.university.edu&quot;, &quot;product_instance&quot; : { }, &quot;service_offered&quot; : [ ], &quot;capability&quot; : [ &quot;Person.name.given&quot;, &quot;Person.name.family&quot;, &quot;Person.email.primary&quot;, &quot;User.image&quot; &quot;Result.sourcedGUID&quot;, &quot;basic-lti-launch-request&quot;, &quot;ToolProxyReregisterRequest&quot;, &quot;LineItem.autocreate&quot;, &quot;Result.autocreate&quot; ] }

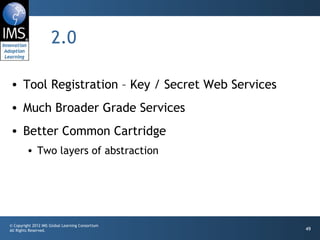

49. 2.0 Tool Registration – Key / Secret Web Services Much Broader Grade Services Better Common Cartridge Two layers of abstraction

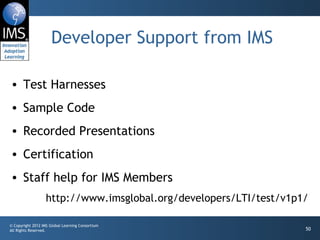

50. Developer Support from IMS Test Harnesses Sample Code Recorded Presentations Certification Staff help for IMS Members http://www.imsglobal.org/developers/LTI/test/v1p1/

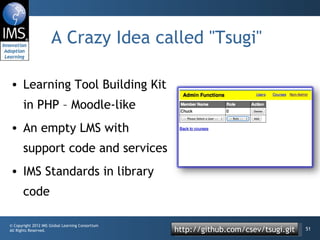

51. A Crazy Idea called &quot;Tsugi&quot; Learning Tool Building Kit in PHP – Moodle-like An empty LMS with support code and services IMS Standards in library code http://github.com/csev/tsugi.git

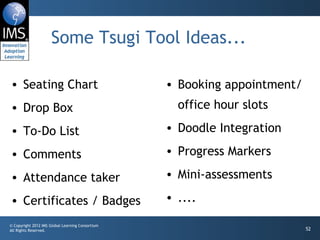

52. Some Tsugi Tool Ideas... Seating Chart Drop Box To-Do List Comments Attendance taker Certificates / Badges Booking appointment/office hour slots Doodle Integration Progress Markers Mini-assessments ....

53. Summary IMS Learning Tools Interoperability 1.0 (Basic Launch) is well adopted by LMS and Tool vendors IMS CC 1.0 and 1.1 are appearing everywhere IMS Learning Tools Interoperability 1.1 adds grade return IMS LTI 2.0

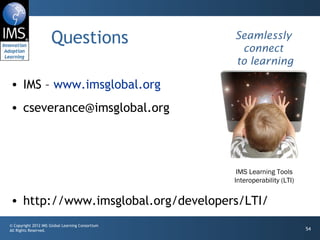

54. Questions IMS – www.imsglobal.org [email_address] http://www.imsglobal.org/developers/LTI/ Seamlessly connect to learning IMS Learning Tools Interoperability (LTI)
