1. Improving code quality with loose coupling

2. Software design
• Code organization
• Goal:
• Reduce the cost of change
• Reduce stress
• Simple guidance for 90% of the cases

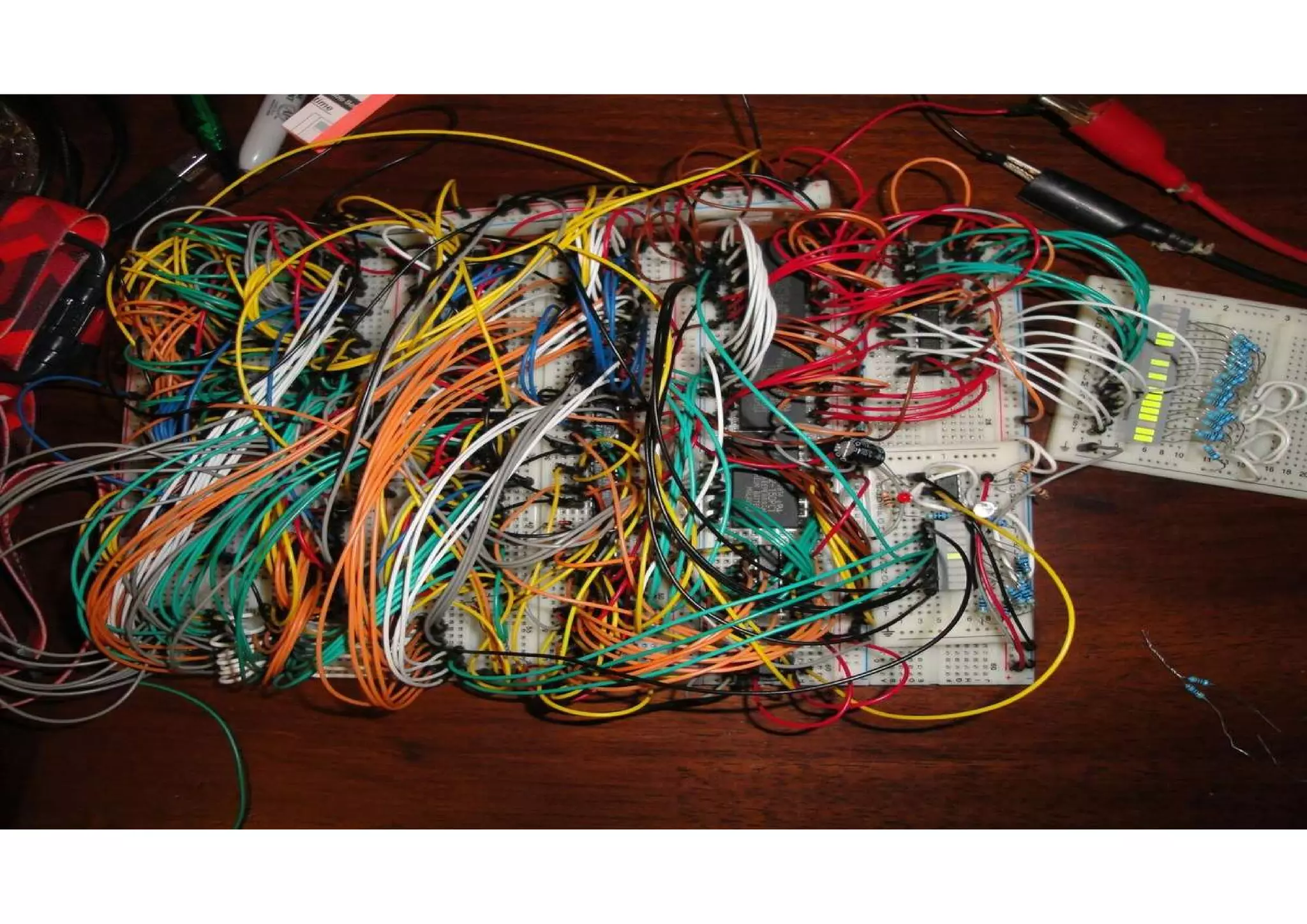

3. Coupling
• Rigidity
• Fragility
• Immobility

5. Dependency injection
• ?

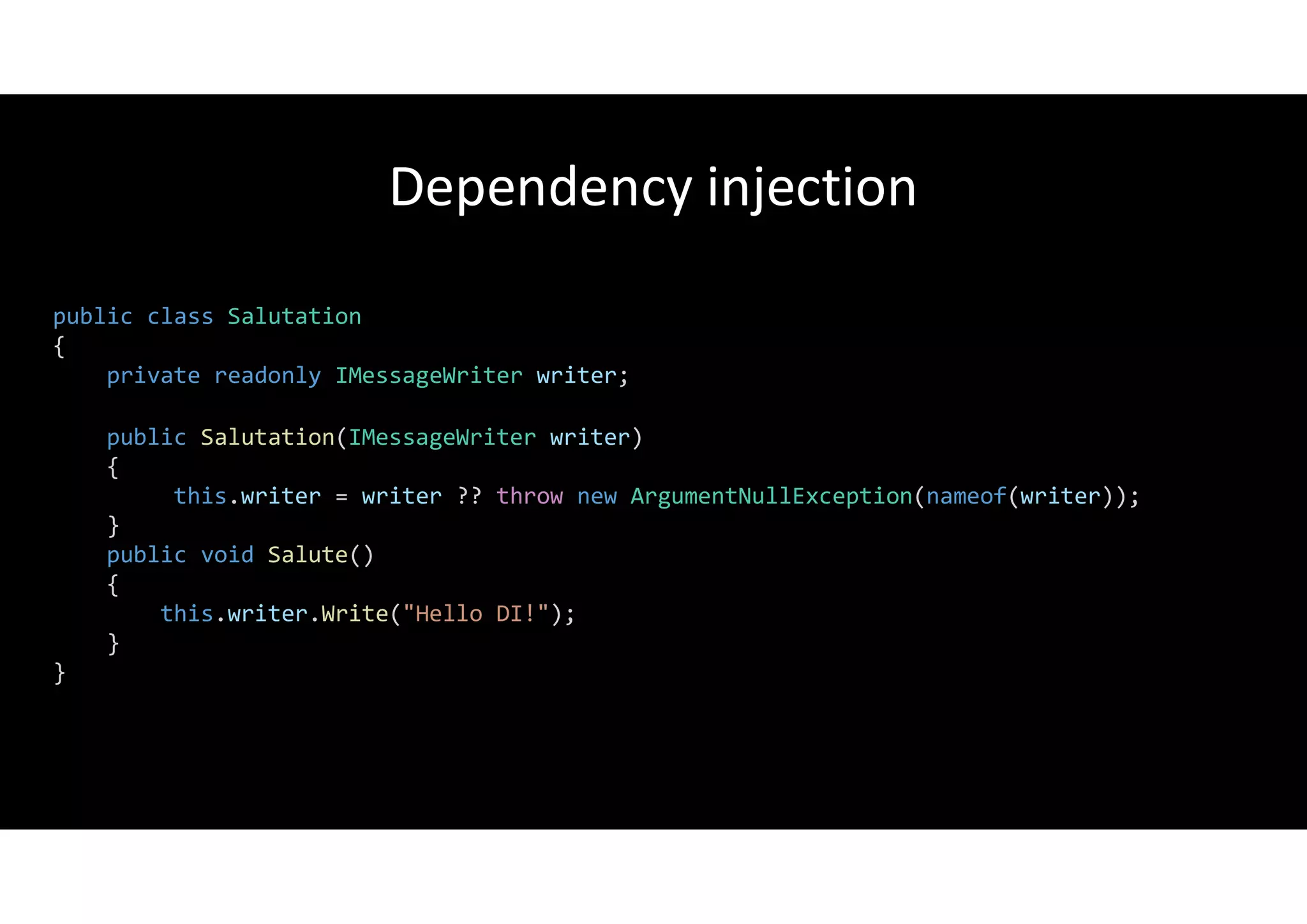

6. Dependency injection
public class Salutation
{
private readonly IMessageWriter writer;
public Salutation(IMessageWriter writer)
{
this.writer = writer ?? throw new ArgumentNullException(nameof(writer));
}
public void Salute()
{
this.writer.Write("Hello DI!");
}
}

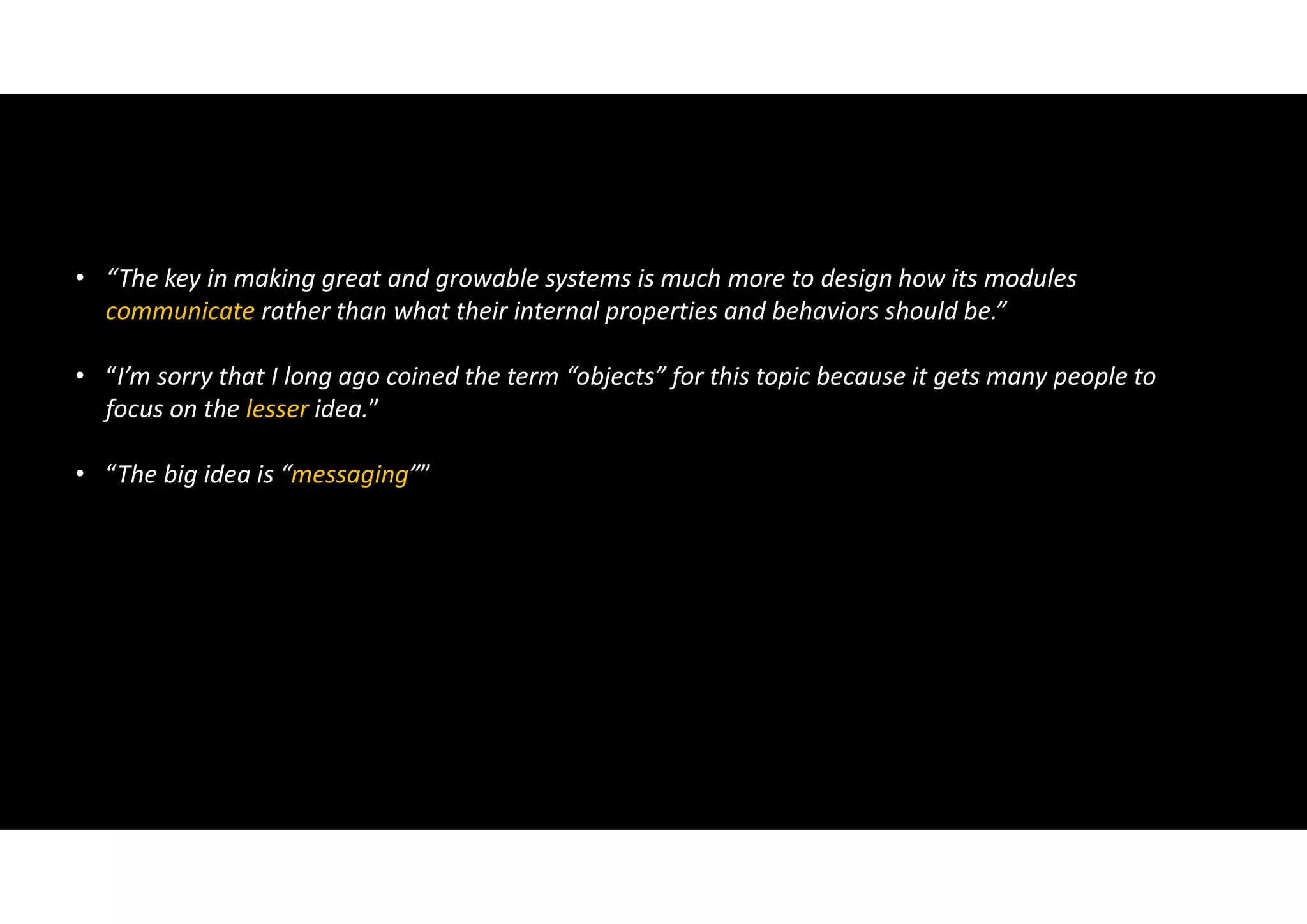

10. • “The key in making great and growable systems is much more to design how its modules
communicate rather than what their internal properties and behaviors should be.”
• “I’m sorry that I long ago coined the term “objects” for this topic because it gets many people to
focus on the lesser idea.”
• “The big idea is “messaging””

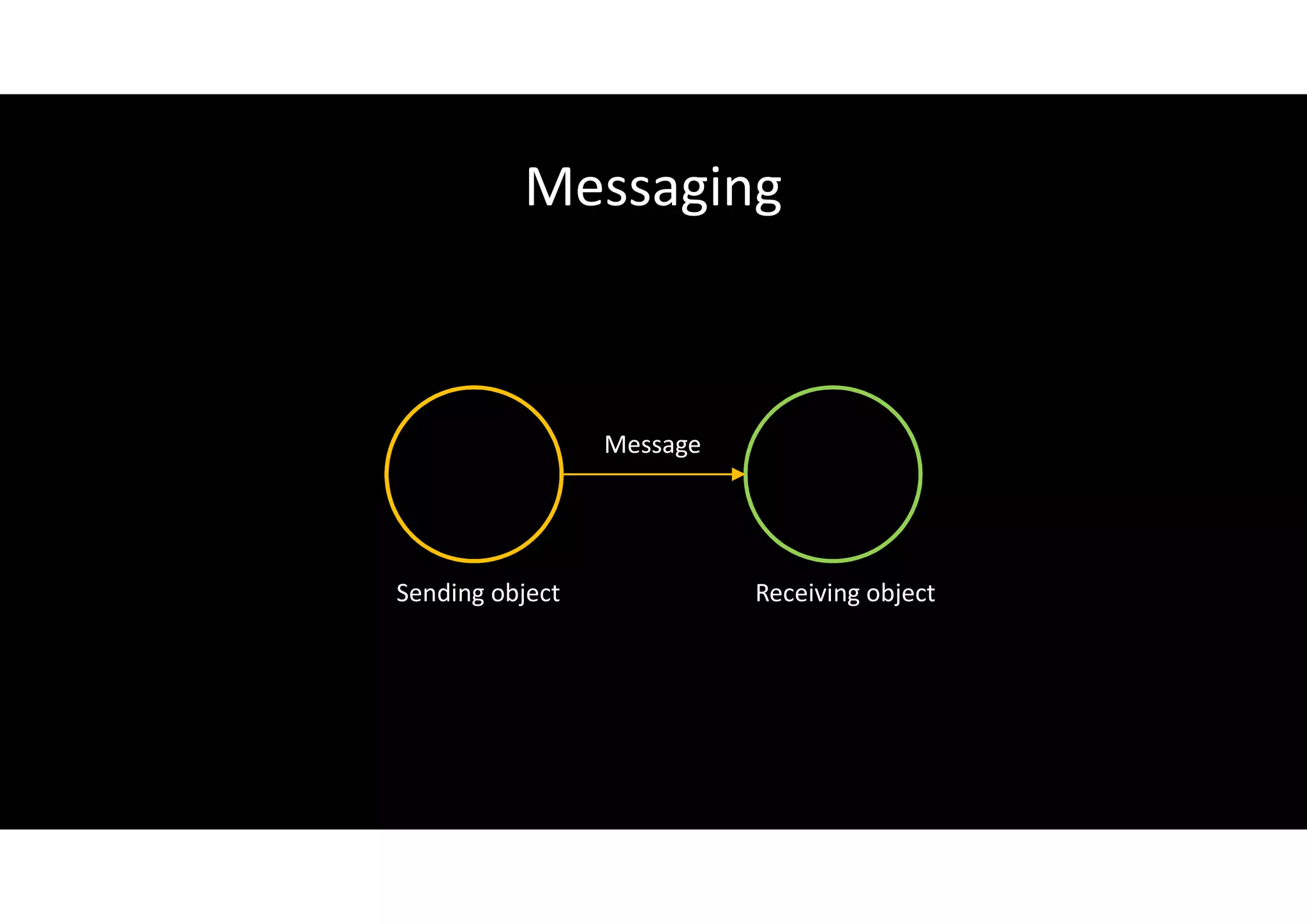

11. Messaging
Sending object Receiving object
Message

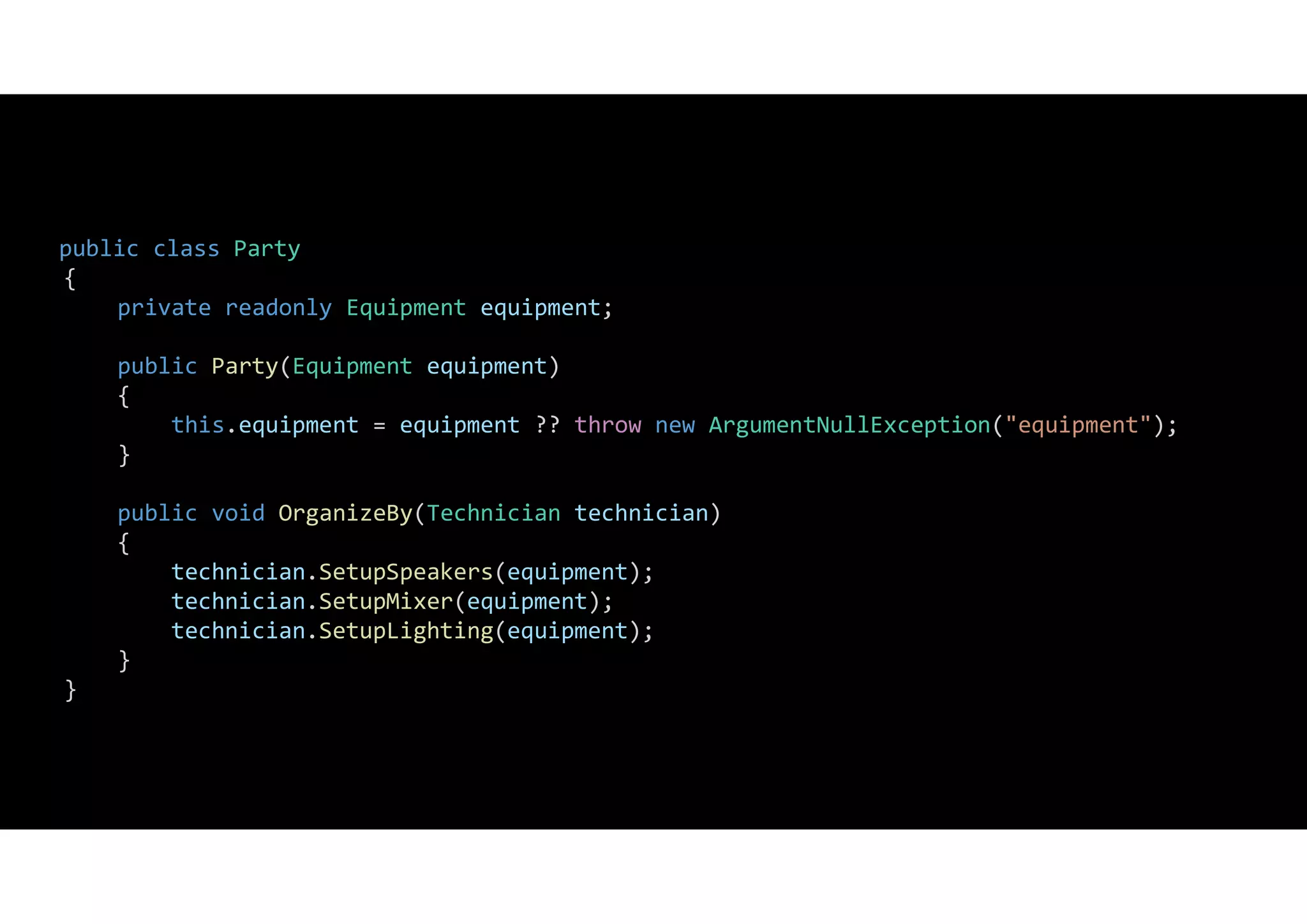

12. public class Party
{
private readonly Equipment equipment;
public Party(Equipment equipment)
{
this.equipment = equipment ?? throw new ArgumentNullException("equipment");
}
public void OrganizeBy(Technician technician)
{
technician.SetupSpeakers(equipment);
technician.SetupMixer(equipment);
technician.SetupLighting(equipment);
}
}

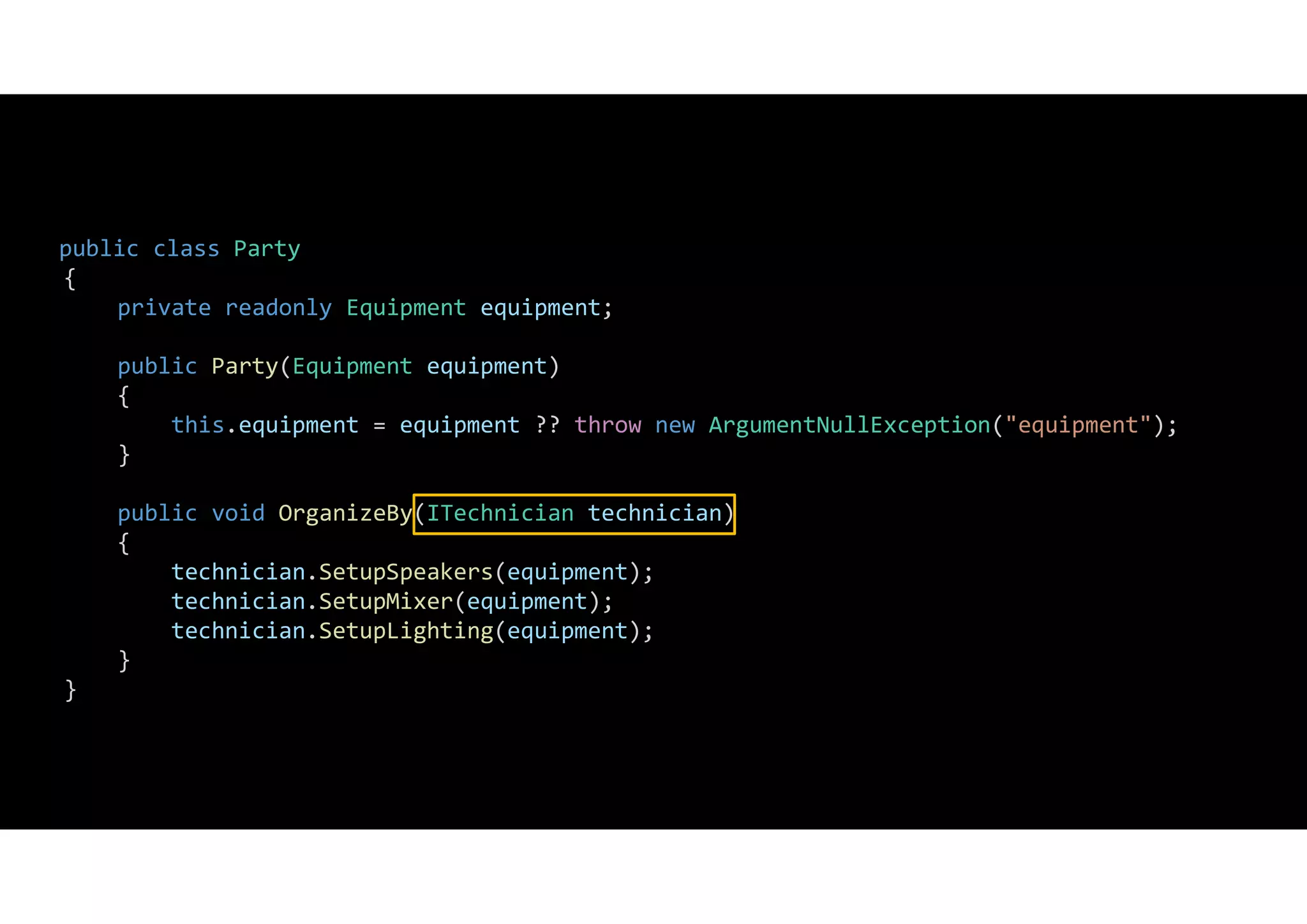

13. public class Party
{
private readonly Equipment equipment;
public Party(Equipment equipment)
{
this.equipment = equipment ?? throw new ArgumentNullException("equipment");
}
public void OrganizeBy(ITechnician technician)
{
technician.SetupSpeakers(equipment);
technician.SetupMixer(equipment);
technician.SetupLighting(equipment);
}
}

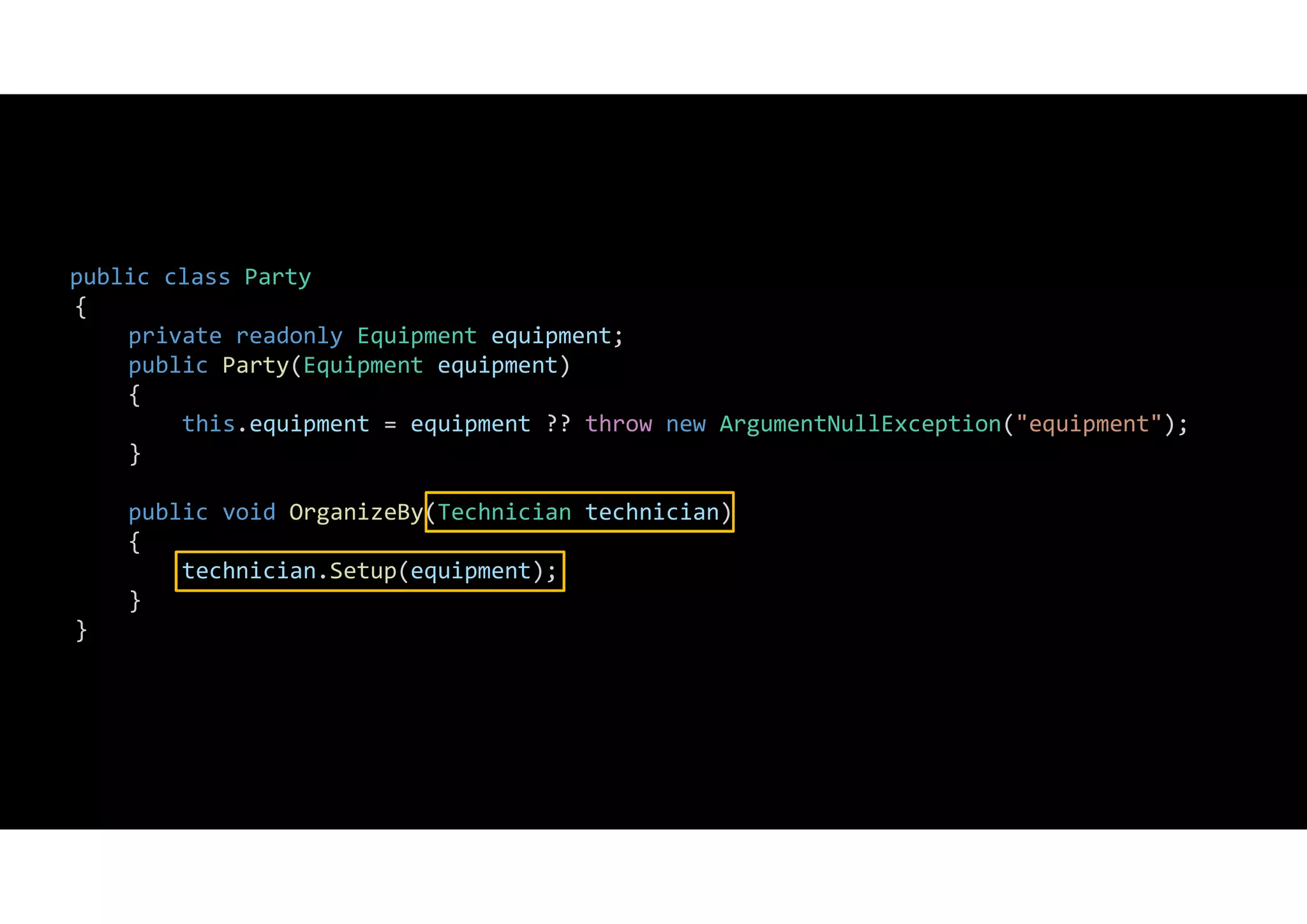

14. public class Party
{
private readonly Equipment equipment;
public Party(Equipment equipment)
{
this.equipment = equipment ?? throw new ArgumentNullException("equipment");
}
public void OrganizeBy(Technician technician)
{
technician.Setup(equipment);
}
}

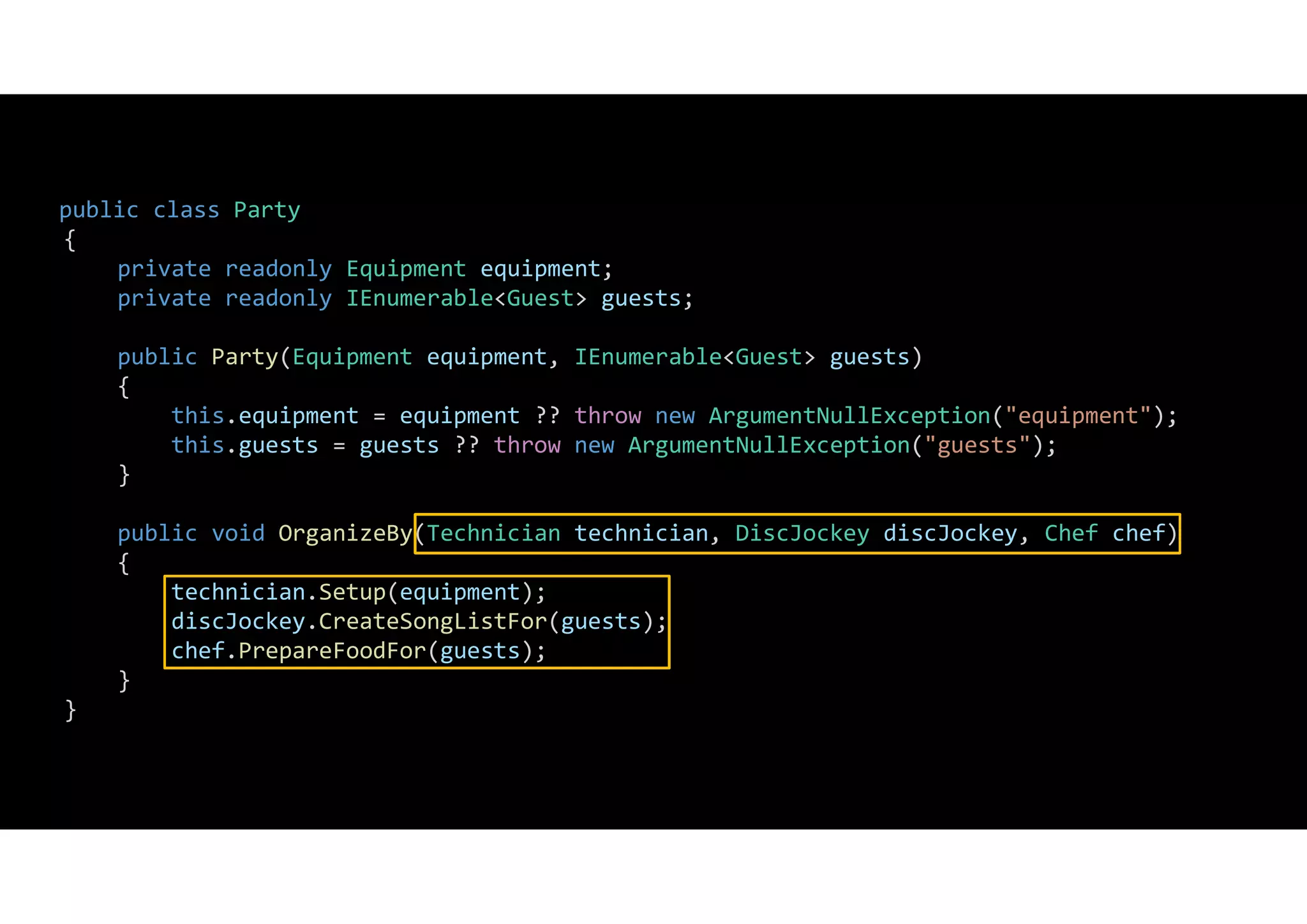

15. public class Party
{
private readonly Equipment equipment;
private readonly IEnumerable<Guest> guests;
public Party(Equipment equipment, IEnumerable<Guest> guests)
{
this.equipment = equipment ?? throw new ArgumentNullException("equipment");
this.guests = guests ?? throw new ArgumentNullException("guests");
}
public void OrganizeBy(Technician technician, DiscJockey discJockey, Chef chef)
{
technician.Setup(equipment);
discJockey.CreateSongListFor(guests);
chef.PrepareFoodFor(guests);
}
}

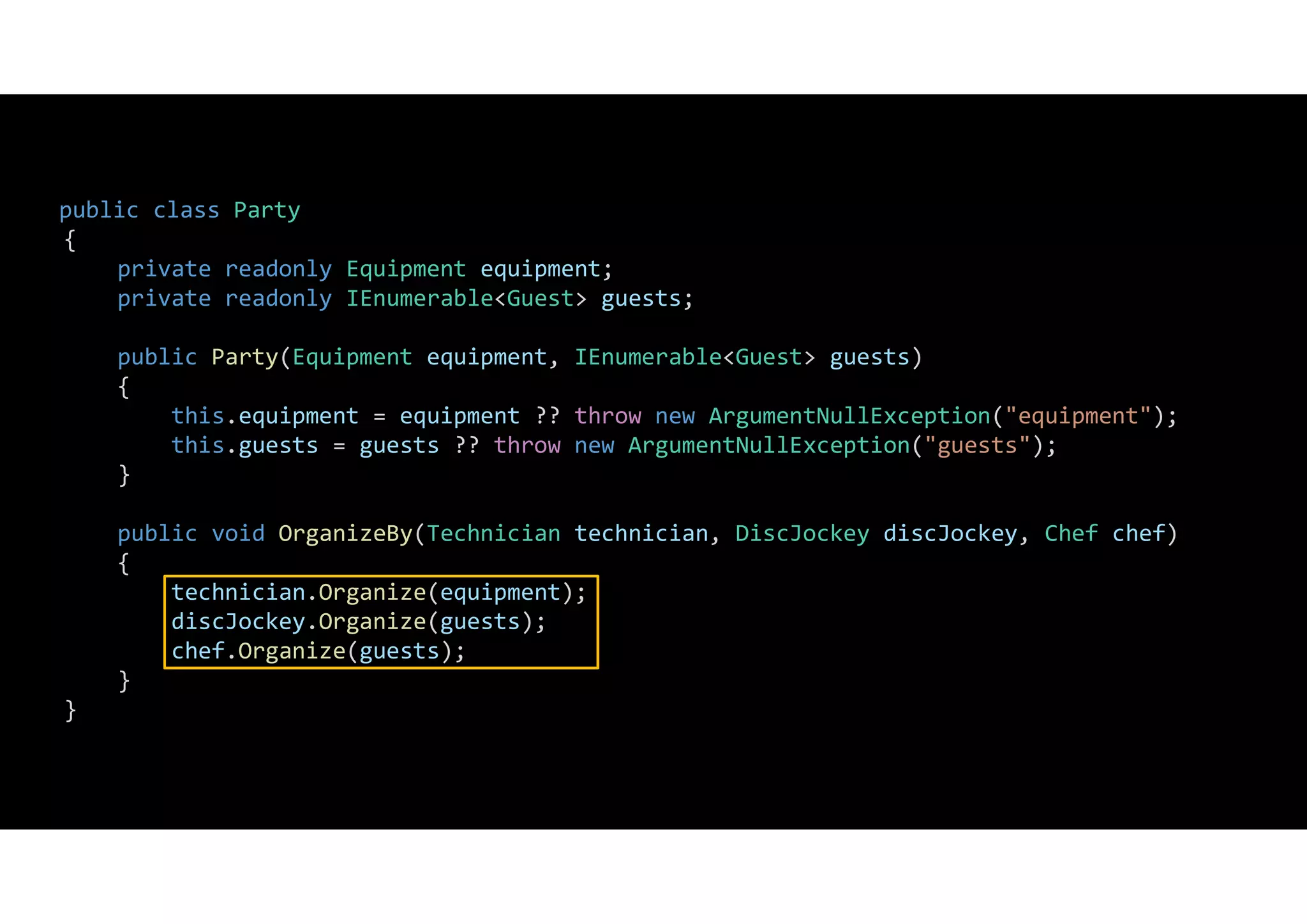

16. public class Party
{
private readonly Equipment equipment;
private readonly IEnumerable<Guest> guests;
public Party(Equipment equipment, IEnumerable<Guest> guests)
{
this.equipment = equipment ?? throw new ArgumentNullException("equipment");
this.guests = guests ?? throw new ArgumentNullException("guests");
}
public void OrganizeBy(Technician technician, DiscJockey discJockey, Chef chef)
{
technician.Organize(equipment);
discJockey.Organize(guests);
chef.Organize(guests);
}
}

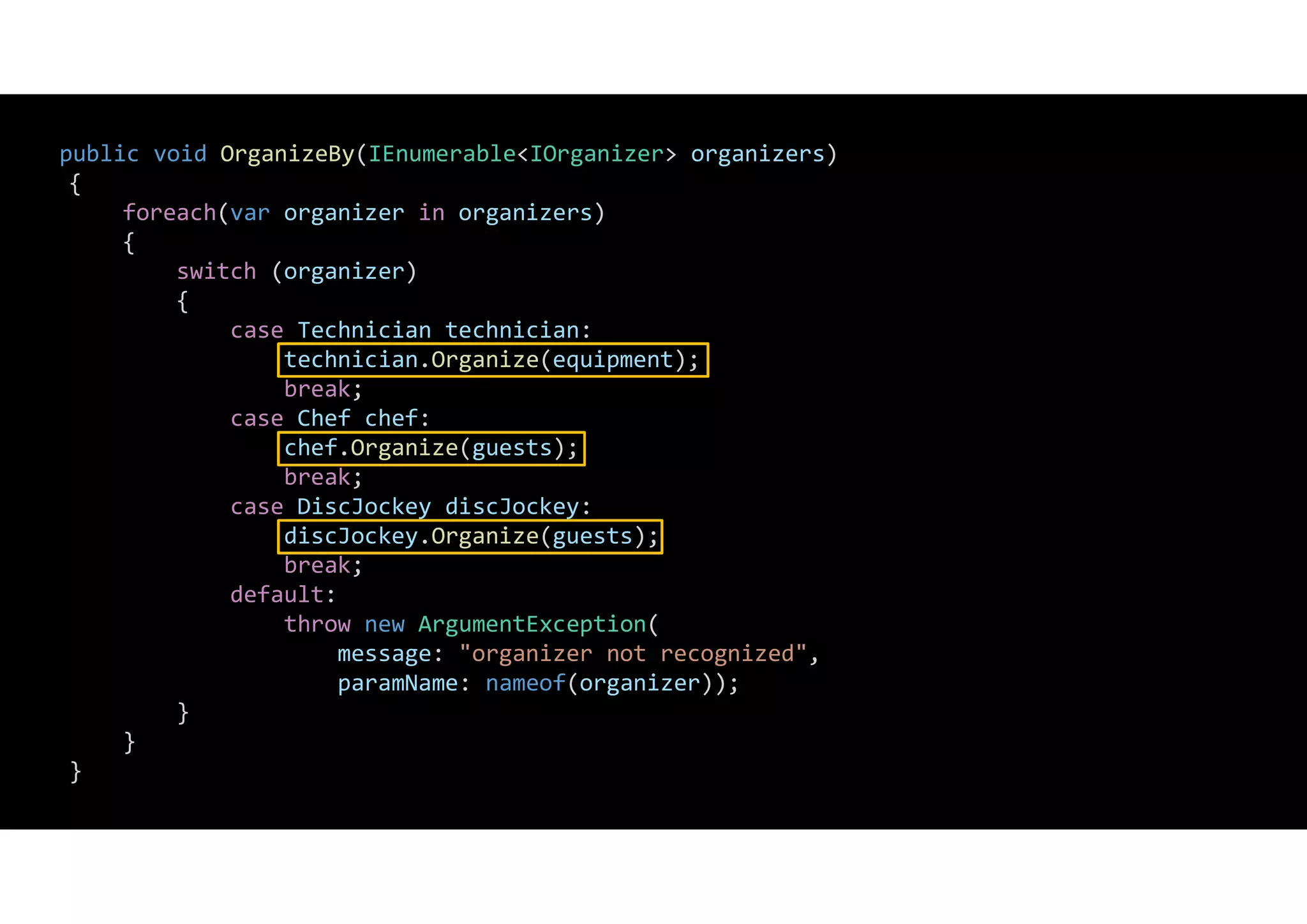

17. public void OrganizeBy(IEnumerable<IOrganizer> organizers)
{
foreach(var organizer in organizers)
{
switch (organizer)
{
case Technician technician:
technician.Organize(equipment);
break;
case Chef chef:
chef.Organize(guests);
break;
case DiscJockey discJockey:
discJockey.Organize(guests);
break;
default:
throw new ArgumentException(
message: "organizer not recognized",
paramName: nameof(organizer));
}
}
}

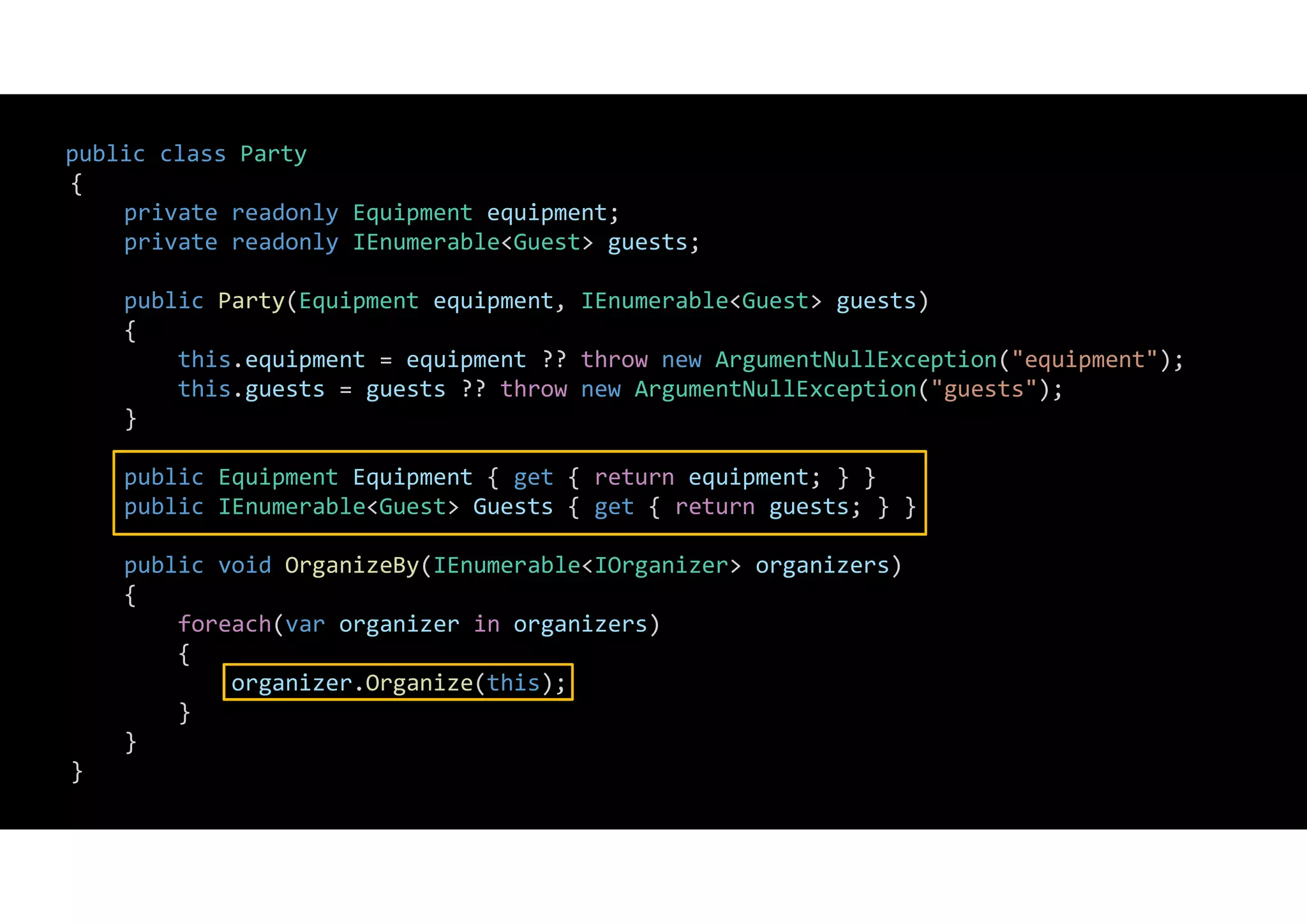

18. public class Party
{
private readonly Equipment equipment;
private readonly IEnumerable<Guest> guests;
public Party(Equipment equipment, IEnumerable<Guest> guests)
{
this.equipment = equipment ?? throw new ArgumentNullException("equipment");
this.guests = guests ?? throw new ArgumentNullException("guests");
}
public Equipment Equipment { get { return equipment; } }
public IEnumerable<Guest> Guests { get { return guests; } }
public void OrganizeBy(IEnumerable<IOrganizer> organizers)
{
foreach(var organizer in organizers)
{
organizer.Organize(this);
}
}
}

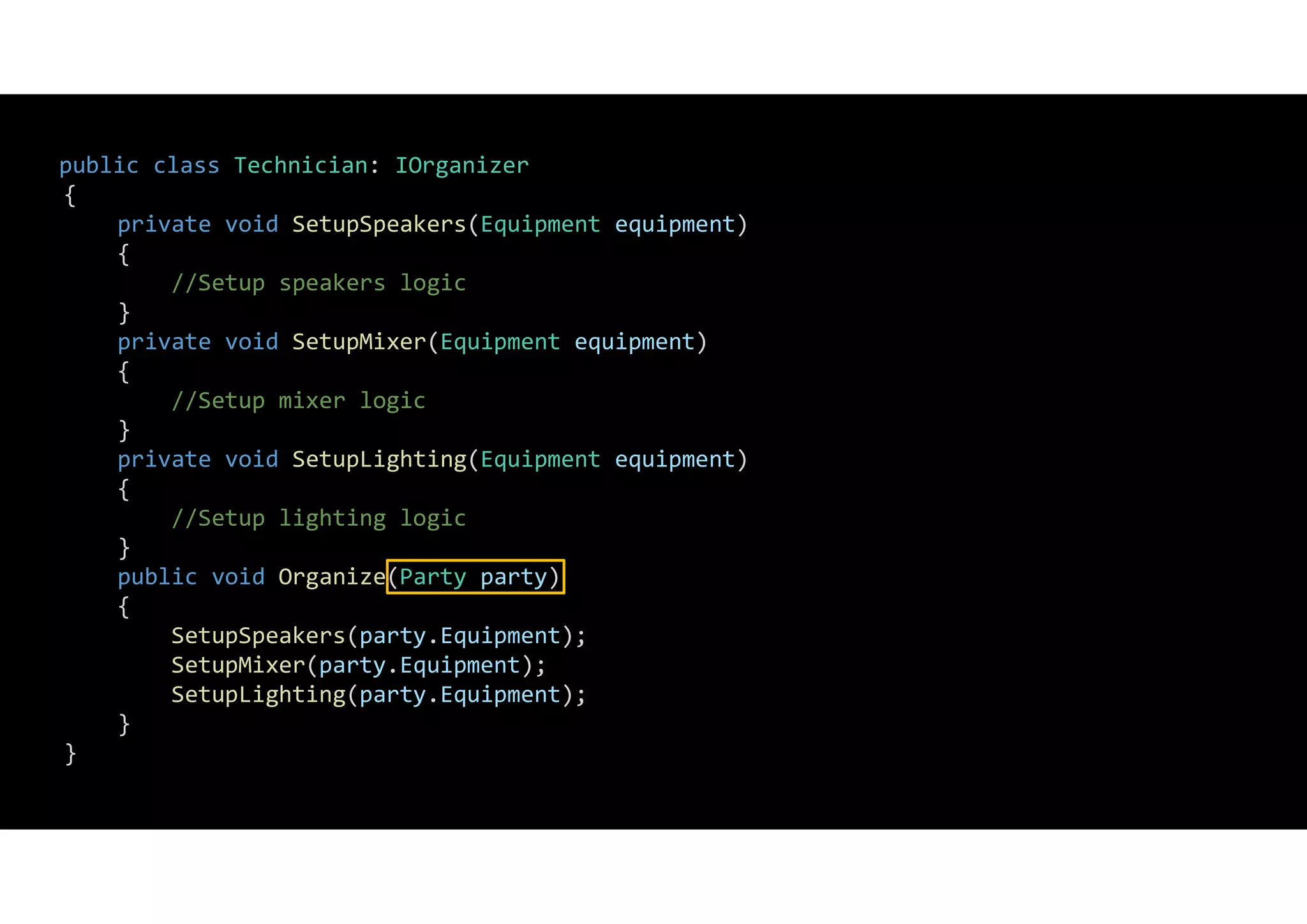

19. public class Technician: IOrganizer
{
private void SetupSpeakers(Equipment equipment)
{
//Setup speakers logic
}
private void SetupMixer(Equipment equipment)
{
//Setup mixer logic
}
private void SetupLighting(Equipment equipment)
{
//Setup lighting logic
}
public void Organize(Party party)
{
SetupSpeakers(party.Equipment);
SetupMixer(party.Equipment);
SetupLighting(party.Equipment);
}
}

20. Role
• Anthropomorphicrepresentation of polymorphism

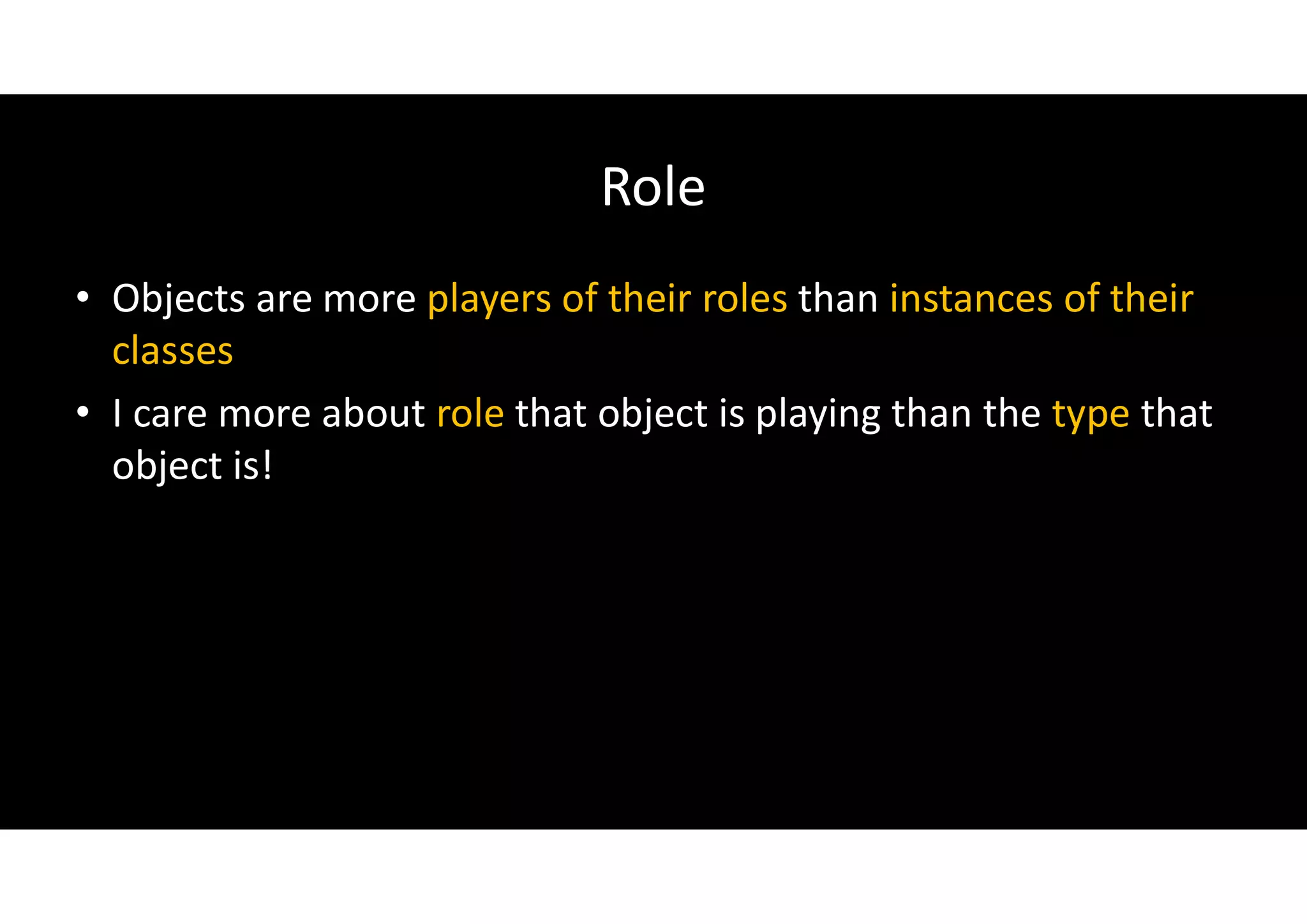

21. Role
• Objects are more players of their roles than instances of their
classes
• I care more about role that object is playing than the type that
object is!

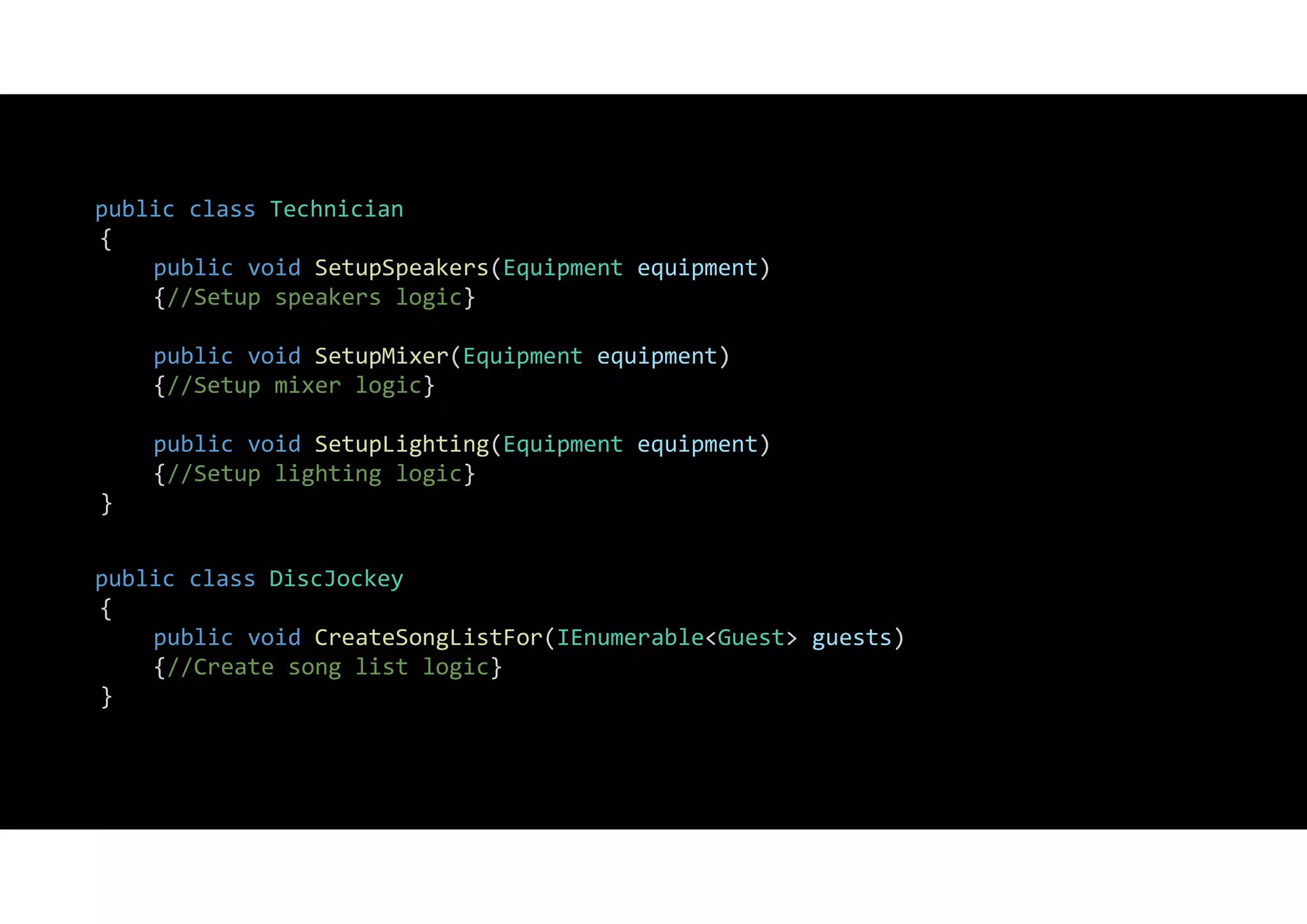

22. public class Technician
{
public void SetupSpeakers(Equipment equipment)
{//Setup speakers logic}
public void SetupMixer(Equipment equipment)
{//Setup mixer logic}
public void SetupLighting(Equipment equipment)
{//Setup lighting logic}
}
public class DiscJockey
{
public void CreateSongListFor(IEnumerable<Guest> guests)
{//Create song list logic}
}

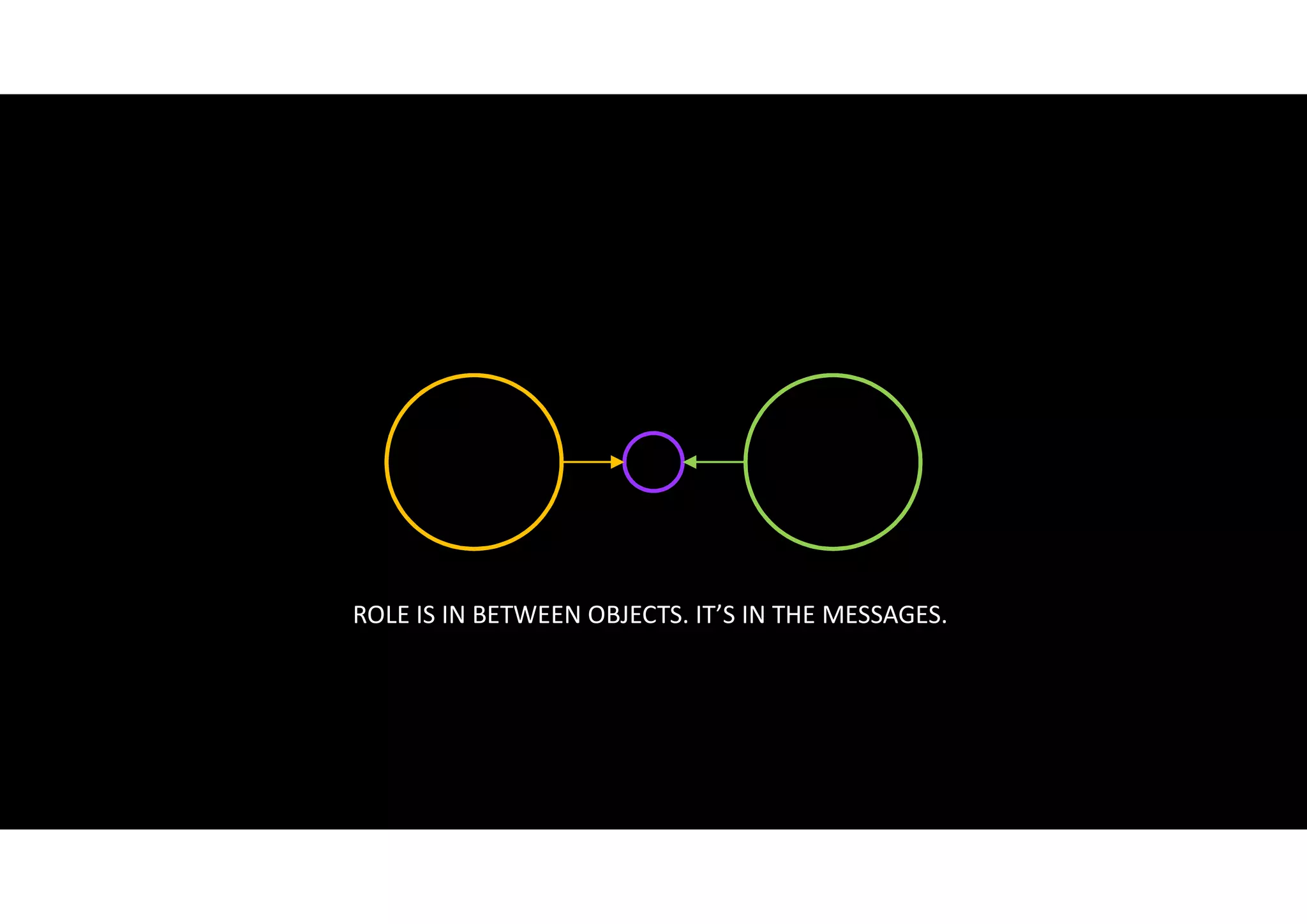

23. ROLE IS IN BETWEEN OBJECTS. IT’S IN THE MESSAGES.

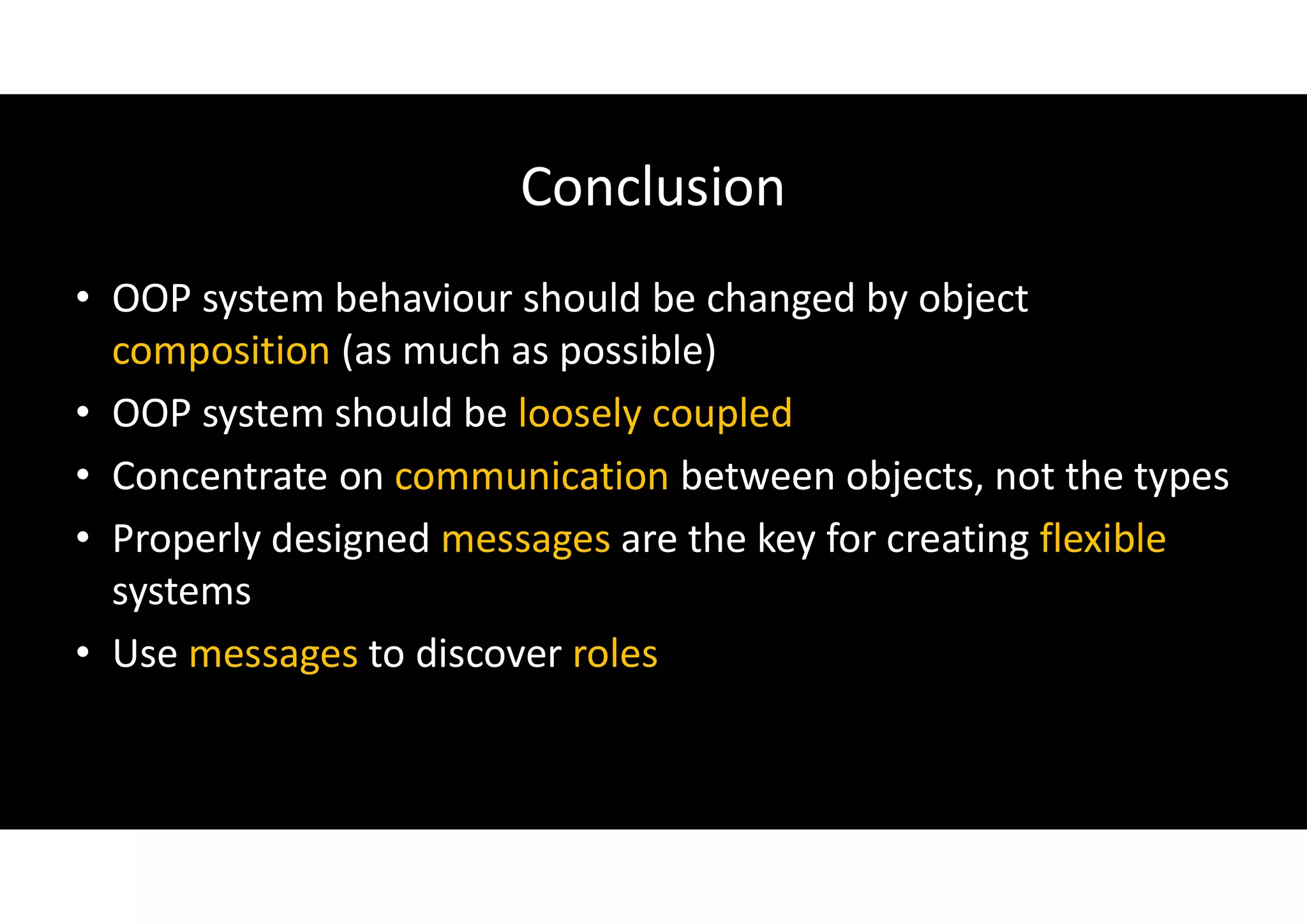

24. Conclusion
• OOP system behaviour should be changed by object
composition (as much as possible)
• OOP system should be loosely coupled
• Concentrate on communication between objects, not the types
• Properly designed messages are the key for creating flexible
systems
• Use messages to discover roles
