Combating software entropy 2-roc1-
This document discusses software design principles and practices to avoid bad design that results in software that is rigid, fragile, and difficult to change. It recommends applying principles like the single responsibility principle and dependency inversion principle. It also recommends using software metrics and tools like Visual Studio to help evaluate designs and refactor as needed. Refactoring is important to apply these principles and keep software flexible over time as needs change.
Combating software entropy 2-roc1-
- 2. Microsoft MVPfor Connected Systems (6+ yrs) Member of BusinessTechnology Platform Advisors Author I do: Blog +Twitter + PodCast www.hammadrajjoub.net Follow me onTwitter @HammadRajjoub Bing me http://www.bing.com/search?q=hammadr ajjoub
- 3. Why isSoftware Complex? What is bad design? How to Fix it? Summary References QnA

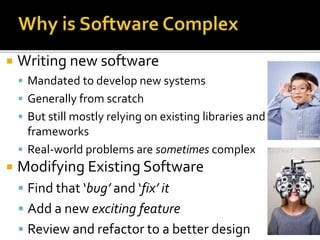

- 4. Writing newsoftware Mandated to develop new systems Generally from scratch But still mostly relying on existing libraries and frameworks Real-world problems are sometimes complex Modifying Existing Software Find that ‘bug’ and ‘fix’ it Add a new exciting feature Review and refactor to a better design
- 6. Rigid Fragile Immobile Hard to change! Asingle change break lots of other code Can’t be ‘extended’

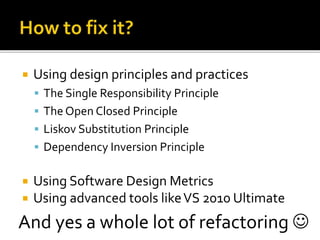

- 7. Using designprinciples and practices The Single Responsibility Principle The Open Closed Principle Liskov Substitution Principle Dependency Inversion Principle Using Software Design Metrics Using advanced tools likeVS 2010 Ultimate And yes a whole lot of refactoring
- 8. None but Buddhahimself must take the responsibility of giving out occult secrets... E. Cobham Brewer 1810–1897. Dictionary of Phrase and Fable. 1898.

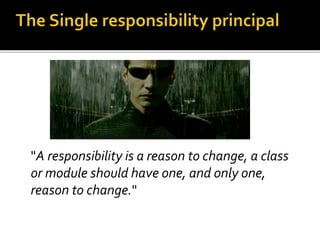

- 9. "A responsibility isa reason to change, a class or module should have one, and only one, reason to change."

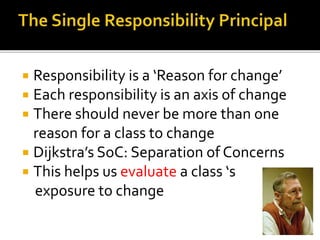

- 10. Responsibility isa ‘Reason for change’ Each responsibility is an axis of change There should never be more than one reason for a class to change Dijkstra’s SoC: Separation of Concerns This helps us evaluate a class ‘s exposure to change
- 11.

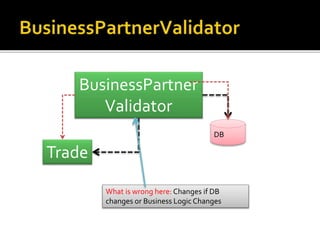

- 12. BusinessPartner Validator Trade DB What is wronghere: Changes if DB changes or Business Logic Changes

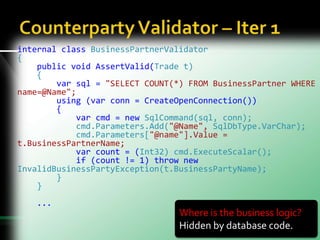

- 13. internal class BusinessPartnerValidator { publicvoid AssertValid(Trade t) { var sql = "SELECT COUNT(*) FROM BusinessPartner WHERE name=@Name"; using (var conn = CreateOpenConnection()) { var cmd = new SqlCommand(sql, conn); cmd.Parameters.Add("@Name", SqlDbType.VarChar); cmd.Parameters["@name"].Value = t.BusinessPartnerName; var count = (Int32) cmd.ExecuteScalar(); if (count != 1) throw new InvalidBusinessPartyException(t.BusinessPartyName); } } ... Where is the business logic? Hidden by database code.
- 14. internal class BusinessPartnerValidator { privatereadonly BusinessPartnerValidator businessPartnersource; public BusinessPartyValidator(BusinessPartnerSource BusinessPartySource) { this.businessPartnerSource = BusinessPartnerSource; } public void AssertValid(Trade t) { if (BusinessPartnerSource.FindByName(t.BusinessPartnerSource) == null) throw new InvalidBusinessPartnerException(t.BusinessPartnerName); } } BusinessPartyValidator now has a single responsibility

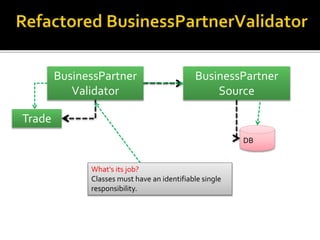

- 15. BusinessPartner Validator Trade DB BusinessPartner Source What's its job? Classesmust have an identifiable single responsibility.
- 16.

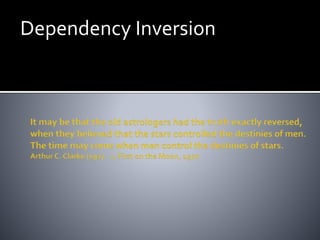

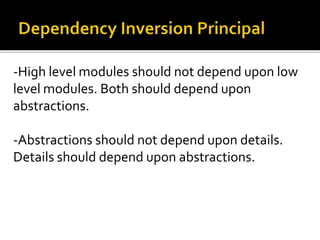

- 17. -High level modulesshould not depend upon low level modules. Both should depend upon abstractions. -Abstractions should not depend upon details. Details should depend upon abstractions.

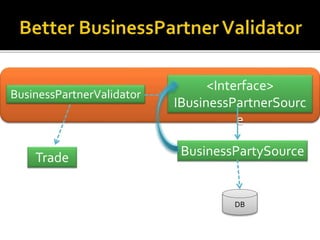

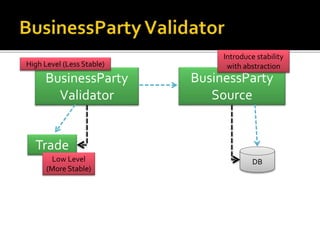

- 18. BusinessParty Validator Trade DB BusinessParty Source High Level (LessStable) Low Level (More Stable) Introduce stability with abstraction

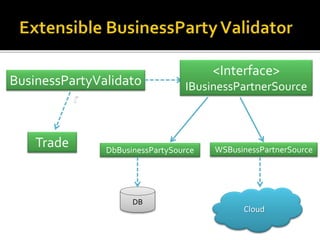

- 19.
- 20.

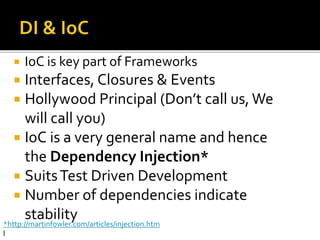

- 21. IoC iskey part of Frameworks Interfaces, Closures & Events Hollywood Principal (Don’t call us, We will call you) IoC is a very general name and hence the Dependency Injection* SuitsTest Driven Development Number of dependencies indicate stability*http://martinfowler.com/articles/injection.htm l

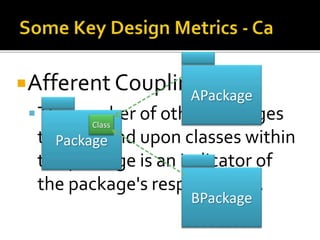

- 23. Afferent Couplings -Ca The number of other packages that depend upon classes within the package is an indicator of the package's responsibility. BPackage APackage Package Class

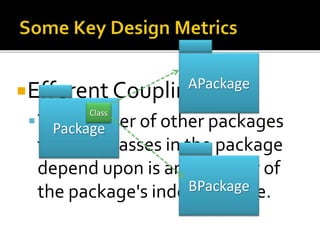

- 24. Efferent Couplings –Ce The number of other packages that the classes in the package depend upon is an indicator of the package's independence.BPackage APackage Package Class

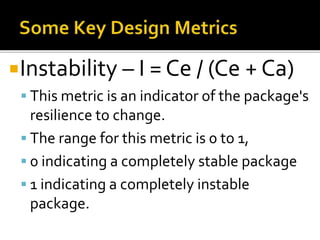

- 25. Instability – I= Ce / (Ce + Ca) This metric is an indicator of the package's resilience to change. The range for this metric is 0 to 1, 0 indicating a completely stable package 1 indicating a completely instable package.

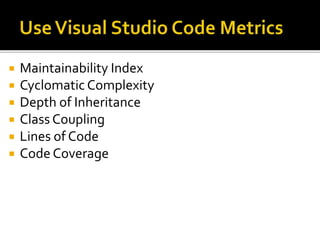

- 26. Maintainability Index Cyclomatic Complexity Depth of Inheritance Class Coupling Lines of Code Code Coverage

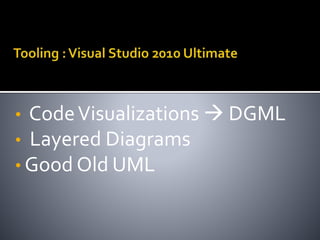

- 27. • CodeVisualizations DGML • Layered Diagrams • Good Old UML
- 28.

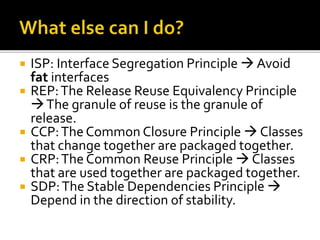

- 29. ISP: InterfaceSegregation Principle Avoid fat interfaces REP:The Release Reuse Equivalency Principle The granule of reuse is the granule of release. CCP:The Common Closure Principle Classes that change together are packaged together. CRP:The Common Reuse Principle Classes that are used together are packaged together. SDP:The Stable Dependencies Principle Depend in the direction of stability.

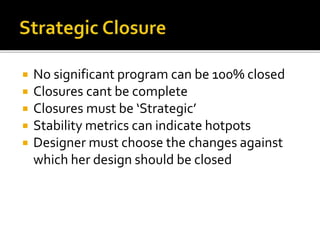

- 30. No significantprogram can be 100% closed Closures cant be complete Closures must be ‘Strategic’ Stability metrics can indicate hotpots Designer must choose the changes against which her design should be closed

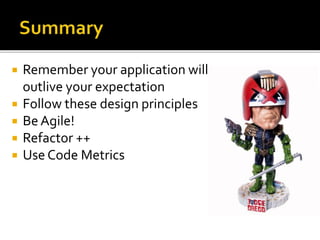

- 31. Remember yourapplication will outlive your expectation Follow these design principles Be Agile! Refactor ++ Use Code Metrics

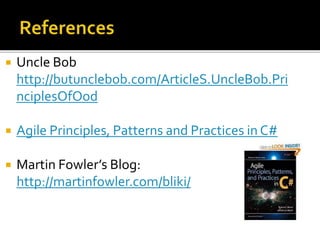

- 32. Uncle Bob http://butunclebob.com/ArticleS.UncleBob.Pri nciplesOfOod Agile Principles, Patterns and Practices in C# Martin Fowler’s Blog: http://martinfowler.com/bliki/
- 33. © 2010 MicrosoftCorporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
