HBase in Alibaba Search
ShaoXuan Wang, Yu Li
{shaoxuan.wsx, jueding.ly}
@alibaba-inc.com

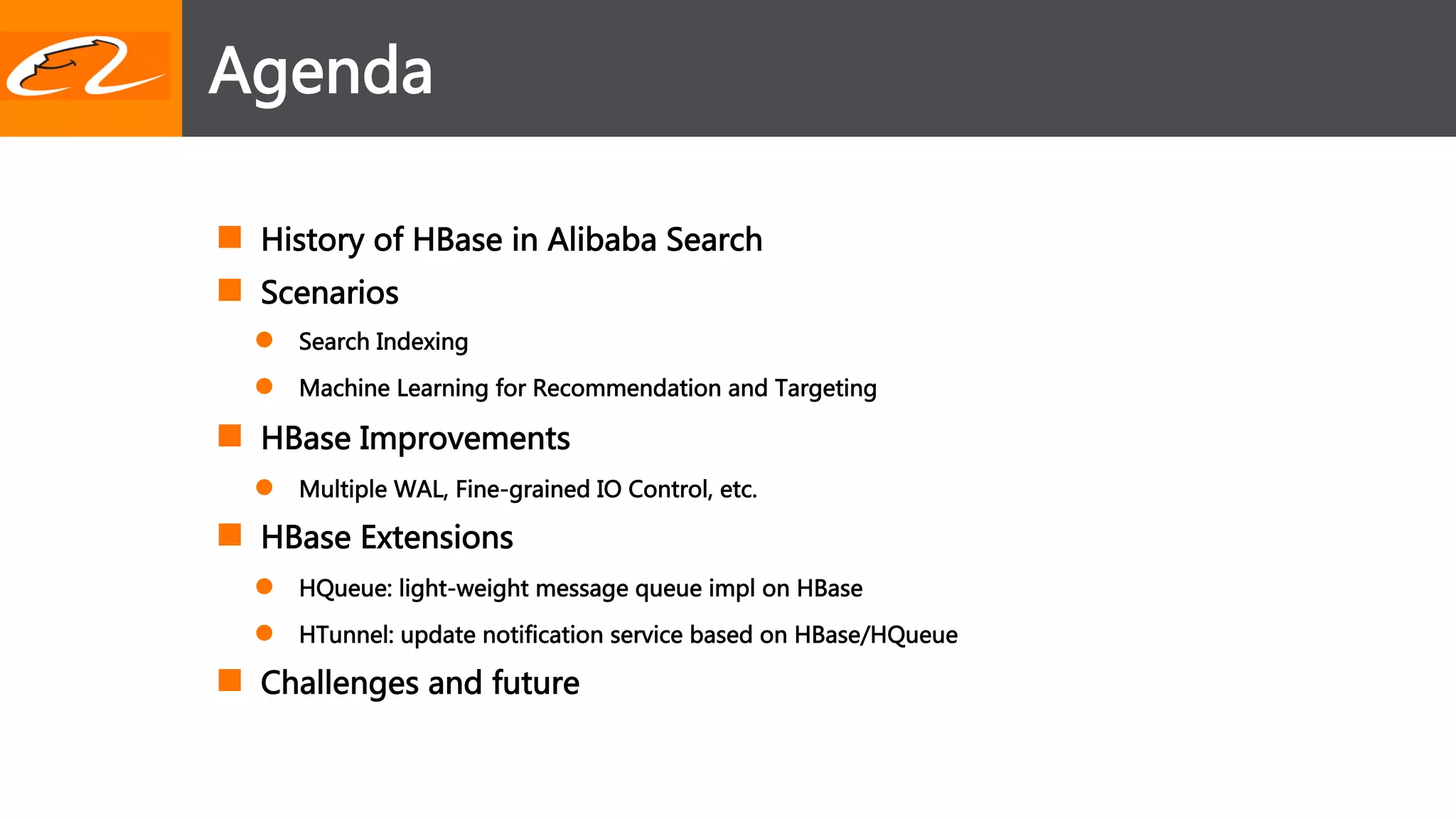

Agenda
n  History  of  HBase  in  Alibaba  Search
n  Scenarios
l  Search  Indexing
l  Machine  Learning  for  Recommendation  and  Targeting
n  HBase  Improvements
l  Multiple  WAL,  Fine-grained  IO  Control,  etc.
n  HBase  Extensions
l  HQueue:  light-weight  message  queue  impl  on  HBase
l  HTunnel:  update  notification  service  based  on  HBase/HQueue
n  Challenges  and  future

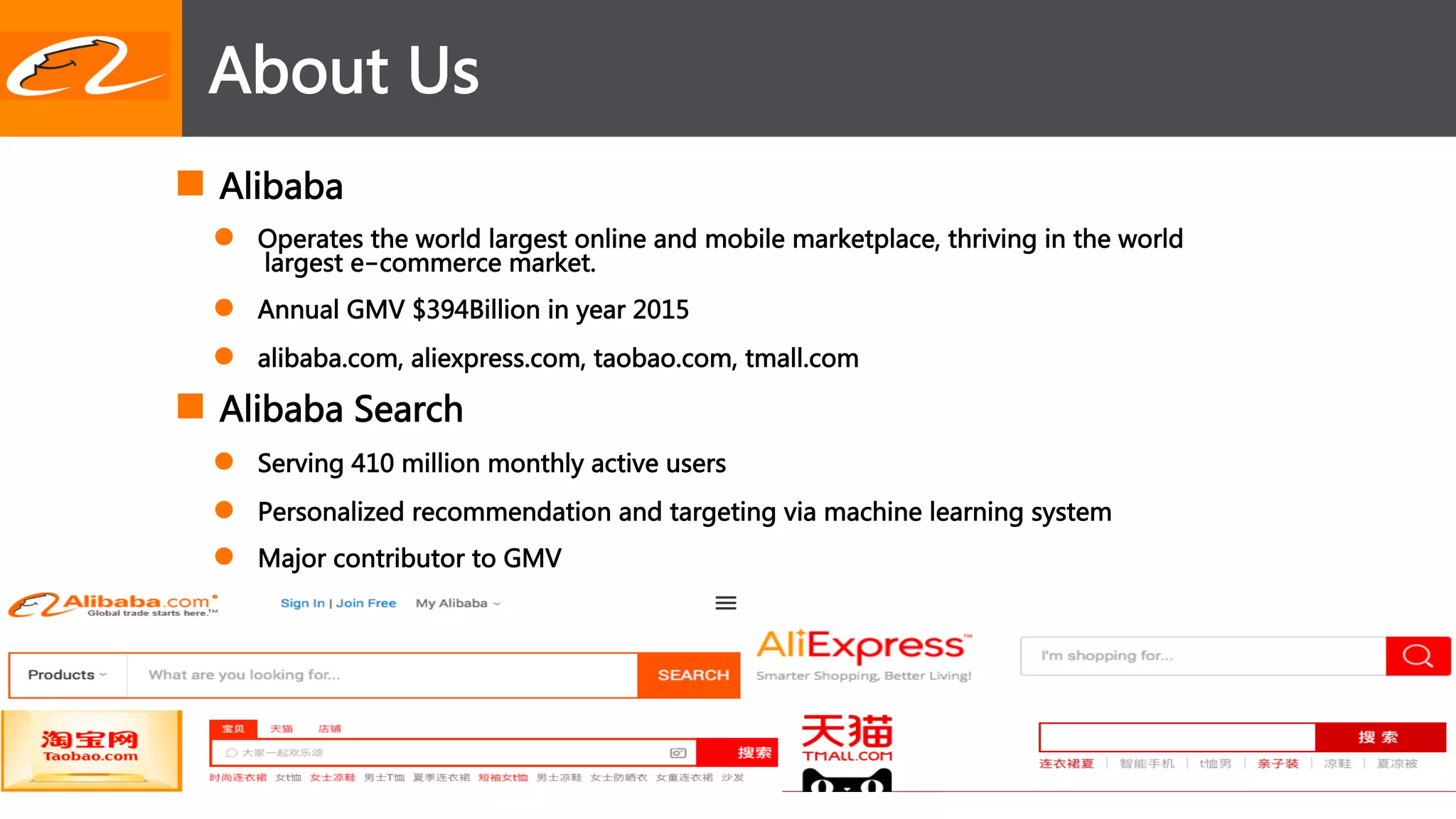

About  Us
n  Alibaba
l  Operates  the  world  largest  online  and  mobile  marketplace,  thriving  in  the  world
  largest  e-commerce  market.
l  Annual  GMV  $394Billion  in  year  2015
l  alibaba.com,  aliexpress.com,  taobao.com,  tmall.com
n  Alibaba  Search
l  Serving  410  million  monthly  active  users
l  Personalized  recommendation  and  targeting  via  machine  learning  system
l  Major  contributor  to  GMV
HBase  in  Alibaba  Search
n HBase  is  the  core  storage  in  Alibaba  search  system,  since  2010
n History  of  version  used  online
l  2010~2014:  0.20.6à0.90.3à0.92.1à0.94.1à0.94.2à0.94.5
l  2014~2015:  0.94à0.98.1à0.98.4à0.98.8à0.98.12
l  2016:  0.98.12à1.1.2
n Current  scale
l  3  clusters  each  with  1,000+  nodes
l  Shared  with  Flink/Yarn
l  Serving  over  10Million/s  Ops  throughout  the  day

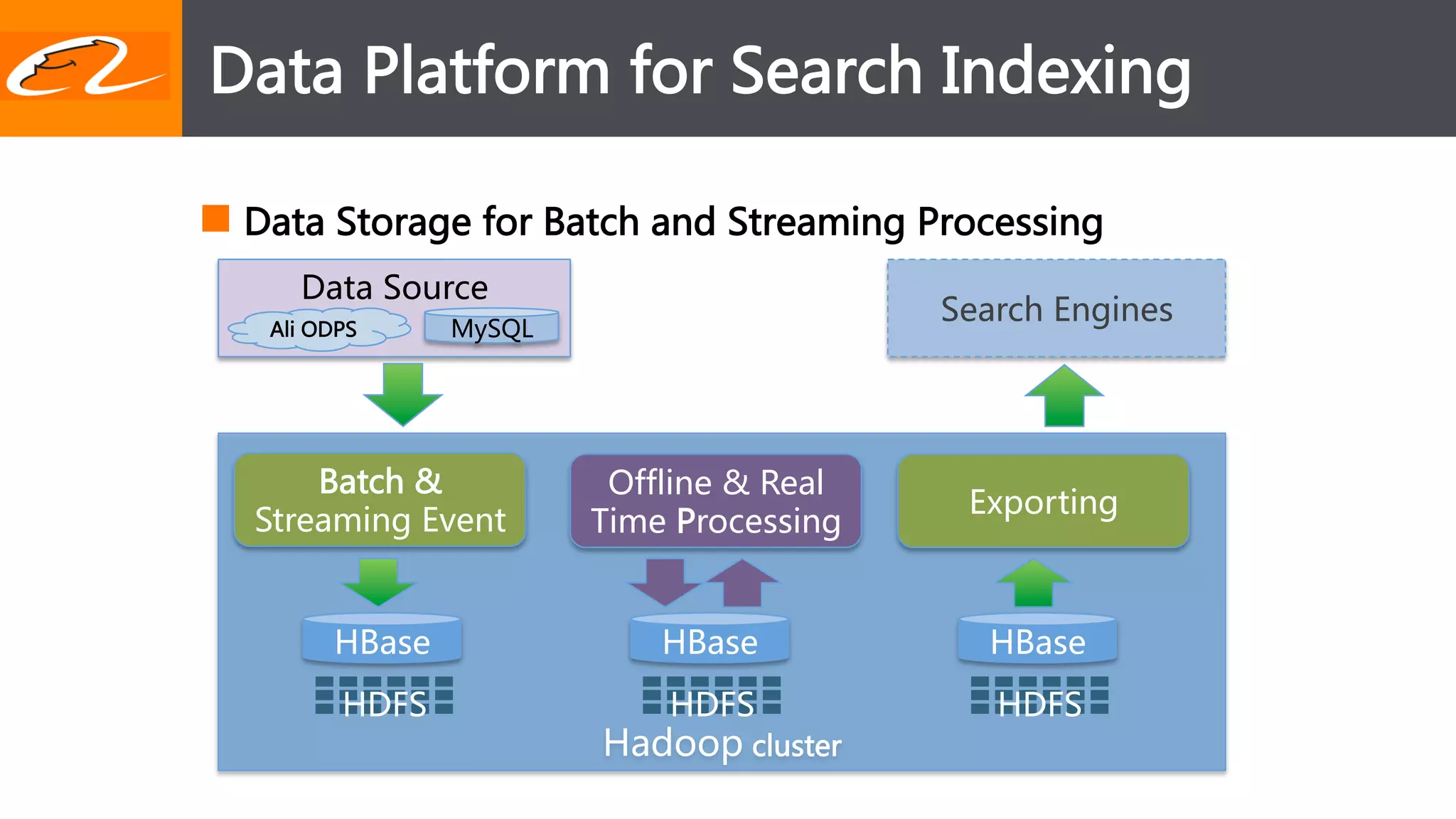

Data  Platform  for  Search  Indexing
n Data  Storage  for  Batch  and  Streaming  Processing
Data  Source
Hadoop  cluster
HBase
Batch  &
Streaming  Event
Offline  &  Real
Time  Processing
Exporting
Ali  ODPS   MySQL
Search  Engines
HBase   HBase
HDFS   HDFS   HDFS

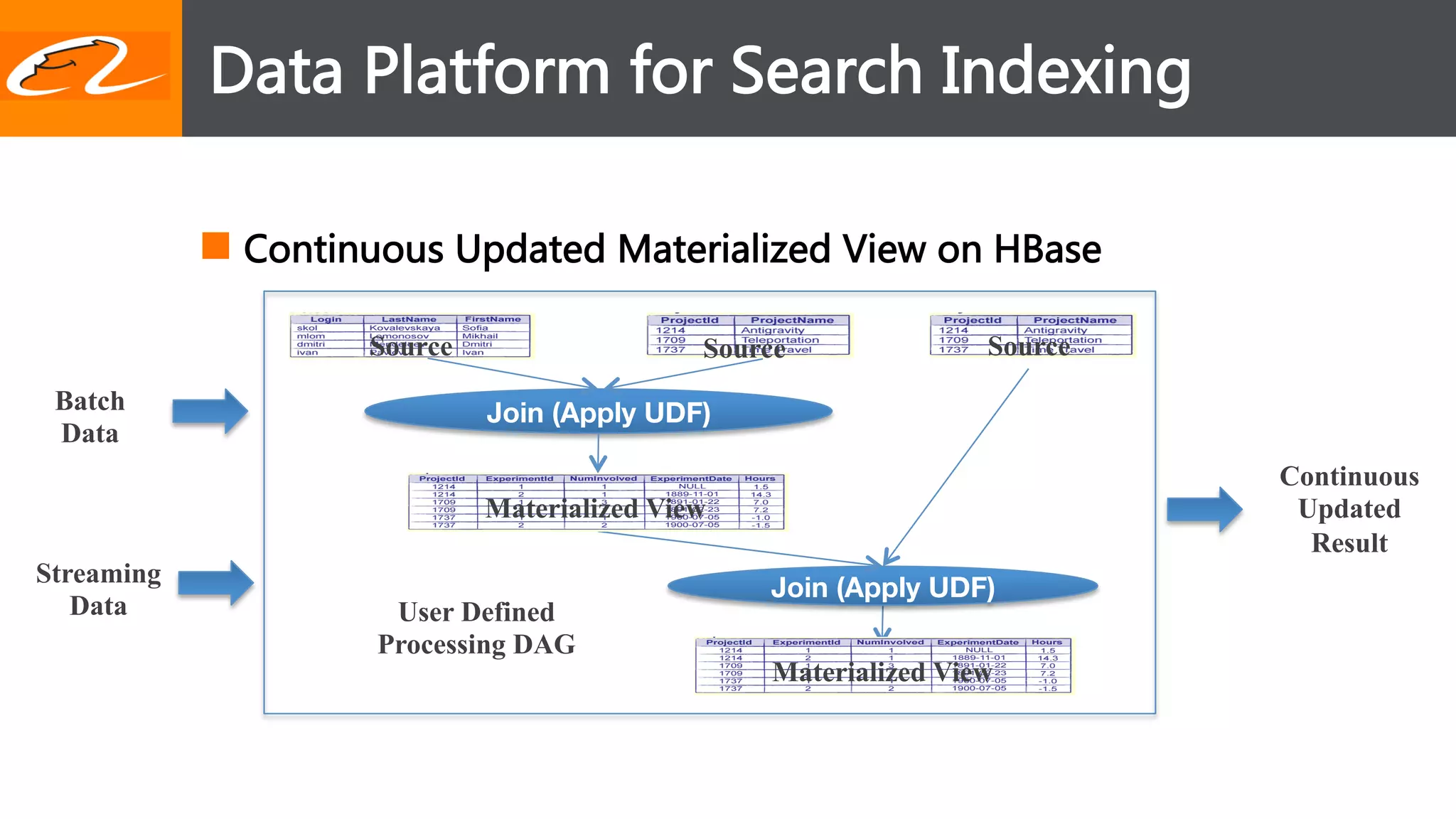

Data  Platform  for  Search  Indexing
n Continuous  Updated  Materialized  View  on  HBase
Streaming
Data
Join (Apply UDF)
Source Source Source
Join (Apply UDF)
Materialized View
Materialized View
User Defined
Processing DAG
Batch
Data
Continuous
Updated
Result

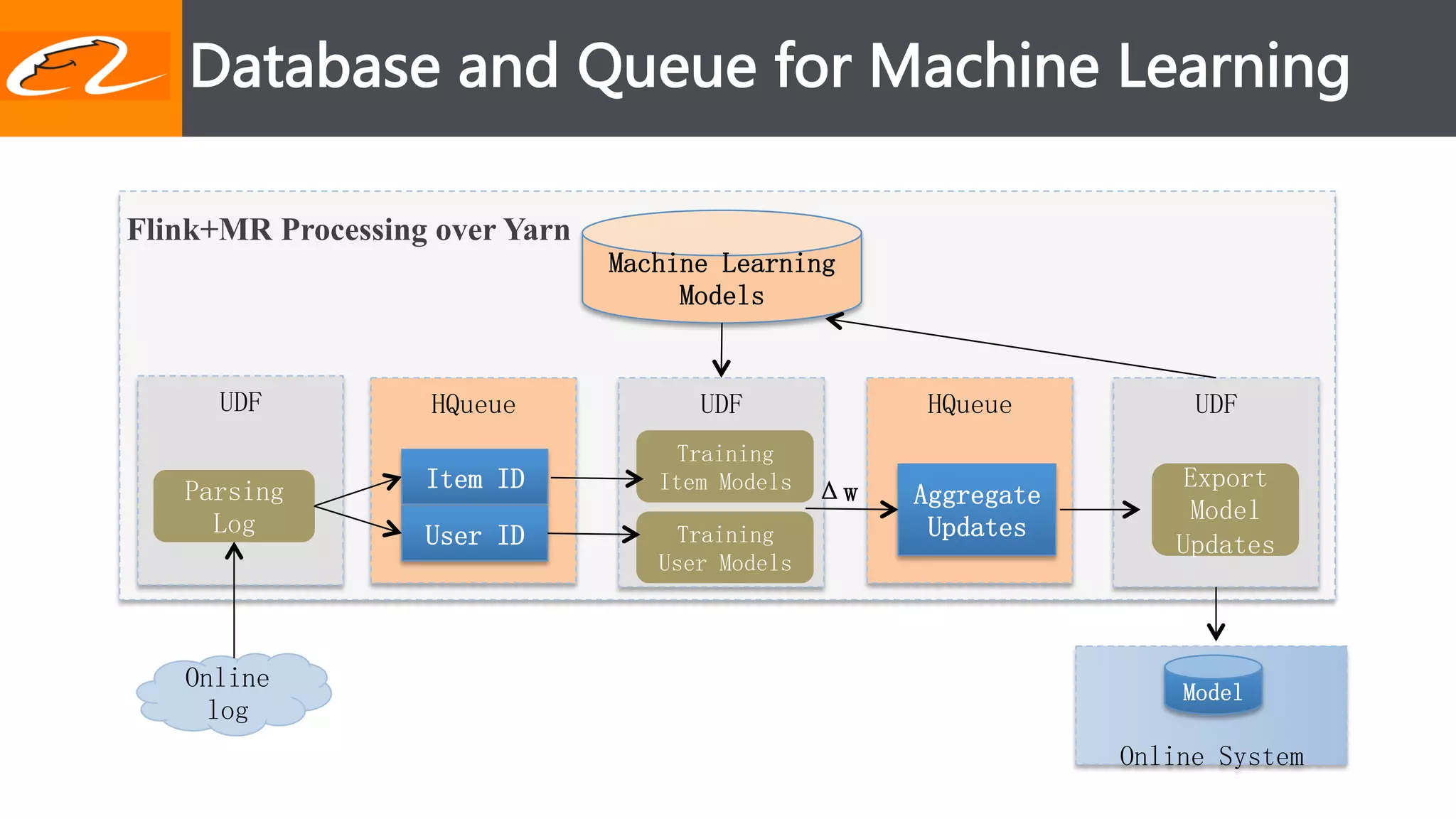

Database  and  Queue  for  Machine  Learning
UDF UDF UDFHQueue
Online
log
Parsing
Log Training
User Models
Training
Item ModelsItem ID
User ID
HQueue
Aggregate
Updates
Machine Learning
Models
Online System
Δw
 Export
Model
Updates
Model
Flink+MR Processing over Yarn

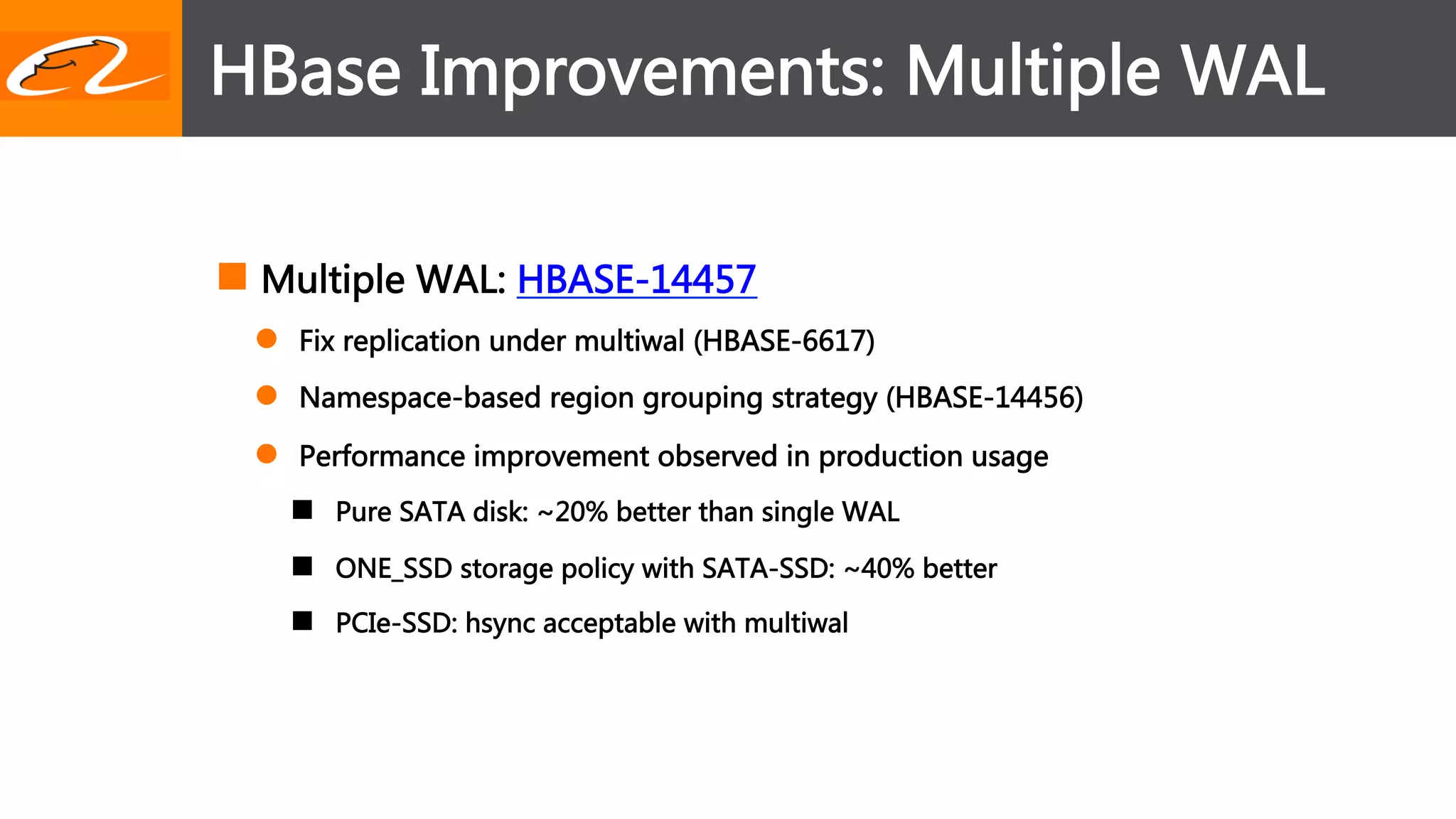

HBase  Improvements:  Multiple  WAL
n Multiple  WAL:  HBASE-14457
l  Fix  replication  under  multiwal  (HBASE-6617)
l  Namespace-based  region  grouping  strategy  (HBASE-14456)
l  Performance  improvement  observed  in  production  usage
n  Pure  SATA  disk:  ~20%  better  than  single  WAL
n  ONE_SSD  storage  policy  with  SATA-SSD:  ~40%  better
n  PCIe-SSD:  hsync  acceptable  with  multiwal

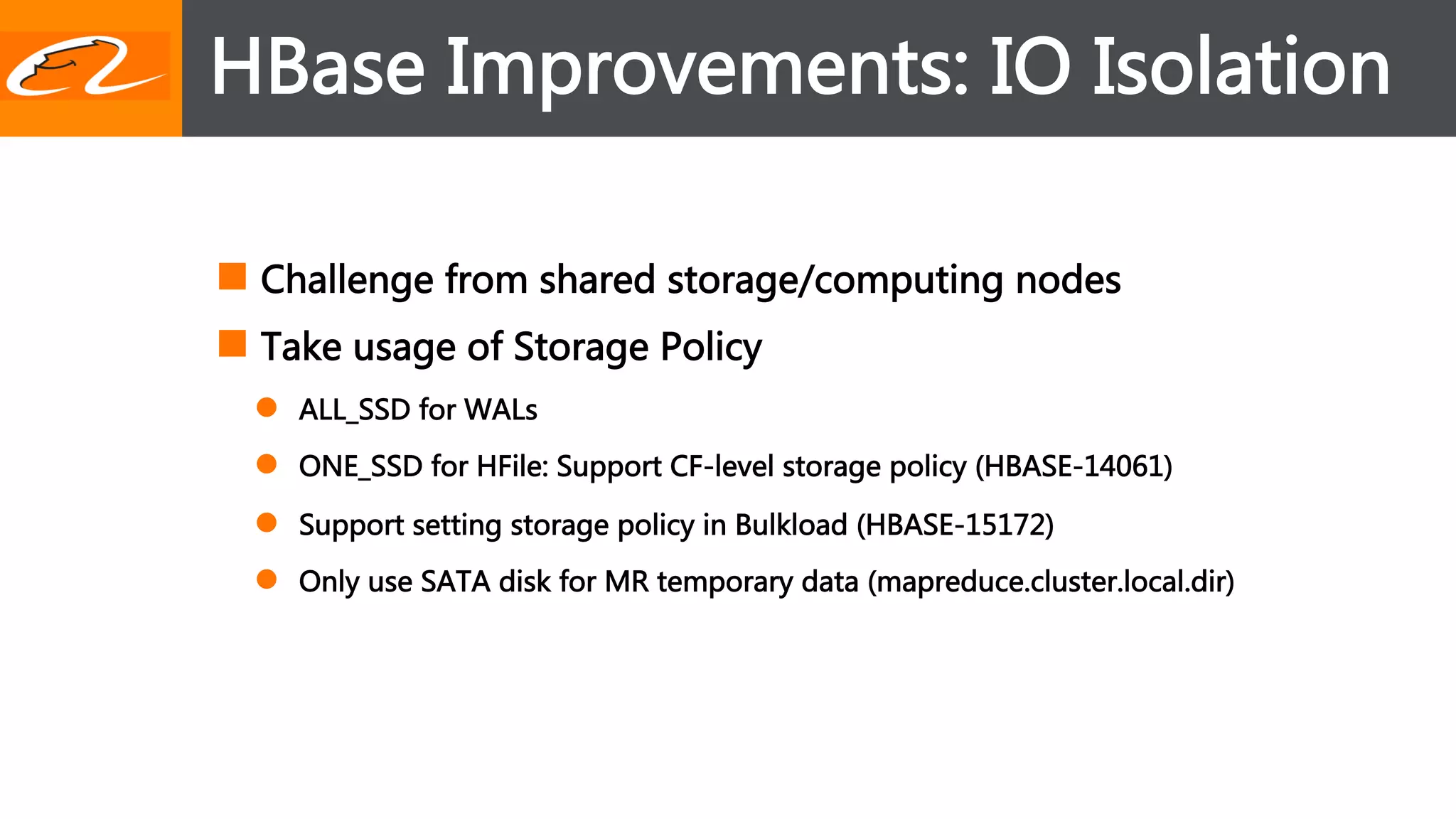

HBase  Improvements:  IO  Isolation
n Challenge  from  shared  storage/computing  nodes
n Take  usage  of  Storage  Policy
l  ALL_SSD  for  WALs
l  ONE_SSD  for  HFile:  Support  CF-level  storage  policy  (HBASE-14061)
l  Support  setting  storage  policy  in  Bulkload  (HBASE-15172)
l  Only  use  SATA  disk  for  MR  temporary  data  (mapreduce.cluster.local.dir)

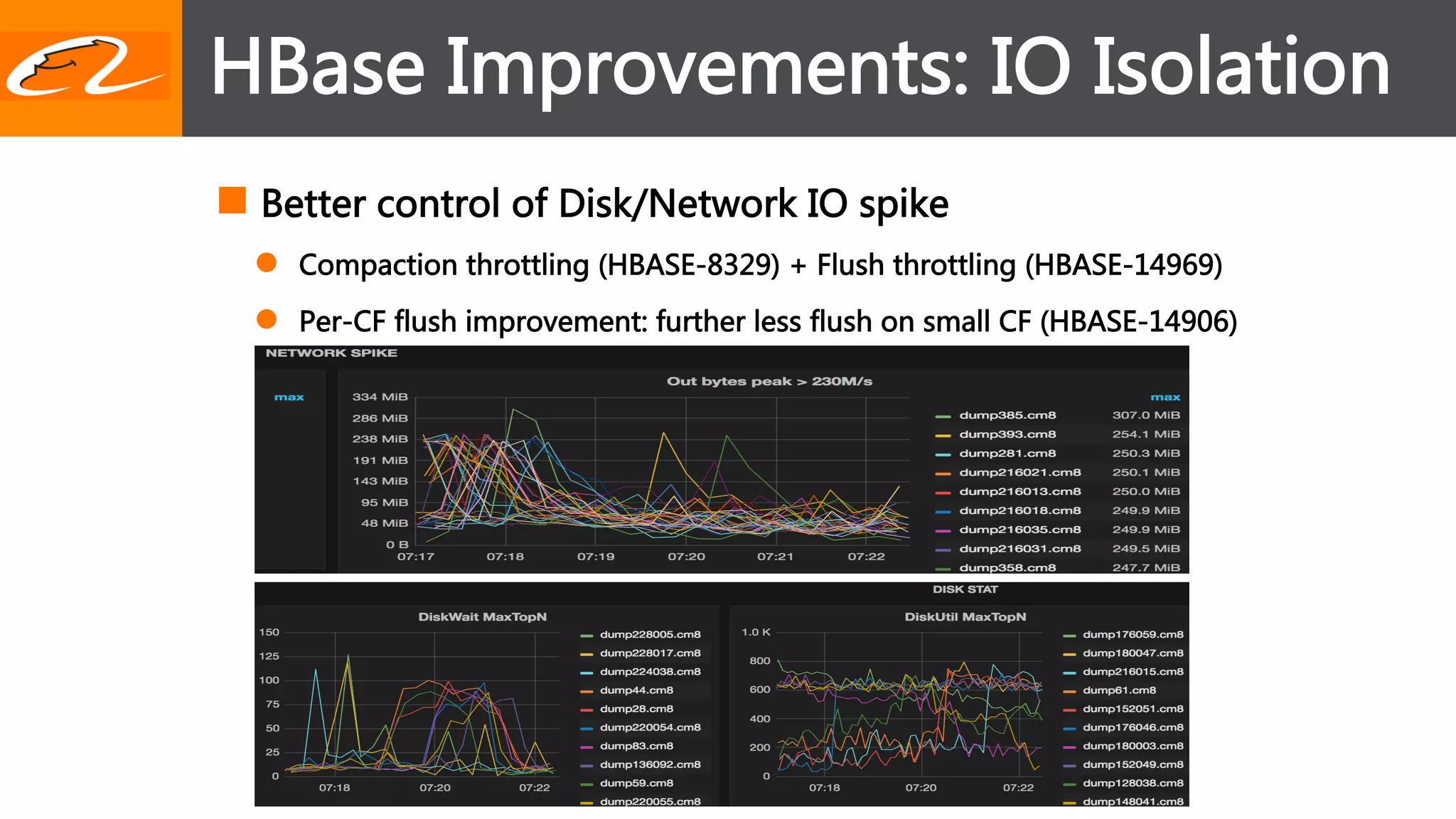

HBase  Improvements:  IO  Isolation
n Better  control  of  Disk/Network  IO  spike
l  Compaction  throttling  (HBASE-8329)  +  Flush  throttling  (HBASE-14969)
l  Per-CF  flush  improvement:  further  less  flush  on  small  CF  (HBASE-14906)

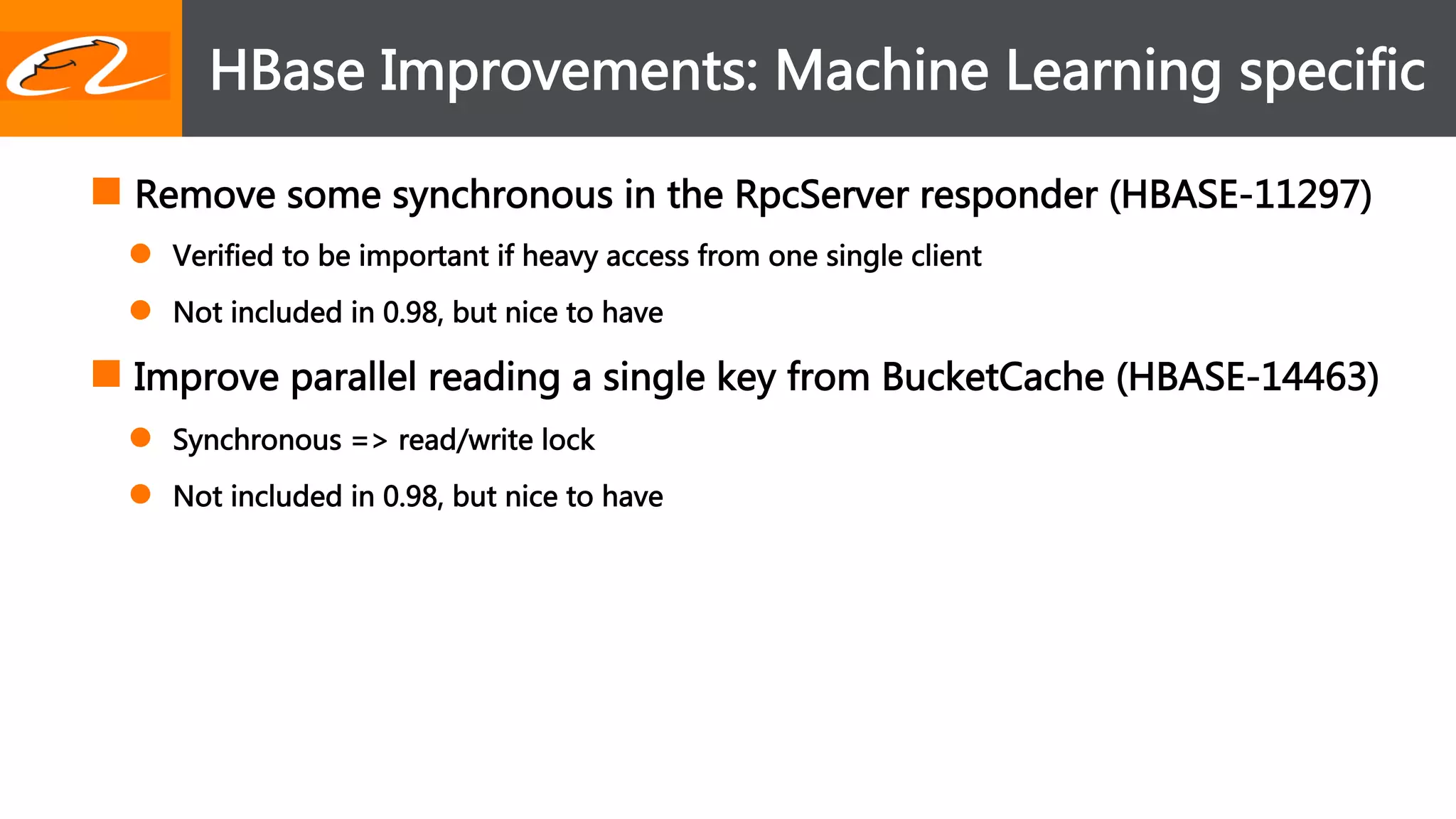

HBase  Improvements:  Machine  Learning  specific
n Remove  some  synchronous  in  the  RpcServer  responder  (HBASE-11297)
l  Verified  to  be  important  if  heavy  access  from  one  single  client
l  Not  included  in  0.98,  but  nice  to  have
n Improve  parallel  reading  a  single  key  from  BucketCache  (HBASE-14463)
l  Synchronous  =>  read/write  lock
l  Not  included  in  0.98,  but  nice  to  have

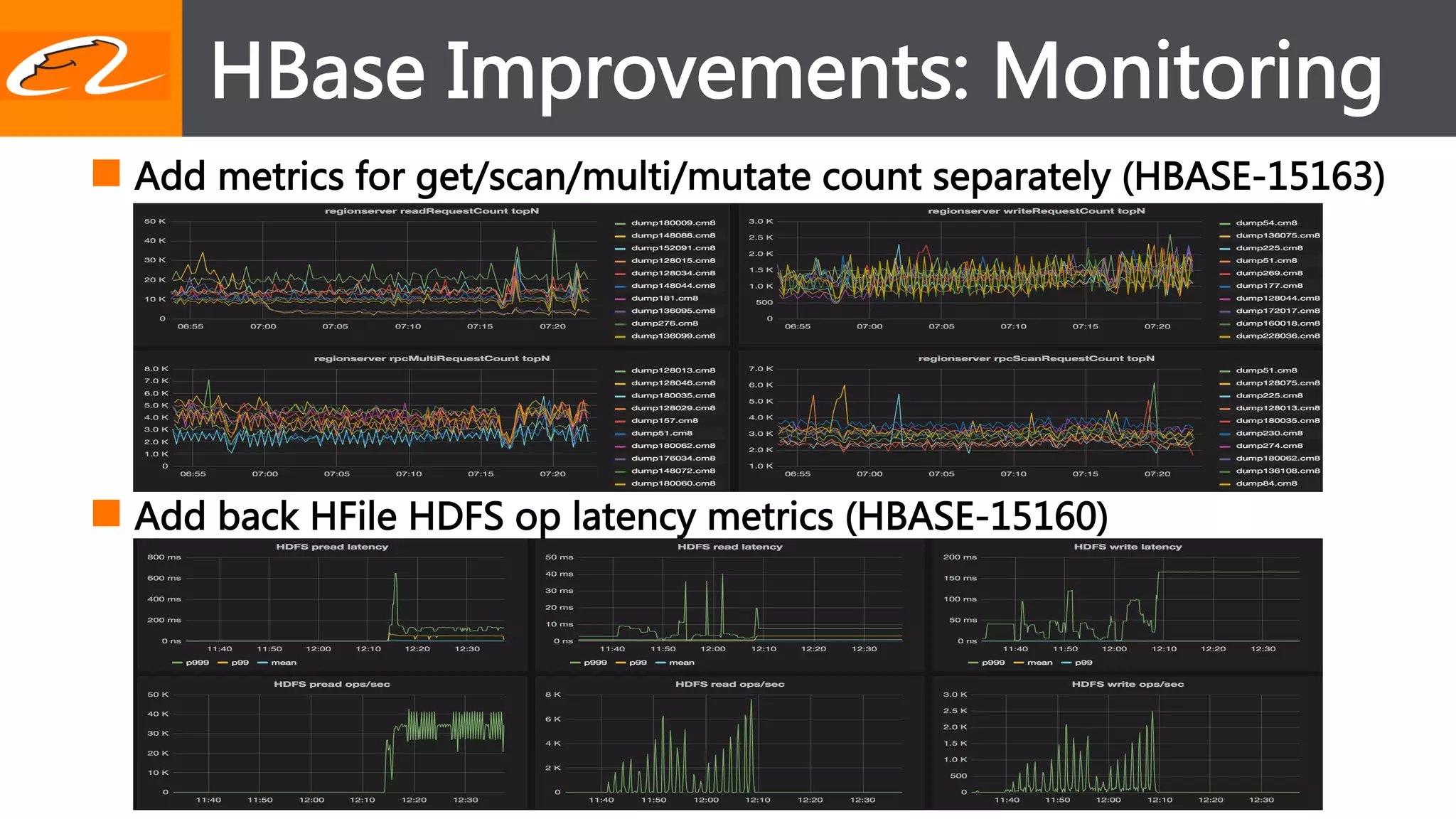

HBase  Improvements:  Monitoring
n Add  metrics  for  get/scan/multi/mutate  count  separately  (HBASE-15163)

n Add  back  HFile  HDFS  op  latency  metrics  (HBASE-15160)

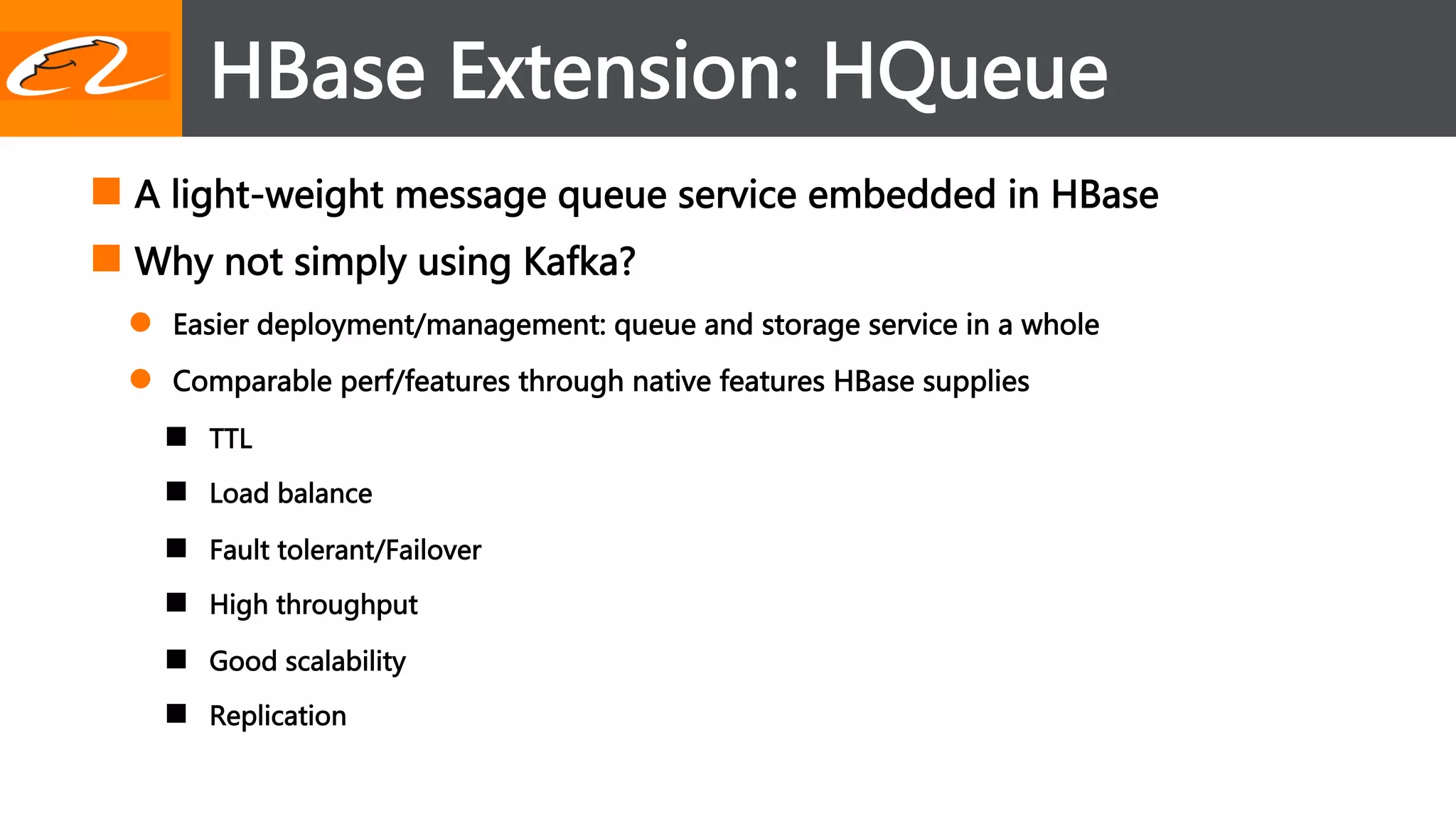

HBase  Extension:  HQueue
n A  light-weight  message  queue  service  embedded  in  HBase
n Why  not  simply  using  Kafka?
l  Easier  deployment/management:  queue  and  storage  service  in  a  whole
l  Comparable  perf/features  through  native  features  HBase  supplies
n  TTL
n  Load  balance
n  Fault  tolerant/Failover
n  High  throughput
n  Good  scalability
n  Replication

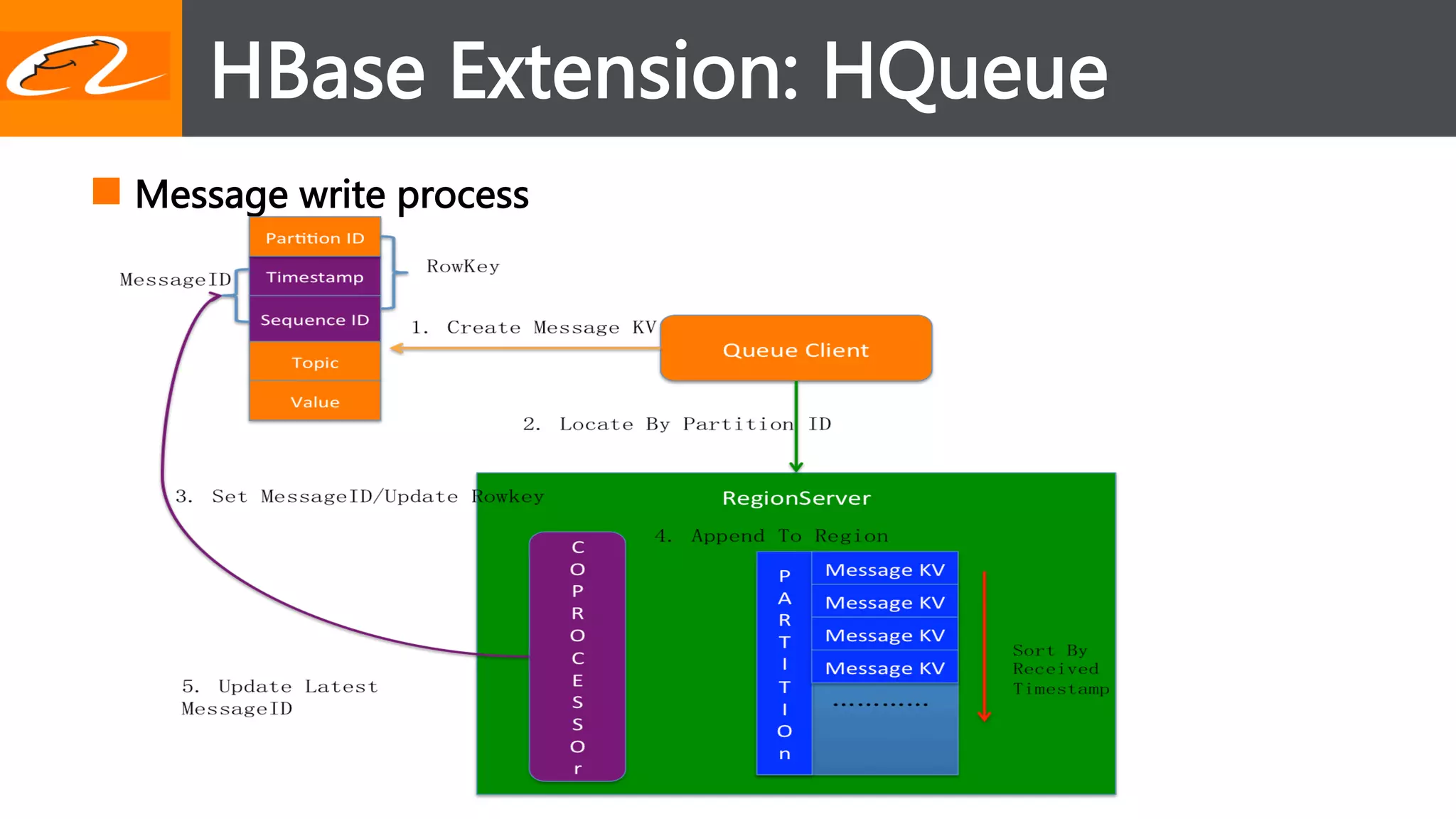

HBase  Extension:  HQueue
n Message  write  process

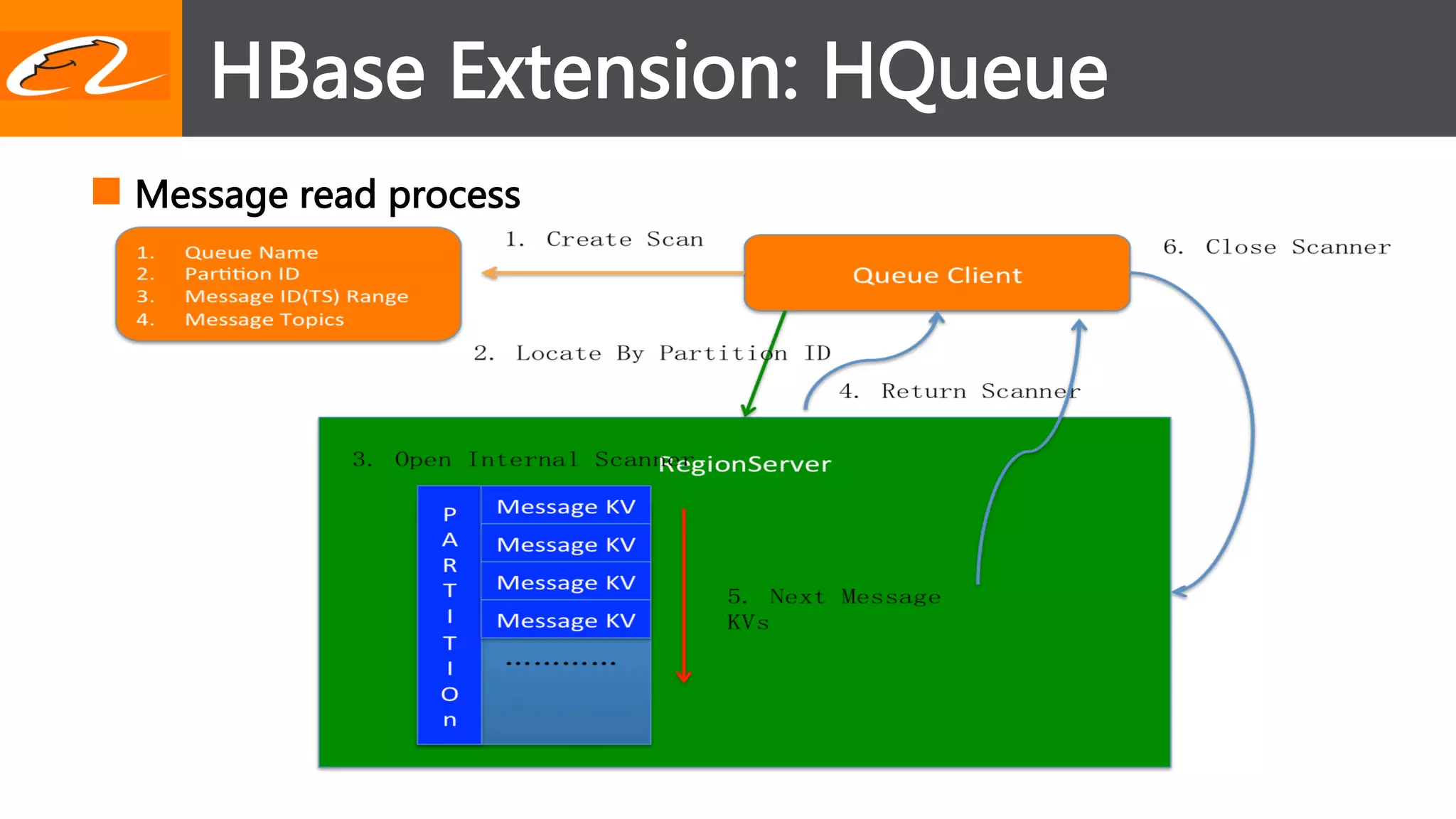

HBase  Extension:  HQueue
n Message  read  process
n An  update-notification  service  based  on  HBase/HQueue
n Similar  mechanism  to  replication
n Architecture
HBase  Extension:  HTunnel

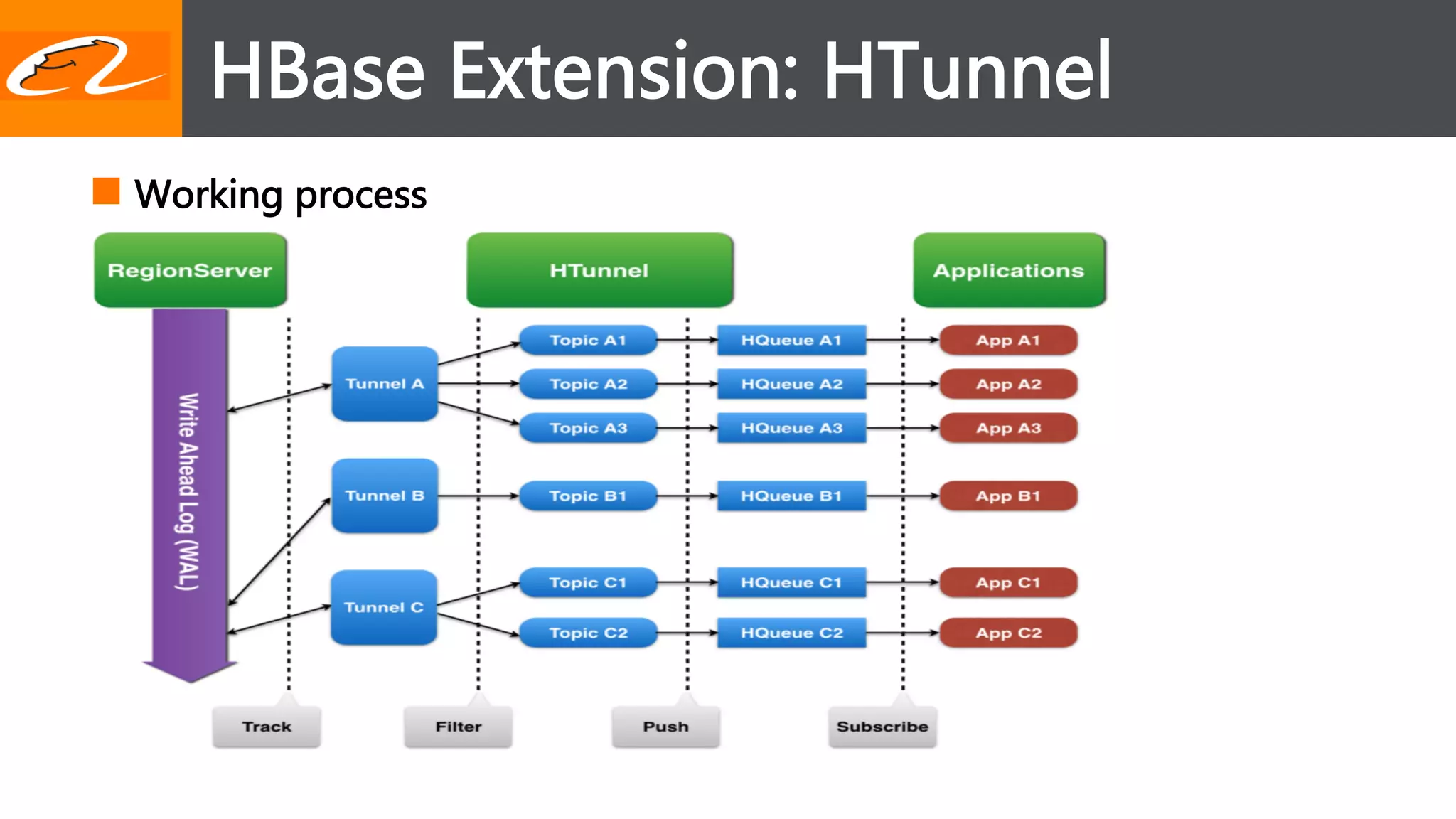

HBase  Extension:  HTunnel
n Working  process
Challenges  and  future
n Meet  hardware  revolution
l  PCIe-SSD  plus  10Gb  network  card
l  Optimization  required  on  RPC/HDFS  layer
l  CPU  may  become  bottleneck
n Meet  challenges  from  new  database
l  HBase  v.s.  Rocksdb
Q  &  A
Thank  You!
