Implementing Cloud-native apps on OCI

© OPITZ CONSULTING 2021 / Öffentlich
Implementing Cloud-native Apps on OCI 1
Cologne, 2021-12-09
Sven Bernhardt
IMPLEMENTING CLOUD-NATIVE APPS
ON OCI

THAT‘S ME
Sven Bernhardt
Cloud-Native enthusiast, API & integration geek. Always curious how new
technologies and concepts can help to make things more valuable and efficient.
¢ Chief Architect / Integration Evangelist@OPITZ CONSULTING Deutschland GmbH
¢ Oracle ACE Director
@sbernhardt
https://svenbernhardt.wordpress.com/

WHY CLOUD-NATIVE?
https://opitzcloud.canto.global/b/S97PB

MAIN CHALLENGE: ENSURE THE ABILITY TO INNOVATE
Source: https://konghq.com/resources/digital-innovation-benchmark-2021/

CLOUD-NATIVE APPS
¢ Designed for change with the following characteristics:
¢ Loose coupling
¢ Resilient and fault tolerant
¢ Scalable
¢ Manageable
¢ Observable
¢ Adhere to the 12-factor app methodology
¢ CNCF Cloud-native definition states:
Cloud-native
Microservices
CI / CD
DevOps
Containers
… loosely coupled systems that are resilient, manageable,
and observable. Combined with robust automation, they allow
engineers to make high-impact changes frequently and
predictably with minimal toil.

CLOUD-NATIVE IS NOT JUST ABOUT CLOUD, IT’S ABOUT…
¢ Designing apps to run in scalable, dynamic environments
¢ On-premises
¢ Public or private Cloud
¢ Implementing applications that are portable across different platforms
¢ Leveraging the capabilities of the underlying runtime platforms
¢ Focus on business requirements
¢ Faster time-2-market
¢ Increased Developers productivity

TRADITIONAL VS CLOUD-NATIVE SYSTEMS
¢ Single Deployment unit
¢ Single execution process
¢ Shared database
¢ Local, app-internal communication only
¢ Multiple Deployment units
¢ Exclusive execution process per service
¢ Database per Service (usually)
¢ Remote, inter-service communication
UI
Business
Logic
Persistence

WAY TO CLOUD-NATIVE
https://opitzcloud.canto.global/b/M0IQC

ACHIEVE LOOSE COUPLING THROUGH API DESIGN-FIRST APPROACH
¢ Synchronous APIs
¢ REST (OpenAPI)
¢ GraphQL
¢ gRPC
¢ Asynchronous APIs (preferred)
¢ Async API

SPEED UP APP DELIVERY BY AUTOMATING THE DELIVERY PIPELINE
¢ Assumes no cycles and concentrates on the main process from commit to production
Commit Stage Build Stage
Automated
Verification
Stage
Deploy to
staging
environments
Manual
Acceptance
Test
Load Test /
Performance
Test
Security Test
Deploy to
prod
environments
Release
Code Pipeline Deployment Pipeline
¢ Ensure Software is always releasable
¢ Runs less often, only if software is
guaranteed to be working
¢ Feedback cycles often days up to 2-4 weeks
¢ Runs often
¢ Feedback cycles 10-15 min
Continuous Delivery Continuous Deployment
¢ Automatic deploy
and release to prod
¢ Needs to eleminate
manual steps in
continuous delivery

SHIFT-LEFT: CLOUD-NATIVE REQUIRES CHANGED DEVELOPER
MINDSET
¢ More responsibility on the developer side
¢ Move tasks from later stages to earlier stages in the pipeline to shorten cycle time
¢ Identifying issues earlier in the pipeline makes it cheaper to address issues
¢ Ensure quality earlier in the pipeline

DEVELOPERS NEED TO EMBRACE TECHNOLOGY
https://landscape.cncf.io/

CNCF CLOUD-NATIVE TRAIL MAP
Source: https://github.com/cncf/trailmap

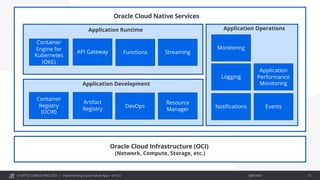

OCI CLOUD-NATIVE SERVICES
https://opitzcloud.canto.global/b/M0IQC

Oracle Cloud Infrastructure (OCI)
(Network, Compute, Storage, etc.)
Oracle Cloud Native Services
Container
Engine for
Kubernetes
(OKE)
API Gateway Functions Streaming
Application Runtime
Container
Registry
(OCIR)
Resource
Manager
Application Development
Artifact
Registry
DevOps
Monitoring
Logging
Events
Application Operations
Notifications
Application
Performance
Monitoring

APPLICATION RUNTIME: ORACLE CONTAINER ENGINE FOR
KUBERNETES (OKE)
Based on IaaS Oracle
Compute Cloud Service
Worker Nodes: VM
Master Node:
•Managed and maintained by Oracle
•Not visible for the end user
•Master nodes are free of charge
Auto-scaling capabilities
using Worker-Node Pools
Can be provisioned using
OCI Cloud Console
OCI Cloud Shell
OCI CLI
Terraform (OCI Resource Manager)

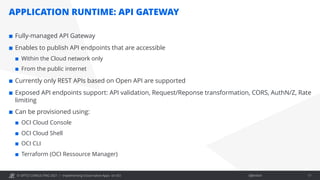

APPLICATION RUNTIME: API GATEWAY
¢ Fully-managed API Gateway
¢ Enables to publish API endpoints that are accessible
¢ Within the Cloud network only
¢ From the public internet
¢ Currently only REST APIs based on Open API are supported
¢ Exposed API endpoints support: API validation, Request/Reponse transformation, CORS, AuthN/Z, Rate
limiting
¢ Can be provisioned using:
¢ OCI Cloud Console
¢ OCI Cloud Shell
¢ OCI CLI
¢ Terraform (OCI Ressource Manager)

APPLICATION RUNTIME: FUNCTIONS
¢ Build FaaS-style apps
¢ Developers are not required to manage any infrastructure and just need to implement business
code
¢ Build upon open standards and based on Fn project
¢ Multi language support through Function Developer Kit (FDK)
¢ FDKs comprise of different building blocks, like
¢ Language-specific Fn libraries
¢ Build-Time Docker images
¢ Minimal runtime Docker images
¢ Fn CLI is used to manage and create Functions

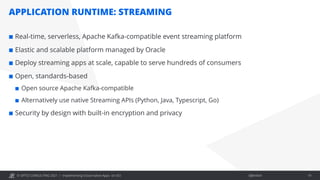

APPLICATION RUNTIME: STREAMING
¢ Real-time, serverless, Apache Kafka-compatible event streaming platform
¢ Elastic and scalable platform managed by Oracle
¢ Deploy streaming apps at scale, capable to serve hundreds of consumers
¢ Open, standards-based
¢ Open source Apache Kafka-compatible
¢ Alternatively use native Streaming APIs (Python, Java, Typescript, Go)
¢ Security by design with built-in encryption and privacy

APPLICATION DEVELOPMENT: CONTAINER REGISTRY
¢ Open standards-based, Oracle-managed Docker registry service for securely storing and
sharing container images (Docker v2 compliant)
¢ Data protection through integration with OCI object storage
¢ Automatic clean up old docker images (Retention policies)
¢ Integrates with different OCI services and 3rd party DevOps and dev tools (Jenkins, Gitlab)
¢ Container Engine for Kubernetes (OKE)
¢ Identity and Access Management (IAM)
¢ Visual Builder Studio
¢ Docker containers can be pushed/pulled by Docker CLI and API

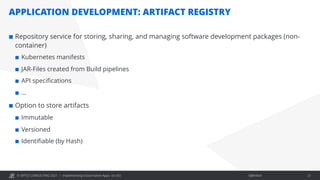

APPLICATION DEVELOPMENT: ARTIFACT REGISTRY
¢ Repository service for storing, sharing, and managing software development packages (non-
container)
¢ Kubernetes manifests
¢ JAR-Files created from Build pipelines
¢ API specifications
¢ …
¢ Option to store artifacts
¢ Immutable
¢ Versioned
¢ Identifiable (by Hash)

APPLICATION DEVELOPMENT: DEVOPS
¢ End-to-end, continuous integration and continuous delivery (CI/CD) platform
¢ Service provides:
¢ Private Git repositories (allows connections to external code repos)
¢ Build pipelines
¢ Deployment pipelines
Code
Repository
External
Connection
Trigger
Build
Pipeline
Container
Registry
Artifact
Registry
Artifact
Deployment
Pipeline
OKE
Functions
Compute

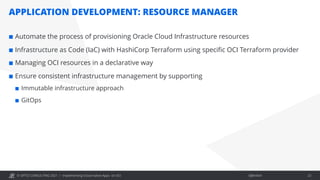

APPLICATION DEVELOPMENT: RESOURCE MANAGER
¢ Automate the process of provisioning Oracle Cloud Infrastructure resources
¢ Infrastructure as Code (IaC) with HashiCorp Terraform using specific OCI Terraform provider
¢ Managing OCI resources in a declarative way
¢ Ensure consistent infrastructure management by supporting
¢ Immutable infrastructure approach
¢ GitOps

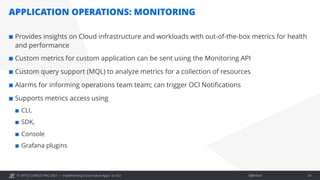

APPLICATION OPERATIONS: MONITORING
¢ Provides insights on Cloud infrastructure and workloads with out-of-the-box metrics for health
and performance
¢ Custom metrics for custom application can be sent using the Monitoring API
¢ Custom query support (MQL) to analyze metrics for a collection of resources
¢ Alarms for informing operations team team; can trigger OCI Notifications
¢ Supports metrics access using
¢ CLI,
¢ SDK,
¢ Console
¢ Grafana plugins

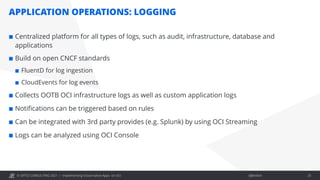

APPLICATION OPERATIONS: LOGGING
¢ Centralized platform for all types of logs, such as audit, infrastructure, database and
applications
¢ Build on open CNCF standards
¢ FluentD for log ingestion
¢ CloudEvents for log events
¢ Collects OOTB OCI infrastructure logs as well as custom application logs
¢ Notifications can be triggered based on rules
¢ Can be integrated with 3rd party provides (e.g. Splunk) by using OCI Streaming
¢ Logs can be analyzed using OCI Console

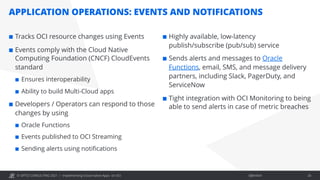

APPLICATION OPERATIONS: EVENTS AND NOTIFICATIONS
¢ Tracks OCI resource changes using Events
¢ Events comply with the Cloud Native
Computing Foundation (CNCF) CloudEvents
standard
¢ Ensures interoperability
¢ Ability to build Multi-Cloud apps
¢ Developers / Operators can respond to those
changes by using
¢ Oracle Functions
¢ Events published to OCI Streaming
¢ Sending alerts using notifications
¢ Highly available, low-latency
publish/subscribe (pub/sub) service
¢ Sends alerts and messages to Oracle
Functions, email, SMS, and message delivery
partners, including Slack, PagerDuty, and
ServiceNow
¢ Tight integration with OCI Monitoring to being
able to send alerts in case of metric breaches

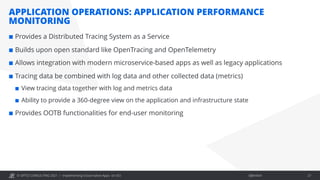

APPLICATION OPERATIONS: APPLICATION PERFORMANCE
MONITORING
¢ Provides a Distributed Tracing System as a Service
¢ Builds upon open standard like OpenTracing and OpenTelemetry
¢ Allows integration with modern microservice-based apps as well as legacy applications
¢ Tracing data be combined with log data and other collected data (metrics)
¢ View tracing data together with log and metrics data
¢ Ability to provide a 360-degree view on the application and infrastructure state
¢ Provides OOTB functionalities for end-user monitoring

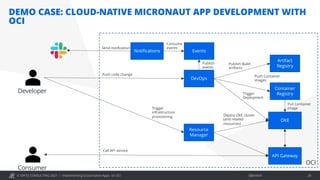

DEMO CASE: CLOUD-NATIVE MICRONAUT APP DEVELOPMENT WITH
OCI
OKE
Resource
Manager
OCI
API Gateway
DevOps
Container
Registry
Artifact
Registry
Developer
Push code change
Publish Build
artifacts
Push Container
images
Trigger
Deployment
Pull Container
Trigger
infrastructure
provisioning Deploy OKE cluster
(and related
resources)
Consumer
Events
Notifications
Publish
events
Consume
events
Send notification
Call API service

CONCLUSION
https://opitzcloud.canto.global/b/SPU2S

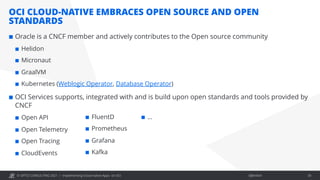

OCI CLOUD-NATIVE EMBRACES OPEN SOURCE AND OPEN
STANDARDS
¢ Oracle is a CNCF member and actively contributes to the Open source community
¢ Helidon
¢ Micronaut
¢ GraalVM
¢ Kubernetes (Weblogic Operator, Database Operator)
¢ OCI Services supports, integrated with and is build upon open standards and tools provided by
CNCF
¢ Open API
¢ Open Telemetry
¢ Open Tracing
¢ CloudEvents
¢ FluentD
¢ Prometheus
¢ Grafana
¢ Kafka
¢ …

CLOUD-NATIVE MULTI-CLOUD APPS WITH ORACLE VERRAZZANO
¢ Modernization of existing application workloads by lifting application worlkloads to the Cloud
¢ Capable of handling polyglot workloads:
¢ Cloud-native and Kubernetes workloads (e.g. Helidon)
¢ Java EE (Weblogic)
¢ Non-Java apps
¢ Manage Multi-Cloud and Multi-Cluster workloads easily
¢ Network
¢ Security
¢ Observability
Source: https://www.oracle.com/cloud-native/

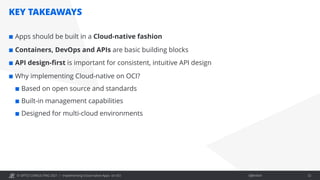

KEY TAKEAWAYS
¢ Apps should be built in a Cloud-native fashion
¢ Containers, DevOps and APIs are basic building blocks
¢ API design-first is important for consistent, intuitive API design
¢ Why implementing Cloud-native on OCI?
¢ Based on open source and standards
¢ Built-in management capabilities
¢ Designed for multi-cloud environments

Q & A
https://opitzcloud.canto.global/b/H0EMG

IN CASE OF ANY QUESTIONS…
Sven Bernhardt
Chief Architect / Integration Evangelist |
Oracle ACE Director
OPITZ CONSULTING Deutschland GmbH
Kirchstrasse 6, 51647 Gummersbach, Germany
Phone: +49 172 2193529
Mail: sven.bernhardt@opitz-consulting.com
Twitter: @sbernhardt
Blog: https://svenbernhardt.wordpress.com

Implementing Cloud-native apps on OCI

More Related Content

What's hot

Similar to Implementing Cloud-native apps on OCI

More from Sven Bernhardt

Recently uploaded

Implementing Cloud-native apps on OCI
