1. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.
A virtual developer conference for Adobe Experience
Manager
Introduction to Back End Development in Adobe Experience
ManagerVarun Mitra | Partner Training Instructor

2. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

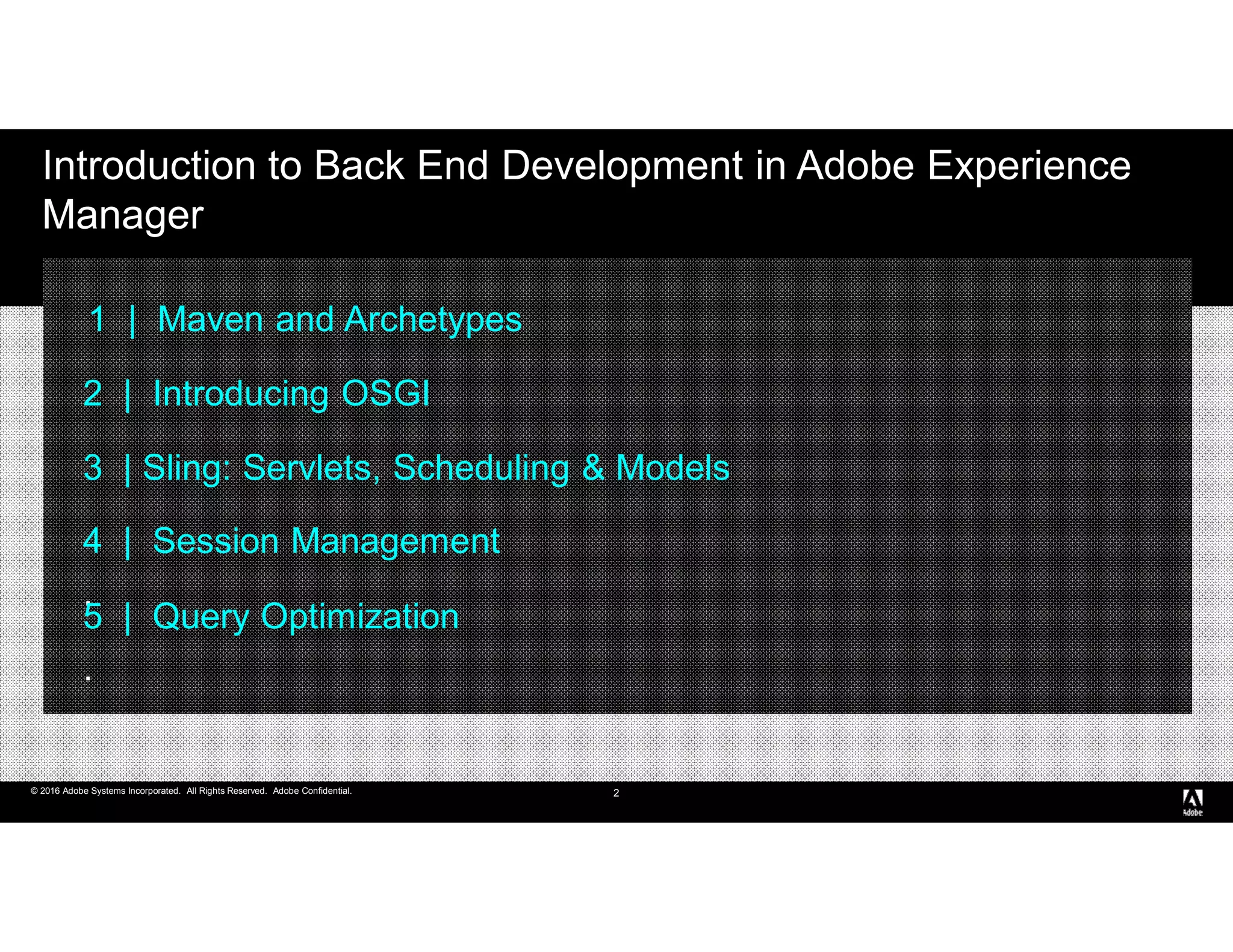

Introduction to Back End Development in Adobe Experience
Manager
2
1 | Maven and Archetypes
2 | Introducing OSGI
3 | Sling: Servlets, Scheduling & Models
4 | Session Management
.
5 | Query Optimization
.

3. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 3

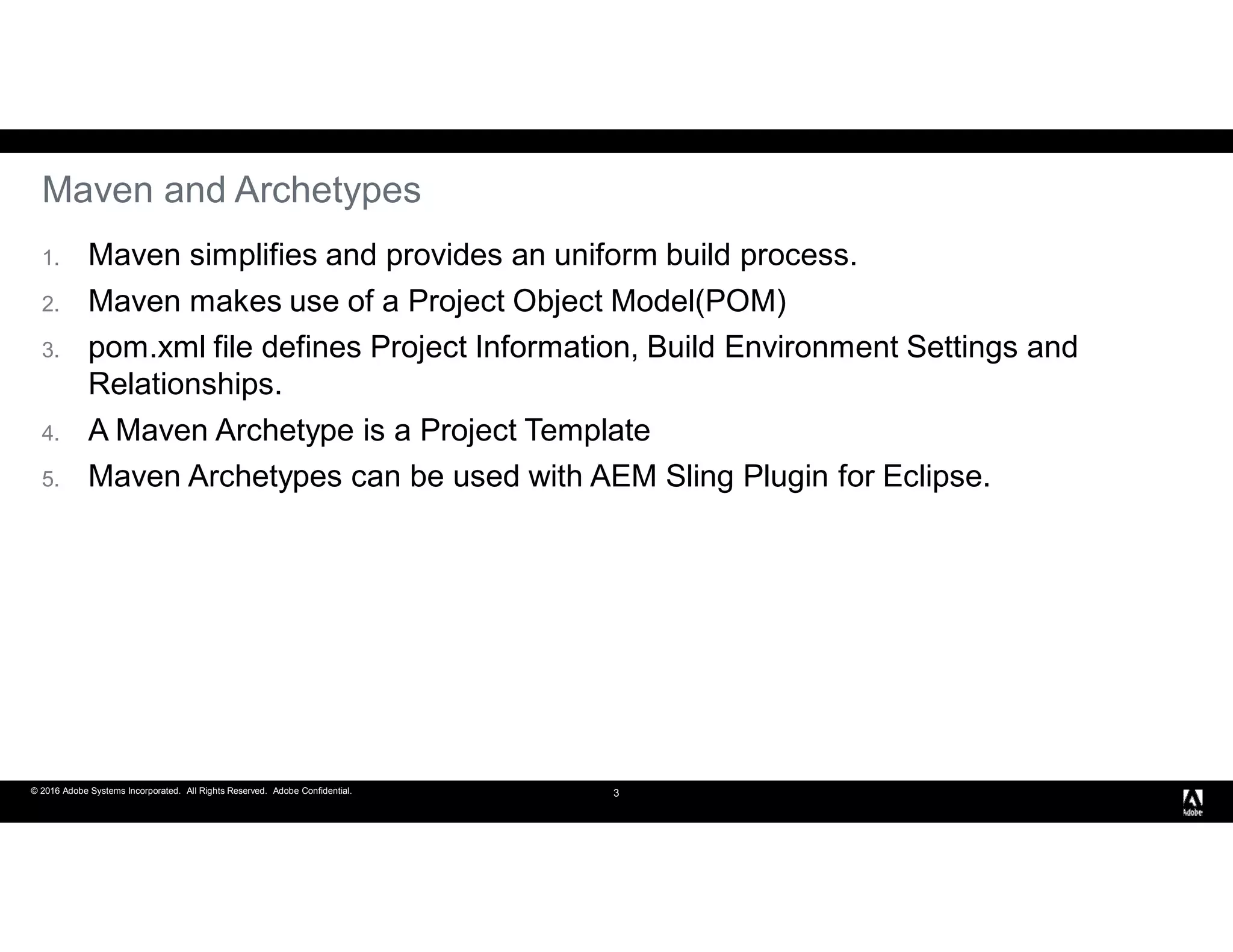

Maven and Archetypes
1. Maven simplifies and provides an uniform build process.
2. Maven makes use of a Project Object Model(POM)
3. pom.xml file defines Project Information, Build Environment Settings and
Relationships.
4. A Maven Archetype is a Project Template
5. Maven Archetypes can be used with AEM Sling Plugin for Eclipse.

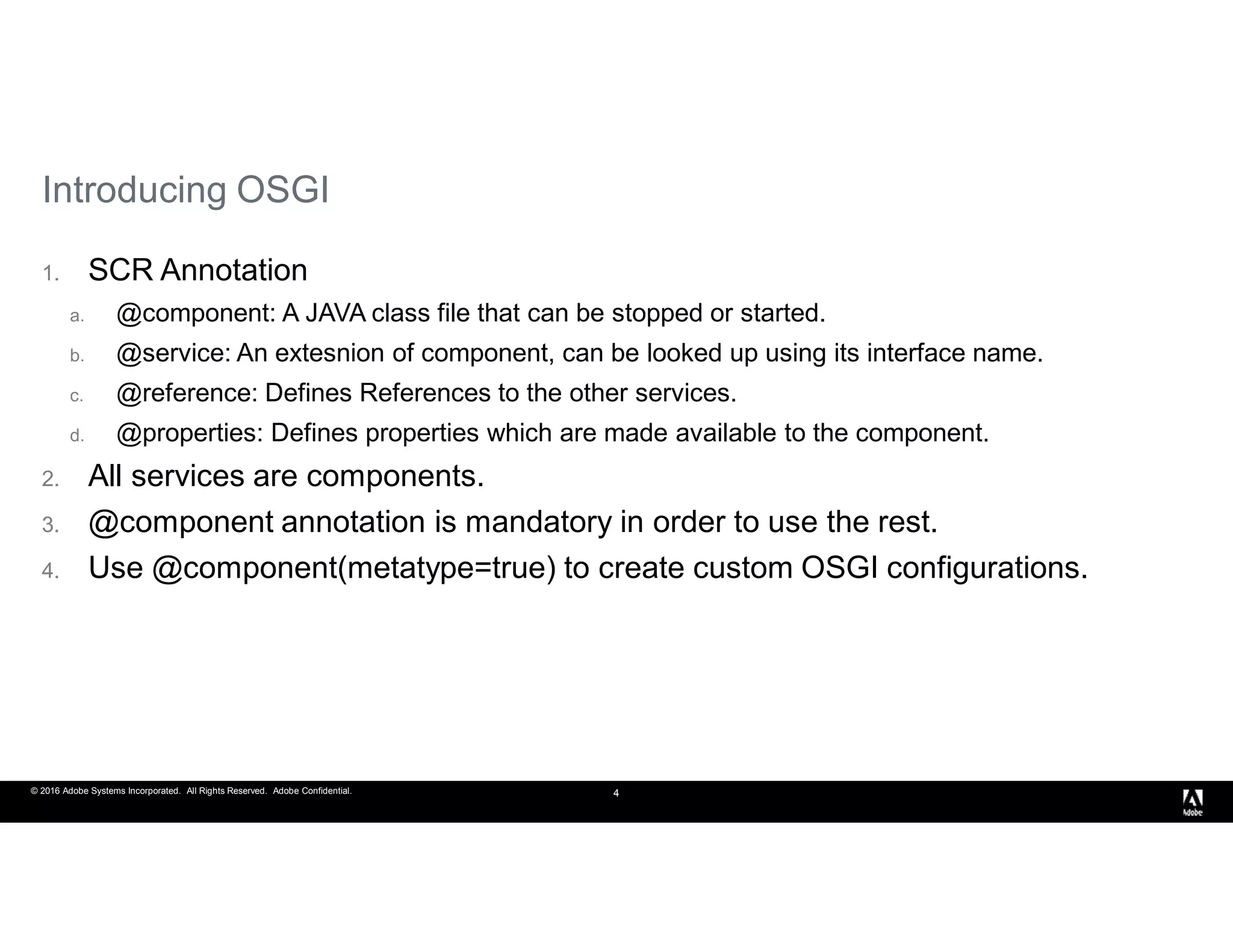

4. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 4
1. SCR Annotation
a. @component: A JAVA class file that can be stopped or started.
b. @service: An extesnion of component, can be looked up using its interface name.
c. @reference: Defines References to the other services.
d. @properties: Defines properties which are made available to the component.
2. All services are components.
3. @component annotation is mandatory in order to use the rest.
4. Use @component(metatype=true) to create custom OSGI configurations.
Introducing OSGI

5. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 5

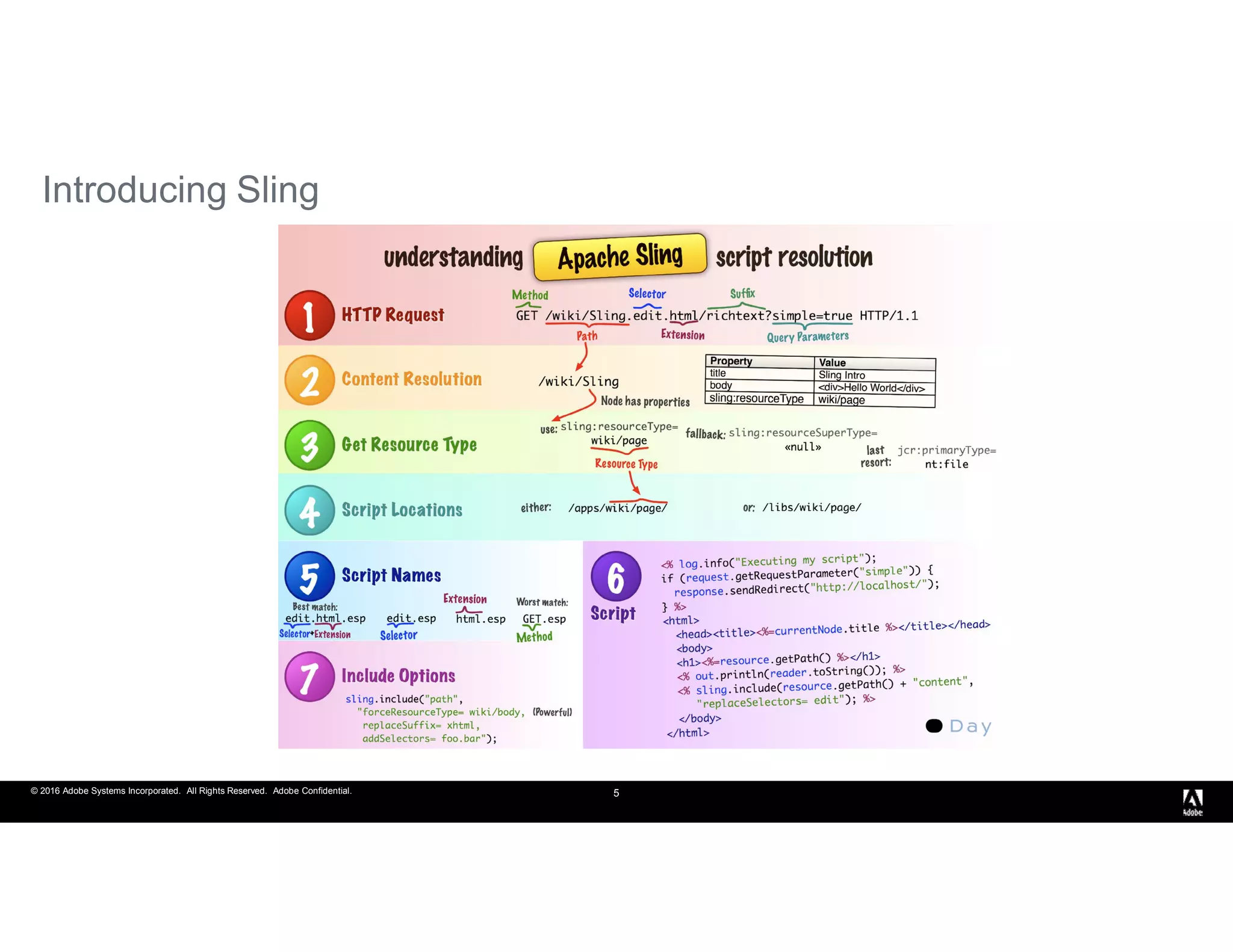

Introducing Sling

6. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 6

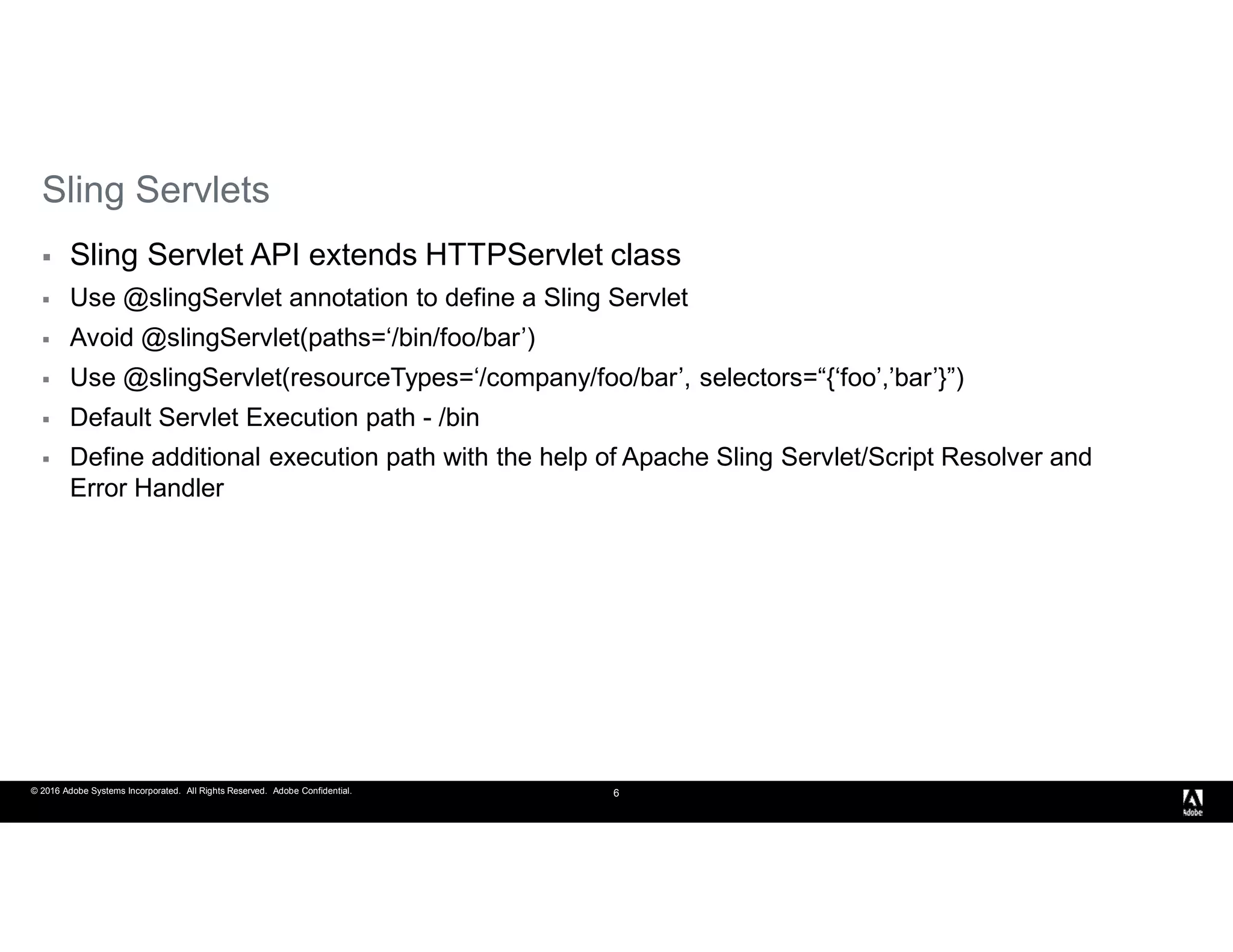

Sling Servlets
 Sling Servlet API extends HTTPServlet class
 Use @slingServlet annotation to define a Sling Servlet
 Avoid @slingServlet(paths=‘/bin/foo/bar’)
 Use @slingServlet(resourceTypes=‘/company/foo/bar’, selectors=“{‘foo’,’bar’}”)
 Default Servlet Execution path - /bin
 Define additional execution path with the help of Apache Sling Servlet/Script Resolver and
Error Handler

7. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 7

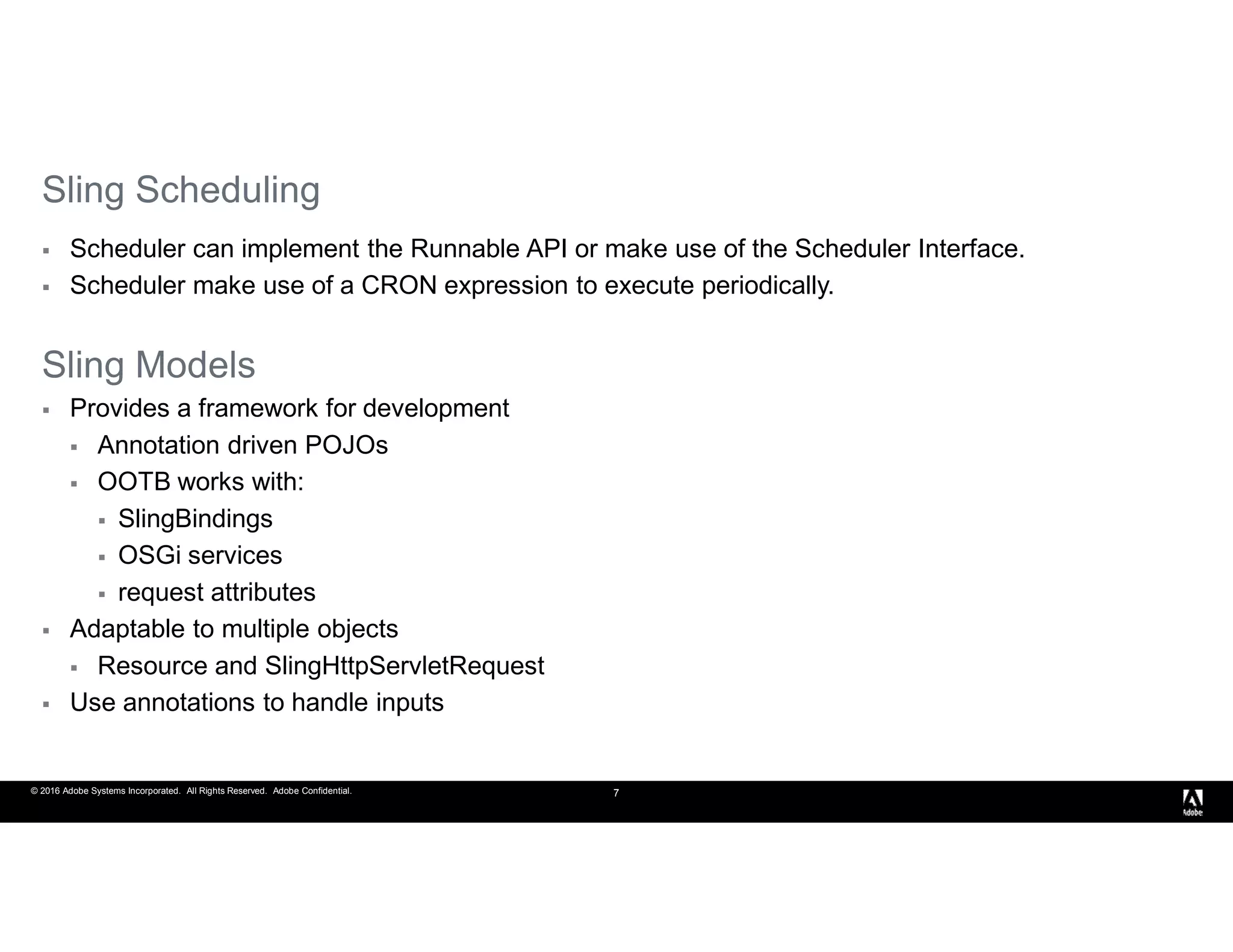

Sling Scheduling
 Scheduler can implement the Runnable API or make use of the Scheduler Interface.
 Scheduler make use of a CRON expression to execute periodically.
Sling Models
 Provides a framework for development
 Annotation driven POJOs
 OOTB works with:
 SlingBindings
 OSGi services
 request attributes
 Adaptable to multiple objects
 Resource and SlingHttpServletRequest
 Use annotations to handle inputs

8. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 8

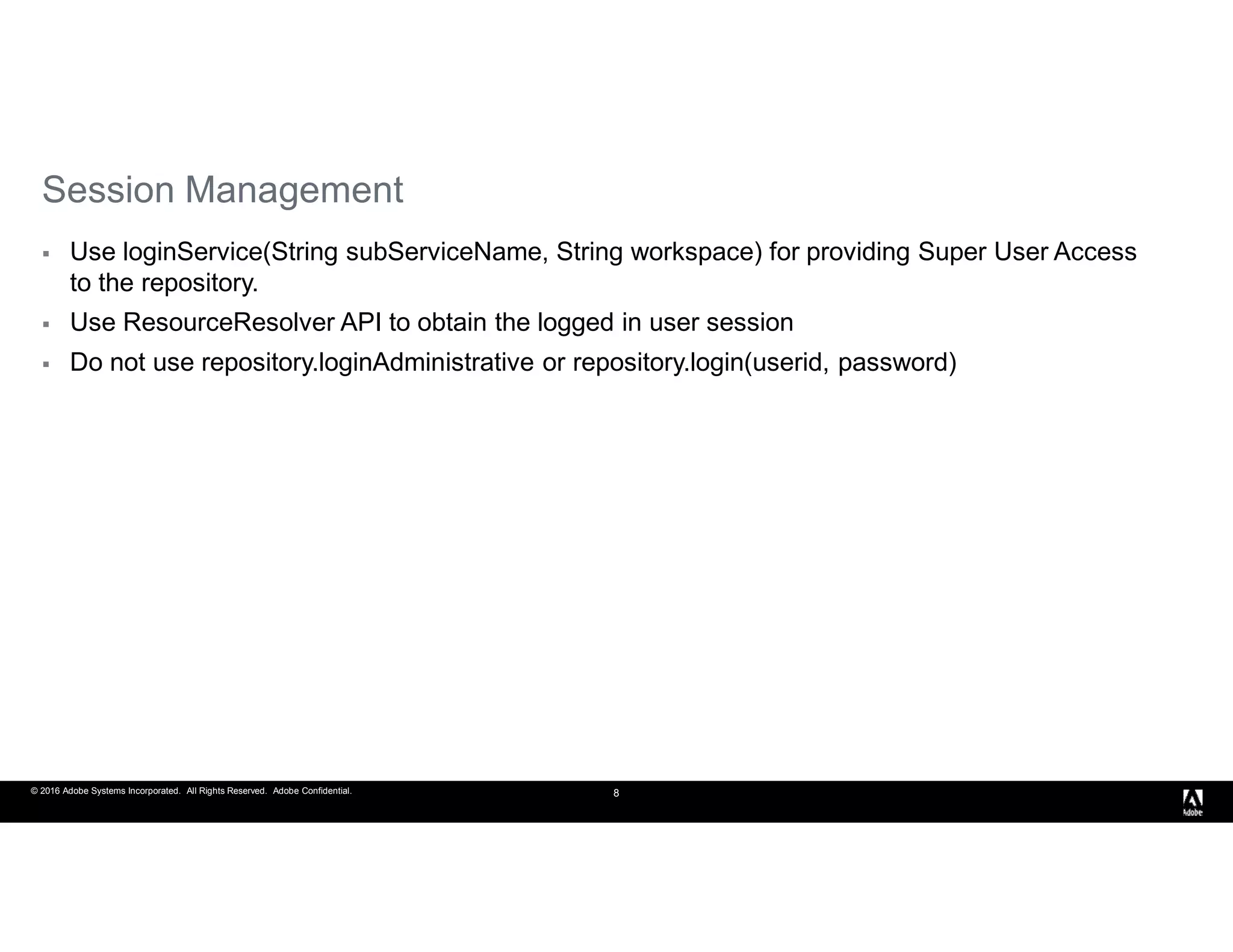

Session Management
 Use loginService(String subServiceName, String workspace) for providing Super User Access
to the repository.
 Use ResourceResolver API to obtain the logged in user session
 Do not use repository.loginAdministrative or repository.login(userid, password)

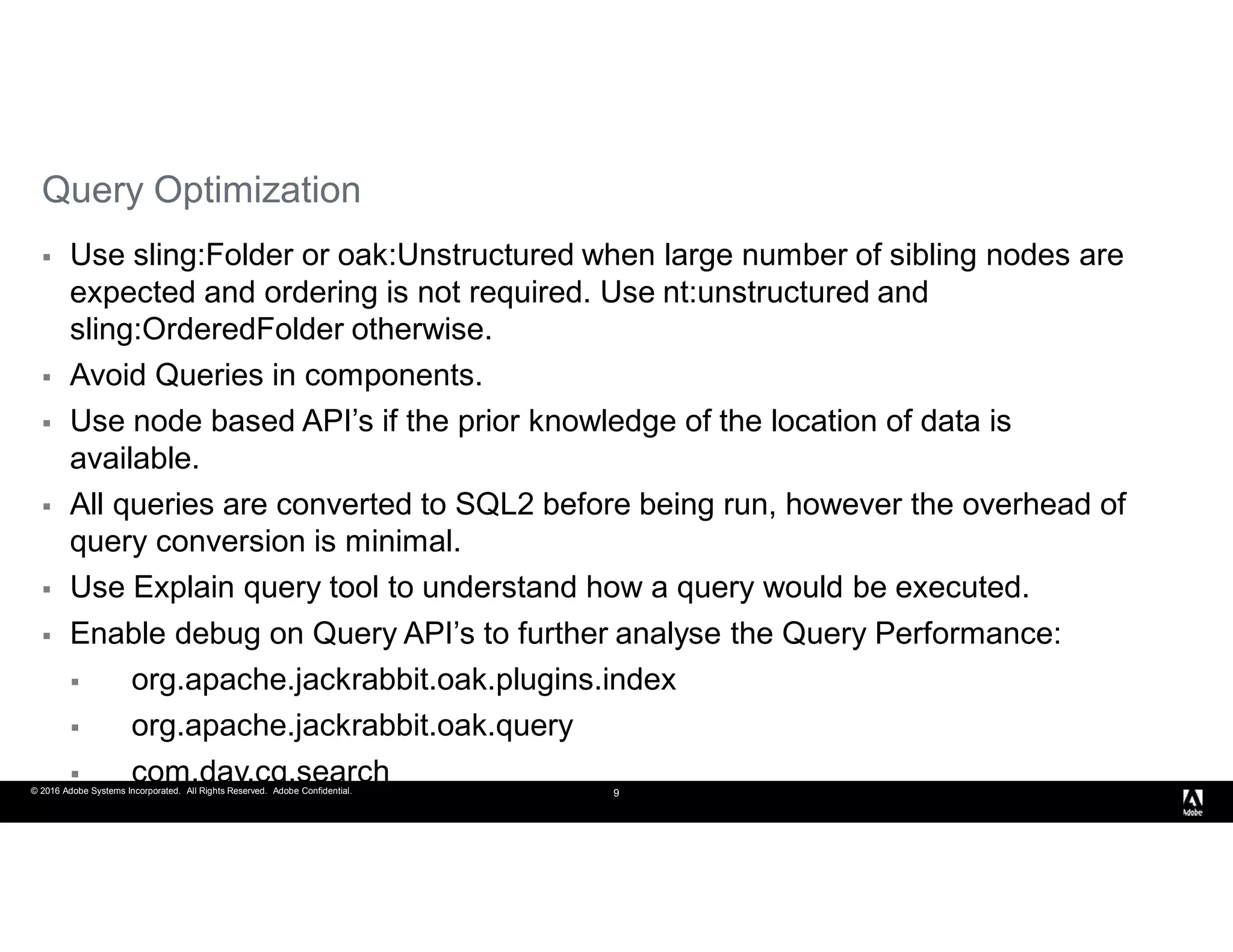

9. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. 9
Query Optimization
 Use sling:Folder or oak:Unstructured when large number of sibling nodes are
expected and ordering is not required. Use nt:unstructured and
sling:OrderedFolder otherwise.
 Avoid Queries in components.
 Use node based API’s if the prior knowledge of the location of data is
available.
 All queries are converted to SQL2 before being run, however the overhead of
query conversion is minimal.
 Use Explain query tool to understand how a query would be executed.
 Enable debug on Query API’s to further analyse the Query Performance:
 org.apache.jackrabbit.oak.plugins.index
 org.apache.jackrabbit.oak.query
 com.day.cq.search

10. © 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.© 2016 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.
Q&A
10
Varun mitra
vmitra@adobe.com
LinkedIn: Varun mitra
