1. 2007 Adobe Systems Incorporated. All Rights Reserved.
1
Kevin Goldsmith
Engineering Manager - AIF
Adobe Systems Inc.
Bob Archer
Senior Computer Scientist - AIF
Adobe Systems Inc.
Saikat Kanjilal
Computer Scientist - Emerging Solutions
Adobe Systems Inc.
MAX 2007
CONNECT. DISCOVER. INSPIRE.

2. 2007 Adobe Systems Incorporated. All Rights Reserved.
2
Kevin

3. 2007 Adobe Systems Incorporated. All Rights Reserved.
3
Kevin

4. 2007 Adobe Systems Incorporated. All Rights Reserved.
4
Kevin
(Chicago Born and Raised)

5. 2007 Adobe Systems Incorporated. All Rights Reserved.
5
Bob

6. 2007 Adobe Systems Incorporated. All Rights Reserved.
6
Bob

7. 2007 Adobe Systems Incorporated. All Rights Reserved.
7
Bob
(trust him, he’s British)

8. 2007 Adobe Systems Incorporated. All Rights Reserved.
8
Saikat

9. 2007 Adobe Systems Incorporated. All Rights Reserved.
9
Saikat

10. 2007 Adobe Systems Incorporated. All Rights Reserved.
10
Saikat
(insert something witty here about Eastern Washington)

11. 2007 Adobe Systems Incorporated. All Rights Reserved.
11

12. 2007 Adobe Systems Incorporated. All Rights Reserved.
12

13. 2007 Adobe Systems Incorporated. All Rights Reserved.
13

14. 2007 Adobe Systems Incorporated. All Rights Reserved.
14

15. 2007 Adobe Systems Incorporated. All Rights Reserved.
15

16. 2007 Adobe Systems Incorporated. All Rights Reserved.
16
This Talk

17. 2007 Adobe Systems Incorporated. All Rights Reserved.

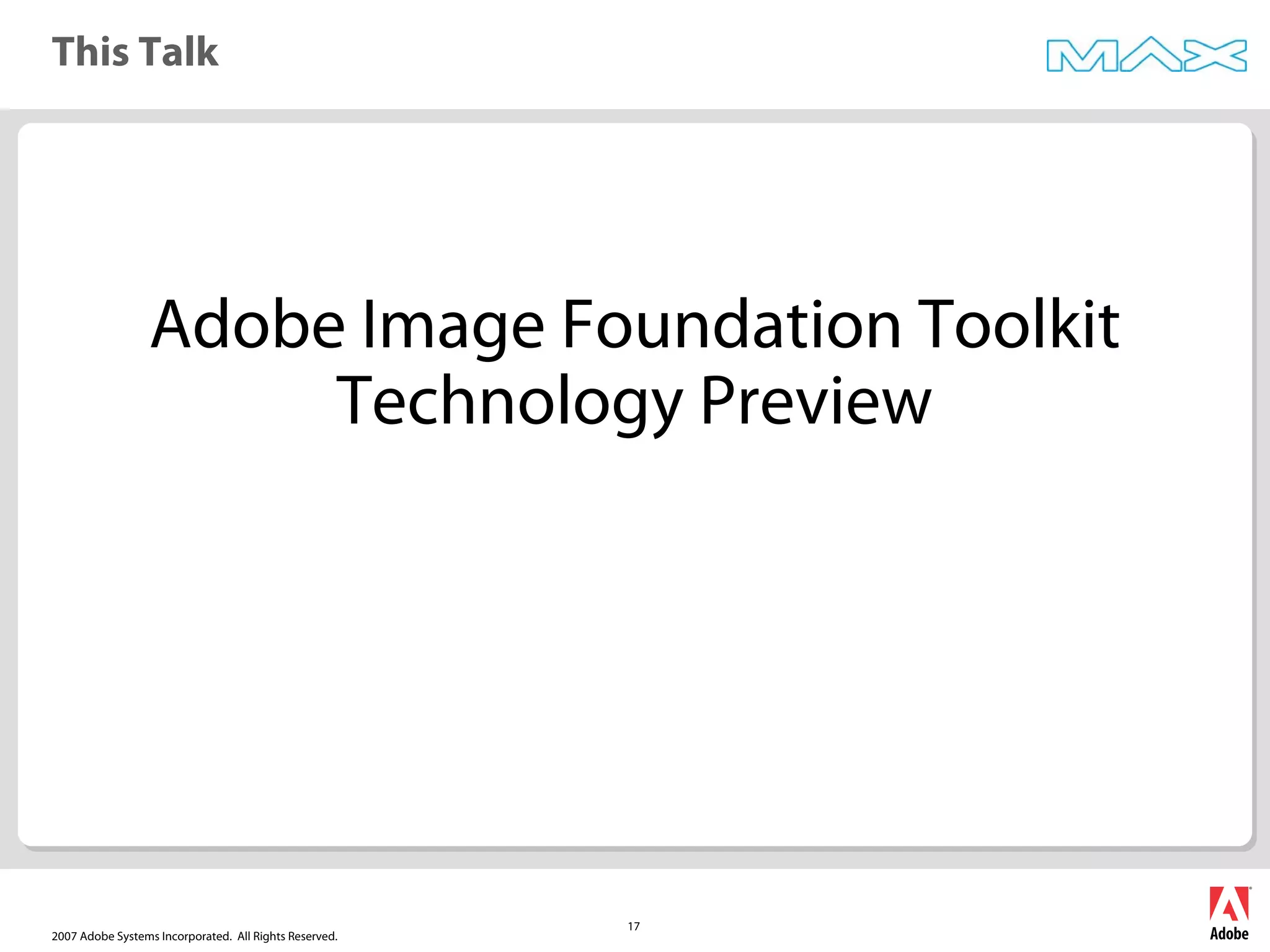

17
This Talk
Adobe Image Foundation Toolkit
Technology Preview

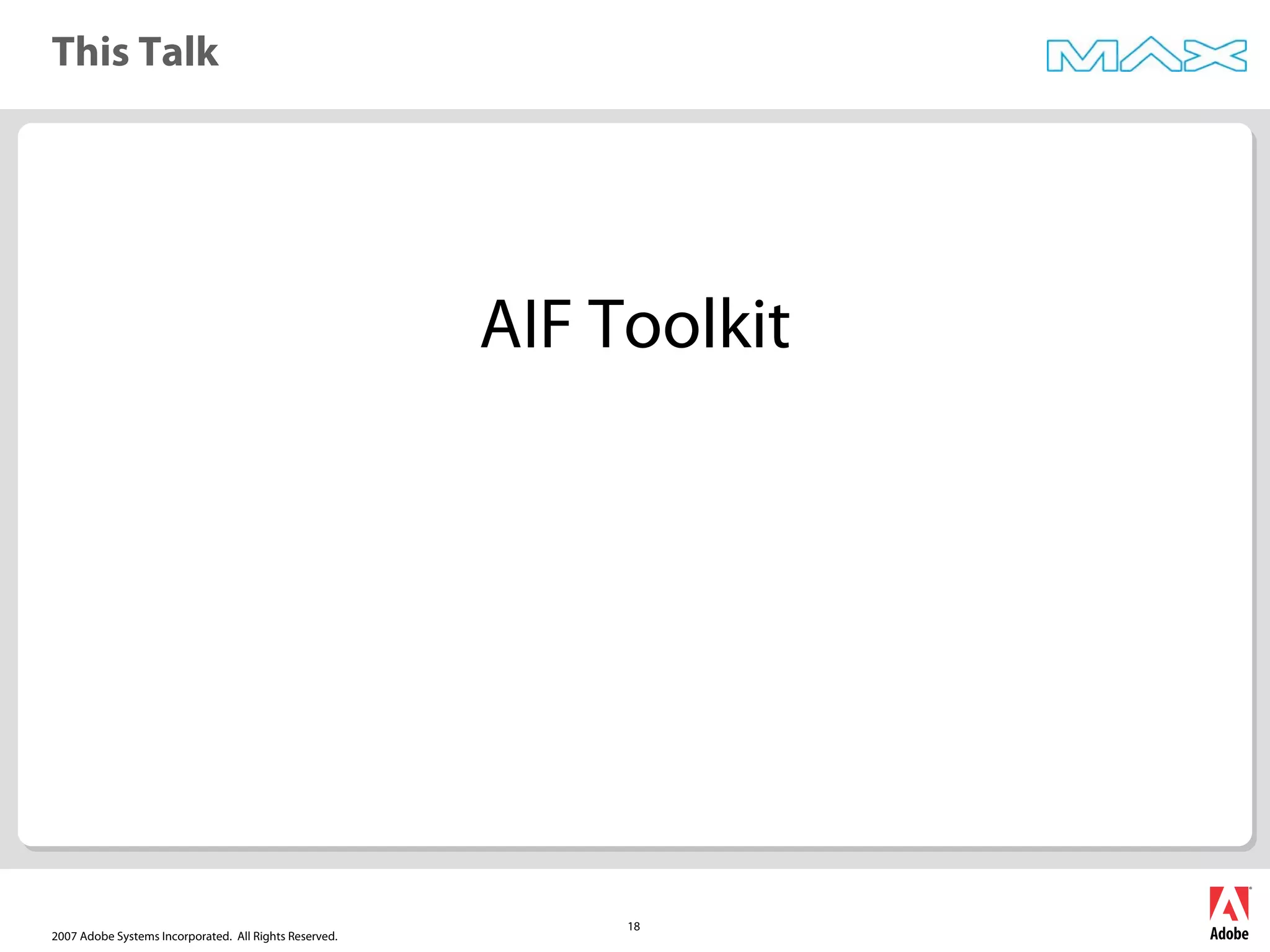

18. 2007 Adobe Systems Incorporated. All Rights Reserved.
18
This Talk
AIF Toolkit

19. 2007 Adobe Systems Incorporated. All Rights Reserved.
19

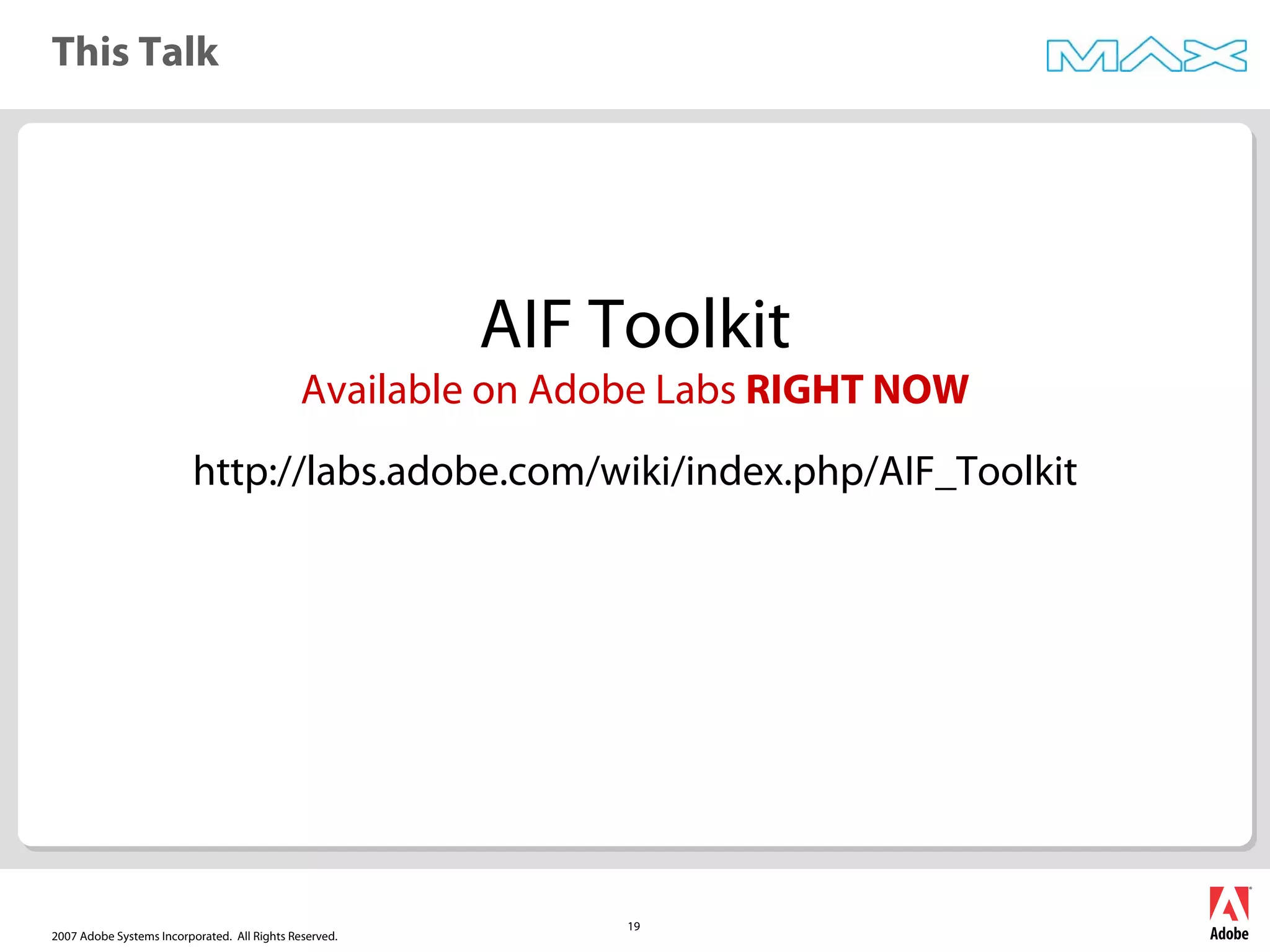

This Talk
AIF Toolkit
Available on Adobe Labs RIGHT NOW
http://labs.adobe.com/wiki/index.php/AIF_Toolkit

20. 2007 Adobe Systems Incorporated. All Rights Reserved.
20

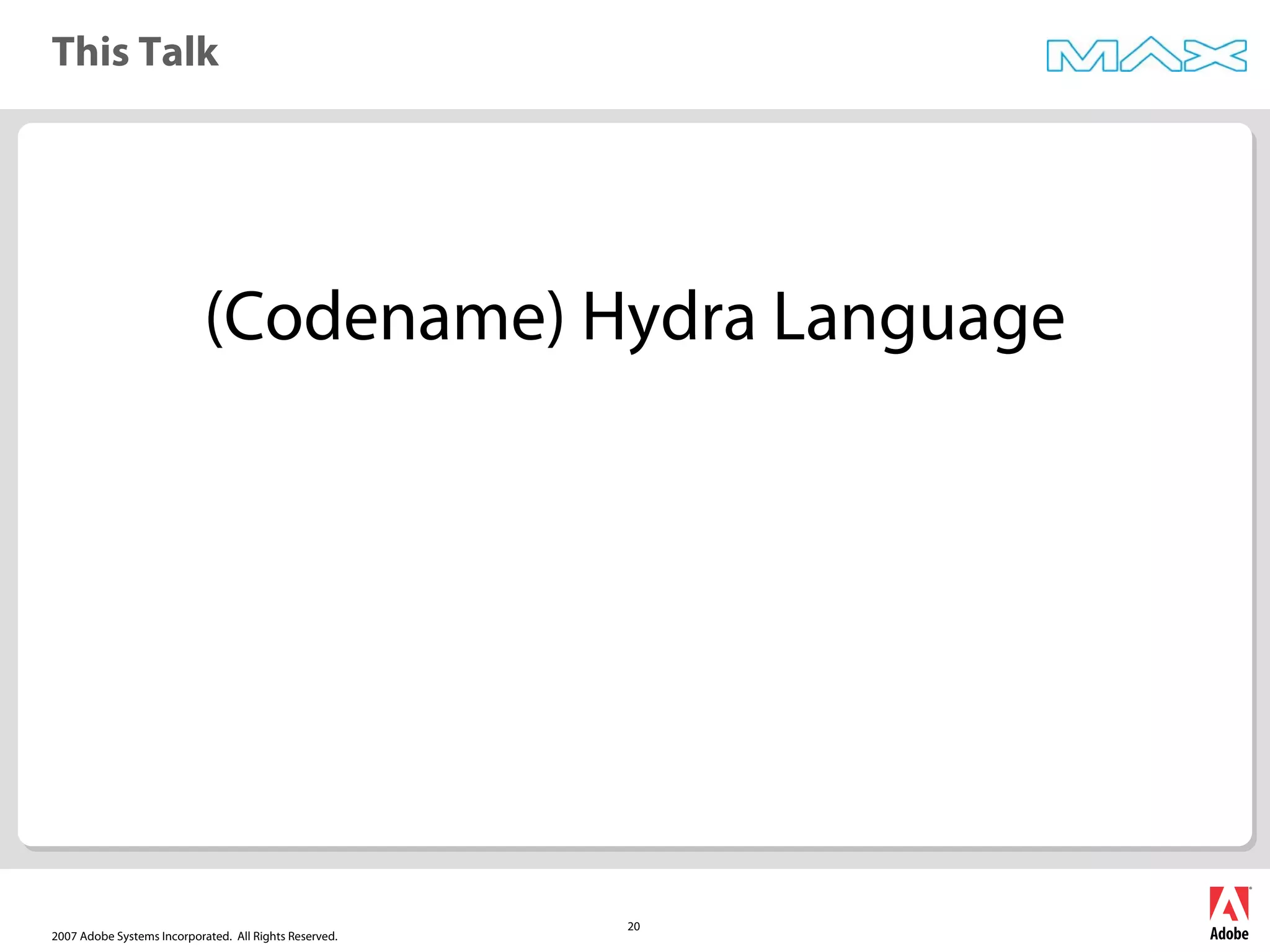

This Talk
(Codename) Hydra Language

21. 2007 Adobe Systems Incorporated. All Rights Reserved.

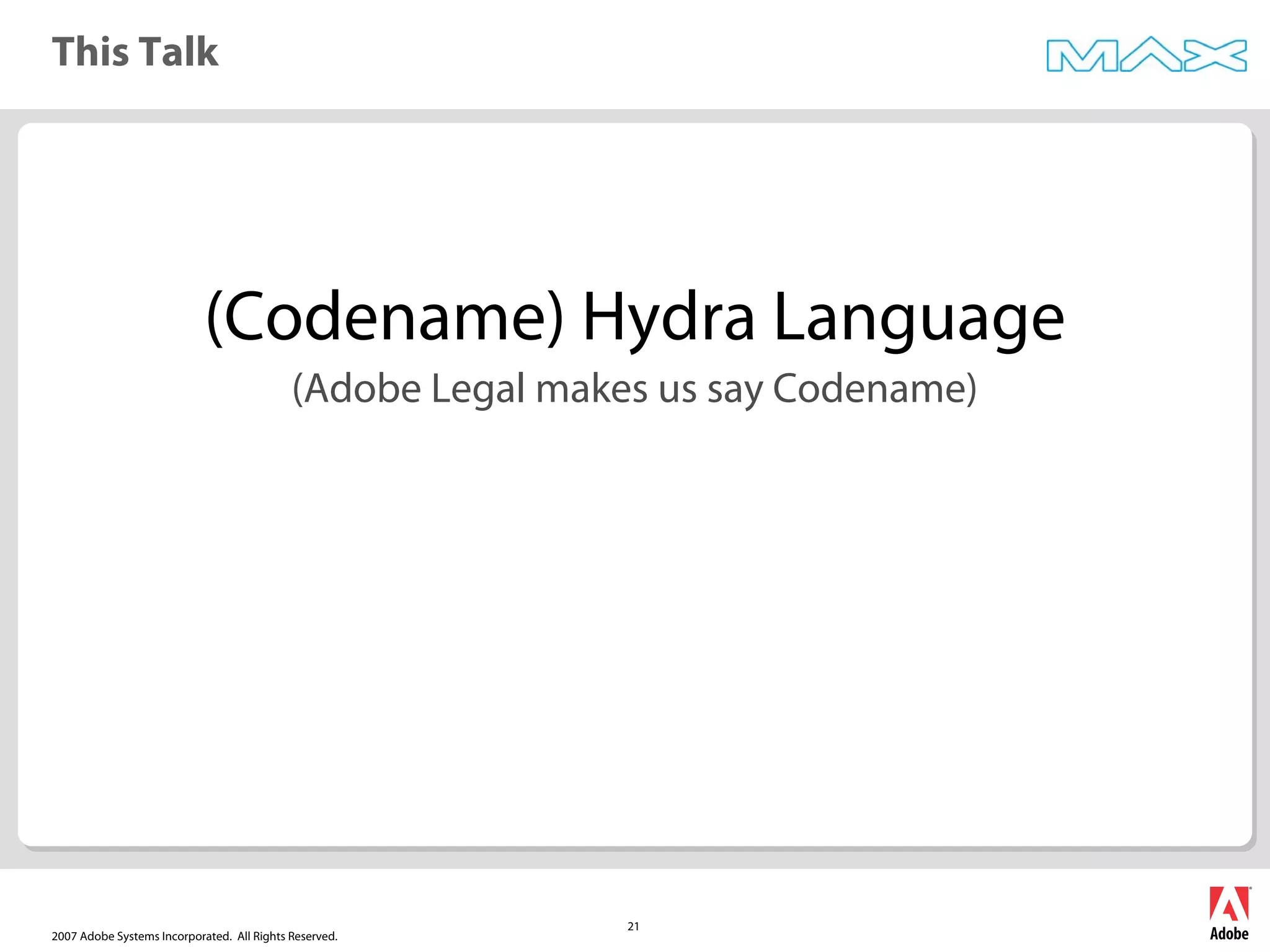

21
This Talk
(Codename) Hydra Language
(Adobe Legal makes us say Codename)

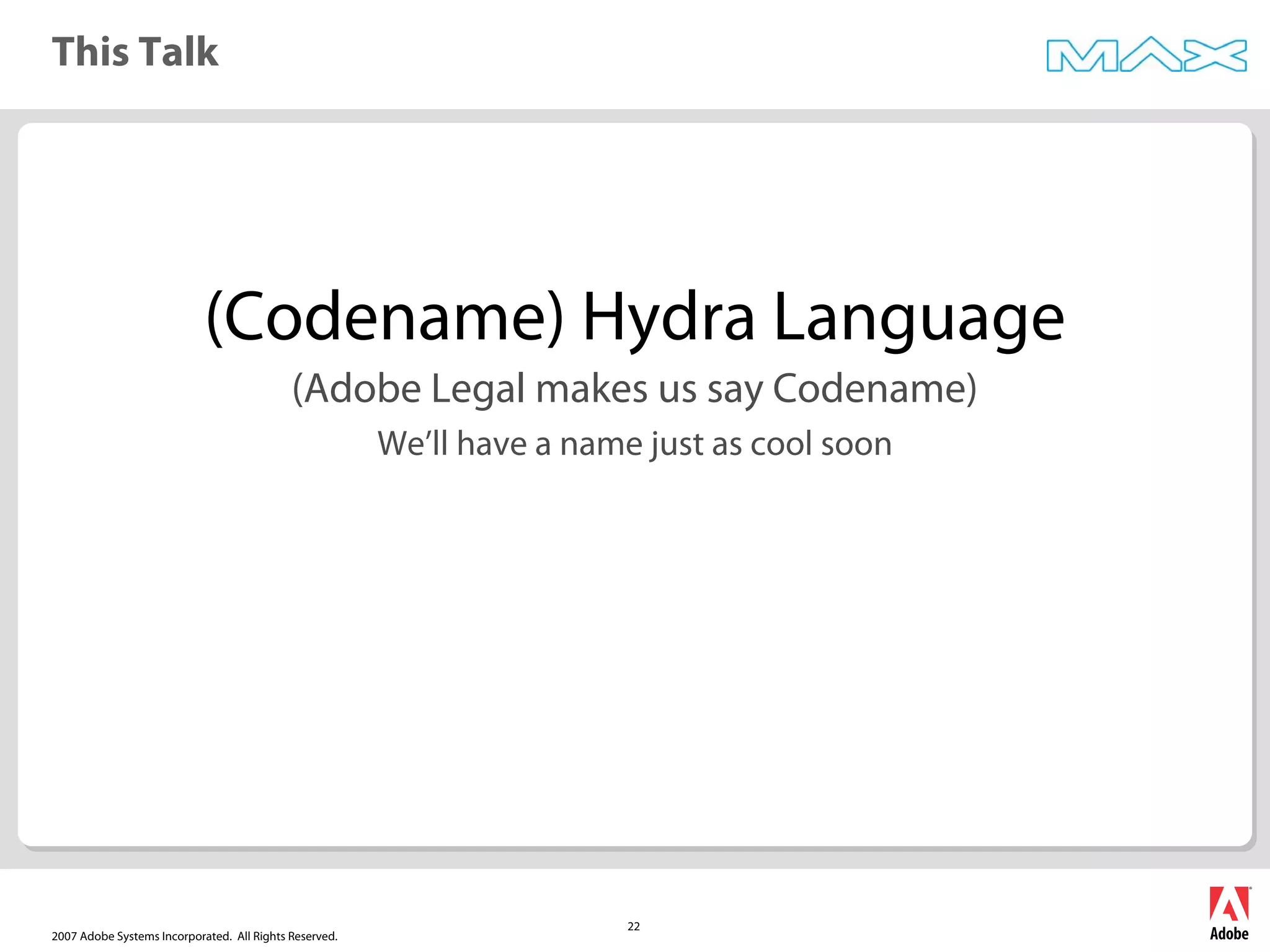

22. 2007 Adobe Systems Incorporated. All Rights Reserved.
22
This Talk
(Codename) Hydra Language
(Adobe Legal makes us say Codename)
We’ll have a name just as cool soon

23. 2007 Adobe Systems Incorporated. All Rights Reserved.
23

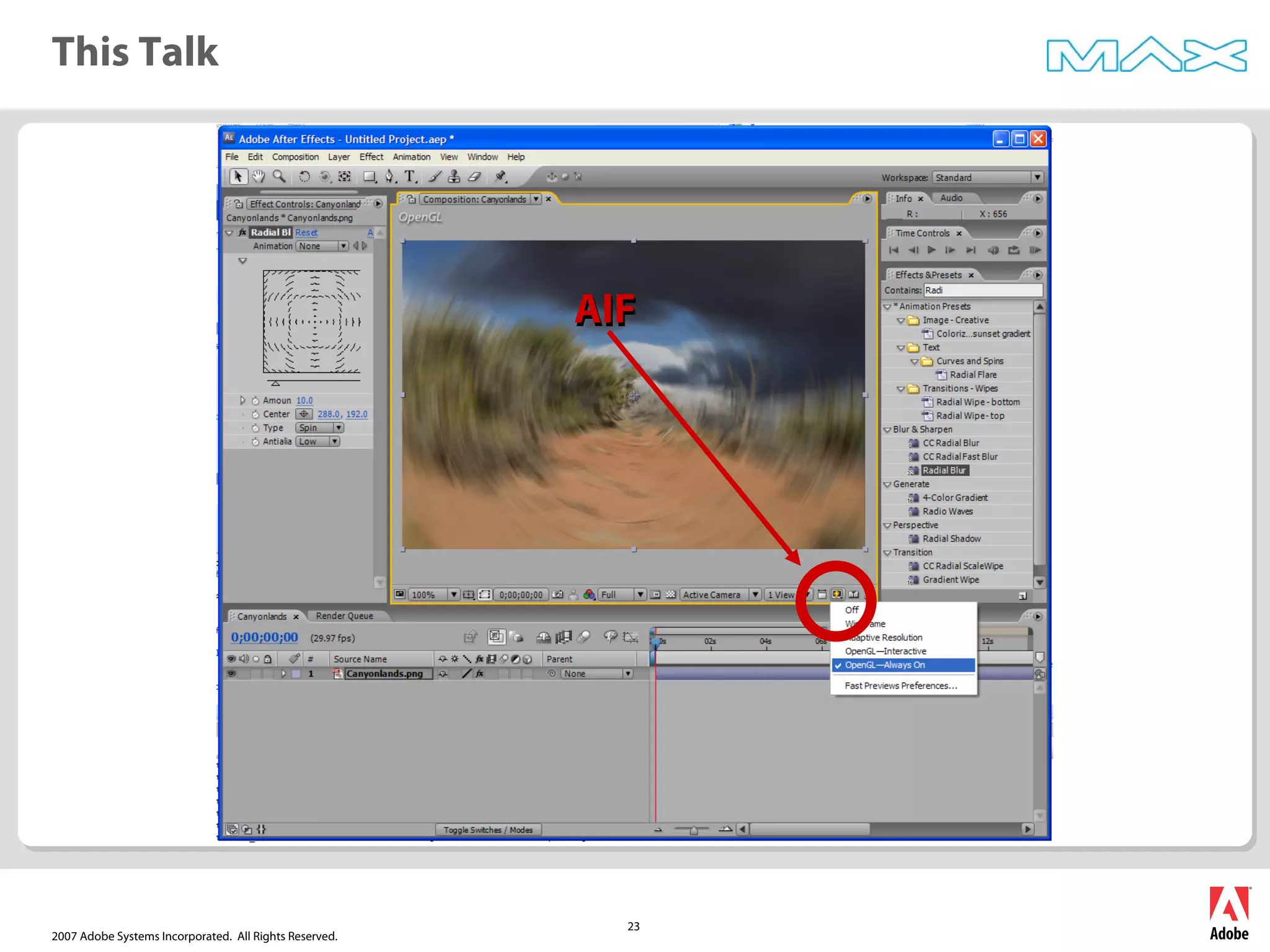

This Talk
AIF
AIF

24. 2007 Adobe Systems Incorporated. All Rights Reserved.
24
This Talk
Ability for Flash Authors to create Filters a highly requested feature

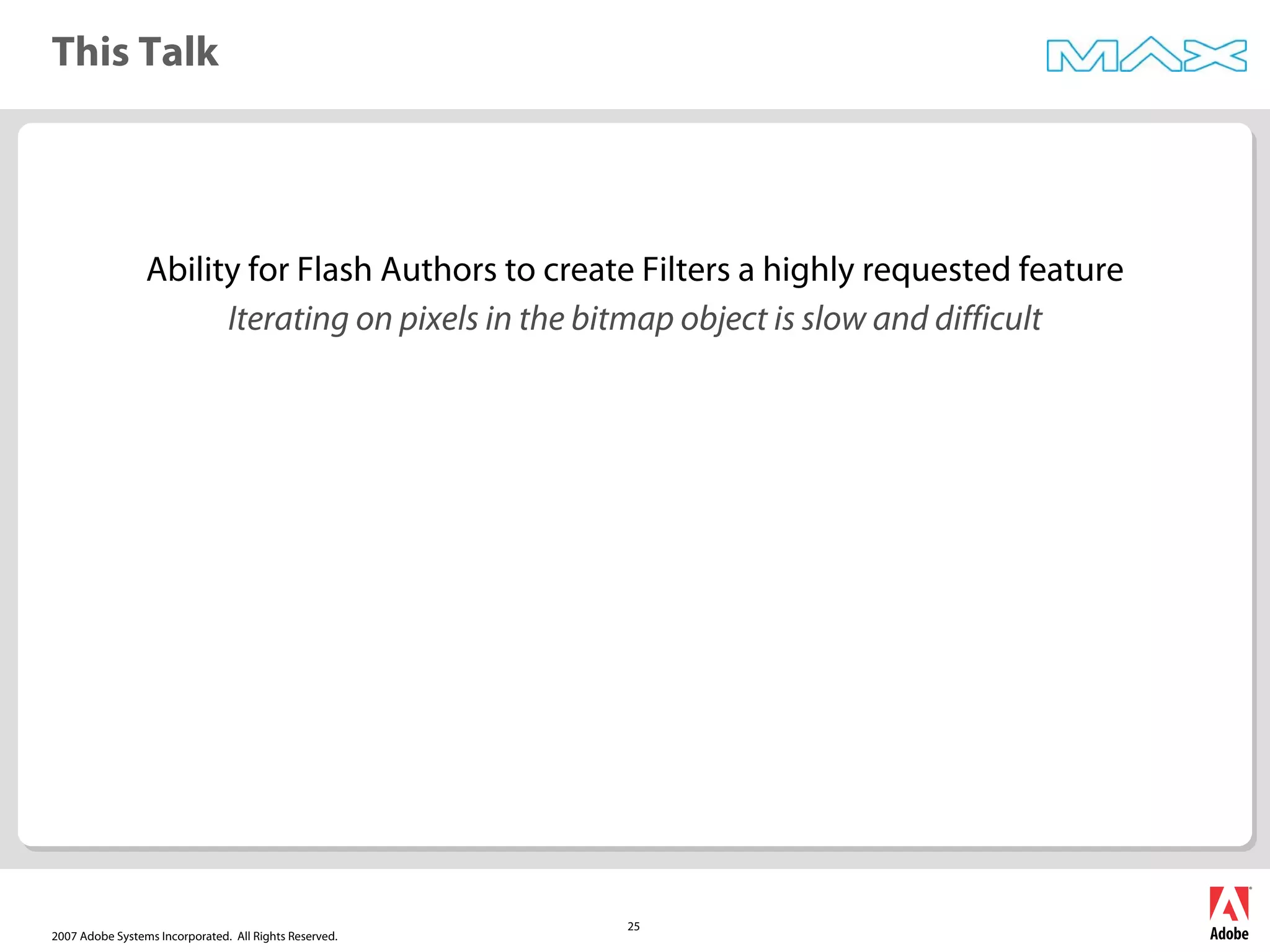

25. 2007 Adobe Systems Incorporated. All Rights Reserved.
25
This Talk
Ability for Flash Authors to create Filters a highly requested feature
Iterating on pixels in the bitmap object is slow and difficult

26. 2007 Adobe Systems Incorporated. All Rights Reserved.
26

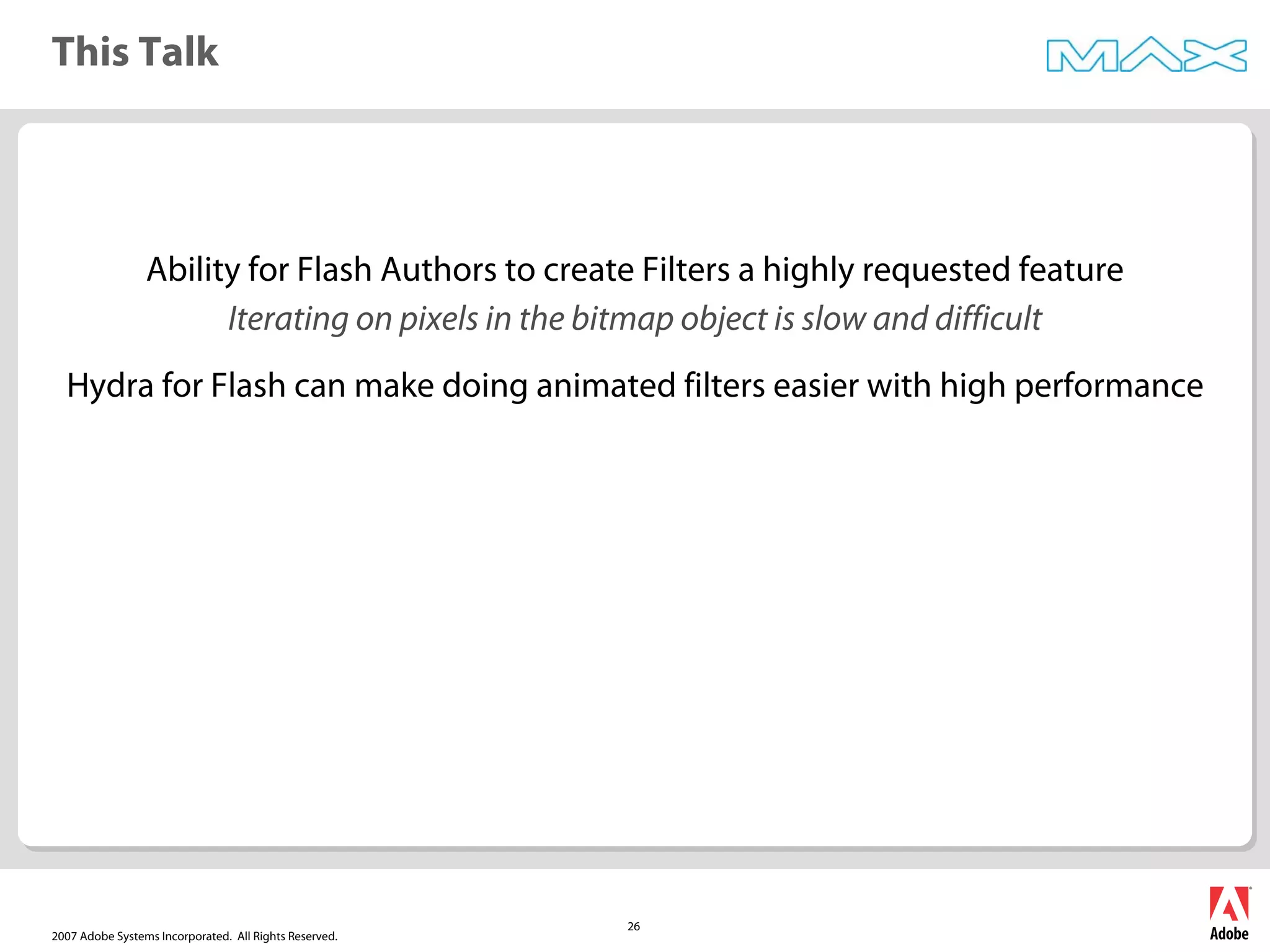

This Talk
Ability for Flash Authors to create Filters a highly requested feature
Iterating on pixels in the bitmap object is slow and difficult
Hydra for Flash can make doing animated filters easier with high performance

27. 2007 Adobe Systems Incorporated. All Rights Reserved.
27

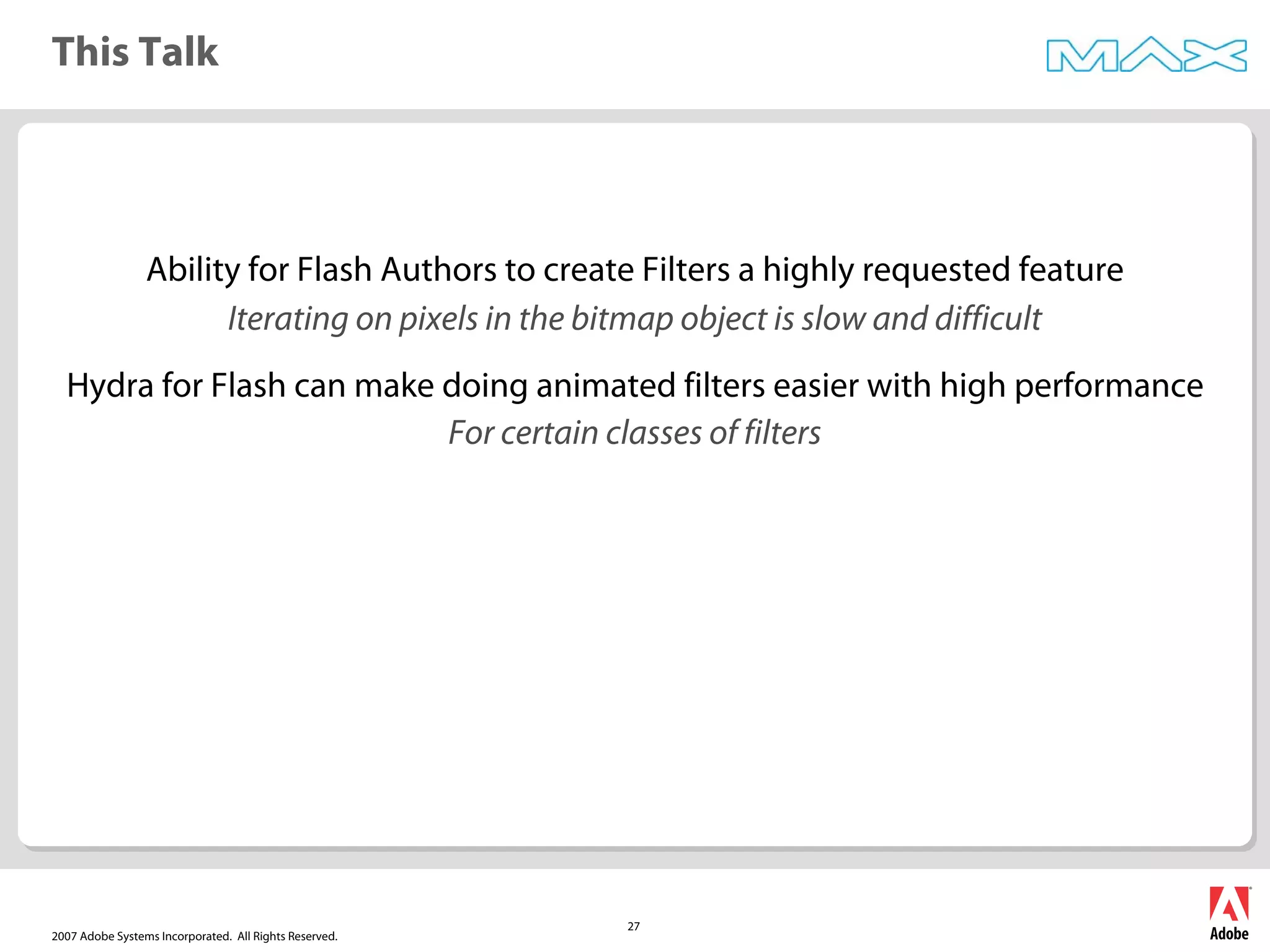

This Talk
Ability for Flash Authors to create Filters a highly requested feature
Iterating on pixels in the bitmap object is slow and difficult
Hydra for Flash can make doing animated filters easier with high performance
For certain classes of filters

28. 2007 Adobe Systems Incorporated. All Rights Reserved.
28

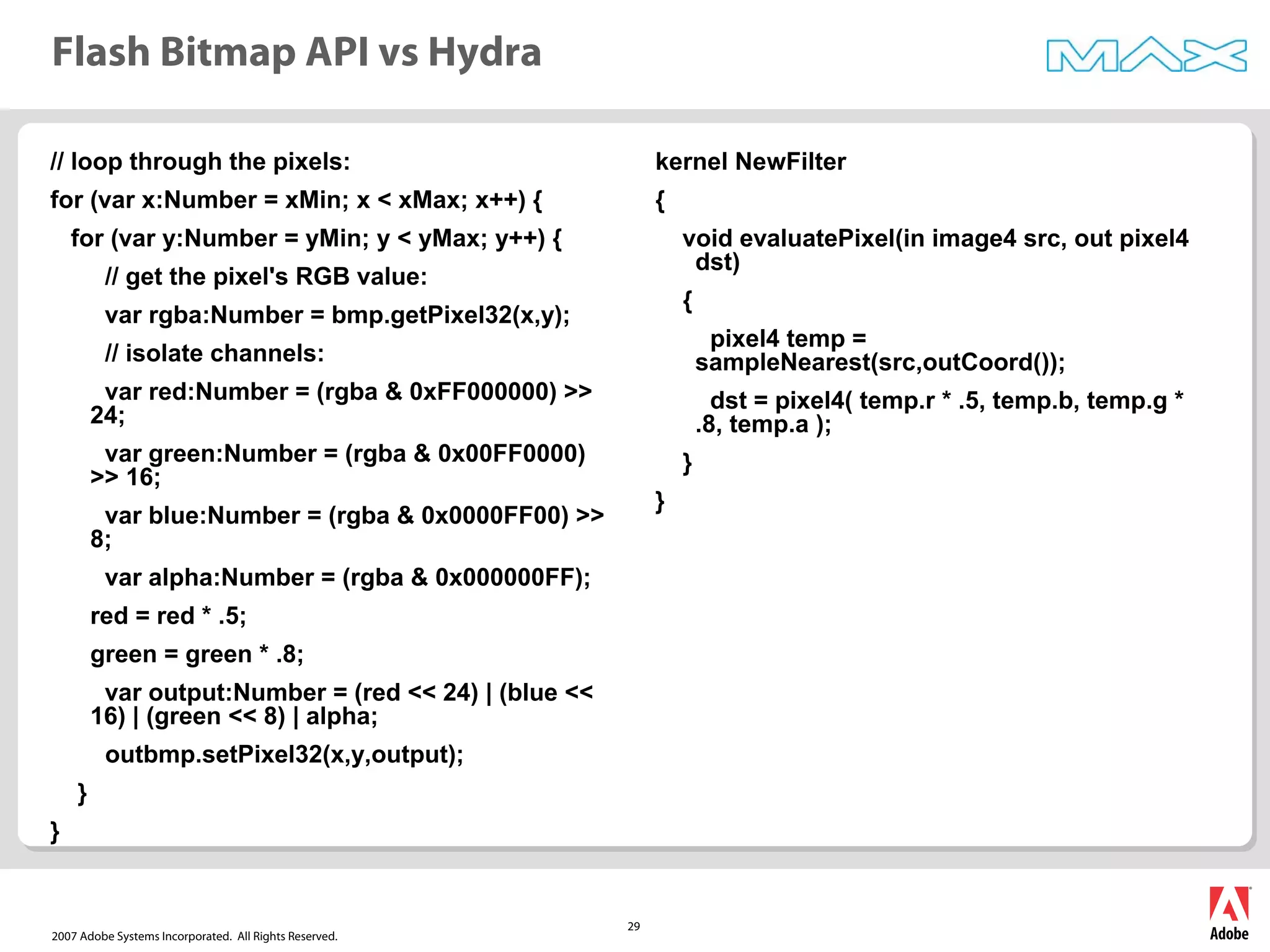

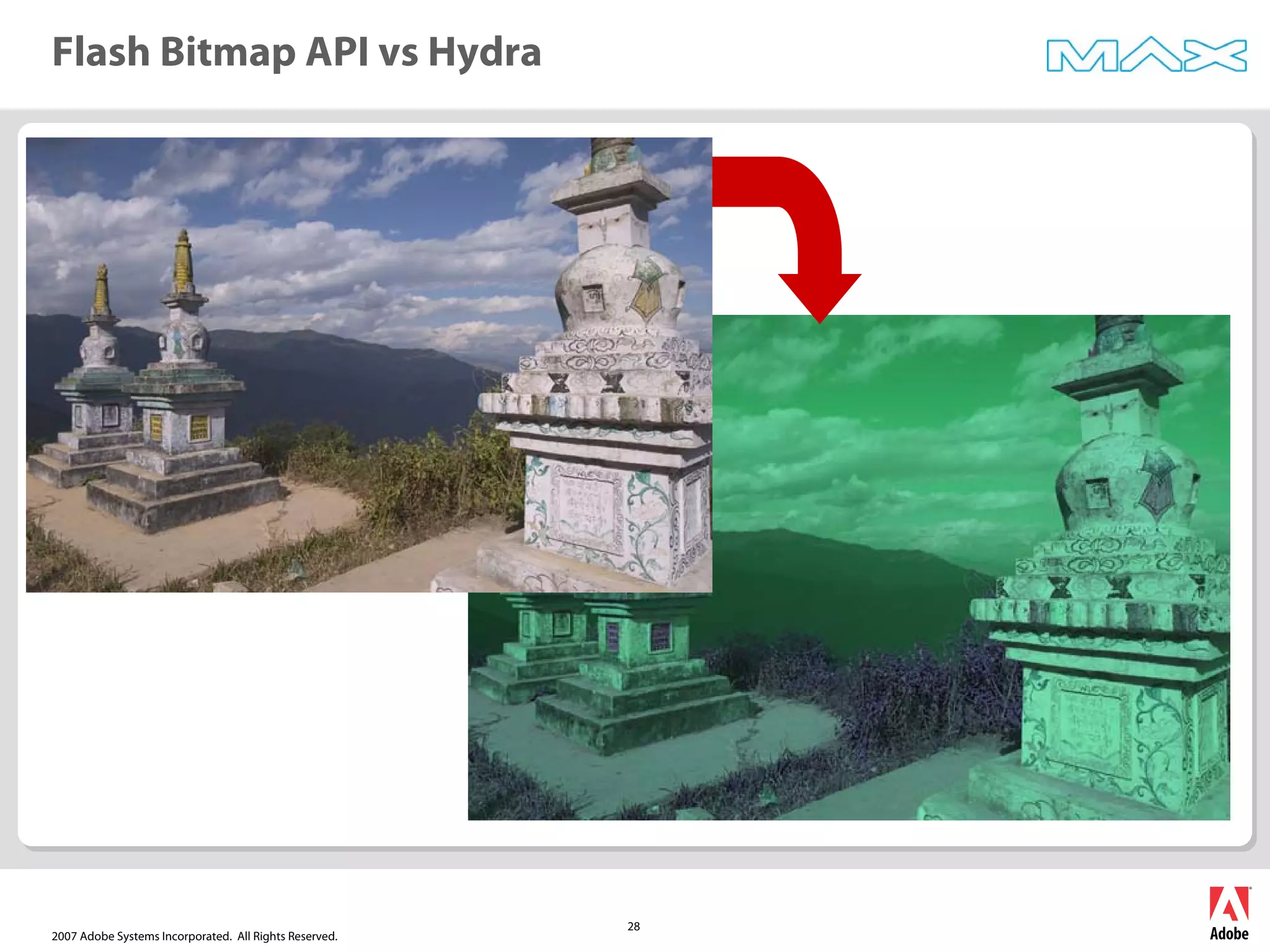

Flash Bitmap API vs Hydra

29. 2007 Adobe Systems Incorporated. All Rights Reserved.
29
Flash Bitmap API vs Hydra
// loop through the pixels:
for (var x:Number = xMin; x < xMax; x++) {
for (var y:Number = yMin; y < yMax; y++) {
// get the pixel's RGB value:
var rgba:Number = bmp.getPixel32(x,y);
// isolate channels:
var red:Number = (rgba & 0xFF000000) >>
24;
var green:Number = (rgba & 0x00FF0000)
>> 16;
var blue:Number = (rgba & 0x0000FF00) >>
8;
var alpha:Number = (rgba & 0x000000FF);
red = red * .5;
green = green * .8;
var output:Number = (red << 24) | (blue <<
16) | (green << 8) | alpha;
outbmp.setPixel32(x,y,output);
}
}
kernel NewFilter
{
void evaluatePixel(in image4 src, out pixel4
dst)
{
pixel4 temp =
sampleNearest(src,outCoord());
dst = pixel4( temp.r * .5, temp.b, temp.g *
.8, temp.a );
}
}

30. 2007 Adobe Systems Incorporated. All Rights Reserved.
30

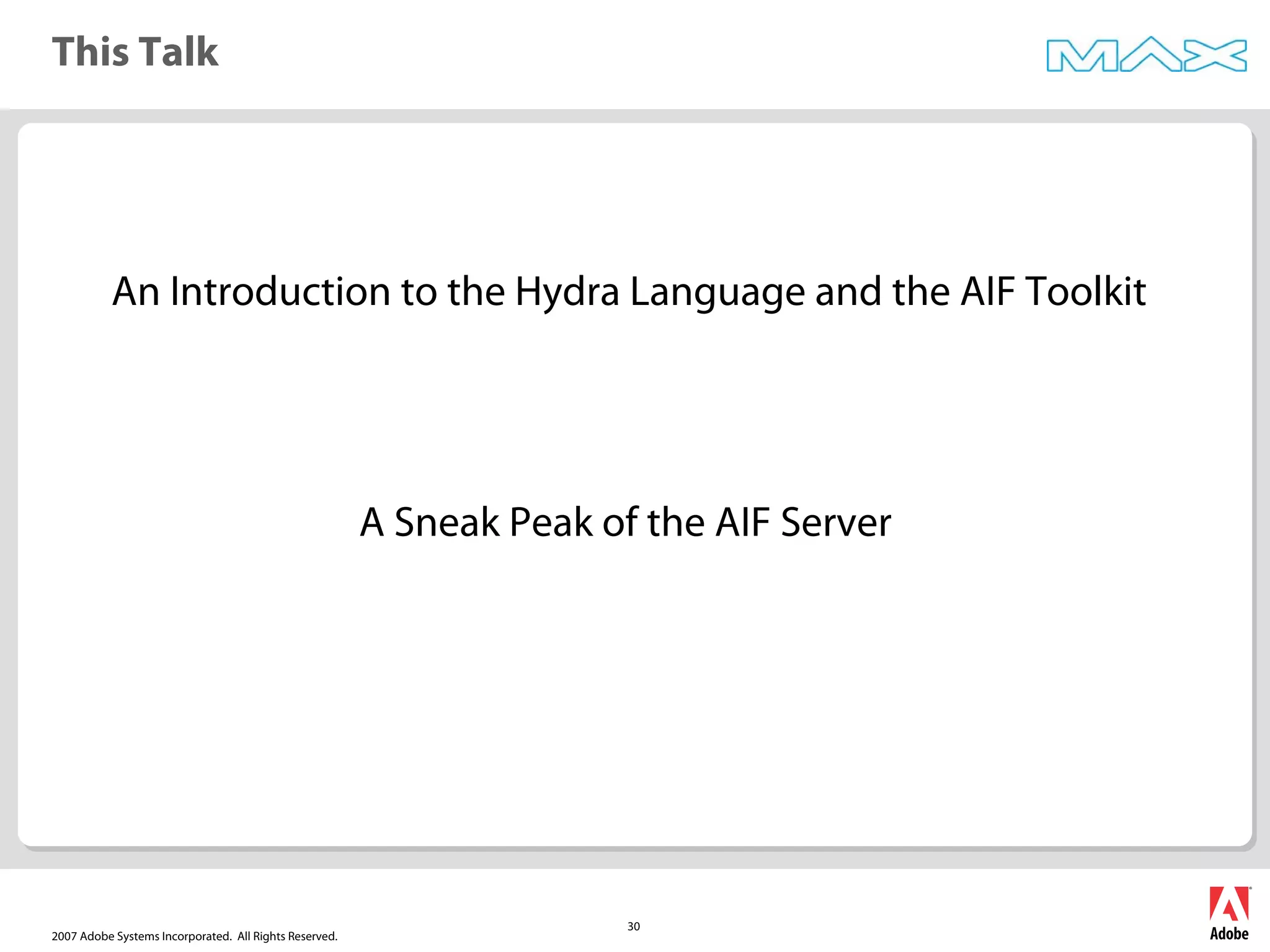

This Talk
An Introduction to the Hydra Language and the AIF Toolkit
A Sneak Peak of the AIF Server

31. 2007 Adobe Systems Incorporated. All Rights Reserved.

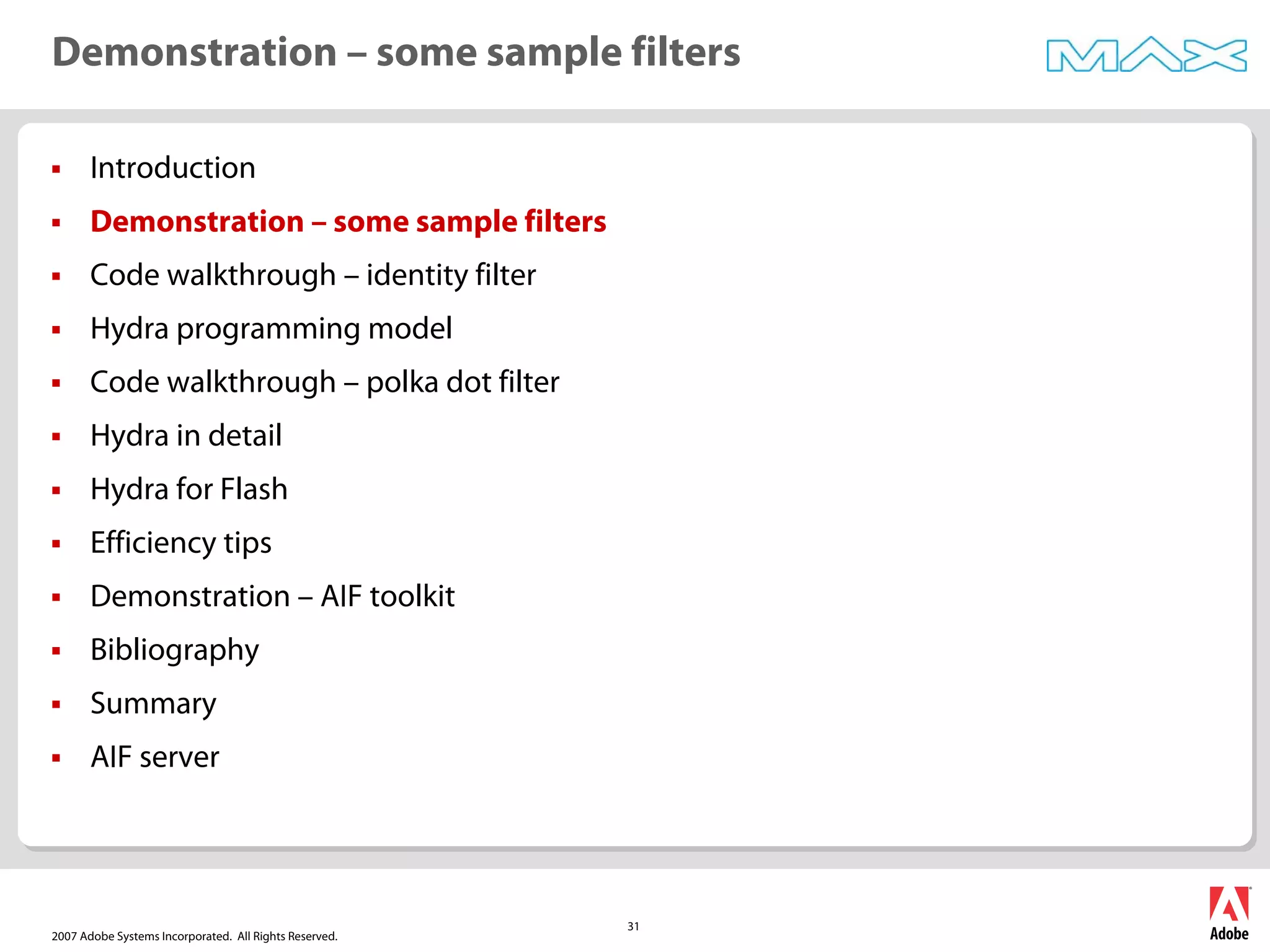

31
ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Demonstration – some sample filters

32. 2007 Adobe Systems Incorporated. All Rights Reserved.

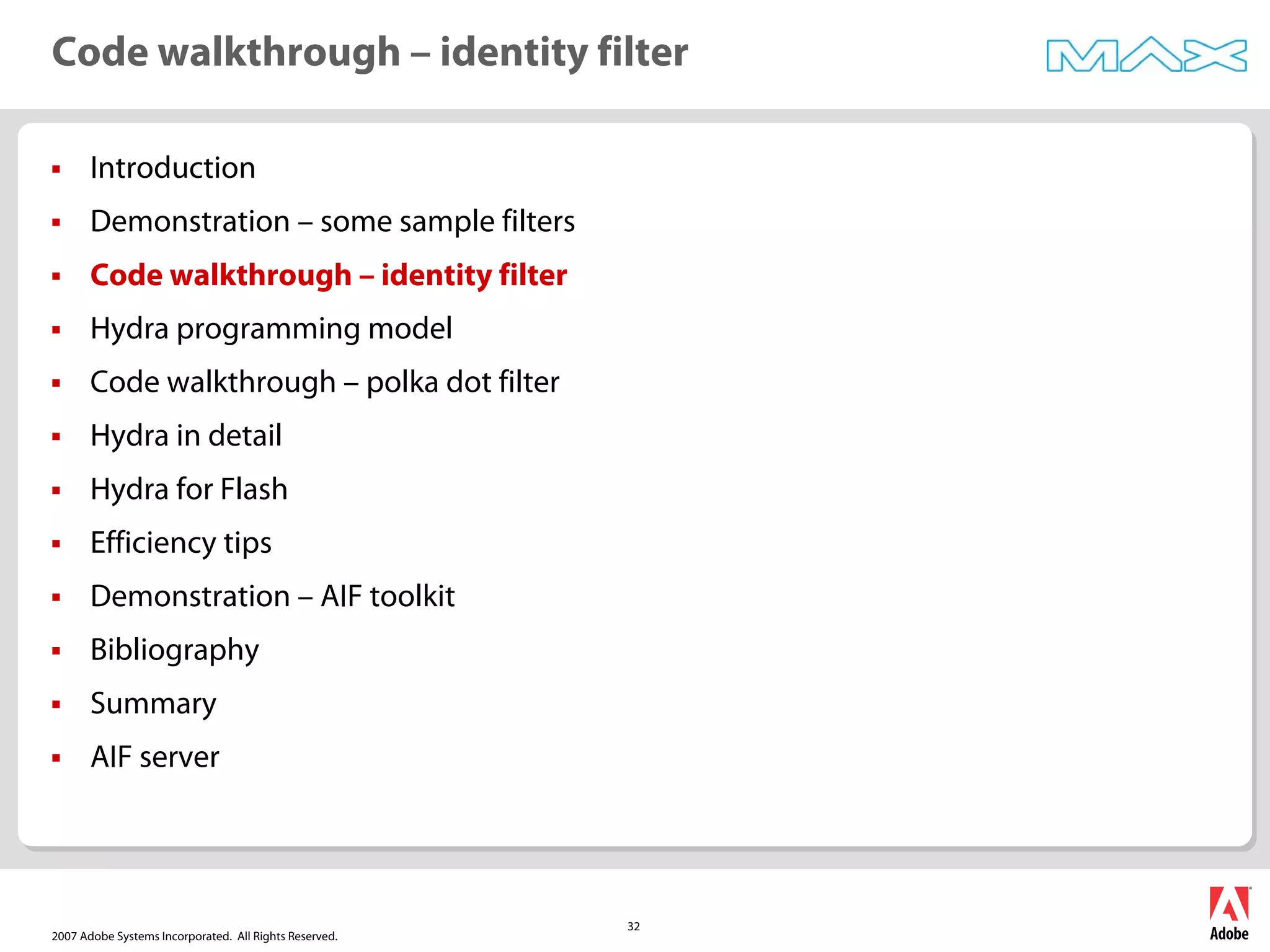

32
ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Code walkthrough – identity filter

33. 2007 Adobe Systems Incorporated. All Rights Reserved.
33
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

34. 2007 Adobe Systems Incorporated. All Rights Reserved.
34
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

35. 2007 Adobe Systems Incorporated. All Rights Reserved.
35
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

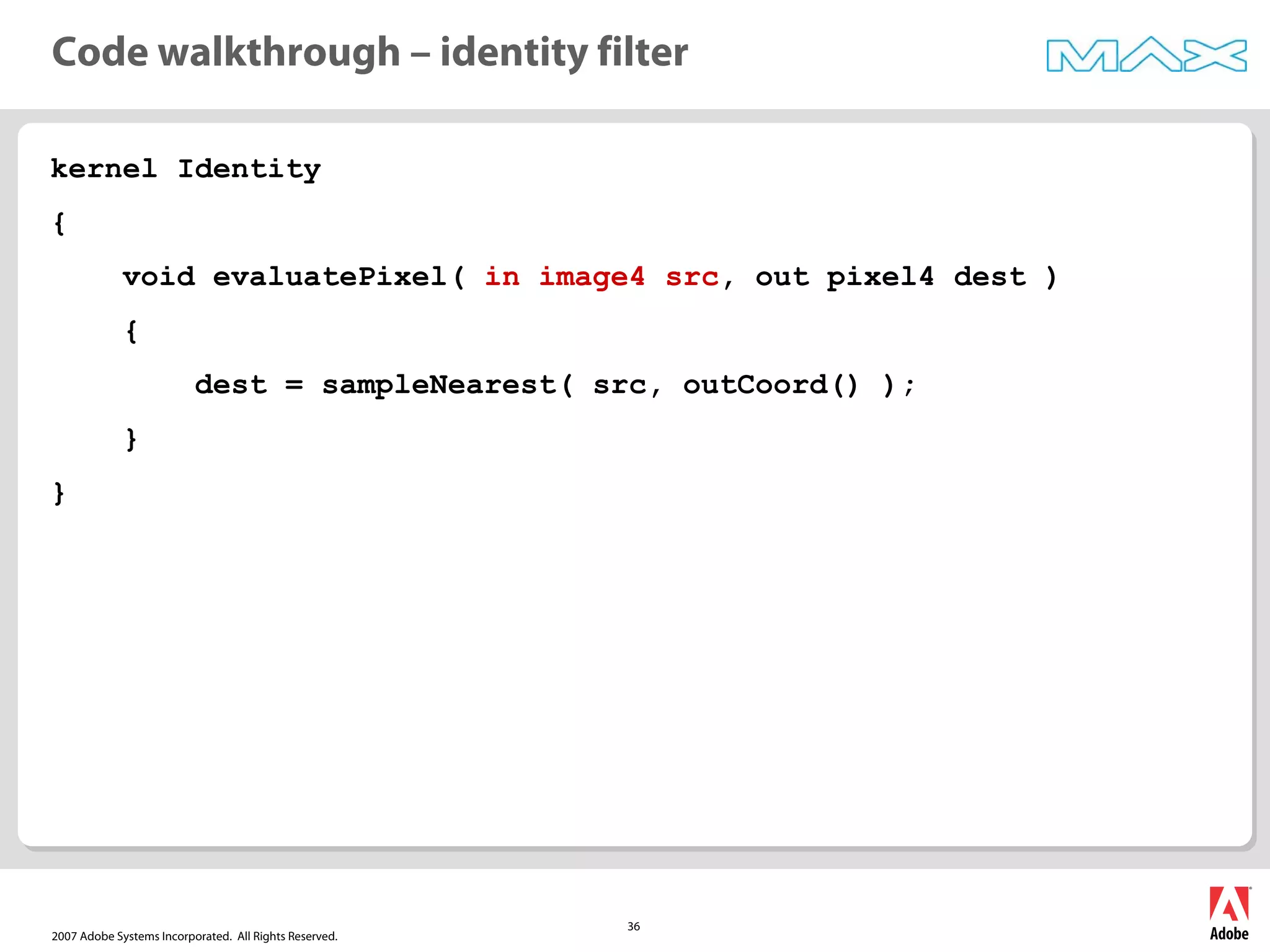

36. 2007 Adobe Systems Incorporated. All Rights Reserved.
36
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

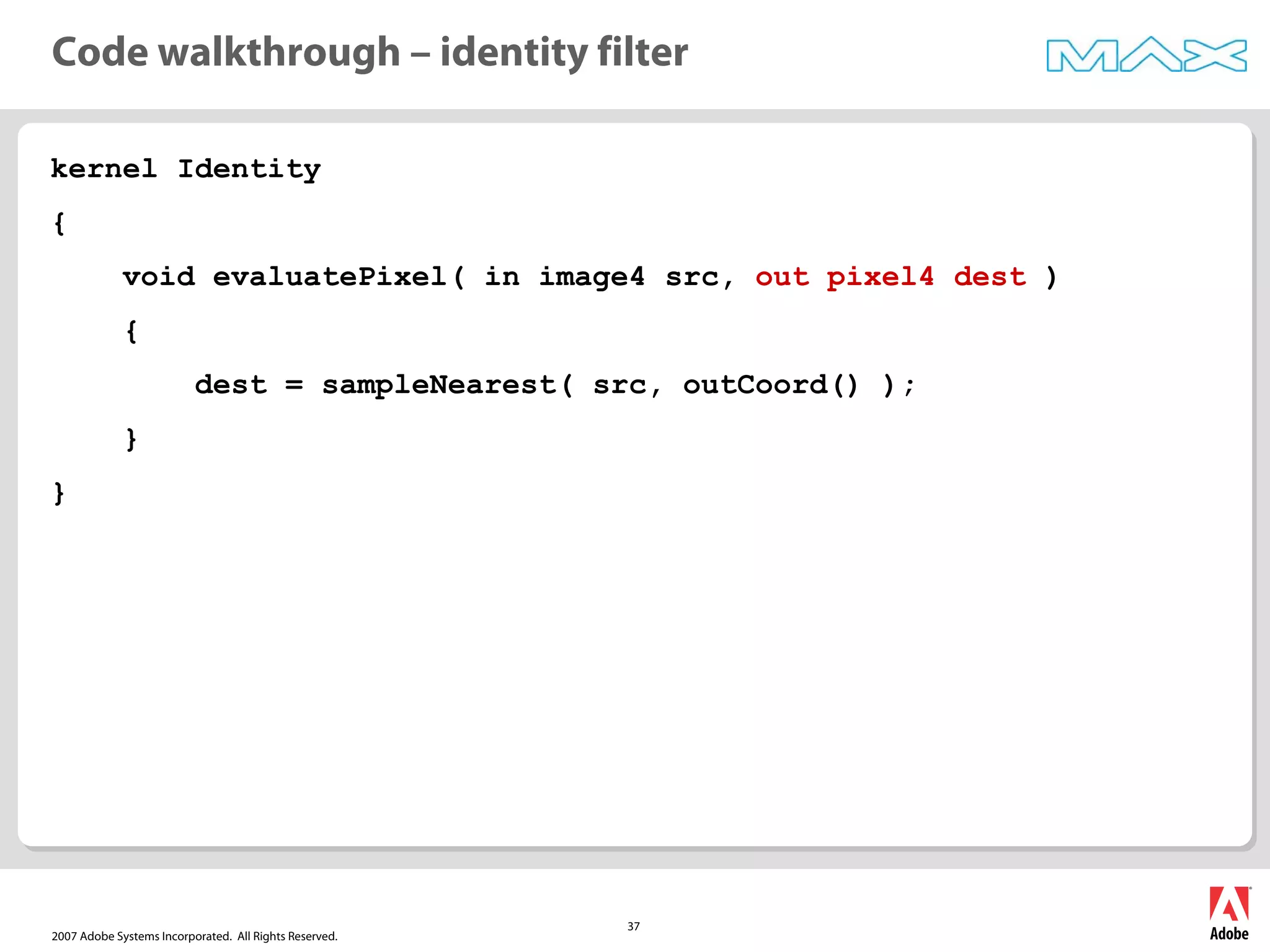

37. 2007 Adobe Systems Incorporated. All Rights Reserved.
37
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

38. 2007 Adobe Systems Incorporated. All Rights Reserved.
38
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

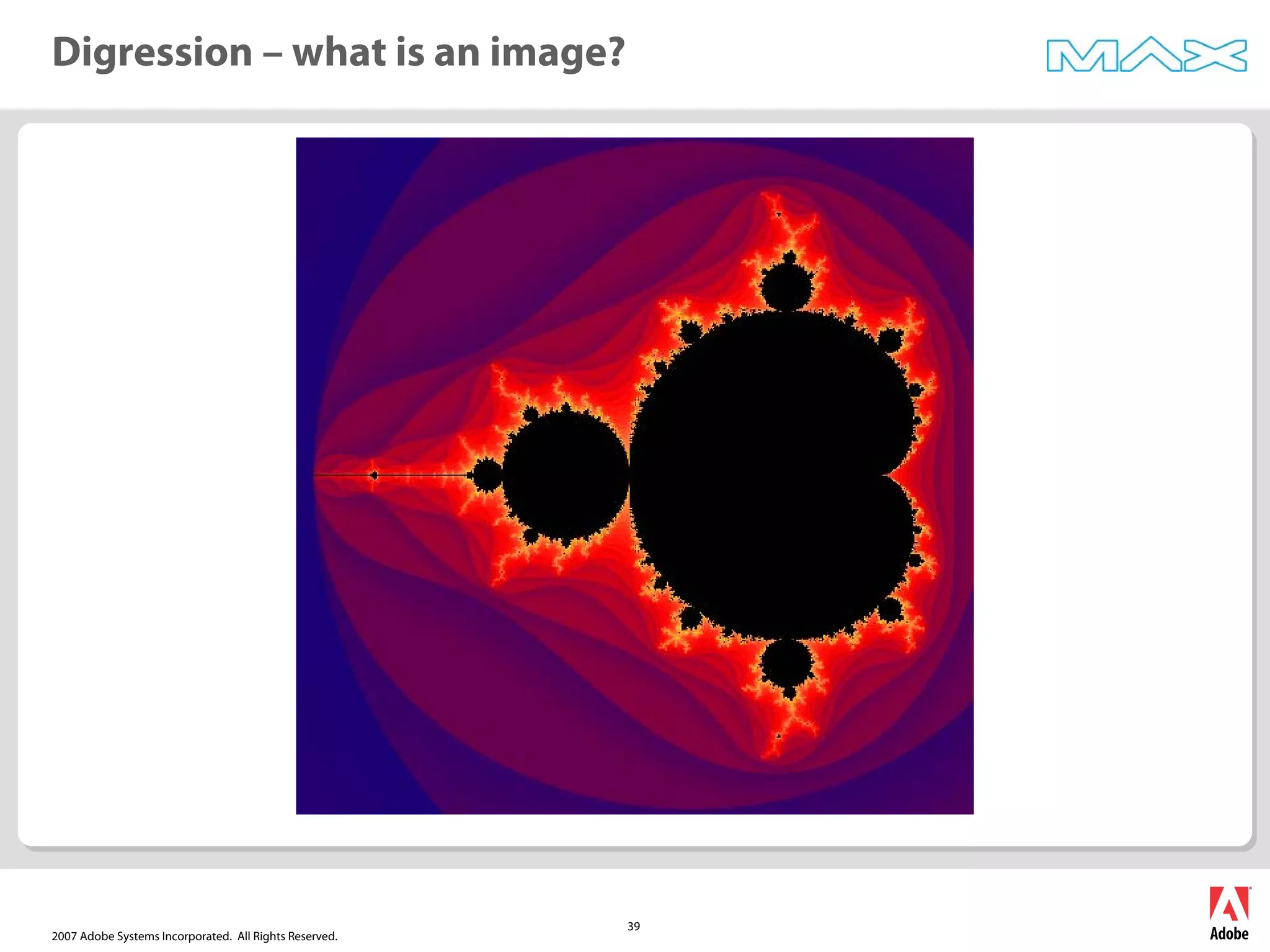

39. 2007 Adobe Systems Incorporated. All Rights Reserved.
39

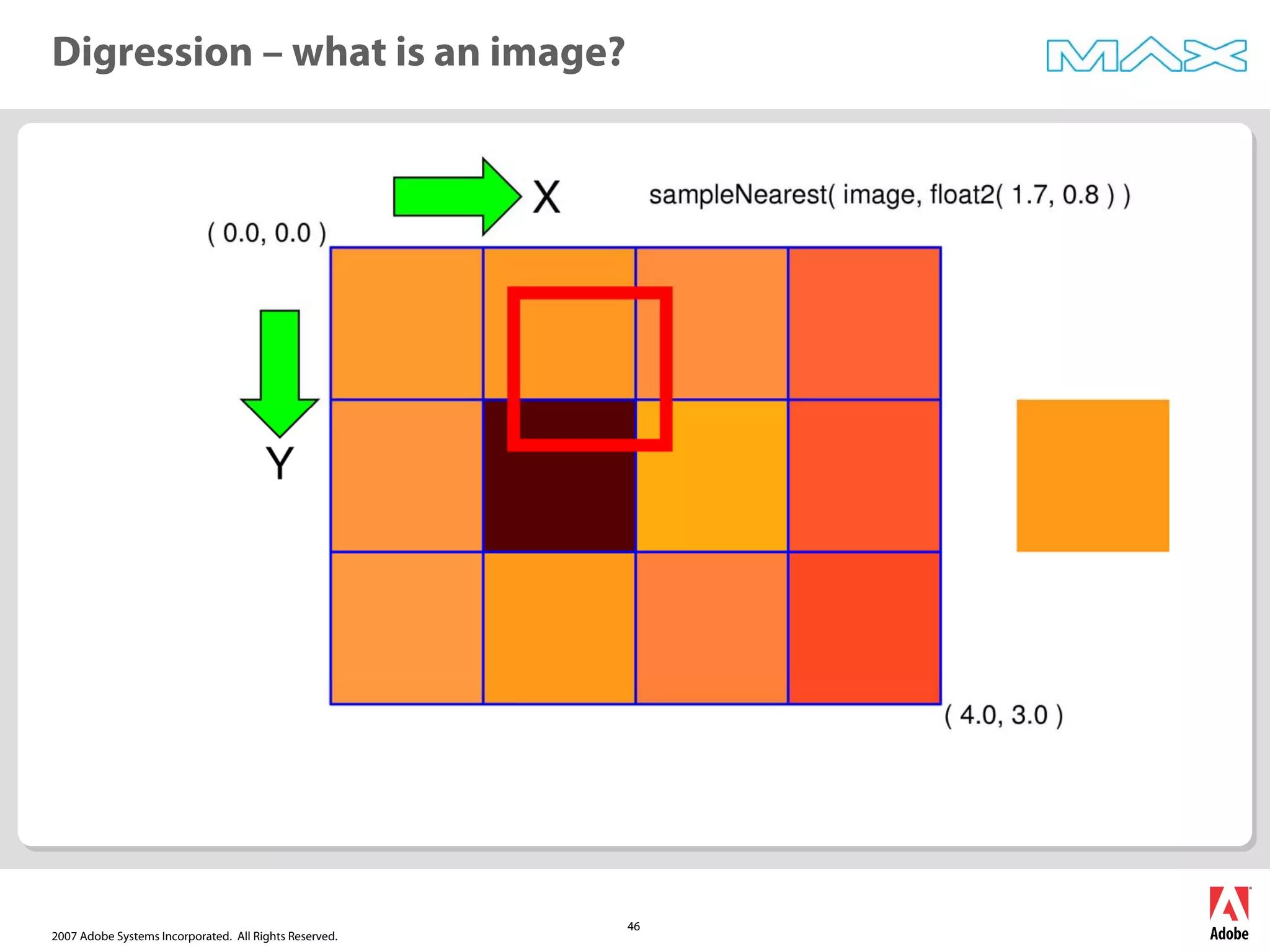

Digression – what is an image?

40. 2007 Adobe Systems Incorporated. All Rights Reserved.
40

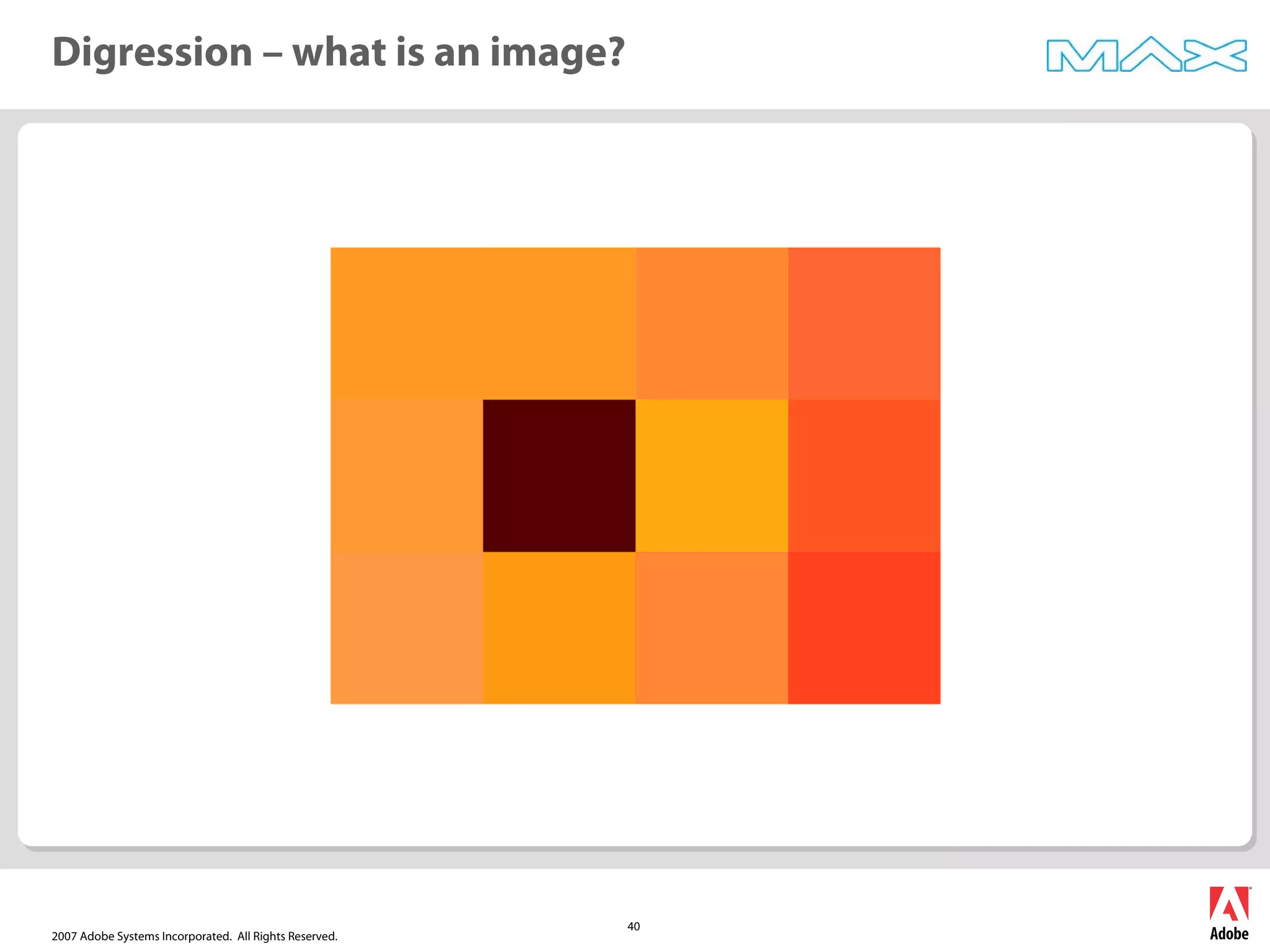

Digression – what is an image?

41. 2007 Adobe Systems Incorporated. All Rights Reserved.
41

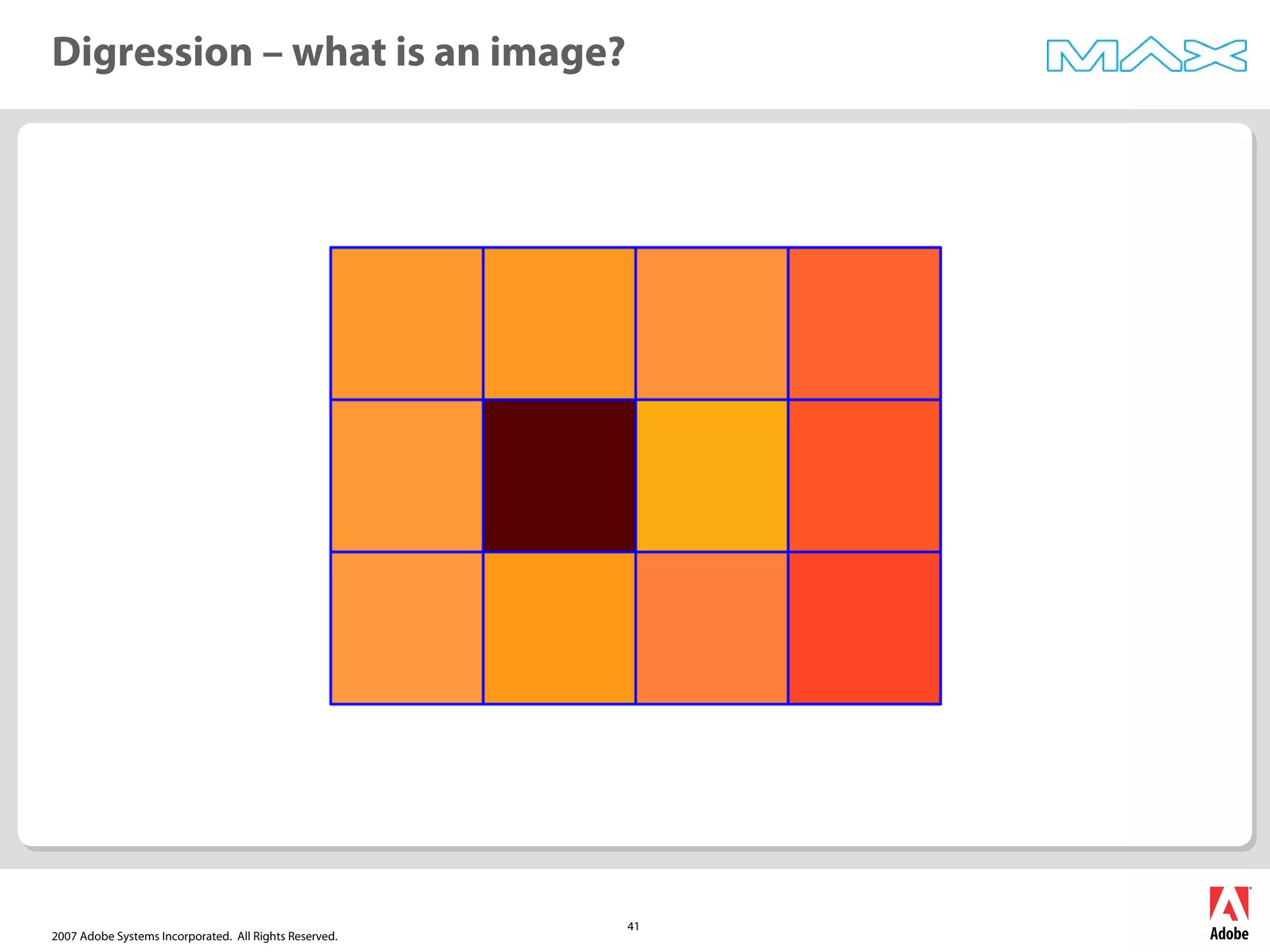

Digression – what is an image?

42. 2007 Adobe Systems Incorporated. All Rights Reserved.
42

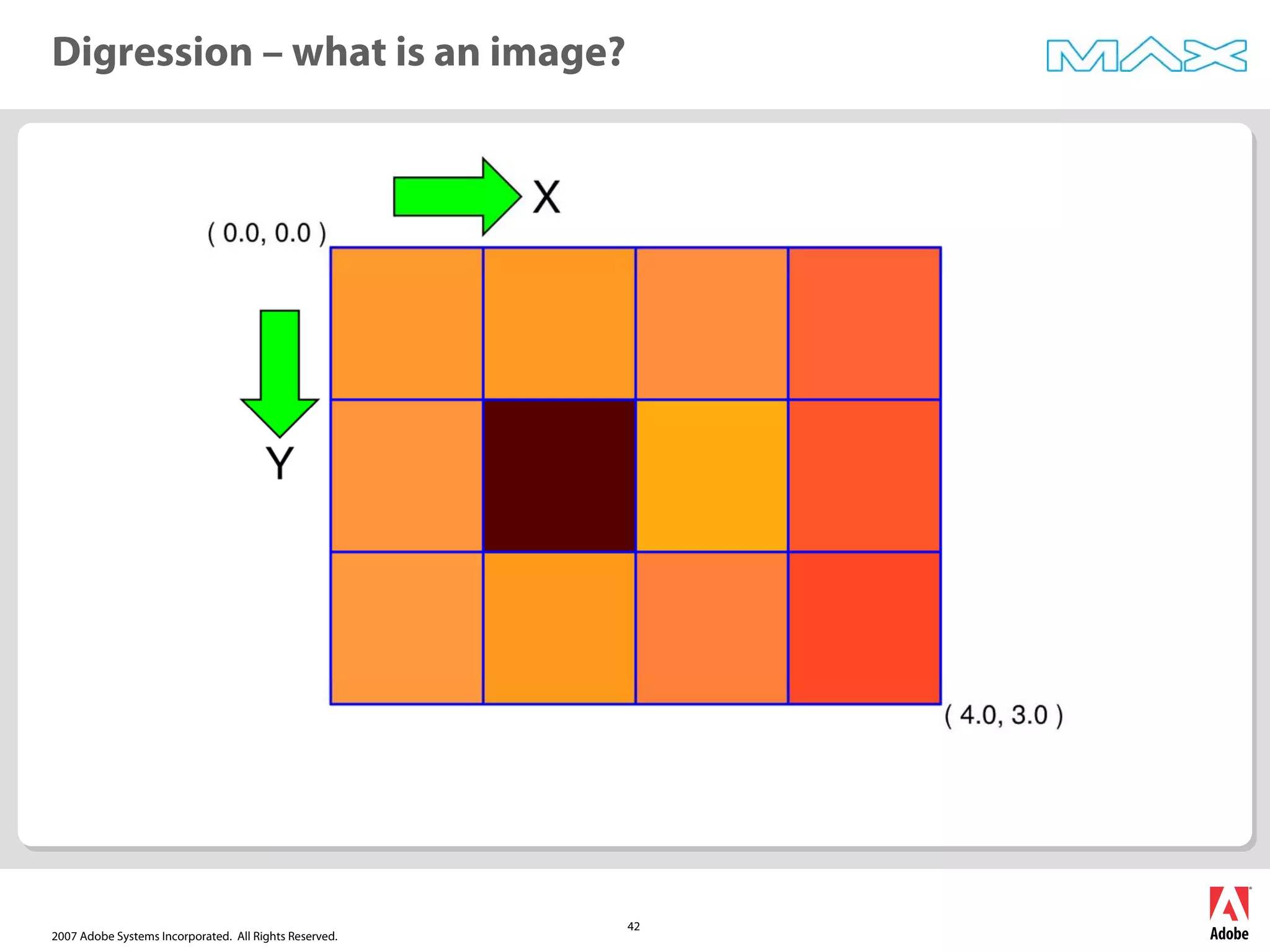

Digression – what is an image?

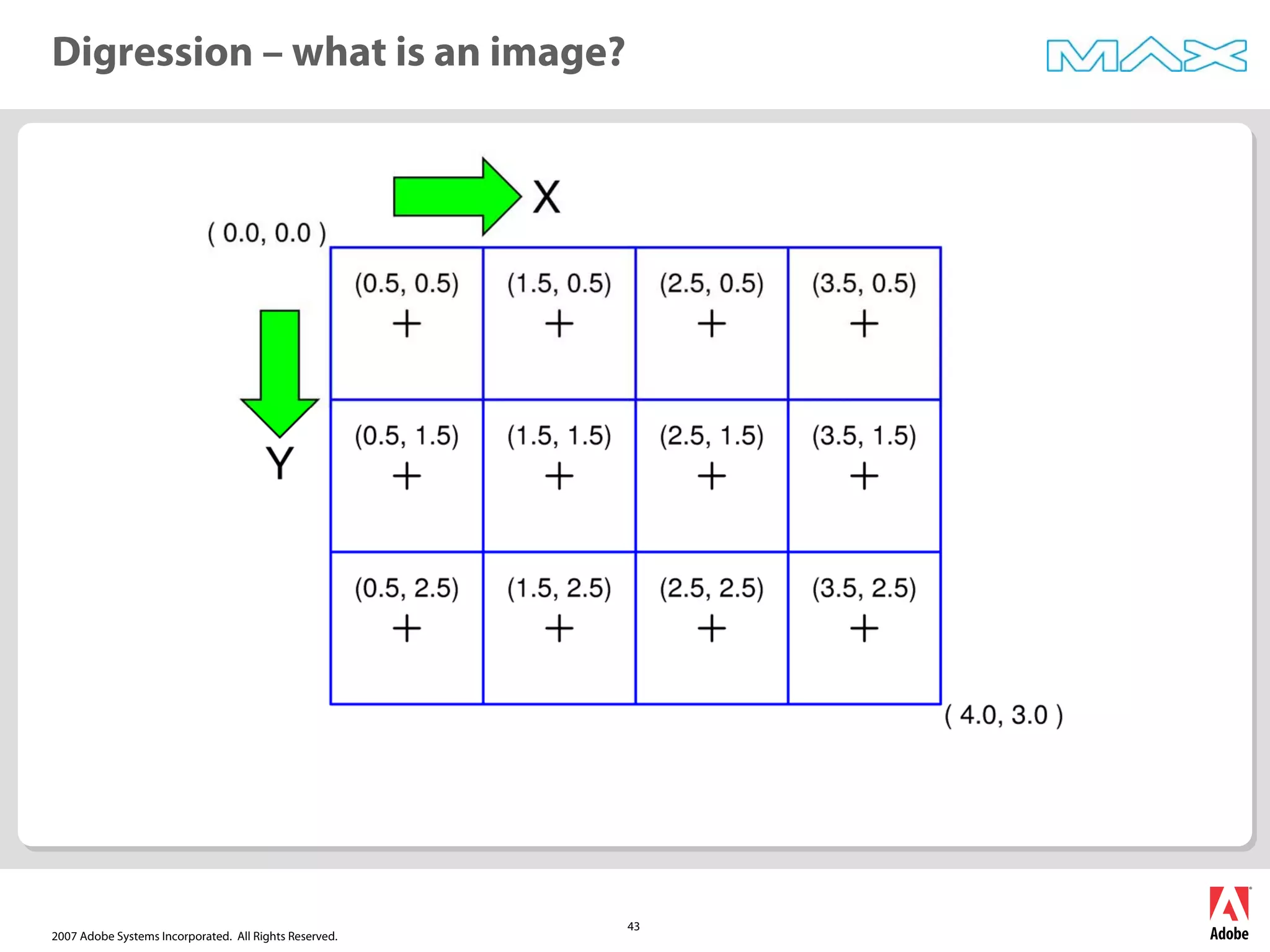

43. 2007 Adobe Systems Incorporated. All Rights Reserved.
43
Digression – what is an image?

44. 2007 Adobe Systems Incorporated. All Rights Reserved.
44

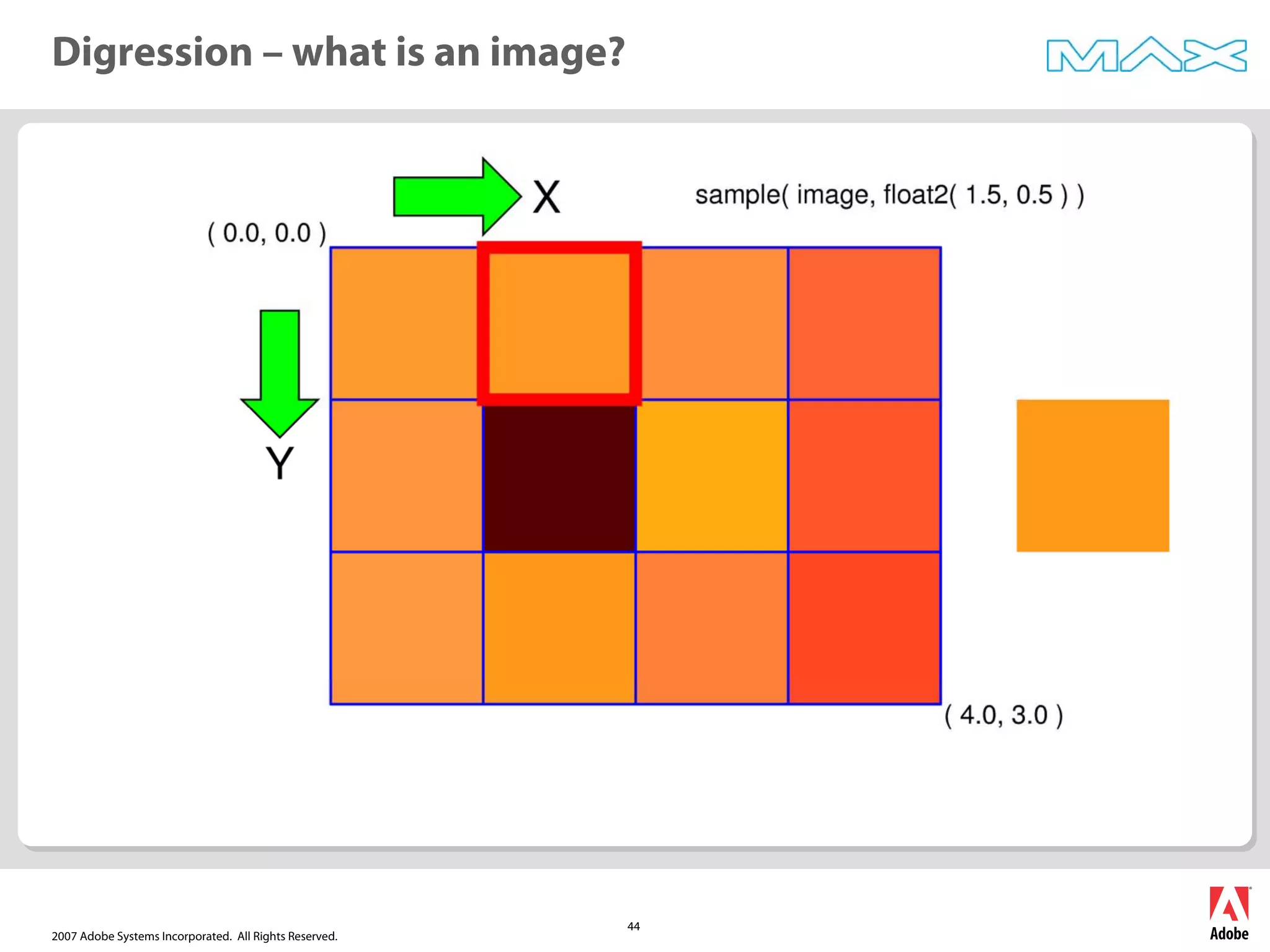

Digression – what is an image?

45. 2007 Adobe Systems Incorporated. All Rights Reserved.
45

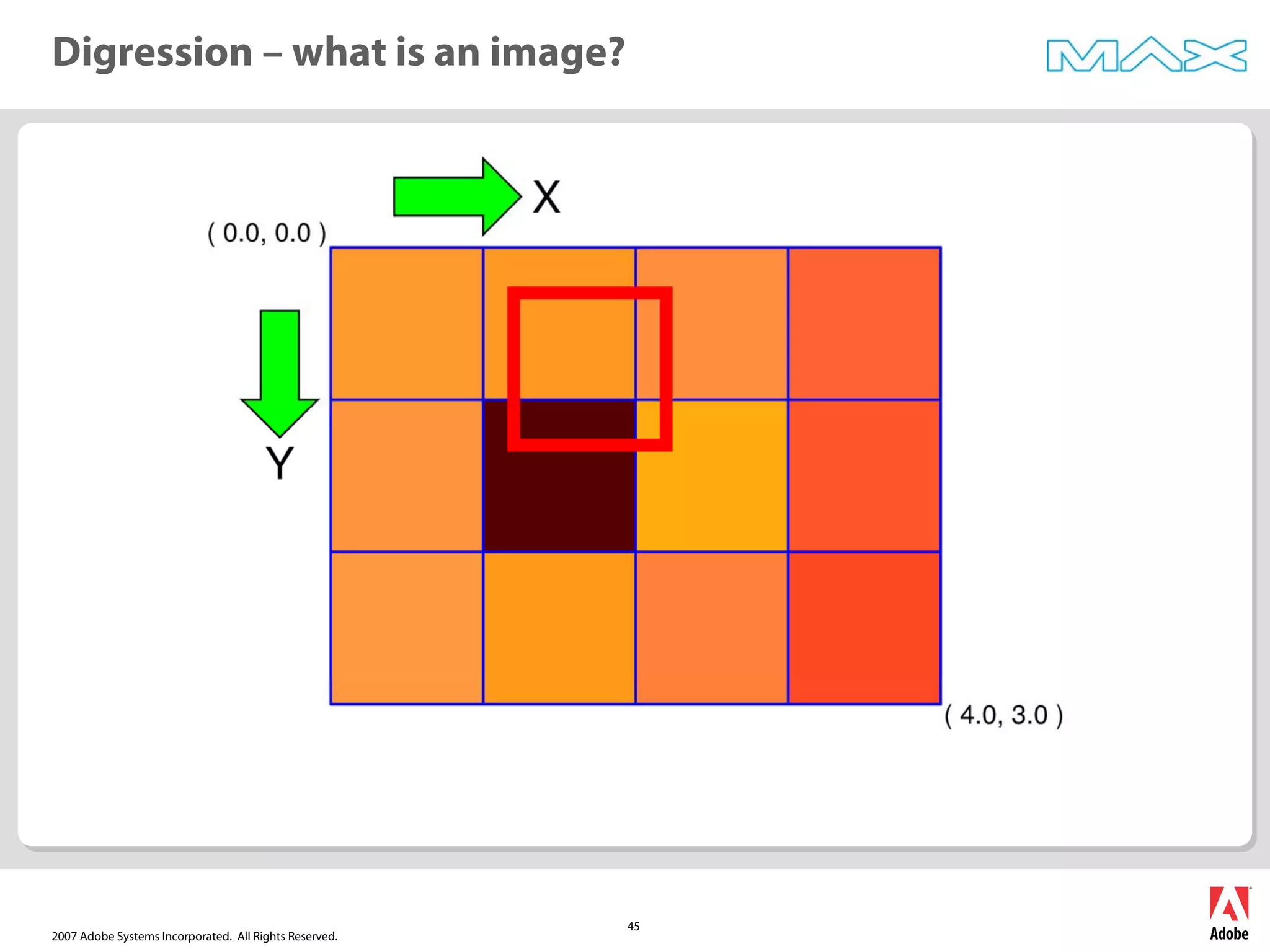

Digression – what is an image?

46. 2007 Adobe Systems Incorporated. All Rights Reserved.
46
Digression – what is an image?

47. 2007 Adobe Systems Incorporated. All Rights Reserved.

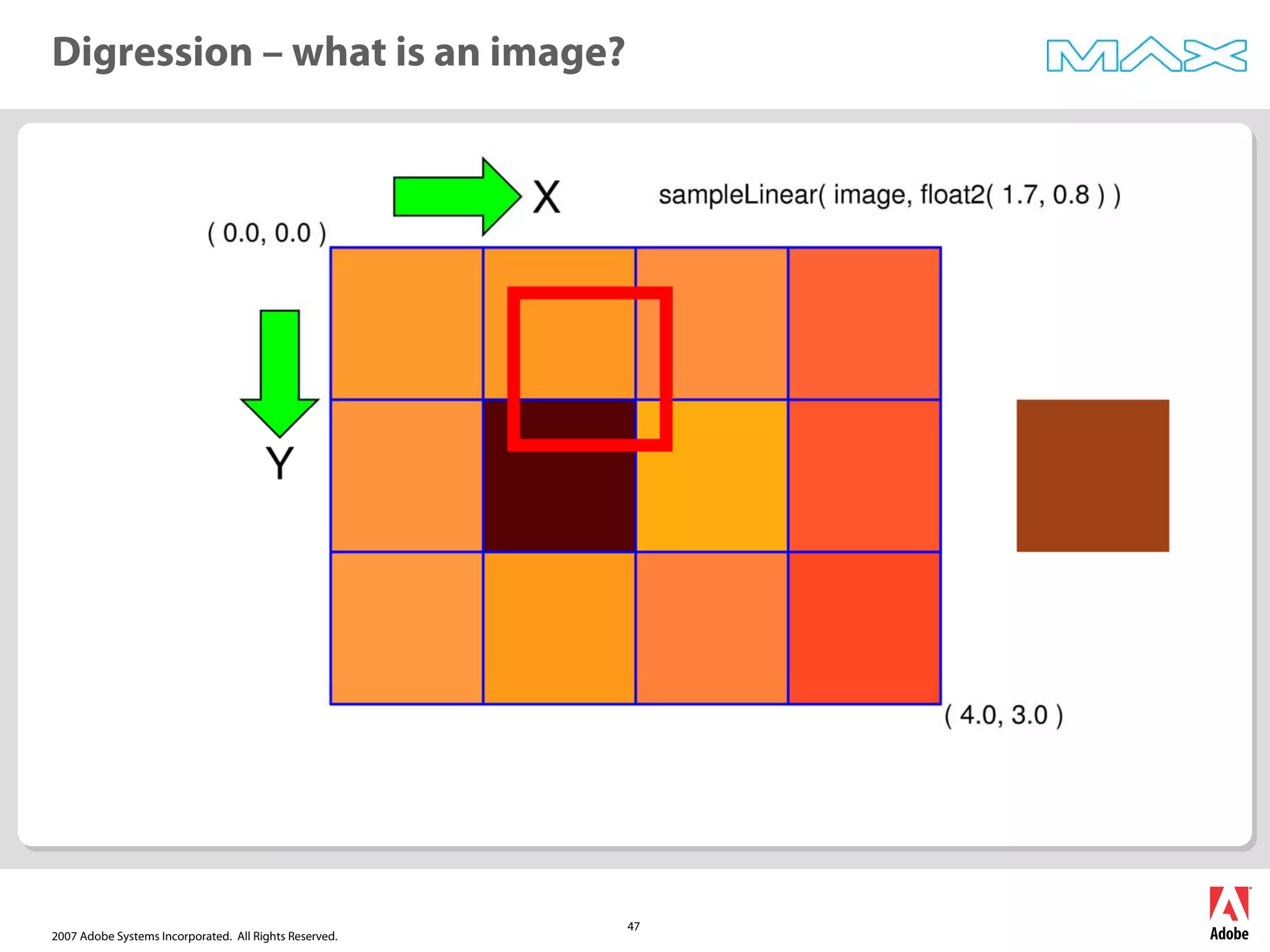

47
Digression – what is an image?

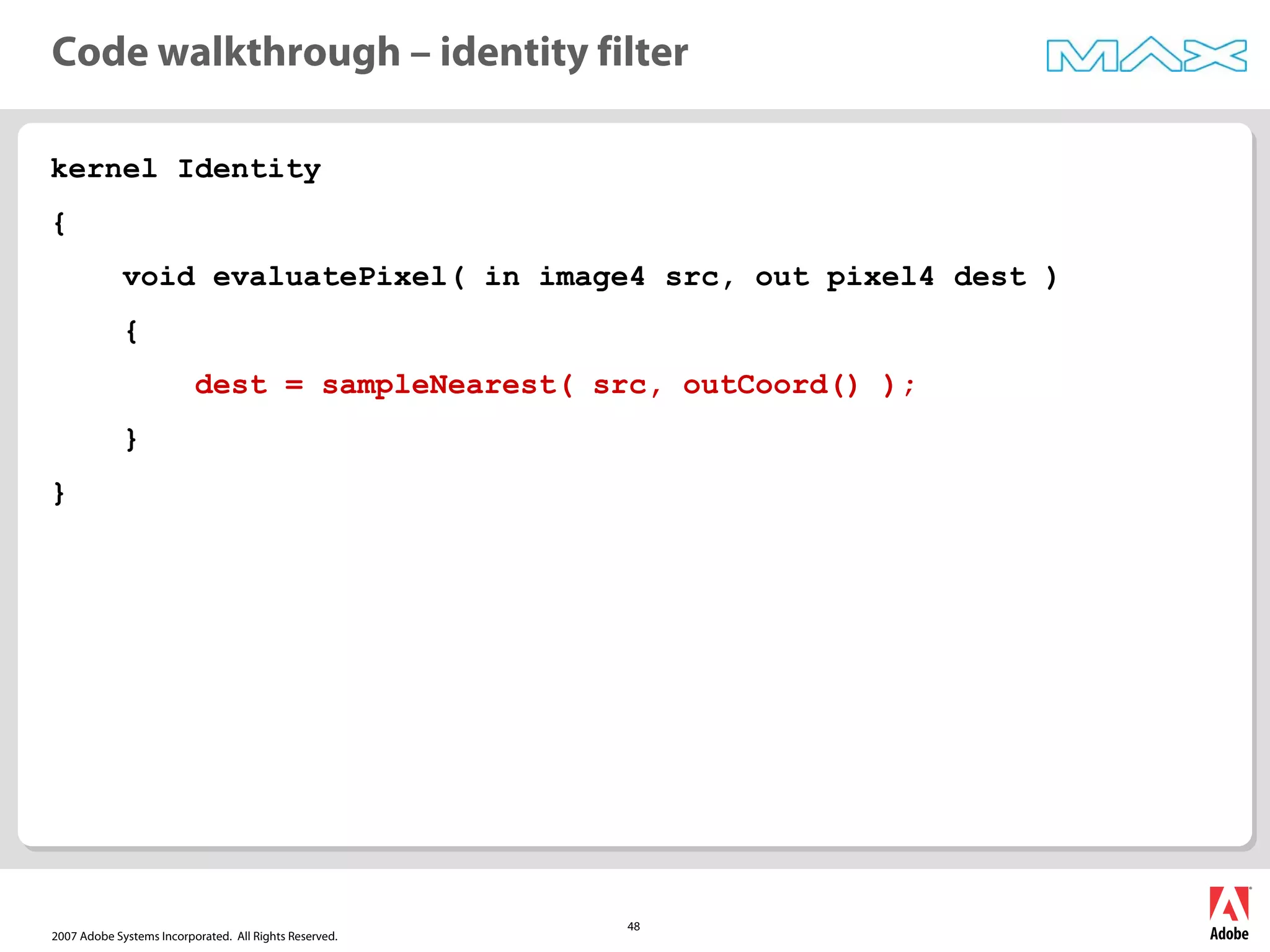

48. 2007 Adobe Systems Incorporated. All Rights Reserved.
48
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

49. 2007 Adobe Systems Incorporated. All Rights Reserved.
49
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

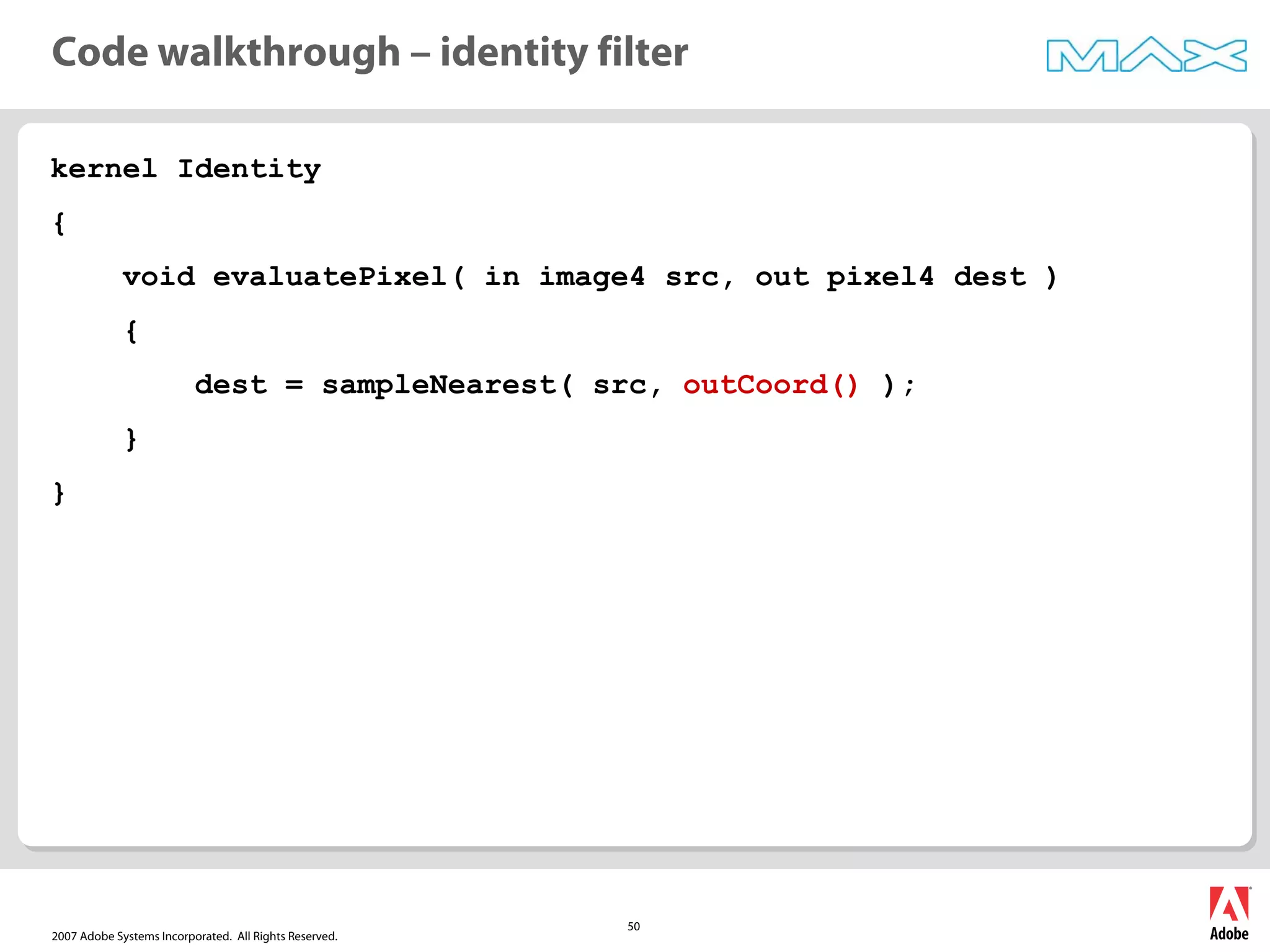

50. 2007 Adobe Systems Incorporated. All Rights Reserved.
50
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

51. 2007 Adobe Systems Incorporated. All Rights Reserved.
51
kernel Identity
{
void evaluatePixel( in image4 src, out pixel4 dest )
{
dest = sampleNearest( src, outCoord() );
}
}
Code walkthrough – identity filter

52. 2007 Adobe Systems Incorporated. All Rights Reserved.
52

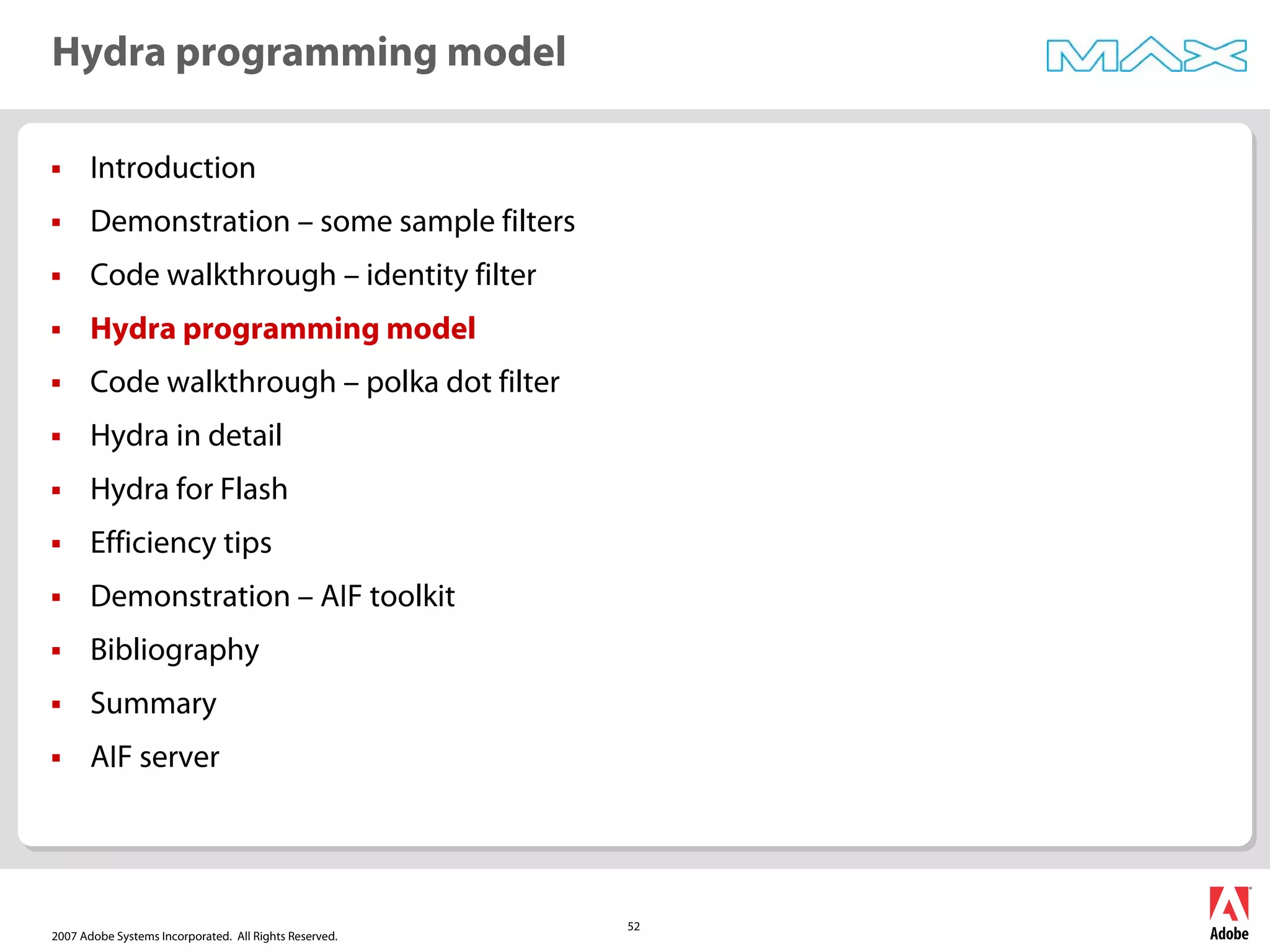

ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Hydra programming model

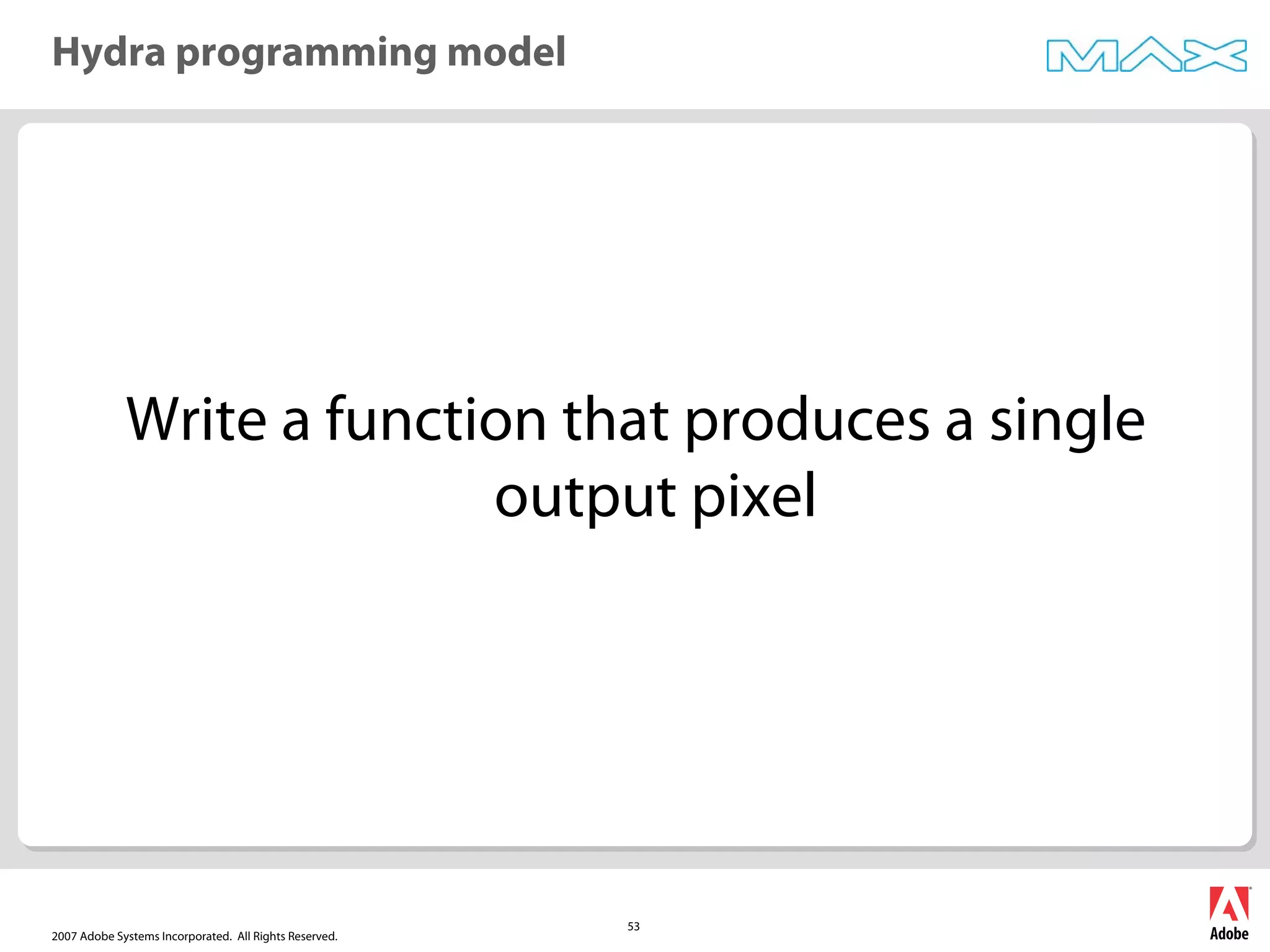

53. 2007 Adobe Systems Incorporated. All Rights Reserved.
53

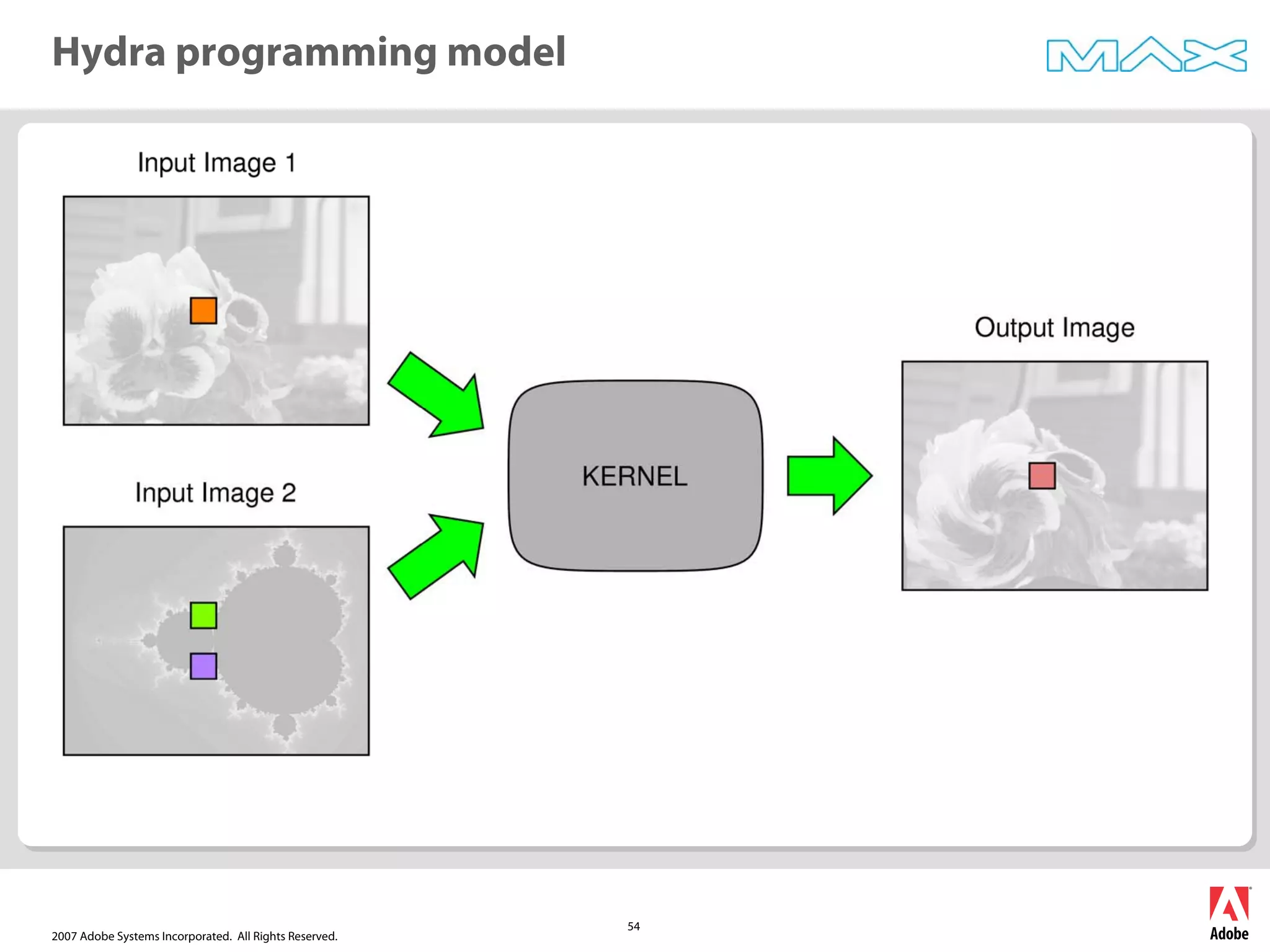

Write a function that produces a single
output pixel
Hydra programming model

54. 2007 Adobe Systems Incorporated. All Rights Reserved.
54
Hydra programming model

55. 2007 Adobe Systems Incorporated. All Rights Reserved.
55
Hydra programming model

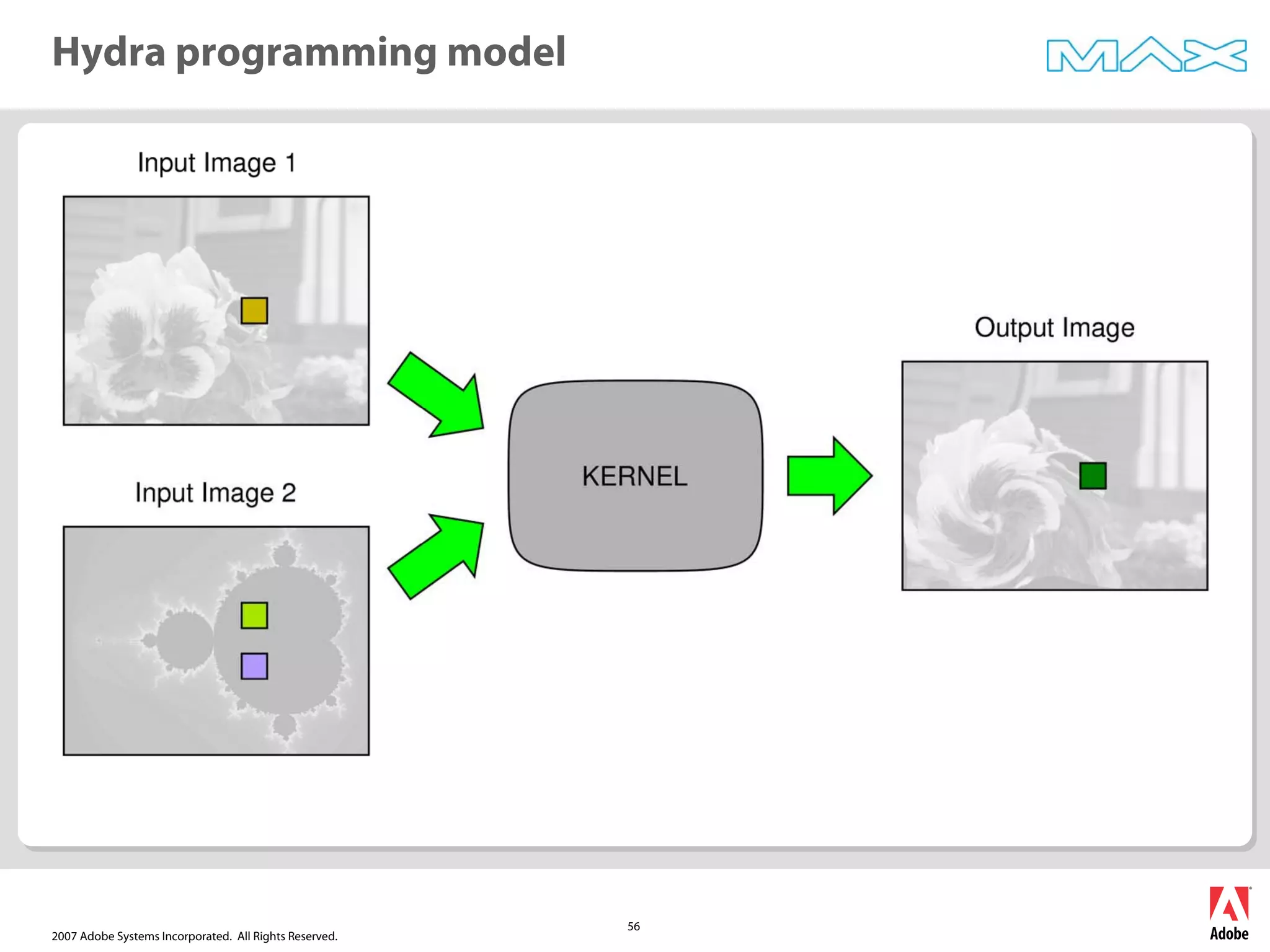

56. 2007 Adobe Systems Incorporated. All Rights Reserved.
56

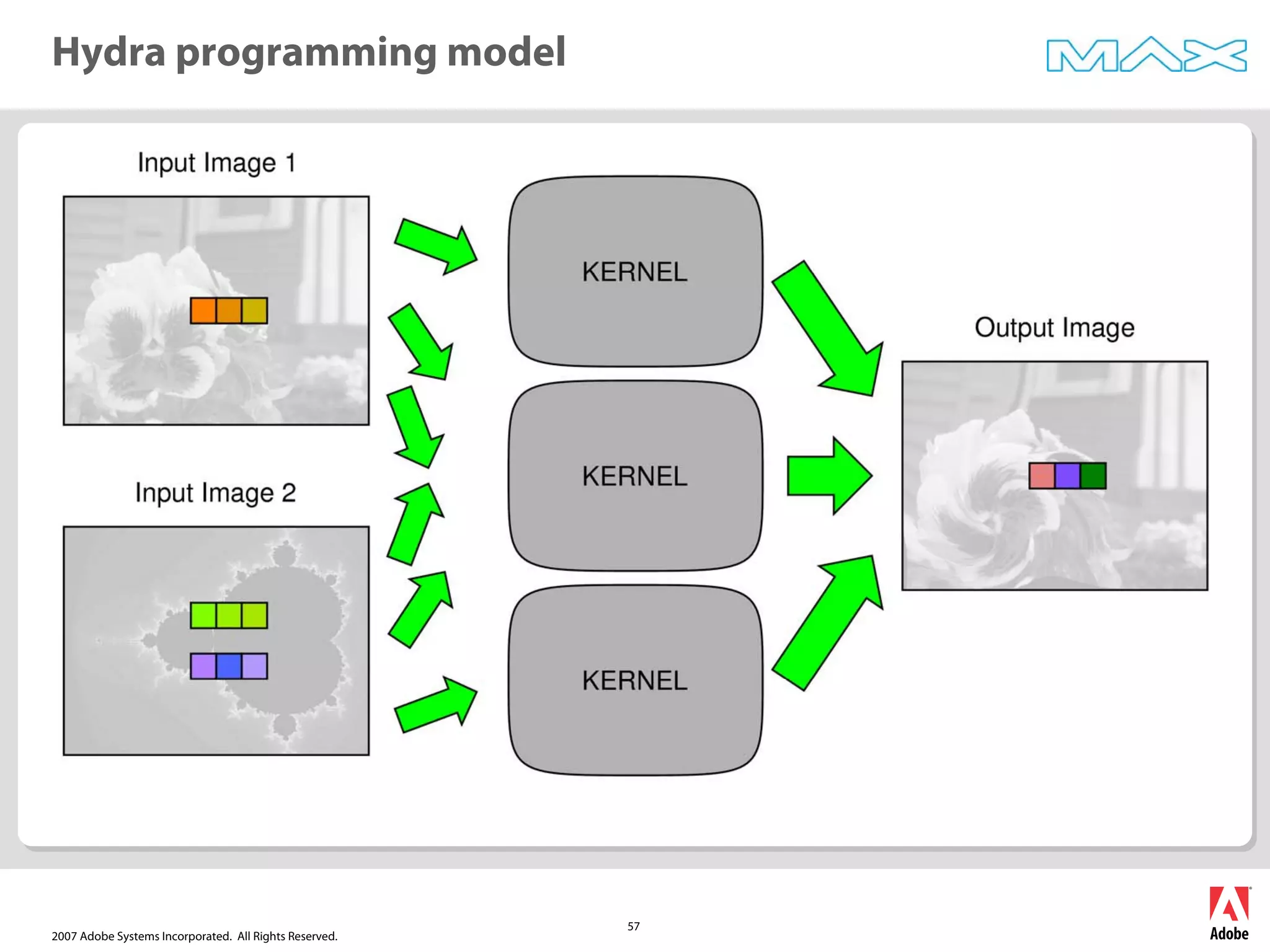

Hydra programming model

57. 2007 Adobe Systems Incorporated. All Rights Reserved.
57
Hydra programming model

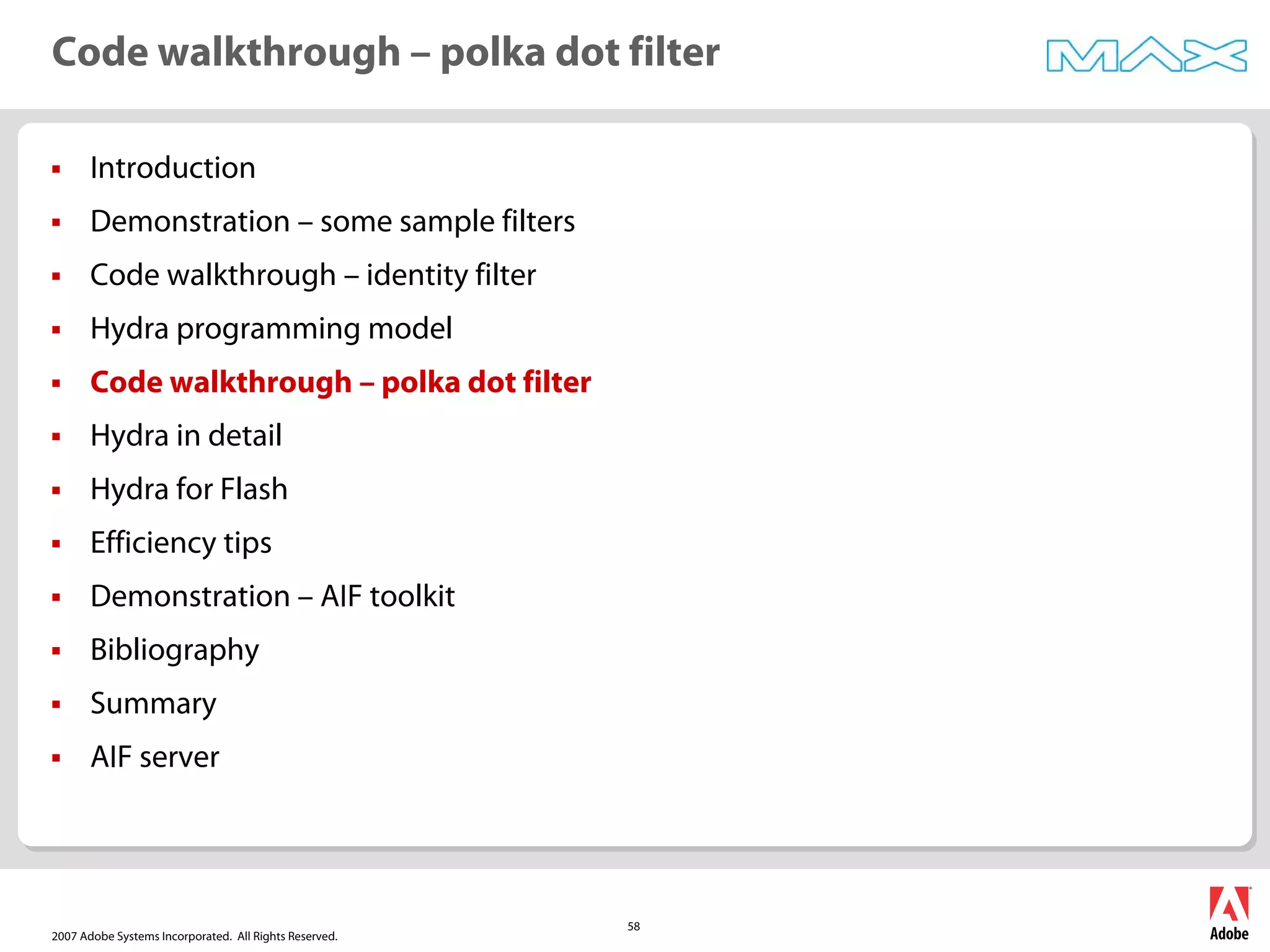

58. 2007 Adobe Systems Incorporated. All Rights Reserved.
58
ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Code walkthrough – polka dot filter

59. 2007 Adobe Systems Incorporated. All Rights Reserved.
59
Code walkthrough – polka dot filter

60. 2007 Adobe Systems Incorporated. All Rights Reserved.

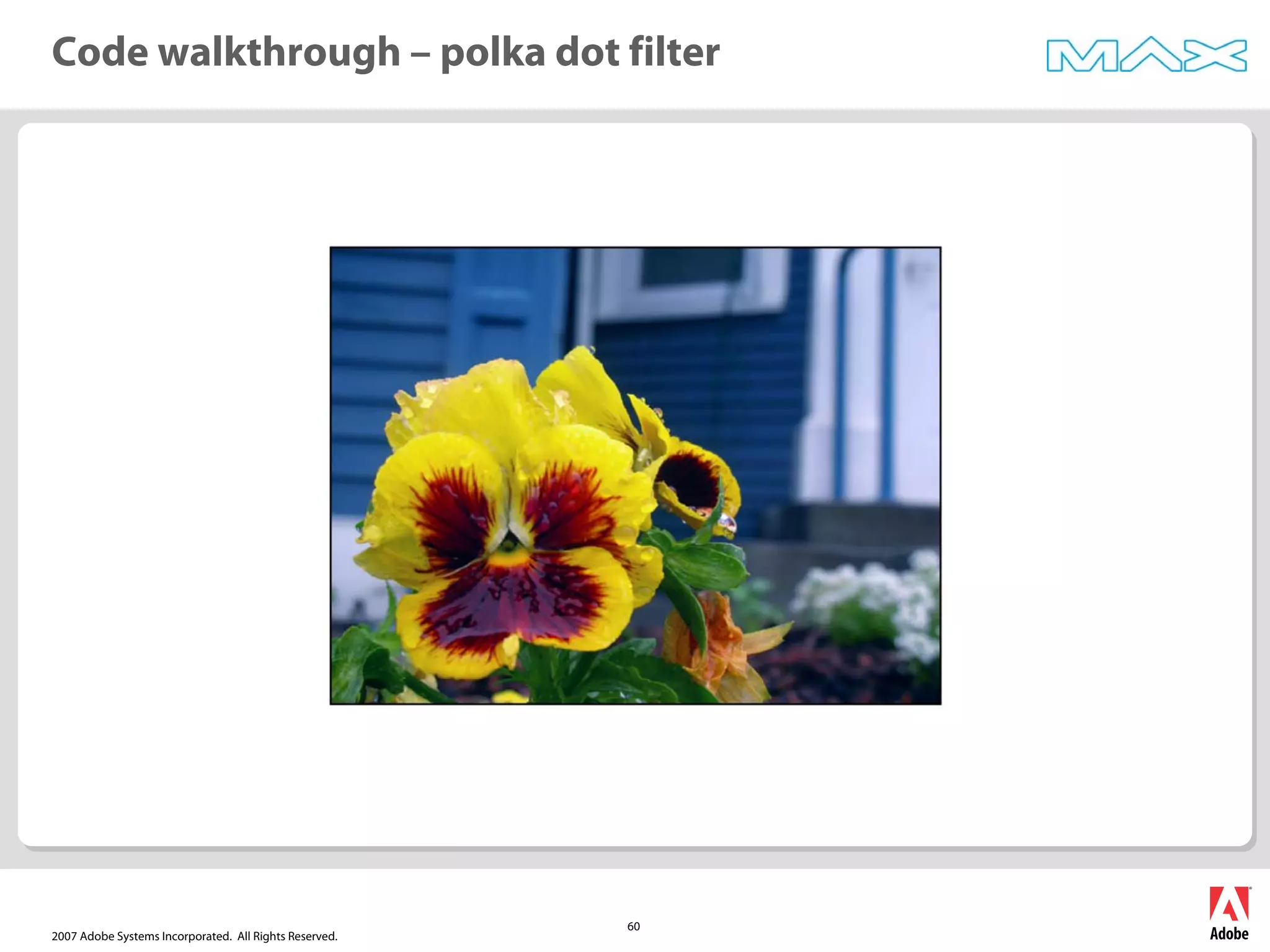

60
Code walkthrough – polka dot filter

61. 2007 Adobe Systems Incorporated. All Rights Reserved.
61
Code walkthrough – polka dot filter

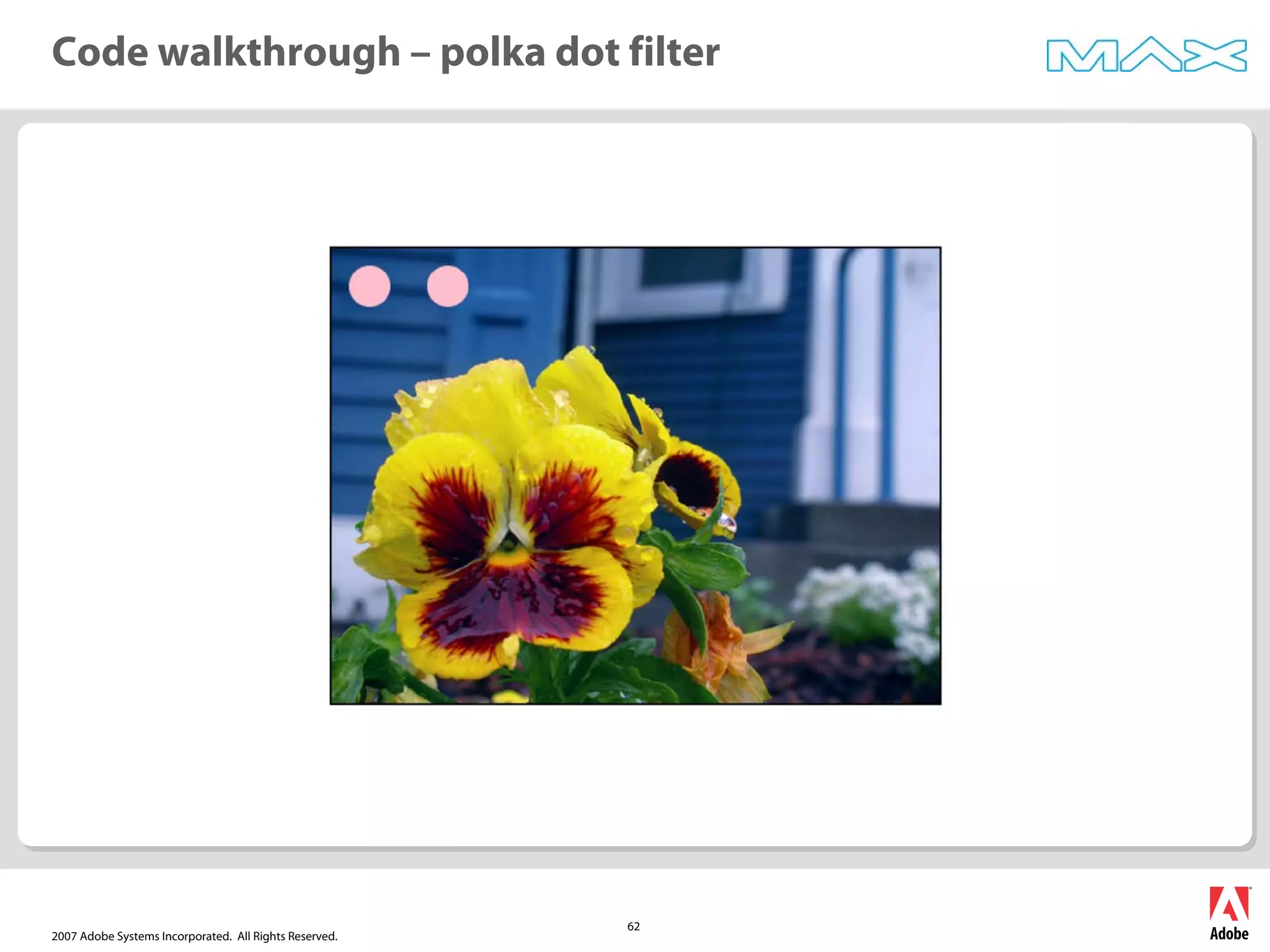

62. 2007 Adobe Systems Incorporated. All Rights Reserved.
62
Code walkthrough – polka dot filter

63. 2007 Adobe Systems Incorporated. All Rights Reserved.
63
Code walkthrough – polka dot filter

64. 2007 Adobe Systems Incorporated. All Rights Reserved.
64

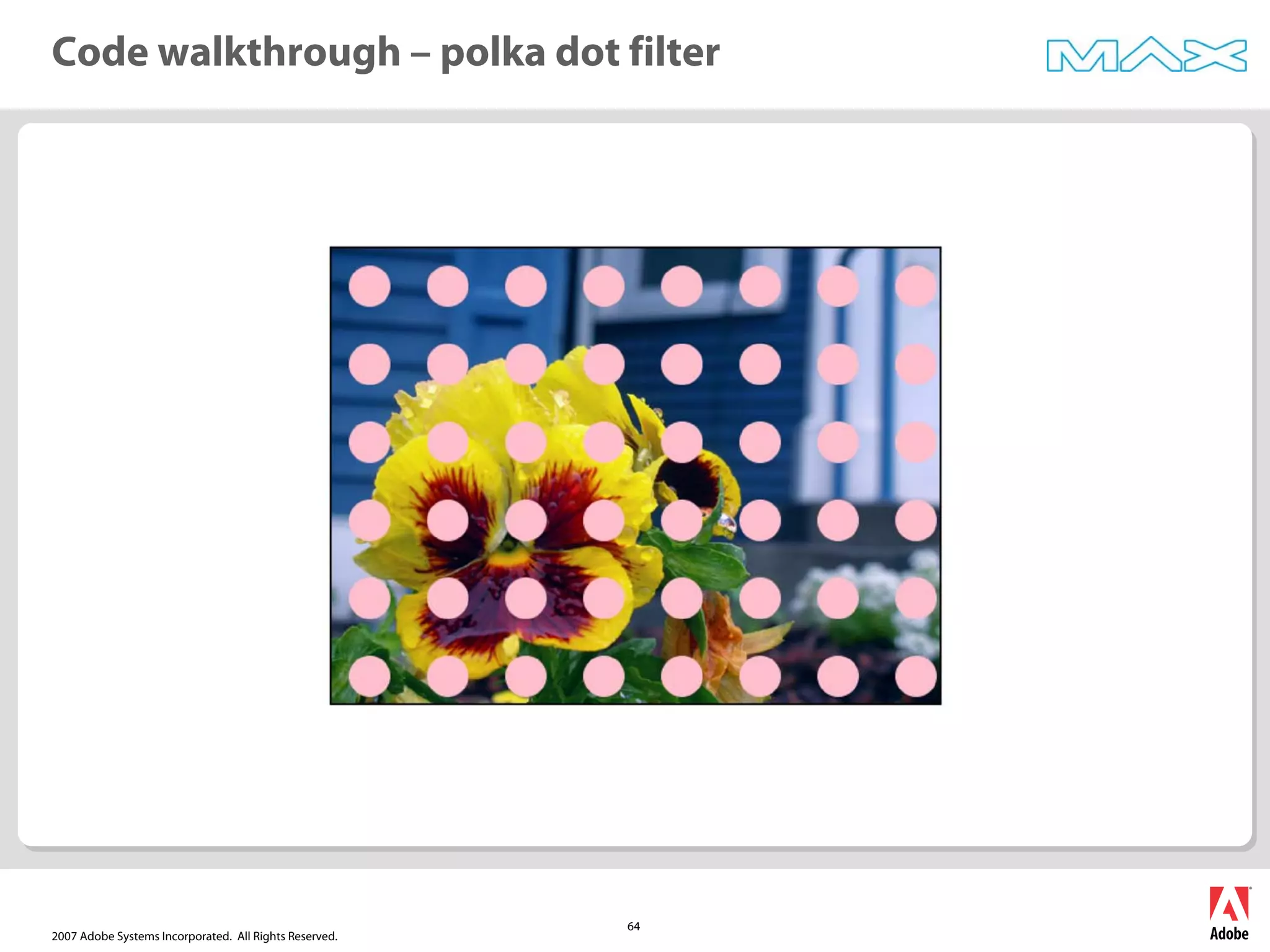

Code walkthrough – polka dot filter

65. 2007 Adobe Systems Incorporated. All Rights Reserved.
65

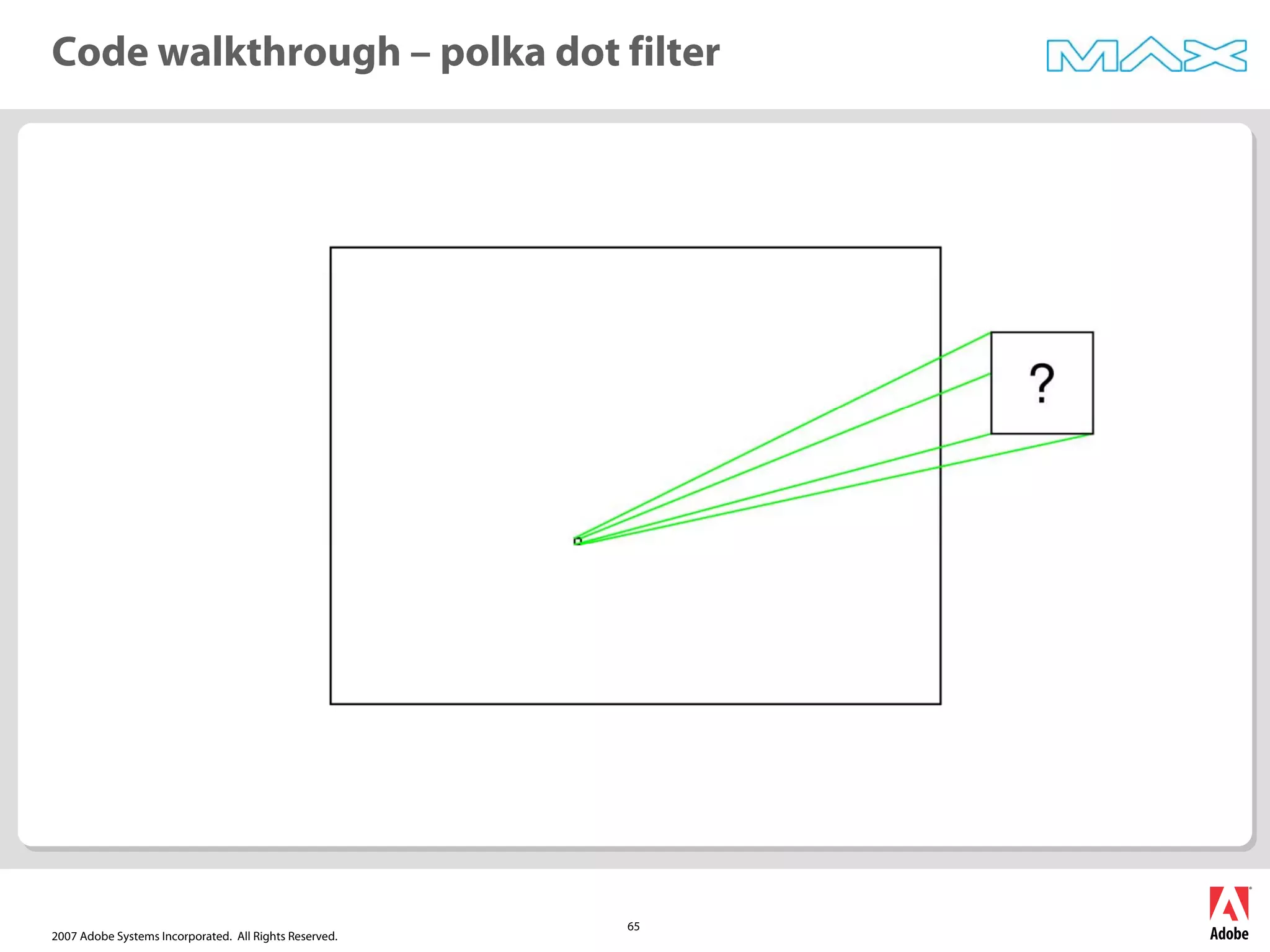

Code walkthrough – polka dot filter

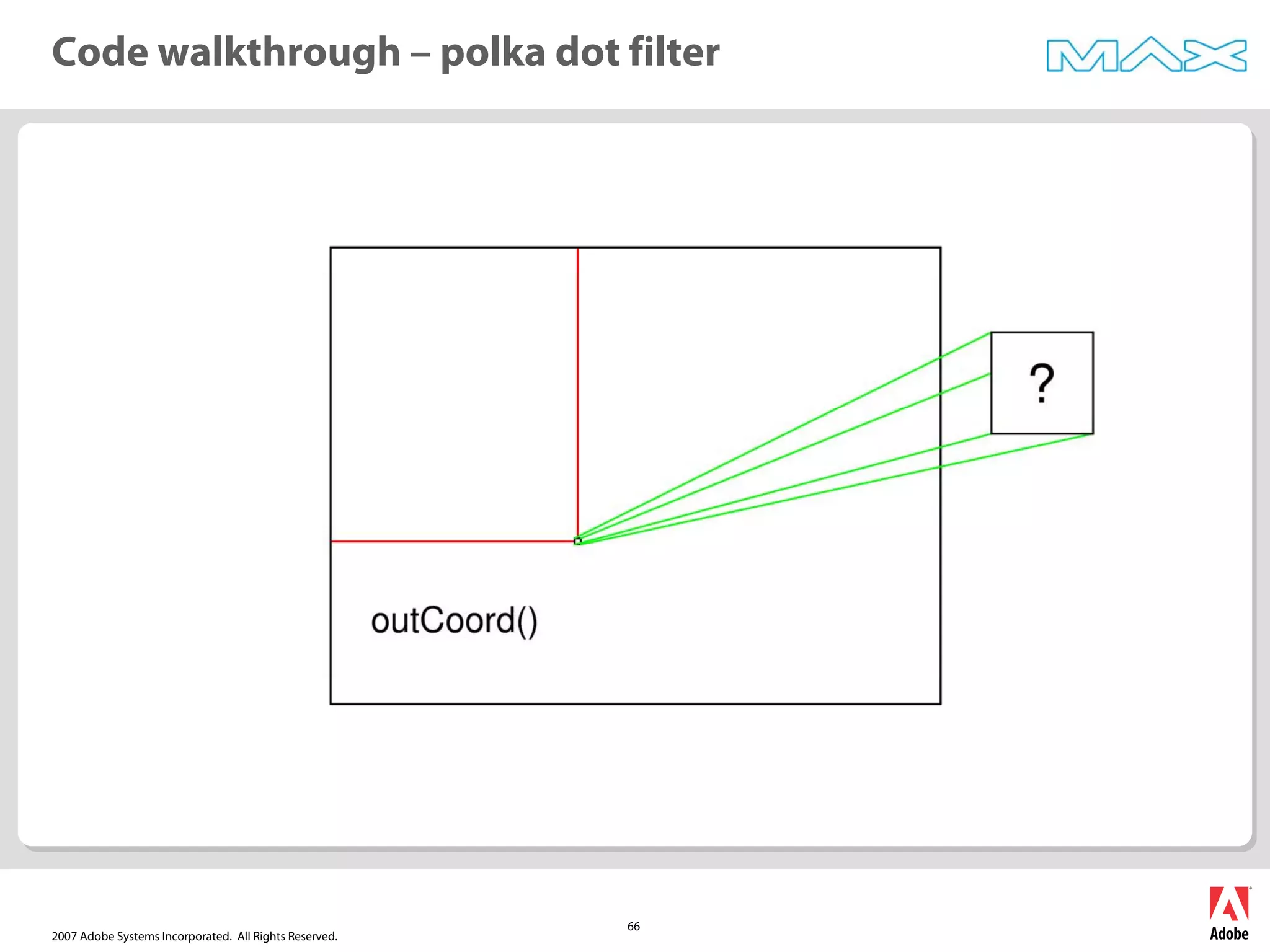

66. 2007 Adobe Systems Incorporated. All Rights Reserved.
66
Code walkthrough – polka dot filter

67. 2007 Adobe Systems Incorporated. All Rights Reserved.
67
Code walkthrough – polka dot filter

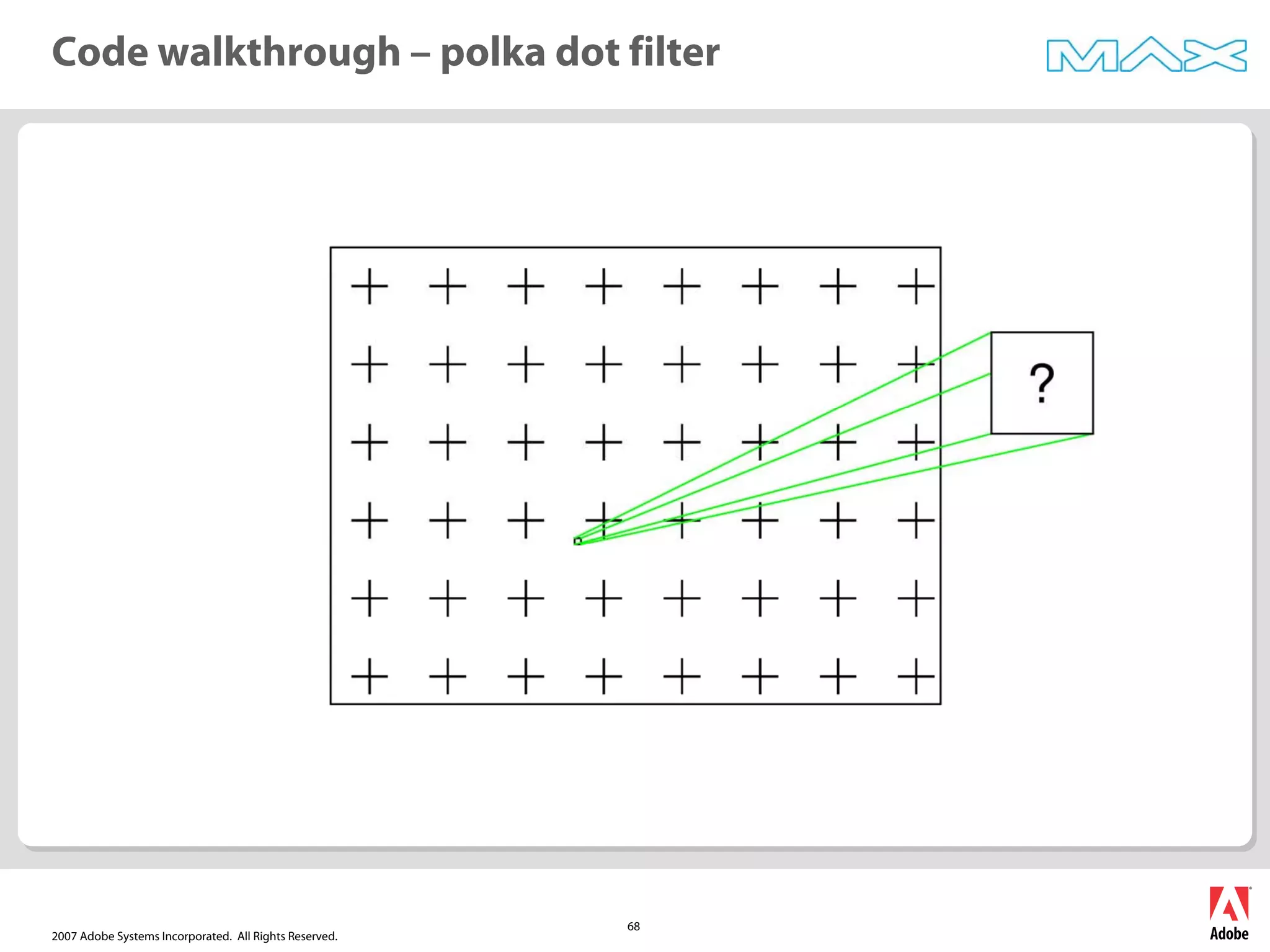

68. 2007 Adobe Systems Incorporated. All Rights Reserved.
68
Code walkthrough – polka dot filter

69. 2007 Adobe Systems Incorporated. All Rights Reserved.
69

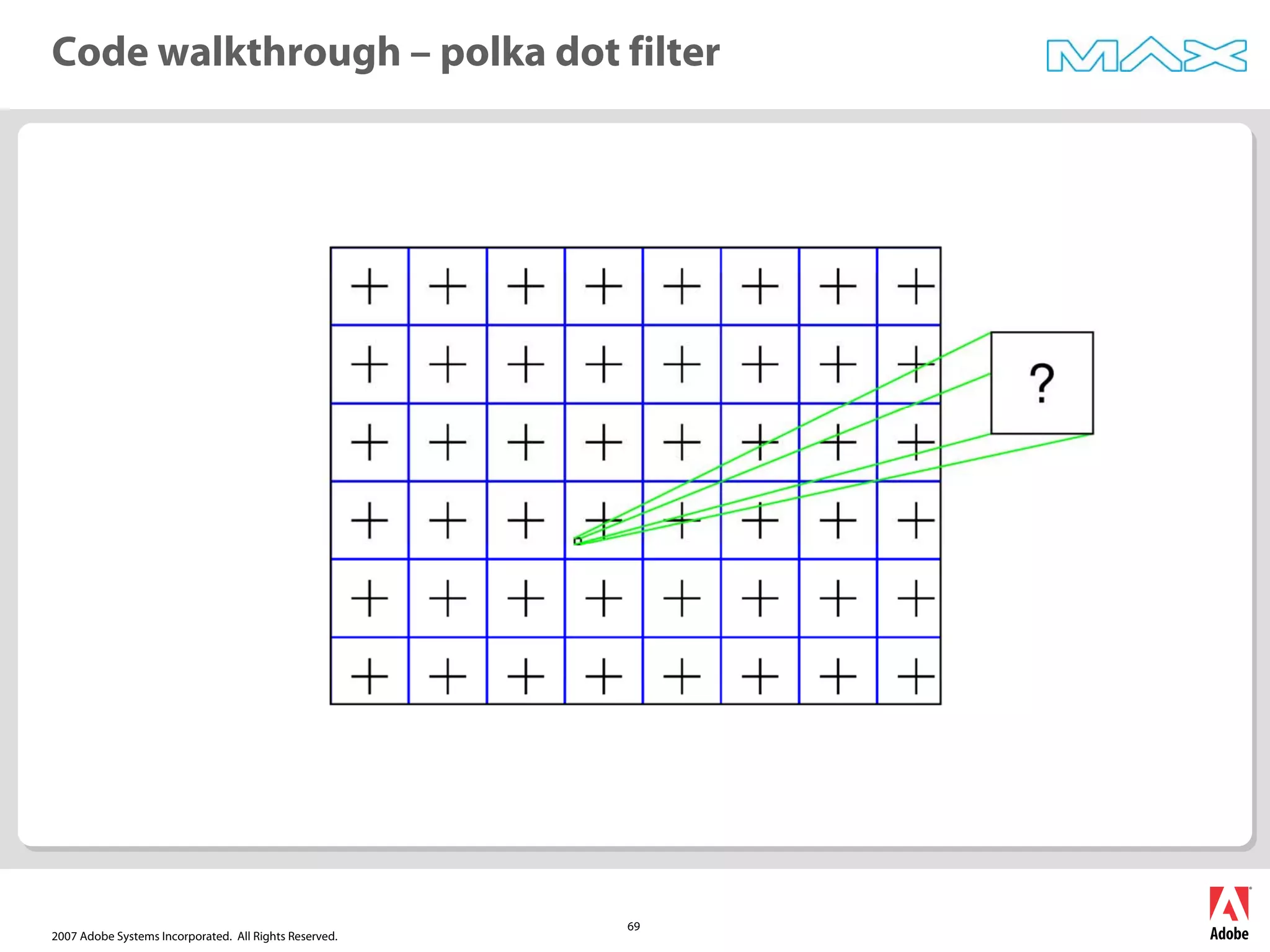

Code walkthrough – polka dot filter

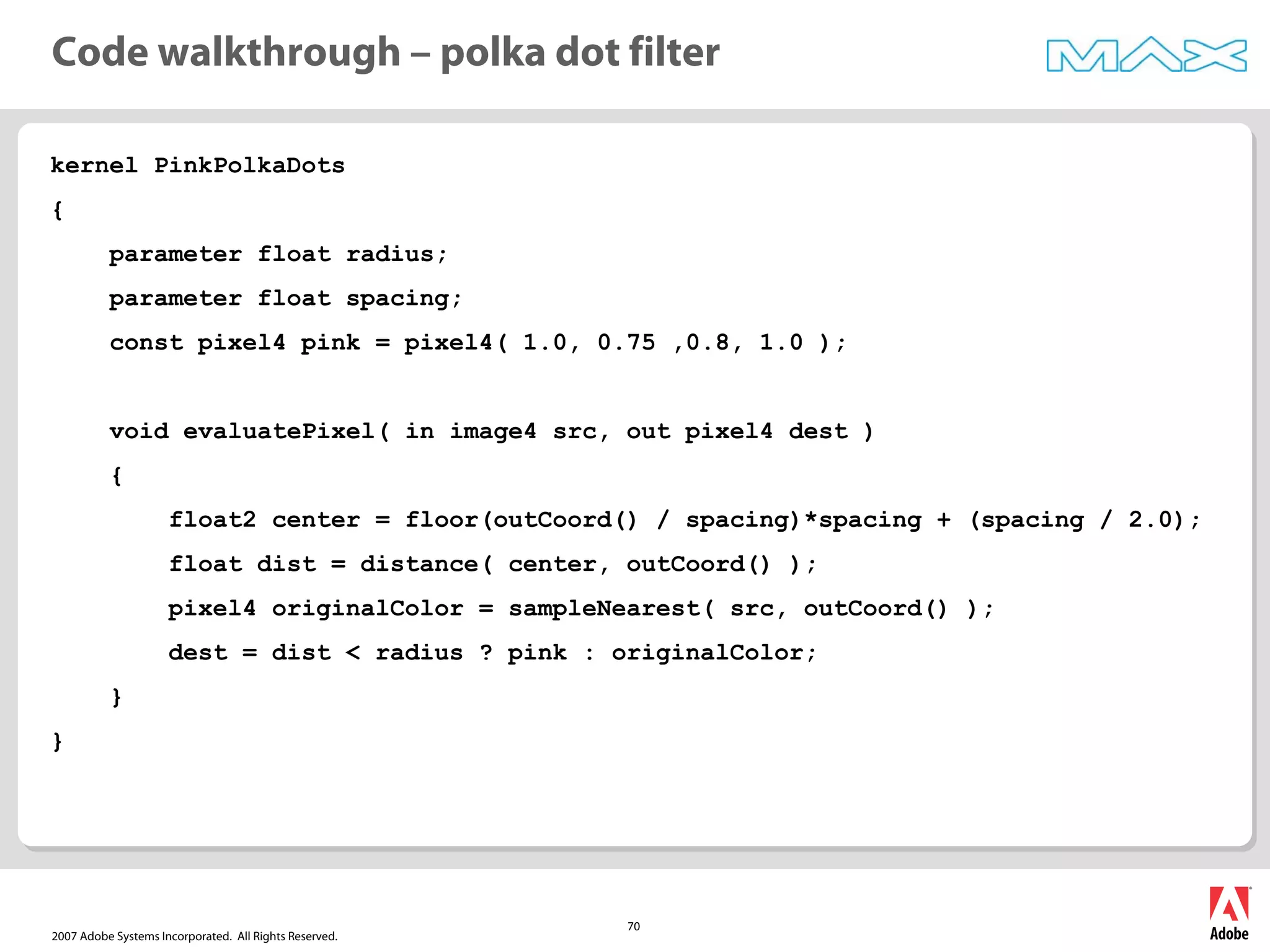

70. 2007 Adobe Systems Incorporated. All Rights Reserved.
70

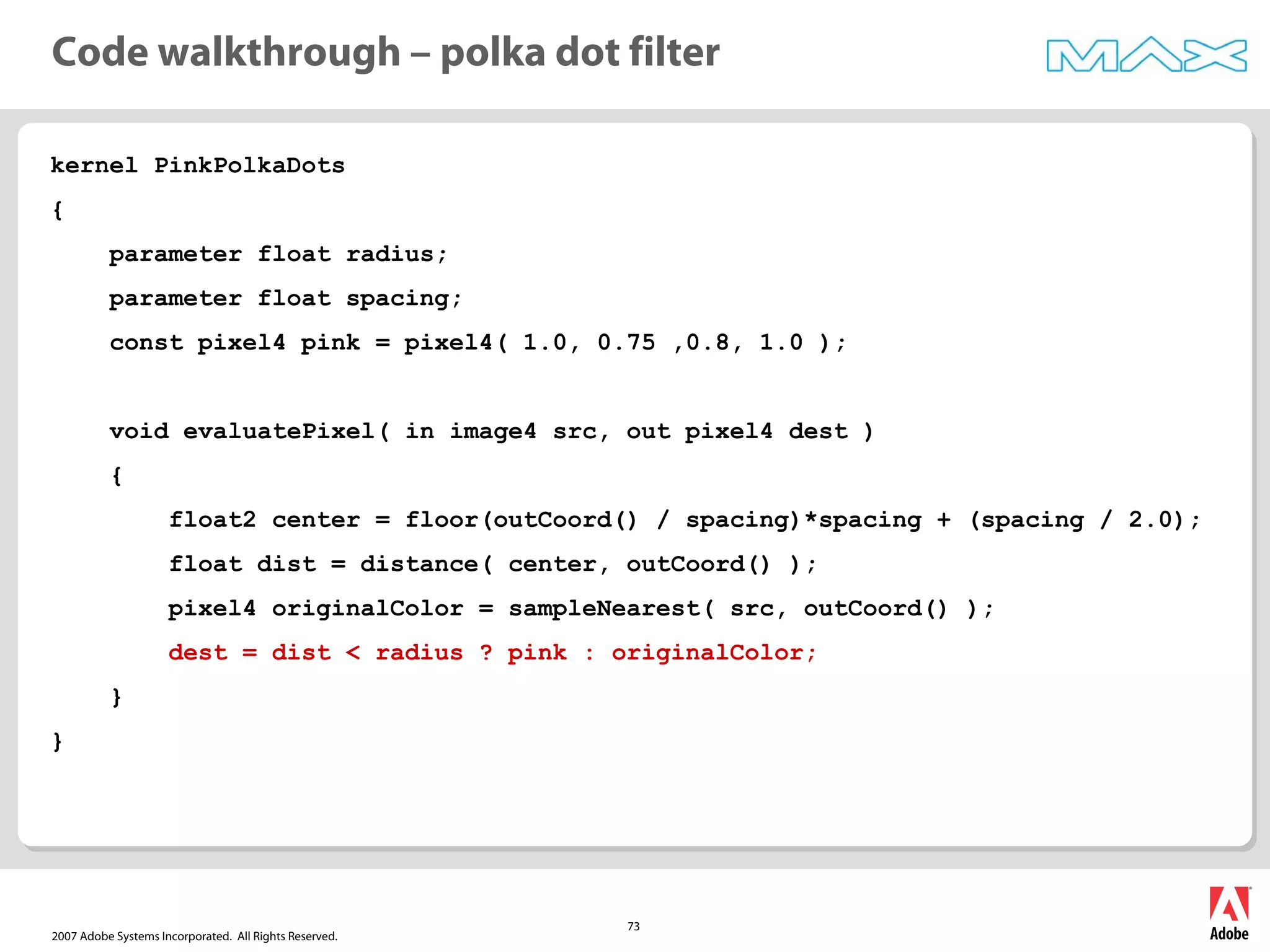

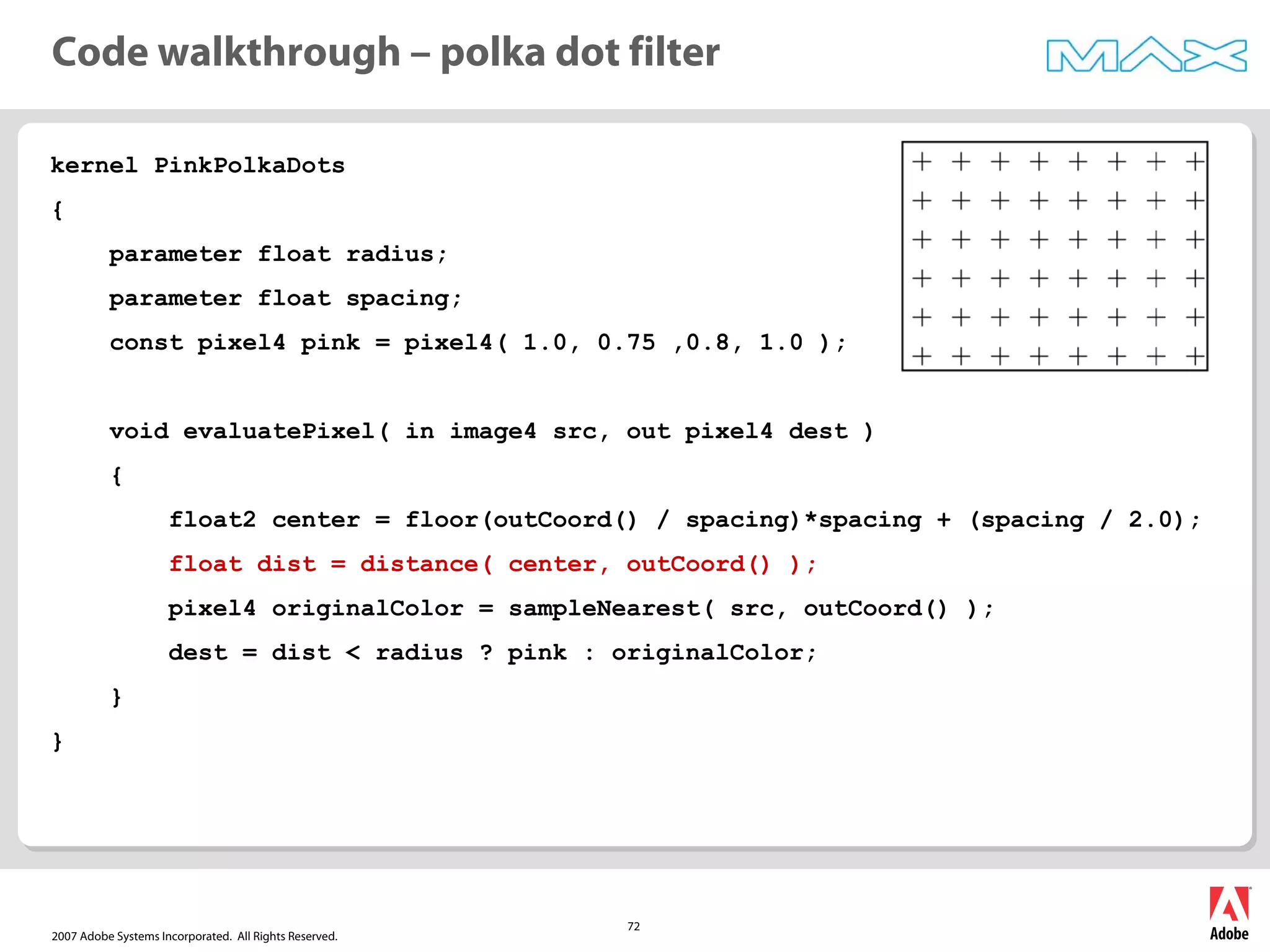

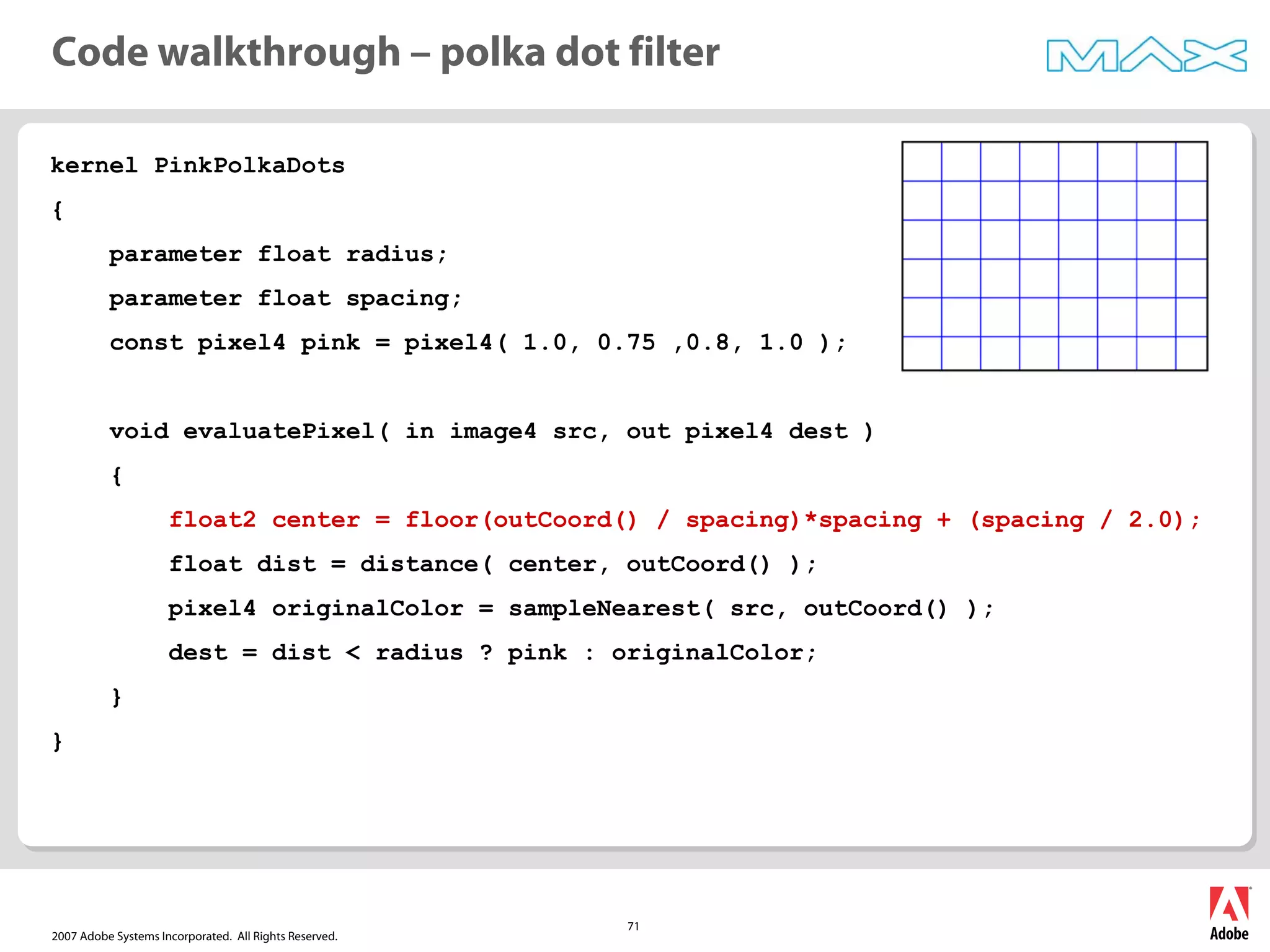

kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Code walkthrough – polka dot filter

71. 2007 Adobe Systems Incorporated. All Rights Reserved.
71
kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Code walkthrough – polka dot filter

72. 2007 Adobe Systems Incorporated. All Rights Reserved.
72
kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Code walkthrough – polka dot filter

73. 2007 Adobe Systems Incorporated. All Rights Reserved.
73
kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Code walkthrough – polka dot filter

74. 2007 Adobe Systems Incorporated. All Rights Reserved.
74
ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Hydra in detail

75. 2007 Adobe Systems Incorporated. All Rights Reserved.
75
kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Hydra in detail – Syntax and Semantics

76. 2007 Adobe Systems Incorporated. All Rights Reserved.
76
kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Hydra in detail – Syntax and Semantics

77. 2007 Adobe Systems Incorporated. All Rights Reserved.
77

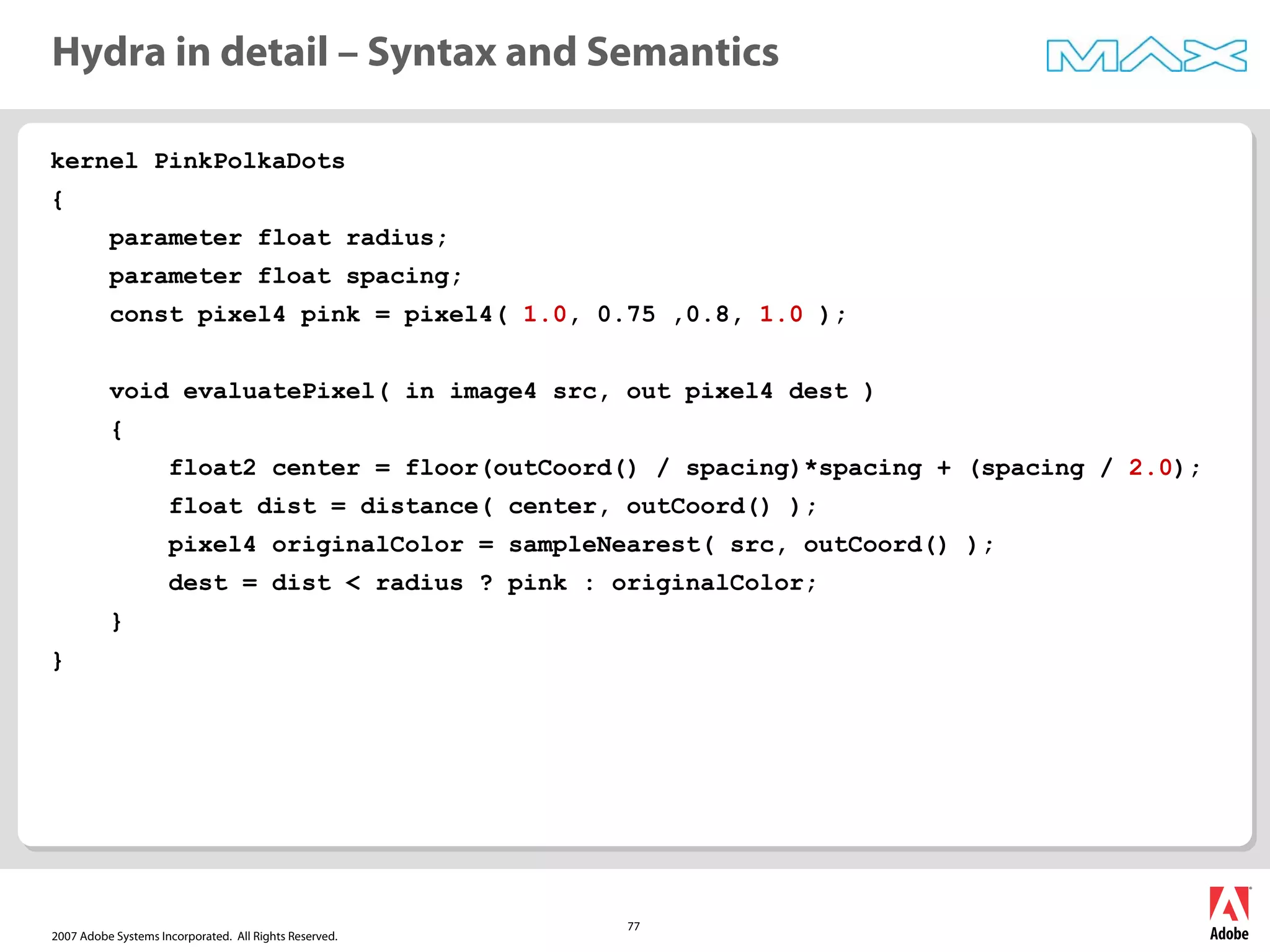

kernel PinkPolkaDots
{
parameter float radius;
parameter float spacing;
const pixel4 pink = pixel4( 1.0, 0.75 ,0.8, 1.0 );
void evaluatePixel( in image4 src, out pixel4 dest )
{
float2 center = floor(outCoord() / spacing)*spacing + (spacing / 2.0);
float dist = distance( center, outCoord() );
pixel4 originalColor = sampleNearest( src, outCoord() );
dest = dist < radius ? pink : originalColor;
}
}
Hydra in detail – Syntax and Semantics

78. 2007 Adobe Systems Incorporated. All Rights Reserved.
78

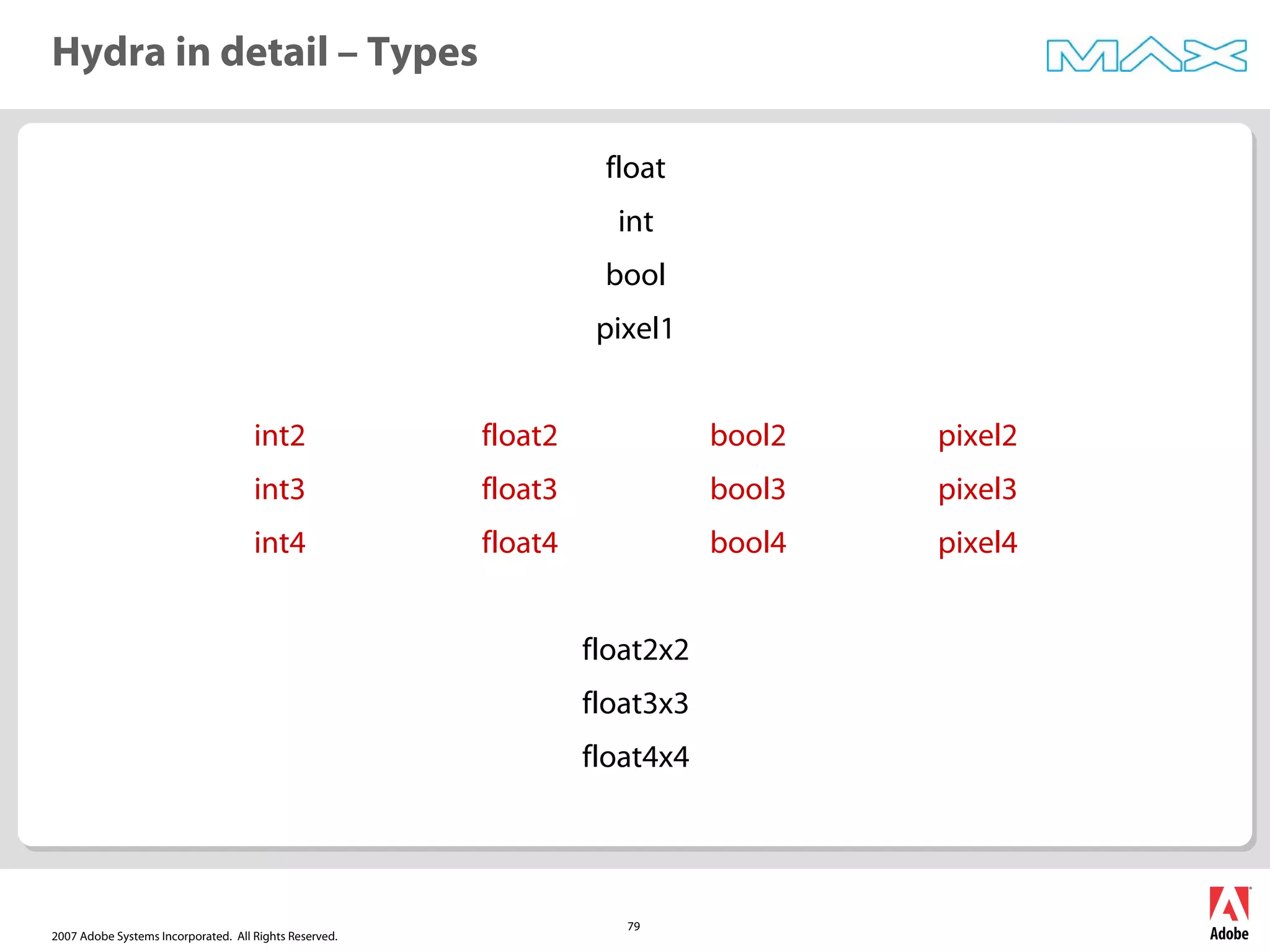

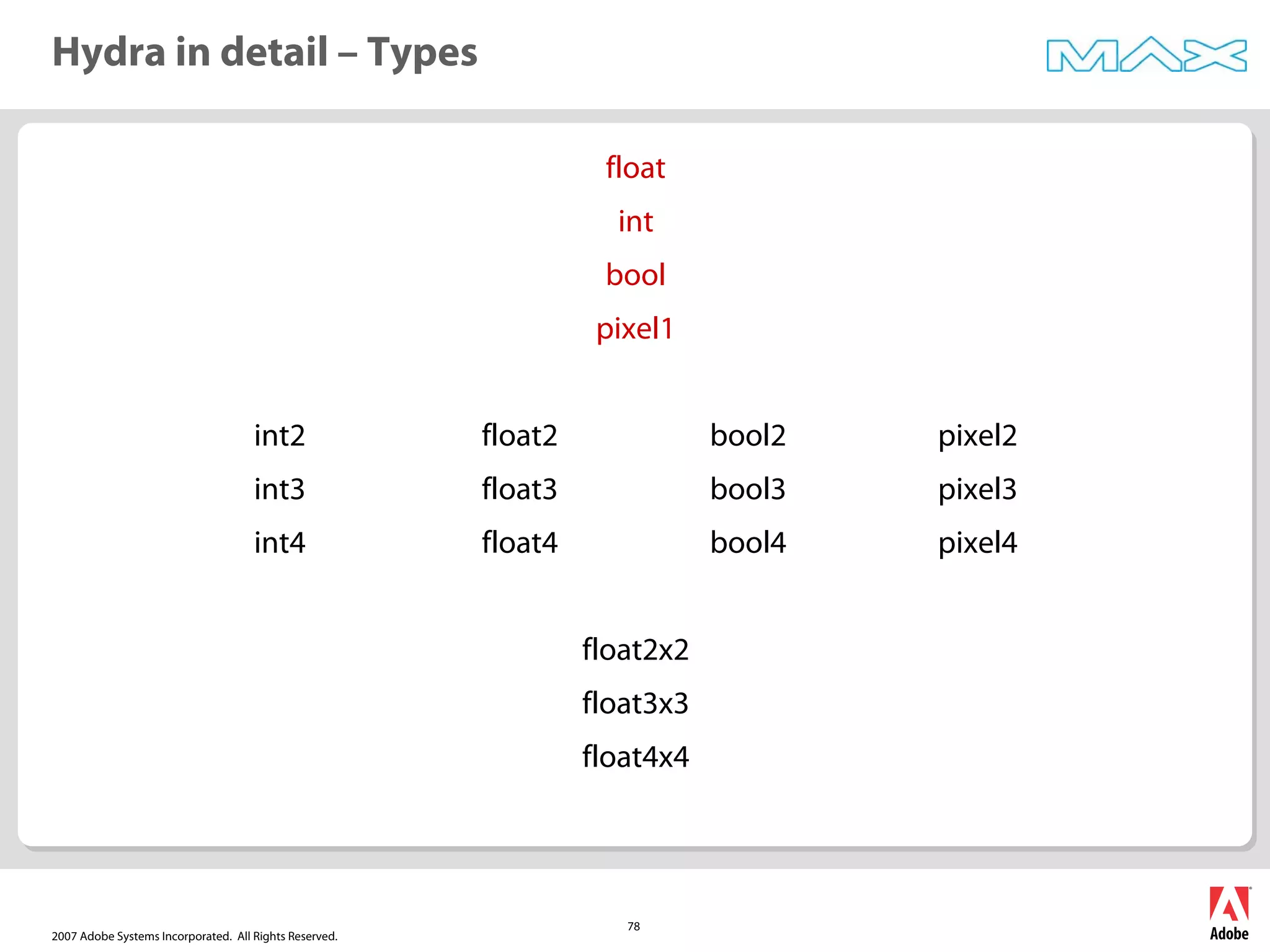

float
int
bool
pixel1
int2 float2 bool2 pixel2
int3 float3 bool3 pixel3
int4 float4 bool4 pixel4
float2x2
float3x3
float4x4
Hydra in detail – Types

79. 2007 Adobe Systems Incorporated. All Rights Reserved.
79
float
int
bool
pixel1
int2 float2 bool2 pixel2
int3 float3 bool3 pixel3
int4 float4 bool4 pixel4
float2x2
float3x3
float4x4
Hydra in detail – Types

80. 2007 Adobe Systems Incorporated. All Rights Reserved.
80

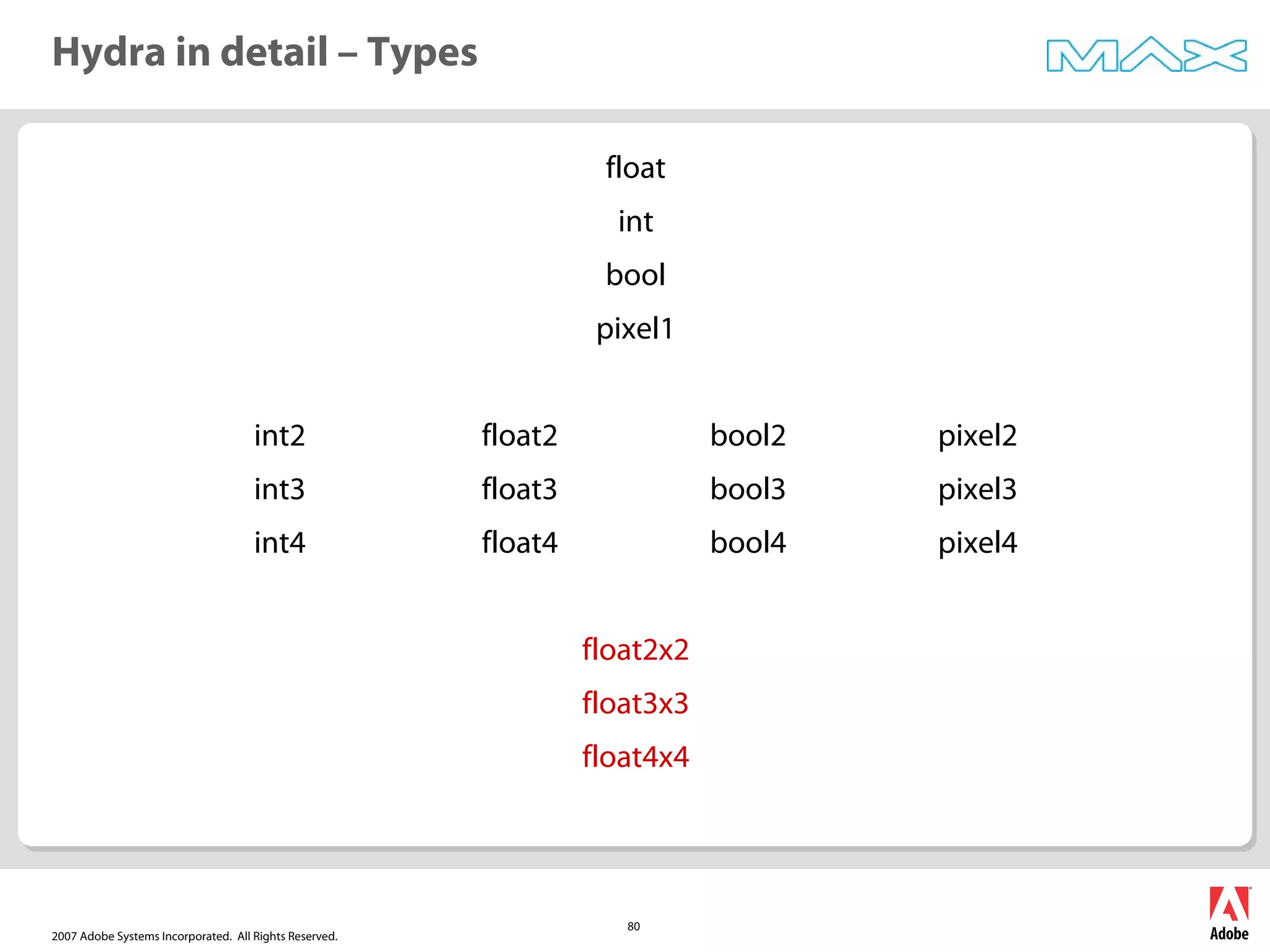

float
int
bool
pixel1
int2 float2 bool2 pixel2
int3 float3 bool3 pixel3
int4 float4 bool4 pixel4
float2x2
float3x3
float4x4
Hydra in detail – Types

81. 2007 Adobe Systems Incorporated. All Rights Reserved.
81

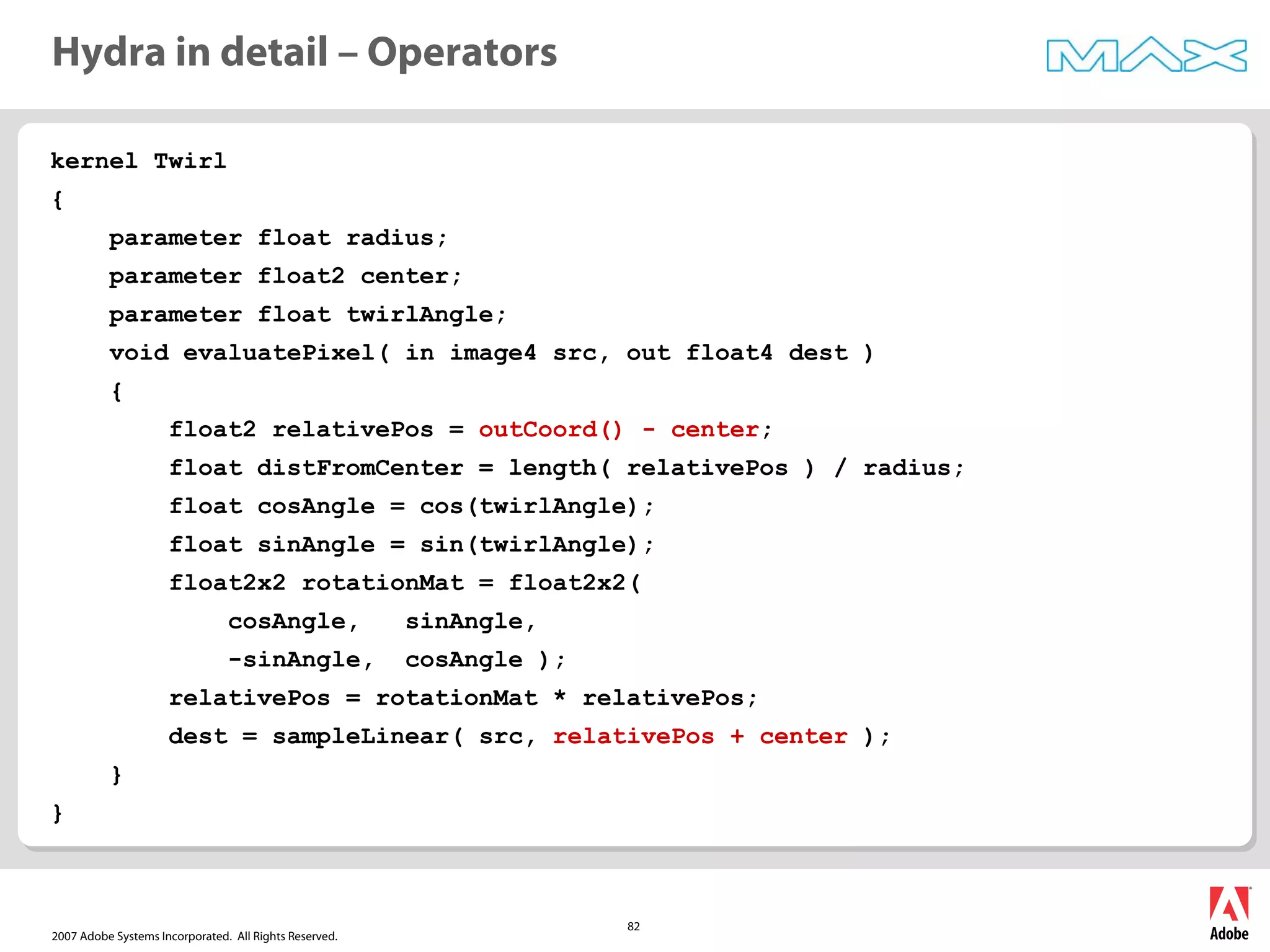

kernel Twirl
{
parameter float radius;
parameter float2 center;
parameter float twirlAngle;
void evaluatePixel( in image4 src, out float4 dest )
{
float2 relativePos = outCoord() - center;
float distFromCenter = length( relativePos ) / radius;
float cosAngle = cos(twirlAngle);
float sinAngle = sin(twirlAngle);
float2x2 rotationMat = float2x2(
cosAngle, sinAngle,
-sinAngle, cosAngle );
relativePos = rotationMat * relativePos;
dest = sampleLinear( src, relativePos + center );
}
}
Hydra in detail – Operators

82. 2007 Adobe Systems Incorporated. All Rights Reserved.
82
kernel Twirl
{
parameter float radius;
parameter float2 center;
parameter float twirlAngle;
void evaluatePixel( in image4 src, out float4 dest )
{
float2 relativePos = outCoord() - center;
float distFromCenter = length( relativePos ) / radius;
float cosAngle = cos(twirlAngle);
float sinAngle = sin(twirlAngle);
float2x2 rotationMat = float2x2(
cosAngle, sinAngle,
-sinAngle, cosAngle );
relativePos = rotationMat * relativePos;
dest = sampleLinear( src, relativePos + center );
}
}
Hydra in detail – Operators

83. 2007 Adobe Systems Incorporated. All Rights Reserved.
83

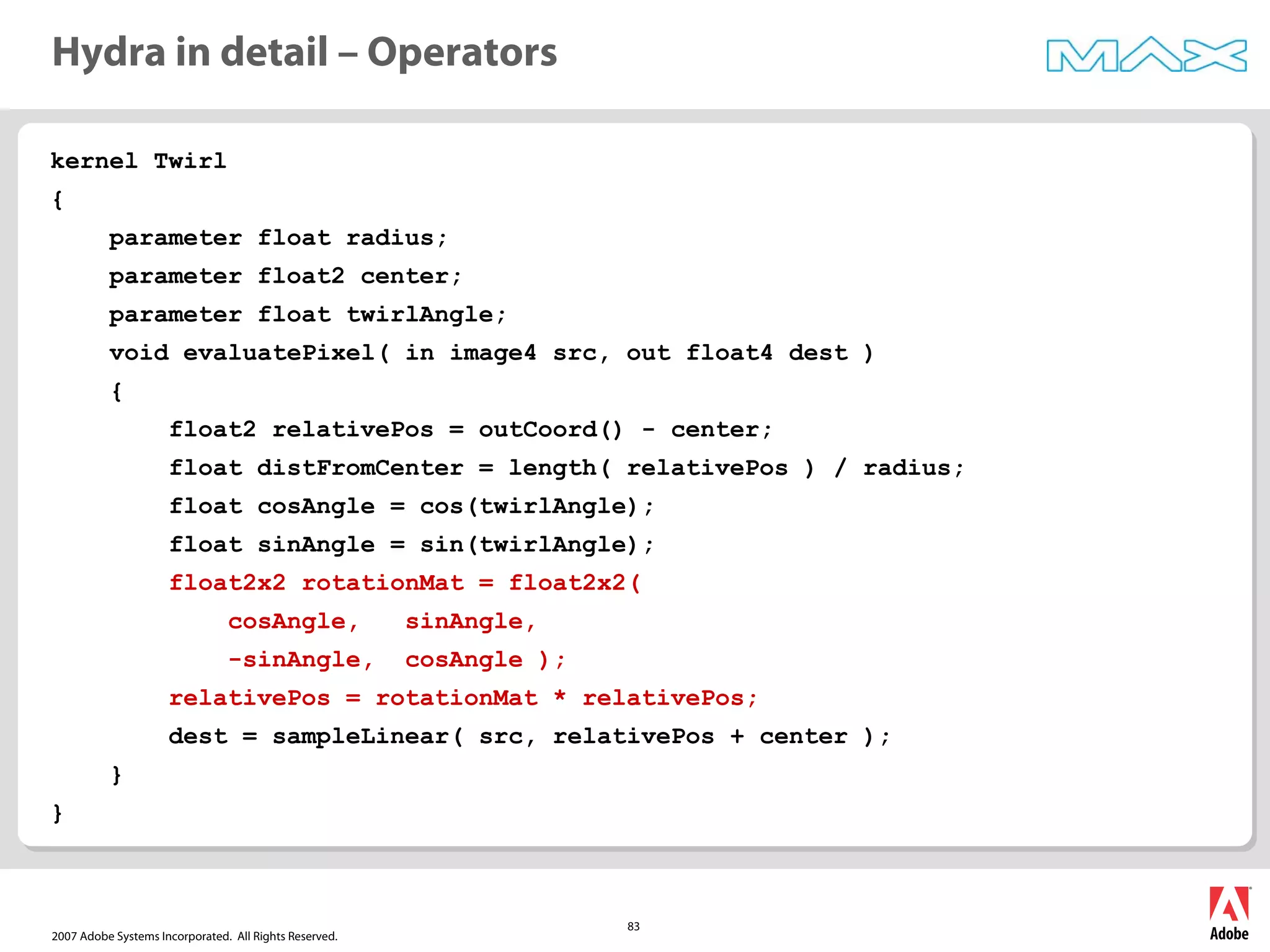

kernel Twirl
{
parameter float radius;
parameter float2 center;
parameter float twirlAngle;
void evaluatePixel( in image4 src, out float4 dest )
{
float2 relativePos = outCoord() - center;
float distFromCenter = length( relativePos ) / radius;
float cosAngle = cos(twirlAngle);
float sinAngle = sin(twirlAngle);
float2x2 rotationMat = float2x2(
cosAngle, sinAngle,
-sinAngle, cosAngle );
relativePos = rotationMat * relativePos;
dest = sampleLinear( src, relativePos + center );
}
}
Hydra in detail – Operators

84. 2007 Adobe Systems Incorporated. All Rights Reserved.
84

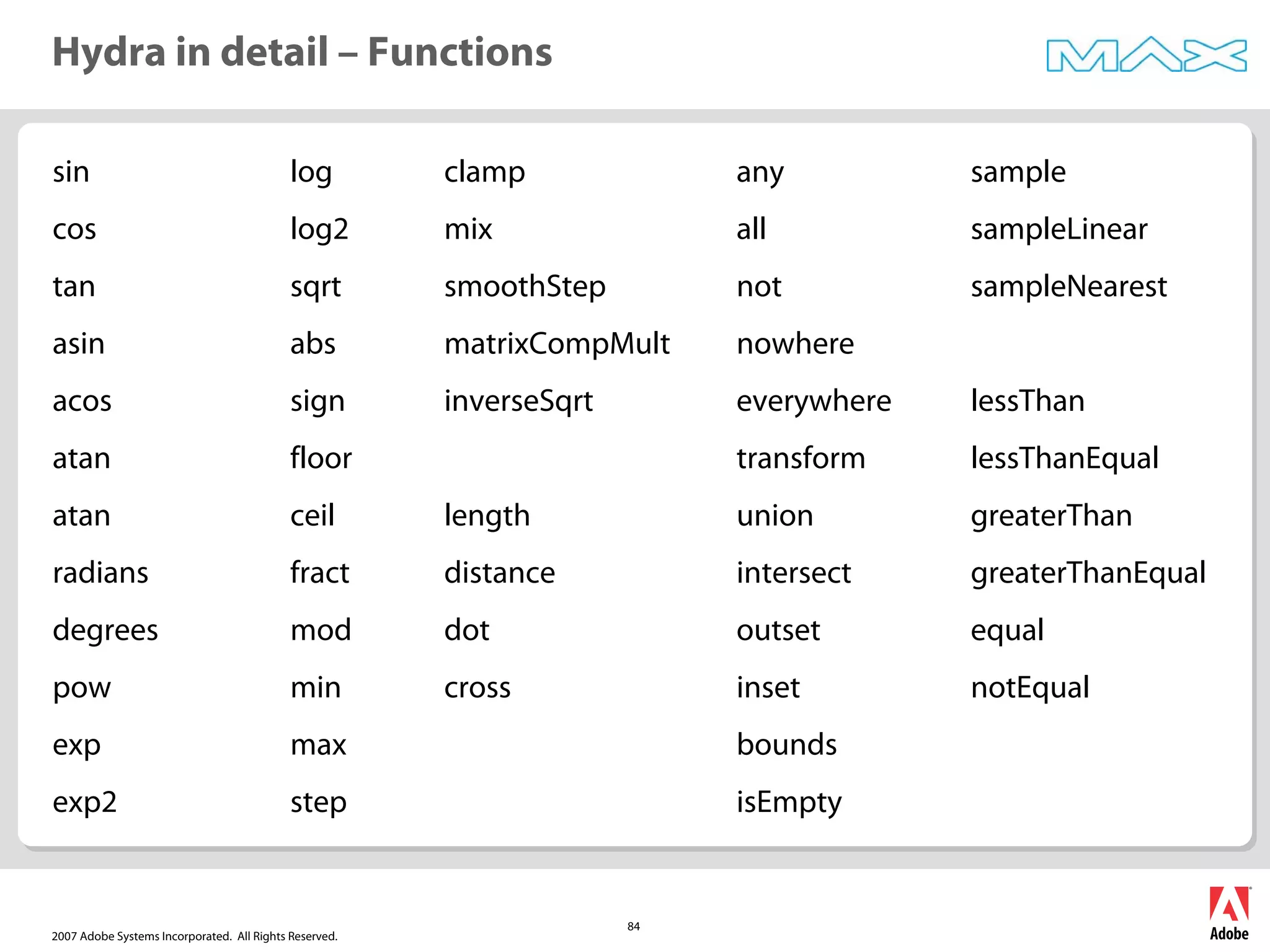

Hydra in detail – Functions
sin
cos
tan
asin
acos
atan
atan
radians
degrees
pow
exp
exp2
log
log2
sqrt
abs
sign
floor
ceil
fract
mod
min
max
step
clamp
mix
smoothStep
matrixCompMult
inverseSqrt
length
distance
dot
cross
any
all
not
nowhere
everywhere
transform
union
intersect
outset
inset
bounds
isEmpty
sample
sampleLinear
sampleNearest
lessThan
lessThanEqual
greaterThan
greaterThanEqual
equal
notEqual

85. 2007 Adobe Systems Incorporated. All Rights Reserved.
85

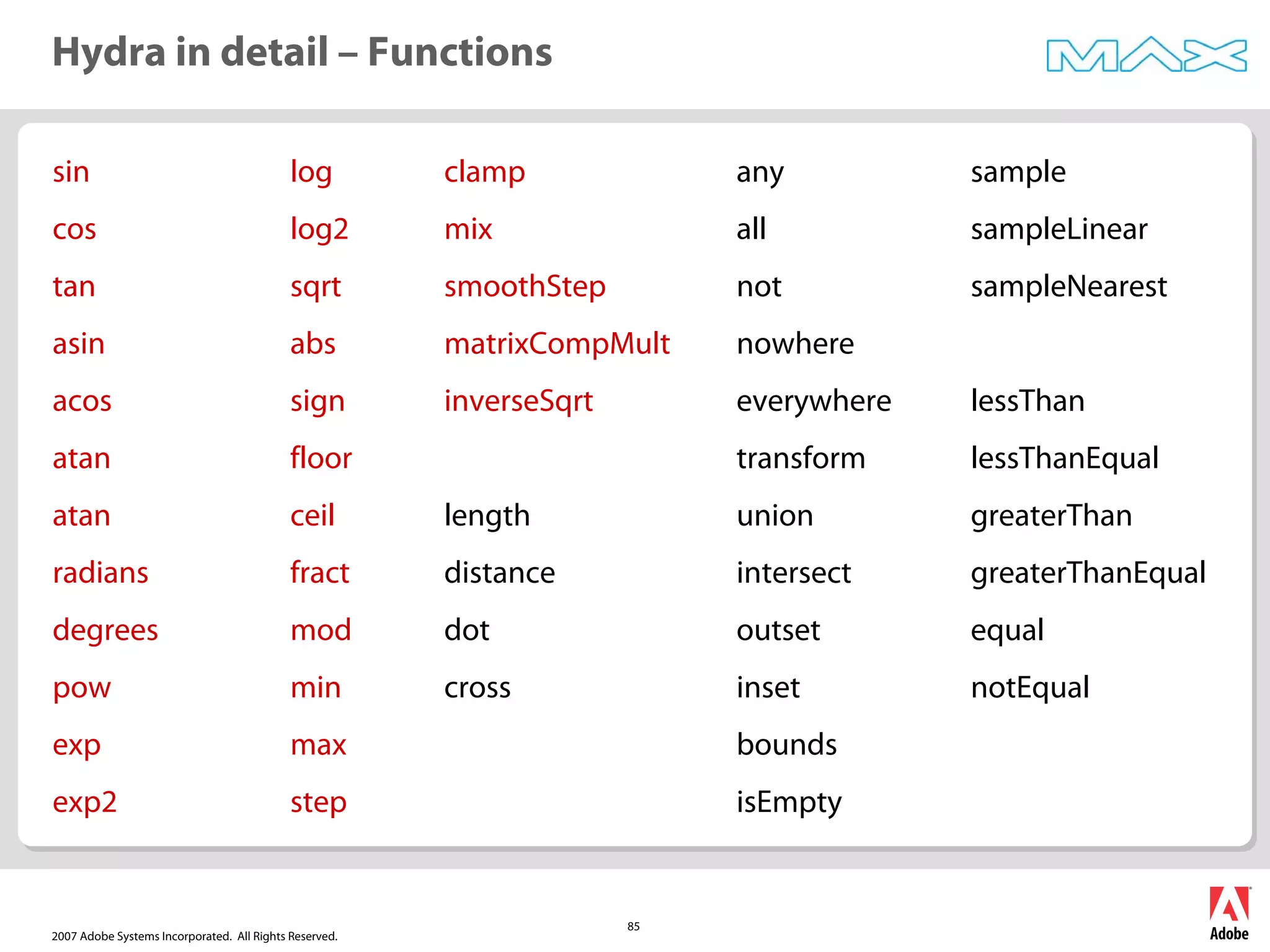

Hydra in detail – Functions
sin
cos
tan
asin
acos
atan
atan
radians
degrees
pow
exp
exp2
log
log2
sqrt
abs
sign
floor
ceil
fract
mod
min
max
step
clamp
mix
smoothStep
matrixCompMult
inverseSqrt
length
distance
dot
cross
any
all
not
nowhere
everywhere
transform
union
intersect
outset
inset
bounds
isEmpty
sample
sampleLinear
sampleNearest
lessThan
lessThanEqual
greaterThan
greaterThanEqual
equal
notEqual

86. 2007 Adobe Systems Incorporated. All Rights Reserved.
86

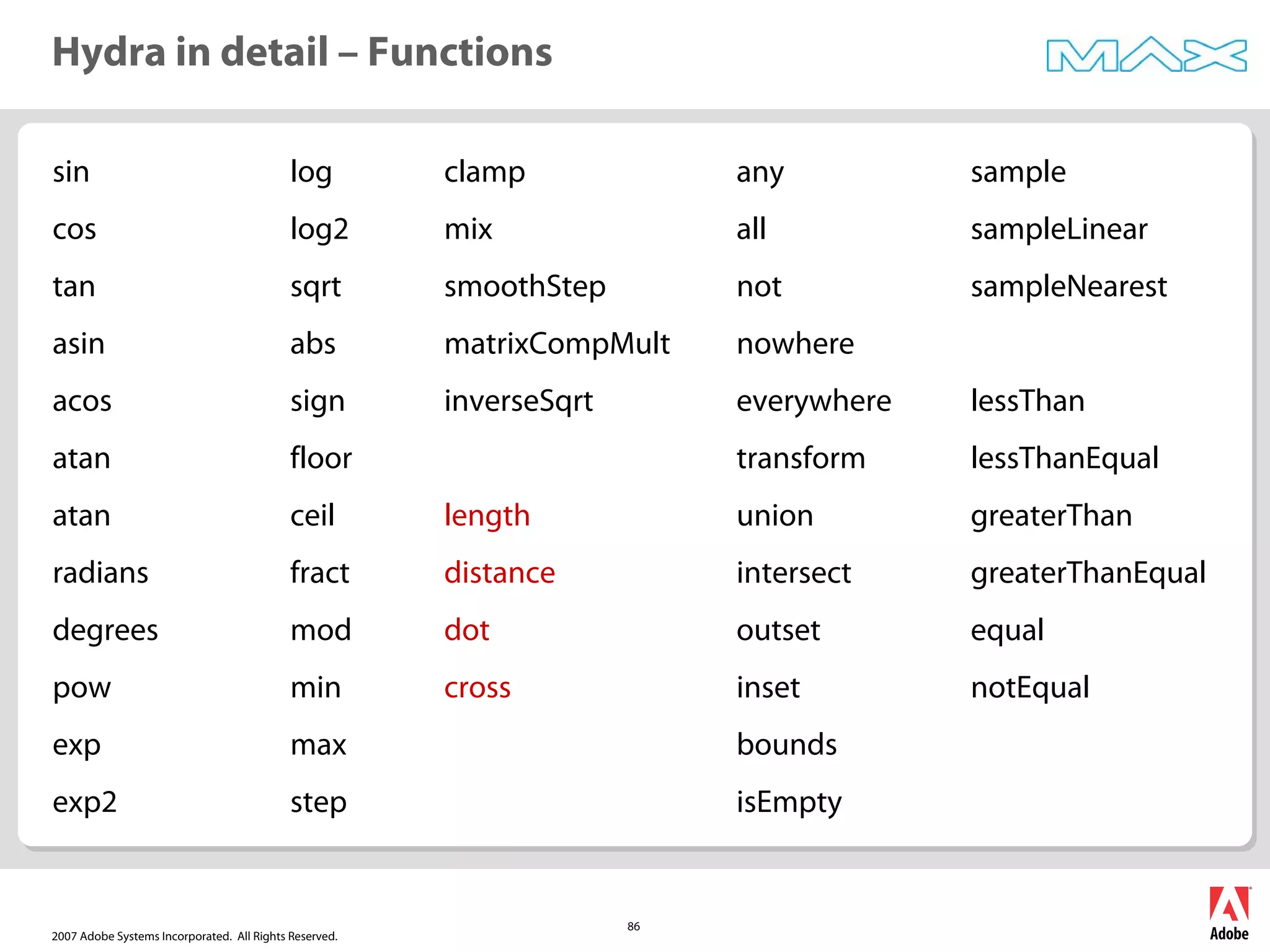

Hydra in detail – Functions
sin
cos
tan
asin
acos
atan
atan
radians
degrees
pow
exp
exp2
log
log2
sqrt
abs
sign
floor
ceil
fract
mod
min
max
step
clamp
mix
smoothStep
matrixCompMult
inverseSqrt
length
distance
dot
cross
any
all
not
nowhere
everywhere
transform
union
intersect
outset
inset
bounds
isEmpty
sample
sampleLinear
sampleNearest
lessThan
lessThanEqual
greaterThan
greaterThanEqual
equal
notEqual

87. 2007 Adobe Systems Incorporated. All Rights Reserved.
87

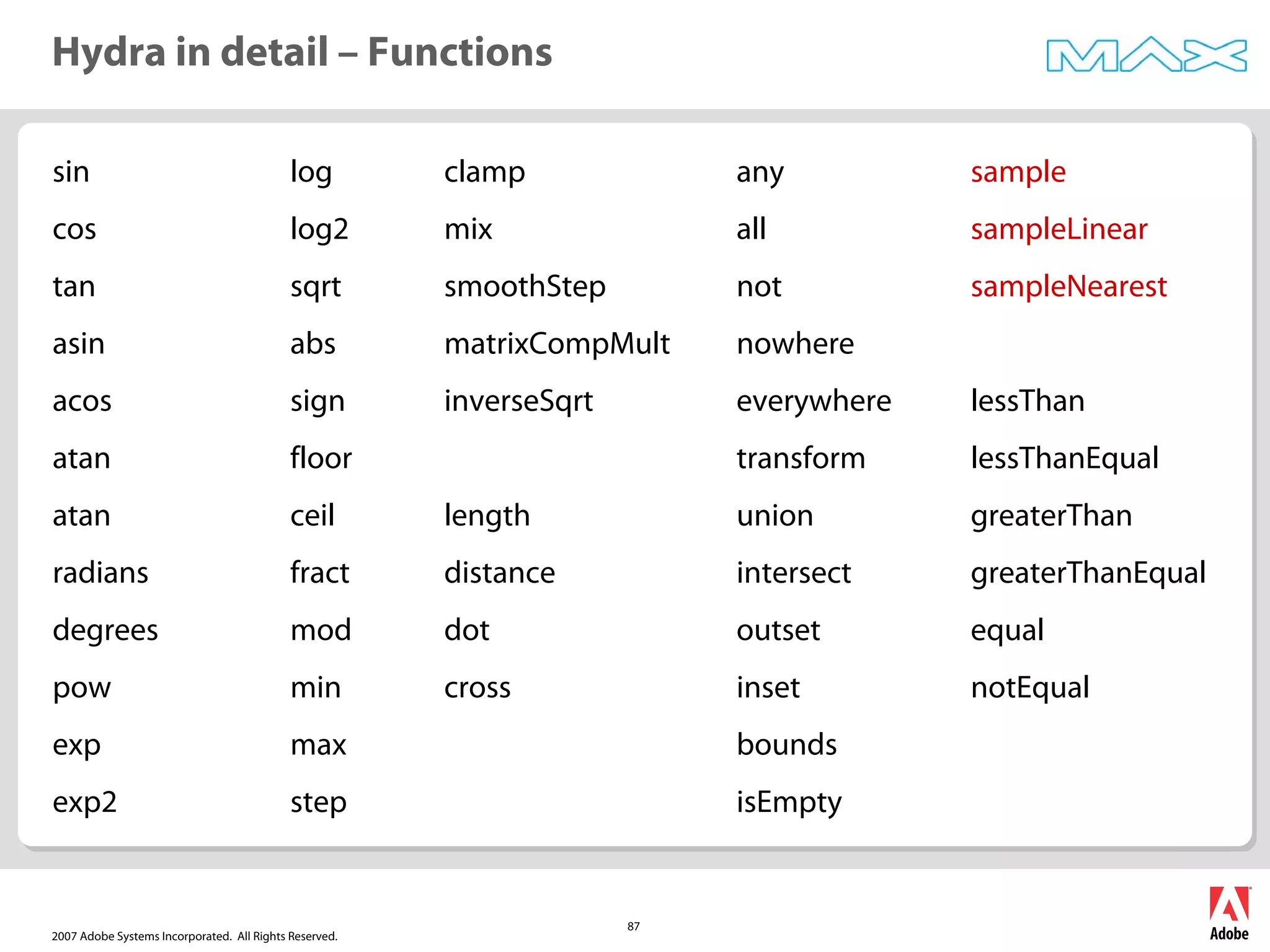

Hydra in detail – Functions
sin
cos
tan
asin
acos
atan
atan
radians
degrees
pow
exp
exp2
log
log2
sqrt
abs
sign
floor
ceil
fract
mod
min
max
step
clamp
mix
smoothStep
matrixCompMult
inverseSqrt
length
distance
dot
cross
any
all
not
nowhere
everywhere
transform
union
intersect
outset
inset
bounds
isEmpty
sample
sampleLinear
sampleNearest
lessThan
lessThanEqual
greaterThan
greaterThanEqual
equal
notEqual

88. 2007 Adobe Systems Incorporated. All Rights Reserved.
88
ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server

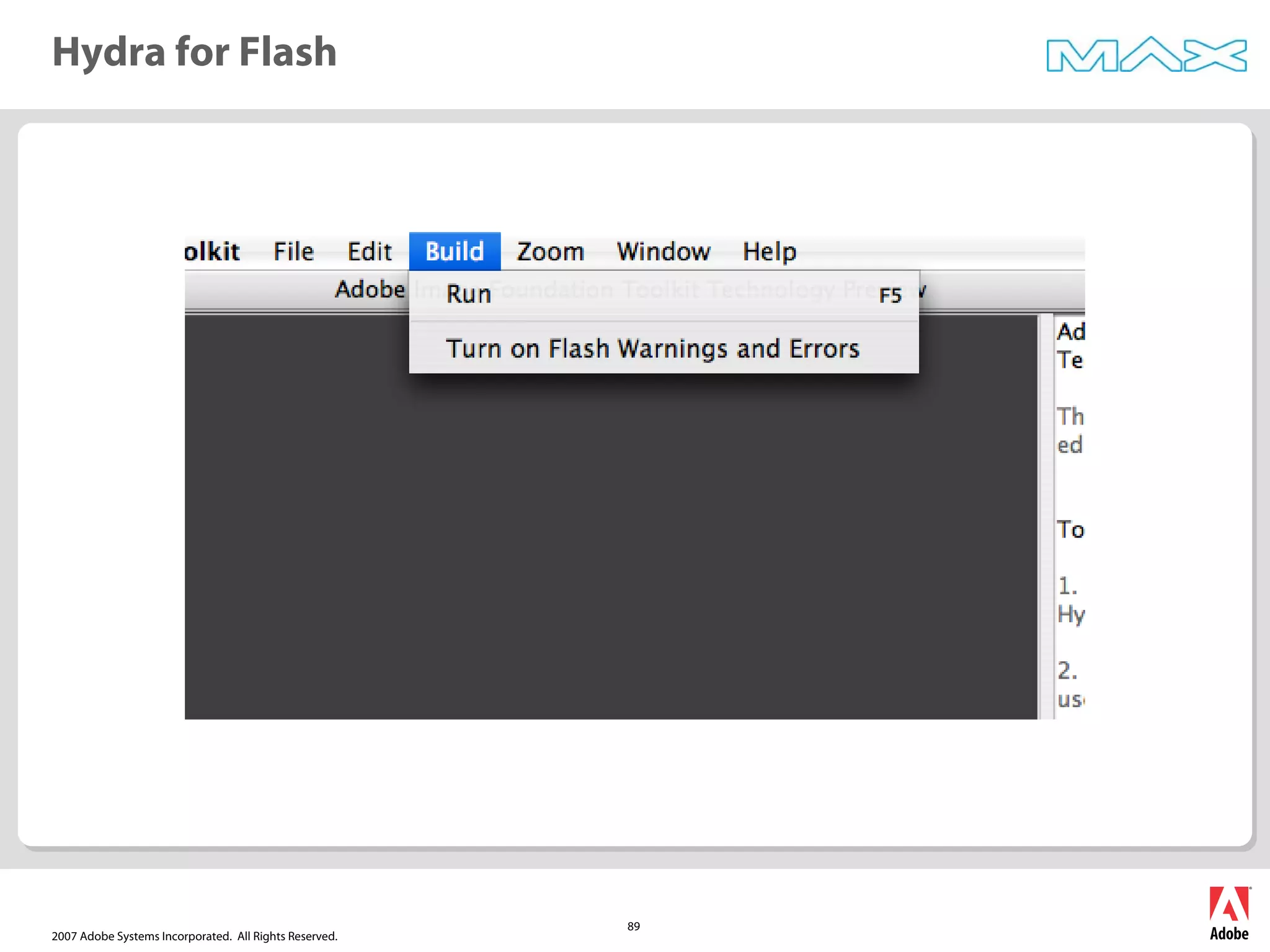

Hydra for Flash

89. 2007 Adobe Systems Incorporated. All Rights Reserved.
89
Hydra for Flash

90. 2007 Adobe Systems Incorporated. All Rights Reserved.
90

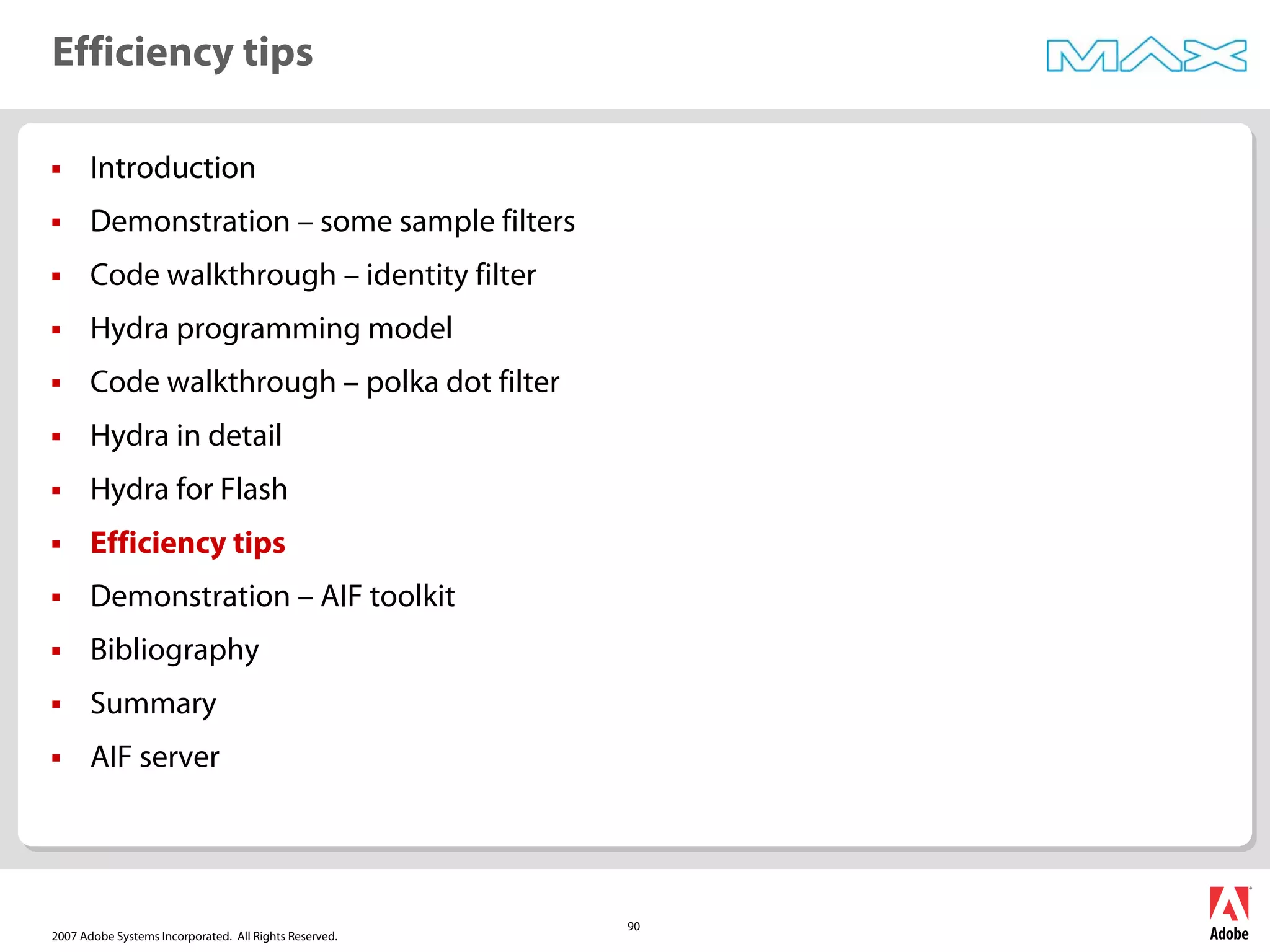

ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Efficiency tips

91. 2007 Adobe Systems Incorporated. All Rights Reserved.
91

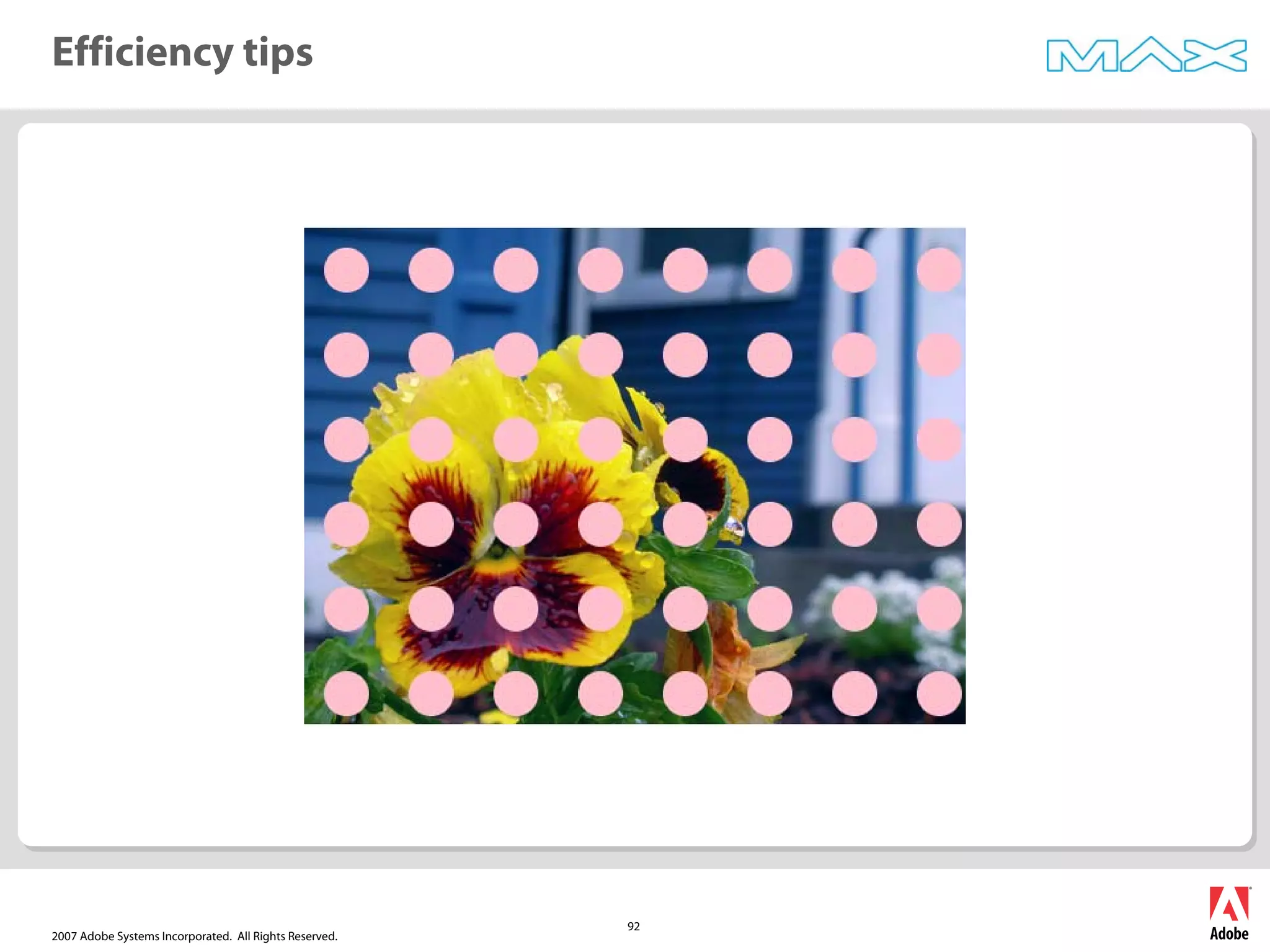

Write a function that produces a single
output pixel
Efficiency tips

92. 2007 Adobe Systems Incorporated. All Rights Reserved.
92
Efficiency tips

93. 2007 Adobe Systems Incorporated. All Rights Reserved.
93
Efficiency tips

94. 2007 Adobe Systems Incorporated. All Rights Reserved.
94

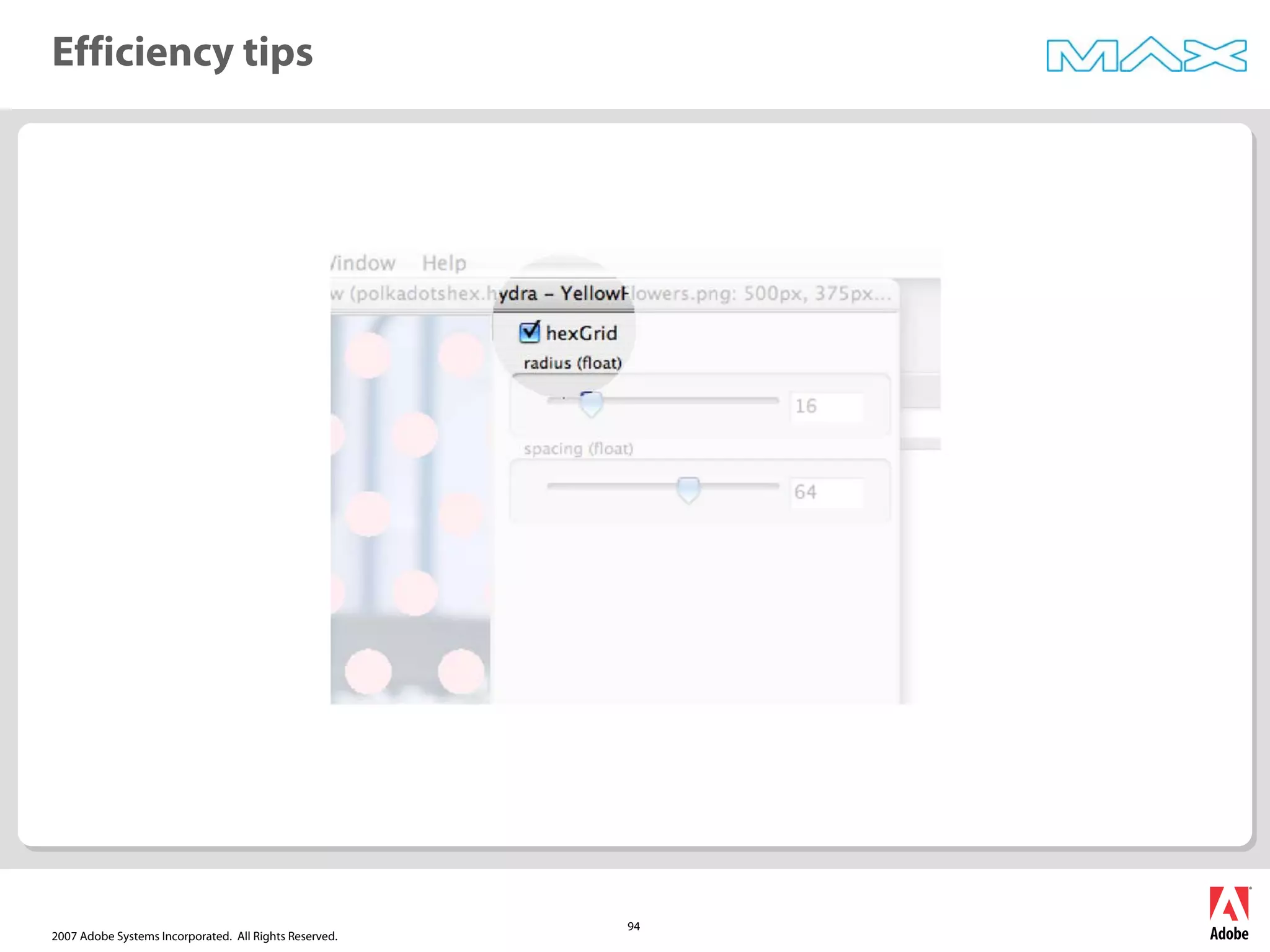

Efficiency tips

95. 2007 Adobe Systems Incorporated. All Rights Reserved.
95

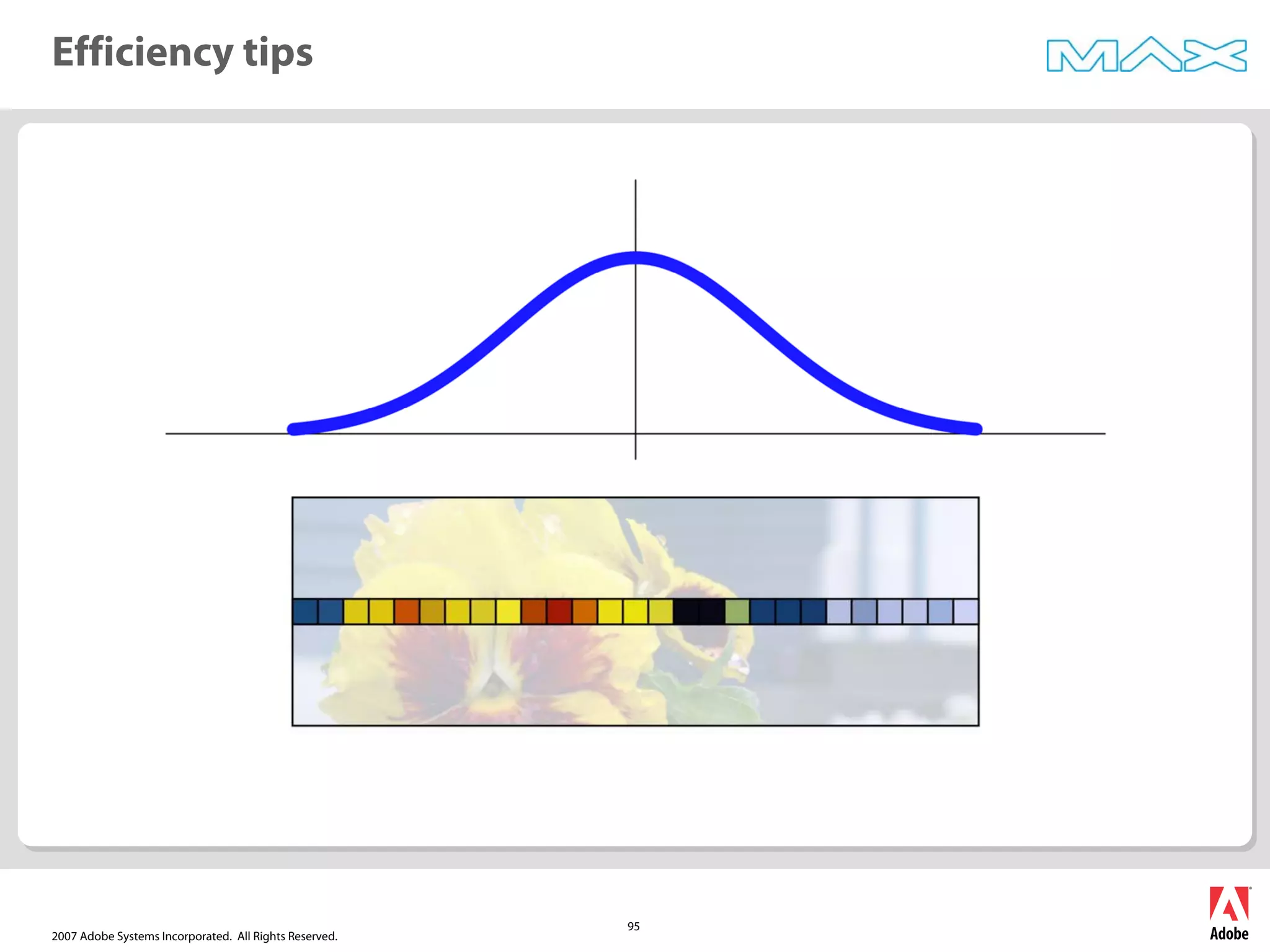

Efficiency tips

96. 2007 Adobe Systems Incorporated. All Rights Reserved.
96

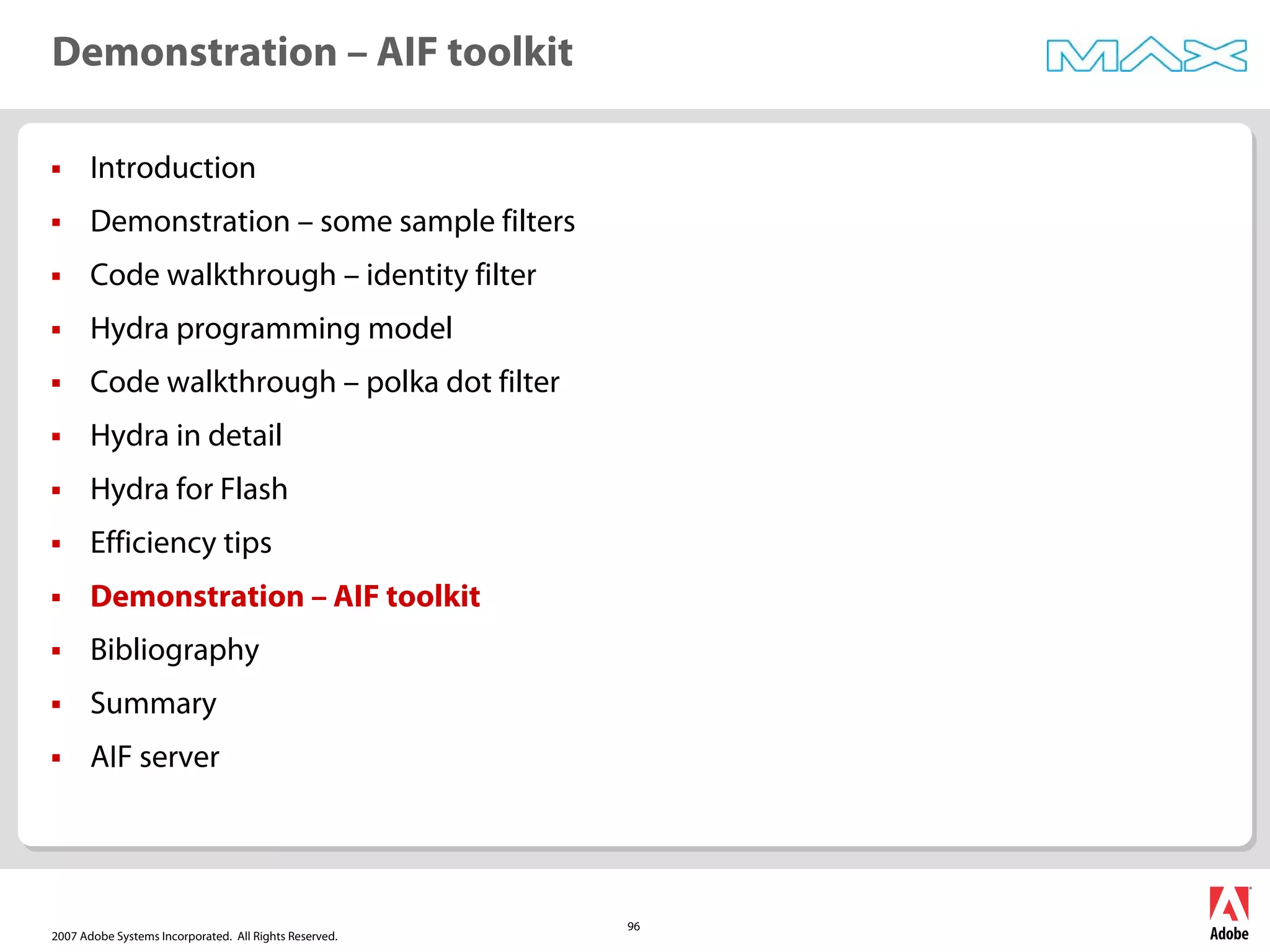

ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
Demonstration – AIF toolkit

97. 2007 Adobe Systems Incorporated. All Rights Reserved.
97
Writing a kernel in the AIF Toolkit

98. 2007 Adobe Systems Incorporated. All Rights Reserved.
98

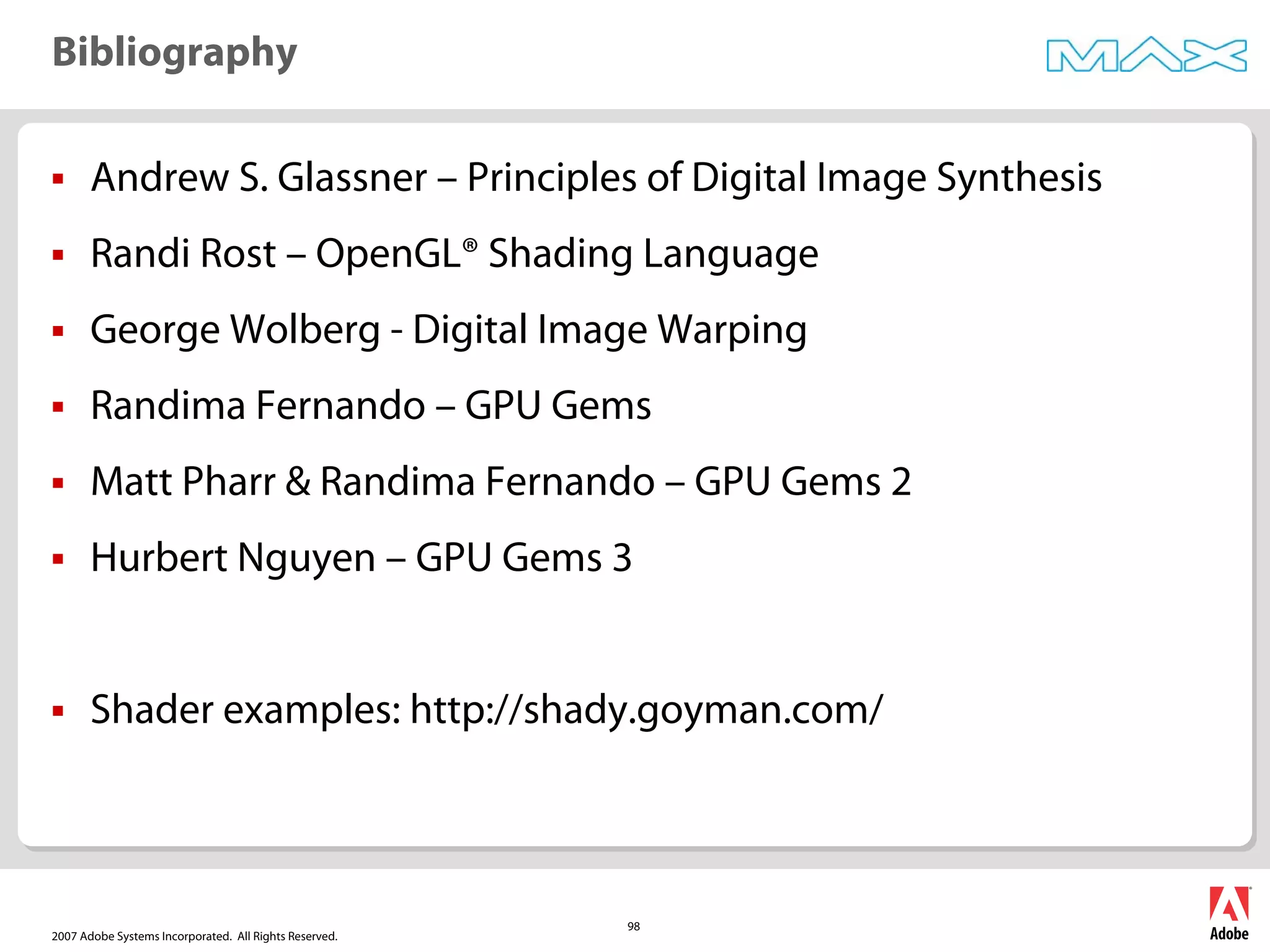

ƒ Andrew S. Glassner – Principles of Digital Image Synthesis
ƒ Randi Rost – OpenGL® Shading Language
ƒ George Wolberg - Digital Image Warping
ƒ Randima Fernando – GPU Gems
ƒ Matt Pharr & Randima Fernando – GPU Gems 2
ƒ Hurbert Nguyen – GPU Gems 3
ƒ Shader examples: http://shady.goyman.com/
Bibliography

99. 2007 Adobe Systems Incorporated. All Rights Reserved.
99

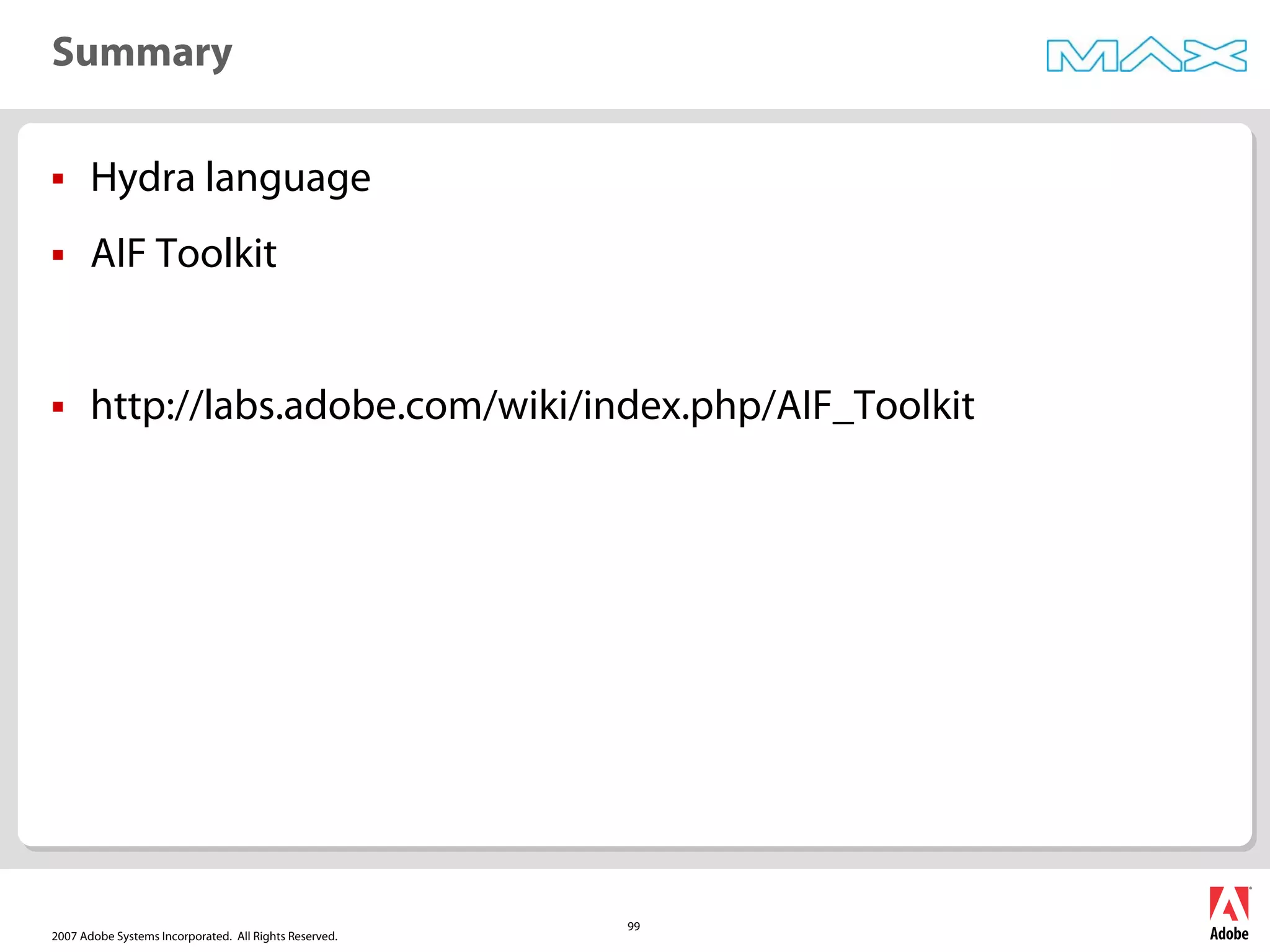

ƒ Hydra language
ƒ AIF Toolkit
ƒ http://labs.adobe.com/wiki/index.php/AIF_Toolkit
Summary

100. 2007 Adobe Systems Incorporated. All Rights Reserved.
10
0

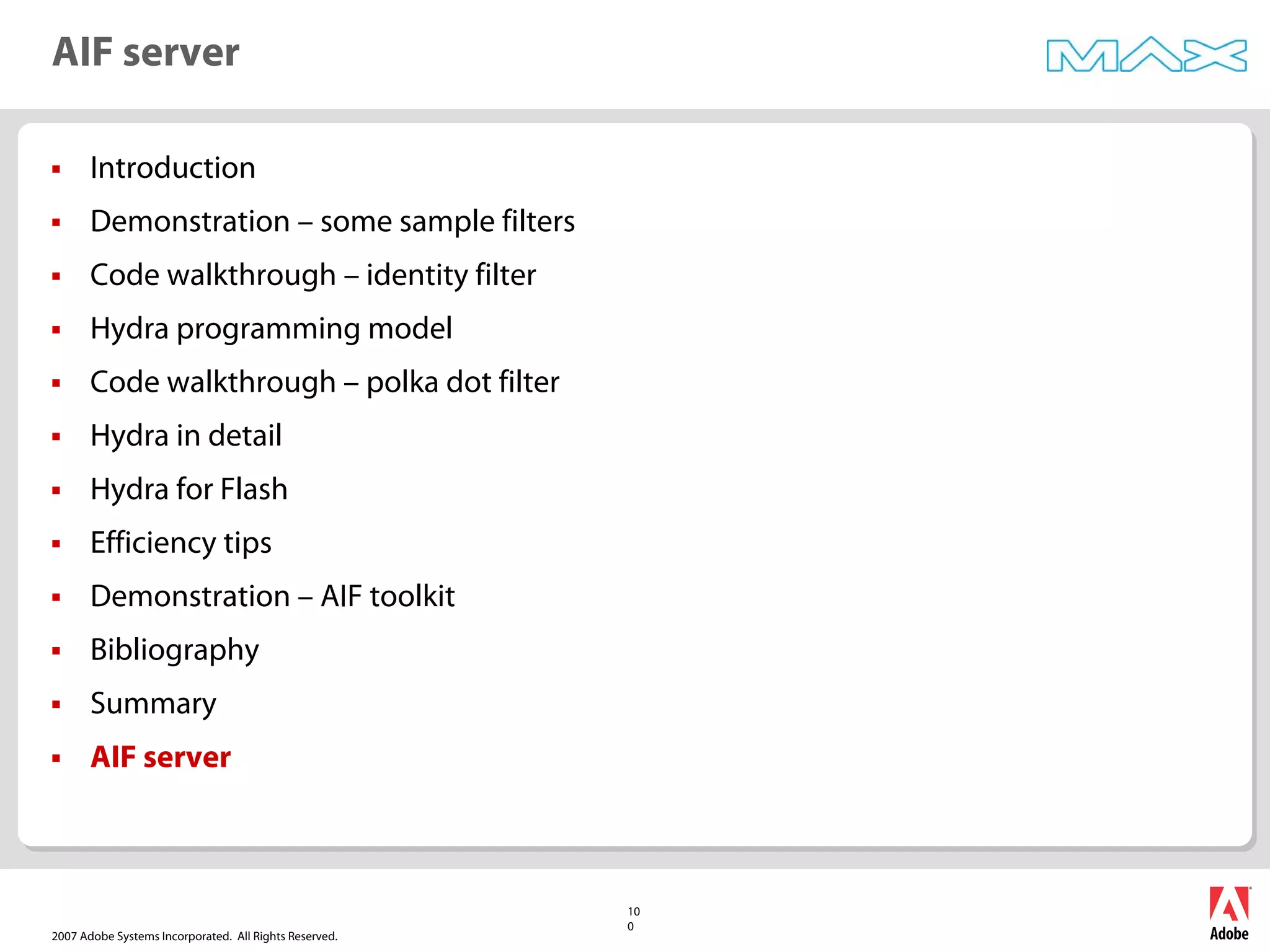

ƒ Introduction
ƒ Demonstration – some sample filters
ƒ Code walkthrough – identity filter
ƒ Hydra programming model
ƒ Code walkthrough – polka dot filter
ƒ Hydra in detail
ƒ Hydra for Flash
ƒ Efficiency tips
ƒ Demonstration – AIF toolkit
ƒ Bibliography
ƒ Summary
ƒ AIF server
AIF server
