Project Casquatch is a database abstraction layer with code generation designed to streamline Cassandra development. Out of the box it comes pre-tuned with high available policies including load balancing, geo-redundancy, connection pooling, etc., sitting on top of the DataStax driver using native APIs. All of this is abstracted behind the ever prevalent POJO. Instead of writing CQL, we utilize generic programming that allows you to simply pass a generated POJO to a save() method or populate with a getById(). This is the same code reportedly used by T-Mobile for multiple national platforms including the activation of the Apple Watch and Galaxy Watch, T-Mobile Payments, Digits, and many others. As presented at Seattle Cassandra Users Group on June . 26th, 2019.

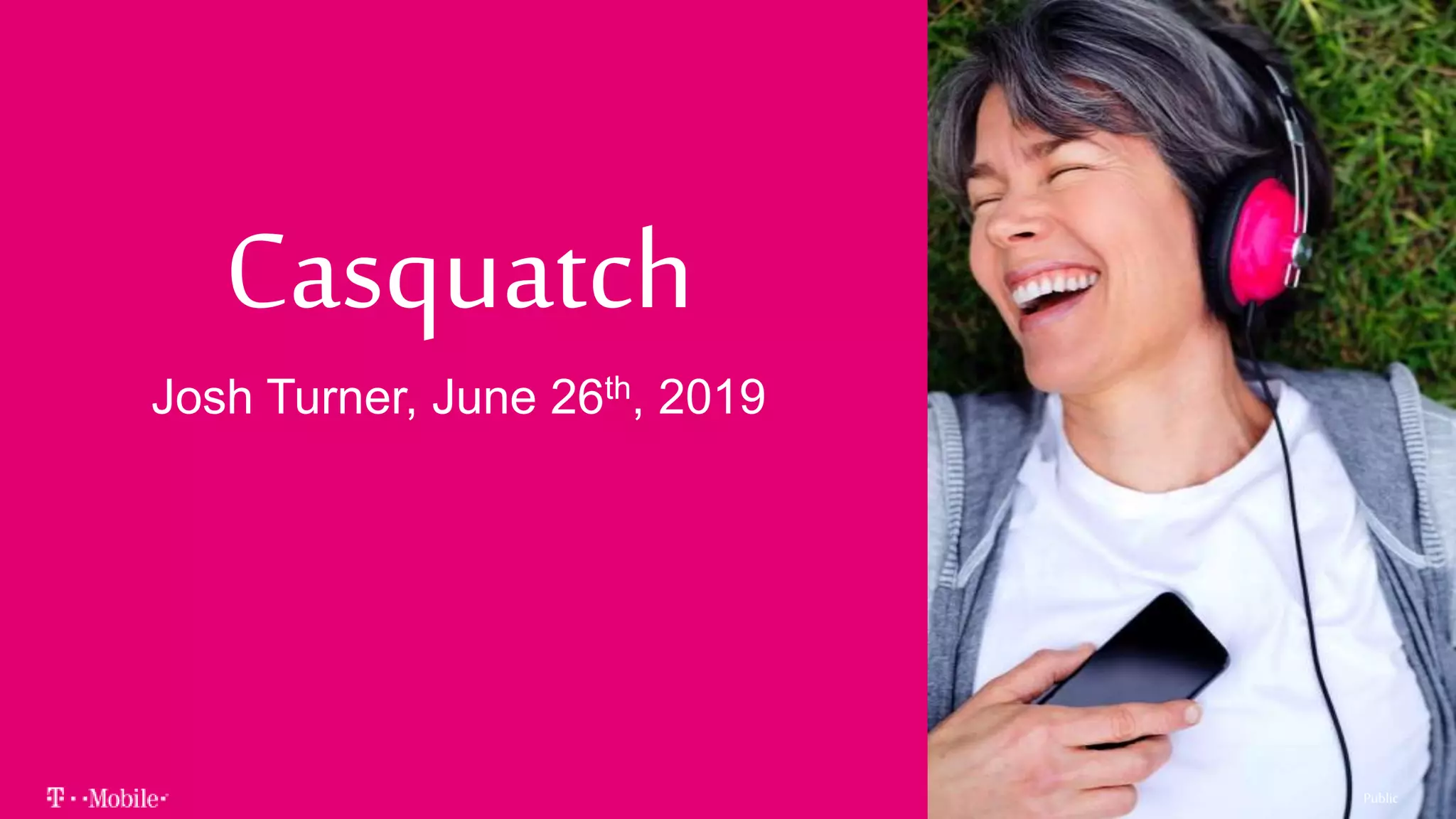

1. Casquatch
Josh Turner, June 26th, 2019
Public

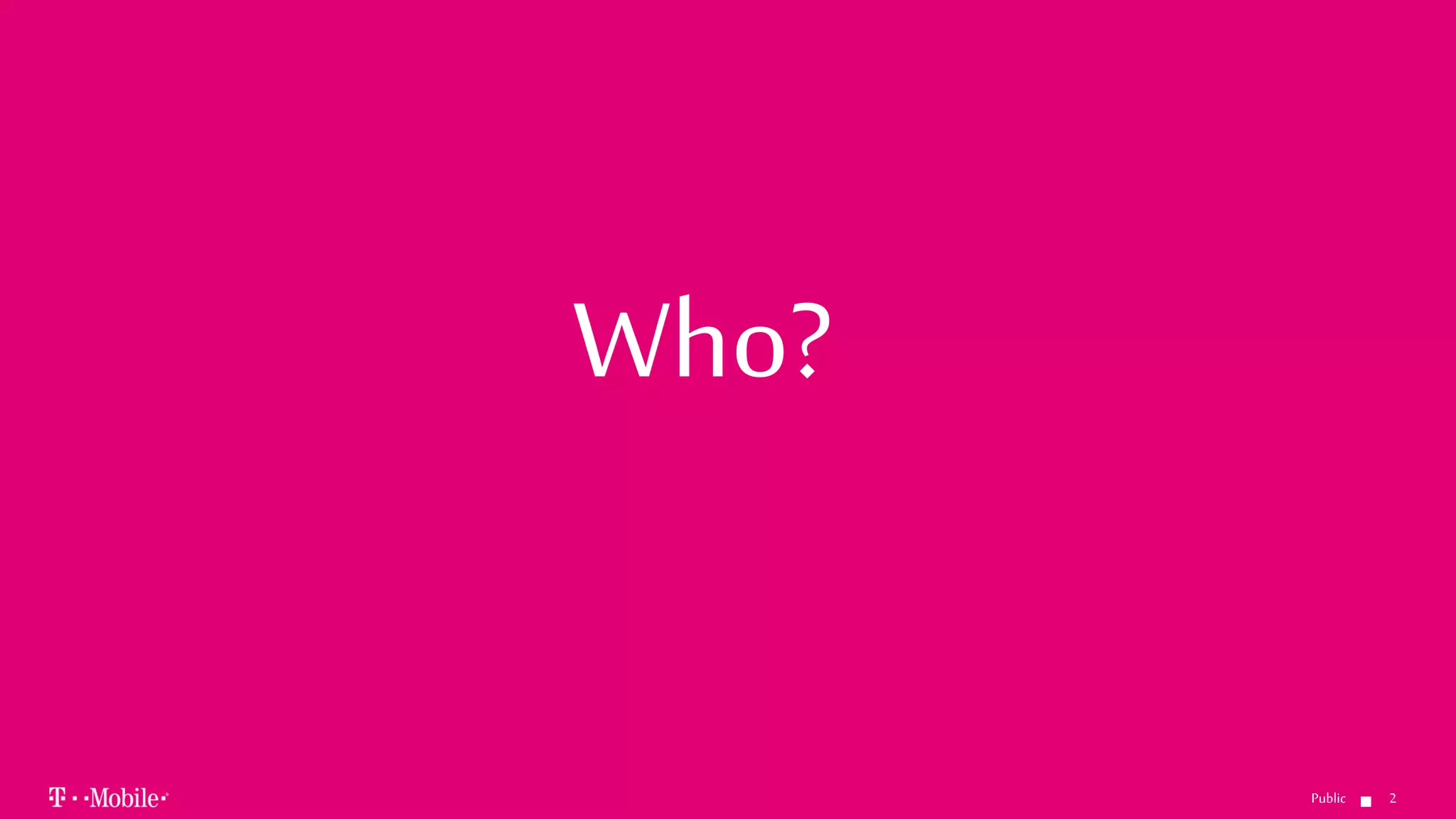

2. 2
Who?
Public

3. 3Public
 Josh Turner
 Principal Engineer @ T-Mobile
 Distributed Data Systems
Lead
 Software Development
Engineering
/turnerjosh /tdl-jturner
Who am I & Where do I come from?

4. 4
Why?
Public

5. 55
 Moving from Oracle™ to Cassandra
 High Learning Curve
 Complex Configuration
 Duplicated Code
 Missing Enterprise Best Practices
Why build it?
Public

6. 66
 Versatile Framework
 Reduces Learning Curve
 Success Internally In T-Mobile
 Because We Can. #UnCarrier
Why share it?
Public

7. 77
 Cassandra Is A Name!
 Researched Nicknames
 Sasquatch Is Our Local Legend
 Casquatch Is Born!
Why Casquatch?
Public

8. 8
What?
Public

9. 9
 Distributed, wide column store,
NoSQL Database
 Masterless Architecture
 Tunable Consistency / AP Design
 Query Language : CQL
What is Cassandra?
Public

10. 10
 Cassandra Made Easy!
 Java Abstraction Layer For Cassandra
 Pre-tuned For Enterprise Best
Practices
 Object Oriented Code Generation
 Simple Object Based API
 Java Spring Boot Framework
Integration
What is Casquatch?
Public

11. 11
 Load Balancing / Geo Redundancy
 Connection Pooling
 Reconnection & Retry Policy
 Data Caching
 Workload Filtering
 Security
What do I get?
Public

12. 12
Architecture
Java Application
DSE
Drive
r
Cassandra
Casquatch
POJ
Os
DSE
Object
Mapper
Public

13. 13
 Open Source Only Model
 T-Mobile Open Source Group
 https://opensource.t-mobile.com
 Project Casquatch
 https://github.com/tmobile/casquatch
 JavaDocs
 https://tmobile.github.io/casquatch/
Open Source
Public

14. 14
 We recognize that there is a wide range of
platforms, and T-Mobile can't address them
all. This is why we open sourced
Casquatch -- we hope the community will
be able to expand how Casquatch is
used. As with any tool, consult with your IT
department before using in production.
 All code samples included are for
demonstration purposes only.
 Licensed under Apache 2.0
 https://www.apache.org/licenses/LICENSE-2.0
Open Source
Public

15. 15
 03/05/2018 – 1.0 Internal Release
 04/05/2018 – 1.1 Release
 06/22/2018 – 1.2 Release Open
Sourced!
 09/17/2018 – 1.3 Release
 05/01/2019 – 1.4 Release
Project History
Public

16. 16
How?
Public

17. 1717
 We started with Spring Data
 All the testing went great… Until
production
 We didn’t know what we didn’t
know…
 Tried to fix Spring
 Decided to build and integrate
How did I get here?
Public

18. 1818
 Spring Data
 No High Availability
 No Retry
 Non Industry Best Practices
 Casquatch
 Highly Available
 Automatic Retry
 Follows Industry Best Practices
 Savings
 Significant reduction in support and design cost
 Highly Reliable Architecture
How does it compare?
Public

19. 1919
 Spring Data - Developer Effort
 ~150 Lines For Basic Configuration
 ~100 Lines Per Table
 ~10 Tables Per App
 Casquatch - Developer Effort
 ~10 lines of code
 Savings
 1100+ lines of code and days of developer
time for each application
How muchdo I have to write?
Public

20. 2020
 Command Line Interface
 Driven by Table Metadata
 Annotated Objects
 Customizable
Code Generator
Public

21. 2121
 Hosted by Sonatype
 Available in Maven Central
 Include in pom.xml
Maven
Public

22. 2222
 Optional Spring Boot Integration
 Add Import to Application.java
 Dependency Injection
Spring Boot Integration
Public

23. 2323
 Skip Spring Boot
 Builder Pattern
 CassandraDriver.builder().withUsern
ame() … .build()
 All properties are available
If You BuildIt…
Public

24. 24
SHOW ME!
Public

25. 25Public
 Standard
application.properties
 The Basics
 Credentials, Contact Points,
Keyspace, etc
 The Advanced
 Connection Limits, LoadBalancing,
Timeout, SSL, etc
 Many More in README.md
Spring Boot Configuration:
Code For Demonstration Purposes Only

26. 26Public
 Skip Spring Boot and Do It Yourself
 The Basics
 Credentials, Contact Points,
Keyspace, etc
 The Advanced
 Connection Limits, LoadBalancing,
Timeout, SSL, etc
 Many More in API Docs
Builder Pattern:
Code For Demonstration Purposes Only

27. 27Public
 Create a Cassandra Table
 Columns use _ for spaces
 Supports all data types
 Supports UDT
Create Schema:
Code For Demonstration Purposes Only

28. 28Public
 Run the code generator
 Read in settings on command line
or from properties file
 Configurable options
 More in README.md
Create Some Code:
Code For Demonstration Purposes Only

29. 29Public
 Custom Package
 Only Required Imports
Get Some Code: tableName.java
Code For Demonstration Purposes Only

30. 30Public
 Comments
 Full CQL
 Annotated
Get Some Code: tableName.java
Code For Demonstration Purposes Only

31. 31Public
 JavaDoc
 Constructors
 Getters and Setters
Get Some Code: tableName.java
Code For Demonstration Purposes Only

32. 32Public
 Package option creates pom.xml
 Snippet shorted for slide
 Complete Artifact
Get Some Code: pom.xml
Code For Demonstration Purposes Only

33. 33Public
 T getById(Class<T> c, T o) : Get by passing an object instance with the key
populated.
 void save(Class<T> c, T o) : Save by passing an object instance.
 void delete(Class<T> c, T o): Delete by passing an object instance with the key
populated
Use The Code:
Code For Demonstration Purposes Only

34. 34
Sneak Peak!
The Following FunctionalityIs Not Final
Public

35. 35Public
 Run the code generator with a –
dao
 Generate the Data Access Object
 REST APIs
 Deployable Microservice
 Unit Tested with Mockito
Generate a DAO
Code For Demonstration Purposes Only

36. 36Public
 Swagger UI Integration
 Basic Casquatch APIs exposed
 Wrapped in Request/Response
payload objects
 Simple JSON interface
 Clean error messaging and status
codes
DAO - Swagger
Code For Demonstration Purposes Only

37. 3737 Public
DAO - Exists
Code For Demonstration Purposes Only

38. 3838 Public
DAO - Save
Code For Demonstration Purposes Only

39. 3939 Public
DAO - Get
Code For Demonstration Purposes Only

40. 40Public
 Utilizes generic
AbstractCassandraDAO
 Easily extensible
 Adjust URL through annotation
DAO - Implementation
Code For Demonstration Purposes Only

41. 41Public
 Thin wrapper
 Consistent Request/Response
objects
 Functionality Mirrors Casquatch
API
DAO - Implementation
Code For Demonstration Purposes Only

42. ClosingSlides
LET’S
TALK

43. ClosingSlides
