1. Presentation of Lubricants
 Presented By-Atanu Jana a Student of Modern Institute of Engineering & Technology
 Roll No- 26900720064
 Reg No- 202690100720005
 Department- B.tech In Mechanical Engineering
 Subject- Power Plant Engineering (PE-ME802 B)
 Y
ear- 4th
 Semester- 8th

2. Acknowledgement
W
e would like to express our sincere gratitude to our respected Sir „Mr
.Anil Kumar
Panja‟for providing us the opportunity of making such an interesting presentation. W
e
would specially thank him for all their invaluable guidance, creative suggestions,
friendly interference throughout the entire course of this project.
Though almost all of us are acquainted with “Presentation of Lubricants”, the
detailed
conceptions were not known to many of us, but now it’s largely eternalised throughout
the class. At the other side many of us knew about the basic significance of working
with M.S. PowerPoint but for those who were not prepared for such experiences, this
project was absolutely important and helpful.
W
e would also thank to our parents & class teachers for their inestimable guidance and
also thank to our classmates for their co-operation with us.

3. Presentation of
Lubricants

4. Welcome
To
My Presentation

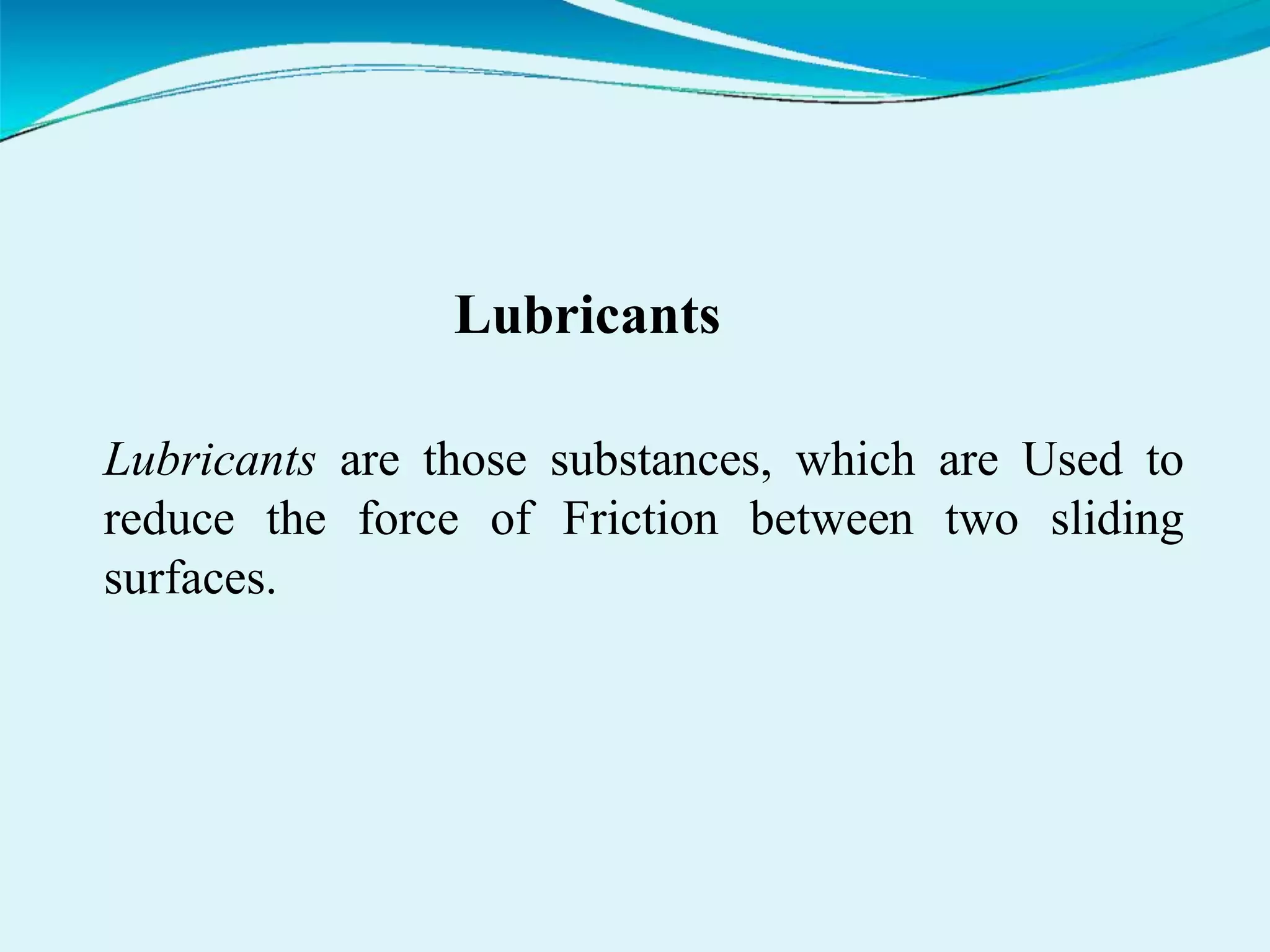

5. Lubricants
Lubricants are those substances, which are Used to
reduce the force of Friction between two sliding
surfaces.

6. Lubrication
Lubrication is the process, or technique employed to
reduce wear on surfaces in close proximity, and
moving relative to each another.

7. Composition of lubricants
⚫Typically contains 90% base oil(petroleum-mineral
oils) and less than 10% additives
⚫Non liquid lubricants contains Grease, powder(dry
graphite, Molibdenum disulphite), Teflon tape used in
plumbing etc.
⚫Those non liquid lubricants provide lubrication at
higher temp.(up to 350 °C)

8. Additives
The properties of a lubricant can be improved by
adding certain chemicals
⚫ Anti oxidants
⚫ Foam depressants
⚫ Corrosion inhibitors
⚫ Detergent Dispersers
⚫ Oiliness improvers

9. Different Lubricating conditions
⚫Dry Lubrication- No lubricant present between the
surfaces
Nooil film
⚫Boundary lubrication (Thin film) -This condition is
found on machine slide ways (Lathe cross slide, milling
machine table).
Thinoil film

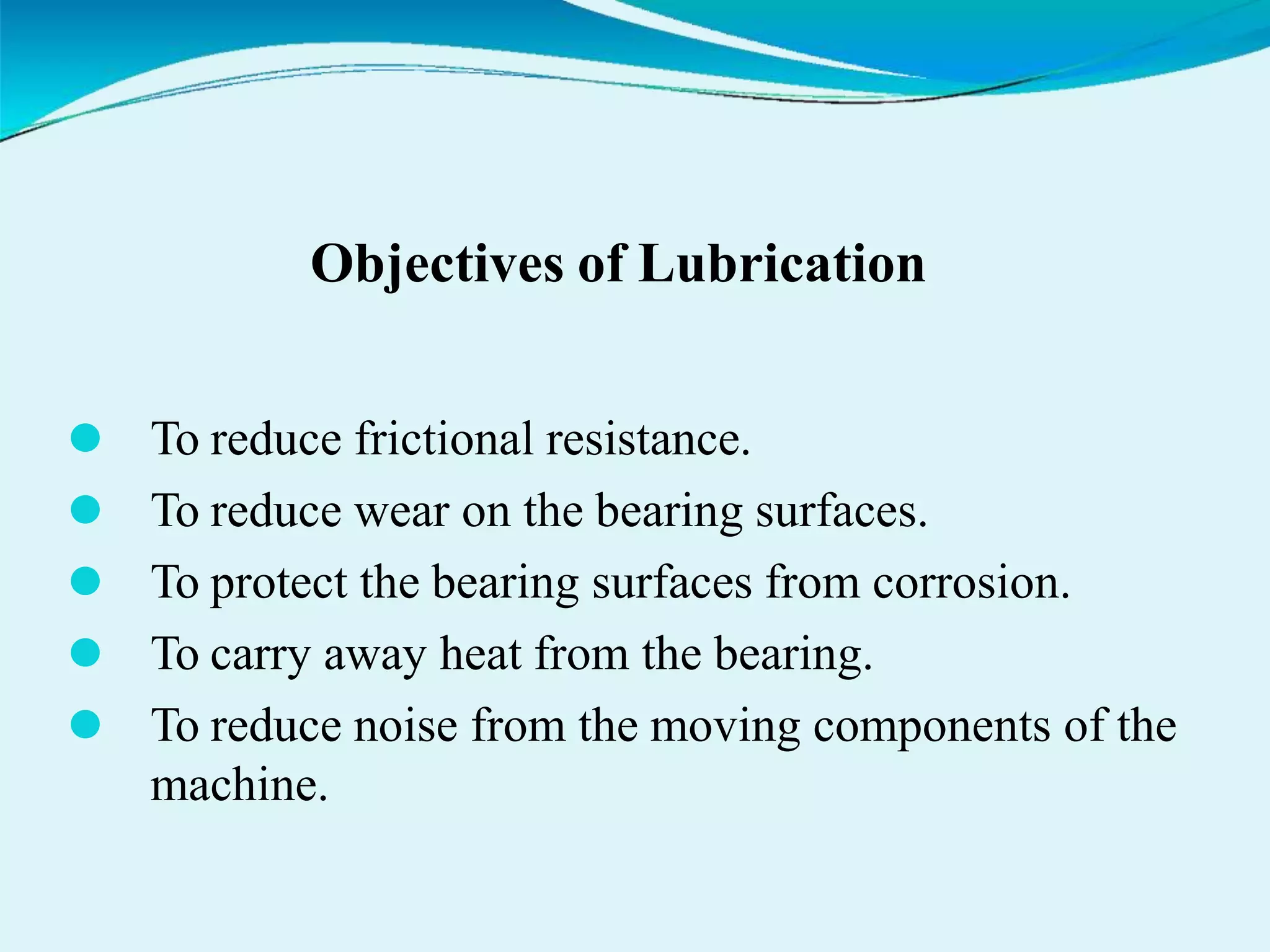

10. Objectives of Lubrication
⚫ To reduce frictional resistance.
⚫ To reduce wear on the bearing surfaces.
⚫ To protect the bearing surfaces from corrosion.
⚫ To carry away heat from the bearing.
⚫ To reduce noise from the moving components of the
machine.

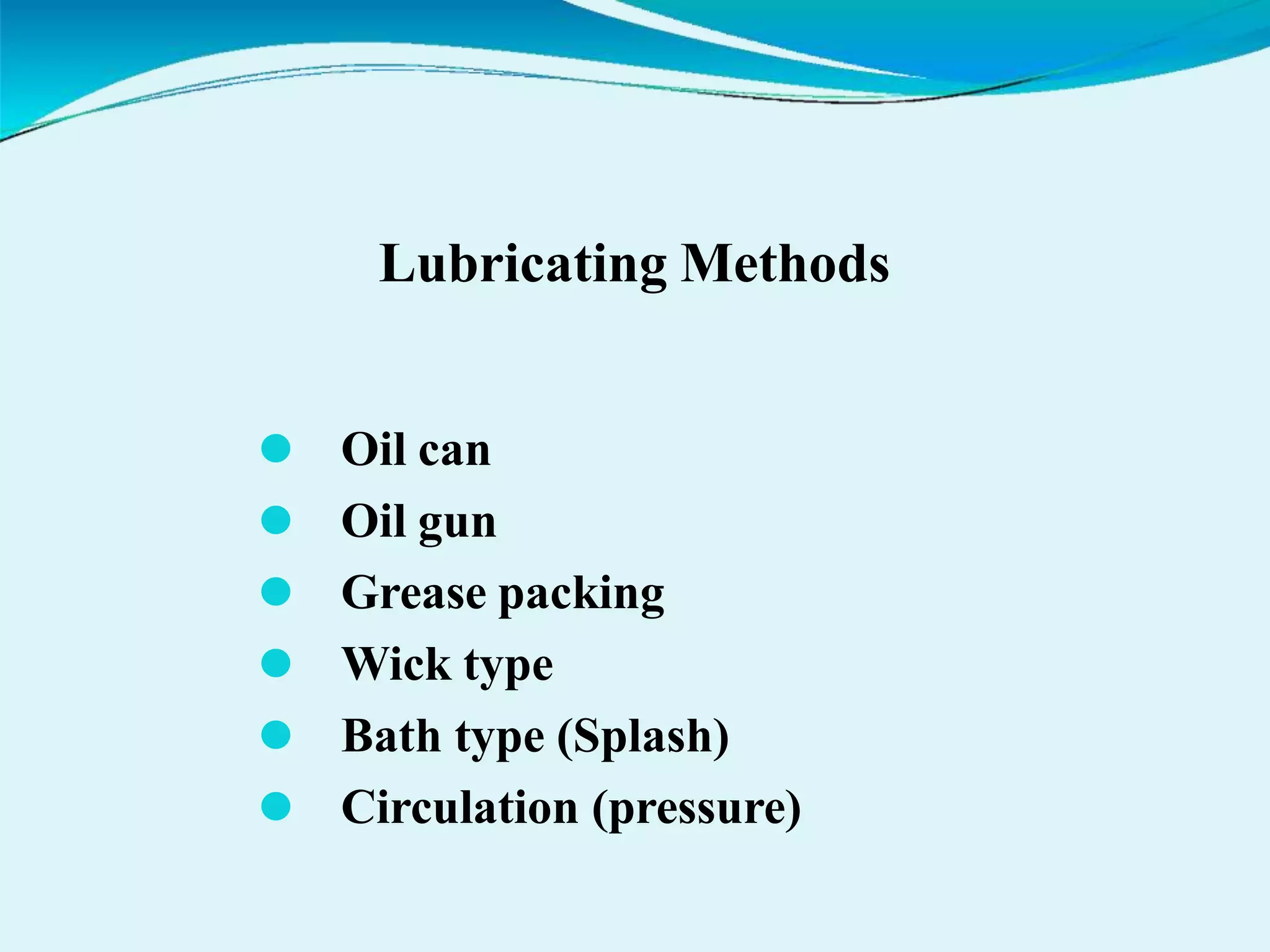

11. Lubricating Methods
⚫ Oil can
⚫ Oil gun
⚫ Grease packing
⚫ Wick type
⚫ Bath type (Splash)
⚫ Circulation (pressure)

12. Types of Lubricant
⚫ Animal oils - From animal fats
⚫ Vegetable oils - From plant seeds
⚫ Mineral oils - Hydrocarbons obtained from minerals
⚫ Synthetic oils - From various chemicals
⚫ Grease - Semi-fluid lubricant
⚫ Dry - Molybdenum disulphide, Graphite

13. Types of Lubricants
⚫Solid lubricants e.g Wax, Talc, Mica, Molibdenum
disulphide
⚫Semi solid lubricants e.g. Grease and Vaseline
⚫Liquid Lubricants e.g. Mineral oils, V
egetable oils,
Animal oils
⚫Synthetic lubricants e.g. Polyglycols, Silicones, Organic
amines, Imines,Amides.

14. Properties of Lubricant
⚫ Viscosity - Resistance of a liquid to flow.
⚫ Oiliness- Ability of the lubricant to stay in place
between the bearing surfaces.
⚫ Stability –Retention of properties as long as possible
(Oxidization, Biological degradation, Dilution)

15. Properties of Lubricant
Volatility
o It shows the evaporation behavior of lubricant at high
temperature.
o Agood lubricant should have low volatility
Emulsification
o It is the property of a lubricant due to which the
lubricating oil mixed with water to form an emulsion.
o Agood lubricant should have low emulsion number.

16. Properties of Lubricant
Corrosion Stability
⚫It is properties of lubricant which represents its
resistance toward the metals.
⚫A good lubricant should not take part in
corrosion.
Thermal Stability
⚫A good lubricant must be stable towards heat.
⚫It should not decompose during operation at
high temperature.

17. Functions of Lubricants
⚫Keep moving parts apart
⚫Reduce friction
⚫Transfer heat
⚫Carry away contaminants & debris
⚫Transmit power
⚫Protect against wear
⚫Prevent corrosion

18. Thanks to all
