Illumos — LOPSA SD

illumos 
The State of Fully Modern Unix
brian.bennett@joyent.com
@bahamat

illumos in a Nutshell
• Is an open source descendent of OpenSolaris

• …which itself was a branch of Solaris Nevada

• …which was the name of the release after Solaris 10

• …and was open but is now closed

• …and is itself a descendent of Solaris 2.x

• …but it can all be called “SunOS 5.x”

• …but not “SunOS 4.x” — that’s diﬀerent

• …which came from Unix

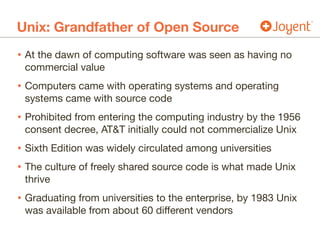

Unix: Grandfather of Open Source
• At the dawn of computing software was seen as having no
commercial value

• Computers came with operating systems and operating
systems came with source code

• Prohibited from entering the computing industry by the 1956
consent decree, AT&T initially could not commercialize Unix

• Sixth Edition was widely circulated among universities

• The culture of freely shared source code is what made Unix
thrive

• Graduating from universities to the enterprise, by 1983 Unix
was available from about 60 different vendors

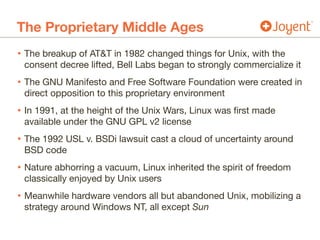

The Proprietary Middle Ages
• The breakup of AT&T in 1982 changed things for Unix, with the
consent decree lifted, Bell Labs began to strongly commercialize it

• The GNU Manifesto and Free Software Foundation were created in
direct opposition to this proprietary environment

• In 1991, at the height of the Unix Wars, Linux was first made
available under the GNU GPL v2 license

• The 1992 USL v. BSDi lawsuit cast a cloud of uncertainty around
BSD code

• Nature abhorring a vacuum, Linux inherited the spirit of freedom
classically enjoyed by Unix users

• Meanwhile hardware vendors all but abandoned Unix, mobilizing a
strategy around Windows NT, all except Sun

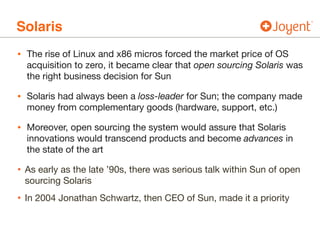

Solaris
• The rise of Linux and x86 micros forced the market price of OS
acquisition to zero, it became clear that open sourcing Solaris was
the right business decision for Sun

• Solaris had always been a loss-leader for Sun; the company made
money from complementary goods (hardware, support, etc.)

• Moreover, open sourcing the system would assure that Solaris
innovations would transcend products and become advances in
the state of the art

• As early as the late ’90s, there was serious talk within Sun of open
sourcing Solaris

• In 2004 Jonathan Schwartz, then CEO of Sun, made it a priority

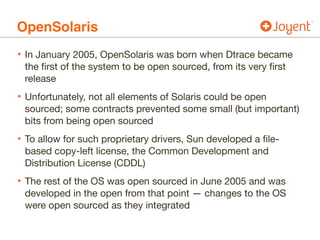

OpenSolaris
• In January 2005, OpenSolaris was born when Dtrace became
the first of the system to be open sourced, from its very first
release

• Unfortunately, not all elements of Solaris could be open
sourced; some contracts prevented some small (but important)
bits from being open sourced

• To allow for such proprietary drivers, Sun developed a file-
based copy-left license, the Common Development and
Distribution License (CDDL)

• The rest of the OS was open sourced in June 2005 and was
developed in the open from that point — changes to the OS
were open sourced as they integrated

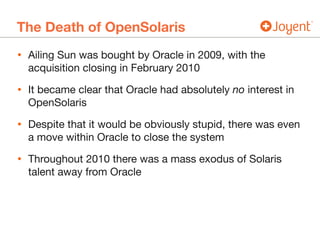

The Death of OpenSolaris
• Ailing Sun was bought by Oracle in 2009, with the
acquisition closing in February 2010

• It became clear that Oracle had absolutely no interest in
OpenSolaris

• Despite that it would be obviously stupid, there was even
a move within Oracle to close the system

• Throughout 2010 there was a mass exodus of Solaris
talent away from Oracle

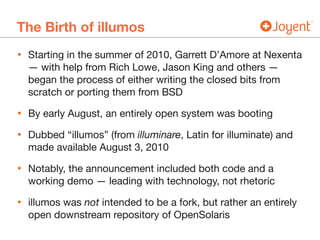

The Birth of illumos
• Starting in the summer of 2010, Garrett D’Amore at Nexenta
— with help from Rich Lowe, Jason King and others —
began the process of either writing the closed bits from
scratch or porting them from BSD

• By early August, an entirely open system was booting

• Dubbed “illumos” (from illuminare, Latin for illuminate) and
made available August 3, 2010

• Notably, the announcement included both code and a
working demo — leading with technology, not rhetoric

• illumos was not intended to be a fork, but rather an entirely
open downstream repository of OpenSolaris

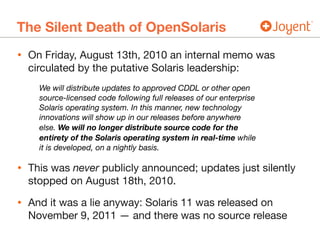

The Silent Death of OpenSolaris
• On Friday, August 13th, 2010 an internal memo was
circulated by the putative Solaris leadership:

We will distribute updates to approved CDDL or other open
source-licensed code following full releases of our enterprise
Solaris operating system. In this manner, new technology
innovations will show up in our releases before anywhere
else. We will no longer distribute source code for the
entirety of the Solaris operating system in real-time while
it is developed, on a nightly basis.
• This was never publicly announced; updates just silently
stopped on August 18th, 2010.

• And it was a lie anyway: Solaris 11 was released on
November 9, 2011 — and there was no source release

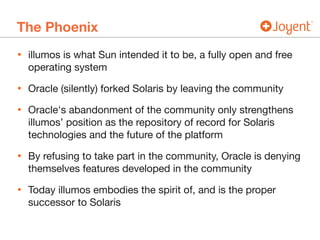

The Phoenix
• illumos is what Sun intended it to be, a fully open and free
operating system

• Oracle (silently) forked Solaris by leaving the community

• Oracle's abandonment of the community only strengthens
illumos’ position as the repository of record for Solaris
technologies and the future of the platform

• By refusing to take part in the community, Oracle is denying
themselves features developed in the community

• Today illumos embodies the spirit of, and is the proper
successor to Solaris

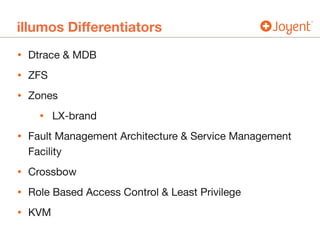

illumos Differentiators
• Dtrace & MDB

• ZFS

• Zones

• LX-brand

• Fault Management Architecture & Service Management
Facility

• Crossbow

• Role Based Access Control & Least Privilege

• KVM

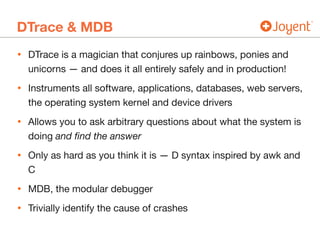

DTrace & MDB
• DTrace is a magician that conjures up rainbows, ponies and
unicorns — and does it all entirely safely and in production!

• Instruments all software, applications, databases, web servers,
the operating system kernel and device drivers

• Allows you to ask arbitrary questions about what the system is
doing and ﬁnd the answer

• Only as hard as you think it is — D syntax inspired by awk and
C

• MDB, the modular debugger

• Trivially identify the cause of crashes

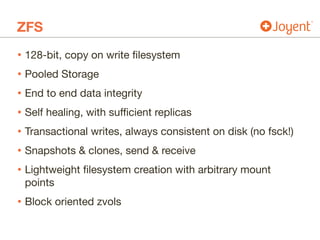

ZFS
• 128-bit, copy on write filesystem

• Pooled Storage

• End to end data integrity

• Self healing, with sufficient replicas

• Transactional writes, always consistent on disk (no fsck!)

• Snapshots & clones, send & receive

• Lightweight filesystem creation with arbitrary mount
points

• Block oriented zvols

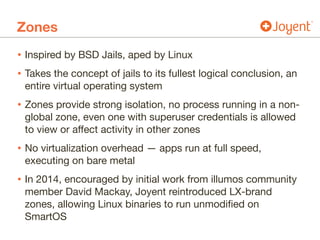

Zones
• Inspired by BSD Jails, aped by Linux

• Takes the concept of jails to its fullest logical conclusion, an
entire virtual operating system

• Zones provide strong isolation, no process running in a non-
global zone, even one with superuser credentials is allowed
to view or affect activity in other zones

• No virtualization overhead — apps run at full speed,
executing on bare metal

• In 2014, encouraged by initial work from illumos community
member David Mackay, Joyent reintroduced LX-brand
zones, allowing Linux binaries to run unmodified on
SmartOS

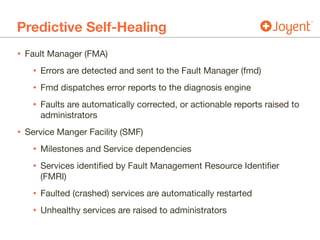

Predictive Self-Healing
• Fault Manager (FMA)

• Errors are detected and sent to the Fault Manager (fmd)

• Fmd dispatches error reports to the diagnosis engine

• Faults are automatically corrected, or actionable reports raised to
administrators

• Service Manger Facility (SMF)

• Milestones and Service dependencies

• Services identified by Fault Management Resource Identifier
(FMRI)

• Faulted (crashed) services are automatically restarted

• Unhealthy services are raised to administrators

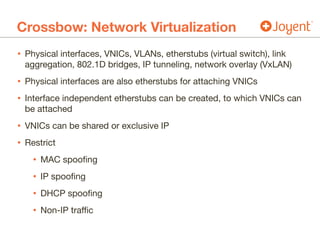

Crossbow: Network Virtualization
• Physical interfaces, VNICs, VLANs, etherstubs (virtual switch), link
aggregation, 802.1D bridges, IP tunneling, network overlay (VxLAN)

• Physical interfaces are also etherstubs for attaching VNICs

• Interface independent etherstubs can be created, to which VNICs can
be attached

• VNICs can be shared or exclusive IP

• Restrict

• MAC spoofing

• IP spoofing

• DHCP spoofing

• Non-IP traffic

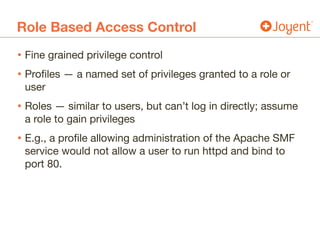

Role Based Access Control
• Fine grained privilege control

• Profiles — a named set of privileges granted to a role or
user

• Roles — similar to users, but can’t log in directly; assume
a role to gain privileges

• E.g., a profile allowing administration of the Apache SMF
service would not allow a user to run httpd and bind to
port 80.

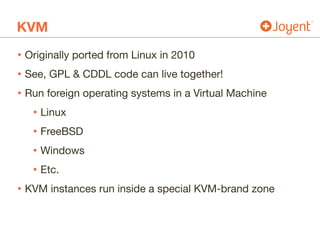

KVM
• Originally ported from Linux in 2010

• See, GPL & CDDL code can live together!

• Run foreign operating systems in a Virtual Machine

• Linux

• FreeBSD

• Windows

• Etc.

• KVM instances run inside a special KVM-brand zone

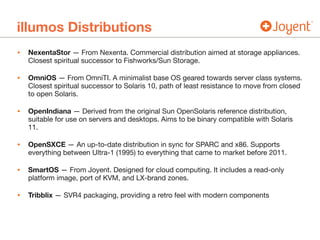

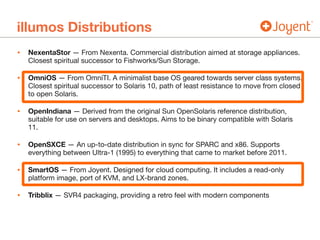

illumos Distributions
• NexentaStor — From Nexenta. Commercial distribution aimed at storage appliances.
Closest spiritual successor to Fishworks/Sun Storage.

• OmniOS — From OmniTI. A minimalist base OS geared towards server class systems.
Closest spiritual successor to Solaris 10, path of least resistance to move from closed
to open Solaris.

• OpenIndiana — Derived from the original Sun OpenSolaris reference distribution,
suitable for use on servers and desktops. Aims to be binary compatible with Solaris
11.

• OpenSXCE — An up-to-date distribution in sync for SPARC and x86. Supports
everything between Ultra-1 (1995) to everything that came to market before 2011.

• SmartOS — From Joyent. Designed for cloud computing. It includes a read-only
platform image, port of KVM, and LX-brand zones.

• Tribblix — SVR4 packaging, providing a retro feel with modern components

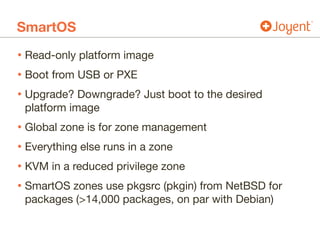

SmartOS
• Read-only platform image

• Boot from USB or PXE

• Upgrade? Downgrade? Just boot to the desired
platform image

• Global zone is for zone management

• Everything else runs in a zone

• KVM in a reduced privilege zone

• SmartOS zones use pkgsrc (pkgin) from NetBSD for
packages (>14,000 packages, on par with Debian)

SmartDataCenter
• Orchestration stack for a datacenter of SmartOS Compute Nodes

• Up and running in about 30 minutes

• Robust API and Web UI

• Open source! MPLv2 license

• All the code is on github

• github.com/joyent/sdc

• Joyent Public Cloud is entirely managed with SmartDataCenter

• Download and run it yourself

• https://us-east.manta.joyent.com/Joyent_Dev/SmartDataCenter

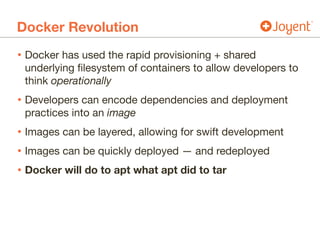

Docker Revolution
• Docker has used the rapid provisioning + shared
underlying filesystem of containers to allow developers to
think operationally

• Developers can encode dependencies and deployment
practices into an image

• Images can be layered, allowing for swift development

• Images can be quickly deployed — and redeployed

• Docker will do to apt what apt did to tar

Docker Frustrations
• Linux container runtime vulnerabilities require running
containers in VMs or on single tenant hardware

• Managing VM or hardware life cycles adds complexity to
deployments

• Running containers in VMs erases the performance
advantages of containerized OS virtualization

• Network implementation is host-centric, making it difficult
to connect containers on different hosts

• Managing multiple Docker hosts increases complexity

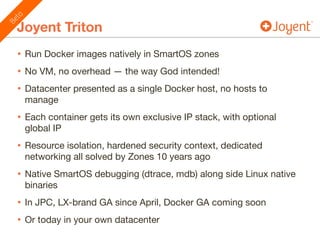

Joyent Triton
• Run Docker images natively in SmartOS zones

• No VM, no overhead — the way God intended!

• Datacenter presented as a single Docker host, no hosts to
manage

• Each container gets its own exclusive IP stack, with optional
global IP

• Resource isolation, hardened security context, dedicated
networking all solved by Zones 10 years ago

• Native SmartOS debugging (dtrace, mdb) along side Linux native
binaries

• In JPC, LX-brand GA since April, Docker GA coming soon

• Or today in your own datacenter
Beta

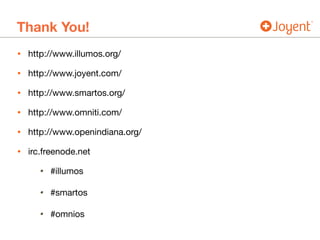

Thank You!
• http://www.illumos.org/

• http://www.joyent.com/

• http://www.smartos.org/

• http://www.omniti.com/

• http://www.openindiana.org/

• irc.freenode.net

• #illumos

• #smartos

• #omnios

Illumos — LOPSA SD

More Related Content

Similar to Illumos — LOPSA SD

Recently uploaded

Illumos — LOPSA SD
