Idea and steganography
The document discusses steganography, which is the technique of hiding messages to ensure that only the sender and intended recipient are aware of the message. It covers the history of steganography dating back to 440 BC and various techniques, including physical and digital methods. Additionally, it details the International Data Encryption Algorithm, explaining its structure, key-making process, and operational mechanics.
Idea and steganography

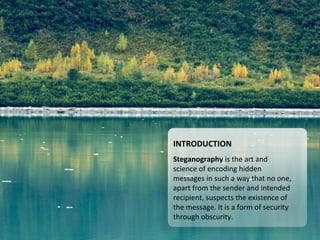

- 5. INTRODUCTION Steganography is theart and science of encoding hidden messages in such a way that no one, apart from the sender and intended recipient, suspects the existence of the message. It is a form of security through obscurity.

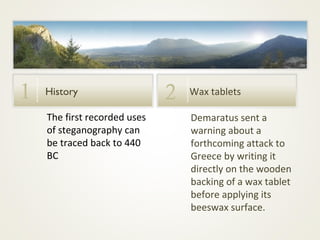

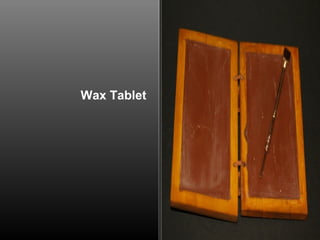

- 6. 1 History The first recordeduses of steganography can be traced back to 440 BC 2 Wax tablets Demaratus sent a warning about a forthcoming attack to Greece by writing it directly on the wooden backing of a wax tablet before applying its beeswax surface.
- 7.
- 8.
- 9.

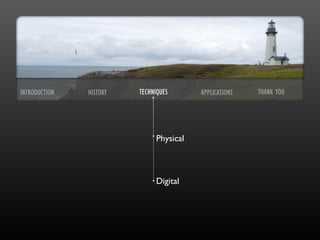

- 10. Physical steganography techniques used earlier in history |Writing on head | writing with secret ink

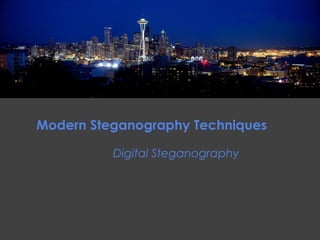

- 11. Modern Steganography Techniques DigitalSteganography
- 12. Before steganograhy After steganography Removing all but two least significant bitsof all color components

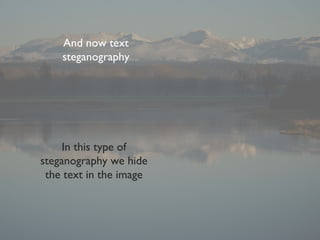

- 13. And now text steganography Inthis type of steganography we hide the text in the image

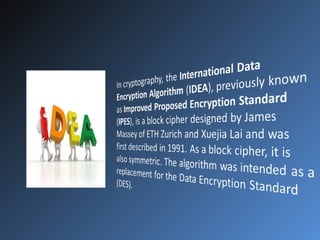

- 14. International Data EncryptionAlgorithm History Structure Key making

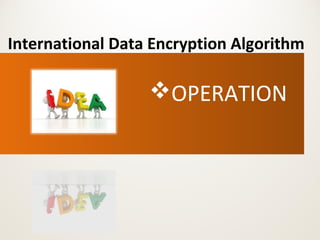

- 17. International Data EncryptionAlgorithm OPERATION
- 18. IDEA operates on64-bit blocks using a 128-bit key, and consists of a series of eight identical transformations (a round, see the illustration) and an output transformation (the half-round). Bitwise eXclusive OR (denoted with a blue circled plus ⊕). Addition modulo 216 (denoted with a Green boxed plus ⊞). Multiplication modulo 216+1, where the all-zero Word (0x0000) is interpreted as 216 (denoted by a red circled dot ⊙)

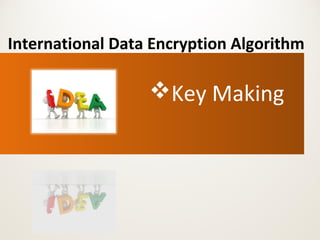

- 20. International Data EncryptionAlgorithm Key Making

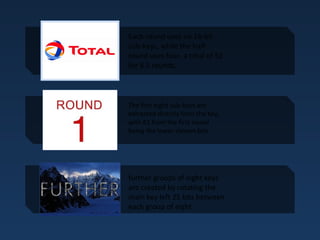

- 21. Each round usessix 16-bit sub-keys, while the halfround uses four, a total of 52 for 8.5 rounds. The first eight sub-keys are extracted directly from the key, with K1 from the first round being the lower sixteen bits. further groups of eight keys are created by rotating the main key left 25 bits between each group of eight
- 22.
