Icinga Camp Amsterdam - Icinga2 and Puppet

Icinga Camp Amsterdam 2016
Icinga 2 and puppet
automatic monitoring.. ?

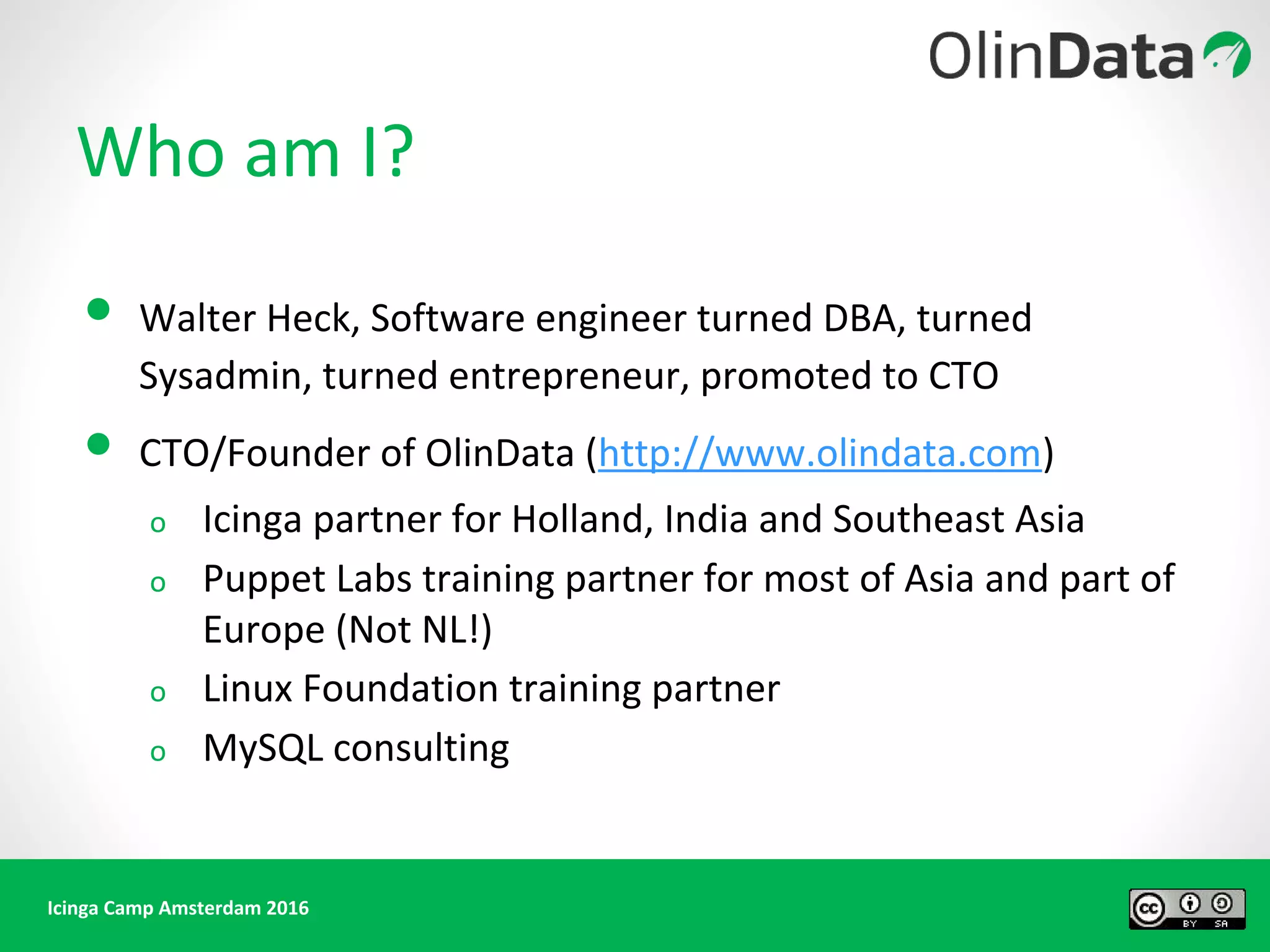

Who am I?
• Walter Heck, Software engineer turned DBA, turned
Sysadmin, turned entrepreneur, promoted to CTO
• CTO/Founder of OlinData (http://www.olindata.com)
o Icinga partner for Holland, India and Southeast Asia
o Puppet Labs training partner for most of Asia and part of
Europe (Not NL!)
o Linux Foundation training partner
o MySQL consulting

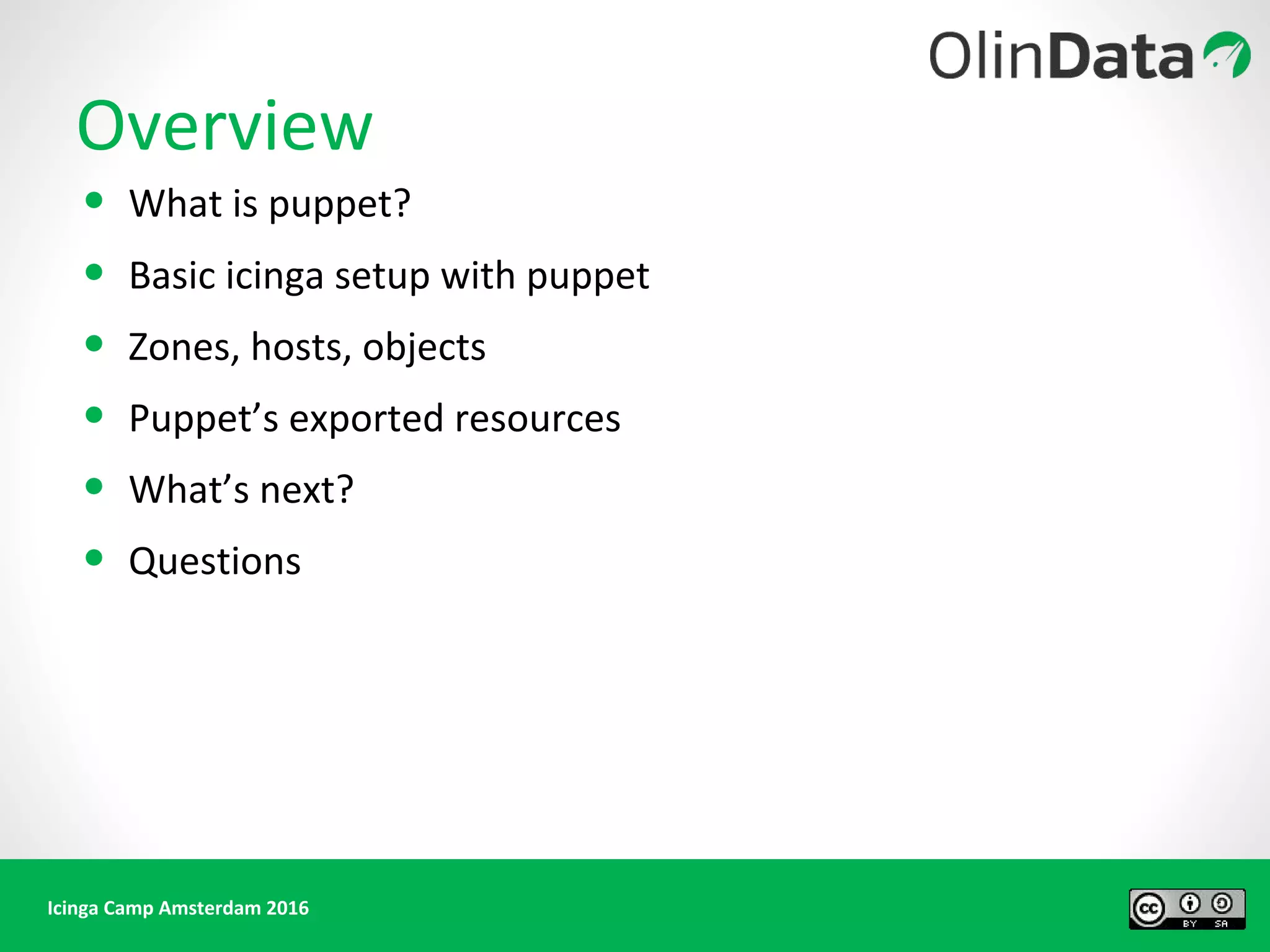

Overview
• What is puppet?
• Basic icinga setup with puppet
• Zones, hosts, objects
• Puppet’s exported resources
• What’s next?
• Questions

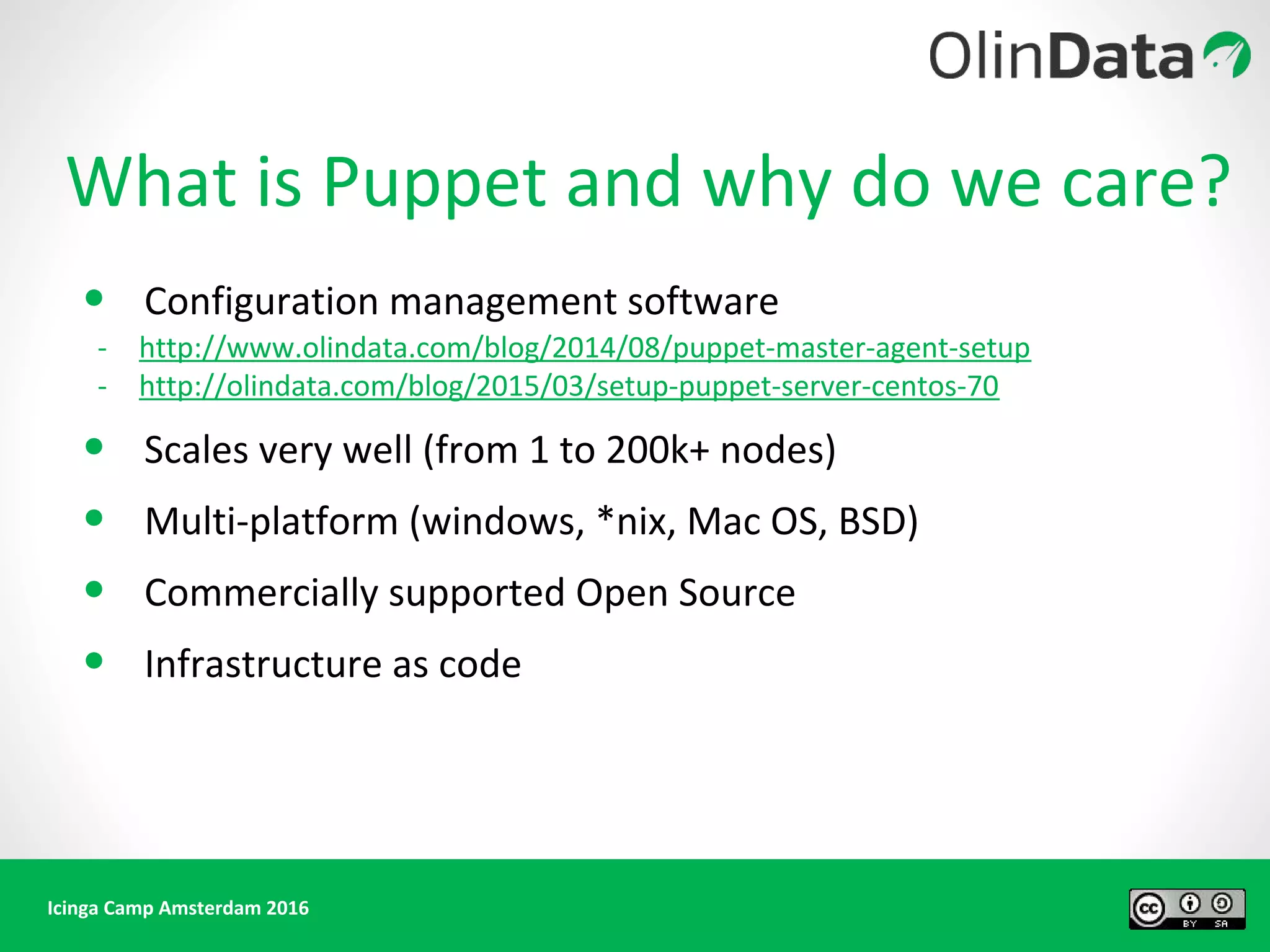

What is Puppet and why do we care?
• Configuration management software
- http://www.olindata.com/blog/2014/08/puppet-master-agent-setup
- http://olindata.com/blog/2015/03/setup-puppet-server-centos-70
• Scales very well (from 1 to 200k+ nodes)
• Multi-platform (windows, *nix, Mac OS, BSD)
• Commercially supported Open Source
• Infrastructure as code

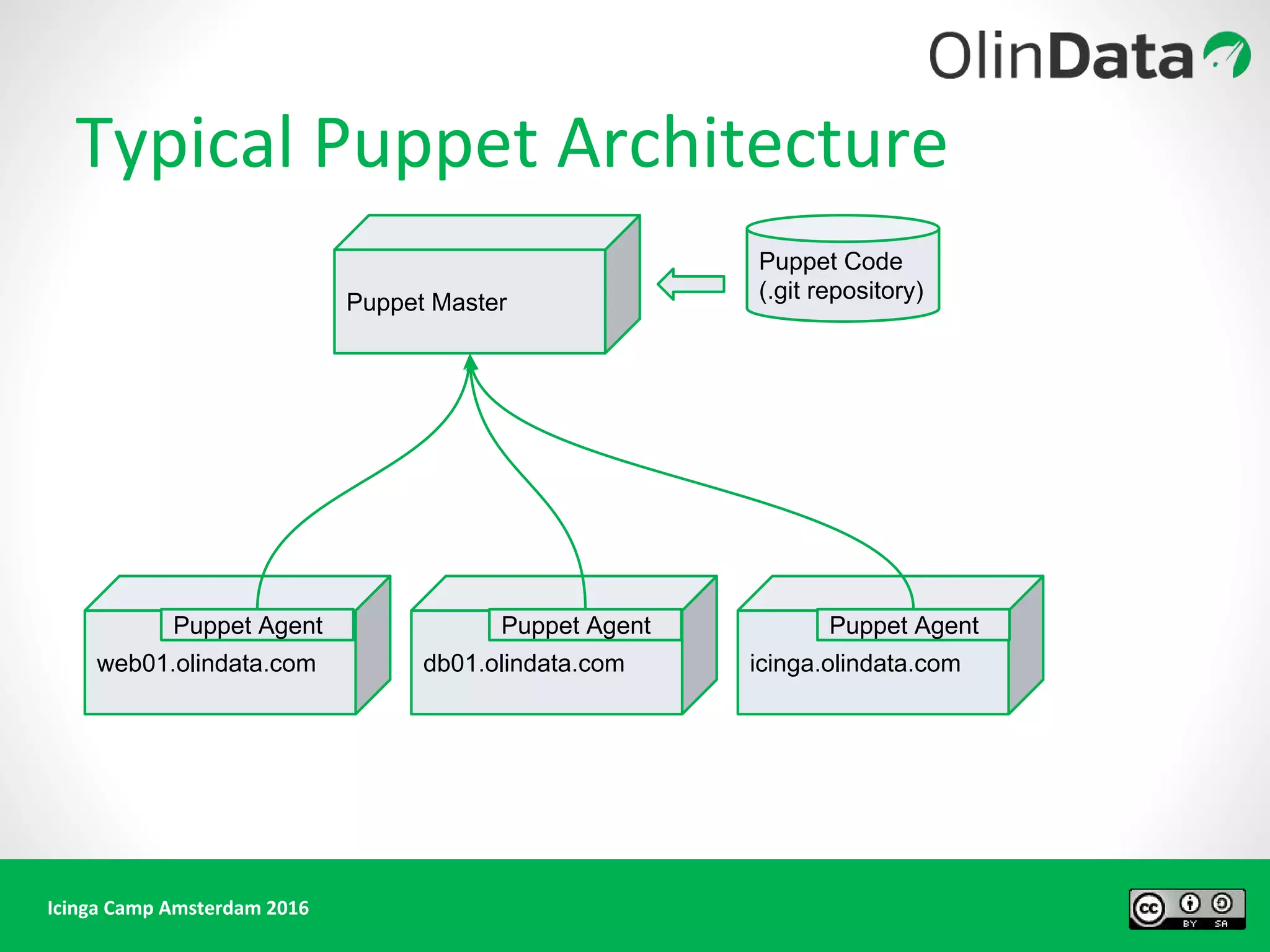

Typical Puppet Architecture
Puppet Master
Puppet Code
(.git repository)
web01.olindata.com icinga.olindata.comdb01.olindata.com
Puppet Agent Puppet AgentPuppet Agent

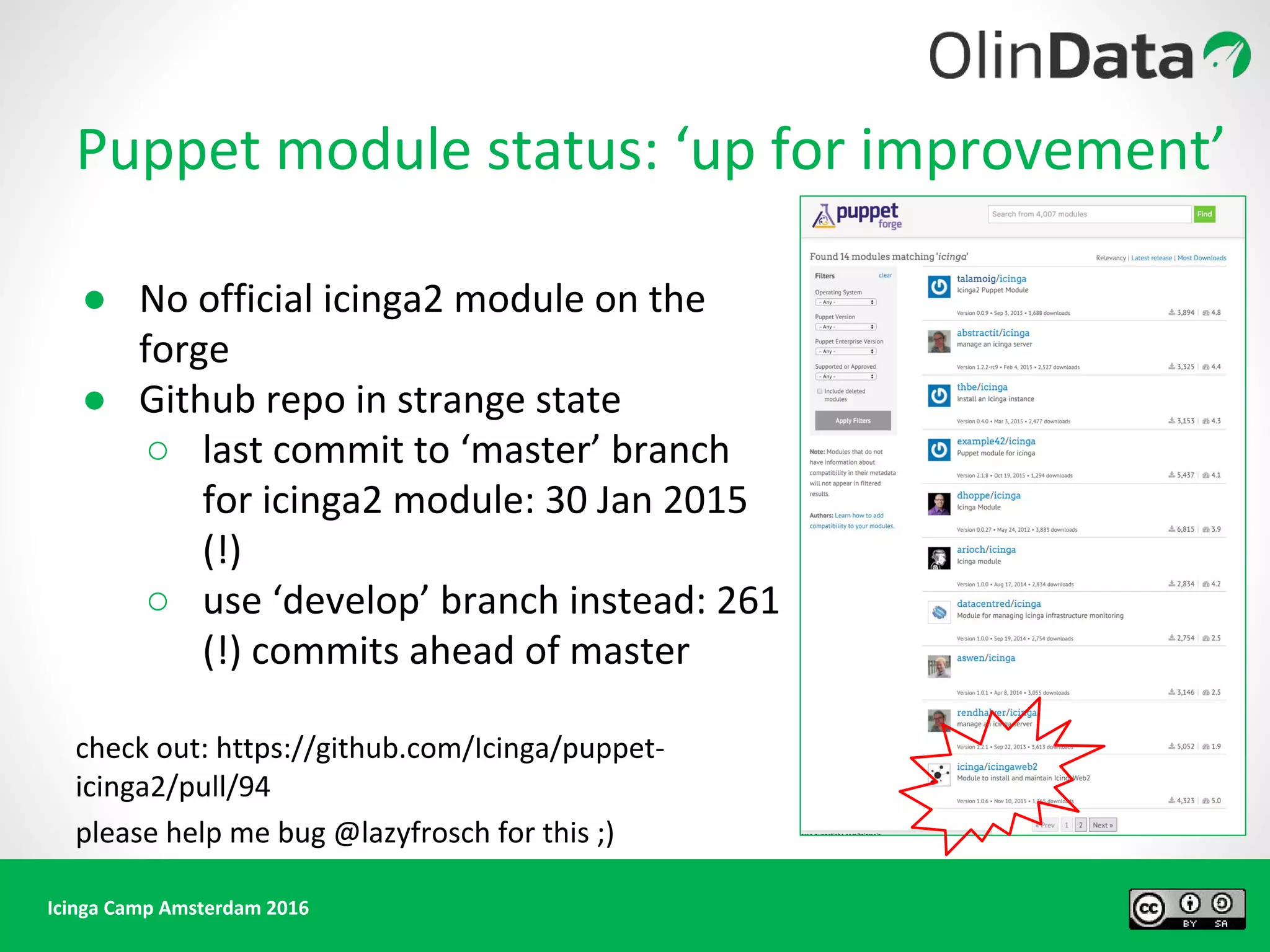

● No official icinga2 module on the
forge
● Github repo in strange state
○ last commit to ‘master’ branch
for icinga2 module: 30 Jan 2015
(!)
○ use ‘develop’ branch instead: 261
(!) commits ahead of master
check out: https://github.com/Icinga/puppet-
icinga2/pull/94
please help me bug @lazyfrosch for this ;)
Puppet module status: ‘up for improvement’

Puppet modules
● Your best bet for now: use github repos directly:
○ mod 'icingaweb2',
■ :git => 'https://github.com/icinga/puppet-icingaweb2.git'
○ mod 'icinga2',
■ :git => 'https://github.com/icinga/puppet-icinga2.git',
■ :branch => 'develop'
○ mod 'puppetlabs/mysql', '3.6.2'

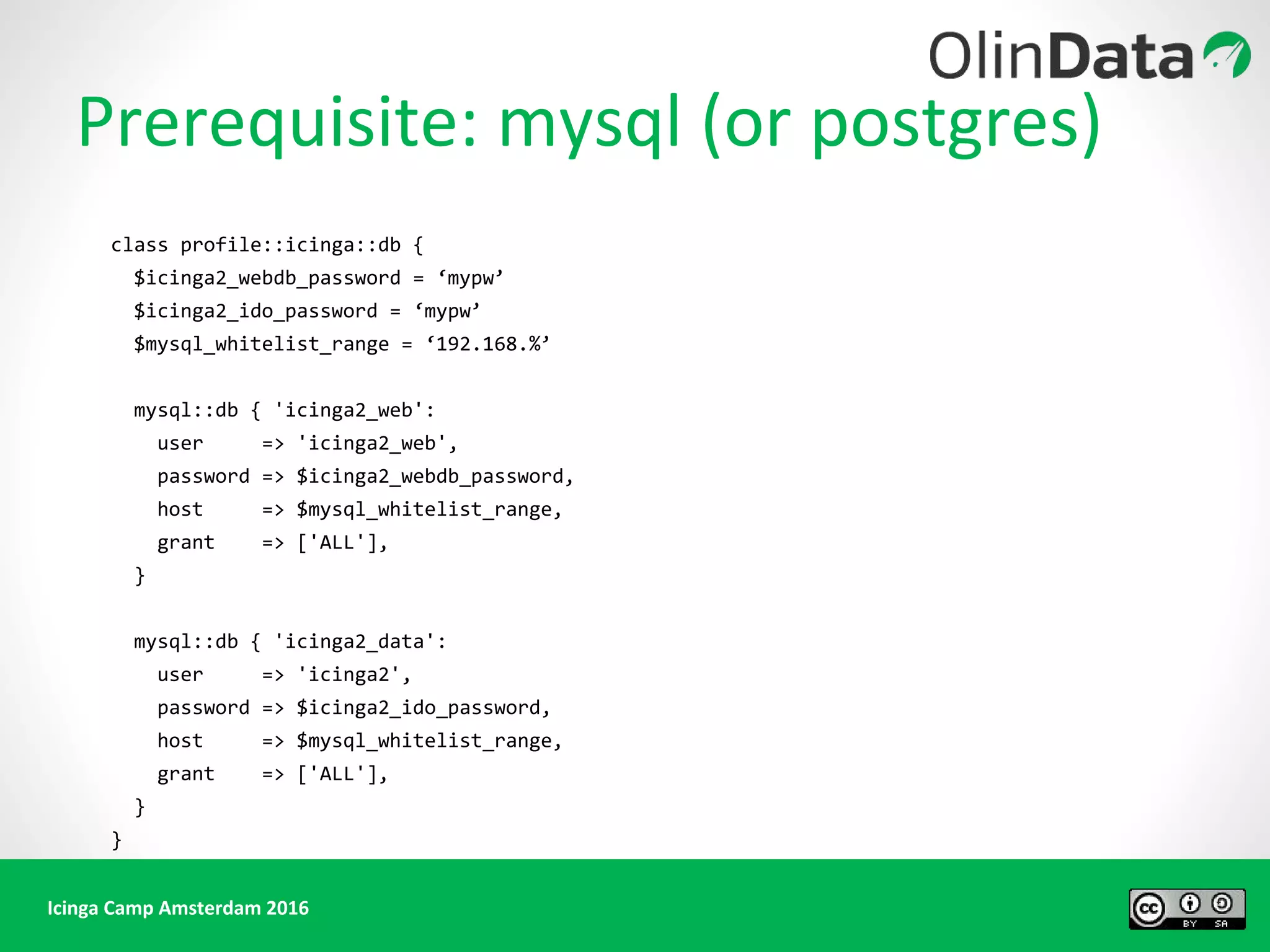

Prerequisite: mysql (or postgres)
class profile::icinga::db {
$icinga2_webdb_password = ‘mypw’
$icinga2_ido_password = ‘mypw’
$mysql_whitelist_range = ‘192.168.%’
mysql::db { 'icinga2_web':
user => 'icinga2_web',
password => $icinga2_webdb_password,
host => $mysql_whitelist_range,
grant => ['ALL'],
}
mysql::db { 'icinga2_data':
user => 'icinga2',
password => $icinga2_ido_password,
host => $mysql_whitelist_range,
grant => ['ALL'],
}
}

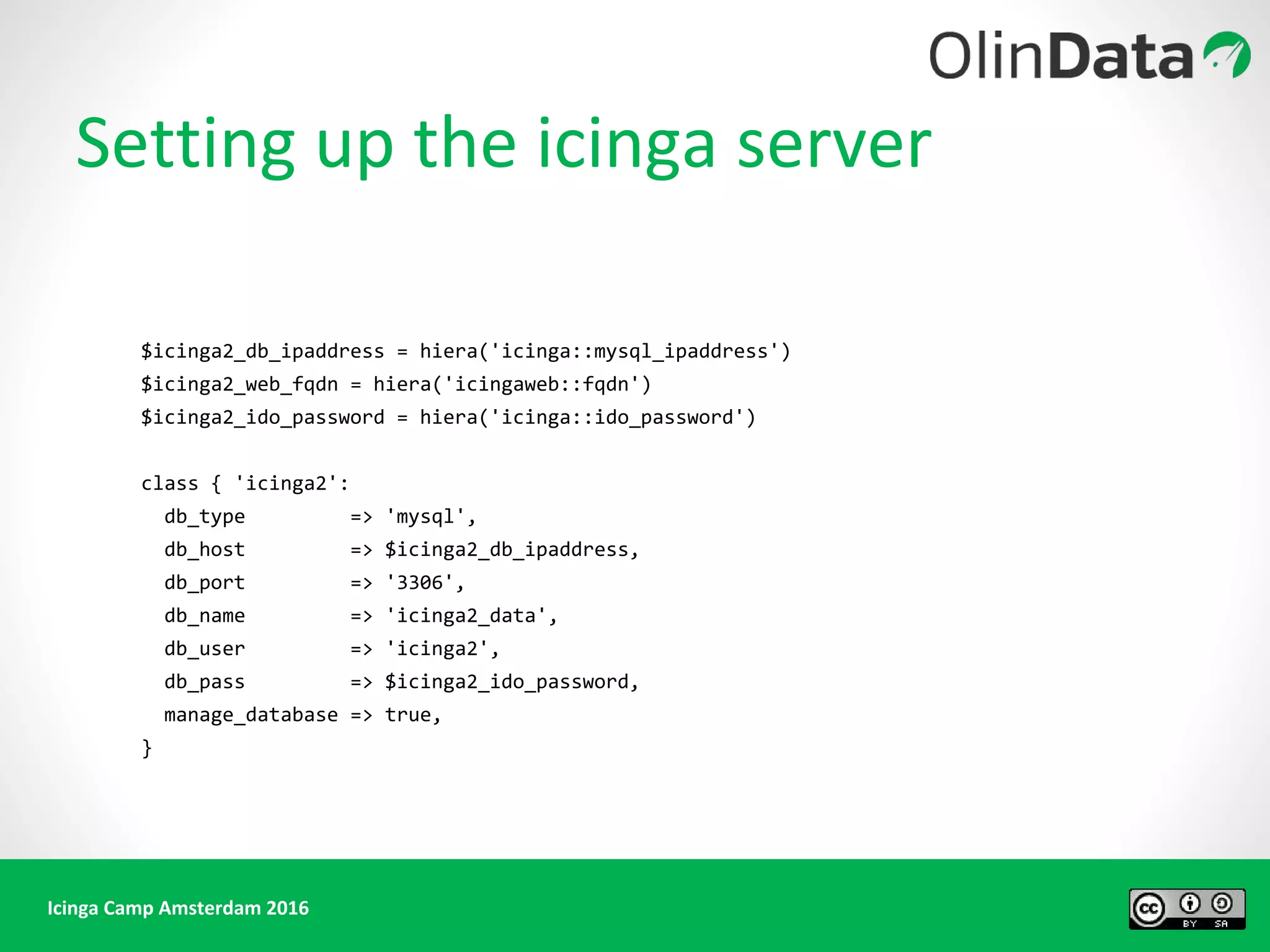

Setting up the icinga server
$icinga2_db_ipaddress = hiera('icinga::mysql_ipaddress')
$icinga2_web_fqdn = hiera('icingaweb::fqdn')
$icinga2_ido_password = hiera('icinga::ido_password')
class { 'icinga2':
db_type => 'mysql',
db_host => $icinga2_db_ipaddress,
db_port => '3306',
db_name => 'icinga2_data',
db_user => 'icinga2',
db_pass => $icinga2_ido_password,
manage_database => true,
}

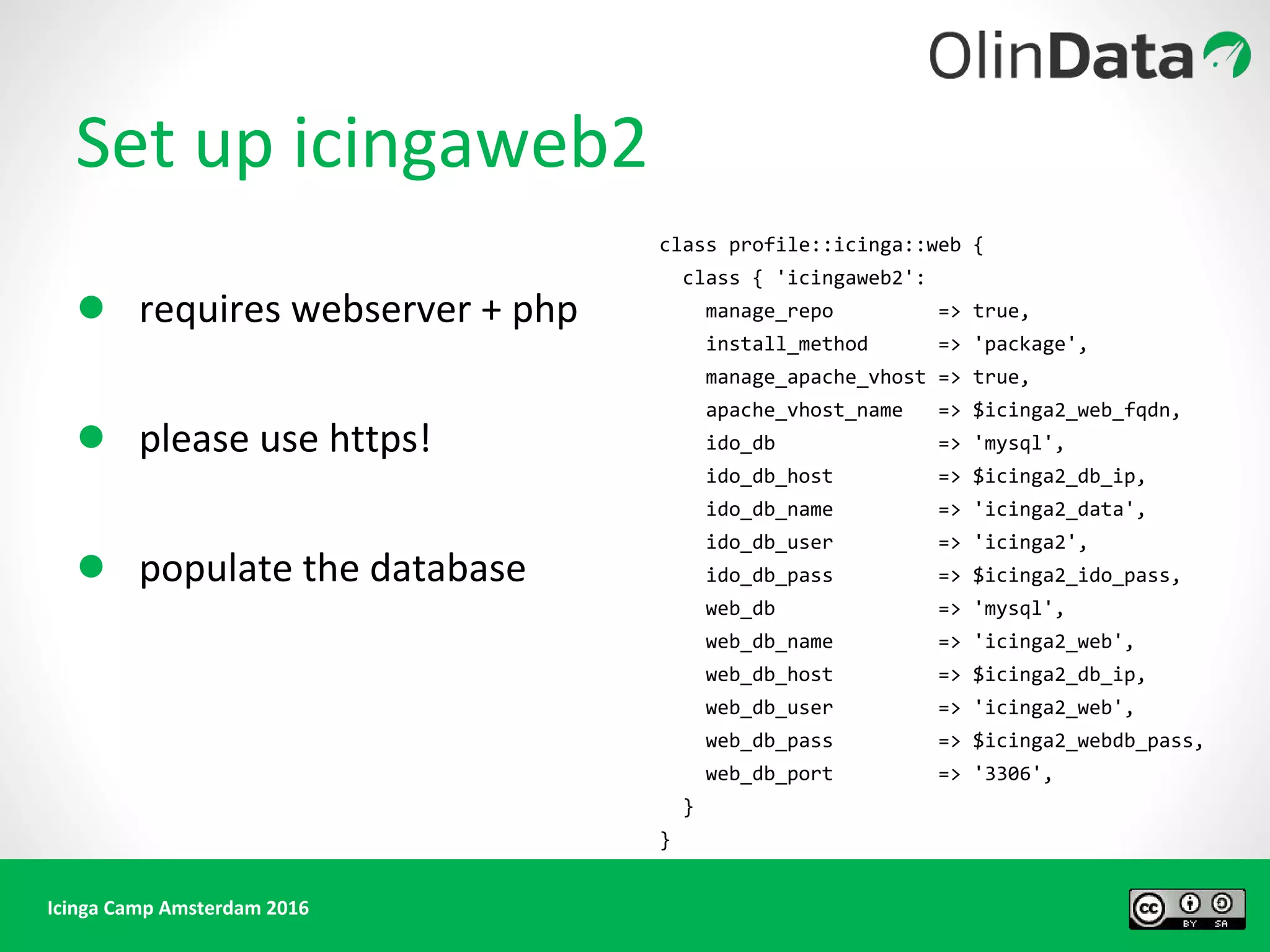

Set up icingaweb2
● requires webserver + php
● please use https!
● populate the database
class profile::icinga::web {
class { 'icingaweb2':
manage_repo => true,
install_method => 'package',
manage_apache_vhost => true,
apache_vhost_name => $icinga2_web_fqdn,
ido_db => 'mysql',
ido_db_host => $icinga2_db_ip,
ido_db_name => 'icinga2_data',
ido_db_user => 'icinga2',
ido_db_pass => $icinga2_ido_pass,
web_db => 'mysql',
web_db_name => 'icinga2_web',
web_db_host => $icinga2_db_ip,
web_db_user => 'icinga2_web',
web_db_pass => $icinga2_webdb_pass,
web_db_port => '3306',
}
}

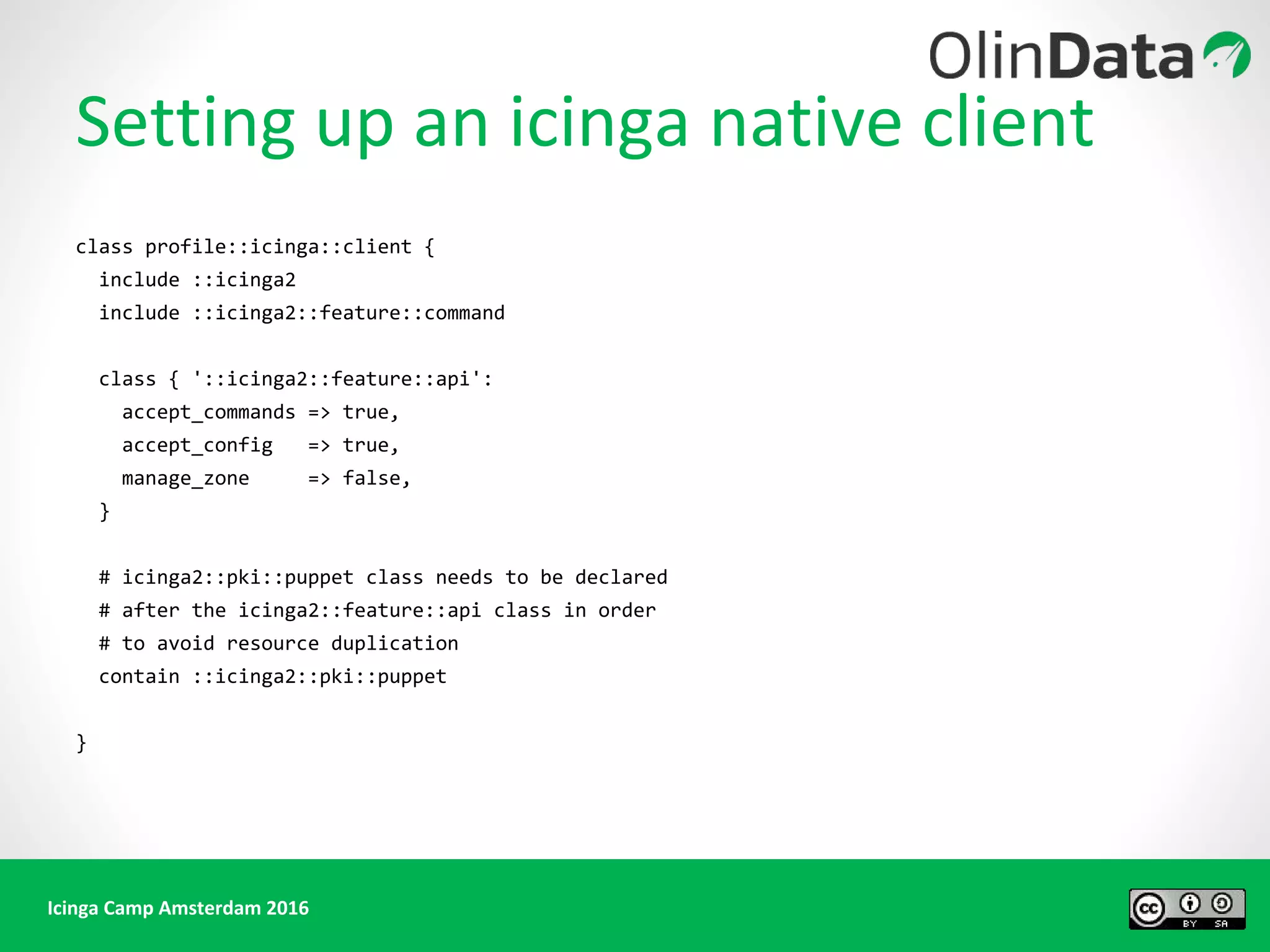

Setting up an icinga native client
class profile::icinga::client {
include ::icinga2
include ::icinga2::feature::command
class { '::icinga2::feature::api':
accept_commands => true,
accept_config => true,
manage_zone => false,
}
# icinga2::pki::puppet class needs to be declared
# after the icinga2::feature::api class in order
# to avoid resource duplication
contain ::icinga2::pki::puppet
}

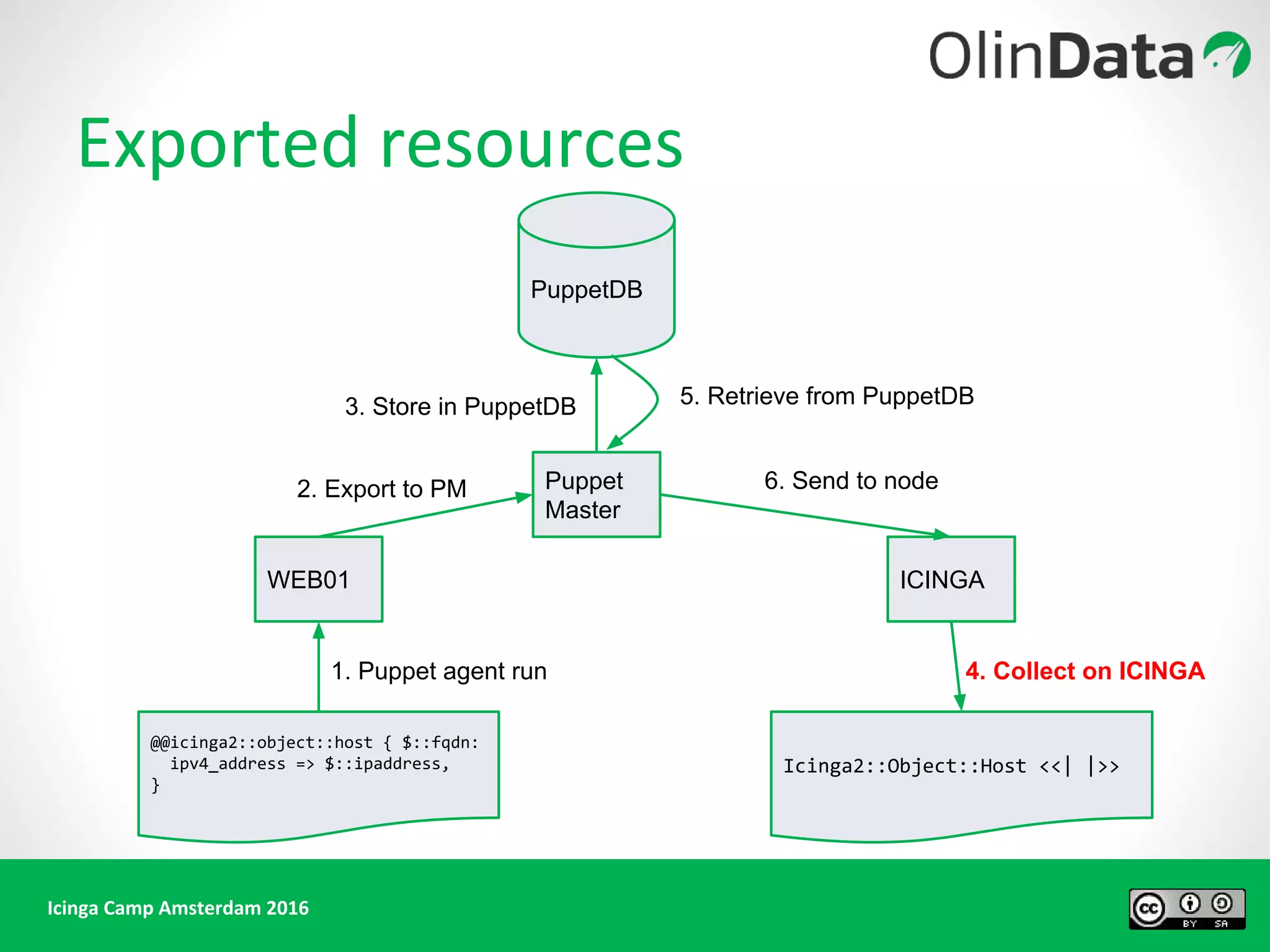

Exported resources
PuppetDB
Puppet
Master
ICINGAWEB01
@@icinga2::object::host { $::fqdn:
ipv4_address => $::ipaddress,
}
Icinga2::Object::Host <<| |>>
1. Puppet agent run
6. Send to node
5. Retrieve from PuppetDB3. Store in PuppetDB
2. Export to PM
4. Collect on ICINGA

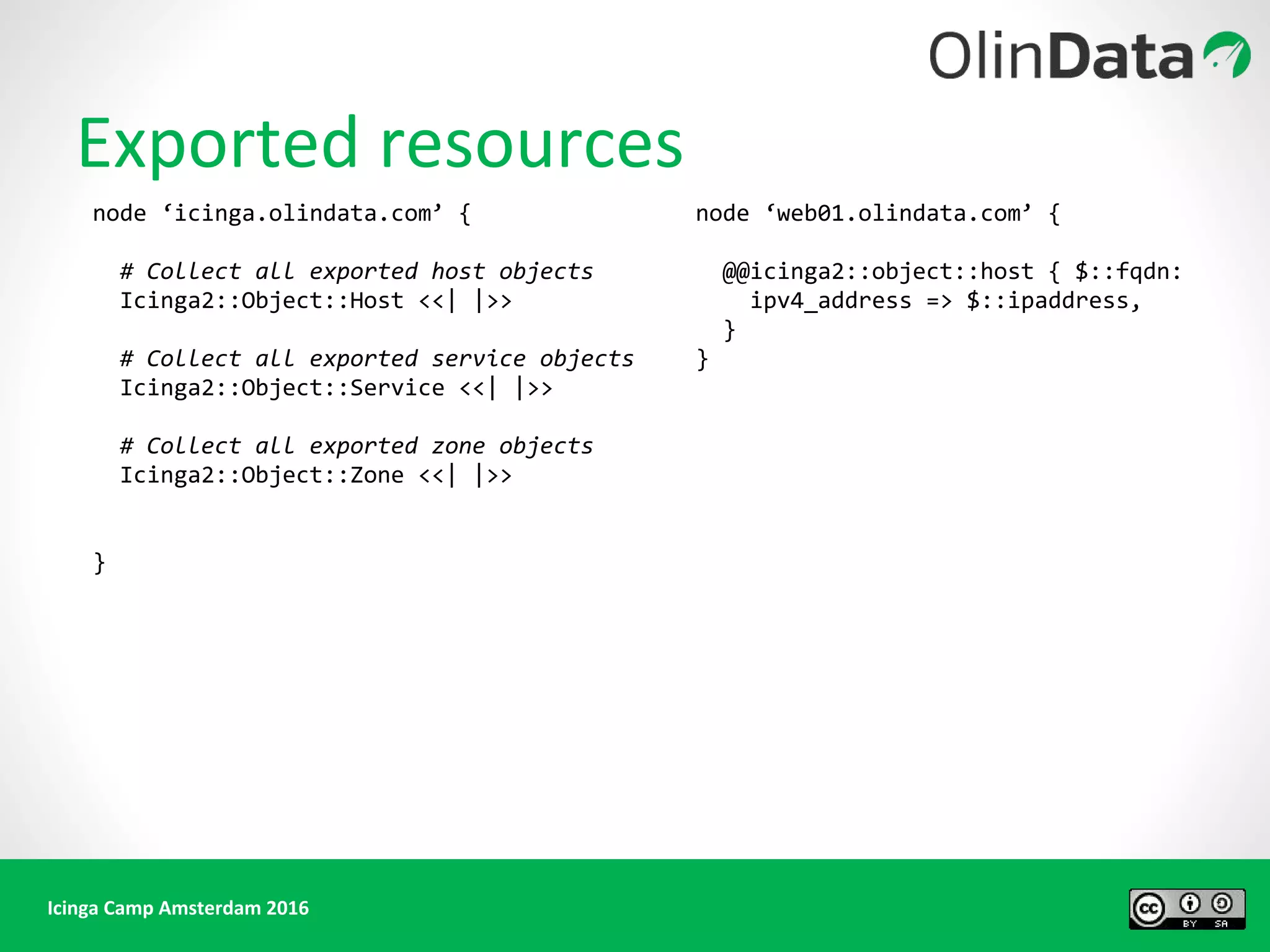

Exported resources
node ‘icinga.olindata.com’ {
# Collect all exported host objects
Icinga2::Object::Host <<| |>>
# Collect all exported service objects
Icinga2::Object::Service <<| |>>
# Collect all exported zone objects
Icinga2::Object::Zone <<| |>>
}
node ‘web01.olindata.com’ {
@@icinga2::object::host { $::fqdn:
ipv4_address => $::ipaddress,
}
}

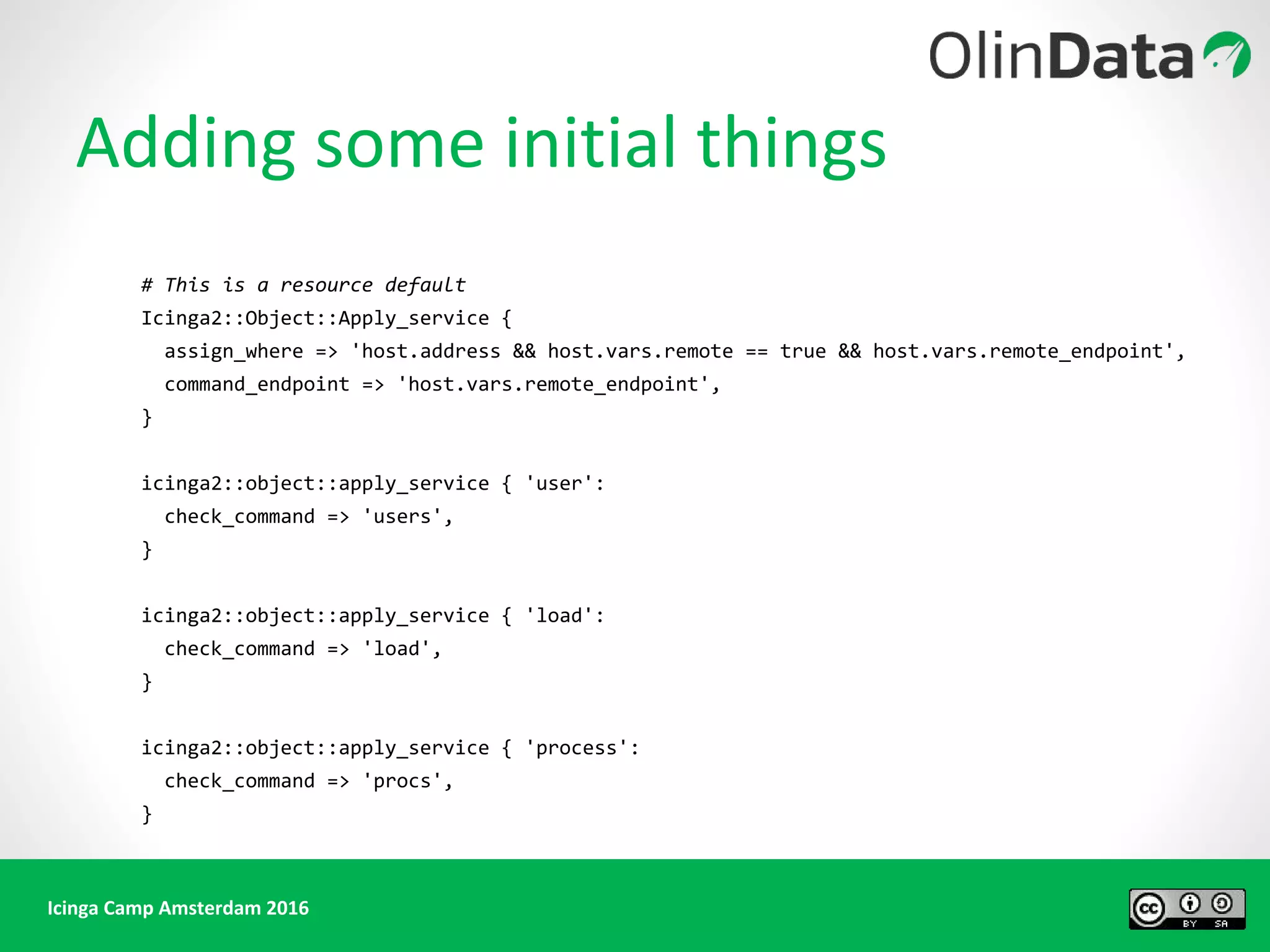

# This is a resource default
Icinga2::Object::Apply_service {
assign_where => 'host.address && host.vars.remote == true && host.vars.remote_endpoint',
command_endpoint => 'host.vars.remote_endpoint',
}
icinga2::object::apply_service { 'user':
check_command => 'users',
}
icinga2::object::apply_service { 'load':
check_command => 'load',
}
icinga2::object::apply_service { 'process':
check_command => 'procs',
}
Adding some initial things

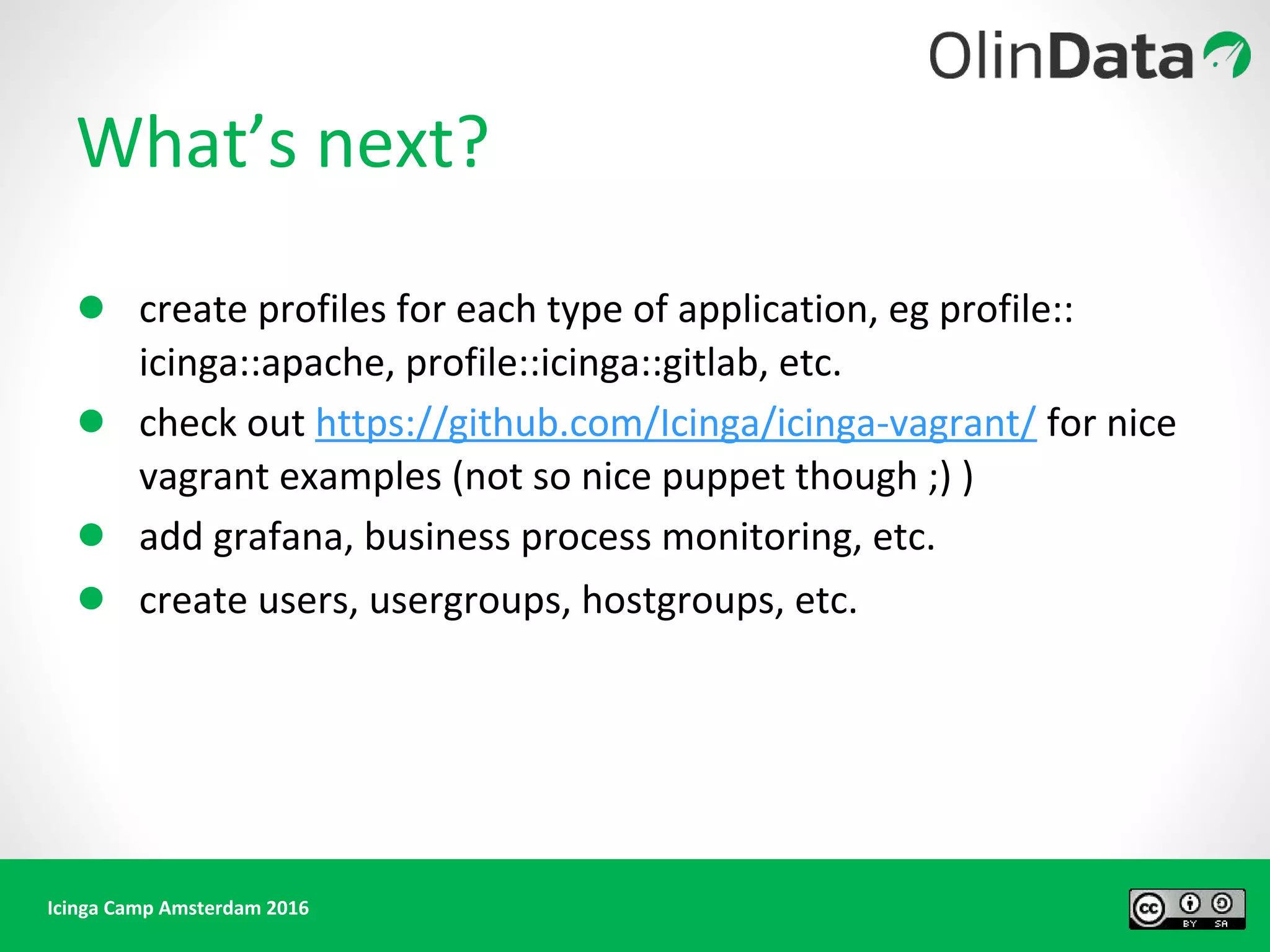

What’s next?
● create profiles for each type of application, eg profile::
icinga::apache, profile::icinga::gitlab, etc.
● check out https://github.com/Icinga/icinga-vagrant/ for nice
vagrant examples (not so nice puppet though ;) )
● add grafana, business process monitoring, etc.
● create users, usergroups, hostgroups, etc.

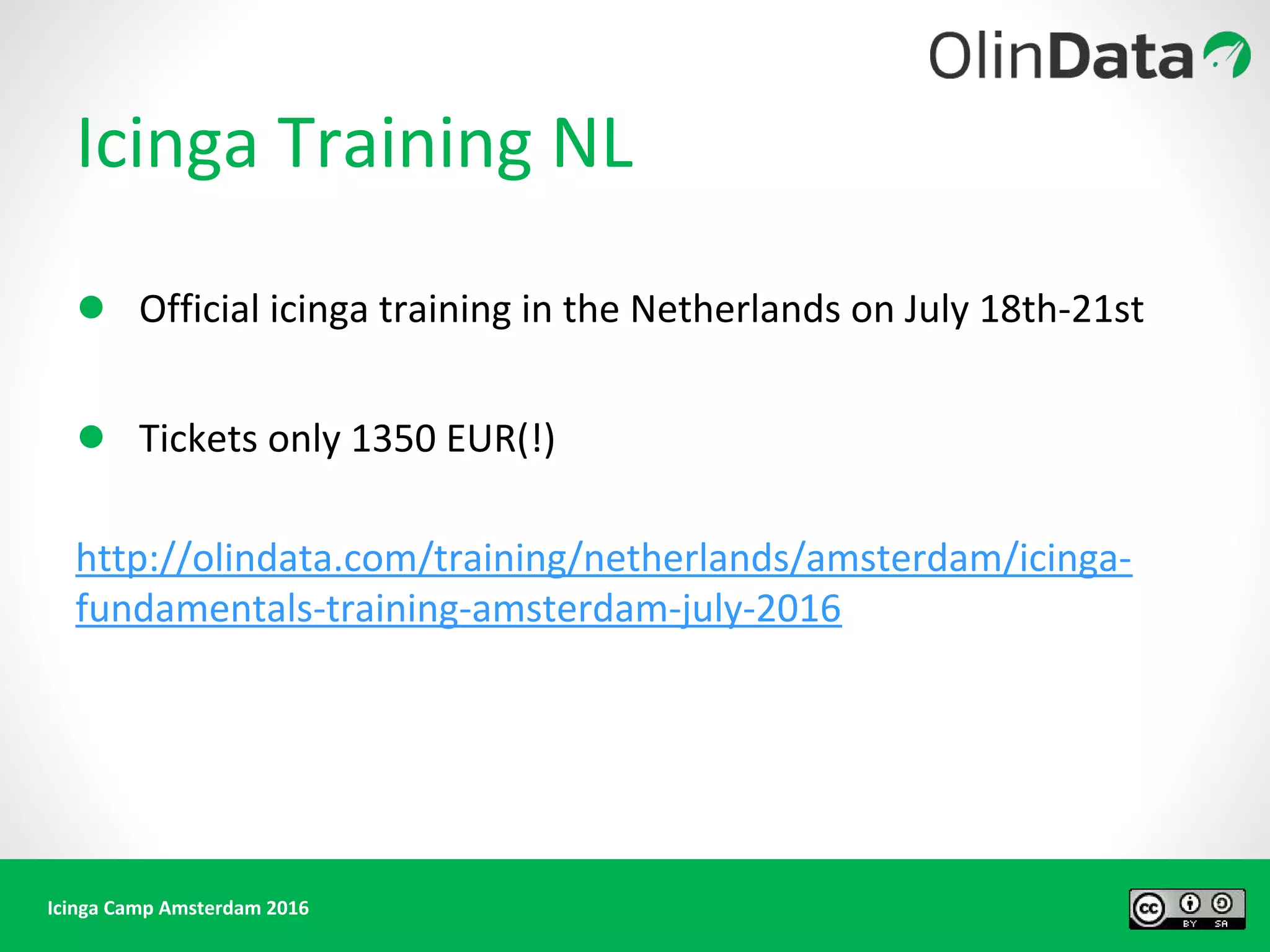

Icinga Training NL
● Official icinga training in the Netherlands on July 18th-21st
● Tickets only 1350 EUR(!)
http://olindata.com/training/netherlands/amsterdam/icinga-
fundamentals-training-amsterdam-july-2016

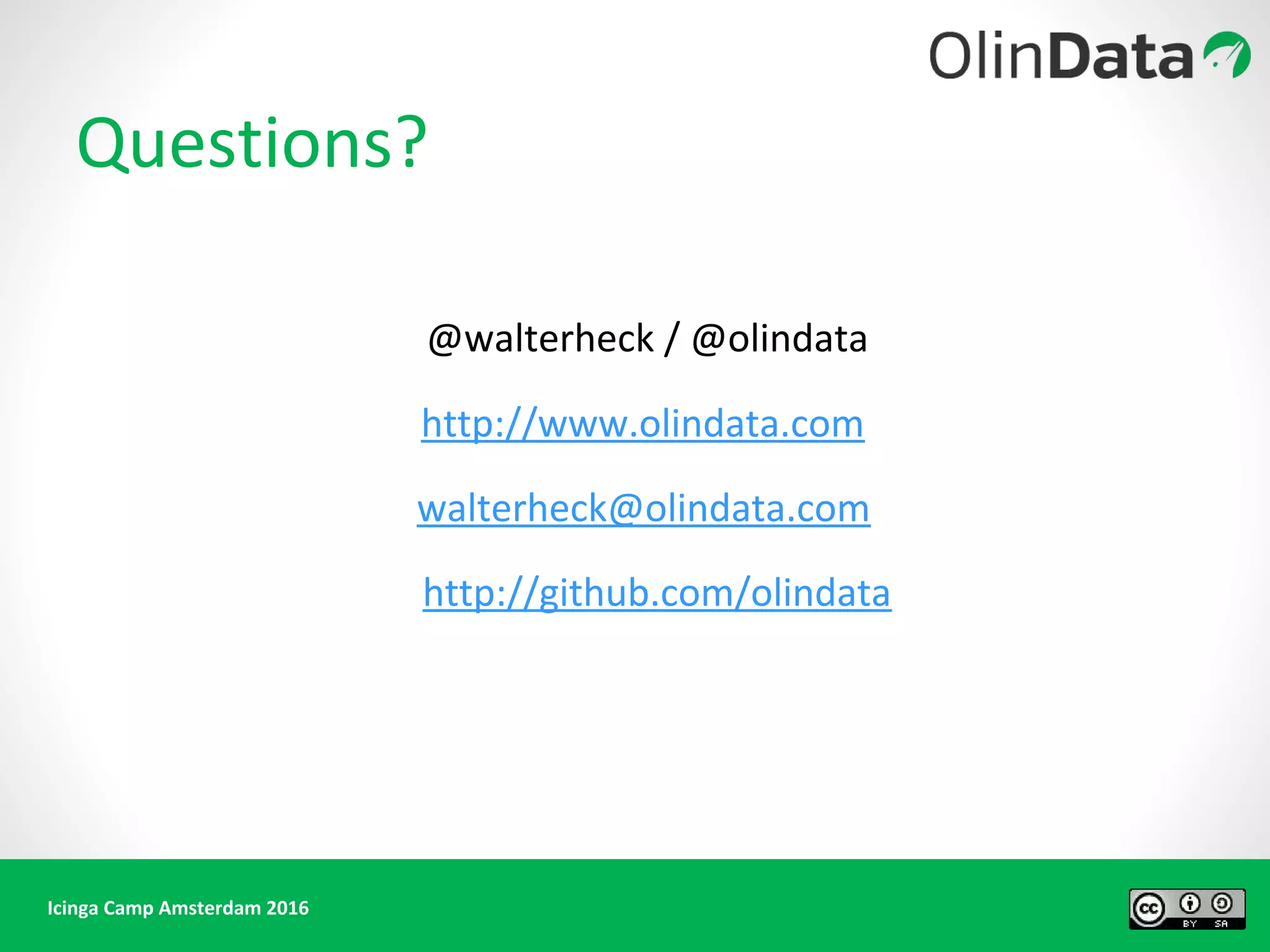

Questions?
@walterheck / @olindata
http://www.olindata.com
walterheck@olindata.com
http://github.com/olindata

We’re hiring!
NL based consultants
jobs@olindata.com
