IBM i at the Heart of Cognitive Solutions
1. IBM i at the Heart of
Cognitive Solutions
David Spurway
IBM Power Systems CTO, UKI

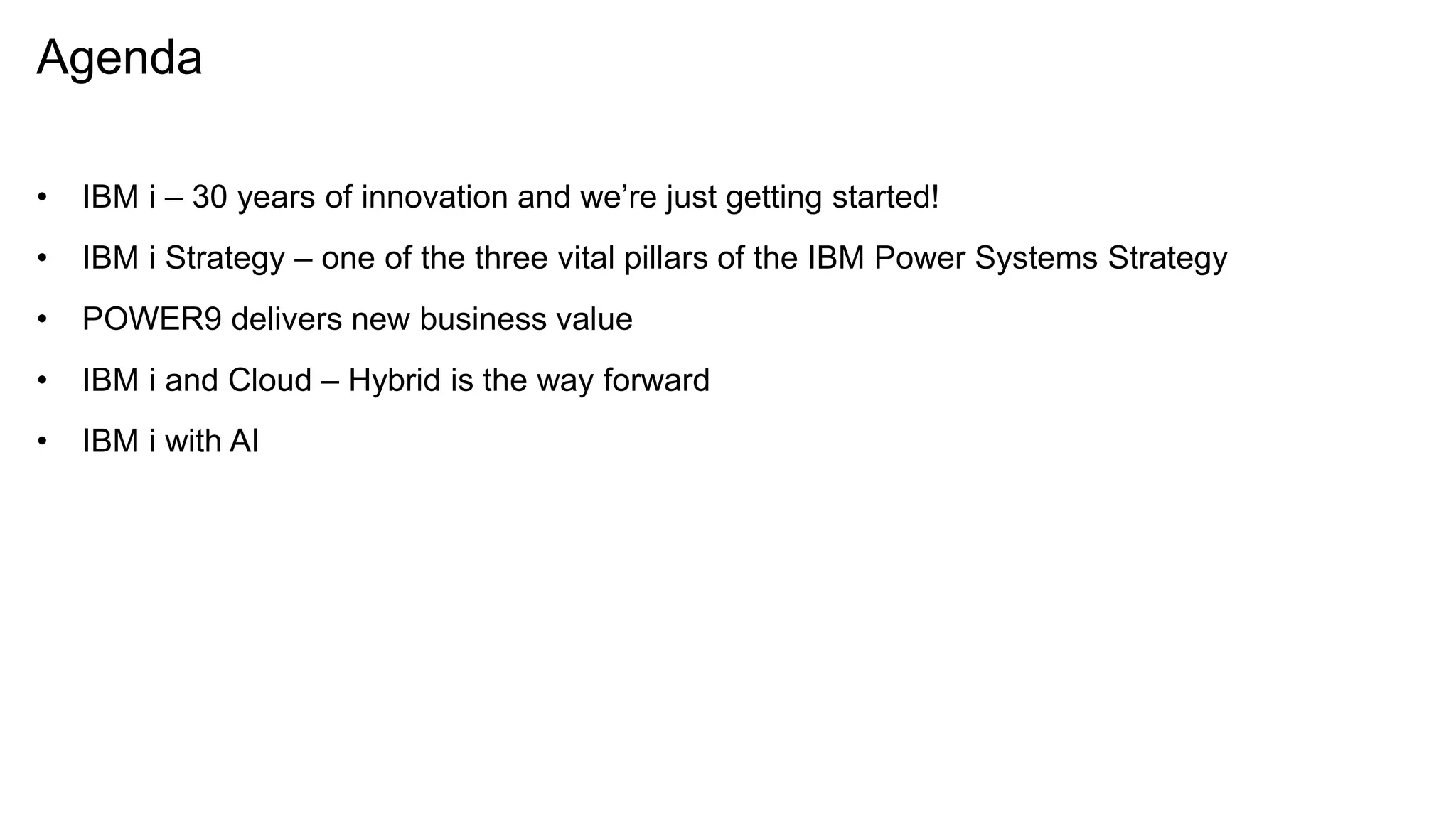

2. Agenda
• IBM i – 30 years of innovation and we’re just getting started!
• IBM i Strategy – one of the three vital pillars of the IBM Power Systems Strategy
• POWER9 delivers new business value
• IBM i and Cloud – Hybrid is the way forward
• IBM i with AI
8. Data
Fast Access
Easy Management
Reliable Storage
Security
Business Data
Easy Administration
System Integrity
Integration
Single Source
Just Add Applications
It’s All There
Flexibility
Many Functions
Capable of Growth
Simplicity
Investment Protection
Focus on Business, not Technology
Solutions Keep Working as Technology Changes
Additional Software Development Yields Additional Function
Requirements for Business
Solution Platform
9. Integration
IBM i Architecture
DB2 for i & Single Level Store Object Based Architecture
Virtualized Work Management
Technology Independent Machine Interface
Provides built-in application virtualizationIntegrates business components, e.g. DB2 database
Enables integrity, security, virus-resistanceAutomate & optimize storage management
Ensures application compatibility across multiple technology generations
OS
A system designed for business
11. See the Big Picture
60+% Lower Total Cost of Ownership
SOURCE: Quark + Lepton, IBM i on Power Systems for Midsize Businesses, May 2017
12. Downtime is an Expense, not
a Cost of Doing Business
3 - 4X more reliable
SOURCE: Quark + Lepton, IBM i on Power Systems for Midsize Businesses, May 2017
14. IBM i Strategy
Power Solutions
Delivering an integrated platform focused on leading industry applications
Engaging with partner ISVs & MSPs for flexible solutions delivery options
Enabling clients to transform their customer experience via mobile solutions
Open Platform for Choice
IBM demonstrating commitment with continuing deliverables - IBM i 7.3 & TRs
Providing new capabilities between releases based on user feedback
Growing IBM i solutions options including open source languages and applications
The Integrated Promise of IBM i
Deliver a simple, high value platform for business applications
Provide exceptional security and resiliency for critical business data
Leverage IBM systems, storage and software technologies
15. Who is the boss?
Robert Picciano
SVP IBM Cognitive Solutions
IBM Systems
Stefanie Chiras
Vice President, Power Systems Hardware Offerings
16. Three Prong Strategy
16
The Growth of Linux
• 49% of all server revenues will be driven by Linux
by YE 2018
• Data management is growing 4-5x faster than any
other workload for on premises Linux
• 36% 3 yr CAGR for Linux servers in the $25K to
$50K USD price band.
From Stefanie Chiras, VP, IBM Cognitive Systems
• Deliver Modern Innovation and value to AIX and
IBM i
• Drive flexible and resilient infrastructure into
enterprise Linux deployments
• Lead the industry with the highest performing AI
solutions that are simple to consume
17. Google has #POWER9 in
production
17
1. More cores and threads for core Google search
2. More memory bandwidth for RNN machine
learning execution
3. Faster and "more open" flash NAND sitting on
OpenCAPI acceleration bus”
https://www.forbes.com/sites/patrickmoorhead/2018/03/1
9/headed-into-its-fifth-year-openpower-has-momentum-
into-the-power9-generation/#1298a4fd78a8
18. New IBM i Strategy
Whitepaper
IBM i plays a critical role in our Power Systems software portfolio. We continuously provide new
solutions and are actively engaged in expanding into new technology areas to support the new
business requirements of our clients. This year, 2016, we have delivered IBM i 7.3,…
http://ibm.co/23y3TMv
19. Derive new insights
from critical business data
Ensure High Availability &
Disaster Recovery
Deploy Cloud
infrastructure
Transform
business solutions with
mobile
Focus on securing business
assets
Exploit
new storage
technologies
Top IBM i Client Projects
20. IBM i 7.3 – Simplify Insights, Intelligent Security & the Power of
Integration
Historical data simplifies business insights for the future
– DB2 Temporal support automatically maintains history
Intelligent Security matches actual authority with policy
– Authority Collection analysis ensures continuous operation
Simple, integrated data analysis for new insights
– OLAP enhancements built into DB2 for i
Extensive application development options
– Easy-to-learn RPG
– Integrated Open Source development technology
21. Development Strategy
Traditional Language Strategy
– Interoperability
– Readability
– Functionality
Open Source Strategy
– Encourage All Open Source vendors to Support & port to
IBM I
– Provide the ‘right’ components from the open source
community for IBM I
– Provide ‘support’ for the ported components.
– Opens Power Solutions to include new applications and
tools
23. IBM i Release Roadmap
………7.3
………
2010
7.1
** All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.
2014
iNext
2016
…
iNext + 1
…
7.2
…Technology
Refreshes
• Two or Three Major Releases supported.
• Two Future Major Releases under development.
• Semi-annual new function for the most recent releases.
………
Future
25. Cloud
Availability
Increase availability
with integrated
workload mobility,
rapid capacity
expansion and disaster
recovery capabilities.
Always
ON!
Stay online 24/7 with
RAS and high
availability features.
Secure and
available by
design
Secure by
Default
Pre-loaded with
firmware and operating
system security
patches that mitigate
known Meltdown and
Spectre vulnerabilities.
26. POWER9 processor
7TB/s
on chip
BW
~1TB/s
BW into chip
26
1stchip
with PCIe4
8
BILLION
TRANSISTORS
4GHZ
PEAK
FREQUENCY
17
LEVELS OF
METAL
>15
MILES OF
WIRE
>24B
VIAS
2x1
9.5x4
2.6x2
1.8x3
performance
per core
CPU to accelerator
bandwidth
more RAM
per socket
memory bandwidth
per socket
POWER9 vs.
x86 Xeon SP (Skylake)
POWER9 with NVLink
vs. x86 Xeon
27. X – the first
number in the
server name
represents the
POWER version:
• 7 = POWER7
• 8 = POWER8
• 9 = POWER9
Understanding Power
Systems server naming
AXYZ
Y – the 2nd
number in the
name represents
the number of
sockets:
e.g. : S924 has 2
sockets while the L914
has one socket
Z – the final number in the name
refers to the height of the server in U
e.g.: the S924 is 4U high while the AC922 is 2U high
A – the first letter in the offering
name is set to the type of server:
• L = Linux only server
• H = SAP HANA optimized server
• AC = Accelerated Computing server
(focused on AI workloads)
• S = Scale Out server
• E = Enterprise scale up server
27
28. 28
L922
9008-22L
S922
9009-22A
S914
9009-41A
S924
9009-42A
H922
9223-22H
H924
9223-42H
• 1,2-socket, 2U
• 8,10,12 cores/
socket
• 32 IS RDIMM slots
• 4TB memory
• 4 CAPI 2.0 Slots
• Linux only
• PowerVM
• KVM (GA2)
• 1,2-socket, 2U
• 4, 8,10 cores/
socket
• 32 IS RDIMM slots
• 4TB memory
• 4 CAPI 2.0 Slots
• AIX, IBM i, & Linux
• PowerVM
• 1-socket, 4U &
Tower
• 4,6,8 cores/ socket
• 16 IS RDIMM slots
• 1TB memory
• 2 CAPI 2.0 Slots
• Internal RDX
Media
• AIX, IBM i, Linux
• PowerVM
• 2-socket, 4U
• 8,10,12 cores/
socket
• 32 IS RDIMM slots
• 4TB memory
• 4 CAPI 2.0 slots
• Internal RDX
Media
• AIX, IBM i, Linux
• PowerVM
• 1,2-socket, 2U
• 4, 8,10 cores/
socket
• 32 IS RDIMM slots
• 4TB memory
• 4 CAPI 2.0 Slots
• AIX, IBM i
up to 25%
• Linux
• PowerVM
• 2-socket, 4U
• 8,10,12 cores/
socket
• 32 IS RDIMM slots
• 4TB memory
• 4 CAPI 2.0 slots
• Internal RDX
Media
• AIX, IBM i
up to 25%
• Linux
• PowerVM
Technology
Leadership
• Cloud enabled - Embedded virtualization capabilities with PowerVM
• Up to 4TB in 2 socket - DDR4 Industry Standard memory RDIMMs
• High Speed 25Gb/s external ports – one per socket
• 2 Internal NVMe Flash boot adapters
• Embedded Analytics and Algorithms on the chip help run POWER9 at an always optimized frequency
POWER9 Scale Out family
29. 29
IBM Operating System Plans for POWER9
Power
Systems 7.4 16.04.4 12SP3
AIX
5.3
AIX
6.1
AIX
7.1
AIX
7.2
IBM i
7.1
IBM i
7.2
IBM i
7.3
POWER9
POWER8
30. 30
POWER9: A Cloud Everywhere Solution
Optimized for private, public, hybrid or multi-clouds
PowerVM is built in, so every POWER9 workload
is virtualized, mobile and cloud-ready
PowerVC is pre-selected in POWER9 scale-out
server orders, to speed private cloud deployments
Easily upgradable to the new PowerVC for SDI for
maximum flexibility in cloud configurations
Optionally deploy IBM Cloud Private for an
innovative container-based Power cloud solution
Integrate with Power public cloud providers such
as IBM Cloud for Skytap Solutions
POWER9 Multi-Cloud Benefits
• Rapid provisioning of workloads
• Mobility for dynamic optimization
• Simplified workload recoverability
• Integration with multi-cloud managers
• VM or container-based cloud models
• Cloud-optimized user experience
32. Since the IBV 2012 study, the
cloud technology has become
much more mainstream
1IBV report: “The Power of Cloud - Driving Business Model Innovation”, 2012. Link: https://ibm.biz/Bd4uzw
Today, 78% says cloud initiatives
are coordinated or fully integrated
In 2012, only 34% said they had a
solid plan in adopting cloud1
10%0% 30%20% 50%40%
Fully integrated as part of an
overall strategic transformation
Multiple related initiatives
within a coordinated program
Ad hoc initiatives with some
coordination among business
group
Ad hoc initiatives with no
coordination among business
group
44%
34%
3%
19%
10%0% 30%20%
We have redesigned our
business process due to cloud
We have redesigned out IT
infrastructure due to cloud
We have adopted or plan to
adopt cloud 21%
7%
6%
How enterprise cloud initiatives are viewed
within respondent’s organization
Level of cloud adoption in respondent’s organization
33. Though cloud adoption is
maturing, nearly half of
workloads are expected to
remain on on-premise
dedicated servers
45%
workloads will continue to be on
dedicated servers demanding
executives to be fully cognizant of
what value an optimal combination of
cloud and traditional IT can deliver
Third party hosted cloud
Self hosted private cloud
On-premise dedicated
servers
10%
0%
30%
20%
50%
40%
60%
80%
70%
100%
90%
2 years ago Today 2 years from
now
26%
30%
44%
25%
31%
44%
25%
30%
45%
Percentage distribution of respondent’s IT
infrastructure workloads
35. Cognitive Systems
Data Connect
IBM DB2 for i
The most integrated data
platform for business
• Integrated Database (DB2 for i)
• Integrated Web Services
Modern, Open Source
applications development
• Python, Node.JS,
Ruby
• PHP
• Mobile Appl Dev’t
Secure Connectors to
Watson for Cognitive
Computing
• Data Connect for DB2 for i
• SQL
• Python, Node.JS
• Free form RPG
IBM i: the most integrated data platform for business, bringing cognitive insights
36. Combine new “AI” with
traditional “iron”
Automate resolution of mundane Helpdesk
tickets with Pepper, IBM Watson & IBM i
37. Build an enhanced IT help desk chatbot
on IBM i with Watson Assistant
https://www.ibm.com/developerworks/ibmi/library/i-it-helpdesk-chatbot/
38. See innovation at work in
the IBM i community
38
https://ibmi30.mybluemix.net/public/#6 https://ibmi30.mybluemix.net/public/#7
39. IBM i Priorities
Solutions for Today and the Future
– Focus on solutions integration with new technology
– Invest in DB2 and language features for strategic solutions
– Enable Mobile Device Support
Systems On-Site or In the Cloud
– Exploit future POWER system technology
– Deliver advanced virtualization of system & storage
– Provide resiliency, availability & flexibility
Simple & Integrated, Secure & Available
– Simplify management of systems and high availability
– Broaden storage area network integration
– Extend industry-leading integrated security
#ibmioss
40. Agenda
• IBM i – 30 years of innovation and we’re just getting started!
• IBM i Strategy – one of the three vital pillars of the IBM Power Systems Strategy
• POWER9 delivers new business value
• IBM i and Cloud – Hybrid is the way forward
• IBM i with AI
41. Thank you!
David Spurway – IBM Power Systems CTO
Email: david.spurway@uk.ibm.com
Phone: 07717 892 896
Twitter, LinkedIn, YouTube
Editor's Notes
Alison and Steve
Let’s look at the infrastructure from the more traditional view of the “solution stack” for business applications … Sitting on top of the hardware you’ll typically find a virtualization layer, one or more operating systems (each with a basic file system), a relational database, perhaps a Web server, security software and auditing tools, systems management tools, storage management tools, and performance management tools. … On top of the stack, of course, sit the business applications.
The left side of the chart represents the Linux/Unix/Windows view of the solution stack … these are all separately identifiable, separately orderable components … and they are most likely coming from multiple vendors. … The right side of the chart reflects the IBM i view of the solution stack … the simplicity of total integration.
And then you start asking yourself some important questions … Who’s responsibility is it to install this stuff? … To integrate and test it to ensure the components are interacting properly and operating together? … To manage and update the components when patches, fixes and new versions are released? … To resolve problems when support is required?
It’s pretty easy to see how … when so much integration occurs “after the fact” as it does with Linux/Unix/Windows environments ... The burden of responsibility falls more on the client … managing the solution stack adds cost and complexity.
By contrast, when integration occurs by design as with IBM i, … the responsibility and accountability lies much more with the vendor, … reducing cost and complexity for the client.
What’s important to recognize and remember here is that we’ve redefined the industry view of integration in order to make this distinction … We’re changing the expectation, … raising the bar.
Why? Because competitors like Oracle are trying to lay claim to integration as an advantage … providing everything from the hardware to the application. But is it really integration?
Also in June 2016, a bunch more stuff!! Let's talk about them….
The second tenet is they must be secure and highly available by default … so that they can support mission critical applications. Of course high availability and reliability is baked into every IBM server. As noted from the ITIC 2017 survey of over 750 enterprise organizations, IBM Power system topped the list for reliability and availability.
They found:
Among mainstream hardware platforms, IBM Power Systems have the least amount of unplanned downtime per server/per year.
88% of IBM Power Systems users running RHEL, SuSE or Ubuntu Linux experience fewer than one unplanned outage per server, per year.
Only two percent of IBM servers recorded >4 hours of unplanned per server/per annum downtime; followed by six percent of HPE servers; eight percent of Dell servers and 10% of Oracle servers.
Meanwhile Reliability continues to decline for the fifth year in a row on the HP ProLiant and Oracle’s SPARC & x86 hardware and Solaris OS.
More details on this report can be found here: http://itic-corp.com/blog/2017/06/ibm-lenovo-servers-deliver-top-reliability-cisco-ucs-hpe-integrity-gain/
In addition to reliability, clients expect high security controls around their servers. While other vendors treat security as an add on, IBM ships its servers “secured by default”. This means they all Power servers in this line-up come preloaded with firmware and OS security patches already installed to address known issues with the Meltdown and Spectre vulnerabilities. In fact, we kept these security patches turned on in the system when running performance benchmarks because we feel that this most accurately reflects the environment you will run your workloads under. We don’t think you should trade off security for performance … which doesn’t seem to be an ethos shared by other vendor approaches
On the previous slide we talked about how it’s not just about engineering for engineering sakes ... it’s critical that the engineering leads to advantages for clients and that’s exactly what the POWER9 processor delivers. Performance benefits that help real clients’ mission critical applications to scale higher, perform better, and solve problems that lead to competitive advantages in their markets. This slide shows a few metrics that show the dominance of the IBM POWER9 processor over x86 (current as of 2Q18).
NOTE THAT THE ABOVE CLAIMS ARE FOR THE POWER9 PROCESSOR ARCHITECTURE AND ARE NOT SPECIFIC TO A GIVEN SERVER. IN FACT YOU WILL SEE IN THE PERFORMANCE SECTION THAT SOME OF THESE CLAIMS ARE DIFFERENT FOR THE SCALE OUT SERVER LINE AS SOME APPLY TO THE ENTERPRISE LINE. NOTE THAT THE POWER9 ARCHITECTURE IS THE SAME BUT THE AMOUNT OF MEMORY OR BANDWIDTH VARIES BY SERVER.
2x performance per core is based on IBM Internal measurements as of 2/28/18 on various system configuration and workload environments including (1) Enterprise Database (2.22x per core): 20c S922L (2x10-core/2.9 GHz/256 GB memory): 1,039,365 Ops/sec versus 2-socket Intel Xeon Skylake Gold 6148 (2x20-core/2.4 GHz/256 GB memory): 932,273 Ops/sec. (2) Db2 Warehouse (2.43x per core): 20c S922L (2x10-core/2.9 GHz/512 GB memory): 3242 QpH versus 2-socket Intel Xeon Skylake Platinum 8168 (2x24-core/2.7 GHz/512 GB memory): 3203 QpH. (3) DayTrader 7 (3.19x per core): 24c S924 (2x12-core/3.4 GHz/512 GB memory): 32221.4 tps versus 2-socket Intel Xeon Skylake Platinum 8180 (2x28-core/2.5 GHz/512 GB memory): 23497.4 tps.
2.6x memory capacity is based on 4TB per socket for POWER9 and 1.5TB per socket for x86 Scalable Platform Intel product brief: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/xeon-scalable-platform-brief.pdf?asset=14606
1.8x bandwidth is based on 230 GB/sec per socket for POWER9 and 128GB/sec per socket for x86 Scalable Platform Intel product brief: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/xeon-scalable-platform-brief.pdf?asset=14606
9.5x is based on POWER9 and next-generation NVIDIA NVLink peak transfer rate is 150 GB/sec = 48 lanes x 3.2265625 GB/sec x 64 bit/66 bit encoding compared to x86 PCI Express 3.0 (x16) peak transfer rate is 15.75 GB/sec = 16 lanes X 1GB/sec/lane x 128 bit/130 bit encoding.
As for the naming there are some changes from POWER8 and for those new to Power Systems, here is how to understand a server product name:
The first element is a letter that represents the type of server
L = Linux only server
H = SAP HANA optimized server
AC = Accelerated Computing server (focused on AI workloads)
S = Scale Out server (this is the base letter when one of the above is not used)
E = Enterprise scale up server
The first number is the POWER version (9 for POWER9 and 8 for POWER8, etc.)
The second number is the number of sockets in the server (1 socket or 2 sockets in the case of the scale out line)
The last number is the height of the server in U (2U, 4U and in the case of the enterprise server it is set to 0)
Watson is exposed to the world through services and API's (some of them branded with the "Bluemix" name)
Dark blue lines are ways to interact with Watson
light blue lines are implicitly done by bluemix or WA
The "IBM Bluemix" logo here really only represents the Bluemix hosting environment
Computer Merchants:
CM View provides a consolidated, real-time view of system performance, allowing Computer Merchants to proactively offer assistance to their clients when issues arise. To further increase efficiencies for clients, the application uses AI to identify issues that most likely require an engineer’s expertise.
CM Care is an asset management tool that provides clients with a view of their support or maintenance contract. The application also has the ability to analyze client interactions using Watson Tone Analyzer, a service that’s available in the IBM Cloud.
JORI built the 3D object database in the integrated Db2 for IBM i, and used IBM i RPGLE web services to communicate via JSON with the front-end configurator program, which also runs on IBM i. The front-end was developed using the Unity open source 3D gaming platform, compiled for i using Chroot. Other open source components used for the solution include Ghostscript and ImageMagick for creating print-outs of furniture built in the configurator tool, Substance for creating realistic-looking fabrics for the 3D models, and Drupal to run the website. The entire stack runs on IBM i in a partition on JORI’s existing IBM Power System S814.
JORI is branching out into using IBM Watson cognitive technology to help consumers find their preferred furniture fabric. They are creating a solution where the consumer can submit a photo of the fabric they like, and Watson will cross-reference it with their backend product inventory database to find something similar.
