Neural networks are machine learning algorithms inspired by the human brain's structure, consisting of interconnected nodes (neurons) that process data and identify patterns. They excel in tasks such as image recognition, natural language processing, and predictive modeling, but require large datasets for training and can struggle with interpretability. Future advancements in hardware and algorithm efficiency are expected to enhance their applications across various fields.

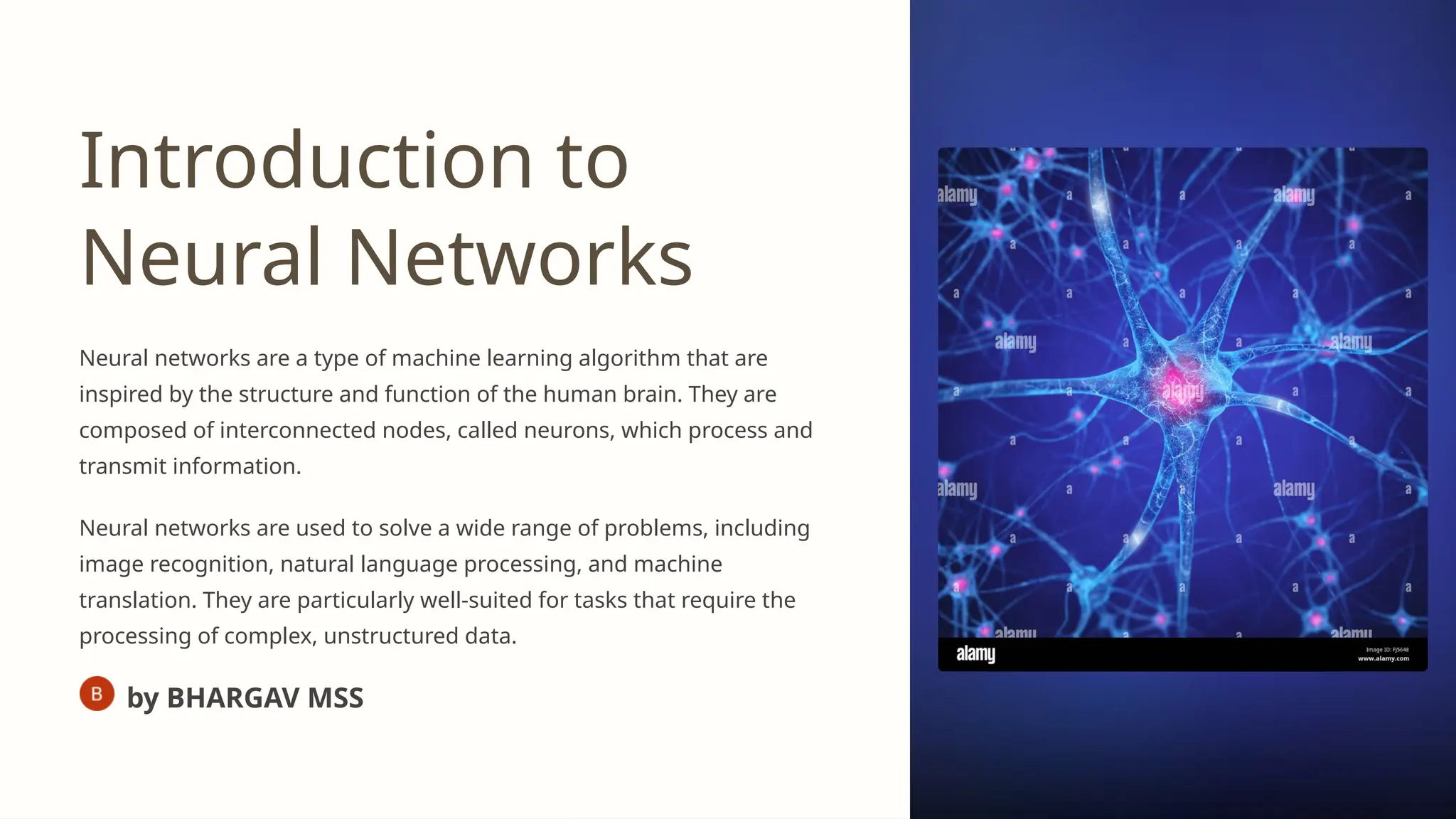

1. Introduction to
Neural Networks
Neural networks are a type of machine learning algorithm that are
inspired by the structure and function of the human brain. They are
composed of interconnected nodes, called neurons, which process and
transmit information.
Neural networks are used to solve a wide range of problems, including
image recognition, natural language processing, and machine
translation. They are particularly well-suited for tasks that require the
processing of complex, unstructured data.
by BHARGAV MSS

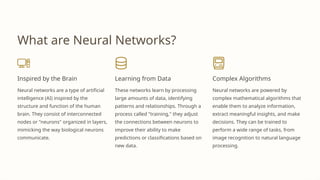

2. What are Neural Networks?
Inspired by the Brain
Neural networks are a type of artificial
intelligence (AI) inspired by the
structure and function of the human
brain. They consist of interconnected
nodes or "neurons" organized in layers,
mimicking the way biological neurons
communicate.
Learning from Data
These networks learn by processing
large amounts of data, identifying
patterns and relationships. Through a
process called "training," they adjust
the connections between neurons to
improve their ability to make
predictions or classifications based on
new data.
Complex Algorithms
Neural networks are powered by
complex mathematical algorithms that
enable them to analyze information,
extract meaningful insights, and make
decisions. They can be trained to
perform a wide range of tasks, from
image recognition to natural language
processing.

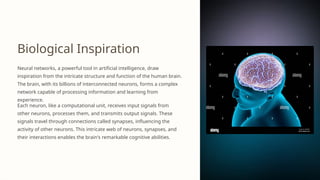

3. Biological Inspiration
Neural networks, a powerful tool in artificial intelligence, draw
inspiration from the intricate structure and function of the human brain.
The brain, with its billions of interconnected neurons, forms a complex
network capable of processing information and learning from
experience.
Each neuron, like a computational unit, receives input signals from
other neurons, processes them, and transmits output signals. These
signals travel through connections called synapses, influencing the
activity of other neurons. This intricate web of neurons, synapses, and
their interactions enables the brain's remarkable cognitive abilities.

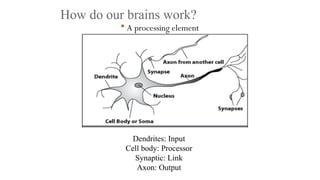

4. How do our brains work?
 A processing element
Dendrites: Input
Cell body: Processor
Synaptic: Link
Axon: Output

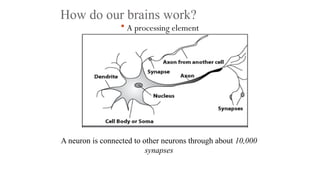

5. How do our brains work?
 A processing element
A neuron is connected to other neurons through about 10,000
synapses

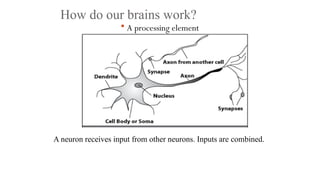

6. How do our brains work?
 A processing element
A neuron receives input from other neurons. Inputs are combined.

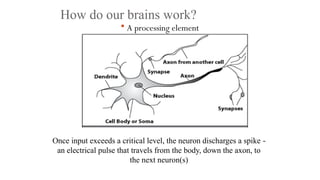

7. How do our brains work?
 A processing element
Once input exceeds a critical level, the neuron discharges a spike ‐
an electrical pulse that travels from the body, down the axon, to
the next neuron(s)

8. How do our brains work?
 A processing element
The axon endings almost touch the dendrites or cell body of the
next neuron.

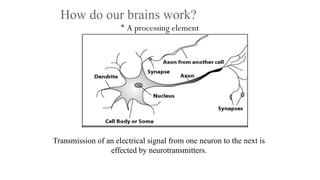

9. How do our brains work?
 A processing element
Transmission of an electrical signal from one neuron to the next is
effected by neurotransmitters.

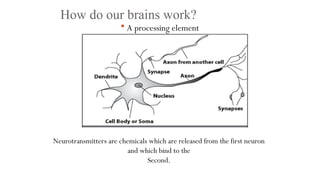

10. How do our brains work?
 A processing element
Neurotransmitters are chemicals which are released from the first neuron
and which bind to the
Second.

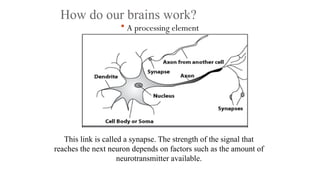

11. How do our brains work?
 A processing element
This link is called a synapse. The strength of the signal that
reaches the next neuron depends on factors such as the amount of
neurotransmitter available.

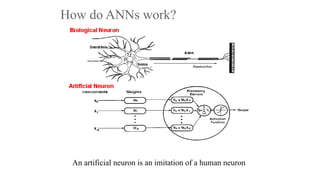

12. How do ANNs work?
An artificial neuron is an imitation of a human neuron

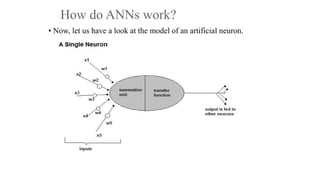

13. How do ANNs work?
• Now, let us have a look at the model of an artificial neuron.

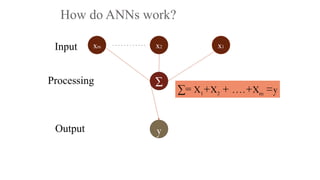

14. How do ANNs work?
Output
x1
x2
xm
∑
y
Processing
Input
∑= X1+X2 + ….+Xm =y
. . . . . . . . . . . .

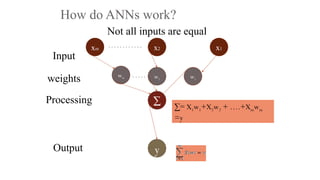

15. How do ANNs work?
Not all inputs are equal
Output
x1
x2
xm
∑
y
Processing
Input
∑= X1w1+X2w2 + ….+Xmwm
=y
w1
w2
wm
weights
. . . . . . . . . . . .
. . . . .

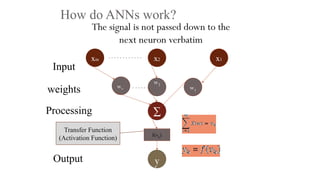

16. How do ANNs work?
The signal is not passed down to the
next neuron verbatim
Transfer Function
(Activation Function)
Output
x1
x2
xm
∑
y
Processing
Input
w1
w2
wm
weights
. . . . . . . . . . . .
f(vk)
. . . . .

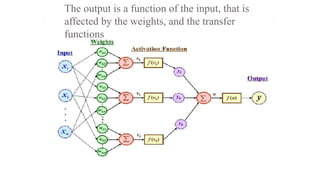

17. The output is a function of the input, that is
affected by the weights, and the transfer
functions

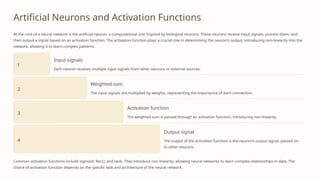

18. Artificial Neurons and Activation Functions
At the core of a neural network is the artificial neuron, a computational unit inspired by biological neurons. These neurons receive input signals, process them, and
then output a signal based on an activation function. The activation function plays a crucial role in determining the neuron's output, introducing non-linearity into the
network, allowing it to learn complex patterns.
1
Input signals
Each neuron receives multiple input signals from other neurons or external sources.
2
Weighted sum
The input signals are multiplied by weights, representing the importance of each connection.
3
Activation function
The weighted sum is passed through an activation function, introducing non-linearity.
4
Output signal
The output of the activation function is the neuron's output signal, passed on
to other neurons.
Common activation functions include sigmoid, ReLU, and tanh. They introduce non-linearity, allowing neural networks to learn complex relationships in data. The
choice of activation function depends on the specific task and architecture of the neural network.

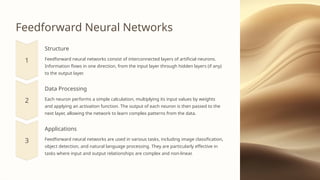

19. Feedforward Neural Networks
Structure
Feedforward neural networks consist of interconnected layers of artificial neurons.
Information flows in one direction, from the input layer through hidden layers (if any)
to the output layer.
Data Processing
Each neuron performs a simple calculation, multiplying its input values by weights
and applying an activation function. The output of each neuron is then passed to the
next layer, allowing the network to learn complex patterns from the data.
Applications
Feedforward neural networks are used in various tasks, including image classification,
object detection, and natural language processing. They are particularly effective in
tasks where input and output relationships are complex and non-linear.

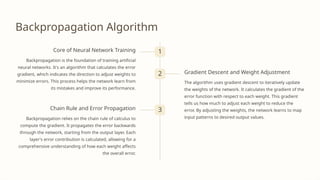

20. Backpropagation Algorithm
1
Core of Neural Network Training
Backpropagation is the foundation of training artificial
neural networks. It's an algorithm that calculates the error
gradient, which indicates the direction to adjust weights to
minimize errors. This process helps the network learn from
its mistakes and improve its performance.
2 Gradient Descent and Weight Adjustment
The algorithm uses gradient descent to iteratively update
the weights of the network. It calculates the gradient of the
error function with respect to each weight. This gradient
tells us how much to adjust each weight to reduce the
error. By adjusting the weights, the network learns to map
input patterns to desired output values.
3
Chain Rule and Error Propagation
Backpropagation relies on the chain rule of calculus to
compute the gradient. It propagates the error backwards
through the network, starting from the output layer. Each
layer's error contribution is calculated, allowing for a
comprehensive understanding of how each weight affects
the overall error.

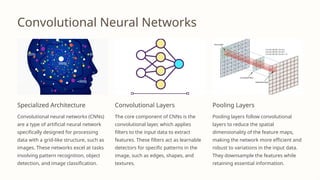

21. Convolutional Neural Networks
Specialized Architecture
Convolutional neural networks (CNNs)
are a type of artificial neural network
specifically designed for processing
data with a grid-like structure, such as
images. These networks excel at tasks
involving pattern recognition, object
detection, and image classification.
Convolutional Layers
The core component of CNNs is the
convolutional layer, which applies
filters to the input data to extract
features. These filters act as learnable
detectors for specific patterns in the
image, such as edges, shapes, and
textures.
Pooling Layers
Pooling layers follow convolutional
layers to reduce the spatial
dimensionality of the feature maps,
making the network more efficient and
robust to variations in the input data.
They downsample the features while
retaining essential information.

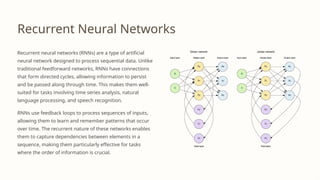

22. Recurrent Neural Networks
Recurrent neural networks (RNNs) are a type of artificial
neural network designed to process sequential data. Unlike
traditional feedforward networks, RNNs have connections
that form directed cycles, allowing information to persist
and be passed along through time. This makes them well-
suited for tasks involving time series analysis, natural
language processing, and speech recognition.
RNNs use feedback loops to process sequences of inputs,
allowing them to learn and remember patterns that occur
over time. The recurrent nature of these networks enables
them to capture dependencies between elements in a
sequence, making them particularly effective for tasks
where the order of information is crucial.

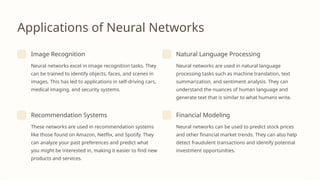

23. Applications of Neural Networks
Image Recognition
Neural networks excel in image recognition tasks. They
can be trained to identify objects, faces, and scenes in
images. This has led to applications in self-driving cars,
medical imaging, and security systems.
Natural Language Processing
Neural networks are used in natural language
processing tasks such as machine translation, text
summarization, and sentiment analysis. They can
understand the nuances of human language and
generate text that is similar to what humans write.
Recommendation Systems
These networks are used in recommendation systems
like those found on Amazon, Netflix, and Spotify. They
can analyze your past preferences and predict what
you might be interested in, making it easier to find new
products and services.
Financial Modeling
Neural networks can be used to predict stock prices
and other financial market trends. They can also help
detect fraudulent transactions and identify potential
investment opportunities.

24. Advantages and Limitations of
Neural Networks
Advantages
Neural networks excel at complex
tasks like image recognition, natural
language processing, and predictive
modeling. They can learn intricate
patterns from large datasets and
adapt to new information, making
them highly versatile and powerful.
The ability to adapt and learn from
data makes them suitable for a wide
range of applications.
Limitations
Despite their impressive
capabilities, neural networks also
have limitations. One significant
challenge is the need for vast
amounts of data for training, which
can be expensive and time-
consuming. Additionally,
interpreting the decision-making
process within a neural network can
be complex and opaque, leading to
difficulties in understanding the
reasoning behind predictions.

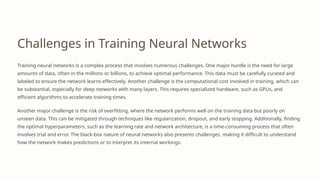

25. Challenges in Training Neural Networks
Training neural networks is a complex process that involves numerous challenges. One major hurdle is the need for large
amounts of data, often in the millions or billions, to achieve optimal performance. This data must be carefully curated and
labeled to ensure the network learns effectively. Another challenge is the computational cost involved in training, which can
be substantial, especially for deep networks with many layers. This requires specialized hardware, such as GPUs, and
efficient algorithms to accelerate training times.
Another major challenge is the risk of overfitting, where the network performs well on the training data but poorly on
unseen data. This can be mitigated through techniques like regularization, dropout, and early stopping. Additionally, finding
the optimal hyperparameters, such as the learning rate and network architecture, is a time-consuming process that often
involves trial and error. The black-box nature of neural networks also presents challenges, making it difficult to understand
how the network makes predictions or to interpret its internal workings.

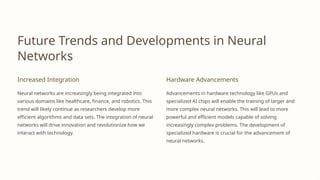

26. Future Trends and Developments in Neural
Networks
Increased Integration
Neural networks are increasingly being integrated into
various domains like healthcare, finance, and robotics. This
trend will likely continue as researchers develop more
efficient algorithms and data sets. The integration of neural
networks will drive innovation and revolutionize how we
interact with technology.
Hardware Advancements
Advancements in hardware technology like GPUs and
specialized AI chips will enable the training of larger and
more complex neural networks. This will lead to more
powerful and efficient models capable of solving
increasingly complex problems. The development of
specialized hardware is crucial for the advancement of
neural networks.
