1. 1
Headache or Energy Source
of the Future?
Murray Gray
Department of Chemical and
Materials Engineering
University of Alberta

2. 2
Outline
• Chemistry and phase behavior of hydrates
• Natural occurrence
• Methane recovery from hydrates
• Hydrates in natural gas and oil production
• Control of hydrate formation

3. 3
Gas Hydrates

4. 4

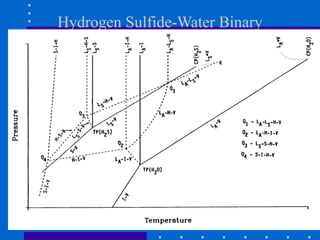

Hydrogen Sulfide-Water Binary

5. 5
Hydrogen sulfide + Water at 5 MPa

6. 6

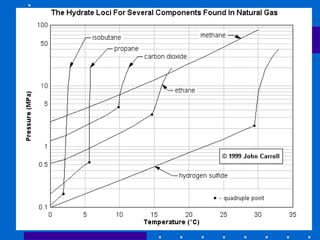

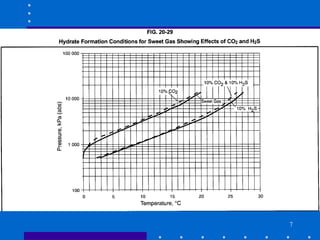

7. 7

8. 8

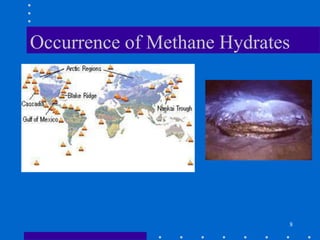

Occurrence of Methane Hydrates

9. 9
Offshore Hydrates
• Potential for production of methane
• Safety issues for offshore oil and gas
drilling
– Hydrates stabilize soft sediments
– Melting of hydrates can destabilize drilling rigs
and offshore pipelines

10. 10
Arctic Hydrates

11. 11

12. 12

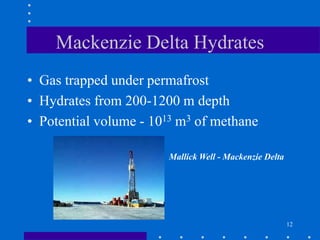

Mackenzie Delta Hydrates
• Gas trapped under permafrost
• Hydrates from 200-1200 m depth
• Potential volume - 1013 m3 of methane
Mallick Well - Mackenzie Delta

13. 13
Production from Hydrates
• Need to reduce the stability of hydrates to
recover the methane
– Heat the reservoir - very energy intensive
– Reduce the pressure - need permeable
formations for flow of produced gas
– Chemical addition - very high cost
• Significant technical challenges

14. 14
Hydrates for Lunch?
Ice worm, Gulf of Mexico
Depth = 550 m

15. 15

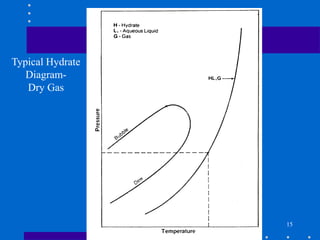

Typical Hydrate
Diagram-
Dry Gas

16. 16

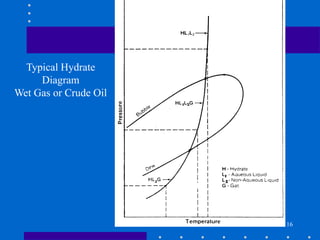

Typical Hydrate
Diagram
Wet Gas or Crude Oil

17. 17
GPSA Fig 20-27
Hydrate Formation

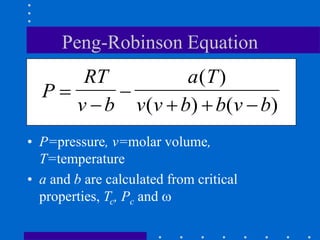

18. • P=pressure, v=molar volume,
T=temperature
• a and b are calculated from critical
properties, Tc, Pc and w
P
RT
v b
a T
v v b b v b



  
( )
( ) ( )
Peng-Robinson Equation

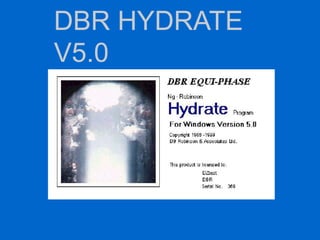

19. DBR HYDRATE
V5.0

20. 20
Inhibition of Hydrates
• Chemical inhibitors suppress the stability of
hydrates
• Any antifreeze compound also inhibits
hydrates
– Salt
– Methane
– Ethylene glycol

21. 21
Inhibition of Hydrates
H2S plus methanol

22. 22
Well Head Inhibitor Injection
Natural gas well
Underground pipeline to
processing plant
Ground T < 15 oC
Water
Gas
Inhibitor Injection

23. 23

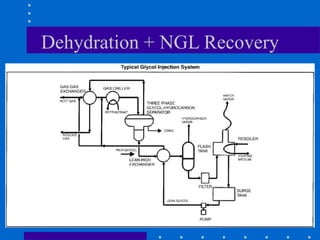

Dehydration + NGL Recovery

24. 24
Kinetic Inhibitors
• Methanol, ethylene glycol are effective
indefinitely
• In production applications, need only to
slow formation of hydrates
• Recent reports on inhibition by proprietary
polymers that slow rate of crystal formation

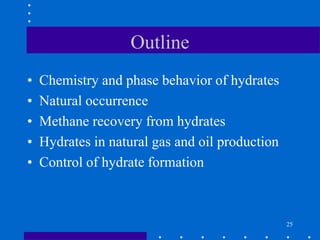

25. 25
Outline
• Chemistry and phase behavior of hydrates
• Natural occurrence
• Methane recovery from hydrates
• Hydrates in natural gas and oil production
• Control of hydrate formation
