1. Hybrid App using WordPress
Haim Michael
June 9th
, 2016
All logos, trademarks and brand names used in this presentation, such as the logo of Google
or any of its products, belong to their respective owners. Haim Michael and LifeMichael
are independent and not related, affiliated or connected neither with Google, TinyURL, Facebook
or any of the companies and the technologies mentioned in this presentation.
LifeMichael.com

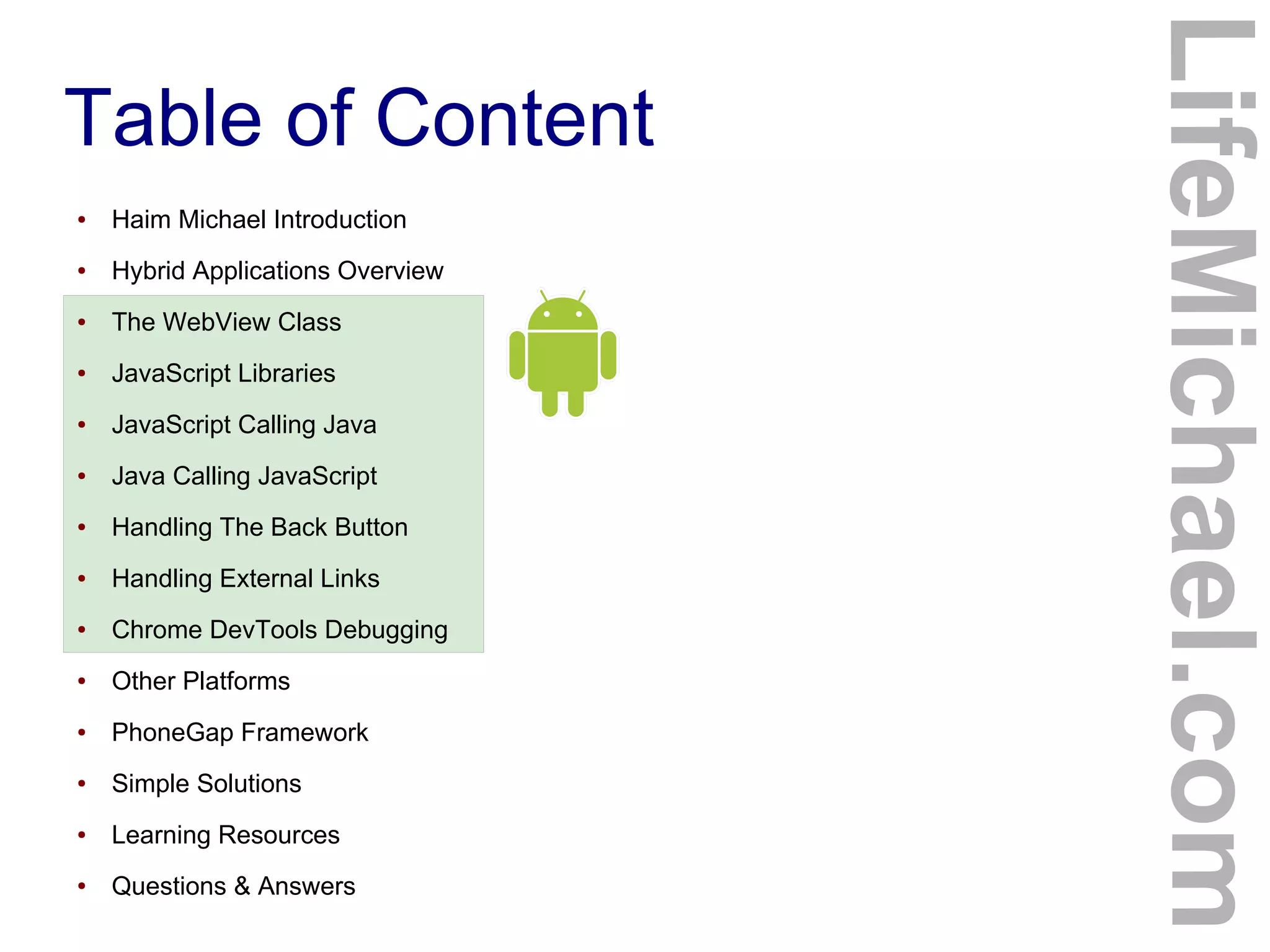

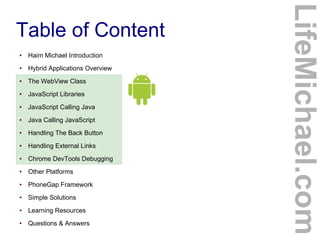

2. Table of Content
LifeMichael.com
● Haim Michael Introduction
● Hybrid Applications Overview
● The WebView Class
● JavaScript Libraries
● JavaScript Calling Java
● Java Calling JavaScript
● Handling The Back Button
● Handling External Links
● Chrome DevTools Debugging
● Other Platforms
● PhoneGap Framework

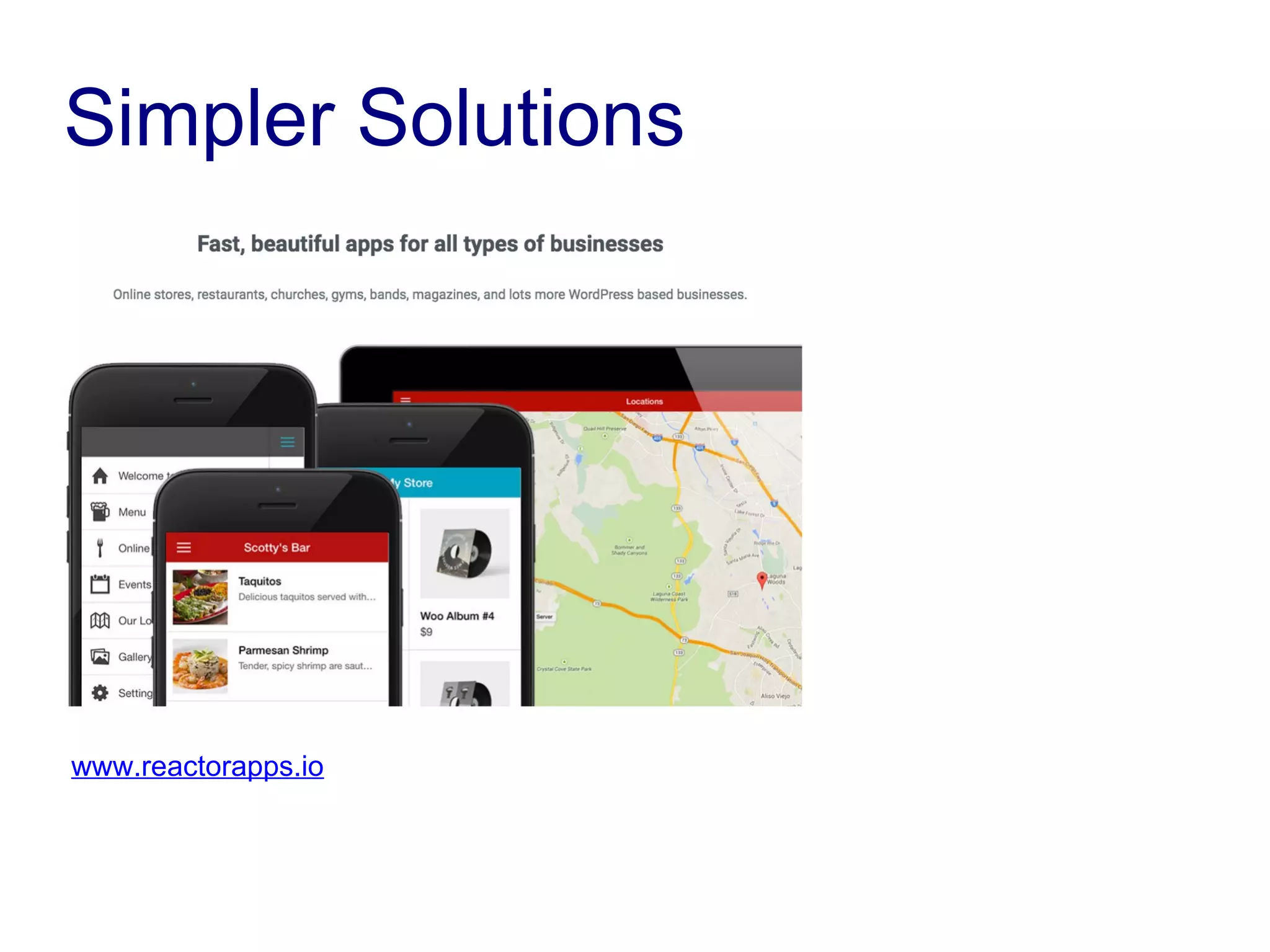

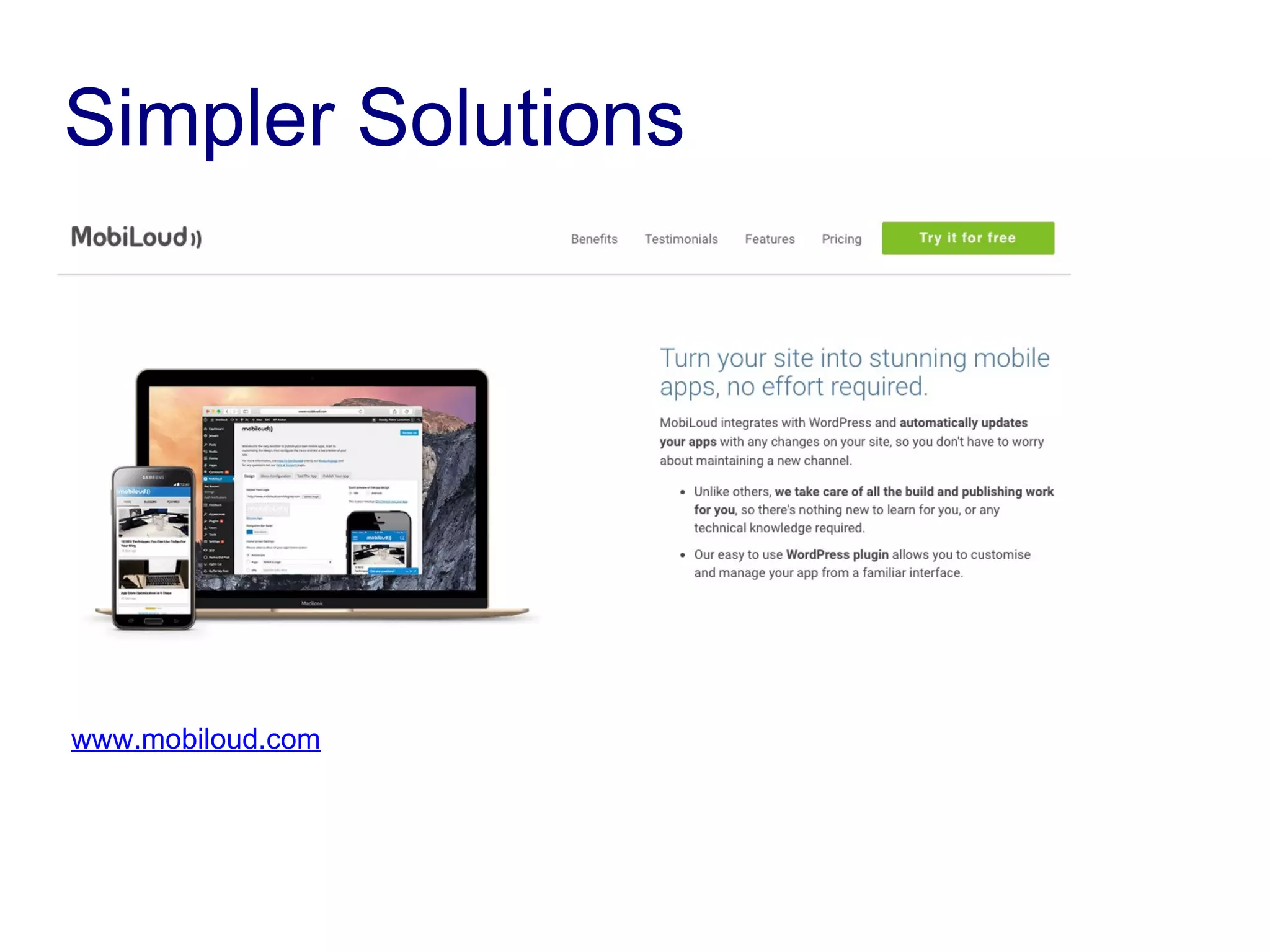

● Simple Solutions

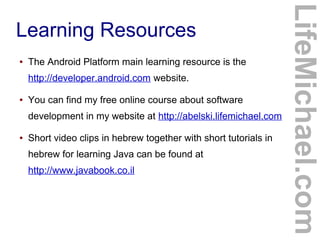

● Learning Resources
● Questions & Answers

3. Haim Michael Introduction
● Snowboarding. Learning. Coding. Teaching. More than
18 years of Practical Experience.
LifeMichael.com

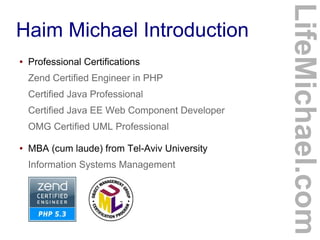

4. Haim Michael Introduction
● Professional Certifications
Zend Certified Engineer in PHP
Certified Java Professional
Certified Java EE Web Component Developer
OMG Certified UML Professional
● MBA (cum laude) from Tel-Aviv University
Information Systems Management
LifeMichael.com

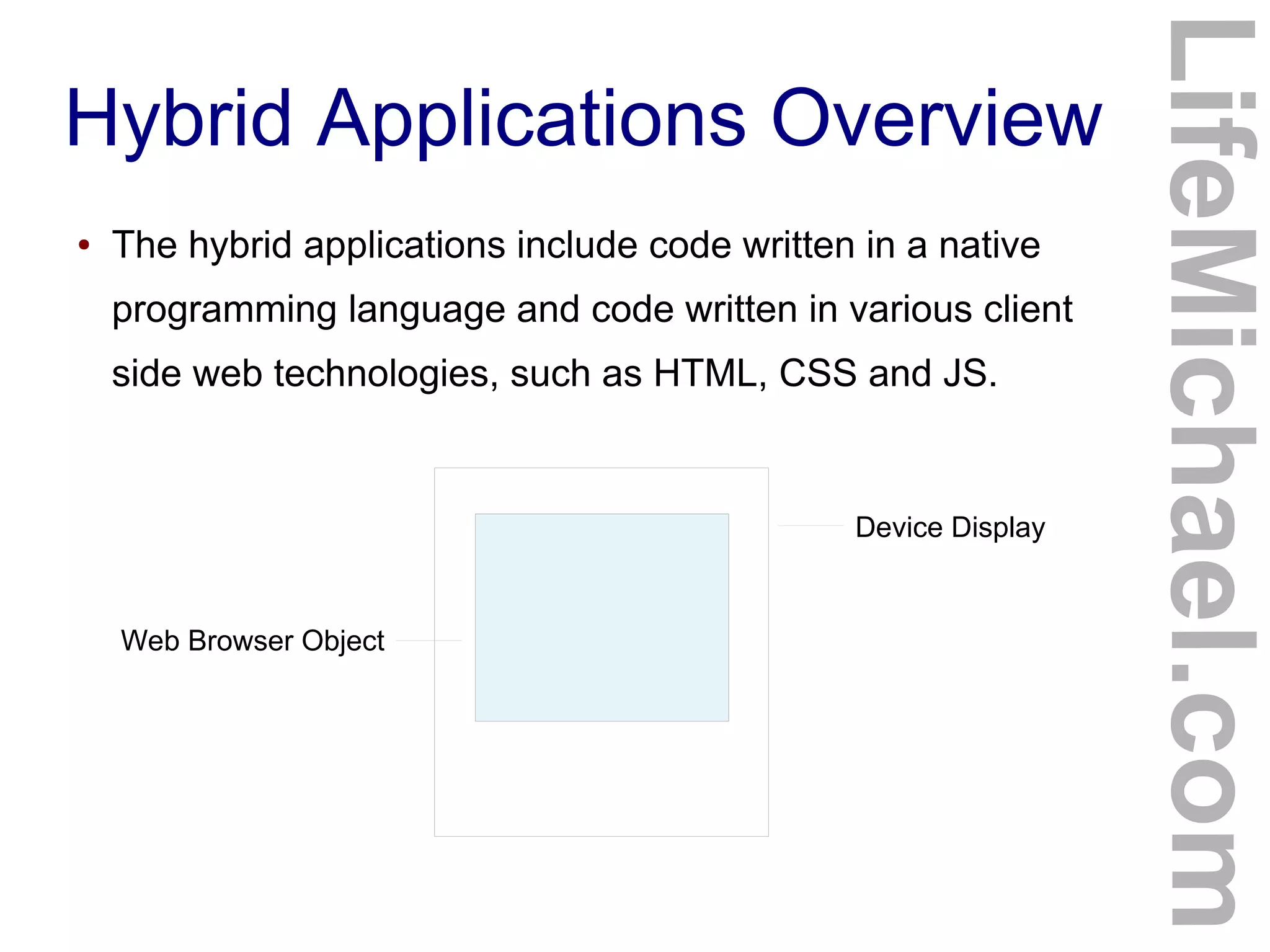

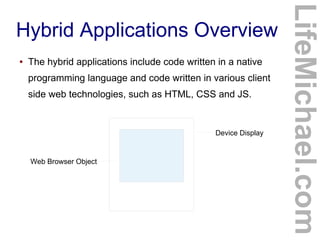

5. Hybrid Applications Overview
● The hybrid applications include code written in a native
programming language and code written in various client
side web technologies, such as HTML, CSS and JS.
LifeMichael.com
Device Display
Web Browser Object

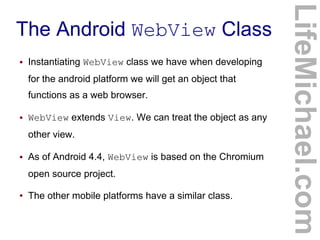

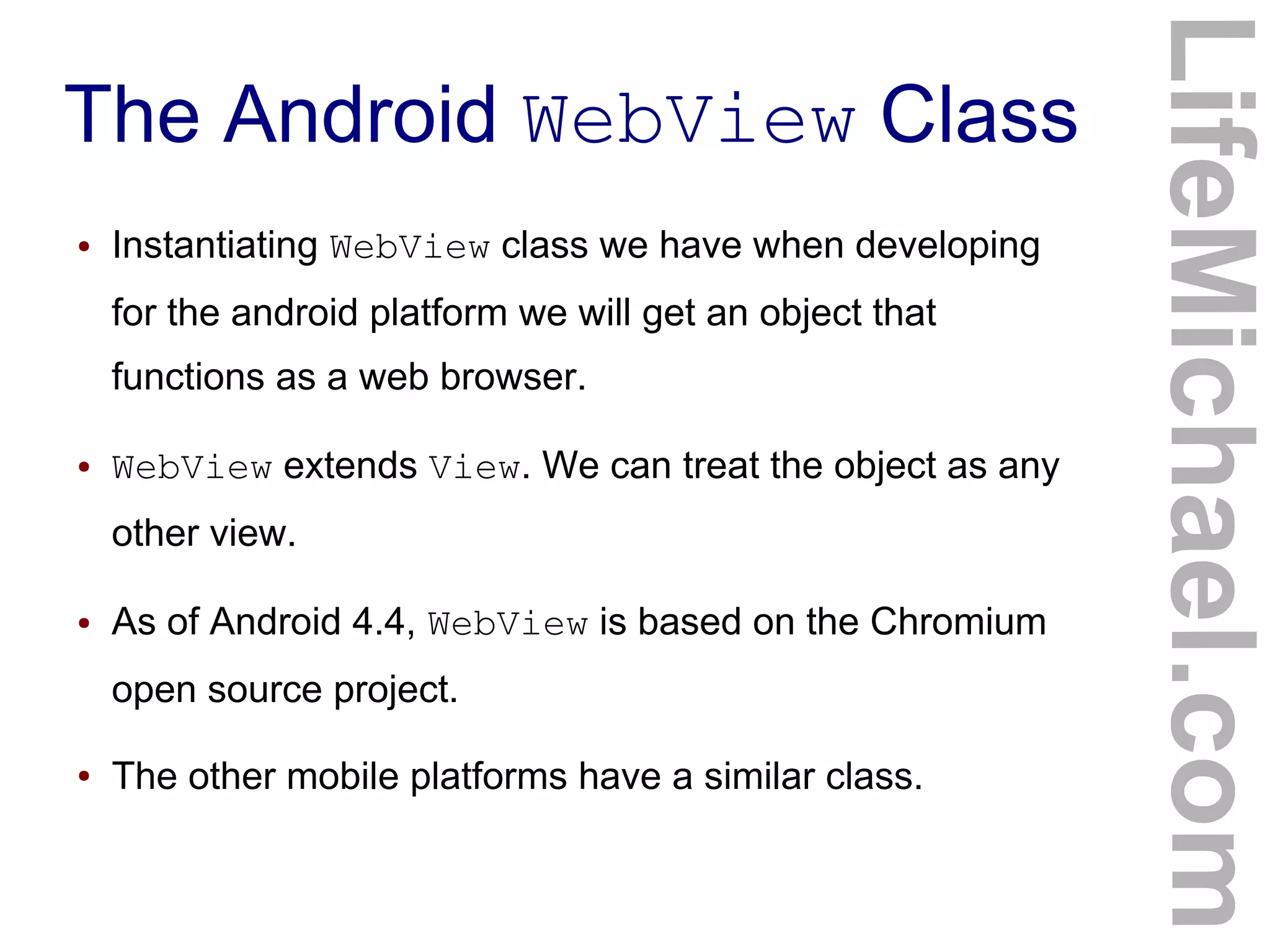

6. The Android WebView Class
● Instantiating WebView class we have when developing
for the android platform we will get an object that
functions as a web browser.
● WebView extends View. We can treat the object as any
other view.
● As of Android 4.4, WebView is based on the Chromium
open source project.
● The other mobile platforms have a similar class.
LifeMichael.com

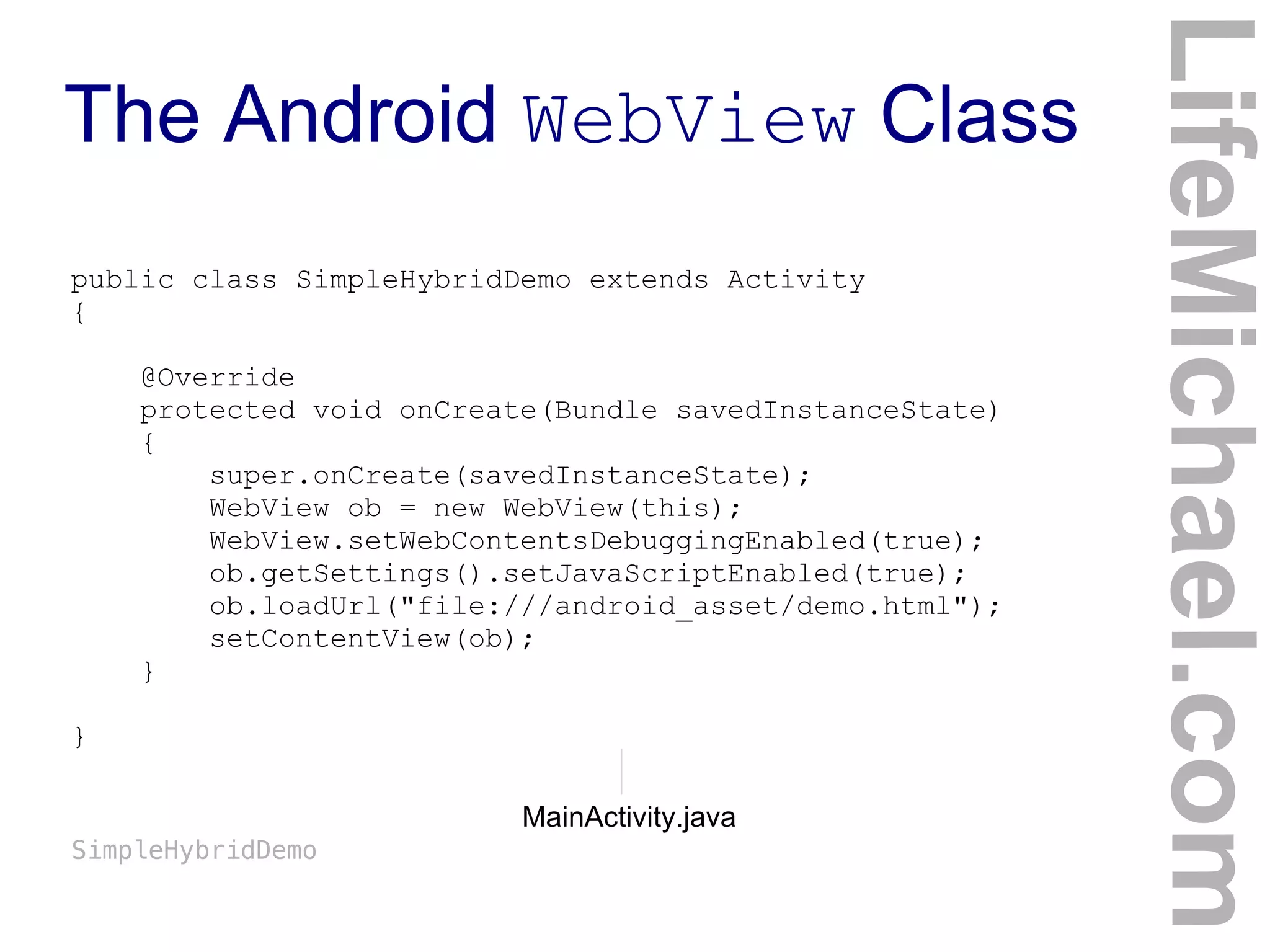

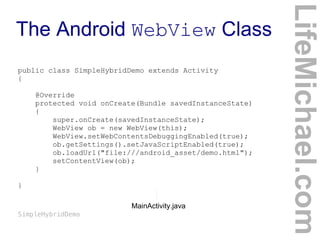

7. The Android WebView Class
LifeMichael.com
public class SimpleHybridDemo extends Activity
{
@Override
protected void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
WebView ob = new WebView(this);
WebView.setWebContentsDebuggingEnabled(true);
ob.getSettings().setJavaScriptEnabled(true);
ob.loadUrl("file:///android_asset/demo.html");
setContentView(ob);
}
}
MainActivity.java
SimpleHybridDemo

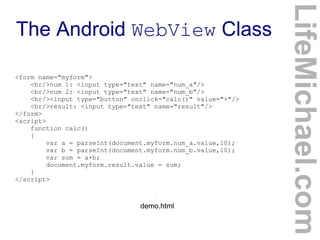

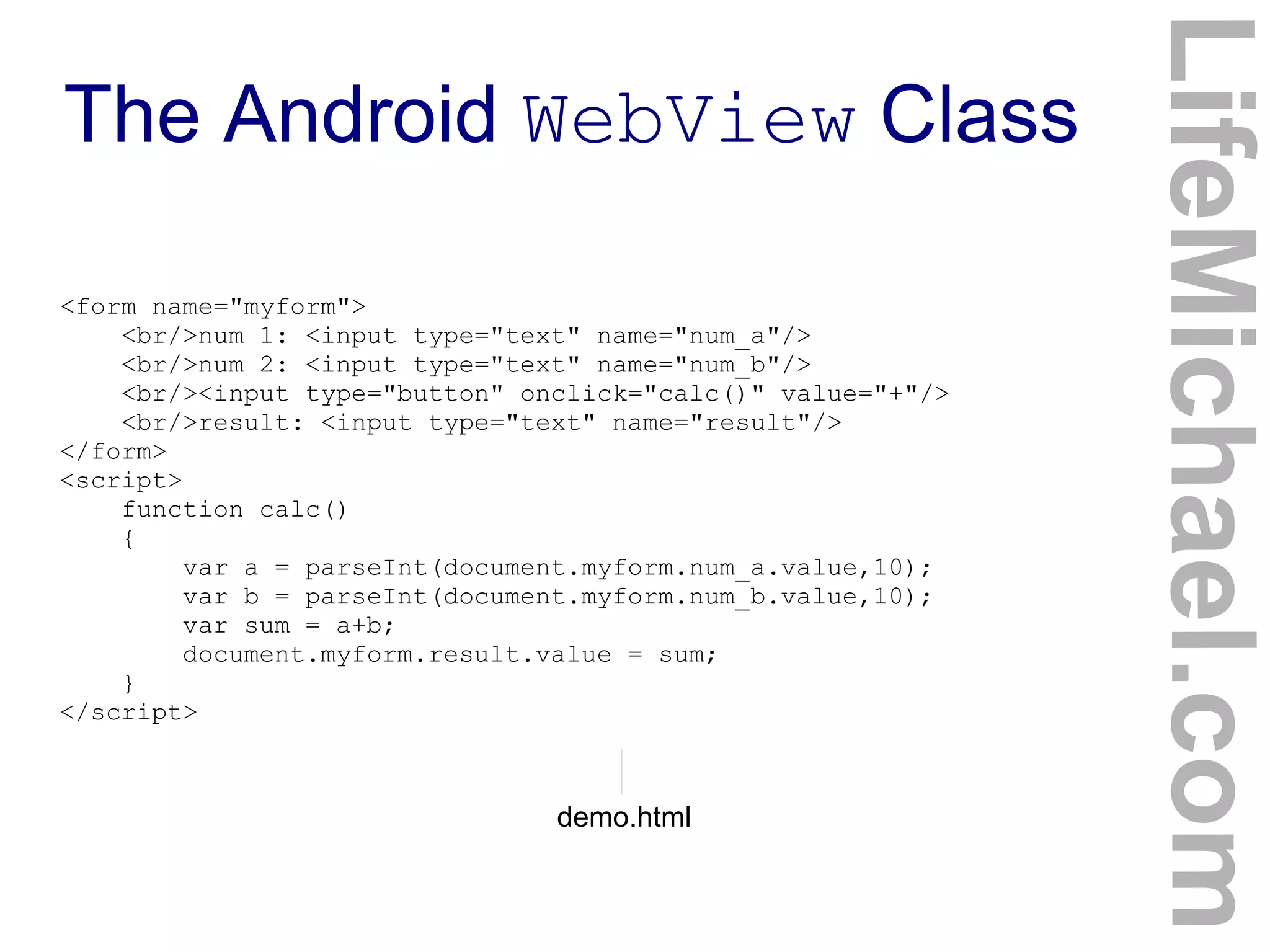

8. The Android WebView Class
LifeMichael.com
<form name="myform">
<br/>num 1: <input type="text" name="num_a"/>
<br/>num 2: <input type="text" name="num_b"/>
<br/><input type="button" onclick="calc()" value="+"/>
<br/>result: <input type="text" name="result"/>
</form>
<script>
function calc()
{
var a = parseInt(document.myform.num_a.value,10);
var b = parseInt(document.myform.num_b.value,10);
var sum = a+b;
document.myform.result.value = sum;
}
</script>
demo.html

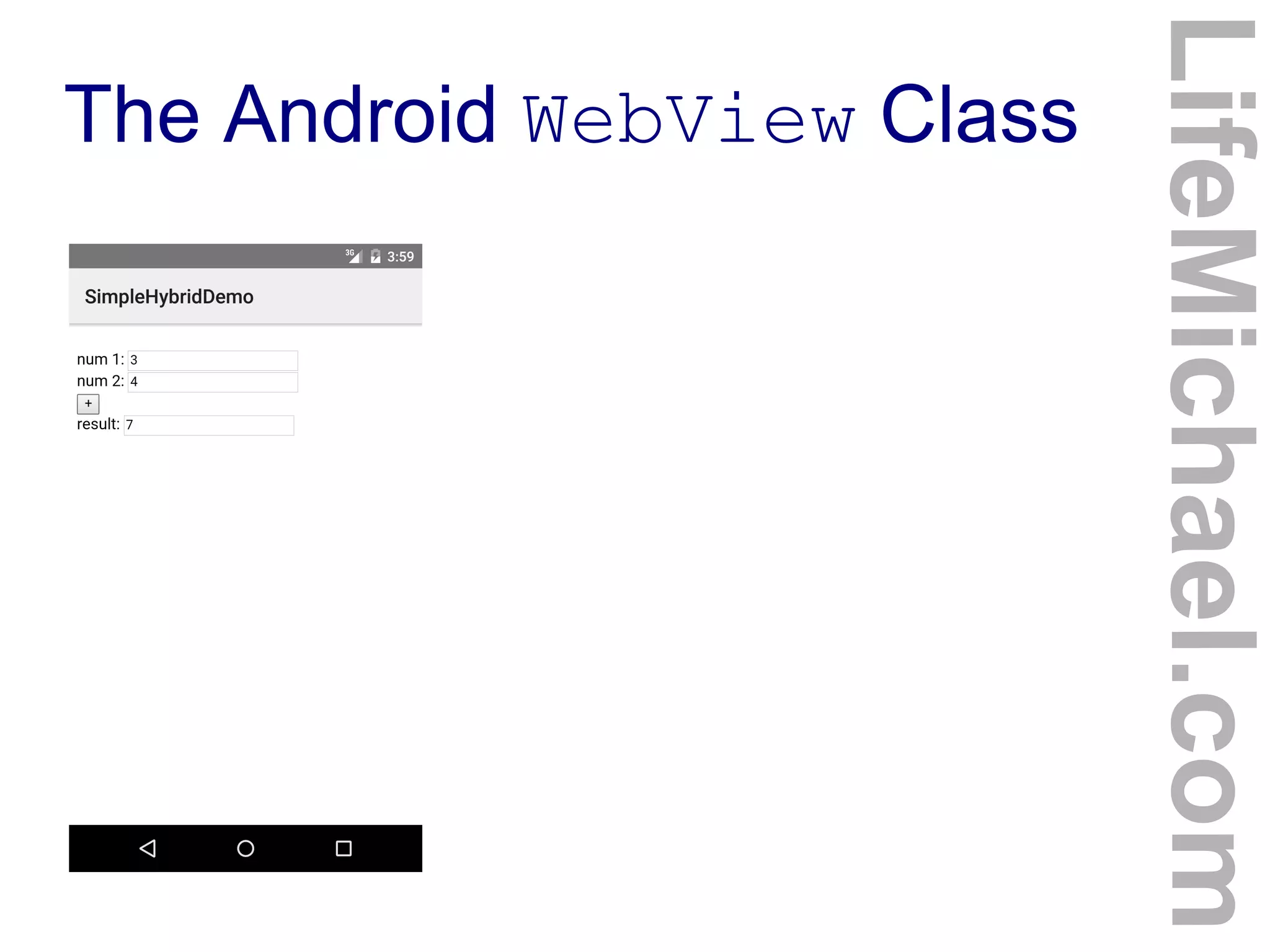

9. The Android WebView Class
LifeMichael.com

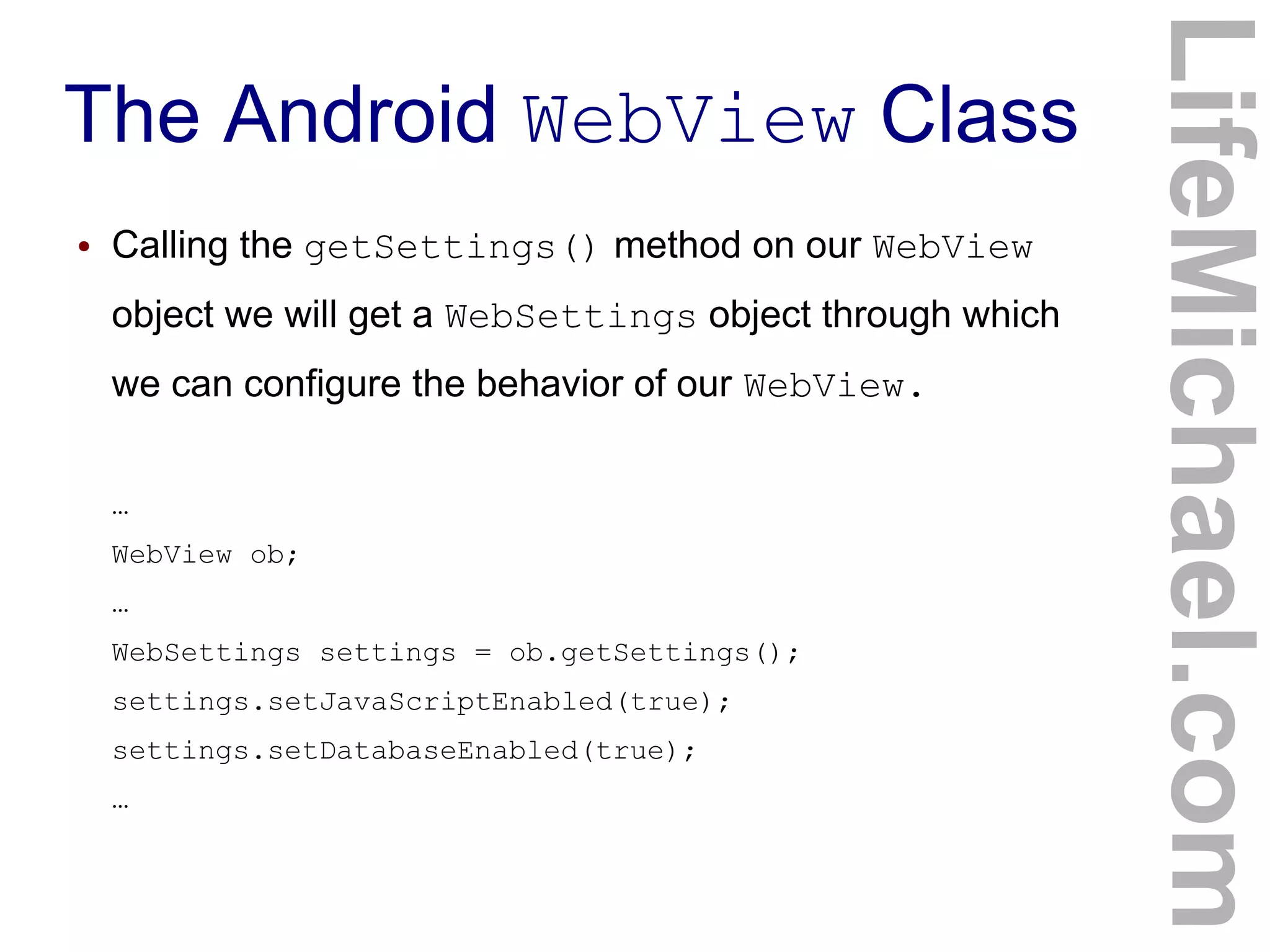

10. The Android WebView Class
● Calling the getSettings() method on our WebView
object we will get a WebSettings object through which
we can configure the behavior of our WebView.
…
WebView ob;
…
WebSettings settings = ob.getSettings();
settings.setJavaScriptEnabled(true);
settings.setDatabaseEnabled(true);
…
LifeMichael.com

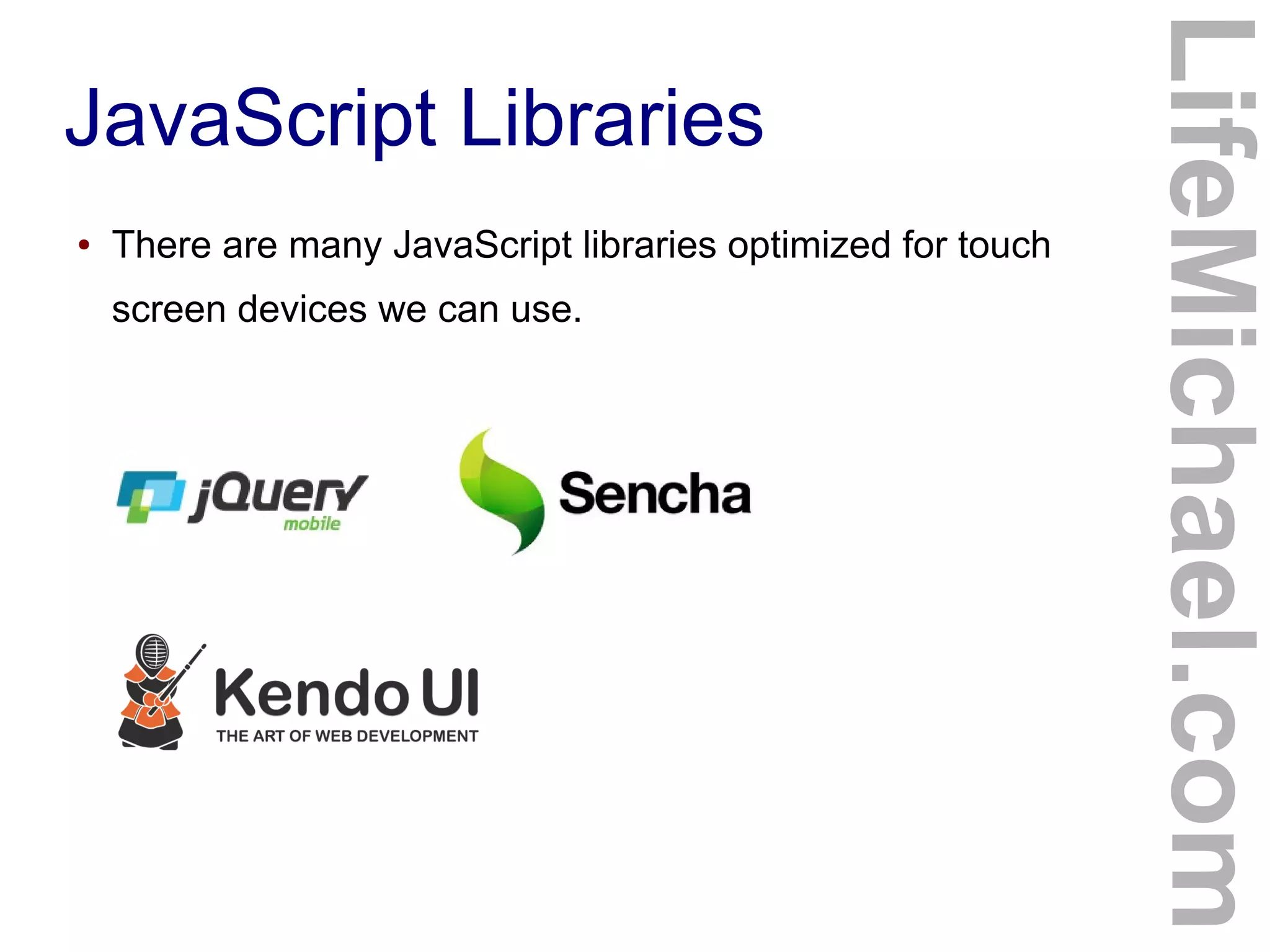

11. JavaScript Libraries
● There are many JavaScript libraries optimized for touch
screen devices we can use.
LifeMichael.com

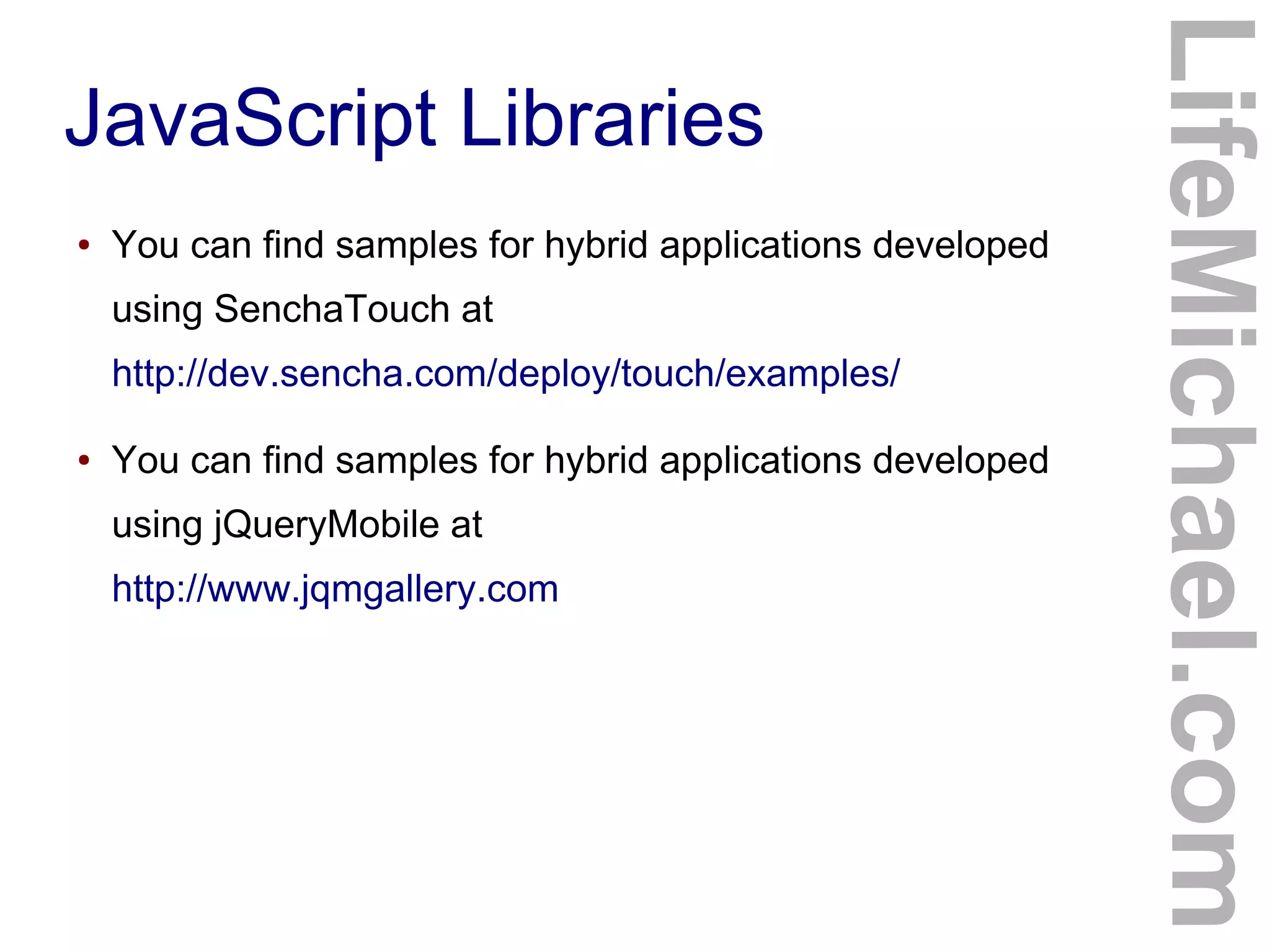

12. JavaScript Libraries
● You can find samples for hybrid applications developed
using SenchaTouch at
http://dev.sencha.com/deploy/touch/examples/
● You can find samples for hybrid applications developed
using jQueryMobile at
http://www.jqmgallery.com
LifeMichael.com

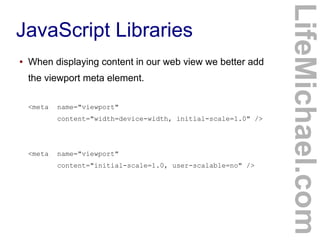

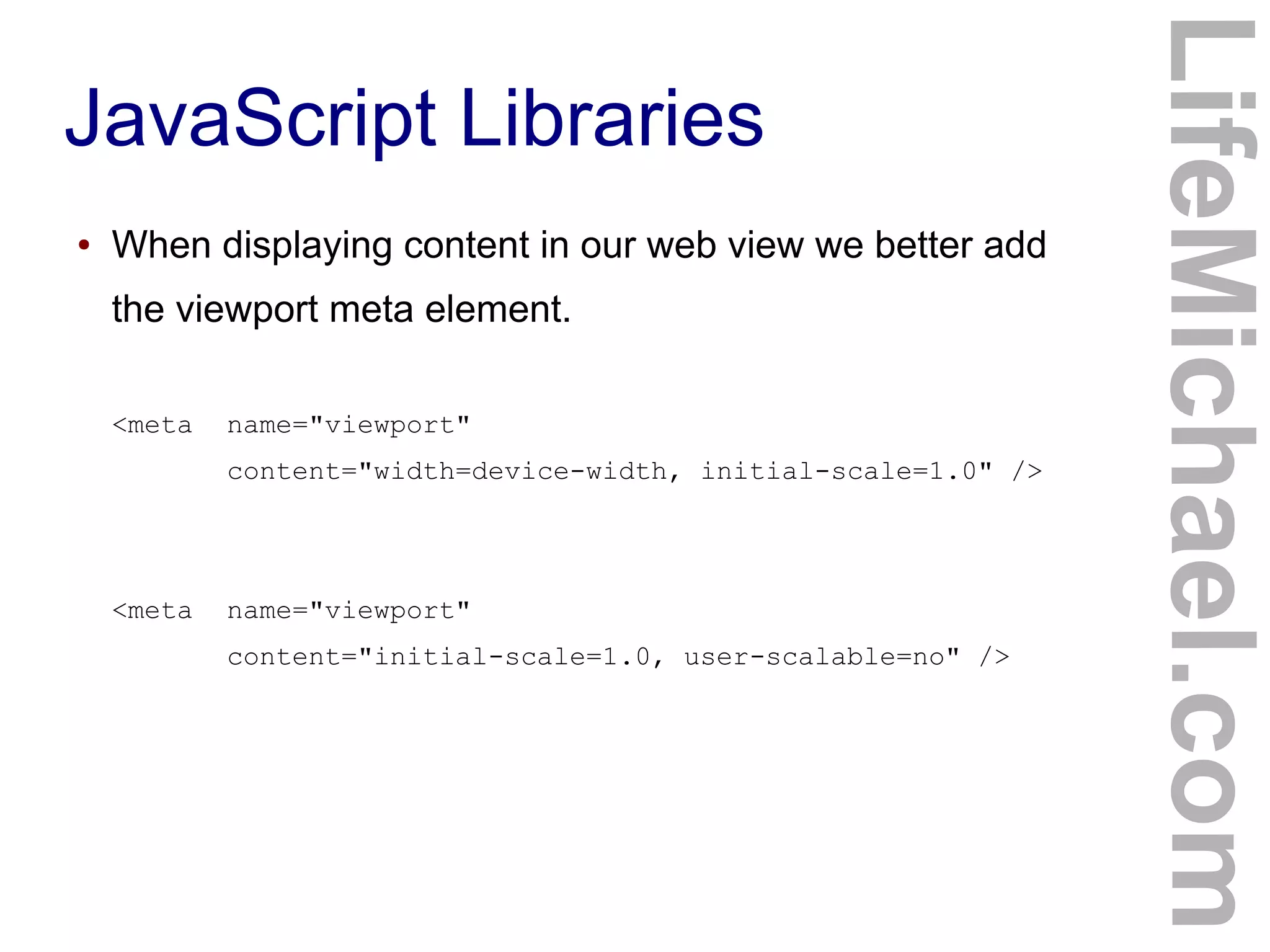

13. JavaScript Libraries
● When displaying content in our web view we better add
the viewport meta element.
<meta name="viewport"
content="width=device-width, initial-scale=1.0" />
<meta name="viewport"
content="initial-scale=1.0, user-scalable=no" />
LifeMichael.com

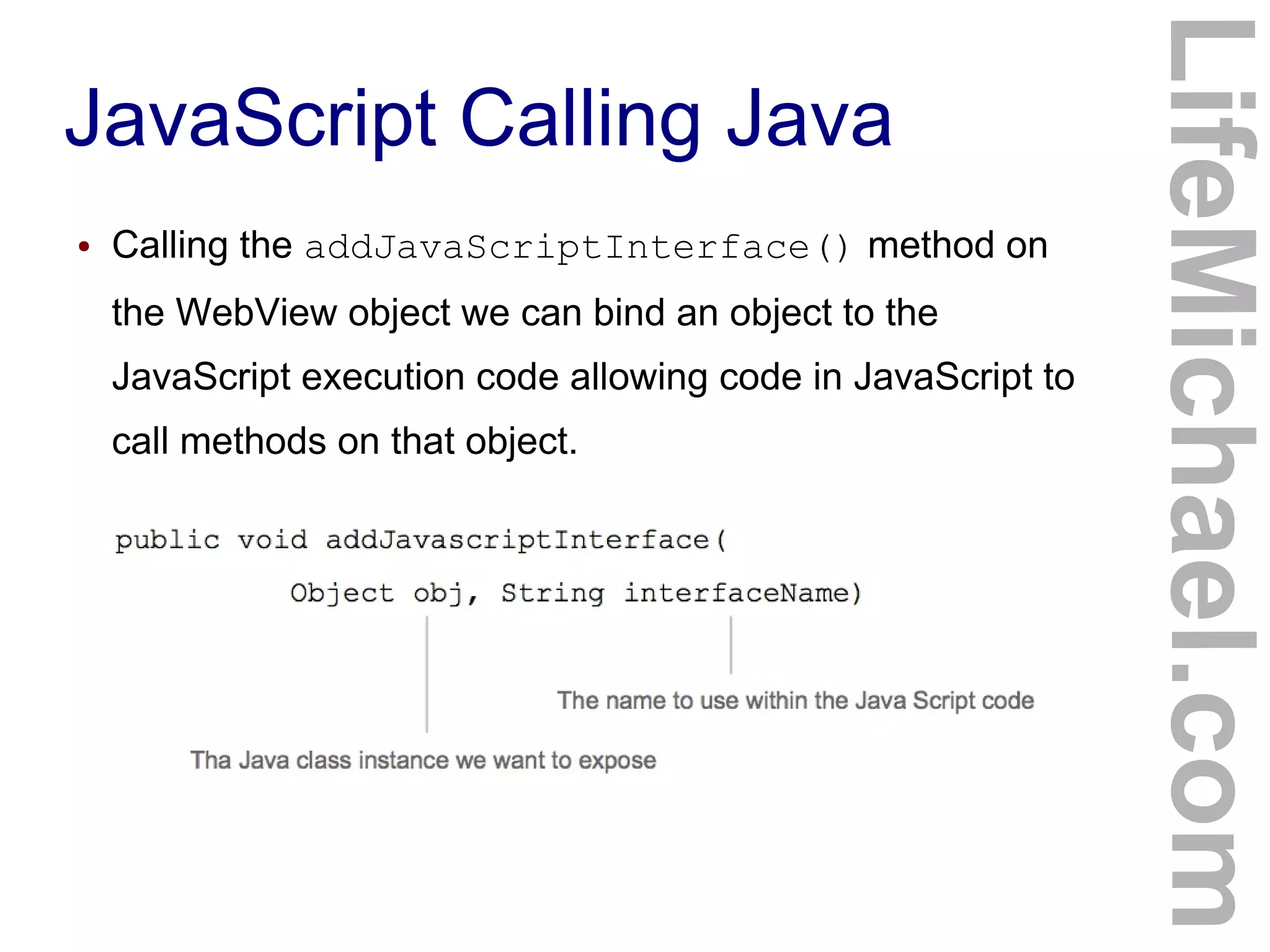

14. JavaScript Calling Java
● Calling the addJavaScriptInterface() method on
the WebView object we can bind an object to the
JavaScript execution code allowing code in JavaScript to
call methods on that object.
LifeMichael.com

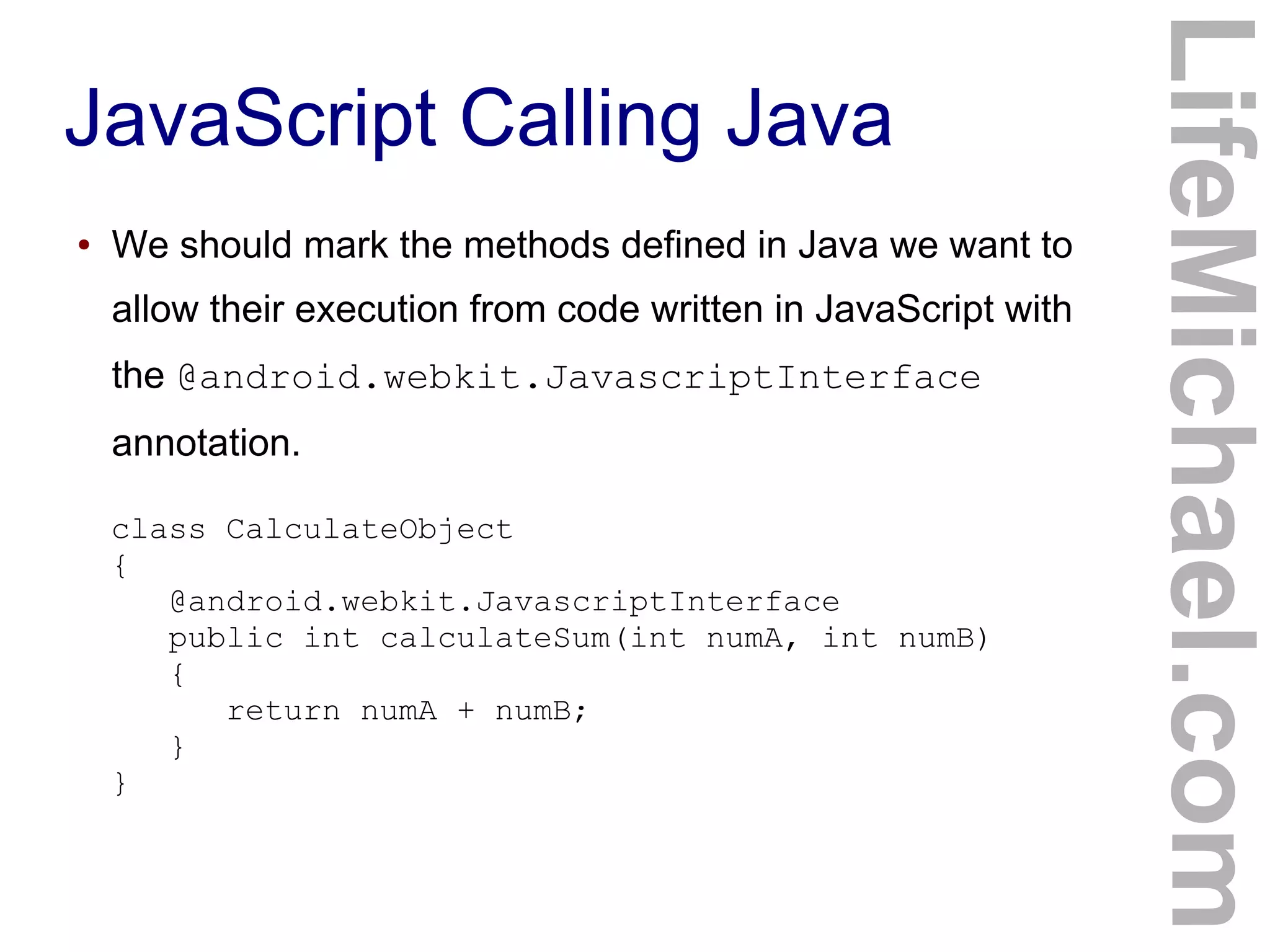

15. JavaScript Calling Java
● We should mark the methods defined in Java we want to
allow their execution from code written in JavaScript with
the @android.webkit.JavascriptInterface
annotation.
LifeMichael.com
class CalculateObject
{
@android.webkit.JavascriptInterface
public int calculateSum(int numA, int numB)
{
return numA + numB;
}
}

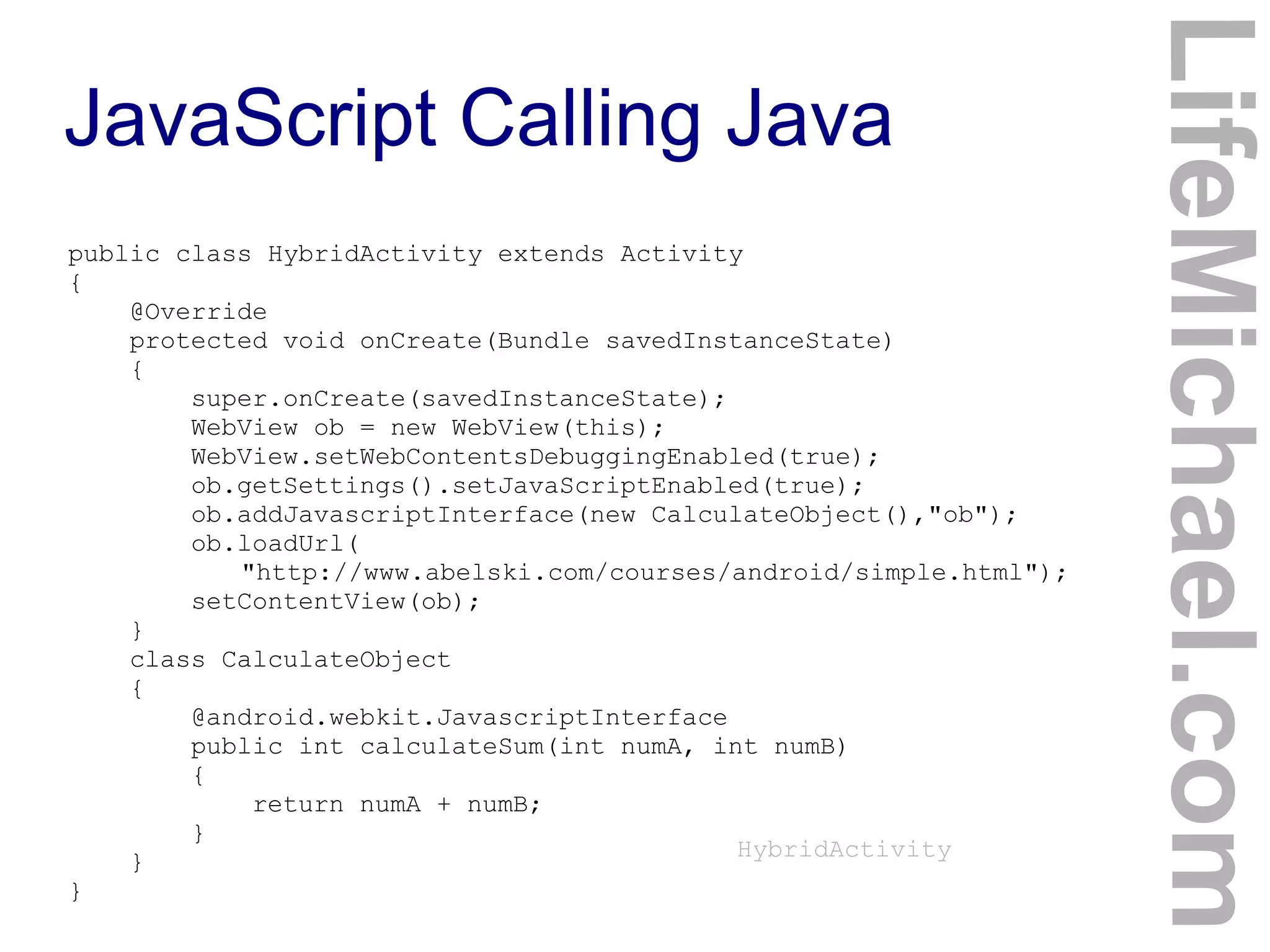

16. JavaScript Calling Java
LifeMichael.com
public class HybridActivity extends Activity
{
@Override
protected void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
WebView ob = new WebView(this);
WebView.setWebContentsDebuggingEnabled(true);
ob.getSettings().setJavaScriptEnabled(true);
ob.addJavascriptInterface(new CalculateObject(),"ob");
ob.loadUrl(
"http://www.abelski.com/courses/android/simple.html");
setContentView(ob);
}
class CalculateObject
{
@android.webkit.JavascriptInterface
public int calculateSum(int numA, int numB)
{
return numA + numB;
}
}
}
HybridActivity

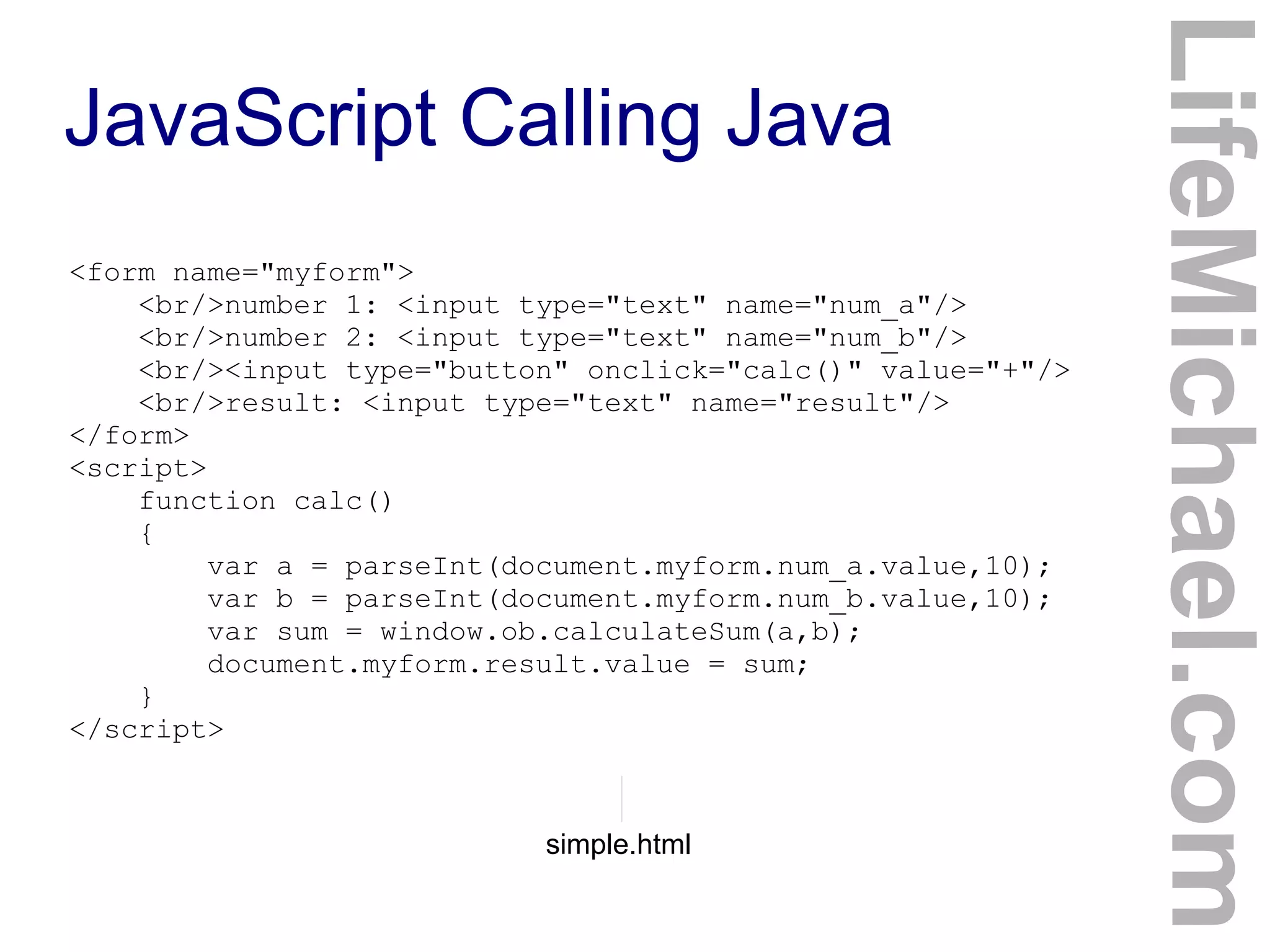

17. JavaScript Calling Java
LifeMichael.com
<form name="myform">
<br/>number 1: <input type="text" name="num_a"/>
<br/>number 2: <input type="text" name="num_b"/>
<br/><input type="button" onclick="calc()" value="+"/>
<br/>result: <input type="text" name="result"/>
</form>
<script>
function calc()
{
var a = parseInt(document.myform.num_a.value,10);
var b = parseInt(document.myform.num_b.value,10);
var sum = window.ob.calculateSum(a,b);
document.myform.result.value = sum;
}
</script>
simple.html

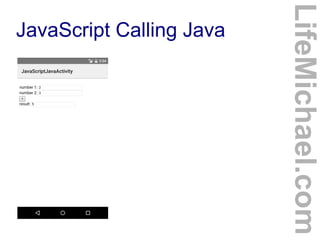

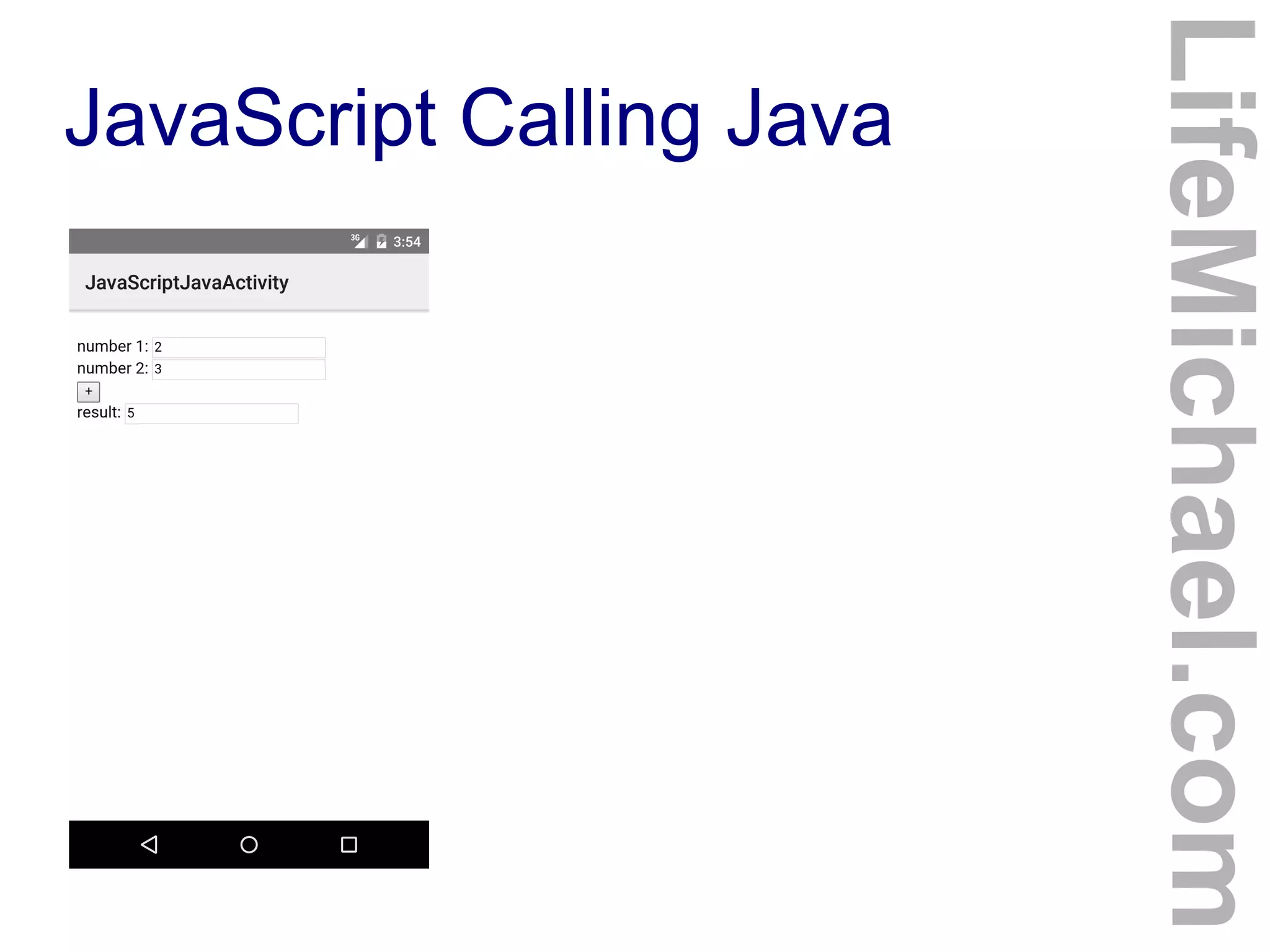

18. JavaScript Calling Java
LifeMichael.com

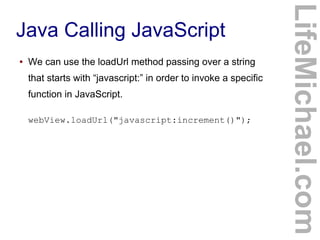

19. Java Calling JavaScript
● We can use the loadUrl method passing over a string
that starts with “javascript:” in order to invoke a specific
function in JavaScript.
webView.loadUrl("javascript:increment()");
LifeMichael.com

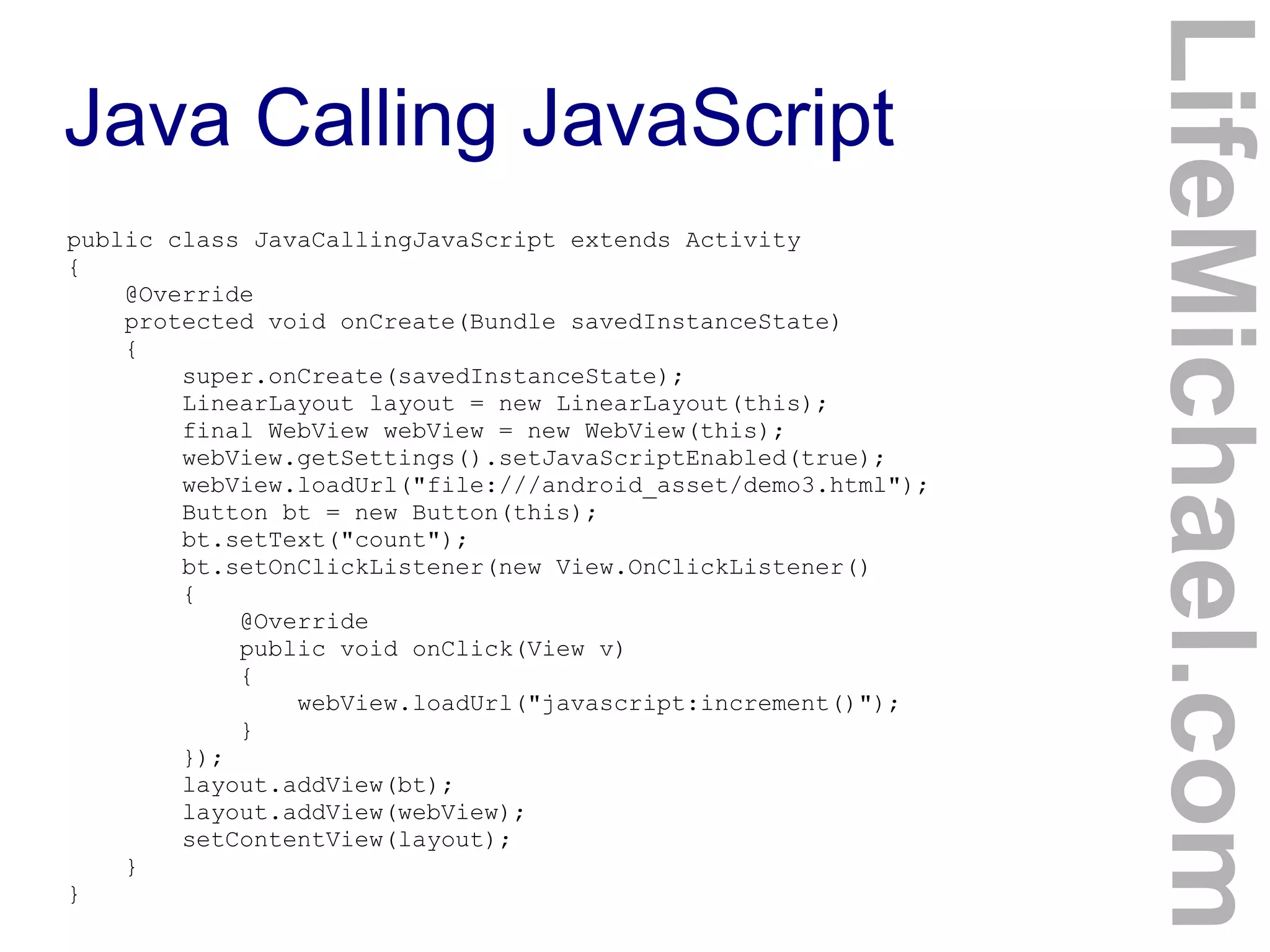

20. Java Calling JavaScript
LifeMichael.com
public class JavaCallingJavaScript extends Activity
{
@Override
protected void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
LinearLayout layout = new LinearLayout(this);
final WebView webView = new WebView(this);
webView.getSettings().setJavaScriptEnabled(true);
webView.loadUrl("file:///android_asset/demo3.html");
Button bt = new Button(this);
bt.setText("count");
bt.setOnClickListener(new View.OnClickListener()
{
@Override
public void onClick(View v)
{
webView.loadUrl("javascript:increment()");
}
});
layout.addView(bt);
layout.addView(webView);
setContentView(layout);
}
}

21. Java Calling JavaScript
LifeMichael.com
<!DOCTYPE html>
<html>
<head lang="en">
<meta charset="UTF-8">
<title></title>
</head>
<body>
<h3>Java Calling JavaScript</h3>
<div id="msg">0</div>
<script>
function increment()
{
var ob = document.getElementById("msg");
ob.innerText = parseInt(ob.innerText)+1;
}
</script>
</body>
</html>
demo.html

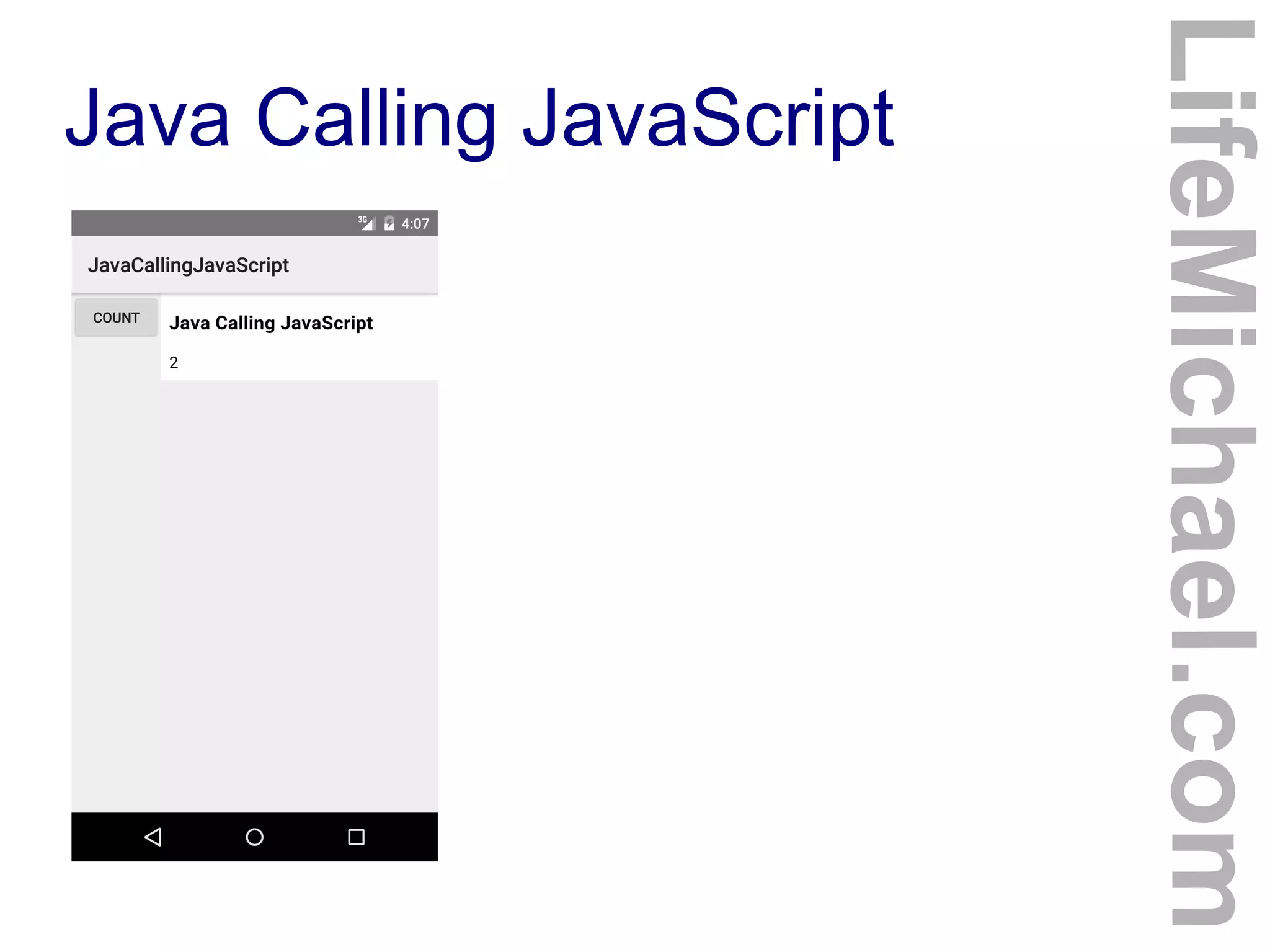

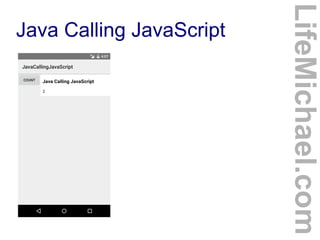

22. Java Calling JavaScript
LifeMichael.com

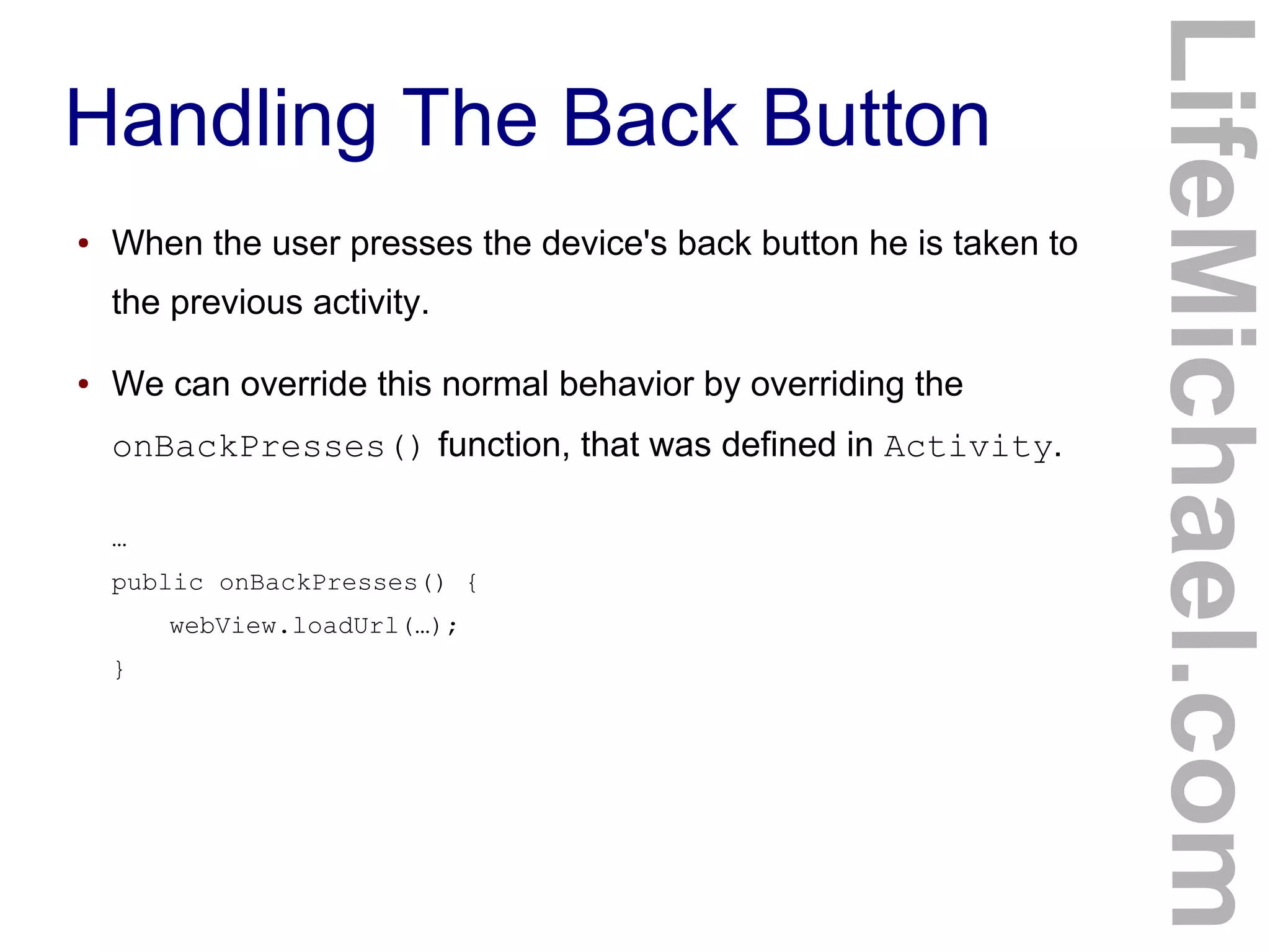

23. Handling The Back Button
LifeMichael.com
● When the user presses the device's back button he is taken to
the previous activity.
● We can override this normal behavior by overriding the
onBackPresses() function, that was defined in Activity.
…
public onBackPresses() {
webView.loadUrl(…);
}

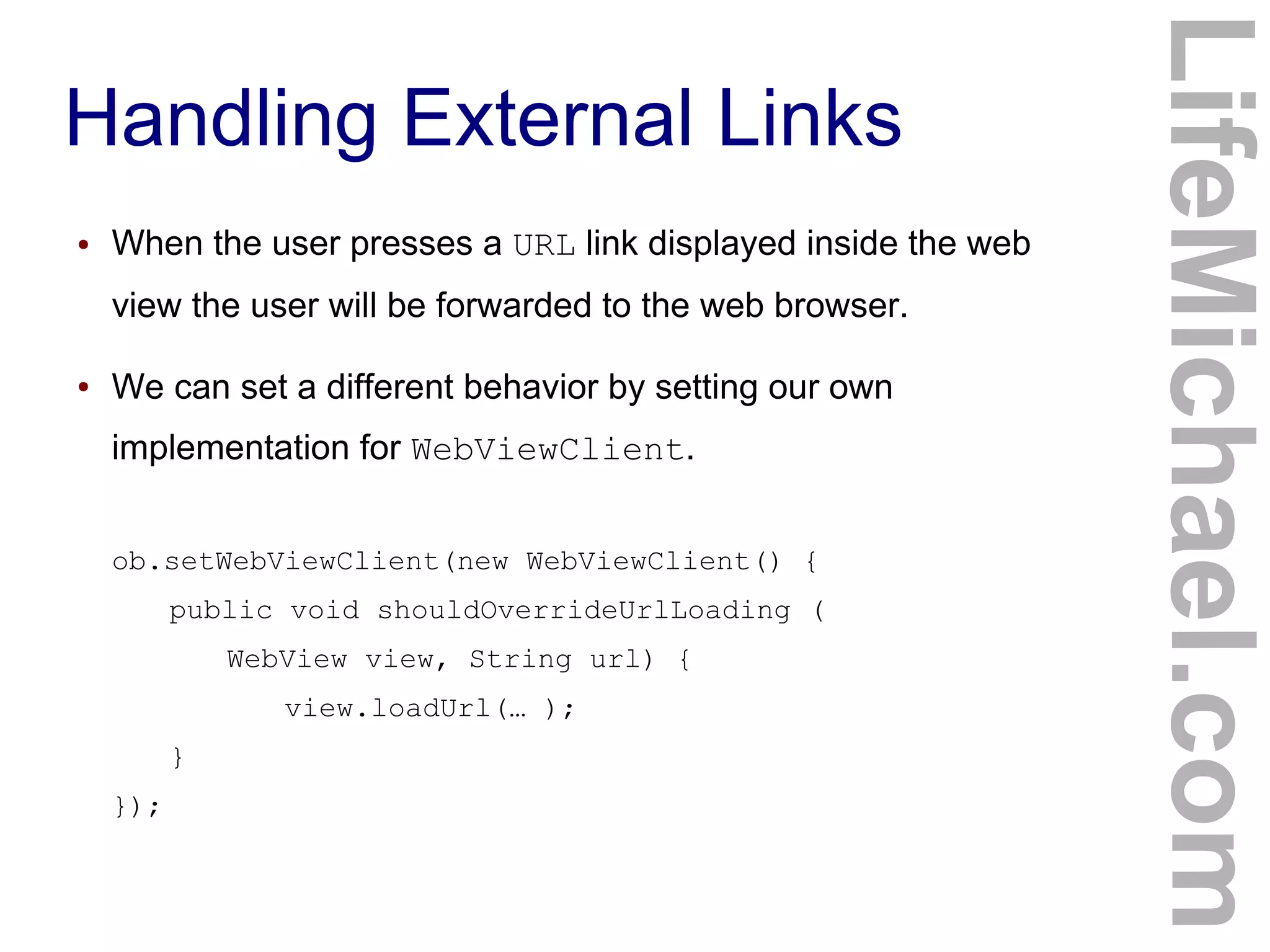

24. Handling External Links
LifeMichael.com
● When the user presses a URL link displayed inside the web
view the user will be forwarded to the web browser.
● We can set a different behavior by setting our own
implementation for WebViewClient.
ob.setWebViewClient(new WebViewClient() {
public void shouldOverrideUrlLoading (
WebView view, String url) {
view.loadUrl(… );
}
});

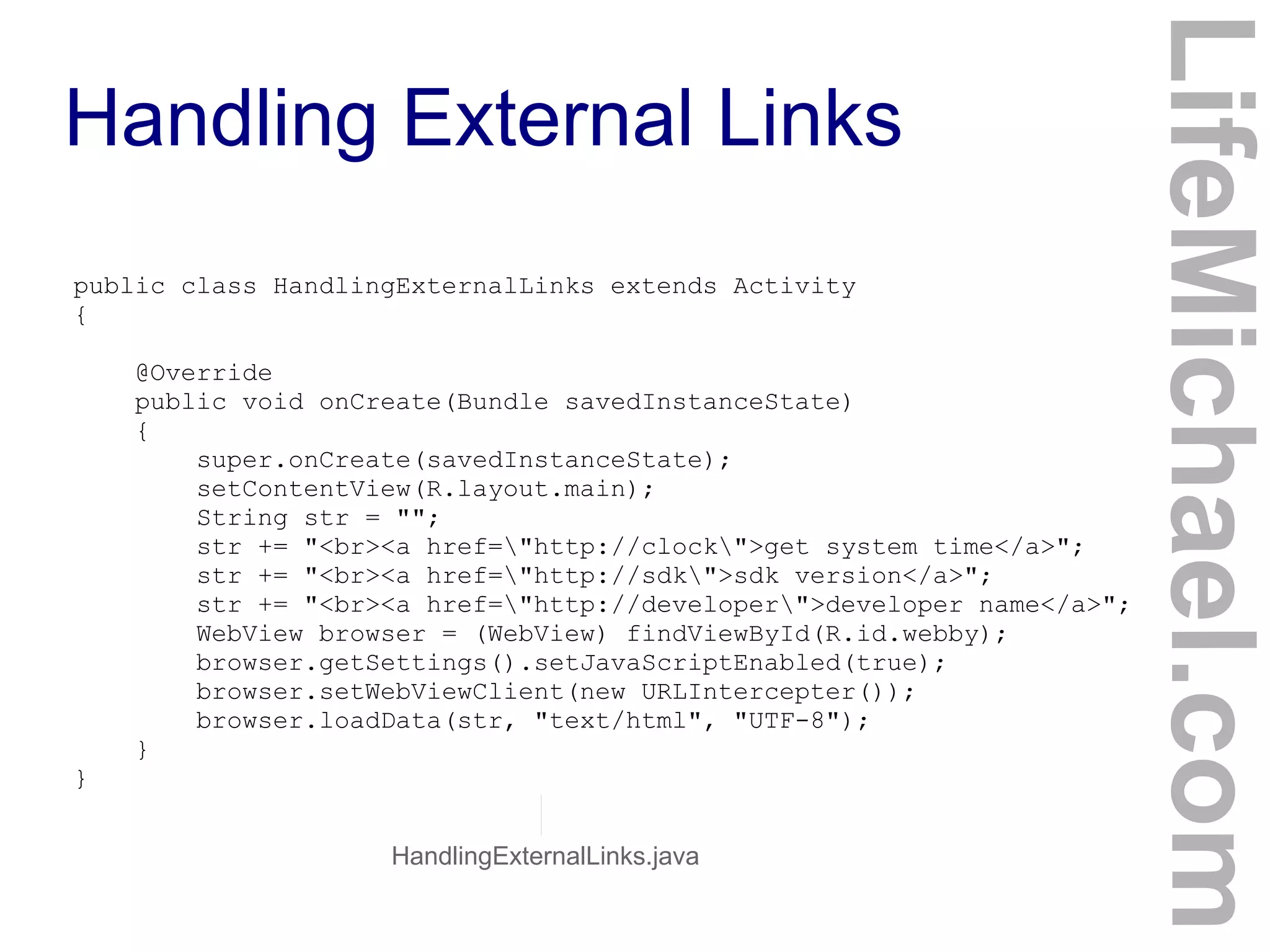

25. Handling External Links
LifeMichael.com
public class HandlingExternalLinks extends Activity
{
@Override
public void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
String str = "";
str += "<br><a href="http://clock">get system time</a>";
str += "<br><a href="http://sdk">sdk version</a>";
str += "<br><a href="http://developer">developer name</a>";
WebView browser = (WebView) findViewById(R.id.webby);
browser.getSettings().setJavaScriptEnabled(true);
browser.setWebViewClient(new URLIntercepter());
browser.loadData(str, "text/html", "UTF-8");
}
}
HandlingExternalLinks.java

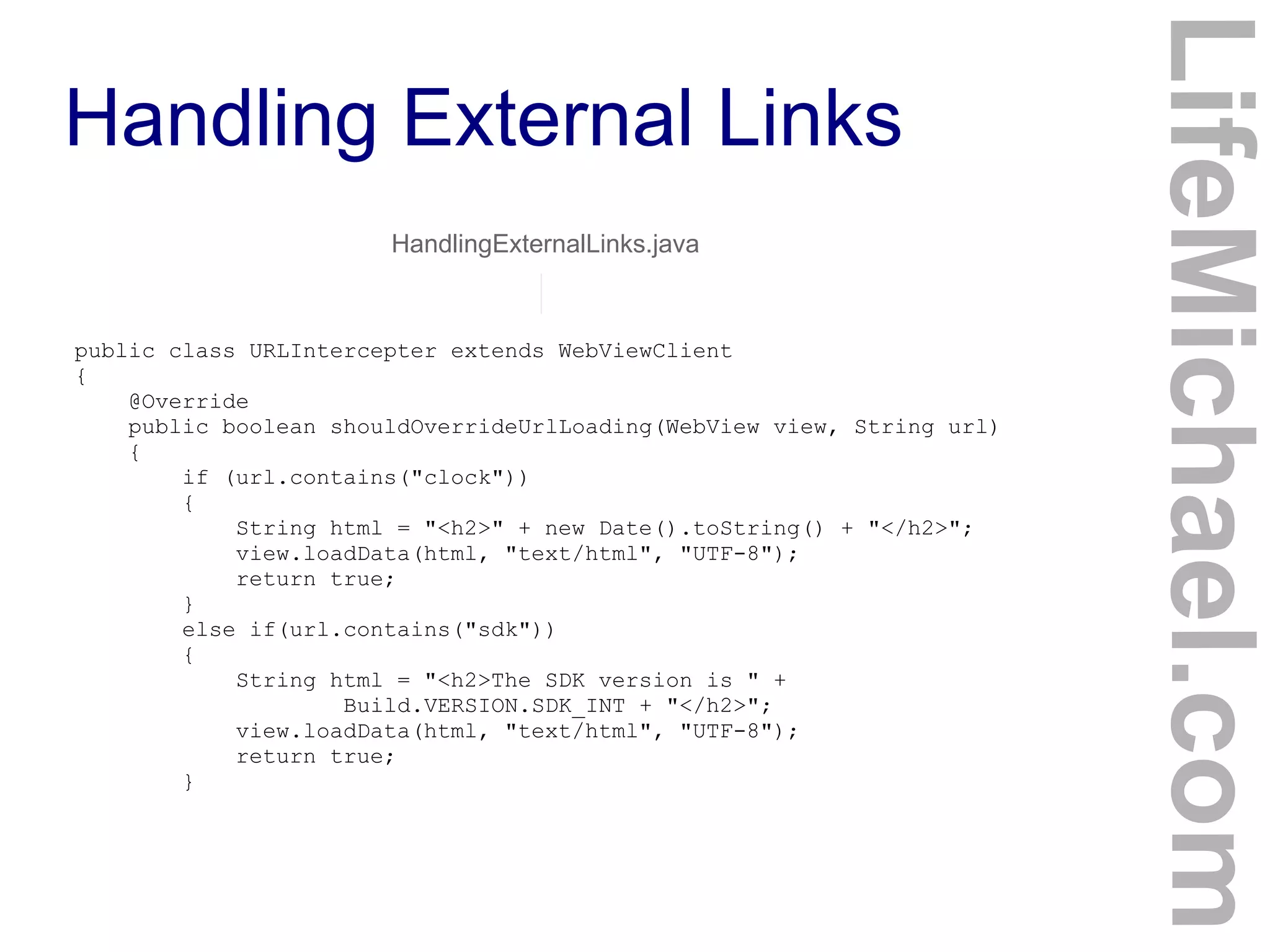

26. Handling External Links
LifeMichael.com
HandlingExternalLinks.java
public class URLIntercepter extends WebViewClient
{
@Override
public boolean shouldOverrideUrlLoading(WebView view, String url)
{
if (url.contains("clock"))
{
String html = "<h2>" + new Date().toString() + "</h2>";
view.loadData(html, "text/html", "UTF-8");
return true;
}
else if(url.contains("sdk"))
{
String html = "<h2>The SDK version is " +
Build.VERSION.SDK_INT + "</h2>";
view.loadData(html, "text/html", "UTF-8");
return true;
}

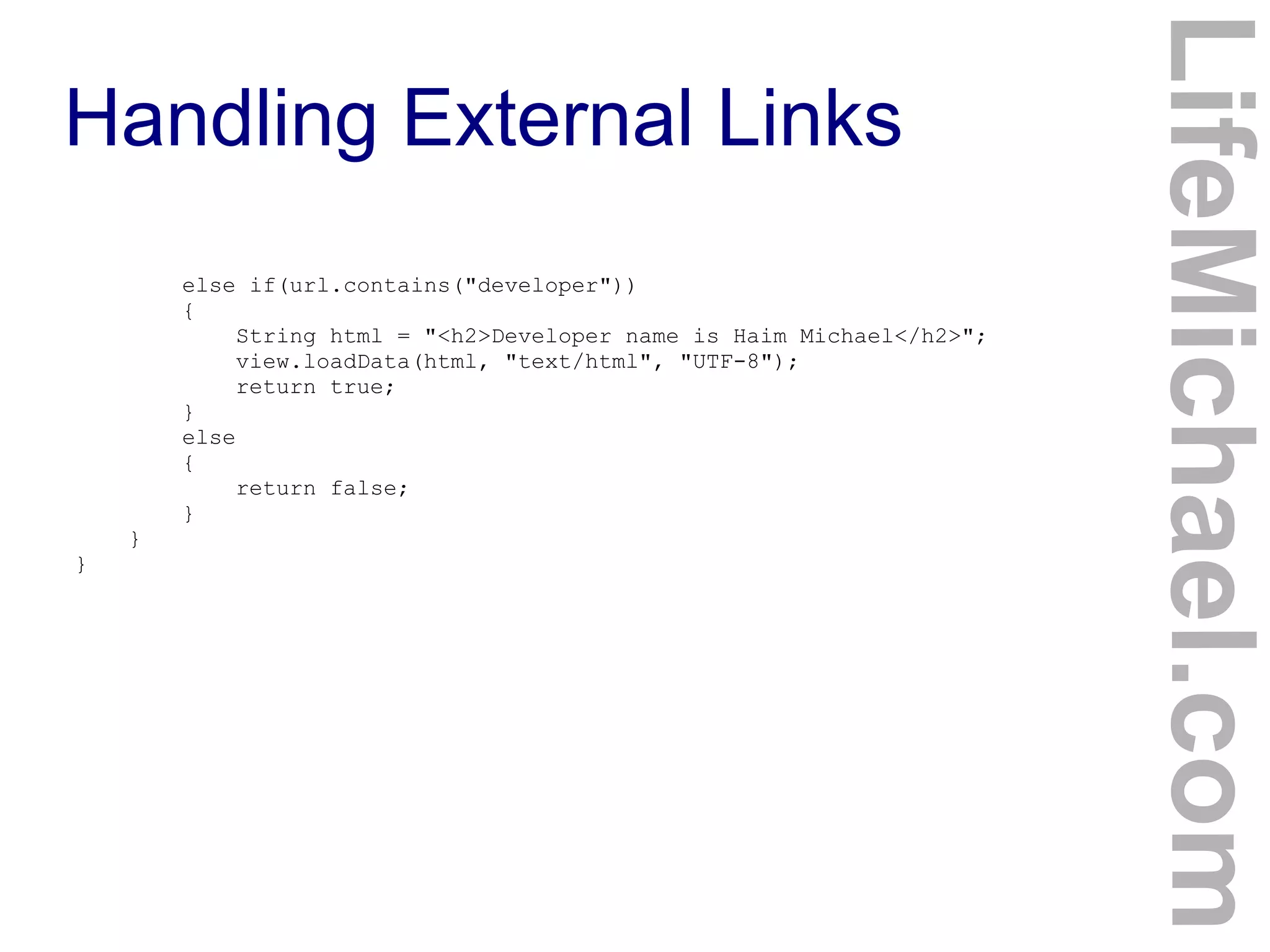

27. Handling External Links
LifeMichael.com
else if(url.contains("developer"))
{
String html = "<h2>Developer name is Haim Michael</h2>";
view.loadData(html, "text/html", "UTF-8");
return true;
}
else
{
return false;
}
}
}

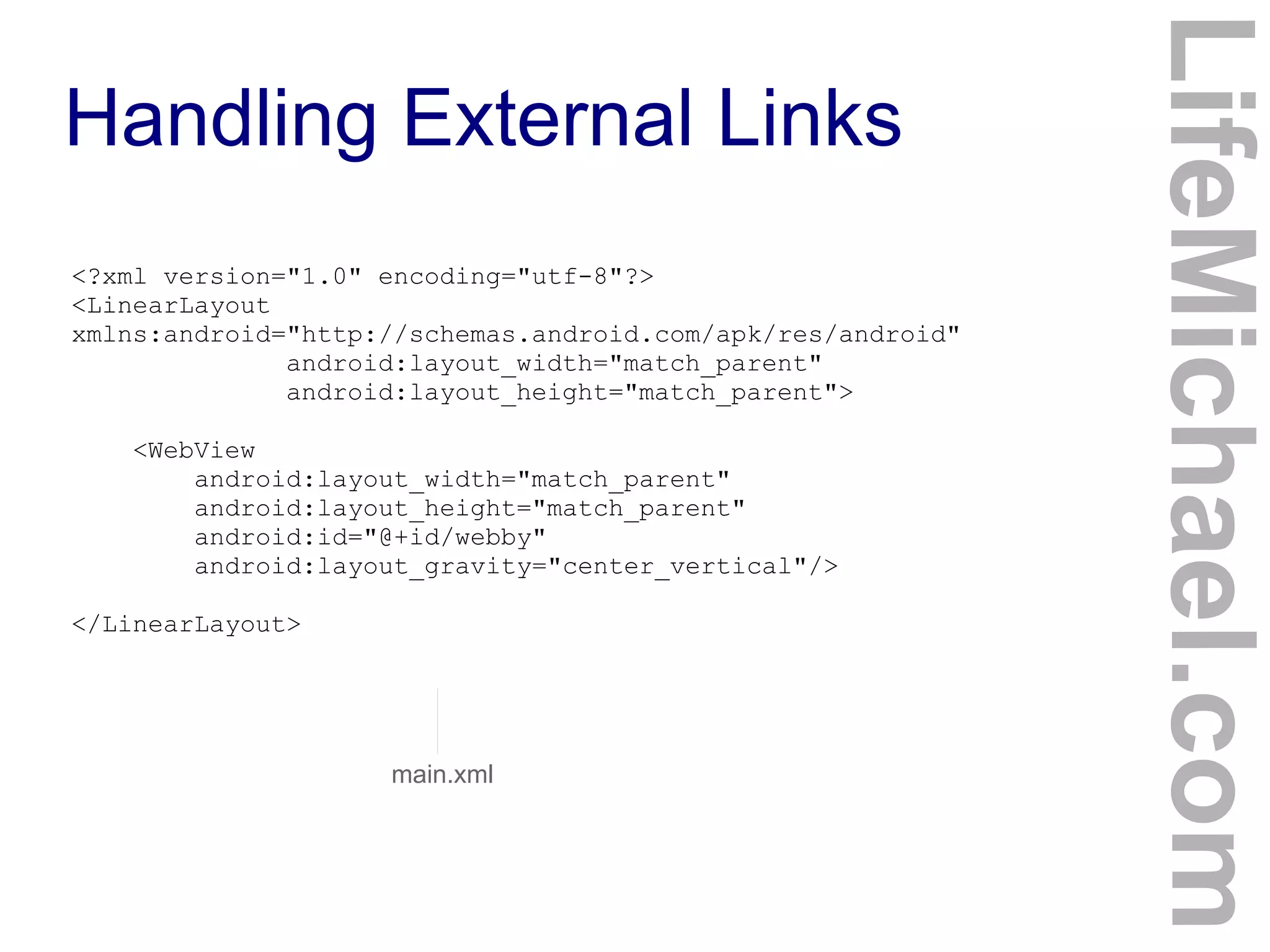

28. Handling External Links
LifeMichael.com
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent">
<WebView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/webby"
android:layout_gravity="center_vertical"/>
</LinearLayout>
main.xml

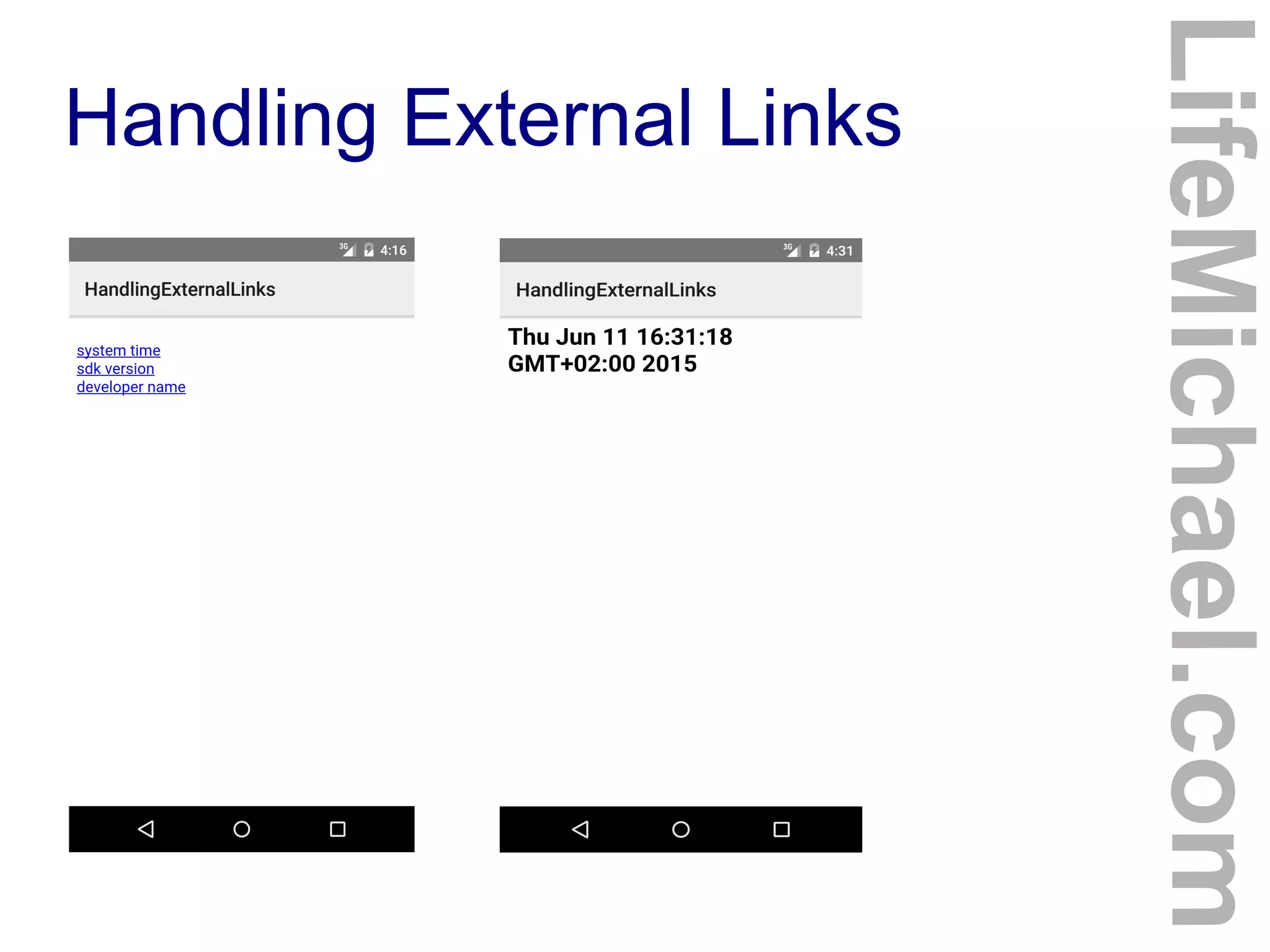

29. Handling External Links
LifeMichael.com

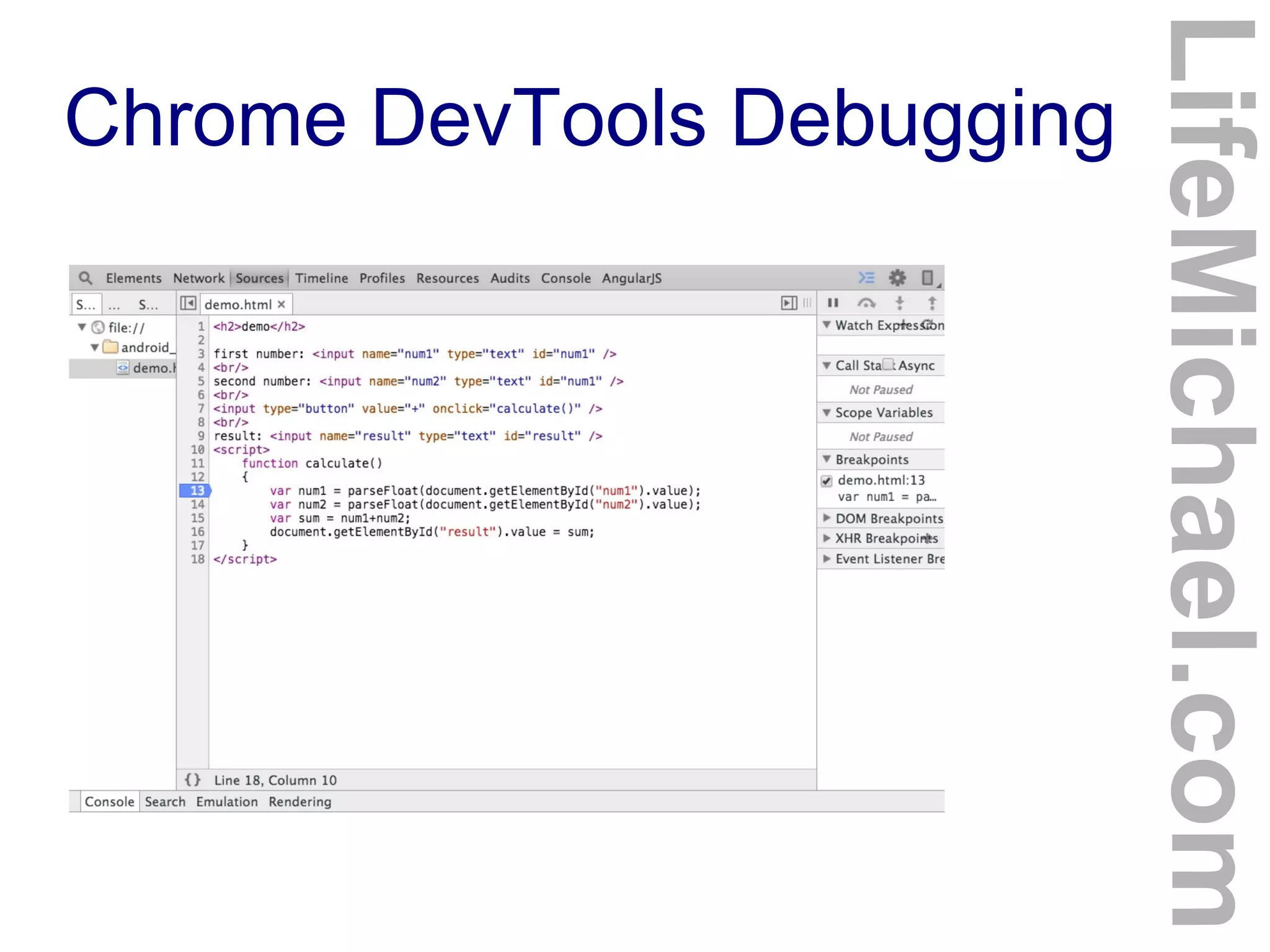

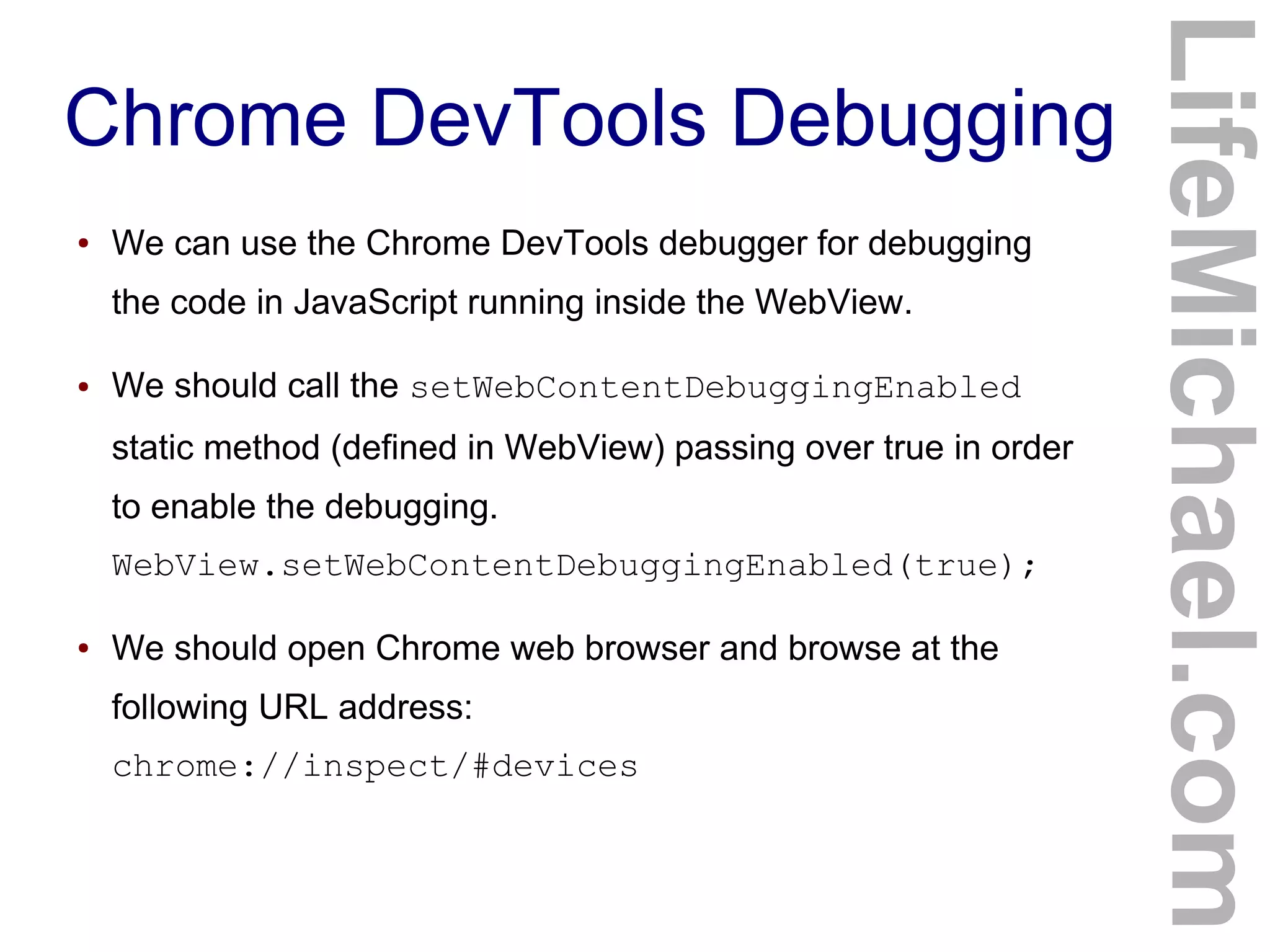

30. Chrome DevTools Debugging
LifeMichael.com
● We can use the Chrome DevTools debugger for debugging
the code in JavaScript running inside the WebView.
● We should call the setWebContentDebuggingEnabled
static method (defined in WebView) passing over true in order
to enable the debugging.
WebView.setWebContentDebuggingEnabled(true);
● We should open Chrome web browser and browse at the
following URL address:
chrome://inspect/#devices

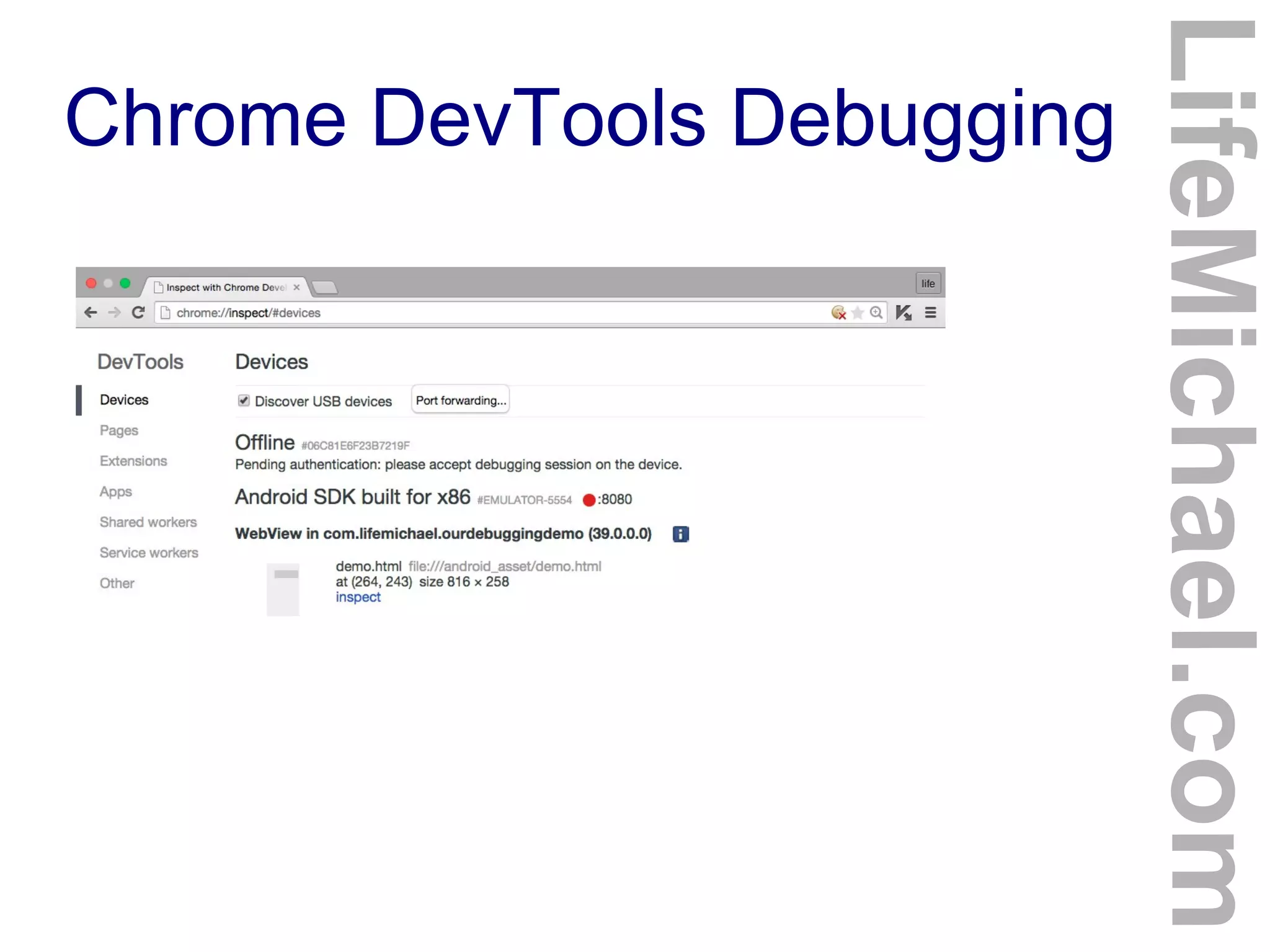

31. Chrome DevTools Debugging
LifeMichael.com

32. Chrome DevTools Debugging
LifeMichael.com

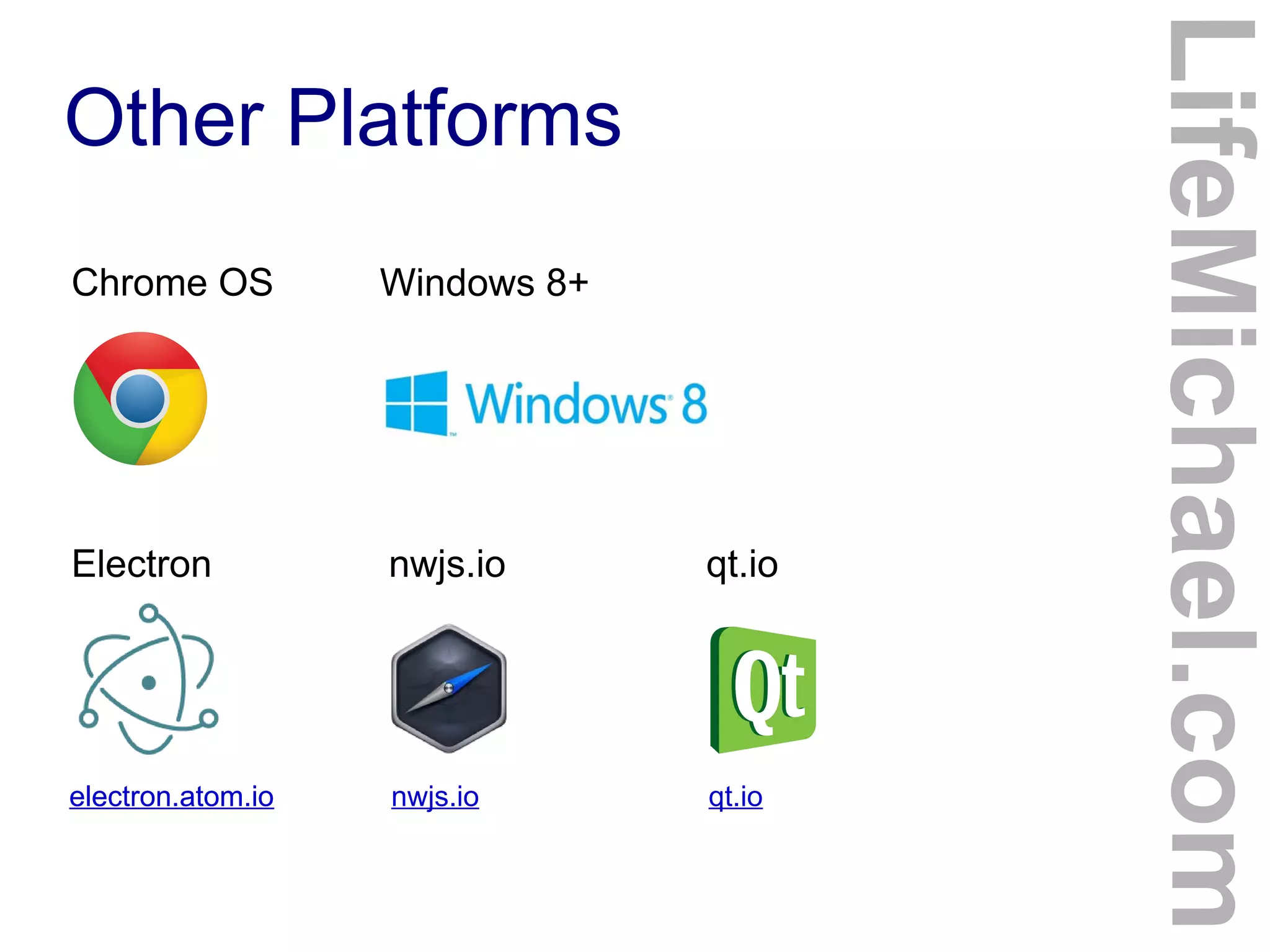

33. Other Platforms
LifeMichael.com
Chrome OS Windows 8+
Electron
electron.atom.io nwjs.ioelectron.atom.io
nwjs.io
qt.io
qt.io

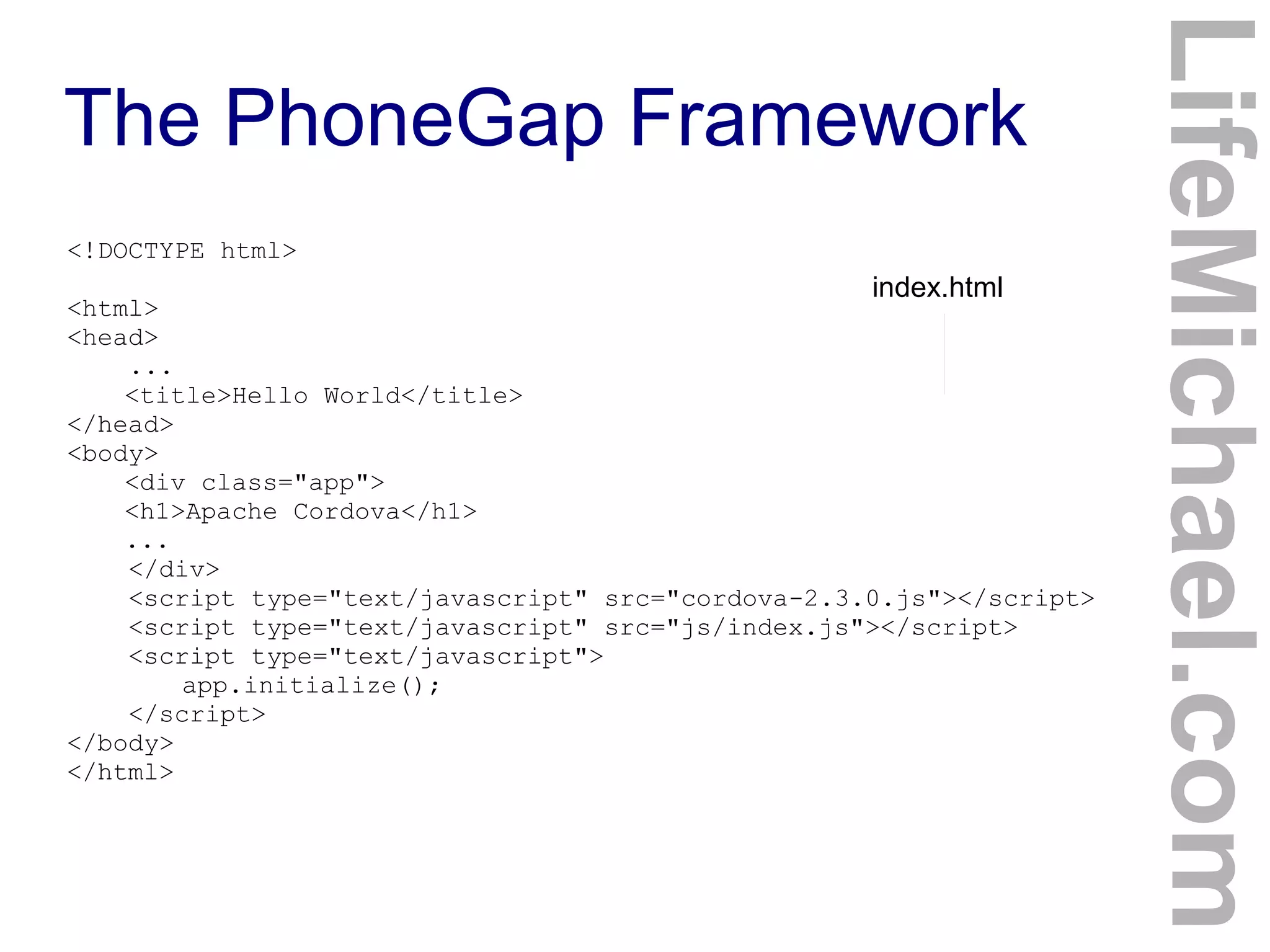

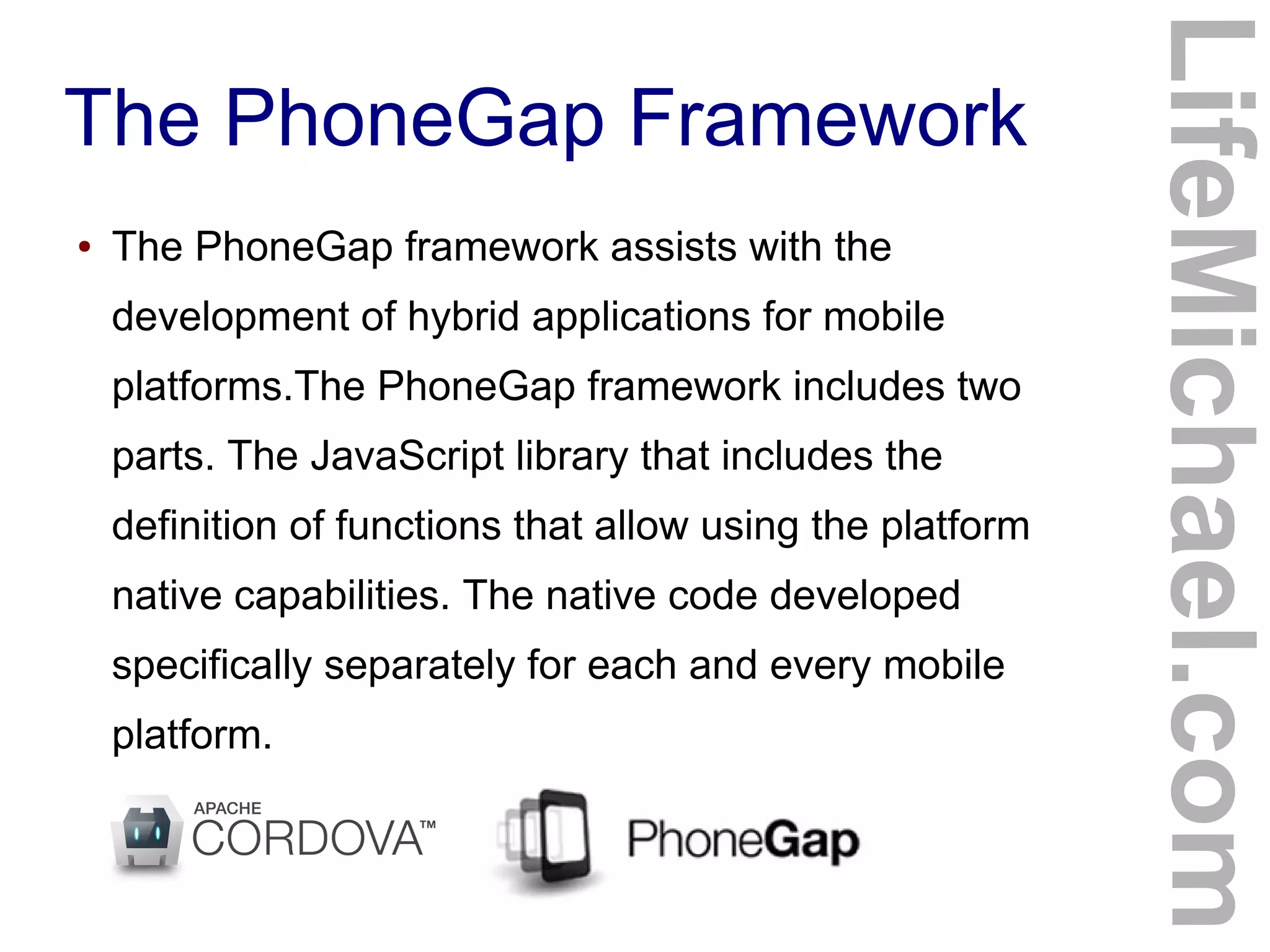

34. The PhoneGap Framework
● The PhoneGap framework assists with the
development of hybrid applications for mobile
platforms.The PhoneGap framework includes two
parts. The JavaScript library that includes the
definition of functions that allow using the platform
native capabilities. The native code developed
specifically separately for each and every mobile
platform.
LifeMichael.com

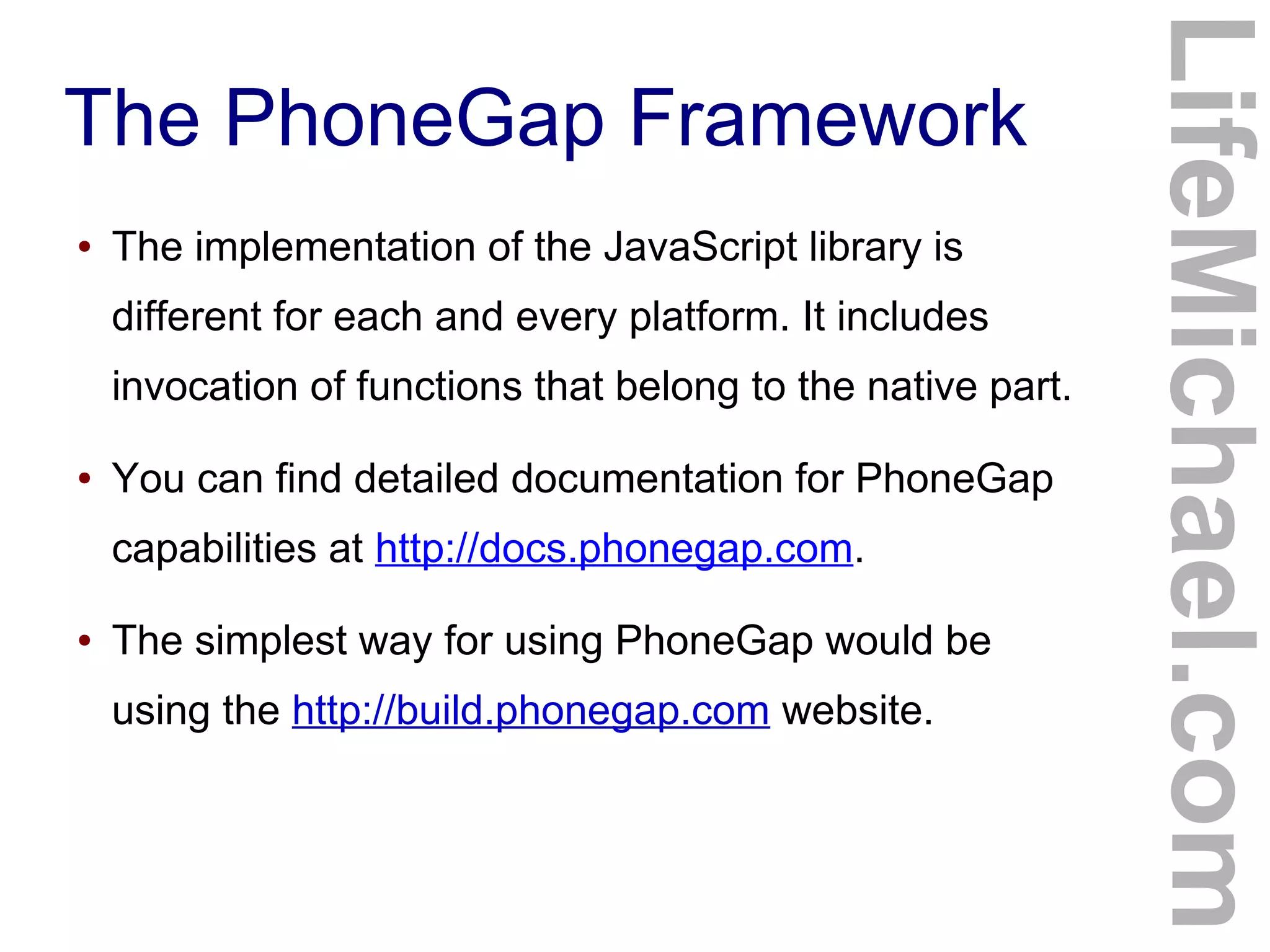

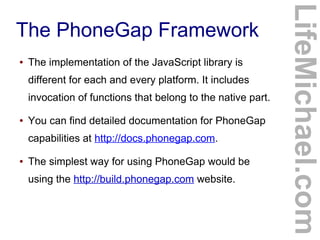

35. The PhoneGap Framework
● The implementation of the JavaScript library is
different for each and every platform. It includes
invocation of functions that belong to the native part.
● You can find detailed documentation for PhoneGap
capabilities at http://docs.phonegap.com.
● The simplest way for using PhoneGap would be
using the http://build.phonegap.com website.
LifeMichael.com

36. The PhoneGap Framework
LifeMichael.com
package org.apache.cordova.example;
import android.app.Activity;
import android.os.Bundle;
import org.apache.cordova.*;
public class cordovaExample extends DroidGap
{
@Override
public void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
super.loadUrl("file:///android_asset/www/index.html");
}
}

37. The PhoneGap Framework
LifeMichael.com
<!DOCTYPE html>
<html>
<head>
...
<title>Hello World</title>
</head>
<body>
<div class="app">
<h1>Apache Cordova</h1>
...
</div>
<script type="text/javascript" src="cordova-2.3.0.js"></script>
<script type="text/javascript" src="js/index.js"></script>
<script type="text/javascript">
app.initialize();
</script>
</body>
</html>
index.html

38. Simpler Solutions
www.wiziapp.com

39. Simpler Solutions
www.mobiloud.com

40. Simpler Solutions
www.mobiloud.com

41. Simpler Solutions
www.reactorapps.io

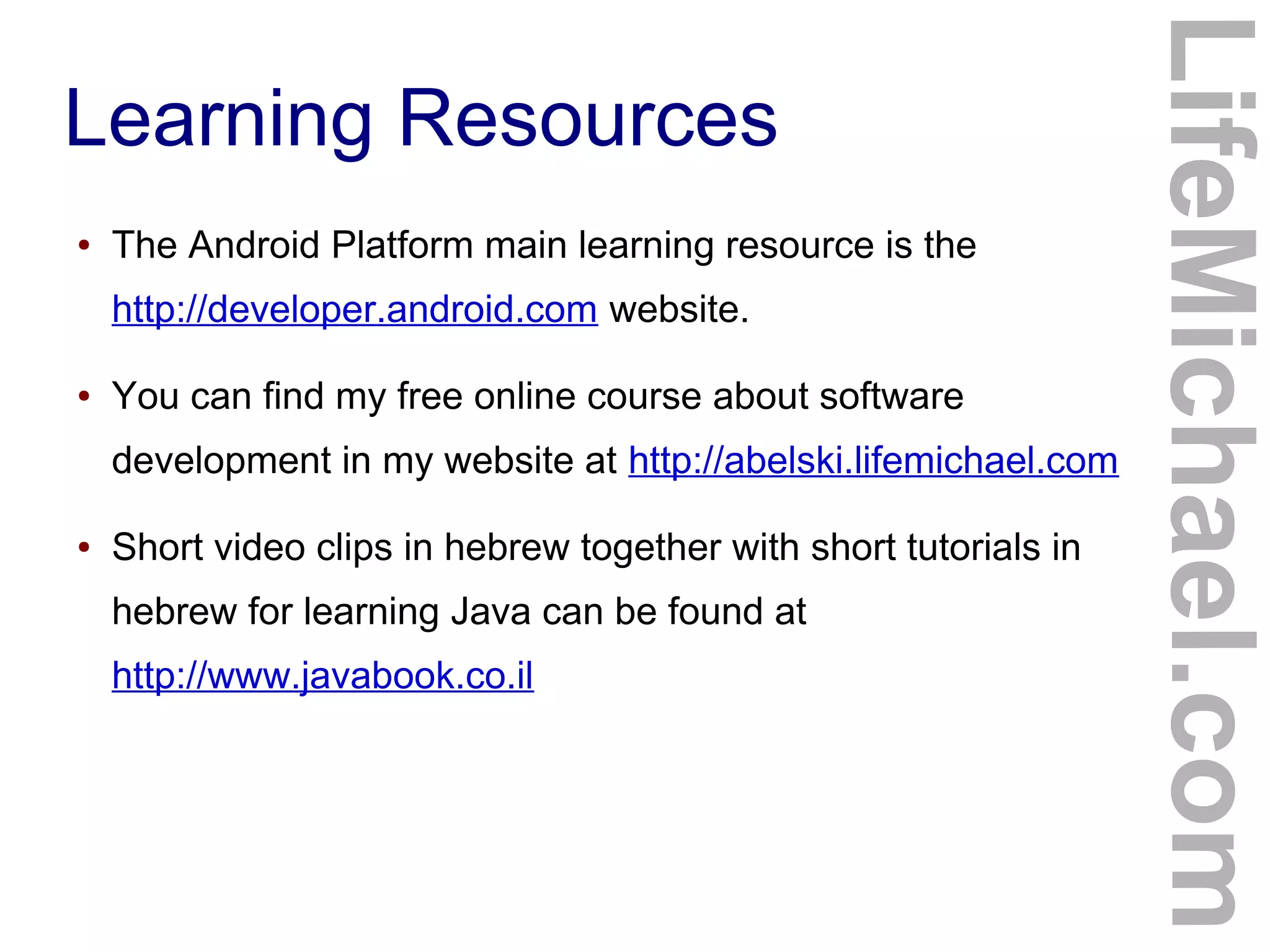

42. Learning Resources
● The Android Platform main learning resource is the
http://developer.android.com website.
● You can find my free online course about software
development in my website at http://abelski.lifemichael.com
● Short video clips in hebrew together with short tutorials in
hebrew for learning Java can be found at
http://www.javabook.co.il
LifeMichael.com

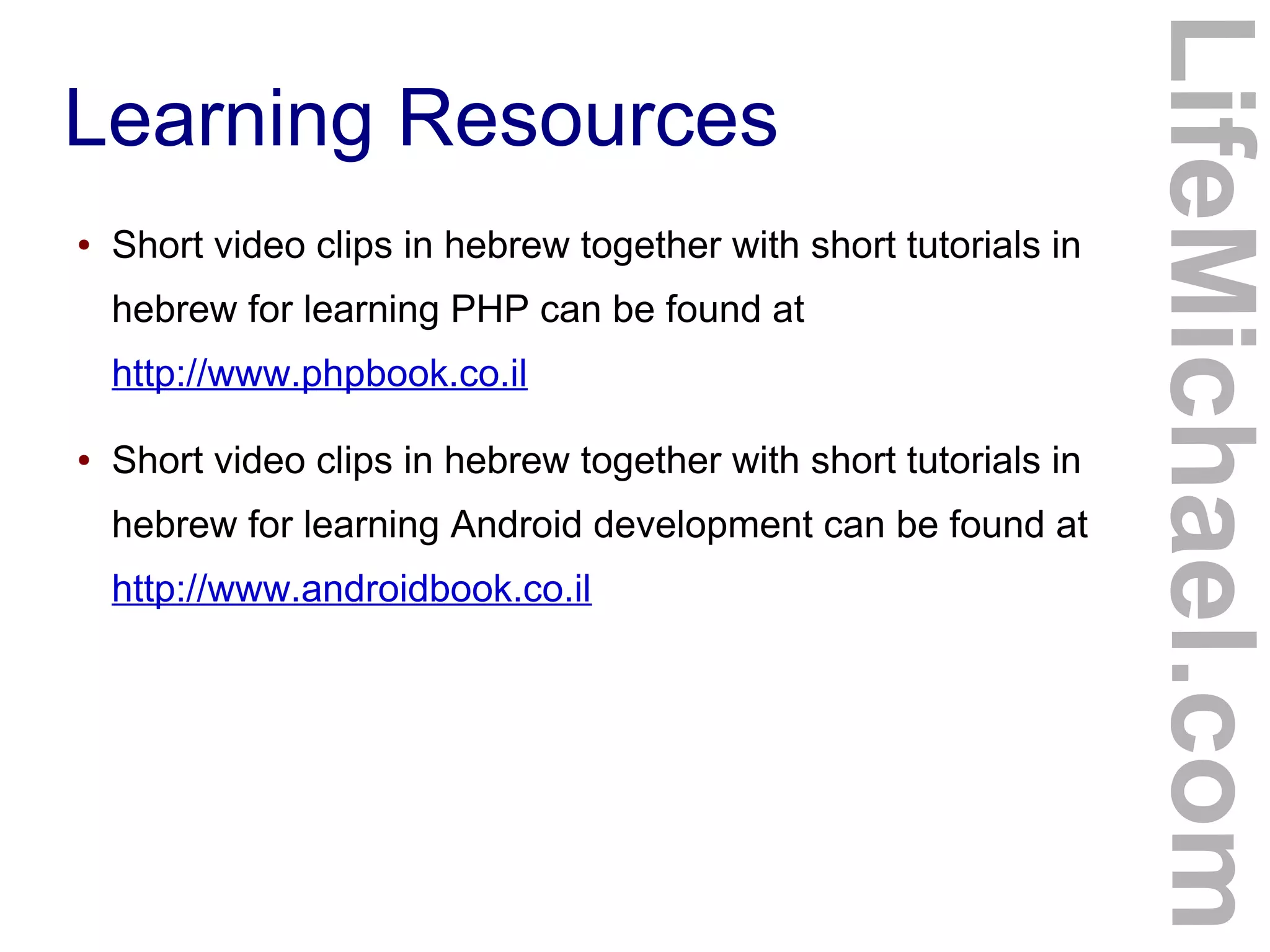

43. Learning Resources
● Short video clips in hebrew together with short tutorials in
hebrew for learning PHP can be found at
http://www.phpbook.co.il
● Short video clips in hebrew together with short tutorials in
hebrew for learning Android development can be found at
http://www.androidbook.co.il
LifeMichael.com

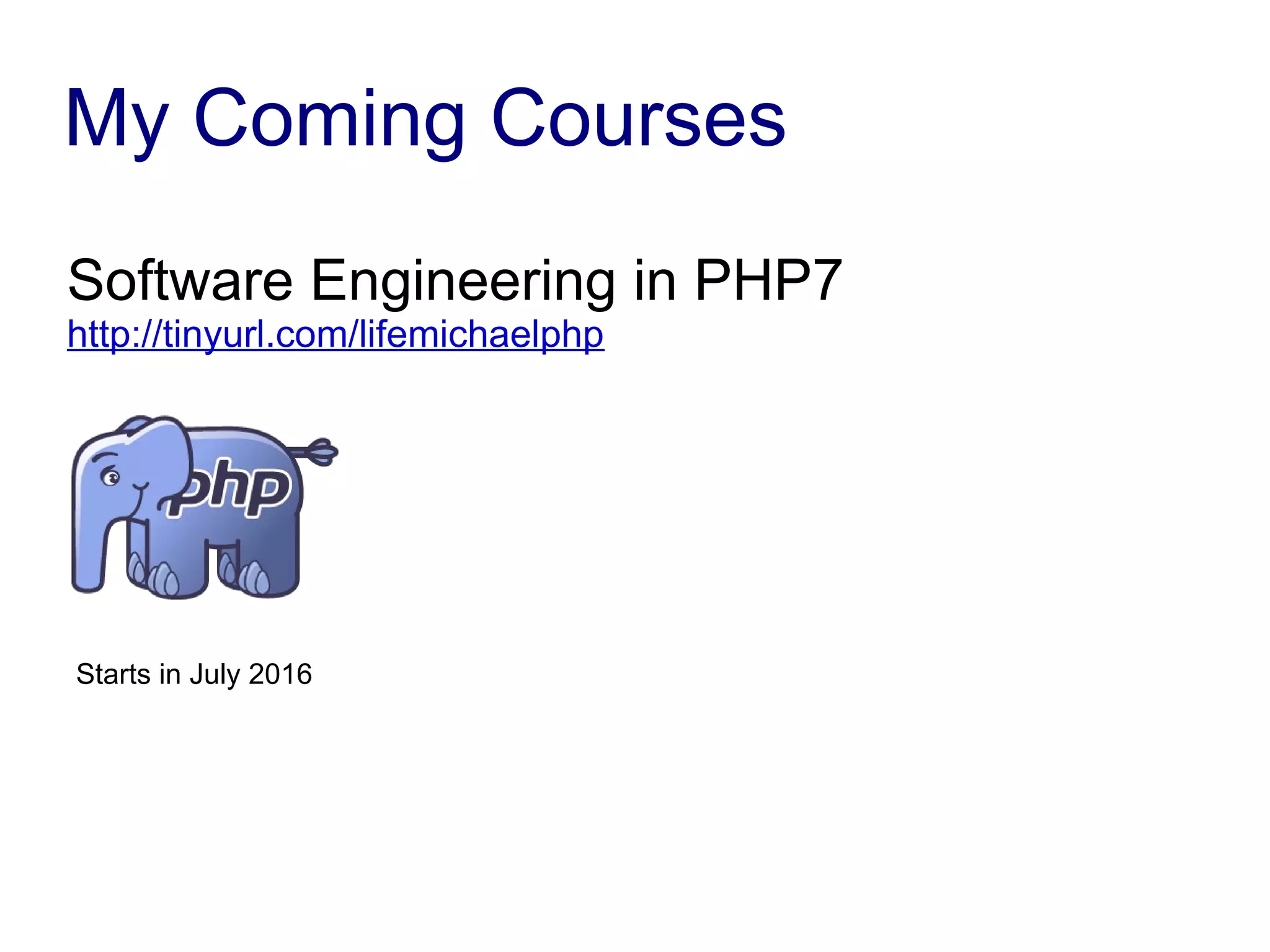

44. My Coming Courses
Software Engineering in PHP7
http://tinyurl.com/lifemichaelphp
Starts in July 2016

45. My Coming Courses
HTML5 Cross Platform Mobile Applications
http://tinyurl.com/lifemichaelhtml5
Starts in July 2016

46. My Coming Courses
Applications Development for Android 7
http://tinyurl.com/lifemichaelandroid
Starts in September 2016

47. My Coming Courses
140 Academic Hours. 28 Weekly Meetings. Delivered
in Holon Institute of Technology. On Going Project.
Multiple Tiny Projects. All Meetings are Available on
Video. Attractive Price of 6700 Shekels.
tinyurl.com/lifemichaelhitcourses

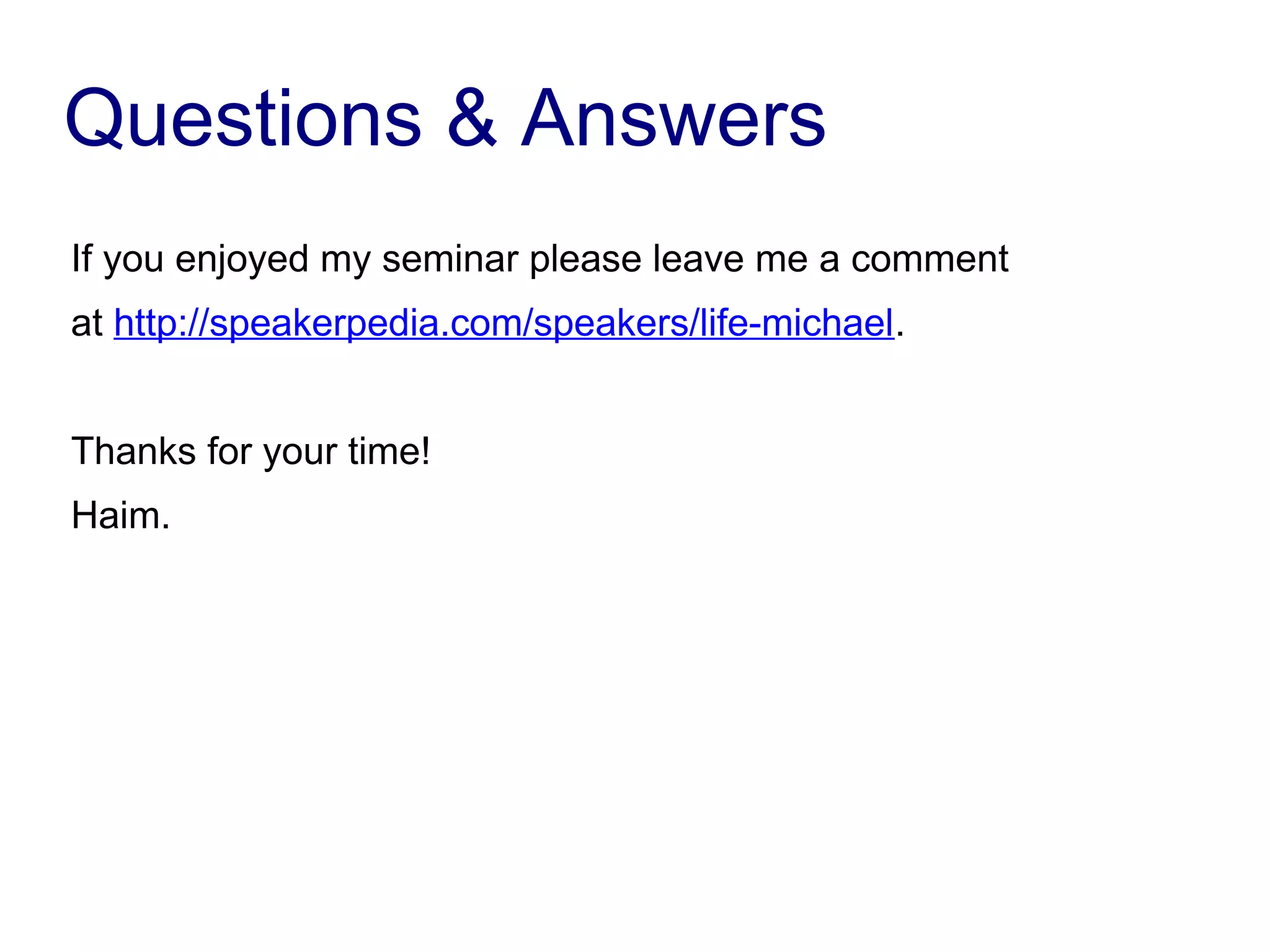

48. Questions & Answers
If you enjoyed my seminar please leave me a comment
at http://speakerpedia.com/speakers/life-michael.
Thanks for your time!
Haim.
