This installation guide provides instructions for installing venetian blinds in 3 steps: 1. Mark and drill holes for the brackets on the wall or ceiling and secure the brackets. 2. Insert the rail into the brackets and close the rotating arms to secure. 3. Insert the rod through the top of the blind and rotate to set the angle of the slats.

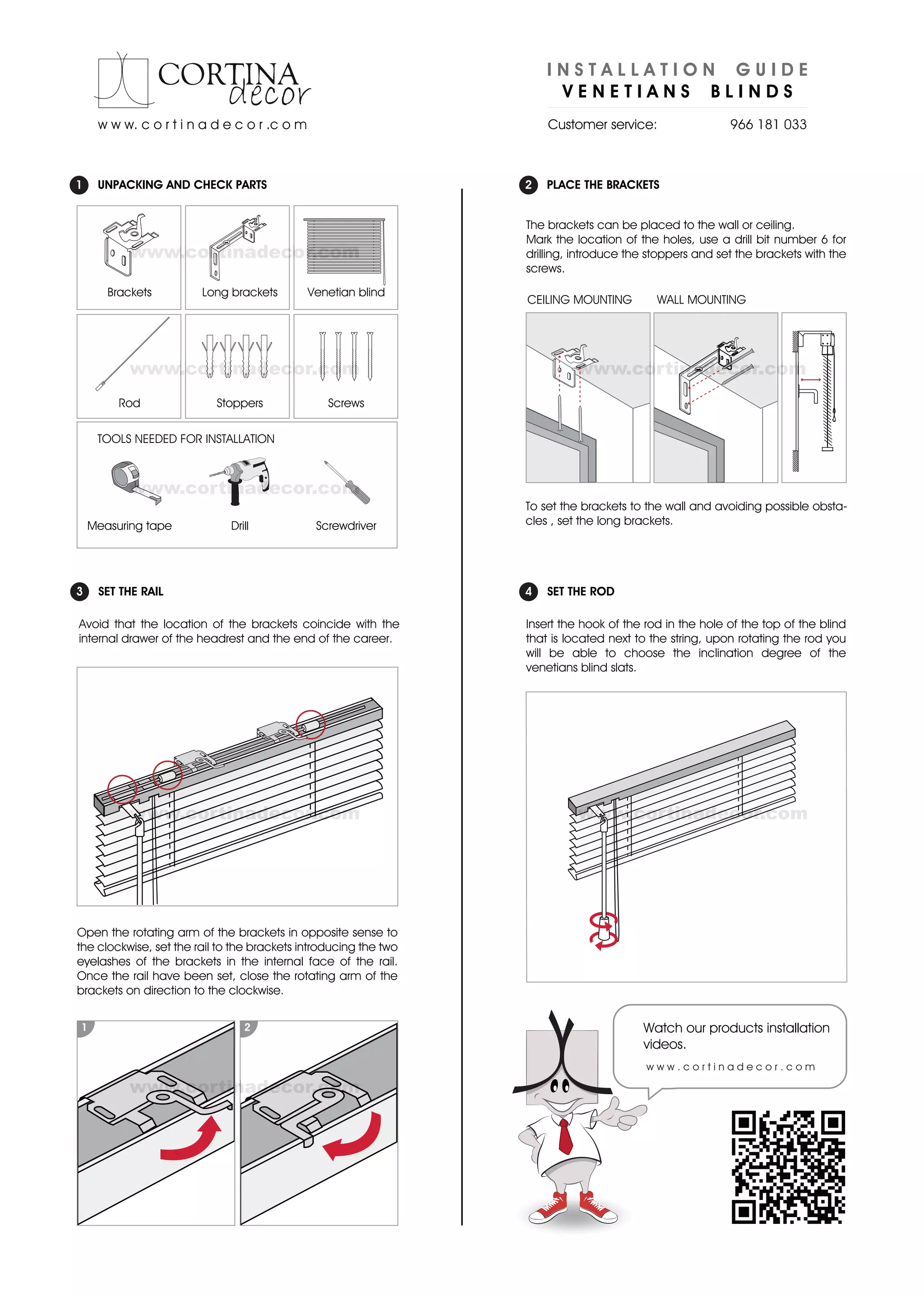

1. INSTALLATION GUIDE
VENETIANS BLINDS
w w w. c o r t i n a d e c o r .c o m Customer service: 966 181 033
1 UNPACKING AND CHECK PARTS 2 PLACE THE BRACKETS
The brackets can be placed to the wall or ceiling.
Mark the location of the holes, use a drill bit number 6 for
www.cortinadecor.com drilling, introduce the stoppers and set the brackets with the
screws.
Brackets Long brackets Venetian blind
CEILING MOUNTING WALL MOUNTING
www.cortinadecor.com www.cortinadecor.com
Rod Stoppers Screws
TOOLS NEEDED FOR INSTALLATION
www.cortinadecor.com
To set the brackets to the wall and avoiding possible obsta-
Measuring tape Drill Screwdriver cles , set the long brackets.
3 SET THE RAIL 4 SET THE ROD
Avoid that the location of the brackets coincide with the Insert the hook of the rod in the hole of the top of the blind
internal drawer of the headrest and the end of the career. that is located next to the string, upon rotating the rod you
will be able to choose the inclination degree of the
venetians blind slats.
www.cortinadecor.com www.cortinadecor.com
Open the rotating arm of the brackets in opposite sense to
the clockwise, set the rail to the brackets introducing the two
eyelashes of the brackets in the internal face of the rail.
Once the rail have been set, close the rotating arm of the
brackets on direction to the clockwise.
1 2 Watch our products installation
videos.
