This document provides installation instructions for a residential handrail and fencing line in 5 steps: 1) Align and set posts with various mounting options, 2) Attach brackets to posts, 3) Position rails into brackets and tighten screws, 4) Insert pickets which cannot be removed once properly installed, 5) Insert pickets into the top rail and tighten screws.

1. NELSONFENCING.COM
WERE INNOVATION BEGINS
Residential Handrail and Fencing Line

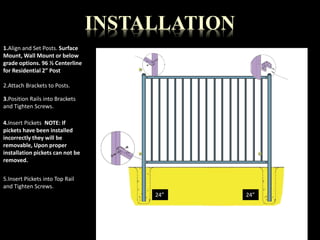

2. 1.Align and Set Posts. Surface
Mount, Wall Mount or below
grade options. 96 ½ Centerline
for Residential 2” Post
2.Attach Brackets to Posts.
3.Position Rails into Brackets
and Tighten Screws.
4.Insert Pickets NOTE: If
pickets have been installed
incorrectly they will be
removable, Upon proper
installation pickets can not be
removed.
5.Insert Pickets into Top Rail
and Tighten Screws.
INSTALLATION
24”
24”
