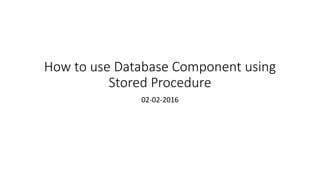

1. How to use Database Component using
Stored Procedure
02-02-2016

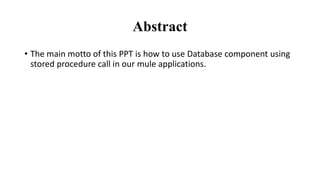

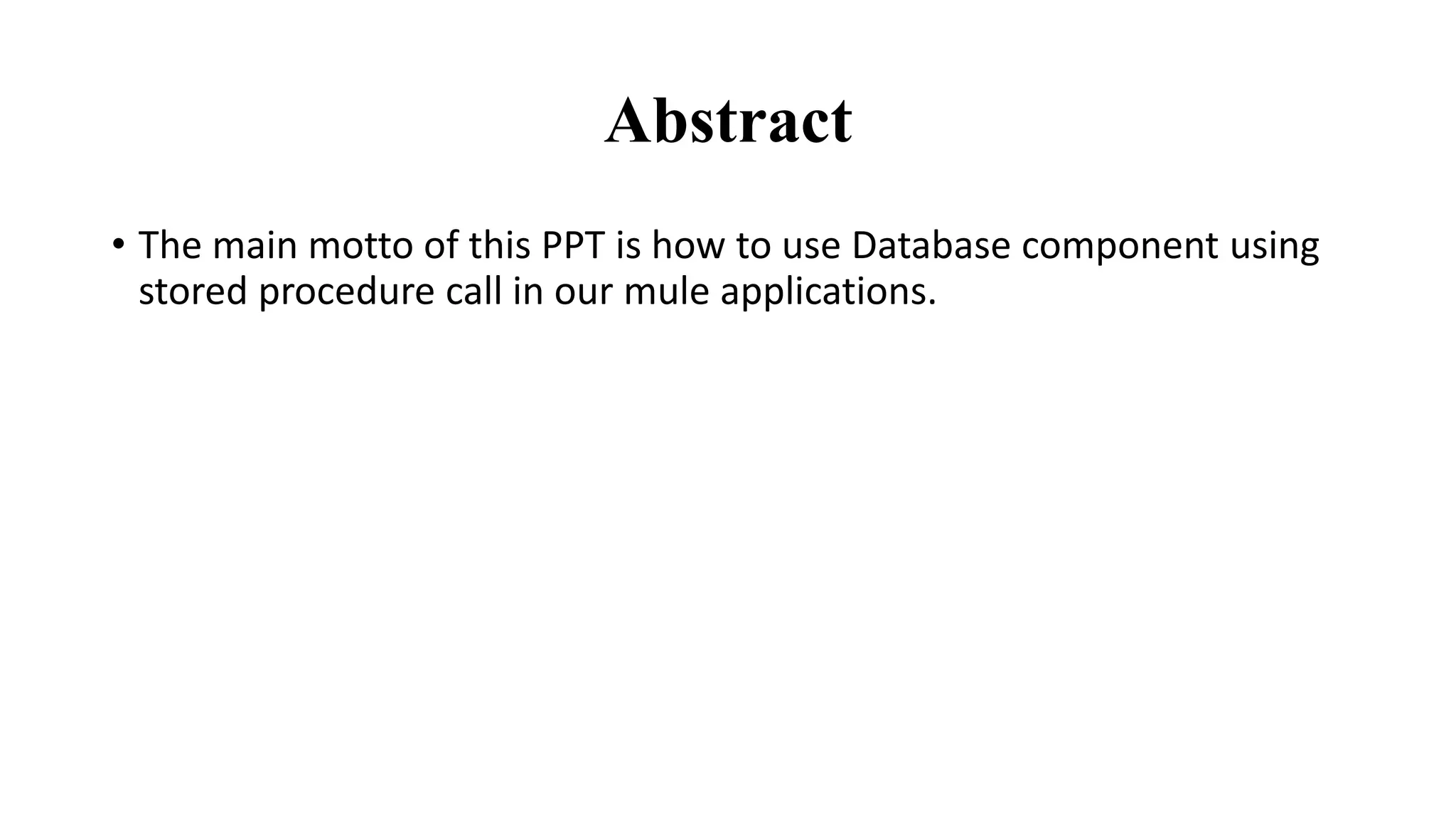

2. Abstract
• The main motto of this PPT is how to use Database component using
stored procedure call in our mule applications.

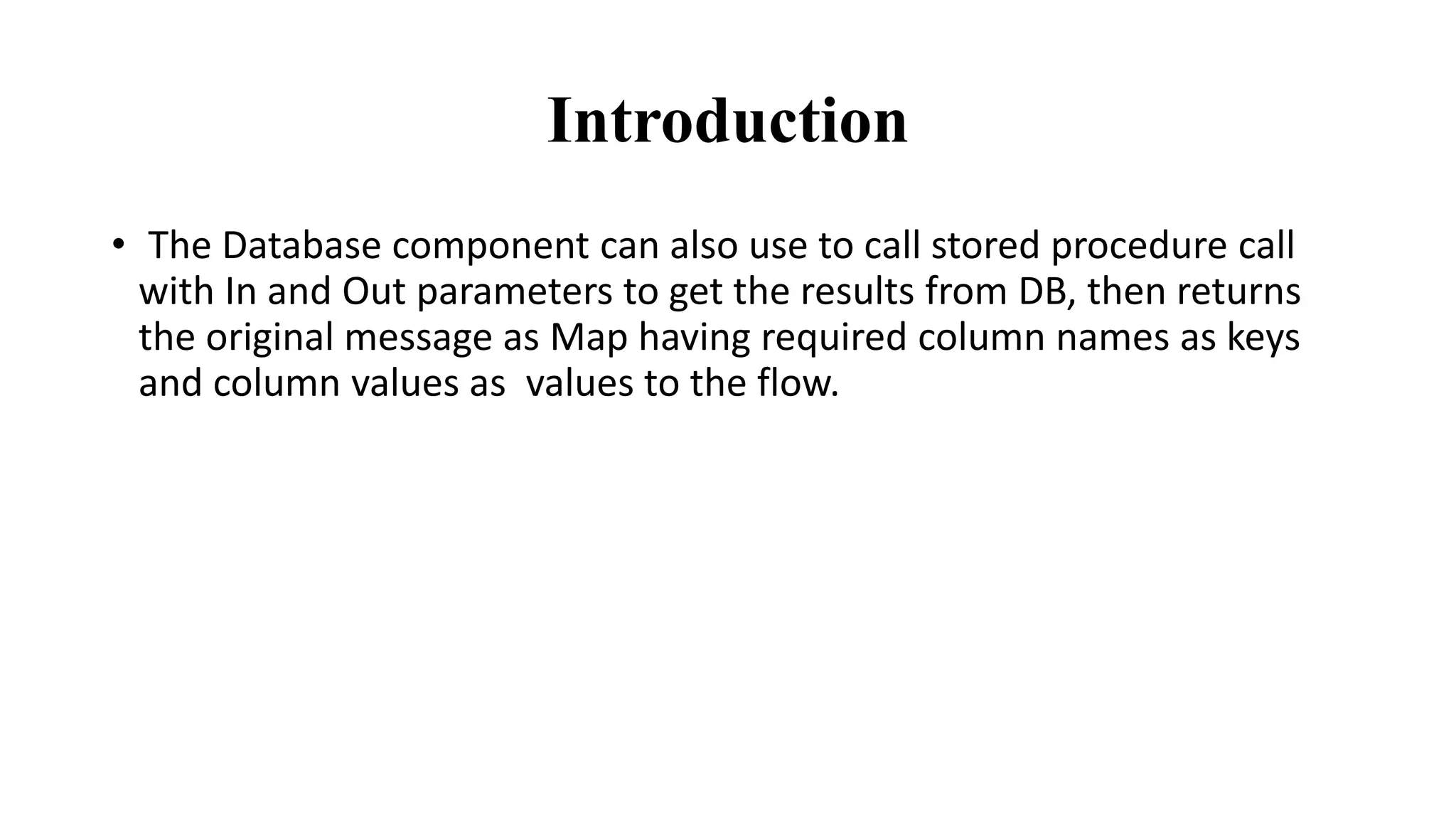

3. Introduction
• The Database component can also use to call stored procedure call
with In and Out parameters to get the results from DB, then returns
the original message as Map having required column names as keys
and column values as values to the flow.

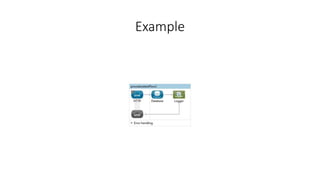

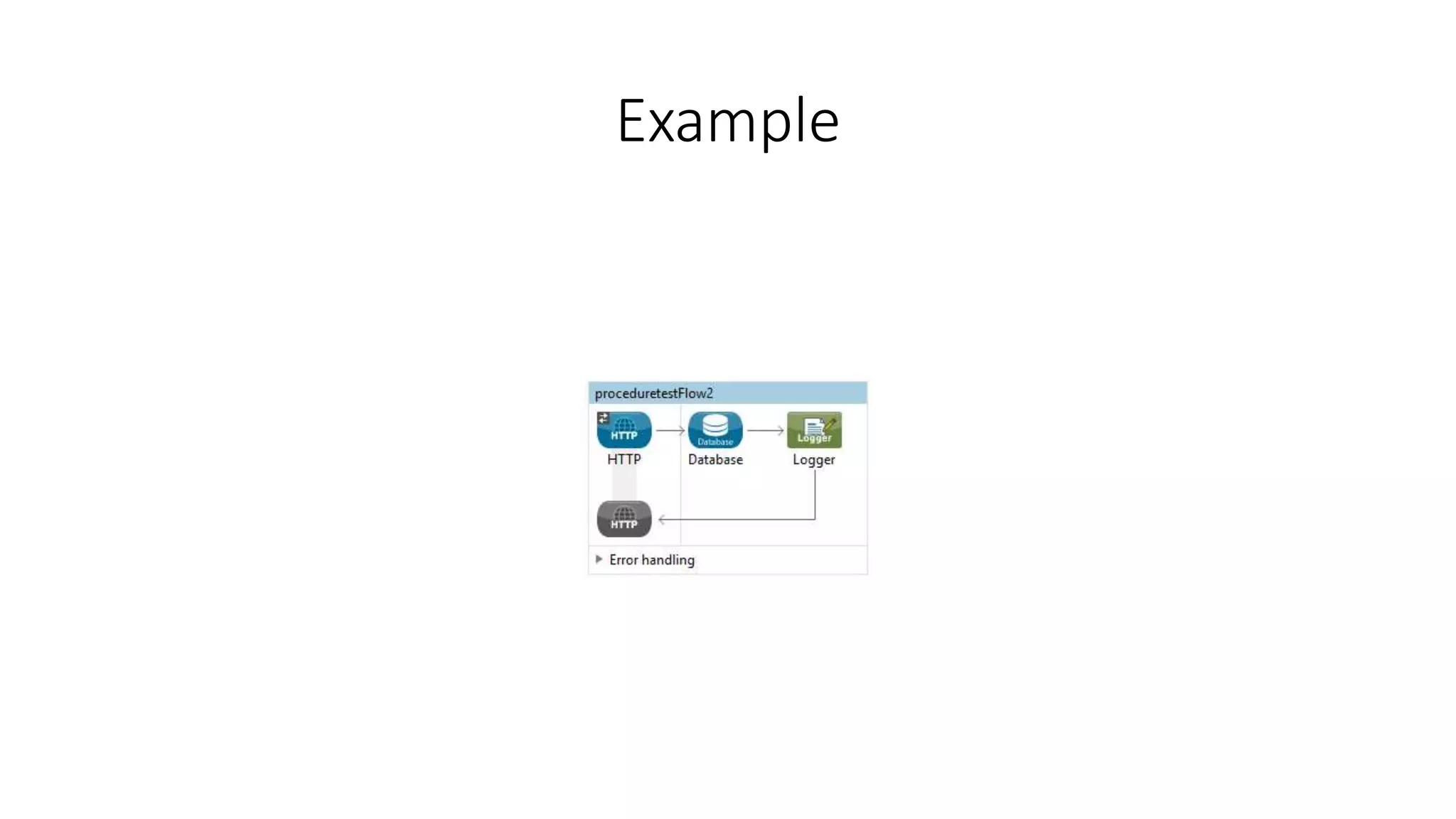

4. Example

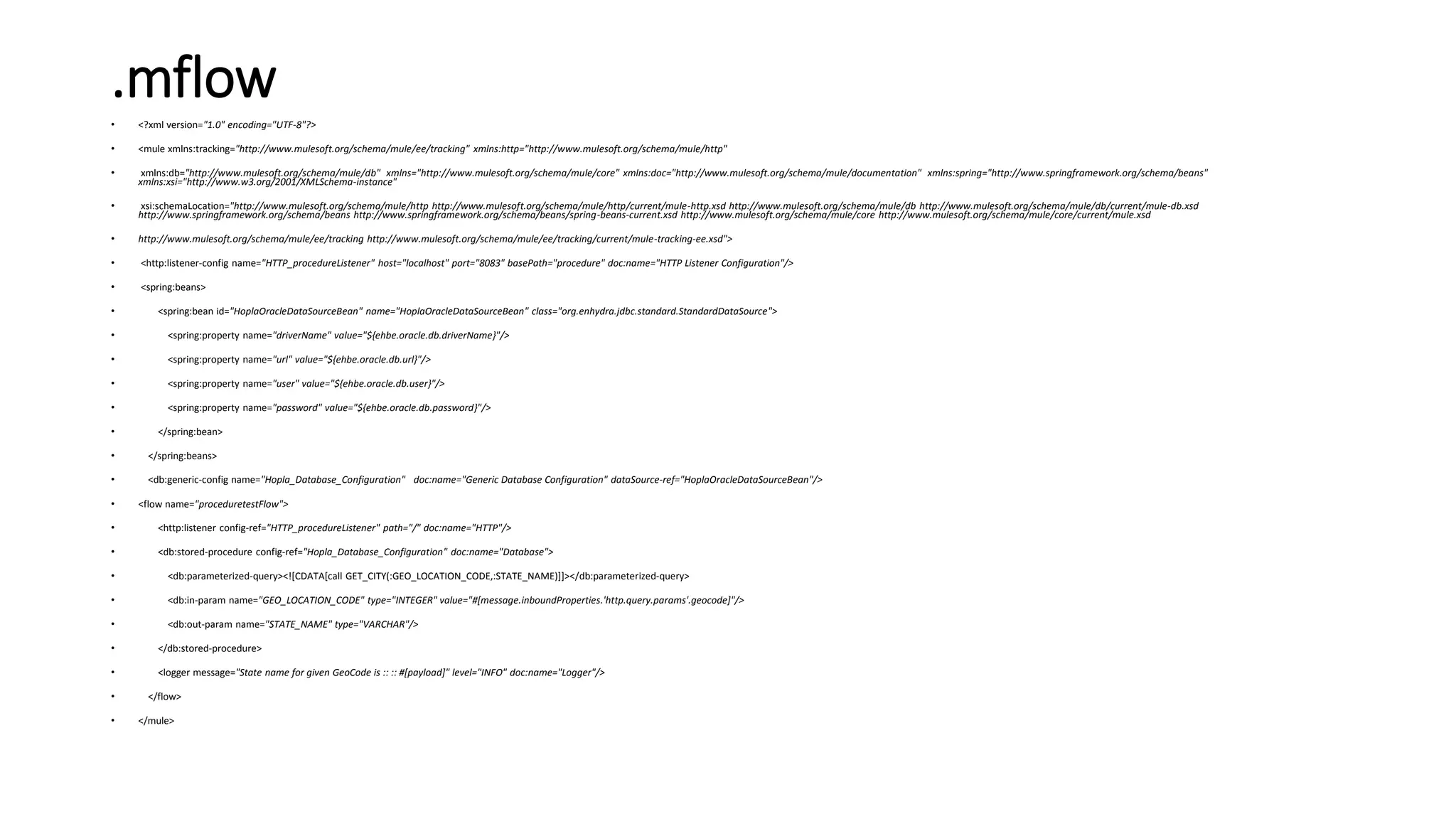

5. .mflow
• <?xml version="1.0" encoding="UTF-8"?>
• <mule xmlns:tracking="http://www.mulesoft.org/schema/mule/ee/tracking" xmlns:http="http://www.mulesoft.org/schema/mule/http"
• xmlns:db="http://www.mulesoft.org/schema/mule/db" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:spring="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
• xsi:schemaLocation="http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd http://www.mulesoft.org/schema/mule/db http://www.mulesoft.org/schema/mule/db/current/mule-db.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
• http://www.mulesoft.org/schema/mule/ee/tracking http://www.mulesoft.org/schema/mule/ee/tracking/current/mule-tracking-ee.xsd">
• <http:listener-config name="HTTP_procedureListener" host="localhost" port="8083" basePath="procedure" doc:name="HTTP Listener Configuration"/>
• <spring:beans>
• <spring:bean id="HoplaOracleDataSourceBean" name="HoplaOracleDataSourceBean" class="org.enhydra.jdbc.standard.StandardDataSource">
• <spring:property name="driverName" value="${ehbe.oracle.db.driverName}"/>
• <spring:property name="url" value="${ehbe.oracle.db.url}"/>
• <spring:property name="user" value="${ehbe.oracle.db.user}"/>
• <spring:property name="password" value="${ehbe.oracle.db.password}"/>
• </spring:bean>
• </spring:beans>
• <db:generic-config name="Hopla_Database_Configuration" doc:name="Generic Database Configuration" dataSource-ref="HoplaOracleDataSourceBean"/>
• <flow name="proceduretestFlow">
• <http:listener config-ref="HTTP_procedureListener" path="/" doc:name="HTTP"/>
• <db:stored-procedure config-ref="Hopla_Database_Configuration" doc:name="Database">
• <db:parameterized-query><![CDATA[call GET_CITY(:GEO_LOCATION_CODE,:STATE_NAME)]]></db:parameterized-query>
• <db:in-param name="GEO_LOCATION_CODE" type="INTEGER" value="#[message.inboundProperties.'http.query.params'.geocode]"/>
• <db:out-param name="STATE_NAME" type="VARCHAR"/>
• </db:stored-procedure>
• <logger message="State name for given GeoCode is :: :: #[payload]" level="INFO" doc:name="Logger"/>
• </flow>
• </mule>

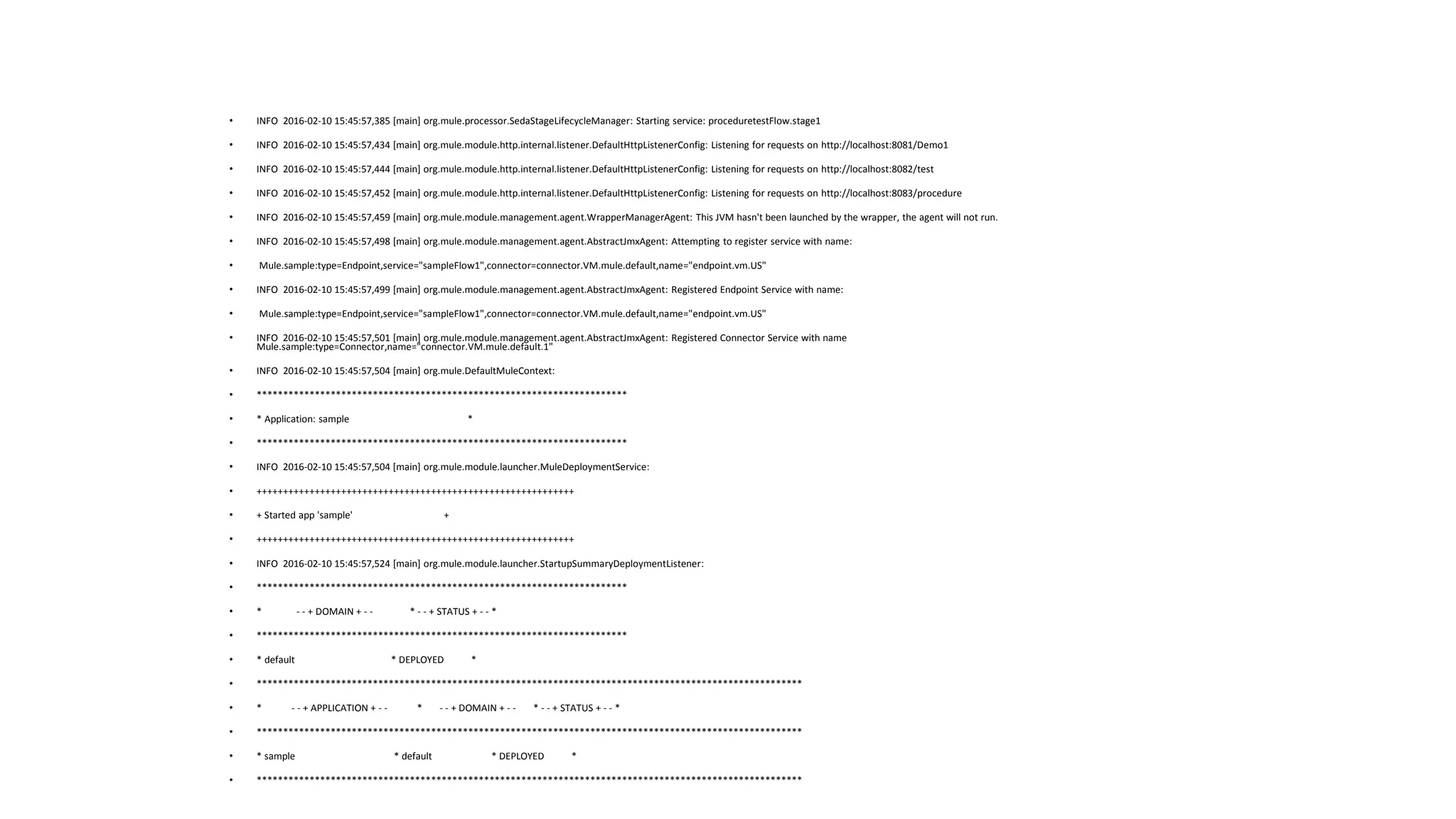

6. • INFO 2016-02-10 15:45:57,385 [main] org.mule.processor.SedaStageLifecycleManager: Starting service: proceduretestFlow.stage1
• INFO 2016-02-10 15:45:57,434 [main] org.mule.module.http.internal.listener.DefaultHttpListenerConfig: Listening for requests on http://localhost:8081/Demo1
• INFO 2016-02-10 15:45:57,444 [main] org.mule.module.http.internal.listener.DefaultHttpListenerConfig: Listening for requests on http://localhost:8082/test
• INFO 2016-02-10 15:45:57,452 [main] org.mule.module.http.internal.listener.DefaultHttpListenerConfig: Listening for requests on http://localhost:8083/procedure
• INFO 2016-02-10 15:45:57,459 [main] org.mule.module.management.agent.WrapperManagerAgent: This JVM hasn't been launched by the wrapper, the agent will not run.
• INFO 2016-02-10 15:45:57,498 [main] org.mule.module.management.agent.AbstractJmxAgent: Attempting to register service with name:
• Mule.sample:type=Endpoint,service="sampleFlow1",connector=connector.VM.mule.default,name="endpoint.vm.US"
• INFO 2016-02-10 15:45:57,499 [main] org.mule.module.management.agent.AbstractJmxAgent: Registered Endpoint Service with name:
• Mule.sample:type=Endpoint,service="sampleFlow1",connector=connector.VM.mule.default,name="endpoint.vm.US"
• INFO 2016-02-10 15:45:57,501 [main] org.mule.module.management.agent.AbstractJmxAgent: Registered Connector Service with name
Mule.sample:type=Connector,name="connector.VM.mule.default.1"
• INFO 2016-02-10 15:45:57,504 [main] org.mule.DefaultMuleContext:
• **********************************************************************
• * Application: sample *
• **********************************************************************
• INFO 2016-02-10 15:45:57,504 [main] org.mule.module.launcher.MuleDeploymentService:
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• + Started app 'sample' +
• ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• INFO 2016-02-10 15:45:57,524 [main] org.mule.module.launcher.StartupSummaryDeploymentListener:
• **********************************************************************
• * - - + DOMAIN + - - * - - + STATUS + - - *
• **********************************************************************
• * default * DEPLOYED *
• *******************************************************************************************************
• * - - + APPLICATION + - - * - - + DOMAIN + - - * - - + STATUS + - - *
• *******************************************************************************************************
• * sample * default * DEPLOYED *
• *******************************************************************************************************

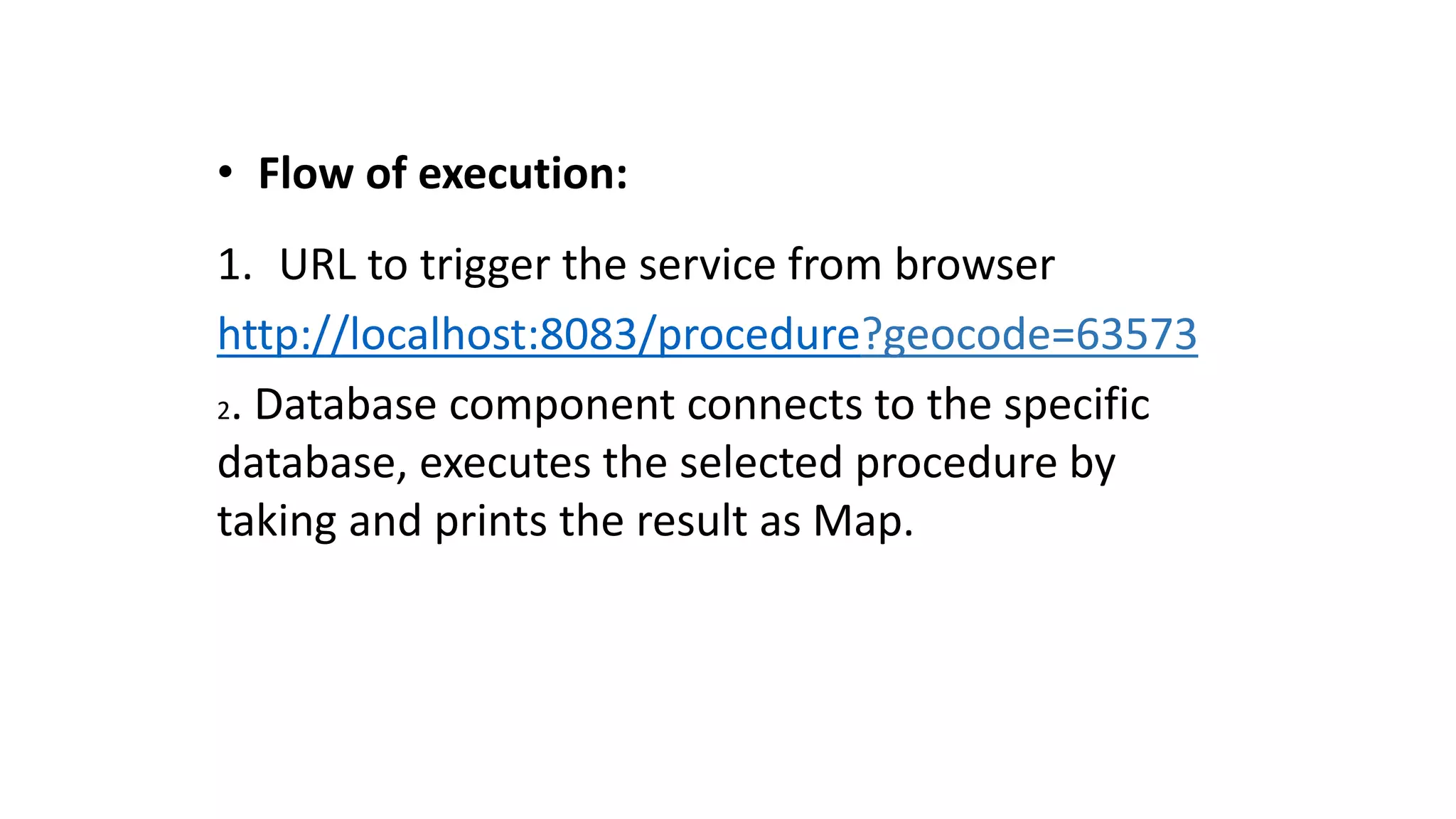

7. • Flow of execution:
1. URL to trigger the service from browser
http://localhost:8083/procedure?geocode=63573
2. Database component connects to the specific
database, executes the selected procedure by
taking and prints the result as Map.

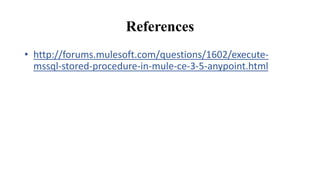

8. References
