How to TDD your MVP
Testing Android (mobile) apps
Michał Bujalski
Android Developer at TSH

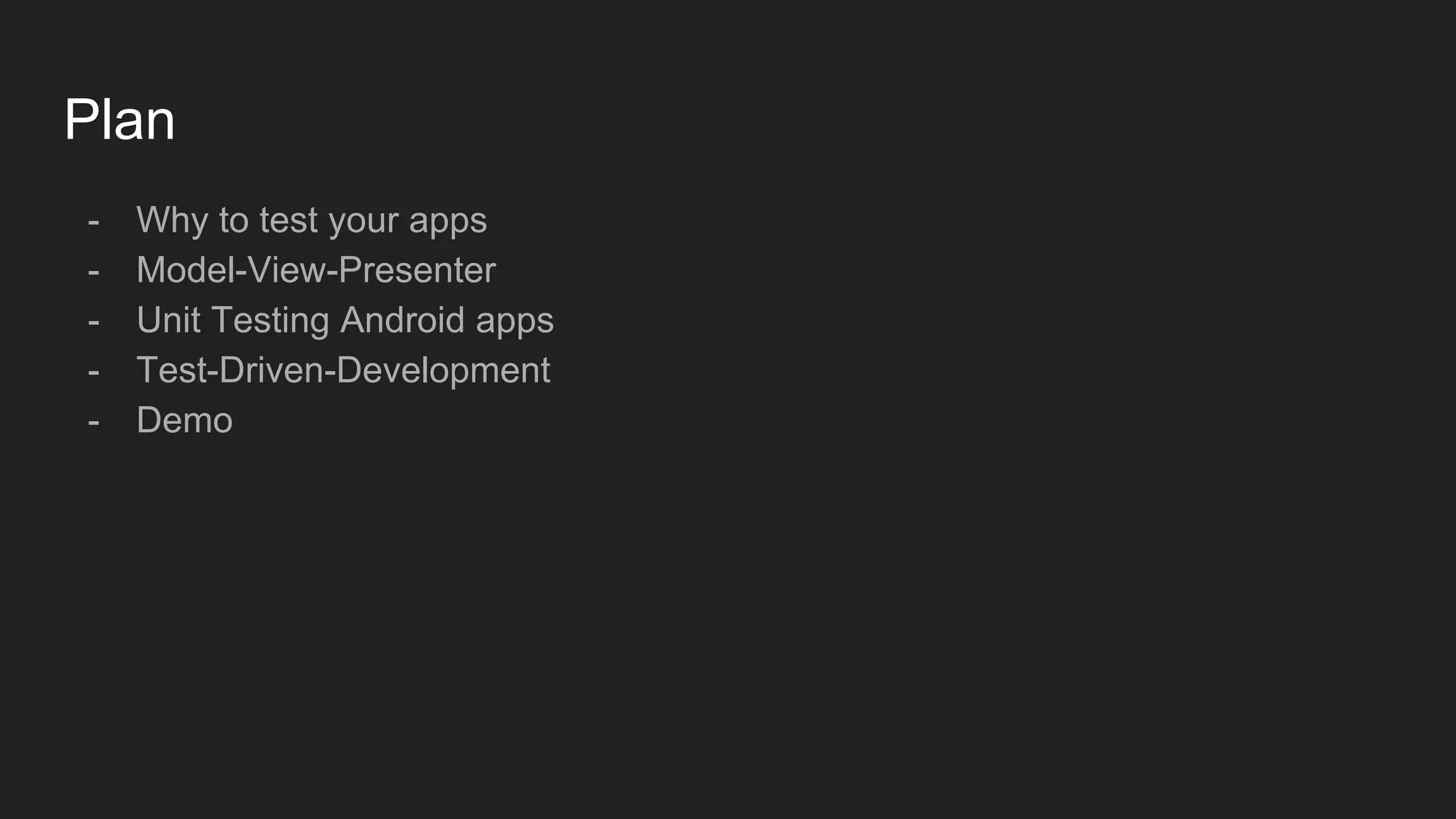

Plan
- Why to test your apps
- Model-View-Presenter
- Unit Testing Android apps
- Test-Driven-Development
- Demo

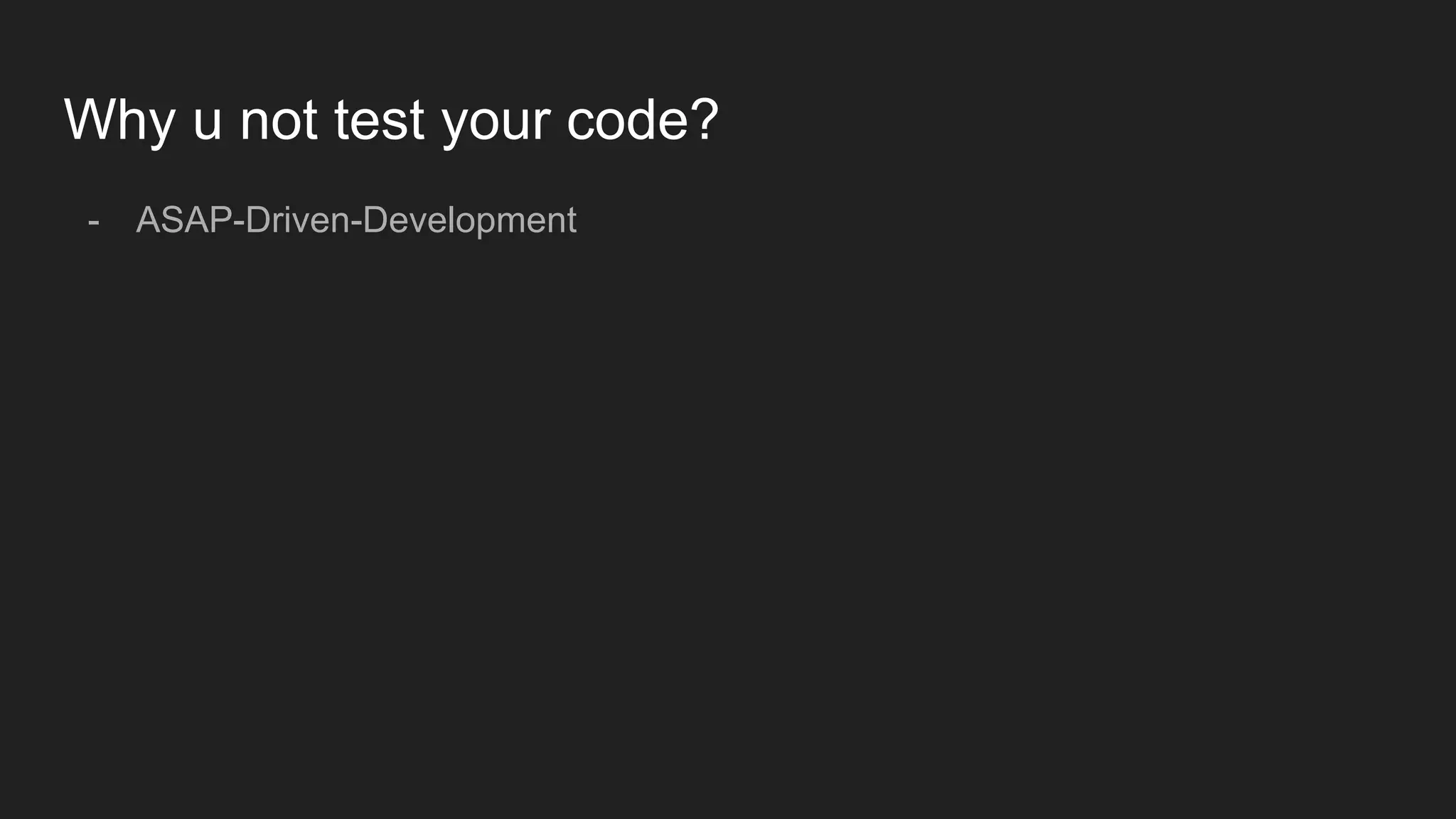

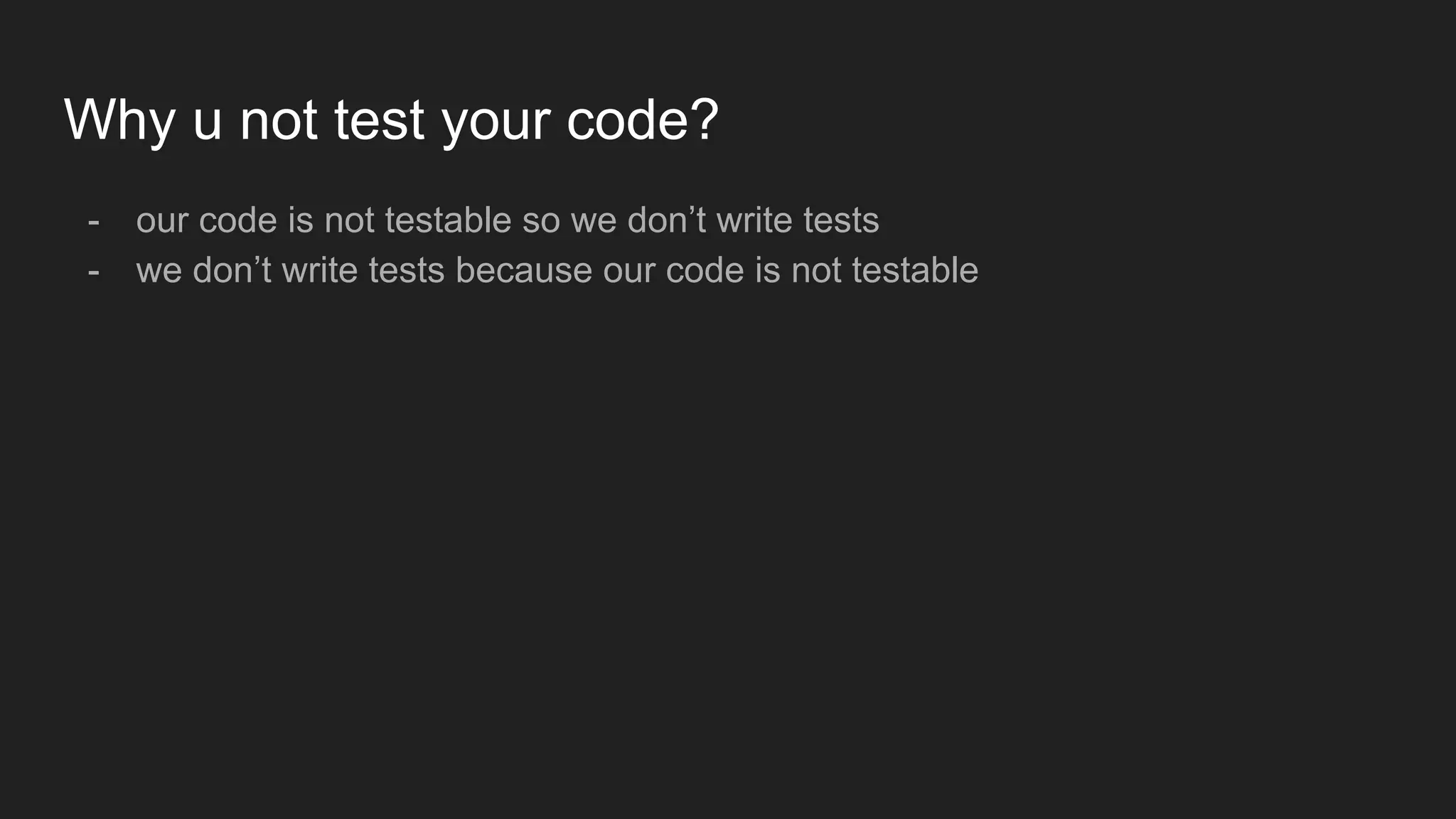

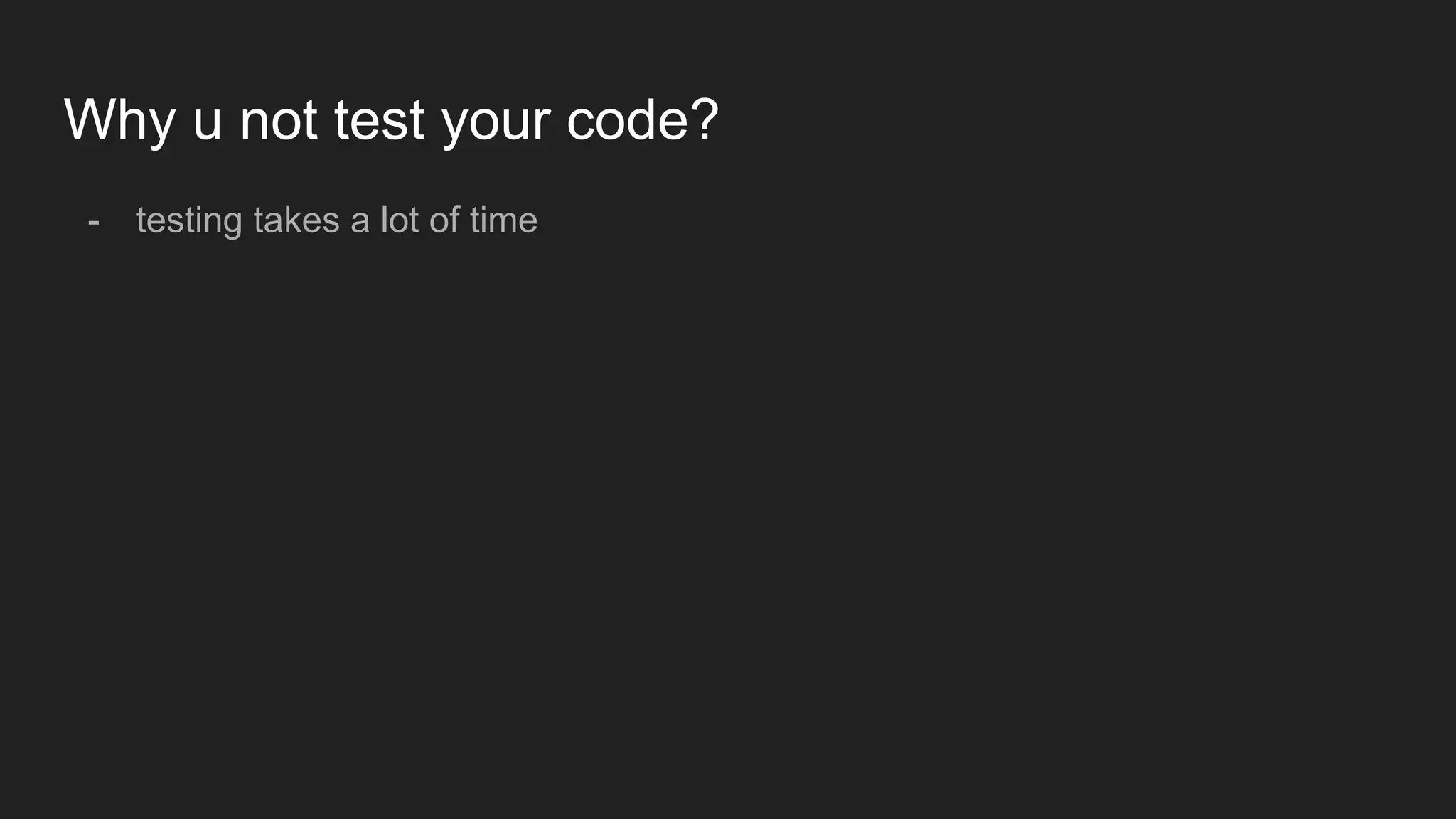

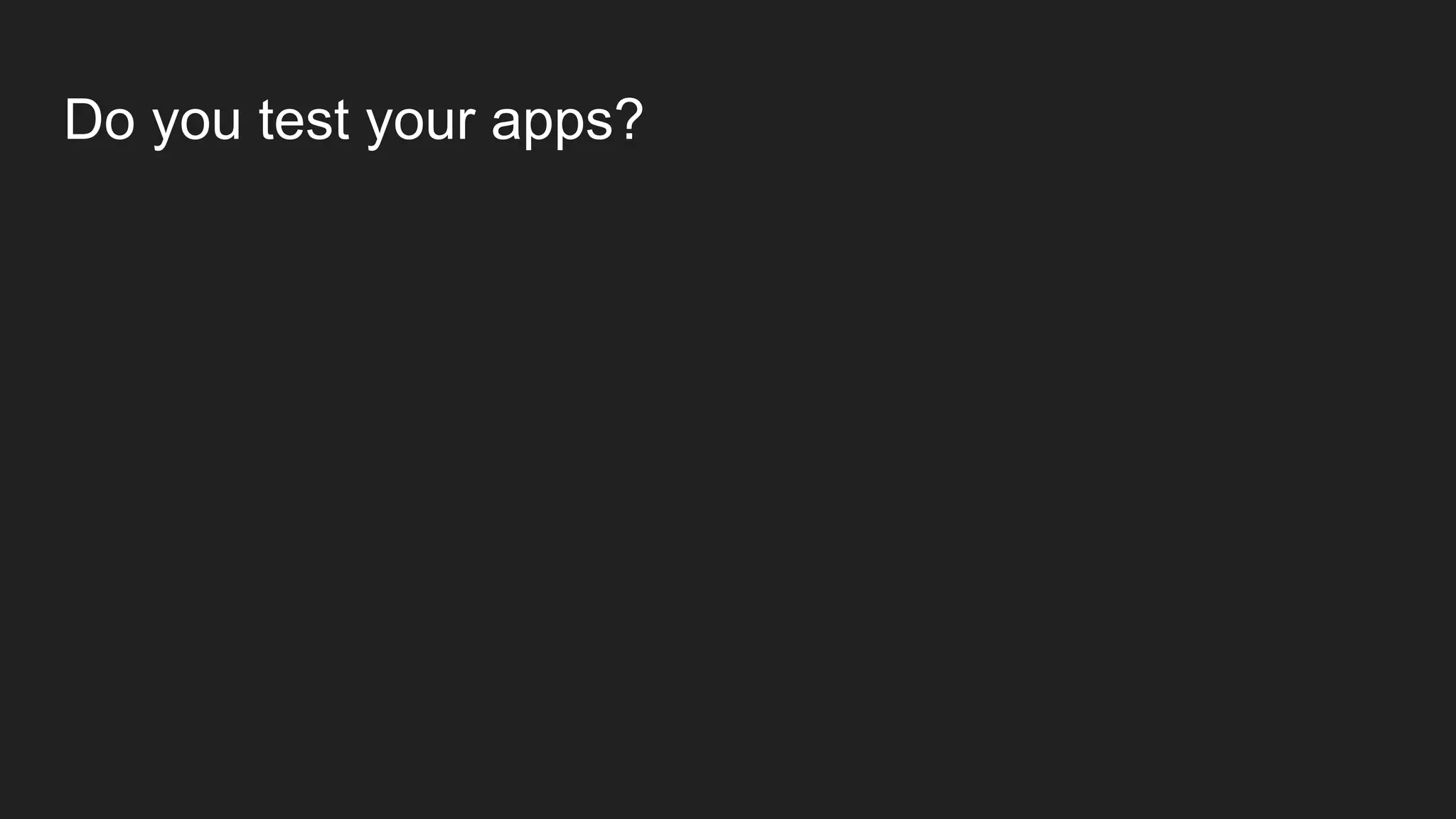

Why u not test your code?
- testing takes a lot of time

- ASAP-Driven-Development

- our code is not testable so we don’t write tests
- we don’t write tests because our code is not testable

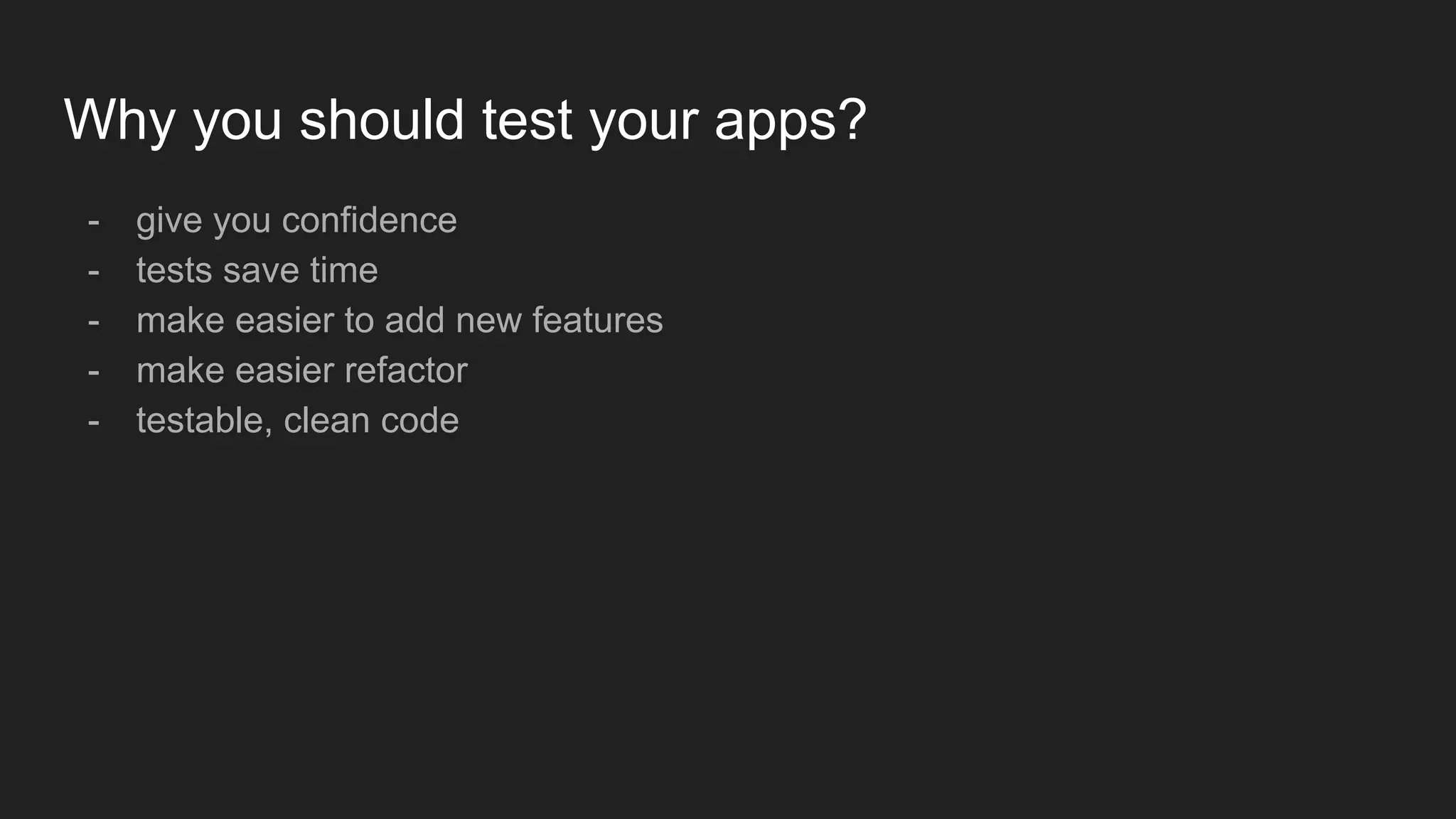

Why you should test your apps?
- give you confidence
- tests save time
- make easier to add new features
- make easier refactor
- testable, clean code

Testing mobile apps - problems
- big blocks of code
- deeply coupled with OS components
- MVC - View layer blends into Controller

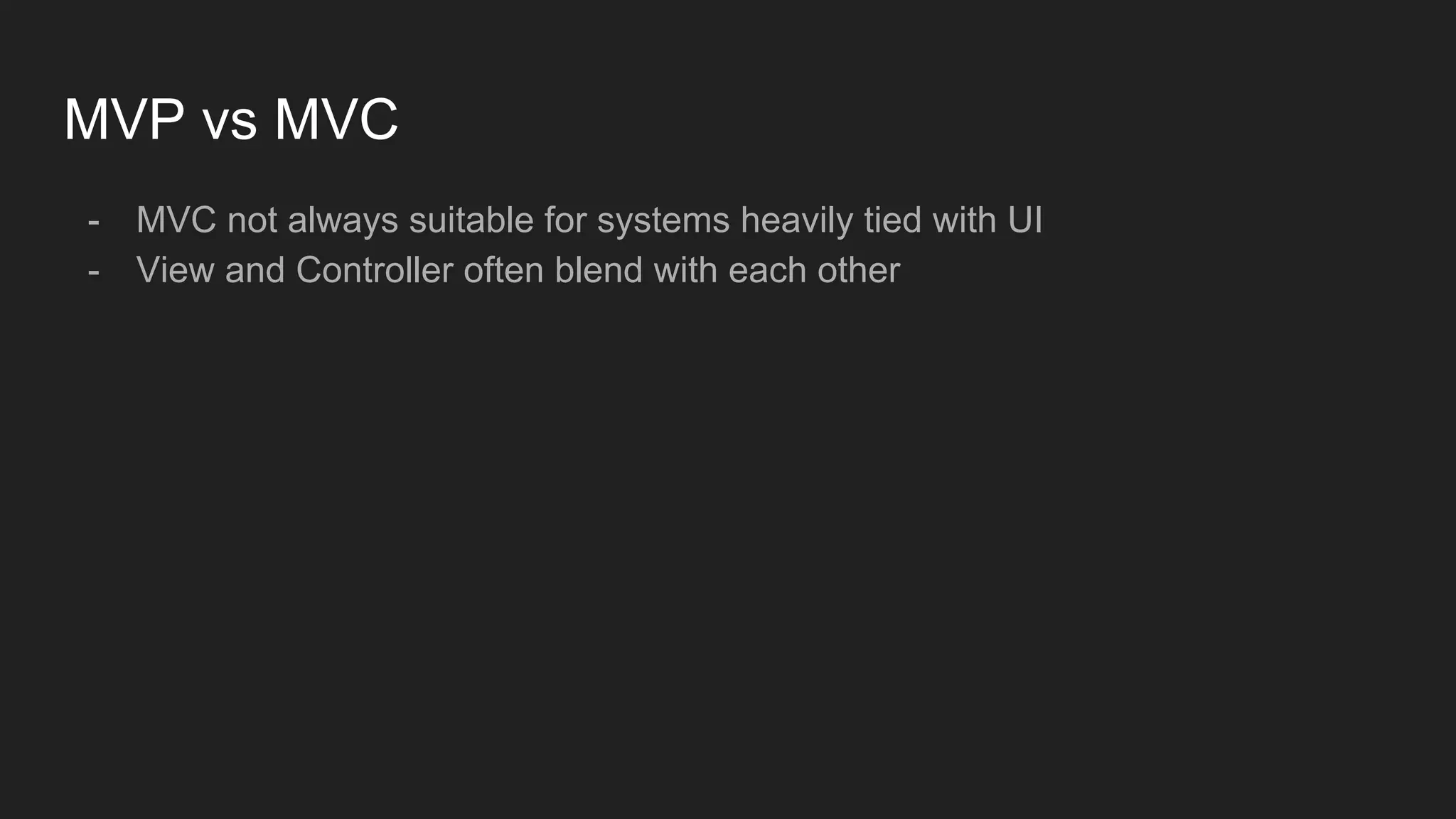

MVP vs MVC
- MVC not always suitable for systems heavily tied with UI
- View and Controller often blend with each other

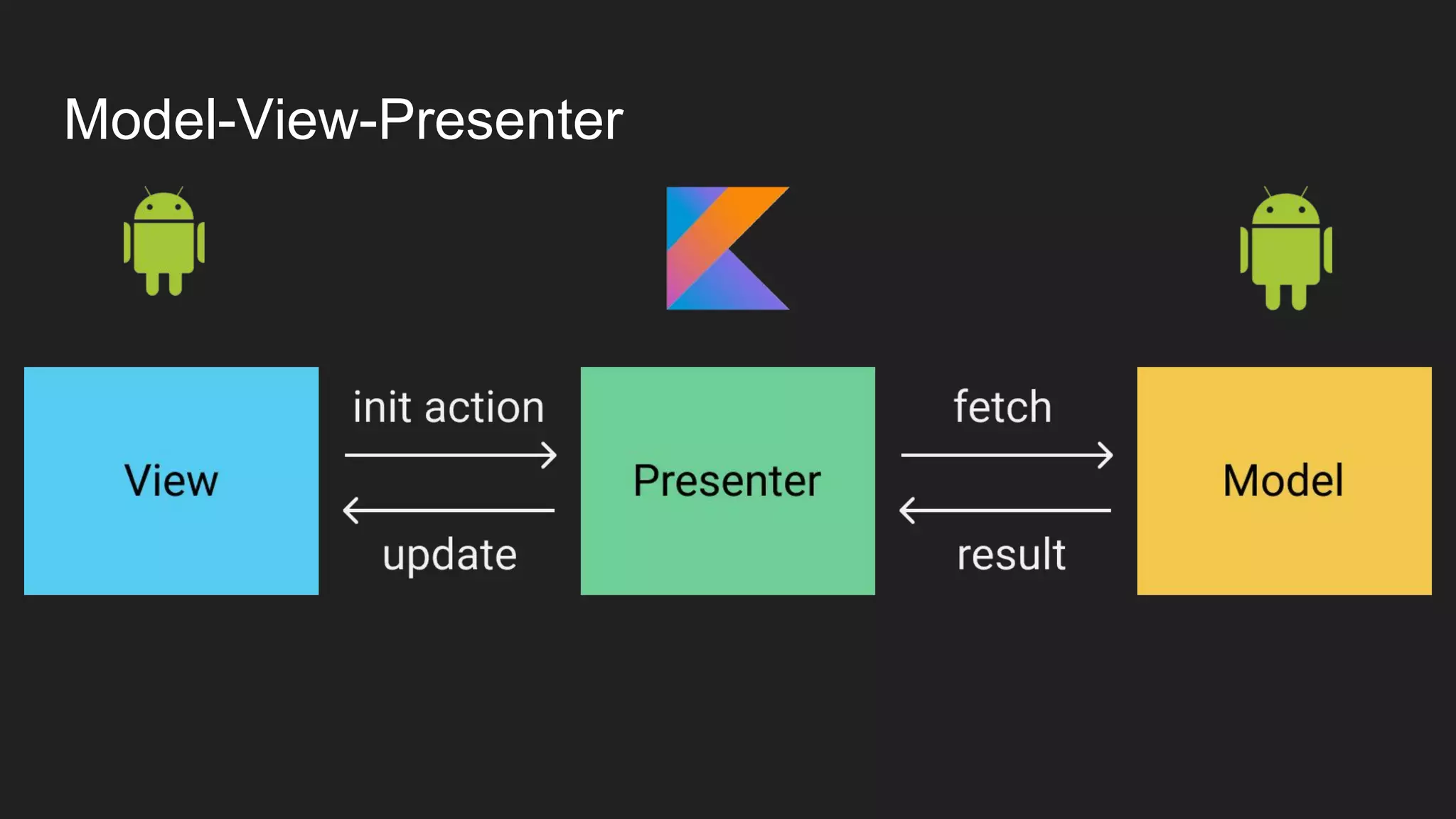

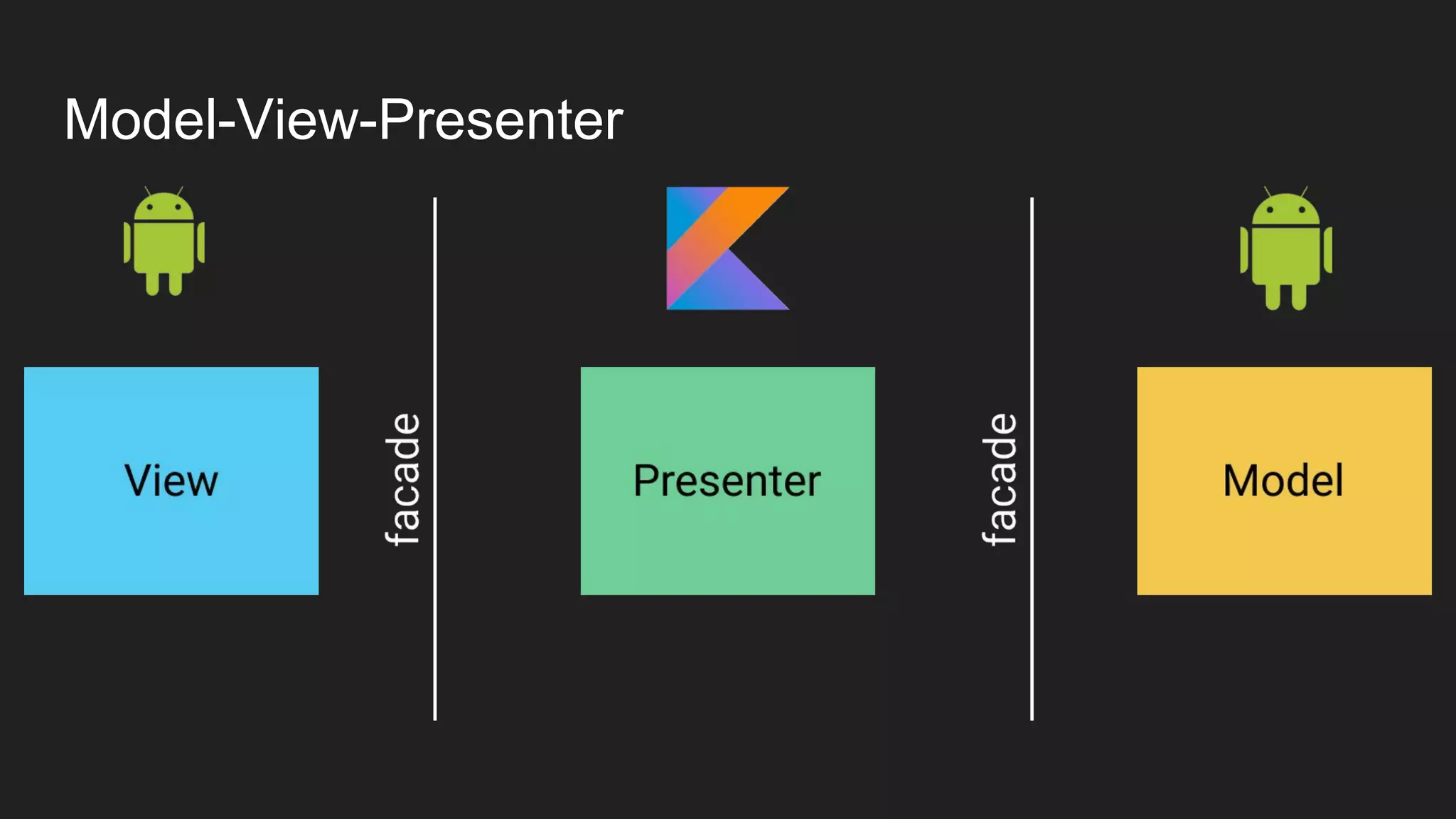

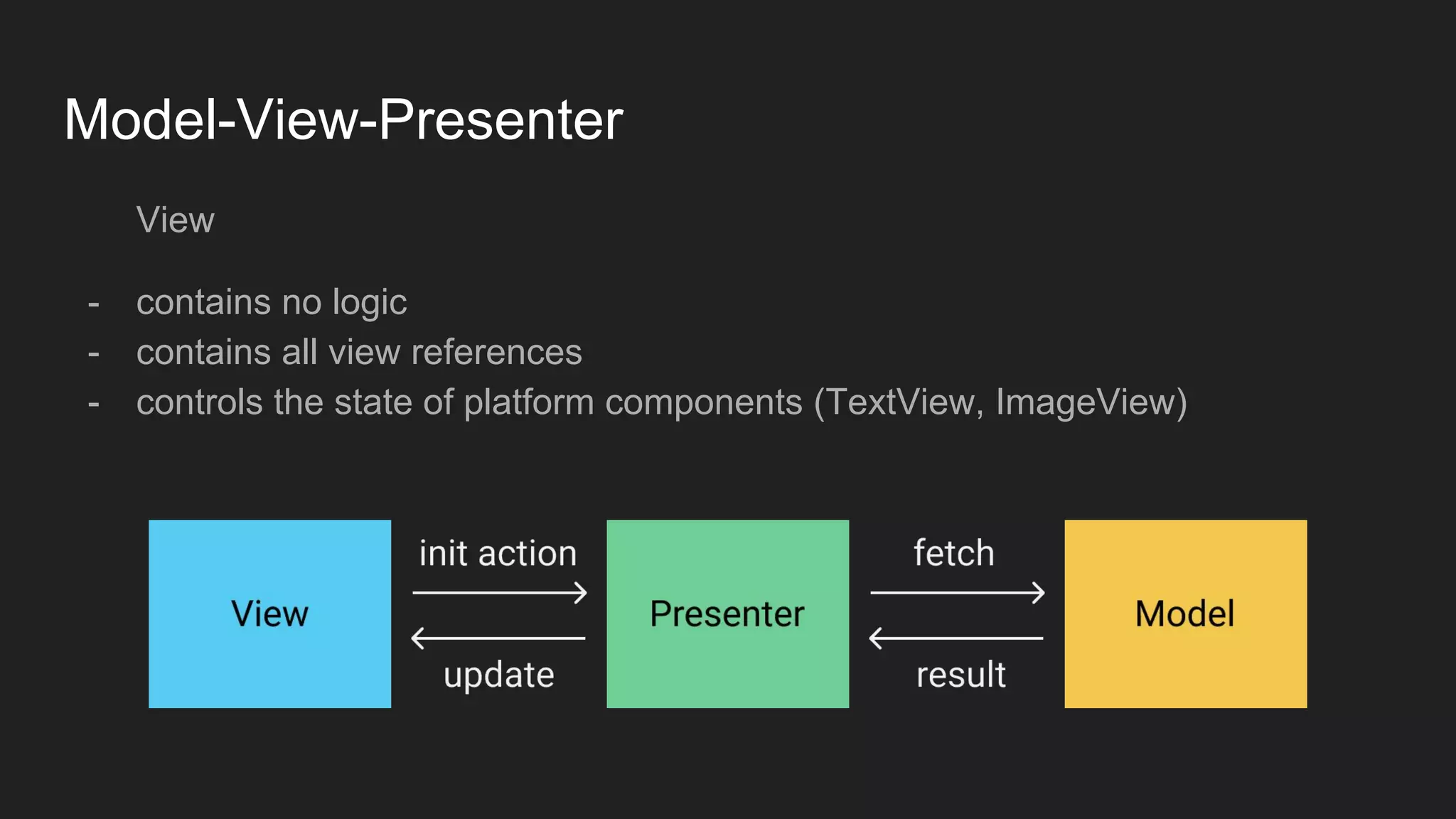

Model-View-Presenter
View
- contains no logic
- contains all view references
- controls the state of platform components (TextView, ImageView)

Presenter

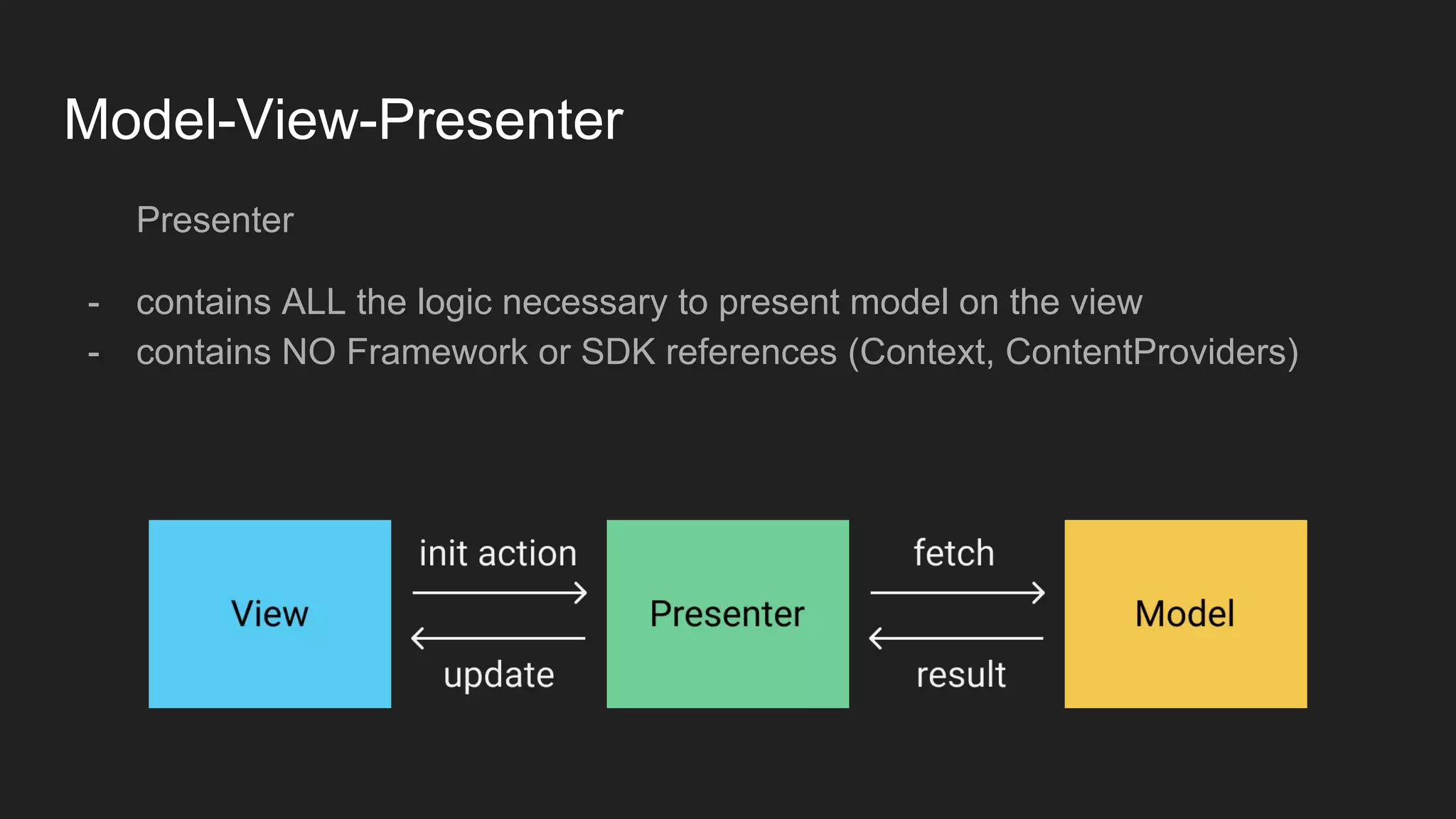

Presenter
- contains ALL the logic necessary to present model on the view
- contains NO Framework or SDK references (Context, ContentProviders)

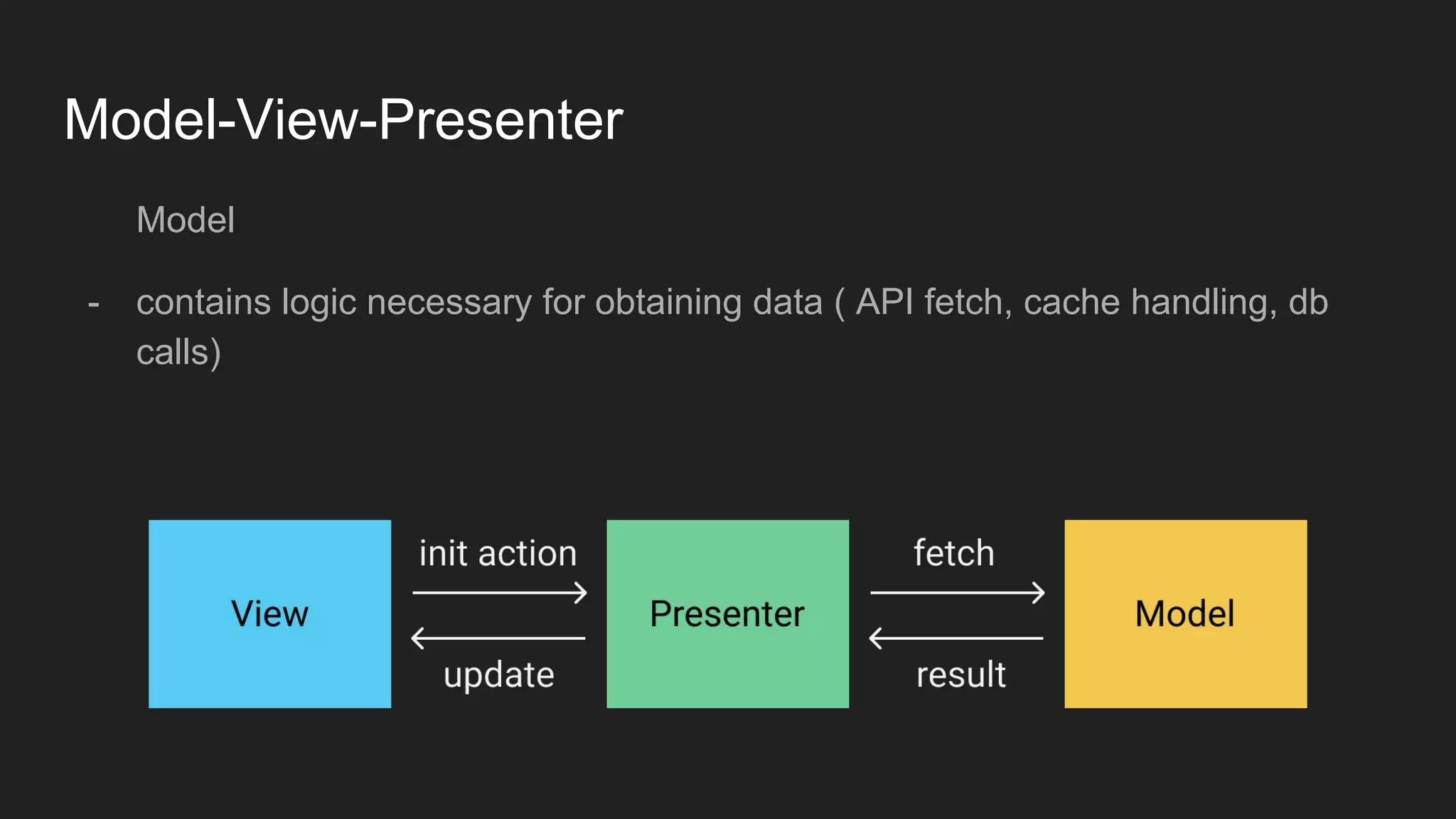

Model
- contains logic necessary for obtaining data ( API fetch, cache handling, db
calls)

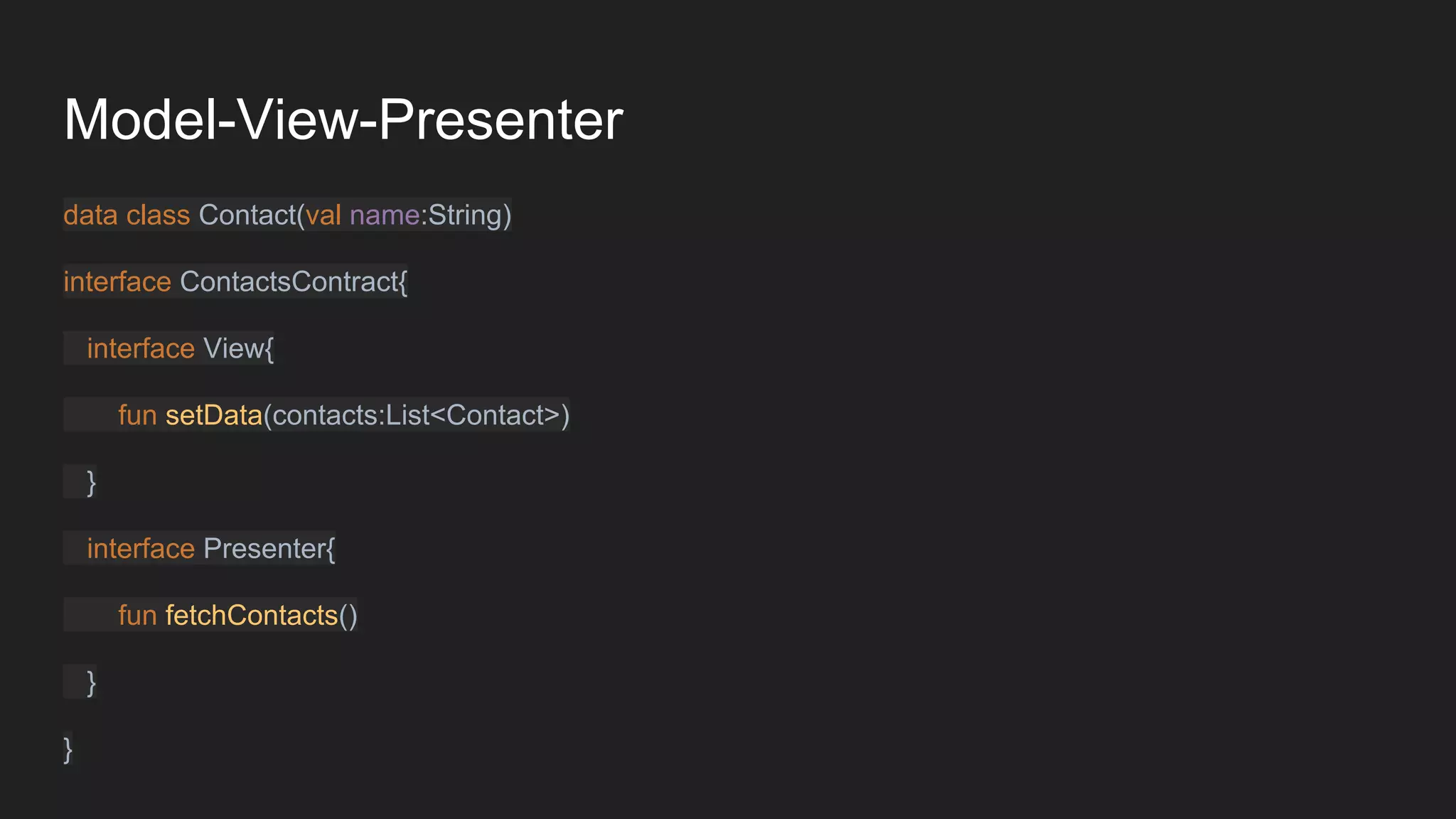

data class Contact(val name:String)
interface ContactsContract{
interface View{
fun setData(contacts:List<Contact>)
}
interface Presenter{
fun fetchContacts()
}
}

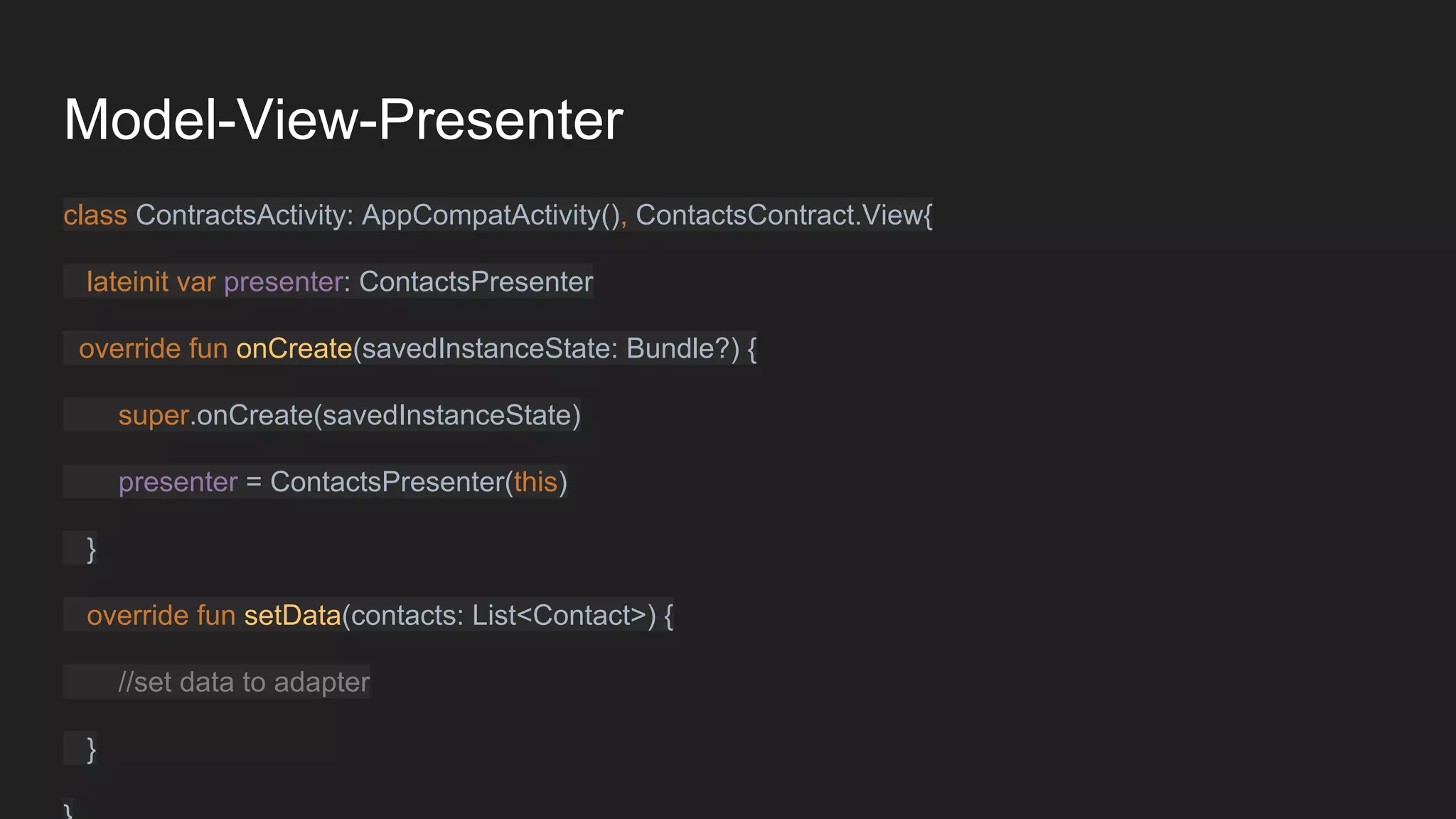

class ContractsActivity: AppCompatActivity(), ContactsContract.View{
lateinit var presenter: ContactsPresenter
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
presenter = ContactsPresenter(this)
}
override fun setData(contacts: List<Contact>) {
//set data to adapter
}

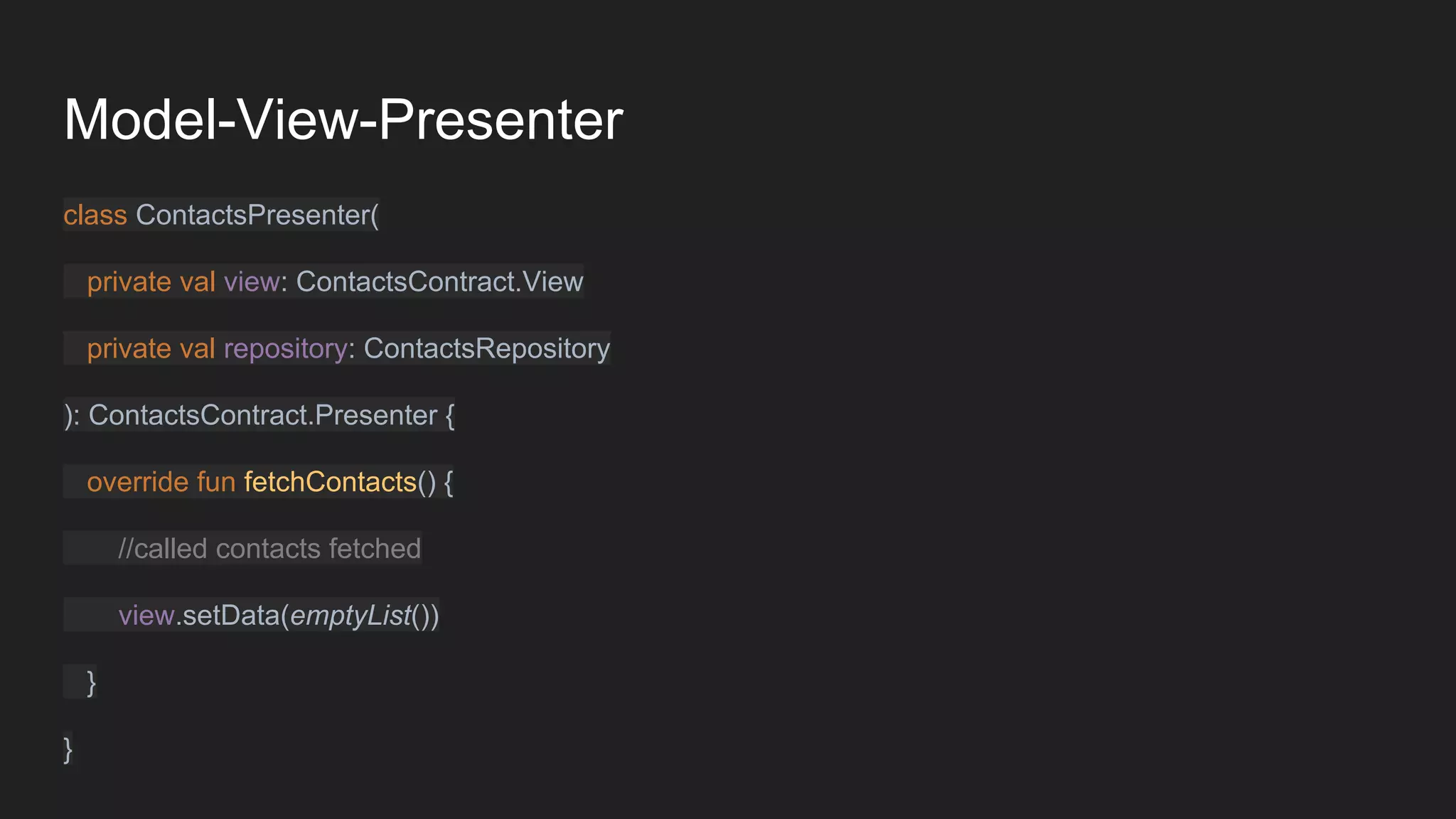

class ContactsPresenter(
private val view: ContactsContract.View
private val repository: ContactsRepository
): ContactsContract.Presenter {
override fun fetchContacts() {
//called contacts fetched
view.setData(emptyList())
}
}

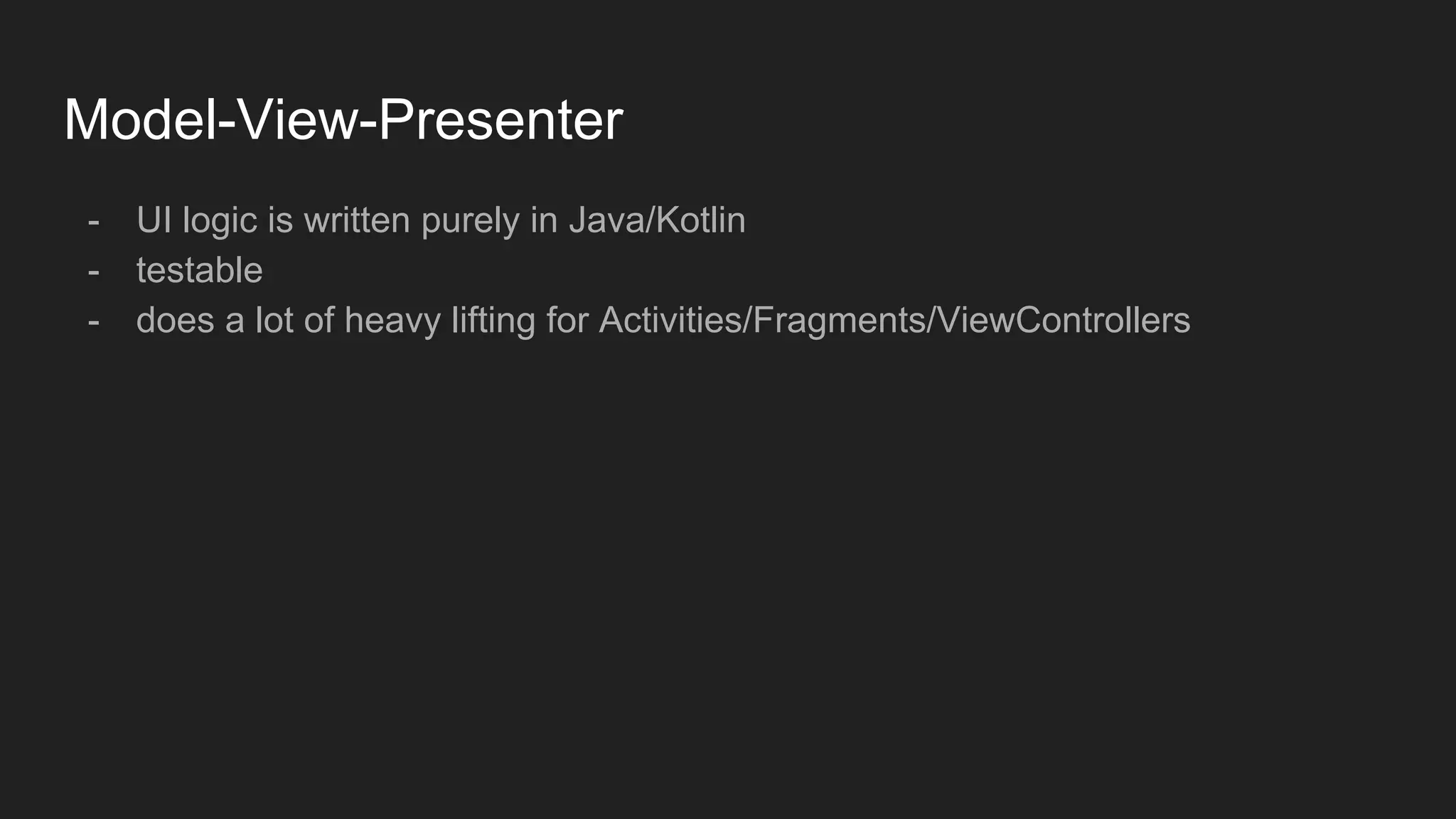

- UI logic is written purely in Java/Kotlin
- testable
- does a lot of heavy lifting for Activities/Fragments/ViewControllers

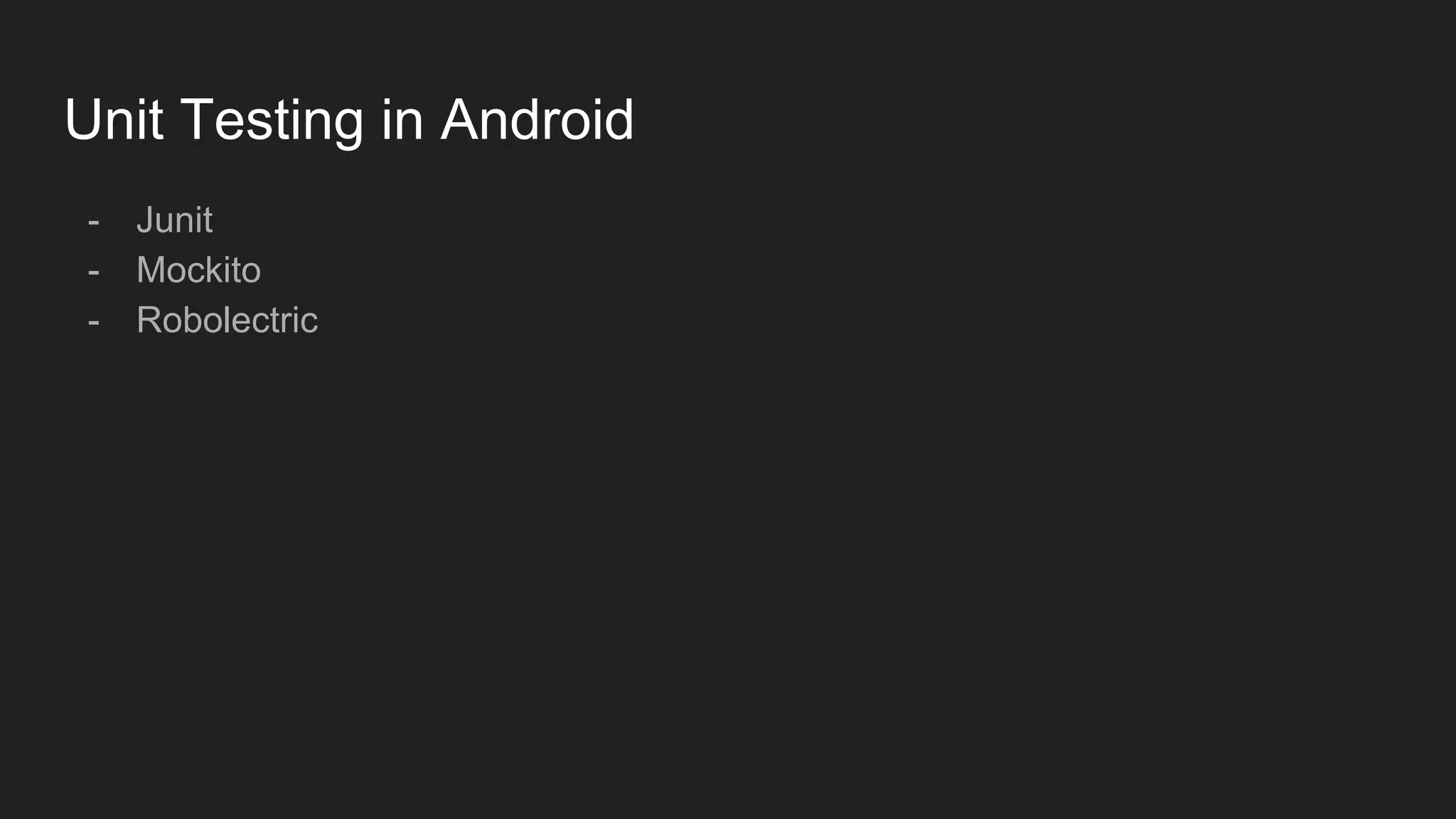

Unit Testing in Android
- Junit
- Mockito
- Robolectric

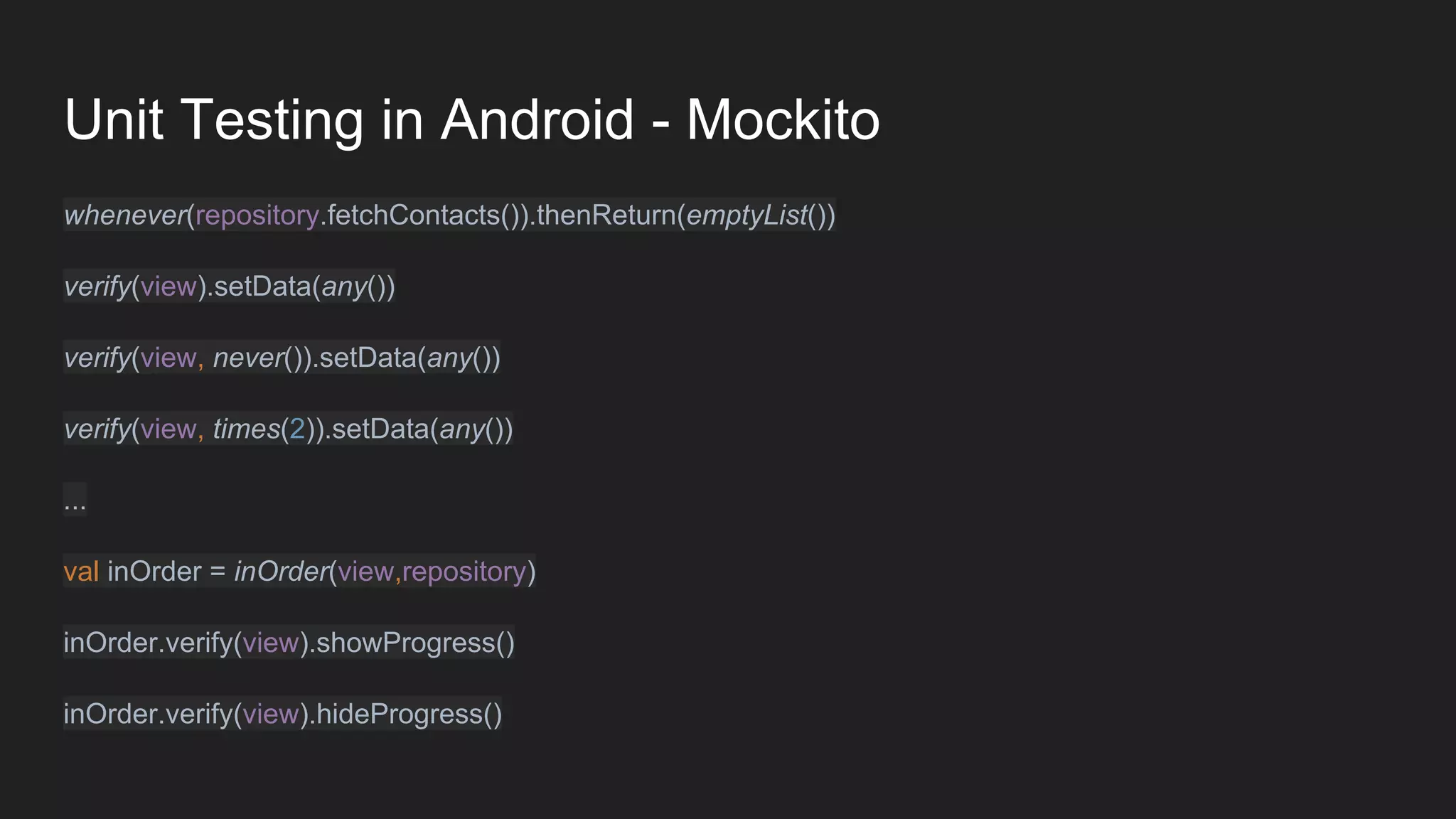

Unit Testing in Android - Mockito
whenever(repository.fetchContacts()).thenReturn(emptyList())
verify(view).setData(any())
verify(view, never()).setData(any())
verify(view, times(2)).setData(any())
...
val inOrder = inOrder(view,repository)
inOrder.verify(view).showProgress()
inOrder.verify(view).hideProgress()

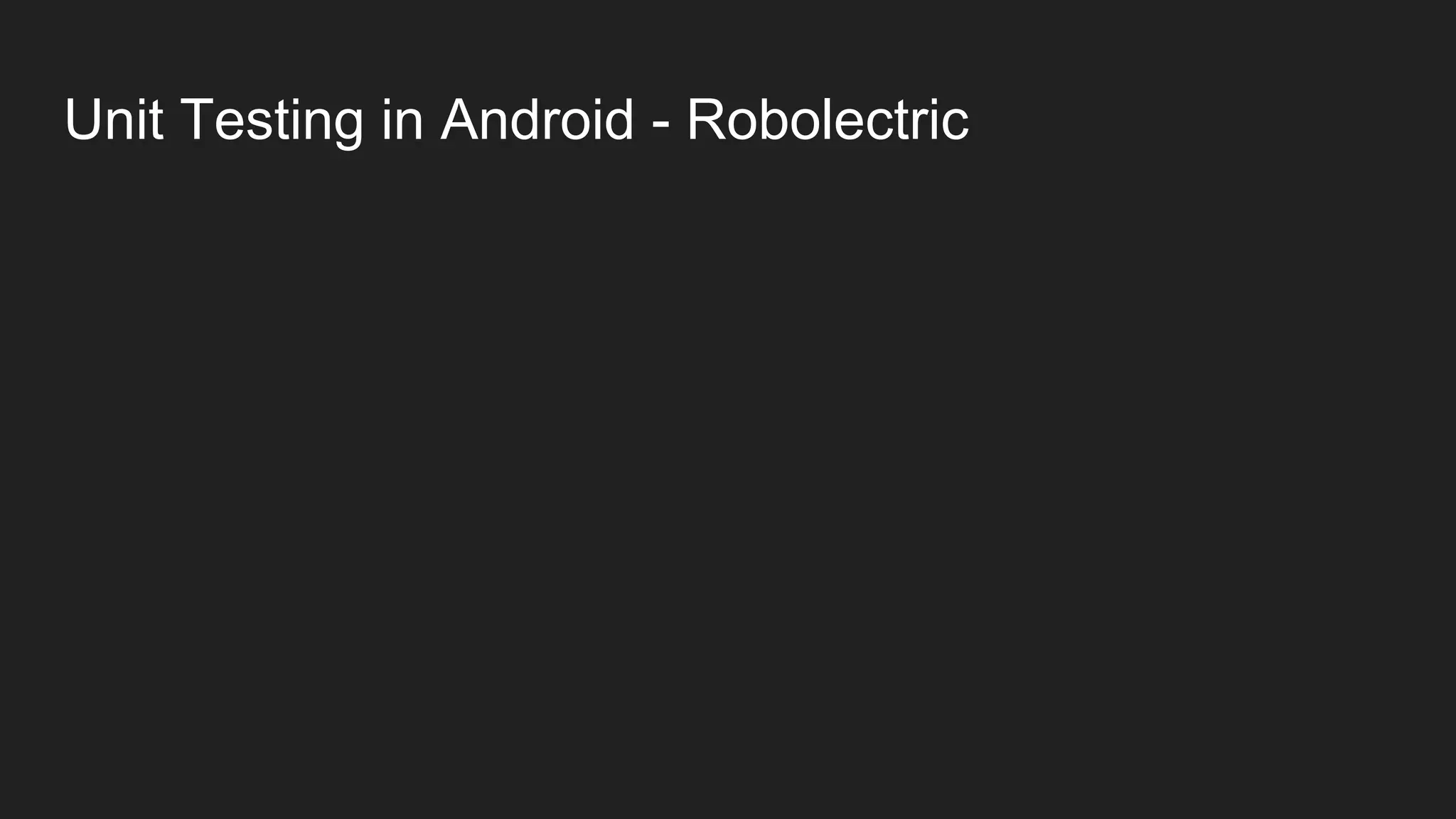

Unit Testing in Android - Robolectric

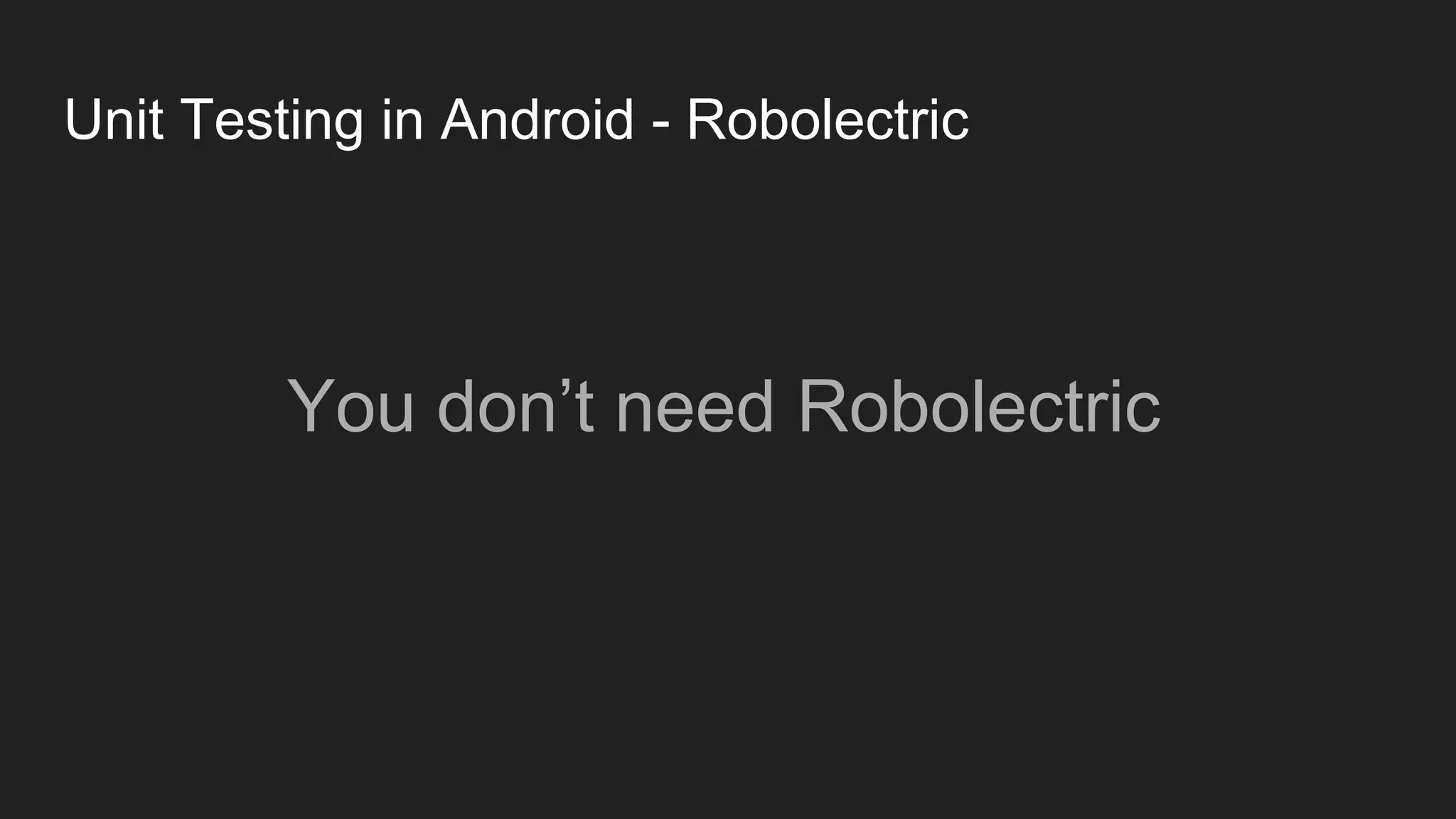

You don’t need Robolectric

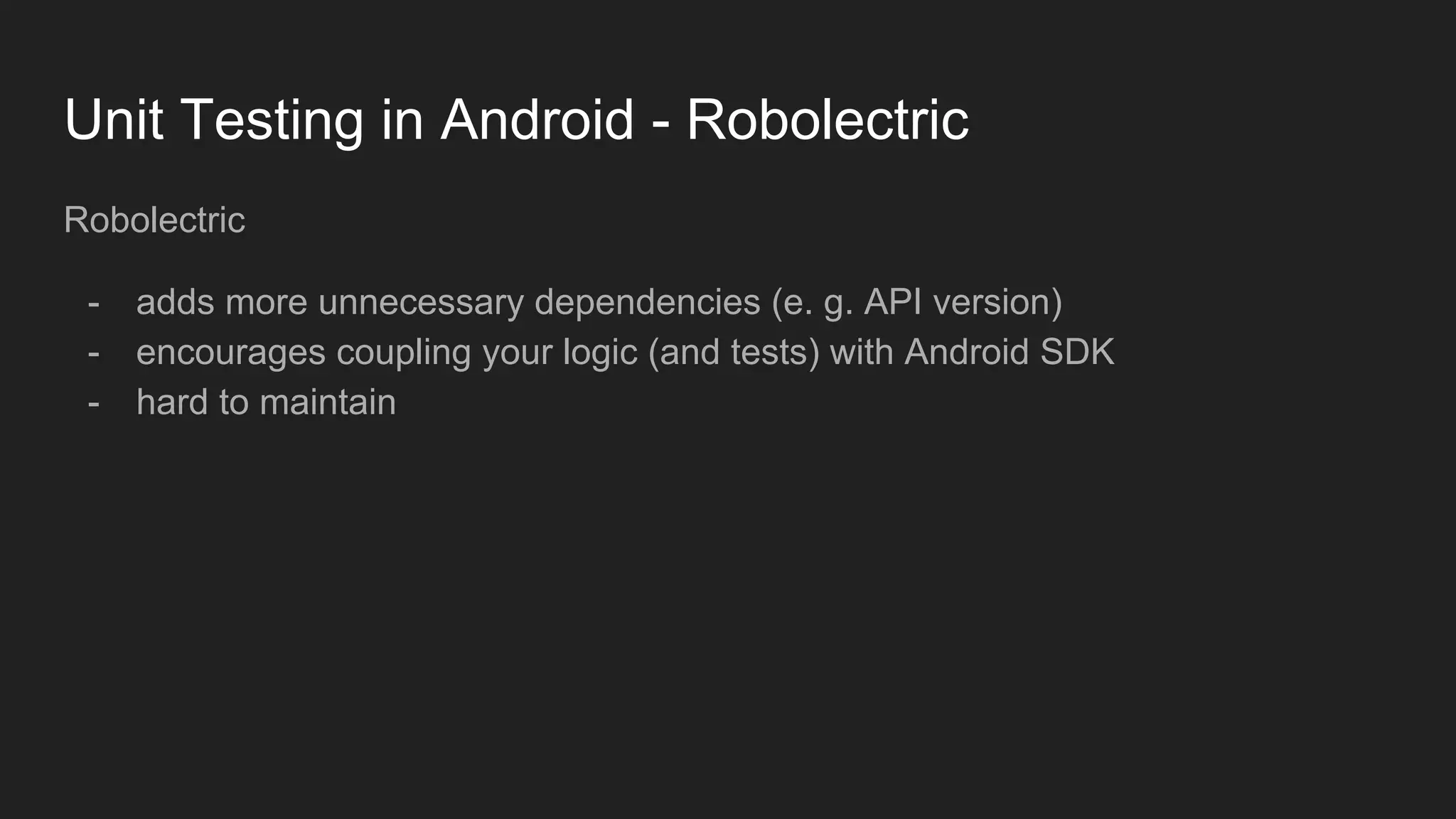

Robolectric
- adds more unnecessary dependencies (e. g. API version)
- encourages coupling your logic (and tests) with Android SDK
- hard to maintain

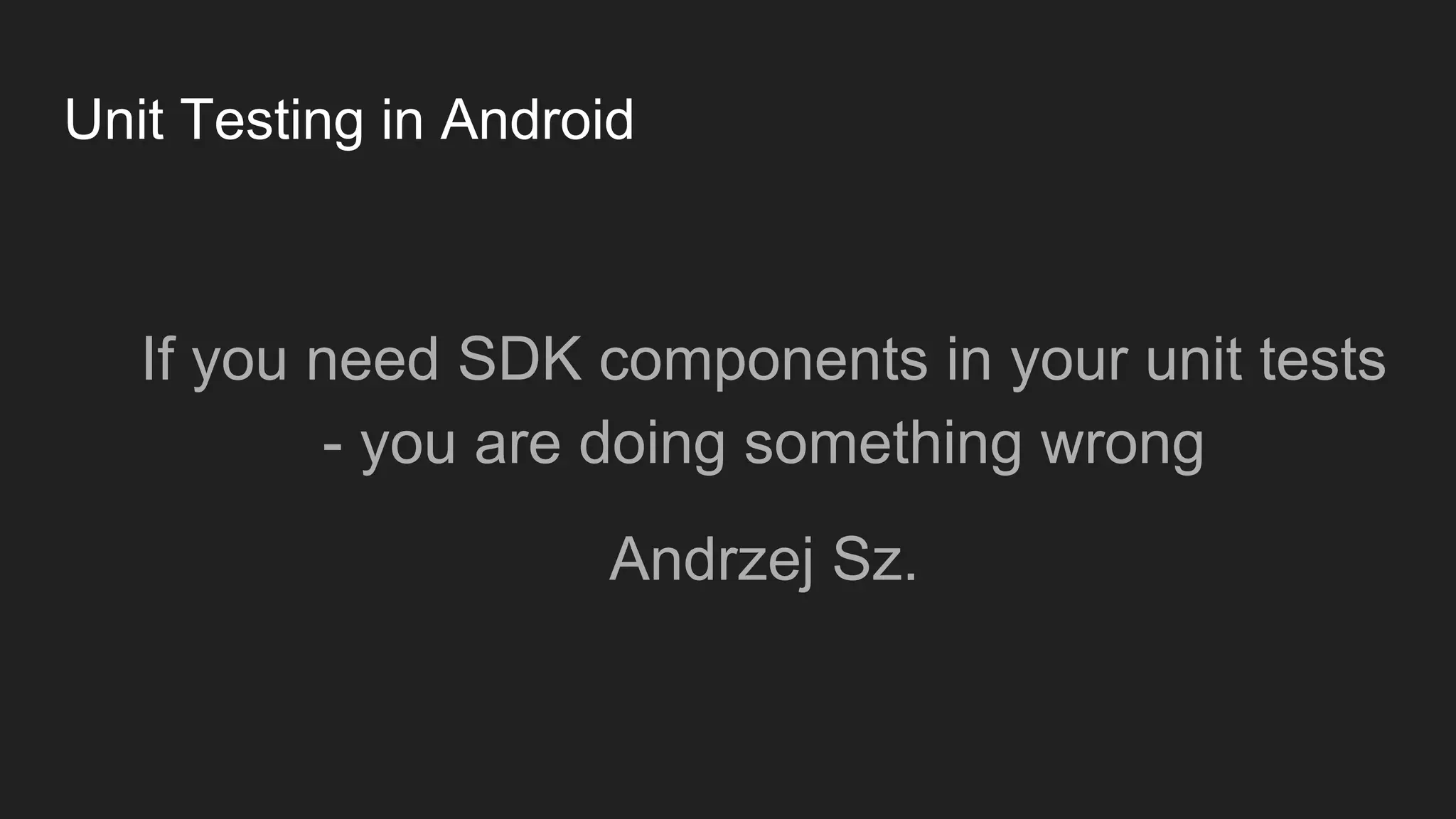

Unit Testing in Android
If you need SDK components in your unit tests
- you are doing something wrong
Andrzej Sz.

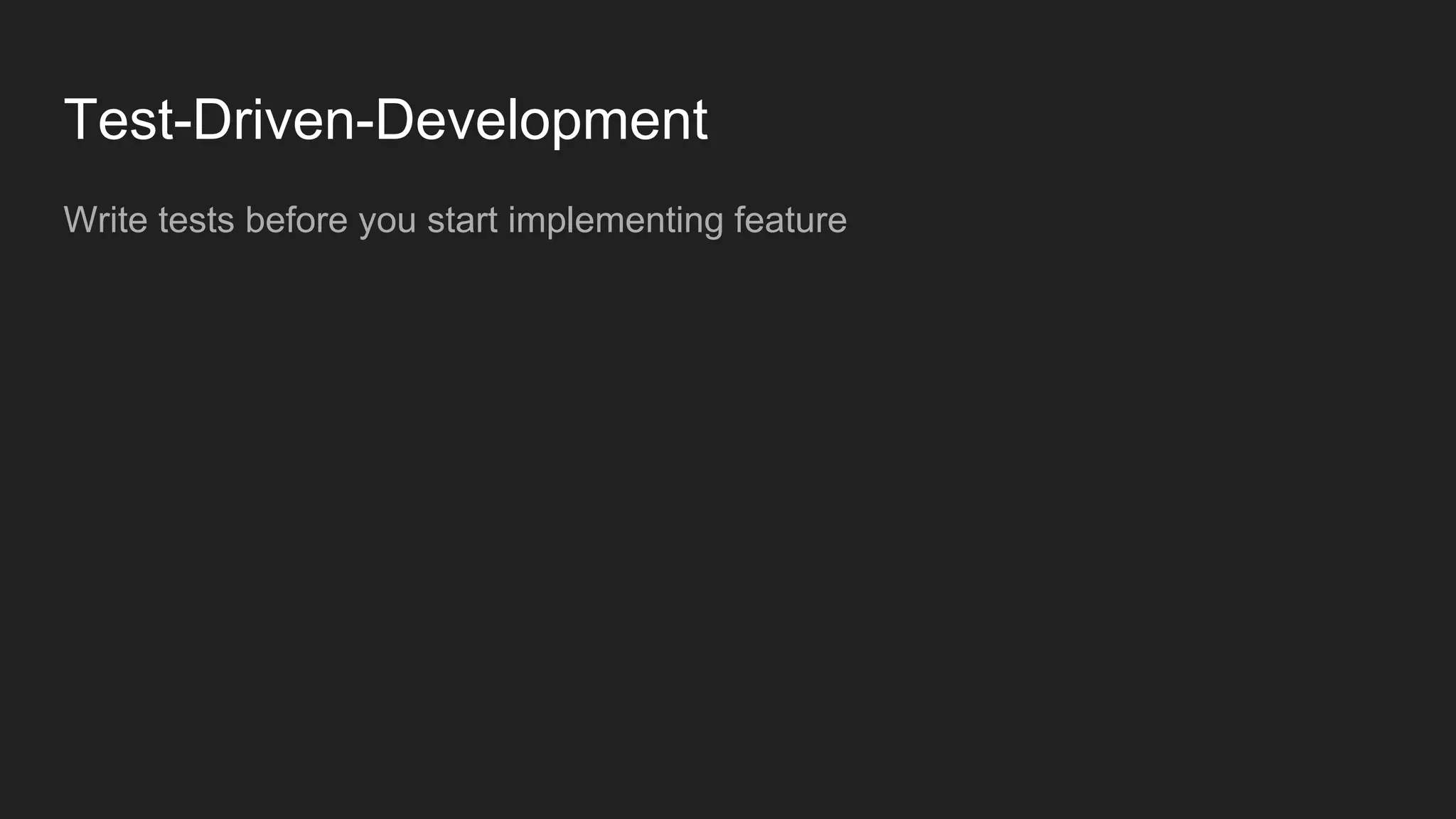

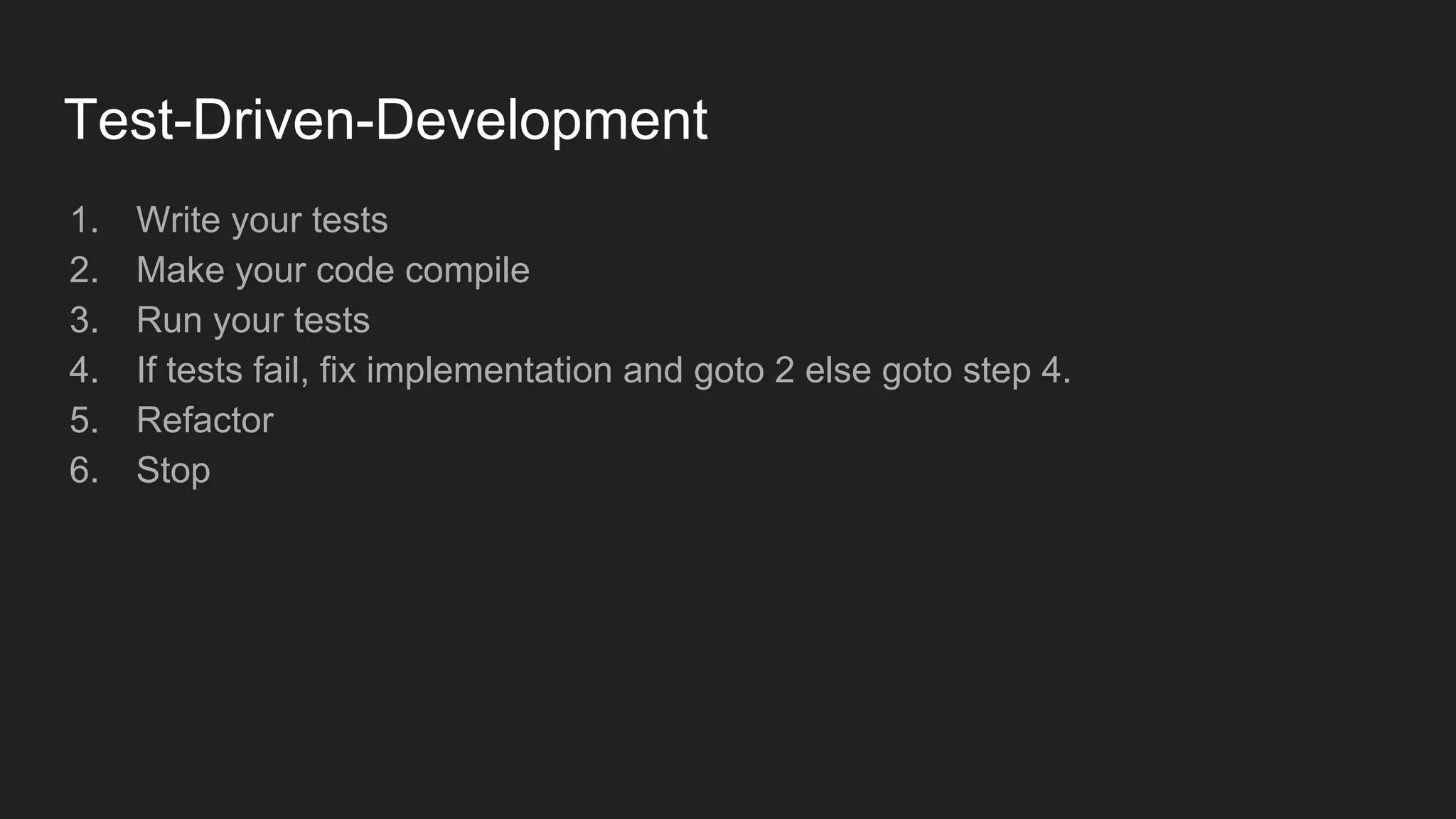

Test-Driven-Development
Write tests before you start implementing feature

1. Write your tests
2. Make your code compile
3. Run your tests
4. If tests fail, fix implementation and goto 2 else goto step 4.
5. Refactor
6. Stop

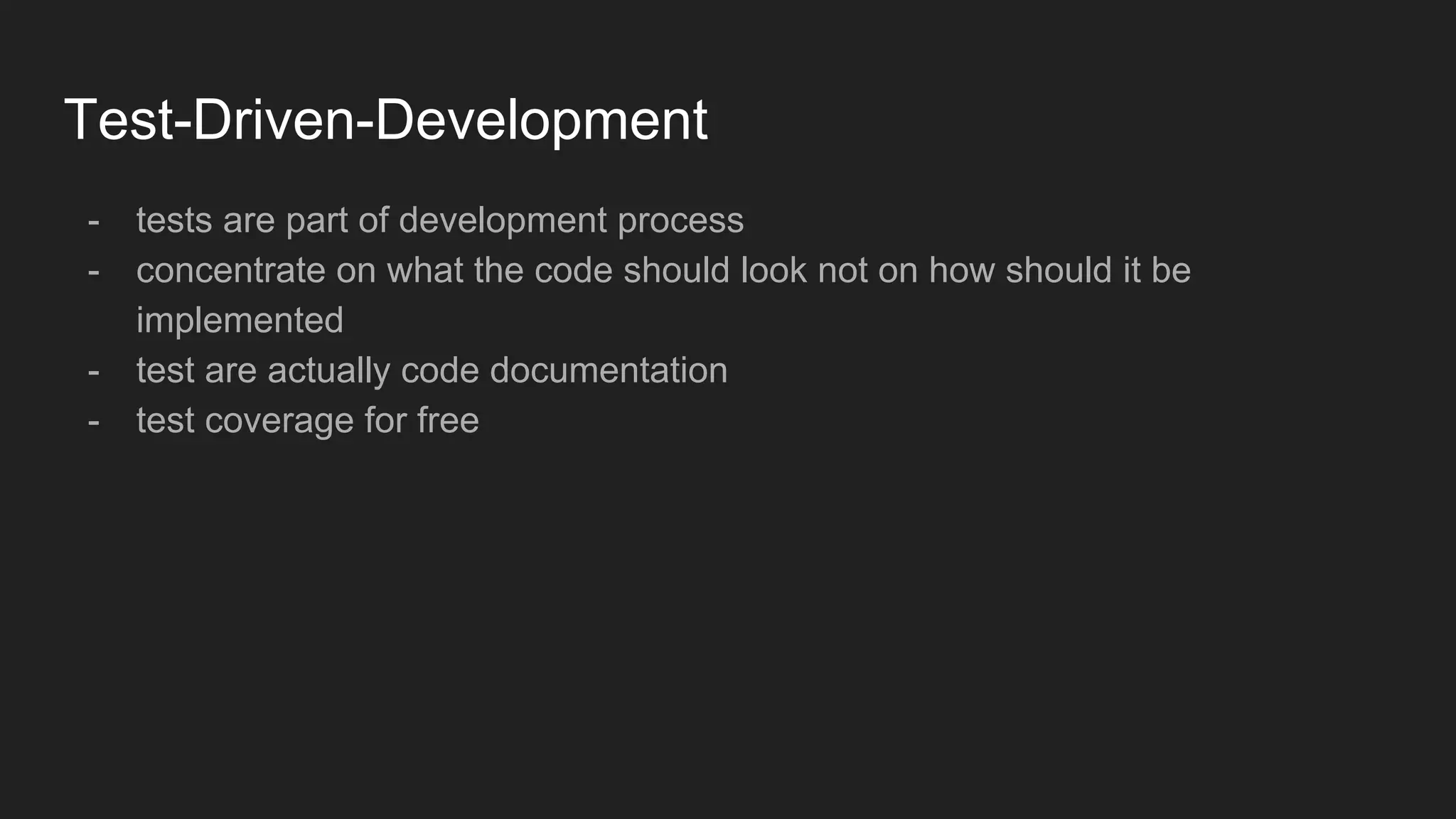

- tests are part of development process
- concentrate on what the code should look not on how should it be
implemented
- test are actually code documentation
- test coverage for free

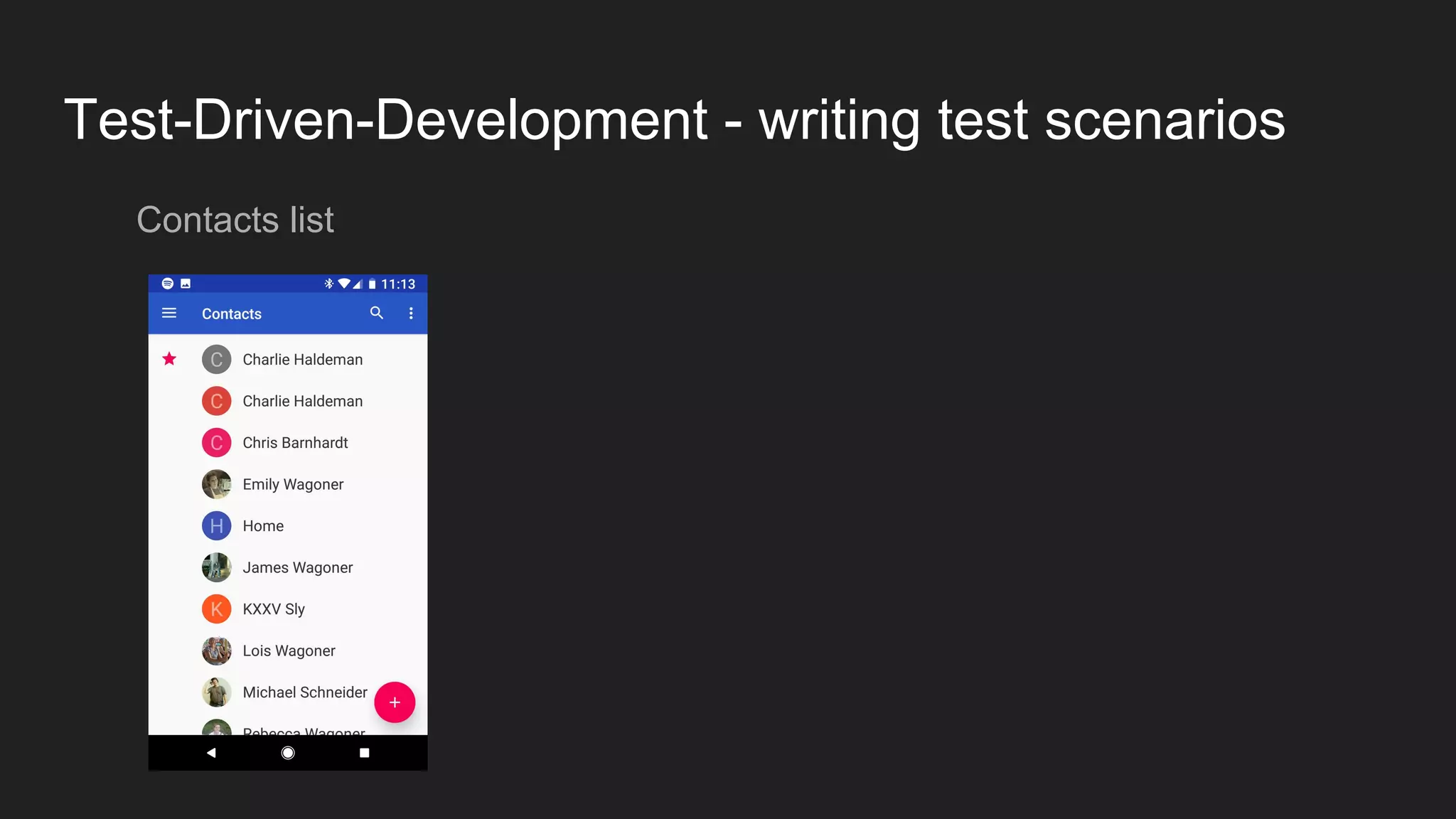

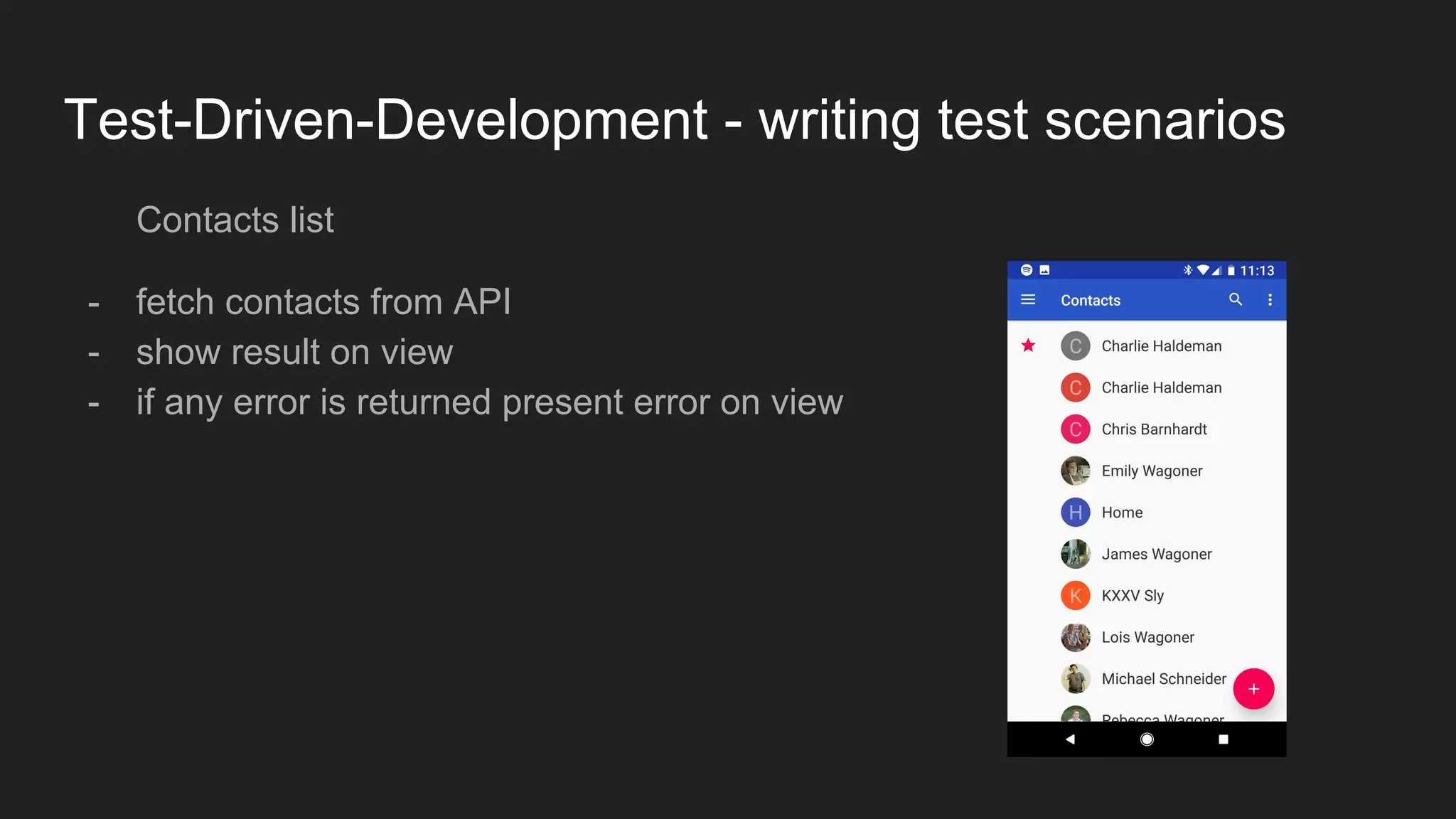

Test-Driven-Development - writing test scenarios
Contacts list

Contacts list
- fetch contacts from API
- show result on view
- if any error is returned present error on view

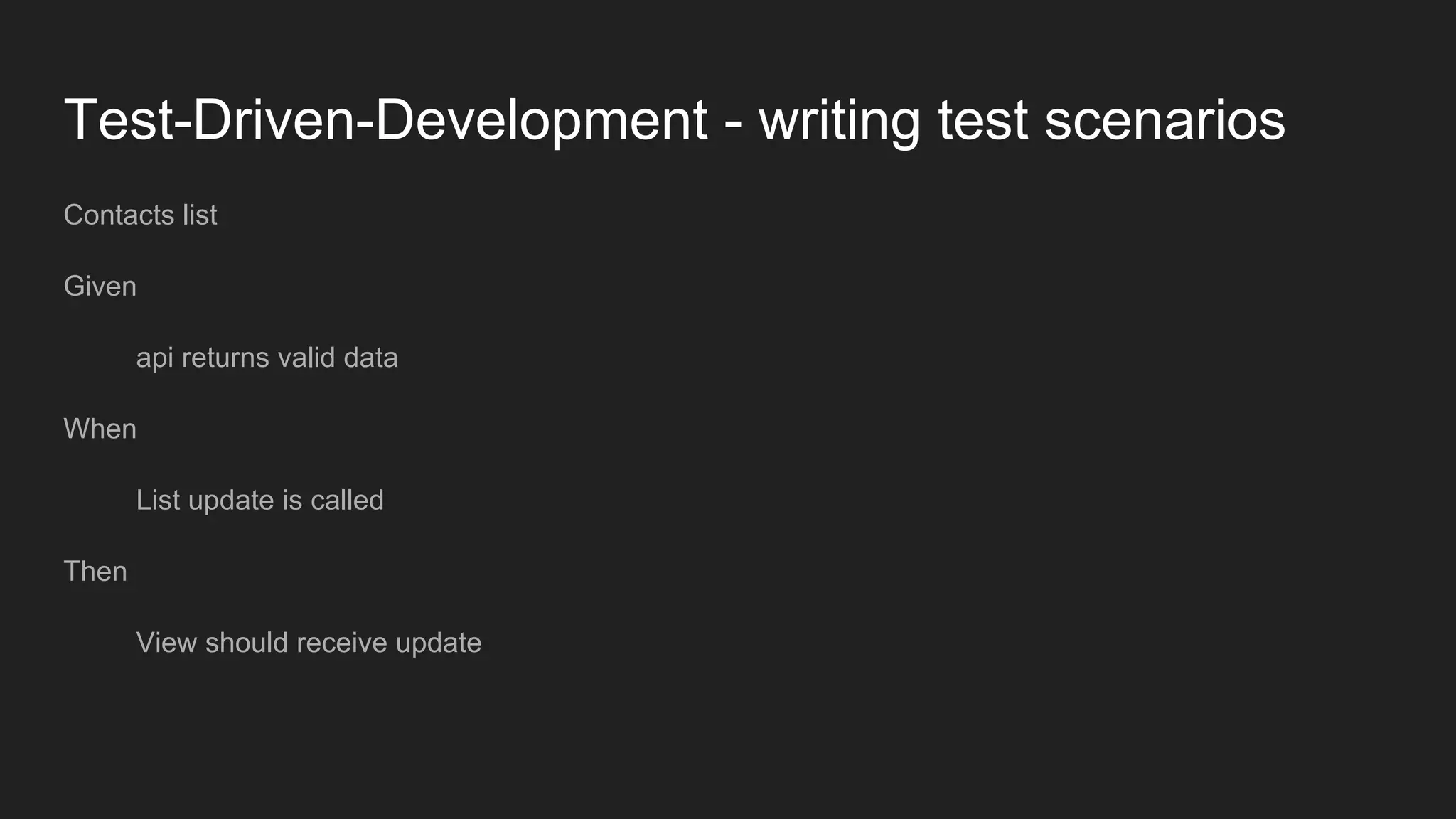

Contacts list
Given
api returns valid data
When
List update is called
Then
View should receive update

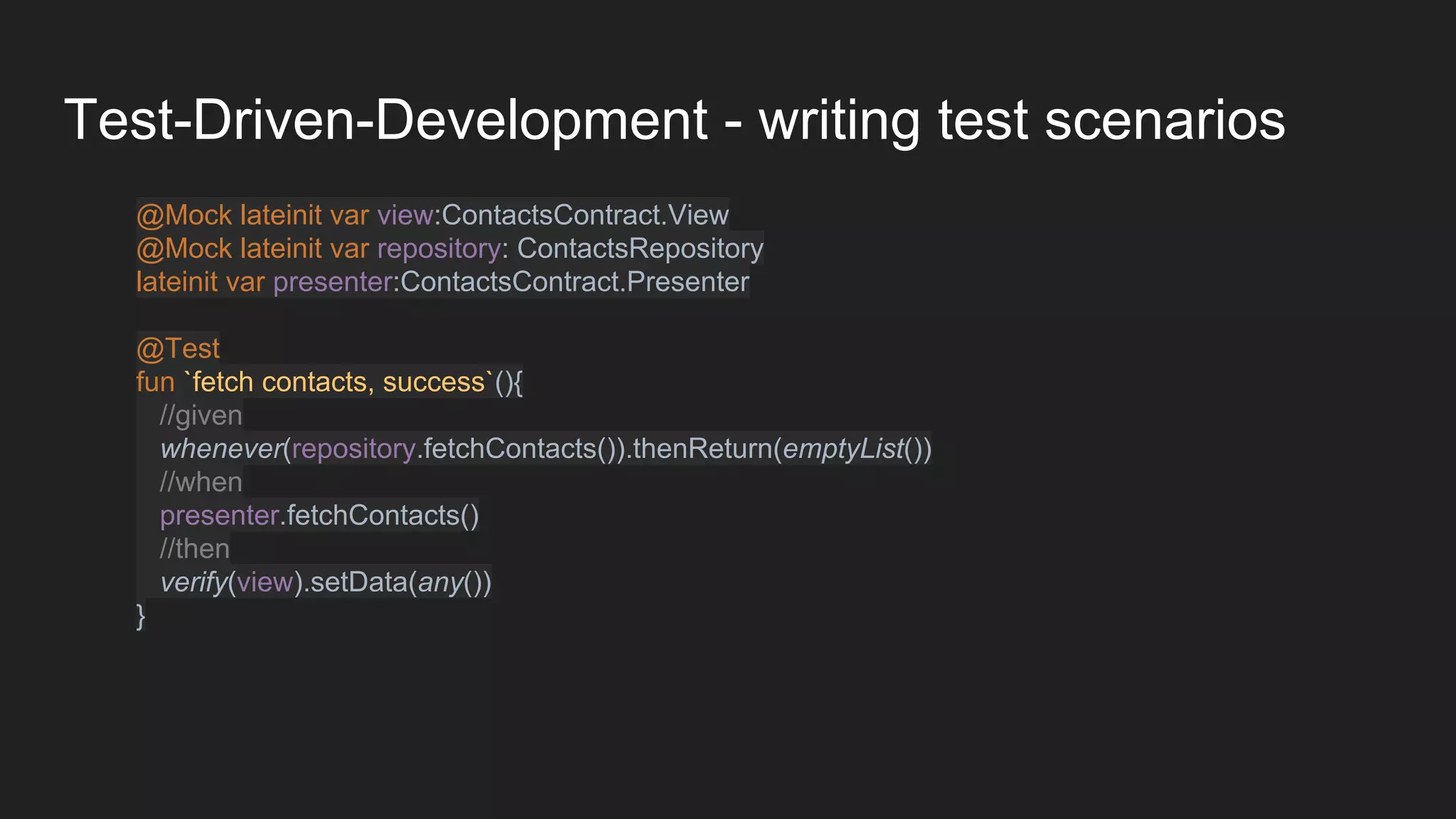

@Mock lateinit var view:ContactsContract.View
@Mock lateinit var repository: ContactsRepository
lateinit var presenter:ContactsContract.Presenter
@Test
fun `fetch contacts, success`(){
//given
whenever(repository.fetchContacts()).thenReturn(emptyList())
//when
presenter.fetchContacts()
//then
verify(view).setData(any())
}

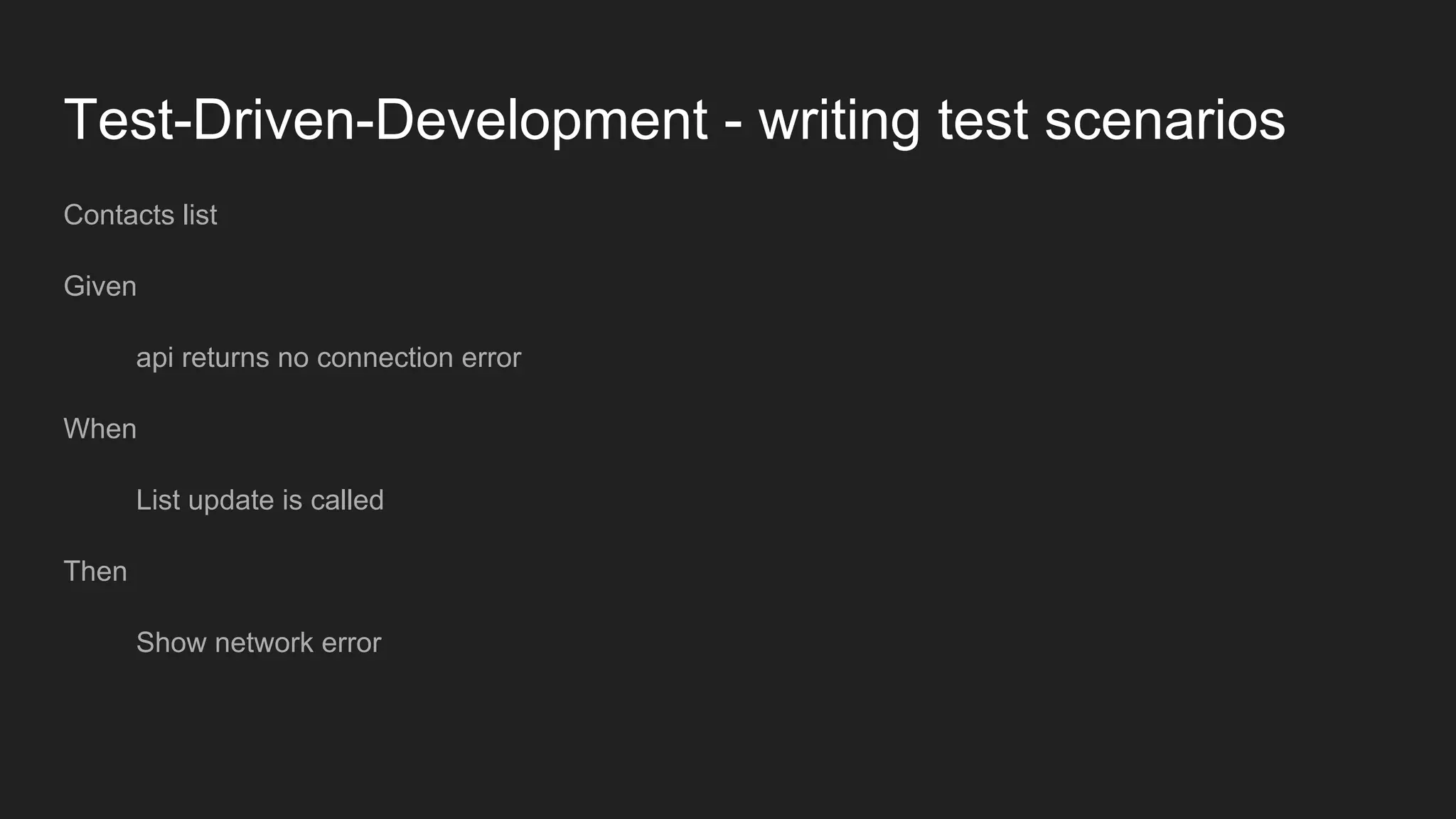

Contacts list
Given
api returns no connection error
When
List update is called
Then
Show network error

@Mock lateinit var view:ContactsContract.View
@Mock lateinit var repository: ContactsRepository
lateinit var presenter:ContactsContract.Presenter
@Test
fun `fetch contacts, network error`(){
//given
whenever(repository.fetchContacts()).thenThrow(NetworkError())
//when
presenter.fetchContacts()
//then
verify(view).showNetworkError()
}

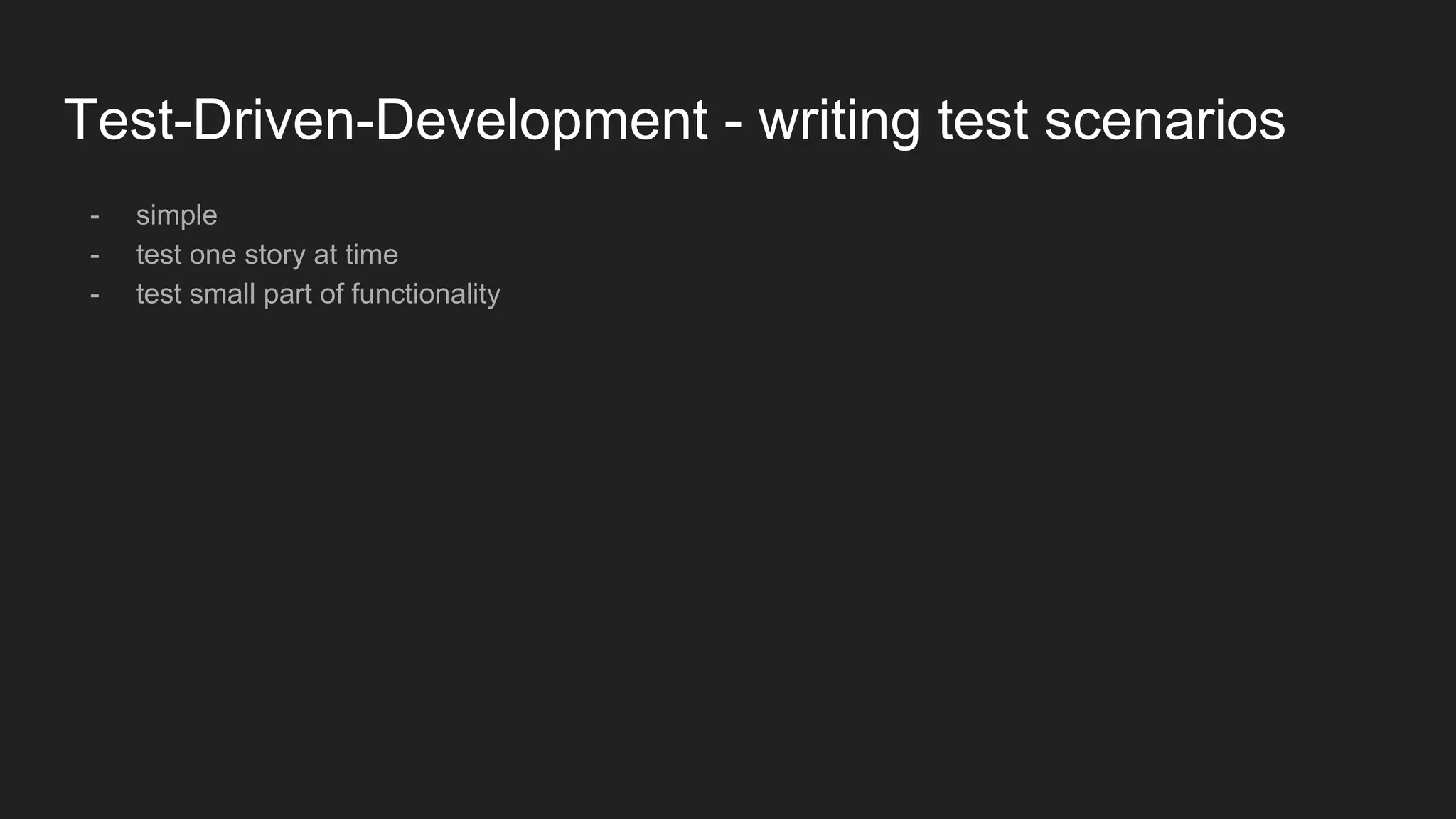

- simple
- test one story at time
- test small part of functionality

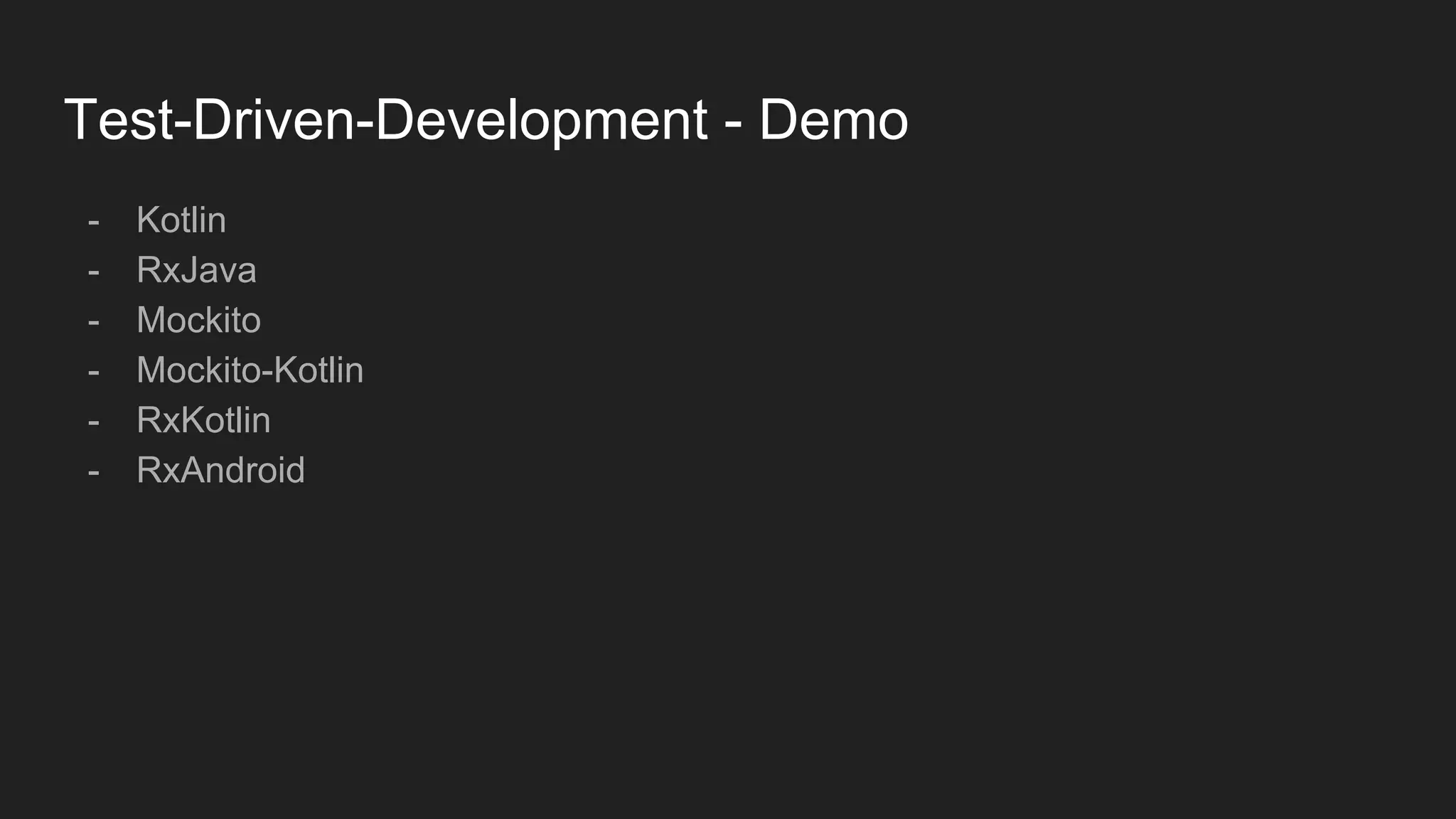

Test-Driven-Development - Demo
- Kotlin
- RxJava
- Mockito
- Mockito-Kotlin
- RxKotlin
- RxAndroid

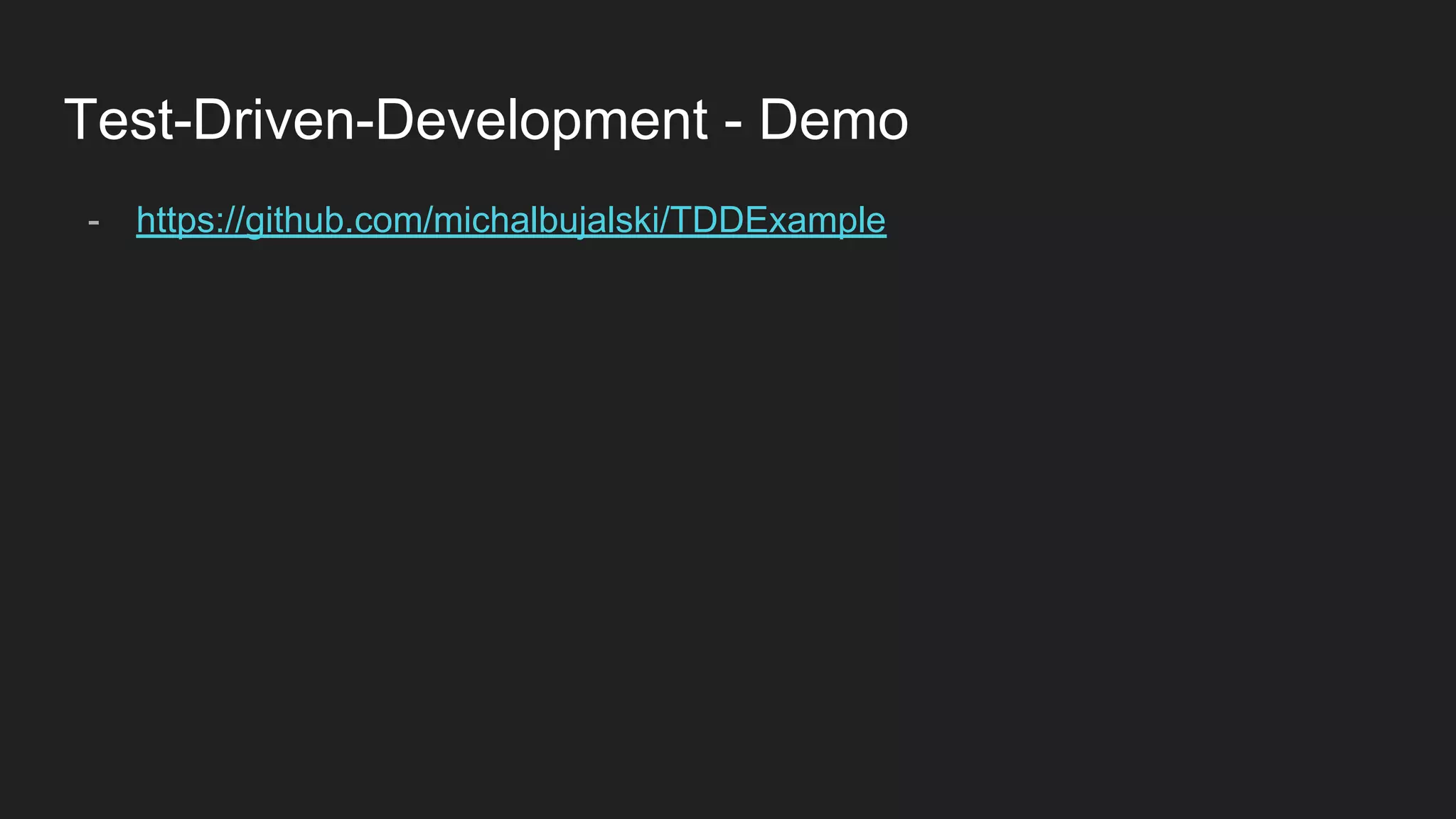

Test-Driven-Development - Demo
- https://github.com/michalbujalski/TDDExample

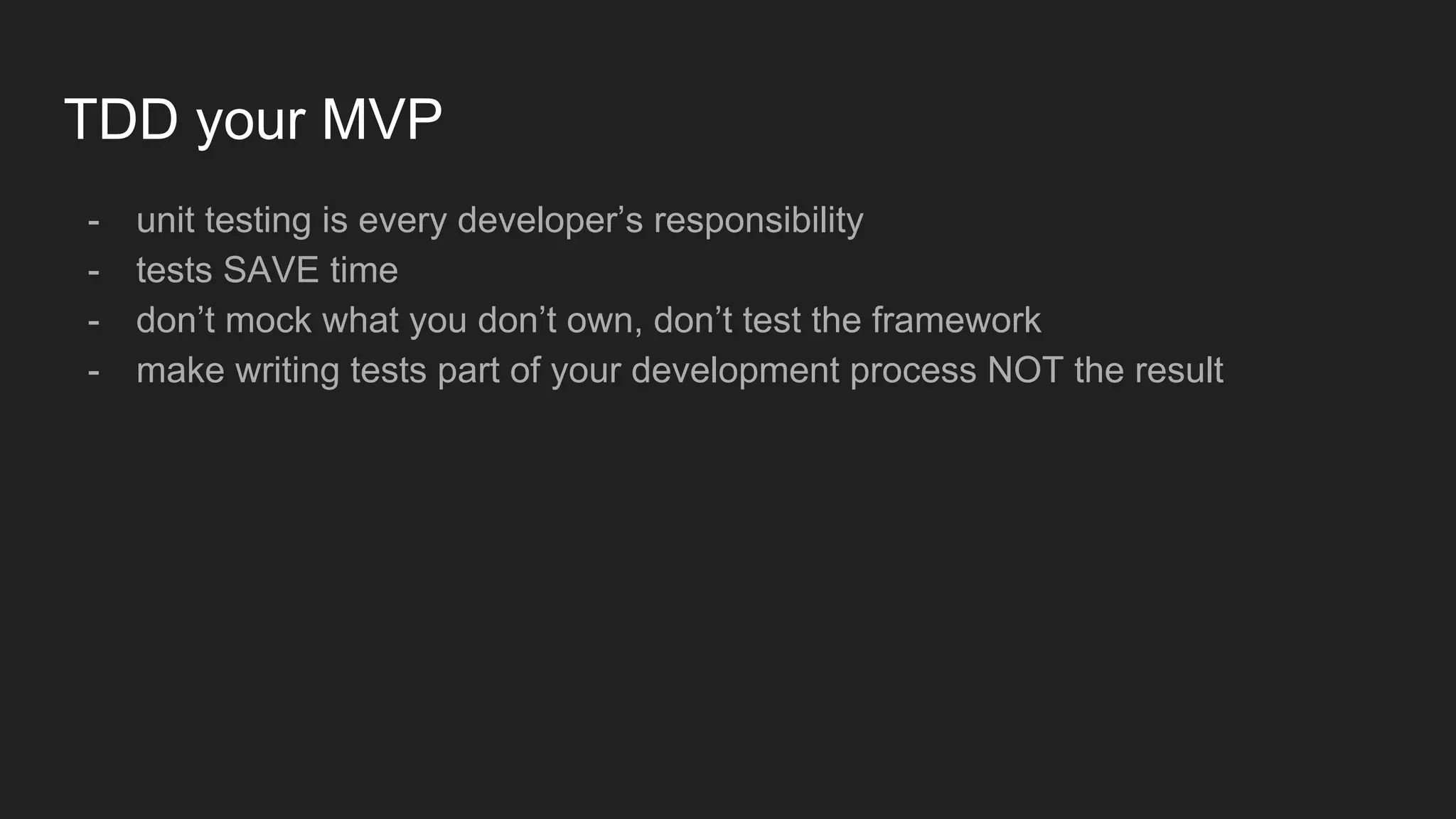

TDD your MVP
- unit testing is every developer’s responsibility
- tests SAVE time
- don’t mock what you don’t own, don’t test the framework
- make writing tests part of your development process NOT the result
