Attend this session to learn how to easily share state in-memory across multiple Spark jobs, either within the same application or between different Spark applications using an implementation of the Spark RDD abstraction provided in Apache Ignite. During the talk, attendees will learn in detail how IgniteRDD – an implementation of native Spark RDD and DataFrame APIs – shares the state of the RDD across other Spark jobs, applications and workers. Examples will show how IgniteRDD, with its advanced in-memory indexing capabilities, allows execution of SQL queries many times faster than native Spark RDDs or Data Frames.

1. Akmal Chaudhri, GridGain Systems
How to share state across
multiple Spark jobs using
Apache Ignite
#EUde9

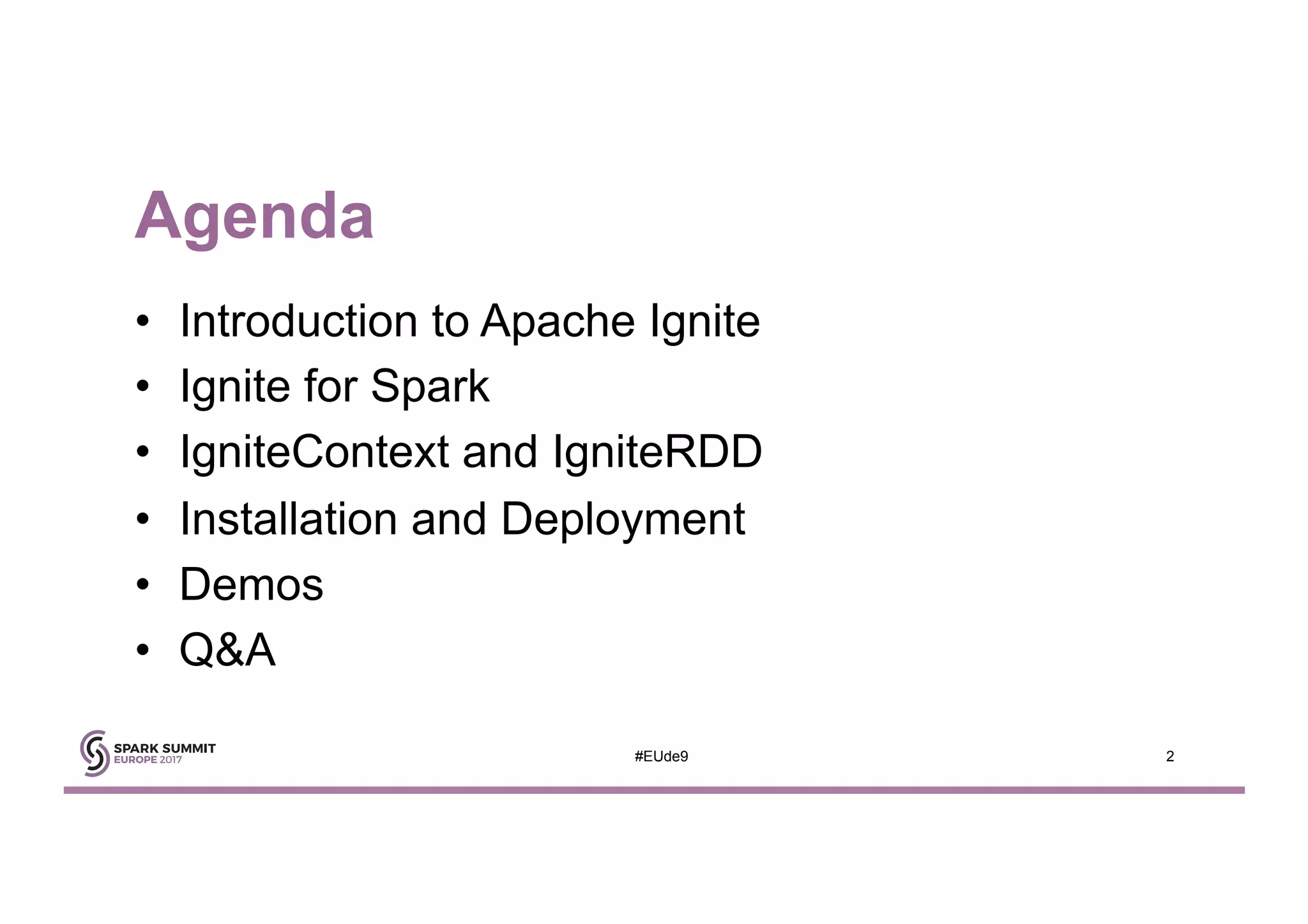

2. Agenda
• Introduction to Apache Ignite
• Ignite for Spark
• IgniteContext and IgniteRDD
• Installation and Deployment
• Demos
• Q&A
2#EUde9

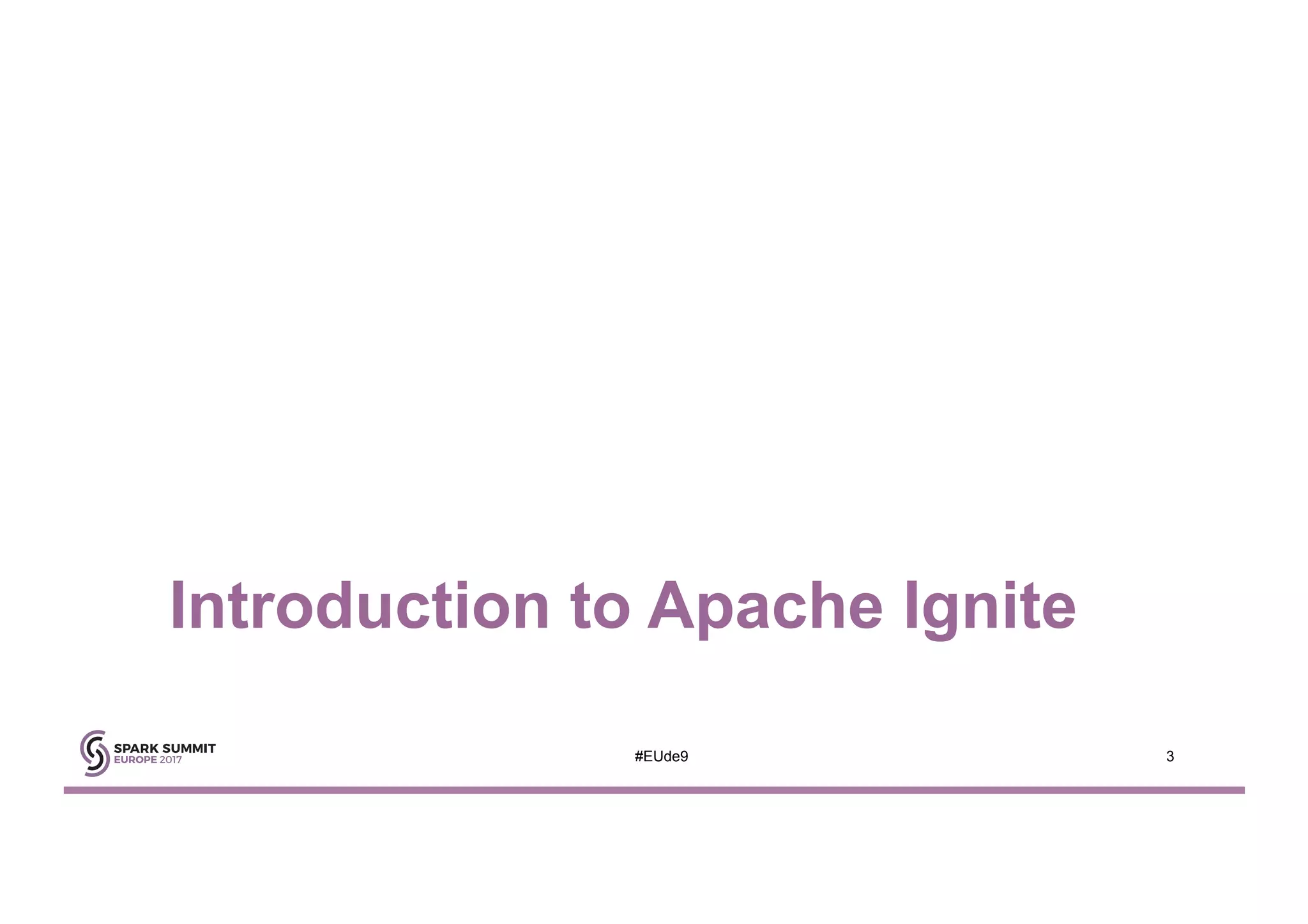

3. Introduction to Apache Ignite
3#EUde9

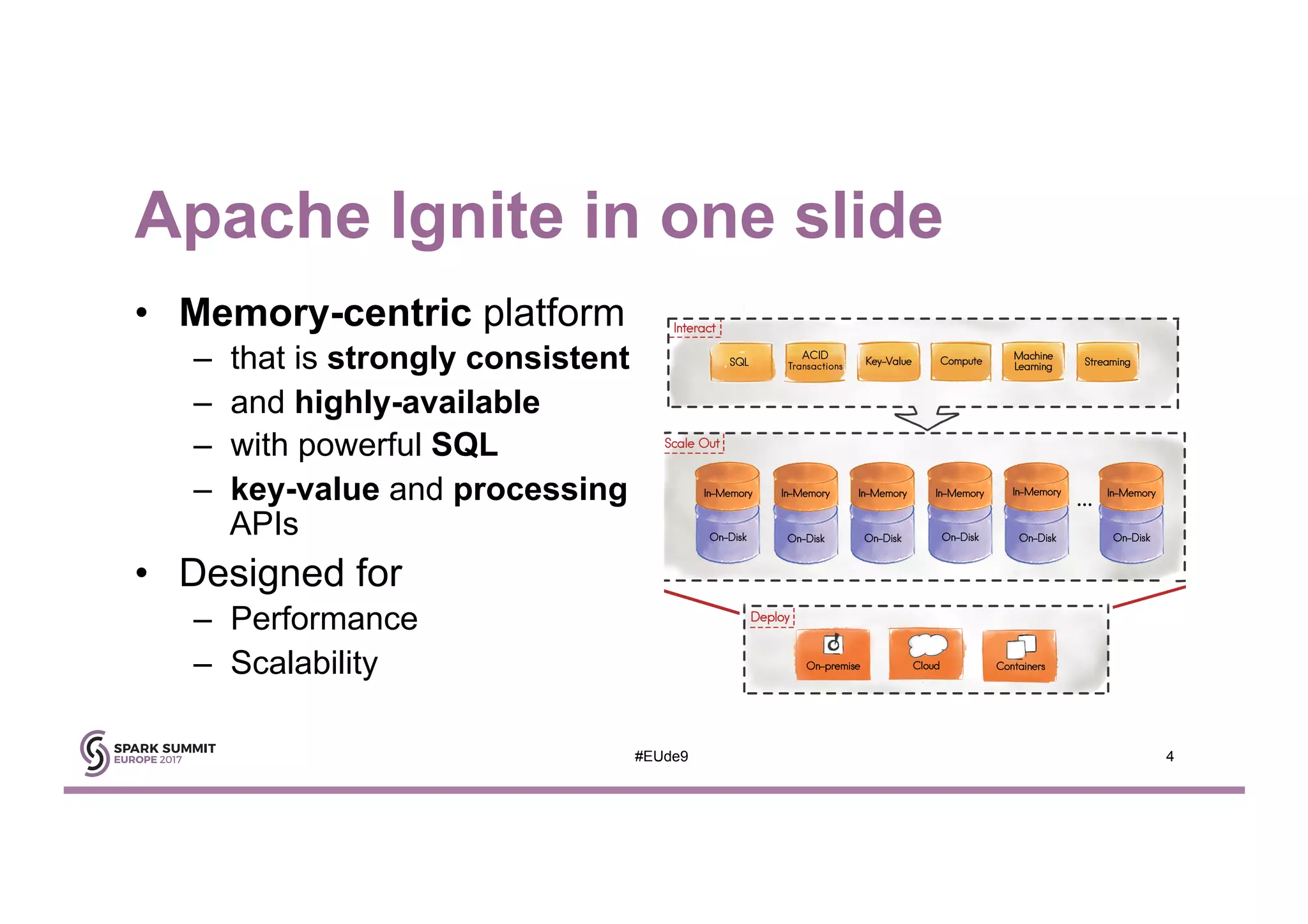

4. Apache Ignite in one slide
• Memory-centric platform
– that is strongly consistent
– and highly-available
– with powerful SQL
– key-value and processing
APIs
• Designed for
– Performance
– Scalability
4#EUde9

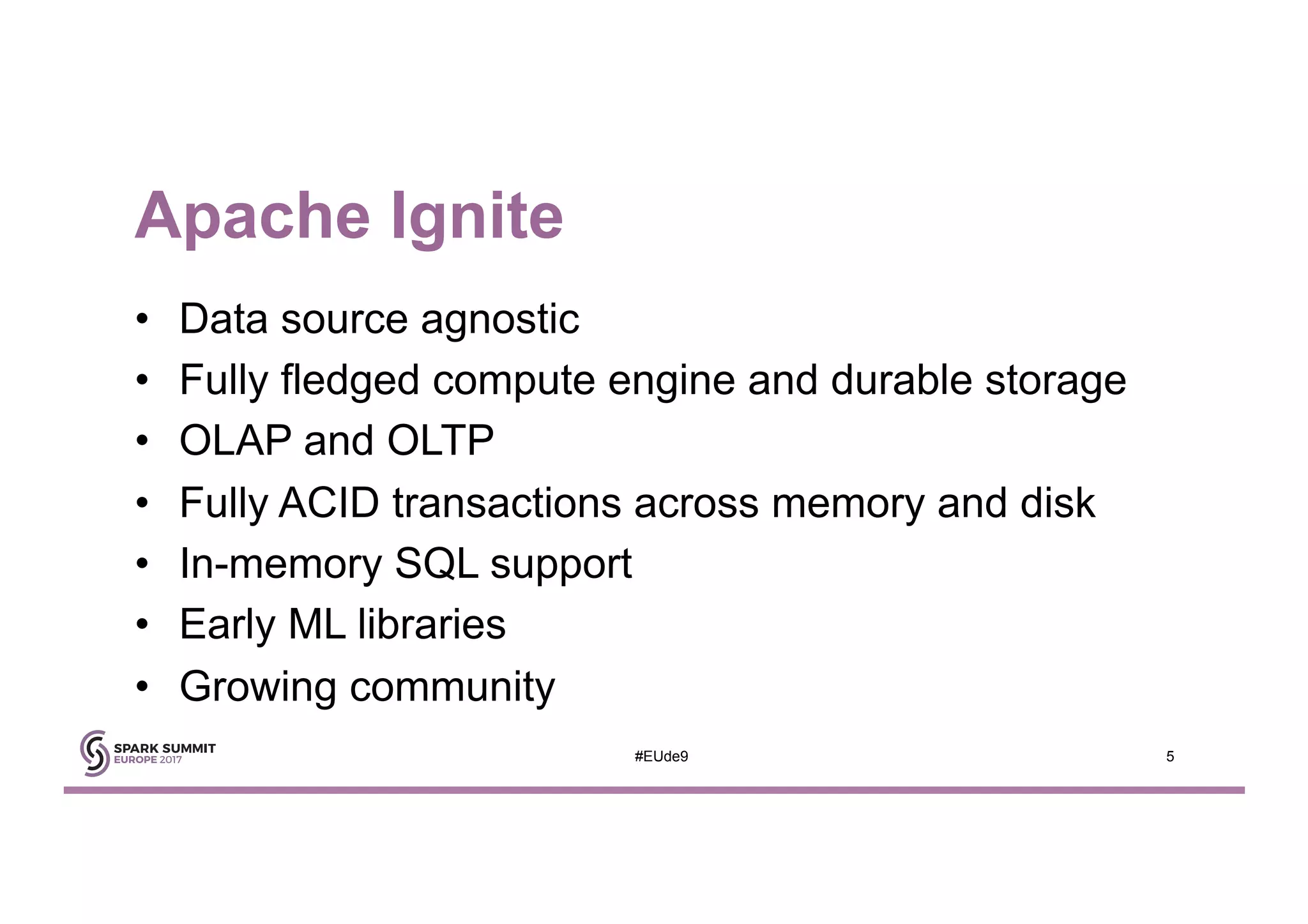

5. Apache Ignite
• Data source agnostic
• Fully fledged compute engine and durable storage
• OLAP and OLTP
• Fully ACID transactions across memory and disk
• In-memory SQL support
• Early ML libraries
• Growing community
5#EUde9

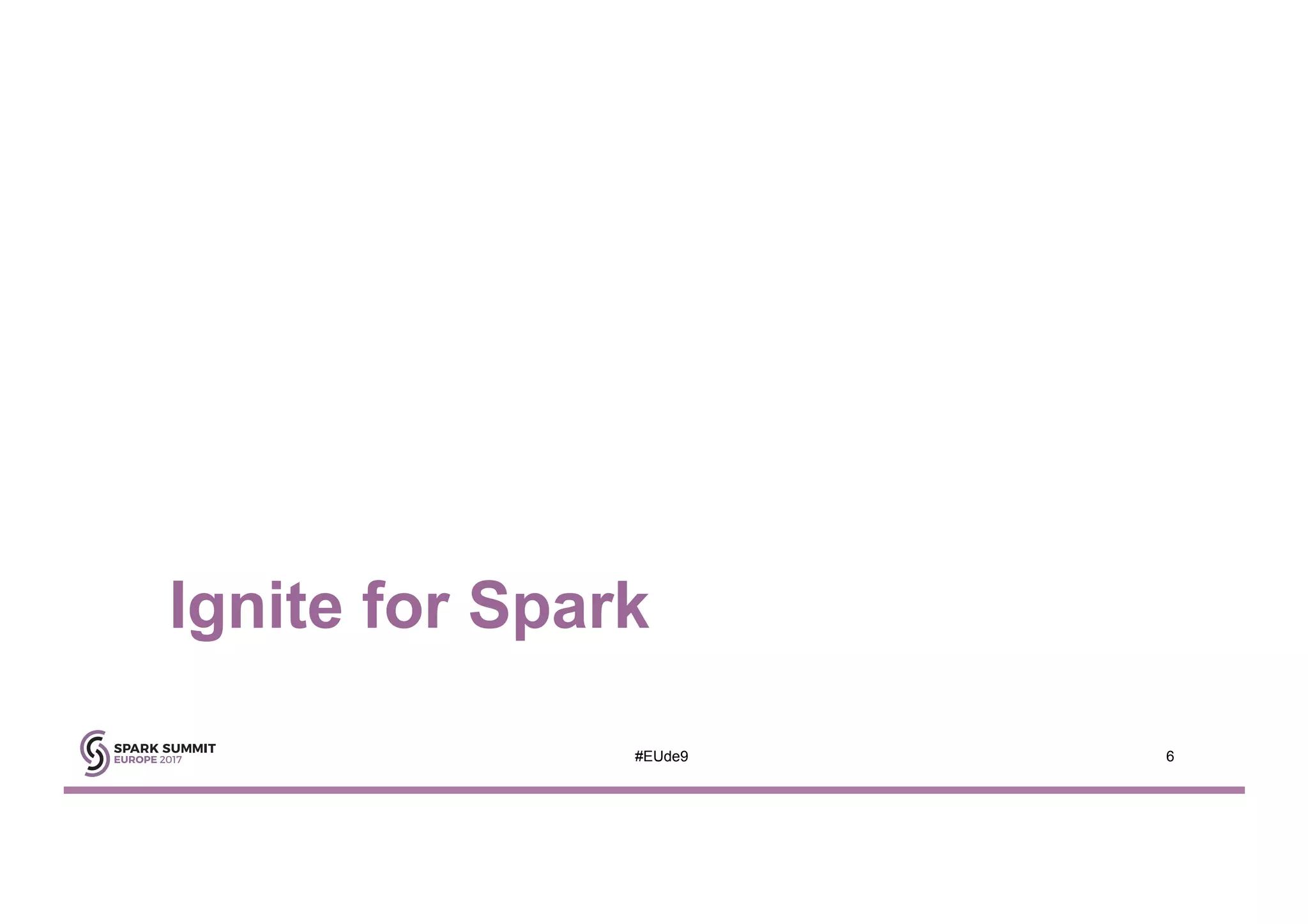

6. Ignite for Spark
6#EUde9

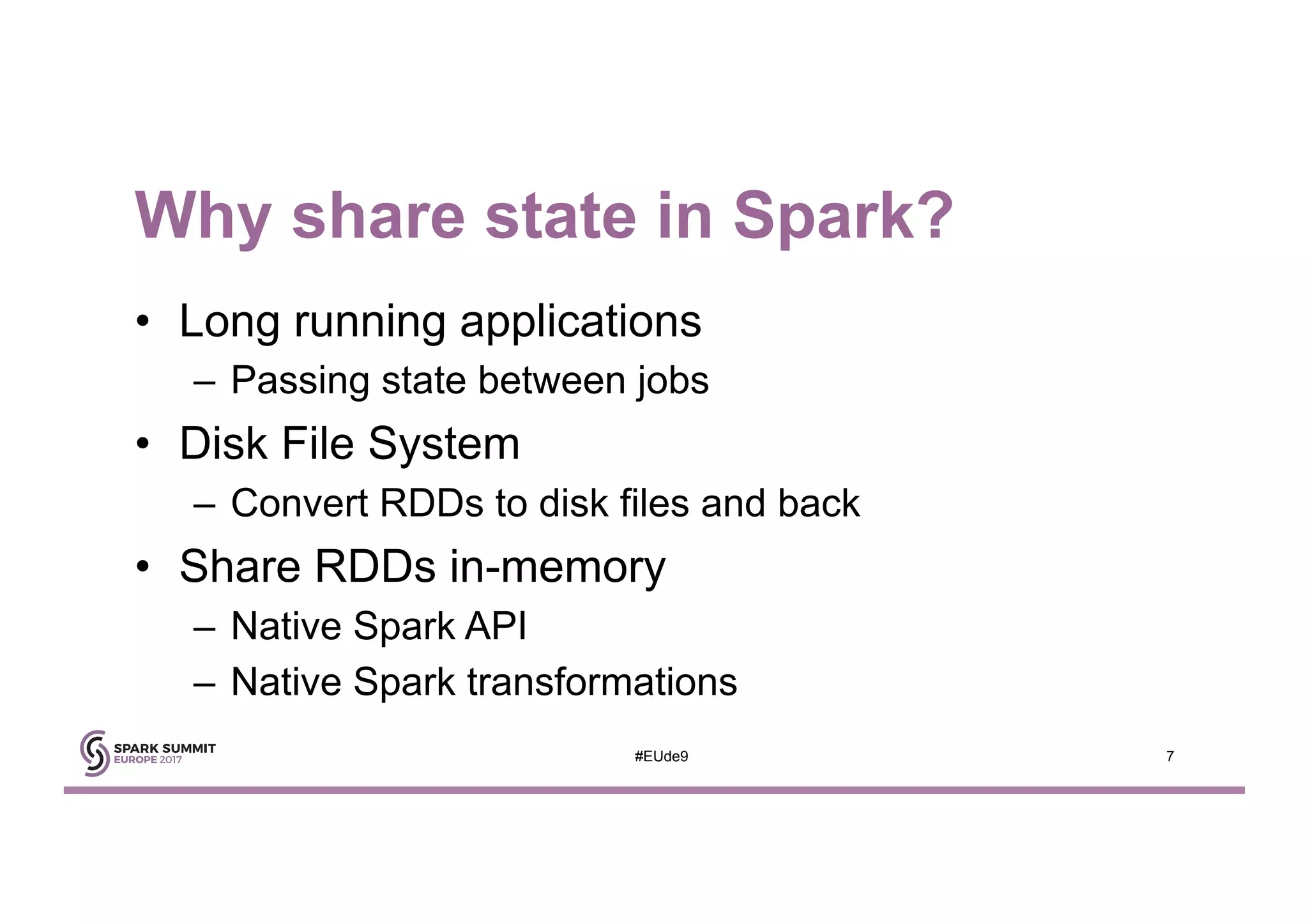

7. Why share state in Spark?
• Long running applications
– Passing state between jobs
• Disk File System
– Convert RDDs to disk files and back
• Share RDDs in-memory
– Native Spark API
– Native Spark transformations
7#EUde9

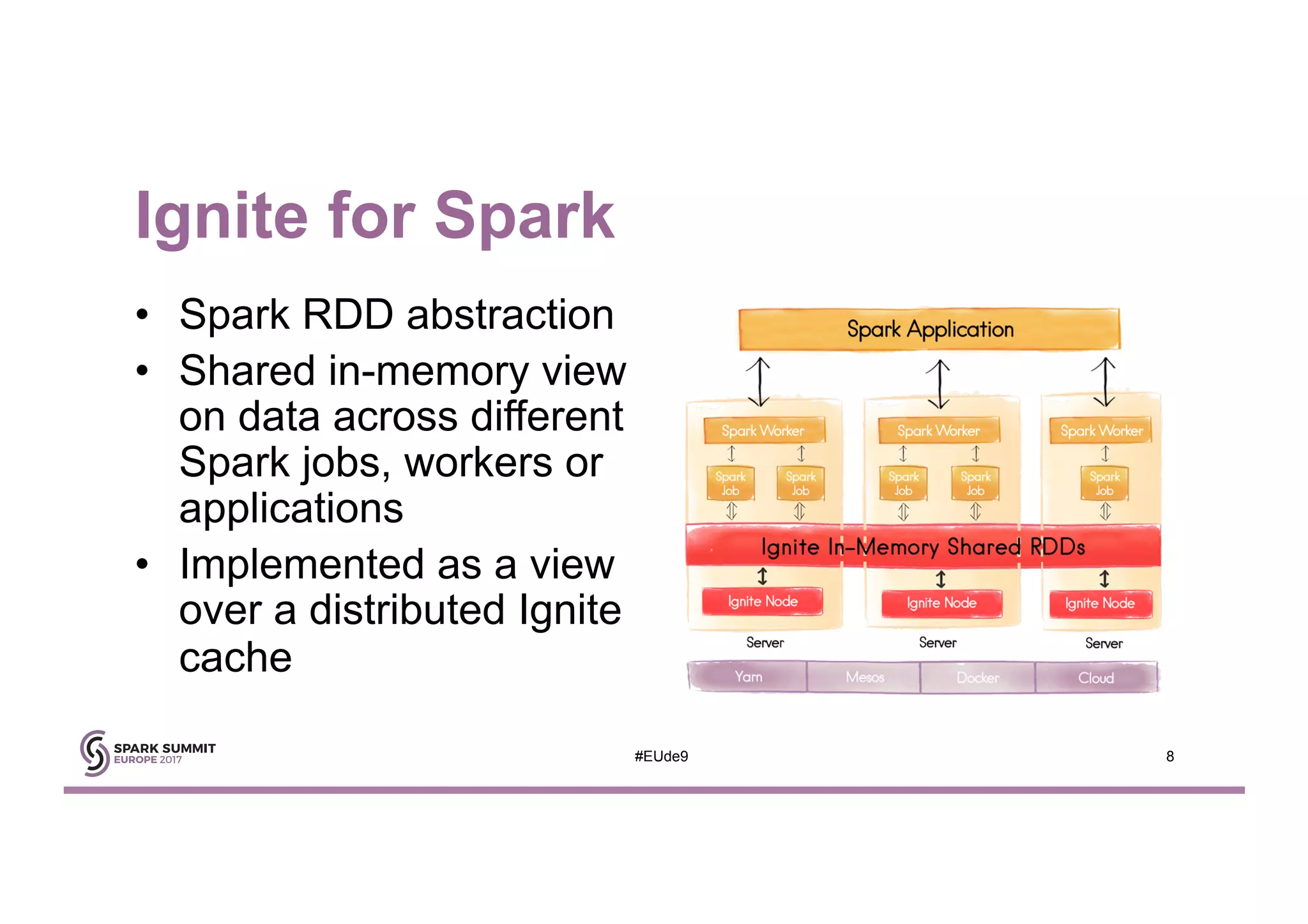

8. Ignite for Spark
• Spark RDD abstraction
• Shared in-memory view
on data across different
Spark jobs, workers or
applications
• Implemented as a view
over a distributed Ignite
cache
8#EUde9

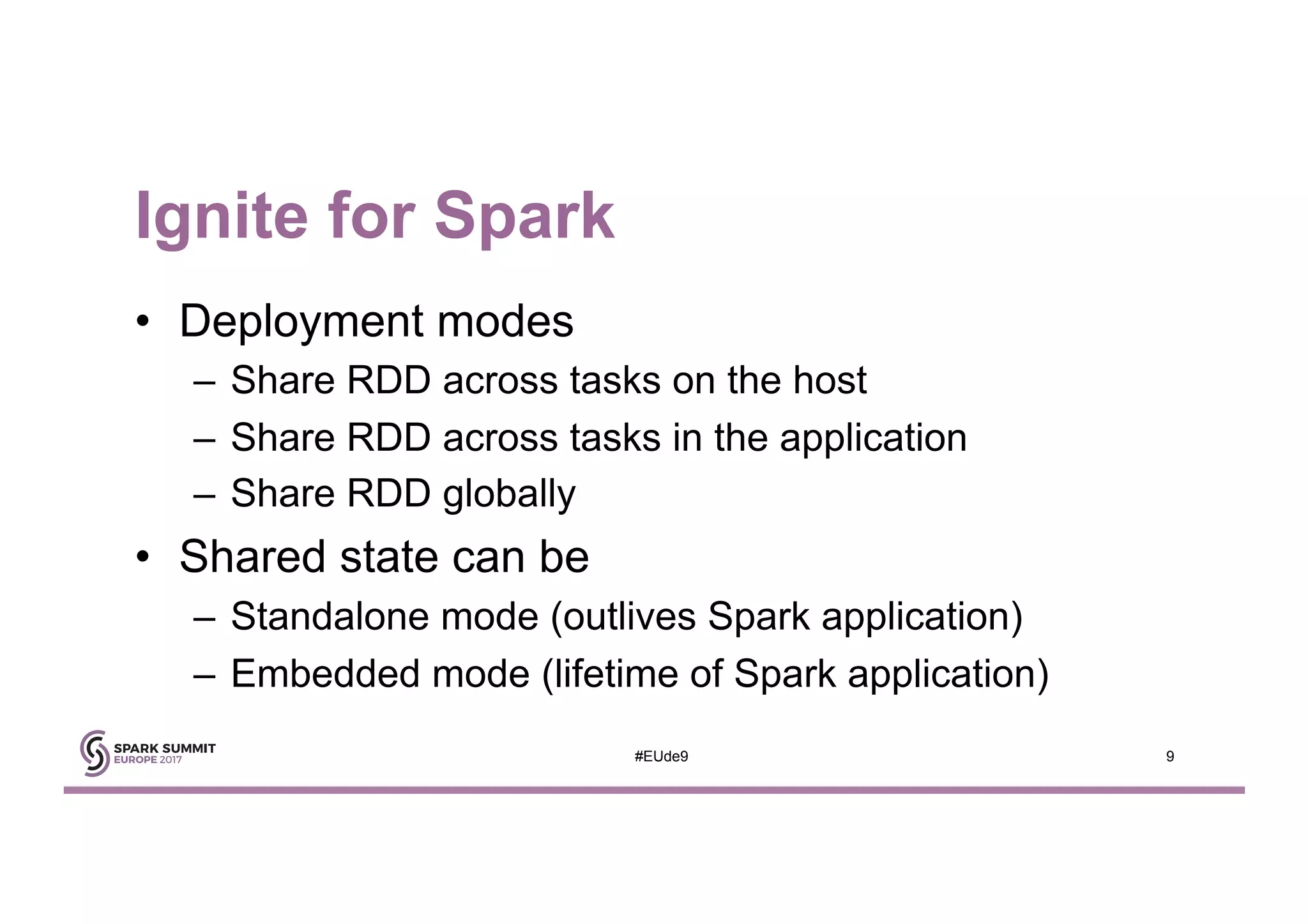

9. Ignite for Spark
• Deployment modes
– Share RDD across tasks on the host
– Share RDD across tasks in the application
– Share RDD globally
• Shared state can be
– Standalone mode (outlives Spark application)
– Embedded mode (lifetime of Spark application)
9#EUde9

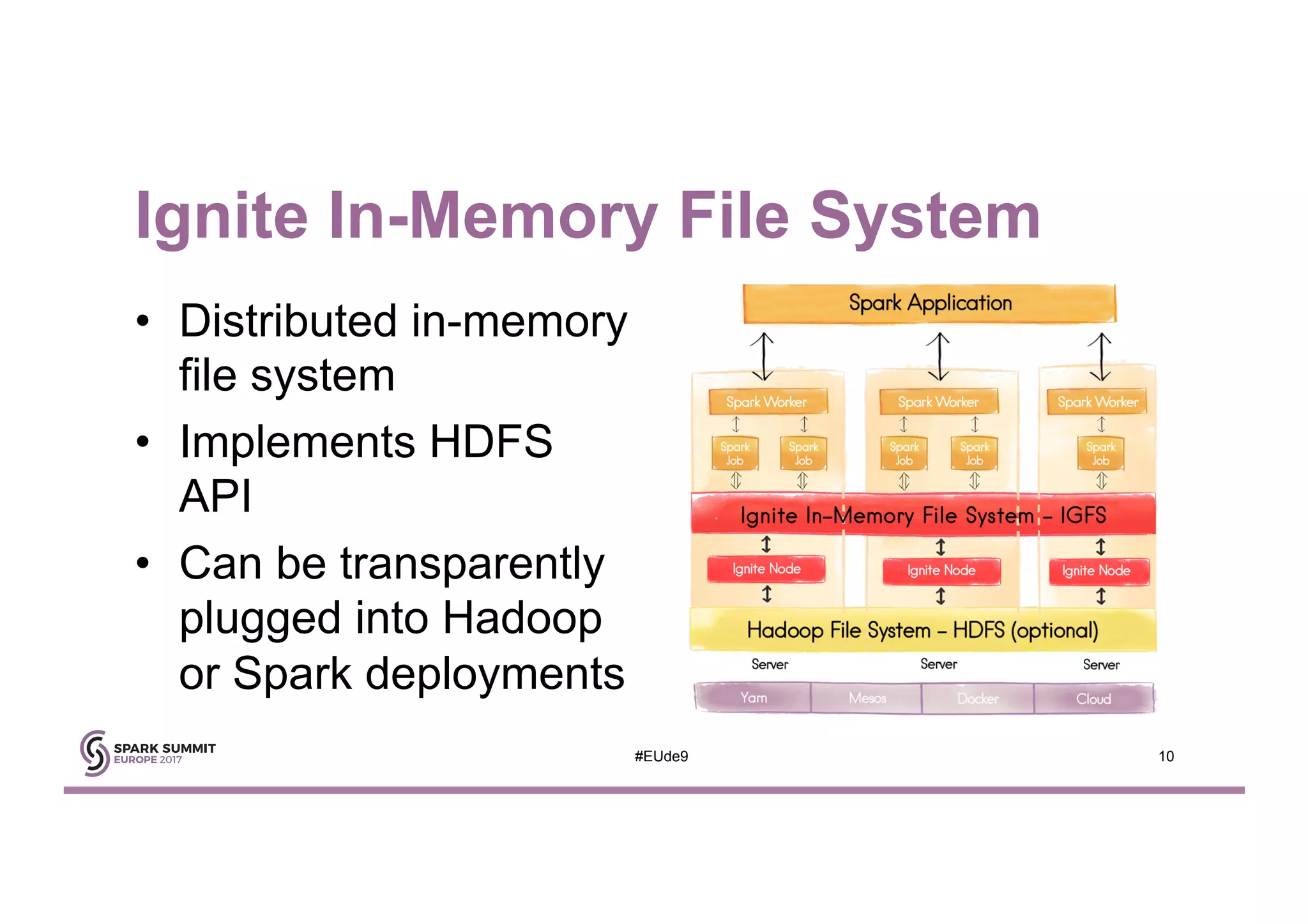

10. Ignite In-Memory File System
• Distributed in-memory
file system
• Implements HDFS
API
• Can be transparently
plugged into Hadoop
or Spark deployments
10#EUde9

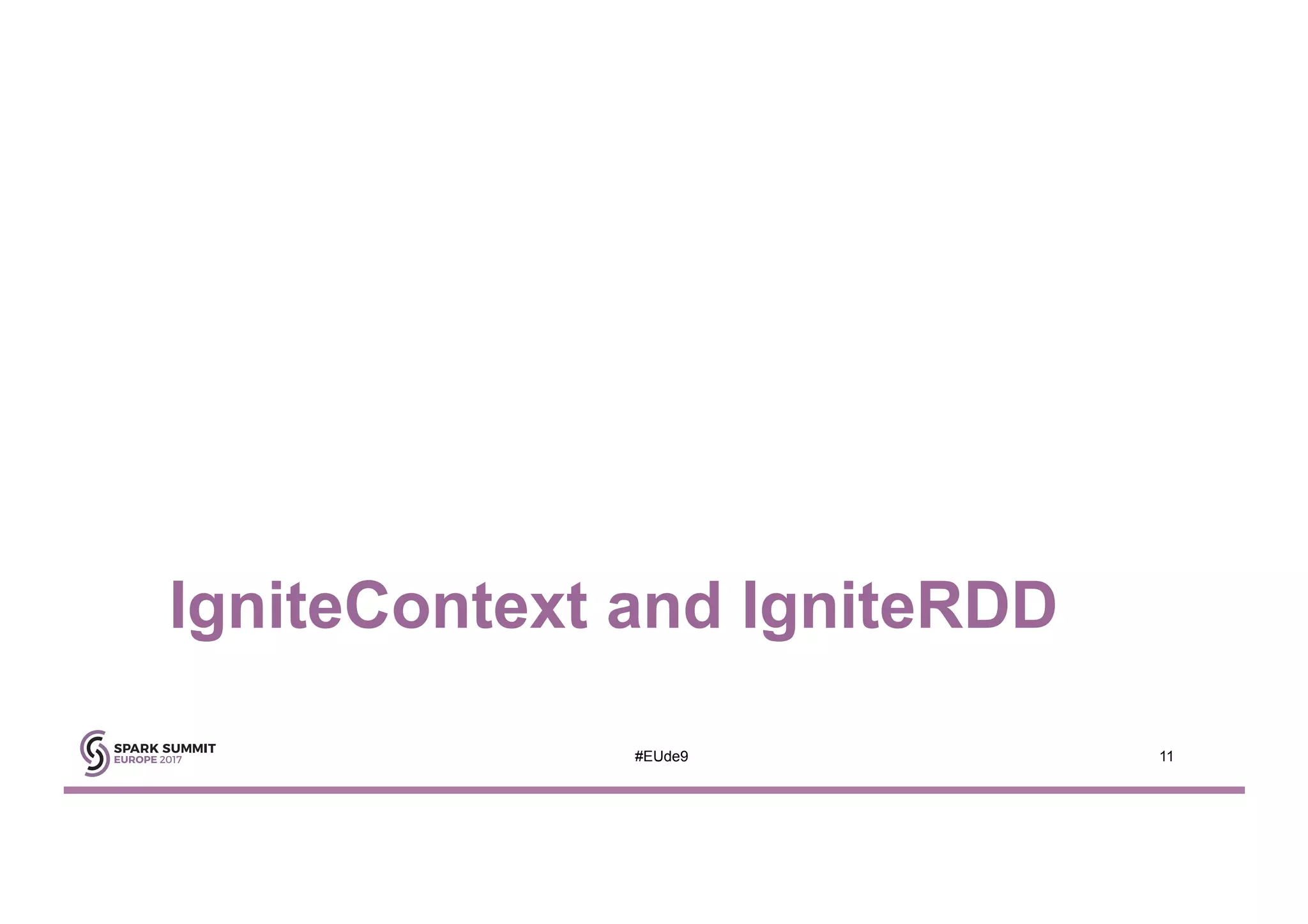

11. IgniteContext and IgniteRDD
11#EUde9

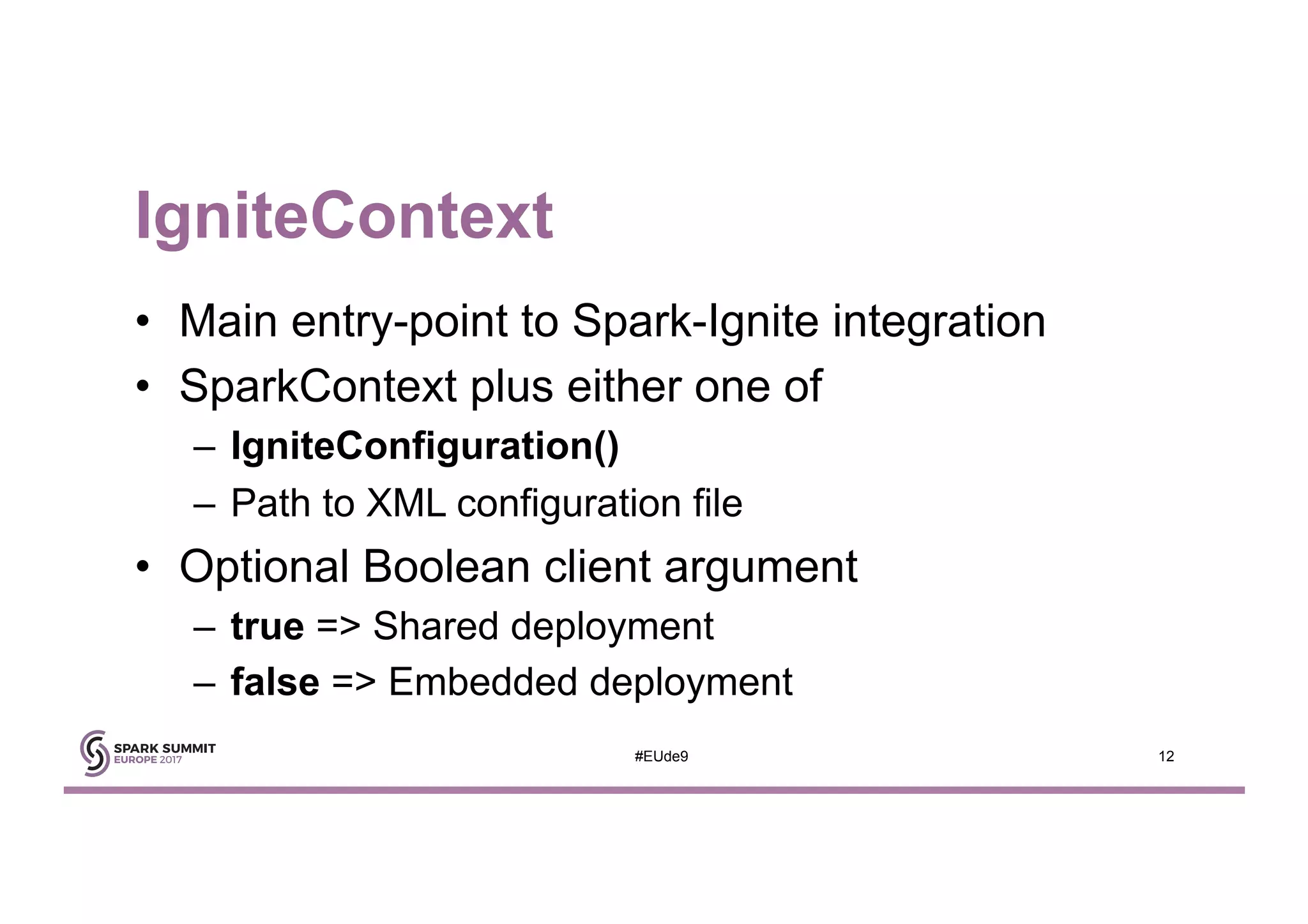

12. IgniteContext
• Main entry-point to Spark-Ignite integration
• SparkContext plus either one of
– IgniteConfiguration()
– Path to XML configuration file
• Optional Boolean client argument
– true => Shared deployment
– false => Embedded deployment
12#EUde9

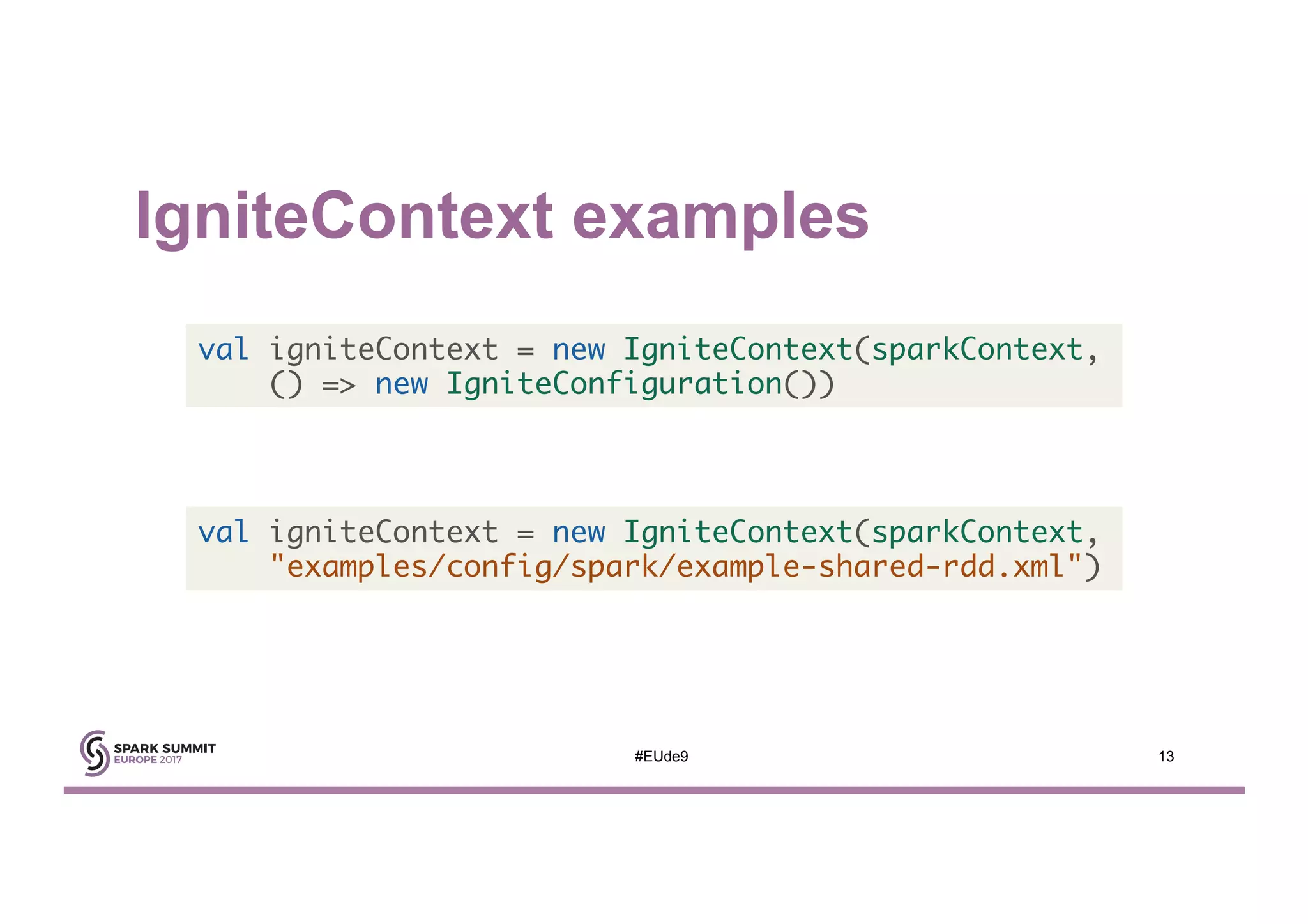

13. IgniteContext examples
13#EUde9
val igniteContext = new IgniteContext(sparkContext,
() => new IgniteConfiguration())
val igniteContext = new IgniteContext(sparkContext,
"examples/config/spark/example-shared-rdd.xml")

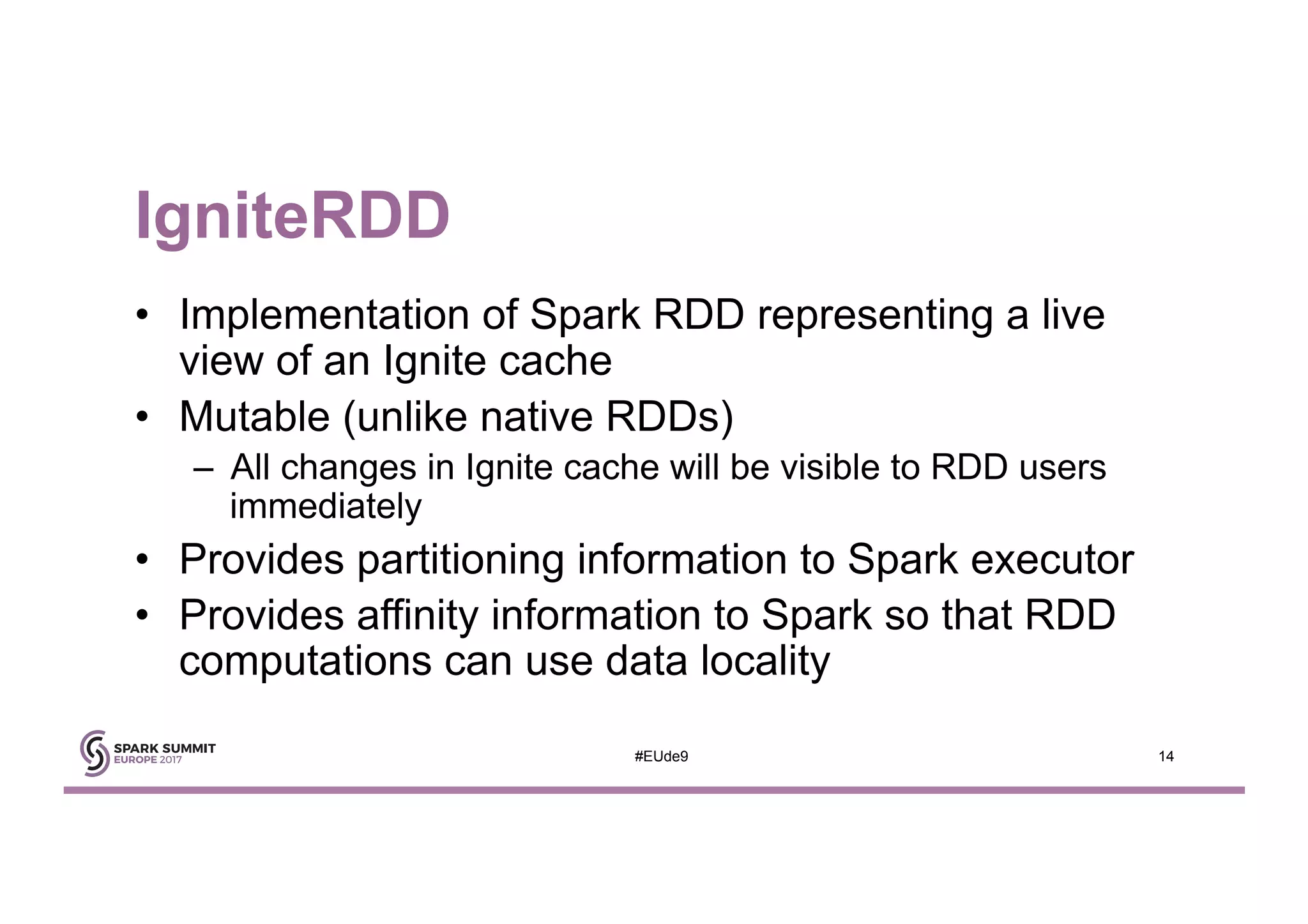

14. IgniteRDD
• Implementation of Spark RDD representing a live
view of an Ignite cache
• Mutable (unlike native RDDs)
– All changes in Ignite cache will be visible to RDD users
immediately
• Provides partitioning information to Spark executor
• Provides affinity information to Spark so that RDD
computations can use data locality
14#EUde9

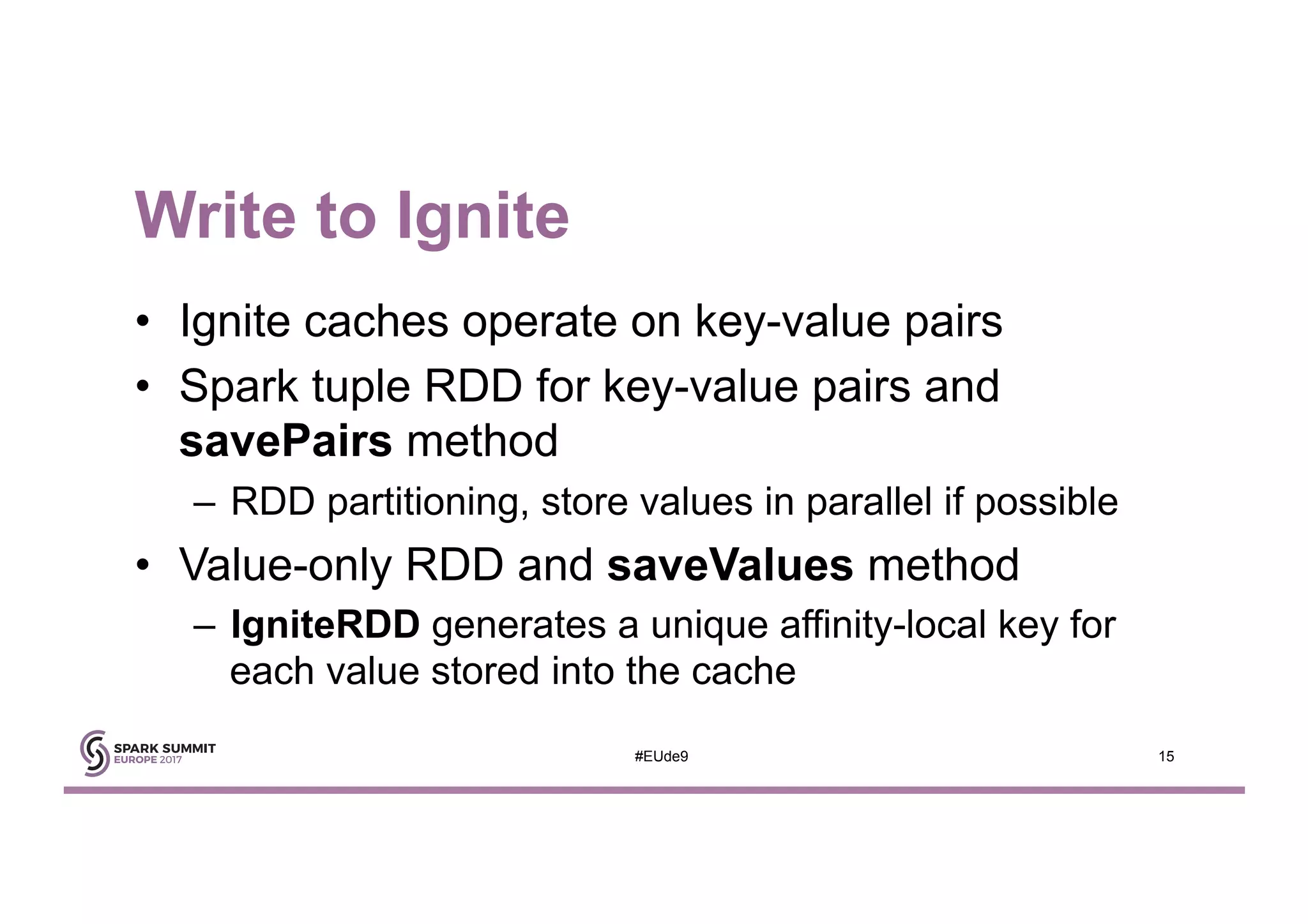

15. Write to Ignite
• Ignite caches operate on key-value pairs
• Spark tuple RDD for key-value pairs and
savePairs method
– RDD partitioning, store values in parallel if possible
• Value-only RDD and saveValues method
– IgniteRDD generates a unique affinity-local key for
each value stored into the cache
15#EUde9

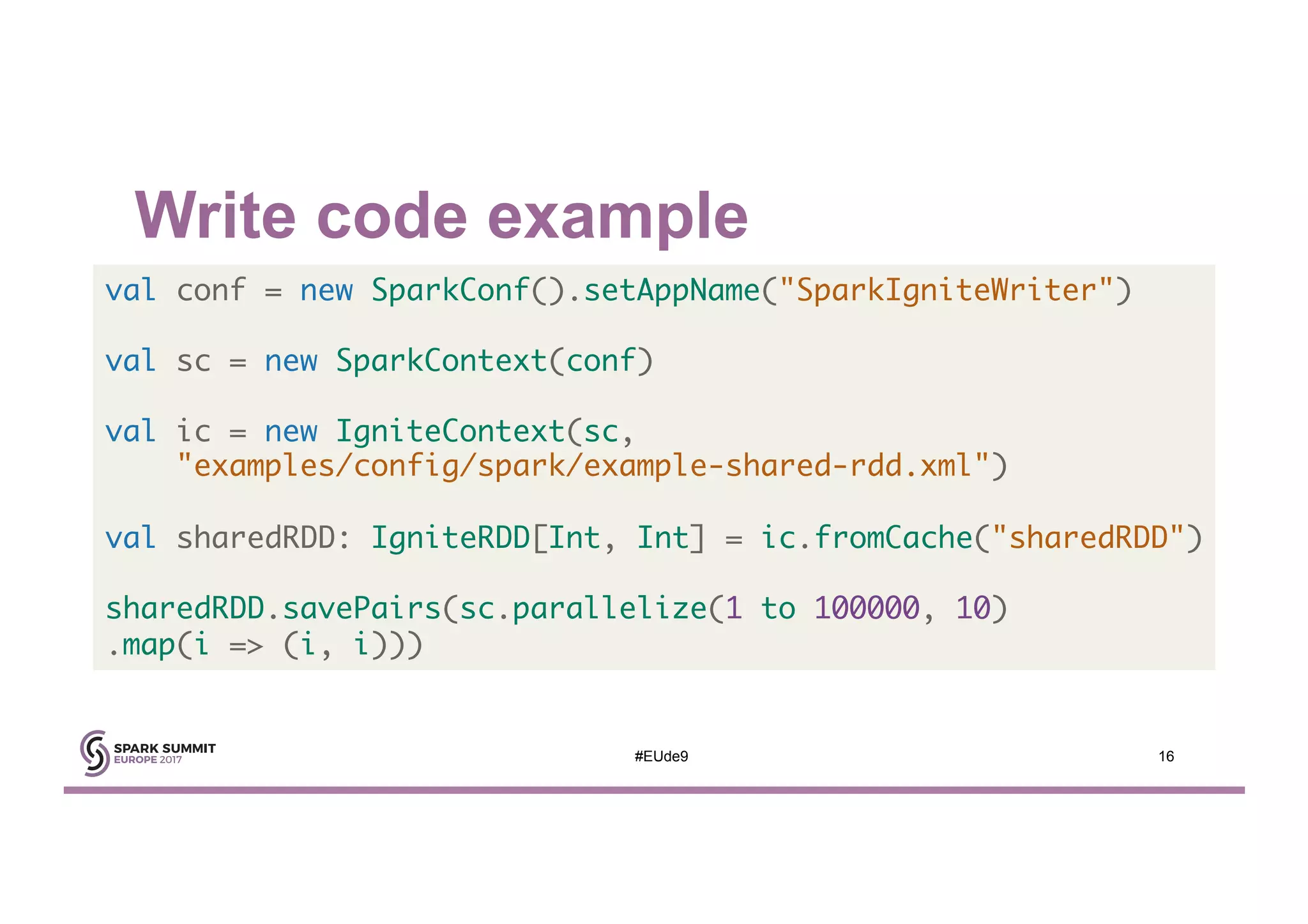

16. Write code example
16#EUde9
val conf = new SparkConf().setAppName("SparkIgniteWriter")
val sc = new SparkContext(conf)
val ic = new IgniteContext(sc,
"examples/config/spark/example-shared-rdd.xml")
val sharedRDD: IgniteRDD[Int, Int] = ic.fromCache("sharedRDD")
sharedRDD.savePairs(sc.parallelize(1 to 100000, 10)
.map(i => (i, i)))

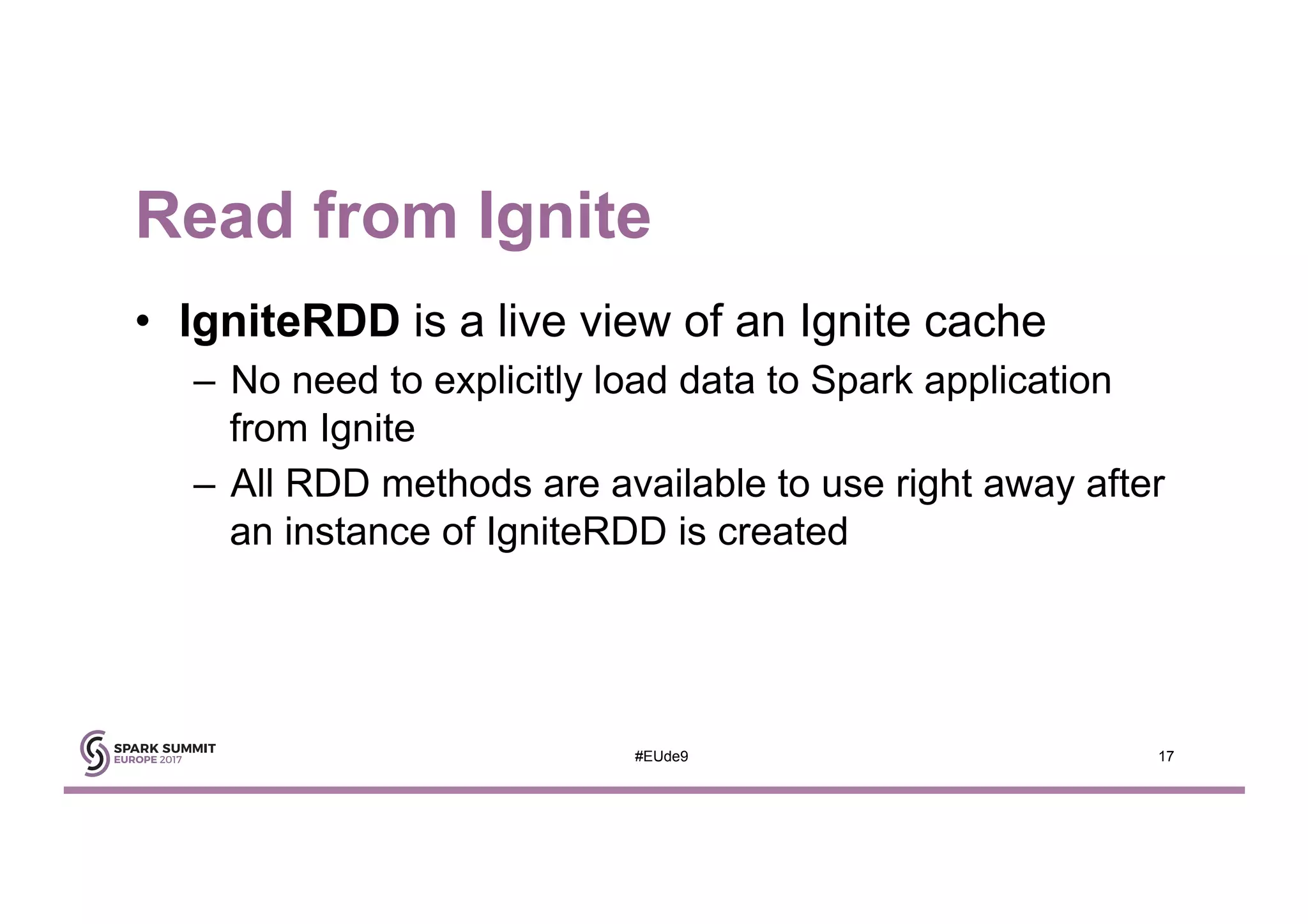

17. Read from Ignite
• IgniteRDD is a live view of an Ignite cache
– No need to explicitly load data to Spark application
from Ignite
– All RDD methods are available to use right away after
an instance of IgniteRDD is created
17#EUde9

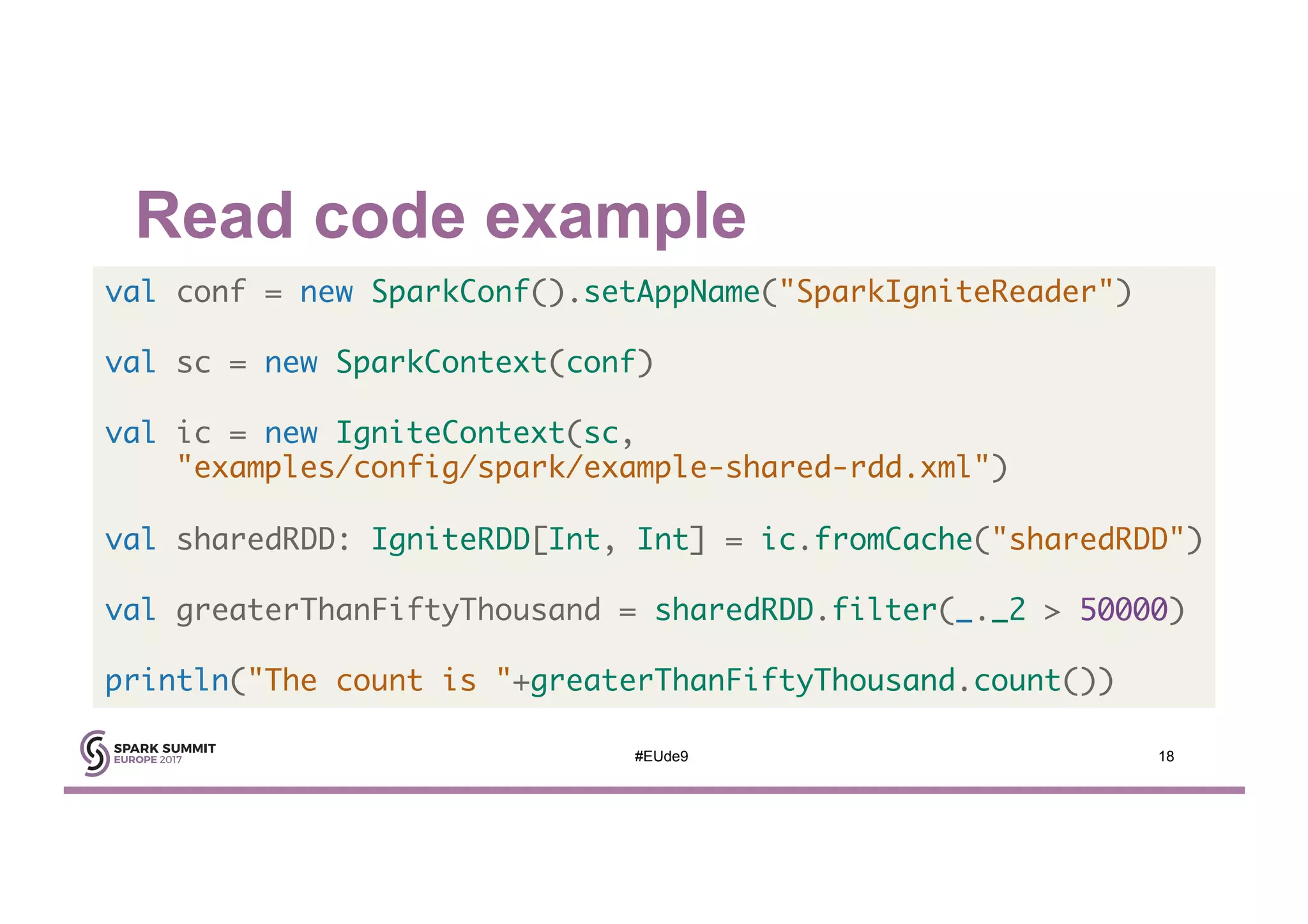

18. Read code example
18#EUde9
val conf = new SparkConf().setAppName("SparkIgniteReader")
val sc = new SparkContext(conf)
val ic = new IgniteContext(sc,
"examples/config/spark/example-shared-rdd.xml")
val sharedRDD: IgniteRDD[Int, Int] = ic.fromCache("sharedRDD")
val greaterThanFiftyThousand = sharedRDD.filter(_._2 > 50000)
println("The count is "+greaterThanFiftyThousand.count())

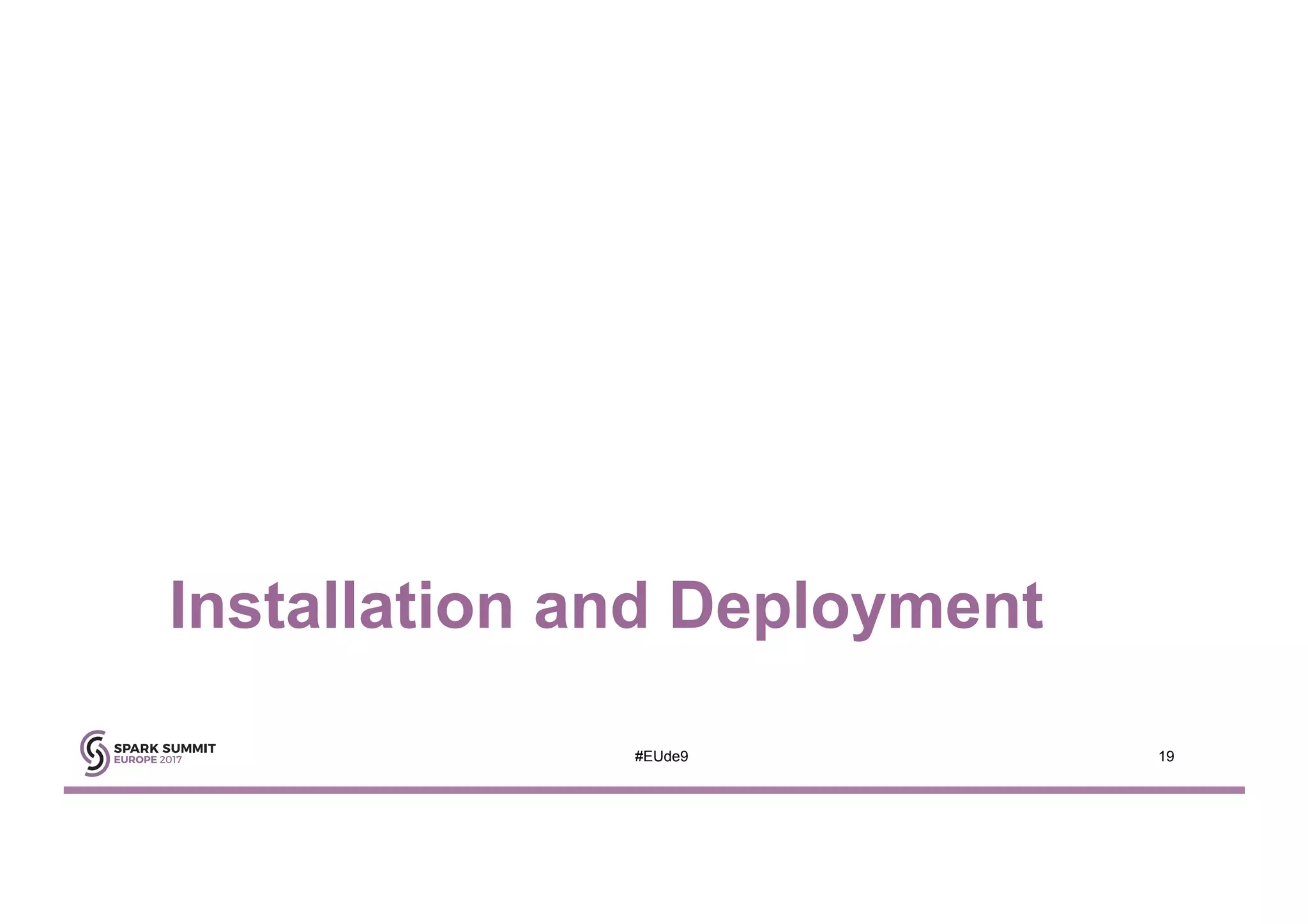

19. Installation and Deployment
19#EUde9

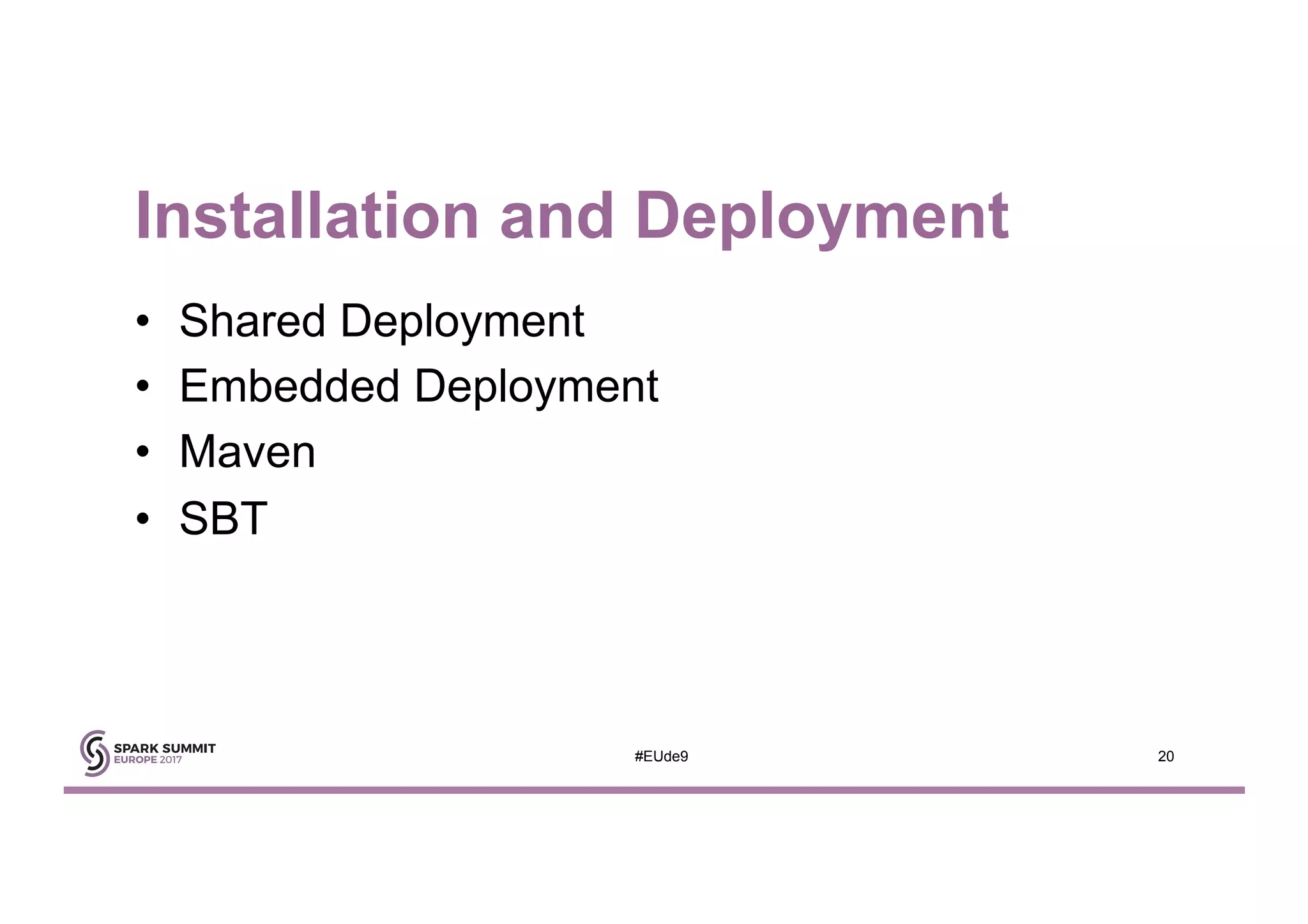

20. Installation and Deployment
• Shared Deployment
• Embedded Deployment
• Maven
• SBT
20#EUde9

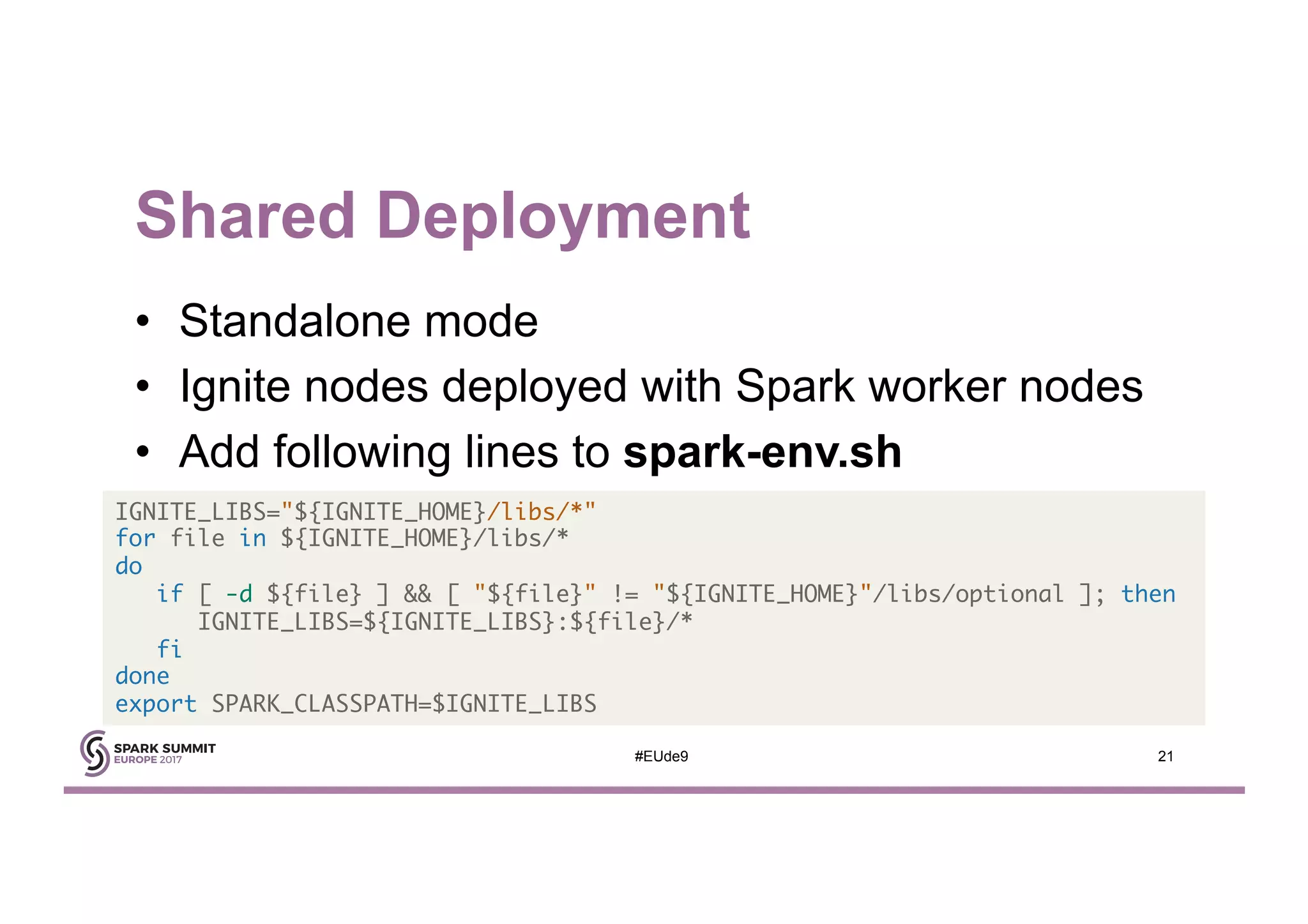

21. Shared Deployment
• Standalone mode
• Ignite nodes deployed with Spark worker nodes
• Add following lines to spark-env.sh
21#EUde9
IGNITE_LIBS="${IGNITE_HOME}/libs/*"
for file in ${IGNITE_HOME}/libs/*
do
if [ -d ${file} ] && [ "${file}" != "${IGNITE_HOME}"/libs/optional ]; then
IGNITE_LIBS=${IGNITE_LIBS}:${file}/*
fi
done
export SPARK_CLASSPATH=$IGNITE_LIBS

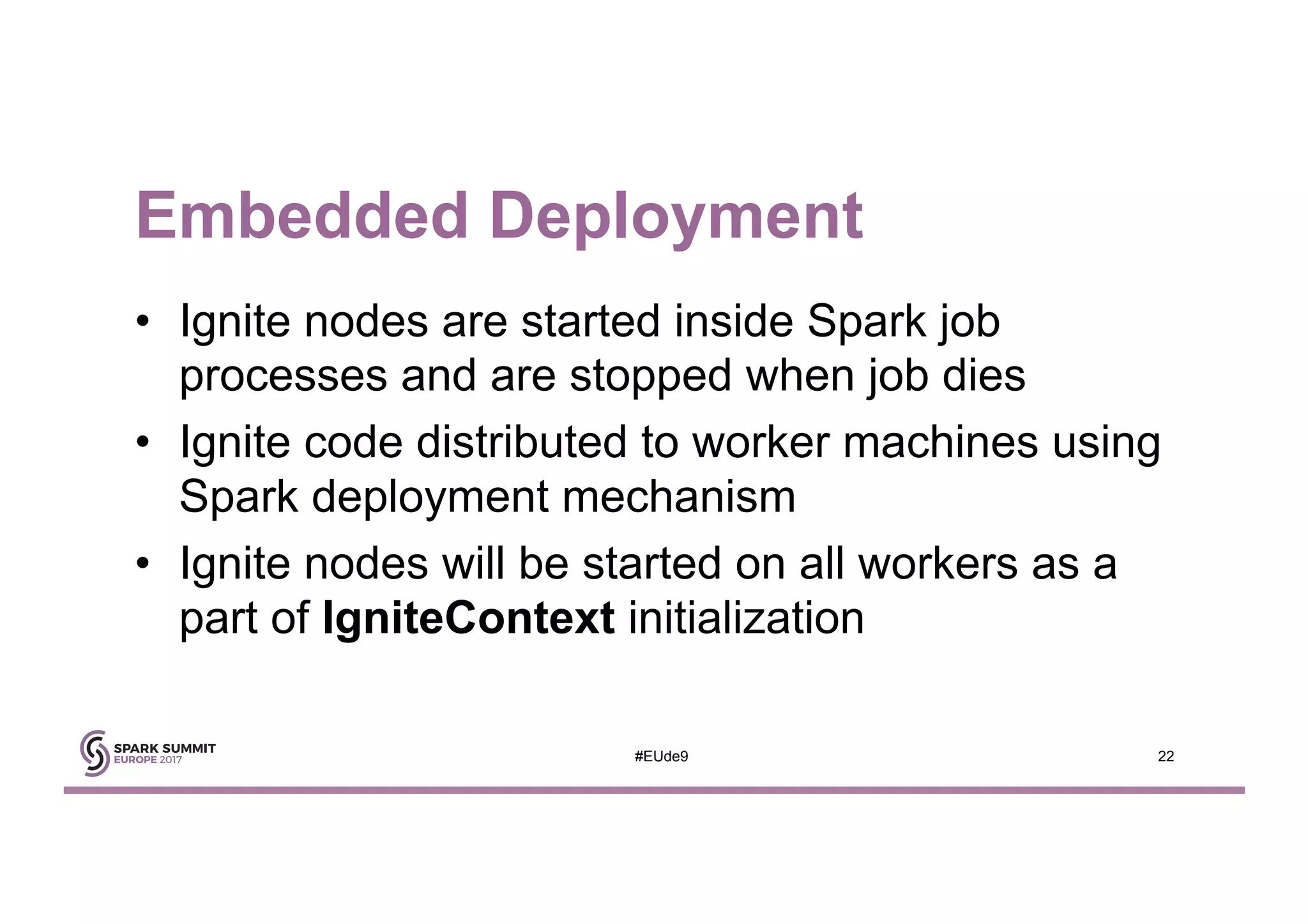

22. Embedded Deployment
• Ignite nodes are started inside Spark job
processes and are stopped when job dies
• Ignite code distributed to worker machines using
Spark deployment mechanism
• Ignite nodes will be started on all workers as a
part of IgniteContext initialization
22#EUde9

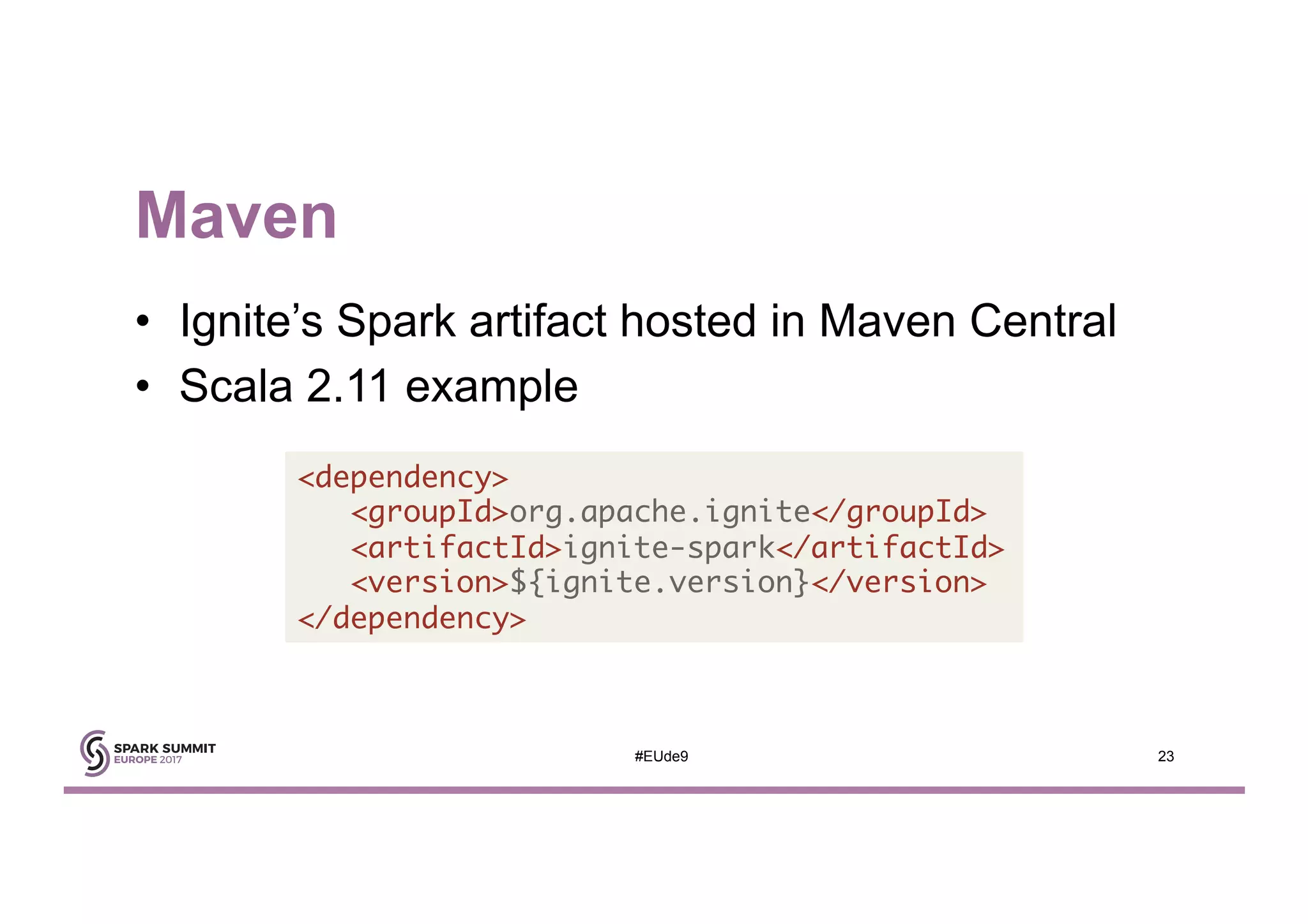

23. Maven
• Ignite’s Spark artifact hosted in Maven Central
• Scala 2.11 example
23#EUde9
<dependency>
<groupId>org.apache.ignite</groupId>
<artifactId>ignite-spark</artifactId>
<version>${ignite.version}</version>
</dependency>

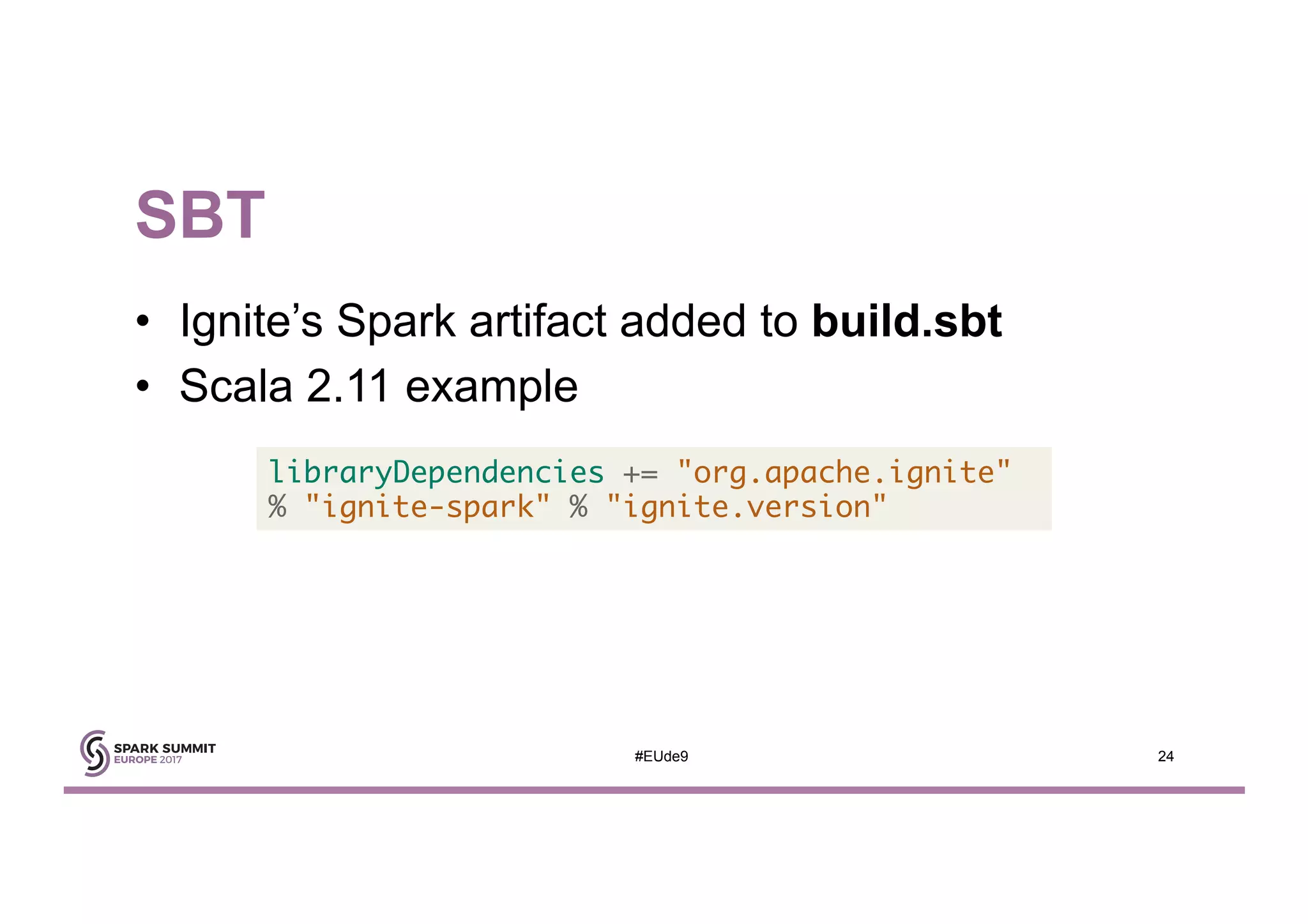

24. SBT
• Ignite’s Spark artifact added to build.sbt
• Scala 2.11 example
24#EUde9
libraryDependencies += "org.apache.ignite"
% "ignite-spark" % "ignite.version"

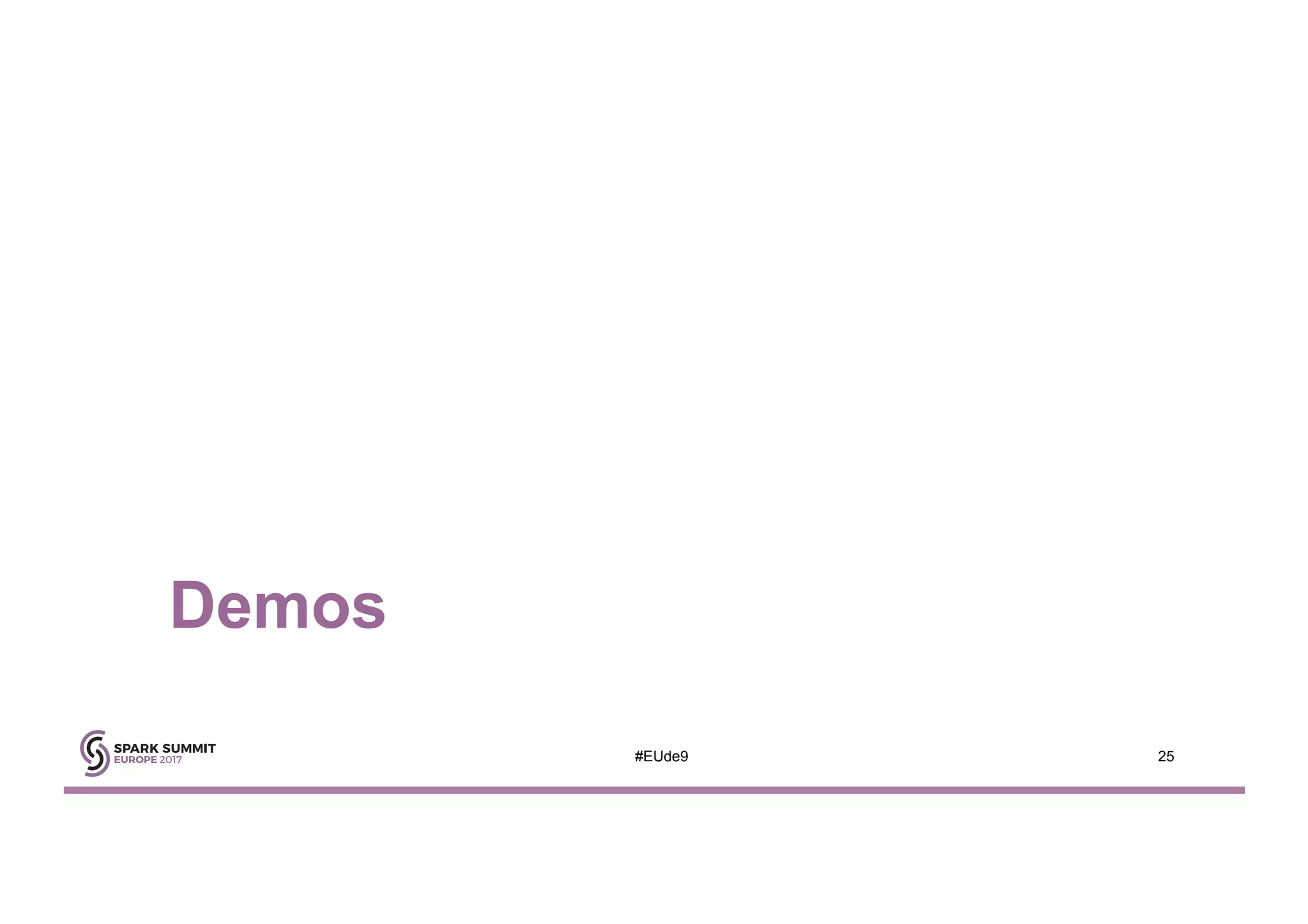

25. Demos
25#EUde9

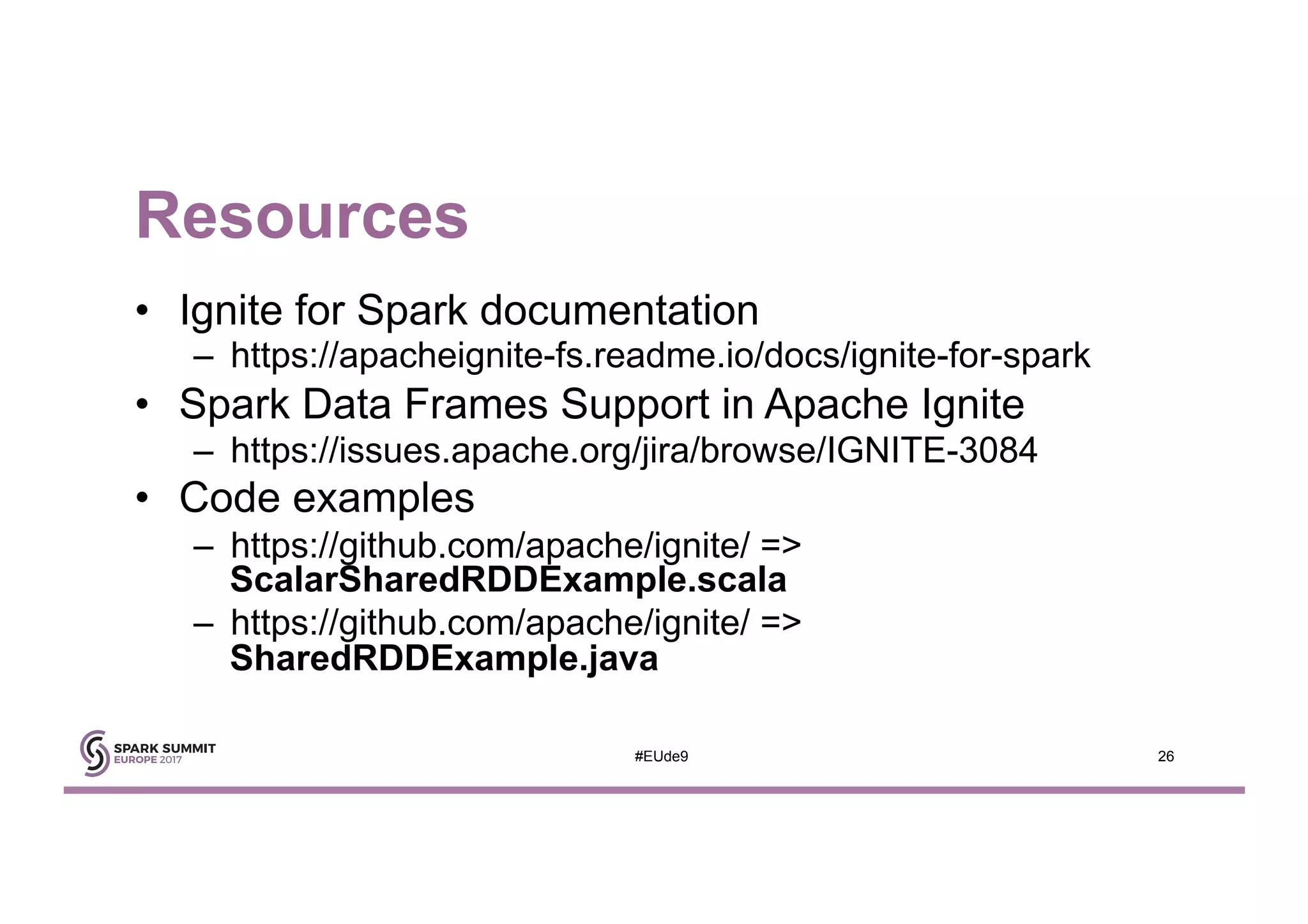

26. Resources
• Ignite for Spark documentation
– https://apacheignite-fs.readme.io/docs/ignite-for-spark
• Spark Data Frames Support in Apache Ignite
– https://issues.apache.org/jira/browse/IGNITE-3084
• Code examples
– https://github.com/apache/ignite/ =>
ScalarSharedRDDExample.scala
– https://github.com/apache/ignite/ =>
SharedRDDExample.java
26#EUde9

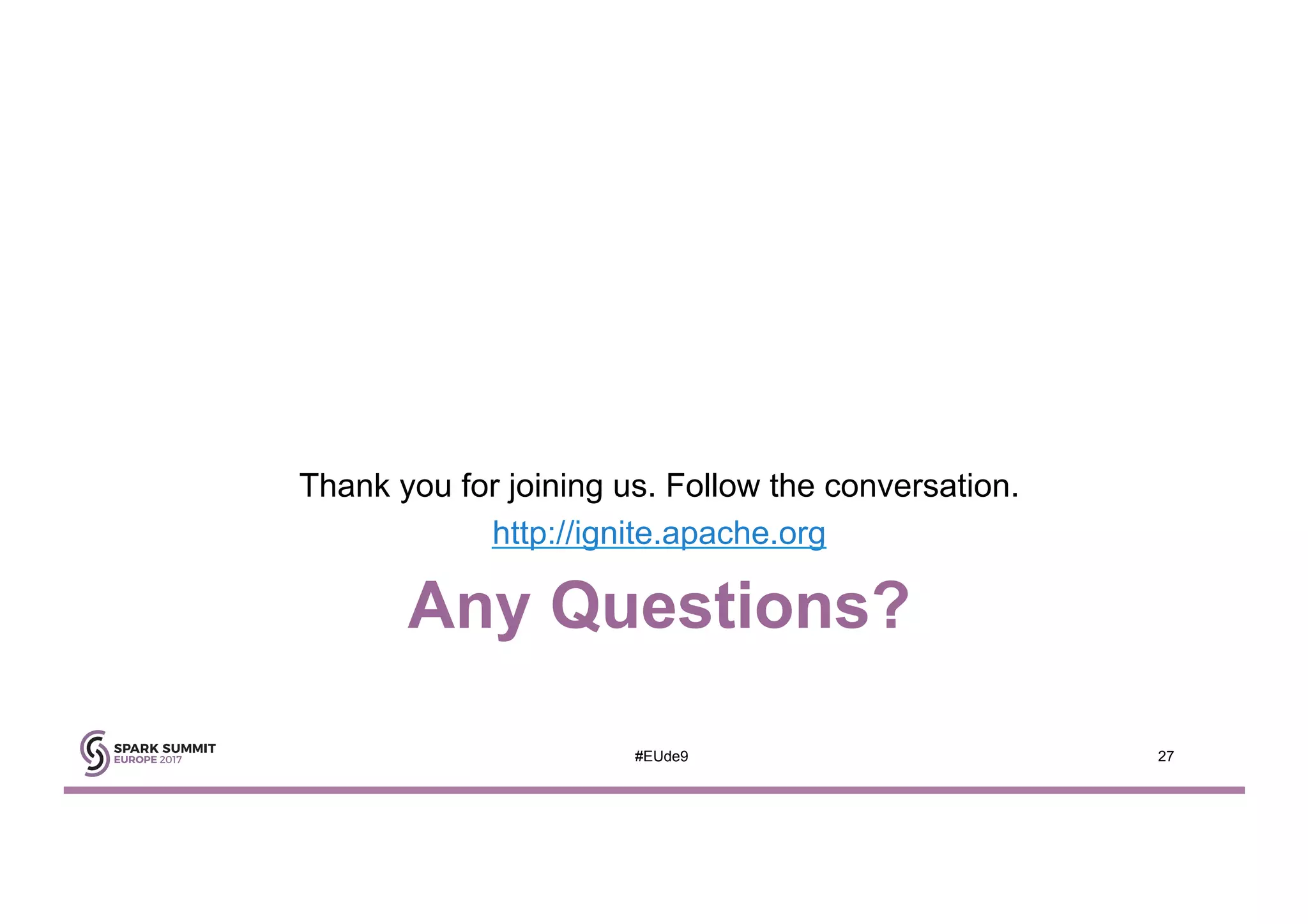

27. Any Questions?
Thank you for joining us. Follow the conversation.
http://ignite.apache.org
27#EUde9
