1. How to Design a Great API
(using Flask)
Devon Bernard
VP of Engineering @ Enlitic

2. Developers Users
&

3. Intuitive Durable Flexible
Code That Makes Developers Happy

4. Intuitive

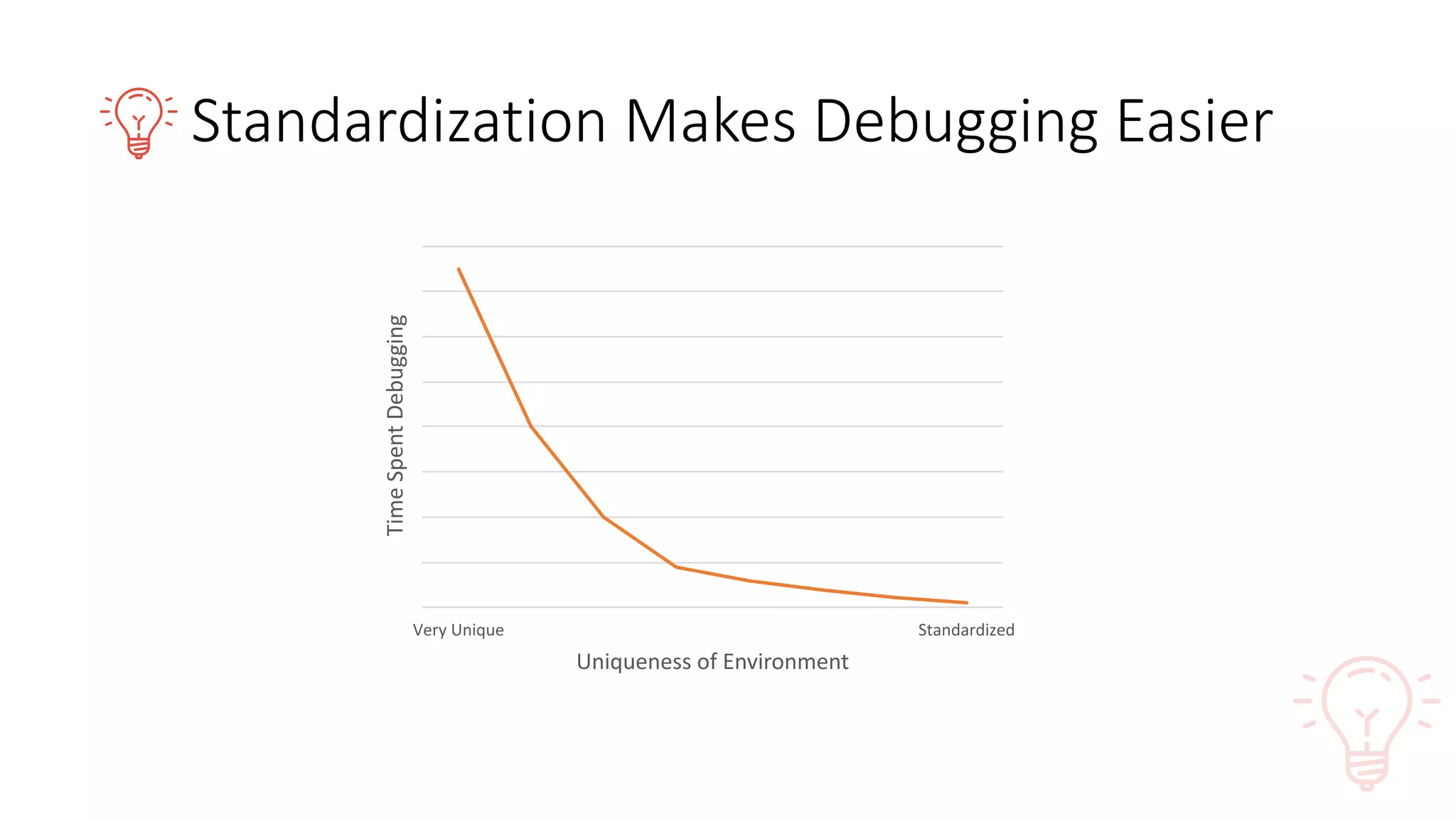

5. Standardization Makes Debugging Easier
Very Unique Standardized
Time Spent Debugging
Uniqueness of Environment

7. ○

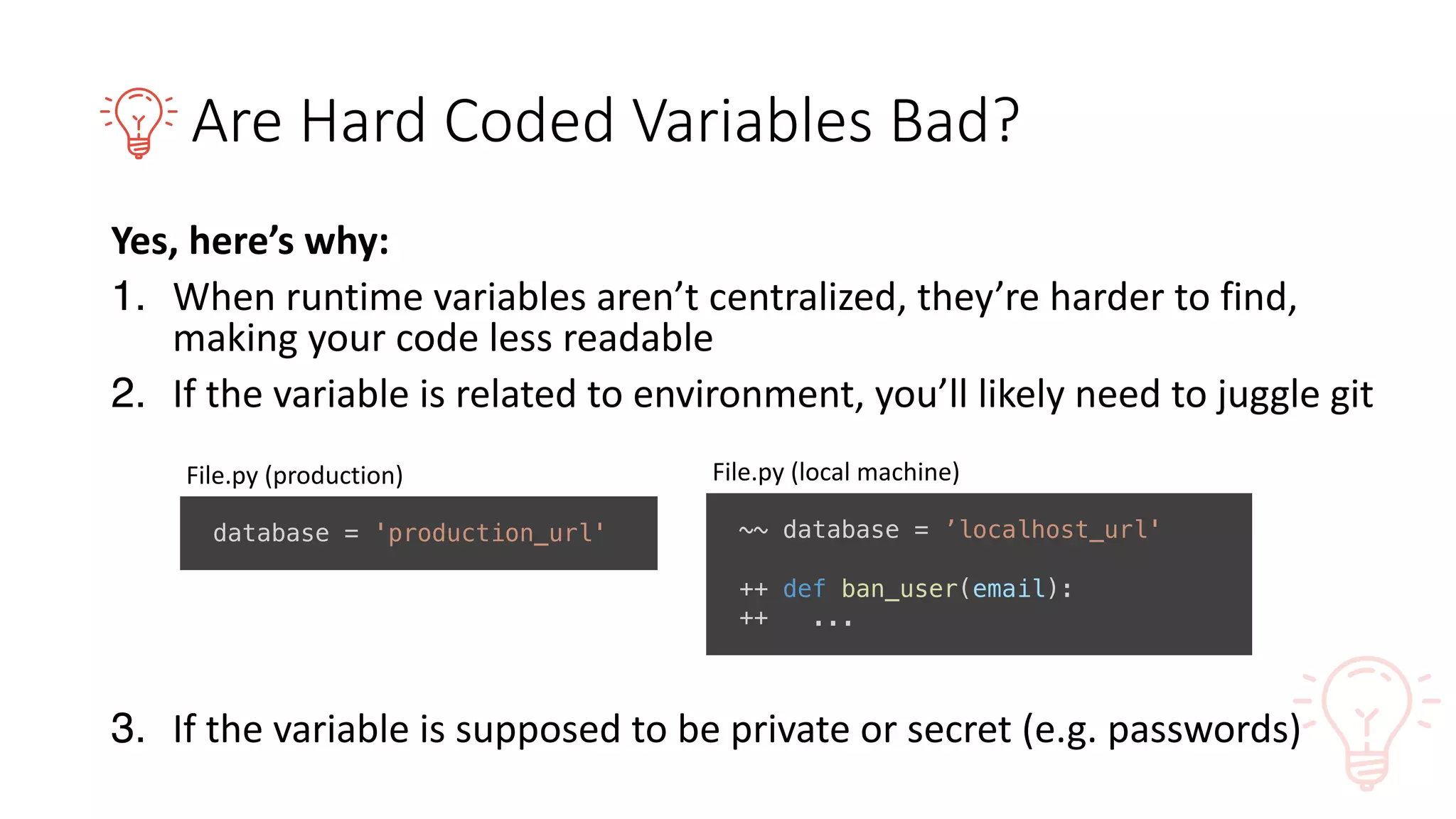

8. Are Hard Coded Variables Bad?
Yes, here’s why:
1. When runtime variables aren’t centralized, they’re harder to find,
making your code less readable
2. If the variable is related to environment, you’ll likely need to juggle git
3. If the variable is supposed to be private or secret (e.g. passwords)
database = 'production_url'
File.py (production)
~~ database = ’localhost_url'
++ def ban_user(email):
++ ...
File.py (local machine)

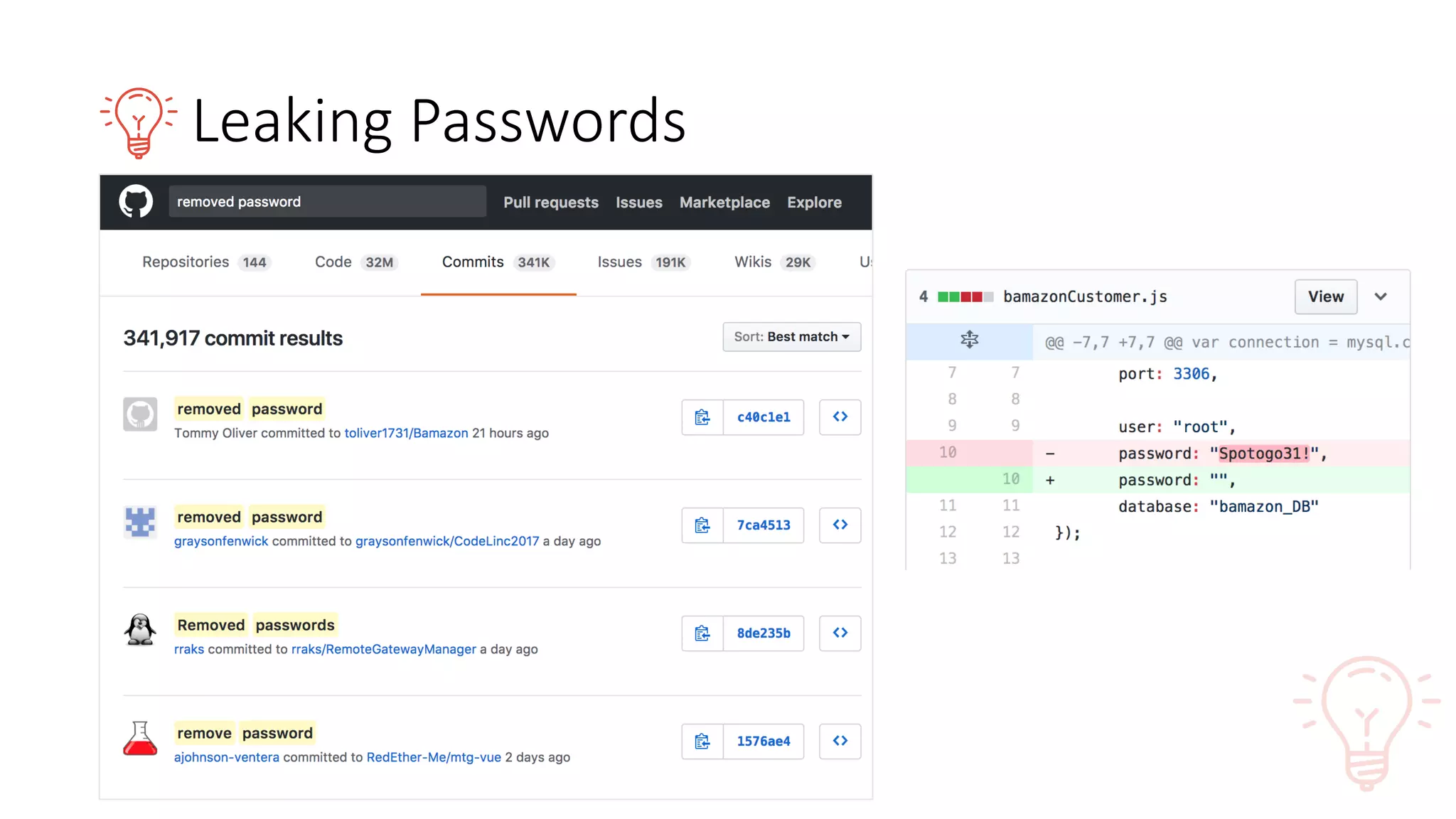

9. Leaking Passwords

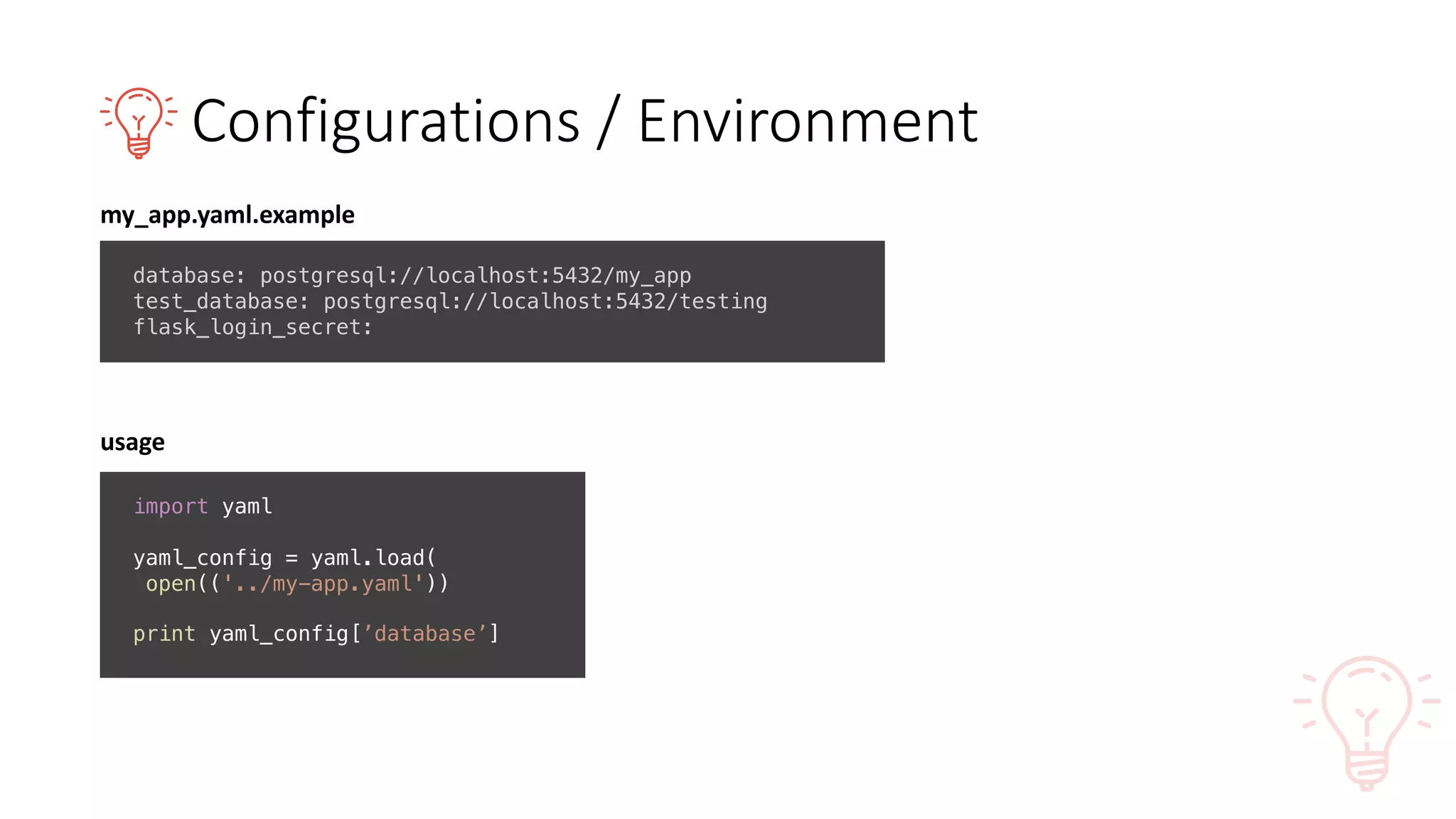

10. Configurations / Environment
database: postgresql://localhost:5432/my_app
test_database: postgresql://localhost:5432/testing
flask_login_secret:
import yaml
yaml_config = yaml.load(
open(('../my-app.yaml'))
print yaml_config[’database’]
usage
my_app.yaml.example

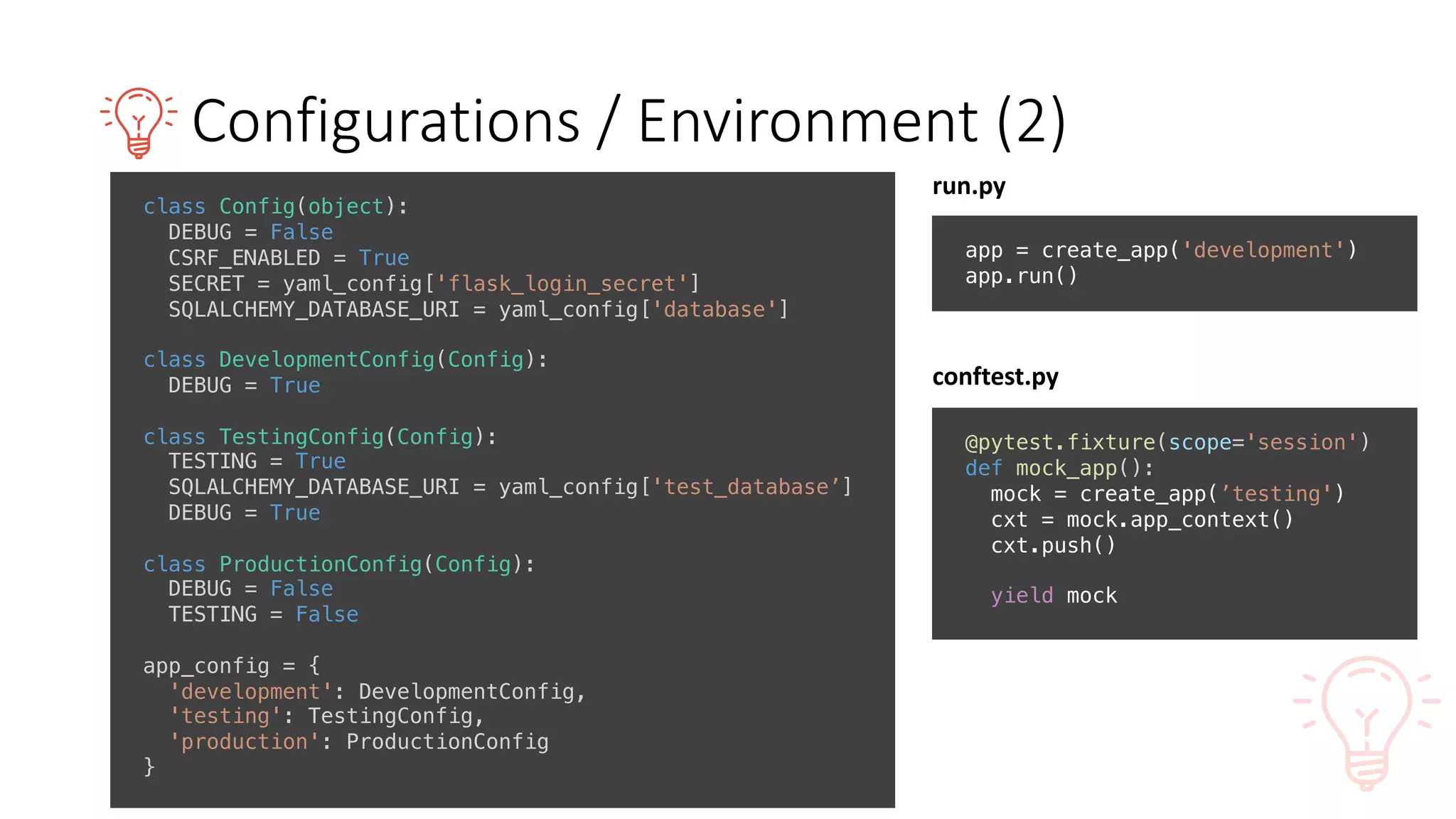

11. Configurations / Environment (2)
class Config(object):
DEBUG = False
CSRF_ENABLED = True
SECRET = yaml_config['flask_login_secret']
SQLALCHEMY_DATABASE_URI = yaml_config['database']
class DevelopmentConfig(Config):
DEBUG = True
class TestingConfig(Config):
TESTING = True
SQLALCHEMY_DATABASE_URI = yaml_config['test_database’]
DEBUG = True
class ProductionConfig(Config):
DEBUG = False
TESTING = False
app_config = {
'development': DevelopmentConfig,
'testing': TestingConfig,
'production': ProductionConfig
}
app = create_app('development')
app.run()
run.py
conftest.py
@pytest.fixture(scope='session')
def mock_app():
mock = create_app(’testing')
cxt = mock.app_context()
cxt.push()
yield mock

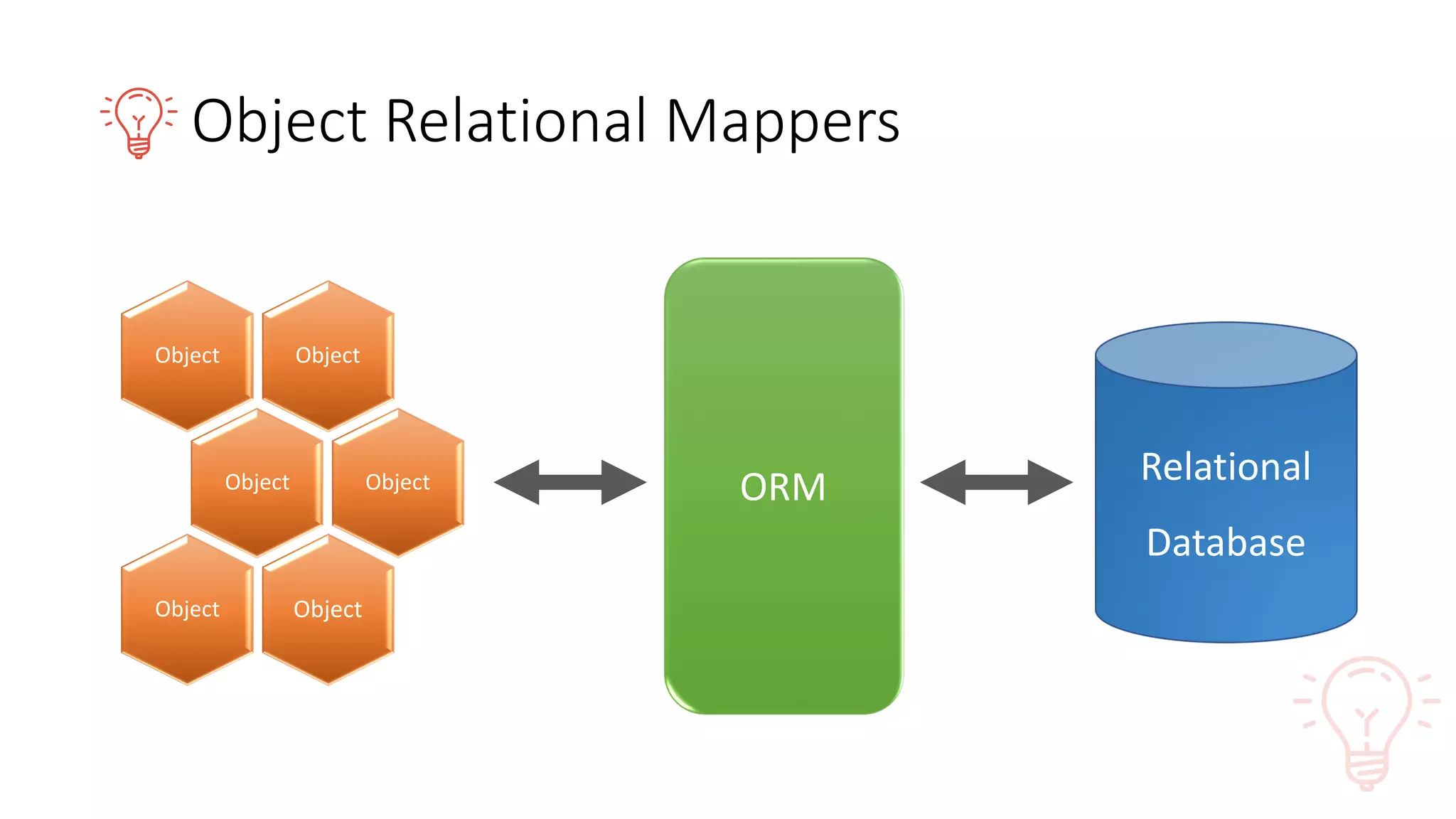

12. Object Relational Mappers
ObjectObject
Object Object
ObjectObject
ORM Relational
Database

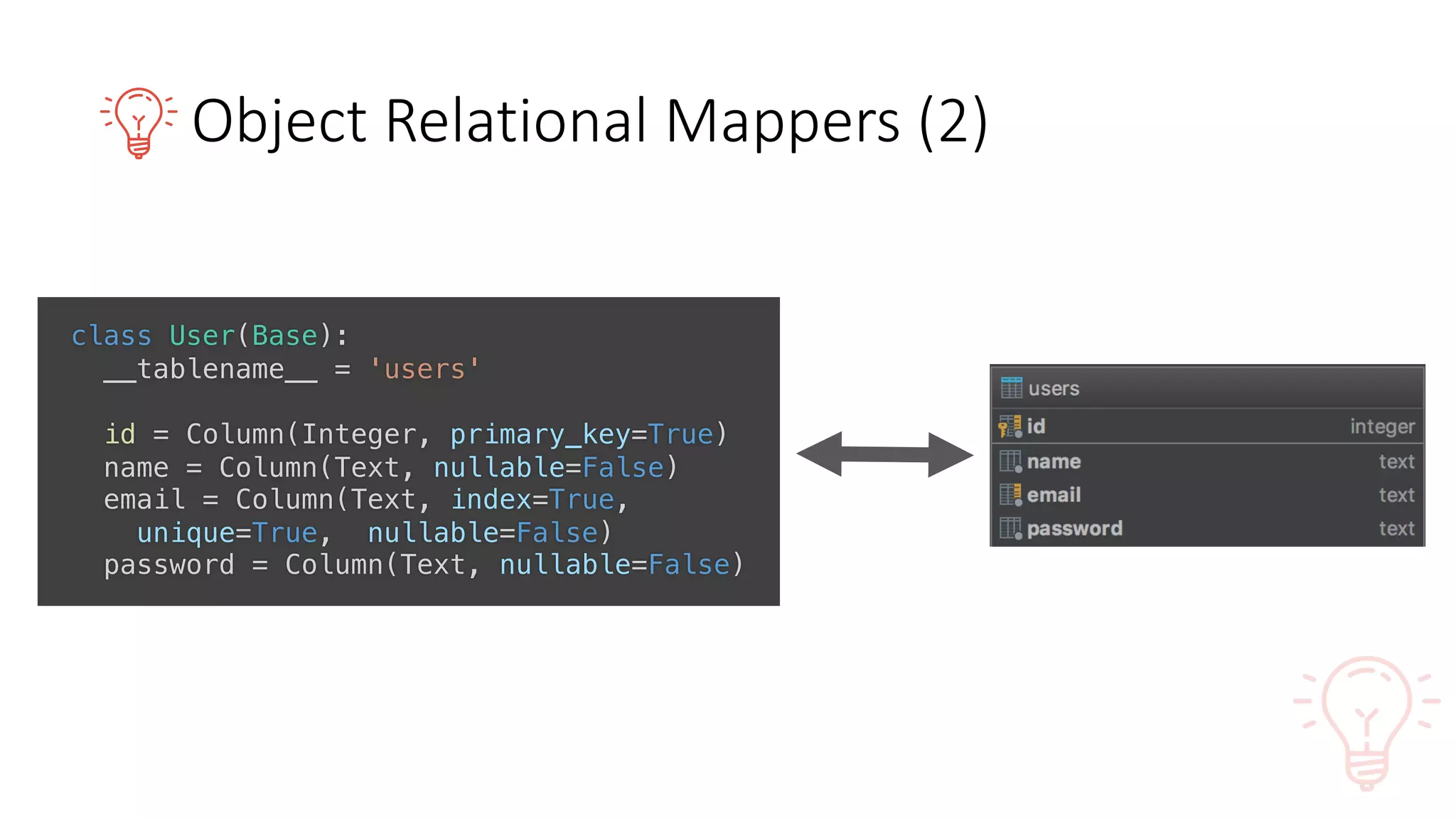

13. Object Relational Mappers (2)
class User(Base):
__tablename__ = 'users'
id = Column(Integer, primary_key=True)
name = Column(Text, nullable=False)
email = Column(Text, index=True,
unique=True, nullable=False)
password = Column(Text, nullable=False)

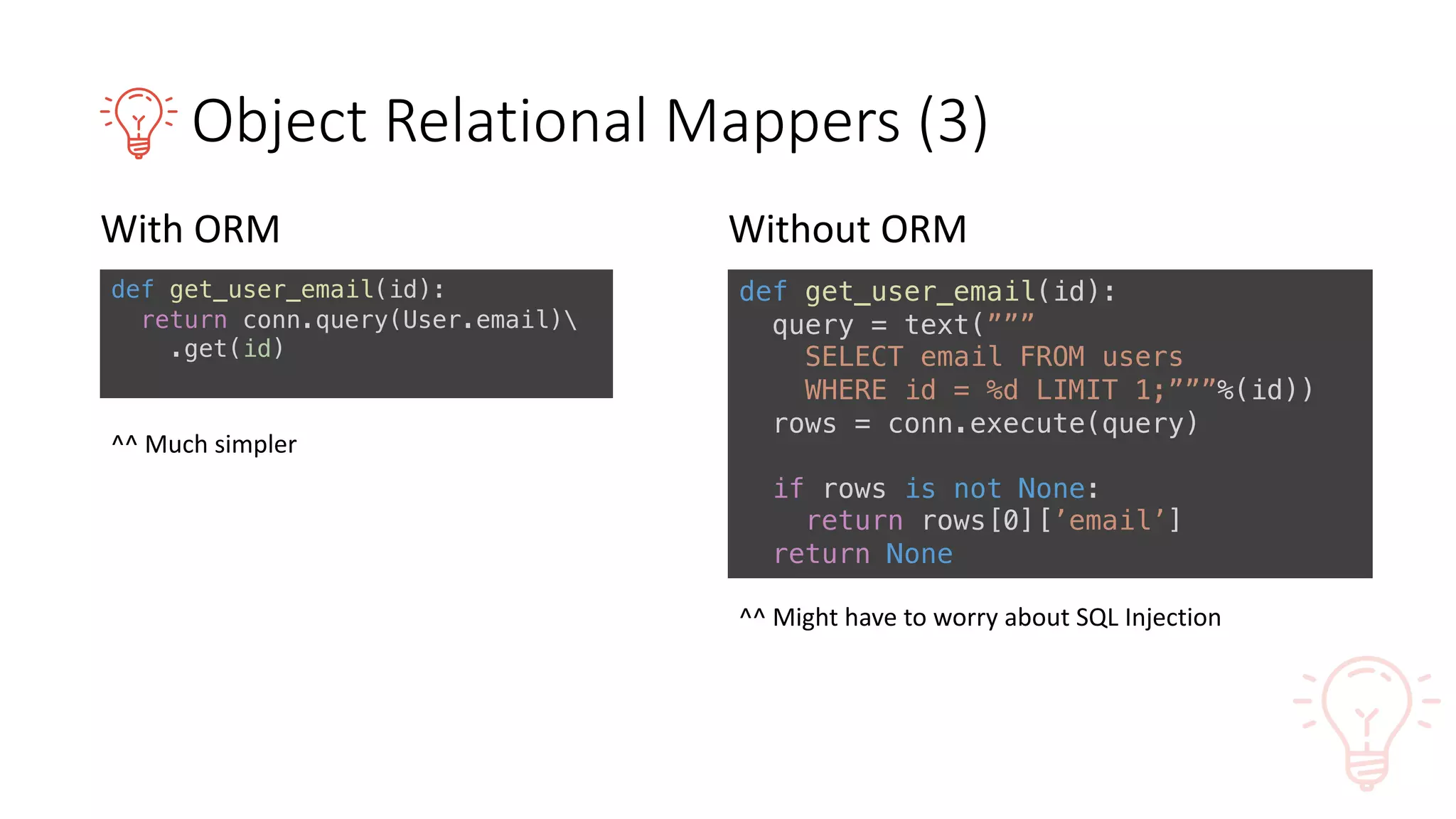

14. Object Relational Mappers (3)
With ORM Without ORM
def get_user_email(id):
return conn.query(User.email)
.get(id)
def get_user_email(id):
query = text(”””
SELECT email FROM users
WHERE id = %d LIMIT 1;”””%(id))
rows = conn.execute(query)
if rows is not None:
return rows[0][’email’]
return None
^^ Much simpler
^^ Might have to worry about SQL Injection

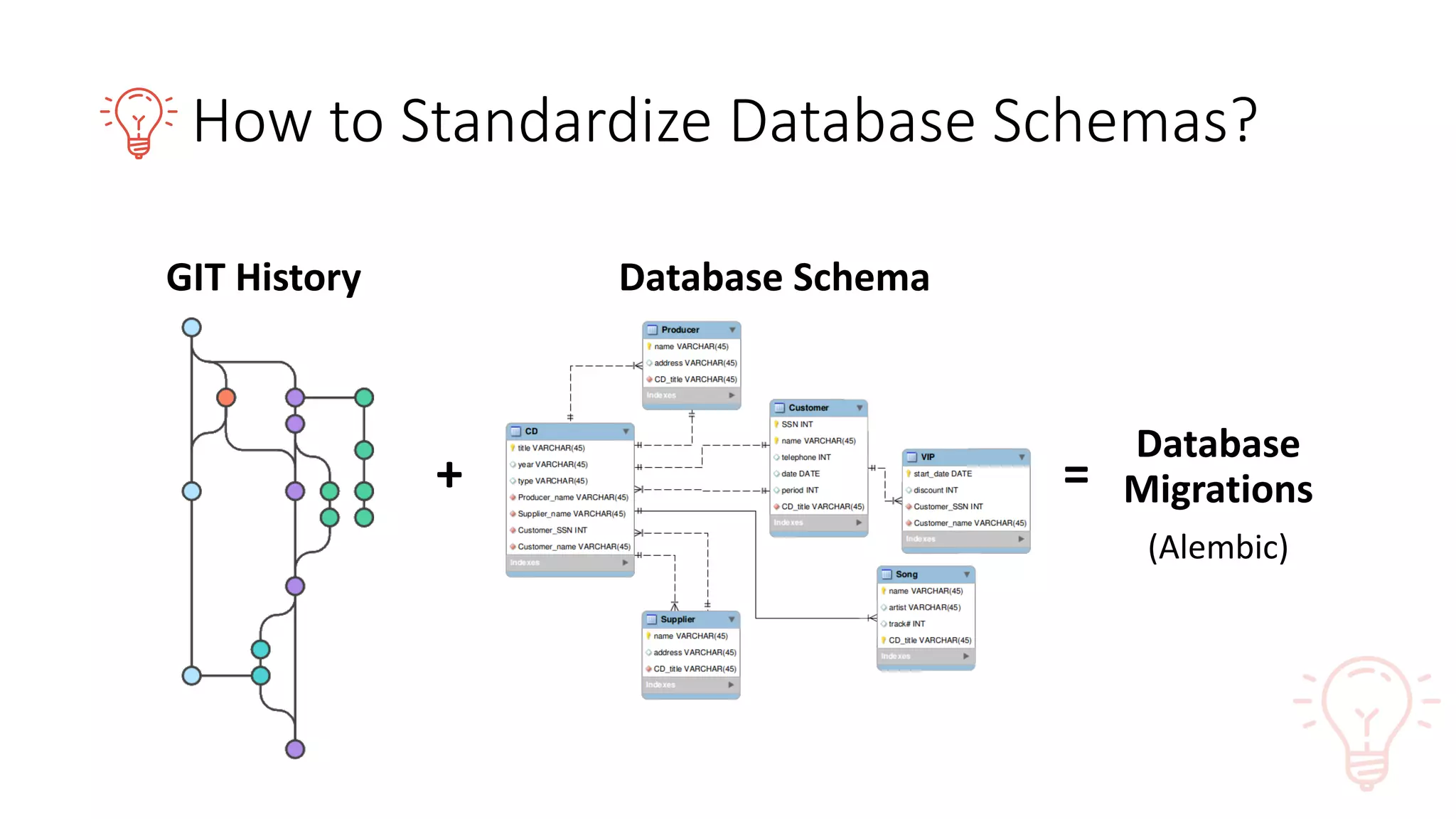

15. How to Standardize Database Schemas?
GIT History
Database
Migrations
(Alembic)
+
Database Schema
=

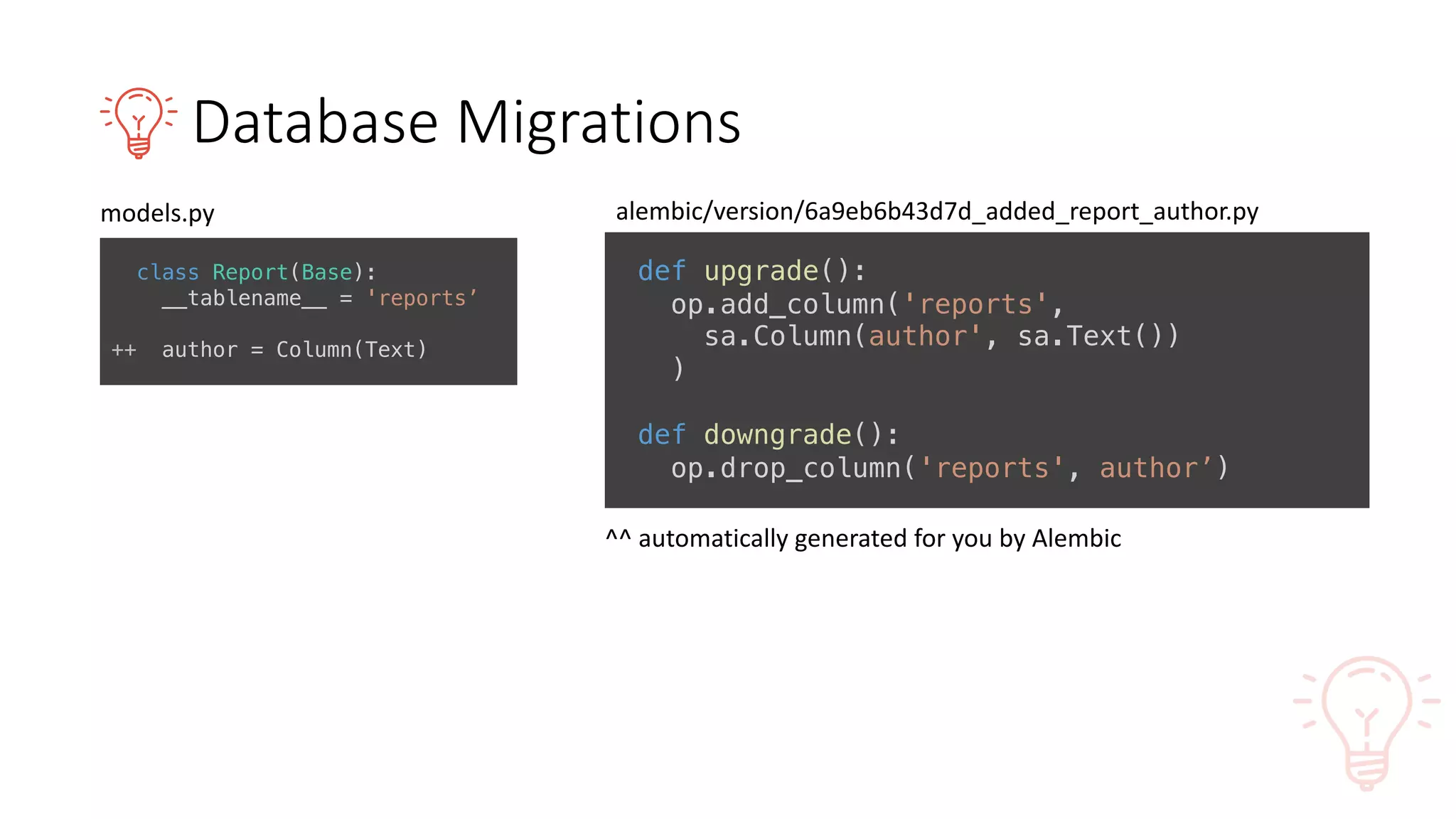

16. Database Migrations
def upgrade():
op.add_column('reports',
sa.Column(author', sa.Text())
)
def downgrade():
op.drop_column('reports', author’)
models.py alembic/version/6a9eb6b43d7d_added_report_author.py
class Report(Base):
__tablename__ = 'reports’
++ author = Column(Text)
^^ automatically generated for you by Alembic

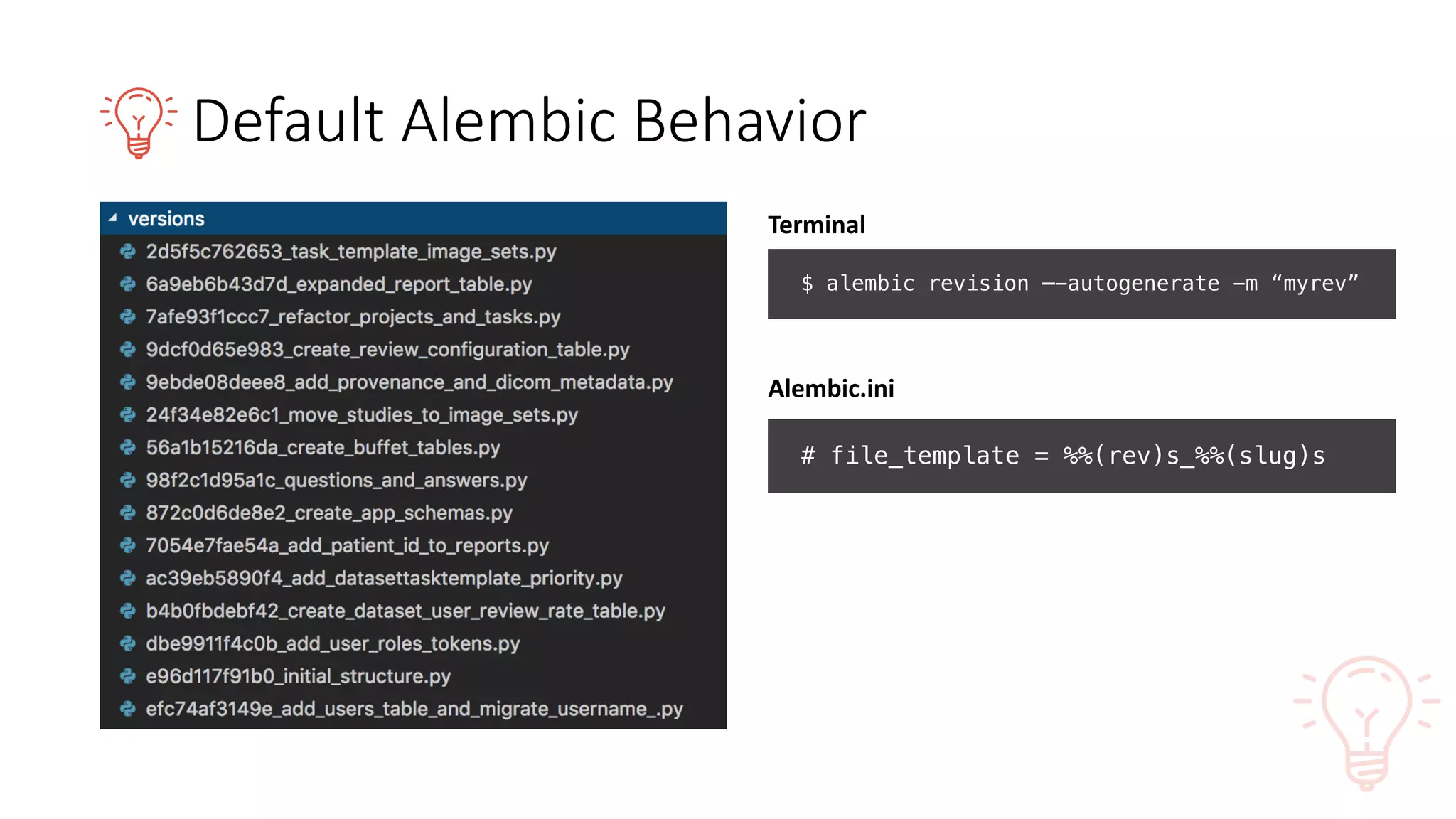

17. Default Alembic Behavior
$ alembic revision –-autogenerate -m “myrev”
# file_template = %%(rev)s_%%(slug)s
Terminal
Alembic.ini

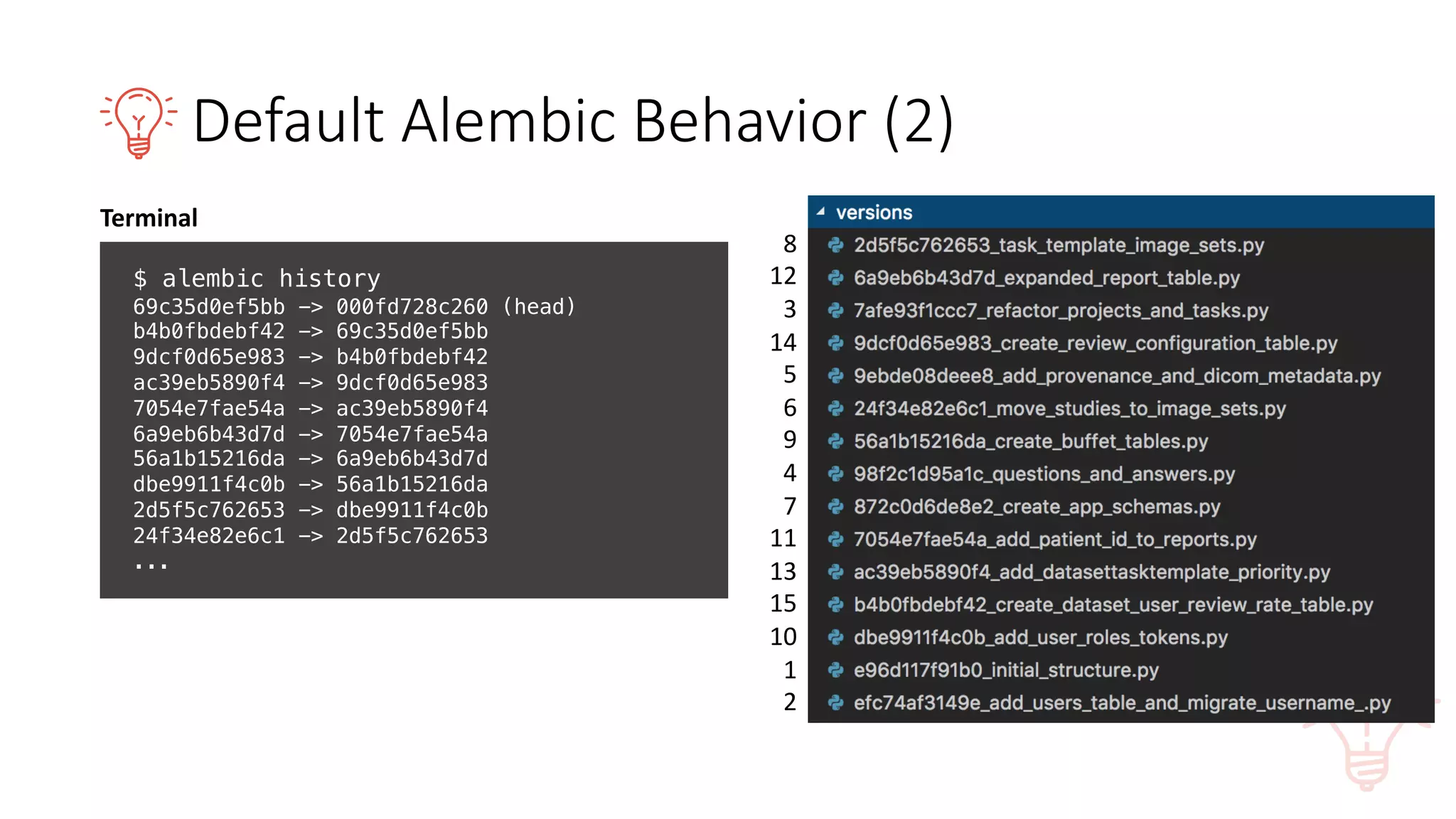

18. Default Alembic Behavior (2)
$ alembic history
69c35d0ef5bb -> 000fd728c260 (head)
b4b0fbdebf42 -> 69c35d0ef5bb
9dcf0d65e983 -> b4b0fbdebf42
ac39eb5890f4 -> 9dcf0d65e983
7054e7fae54a -> ac39eb5890f4
6a9eb6b43d7d -> 7054e7fae54a
56a1b15216da -> 6a9eb6b43d7d
dbe9911f4c0b -> 56a1b15216da
2d5f5c762653 -> dbe9911f4c0b
24f34e82e6c1 -> 2d5f5c762653
...
Terminal
8
12
3
14
5
6
9
4
7
11
13
15
10
1
2

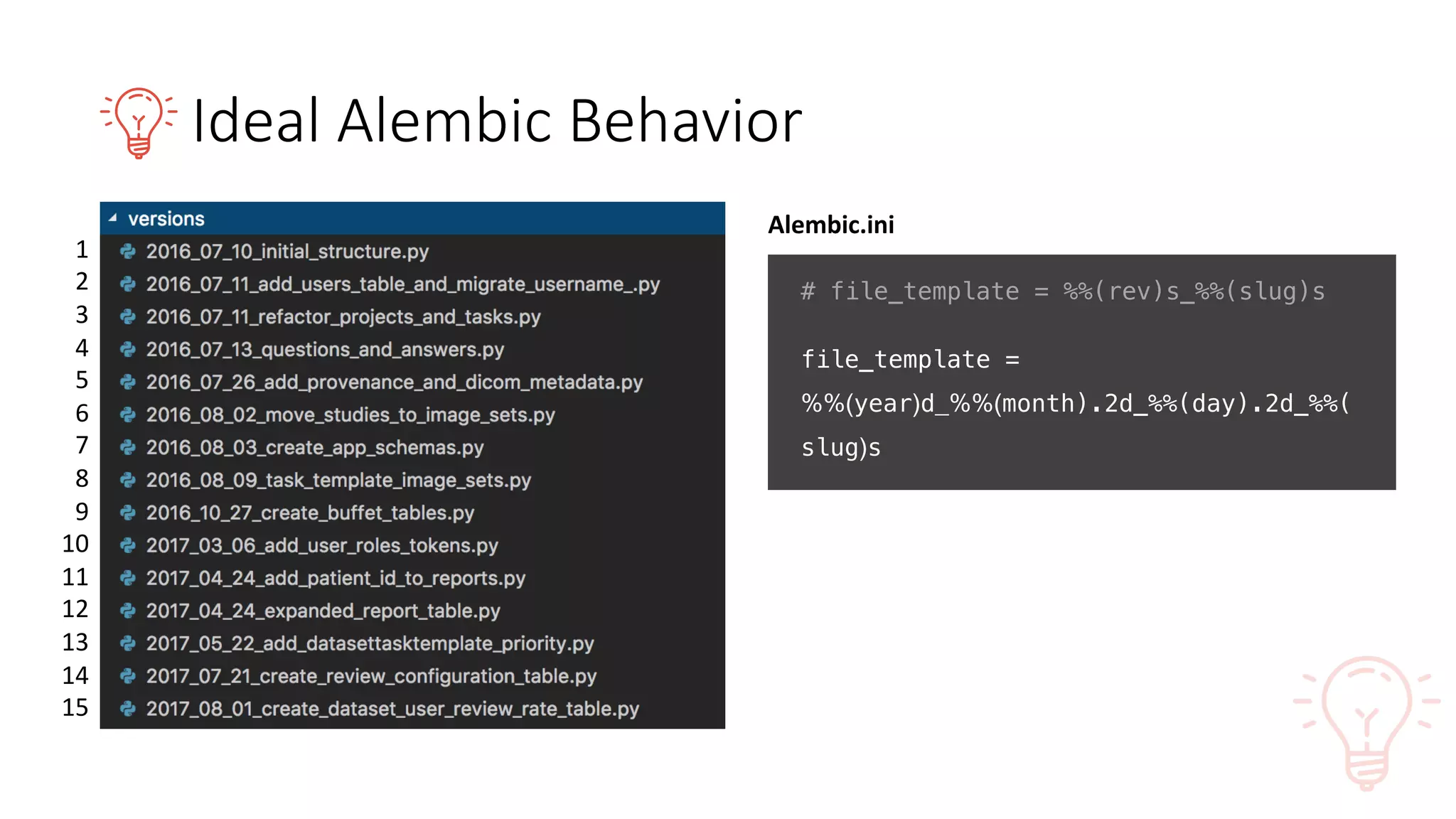

19. Ideal Alembic Behavior
# file_template = %%(rev)s_%%(slug)s
file_template =
%%(year)d_%%(month).2d_%%(day).2d_%%(
slug)s
Alembic.ini
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

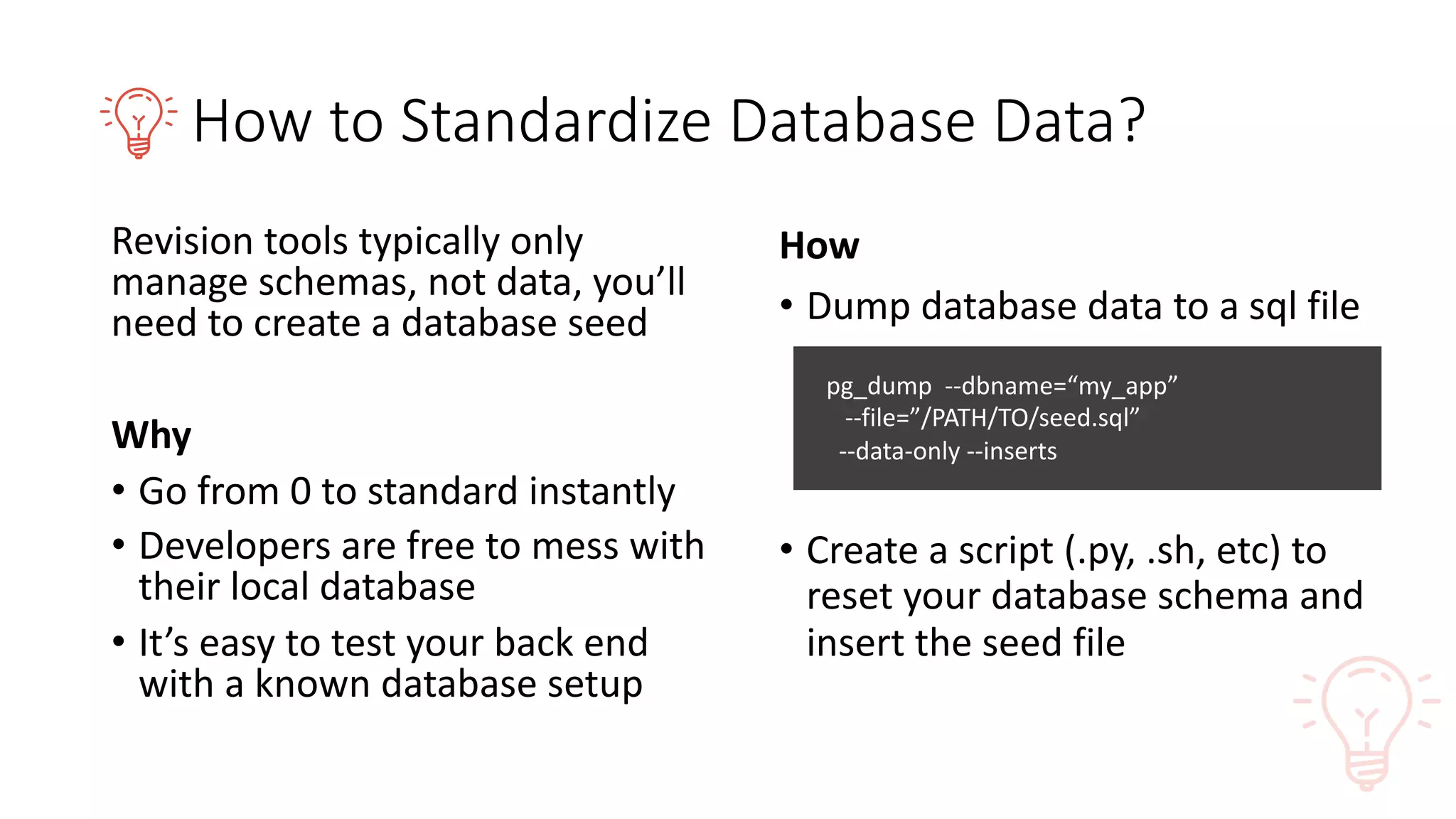

20. How to Standardize Database Data?
Revision tools typically only
manage schemas, not data, you’ll
need to create a database seed
Why
• Go from 0 to standard instantly
• Developers are free to mess with
their local database
• It’s easy to test your back end
with a known database setup
How
• Dump database data to a sql file
• Create a script (.py, .sh, etc) to
reset your database schema and
insert the seed file
pg_dump --dbname=“my_app”
--file=”/PATH/TO/seed.sql”
--data-only --inserts

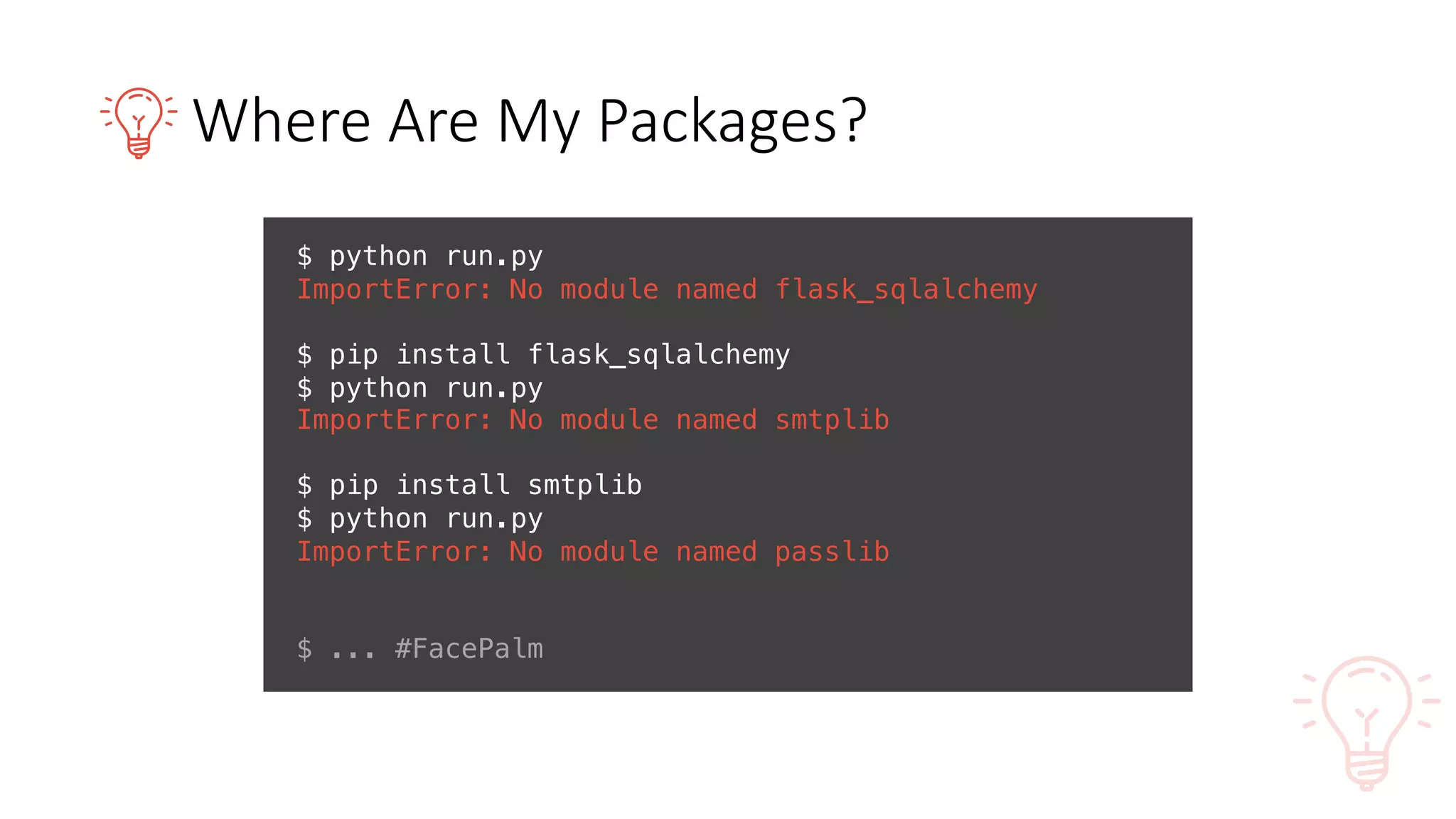

21. Where Are My Packages?
$ python run.py
ImportError: No module named flask_sqlalchemy
$ pip install flask_sqlalchemy
$ python run.py
ImportError: No module named smtplib
$ pip install smtplib
$ python run.py
ImportError: No module named passlib
$ ... #FacePalm

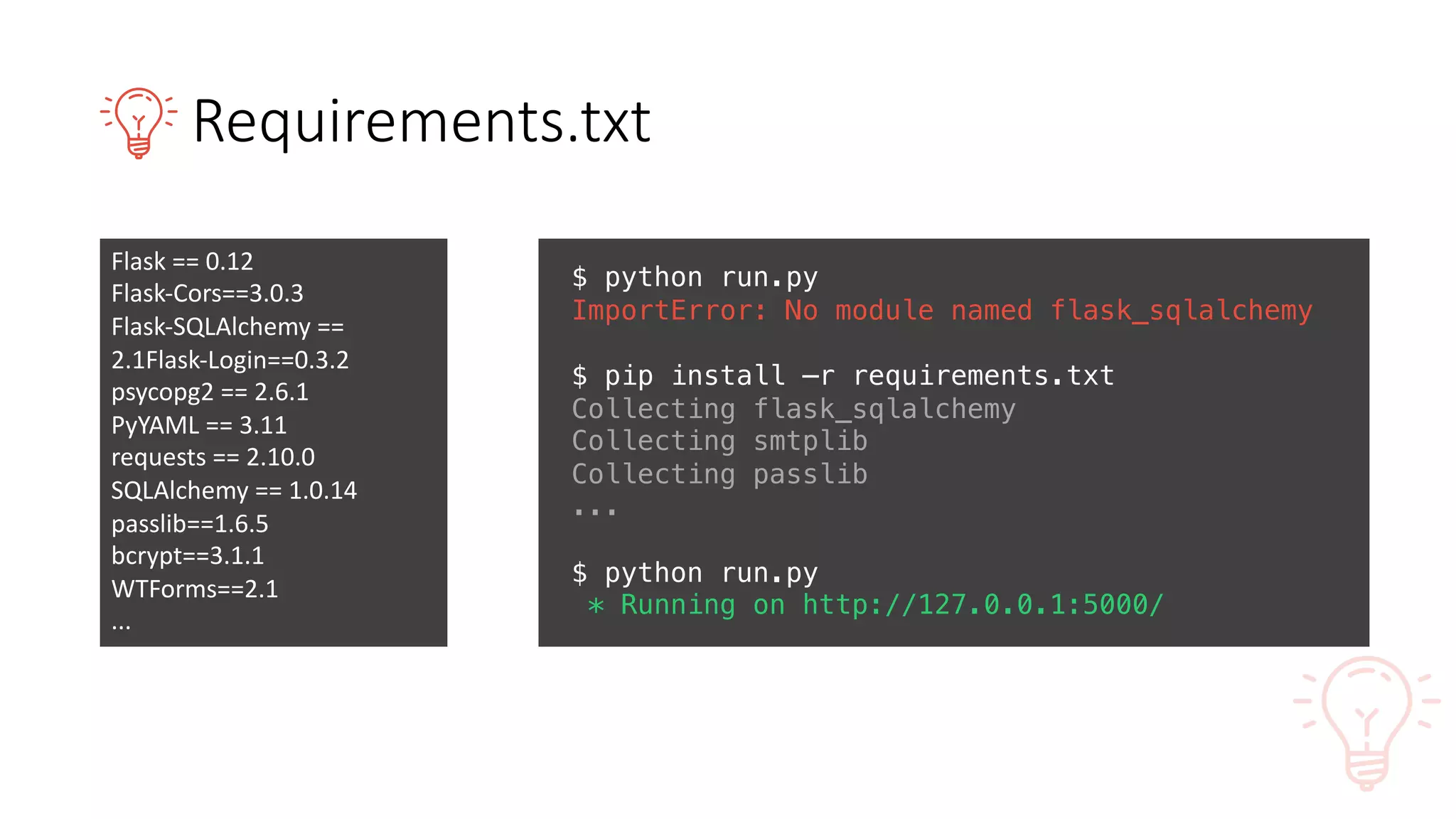

22. Requirements.txt
$ python run.py
ImportError: No module named flask_sqlalchemy
$ pip install –r requirements.txt
Collecting flask_sqlalchemy
Collecting smtplib
Collecting passlib
...
$ python run.py
* Running on http://127.0.0.1:5000/
Flask == 0.12
Flask-Cors==3.0.3
Flask-SQLAlchemy ==
2.1Flask-Login==0.3.2
psycopg2 == 2.6.1
PyYAML == 3.11
requests == 2.10.0
SQLAlchemy == 1.0.14
passlib==1.6.5
bcrypt==3.1.1
WTForms==2.1
...

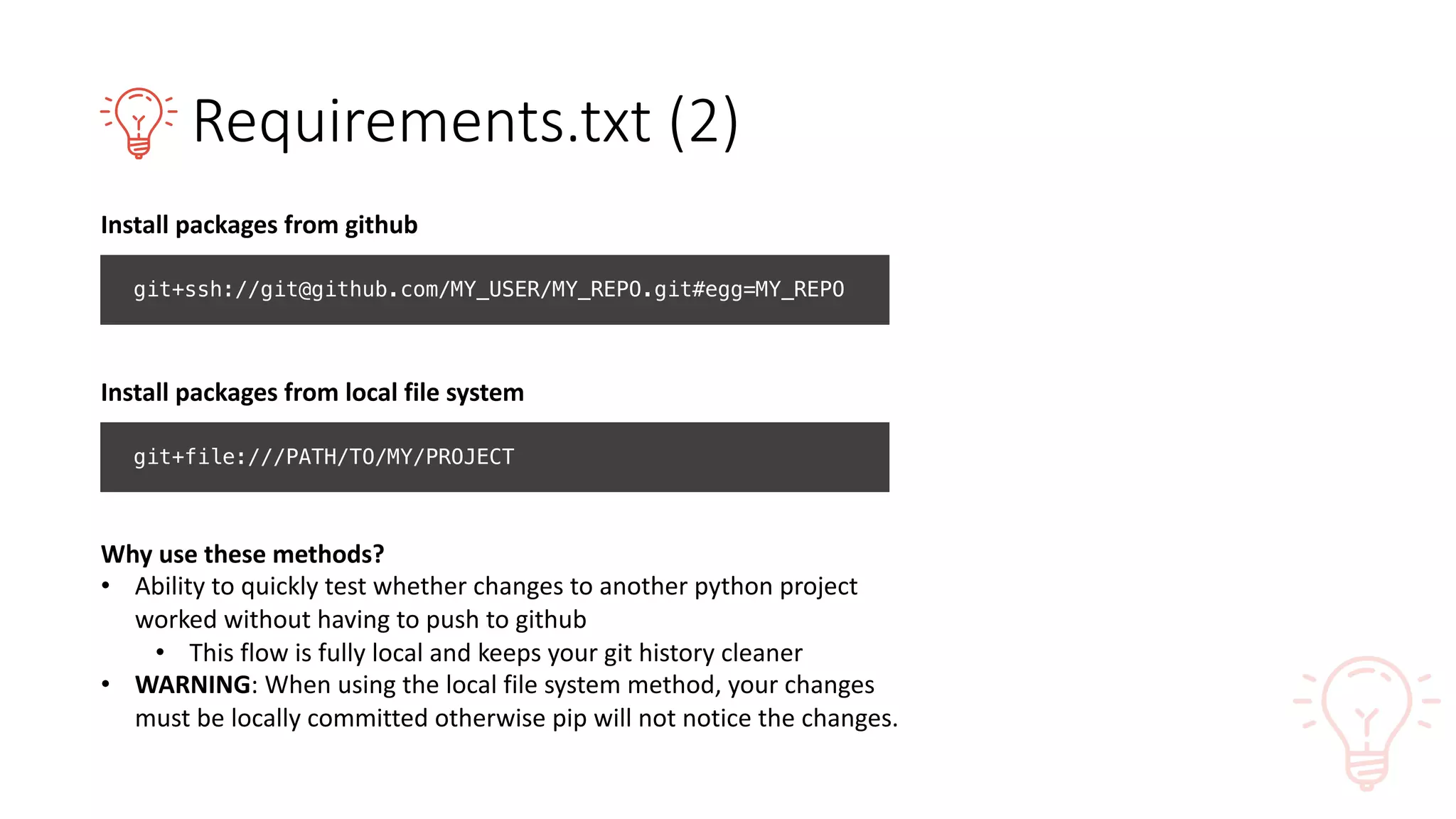

23. Requirements.txt (2)
git+ssh://git@github.com/MY_USER/MY_REPO.git#egg=MY_REPO
Install packages from github
git+file:///PATH/TO/MY/PROJECT
Install packages from local file system
Why use these methods?
• Ability to quickly test whether changes to another python project
worked without having to push to github
• This flow is fully local and keeps your git history cleaner
• WARNING: When using the local file system method, your changes
must be locally committed otherwise pip will not notice the changes.

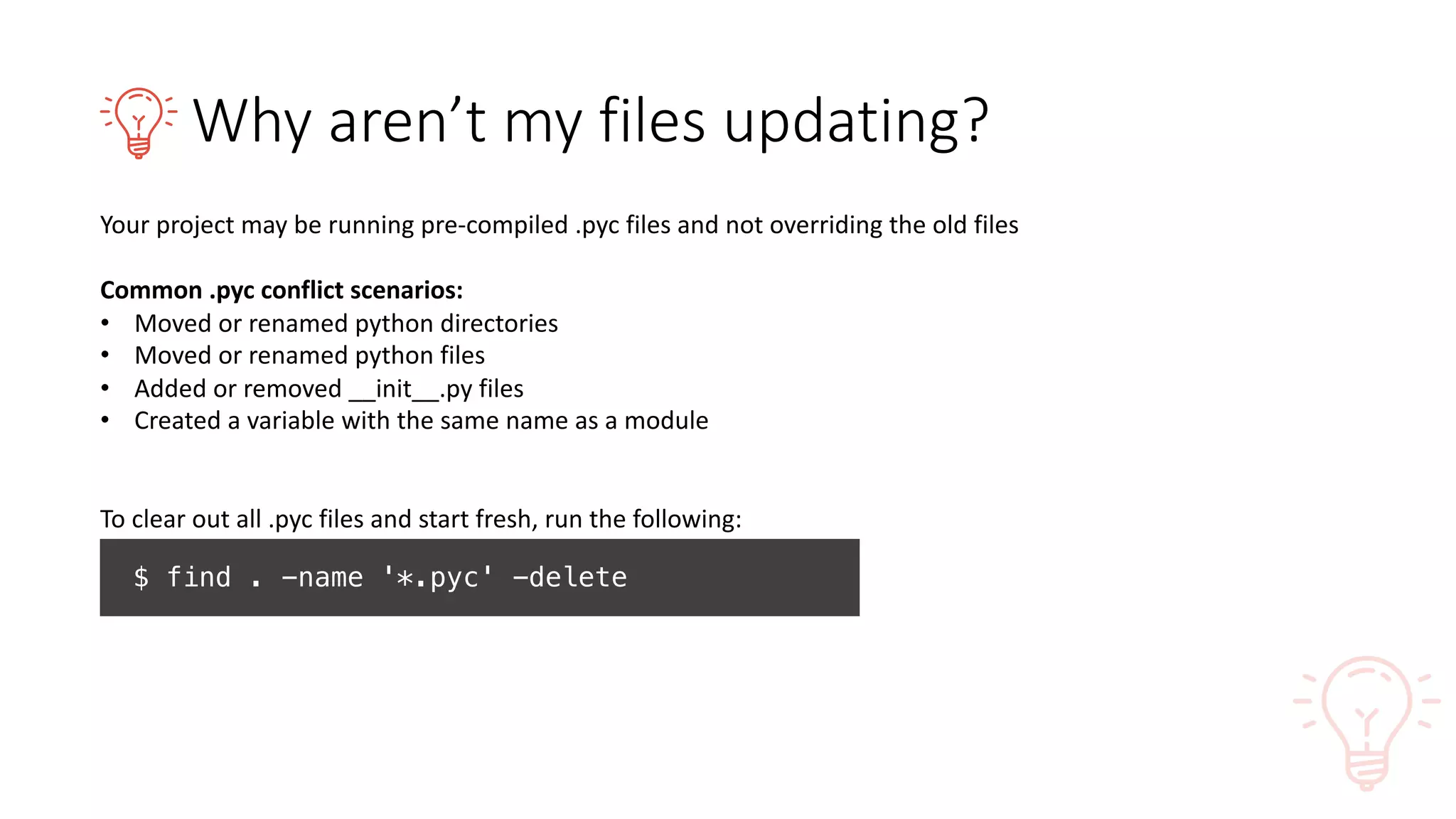

24. Why aren’t my files updating?
$ find . -name '*.pyc' -delete
Your project may be running pre-compiled .pyc files and not overriding the old files
Common .pyc conflict scenarios:
• Moved or renamed python directories
• Moved or renamed python files
• Added or removed __init__.py files
• Created a variable with the same name as a module
To clear out all .pyc files and start fresh, run the following:

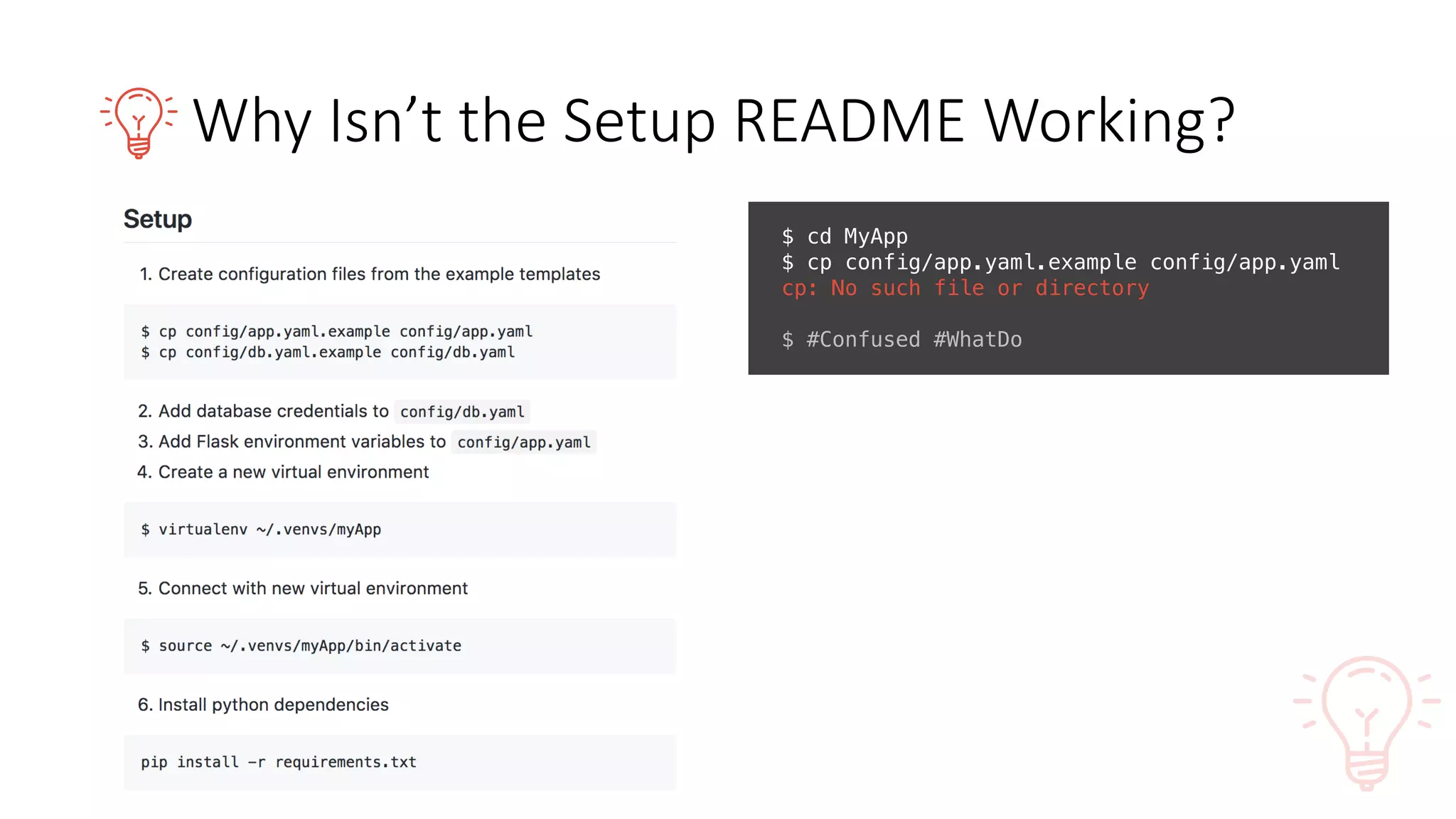

25. Why Isn’t the Setup README Working?
$ cd MyApp
$ cp config/app.yaml.example config/app.yaml
cp: No such file or directory
$ #Confused #WhatDo

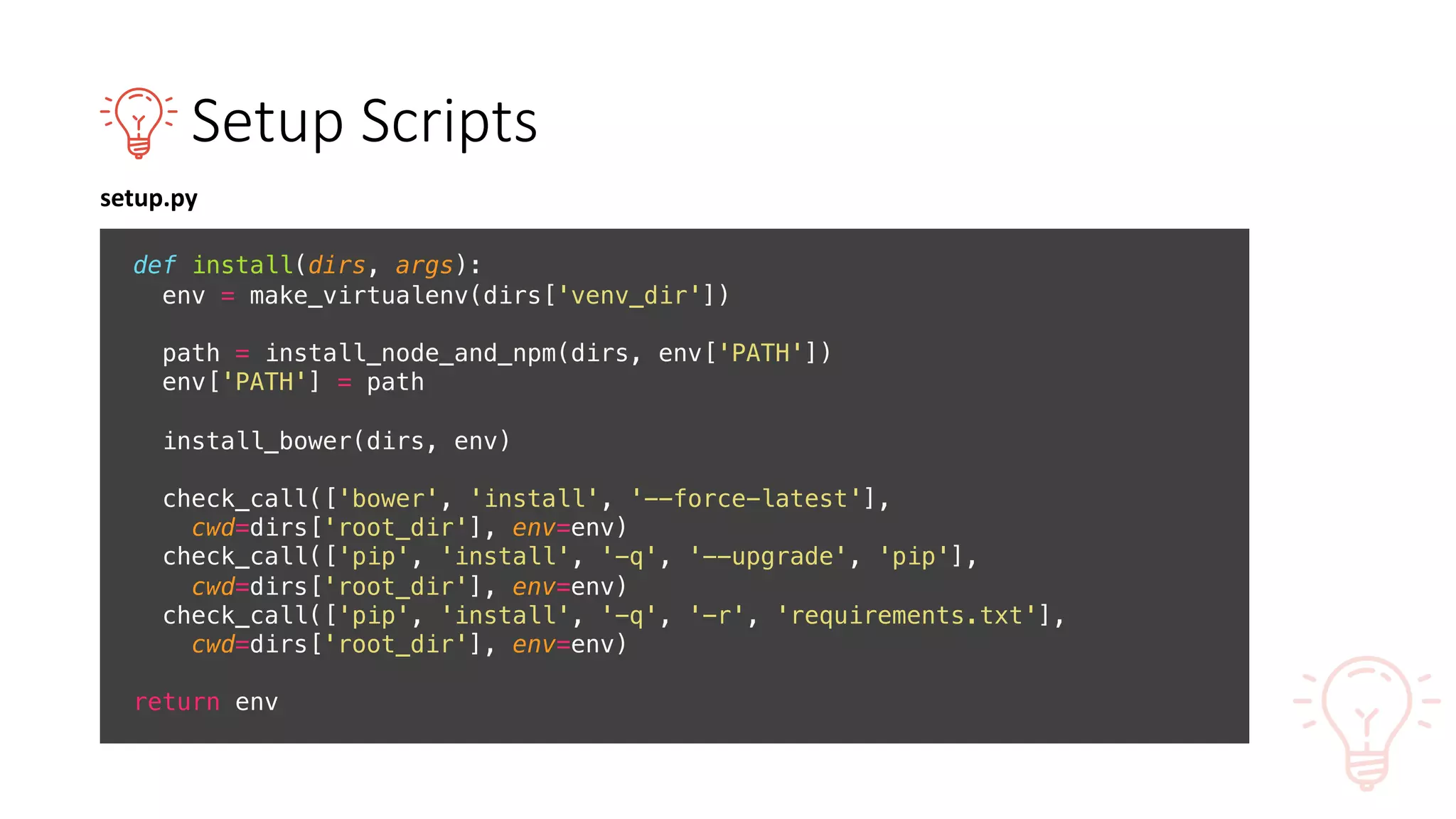

26. Setup Scripts
def install(dirs, args):
env = make_virtualenv(dirs['venv_dir'])
path = install_node_and_npm(dirs, env['PATH'])
env['PATH'] = path
install_bower(dirs, env)
check_call(['bower', 'install', '--force-latest'],
cwd=dirs['root_dir'], env=env)
check_call(['pip', 'install', '-q', '--upgrade', 'pip'],
cwd=dirs['root_dir'], env=env)
check_call(['pip', 'install', '-q', '-r', 'requirements.txt'],
cwd=dirs['root_dir'], env=env)
return env
setup.py

27. Durable

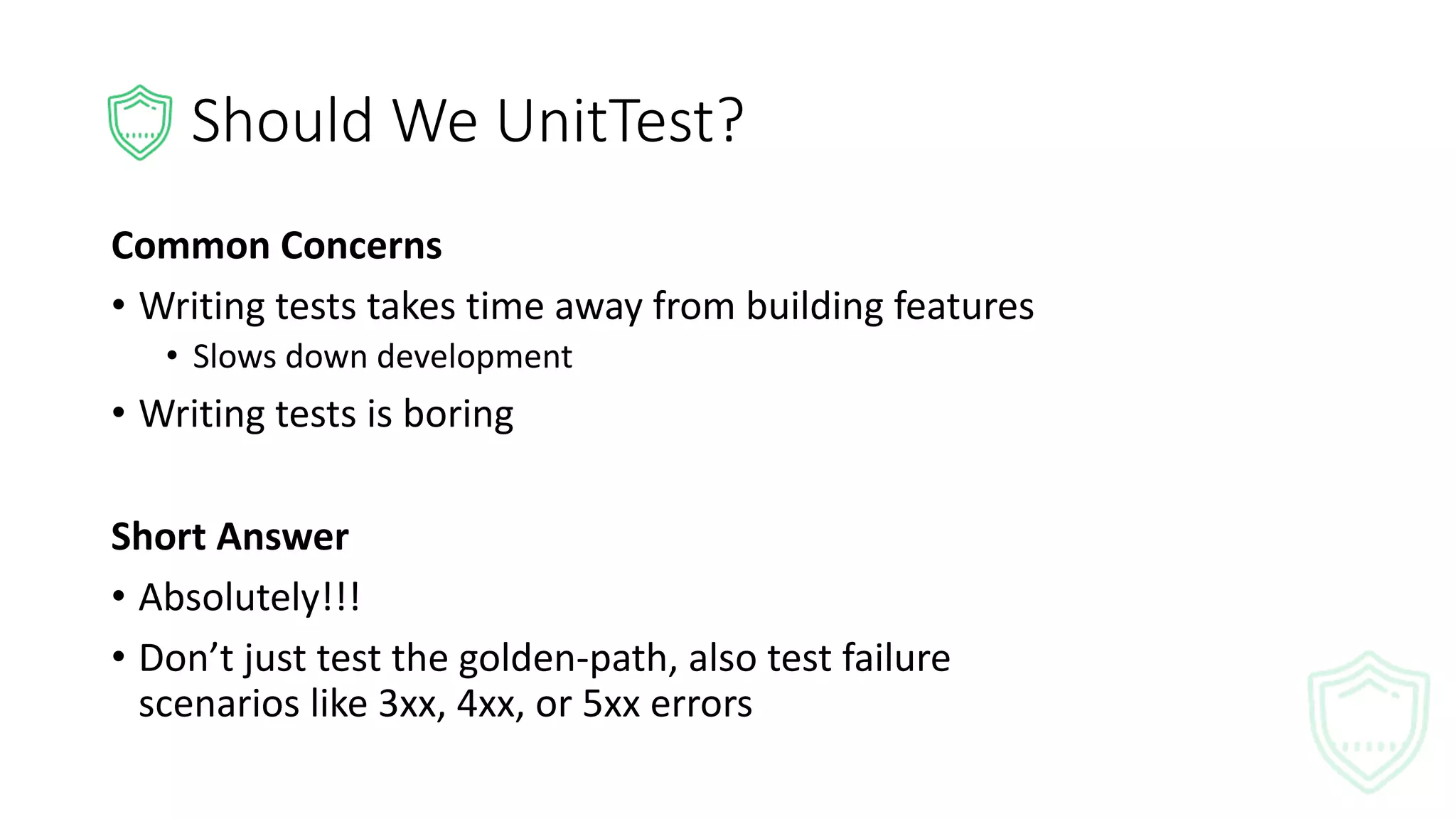

28. Should We UnitTest?
Common Concerns
• Writing tests takes time away from building features
• Slows down development
• Writing tests is boring
Short Answer
• Absolutely!!!
• Don’t just test the golden-path, also test failure
scenarios like 3xx, 4xx, or 5xx errors

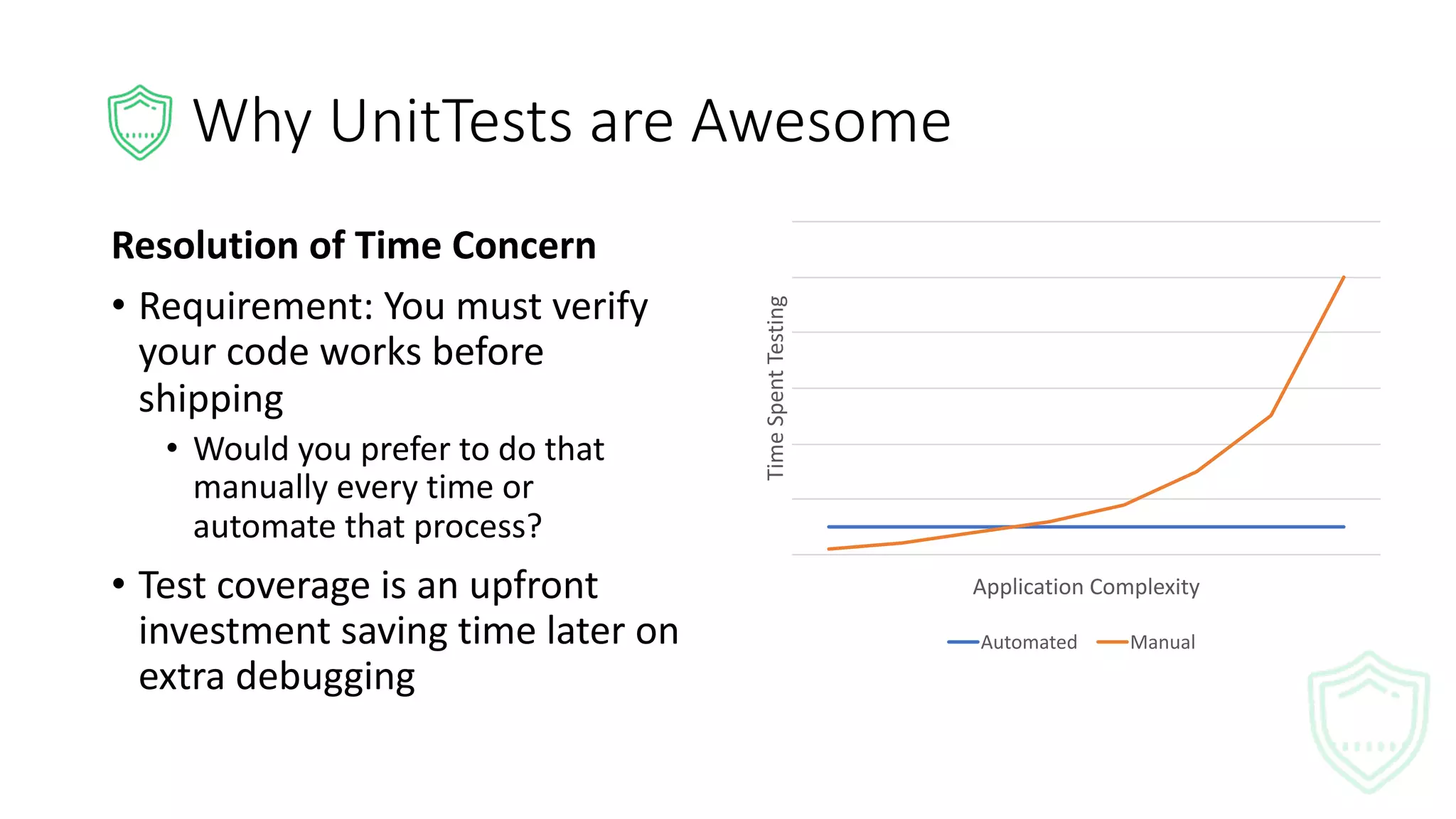

29. Why UnitTests are Awesome
Resolution of Time Concern
• Requirement: You must verify
your code works before
shipping
• Would you prefer to do that
manually every time or
automate that process?
• Test coverage is an upfront
investment saving time later on
extra debugging
Time Spent Testing
Application Complexity
Automated Manual

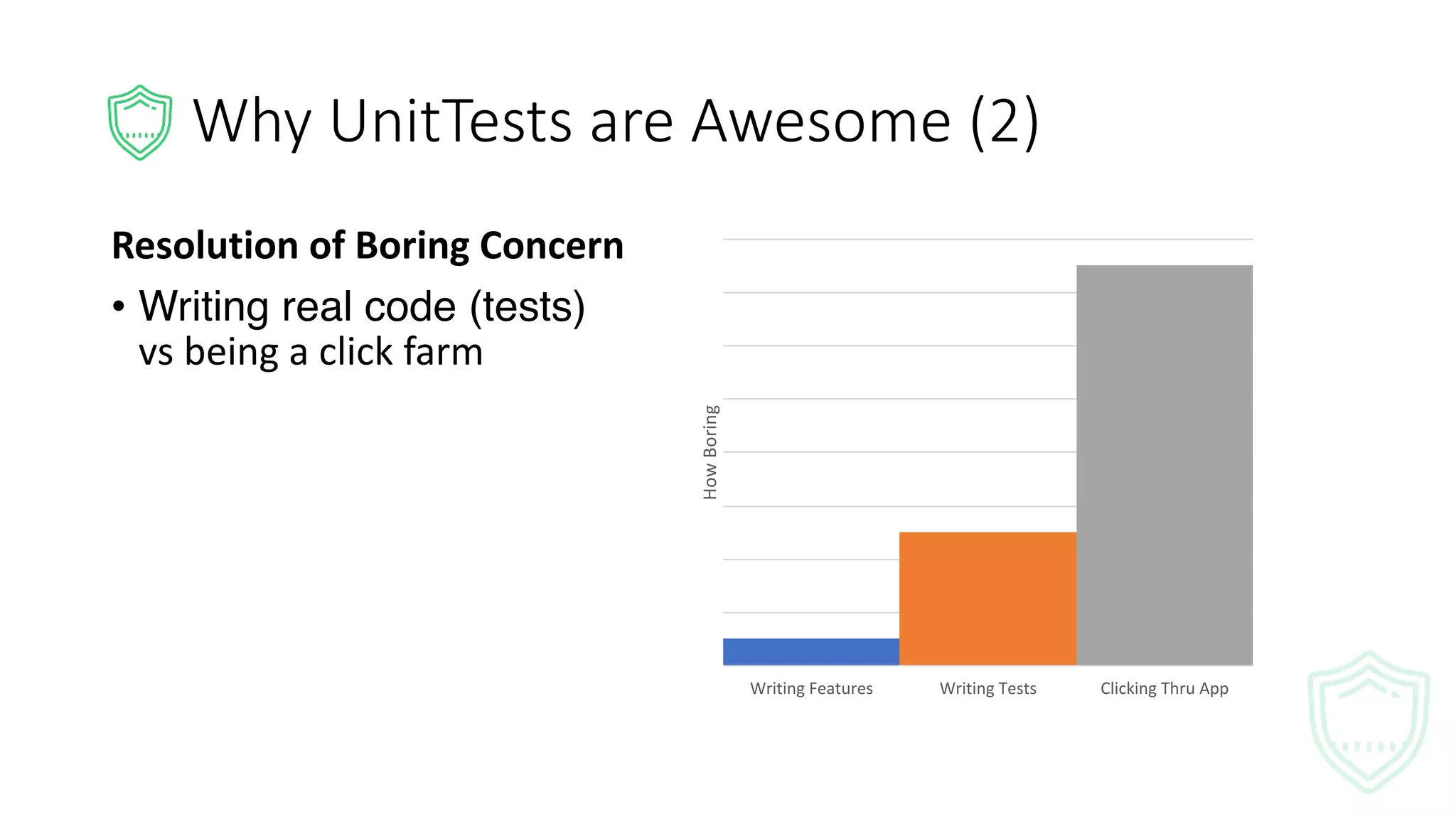

30. Why UnitTests are Awesome (2)
Resolution of Boring Concern
• Writing real code (tests)
vs being a click farm
Writing Features Writing Tests Clicking Thru App
How Boring

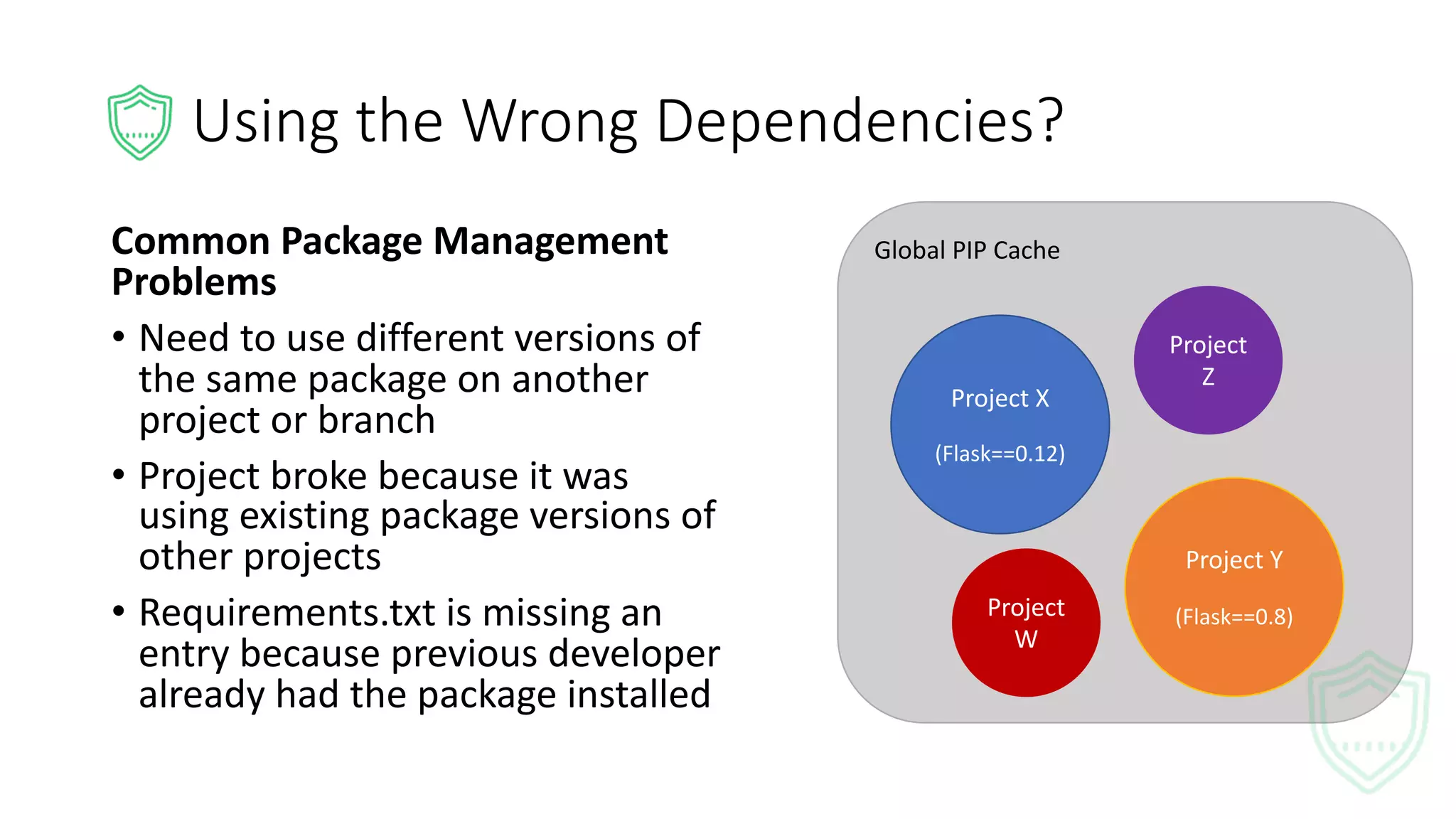

31. Global PIP Cache
Using the Wrong Dependencies?
Project X
(Flask==0.12)
Project Y
(Flask==0.8)
Common Package Management
Problems
• Need to use different versions of
the same package on another
project or branch
• Project broke because it was
using existing package versions of
other projects
• Requirements.txt is missing an
entry because previous developer
already had the package installed
Project
Z
Project
W

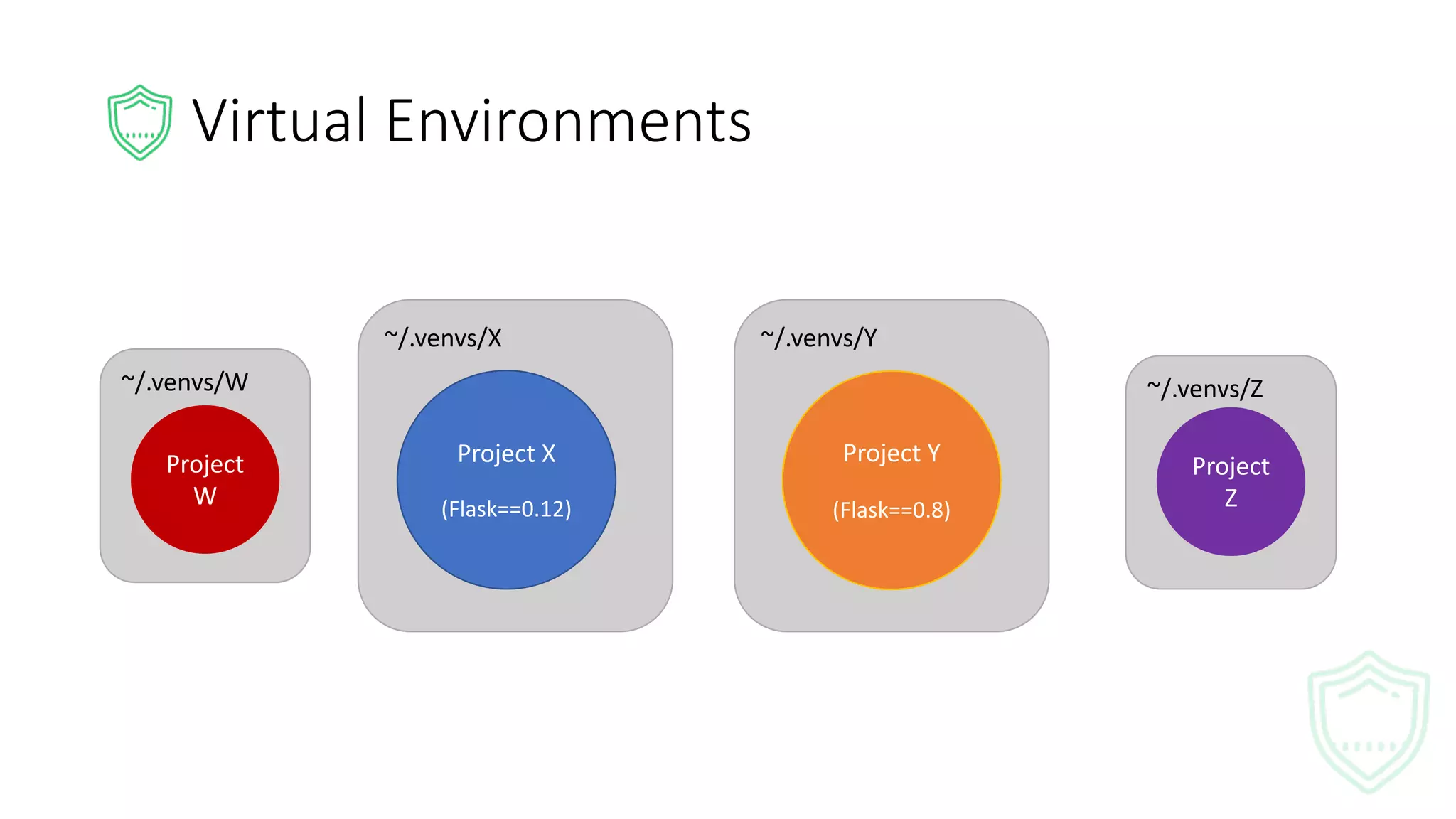

32. ~/.venvs/Z
~/.venvs/Y
~/.venvs/W
~/.venvs/X
Virtual Environments
Project X
(Flask==0.12)
Project Y
(Flask==0.8)
Project
Z
Project
W

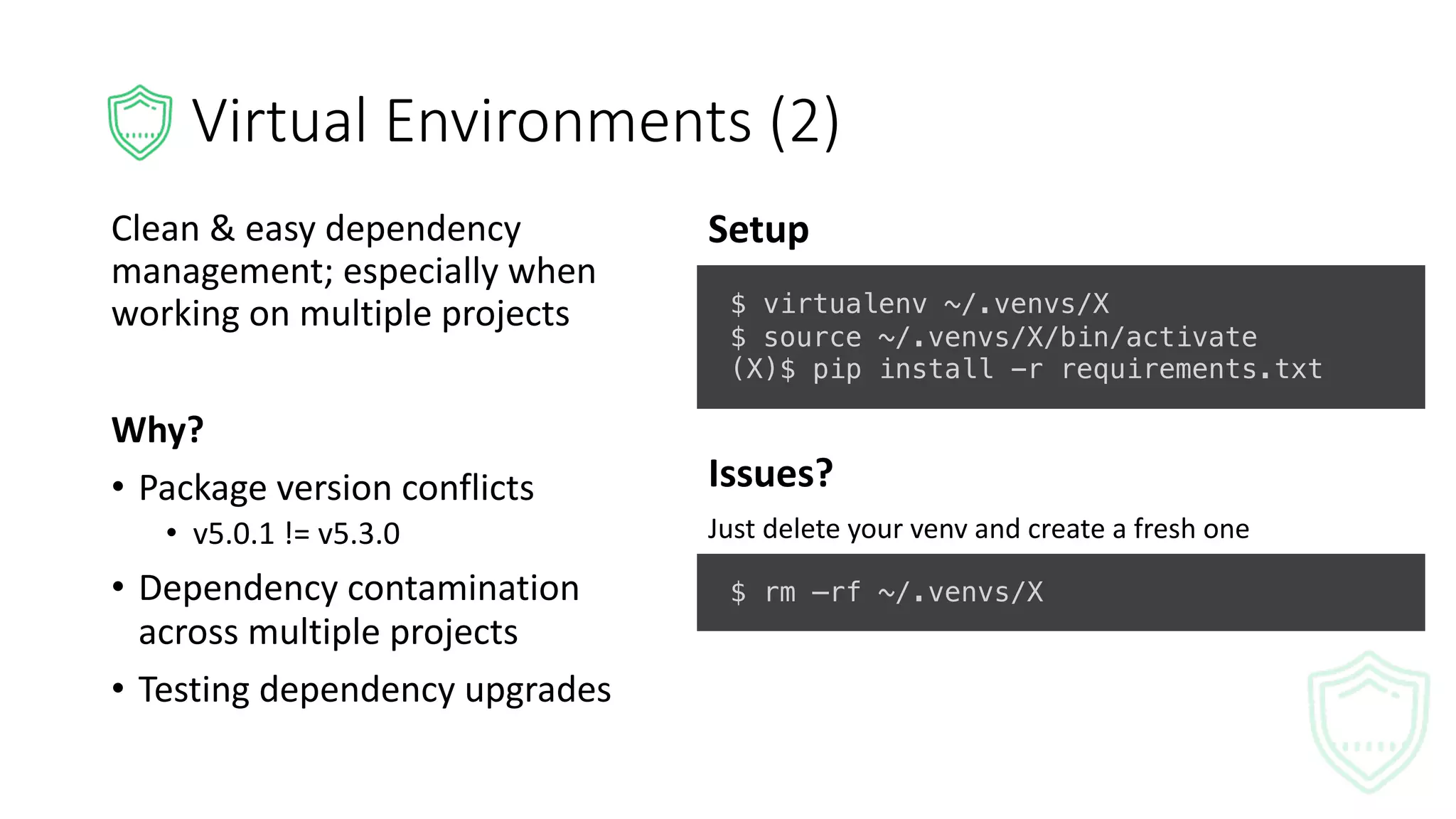

33. Virtual Environments (2)
Setup
Issues?
Just delete your venv and create a fresh one
$ virtualenv ~/.venvs/X
$ source ~/.venvs/X/bin/activate
(X)$ pip install -r requirements.txt
$ rm –rf ~/.venvs/X
Clean & easy dependency
management; especially when
working on multiple projects
Why?
• Package version conflicts
• v5.0.1 != v5.3.0
• Dependency contamination
across multiple projects
• Testing dependency upgrades

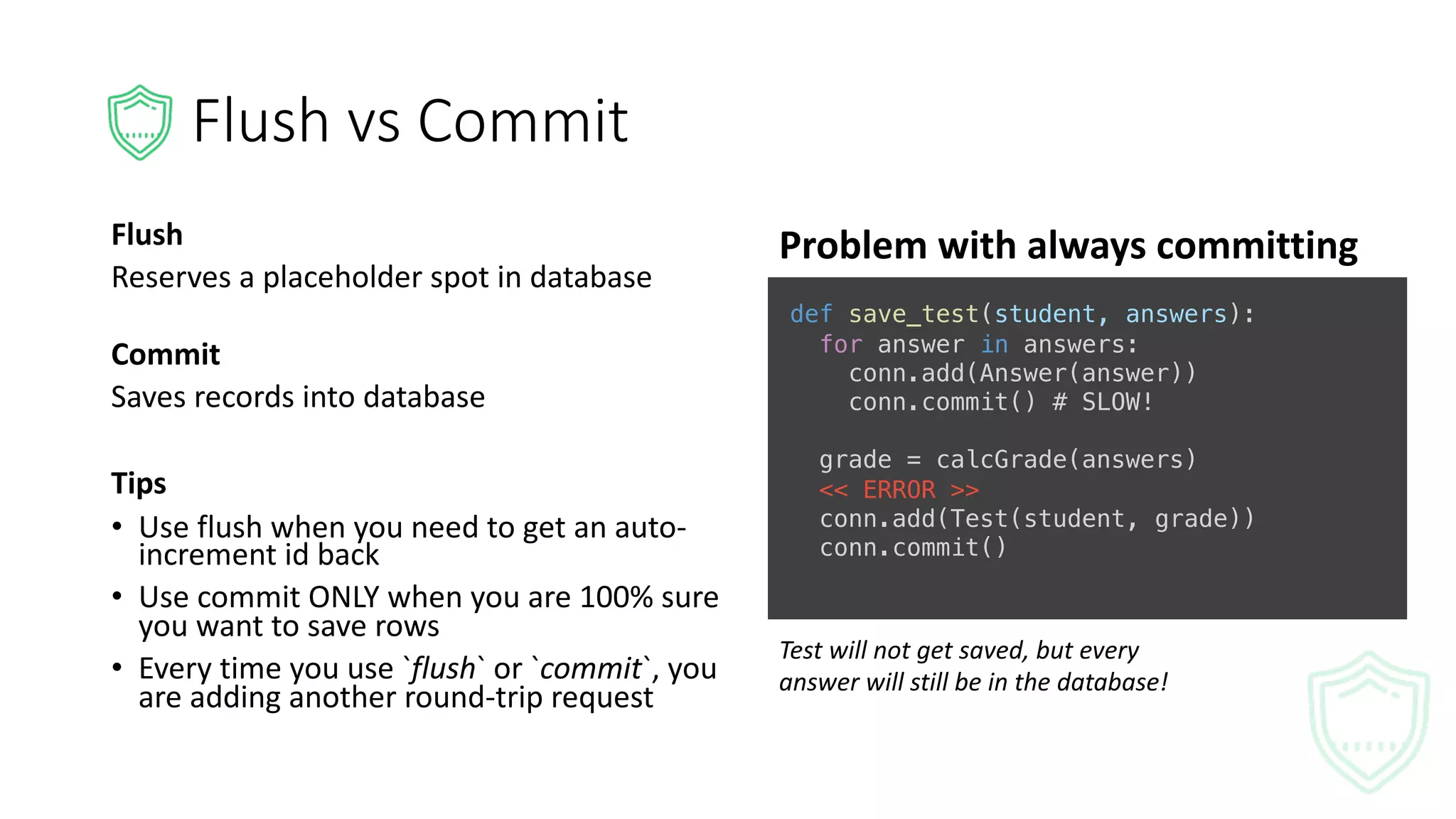

34. Flush vs Commit
Flush
Reserves a placeholder spot in database
Commit
Saves records into database
Tips
• Use flush when you need to get an auto-
increment id back
• Use commit ONLY when you are 100% sure
you want to save rows
• Every time you use `flush` or `commit`, you
are adding another round-trip request
Problem with always committing
def save_test(student, answers):
for answer in answers:
conn.add(Answer(answer))
conn.commit() # SLOW!
grade = calcGrade(answers)
<< ERROR >>
conn.add(Test(student, grade))
conn.commit()
Test will not get saved, but every
answer will still be in the database!

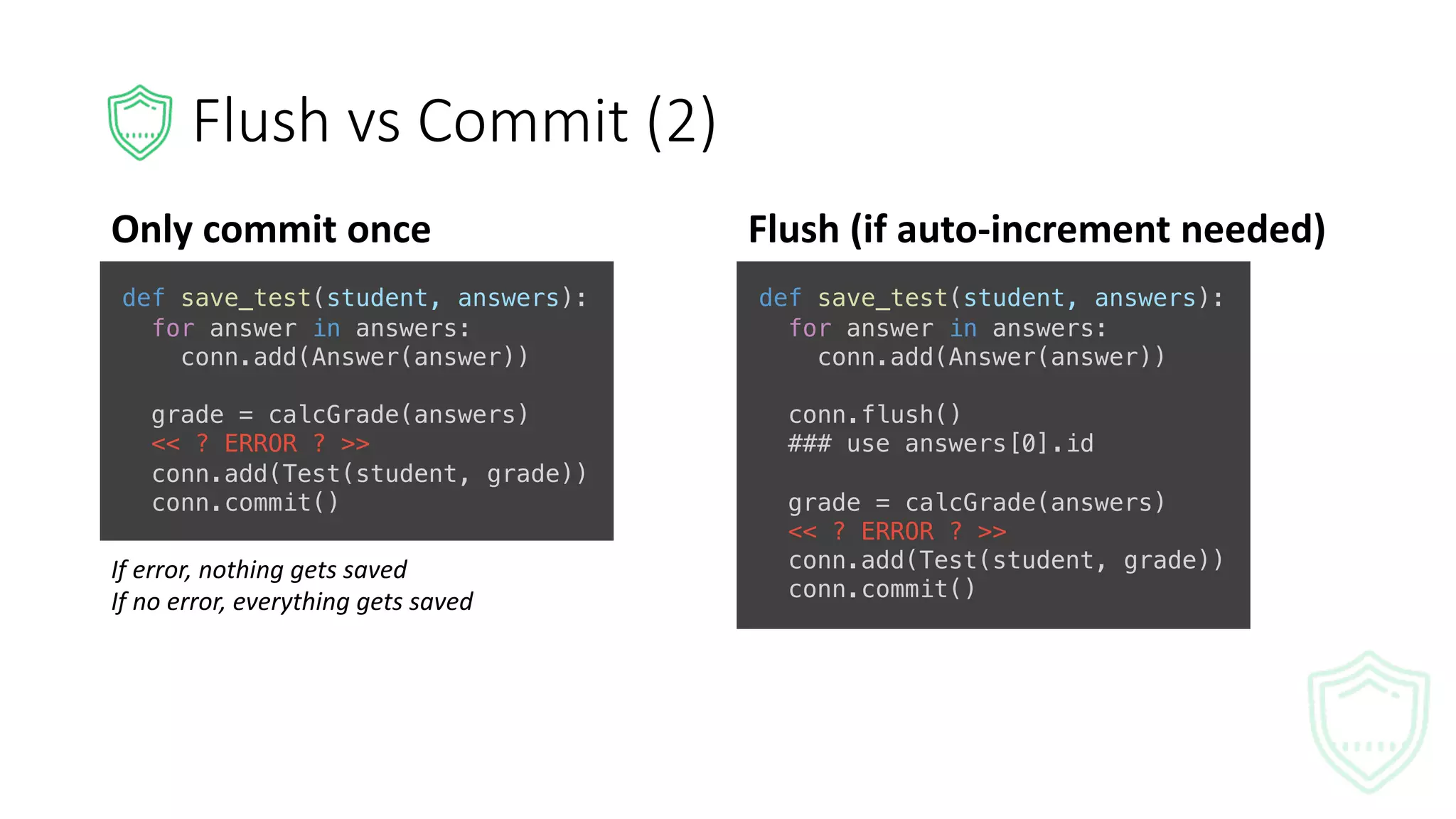

35. Flush vs Commit (2)
Only commit once
def save_test(student, answers):
for answer in answers:
conn.add(Answer(answer))
grade = calcGrade(answers)
<< ? ERROR ? >>
conn.add(Test(student, grade))
conn.commit()
If error, nothing gets saved
If no error, everything gets saved
Flush (if auto-increment needed)
def save_test(student, answers):
for answer in answers:
conn.add(Answer(answer))
conn.flush()
### use answers[0].id
grade = calcGrade(answers)
<< ? ERROR ? >>
conn.add(Test(student, grade))
conn.commit()

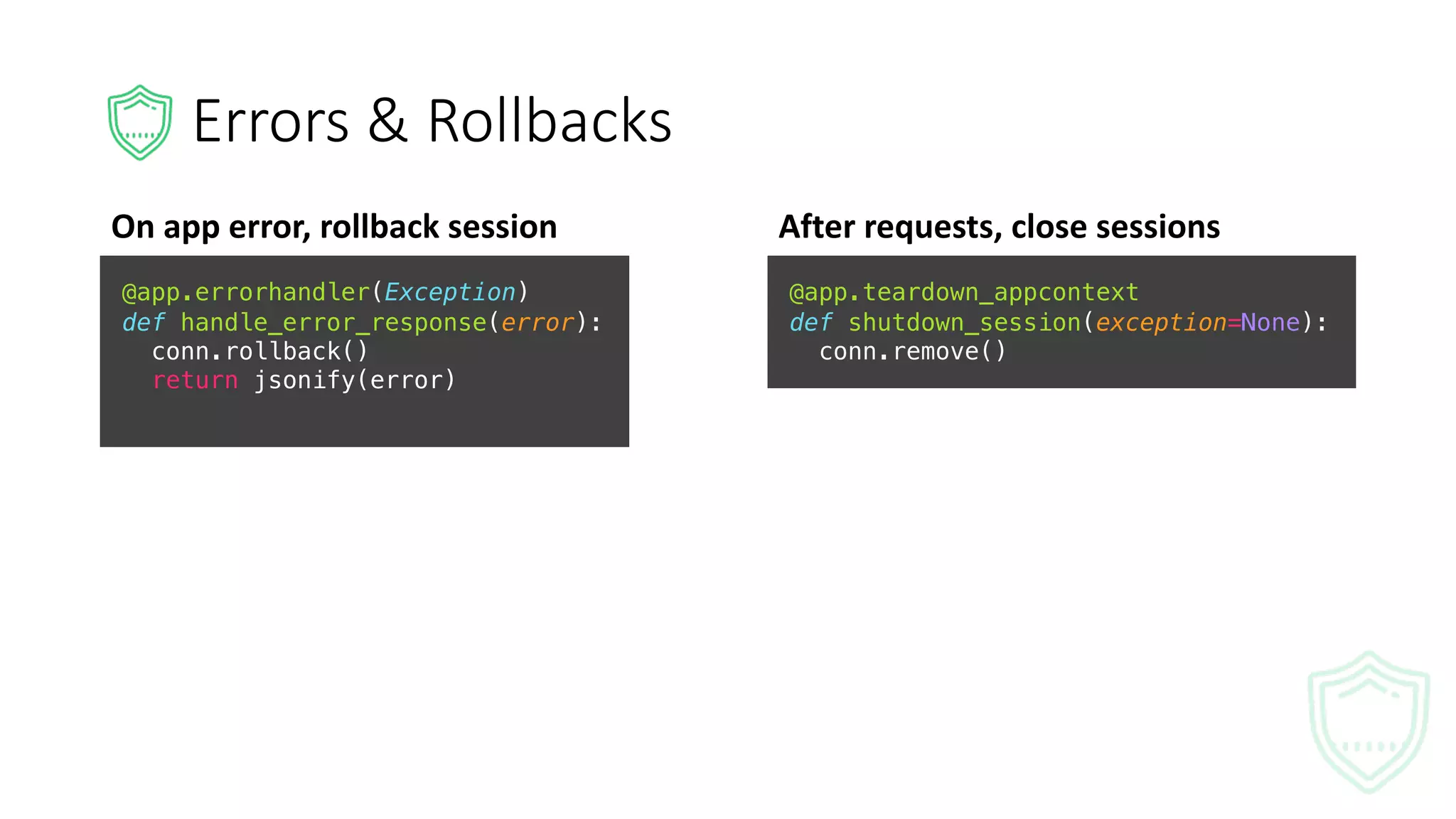

36. Errors & Rollbacks
On app error, rollback session
@app.errorhandler(Exception)
def handle_error_response(error):
conn.rollback()
return jsonify(error)
After requests, close sessions
@app.teardown_appcontext
def shutdown_session(exception=None):
conn.remove()

37. Flexible

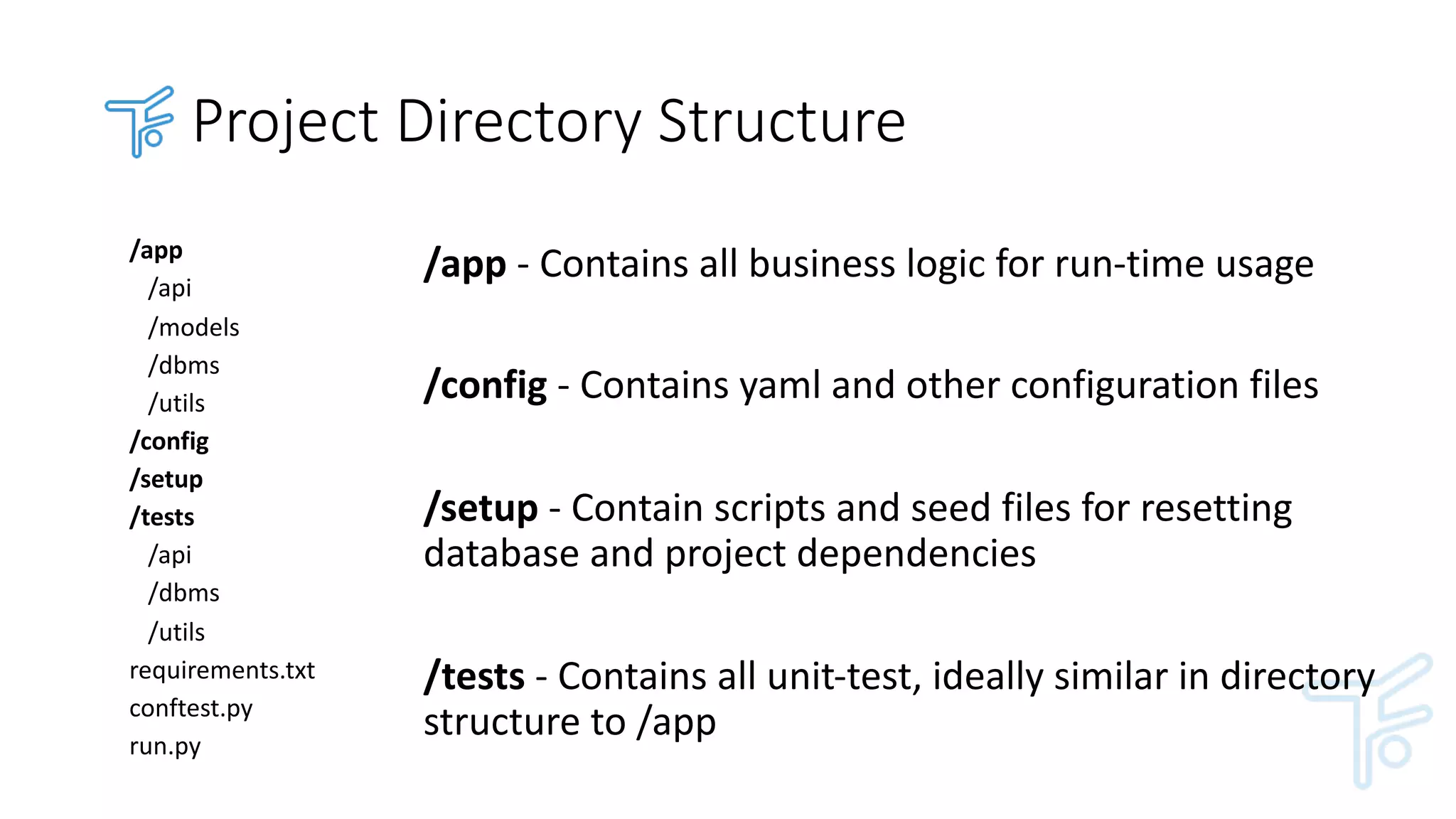

38. Project Directory Structure
/app
/api
/models
/dbms
/utils
/config
/setup
/tests
/api
/dbms
/utils
requirements.txt
conftest.py
run.py
/app - Contains all business logic for run-time usage
/config - Contains yaml and other configuration files
/setup - Contain scripts and seed files for resetting
database and project dependencies
/tests - Contains all unit-test, ideally similar in directory
structure to /app

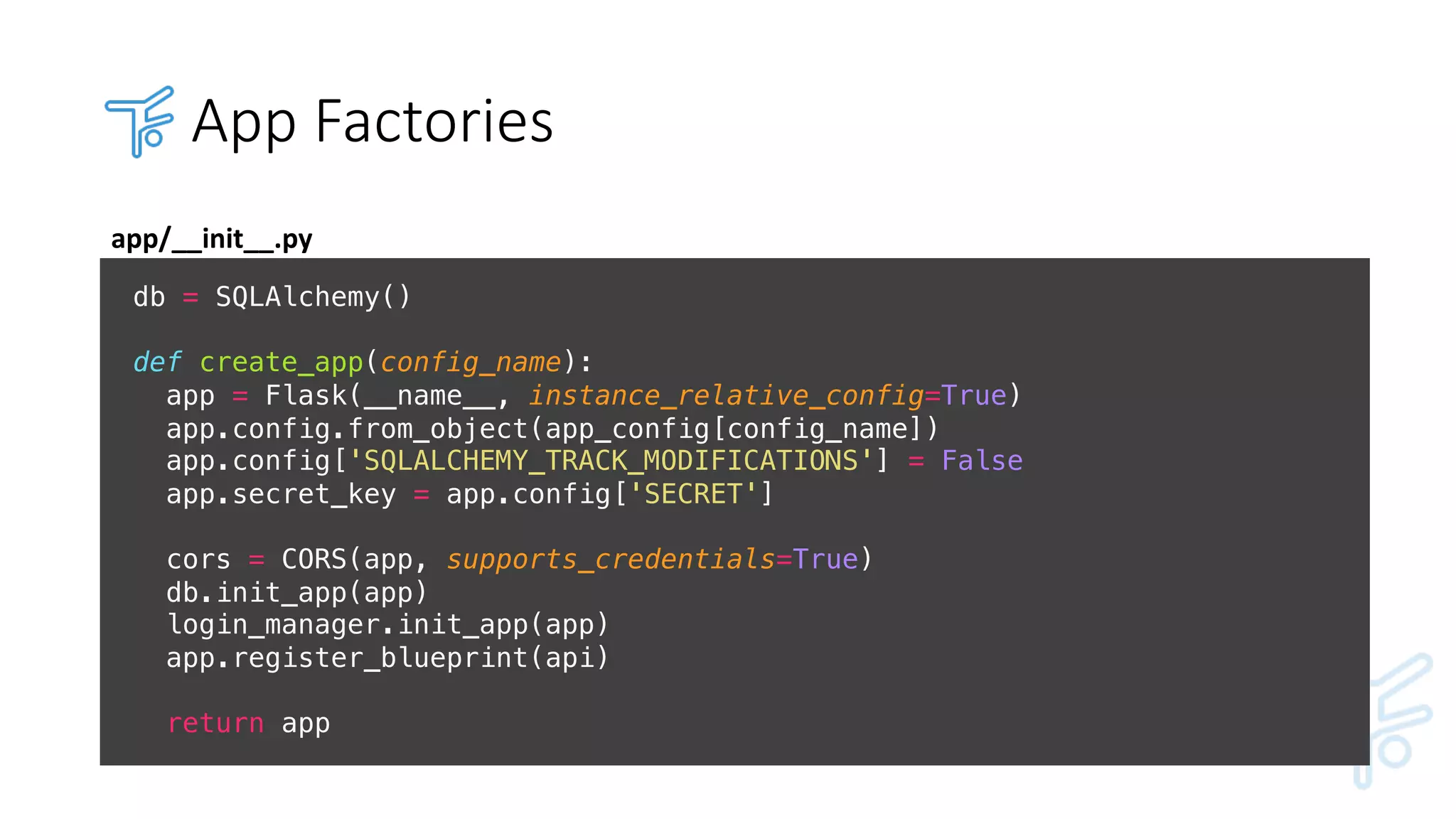

39. App Factories
app/__init__.py
db = SQLAlchemy()
def create_app(config_name):
app = Flask(__name__, instance_relative_config=True)
app.config.from_object(app_config[config_name])
app.config['SQLALCHEMY_TRACK_MODIFICATIONS'] = False
app.secret_key = app.config['SECRET']
cors = CORS(app, supports_credentials=True)
db.init_app(app)
login_manager.init_app(app)
app.register_blueprint(api)
return app

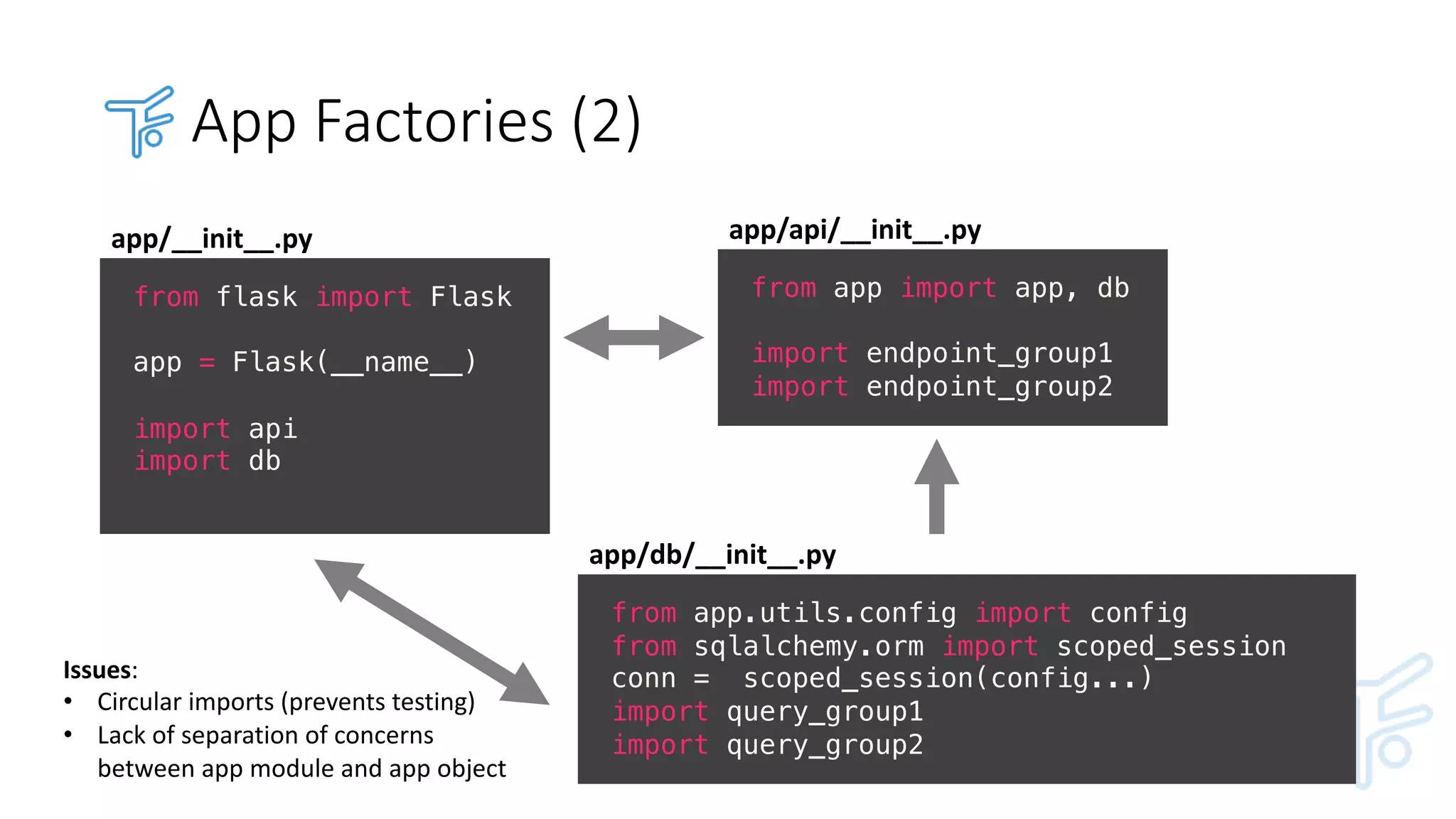

40. App Factories (2)
app/__init__.py
from flask import Flask
app = Flask(__name__)
import api
import db
app/api/__init__.py
from app import app, db
import endpoint_group1
import endpoint_group2
app/db/__init__.py
from app.utils.config import config
from sqlalchemy.orm import scoped_session
conn = scoped_session(config...)
import query_group1
import query_group2
Issues:
• Circular imports (prevents testing)
• Lack of separation of concerns
between app module and app object

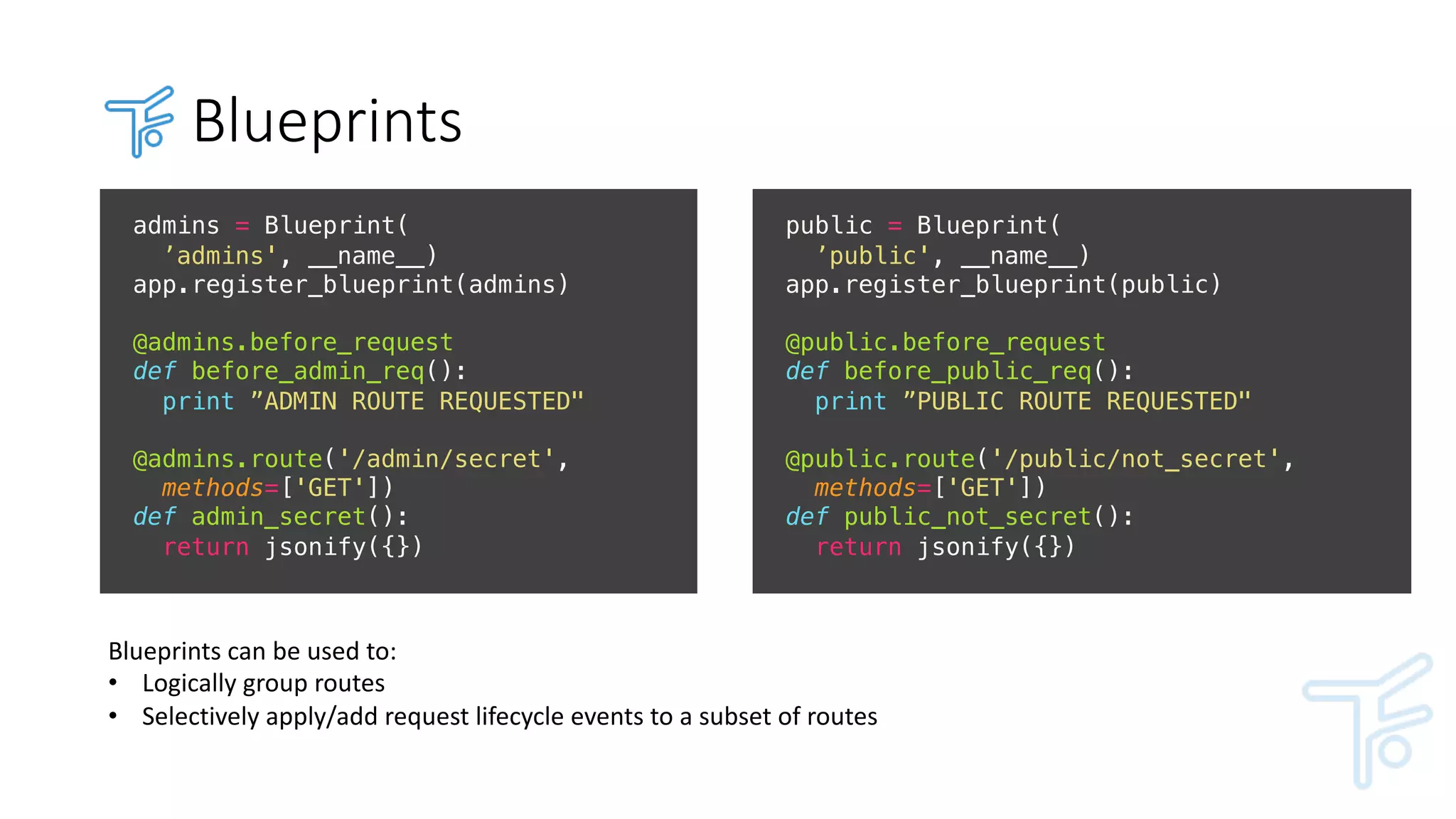

41. Blueprints
admins = Blueprint(
’admins', __name__)
app.register_blueprint(admins)
@admins.before_request
def before_admin_req():
print ”ADMIN ROUTE REQUESTED"
@admins.route('/admin/secret',
methods=['GET'])
def admin_secret():
return jsonify({})
public = Blueprint(
’public', __name__)
app.register_blueprint(public)
@public.before_request
def before_public_req():
print ”PUBLIC ROUTE REQUESTED"
@public.route('/public/not_secret',
methods=['GET'])
def public_not_secret():
return jsonify({})
Blueprints can be used to:
• Logically group routes
• Selectively apply/add request lifecycle events to a subset of routes

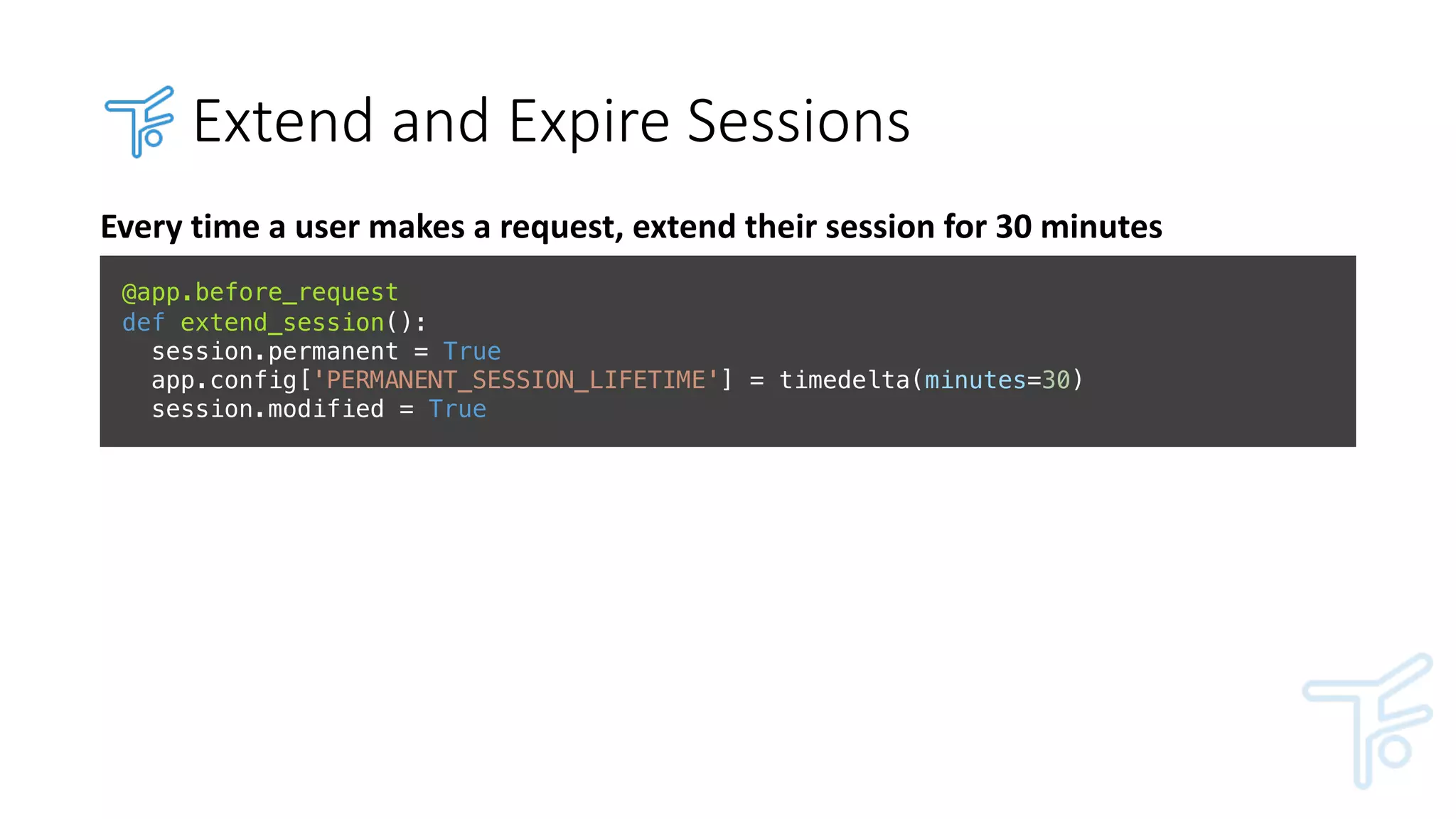

42. Extend and Expire Sessions
Every time a user makes a request, extend their session for 30 minutes
@app.before_request
def extend_session():
session.permanent = True
app.config['PERMANENT_SESSION_LIFETIME'] = timedelta(minutes=30)
session.modified = True

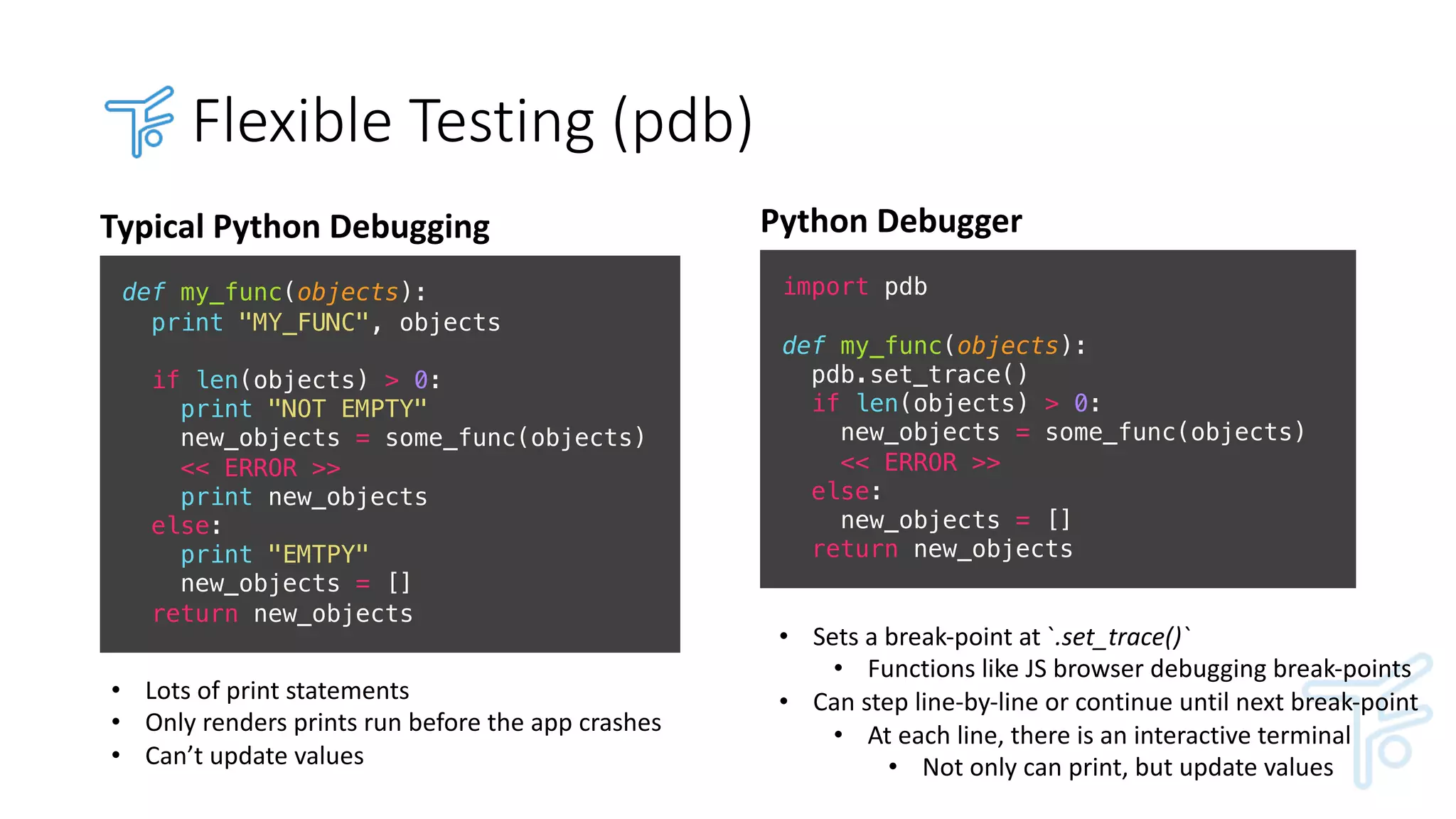

43. Flexible Testing (pdb)
Typical Python Debugging
def my_func(objects):
print "MY_FUNC", objects
if len(objects) > 0:
print "NOT EMPTY"
new_objects = some_func(objects)
<< ERROR >>
print new_objects
else:
print "EMTPY"
new_objects = []
return new_objects
• Lots of print statements
• Only renders prints run before the app crashes
• Can’t update values
Python Debugger
import pdb
def my_func(objects):
pdb.set_trace()
if len(objects) > 0:
new_objects = some_func(objects)
<< ERROR >>
else:
new_objects = []
return new_objects
• Sets a break-point at `.set_trace()`
• Functions like JS browser debugging break-points
• Can step line-by-line or continue until next break-point
• At each line, there is an interactive terminal
• Not only can print, but update values

44. Reliable User Friendly Fast
APIs That Make Users Happy

45. Reliable

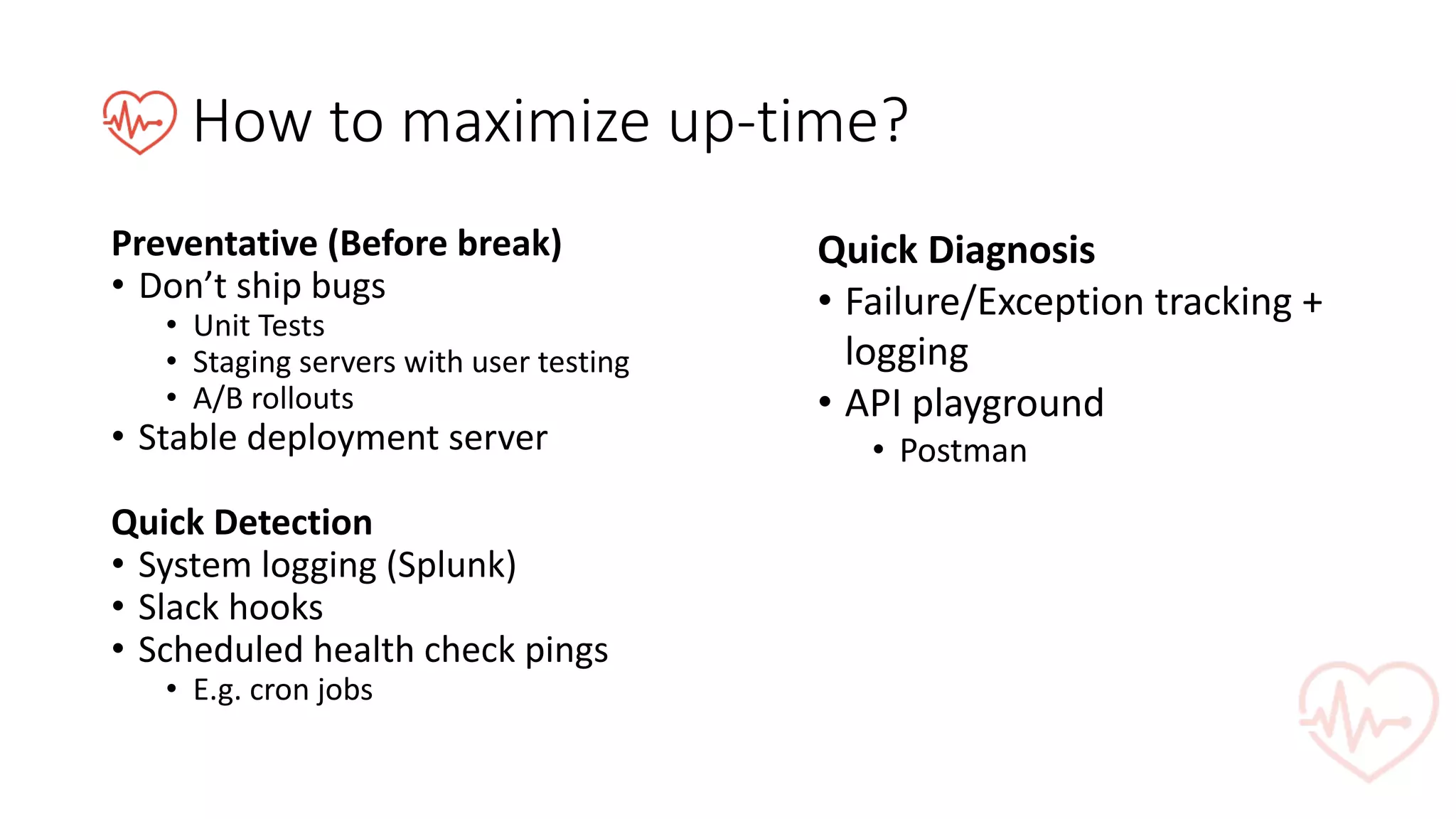

46. How to maximize up-time?
Preventative (Before break)
• Don’t ship bugs
• Unit Tests
• Staging servers with user testing
• A/B rollouts
• Stable deployment server
Quick Detection
• System logging (Splunk)
• Slack hooks
• Scheduled health check pings
• E.g. cron jobs
Quick Diagnosis
• Failure/Exception tracking +
logging
• API playground
• Postman

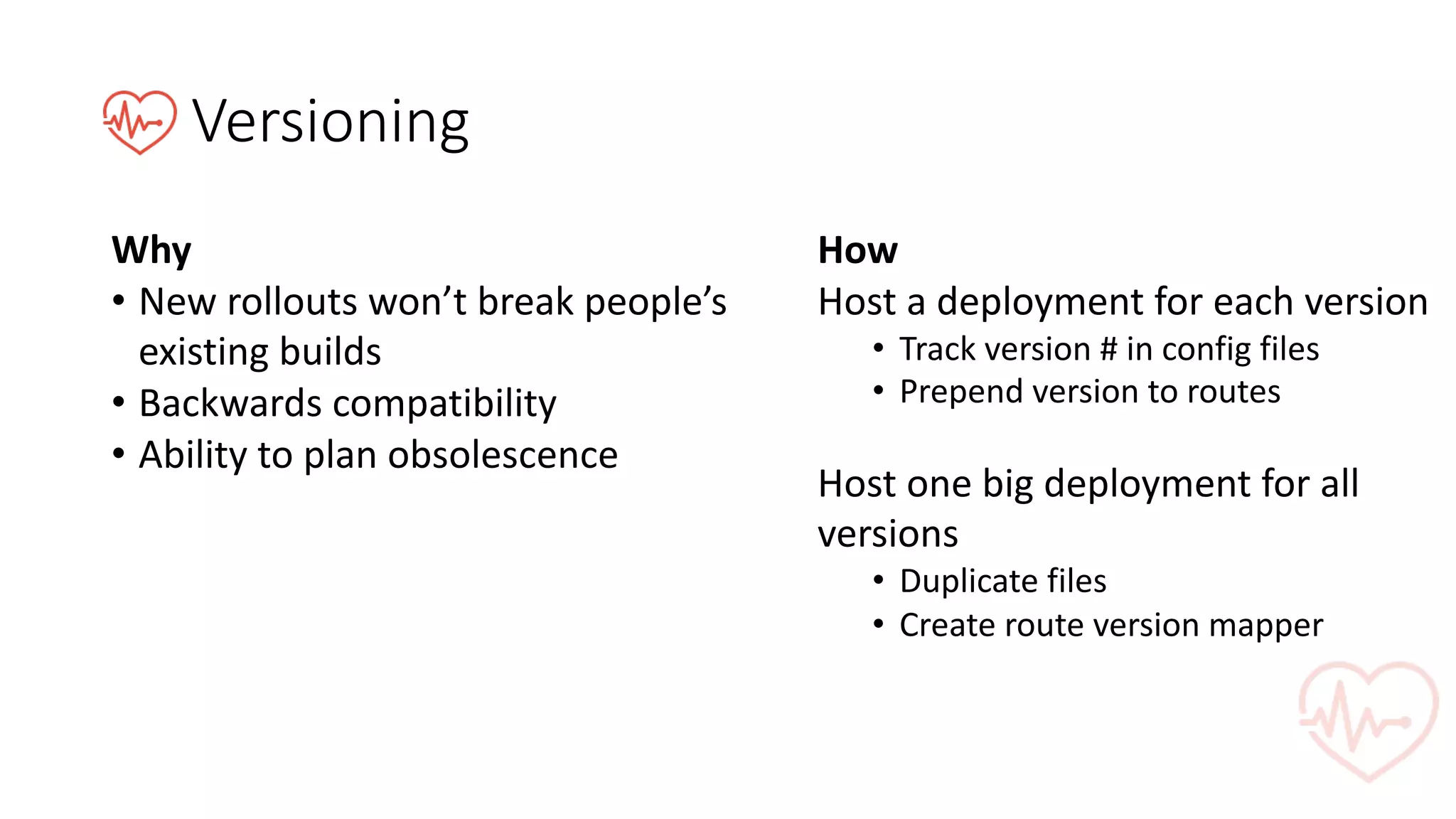

47. Versioning
Why
• New rollouts won’t break people’s
existing builds
• Backwards compatibility
• Ability to plan obsolescence
How
Host a deployment for each version
• Track version # in config files
• Prepend version to routes
Host one big deployment for all
versions
• Duplicate files
• Create route version mapper

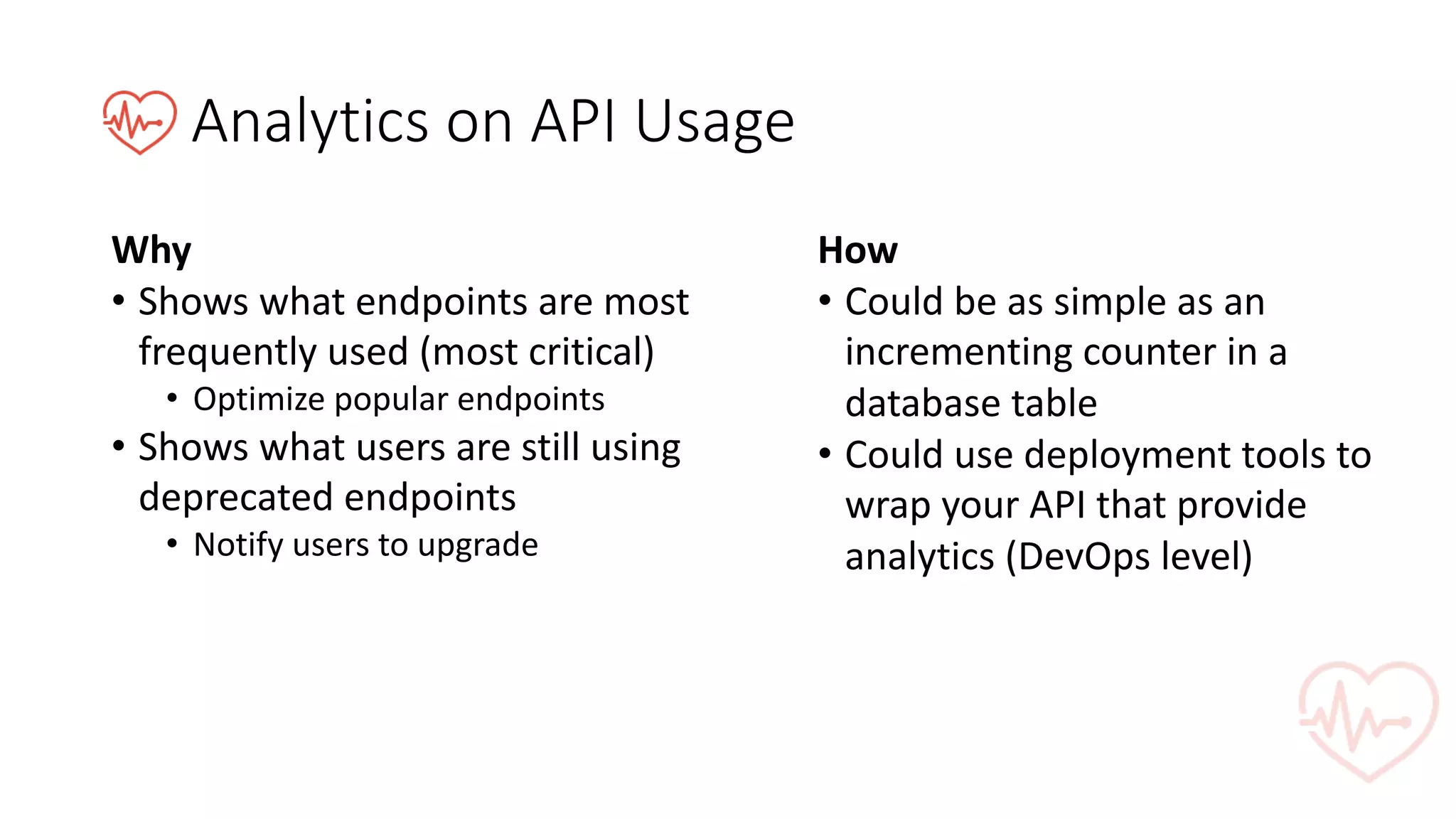

48. Analytics on API Usage
Why
• Shows what endpoints are most
frequently used (most critical)
• Optimize popular endpoints
• Shows what users are still using
deprecated endpoints
• Notify users to upgrade
How
• Could be as simple as an
incrementing counter in a
database table
• Could use deployment tools to
wrap your API that provide
analytics (DevOps level)

49. User Friendly

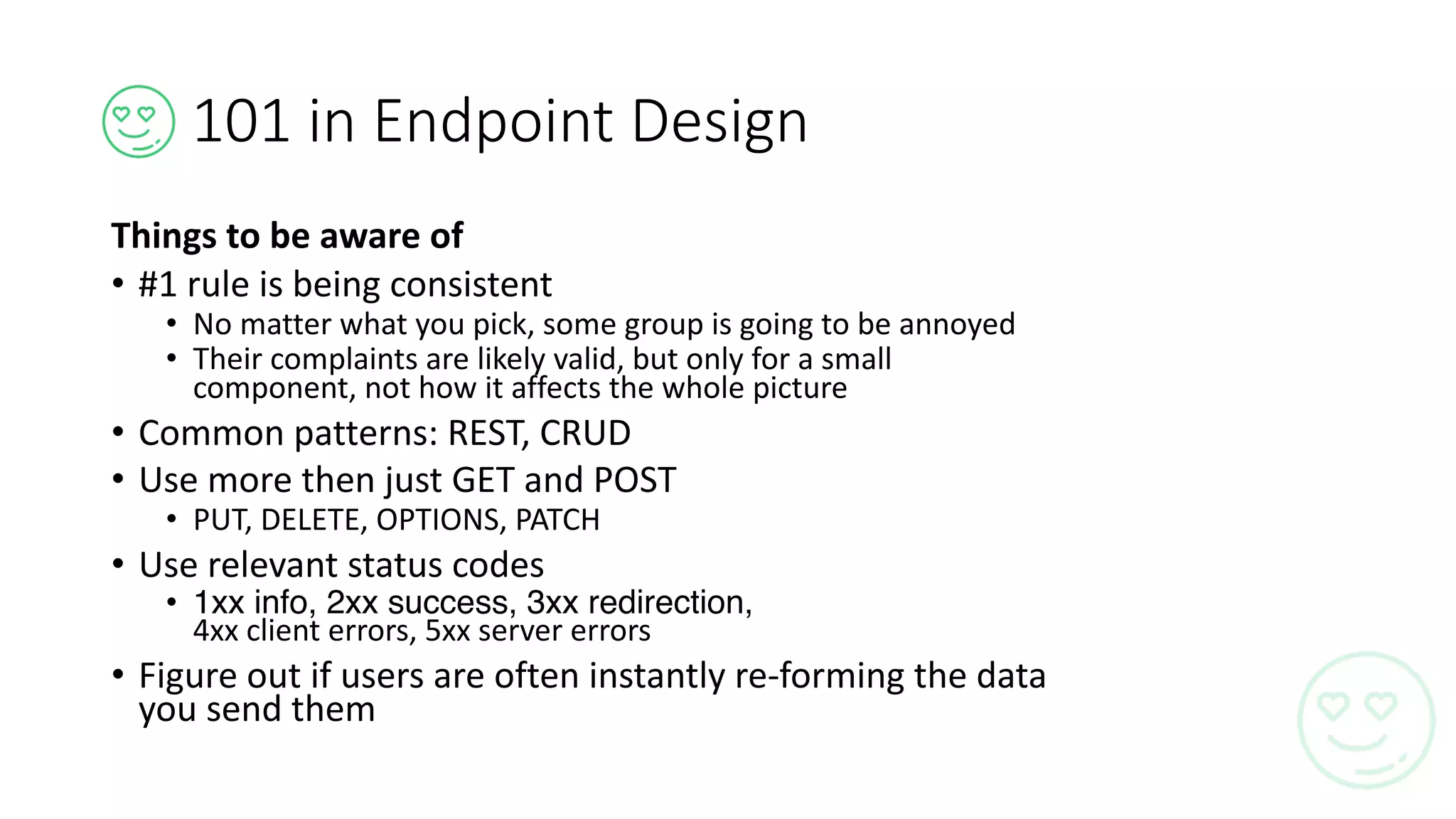

50. 101 in Endpoint Design
Things to be aware of
• #1 rule is being consistent
• No matter what you pick, some group is going to be annoyed
• Their complaints are likely valid, but only for a small
component, not how it affects the whole picture
• Common patterns: REST, CRUD
• Use more then just GET and POST
• PUT, DELETE, OPTIONS, PATCH
• Use relevant status codes
• 1xx info, 2xx success, 3xx redirection,
4xx client errors, 5xx server errors
• Figure out if users are often instantly re-forming the data
you send them

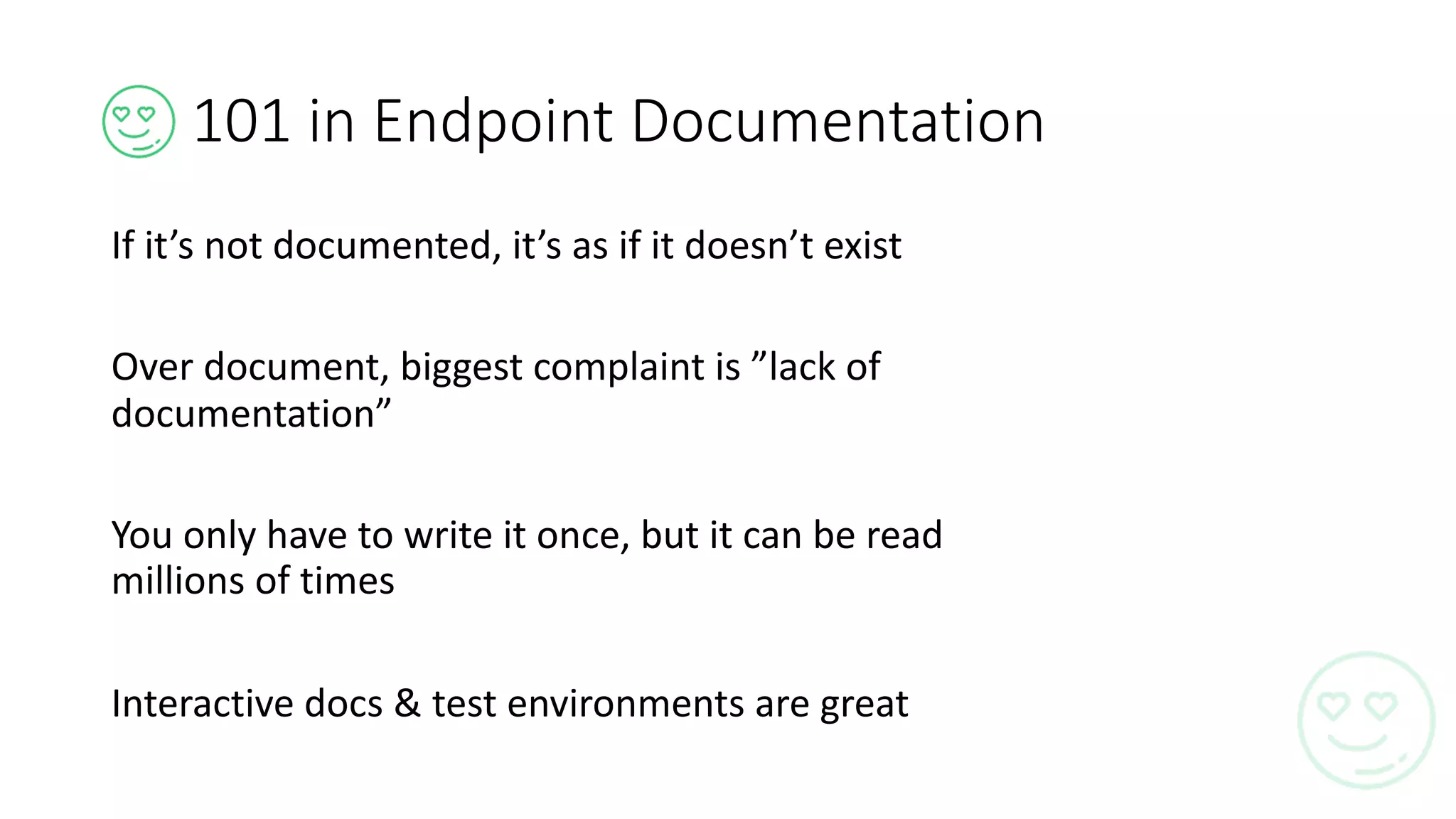

51. 101 in Endpoint Documentation
If it’s not documented, it’s as if it doesn’t exist
Over document, biggest complaint is ”lack of
documentation”
You only have to write it once, but it can be read
millions of times
Interactive docs & test environments are great

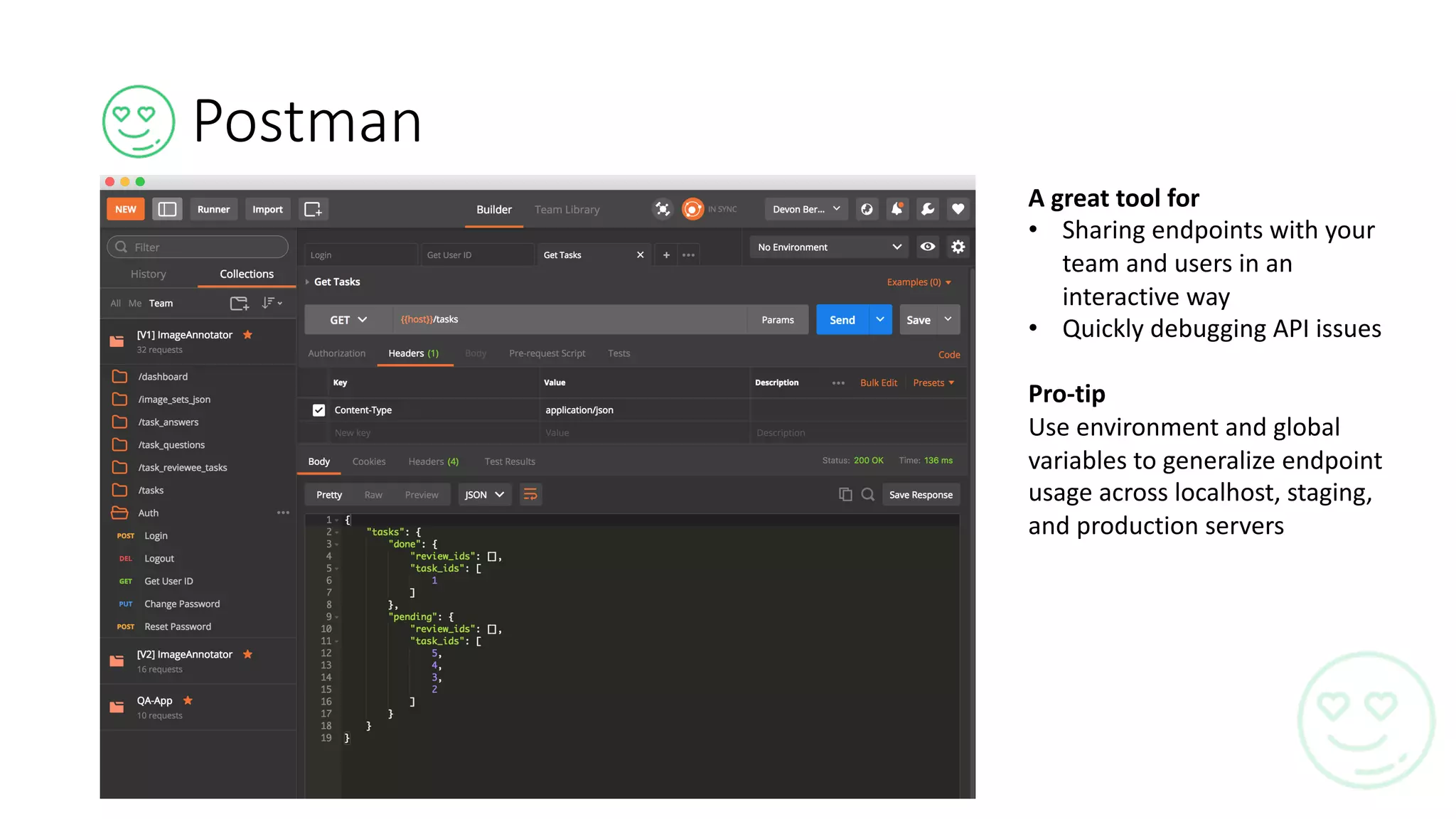

52. Postman
A great tool for
• Sharing endpoints with your
team and users in an
interactive way
• Quickly debugging API issues
Pro-tip
Use environment and global
variables to generalize endpoint
usage across localhost, staging,
and production servers

53. Fast

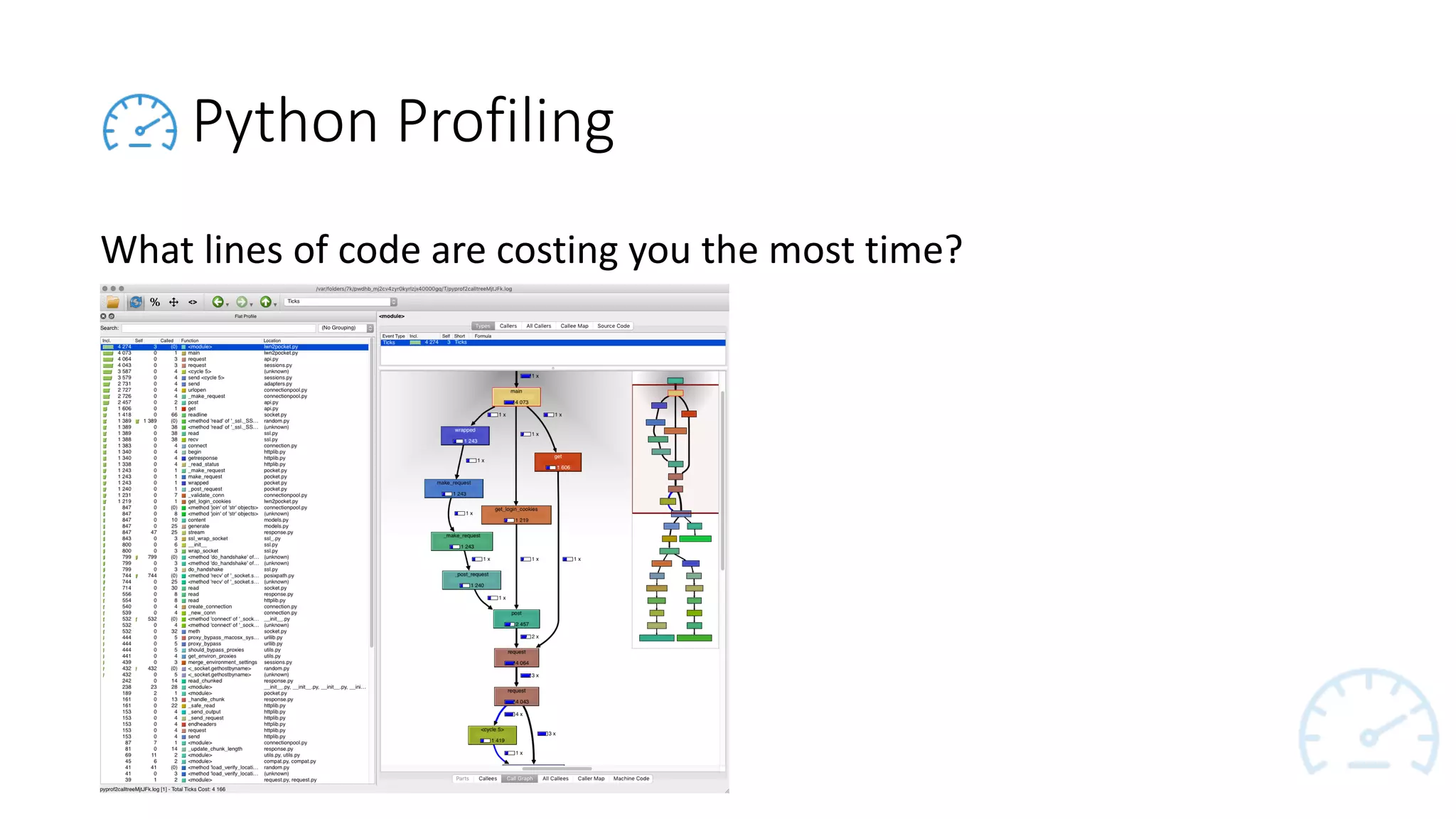

54. Python Profiling
What lines of code are costing you the most time?

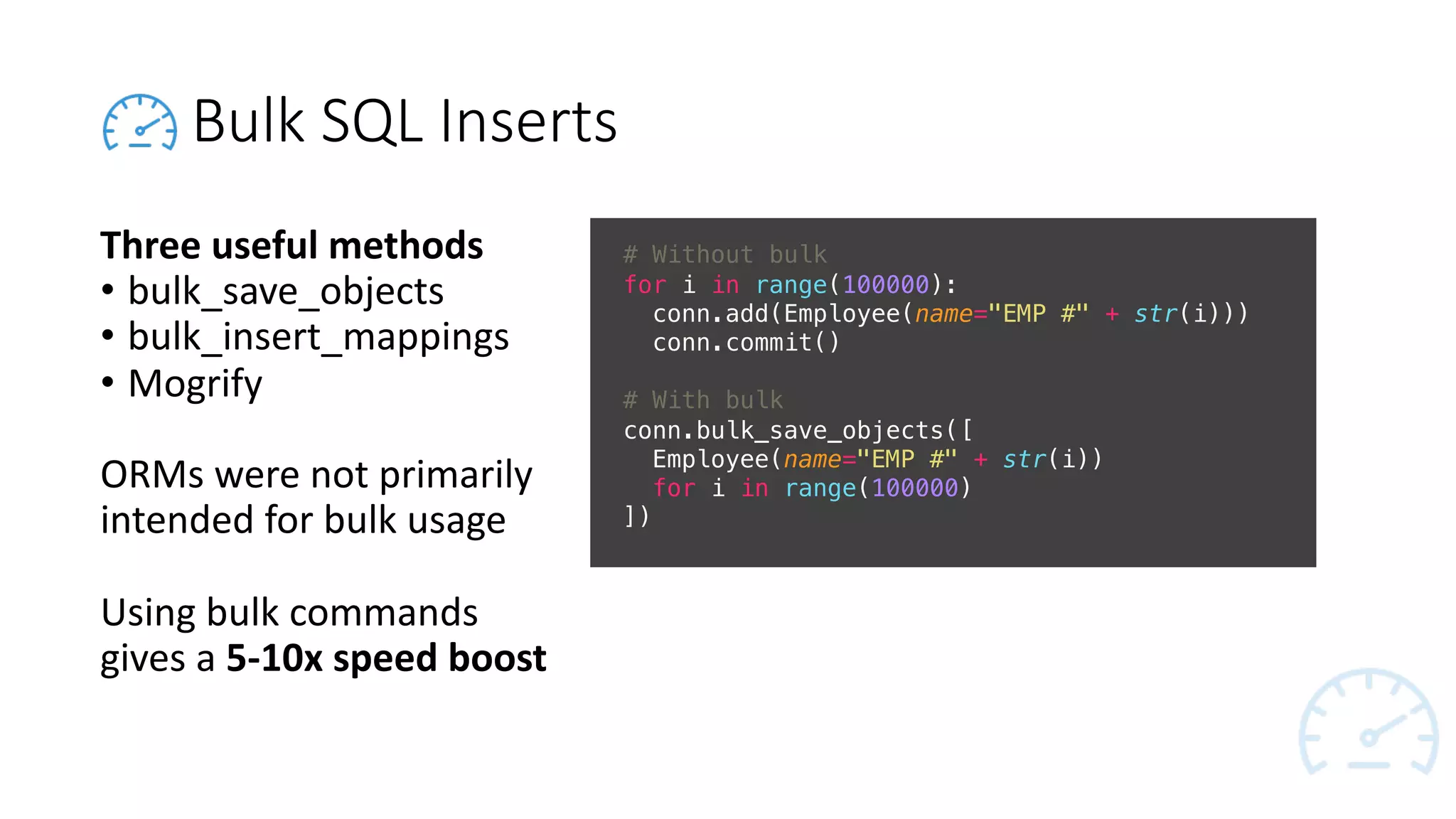

55. Bulk SQL Inserts
Three useful methods
• bulk_save_objects
• bulk_insert_mappings
• Mogrify
ORMs were not primarily
intended for bulk usage
Using bulk commands
gives a 5-10x speed boost
# Without bulk
for i in range(100000):
conn.add(Employee(name="EMP #" + str(i)))
conn.commit()
# With bulk
conn.bulk_save_objects([
Employee(name="EMP #" + str(i))
for i in range(100000)
])

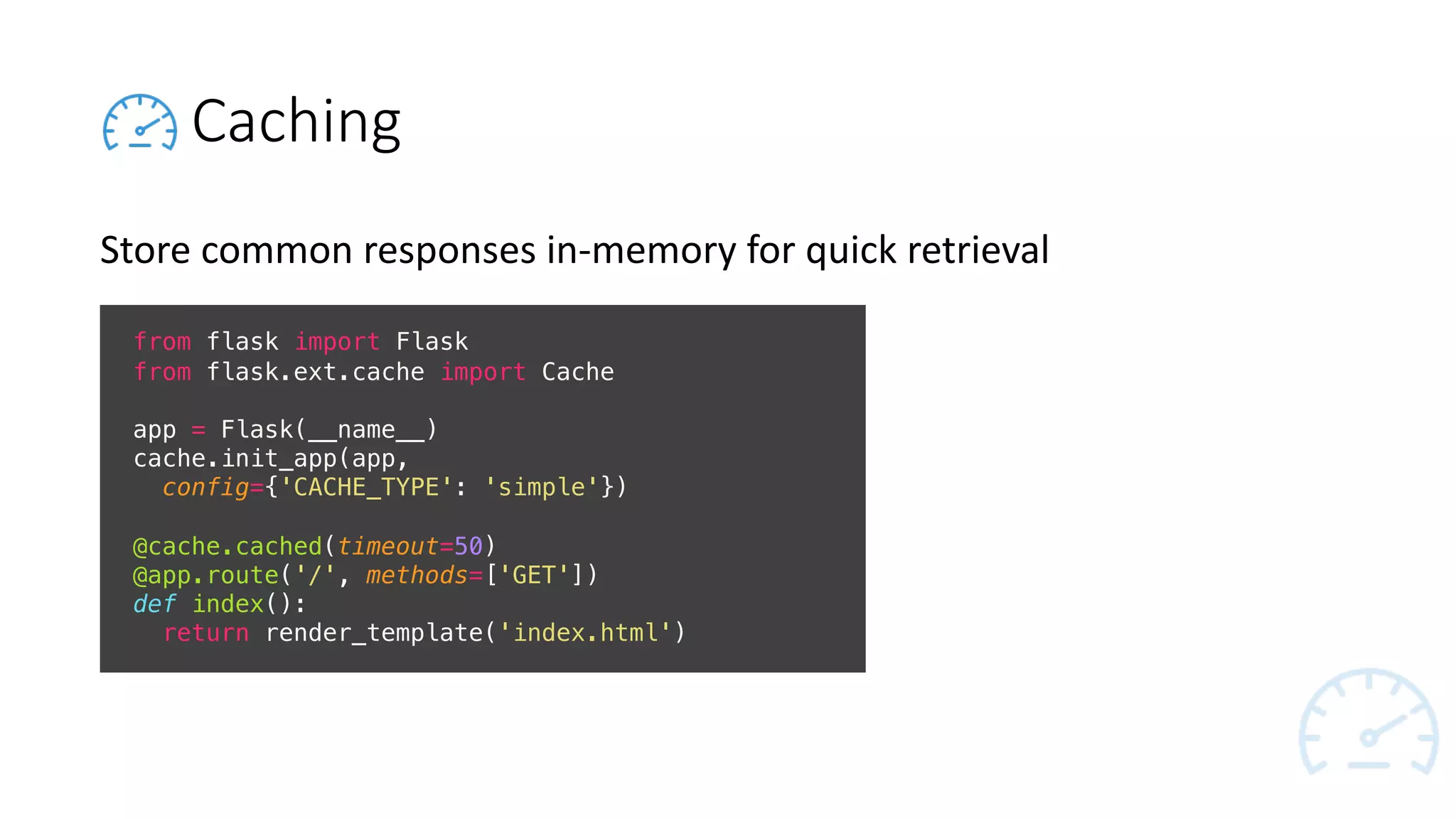

56. Caching
Store common responses in-memory for quick retrieval
from flask import Flask
from flask.ext.cache import Cache
app = Flask(__name__)
cache.init_app(app,
config={'CACHE_TYPE': 'simple'})
@cache.cached(timeout=50)
@app.route('/', methods=['GET'])
def index():
return render_template('index.html')

57. Devon Bernard
VP of Engineering @ Enlitic
" devon@enlitic.com
# @devonwbernard
Thank you!
Any questions?
