We've all heard the mantra about the importance of clustered indexes, but what about non-clustered indexes? Do you really need non-clustered indexes or are they just something that consultants recommend to increase their billable hours? In this session, we'll investigate the various flavors of non-clustered indexes and how they can be used to provide significant performance improvements.

1. How Do Non-Clustered
Indexes Improve Performance?

2. Introduction
Jason
Strate
e: jstrate@pragmaticworks.com
e: jasonstrate@gmail.com
b: www.jasonstrate.com
t: StrateSQL
Resources
jasonstrate.com/go/indexing
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

3. About Pragmatic Works
•
•
•
•
•
•
•
Industry leaders in Microsoft BI and SQL Server
Platform
SQL Server Professionals - PASS Board of Directors,
Speakers, Authors and MVP’s
National Sales Team Divided by Microsoft
Territories
National System Integrator (NSI)
Gold Certified in Business Intelligence and Data
Platform
Platform Modernization/Safe Passage
Premier Partner for PDW SI Partner Program
MS PDW Partner of Year FY13
Frontline Partnership Partner of the Year for Big Data
Executive sponsor - Andy Mouacdie, WW sales director
PDW
•
•
Over 7,200 customers worldwide
Over 186,000 people in PW database for demand
generation
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

4. Indexes

5. The “One” Path

6. Other Paths…

8. Agenda
Introduction
Just The
Cluster
Non-Clustered
Index Patterns
MAKING BUSINESS INTELLIGENT
Value of NonClustered
Summary
www.pragmaticworks.com

9. Introduction
Just The
Cluster
Value of
NonClustered
NonClustered
Index
Patterns
Summary
CLUSTERED INDEX OR HEAP
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

10. Introduction
Just The
Cluster
Value of
NonClustered
NonClustered
Index
Patterns
Summary
JUST THE CLUSTER
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

11. Clustered
• Default data storage
• Sorted data storage
– One or more columns
– Data and index stored
together
• Fragmentation
• Operations
– Clustered index scan
– Clustered index seek
– Key Lookup

12. The Clustered Index Problem
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

13. The Clustered Index Problem
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

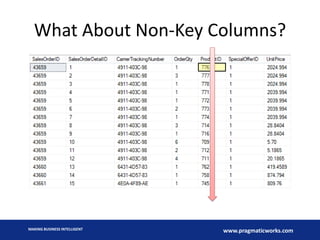

14. What About Non-Key Columns?
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

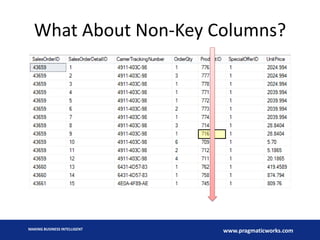

15. What About Non-Key Columns?
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

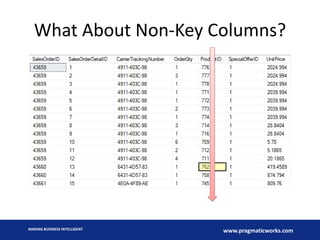

16. What About Non-Key Columns?
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

17. Demo
CLUSTERED INDEX PROBLEM
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

18. Left searching for answers…

19. Got Problems?
• Locks
– Lock Escalation
– Blocking
– Deadlocking
• Resource
– CPU
– Memory
– Storage
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

20. Introduction
Just The
Cluster
Value of
NonClustered
NonClustered
Index
Patterns
Summary
VALUE OF NON-CLUSTERED
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

21. • Sorted key values
–One or more columns
–Key values only
–Pointers to Heap/Clustered
Index rows
• Secondary data access
– Bridge to the data
• Operations
– Index scan
– Index seek
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

22. Additional Index Magic
• Included Columns
– Add data pages to index
– Bring in the data pages!
• Filtered Indexes
– Reduce the index pages
• Data Compression
– Row/Page
– Reduce the index pages
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

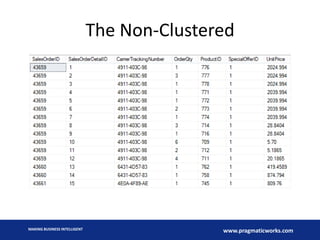

23. The Non-Clustered
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

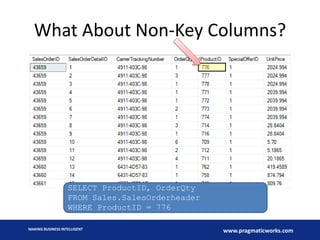

24. What About Non-Key Columns?
SELECT ProductID, OrderQty
FROM Sales.SalesOrderheader
WHERE ProductID = 776
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

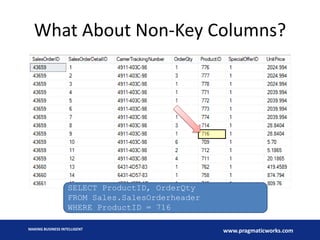

25. What About Non-Key Columns?
SELECT ProductID, OrderQty
FROM Sales.SalesOrderheader
WHERE ProductID = 716
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

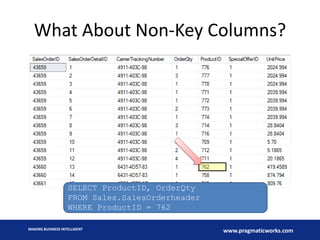

26. What About Non-Key Columns?
SELECT ProductID, OrderQty
FROM Sales.SalesOrderheader
WHERE ProductID = 762
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

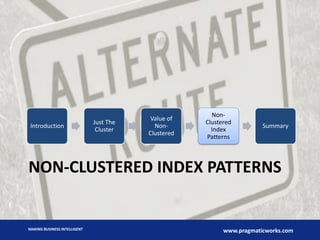

27. Introduction
Just The
Cluster
Value of
NonClustered
NonClustered
Index
Patterns
Summary
NON-CLUSTERED INDEX PATTERNS
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

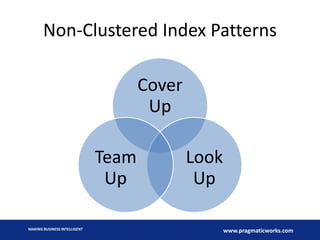

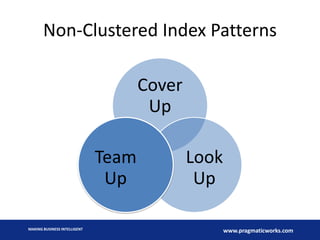

28. Non-Clustered Index Patterns
Cover
Up
Team
Up
MAKING BUSINESS INTELLIGENT
Look
Up
www.pragmaticworks.com

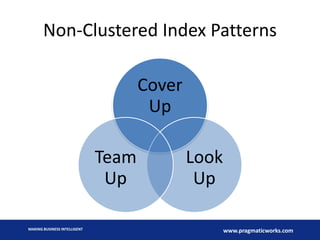

29. Non-Clustered Index Patterns
Cover
Up
Team
Up
MAKING BUSINESS INTELLIGENT
Look
Up
www.pragmaticworks.com

30. Non-Clustered Indexes - Cover Up
CREATE INDEX IX_Sample ON
Sales.SalesOrderheader (ProductID)
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

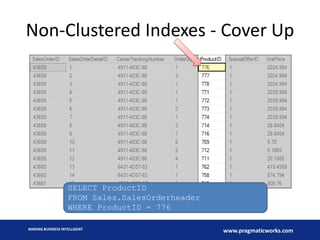

31. Non-Clustered Indexes - Cover Up
SELECT ProductID
FROM Sales.SalesOrderheader
WHERE ProductID = 776
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

32. Non-Clustered Indexes - Cover Up
SELECT ProductID
FROM Sales.SalesOrderheader
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

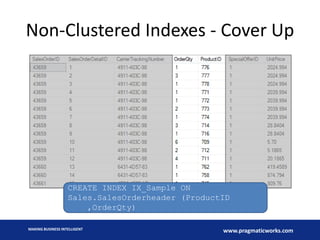

33. Non-Clustered Indexes - Cover Up
CREATE INDEX IX_Sample ON
Sales.SalesOrderheader (ProductID
,OrderQty)
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

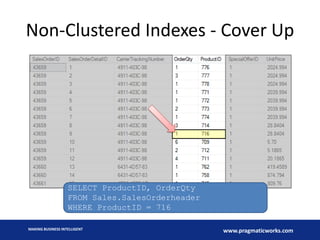

34. Non-Clustered Indexes - Cover Up
SELECT ProductID, OrderQty
FROM Sales.SalesOrderheader
WHERE ProductID = 716
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

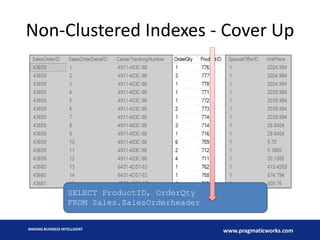

35. Non-Clustered Indexes - Cover Up
SELECT ProductID, OrderQty
FROM Sales.SalesOrderheader
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

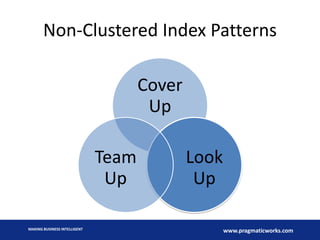

36. Non-Clustered Index Patterns
Cover
Up
Team
Up
MAKING BUSINESS INTELLIGENT
Look
Up
www.pragmaticworks.com

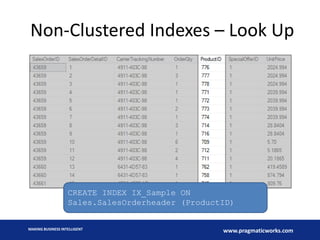

37. Non-Clustered Indexes – Look Up
CREATE INDEX IX_Sample ON
Sales.SalesOrderheader (ProductID)
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

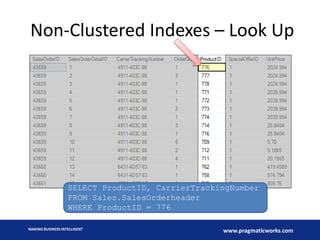

38. Non-Clustered Indexes – Look Up
SELECT ProductID, CarrierTrackingNumber
FROM Sales.SalesOrderheader
WHERE ProductID = 776
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

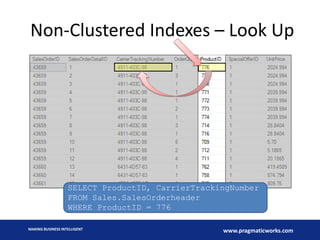

39. Non-Clustered Indexes – Look Up
SELECT ProductID, CarrierTrackingNumber
FROM Sales.SalesOrderheader
WHERE ProductID = 776
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

40. Non-Clustered Index Patterns
Cover
Up
Team
Up
MAKING BUSINESS INTELLIGENT
Look
Up
www.pragmaticworks.com

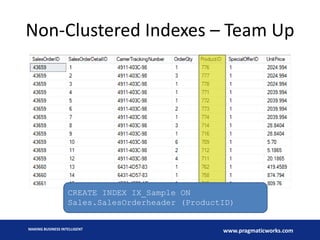

41. Non-Clustered Indexes – Team Up
CREATE INDEX IX_Sample ON
Sales.SalesOrderheader (ProductID)
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

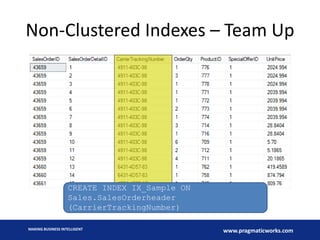

42. Non-Clustered Indexes – Team Up
CREATE INDEX IX_Sample ON
Sales.SalesOrderheader
(CarrierTrackingNumber)
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

43. Non-Clustered Indexes – Team Up
SELECT ProductID, CarrierTrackingNumber
FROM Sales.SalesOrderheader
WHERE ProductID = 776
AND CarrierTrackingNumber = ‘4911-403C-98’
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

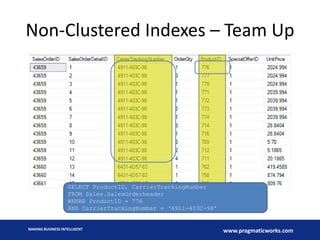

44. Non-Clustered Indexes – Team Up
SELECT ProductID, CarrierTrackingNumber
FROM Sales.SalesOrderheader
WHERE ProductID = 776
AND CarrierTrackingNumber = ‘4911-403C-98’
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

45. Demo
NON-CLUSTERED INDEX PATTERN
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

46. Introduction
Just The
Cluster
Value of
NonClustered
NonClustered
Index
Patterns
Summary
SUMMARY
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com

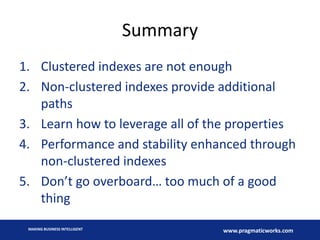

47. Summary
1. Clustered indexes are not enough
2. Non-clustered indexes provide additional
paths
3. Learn how to leverage all of the properties
4. Performance and stability enhanced through
non-clustered indexes
5. Don’t go overboard… too much of a good
thing
MAKING BUSINESS INTELLIGENT
www.pragmaticworks.com
