High Performance Tabular Databinding
- 1. High Performance Tabular Databinding Tony Juckel Cargill Risk Management Tuesday, April 19, 2011
- 2. What Are WeGoing to Cover • Quick overview of the databinding API • Some performance numbers • Tips on getting the best performance with the current iteration of the databinding framework Tuesday, April 19, 2011

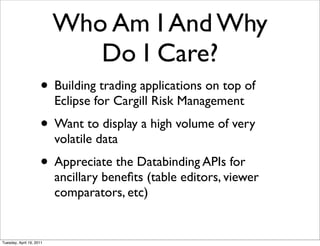

- 3. Who Am IAnd Why Do I Care? • Building trading applications on top of Eclipse for Cargill Risk Management • Want to display a high volume of very volatile data • Appreciate the Databinding APIs for ancillary benefits (table editors, viewer comparators, etc) Tuesday, April 19, 2011

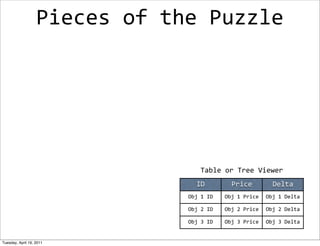

- 4. Pieces of the Puzzle Table or Tree Viewer ID Price Delta Obj 1 ID Obj 1 Price Obj 1 Delta Obj 2 ID Obj 2 Price Obj 2 Delta Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

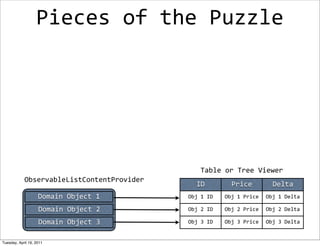

- 5. Pieces of the Puzzle Table or Tree Viewer ObservableListContentProvider ID Price Delta Domain Object 1 Obj 1 ID Obj 1 Price Obj 1 Delta Domain Object 2 Obj 2 ID Obj 2 Price Obj 2 Delta Domain Object 3 Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

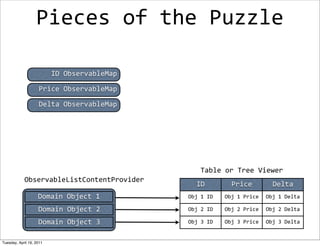

- 6. Pieces of the Puzzle ID ObservableMap Price ObservableMap Delta ObservableMap Table or Tree Viewer ObservableListContentProvider ID Price Delta Domain Object 1 Obj 1 ID Obj 1 Price Obj 1 Delta Domain Object 2 Obj 2 ID Obj 2 Price Obj 2 Delta Domain Object 3 Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

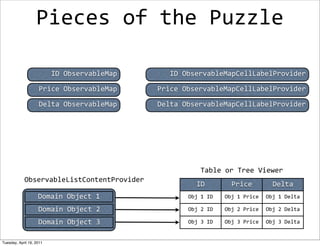

- 7. Pieces of the Puzzle ID ObservableMap ID ObservableMapCellLabelProvider Price ObservableMap Price ObservableMapCellLabelProvider Delta ObservableMap Delta ObservableMapCellLabelProvider Table or Tree Viewer ObservableListContentProvider ID Price Delta Domain Object 1 Obj 1 ID Obj 1 Price Obj 1 Delta Domain Object 2 Obj 2 ID Obj 2 Price Obj 2 Delta Domain Object 3 Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

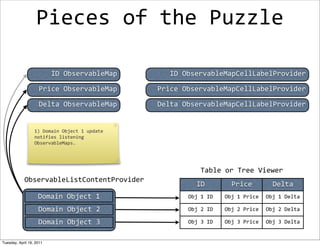

- 8. Pieces of the Puzzle ID ObservableMap ID ObservableMapCellLabelProvider Price ObservableMap Price ObservableMapCellLabelProvider Delta ObservableMap Delta ObservableMapCellLabelProvider 1) Domain Object 1 update notifies listening ObservableMaps. Table or Tree Viewer ObservableListContentProvider ID Price Delta Domain Object 1 Obj 1 ID Obj 1 Price Obj 1 Delta Domain Object 2 Obj 2 ID Obj 2 Price Obj 2 Delta Domain Object 3 Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

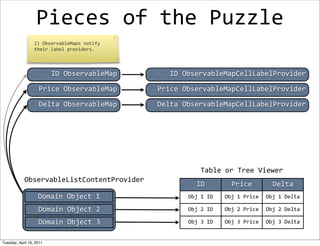

- 9. Pieces of the Puzzle 2) ObservableMaps notify their label providers. ID ObservableMap ID ObservableMapCellLabelProvider Price ObservableMap Price ObservableMapCellLabelProvider Delta ObservableMap Delta ObservableMapCellLabelProvider Table or Tree Viewer ObservableListContentProvider ID Price Delta Domain Object 1 Obj 1 ID Obj 1 Price Obj 1 Delta Domain Object 2 Obj 2 ID Obj 2 Price Obj 2 Delta Domain Object 3 Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

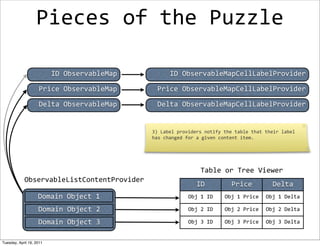

- 10. Pieces of the Puzzle ID ObservableMap ID ObservableMapCellLabelProvider Price ObservableMap Price ObservableMapCellLabelProvider Delta ObservableMap Delta ObservableMapCellLabelProvider 3) Label providers notify the table that their label has changed for a given content item. Table or Tree Viewer ObservableListContentProvider ID Price Delta Domain Object 1 Obj 1 ID Obj 1 Price Obj 1 Delta Domain Object 2 Obj 2 ID Obj 2 Price Obj 2 Delta Domain Object 3 Obj 3 ID Obj 3 Price Obj 3 Delta Tuesday, April 19, 2011

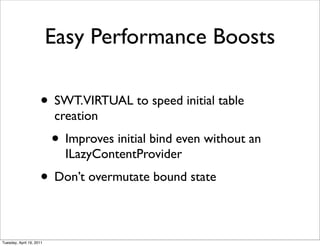

- 11. Easy Performance Boosts • SWT.VIRTUAL to speed initial table creation • Improves initial bind even without an ILazyContentProvider • Don’t overmutate bound state Tuesday, April 19, 2011
- 12. Easy Performance Boosts • StructuredViewer#setUseHashlookup • Helps table efficiently find Widgets associated with an updated Content Item • If false, we notice performance degredation at just 200 Content Items Tuesday, April 19, 2011

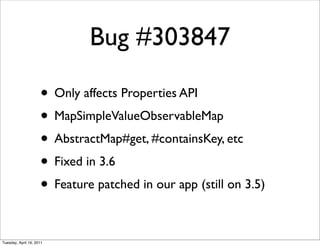

- 13. Bug #303847 • Only affects Properties API • MapSimpleValueObservableMap • AbstractMap#get, #containsKey, etc • Fixed in 3.6 • Feature patched in our app (still on 3.5) Tuesday, April 19, 2011
- 14. Digging Deeper • Sample Application • https://github.com/ajuckel/ org.example.emfdb Tuesday, April 19, 2011

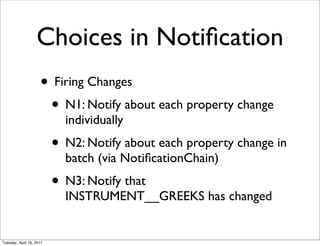

- 15. Choices in Notification • Firing Changes • N1: Notify about each property change individually • N2: Notify about each property change in batch (via NotificationChain) • N3: Notify that INSTRUMENT__GREEKS has changed Tuesday, April 19, 2011

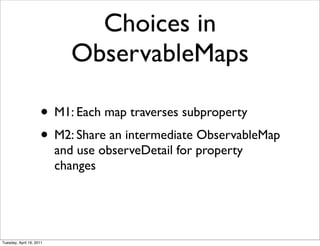

- 16. Choices in ObservableMaps • M1: Each map traverses subproperty • M2: Share an intermediate ObservableMap and use observeDetail for property changes Tuesday, April 19, 2011

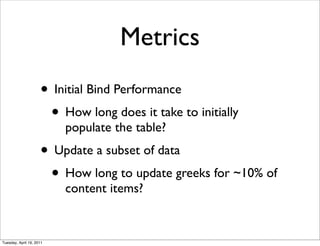

- 17. Metrics • Initial Bind Performance • How long does it take to initially populate the table? • Update a subset of data • How long to update greeks for ~10% of content items? Tuesday, April 19, 2011

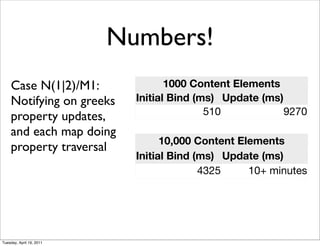

- 18. Numbers! Case N(1|2)/M1: 1000 Content Elements Notifying on greeks Initial Bind (ms) Update (ms) property updates, 510 9270 and each map doing 10,000 Content Elements property traversal Initial Bind (ms) Update (ms) 4325 10+ minutes Tuesday, April 19, 2011

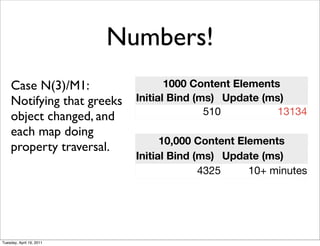

- 19. Numbers! Case N(3)/M1: 1000 Content Elements Notifying that greeks Initial Bind (ms) Update (ms) object changed, and 510 13134 each map doing 10,000 Content Elements property traversal. Initial Bind (ms) Update (ms) 4325 10+ minutes Tuesday, April 19, 2011

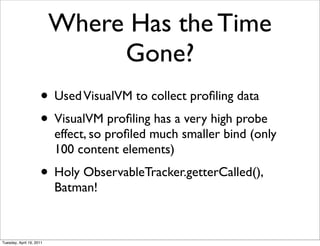

- 20. Where Has theTime Gone? • Used VisualVM to collect profiling data • VisualVM profiling has a very high probe effect, so profiled much smaller bind (only 100 content elements) • Holy ObservableTracker.getterCalled(), Batman! Tuesday, April 19, 2011

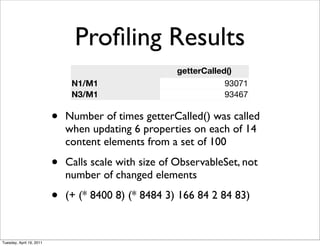

- 21. Profiling Results getterCalled() N1/M1 93071 N3/M1 93467 • Number of times getterCalled() was called when updating 6 properties on each of 14 content elements from a set of 100 • Calls scale with size of ObservableSet, not number of changed elements • (+ (* 8400 8) (* 8484 3) 166 84 2 84 83) Tuesday, April 19, 2011

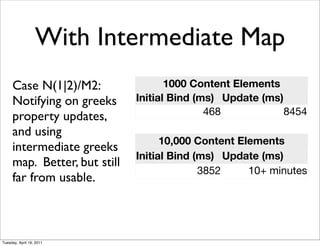

- 22. With Intermediate Map Case N(1|2)/M2: 1000 Content Elements Notifying on greeks Initial Bind (ms) Update (ms) property updates, 468 8454 and using 10,000 Content Elements intermediate greeks Initial Bind (ms) Update (ms) map. Better, but still 3852 10+ minutes far from usable. Tuesday, April 19, 2011
- 23. What’s Next? • We’ve found that traversing properties via IObservables is VERY expensive, due to the usage of ObservableTracker.getterCalled() • Can we create an IObservableMap that only listens to part of the property chain, yet still allows getting/setting of leaf values? Tuesday, April 19, 2011

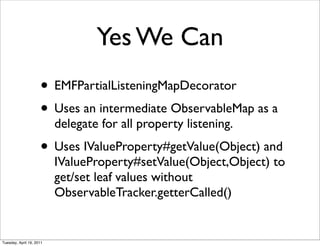

- 24. Yes We Can • EMFPartialListeningMapDecorator • Uses an intermediate ObservableMap as a delegate for all property listening. • Uses IValueProperty#getValue(Object) and IValueProperty#setValue(Object,Object) to get/set leaf values without ObservableTracker.getterCalled() Tuesday, April 19, 2011
- 25. Without Leaf Listening 1000 Content Elements Initial Bind (ms) Update (ms) Case N3/M3: 262 10 Only listens for changes to 10,000 Content Elements Instrument.greeks Initial Bind (ms) Update (ms) 2263 89 Tuesday, April 19, 2011

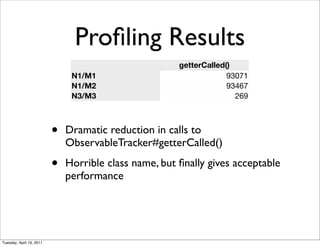

- 26. Profiling Results getterCalled() N1/M1 93071 N1/M2 93467 N3/M3 269 • Dramatic reduction in calls to ObservableTracker#getterCalled() • Horrible class name, but finally gives acceptable performance Tuesday, April 19, 2011
- 27. In Conclusion • Use SWT.VIRTUAL • Use StructuredViewer#setUseHashlookup() • Don’t use observables directly on properties of properties. • Either project values of interest into your content item, or use something like EMFPartialListeningMapDecorator Tuesday, April 19, 2011

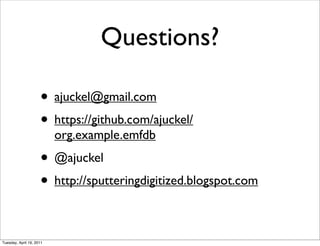

- 28. Questions? • ajuckel@gmail.com • https://github.com/ajuckel/ org.example.emfdb • @ajuckel • http://sputteringdigitized.blogspot.com Tuesday, April 19, 2011
